Component Testing
>>
Component Testing
>>
Master window control switch
Master window control switch

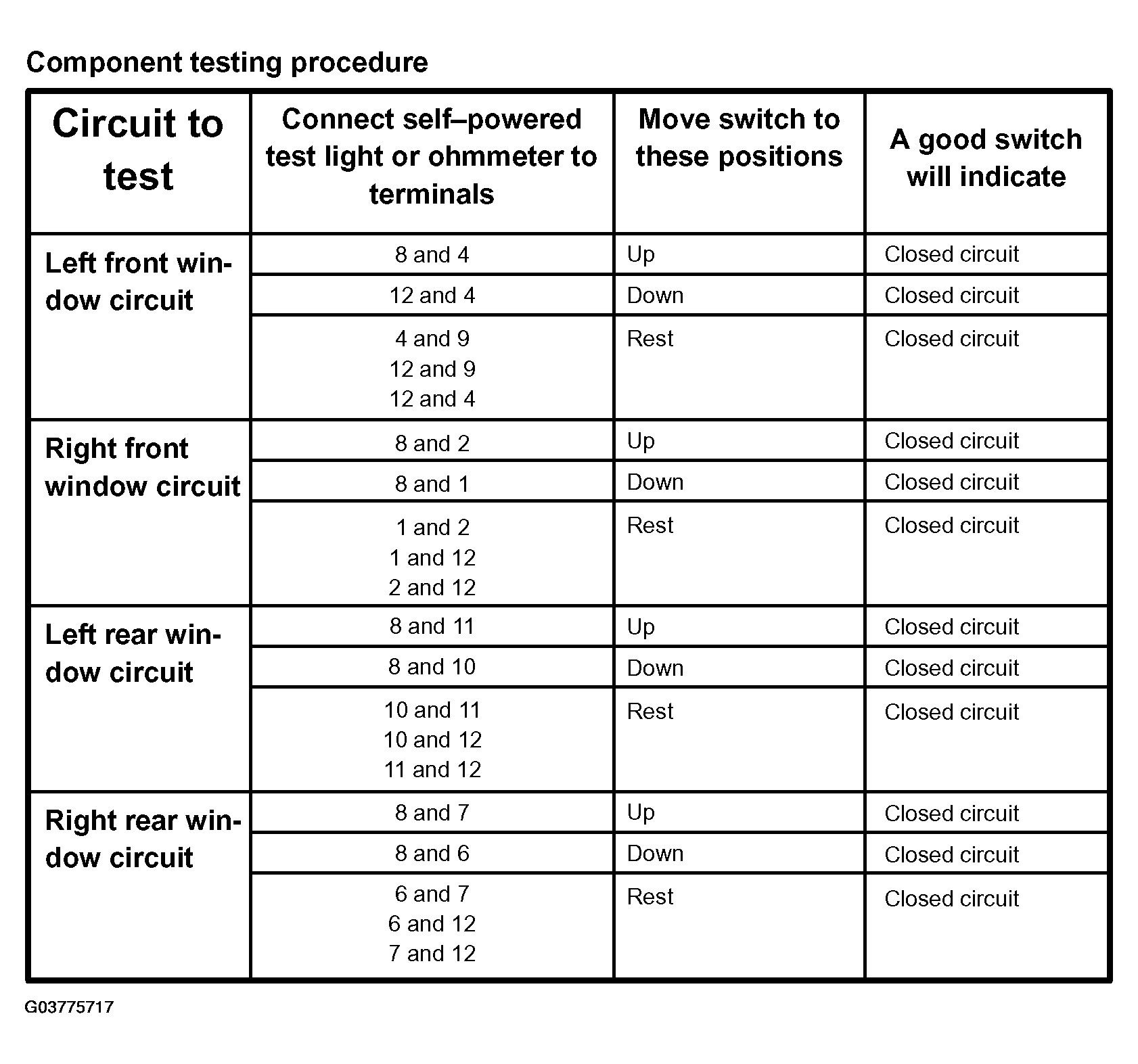

Fig 1: Testing Master Window Control Switch (1 Of 2)
Courtesy of FORD MOTOR CO.

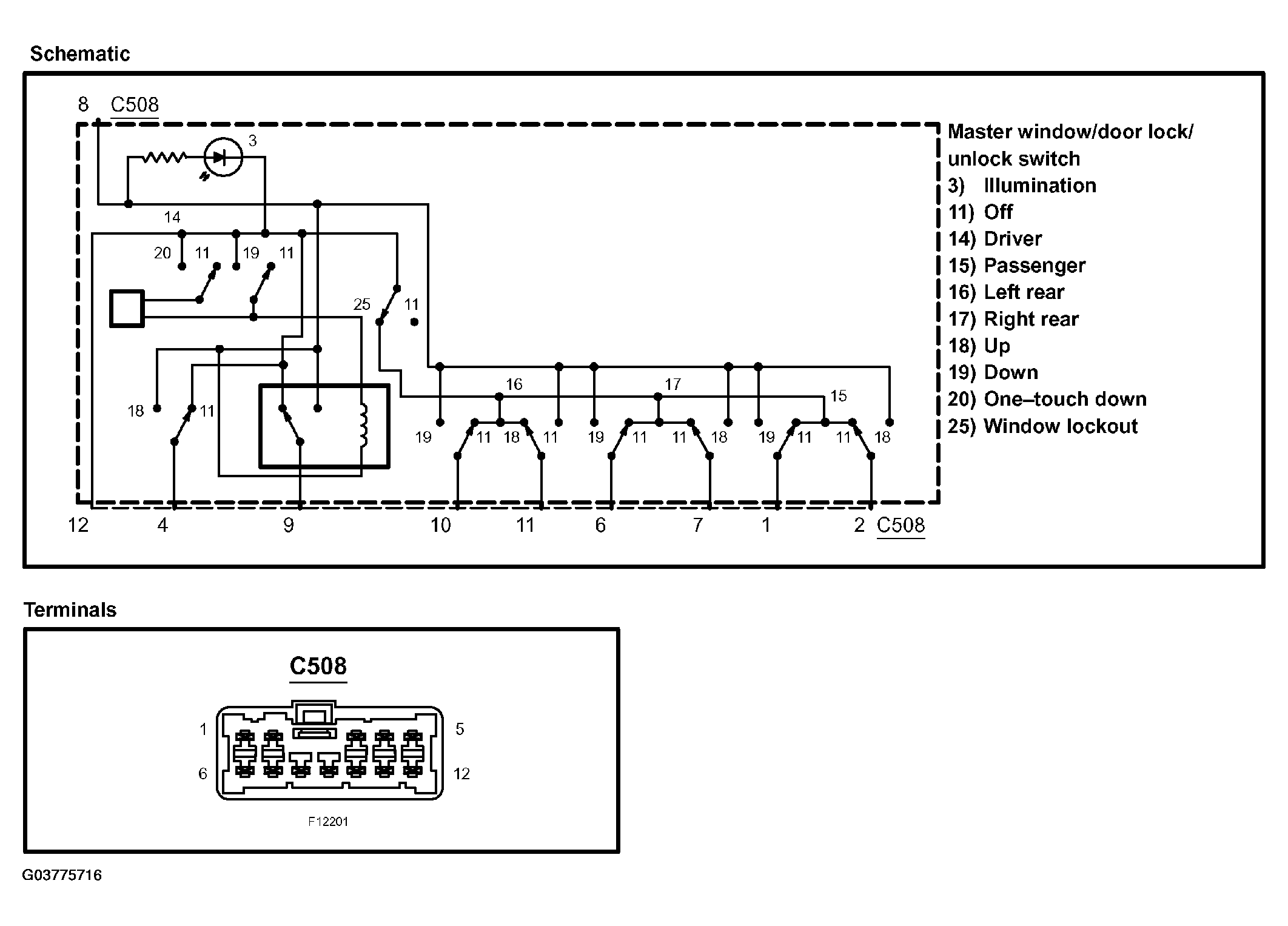

Fig 2: Testing Master Window Control Switch (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
