Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

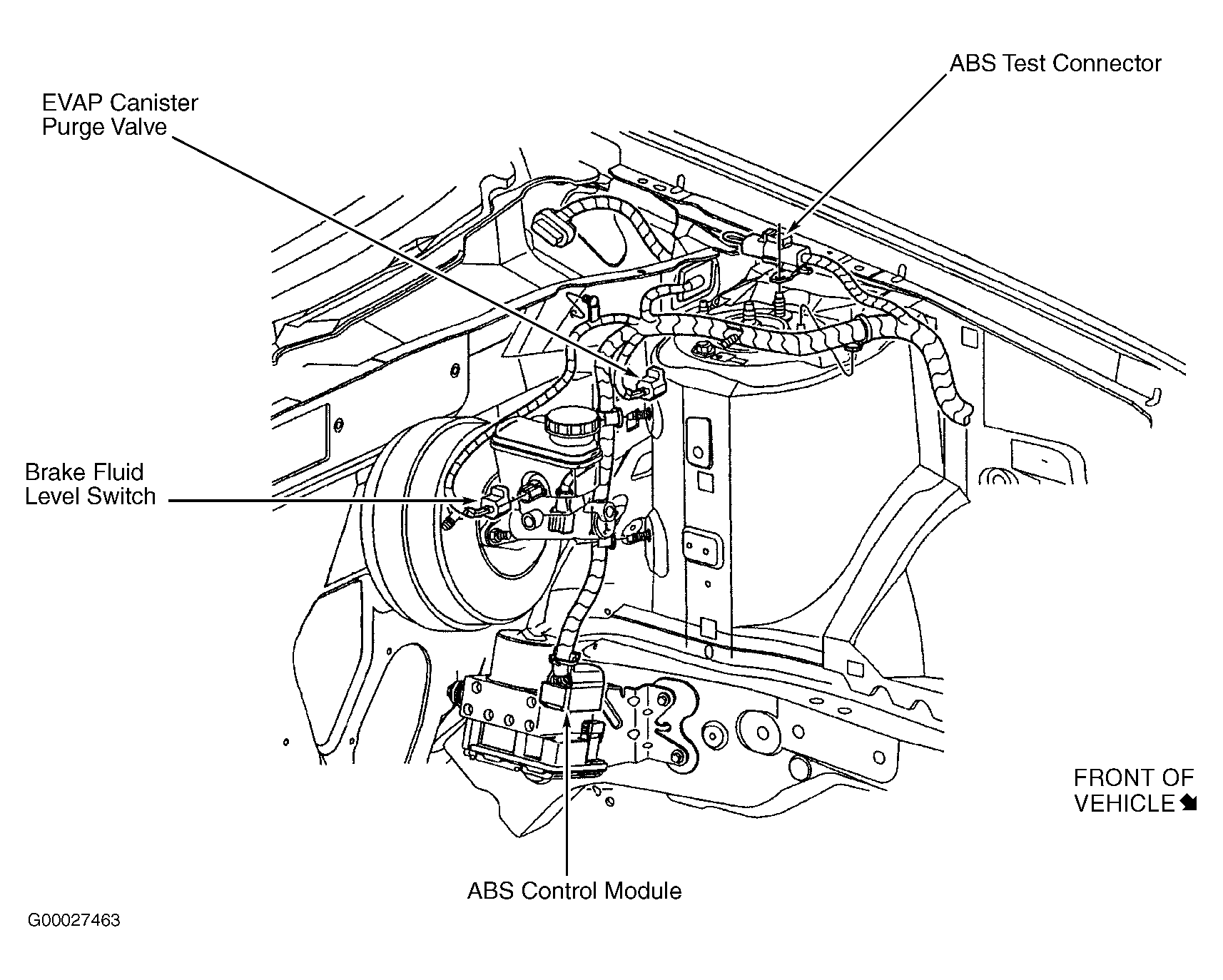

| ABS Control Module | On left rear side of engine compartment. See Figure . |

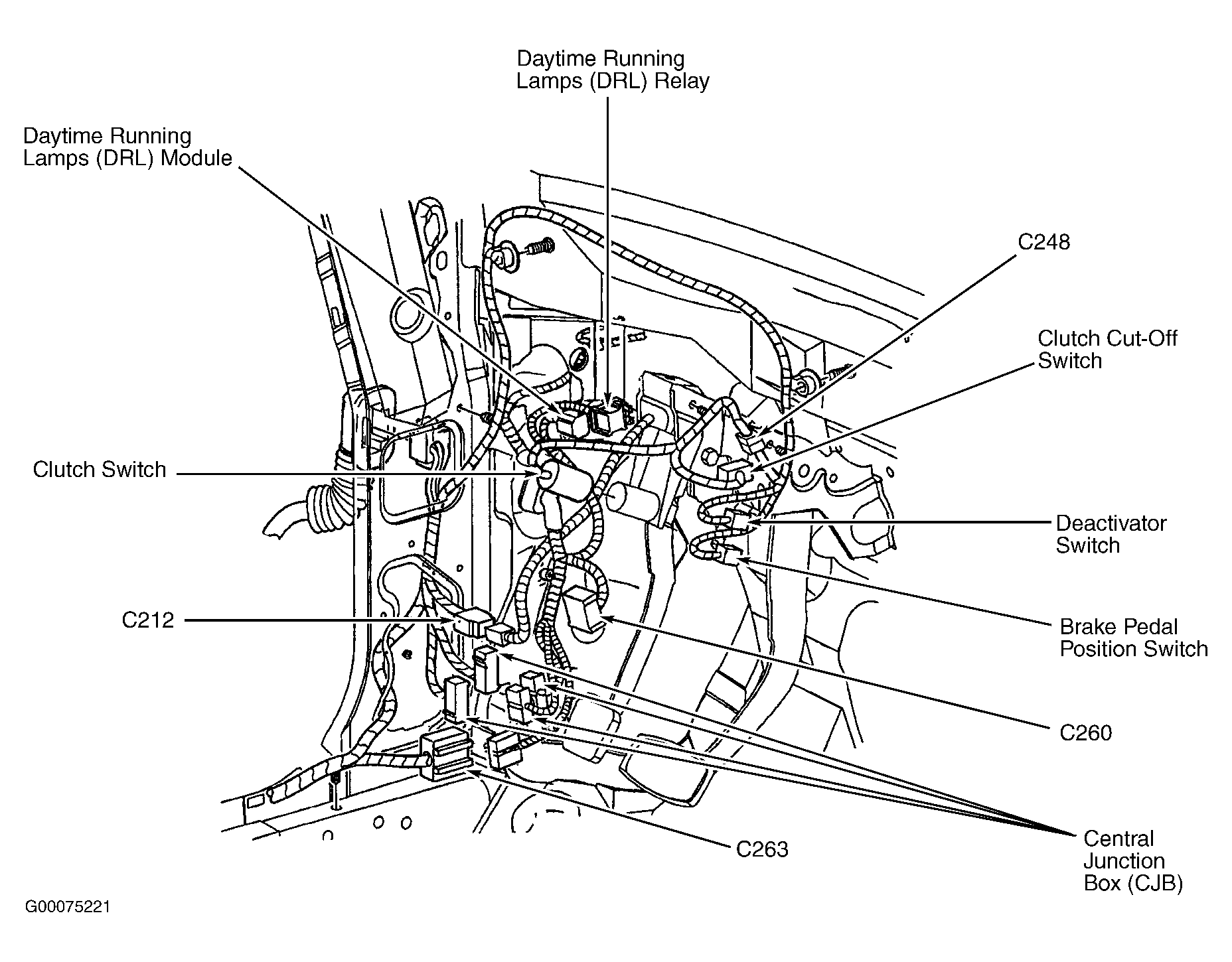

| Daytime Running Lamps (DRL) Module | Behind lower left end of dash. See Figure . |
| Electronic Flasher Module | Behind lower left end of dash. |
| Generic Electronic Module | Behind lower center of dash. |
| Heated Seat Module (Driver's) | Under driver's seat. |
| Heated Seat Module (Passenger's) | Under passenger's seat. |
| Parking Aid Module | At right rear side of vehicle floor. |
| Passive Anti-Theft Transceiver | Behind lower left side of dash, near steering column. |
| Powertrain Control Module (PCM) | In recess on upper center of firewall. |

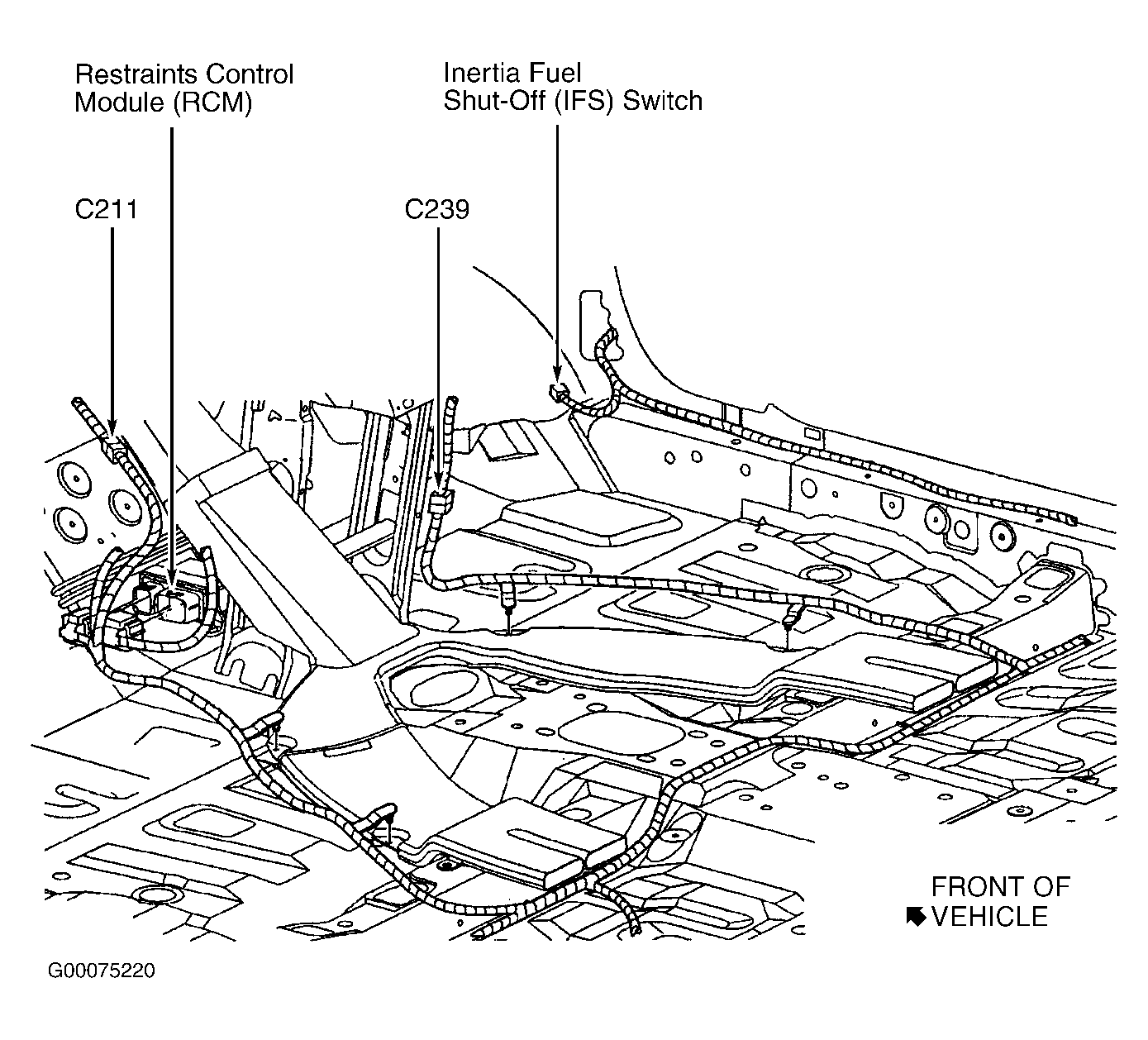

| Restraints Control Module (RCM) | Beneath lower center of dash, on transmission tunnel. See Figure . |
