General Specifications

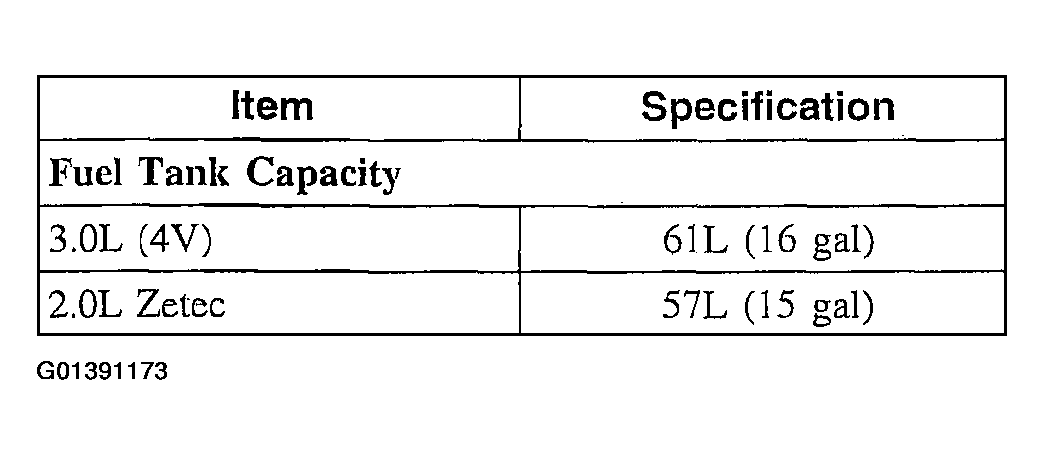

Fig 1: Fuel Tank Capacity Specifications

Courtesy of FORD MOTOR CO.

FUEL PRESSURE SPECIFICATION

Item	Specification
Fuel Pressure
Key on, engine off	448 kPa (65 psi)
Engine running	448 kPa (65 psi)
Fuel pump output volume per 10 seconds	125 cc (4.32 oz)
