Torque Specifications

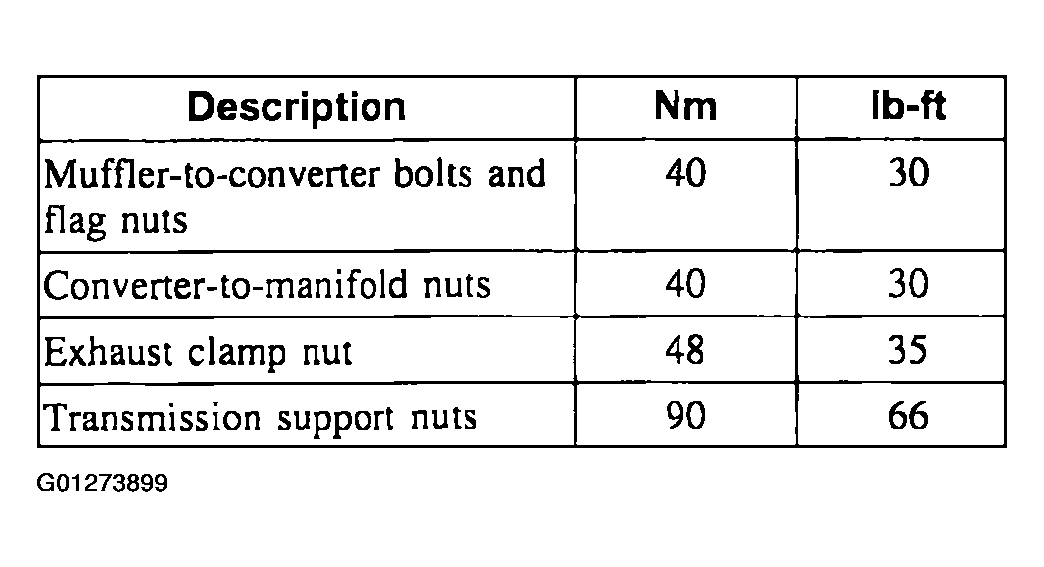

Fig 1: Exhaust System Torque Specifications Table (1 Of 2)

G01273899

Courtesy of FORD MOTOR CO.

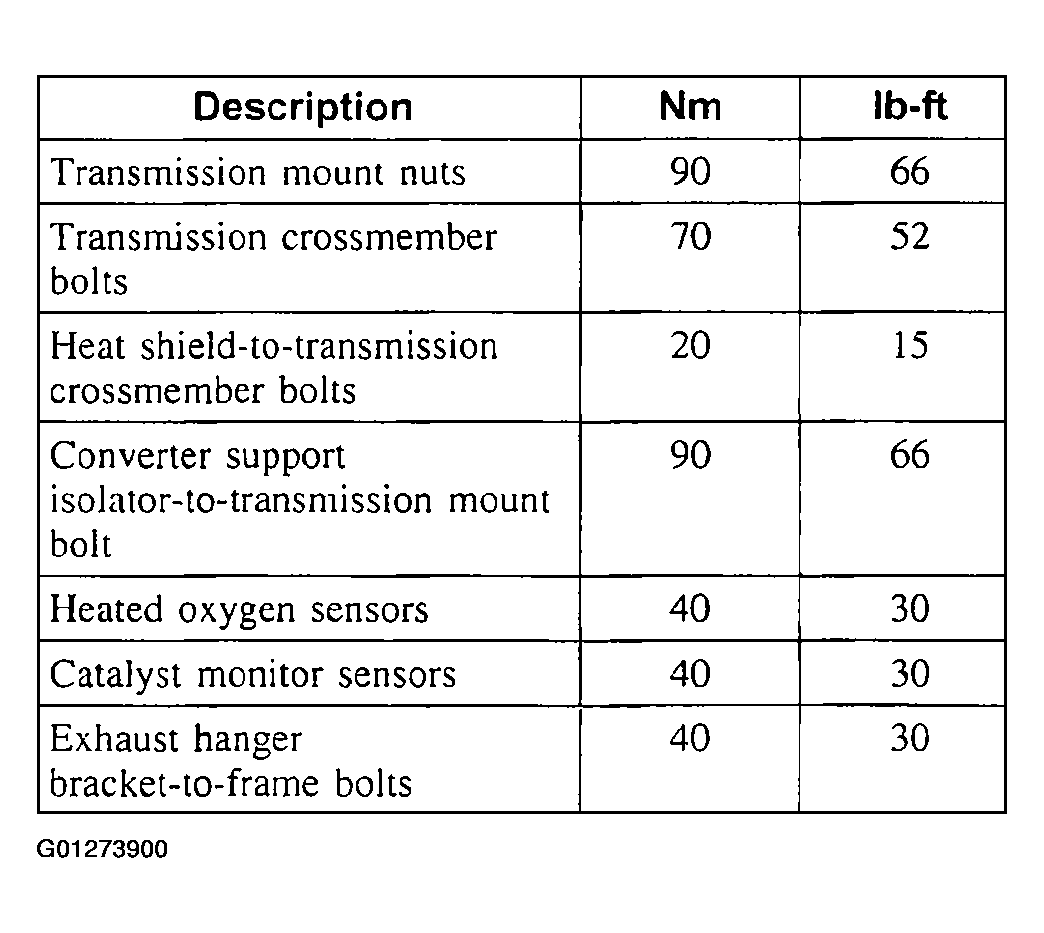

Fig 2: Exhaust System Torque Specifications Table (2 Of 2)

G01273900

Courtesy of FORD MOTOR CO.
