Torque Specifications

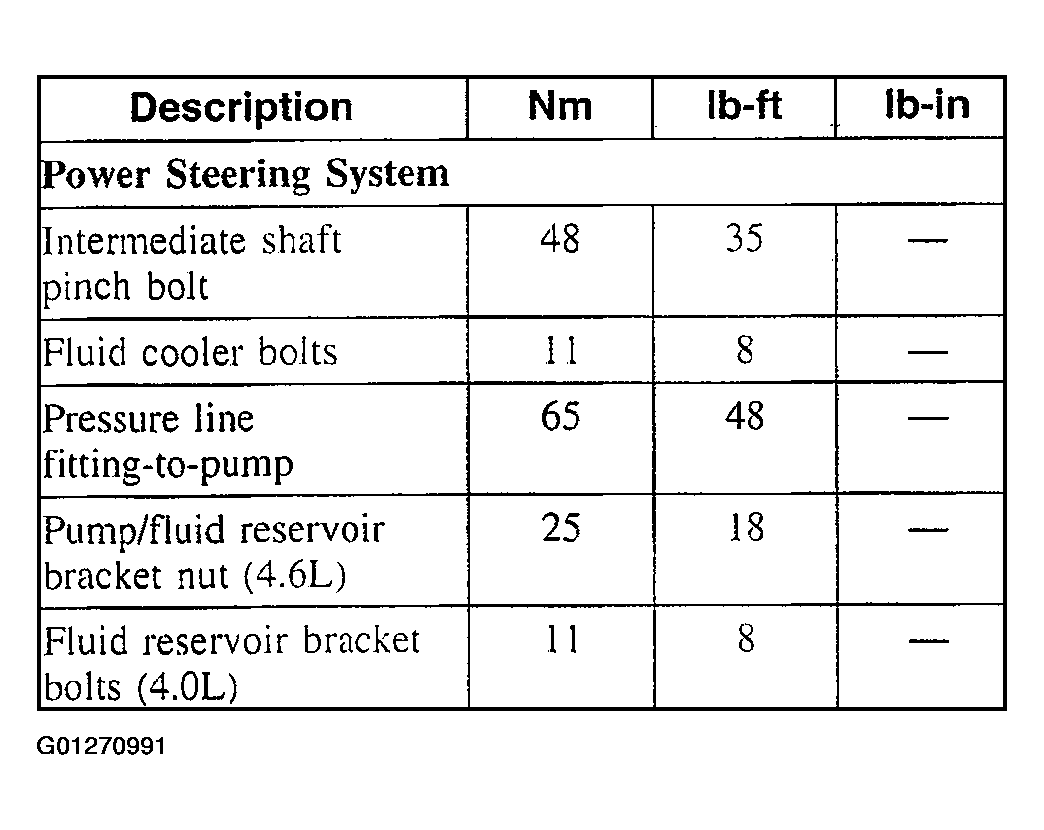

Fig 1: Torque Specifications Chart For Steering System (1 Of 3)
G01270991Courtesy of FORD MOTOR CO.

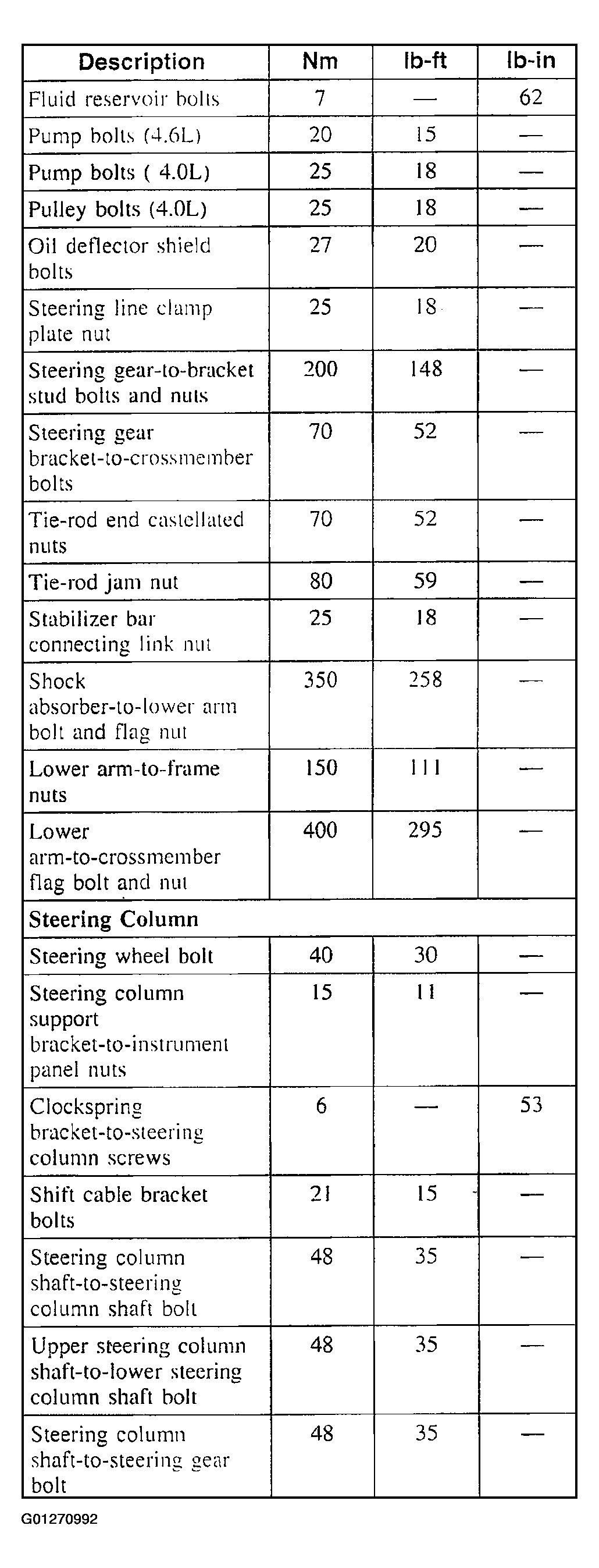

Fig 2: Torque Specifications Chart For Steering System (2 Of 3)
G01270992Courtesy of FORD MOTOR CO.

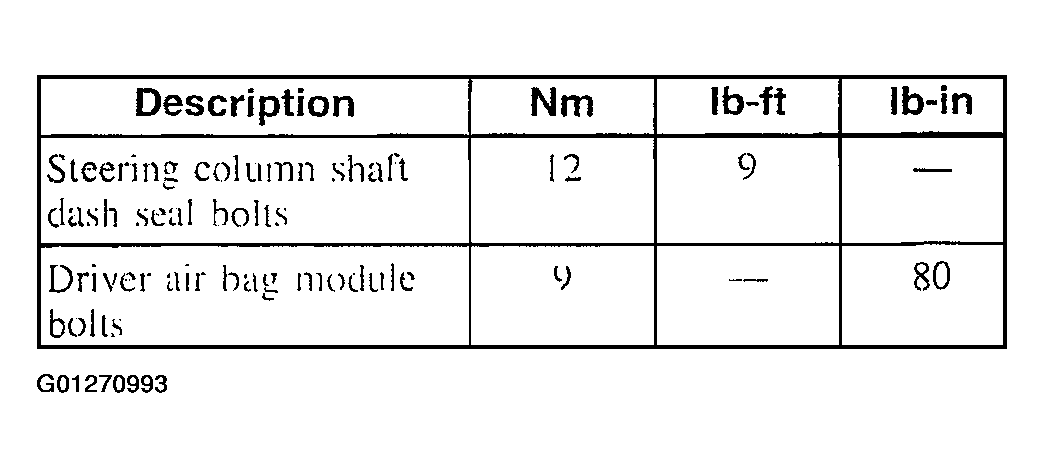

Fig 3: Torque Specifications Chart For Steering System (3 Of 3)
G01270993Courtesy of FORD MOTOR CO.
