Alignment Specifications

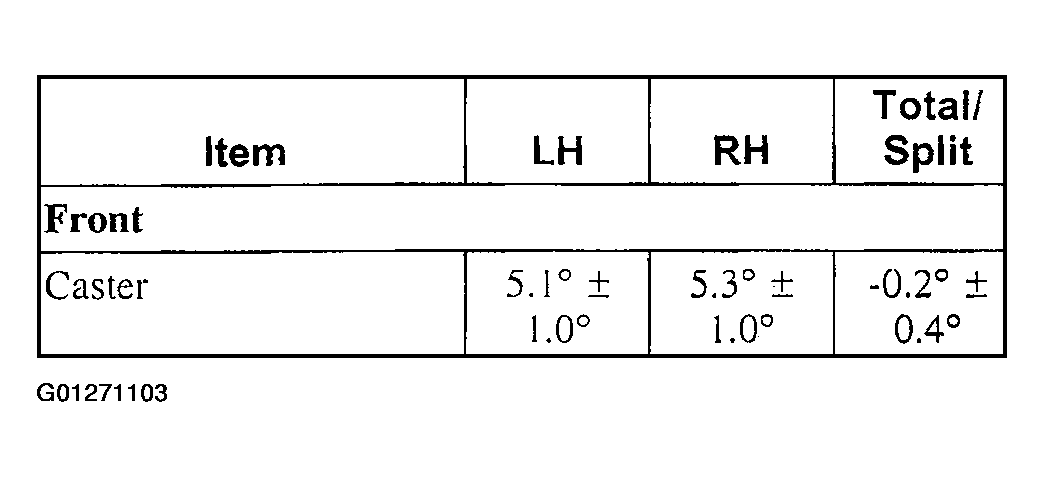

Fig 1: Alignment Specifications (1 Of 3)
G01271103Courtesy of FORD MOTOR CO.

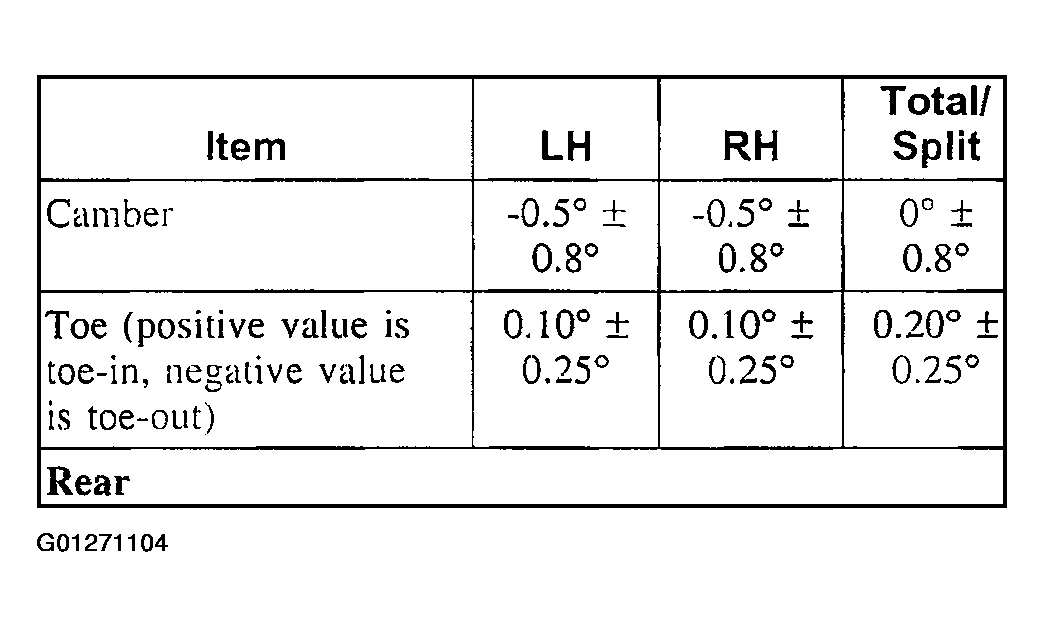

Fig 2: Alignment Specifications (2 Of 3)
G01271104Courtesy of FORD MOTOR CO.

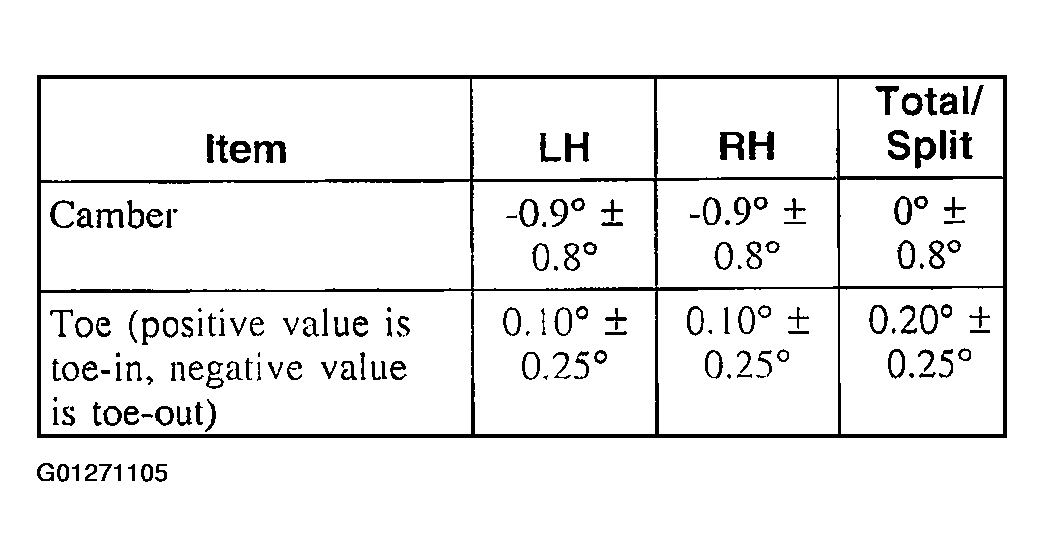

Fig 3: Alignment Specifications (3 Of 3)
G01271105Courtesy of FORD MOTOR CO.
