Automatic Transmission
>>
Specifications
>>
End Play Specifications
End Play Specifications

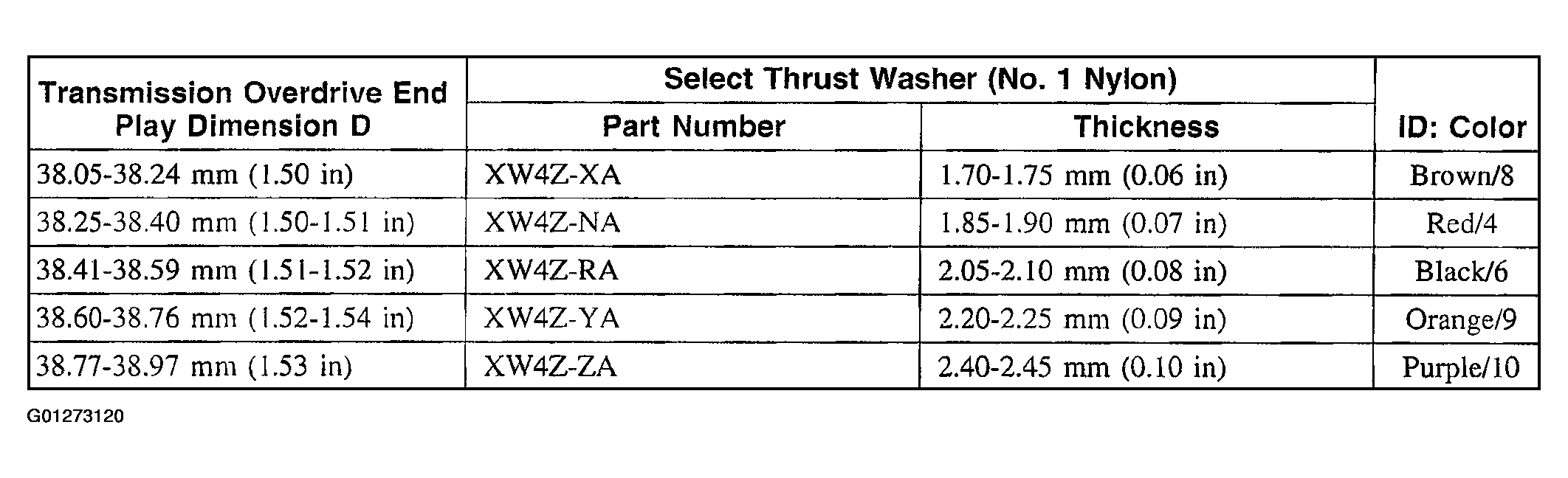

Fig 1: End Play Specification Chart - Thrust Washer
Courtesy of FORD MOTOR CO.

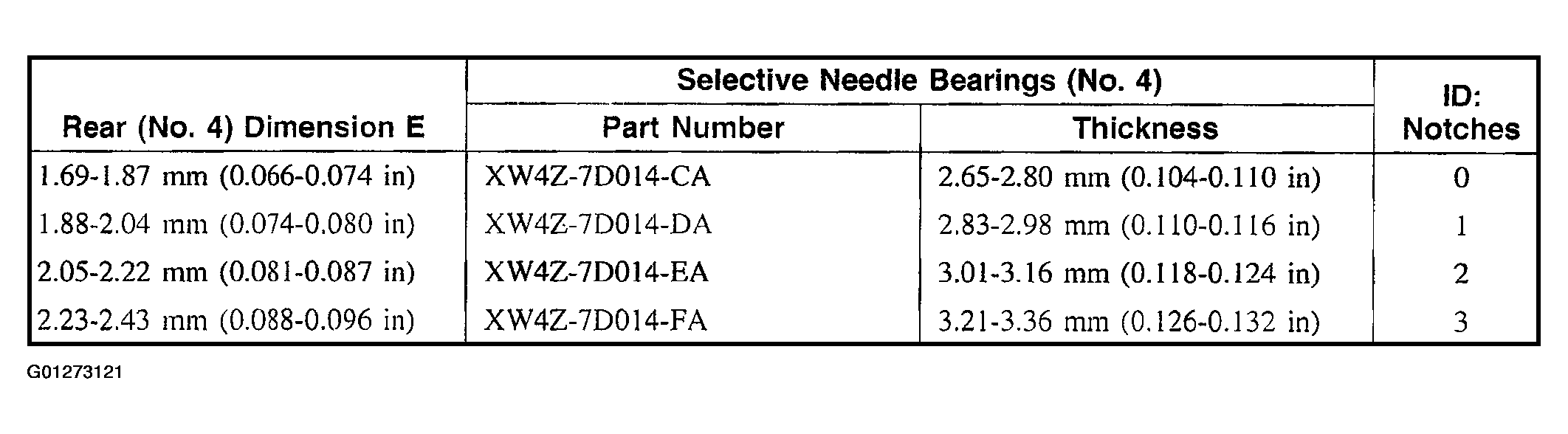

Fig 1: End Play Specification Chart - Needle Bearing
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
