Ford
>>
2003
>>
Explorer 4.0 K, AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission
>>
Specifications
>>
Line Pressure Chart
Line Pressure Chart

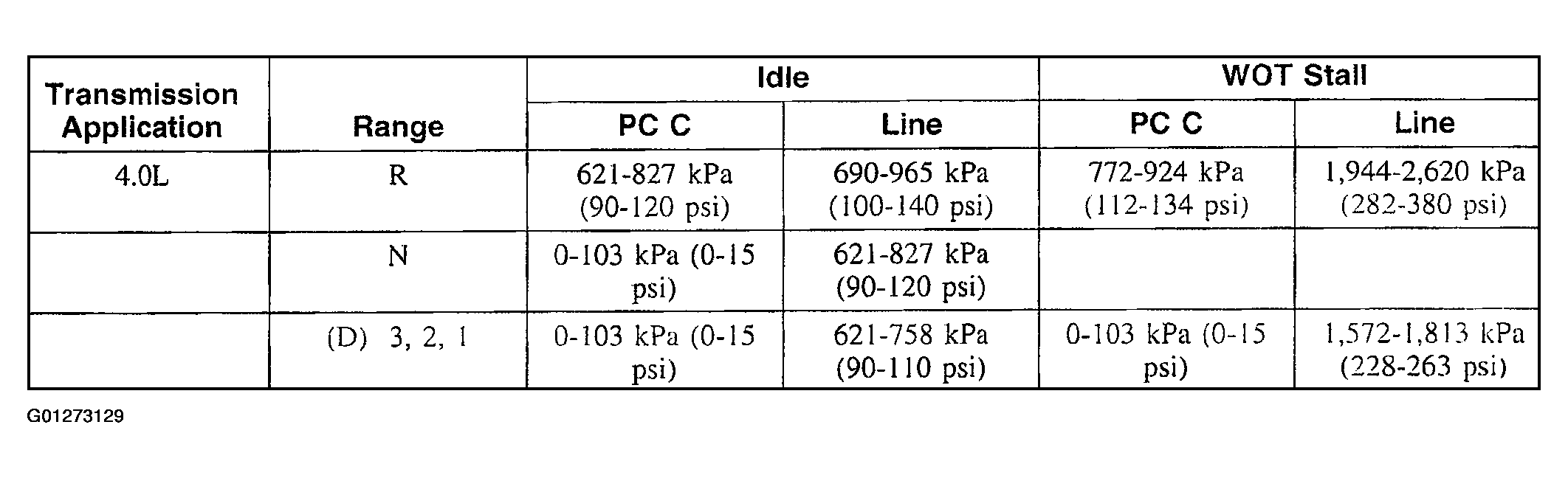

Fig 1: Line Pressure Specification Chart - 4.0L
Courtesy of FORD MOTOR CO.
Fig 1: Line Pressure Specification Chart - 4.6L
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
