Specification
>>
General Specification
>>
Torque Specifications
Torque Specifications

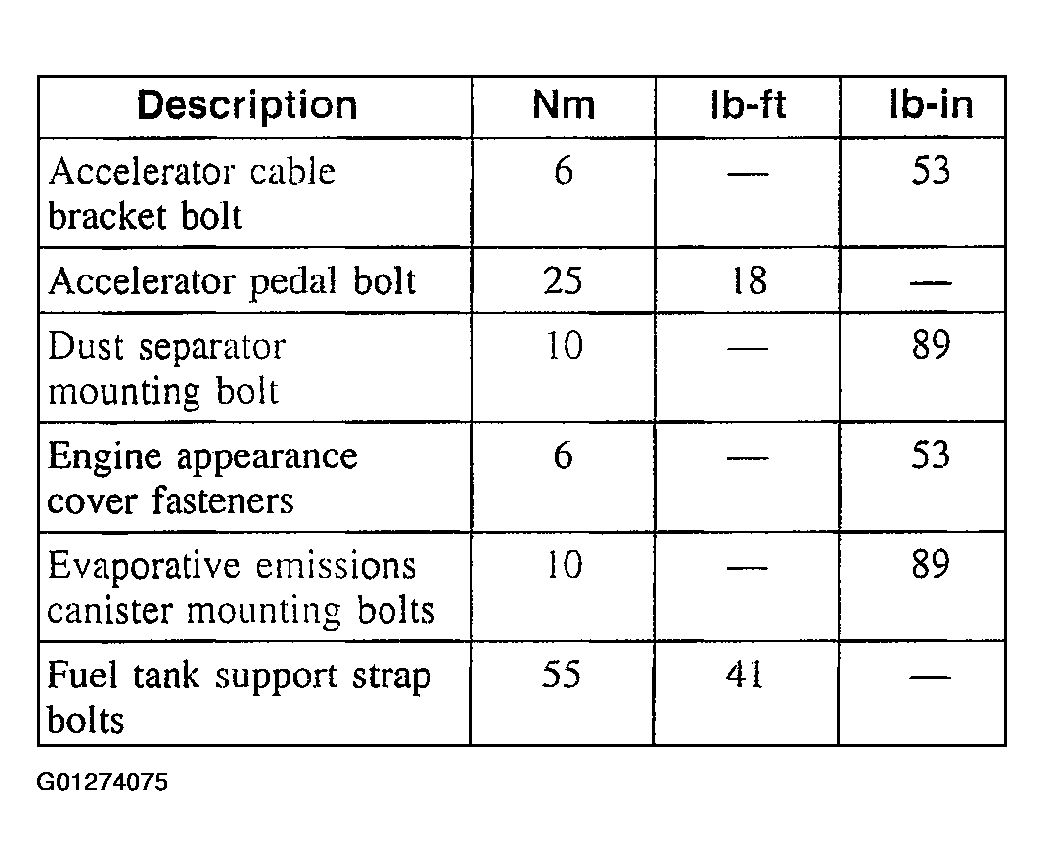

Fig 1: Fuel System Torque Specifications Table (1 of 2)
Courtesy of FORD MOTOR CO.

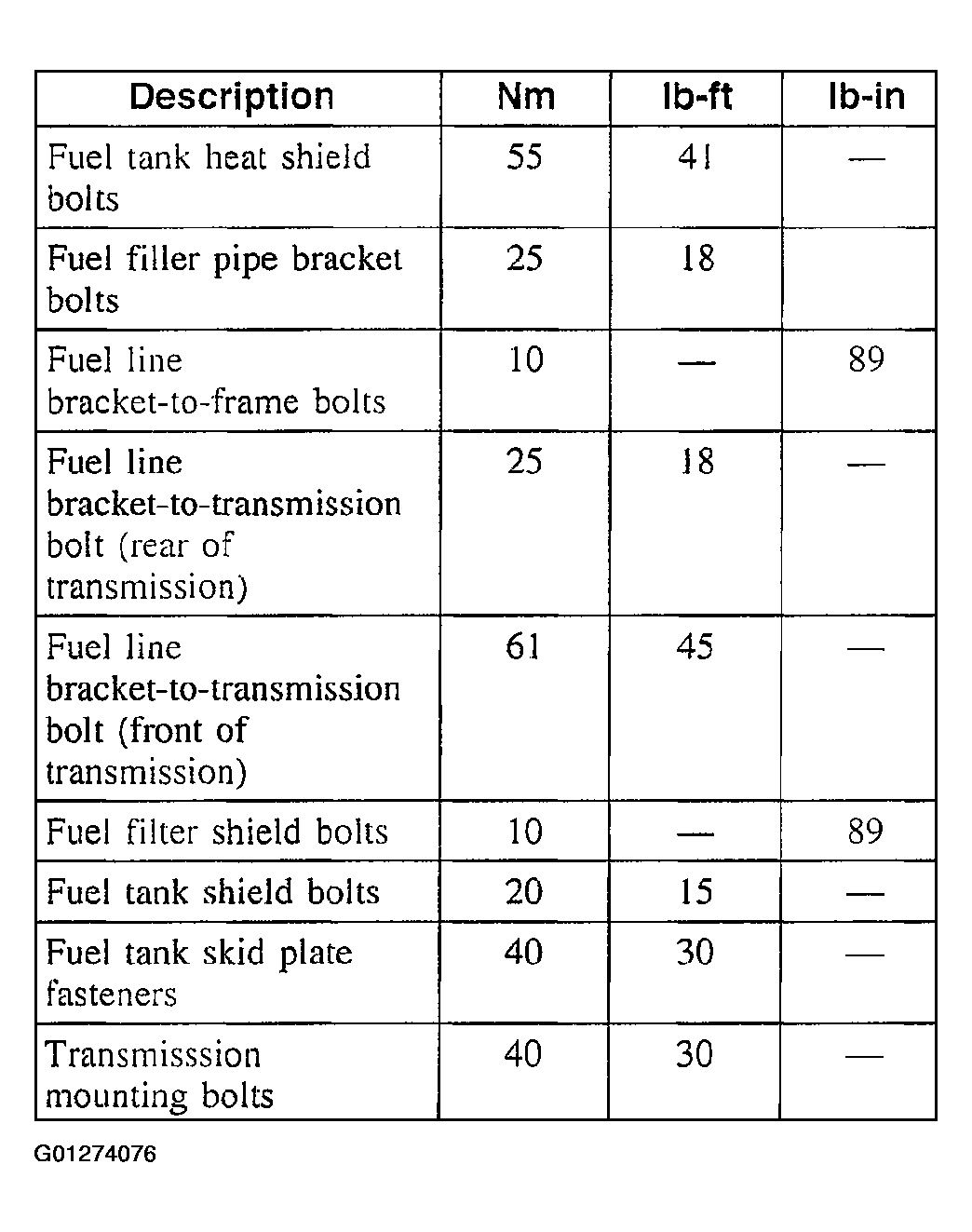

Fig 2: Fuel System Torque Specifications Table (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
