Home >> Ford >> 2003 >> Mustang Base, 2D Convertible, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine-3.8L >> Description And Operation >> Engine Component View >> Engine Components

Engine Components

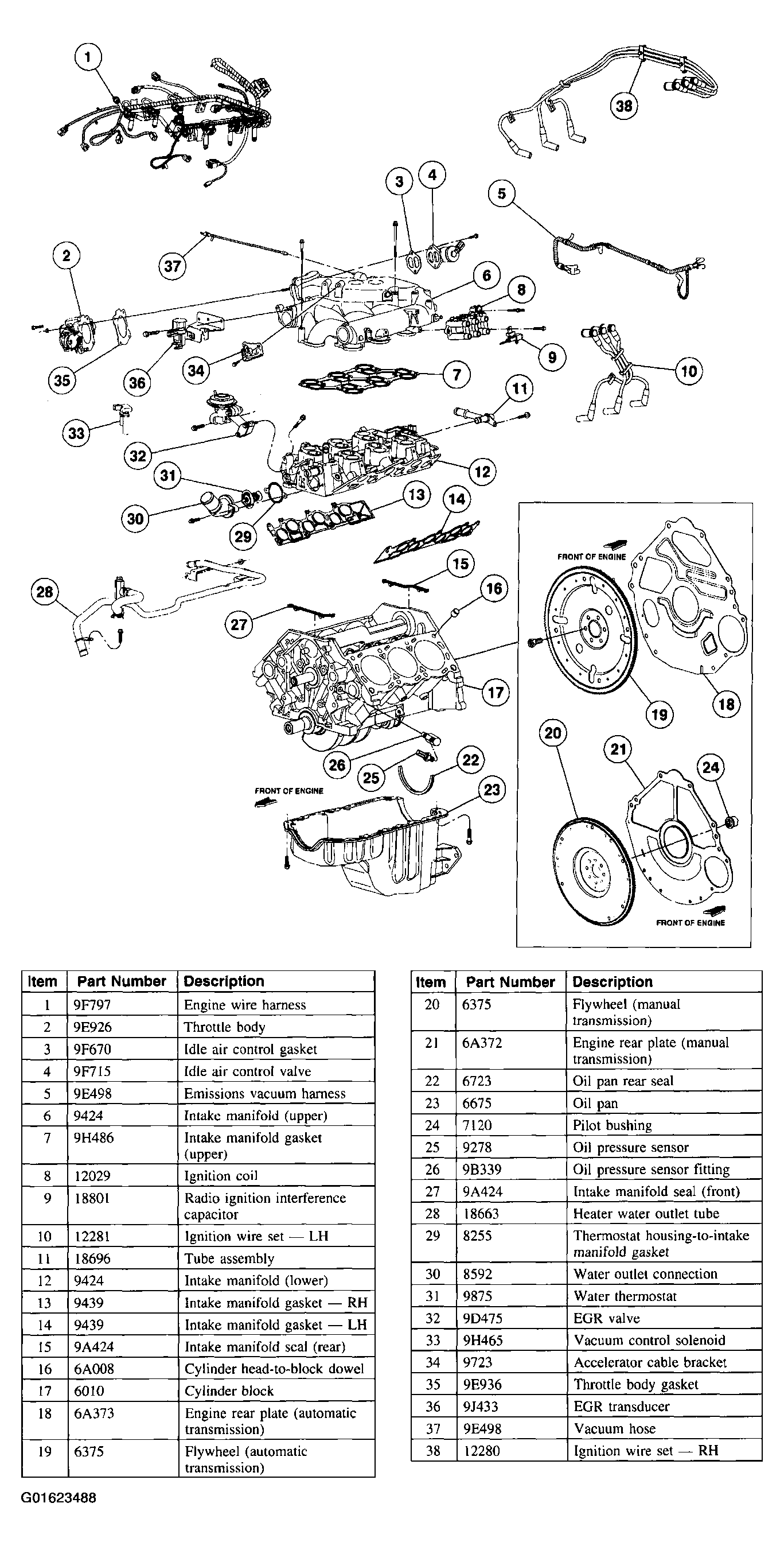

Fig 1: Identifying Engine Components
G01623488Courtesy of FORD MOTOR CO.
