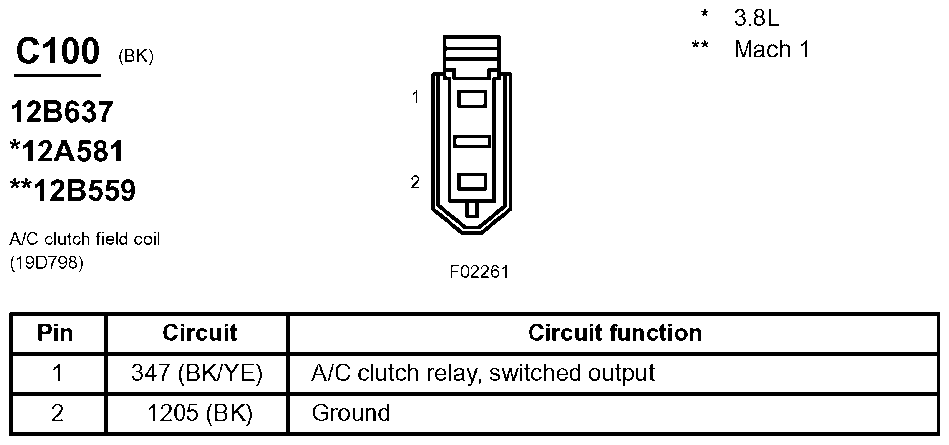

Fig 1: A/C Clutch Field Coil Connector End View (C100)
Courtesy of FORD MOTOR CO.

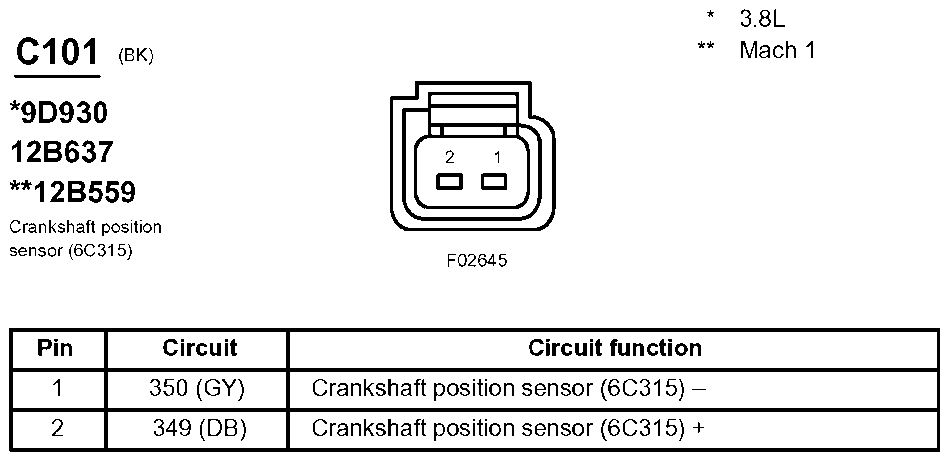

Fig 2: Crankshaft Position Sensor Connector End View (C101)
Courtesy of FORD MOTOR CO.

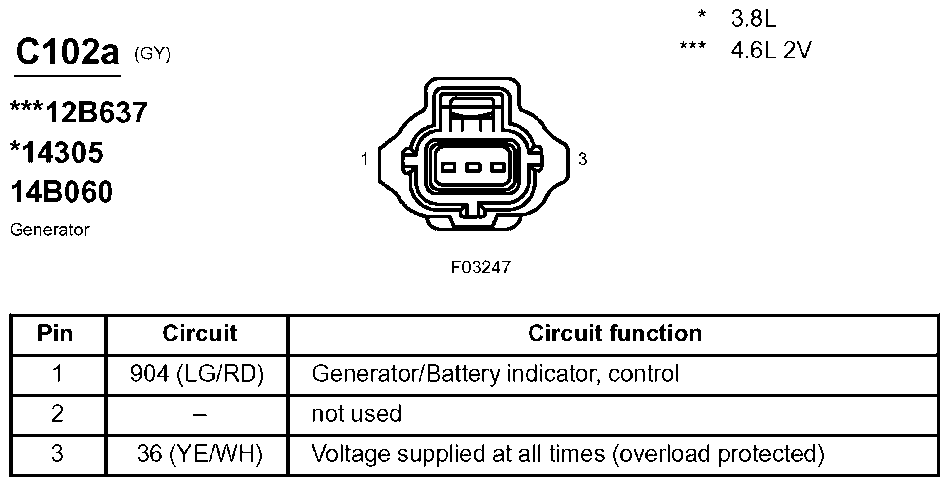

Fig 3: Generator Connector End View (C102a)
Courtesy of FORD MOTOR CO.

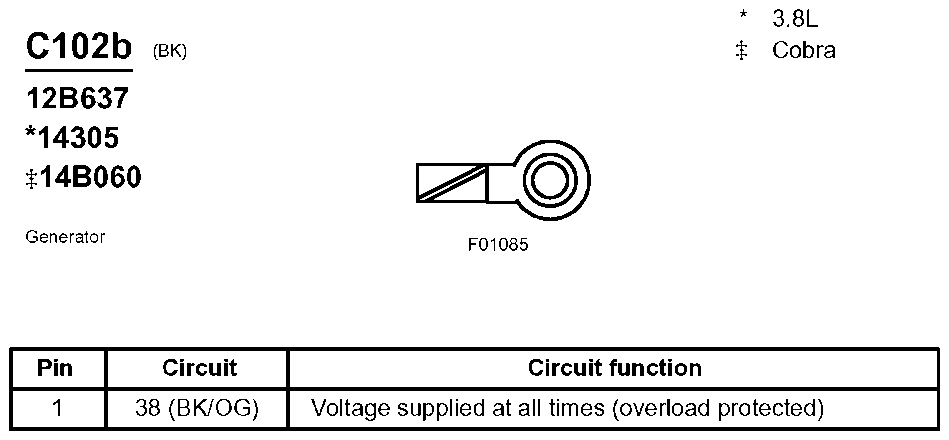

Fig 4: Generator Connector End View (C102b)
Courtesy of FORD MOTOR CO.

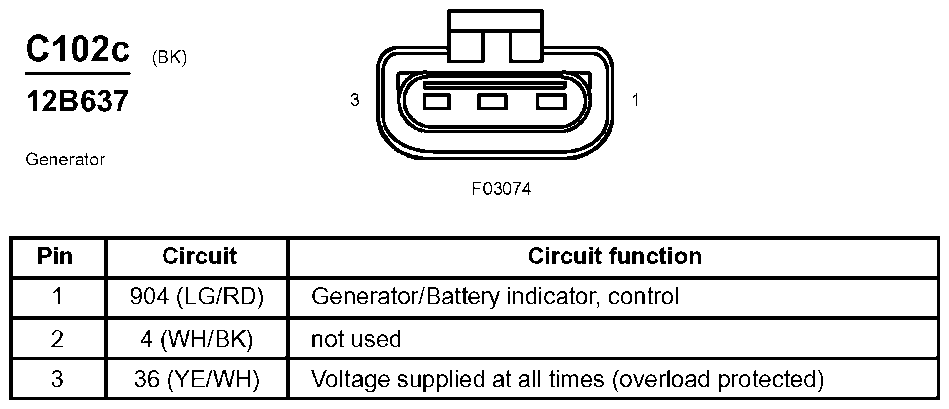

Fig 5: Generator Connector End View (C102c)
Courtesy of FORD MOTOR CO.

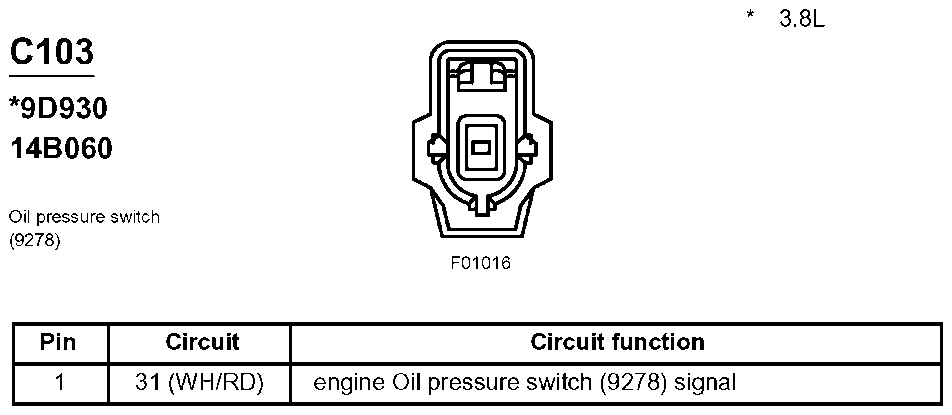

Fig 6: Oil Pressure Switch Connector End View (C103)
Courtesy of FORD MOTOR CO.

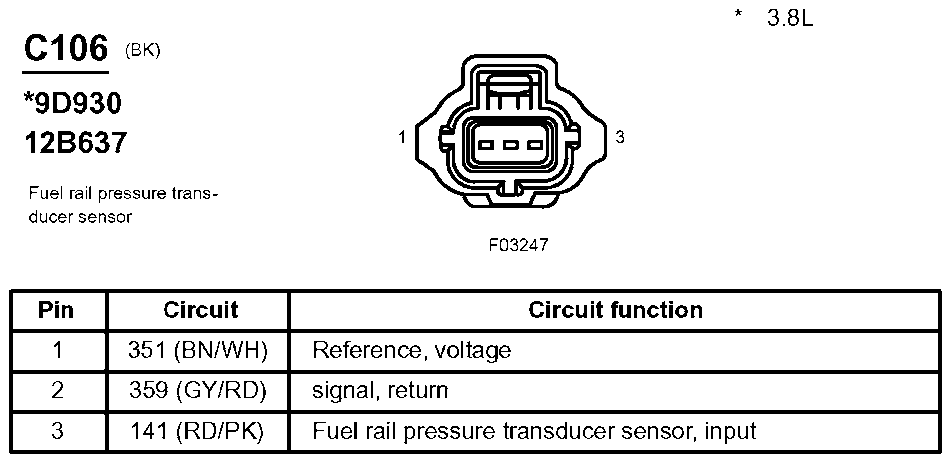

Fig 7: Fuel Rail Pressure Transducer Sensor Connector End View (C106)
Courtesy of FORD MOTOR CO.

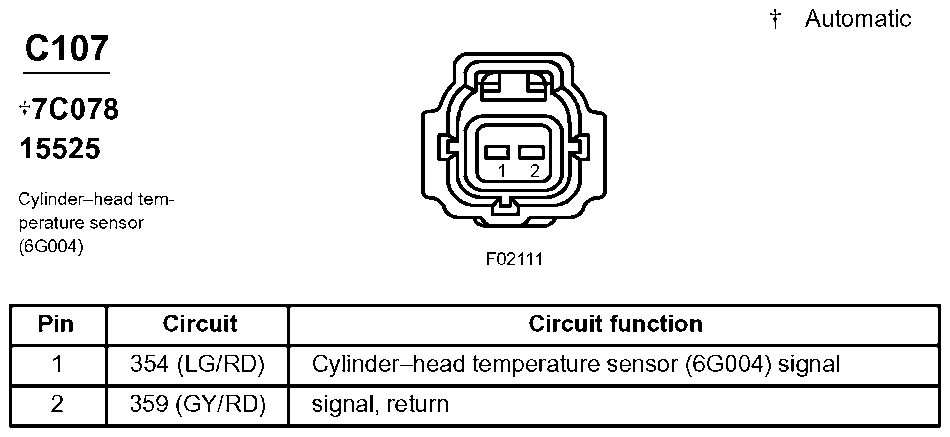

Fig 8: Cylinder-Head Temperature Sensor Connector End View (C107)
Courtesy of FORD MOTOR CO.

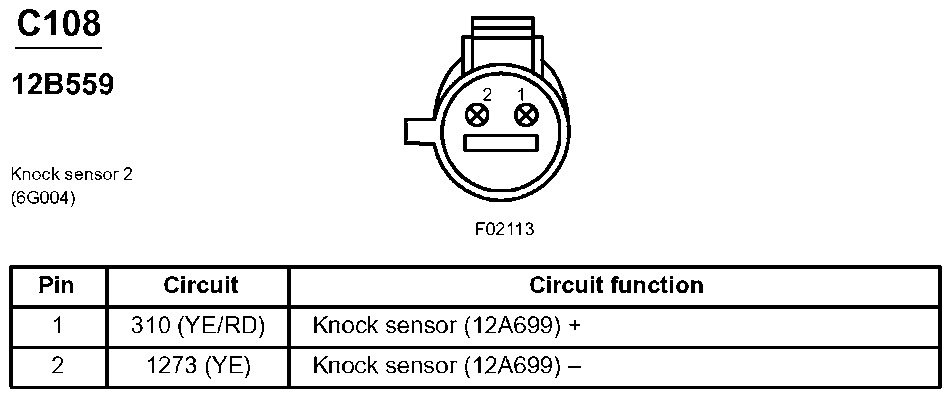

Fig 9: Knock Sensor 2 Connector End View (C108)
Courtesy of FORD MOTOR CO.

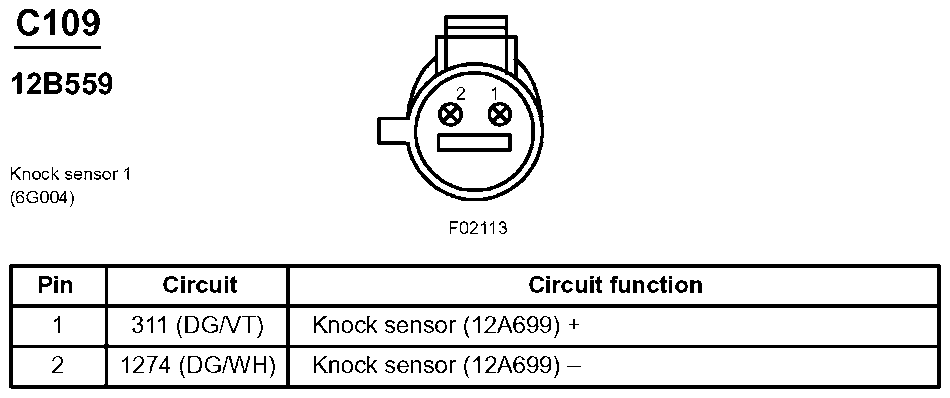

Fig 10: Knock Sensor 1 Connector End View (C109)
Courtesy of FORD MOTOR CO.

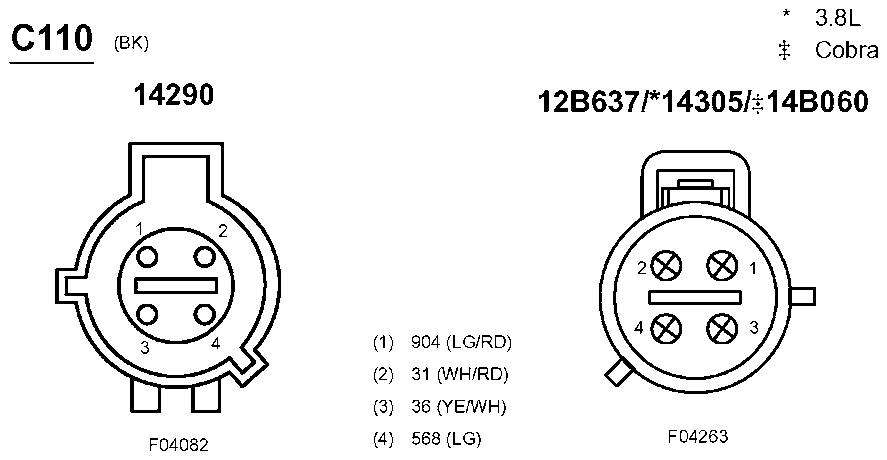

Fig 11: Inline Connector End View (C110)
Courtesy of FORD MOTOR CO.

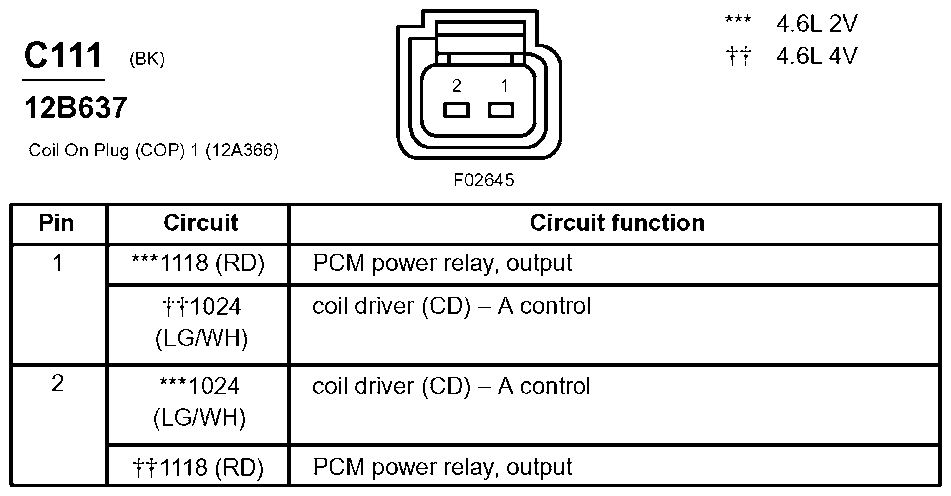

Fig 12: Coil On Plug (COP) 1 Connector End View (C111)
Courtesy of FORD MOTOR CO.

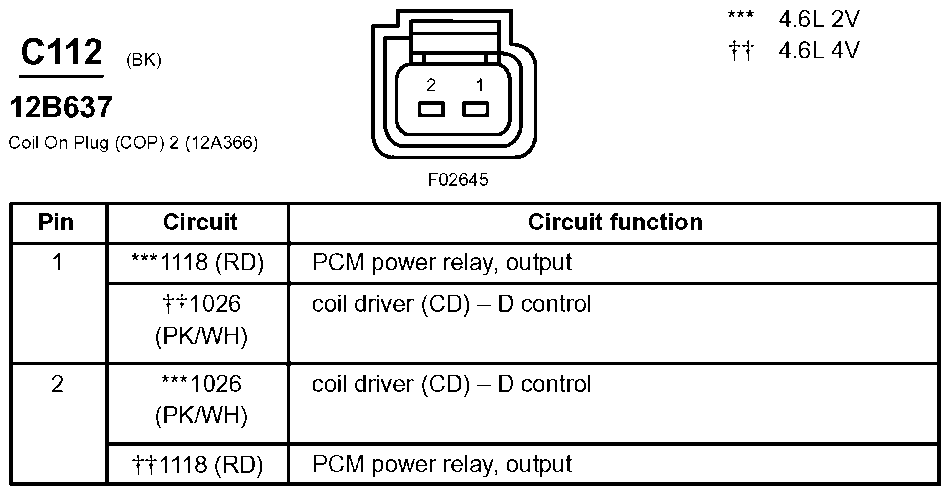

Fig 13: Coil On Plug (COP) 2 Connector End View (C112)
Courtesy of FORD MOTOR CO.

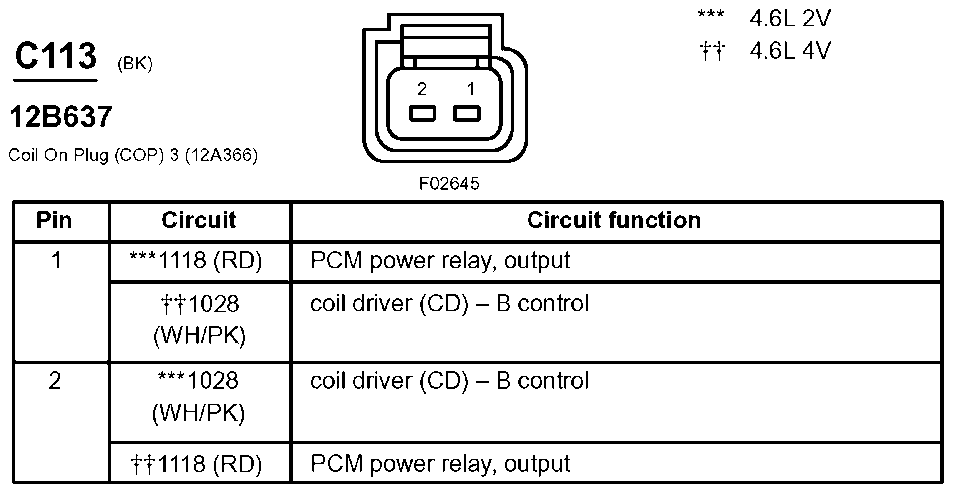

Fig 14: Coil On Plug (COP) 3 Connector End View (C113)
Courtesy of FORD MOTOR CO.

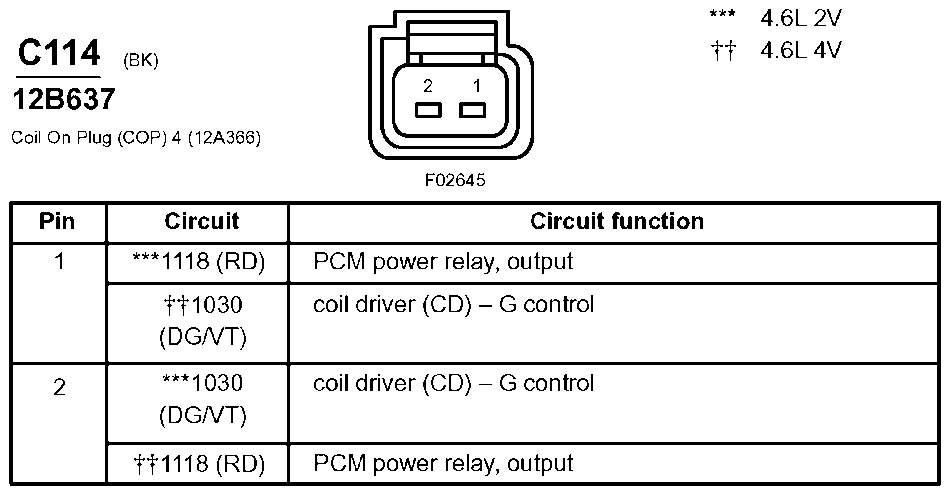

Fig 15: Coil On Plug (COP) 4 Connector End View (C114)
Courtesy of FORD MOTOR CO.

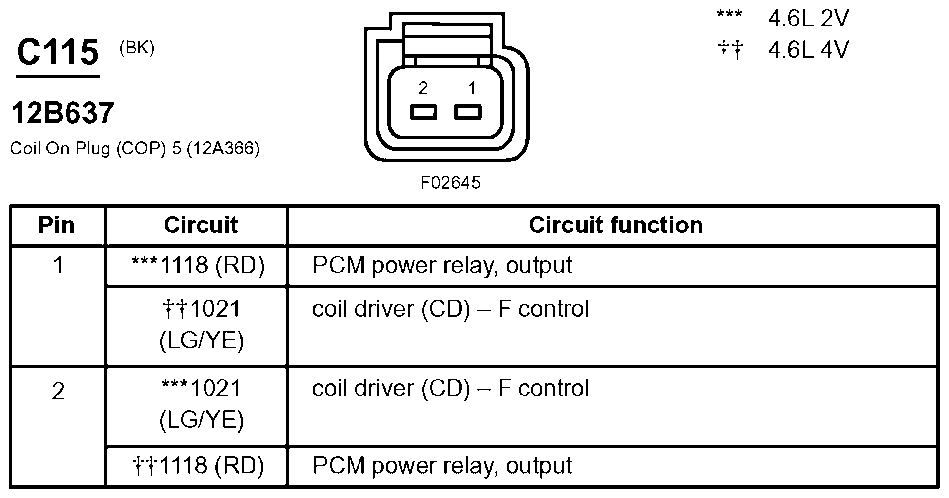

Fig 16: Coil On Plug (COP) 5 Connector End View (C115)
Courtesy of FORD MOTOR CO.

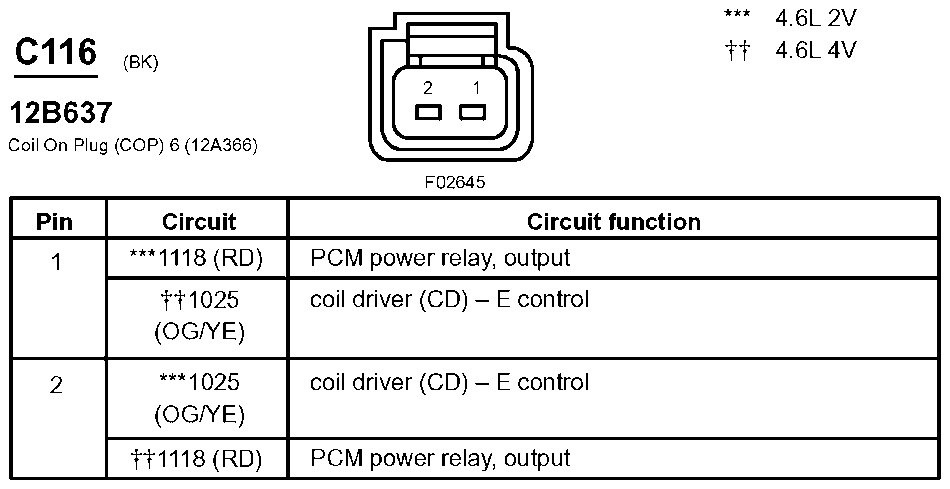

Fig 17: Coil On Plug (COP) 6 Connector End View (C116)
Courtesy of FORD MOTOR CO.

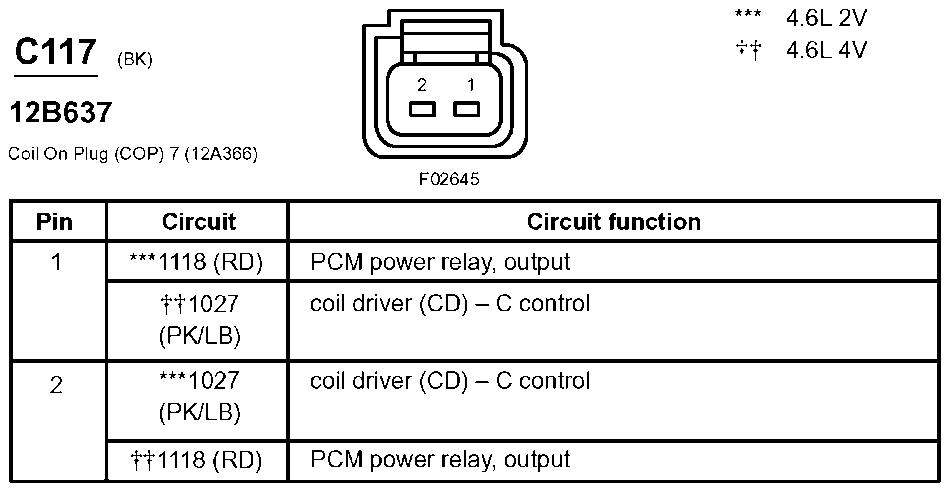

Fig 18: Coil On Plug (COP) 7 Connector End View (C117)
Courtesy of FORD MOTOR CO.

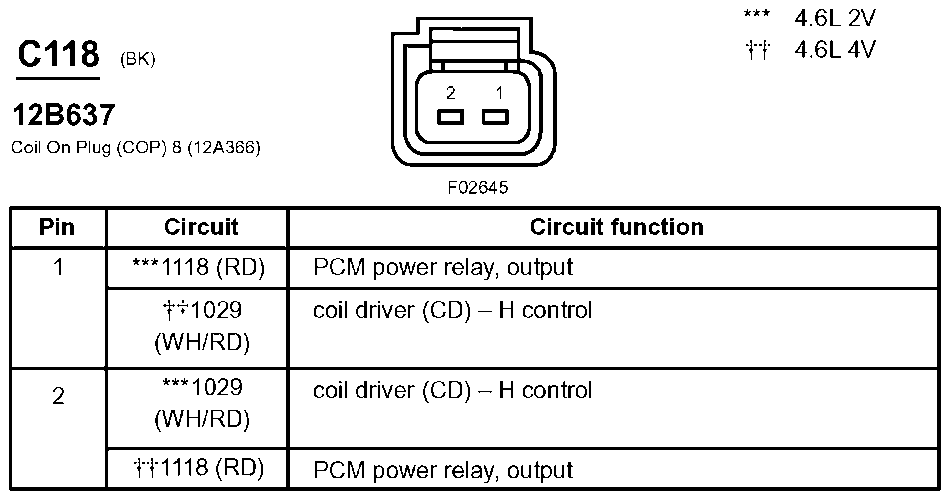

Fig 19: Coil On Plug (COP) 8 Connector End View (C118)
Courtesy of FORD MOTOR CO.

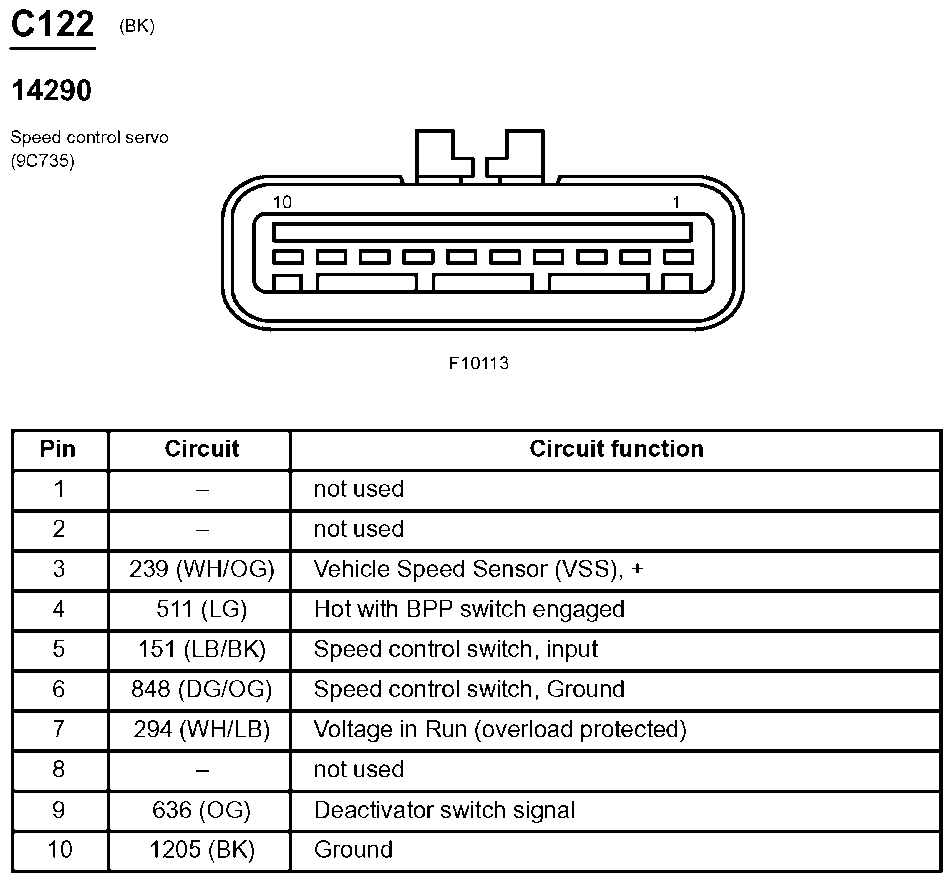

Fig 20: Speed Control Servo Connector End View (C122)
Courtesy of FORD MOTOR CO.

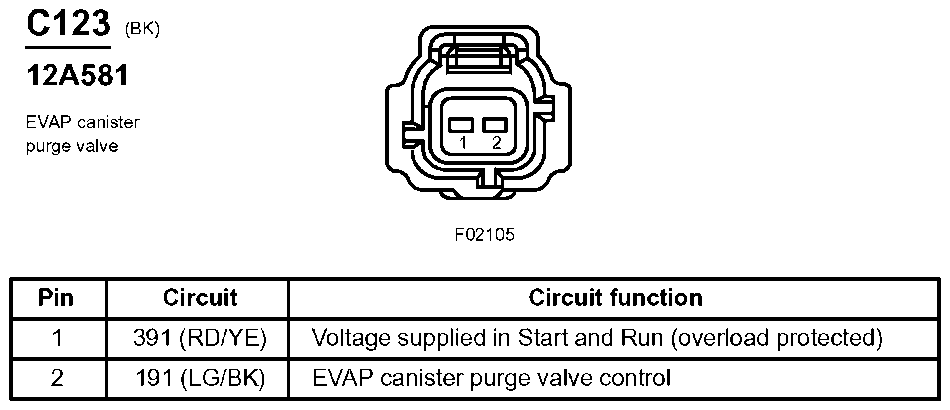

Fig 21: EVAP Canister Purge Valve Connector End View (C123)
Courtesy of FORD MOTOR CO.

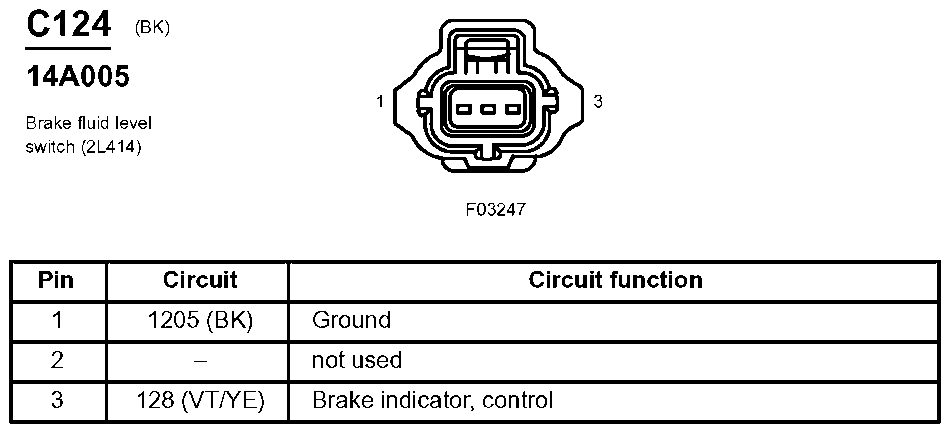

Fig 22: Brake Fluid Level Switch Connector End View (C124)
Courtesy of FORD MOTOR CO.

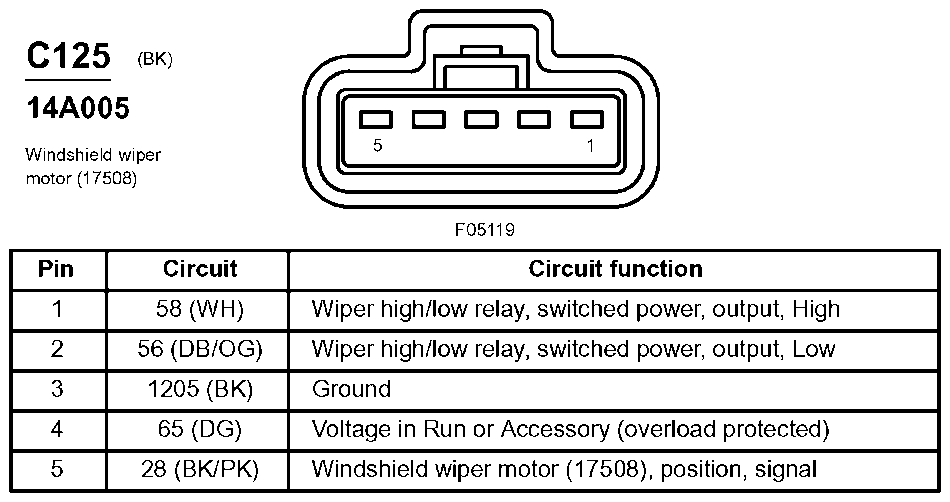

Fig 23: Windshield Wiper Motor Connector End View (C125)
Courtesy of FORD MOTOR CO.

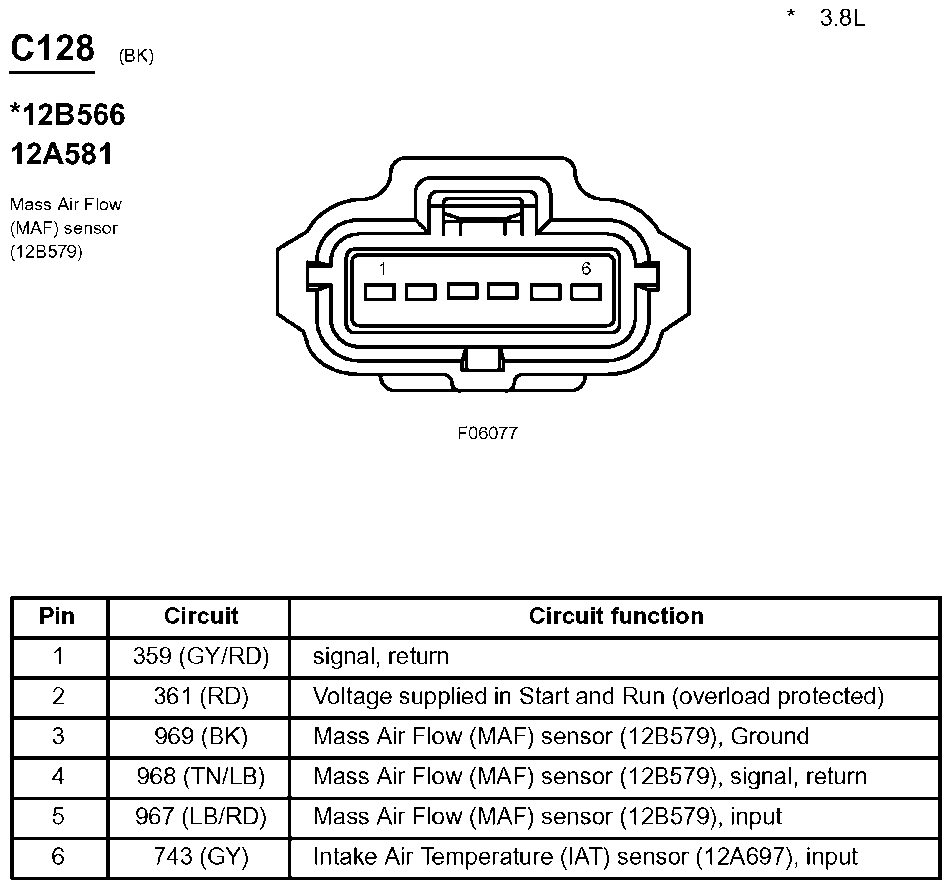

Fig 24: Mass Air Flow (MAF) Sensor Connector End View (C128)
Courtesy of FORD MOTOR CO.
Fig 25: Intake Air Temperature (IAT) Sensor Connector End View (C129)
Courtesy of FORD MOTOR CO.

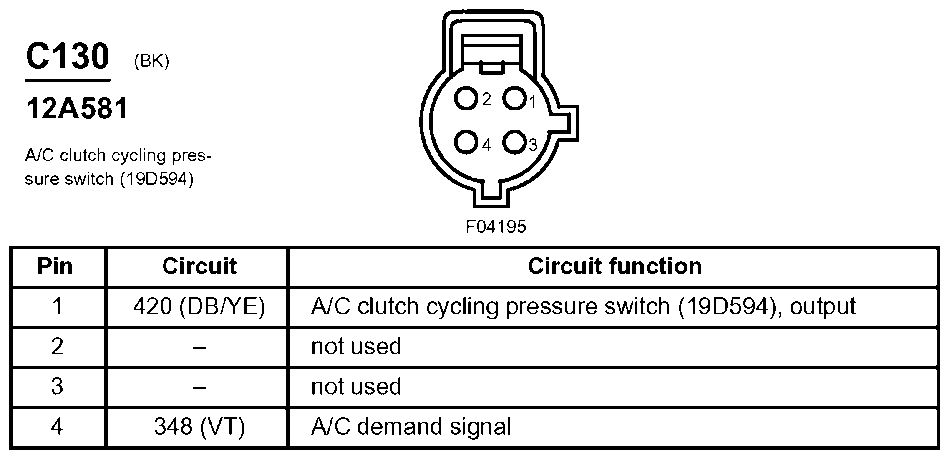

Fig 26: A/C Clutch Cycling Pressure Switch Connector End View (C130)
Courtesy of FORD MOTOR CO.

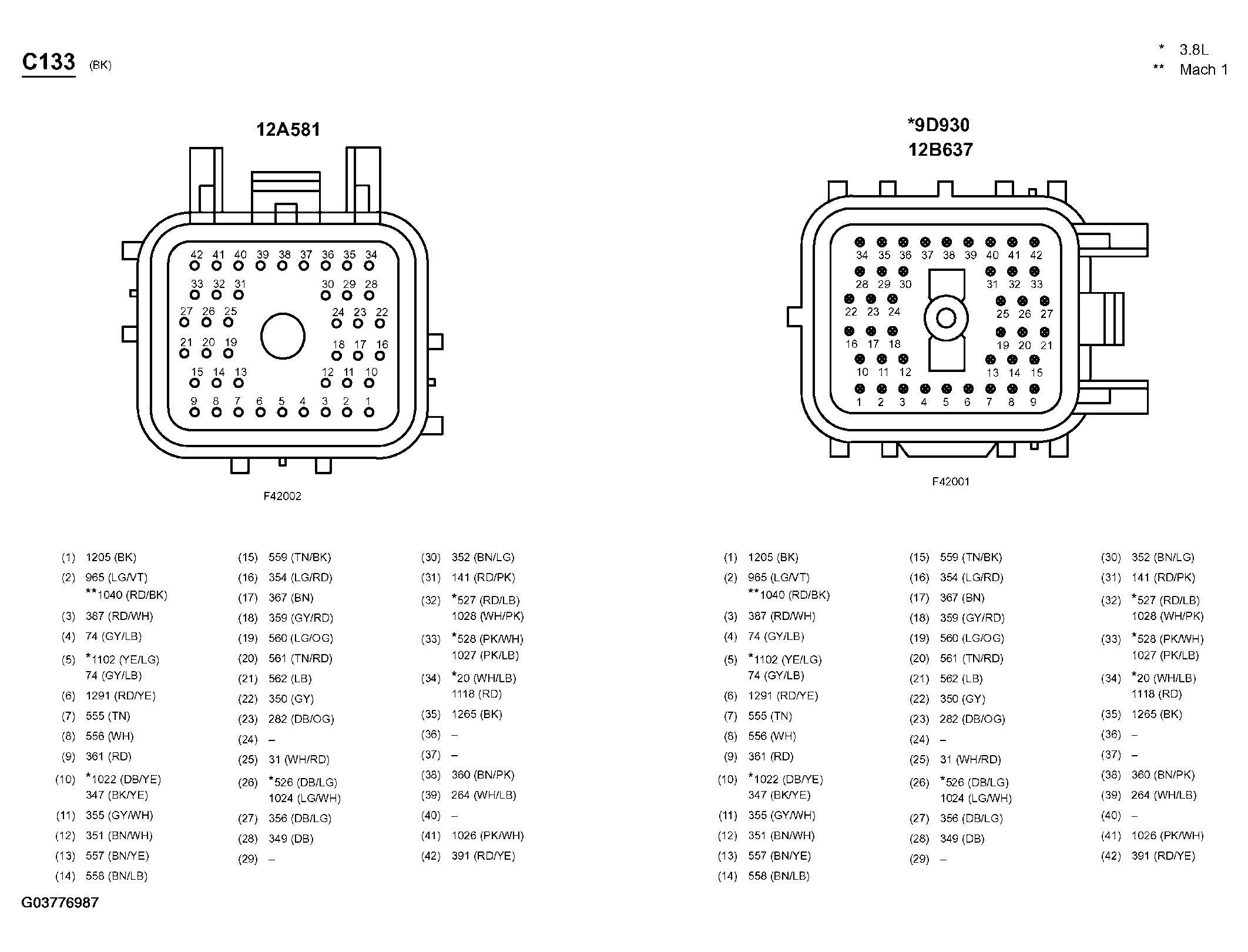

Fig 27: Inline Connector End View (C133)
Courtesy of FORD MOTOR CO.

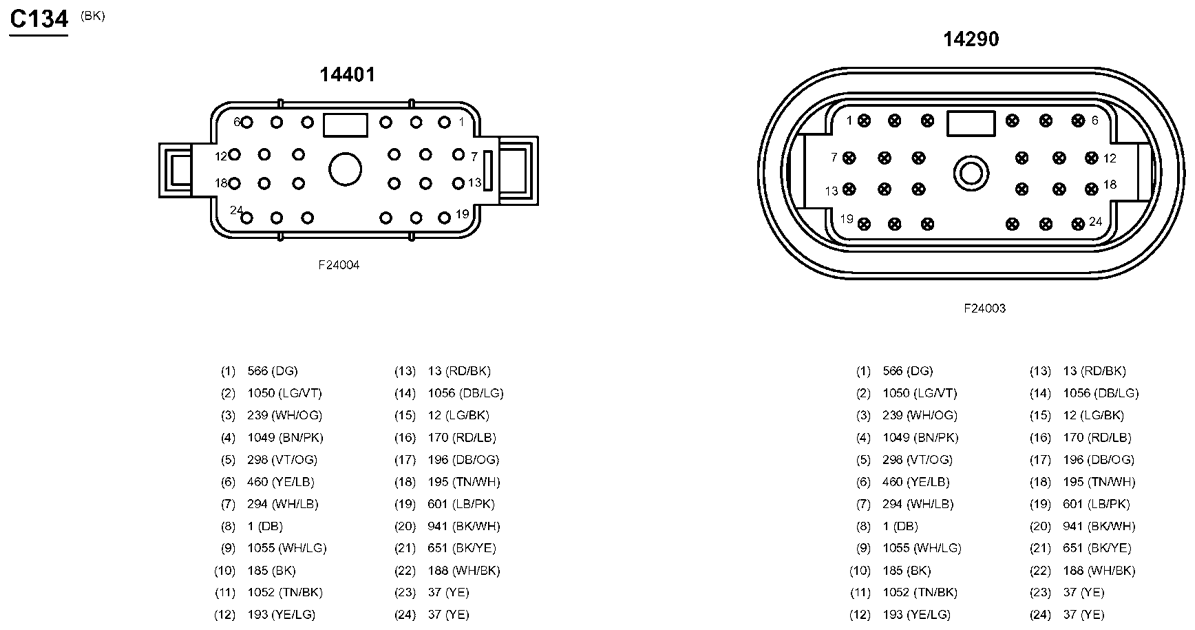

Fig 28: Inline Connector End View (C134)
Courtesy of FORD MOTOR CO.

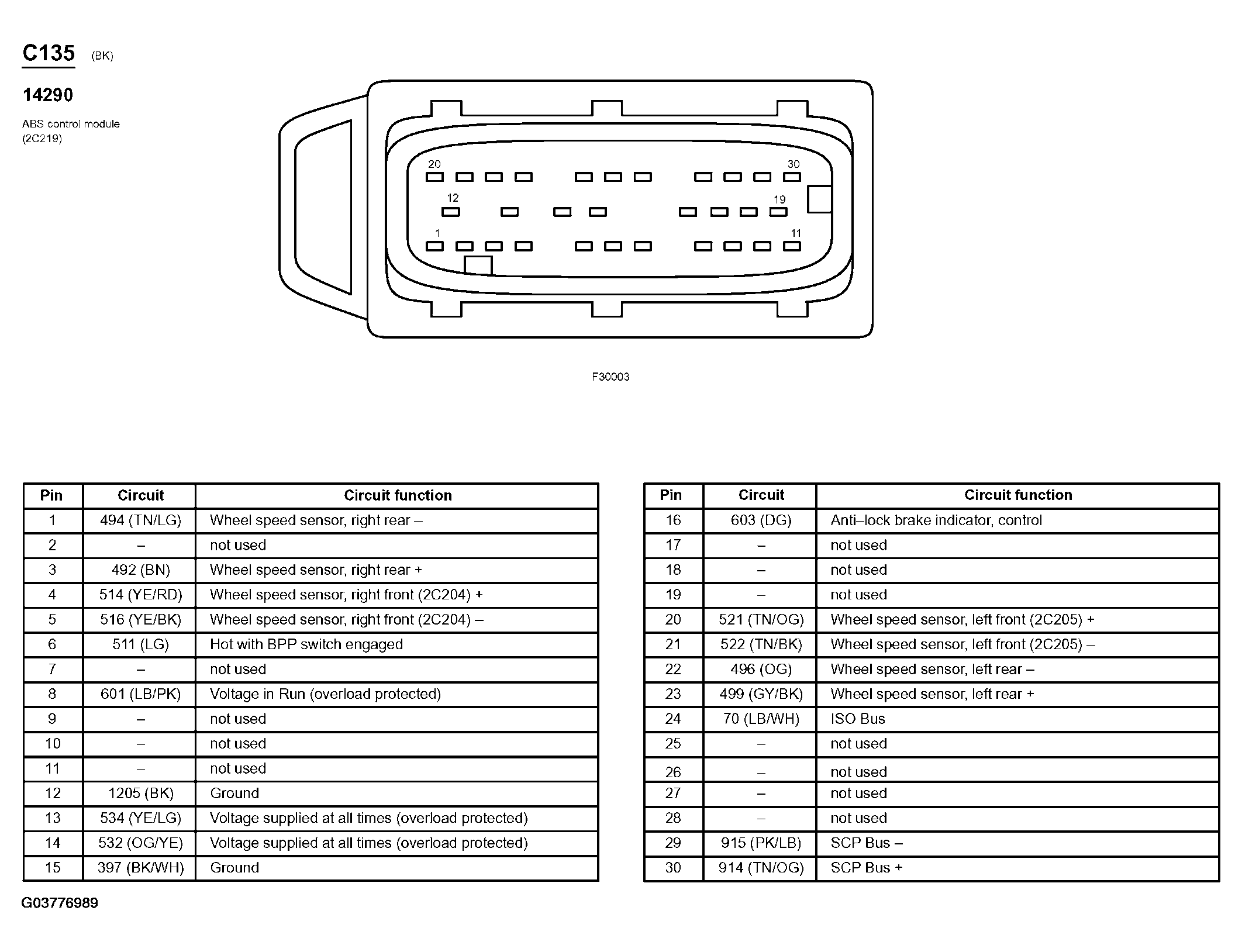

Fig 29: ABS Control Module Connector End View (C135)
Courtesy of FORD MOTOR CO.

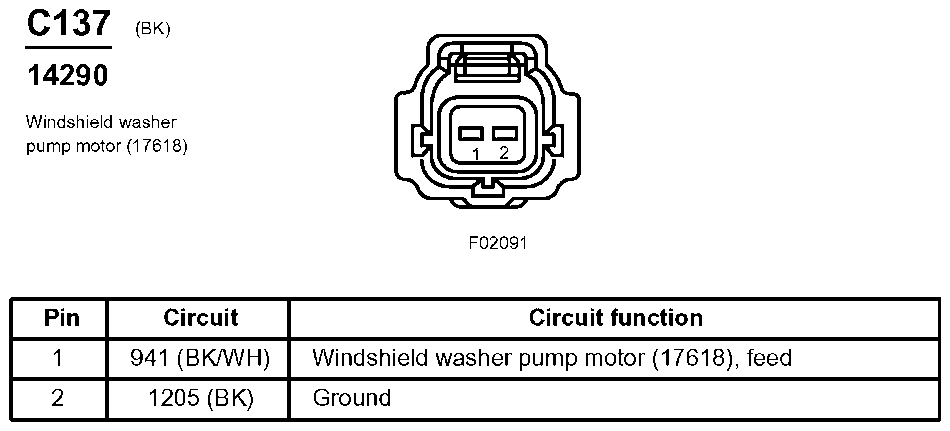

Fig 30: Windshield Washer Pump Motor Connector End View (C137)
Courtesy of FORD MOTOR CO.

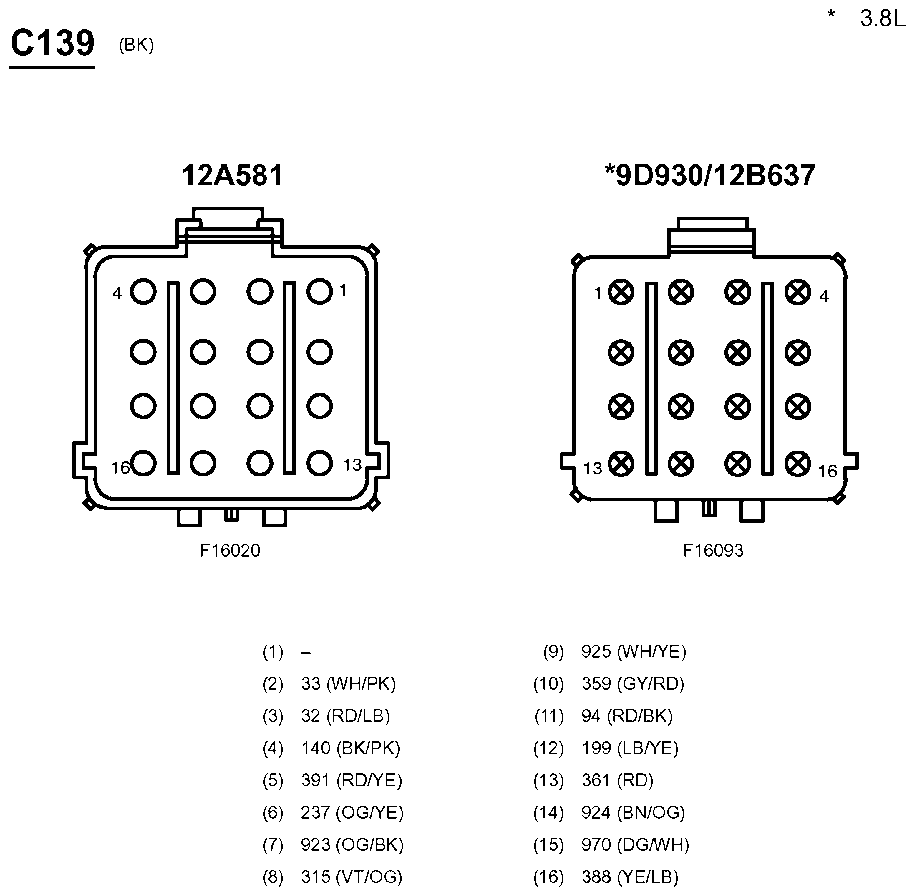

Fig 31: Inline Connector End View (C139)
Courtesy of FORD MOTOR CO.

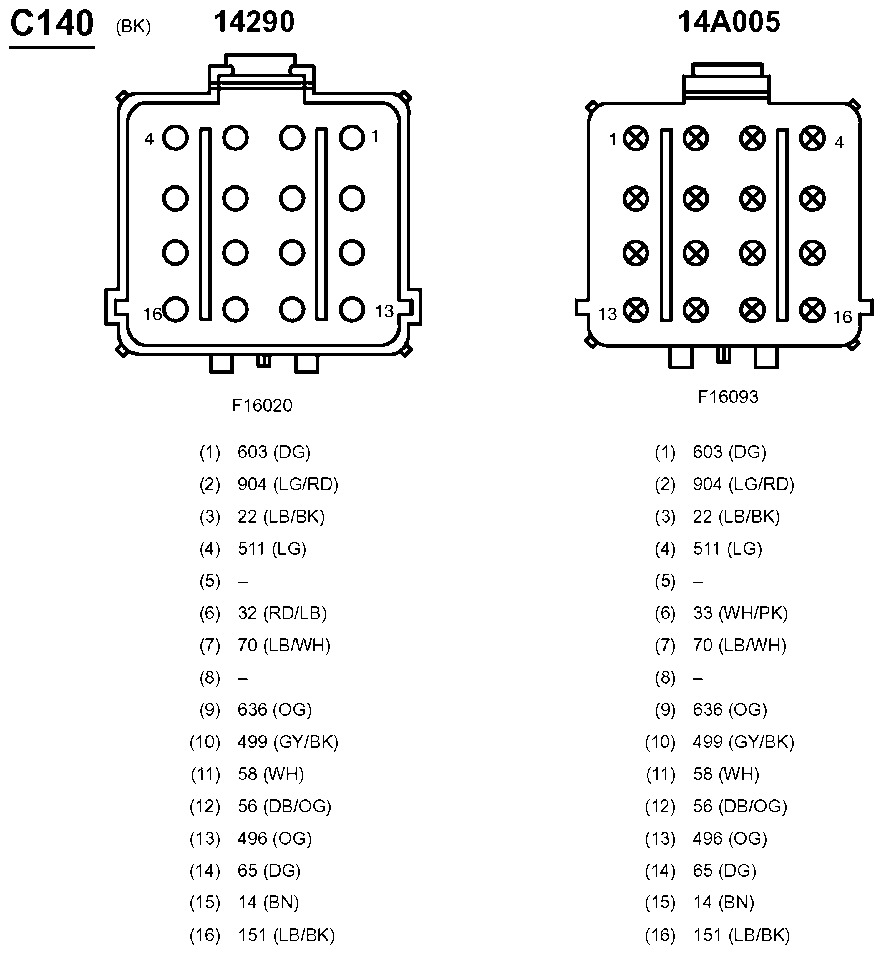

Fig 32: Inline Connector End View (C140)
Courtesy of FORD MOTOR CO.

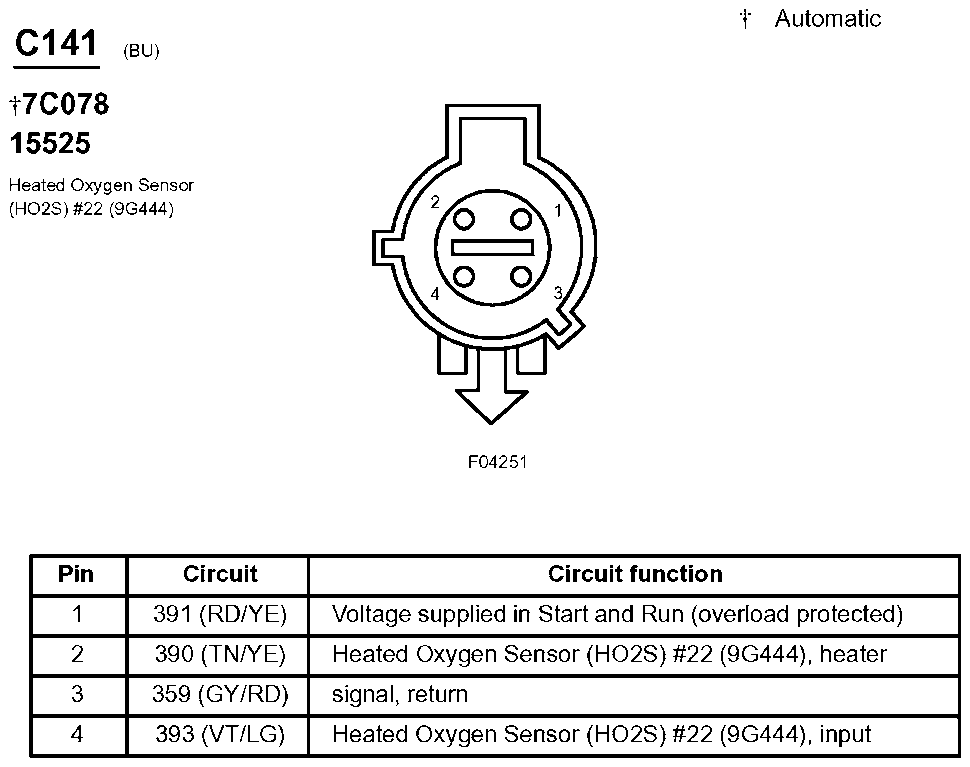

Fig 33: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)
Courtesy of FORD MOTOR CO.

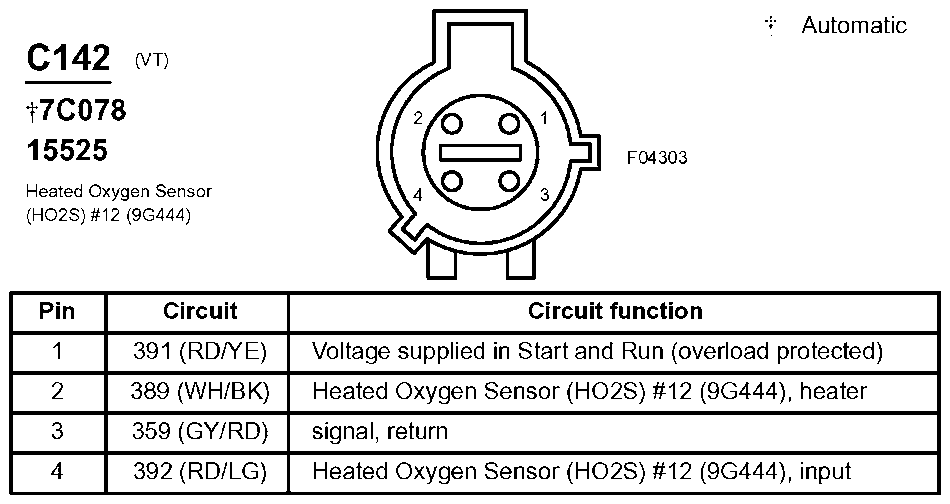

Fig 34: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)
Courtesy of FORD MOTOR CO.

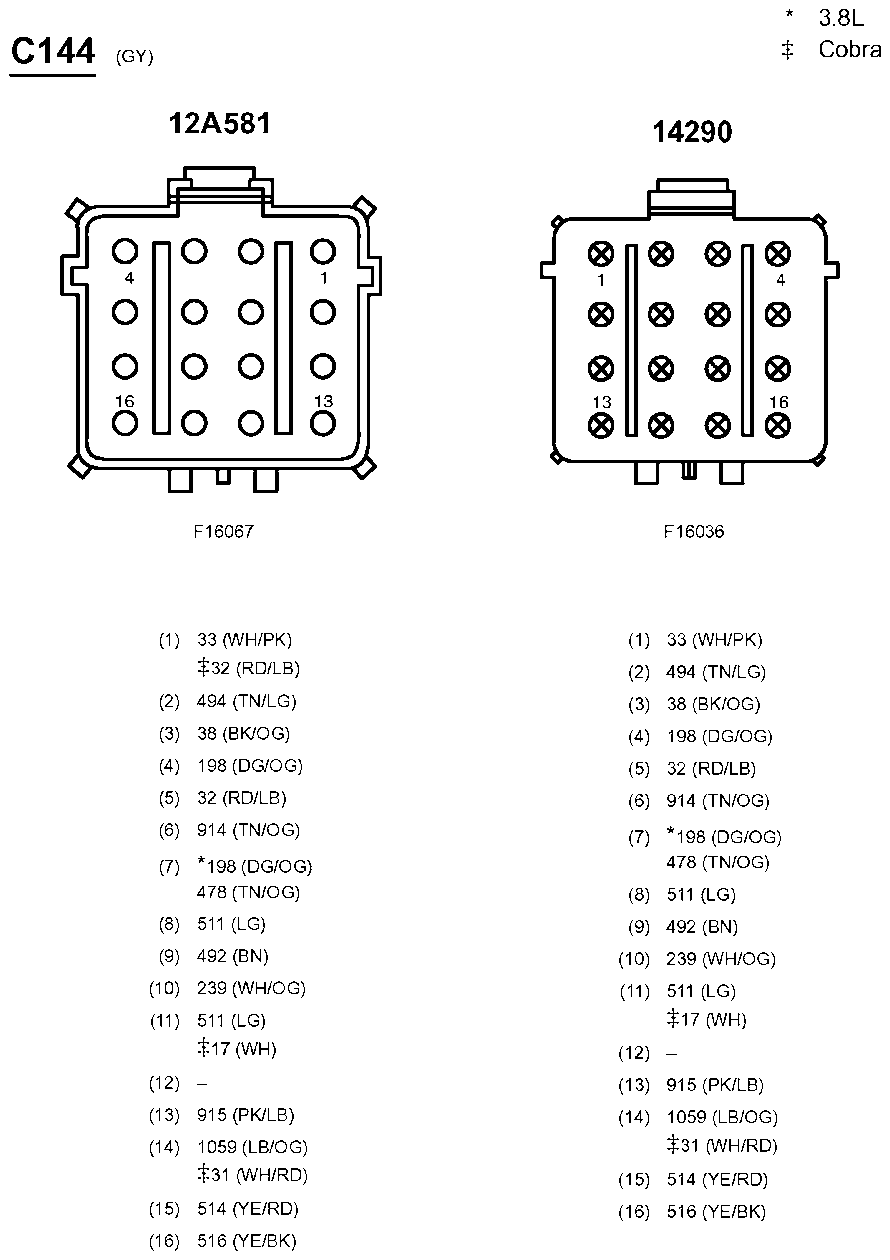

Fig 35: Inline Connector End View (C144)
Courtesy of FORD MOTOR CO.

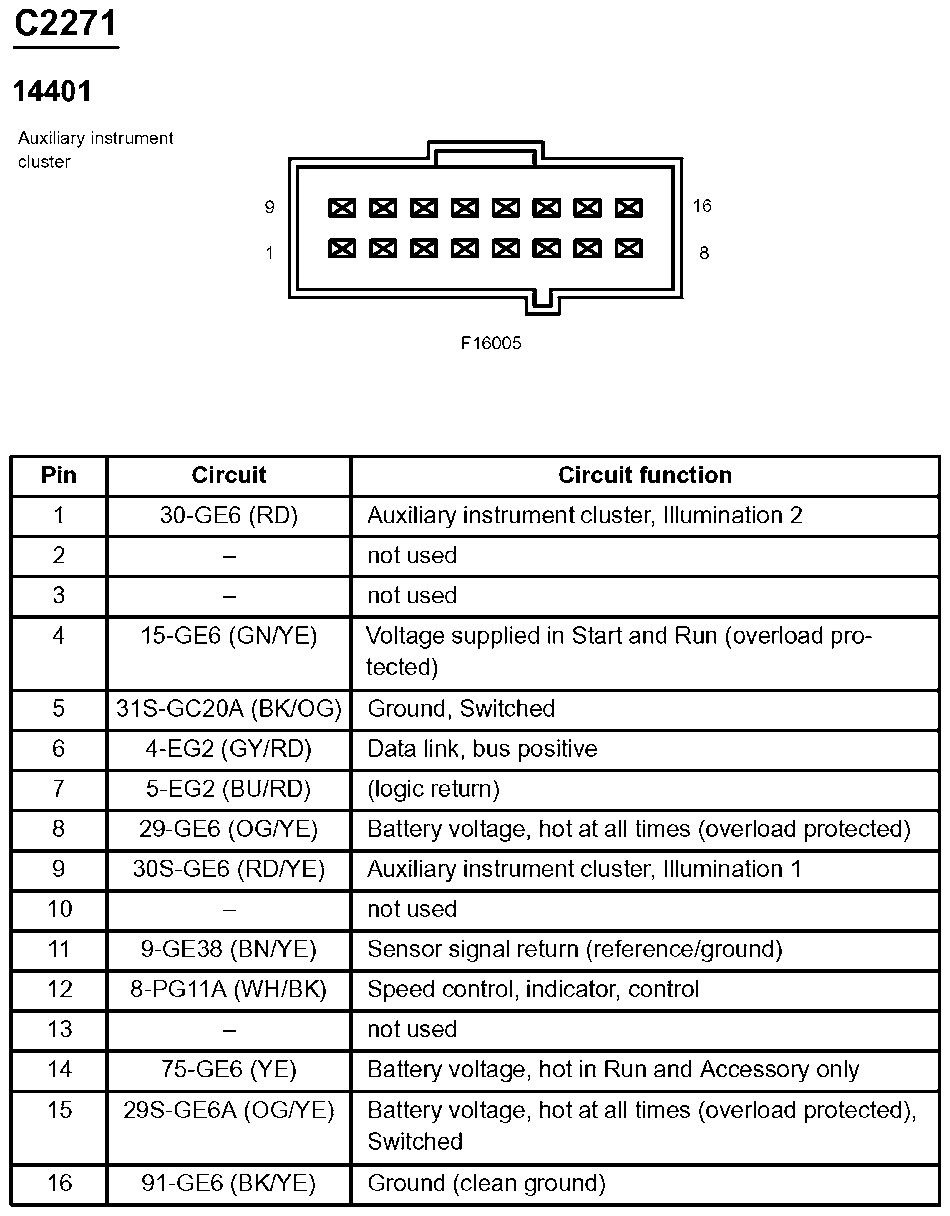

Fig 36: Auxiliary Instrument Cluster Connector End View (C2271)
Courtesy of FORD MOTOR CO.
Fig 37: Clock Spring Connector End View (C2274)
Courtesy of FORD MOTOR CO.

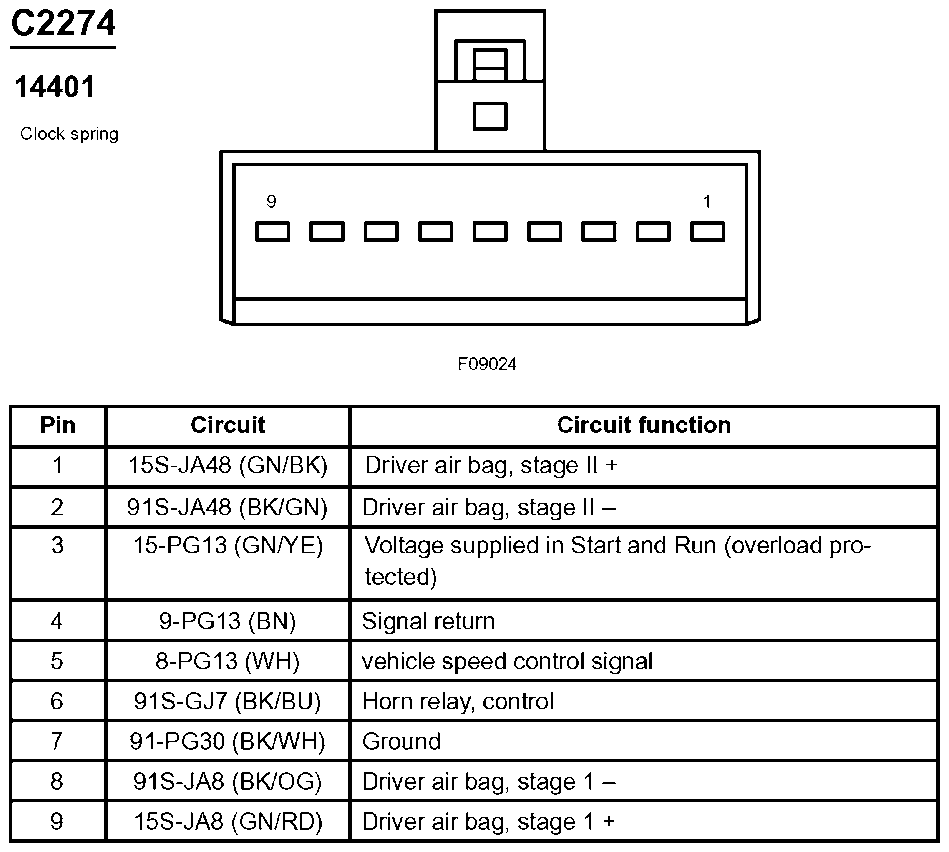

Fig 38: Wheel Speed Sensor, Left Front Connector End View (C150)
Courtesy of FORD MOTOR CO.

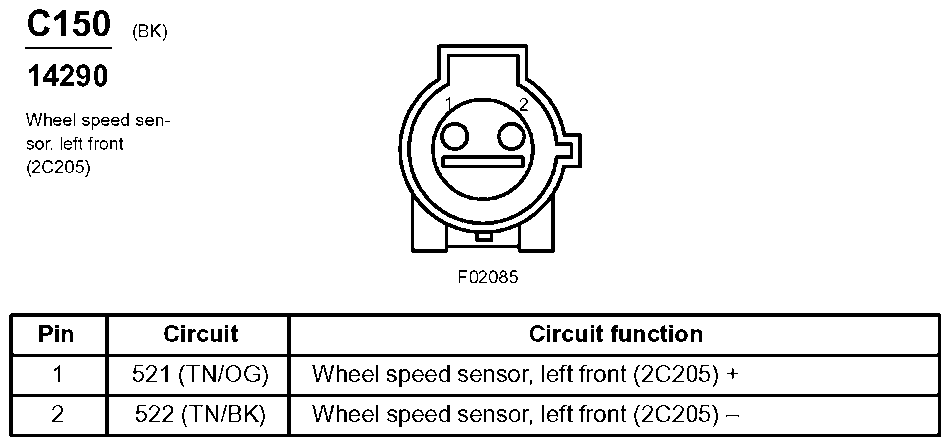

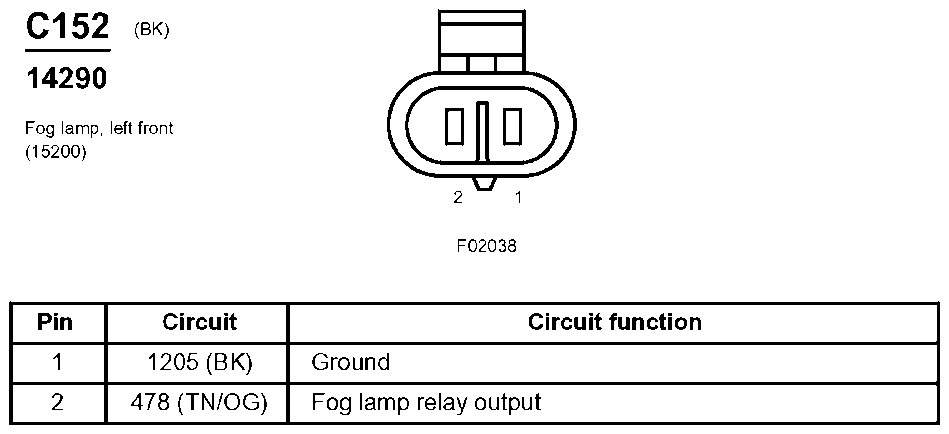

Fig 39: Fog Lamp, Left Front Connector End View (C152)
Courtesy of FORD MOTOR CO.

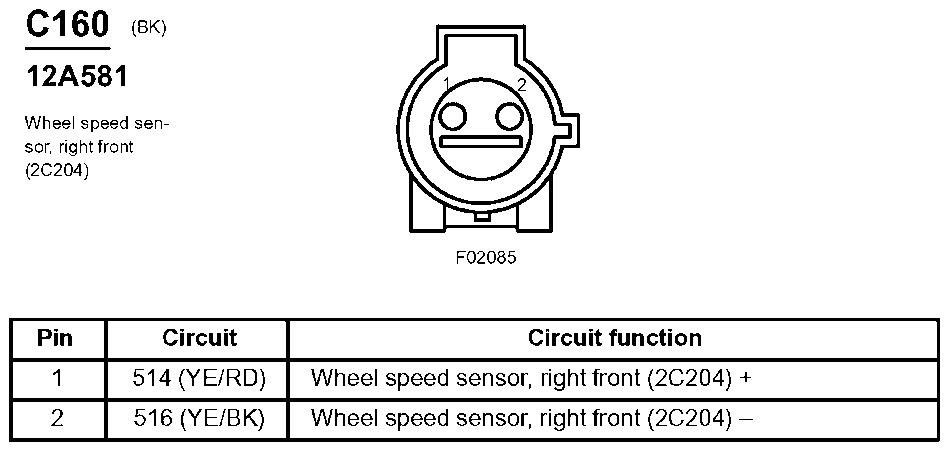

Fig 40: Wheel Speed Sensor, Right Front Connector End View (C160)
Courtesy of FORD MOTOR CO.

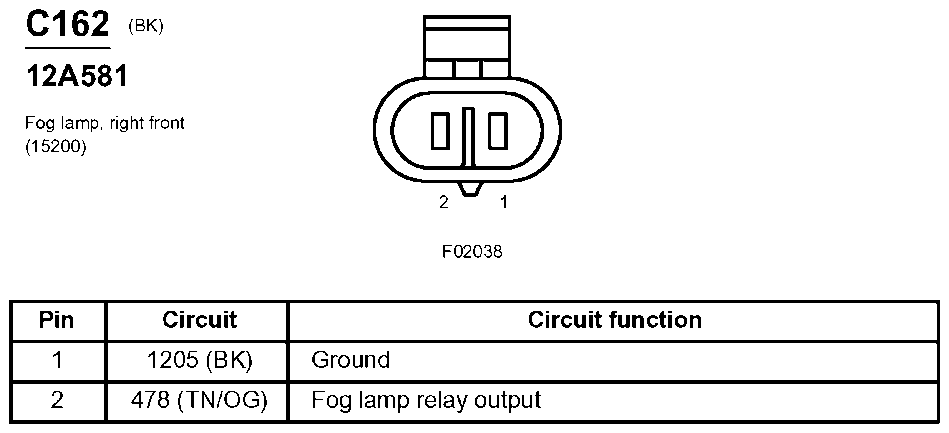

Fig 41: Fog Lamp, Right Front Connector End View (C162)
Courtesy of FORD MOTOR CO.

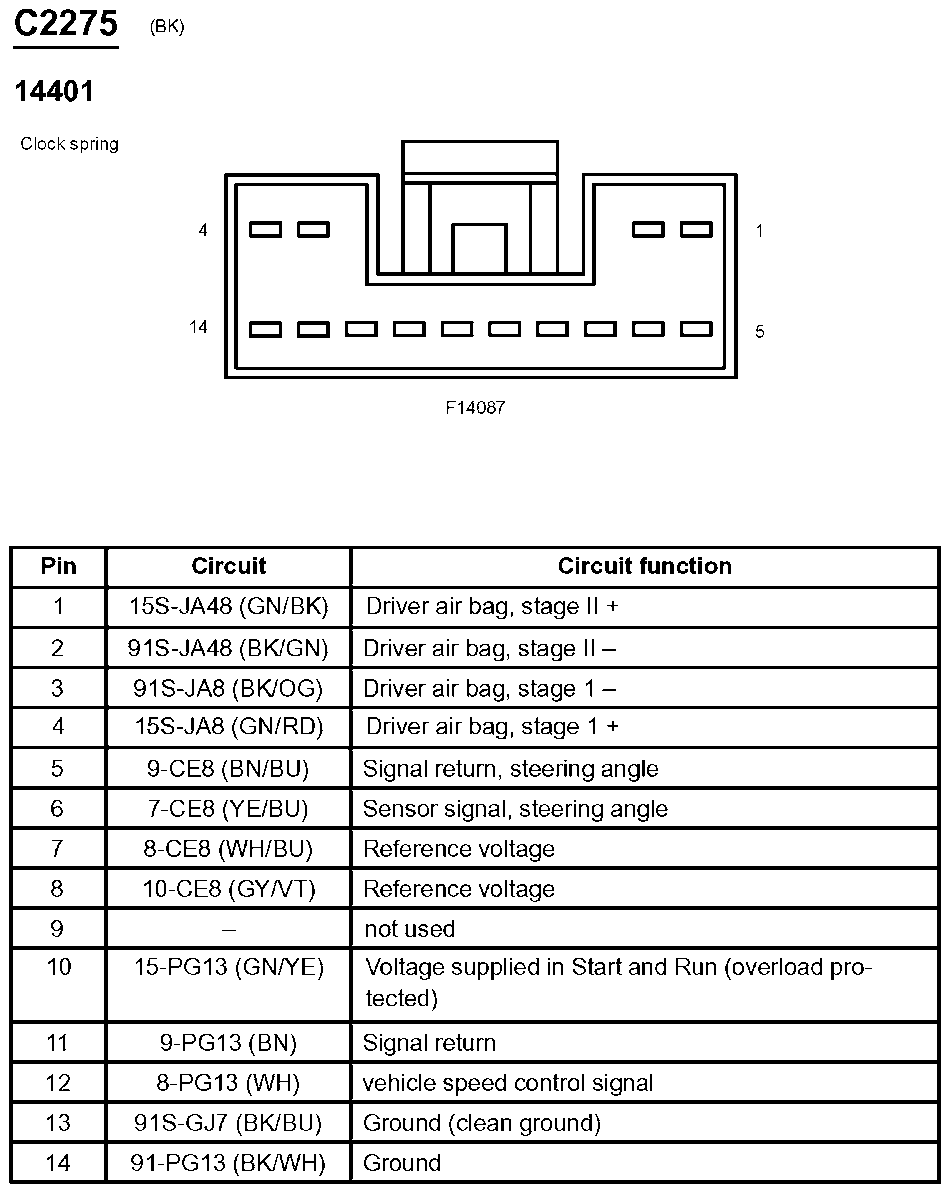

Fig 42: Clock Spring Connector End View (C2275)
Courtesy of FORD MOTOR CO.

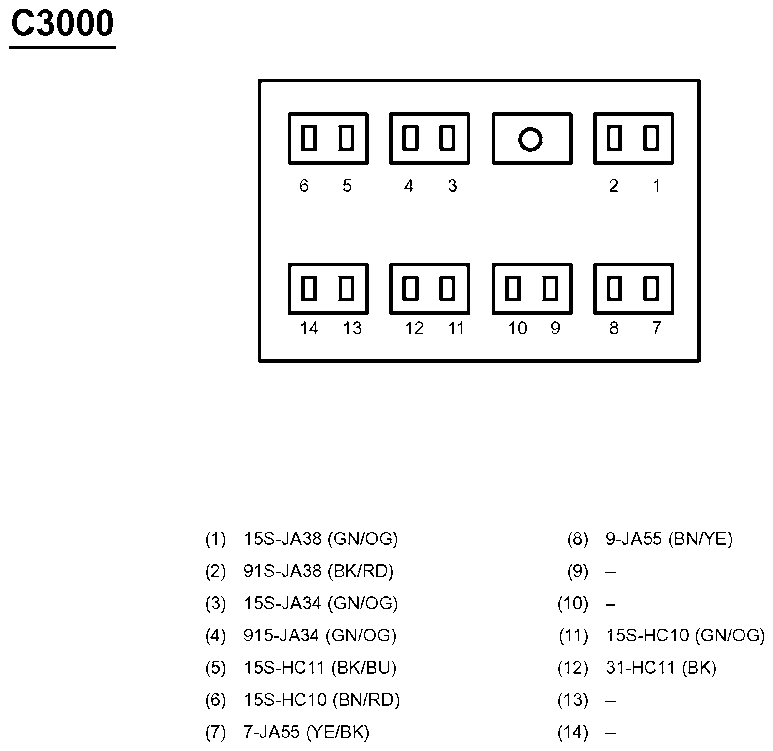

Fig 43: Inline Connector End View (C3000)
Courtesy of FORD MOTOR CO.

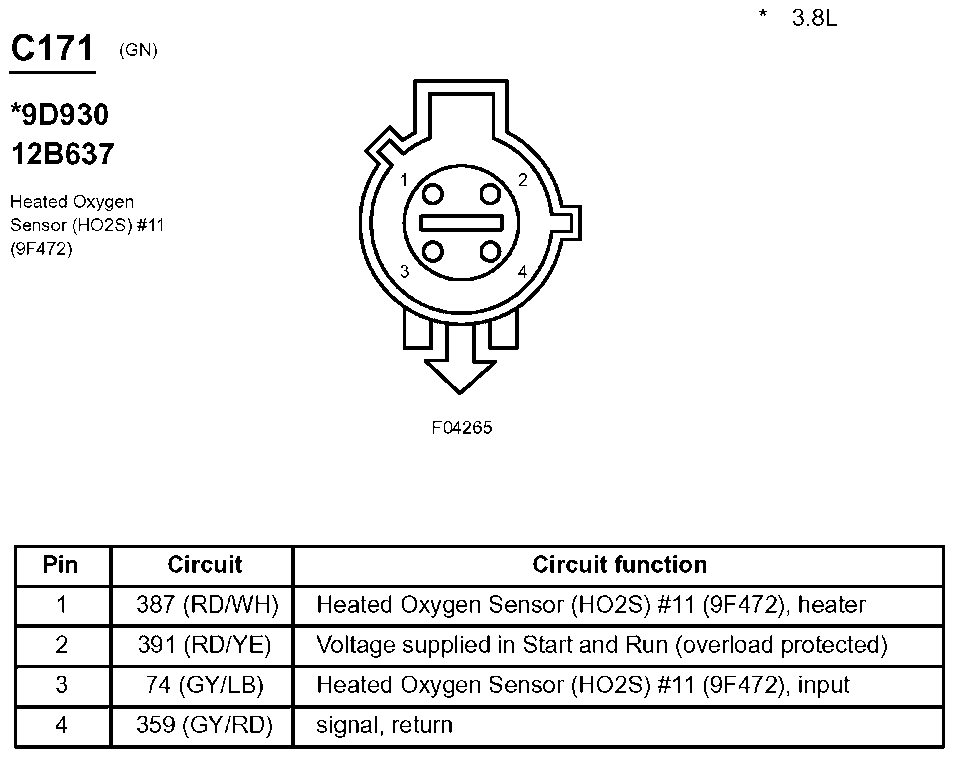

Fig 44: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)
Courtesy of FORD MOTOR CO.

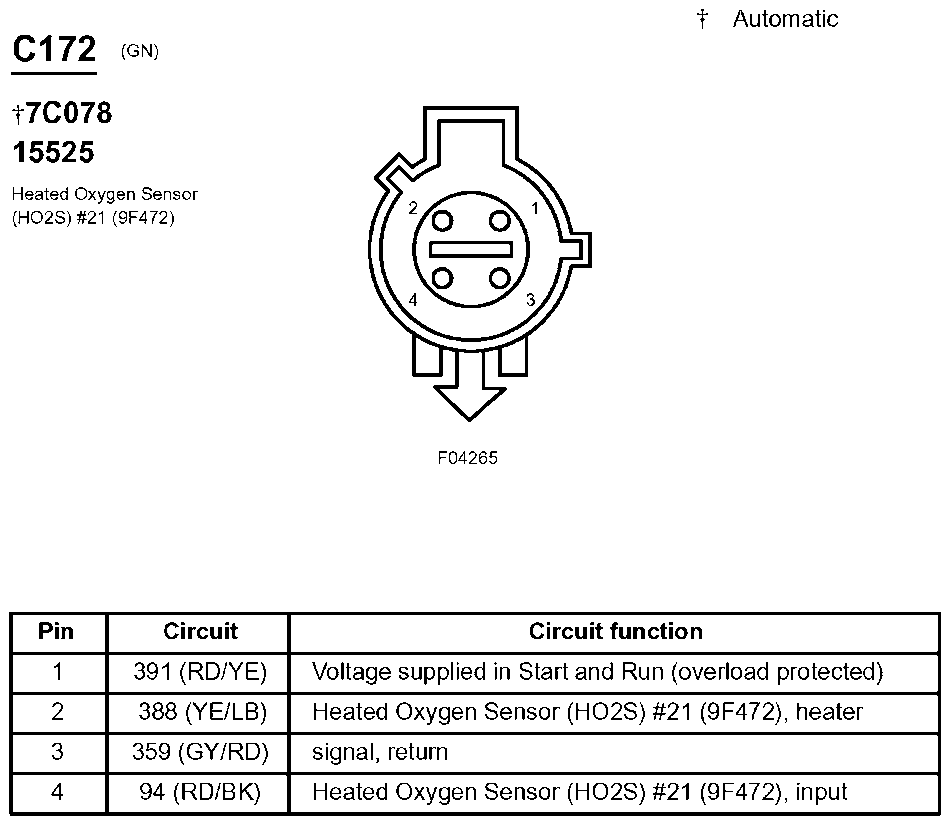

Fig 45: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)
Courtesy of FORD MOTOR CO.
Fig 46: Ignition Transformer Capacitor 1 Connector End View (C174)
Courtesy of FORD MOTOR CO.

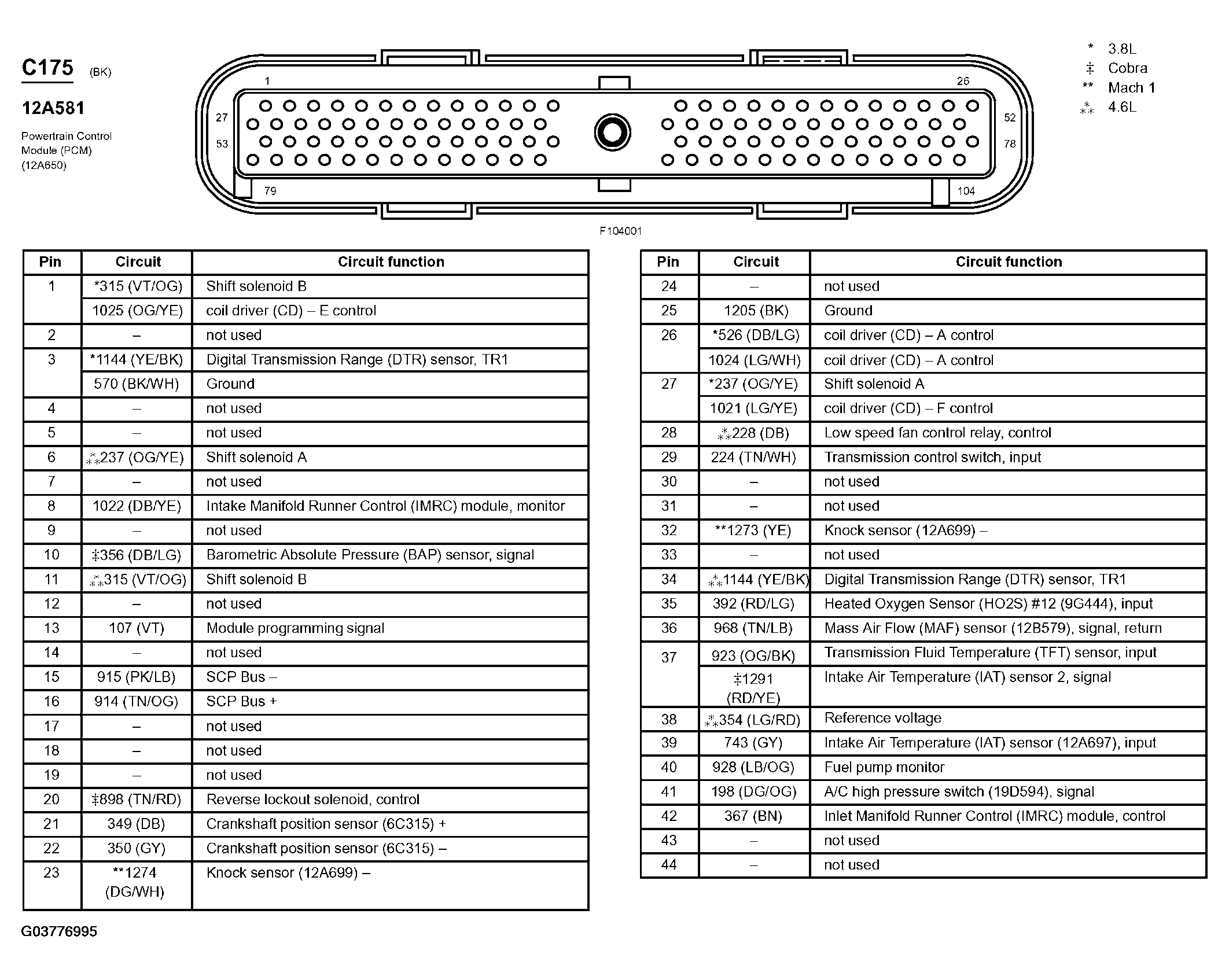

Fig 47: Powertrain Control Module (PCM) Connector End View (C175) (1 Of 2)
Courtesy of FORD MOTOR CO.

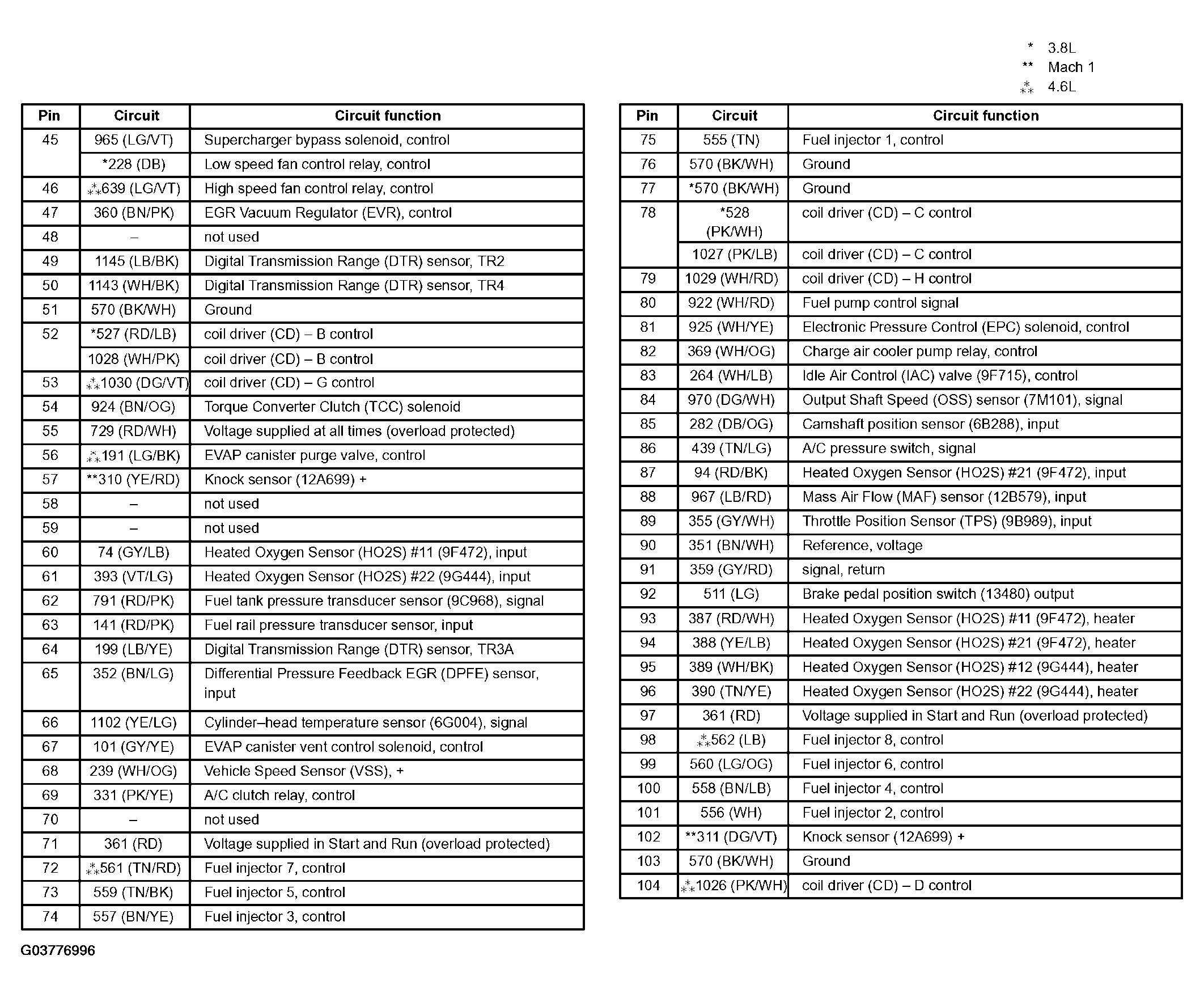

Fig 48: Powertrain Control Module (PCM) Connector End View (C175) (2 Of 2)
Courtesy of FORD MOTOR CO.

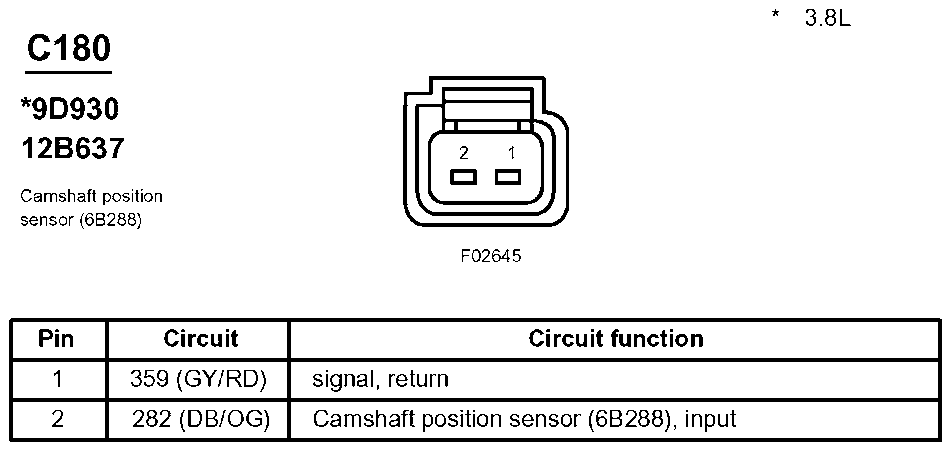

Fig 49: Camshaft Position Sensor Connector End View (C180)
Courtesy of FORD MOTOR CO.

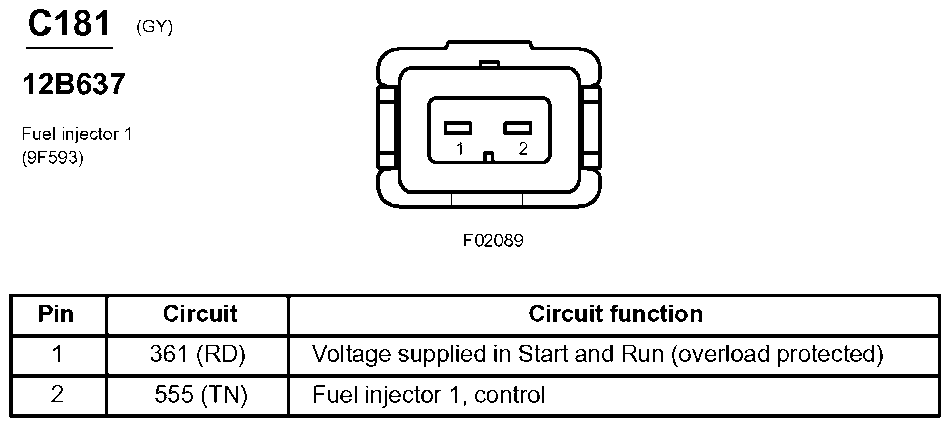

Fig 50: Fuel Injector 1 Connector End View (C181)
Courtesy of FORD MOTOR CO.

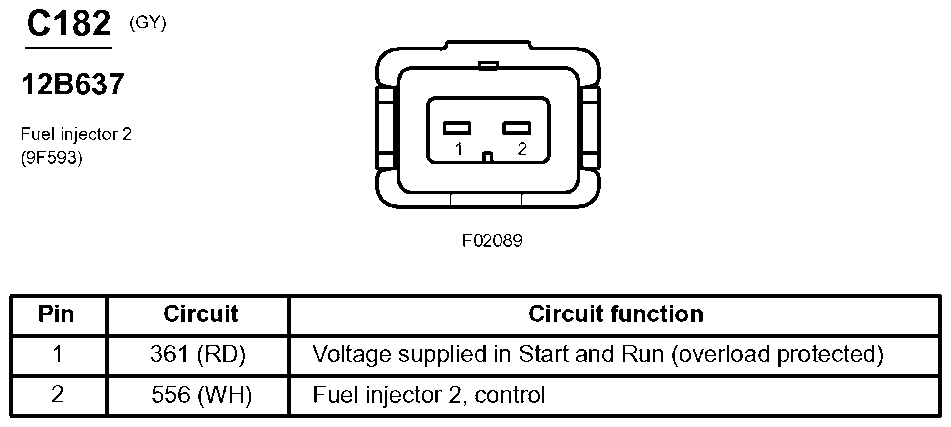

Fig 51: Fuel Injector 2 Connector End View (C182)
Courtesy of FORD MOTOR CO.

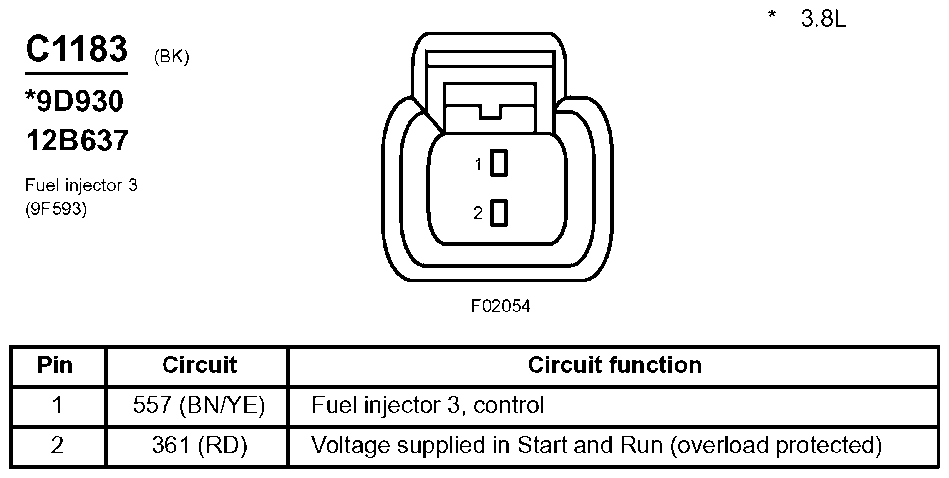

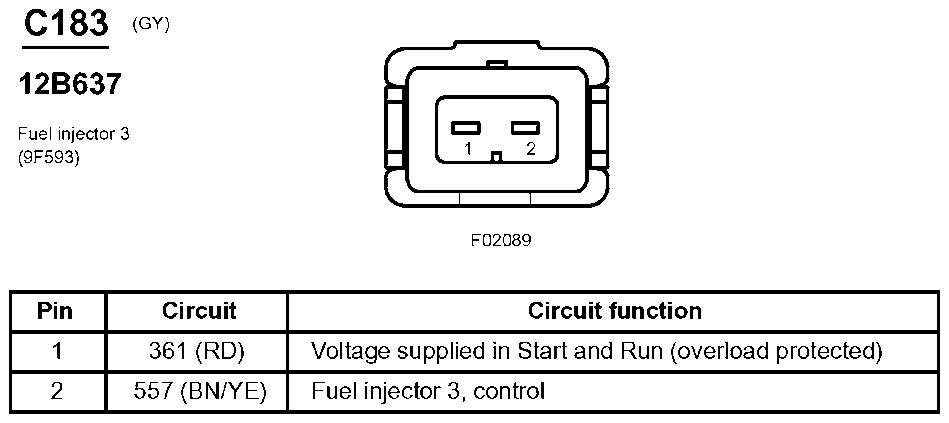

Fig 52: Fuel Injector 3 Connector End View (C183)
Courtesy of FORD MOTOR CO.

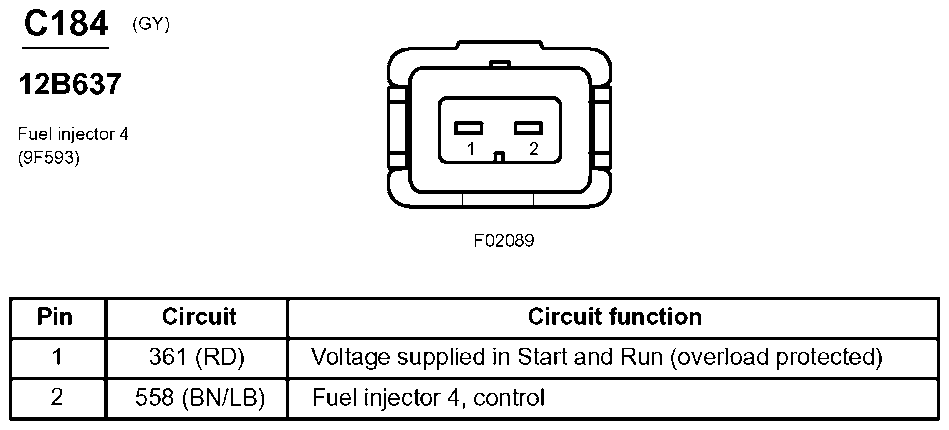

Fig 53: Fuel Injector 4 Connector End View (C184)
Courtesy of FORD MOTOR CO.
Fig 54: Fuel Injector 5 Connector End View (C185)
Courtesy of FORD MOTOR CO.

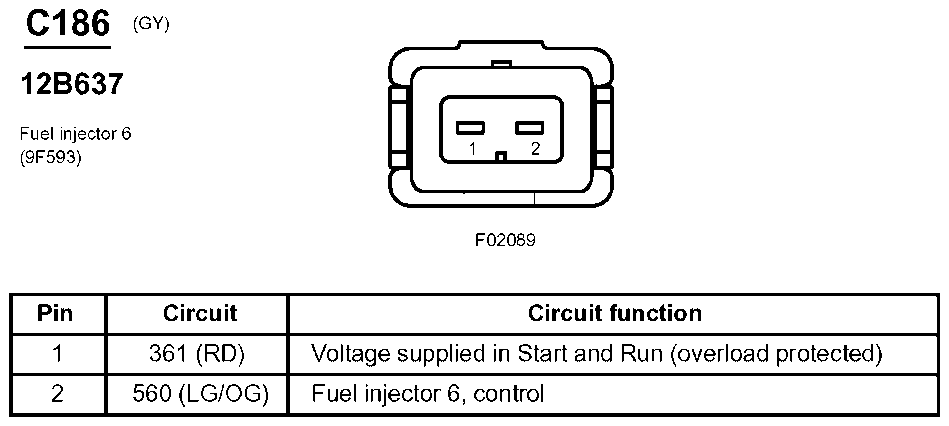

Fig 55: Fuel Injector 6 Connector End View (C186)
Courtesy of FORD MOTOR CO.

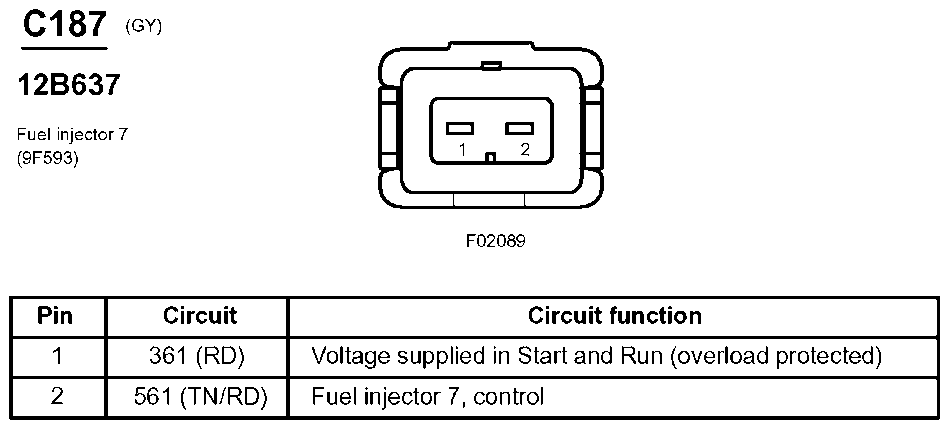

Fig 56: Fuel Injector 7 Connector End View (C187)
Courtesy of FORD MOTOR CO.
Fig 57: Fuel Injector 8 Connector End View (C188)
Courtesy of FORD MOTOR CO.

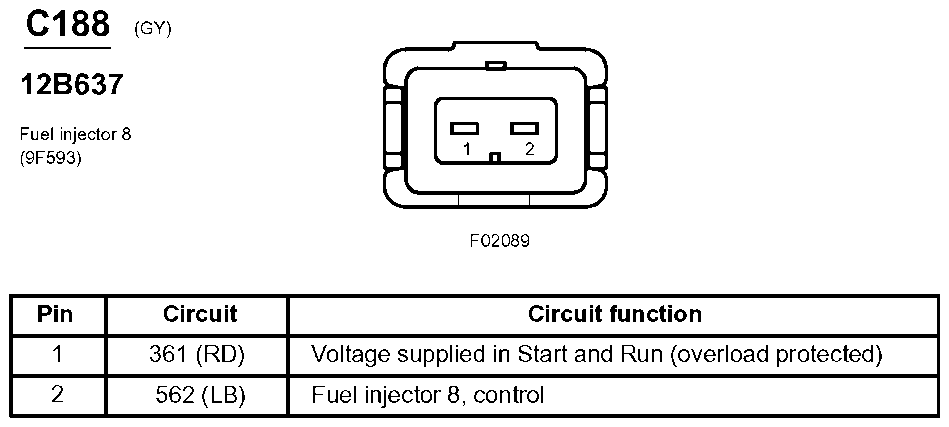

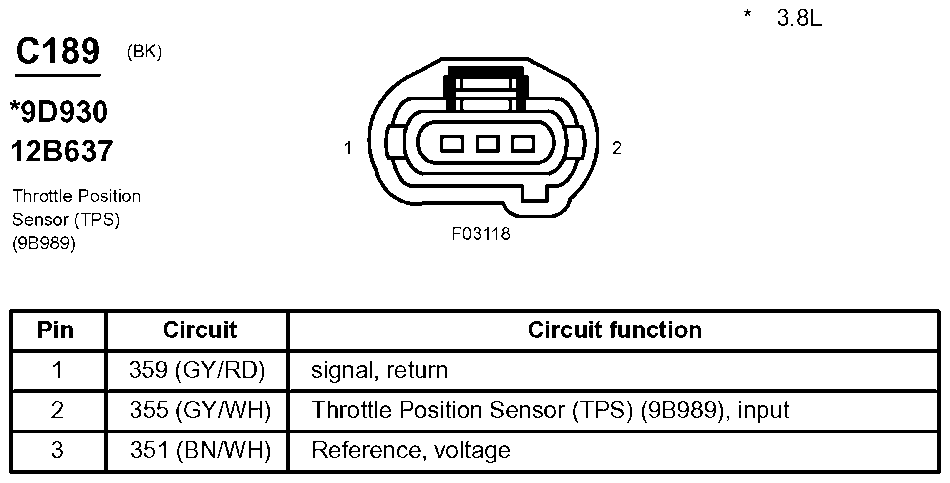

Fig 58: Throttle Position Sensor (TPS) Connector End View (C189)
Courtesy of FORD MOTOR CO.

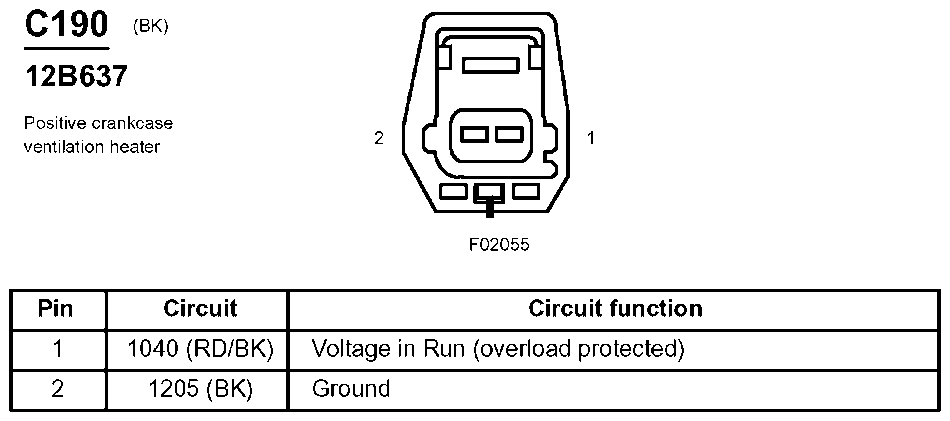

Fig 59: Positive Crankcase Ventilation Heater Connector End View (C190)
Courtesy of FORD MOTOR CO.

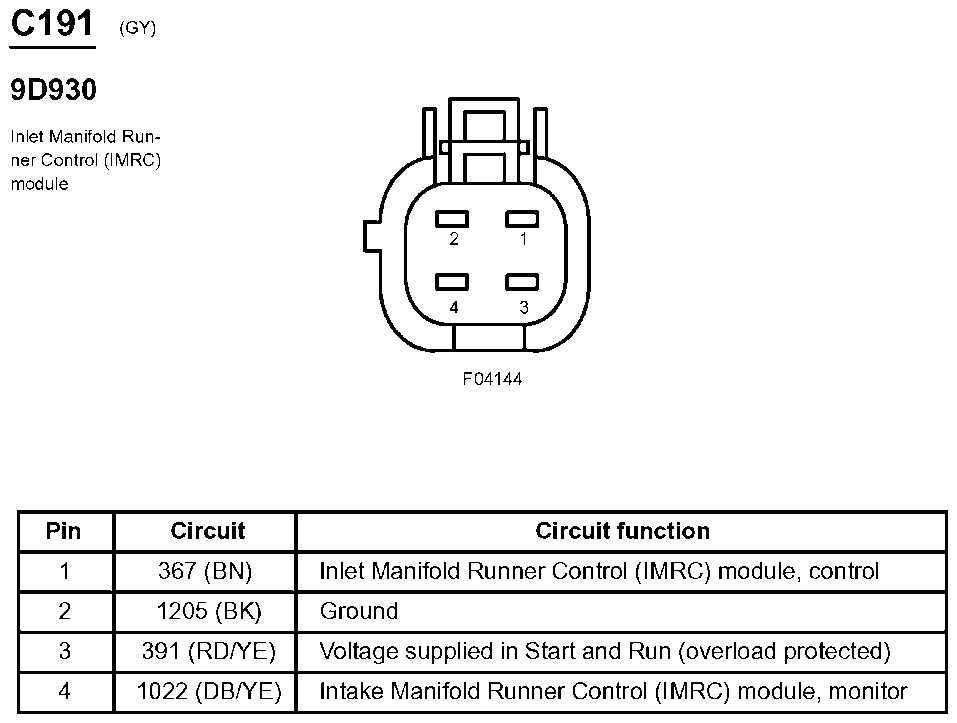

Fig 60: Inlet Manifold Runner Control (IMRC) Module Connector End View (C191)
Courtesy of FORD MOTOR CO.

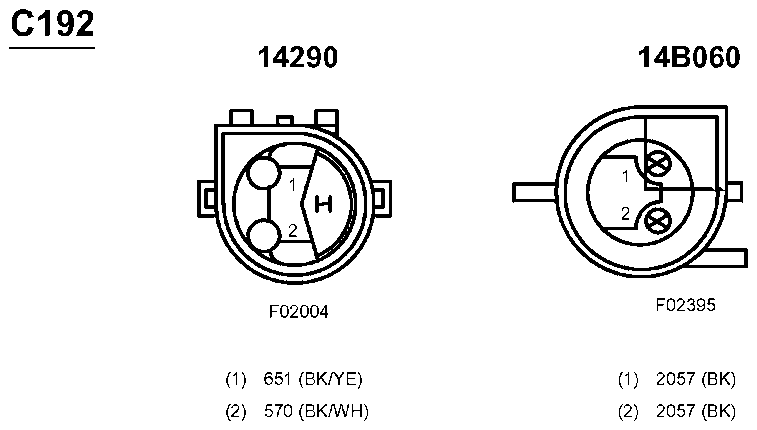

Fig 61: Inline Connector End View (C192)
Courtesy of FORD MOTOR CO.
Fig 62: Output Shaft Speed (OSS) Sensor Connector End View (C193)
Courtesy of FORD MOTOR CO.
Fig 63: Ignition Transformer Capacitor 2 Connector End View (C194)
Courtesy of FORD MOTOR CO.

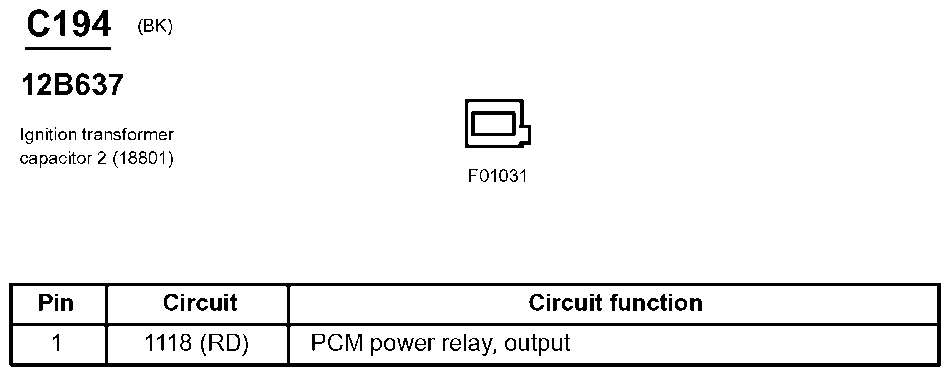

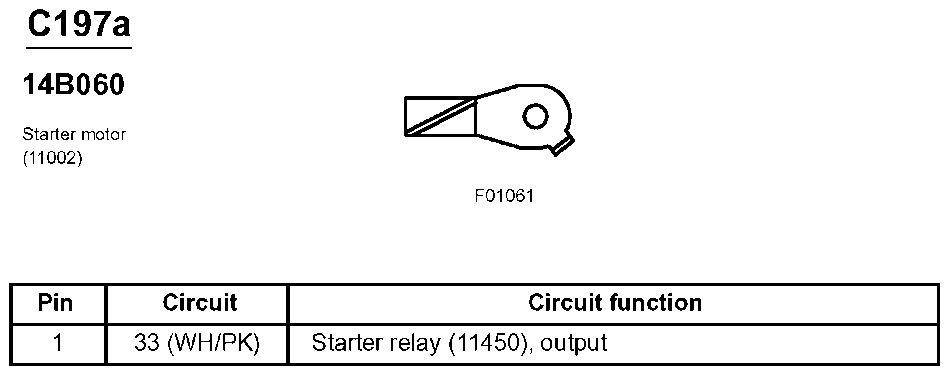

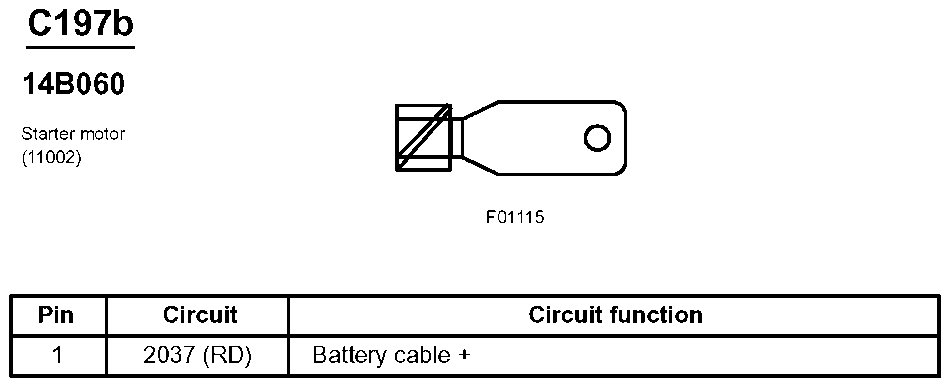

Fig 64: Starter Motor Connector End View (C197a)
Courtesy of FORD MOTOR CO.
Fig 65: Starter Motor Connector End View (C197b)
Courtesy of FORD MOTOR CO.

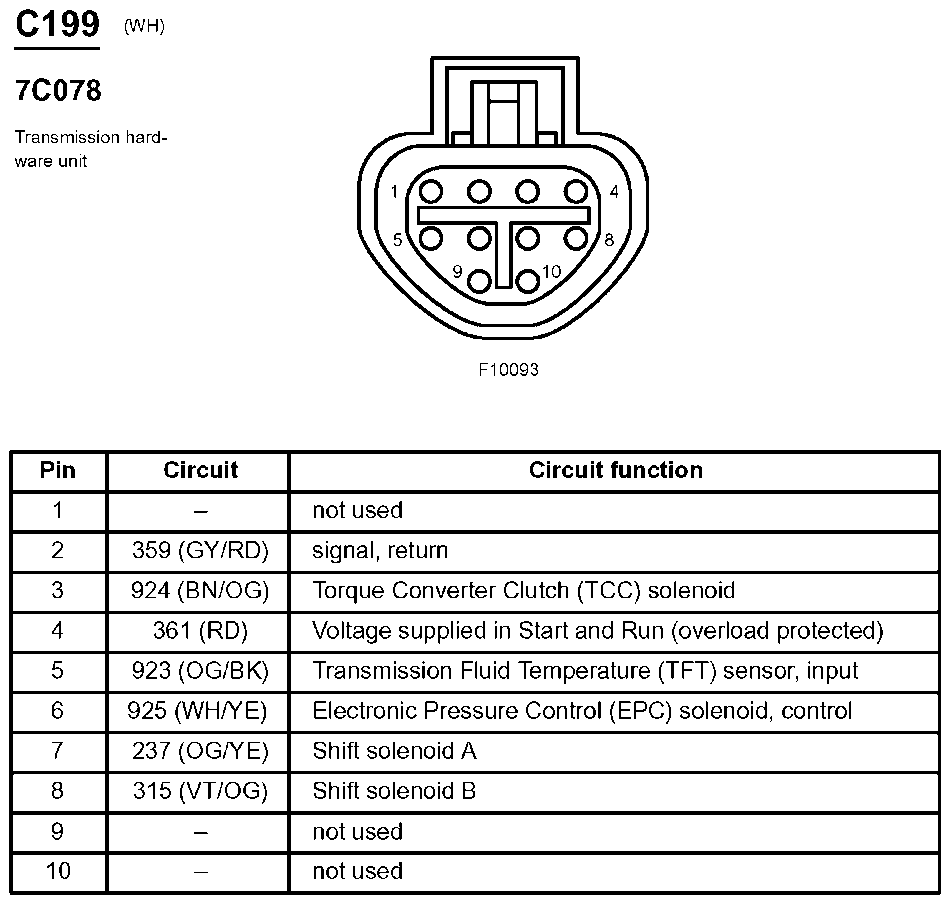

Fig 66: Transmission Hardware Unit Connector End View (C199)
Courtesy of FORD MOTOR CO.
Fig 67: Generic Electronic Module (GEM) Connector End View (C201a)
Courtesy of FORD MOTOR CO.

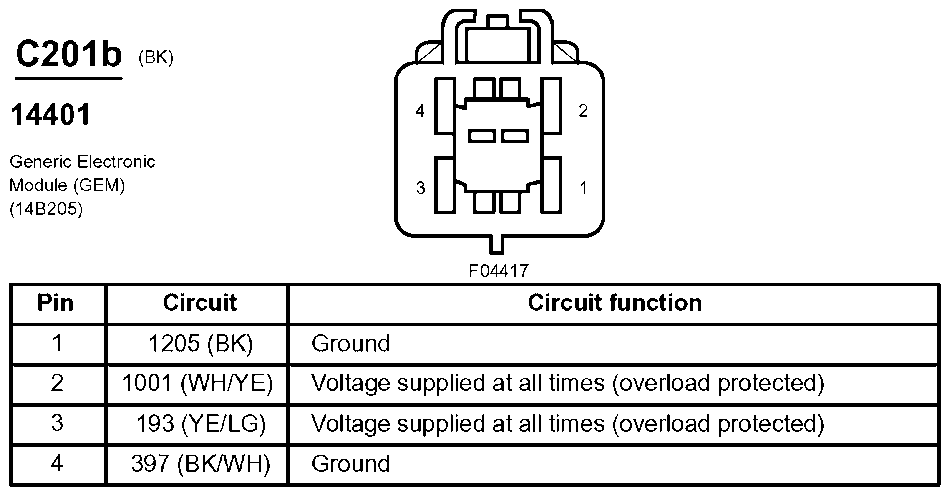

Fig 68: Generic Electronic Module (GEM) Connector End View (C201b)
Courtesy of FORD MOTOR CO.

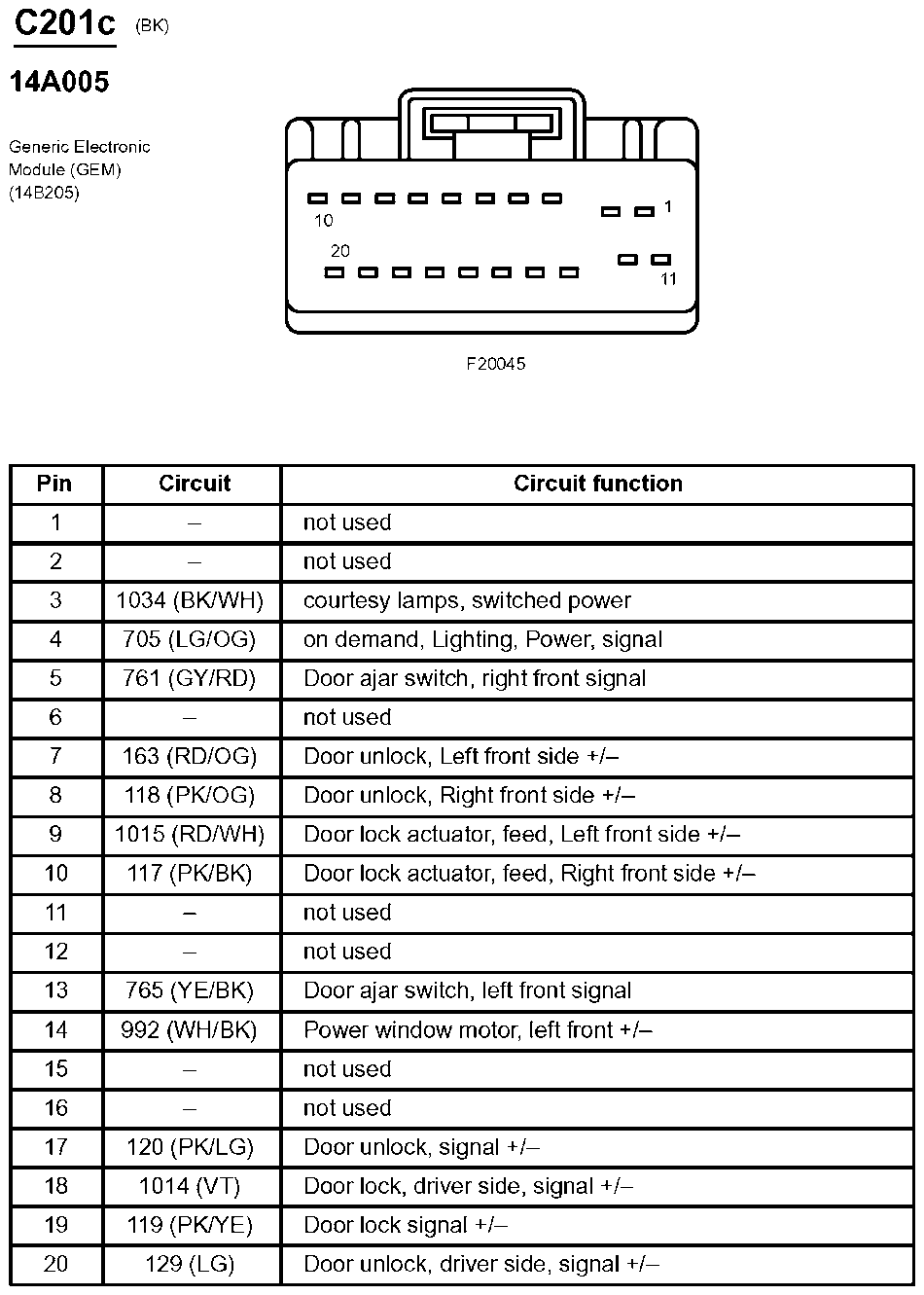

Fig 69: Generic Electronic Module (GEM) Connector End View (C201c)
Courtesy of FORD MOTOR CO.

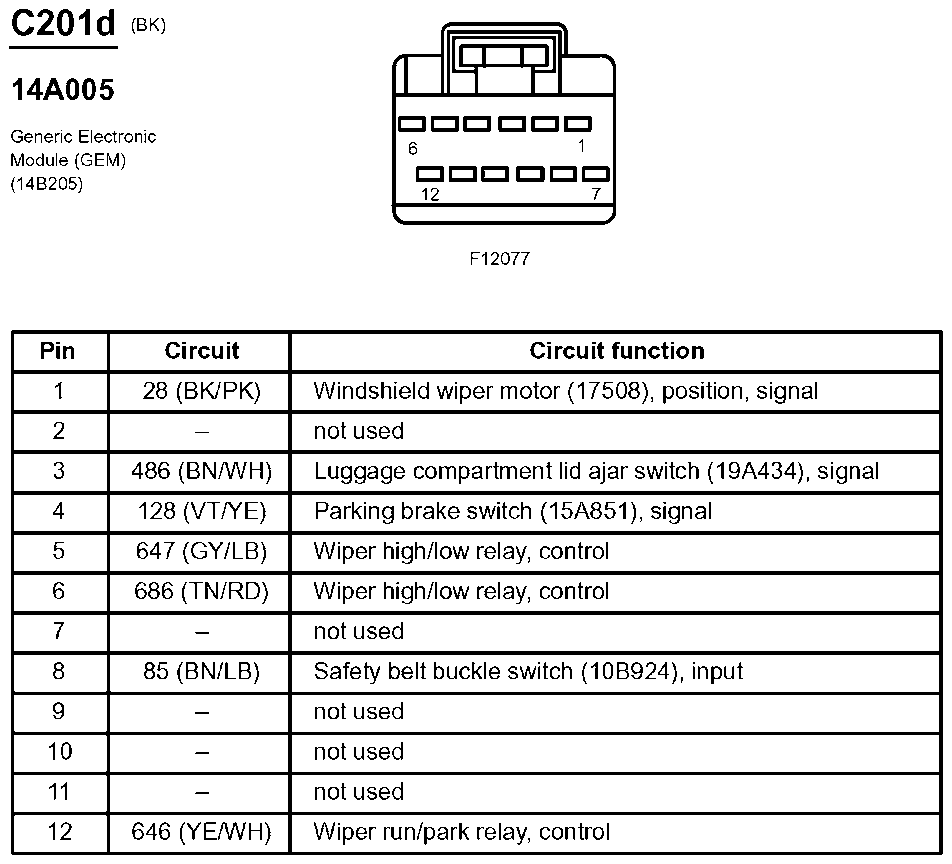

Fig 70: Generic Electronic Module (GEM) Connector End View (C201d)
Courtesy of FORD MOTOR CO.

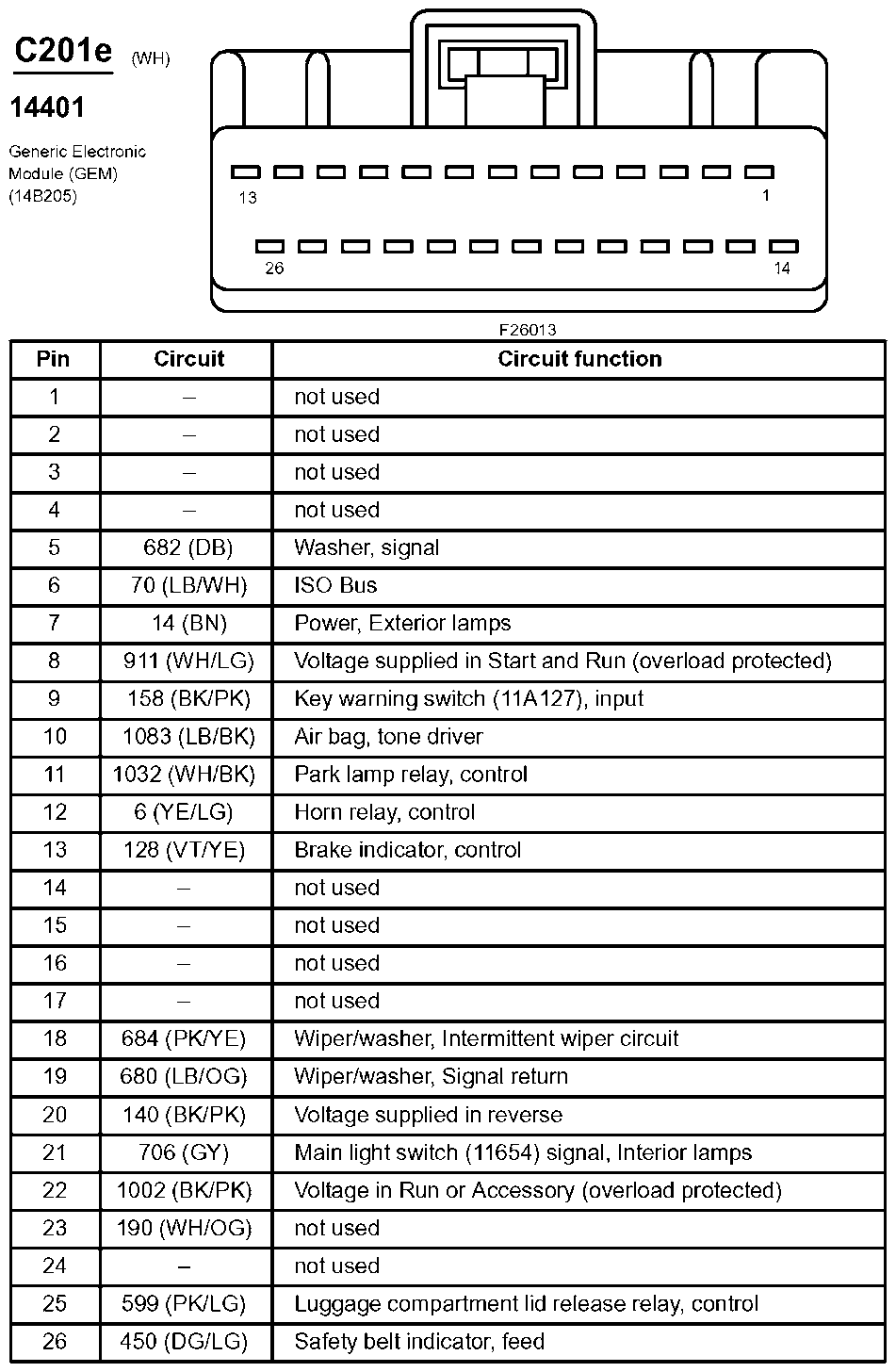

Fig 71: Generic Electronic Module (GEM) Connector End View (C201e)
Courtesy of FORD MOTOR CO.

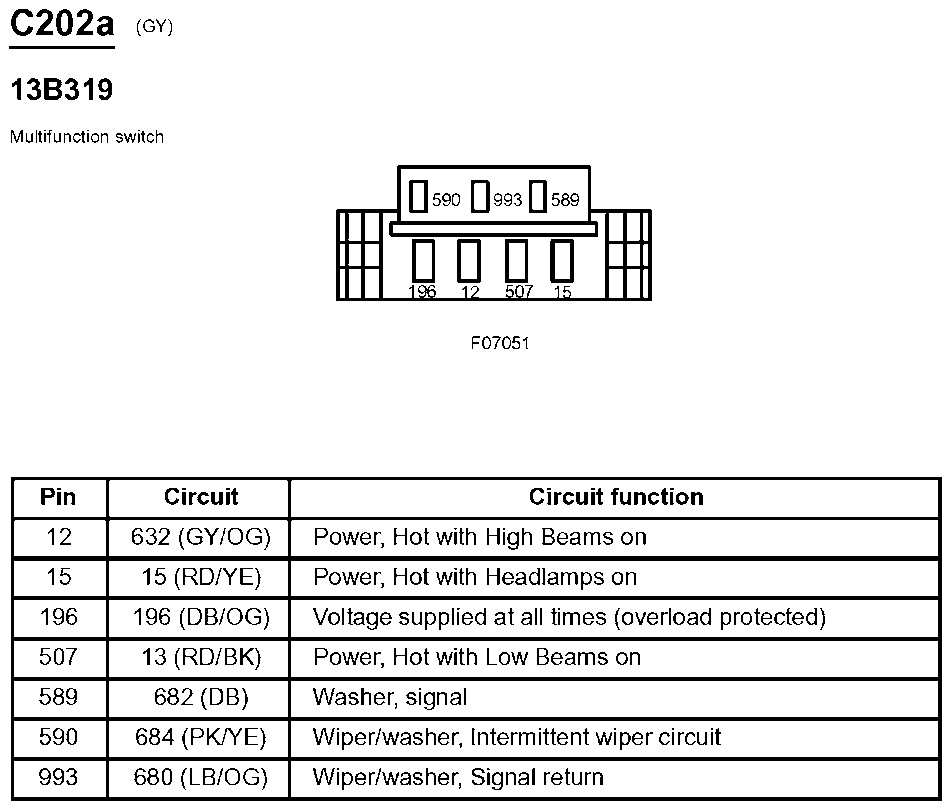

Fig 72: Multifunction Switch Connector End View (C202a)
Courtesy of FORD MOTOR CO.

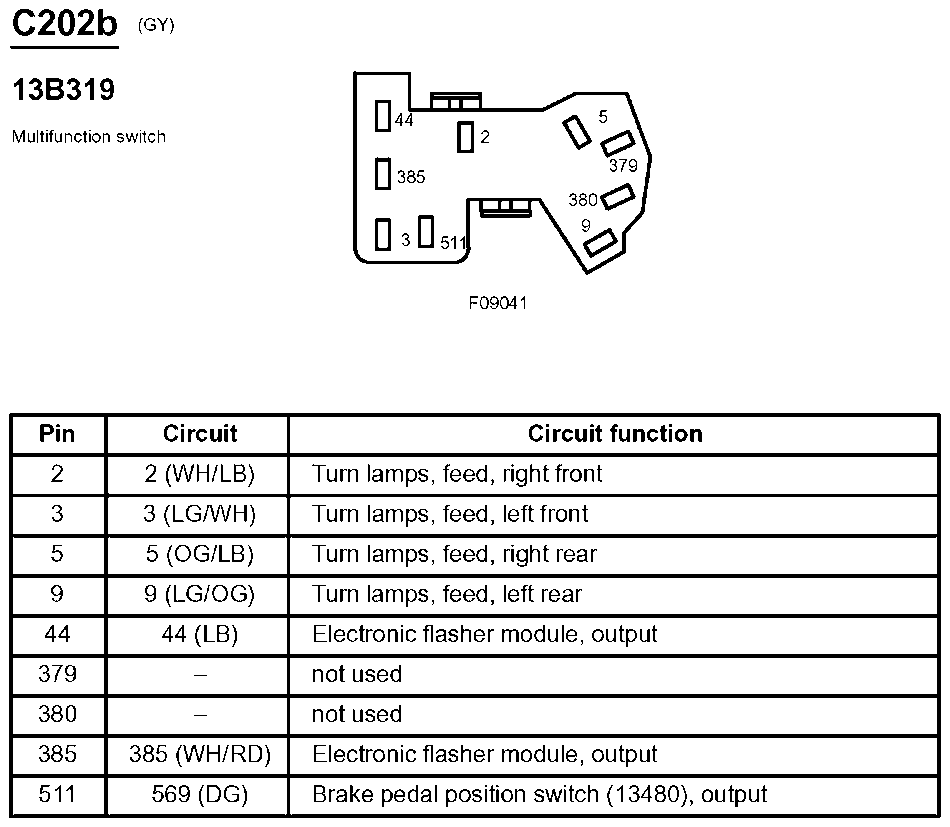

Fig 73: Multifunction Switch Connector End View (C202b)
Courtesy of FORD MOTOR CO.

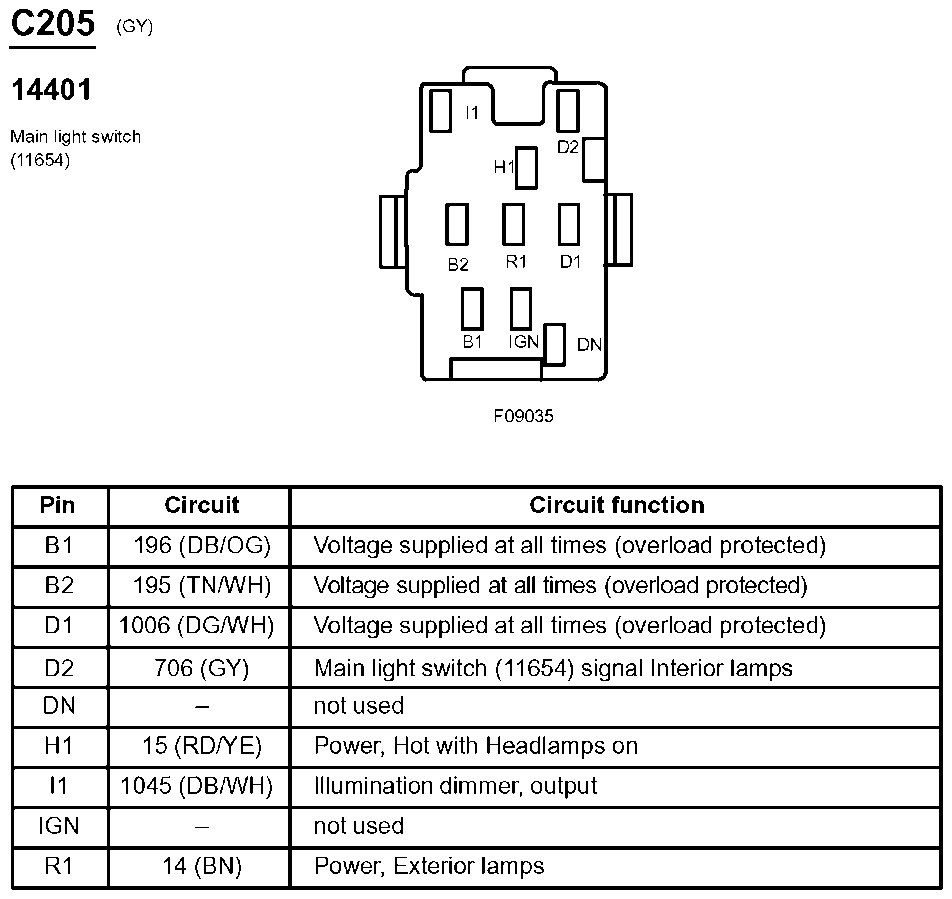

Fig 74: Main Light Switch Connector End View (C205)
Courtesy of FORD MOTOR CO.
Fig 75: Luggage Compartment Lid Release Switch Connector End View (C207)
Courtesy of FORD MOTOR CO.

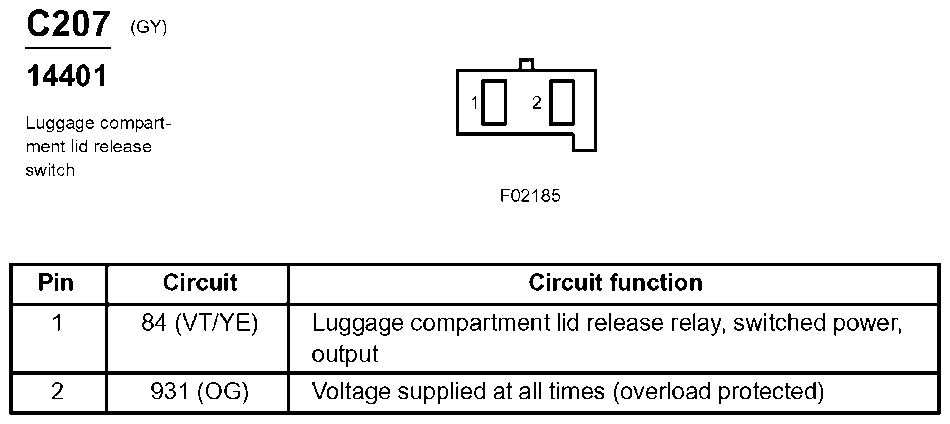

Fig 76: Inline Connector End View (C210)
Courtesy of FORD MOTOR CO.

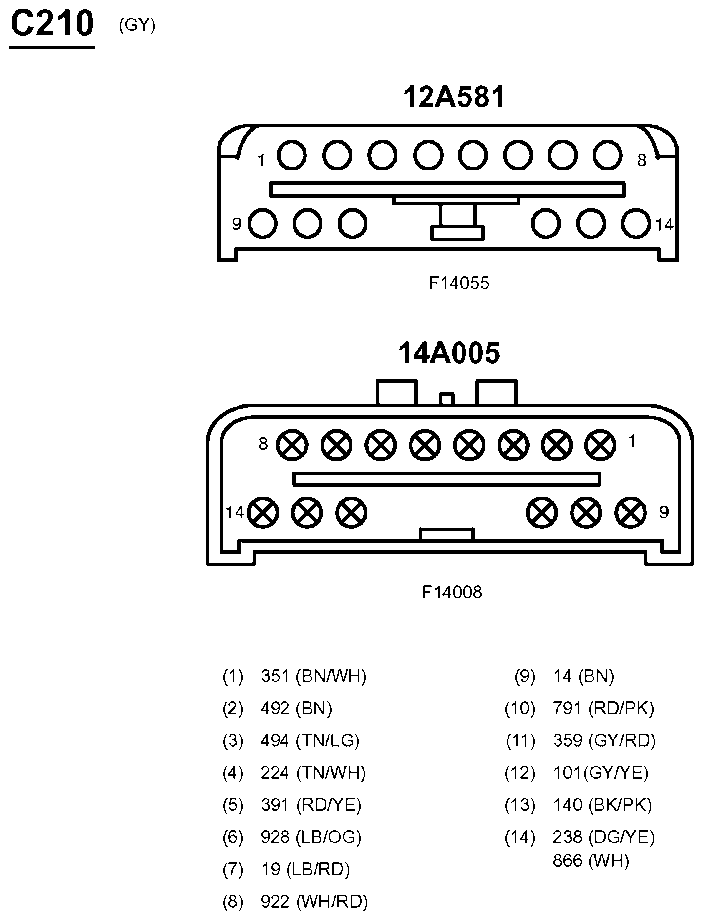

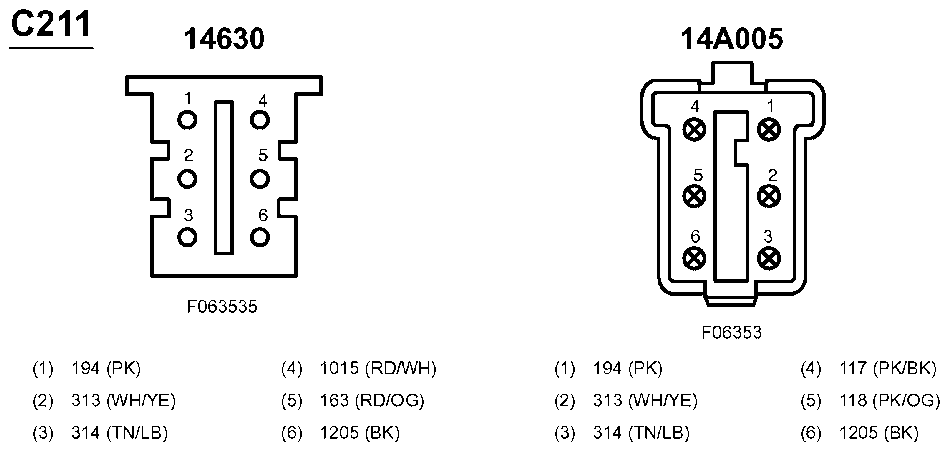

Fig 77: Inline Connector End View (C211)
Courtesy of FORD MOTOR CO.

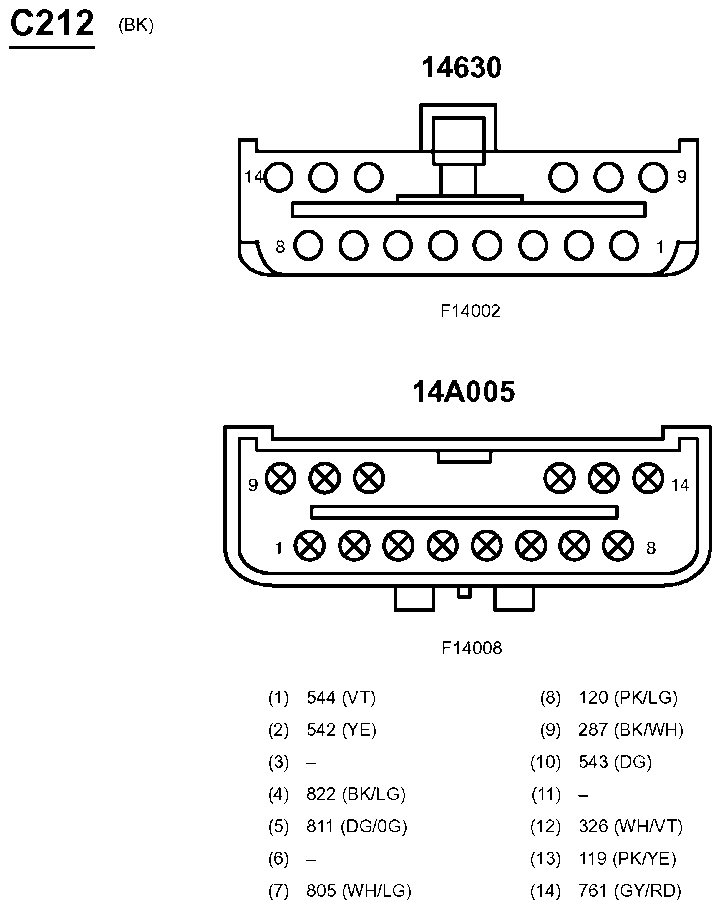

Fig 78: Inline Connector End View (C212)
Courtesy of FORD MOTOR CO.

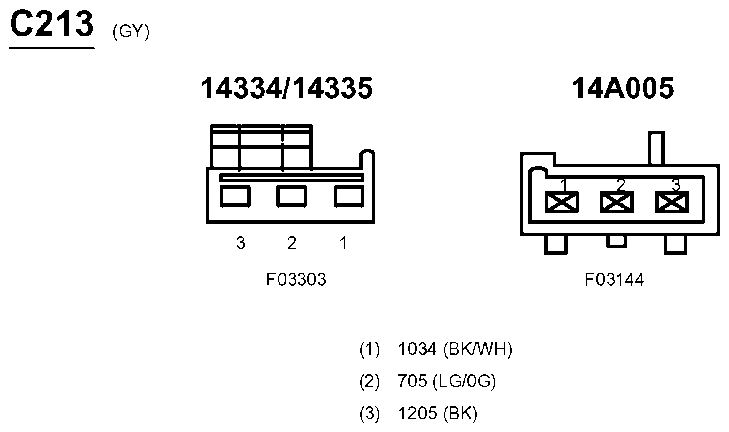

Fig 79: Inline Connector End View (C213)
Courtesy of FORD MOTOR CO.

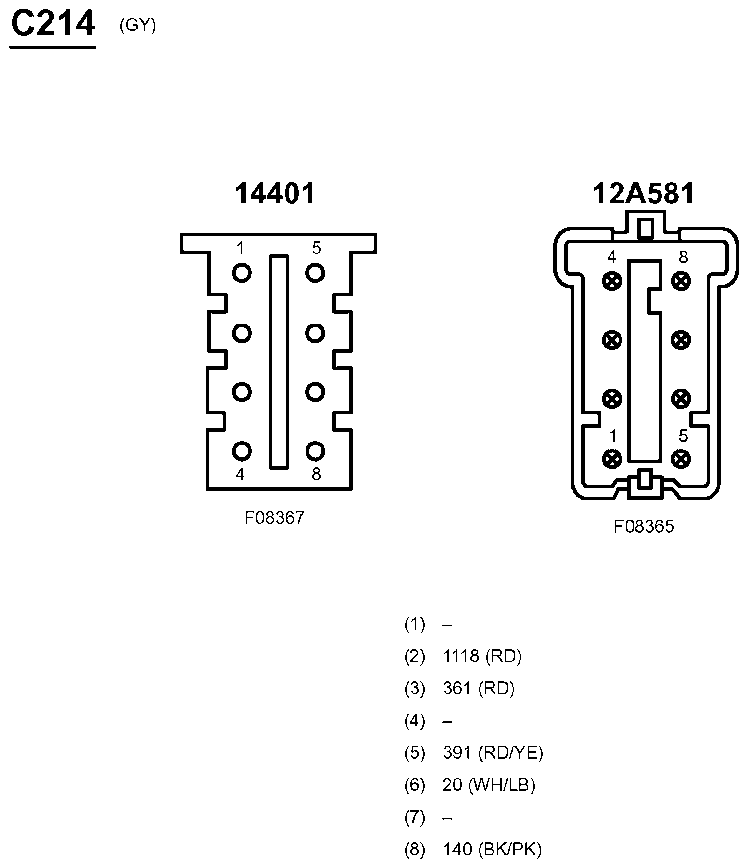

Fig 80: Inline Connector End View (C214)
Courtesy of FORD MOTOR CO.

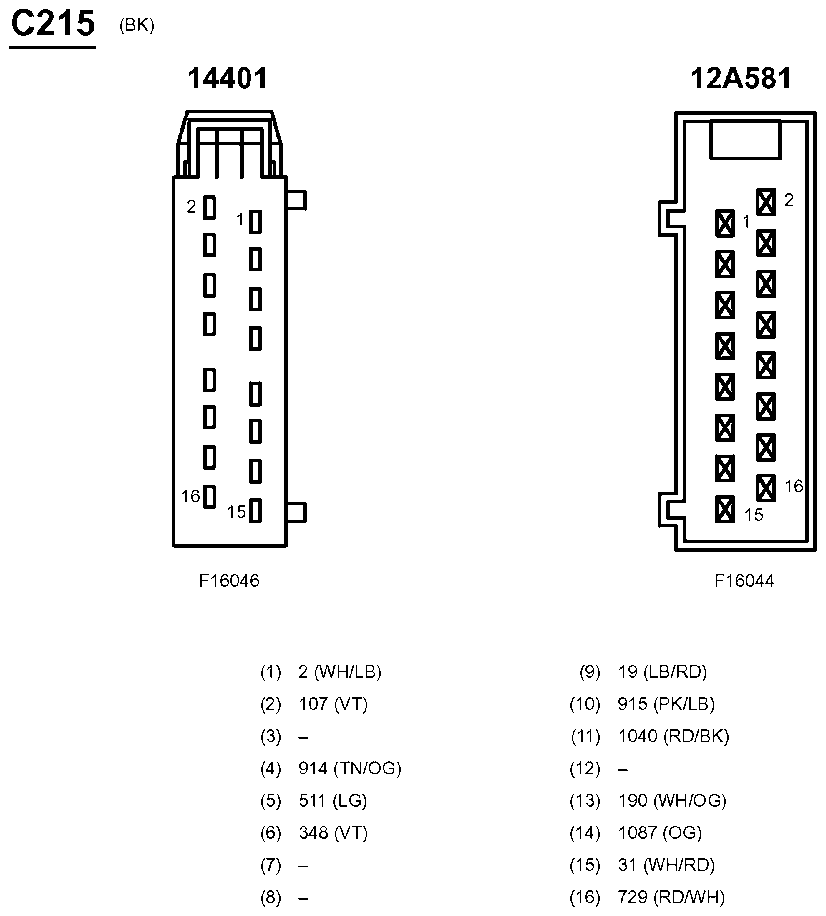

Fig 81: Inline Connector End View (C215)
Courtesy of FORD MOTOR CO.

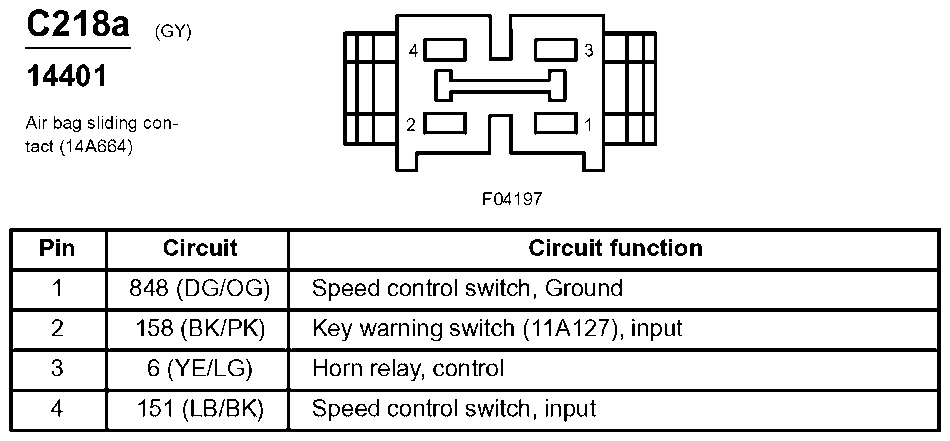

Fig 82: Air Bag Sliding Contact Connector End View (C218a)
Courtesy of FORD MOTOR CO.

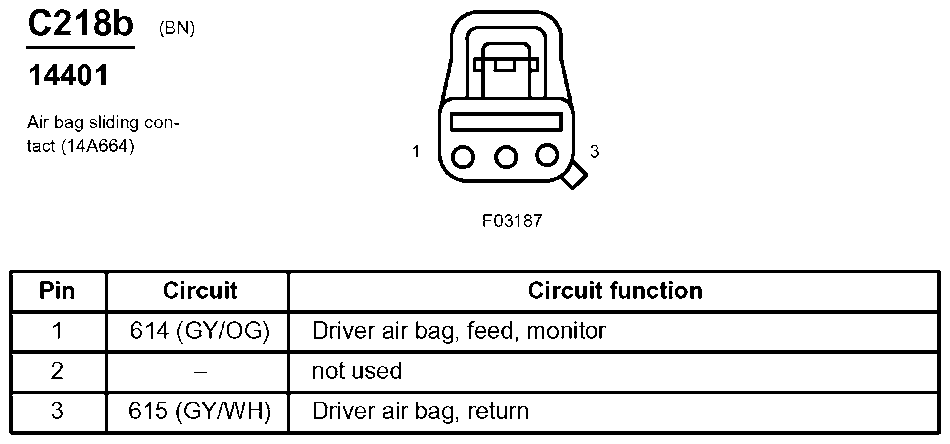

Fig 83: Air Bag Sliding Contact Connector End View (C218b)
Courtesy of FORD MOTOR CO.

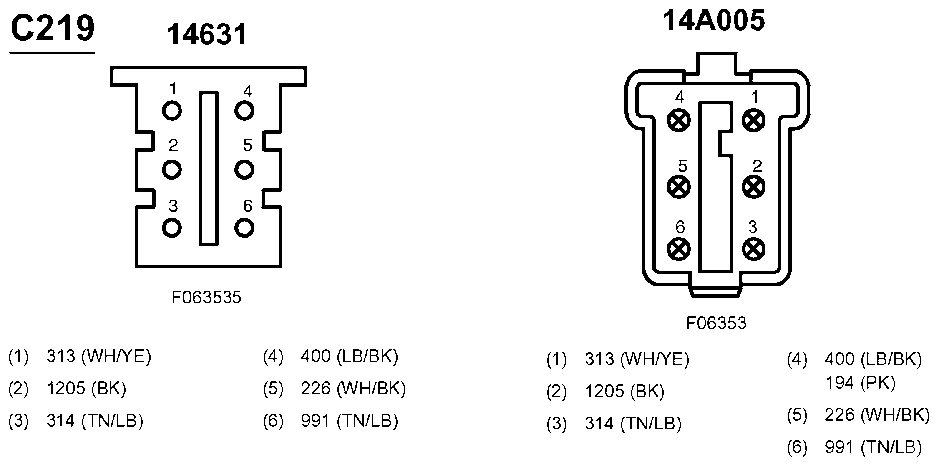

Fig 84: Inline Connector End View (C219)
Courtesy of FORD MOTOR CO.

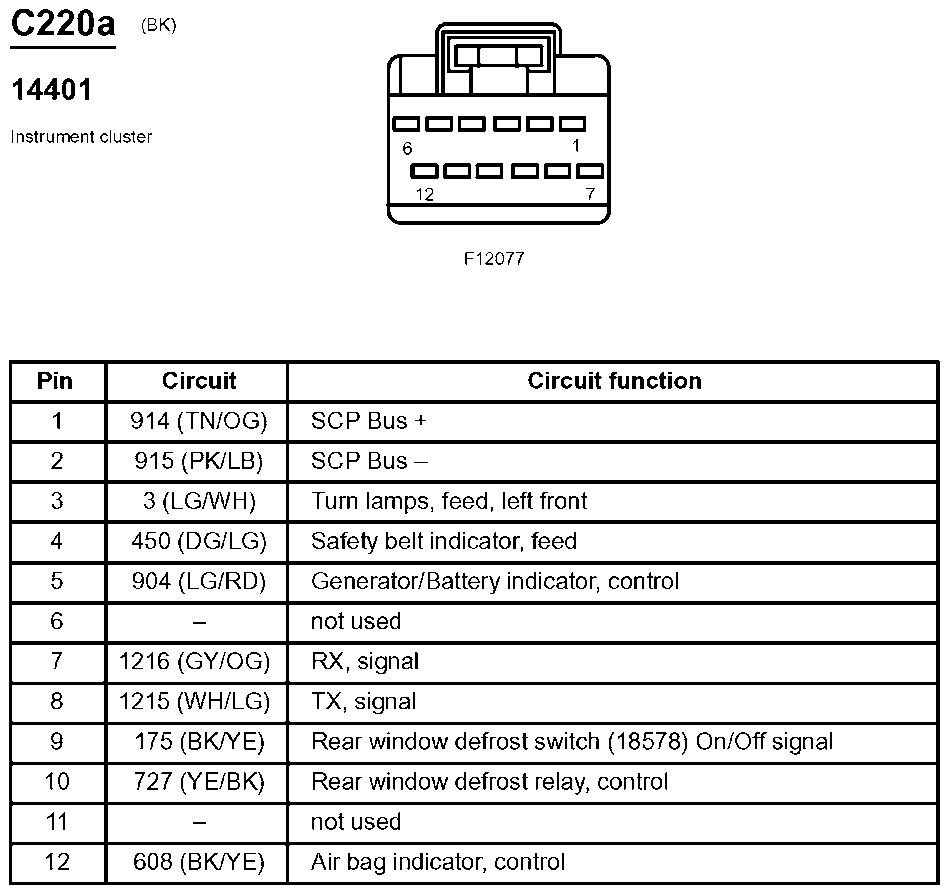

Fig 85: Instrument Cluster Connector End View (C220a)
Courtesy of FORD MOTOR CO.

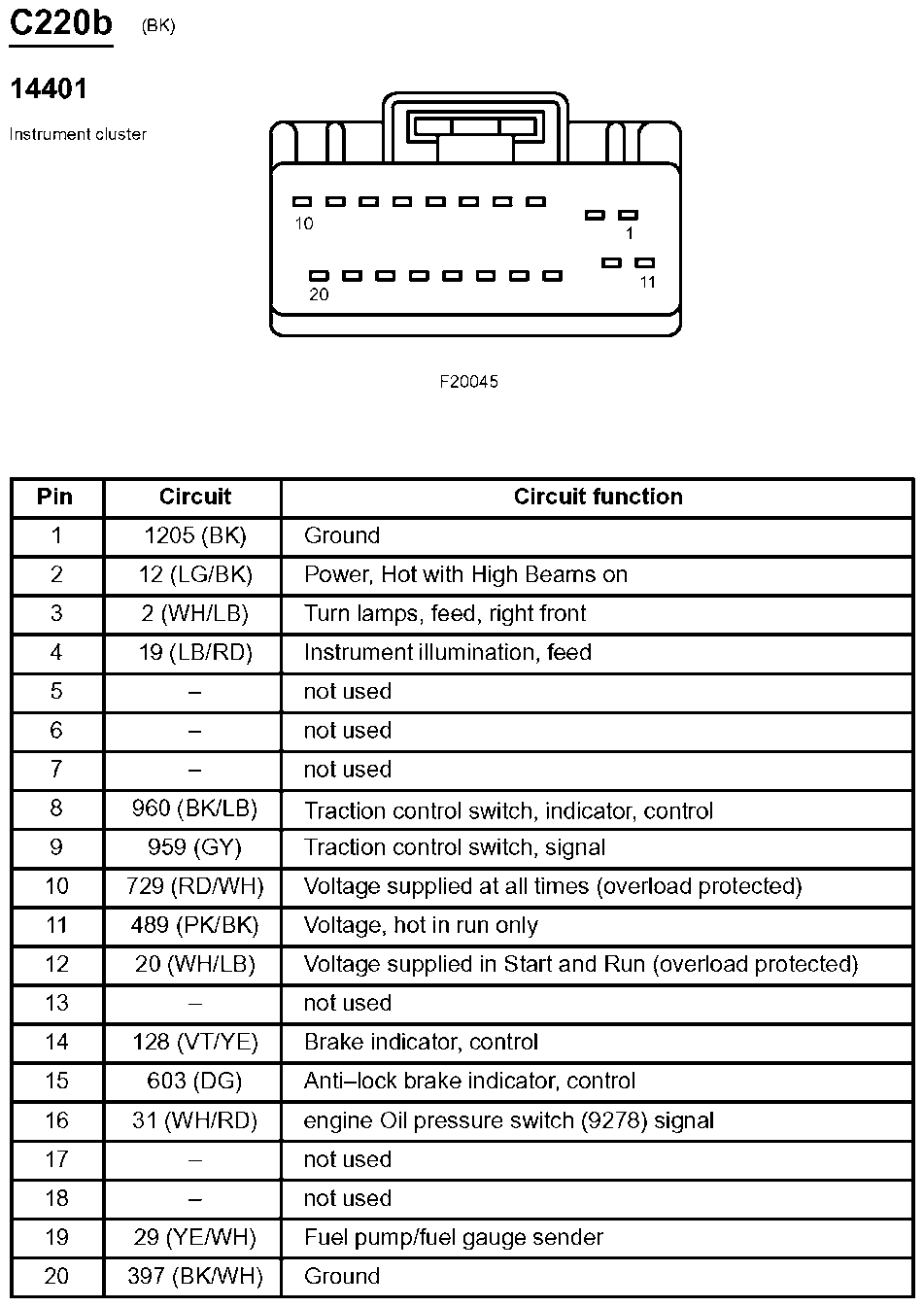

Fig 86: Instrument Cluster Connector End View (C220b)
Courtesy of FORD MOTOR CO.

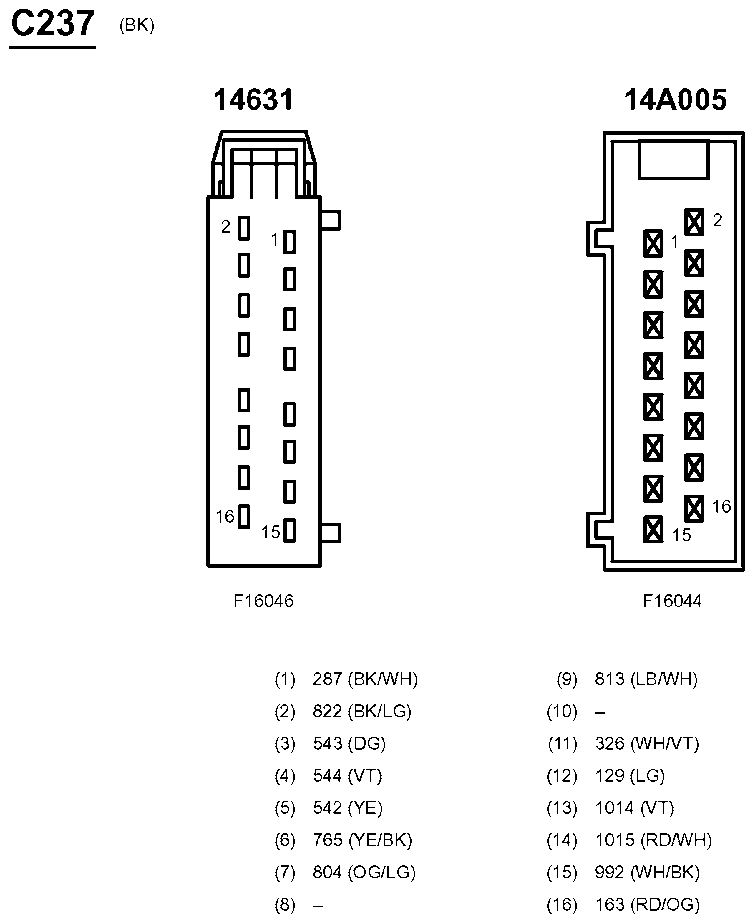

Fig 87: Inline Connector End View (C237)
Courtesy of FORD MOTOR CO.

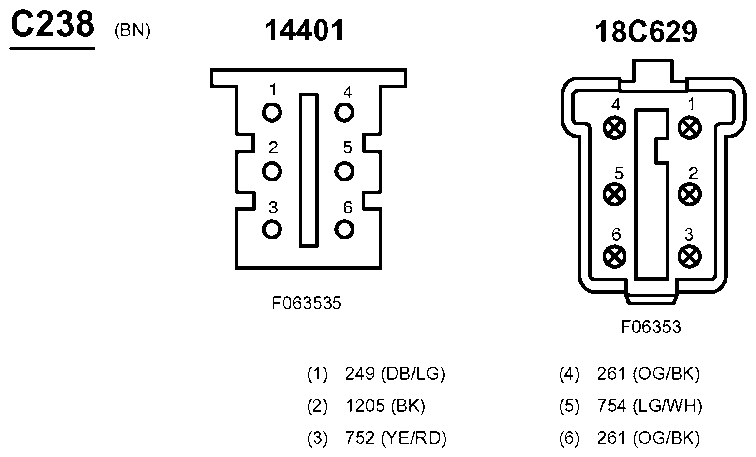

Fig 88: Inline Connector End View (C238)
Courtesy of FORD MOTOR CO.

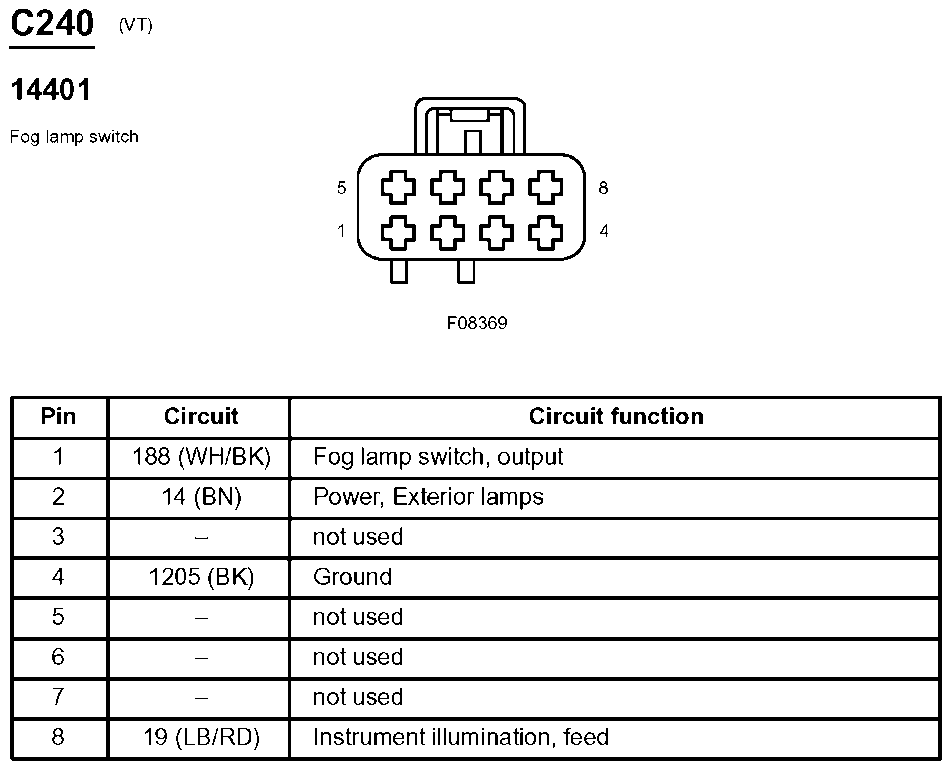

Fig 89: Fog Lamp Switch Connector End View (C240)
Courtesy of FORD MOTOR CO.

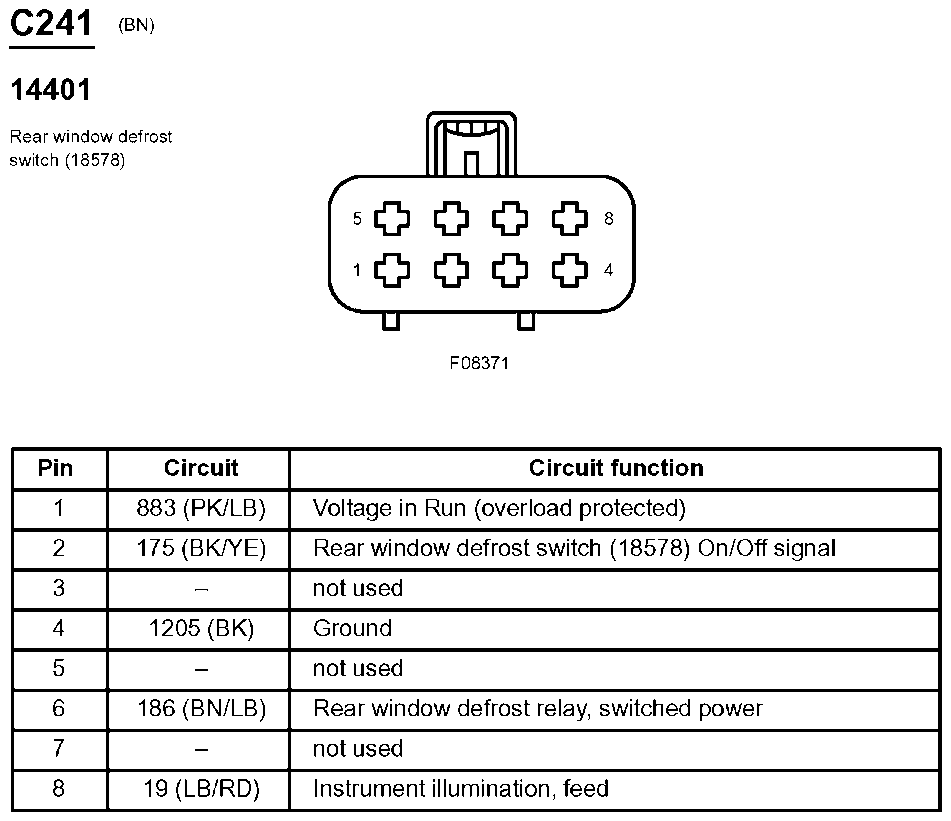

Fig 90: Rear Window Defrost Switch Connector End View (C241)
Courtesy of FORD MOTOR CO.

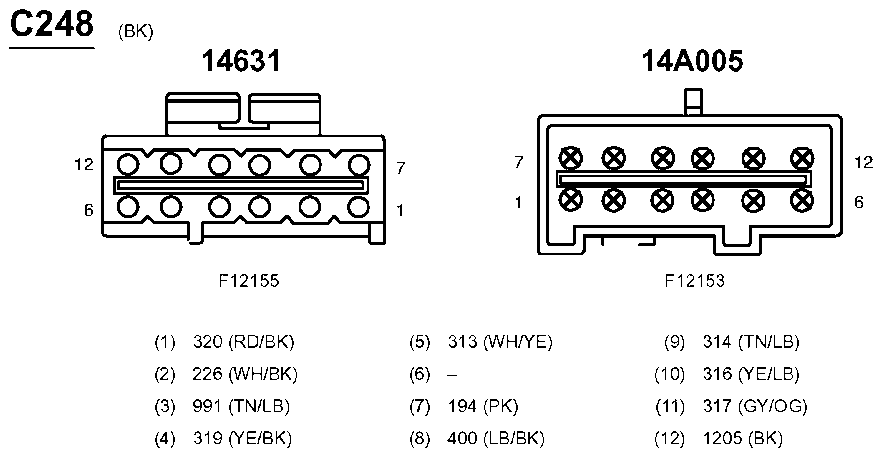

Fig 91: Inline Connector End View (C248)
Courtesy of FORD MOTOR CO.

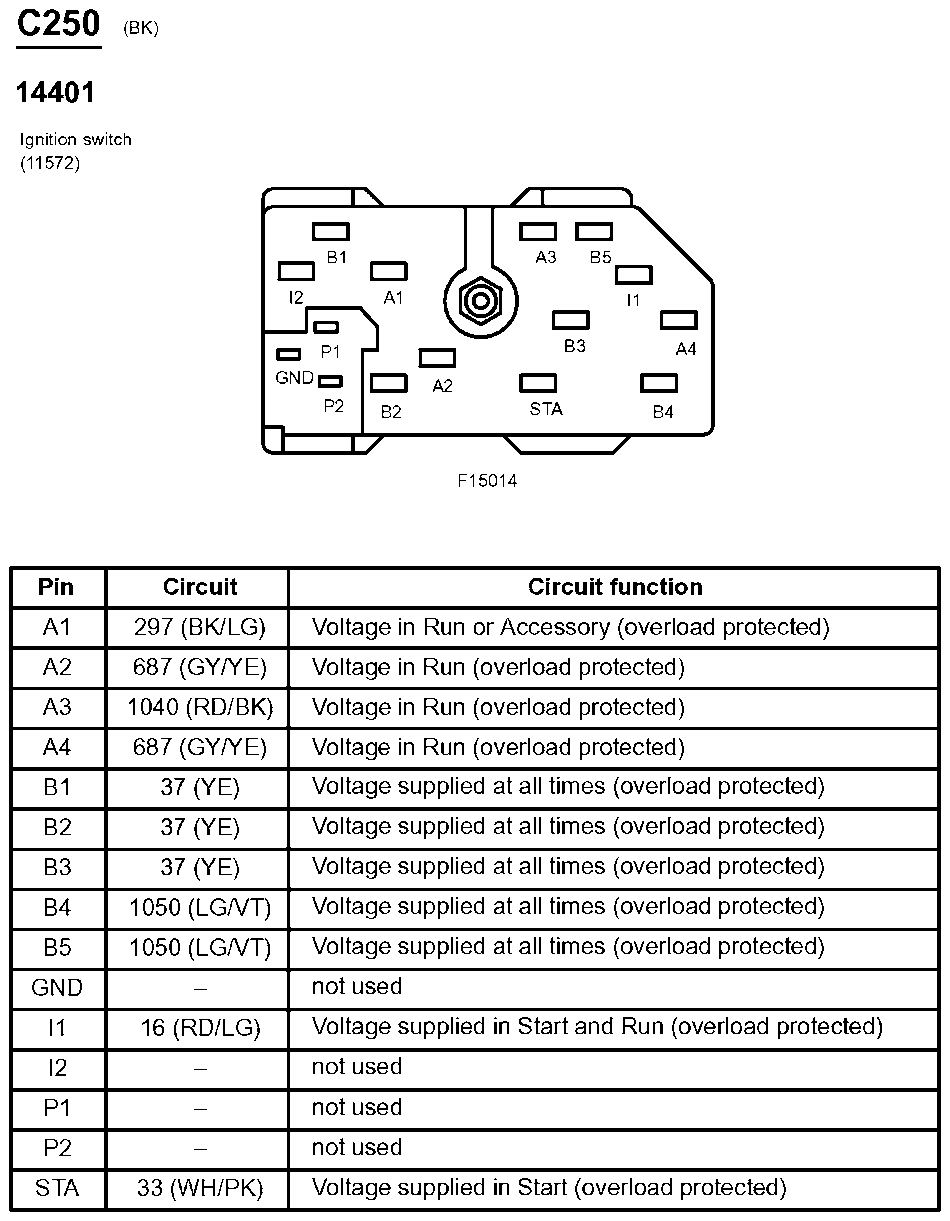

Fig 92: Ignition Switch Connector End View (C250)
Courtesy of FORD MOTOR CO.
Fig 93: Data Link Connector (DLC) Connector End View (C251)
Courtesy of FORD MOTOR CO.

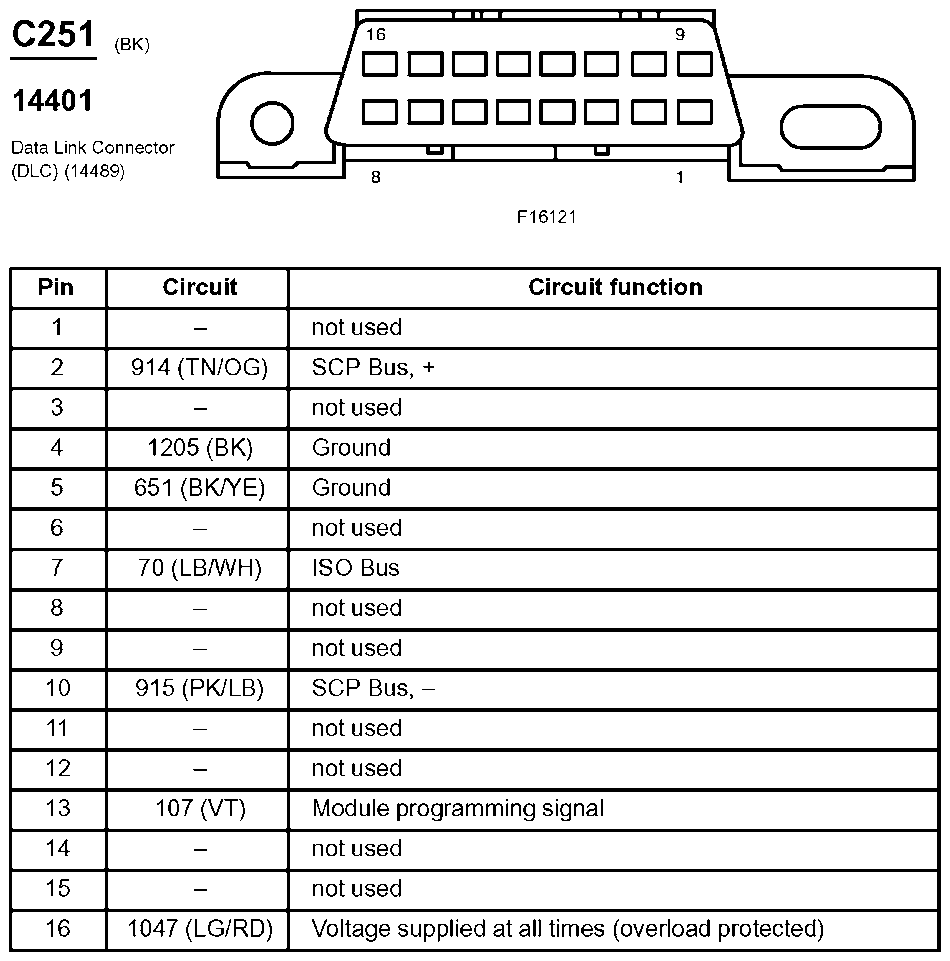

Fig 94: Passive Anti-Theft Transceiver Module Connector End View (C252)
Courtesy of FORD MOTOR CO.

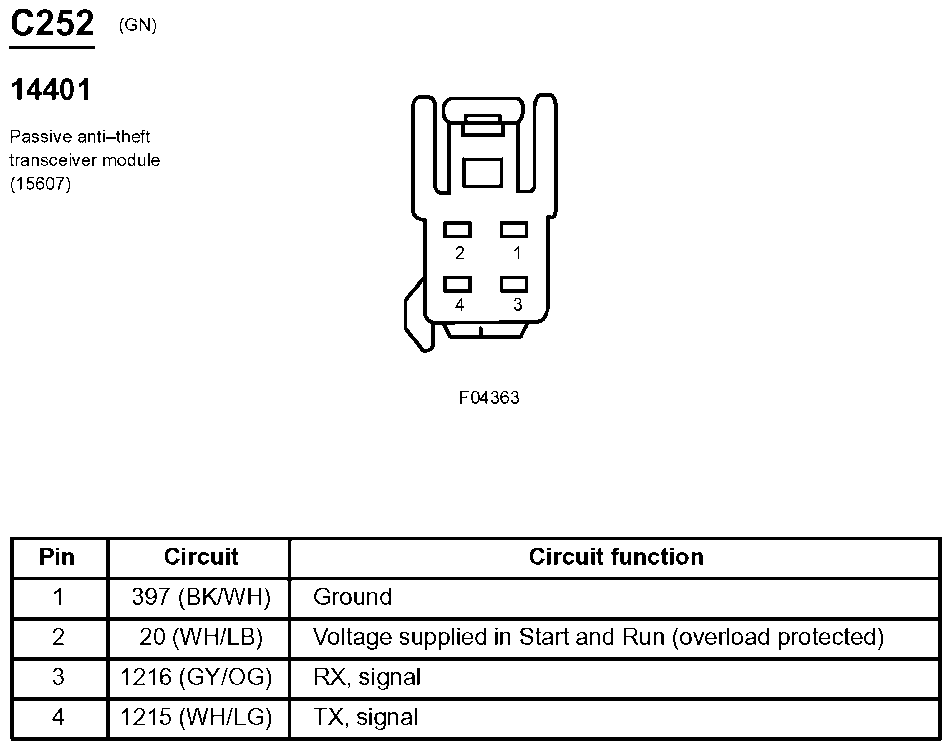

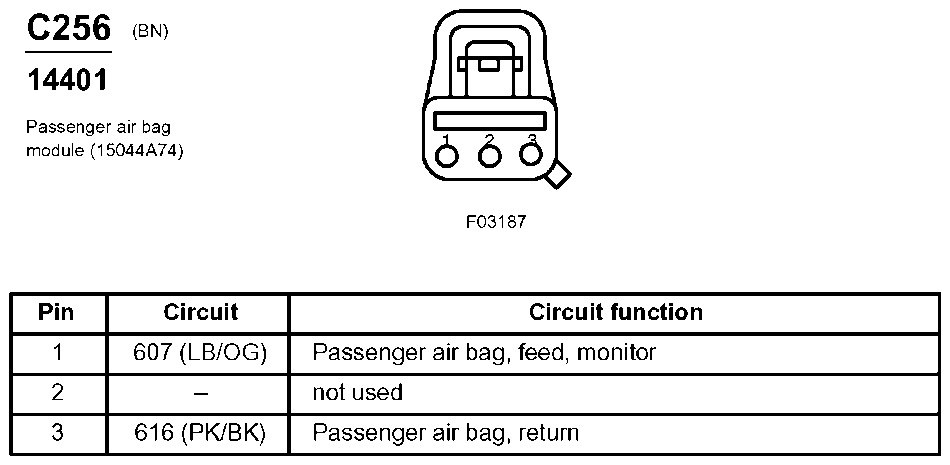

Fig 95: Passenger Air Bag Module Connector End View (C256)
Courtesy of FORD MOTOR CO.

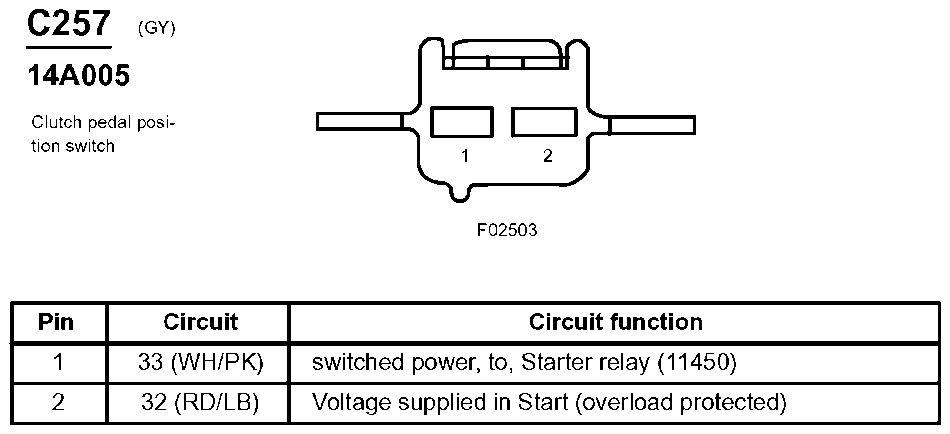

Fig 96: Clutch Pedal Position Switch Connector End View (C257)
Courtesy of FORD MOTOR CO.

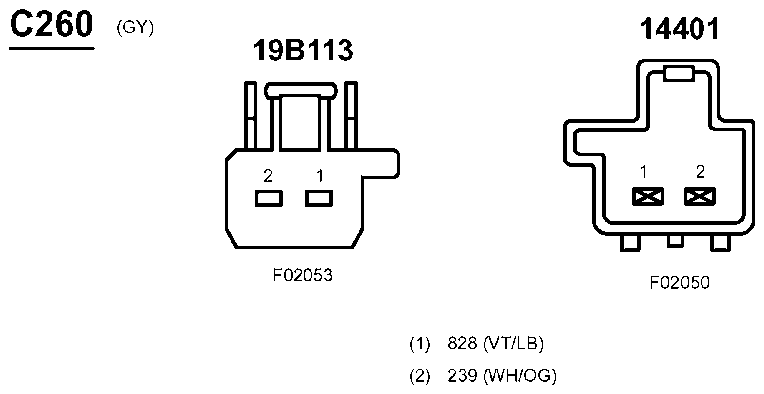

Fig 97: Inline Connector End View (C260)
Courtesy of FORD MOTOR CO.

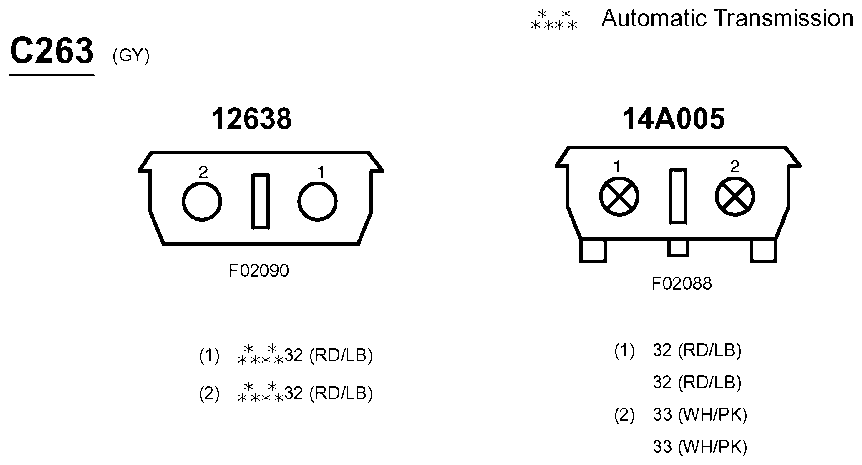

Fig 98: Inline Connector End View (C263)
Courtesy of FORD MOTOR CO.

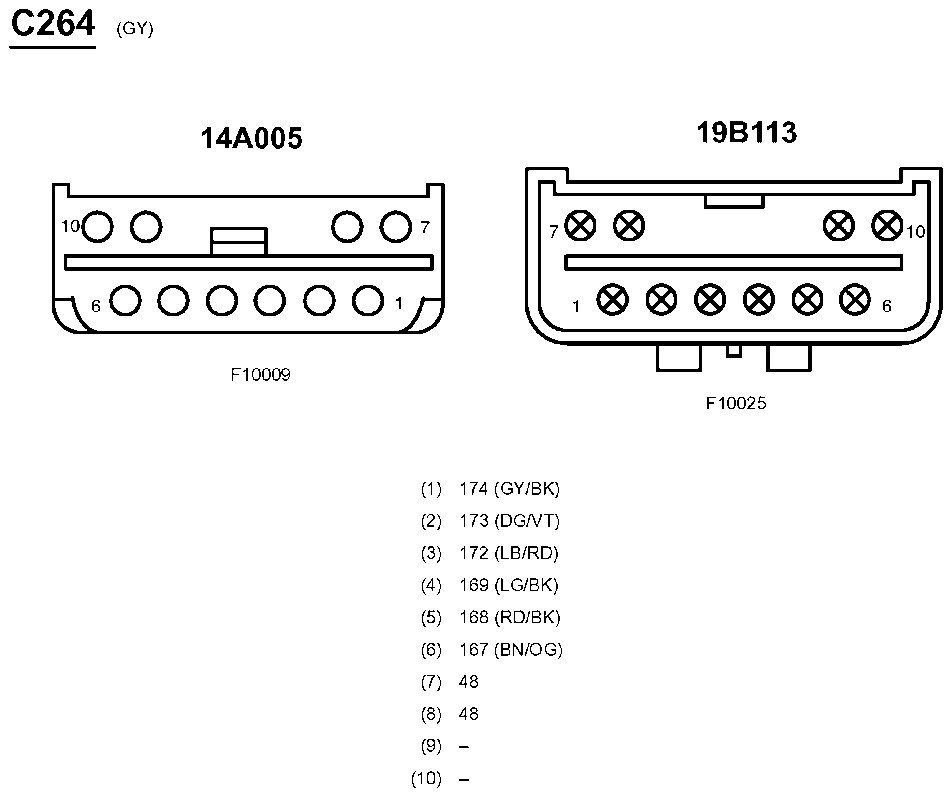

Fig 99: Inline Connector End View (C264)
Courtesy of FORD MOTOR CO.

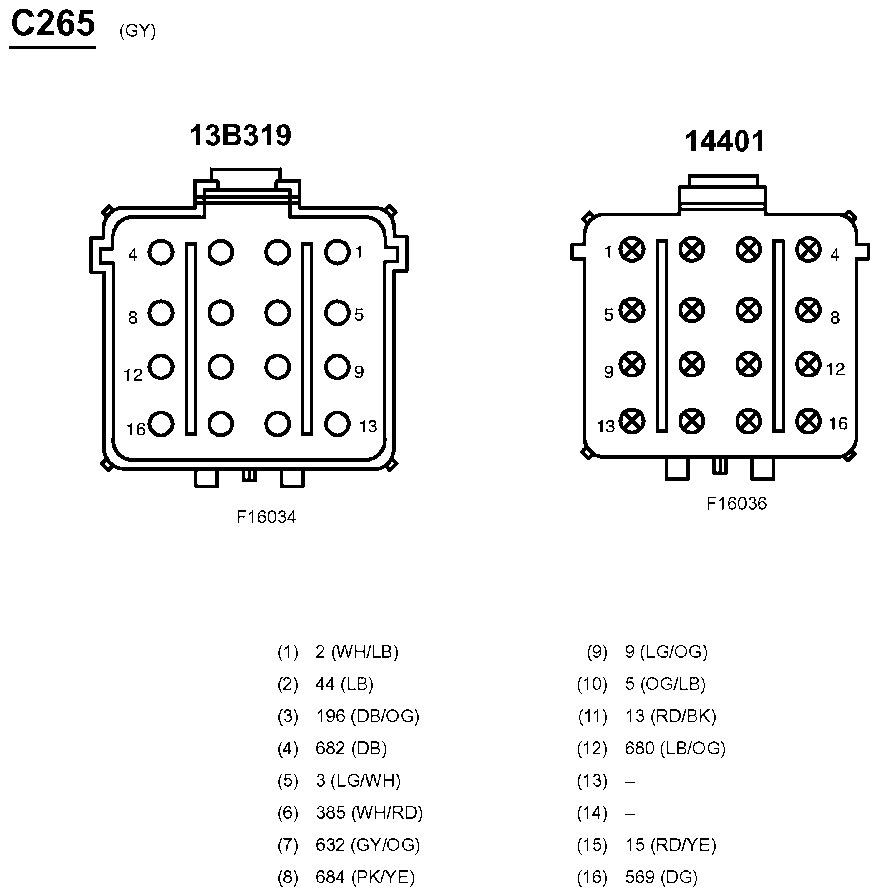

Fig 100: Inline Connector End View (C265)
Courtesy of FORD MOTOR CO.

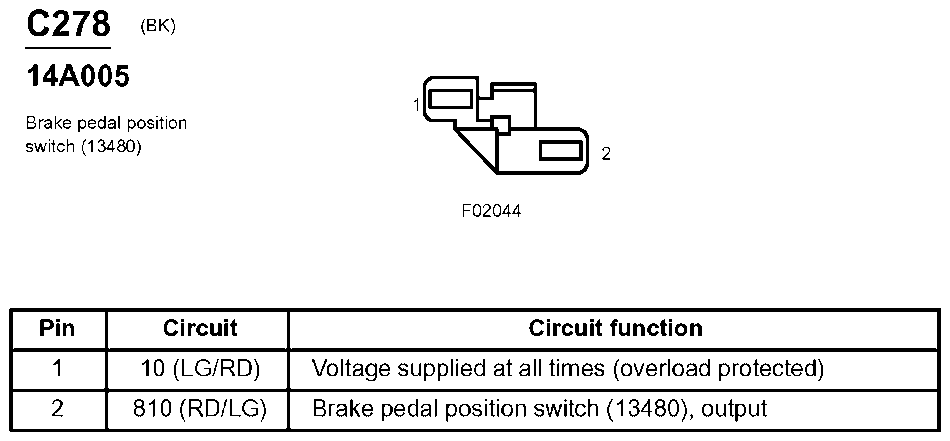

Fig 101: Brake Pedal Position Switch Connector End View (C278)
Courtesy of FORD MOTOR CO.

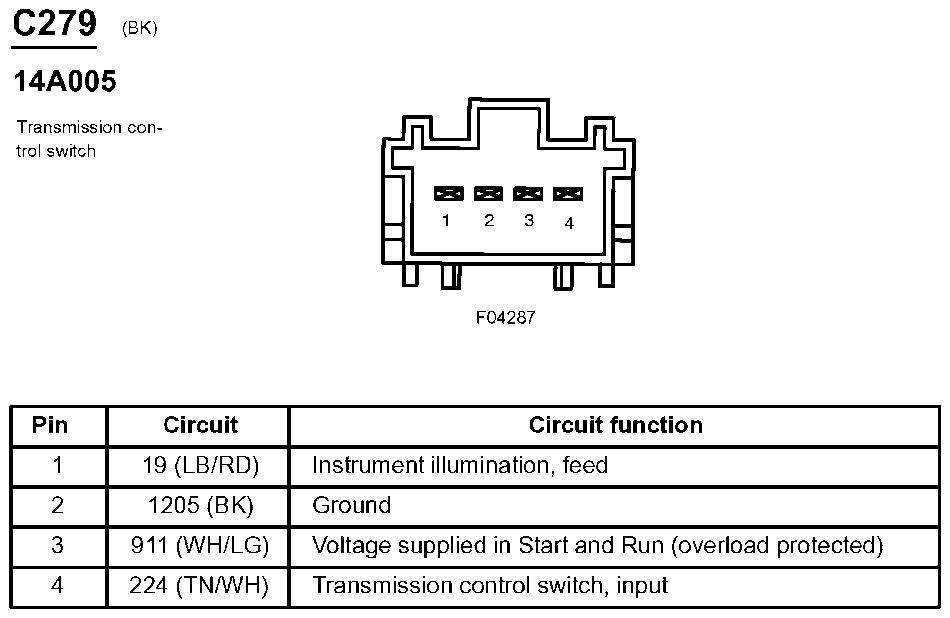

Fig 102: Transmission Control Switch Connector End View (C279)
Courtesy of FORD MOTOR CO.

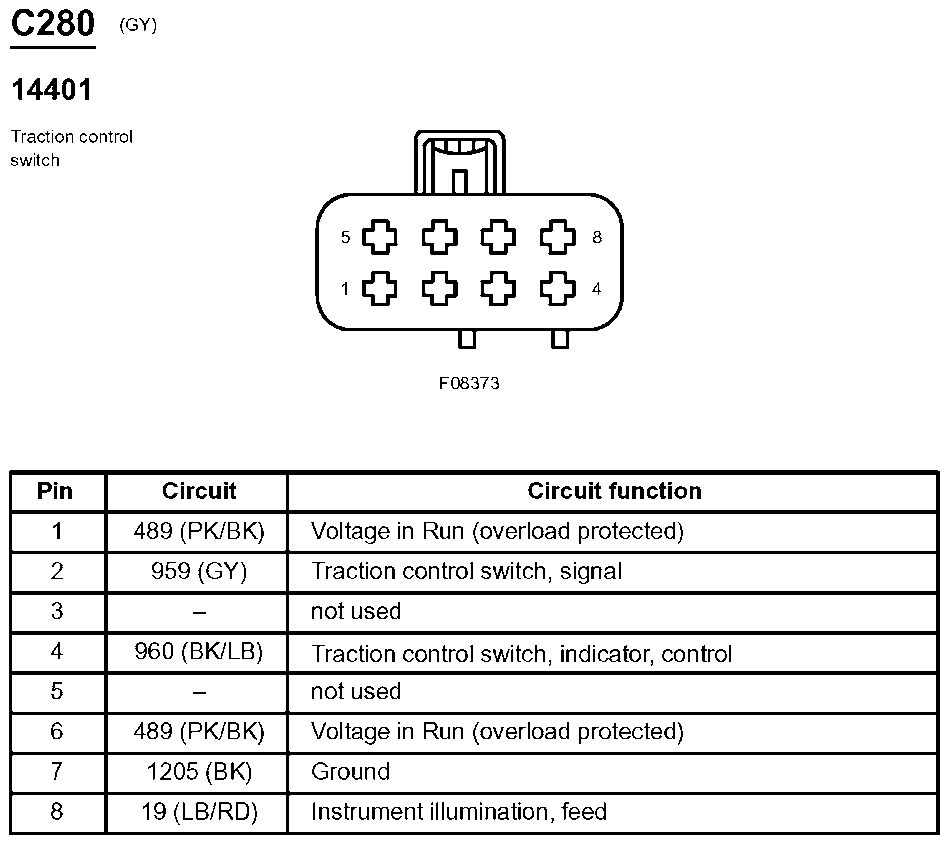

Fig 103: Traction Control Switch Connector End View (C280)
Courtesy of FORD MOTOR CO.

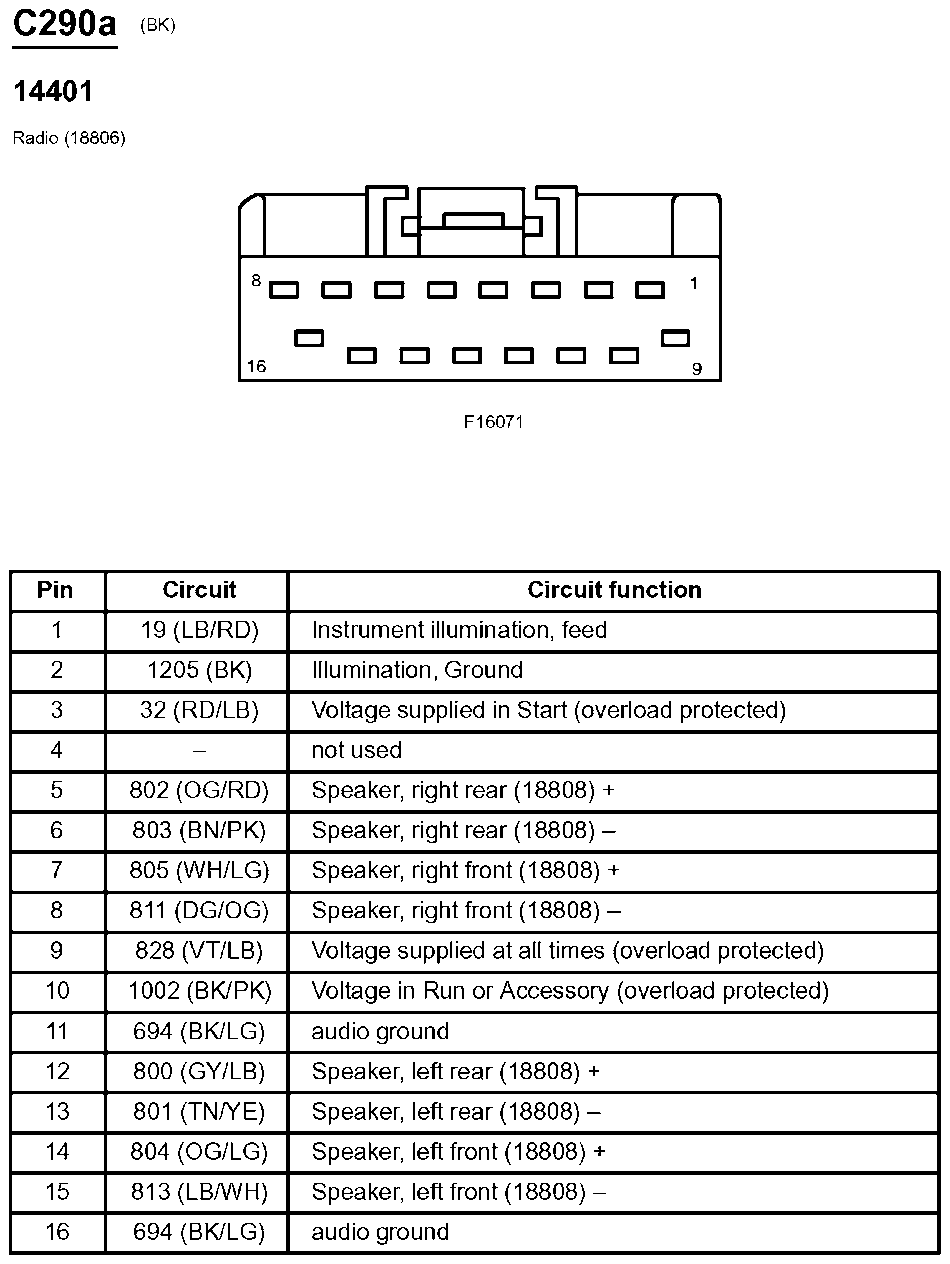

Fig 104: Radio Connector End View (C290a)
Courtesy of FORD MOTOR CO.

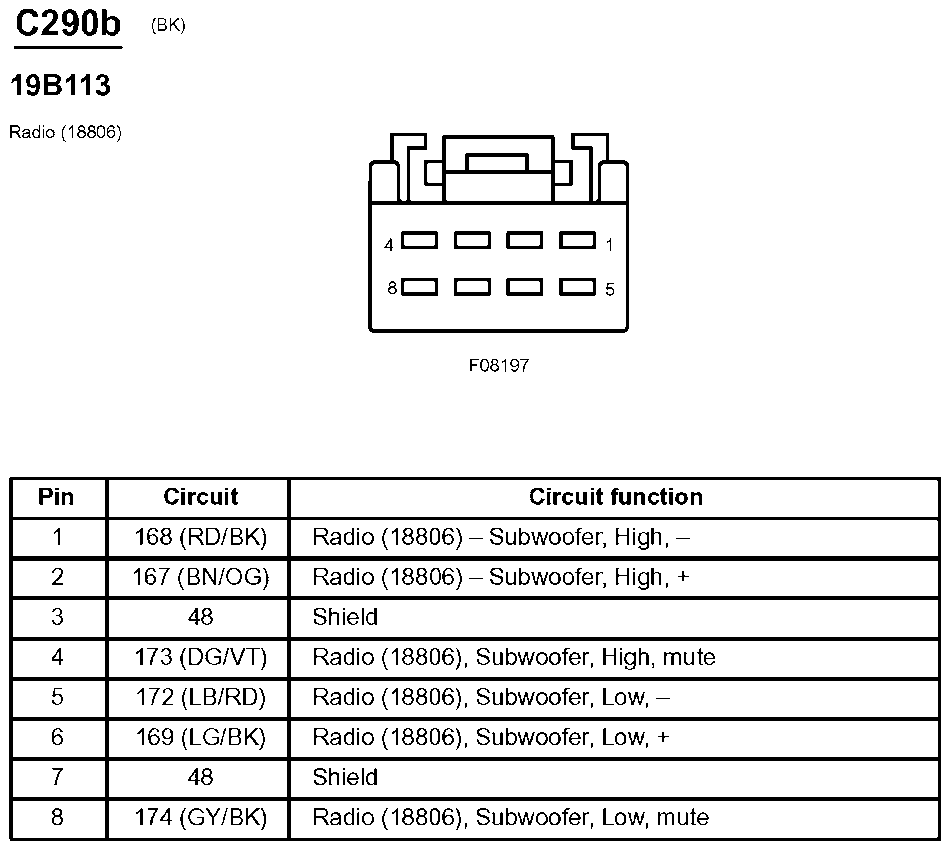

Fig 105: Radio Connector End View (C290b)
Courtesy of FORD MOTOR CO.
Fig 106: Radio Connector End View (C290b)
Courtesy of FORD MOTOR CO.

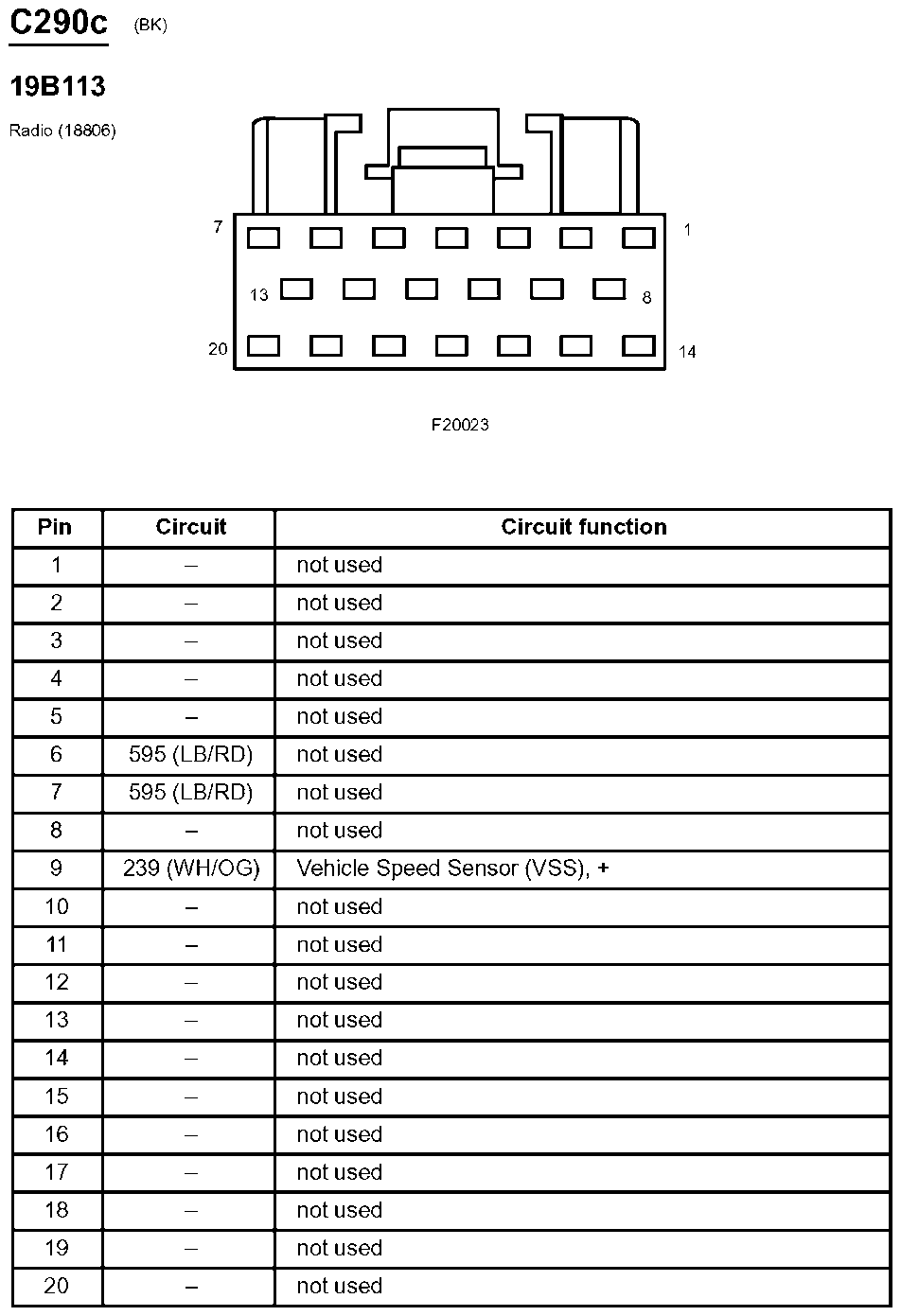

Fig 107: Radio Connector End View (C290c)
Courtesy of FORD MOTOR CO.

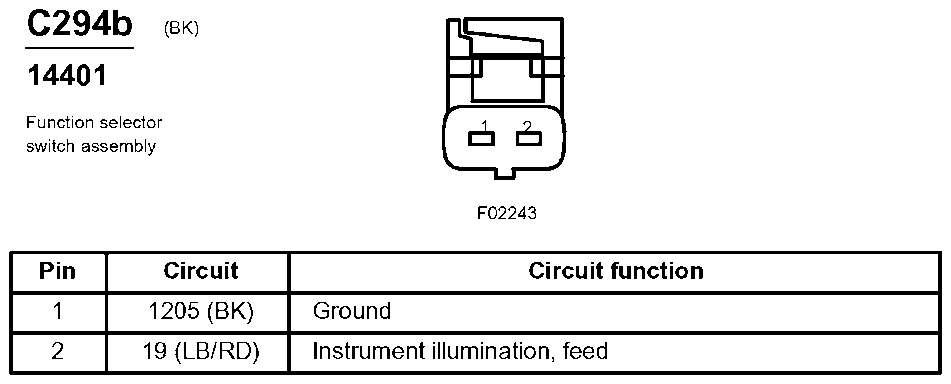

Fig 108: Function Selector Switch Assembly Connector End View (C294a)
Courtesy of FORD MOTOR CO.

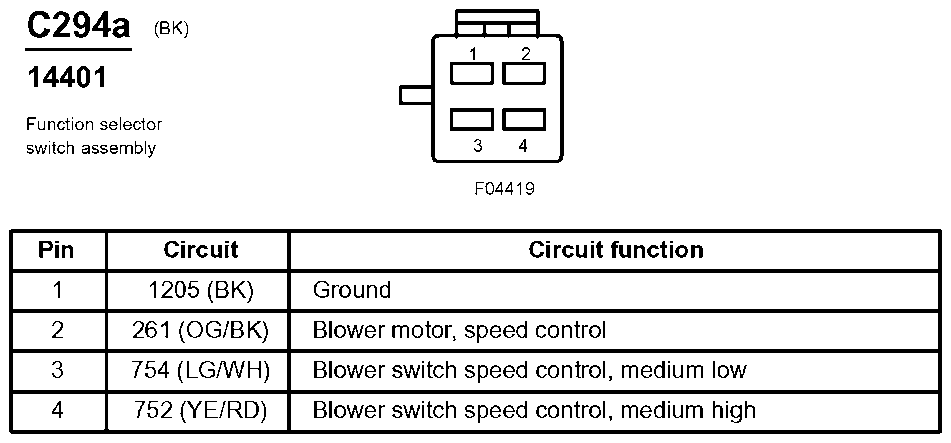

Fig 109: Function Selector Switch Assembly Connector End View (C294b)
Courtesy of FORD MOTOR CO.

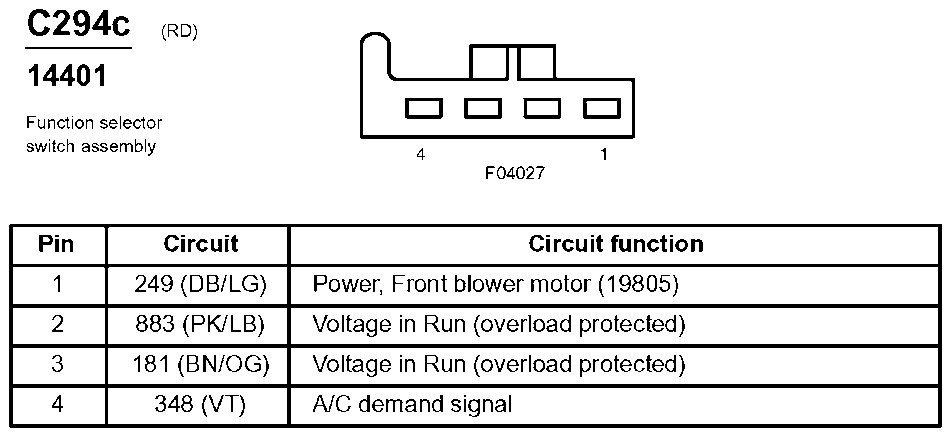

Fig 110: Function Selector Switch Assembly Connector End View (C294c)
Courtesy of FORD MOTOR CO.

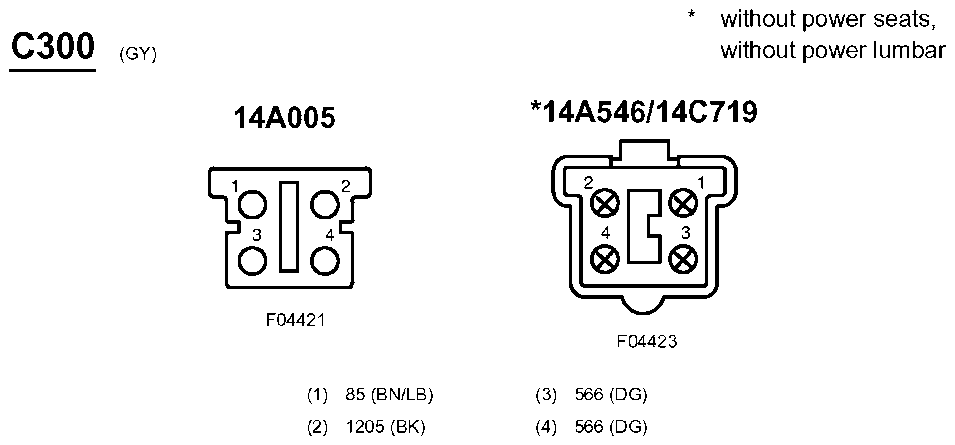

Fig 111: Inline Connector End View (C300)
Courtesy of FORD MOTOR CO.

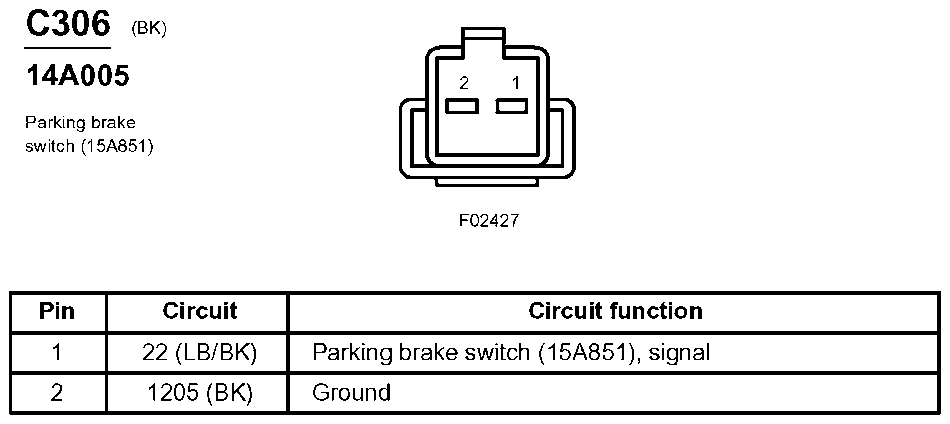

Fig 112: Parking Brake Switch Connector End View (C306)
Courtesy of FORD MOTOR CO.

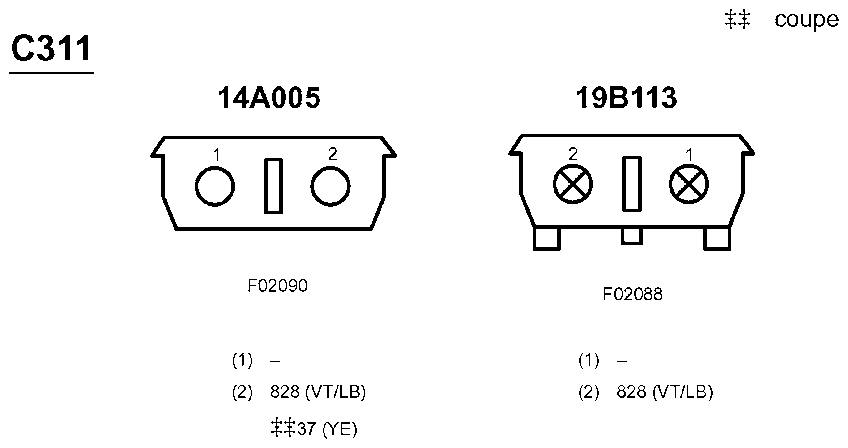

Fig 113: Inline Connector End View (C311)
Courtesy of FORD MOTOR CO.

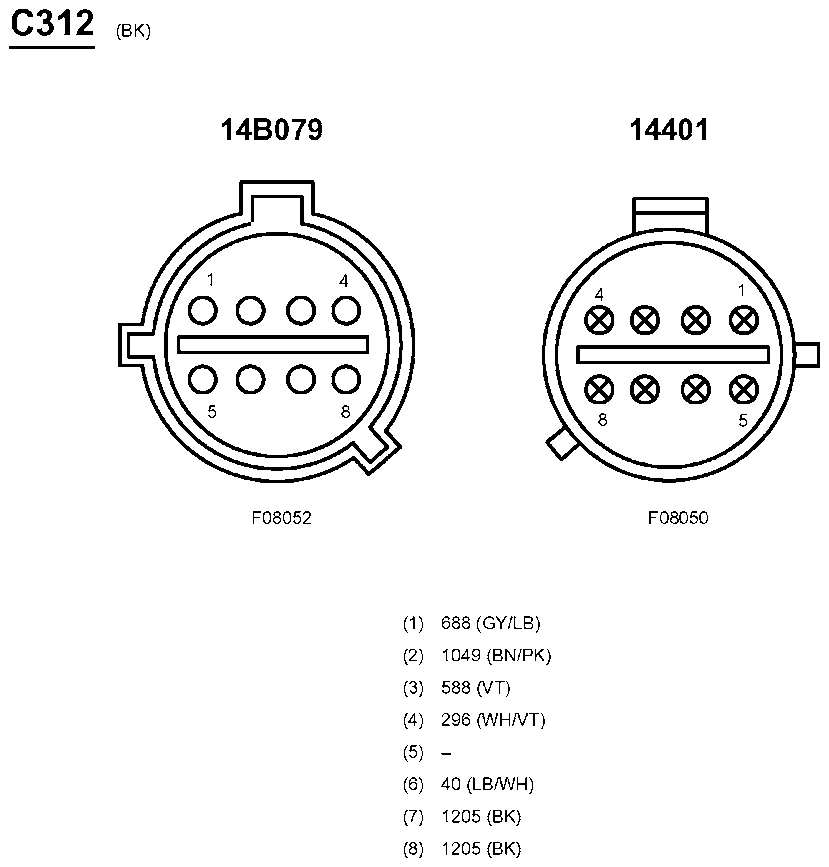

Fig 114: Inline Connector End View (C312)
Courtesy of FORD MOTOR CO.

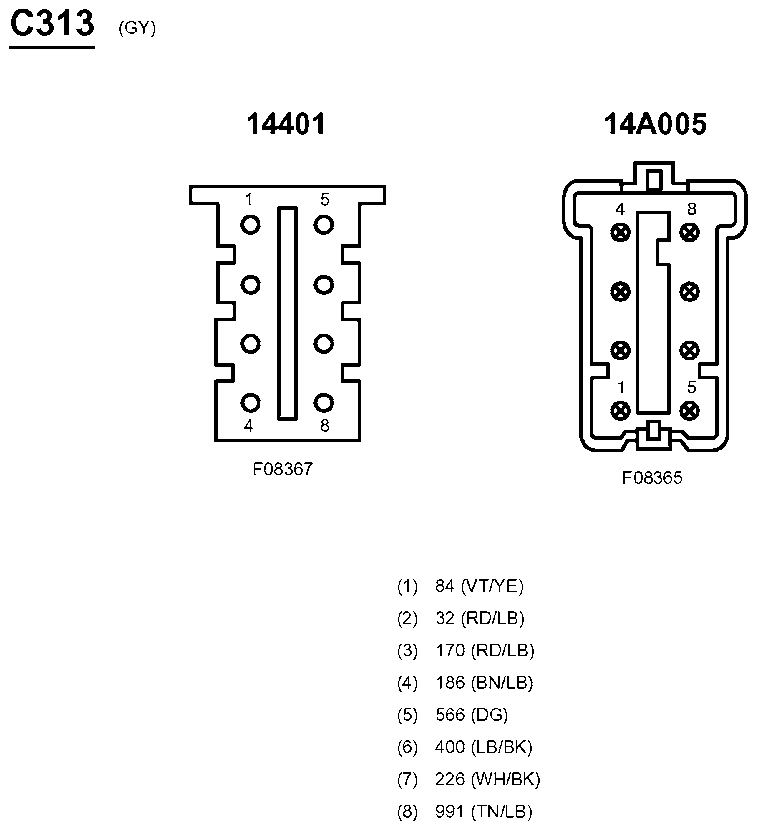

Fig 115: Inline Connector End View (C313)
Courtesy of FORD MOTOR CO.

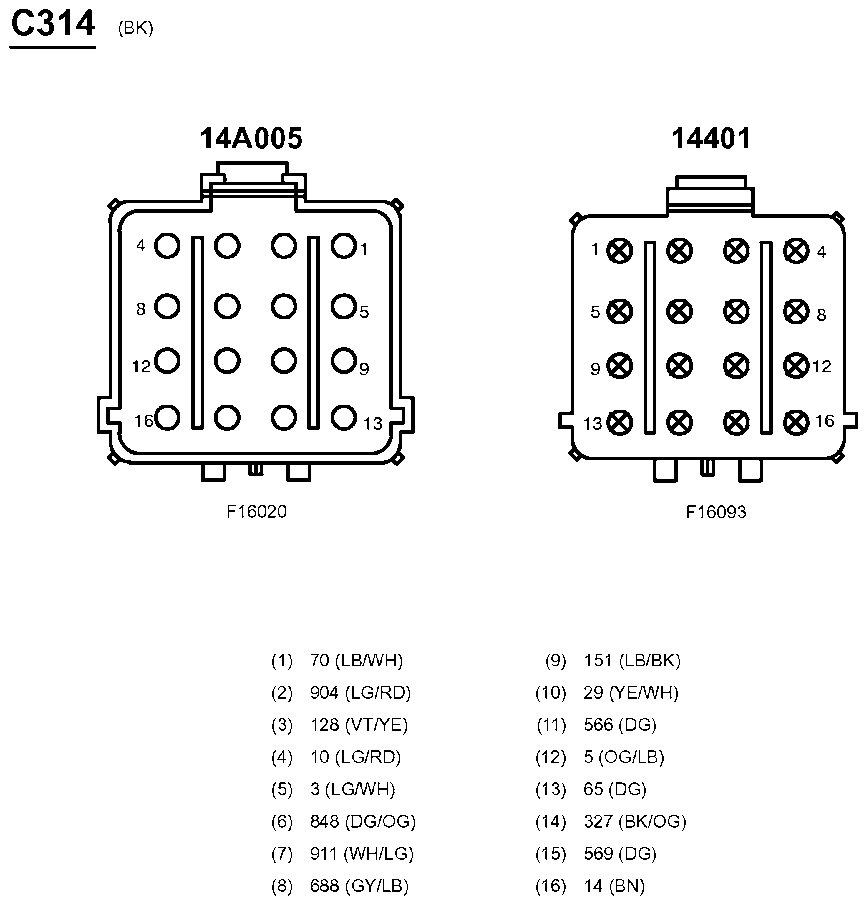

Fig 116: Inline Connector End View (C314)
Courtesy of FORD MOTOR CO.

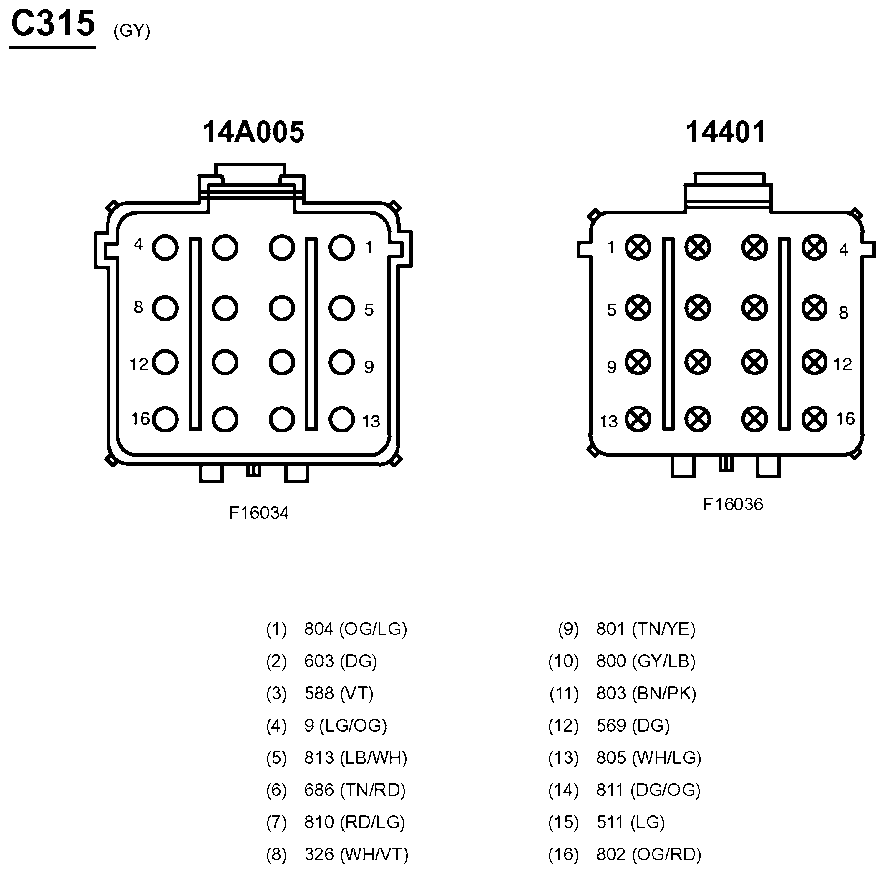

Fig 117: Inline Connector End View (C315)
Courtesy of FORD MOTOR CO.

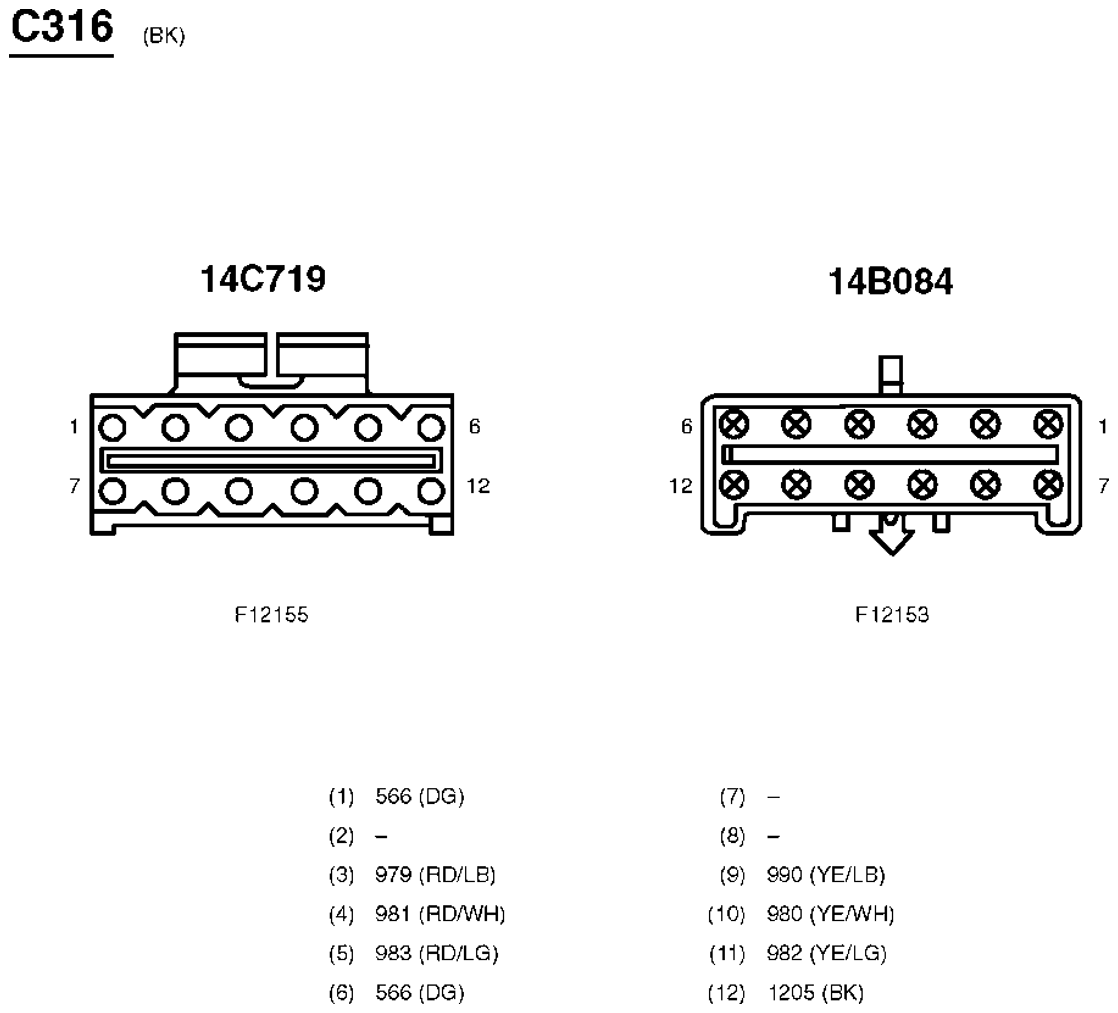

Fig 118: Inline Connector End View (C316)
Courtesy of FORD MOTOR CO.

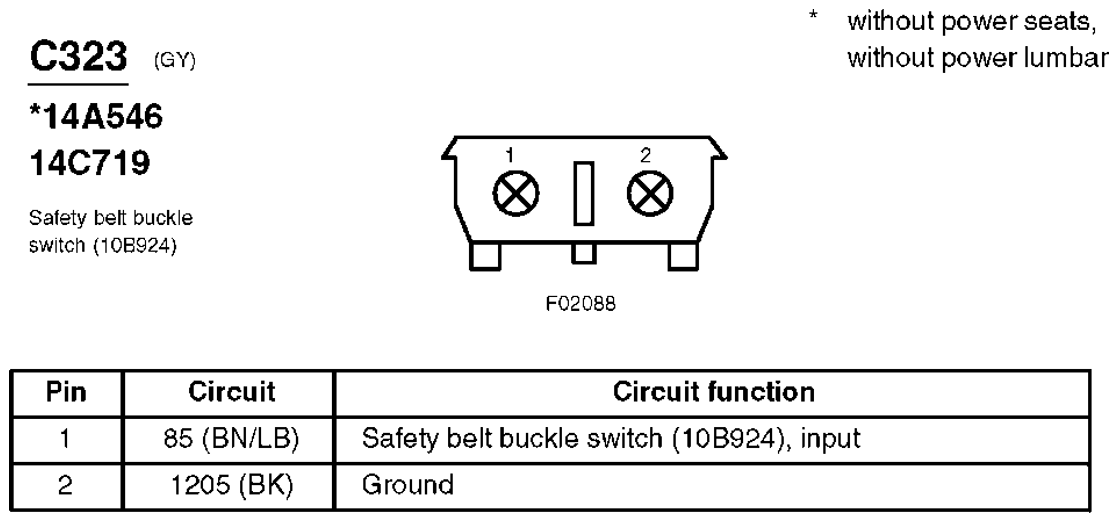

Fig 119: Safety Belt Buckle Switch Connector End View (C323)
Courtesy of FORD MOTOR CO.

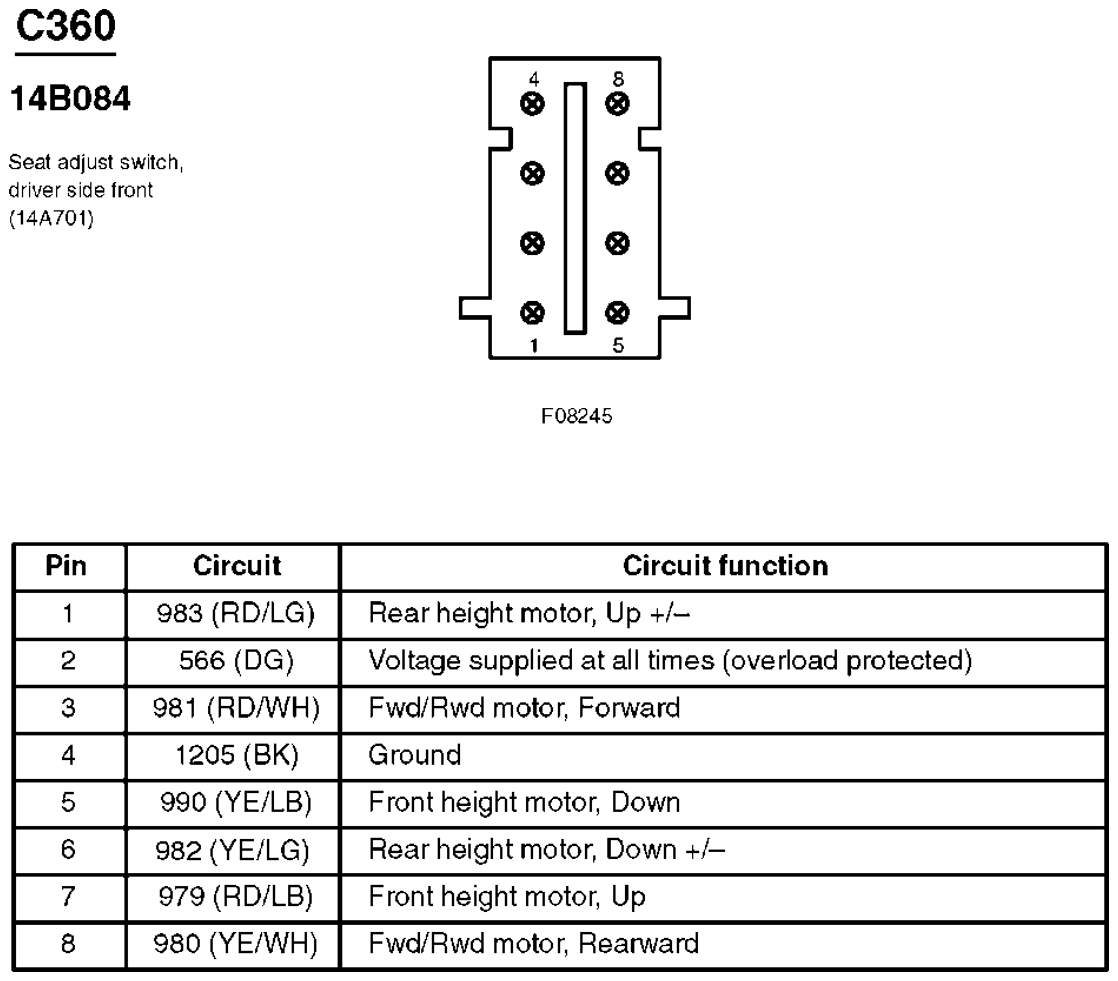

Fig 120: Seat Adjust Switch, Driver Side Front Connector End View (C360)
Courtesy of FORD MOTOR CO.

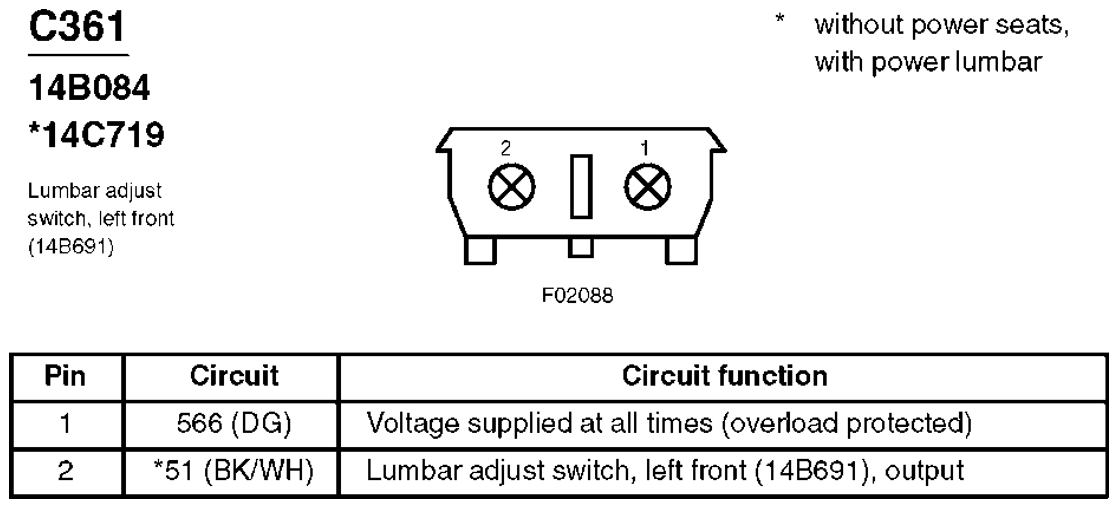

Fig 121: Lumbar Adjust Switch, Left Front Connector End View (C361)
Courtesy of FORD MOTOR CO.

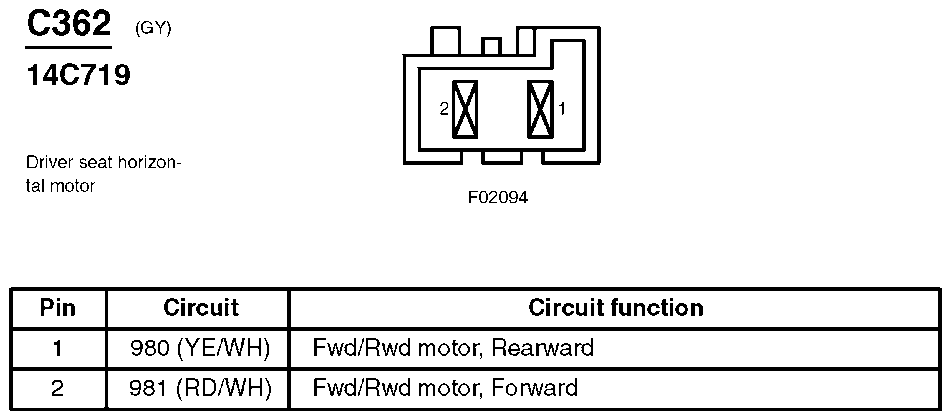

Fig 122: Driver Seat Horizontal Motor Connector End View (C362)
Courtesy of FORD MOTOR CO.

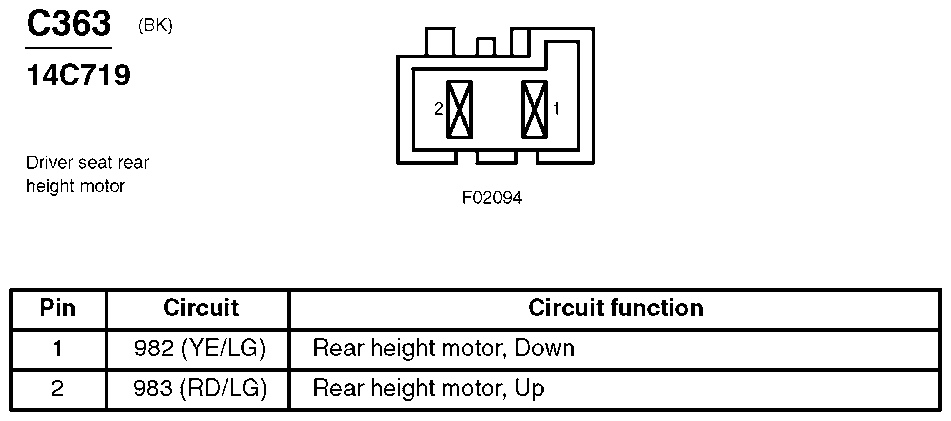

Fig 123: Driver Seat Rear Height Motor Connector End View (C363)
Courtesy of FORD MOTOR CO.

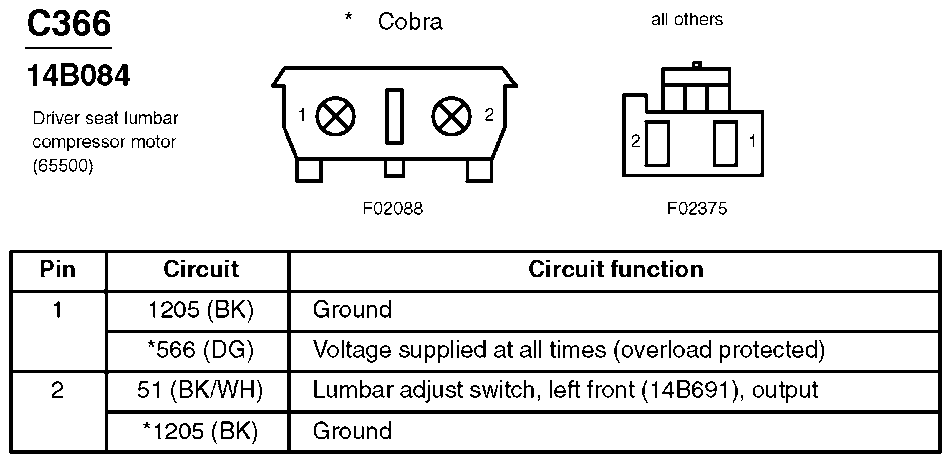

Fig 124: Driver Seat Lumbar Compressor Motor Connector End View (C366)
Courtesy of FORD MOTOR CO.

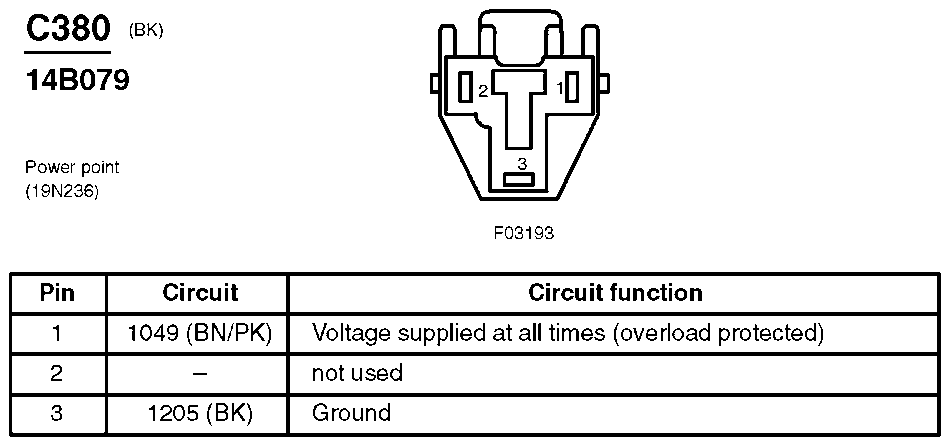

Fig 125: Power Point Connector End View (C380)
Courtesy of FORD MOTOR CO.

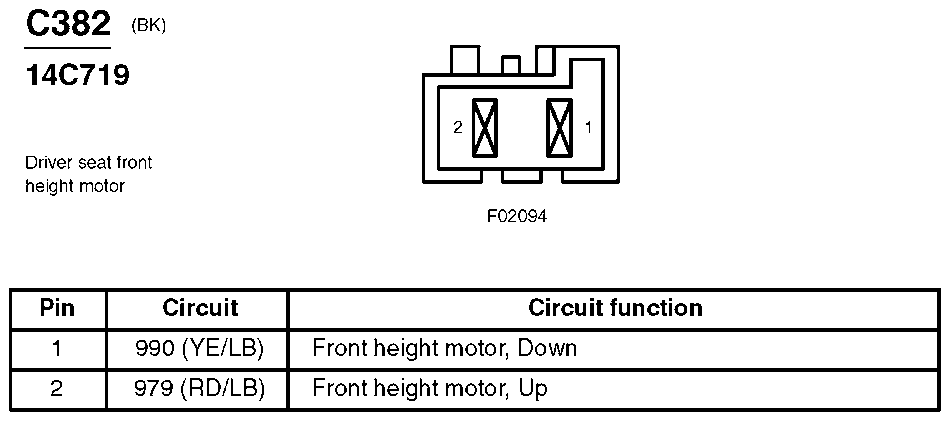

Fig 126: Driver Seat Front Height Motor Connector End View (C382)
Courtesy of FORD MOTOR CO.

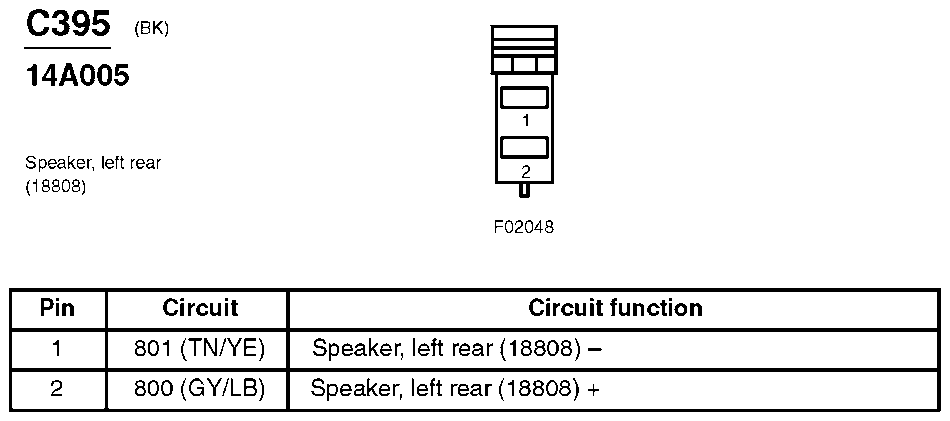

Fig 127: Speaker, Left Rear Connector End View (C395)
Courtesy of FORD MOTOR CO.

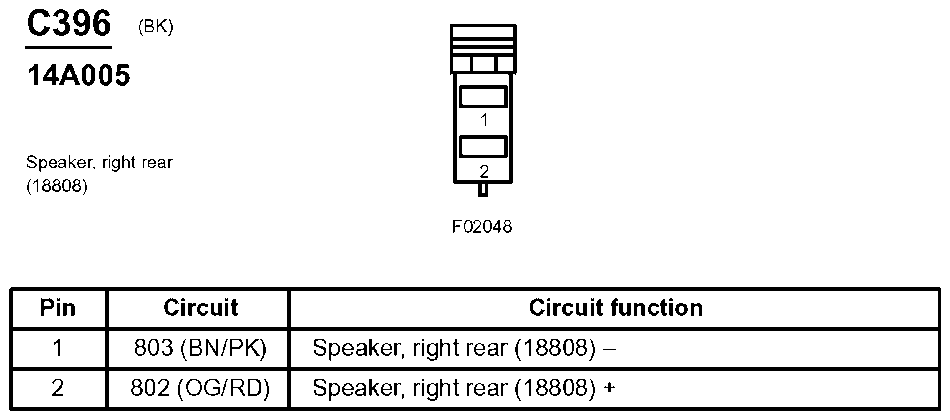

Fig 128: Speaker, Right Rear Connector End View (C396)
Courtesy of FORD MOTOR CO.

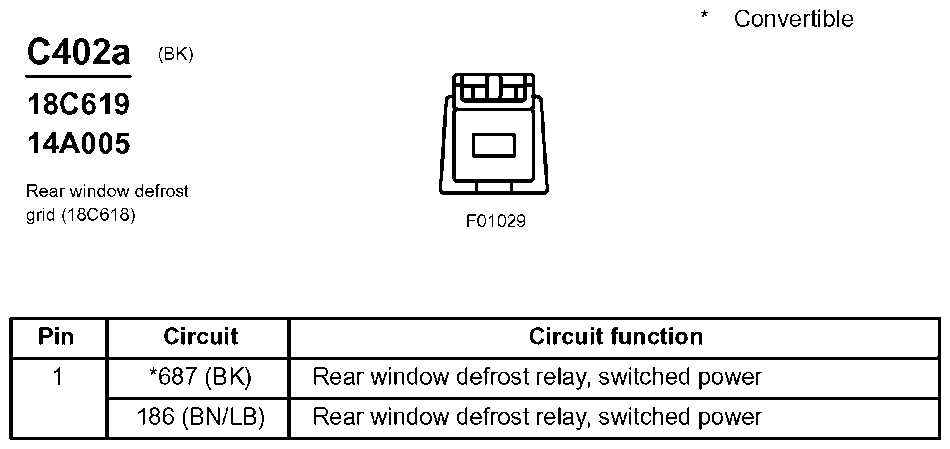

Fig 129: Rear Window Defrost Grid Connector End View (C402a)
Courtesy of FORD MOTOR CO.

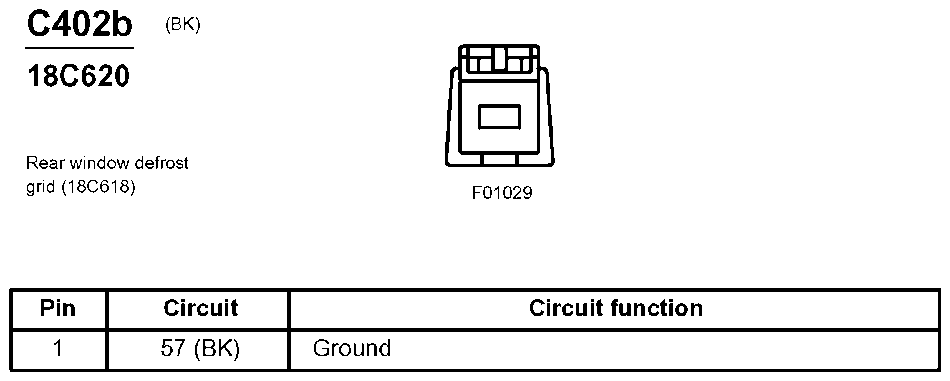

Fig 130: Rear Window Defrost Grid Connector End View (C402b)
Courtesy of FORD MOTOR CO.

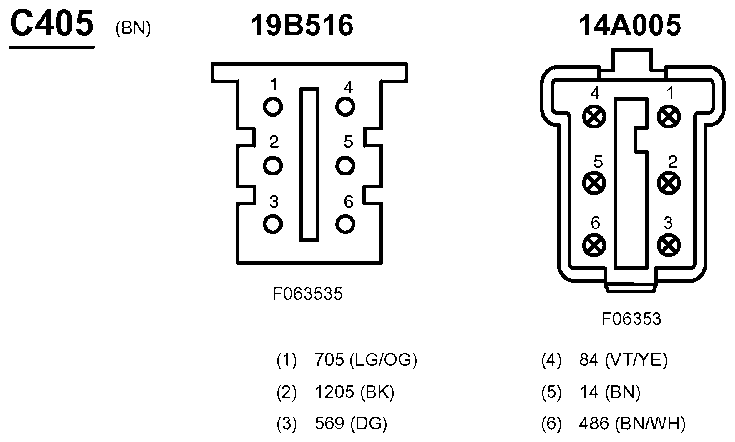

Fig 131: Inline Connector End View (C405)
Courtesy of FORD MOTOR CO.

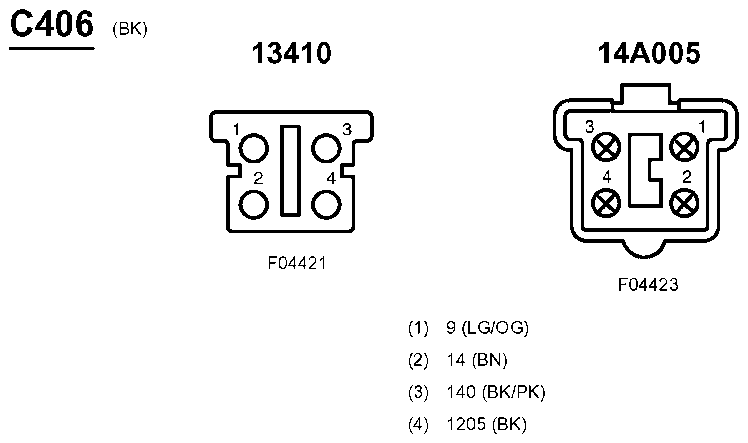

Fig 132: Inline Connector End View (C406)
Courtesy of FORD MOTOR CO.

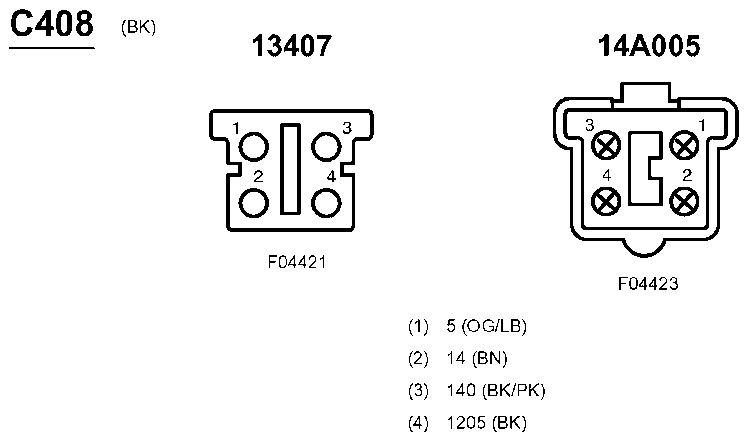

Fig 133: Inline Connector End View (C408)
Courtesy of FORD MOTOR CO.

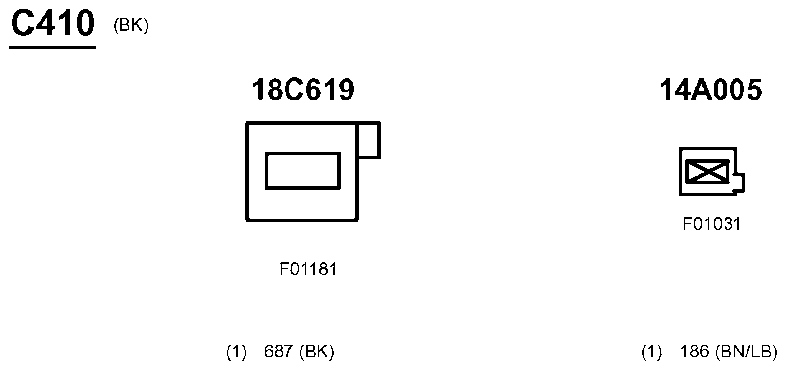

Fig 134: Inline Connector End View (C410)
Courtesy of FORD MOTOR CO.

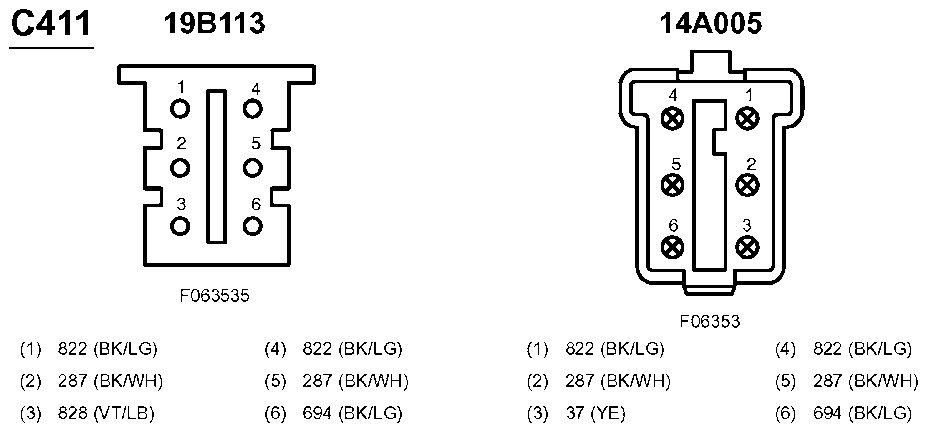

Fig 135: Inline Connector End View (C411)
Courtesy of FORD MOTOR CO.

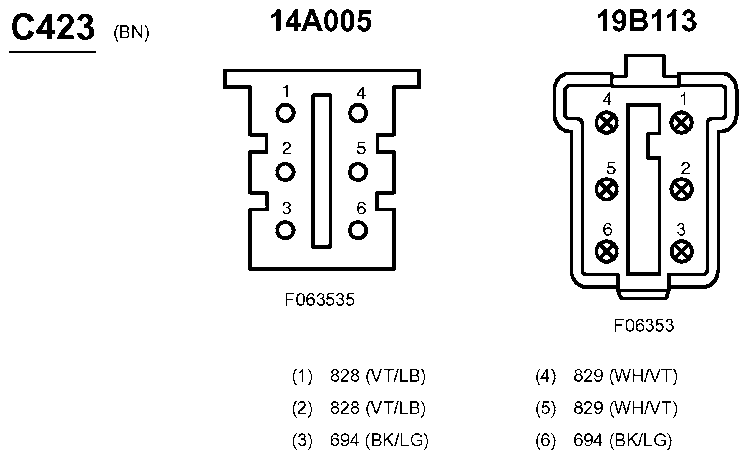

Fig 136: Inline Connector End View (C423)
Courtesy of FORD MOTOR CO.

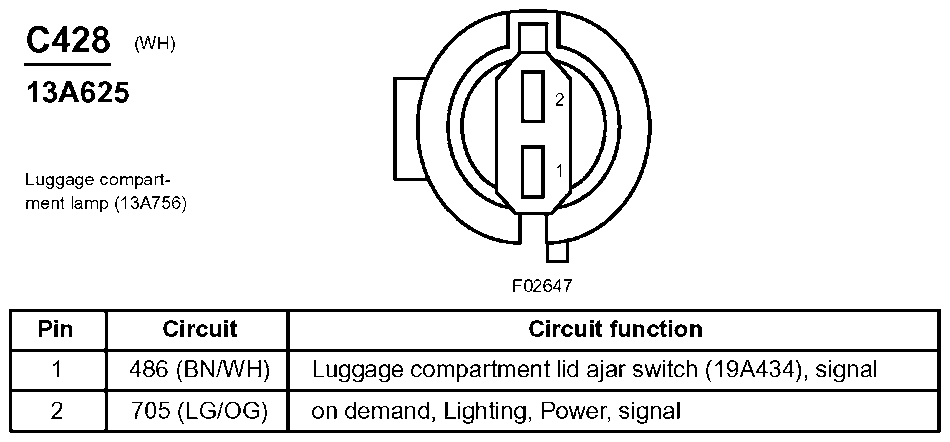

Fig 137: Luggage Compartment Lamp Connector End View (C428)
Courtesy of FORD MOTOR CO.

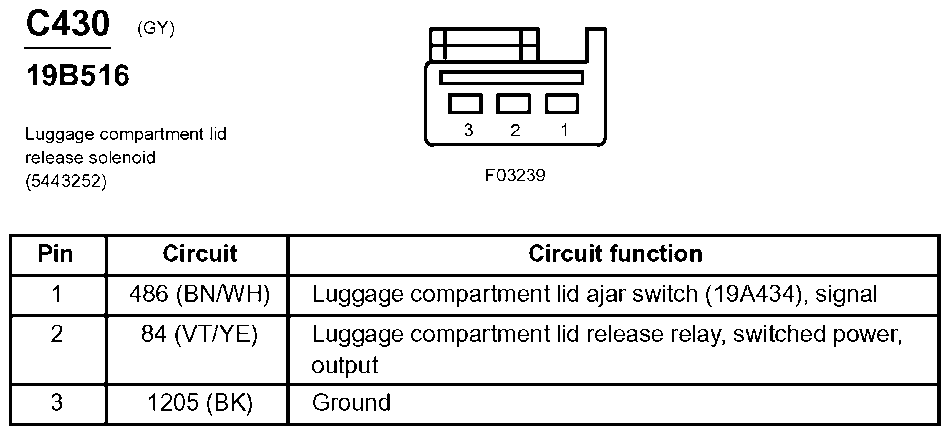

Fig 138: Luggage Compartment Lid Release Solenoid Connector End View (C430)
Courtesy of FORD MOTOR CO.

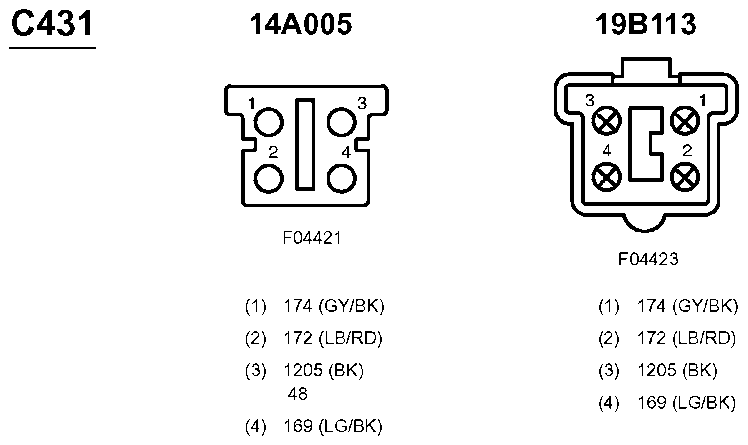

Fig 139: Inline Connector End View (C431)
Courtesy of FORD MOTOR CO.

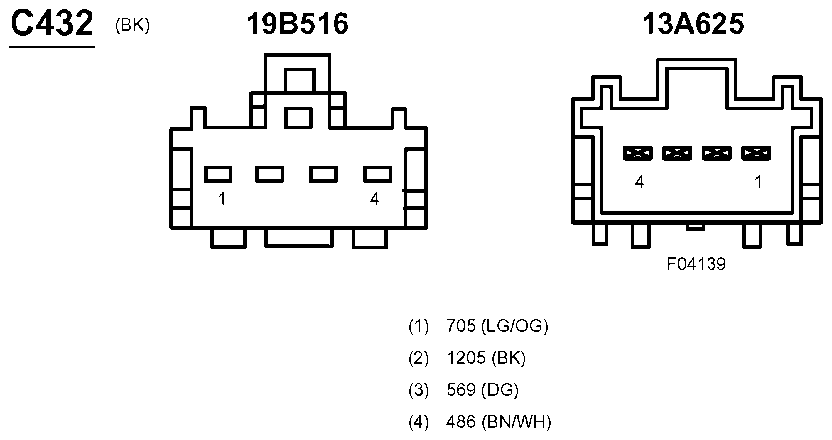

Fig 140: Inline Connector End View (C432)
Courtesy of FORD MOTOR CO.

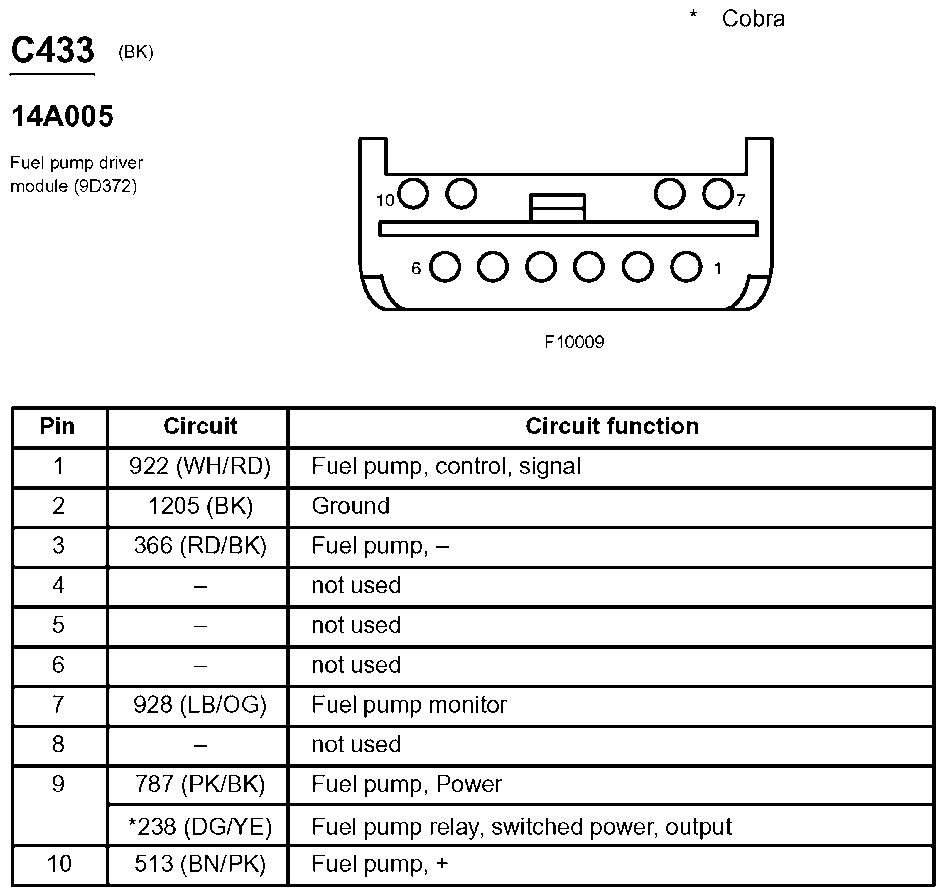

Fig 141: Fuel Pump Driver Module Connector End View (C433)
Courtesy of FORD MOTOR CO.

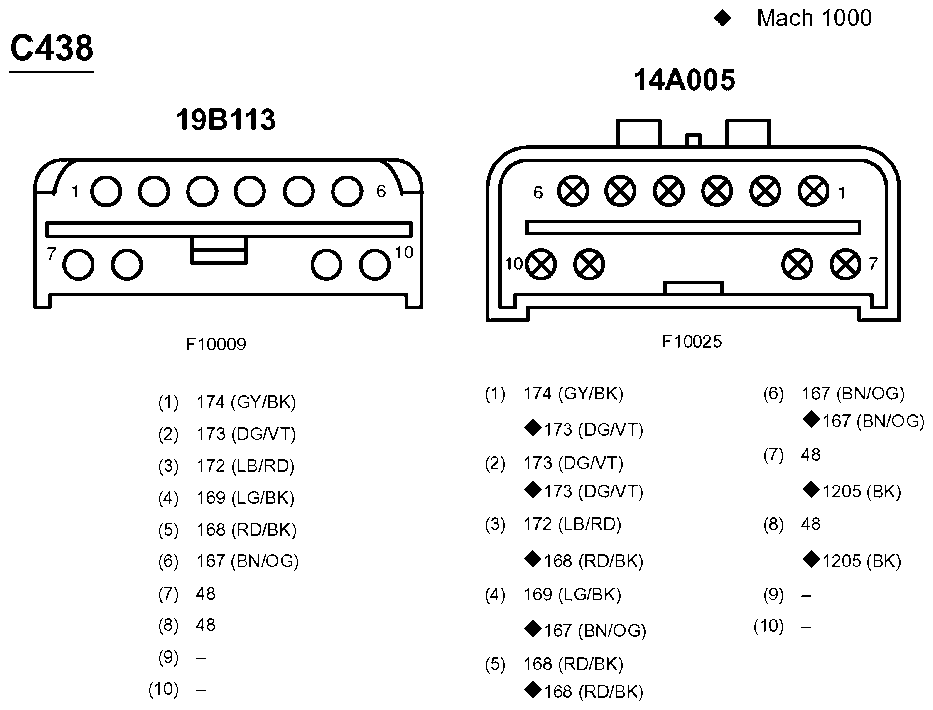

Fig 142: Inline Connector End View (C438)
Courtesy of FORD MOTOR CO.

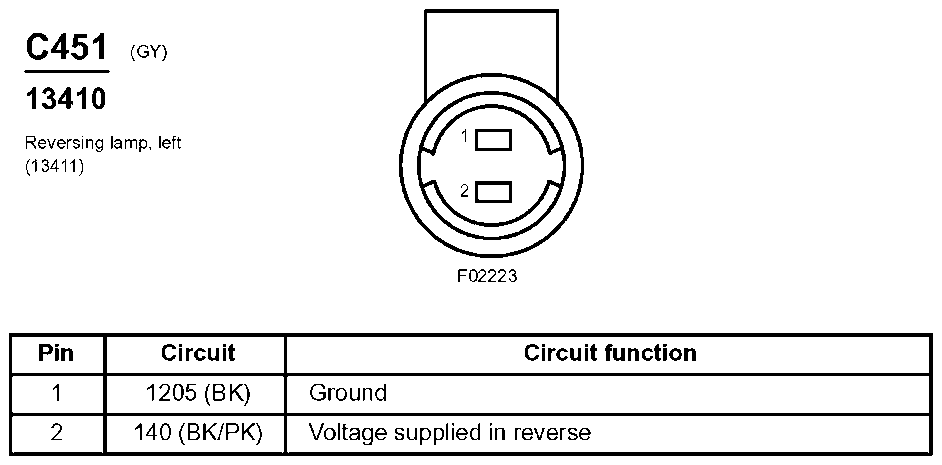

Fig 143: Reversing Lamp, Left Connector End View (C451)
Courtesy of FORD MOTOR CO.

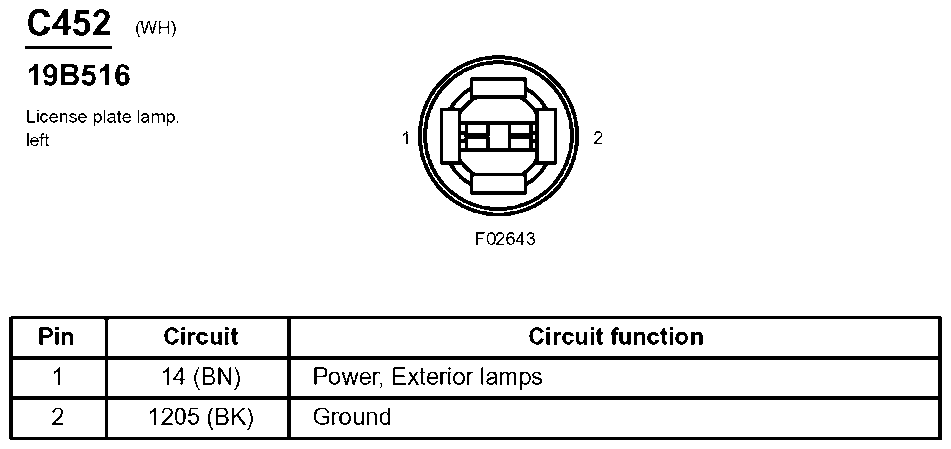

Fig 144: License Plate Lamp, Left Connector End View (C452)
Courtesy of FORD MOTOR CO.

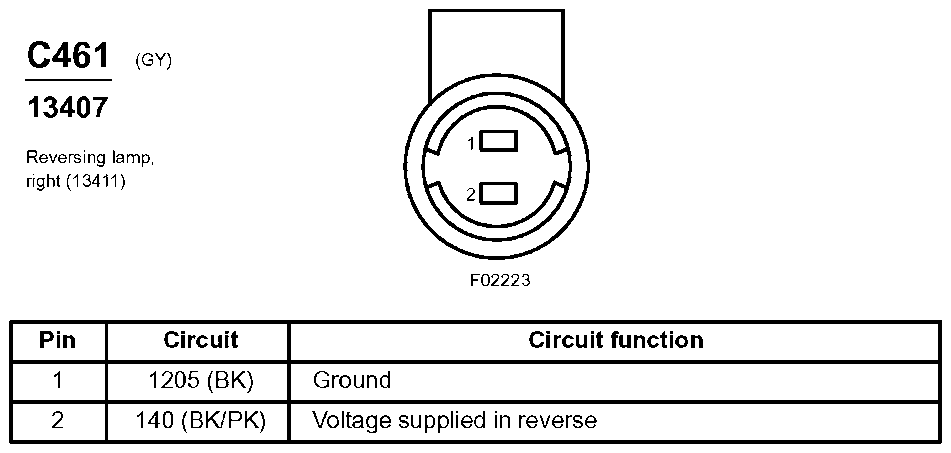

Fig 145: Reversing Lamp, Right Connector End View (C461)
Courtesy of FORD MOTOR CO.

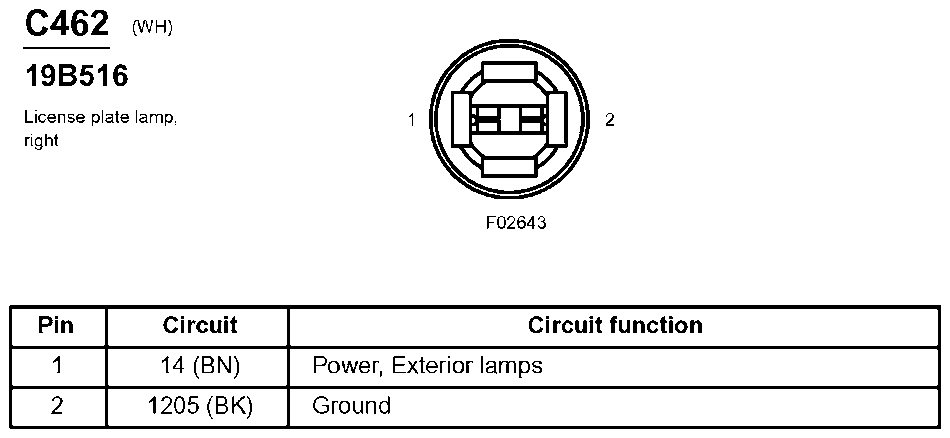

Fig 146: License Plate Lamp, Right Connector End View (C462)
Courtesy of FORD MOTOR CO.

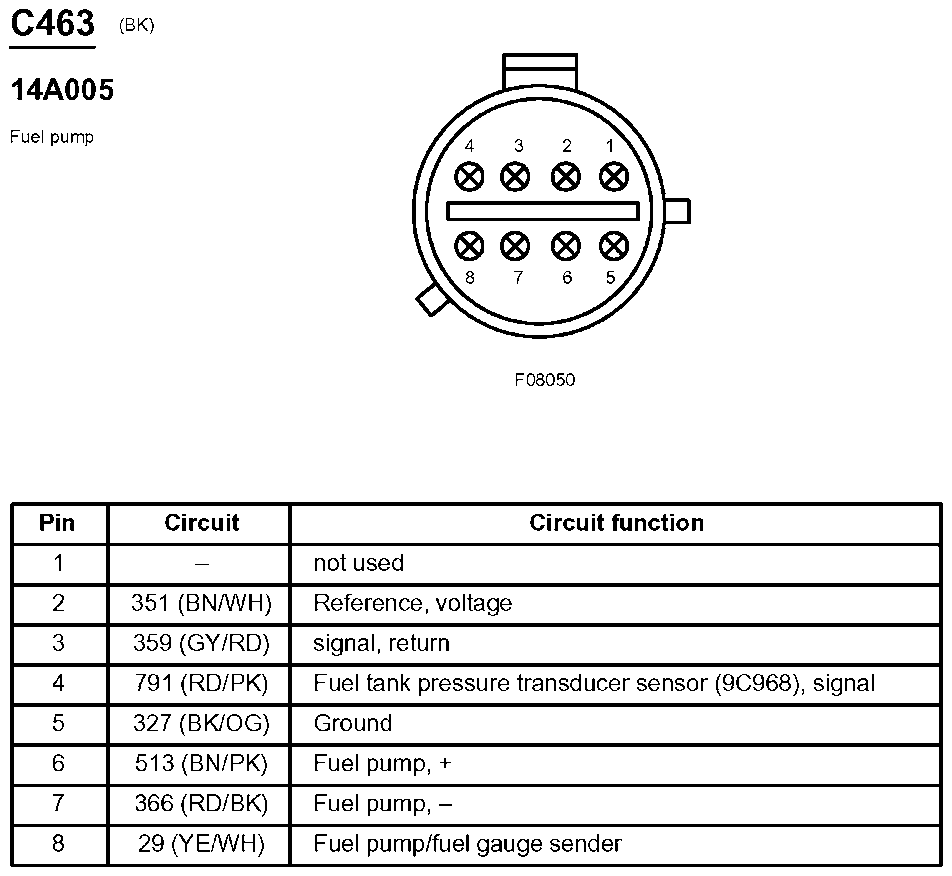

Fig 147: Fuel Pump Connector End View (C463)
Courtesy of FORD MOTOR CO.

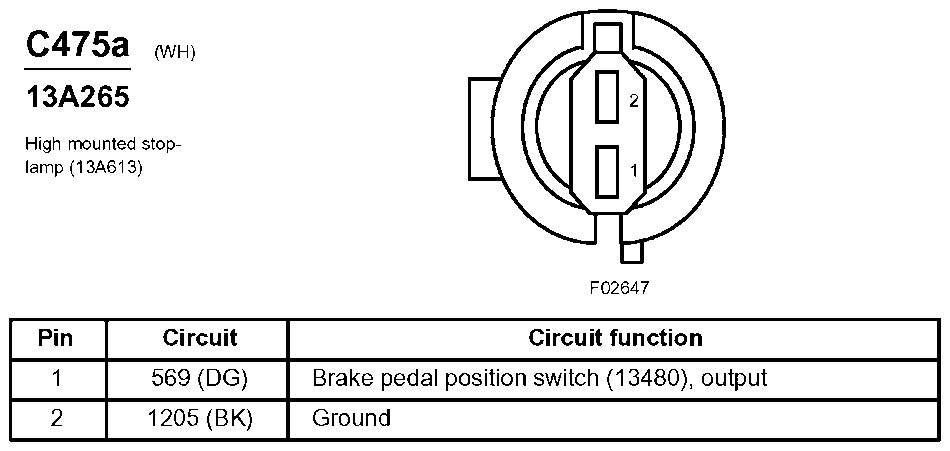

Fig 148: High Mounted Stoplamp Connector End View (C475a)
Courtesy of FORD MOTOR CO.

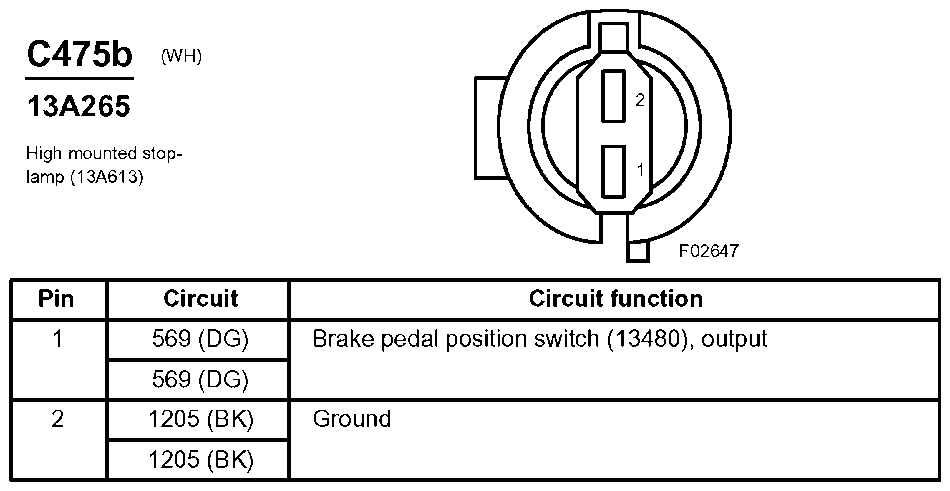

Fig 149: High Mounted Stoplamp Connector End View (C475b)
Courtesy of FORD MOTOR CO.

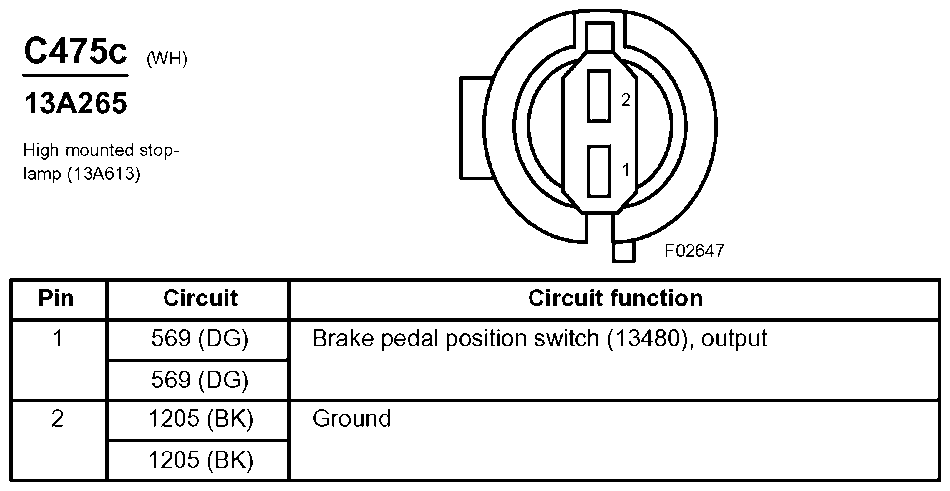

Fig 150: High Mounted Stoplamp Connector End View (C475c)
Courtesy of FORD MOTOR CO.

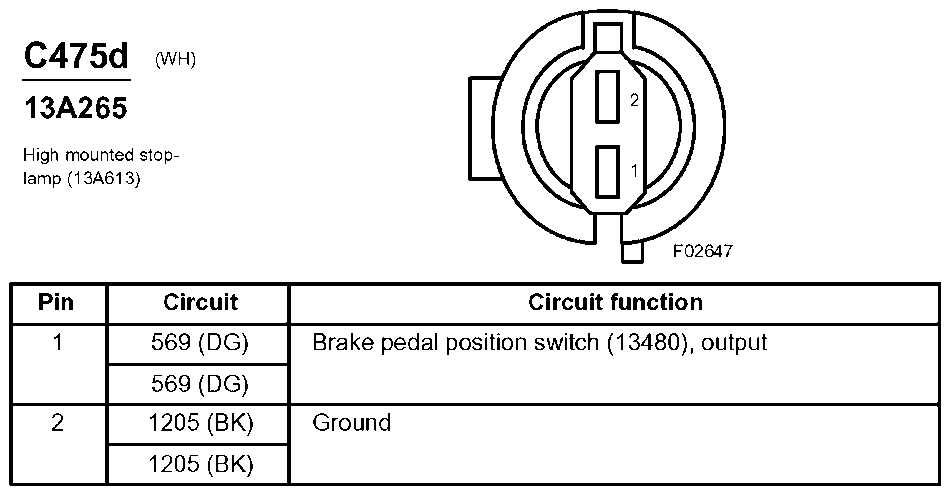

Fig 151: High Mounted Stoplamp Connector End View (C475d)
Courtesy of FORD MOTOR CO.

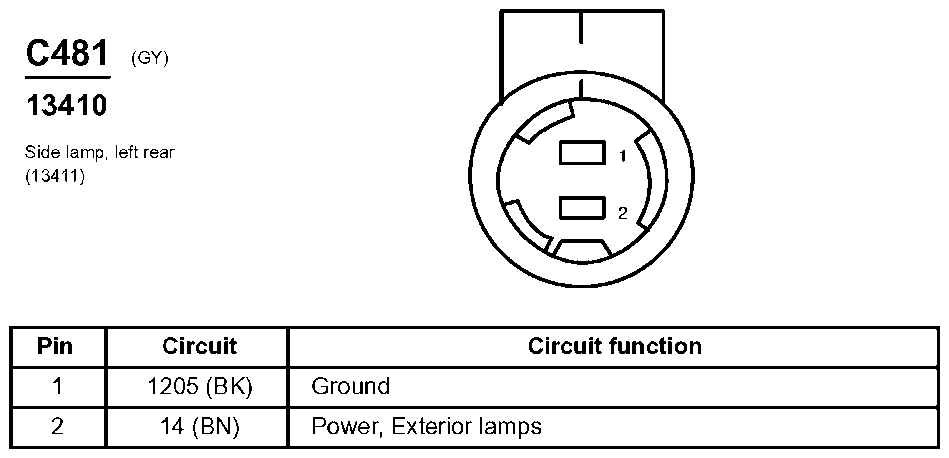

Fig 152: Side Lamp, Left Rear Connector End View (C481)
Courtesy of FORD MOTOR CO.

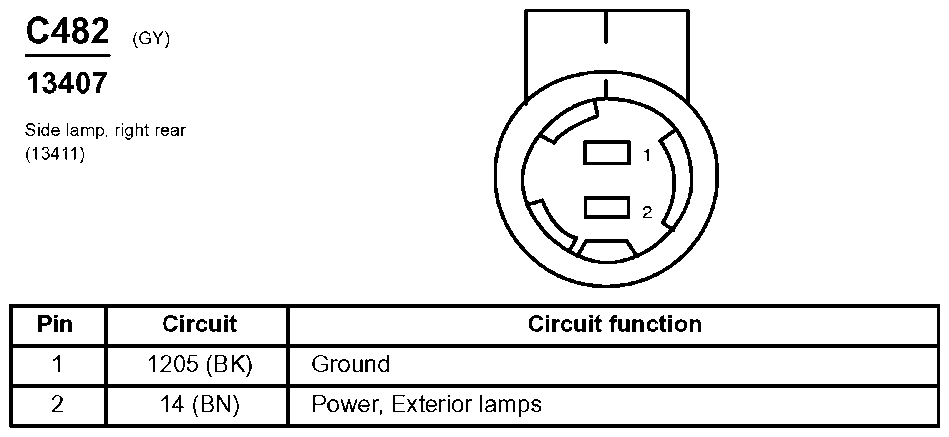

Fig 153: Side Lamp, Right Rear Connector End View (C482)
Courtesy of FORD MOTOR CO.

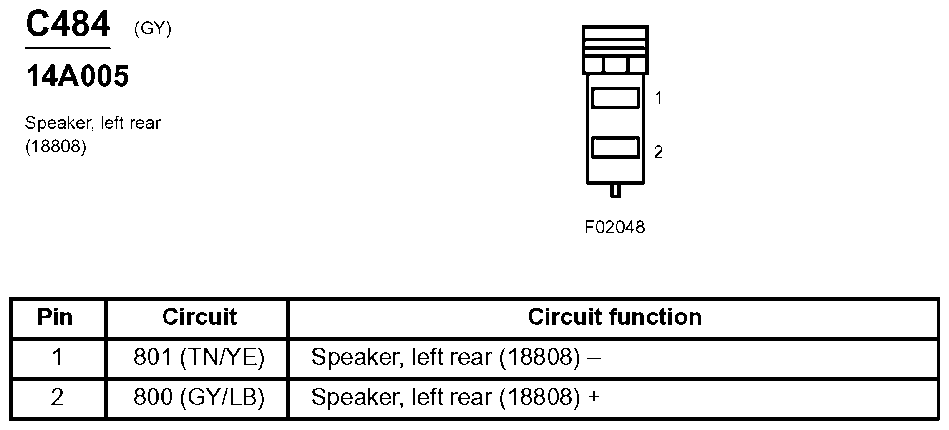

Fig 154: Speaker, Left Rear Connector End View (C484)
Courtesy of FORD MOTOR CO.

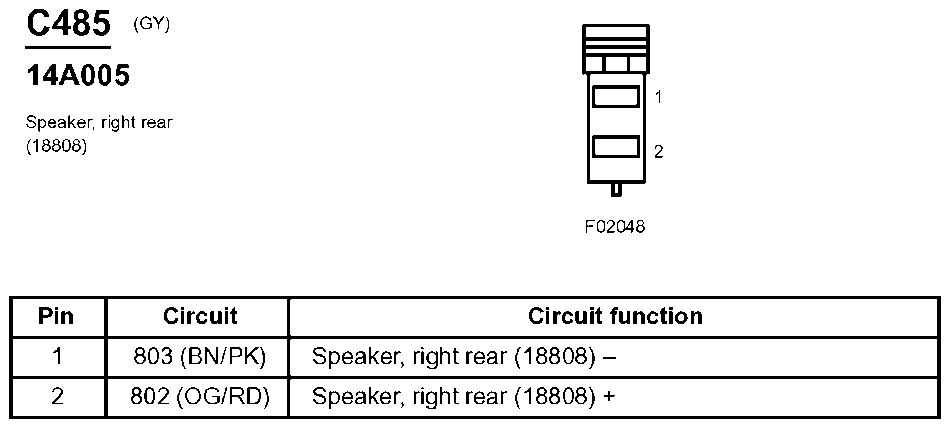

Fig 155: Speaker, Right Rear Connector End View (C485)
Courtesy of FORD MOTOR CO.

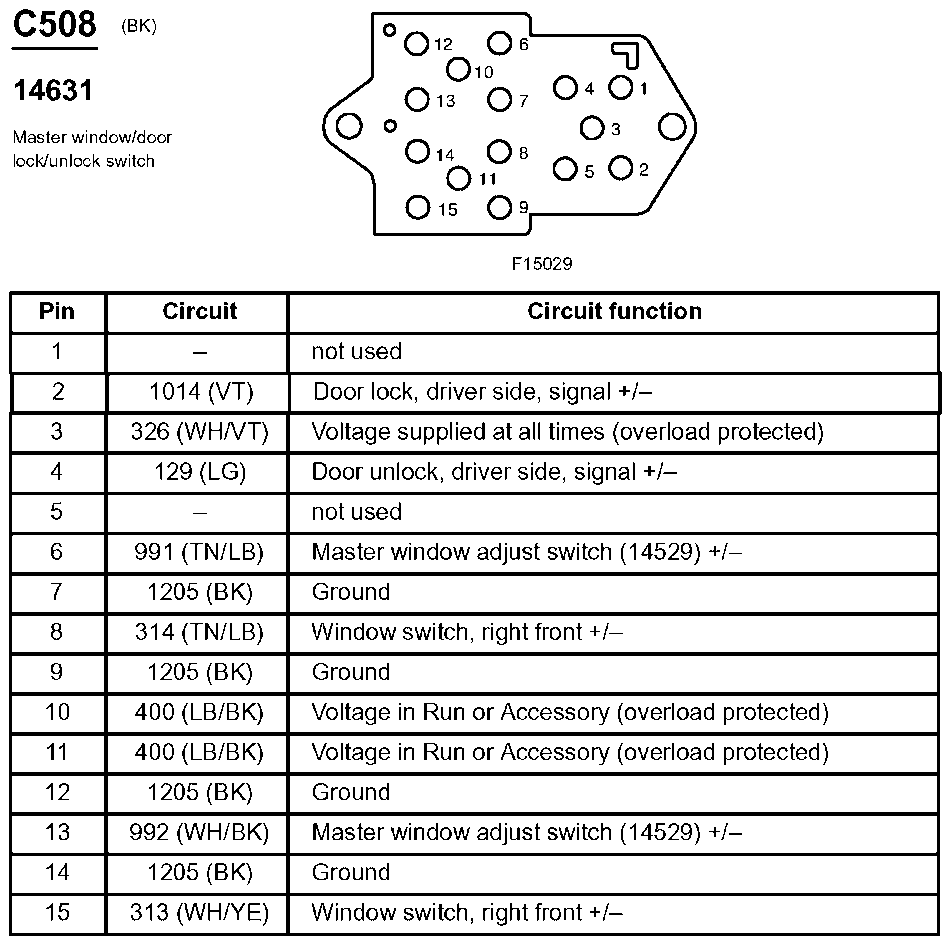

Fig 156: Master Window/Door Lock/Unlock Switch Connector End View (C508)
Courtesy of FORD MOTOR CO.

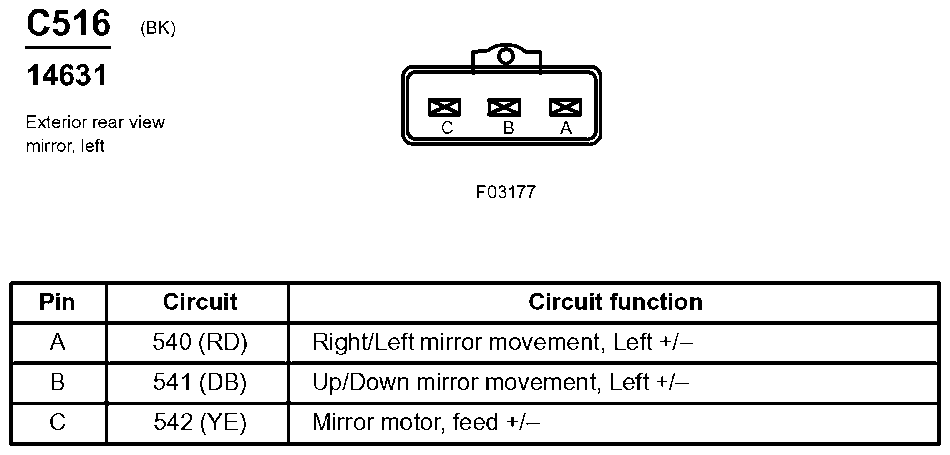

Fig 157: Exterior Rear View Mirror, Left Connector End View (C516)
Courtesy of FORD MOTOR CO.

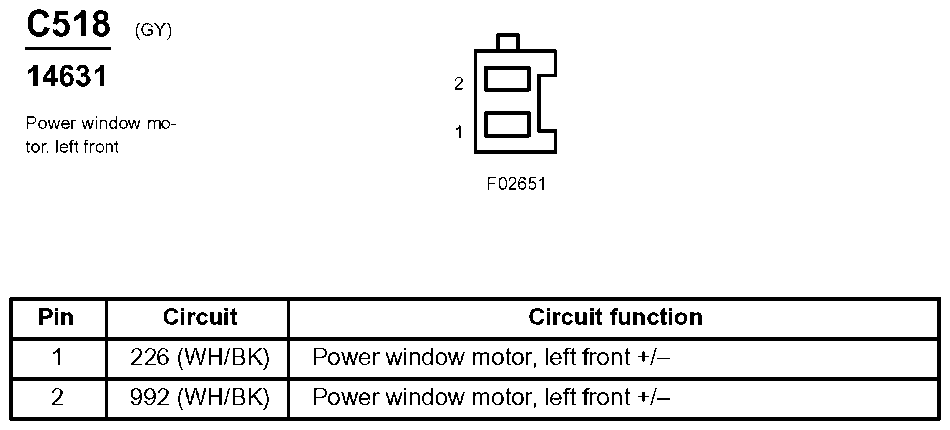

Fig 158: Power Window Motor, Left Front Connector End View (C518)
Courtesy of FORD MOTOR CO.

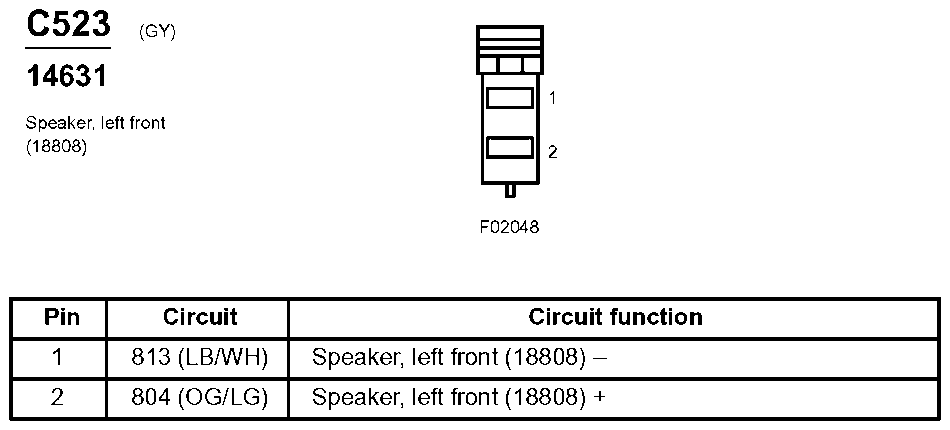

Fig 159: Speaker, Left Front Connector End View (C523)
Courtesy of FORD MOTOR CO.
Fig 160: Door Lock Actuator, Left Front Connector End View (C525)
Courtesy of FORD MOTOR CO.

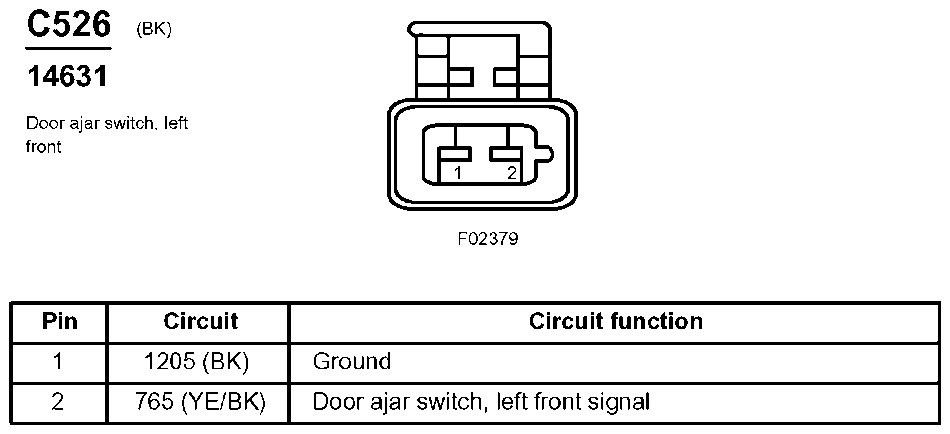

Fig 161: Door Ajar Switch, Left Front Connector End View (C526)
Courtesy of FORD MOTOR CO.

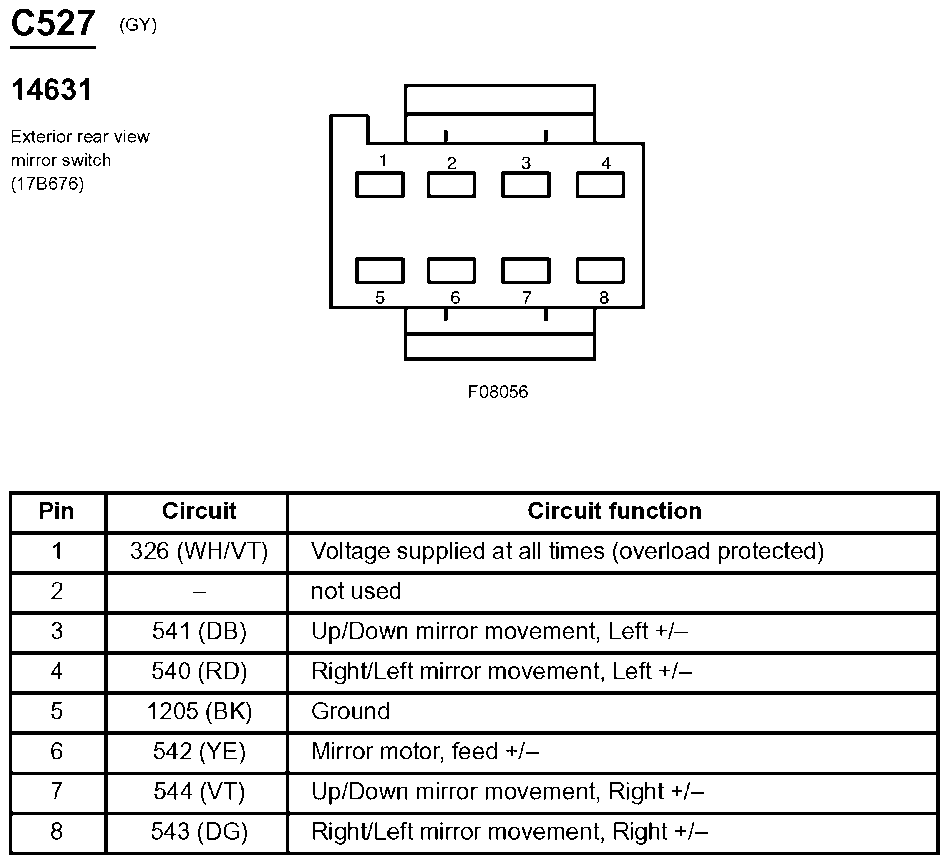

Fig 162: Exterior Rear View Mirror Switch Connector End View (C527)
Courtesy of FORD MOTOR CO.

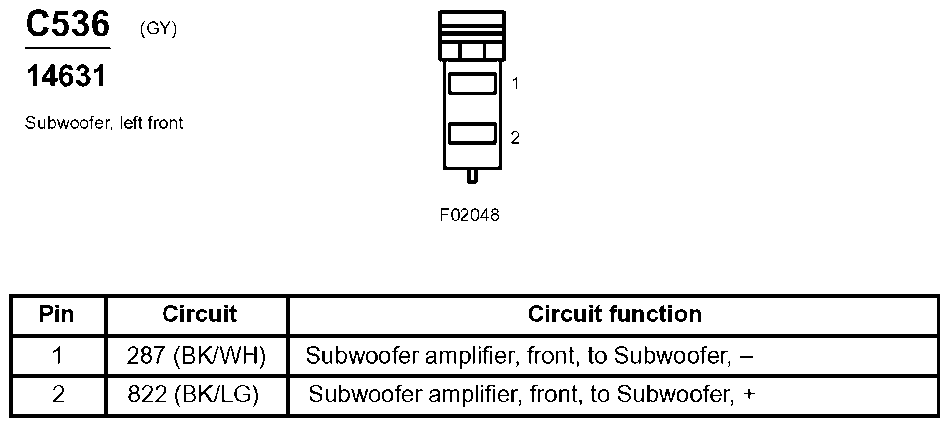

Fig 163: Subwoofer, Left Front Connector End View (C536)
Courtesy of FORD MOTOR CO.

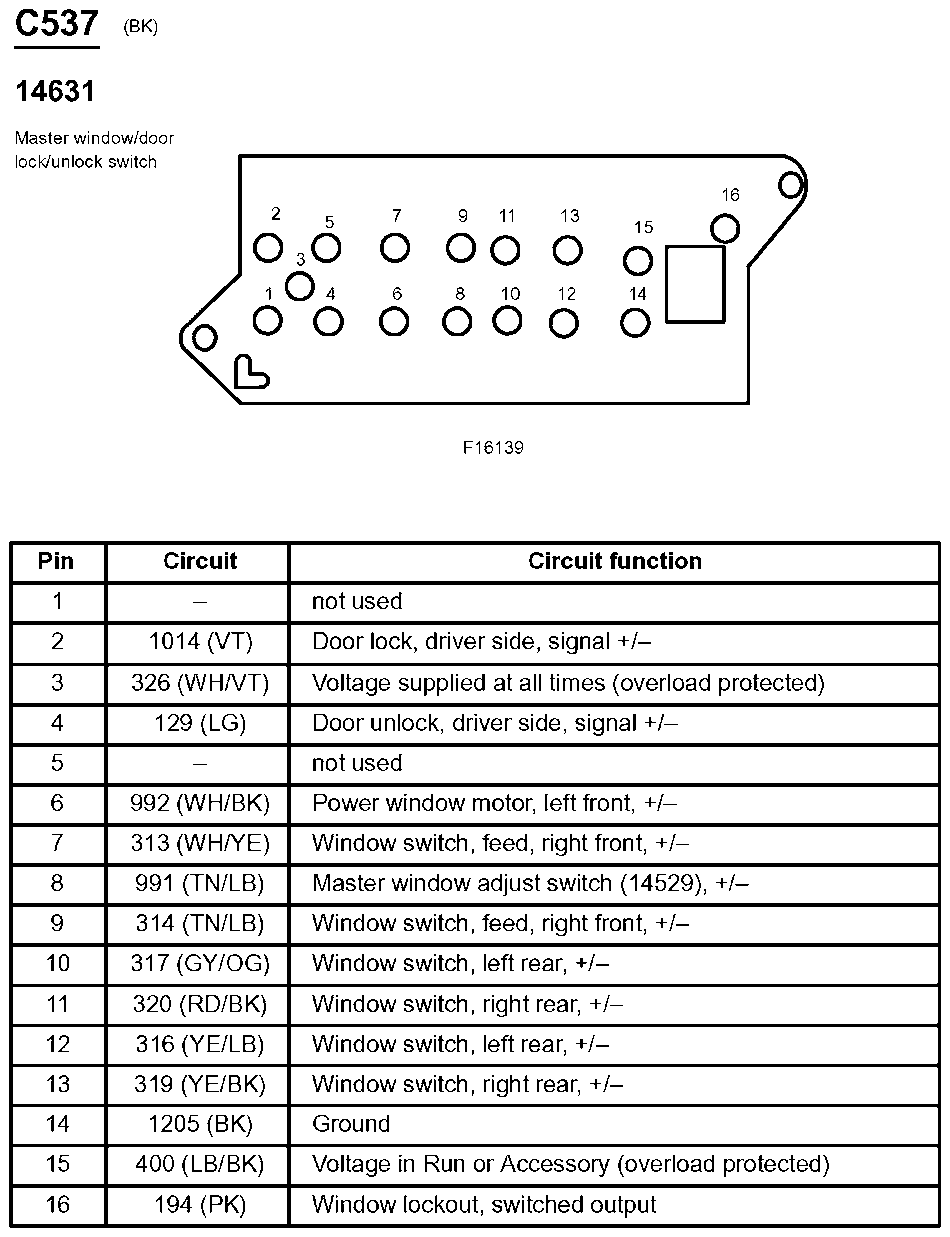

Fig 164: Master Window/Door Lock/Unlock Switch Connector End View (C537)
Courtesy of FORD MOTOR CO.

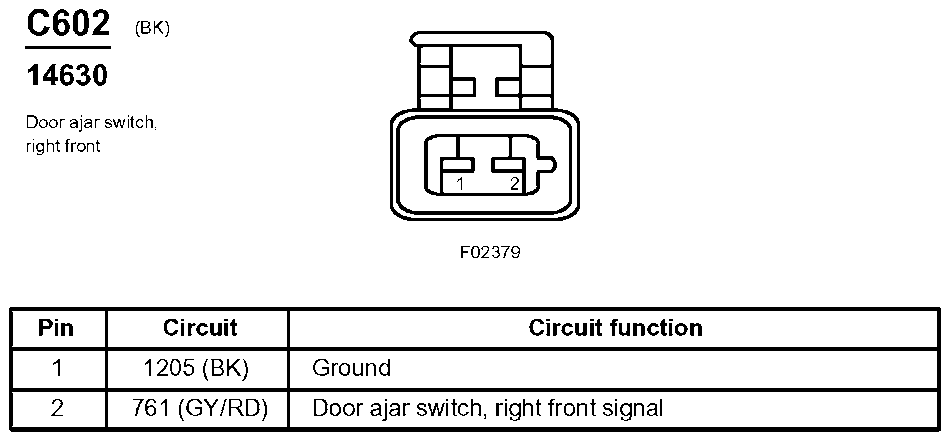

Fig 165: Door Ajar Switch, Right Front Connector End View (C602)
Courtesy of FORD MOTOR CO.

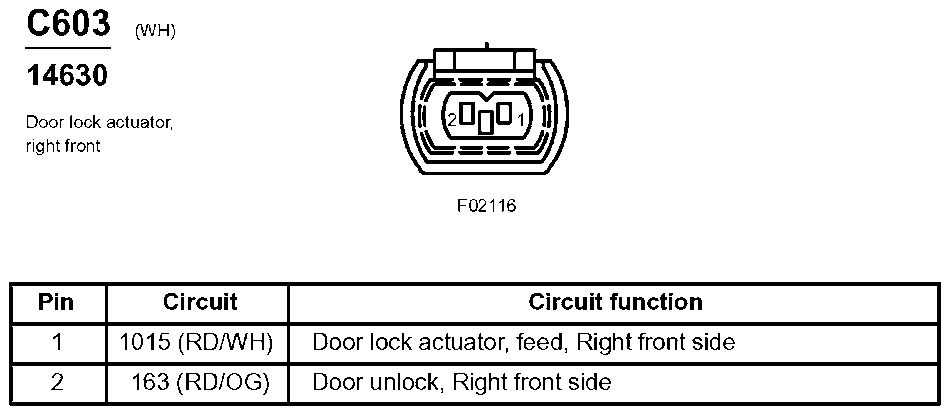

Fig 166: Door Lock Actuator, Right Front Connector End View (C603)
Courtesy of FORD MOTOR CO.

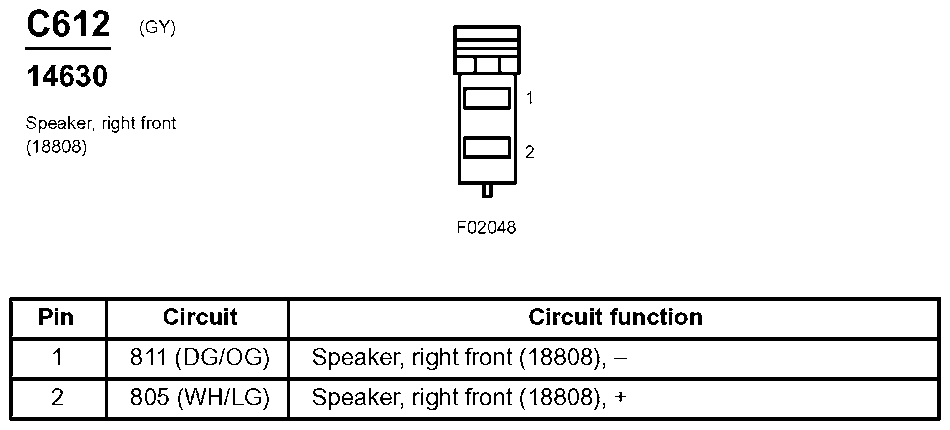

Fig 167: Speaker, Right Front Connector End View (C612)
Courtesy of FORD MOTOR CO.

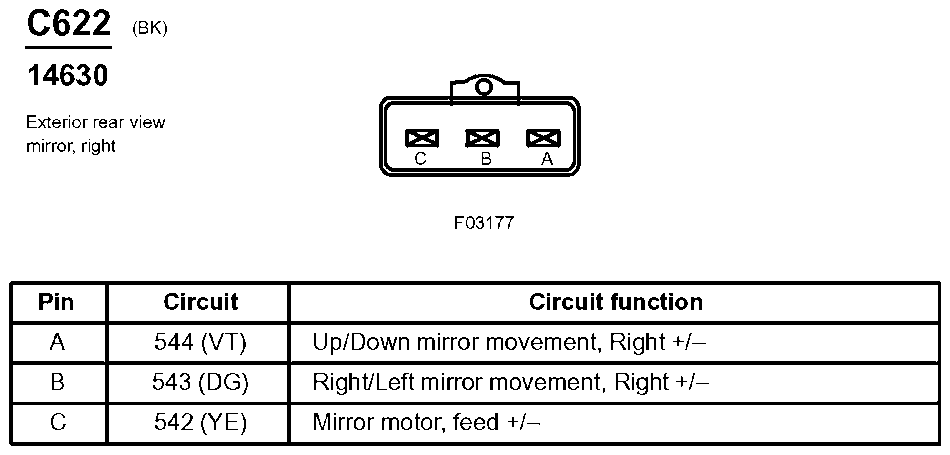

Fig 168: Exterior Rear View Mirror, Right Connector End View (C622)
Courtesy of FORD MOTOR CO.

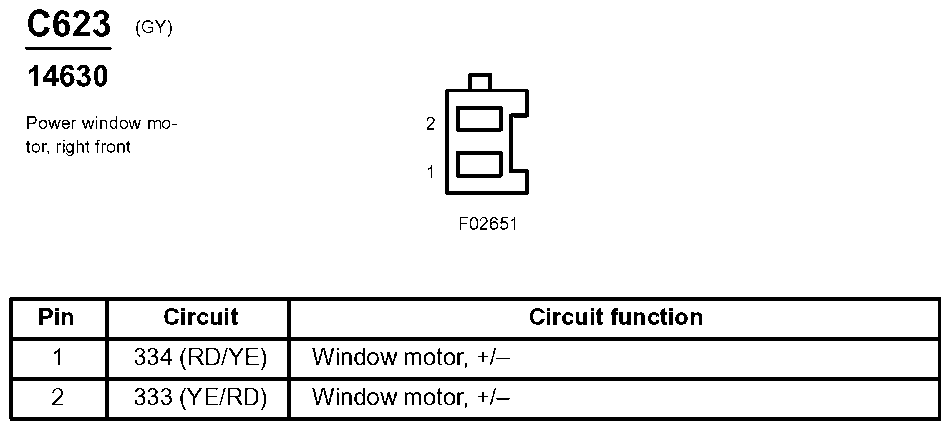

Fig 169: Power Window Motor, Right Front Connector End View (C623)
Courtesy of FORD MOTOR CO.

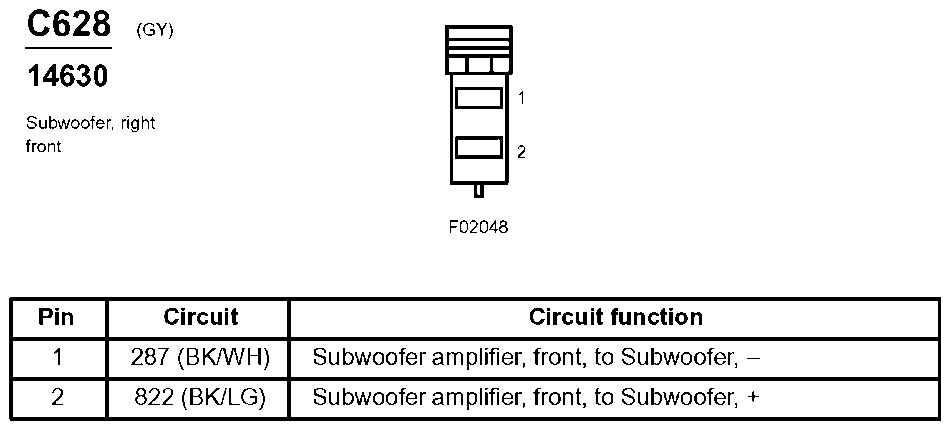

Fig 170: Subwoofer, Right Front Connector End View (C628)
Courtesy of FORD MOTOR CO.

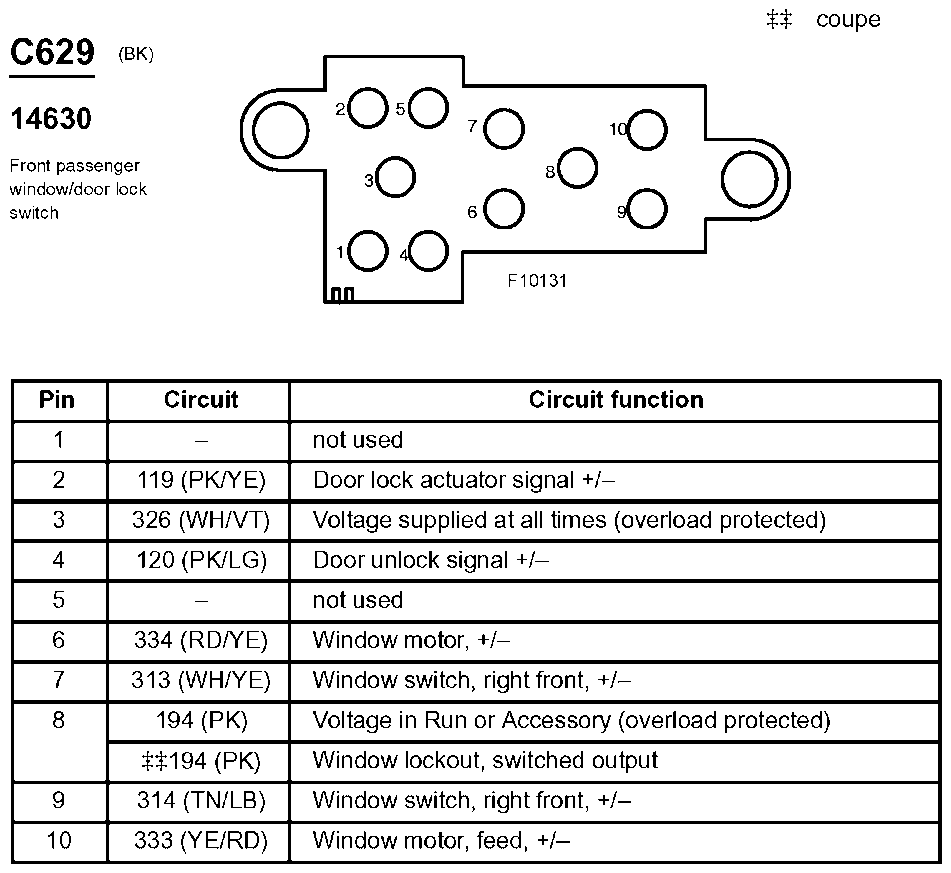

Fig 171: Front Passenger Window/Door Lock Switch Connector End View (C629)
Courtesy of FORD MOTOR CO.

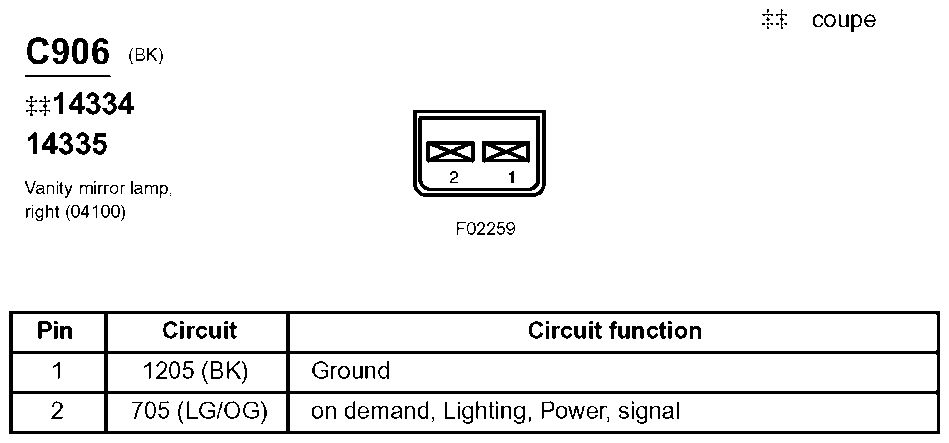

Fig 172: Vanity Mirror Lamp, Right Connector End View (C906)
Courtesy of FORD MOTOR CO.

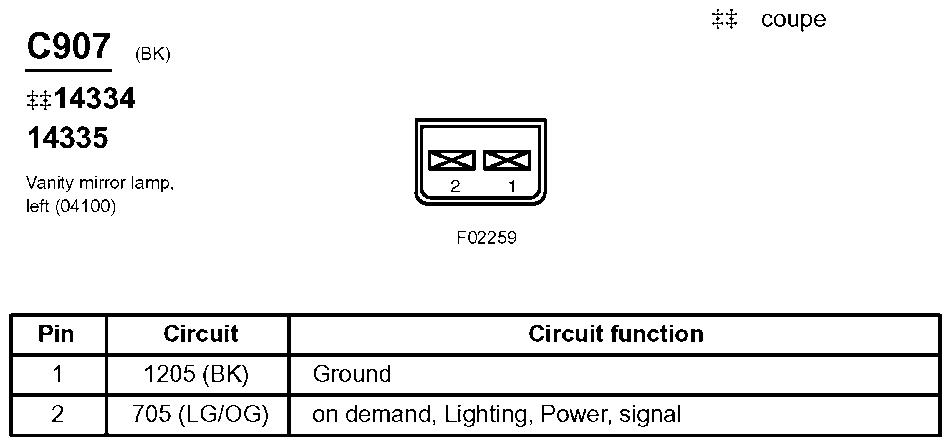

Fig 173: Vanity Mirror Lamp, Left Connector End View (C907)
Courtesy of FORD MOTOR CO.

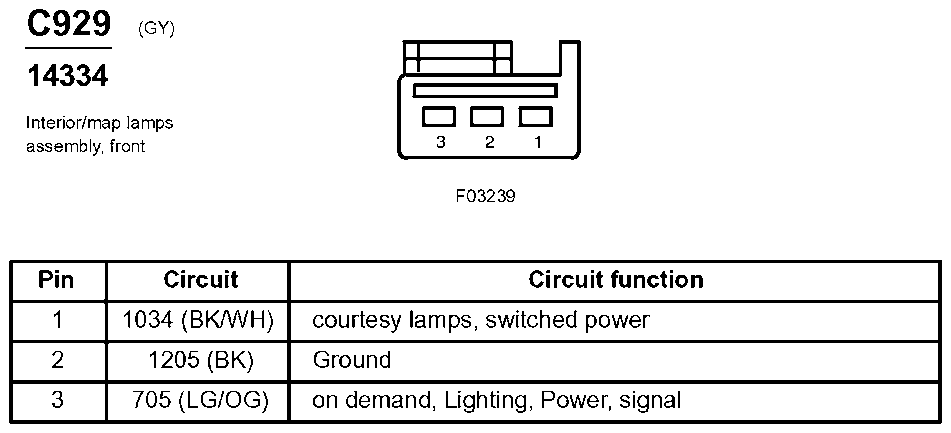

Fig 174: Interior/Map Lamps Assembly, Front Connector End View (C929)
Courtesy of FORD MOTOR CO.

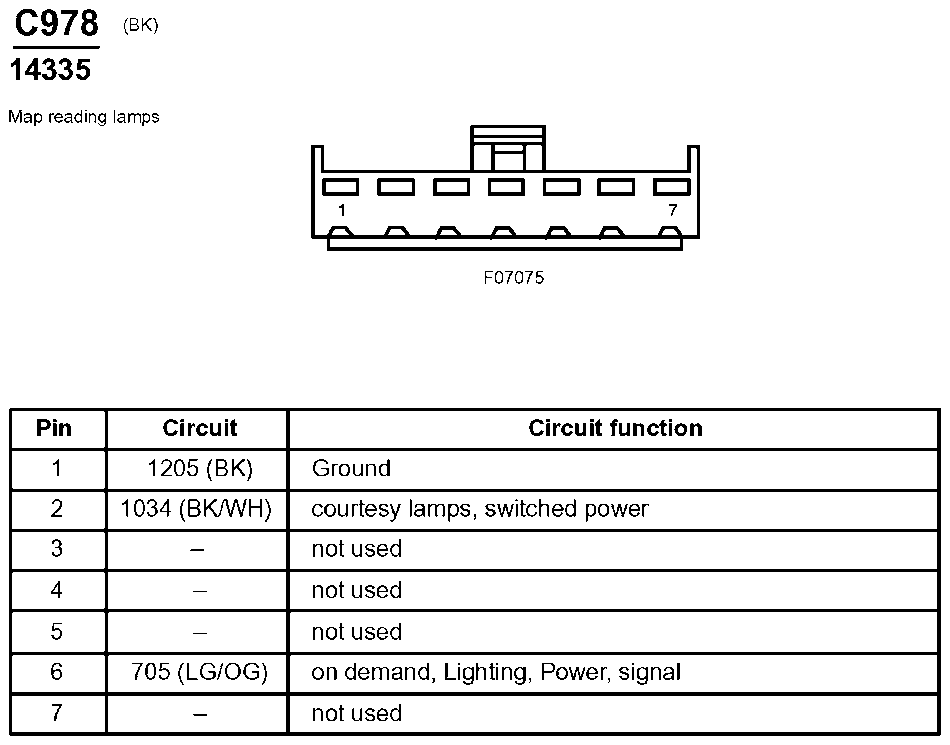

Fig 175: Map Reading Lamps Connector End View (C978)
Courtesy of FORD MOTOR CO.

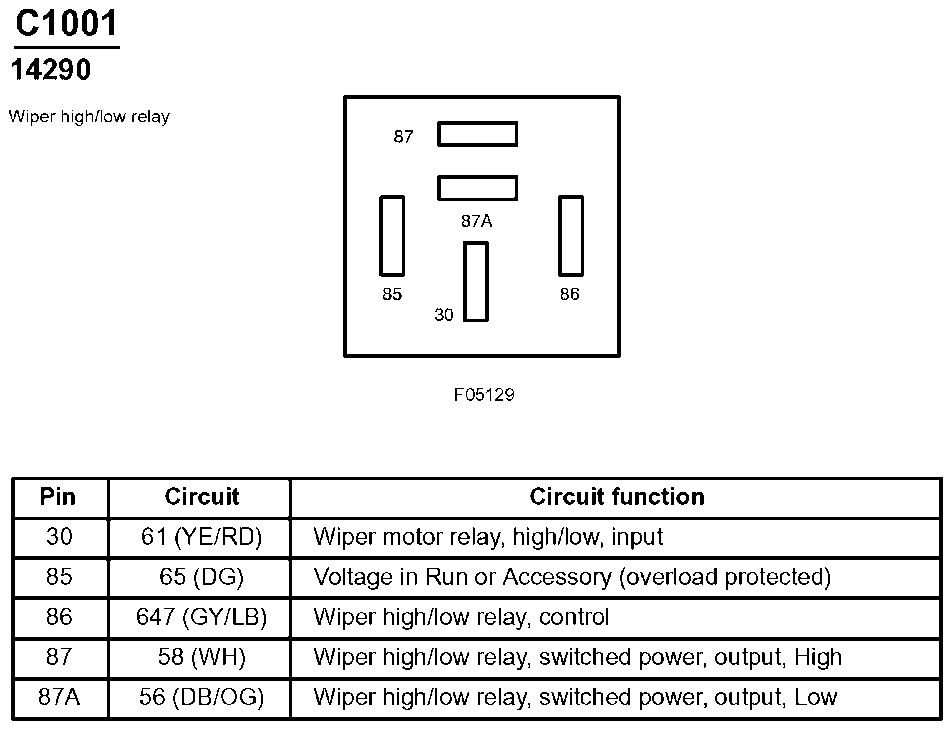

Fig 176: Wiper High/Low Relay Connector End View (C1001)
Courtesy of FORD MOTOR CO.

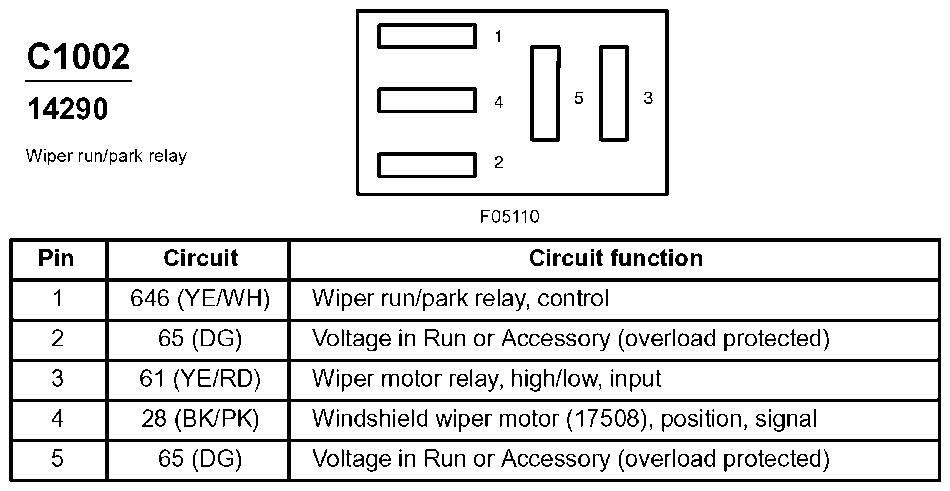

Fig 177: Wiper Run/Park Relay Connector End View (C1002)
Courtesy of FORD MOTOR CO.

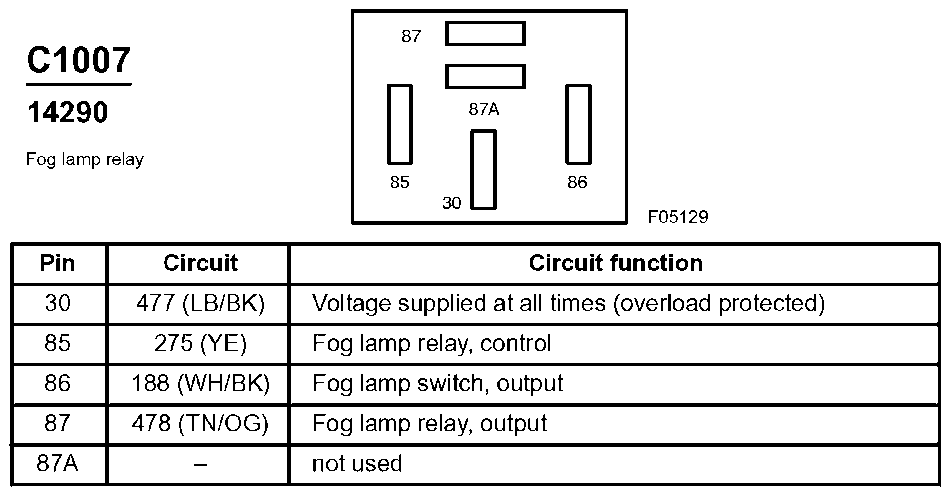

Fig 178: Fog Lamp Relay Connector End View (C1007)
Courtesy of FORD MOTOR CO.

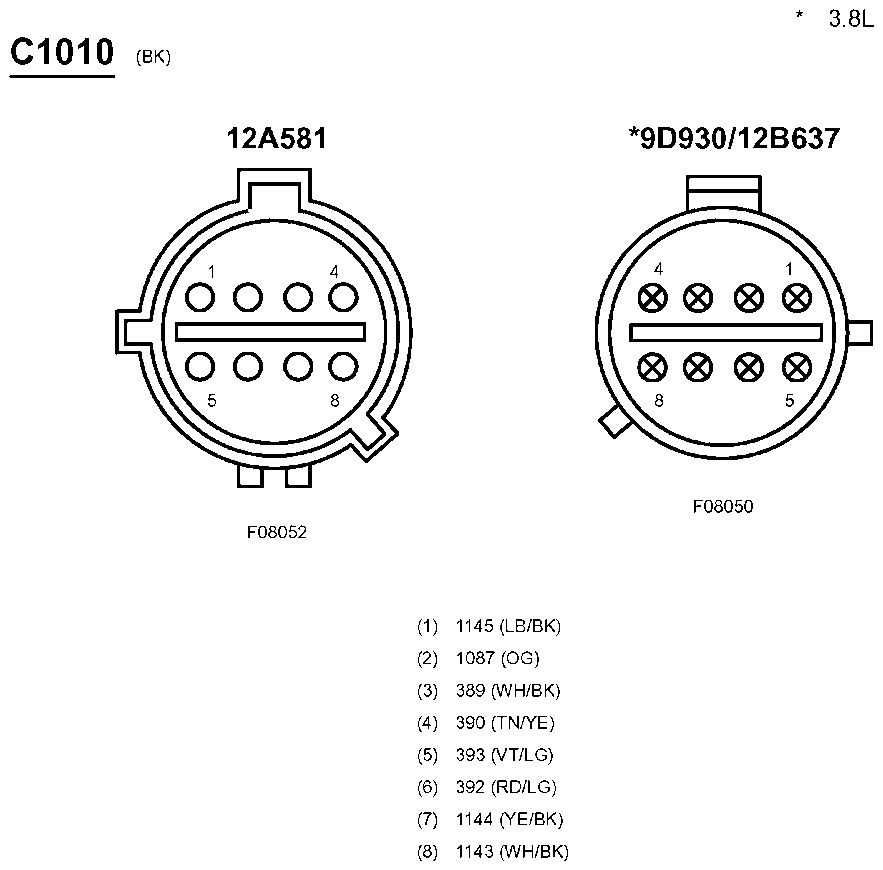

Fig 179: Inline Connector End View (C1010)
Courtesy of FORD MOTOR CO.

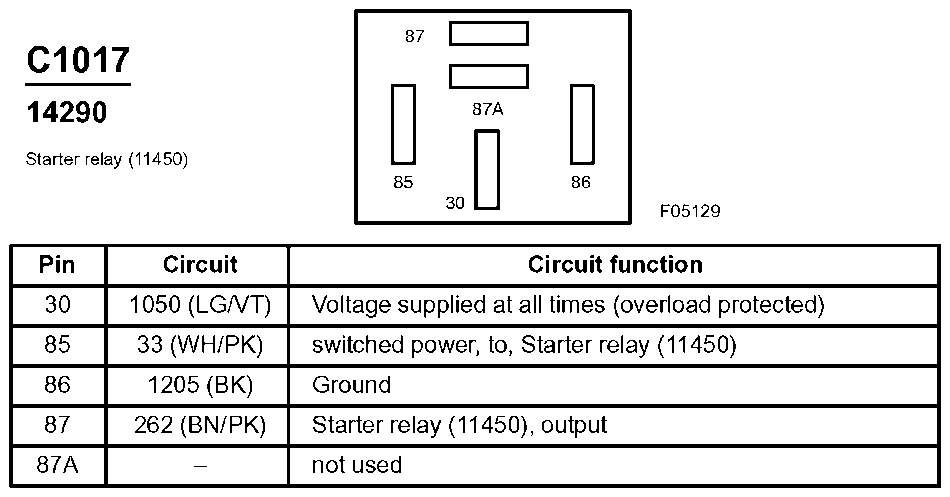

Fig 180: Starter Relay Connector End View (C1017)
Courtesy of FORD MOTOR CO.

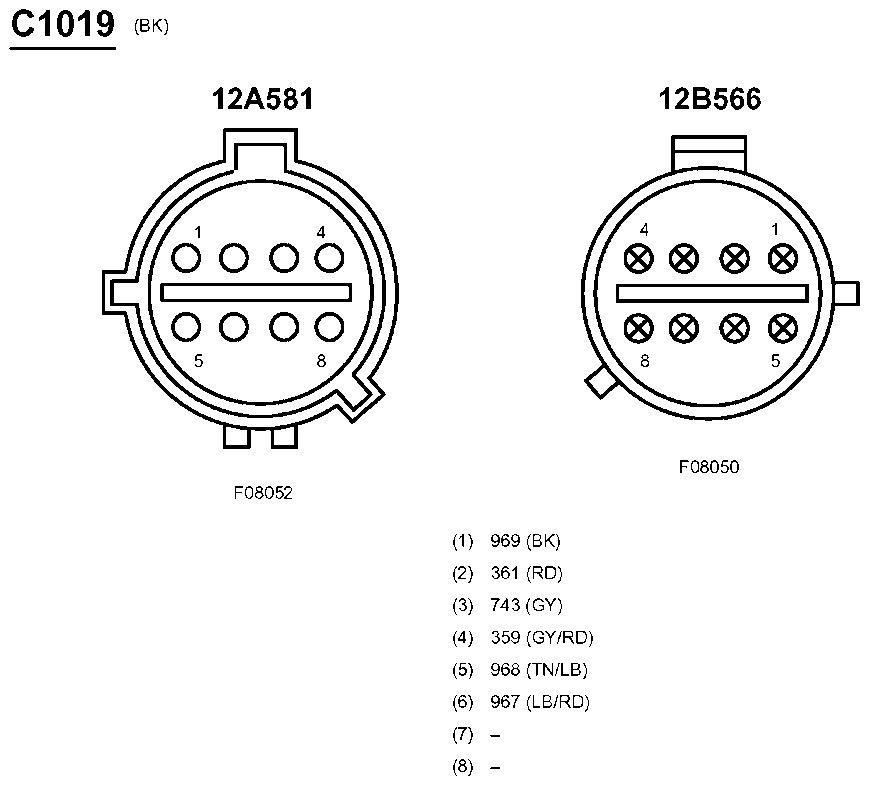

Fig 181: Inline Connector End View (C1019)
Courtesy of FORD MOTOR CO.
Fig 182: Headlamp, Left Connector End View (C1021)
Courtesy of FORD MOTOR CO.

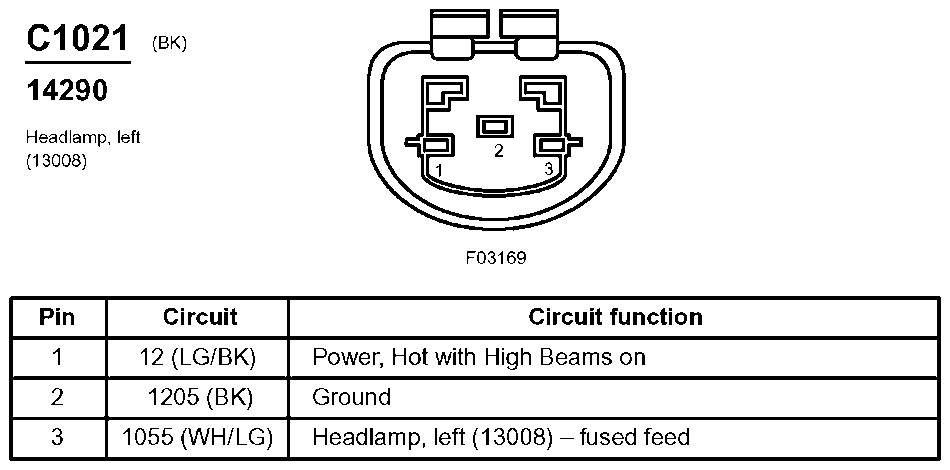

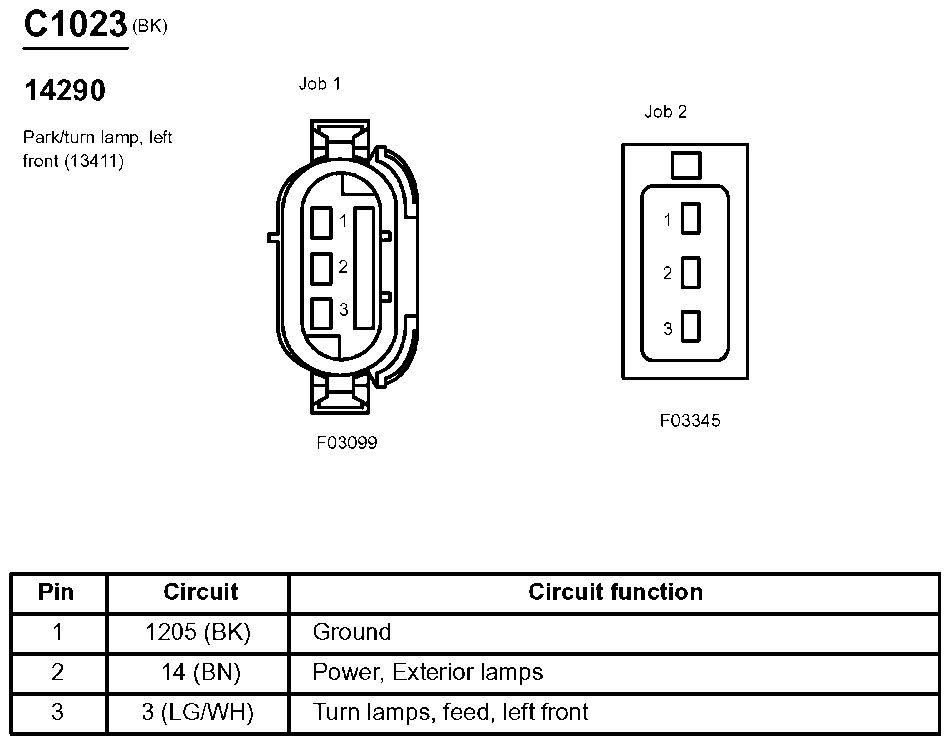

Fig 183: Park/turn Lamp, Left Front Connector End View (C1023)
Courtesy of FORD MOTOR CO.
Fig 184: Inline Connector End View (C1026)
Courtesy of FORD MOTOR CO.

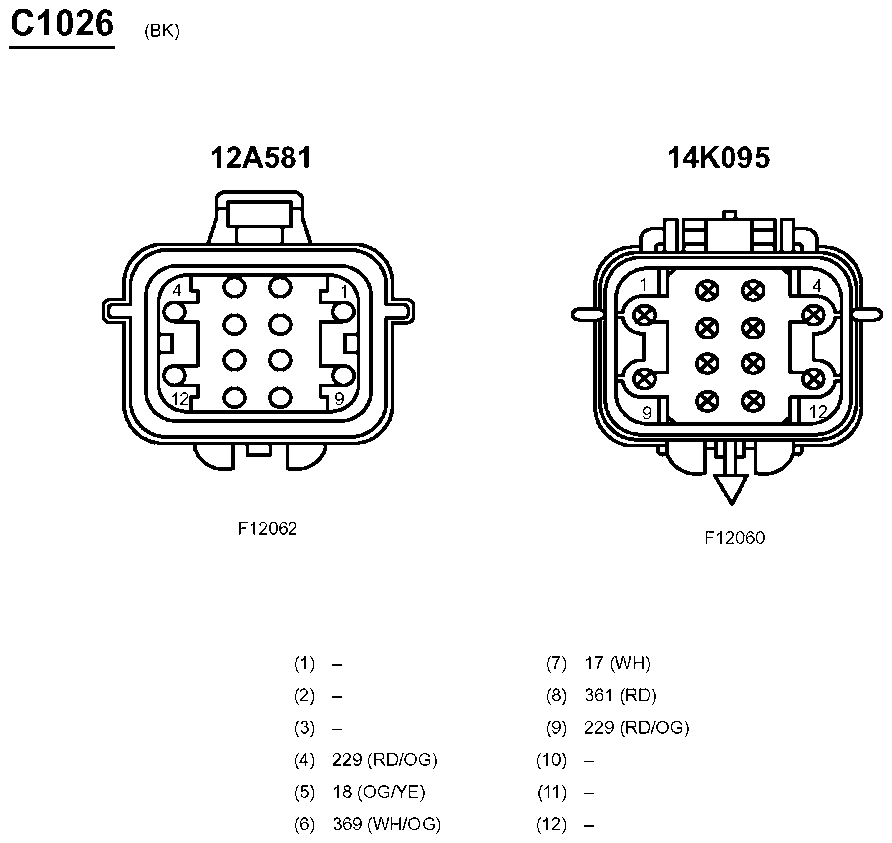

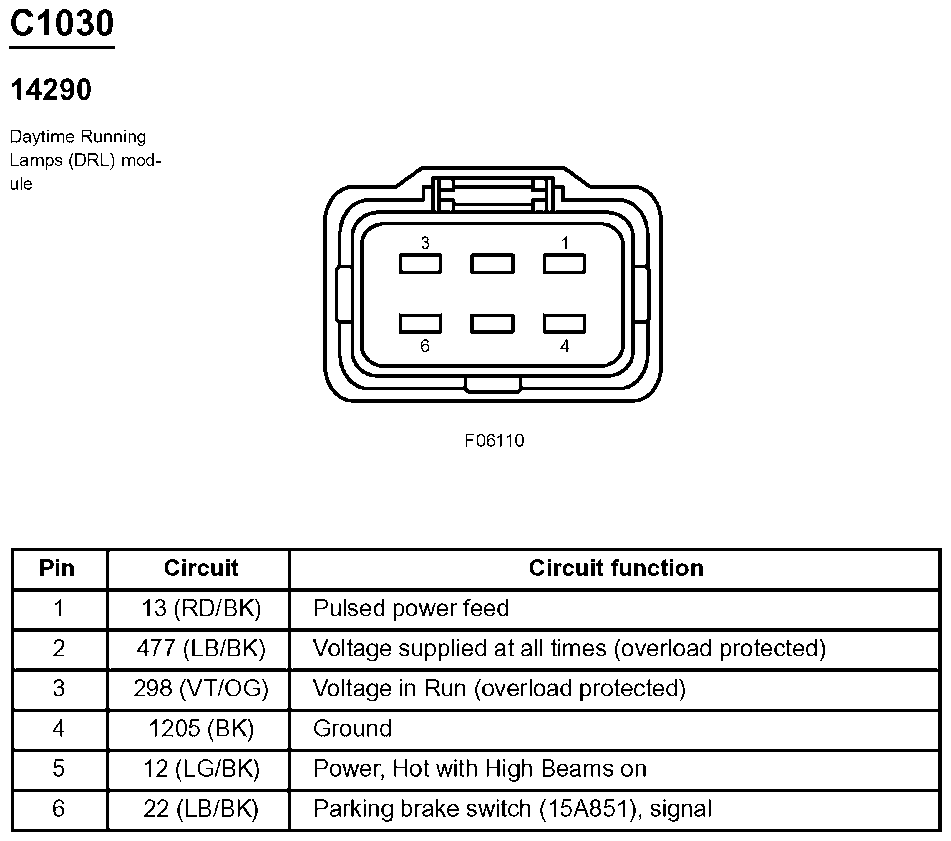

Fig 185: Daytime Running Lamps (DRL) Module Connector End View (C1030)
Courtesy of FORD MOTOR CO.

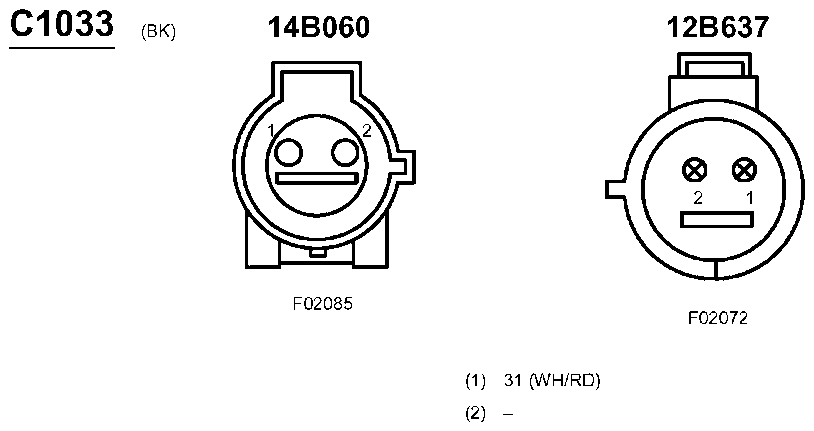

Fig 186: Inline Connector End View (C1033)
Courtesy of FORD MOTOR CO.

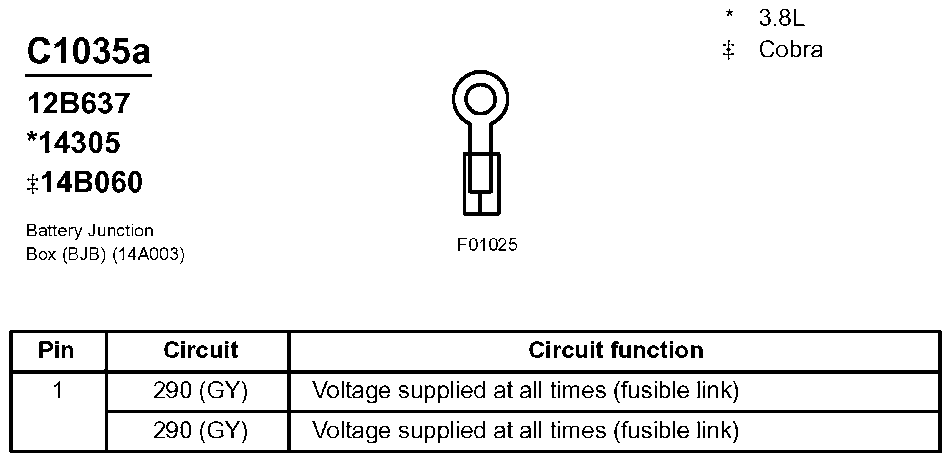

Fig 187: Battery Junction Box (BJB) Connector End View (C1035a)
Courtesy of FORD MOTOR CO.

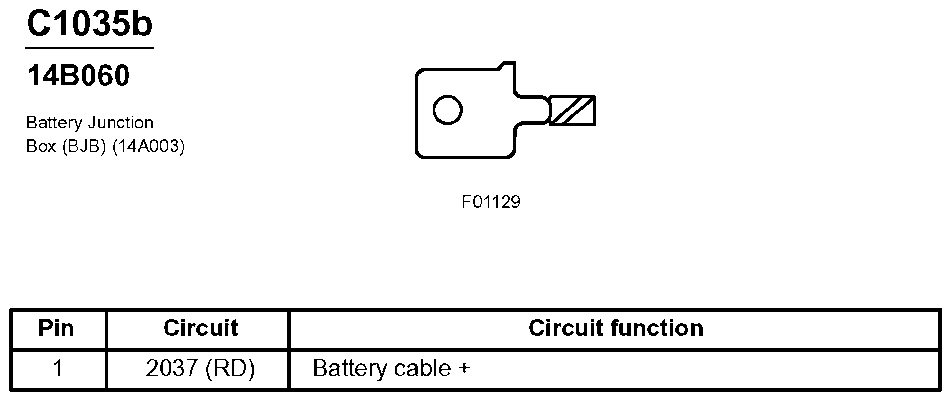

Fig 188: Battery Junction Box (BJB) Connector End View (C1035b)
Courtesy of FORD MOTOR CO.

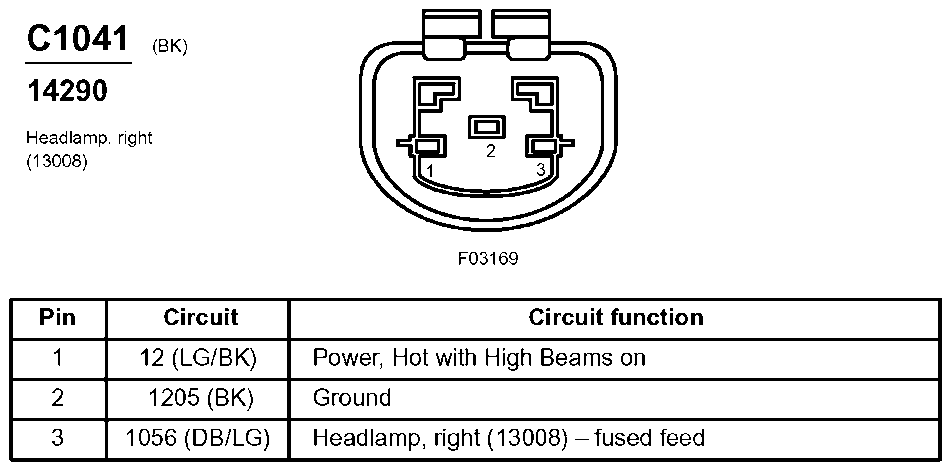

Fig 189: Headlamp, Right Connector End View (C1041)
Courtesy of FORD MOTOR CO.

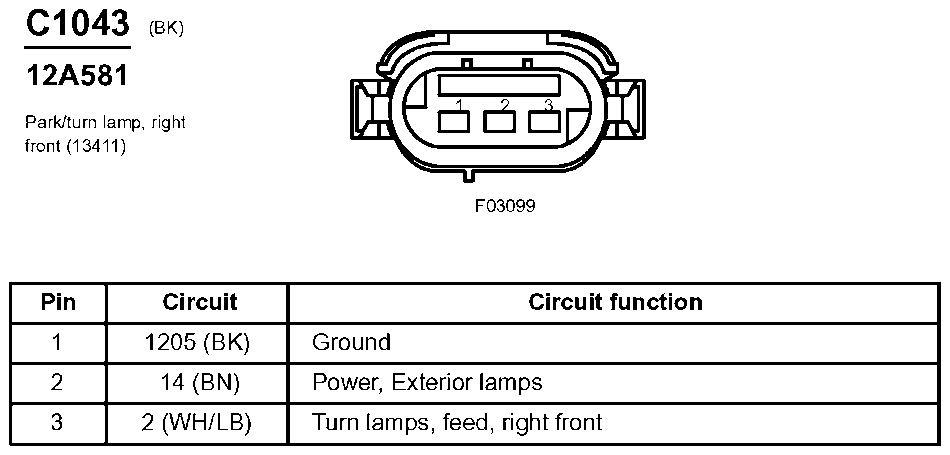

Fig 190: Park/Turn Lamp, Right Front Connector End View (C1043)
Courtesy of FORD MOTOR CO.

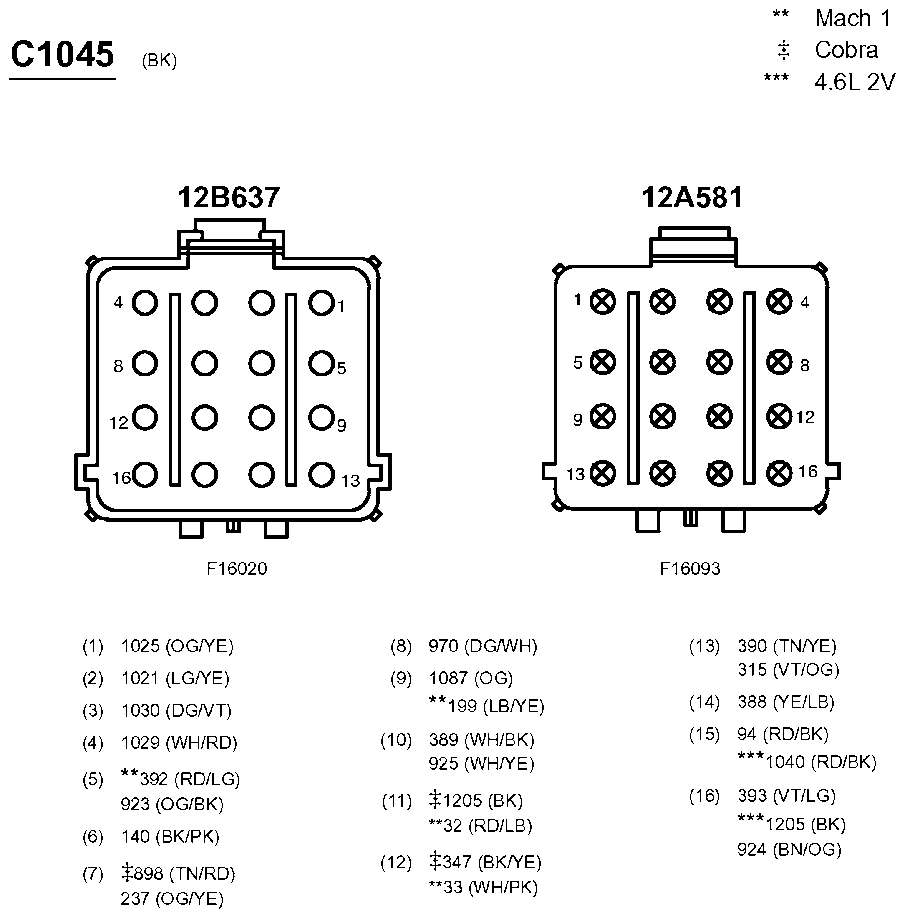

Fig 191: Inline Connector End View (C1045)
Courtesy of FORD MOTOR CO.

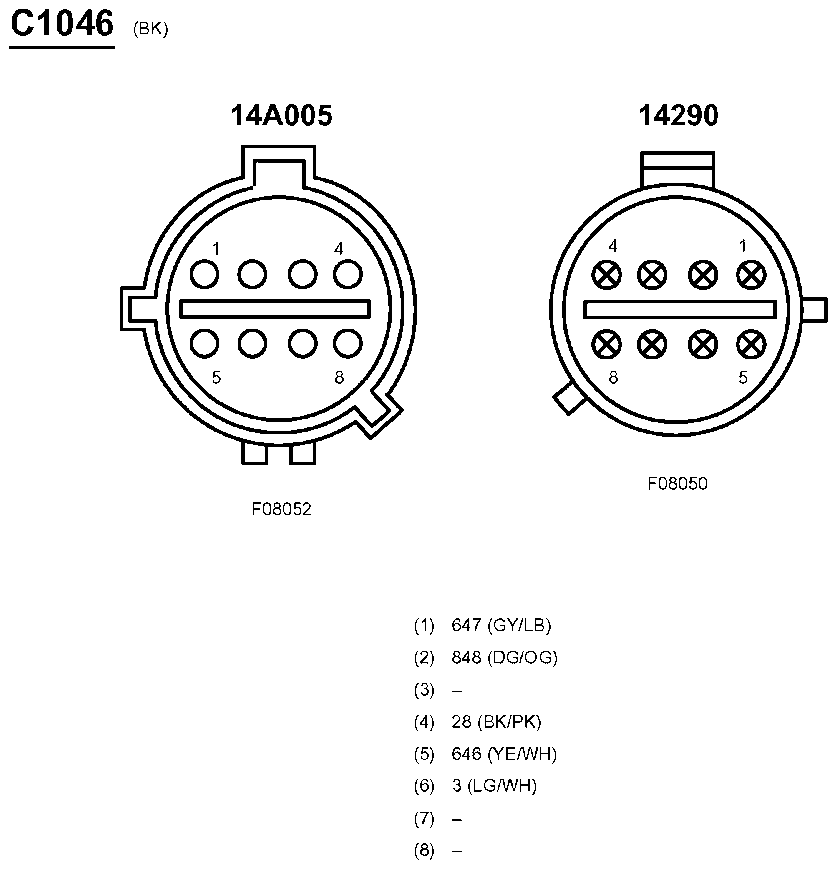

Fig 192: Inline Connector End View (C1046)
Courtesy of FORD MOTOR CO.

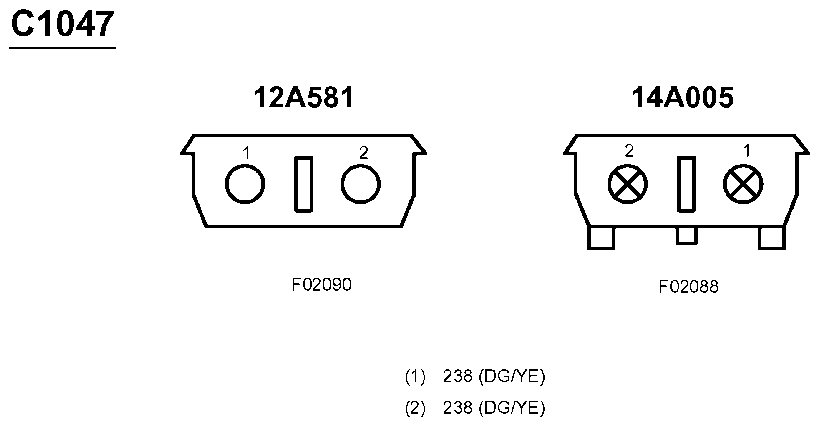

Fig 193: Inline Connector End View (C1047)
Courtesy of FORD MOTOR CO.

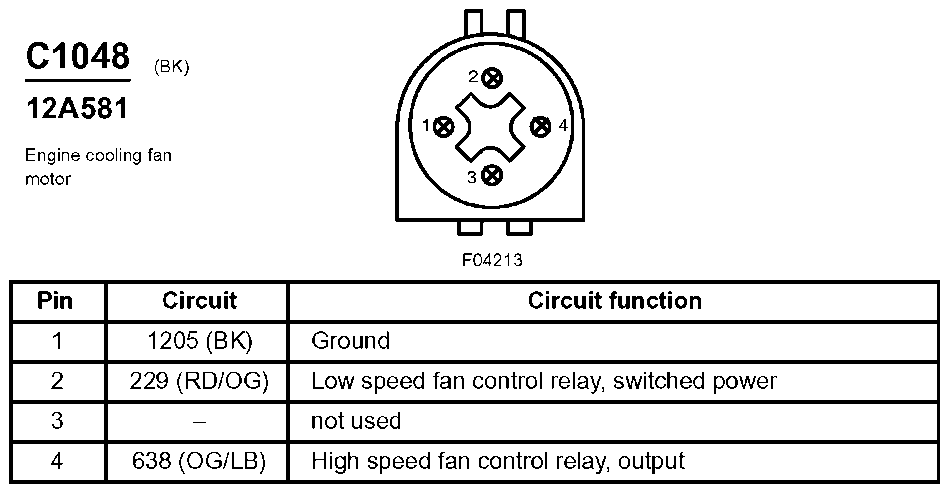

Fig 194: Engine Cooling Fan Motor Connector End View (C1048)
Courtesy of FORD MOTOR CO.

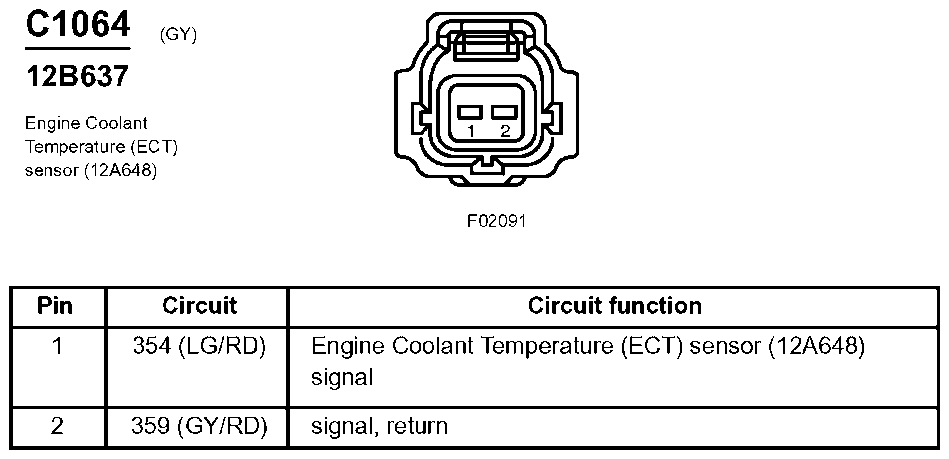

Fig 195: Engine Coolant Temperature (ECT) Sensor Connector End View (C1064)
Courtesy of FORD MOTOR CO.

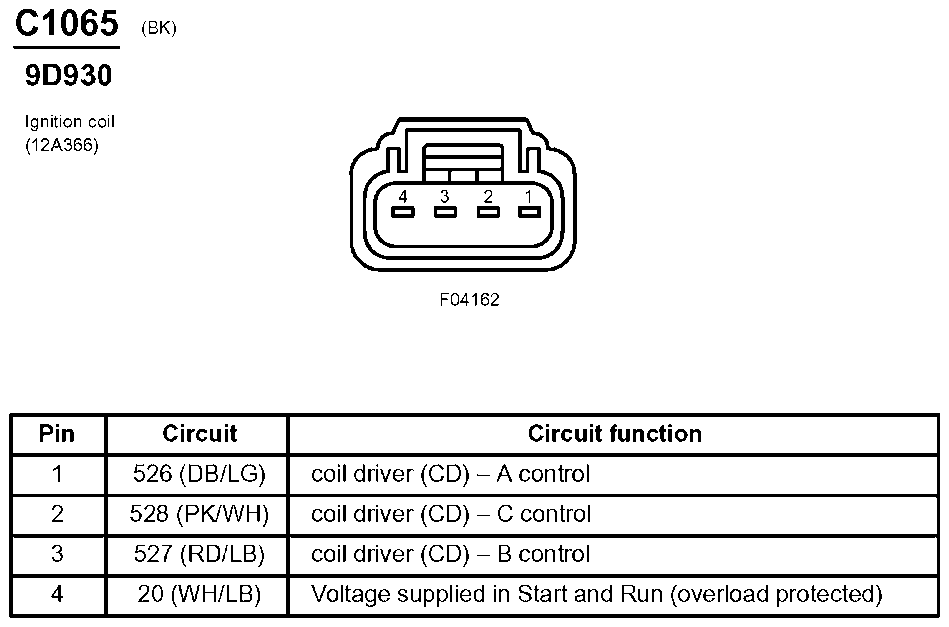

Fig 196: Ignition Coil Connector End View (C1065)
Courtesy of FORD MOTOR CO.

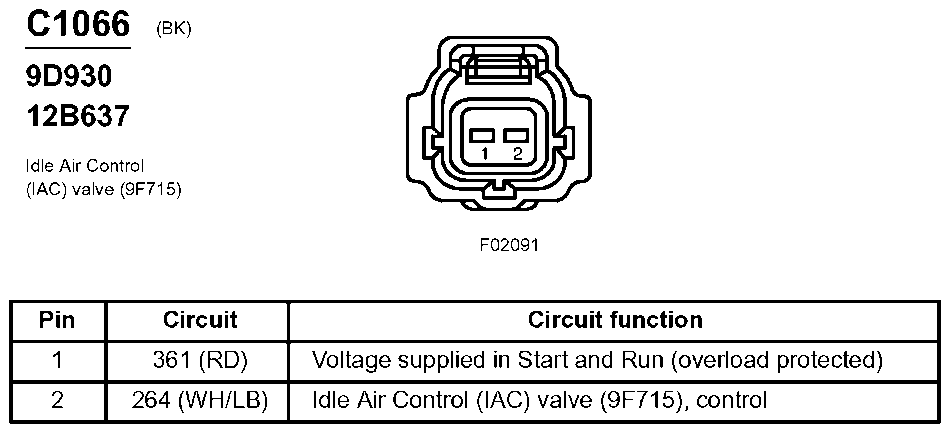

Fig 197: Idle Air Control (IAC) Valve Connector End View (C1066)
Courtesy of FORD MOTOR CO.

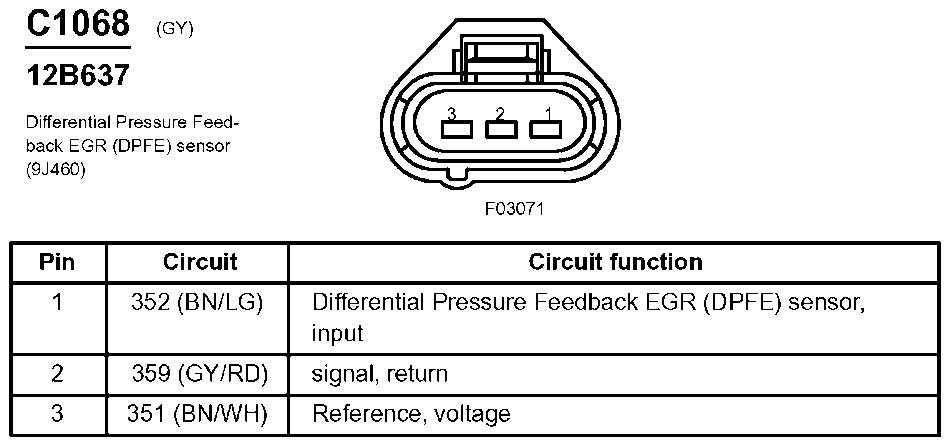

Fig 198: Differential Pressure Feedback EGR (DPFE) Sensor Connector End View (C1068)
Courtesy of FORD MOTOR CO.

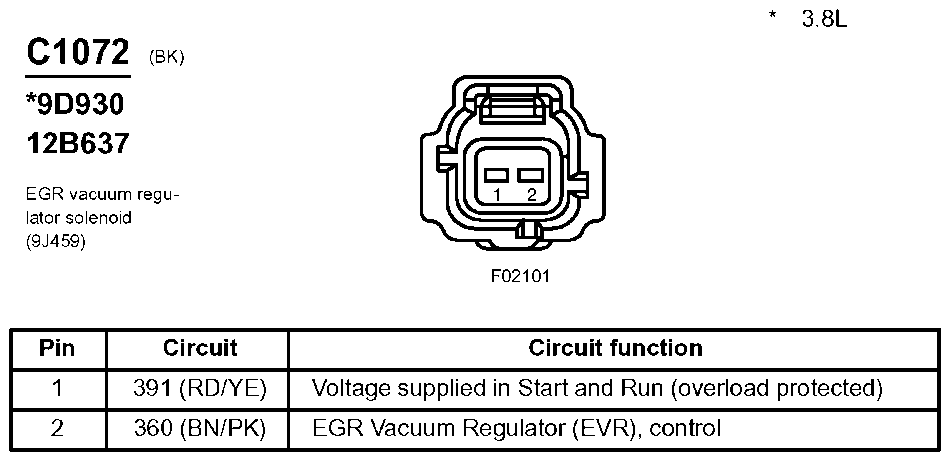

Fig 199: EGR Vacuum Regulator Solenoid Connector End View (C1072)
Courtesy of FORD MOTOR CO.

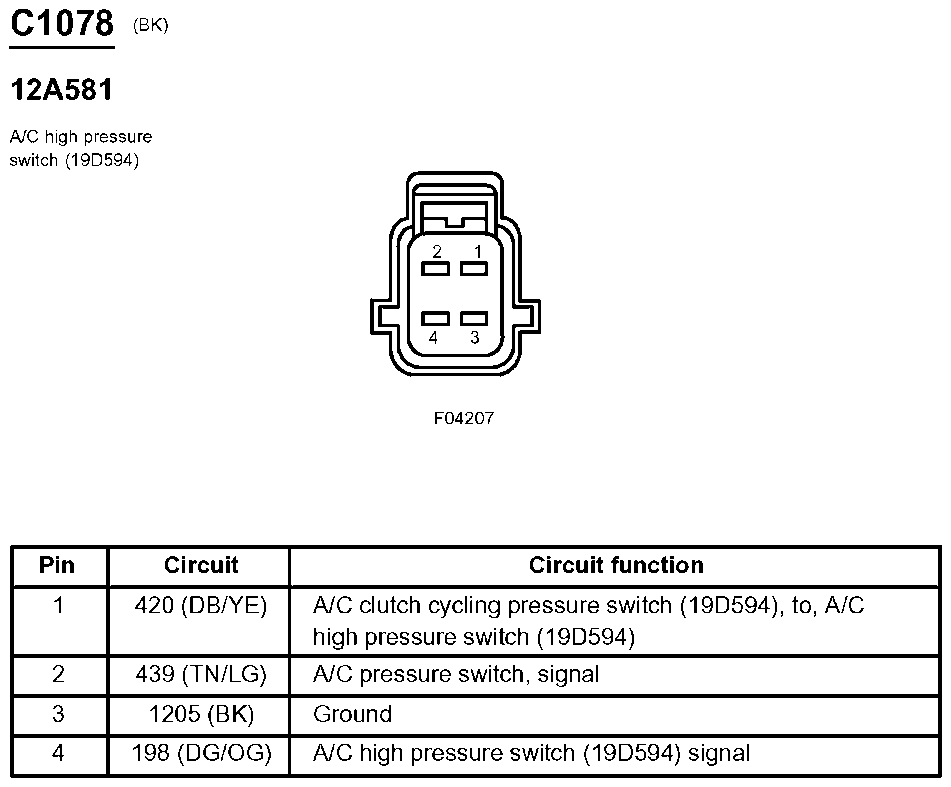

Fig 200: A/C High Pressure Switch Connector End View (C1078)
Courtesy of FORD MOTOR CO.

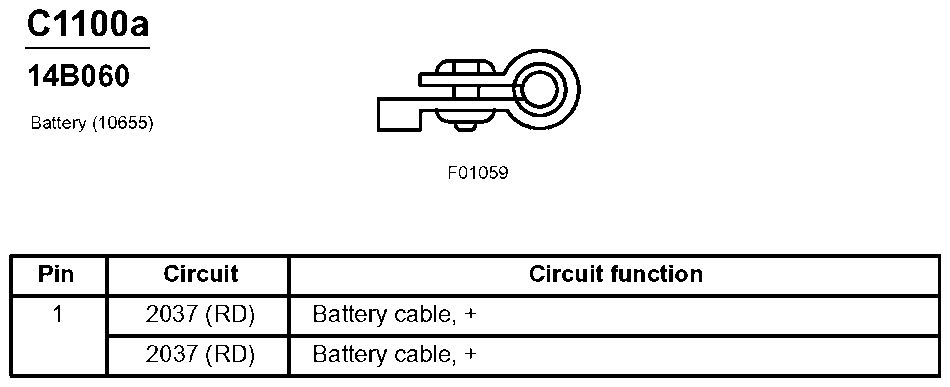

Fig 201: Battery Connector End View (C1100a)
Courtesy of FORD MOTOR CO.

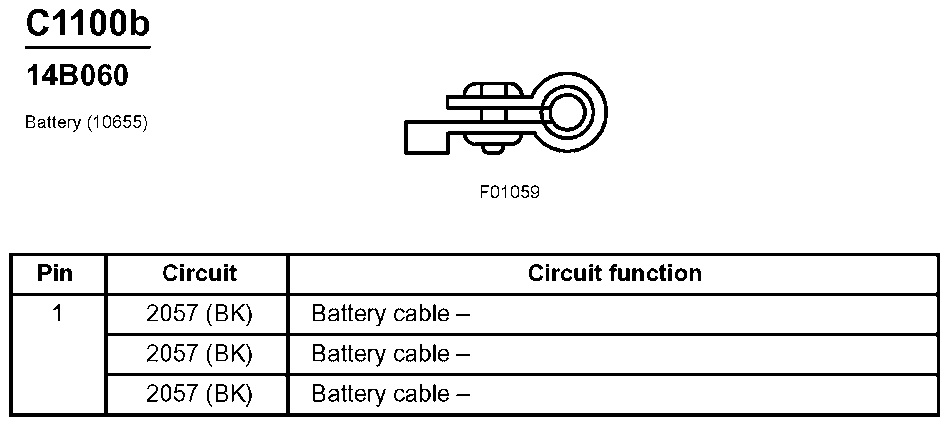

Fig 202: Battery Connector End View (C1100b)
Courtesy of FORD MOTOR CO.

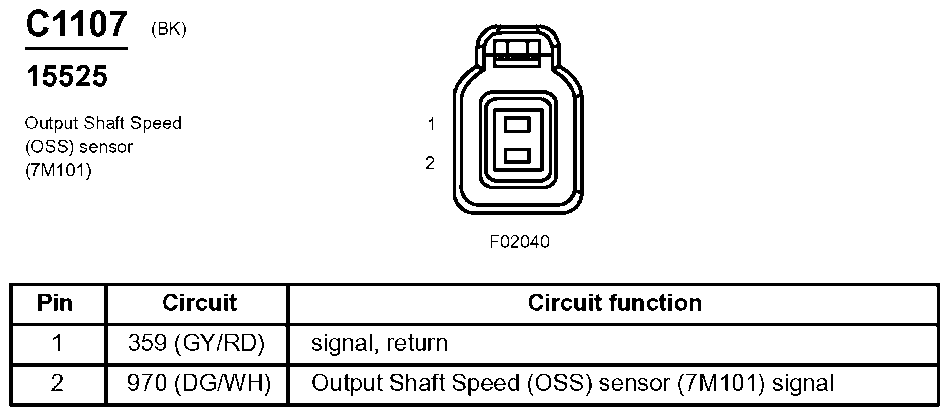

Fig 203: Output Shaft Speed (OSS) Sensor Connector End View (C1107)
Courtesy of FORD MOTOR CO.

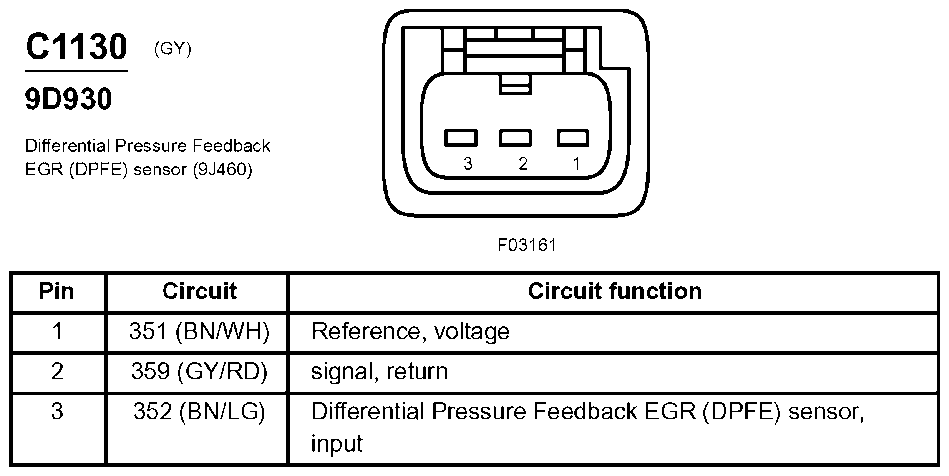

Fig 204: Differential Pressure Feedback EGR (DPFE) Sensor Connector End View (C1130)
Courtesy of FORD MOTOR CO.

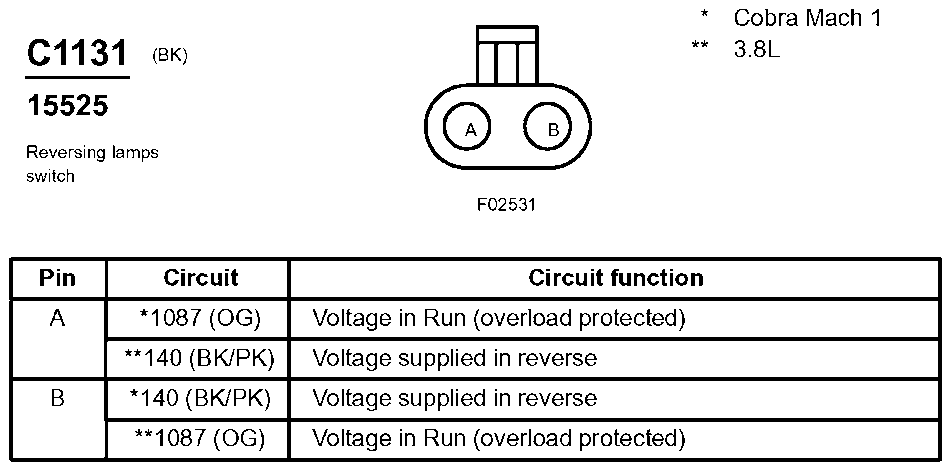

Fig 205: Reversing Lamps Switch Connector End View (C1131)
Courtesy of FORD MOTOR CO.

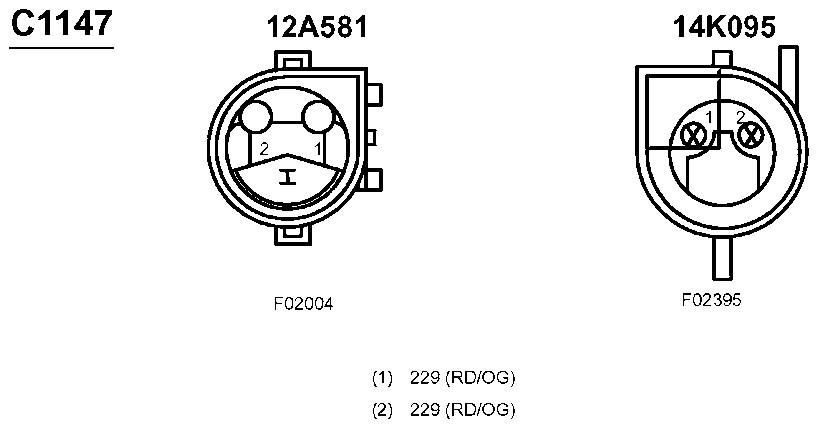

Fig 206: Inline Connector End View (C1147)
Courtesy of FORD MOTOR CO.

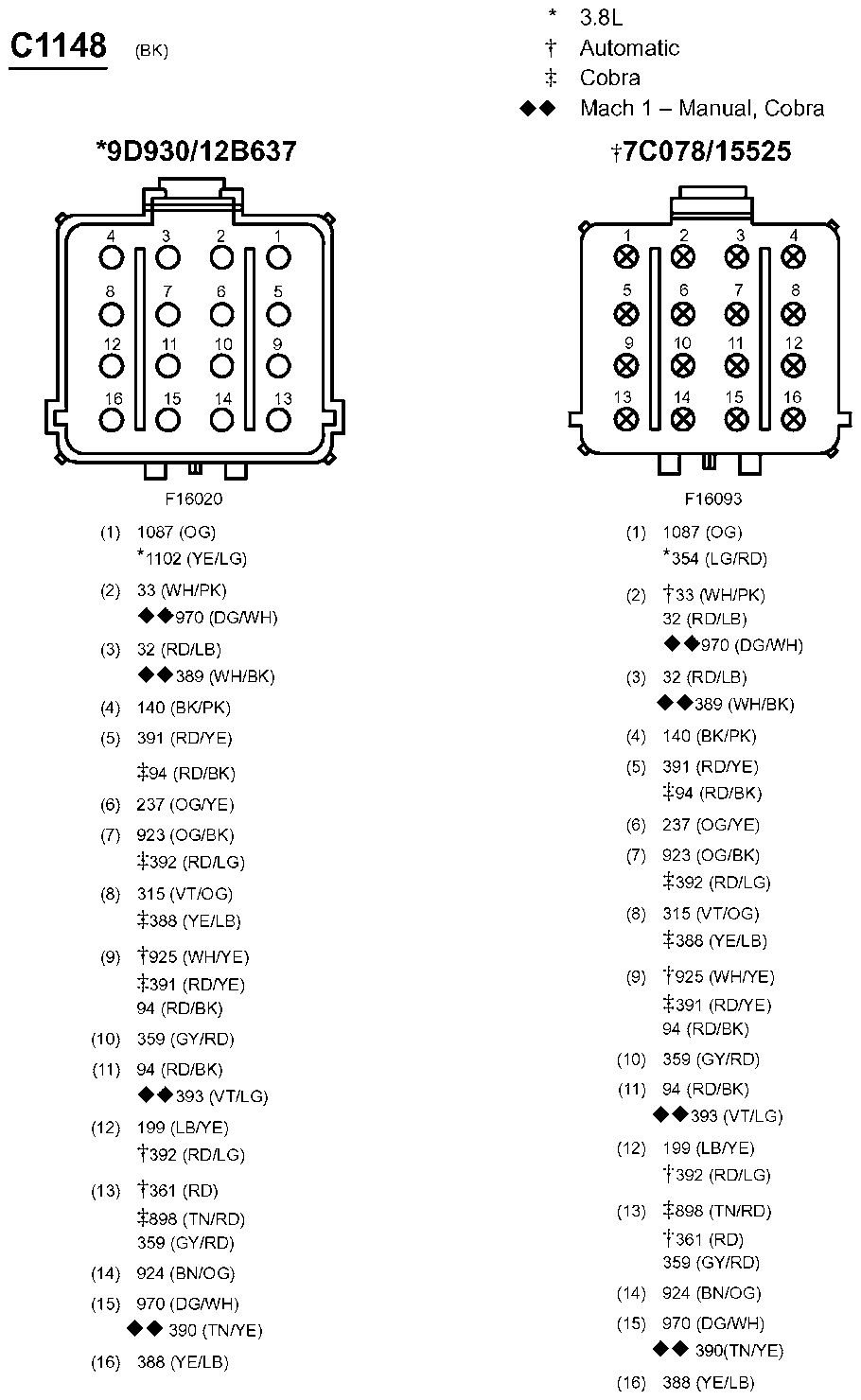

Fig 207: Inline Connector End View (C1148)
Courtesy of FORD MOTOR CO.
Fig 208: Inline Connector End View (C1168)
Courtesy of FORD MOTOR CO.

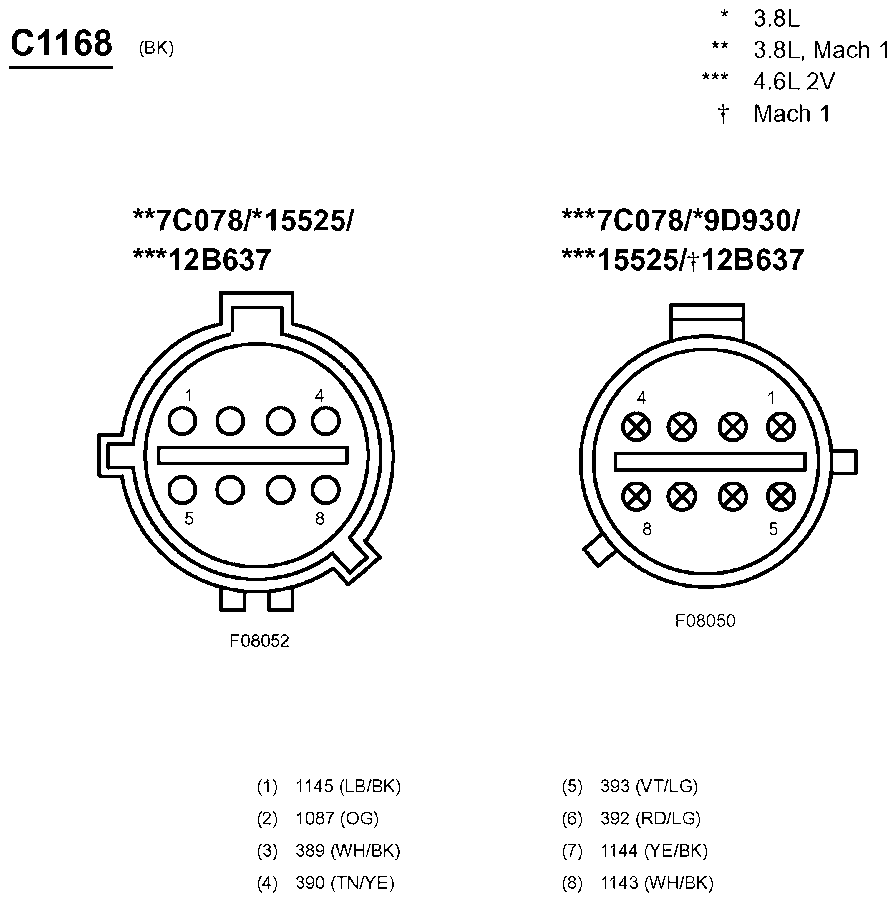

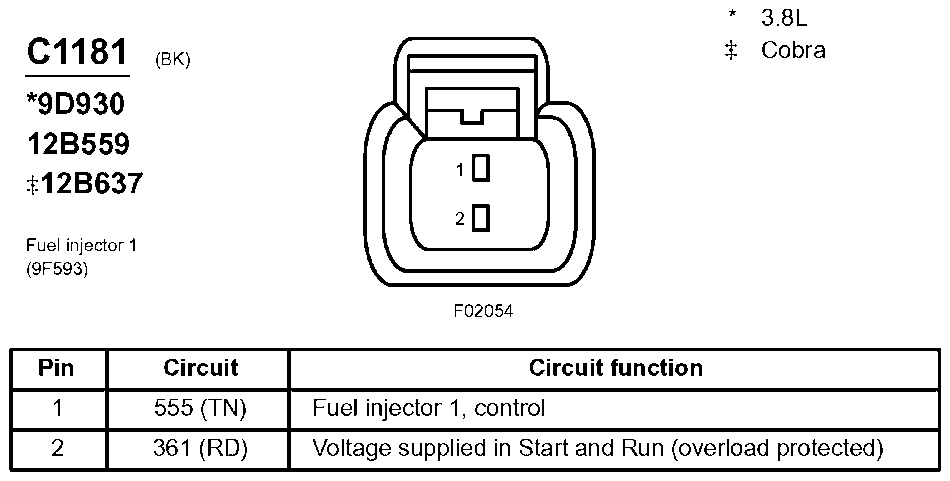

Fig 209: Fuel Injector 1 Connector End View (C1181)
Courtesy of FORD MOTOR CO.

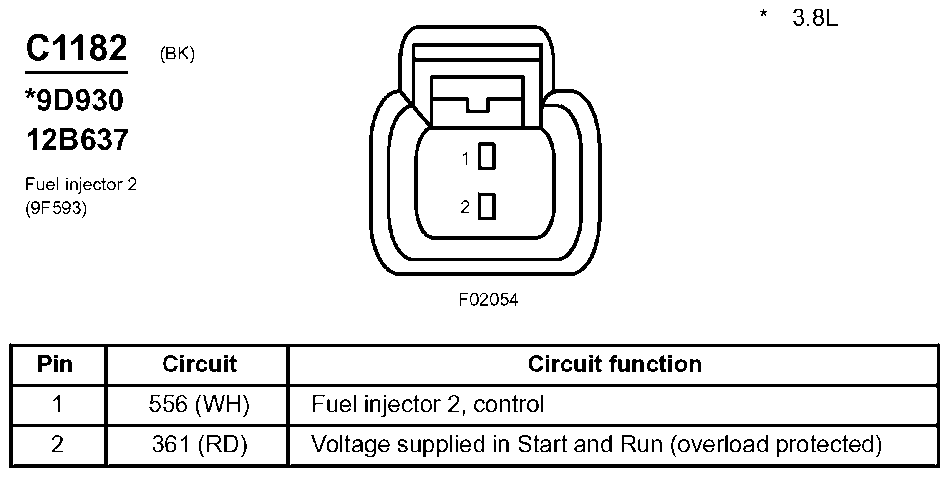

Fig 210: Fuel Injector 2 Connector End View (C1182)
Courtesy of FORD MOTOR CO.
Fig 211: Fuel Injector 3 Connector End View (C1183)
Courtesy of FORD MOTOR CO.

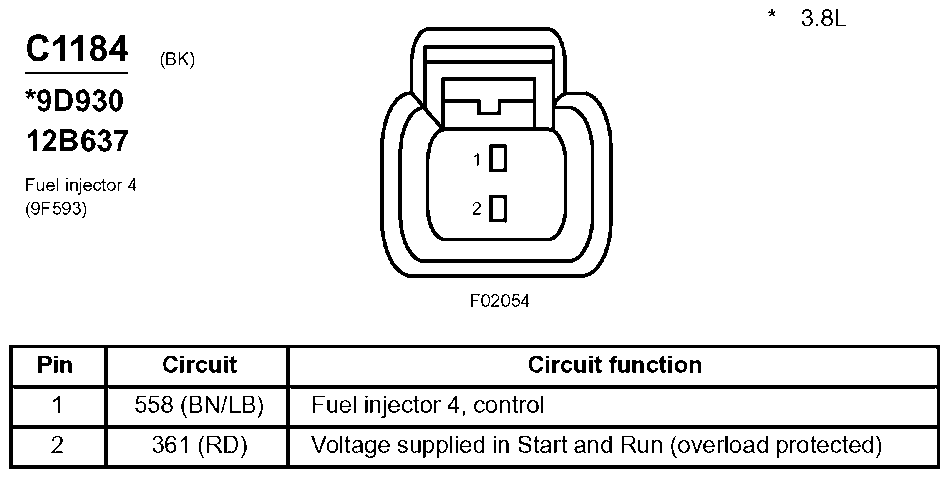

Fig 212: Fuel Injector 4 Connector End View (C1184)
Courtesy of FORD MOTOR CO.

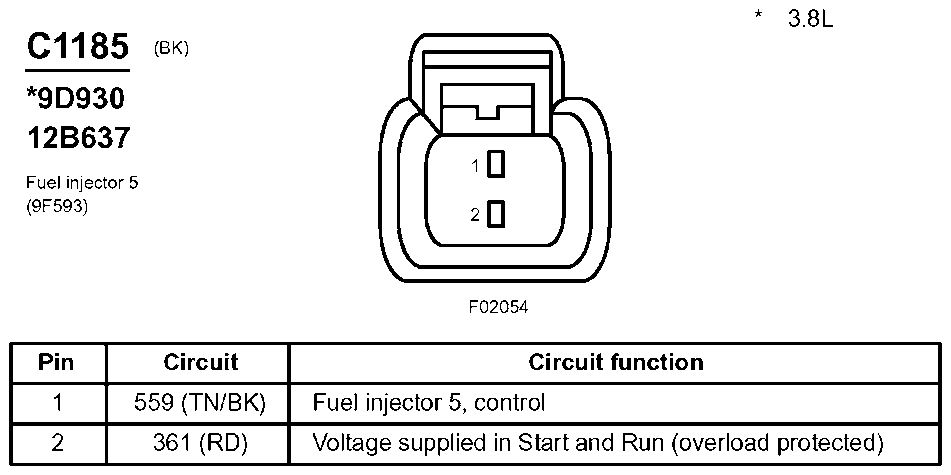

Fig 213: Fuel Injector 5 Connector End View (C1185)
Courtesy of FORD MOTOR CO.

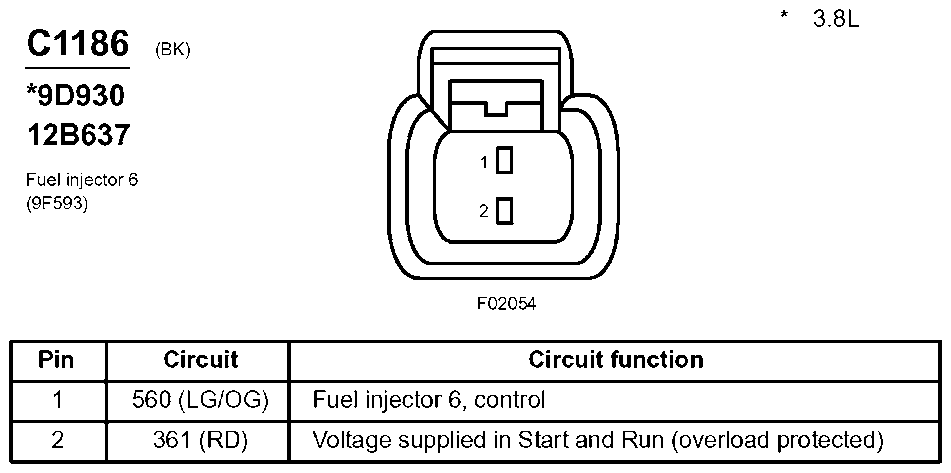

Fig 214: Fuel Injector 6 Connector End View (C1186)
Courtesy of FORD MOTOR CO.

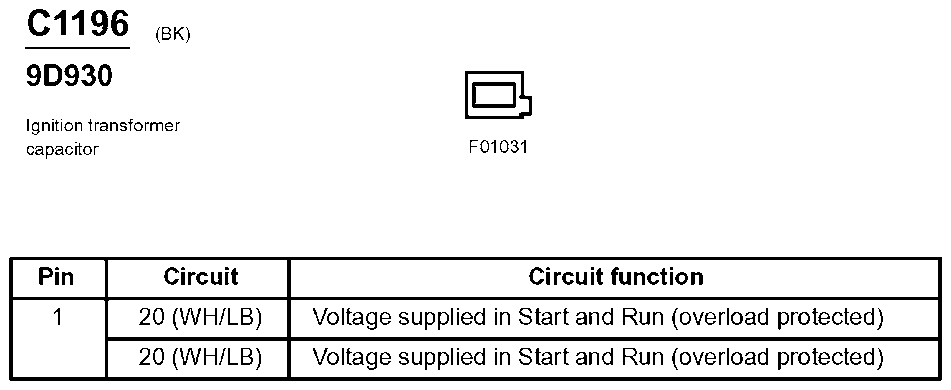

Fig 215: Ignition Transformer Capacitor Connector End View (C1196)
Courtesy of FORD MOTOR CO.

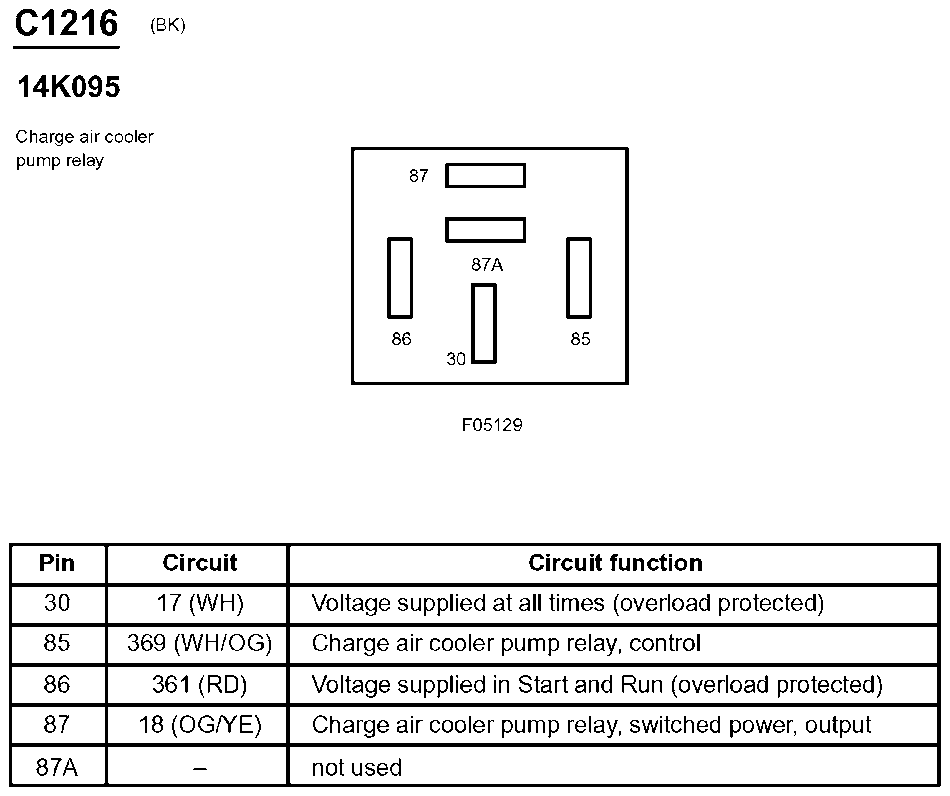

Fig 216: Charge Air Cooler Pump Relay Connector End View (C1216)
Courtesy of FORD MOTOR CO.

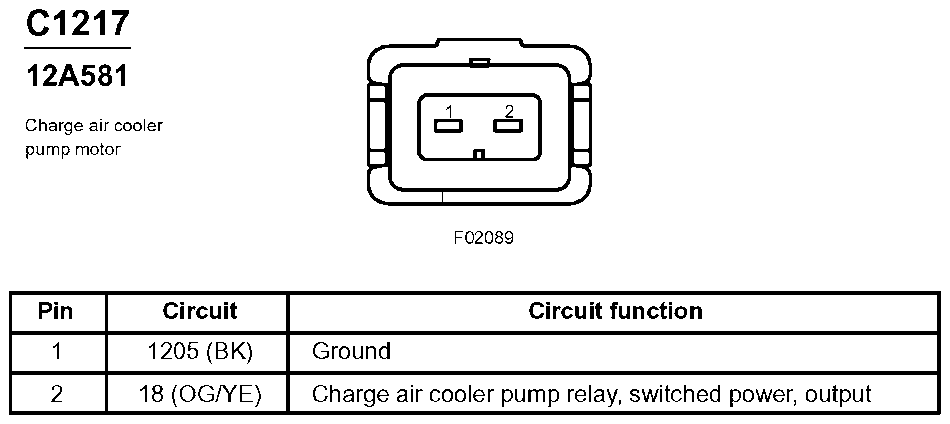

Fig 217: Charge Air Cooler Pump Motor Connector End View (C1217)
Courtesy of FORD MOTOR CO.

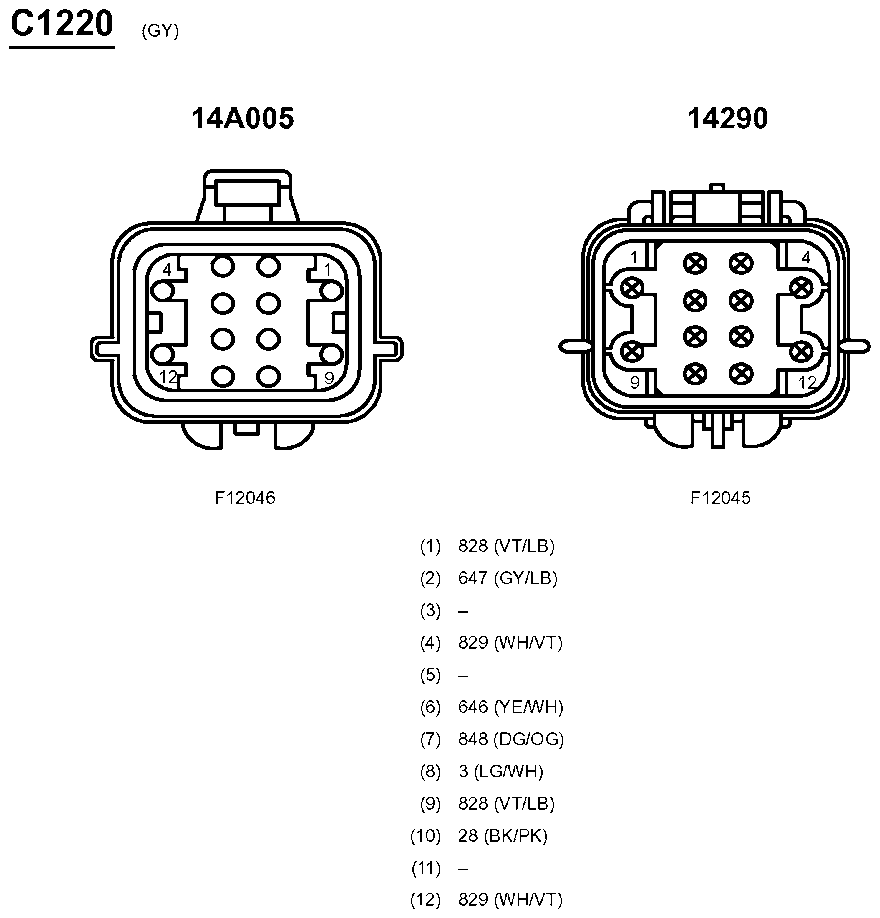

Fig 218: Inline Connector End View (C1220)
Courtesy of FORD MOTOR CO.

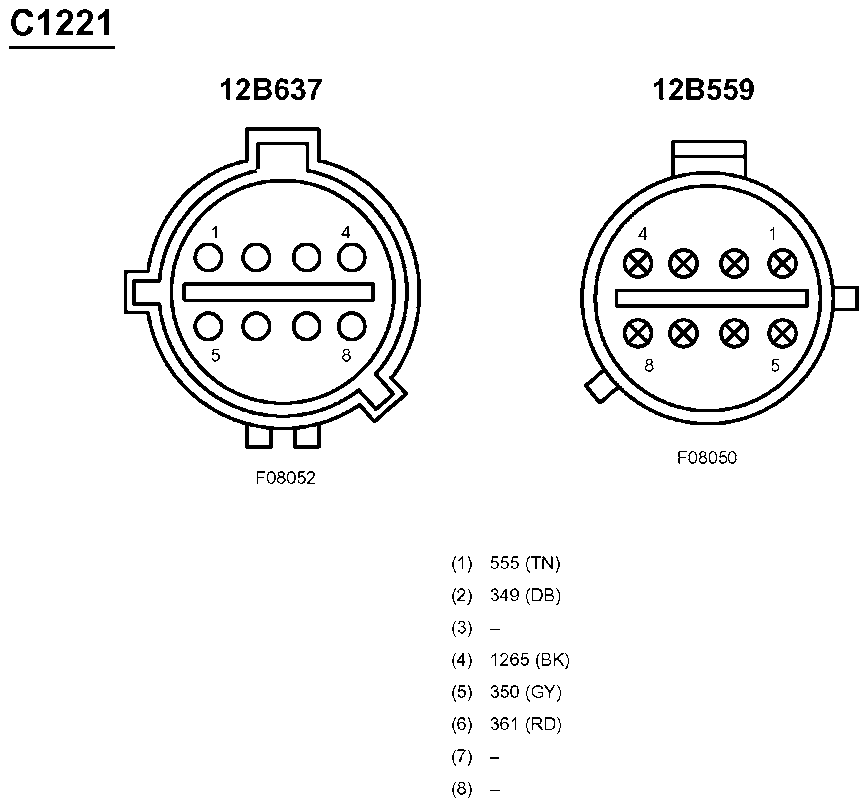

Fig 219: Inline Connector End View (C1221)
Courtesy of FORD MOTOR CO.

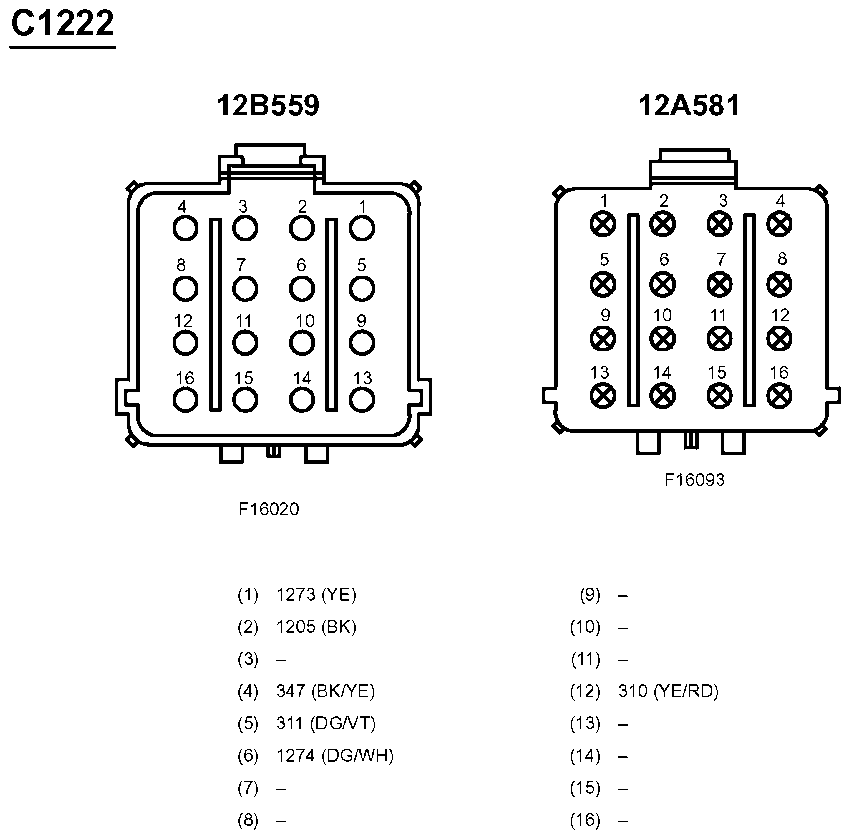

Fig 220: Inline Connector End View (C1222)
Courtesy of FORD MOTOR CO.

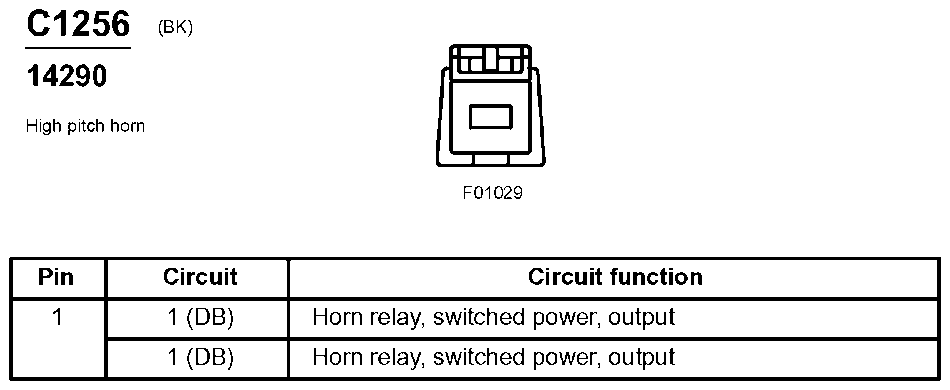

Fig 221: High Pitch Horn Connector End View (C1256)
Courtesy of FORD MOTOR CO.

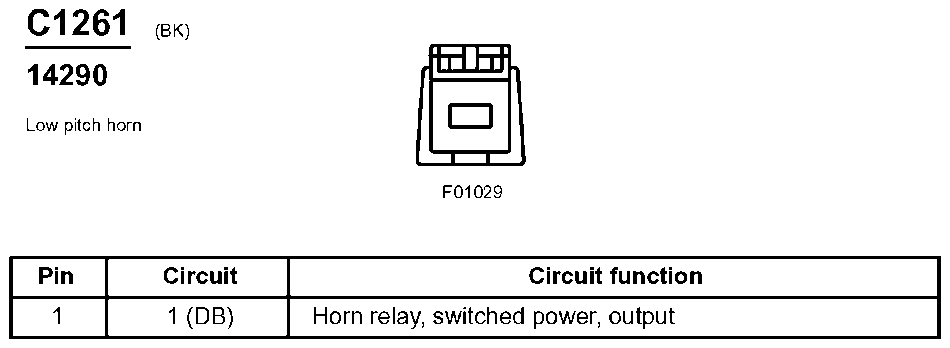

Fig 222: Low Pitch Horn Connector End View (C1261)
Courtesy of FORD MOTOR CO.

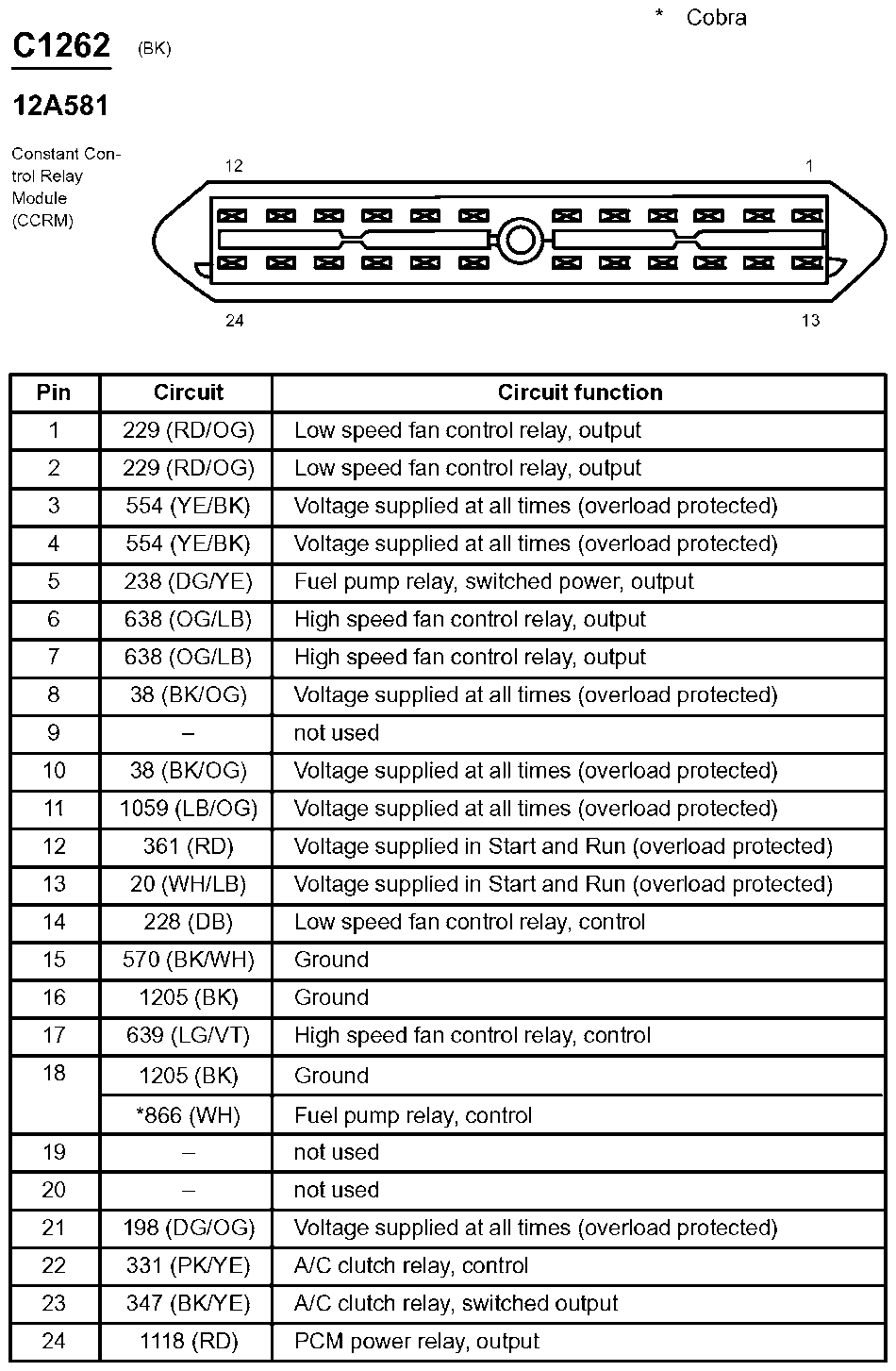

Fig 223: Constant Control Relay Module Connector End View (C1262)
Courtesy of FORD MOTOR CO.
Fig 224: Supercharger Bypass Solenoid Connector End View (C1292)
Courtesy of FORD MOTOR CO.

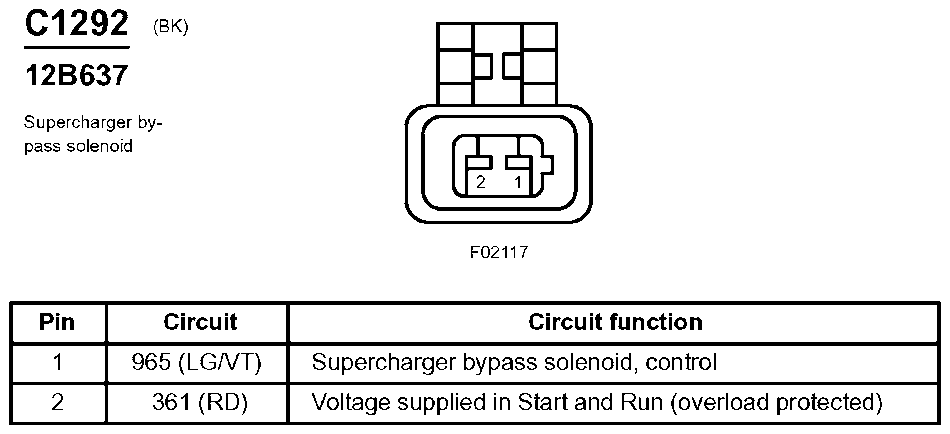

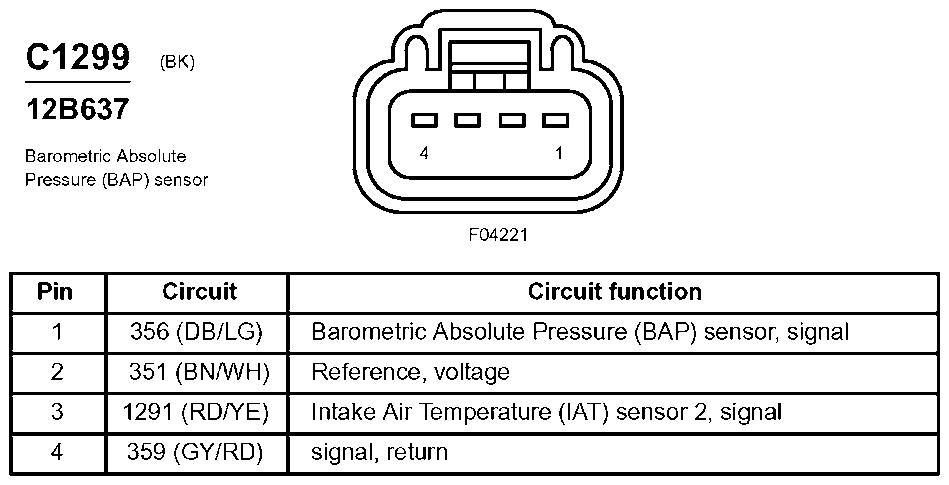

Fig 225: Barometric Absolute Pressure (BAP) Sensor Connector End View (C1299)
Courtesy of FORD MOTOR CO.

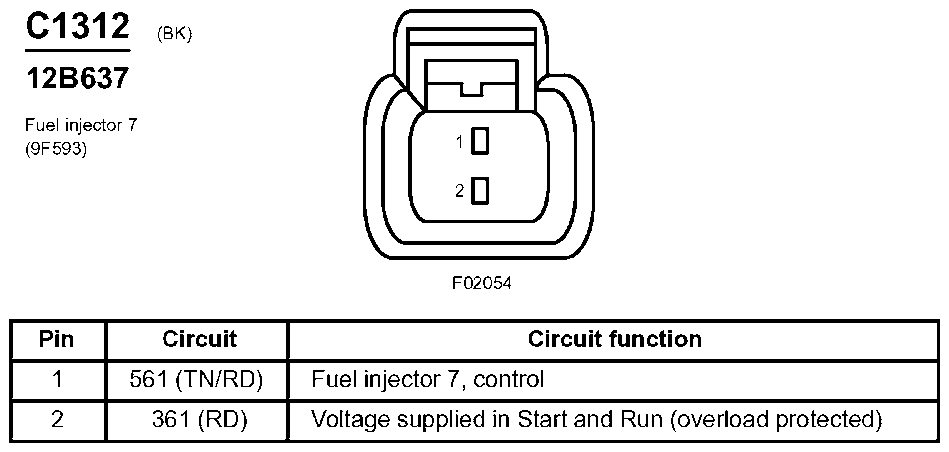

Fig 226: Fuel Injector 7 Connector End View (C1312)
Courtesy of FORD MOTOR CO.

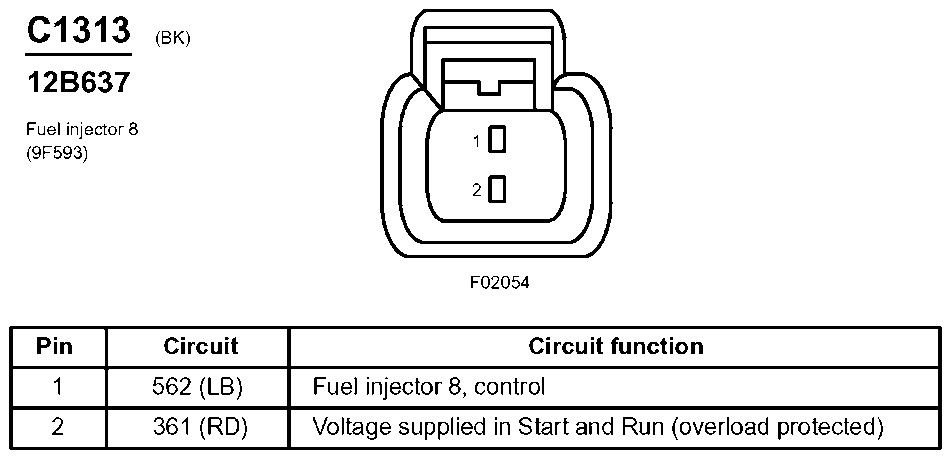

Fig 227: Fuel Injector 8 Connector End View (C1313)
Courtesy of FORD MOTOR CO.

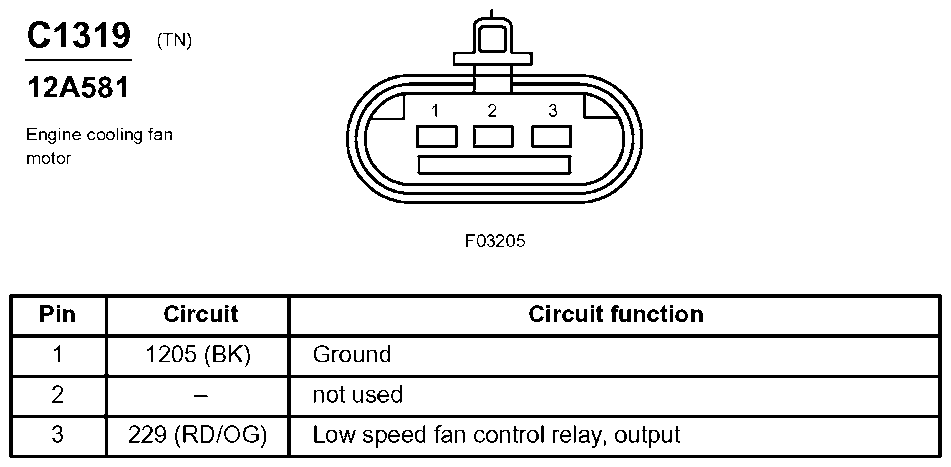

Fig 228: Engine Cooling Fan Motor Connector End View (C1319)
Courtesy of FORD MOTOR CO.

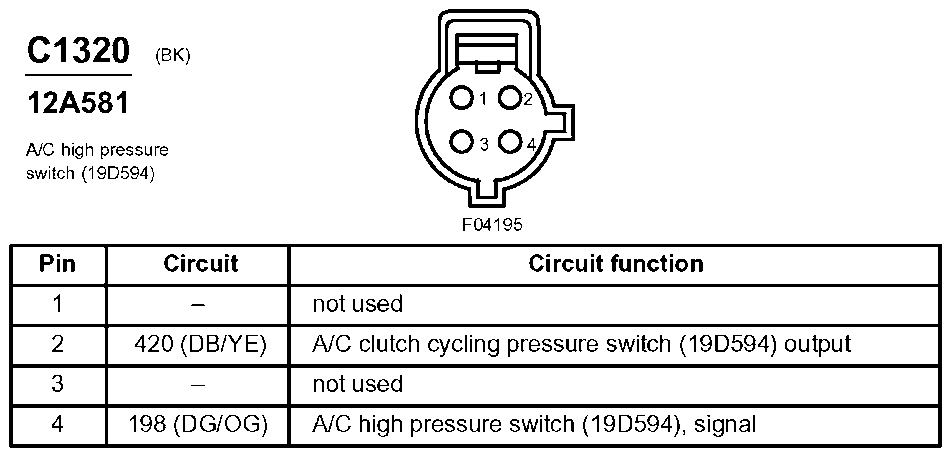

Fig 229: A/C High Pressure Switch Connector End View (C1320)
Courtesy of FORD MOTOR CO.
Fig 230: Front Fog Lamp Cutoff Relay Connector End View (C1321)
Courtesy of FORD MOTOR CO.

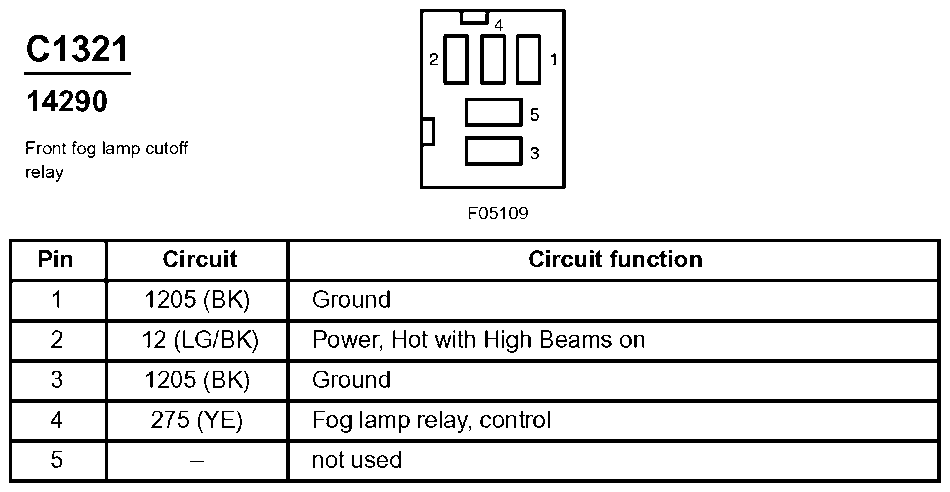

Fig 231: Fog Lamp, Left Front Connector End View (C1322)
Courtesy of FORD MOTOR CO.
Fig 232: Fog Lamp, Right Front Connector End View (C1323)
Courtesy of FORD MOTOR CO.

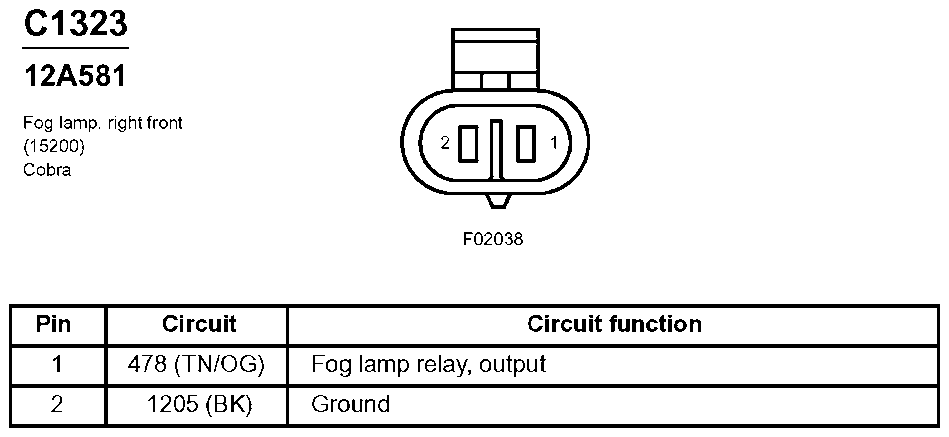

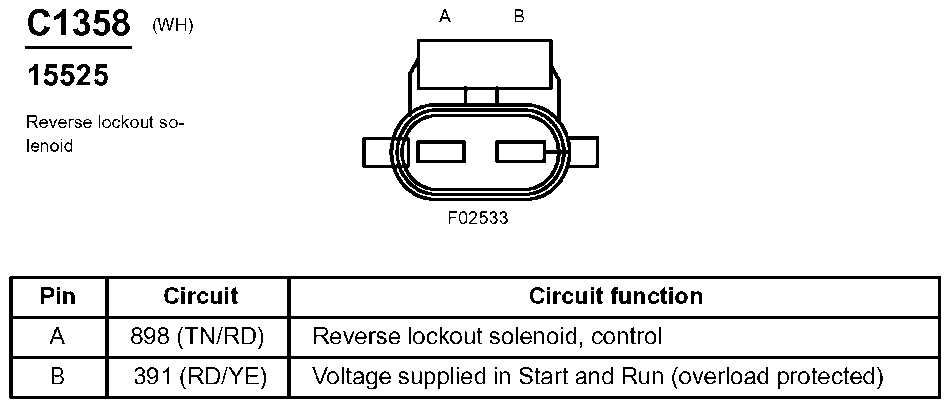

Fig 233: Reverse Lockout Solenoid Connector End View (C1358)
Courtesy of FORD MOTOR CO.

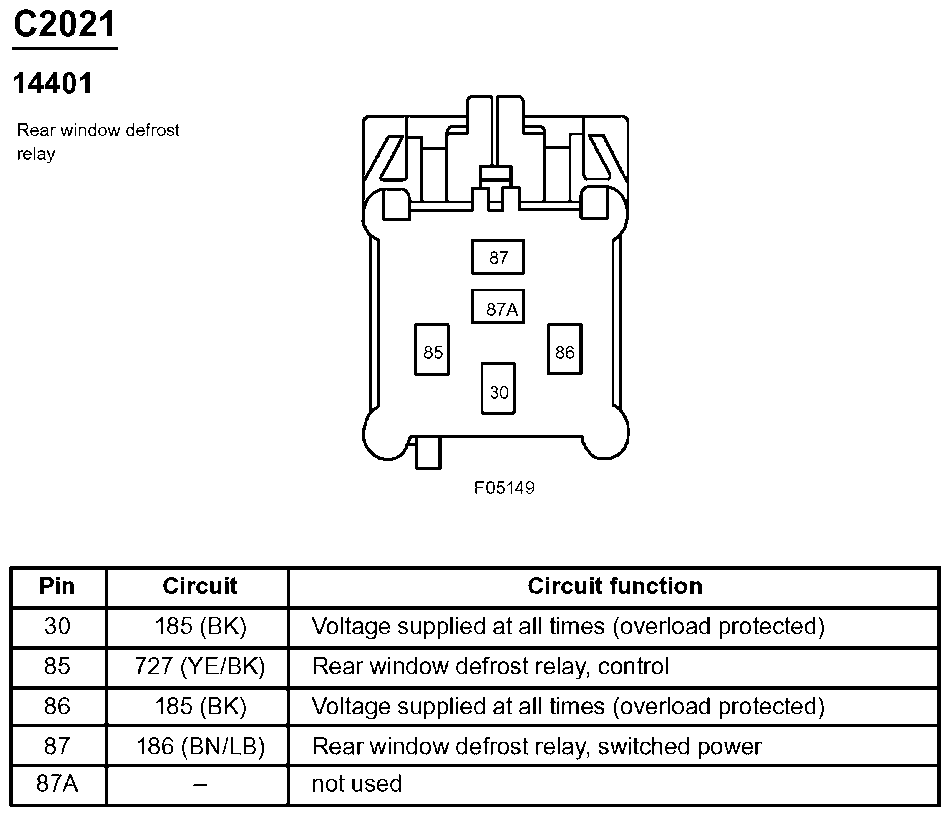

Fig 234: Rear Window Defrost Relay Connector End View (C2021)
Courtesy of FORD MOTOR CO.

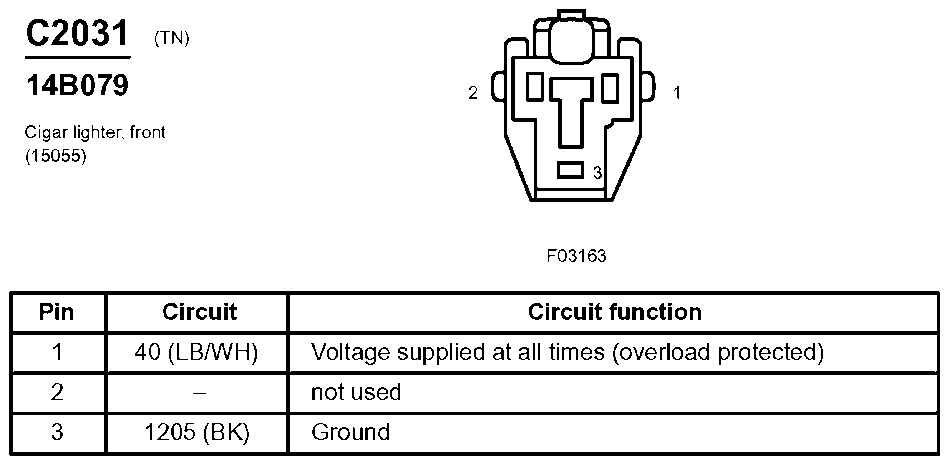

Fig 235: Cigar Lighter, Front Connector End View (C2031)
Courtesy of FORD MOTOR CO.

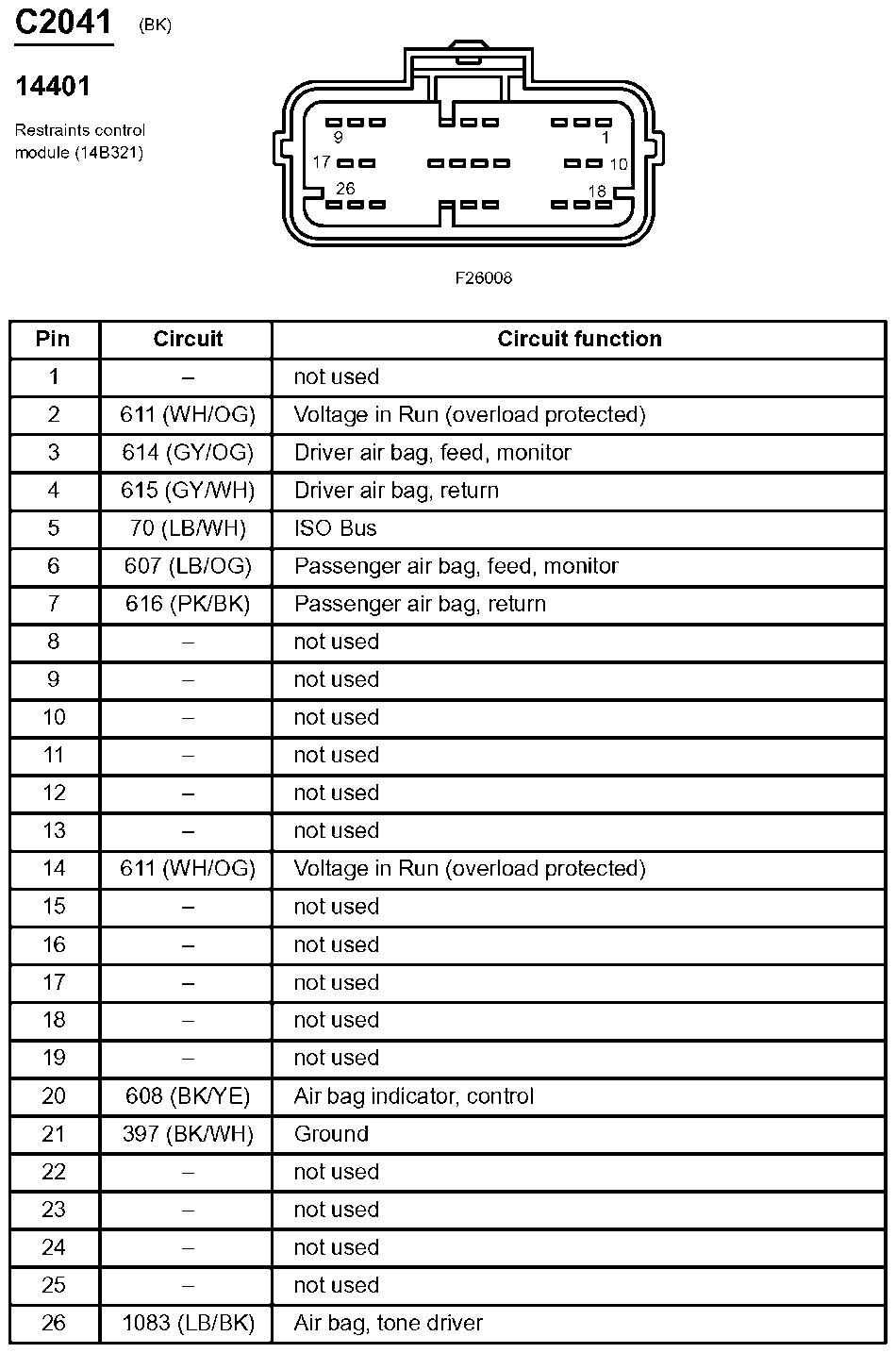

Fig 236: Restraints Control Module Connector End View (C2041)
Courtesy of FORD MOTOR CO.

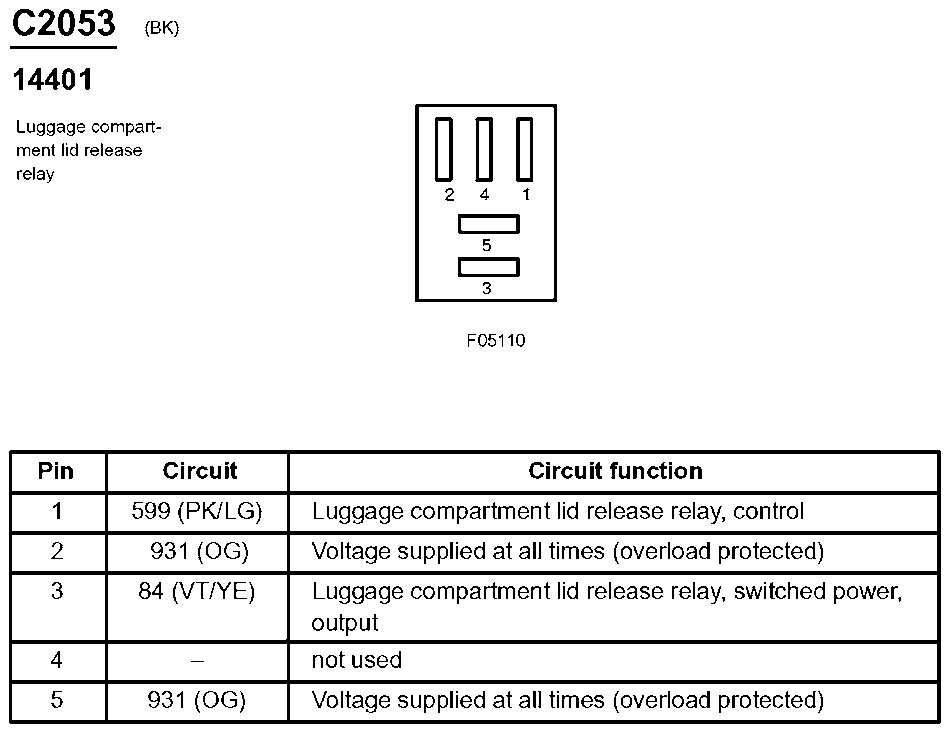

Fig 237: Luggage Compartment Lid Release Relay Connector End View (C2053)
Courtesy of FORD MOTOR CO.

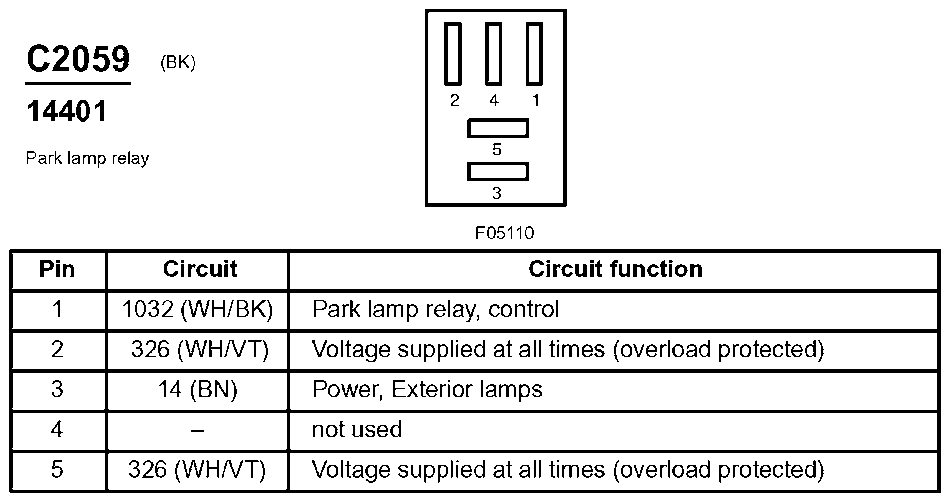

Fig 238: Park Lamp Relay Connector End View (C2059)
Courtesy of FORD MOTOR CO.

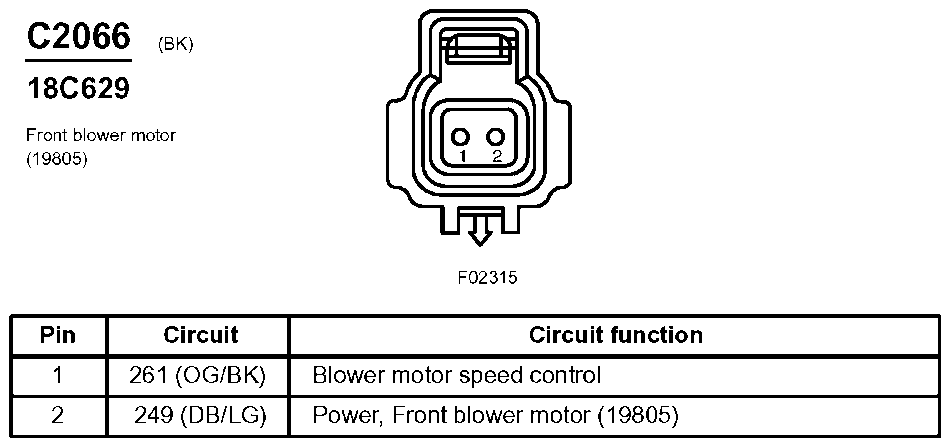

Fig 239: Front Blower Motor Connector End View (C2066)
Courtesy of FORD MOTOR CO.

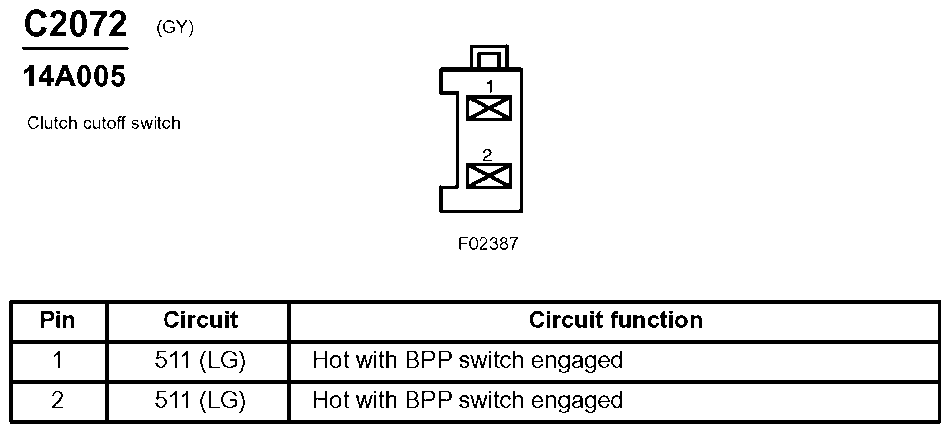

Fig 240: Clutch Cutoff Switch Connector End View (C2072)
Courtesy of FORD MOTOR CO.

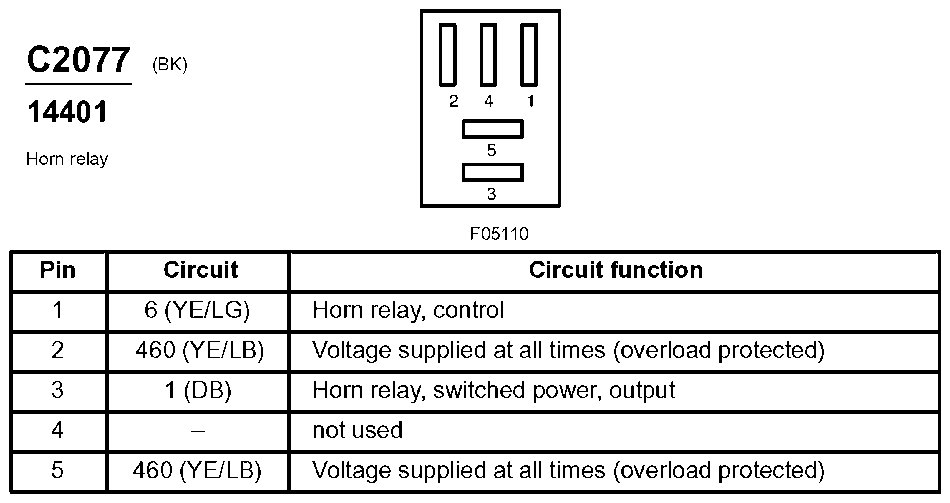

Fig 241: Horn Relay Connector End View (C2077)
Courtesy of FORD MOTOR CO.

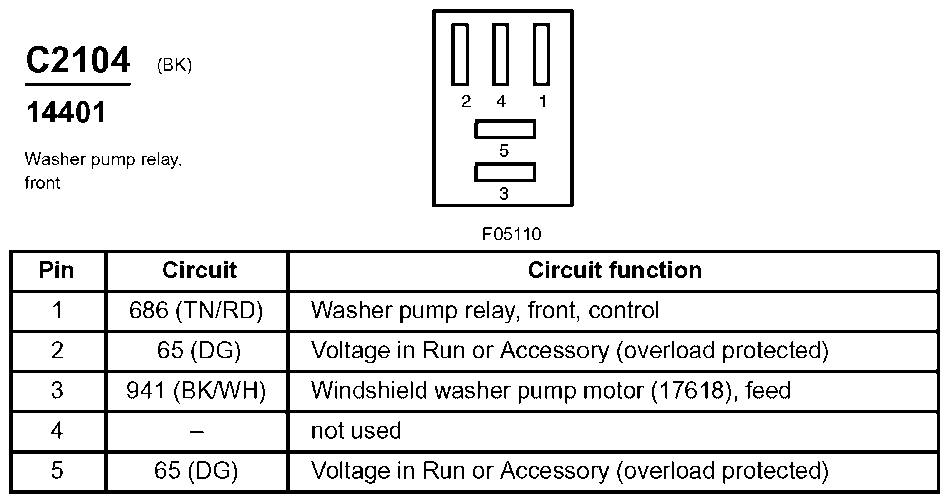

Fig 242: Washer Pump Relay, Front Connector End View (C2104)
Courtesy of FORD MOTOR CO.

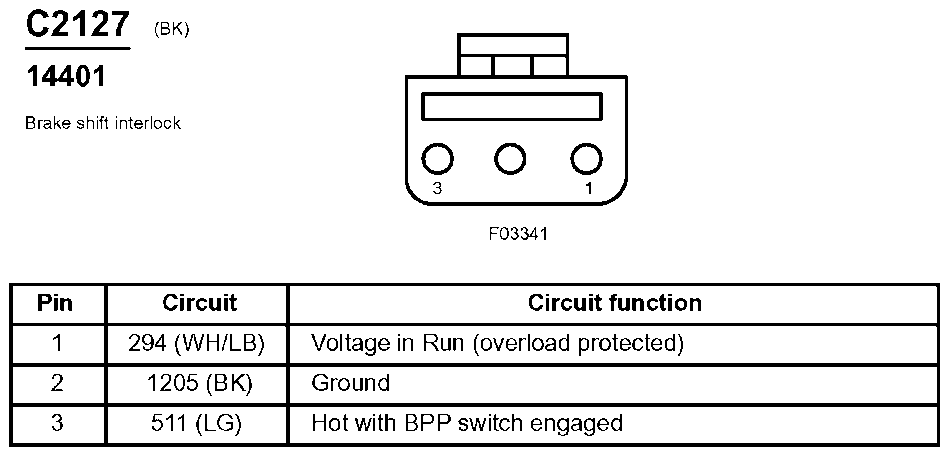

Fig 243: Brake Shift Interlock Connector End View (C2127)
Courtesy of FORD MOTOR CO.

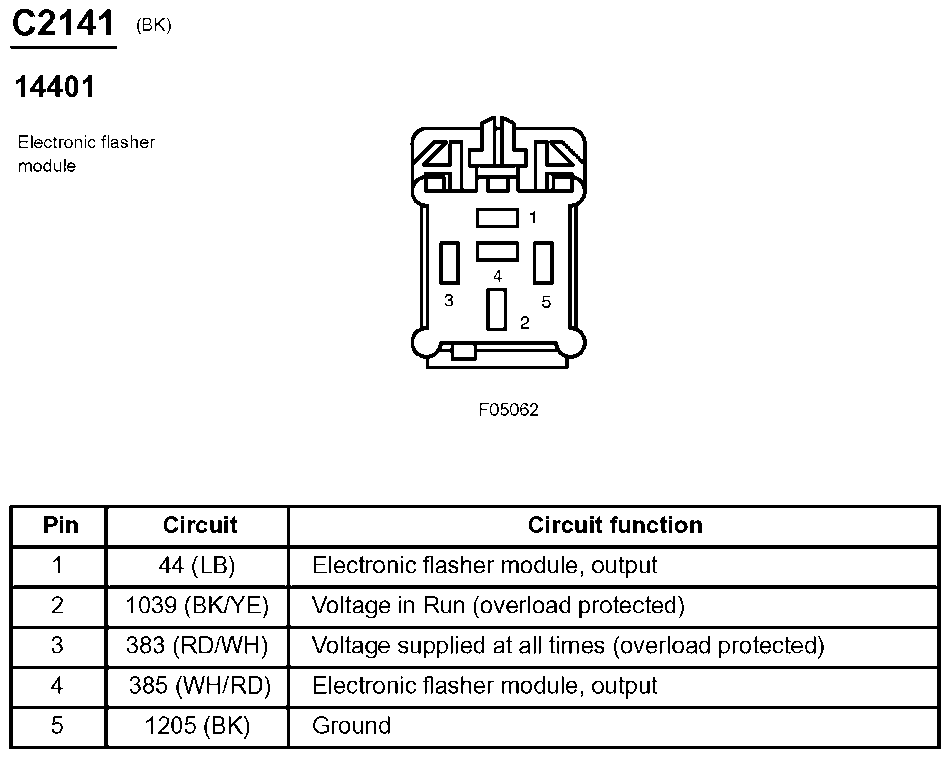

Fig 244: Electronic Flasher Module Connector End View (C2141)
Courtesy of FORD MOTOR CO.

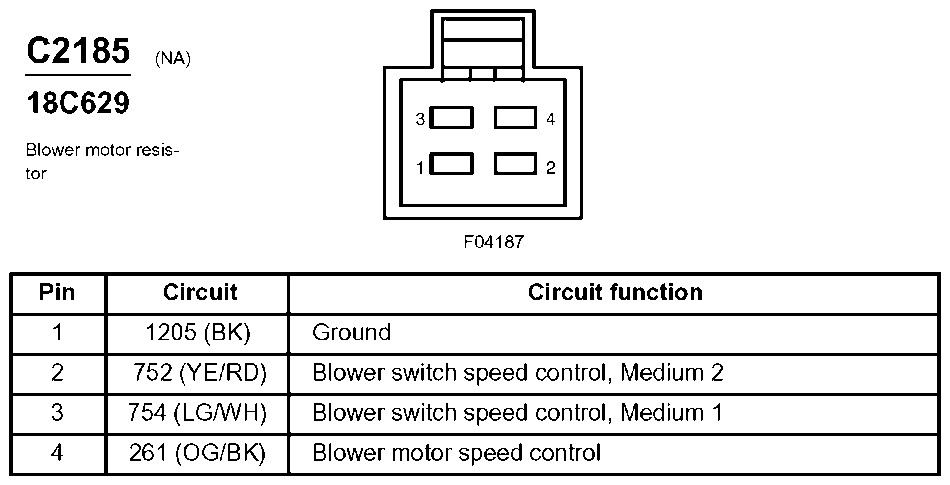

Fig 245: Blower Motor Resistor Connector End View (C2185)
Courtesy of FORD MOTOR CO.
Fig 246: Deactivator Switch Connector End View (C2210)
Courtesy of FORD MOTOR CO.

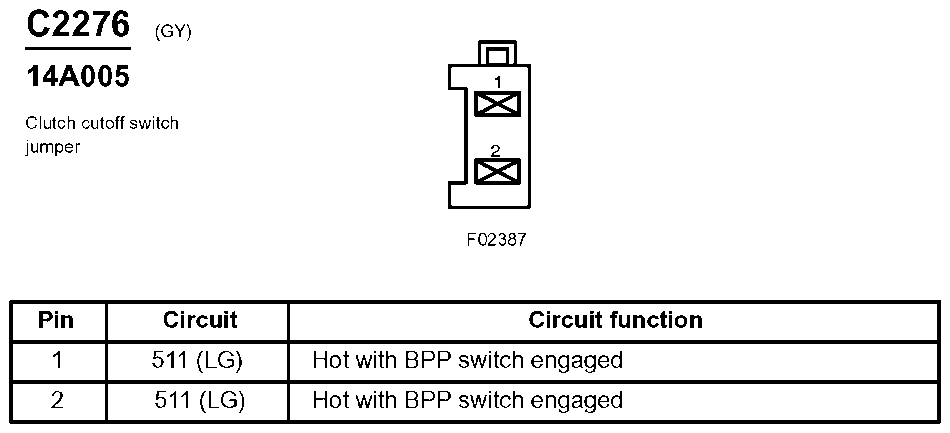

Fig 247: Clutch Cutoff Switch Jumper Connector End View (C2276)
Courtesy of FORD MOTOR CO.
Fig 248: Convertible Top Switch Connector End View (C3115)
Courtesy of FORD MOTOR CO.
Fig 249: Wheel Speed Sensor, Left Rear Connector End View (C3116)
Courtesy of FORD MOTOR CO.

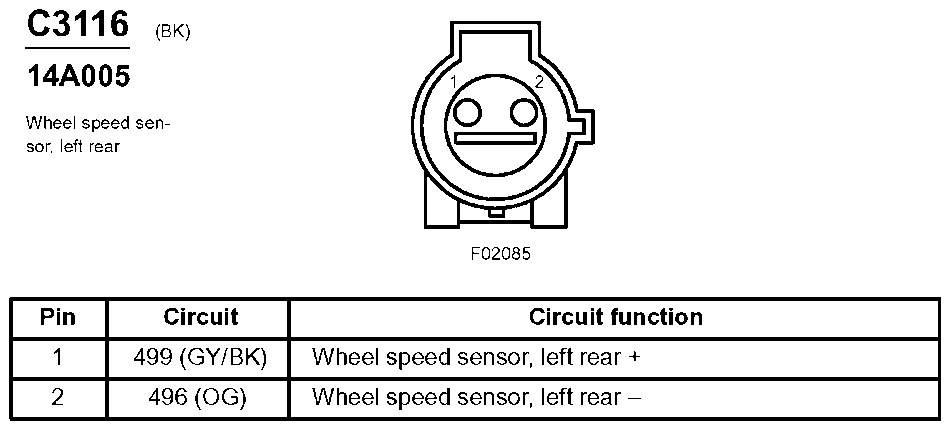

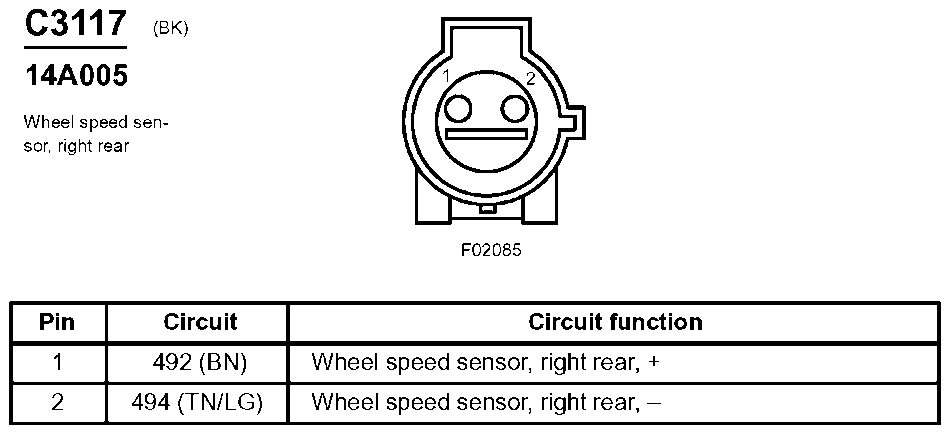

Fig 250: Wheel Speed Sensor, Right Rear Connector End View (C3117)
Courtesy of FORD MOTOR CO.

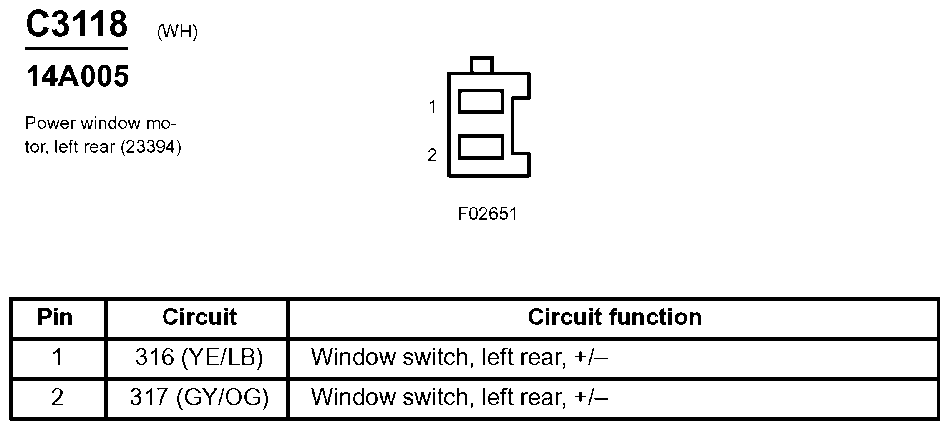

Fig 251: Power Window Motor, Left Rear Connector End View (C3118)
Courtesy of FORD MOTOR CO.

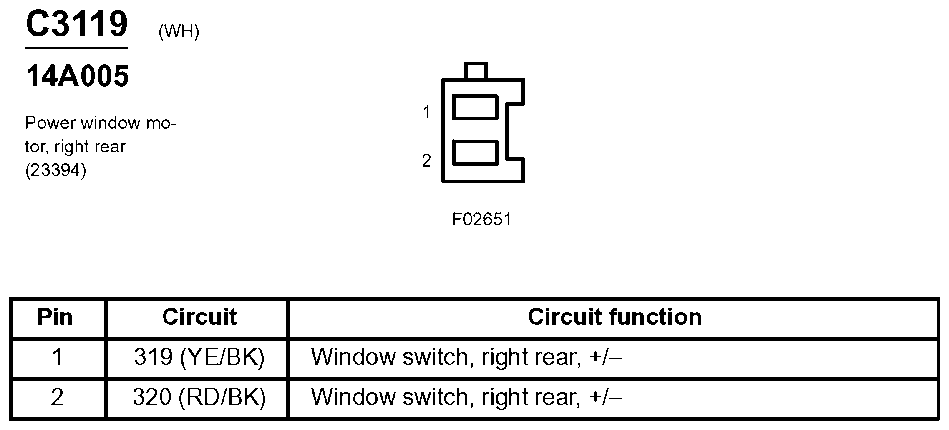

Fig 252: Power Window Motor, Right Rear Connector End View (C3119)
Courtesy of FORD MOTOR CO.

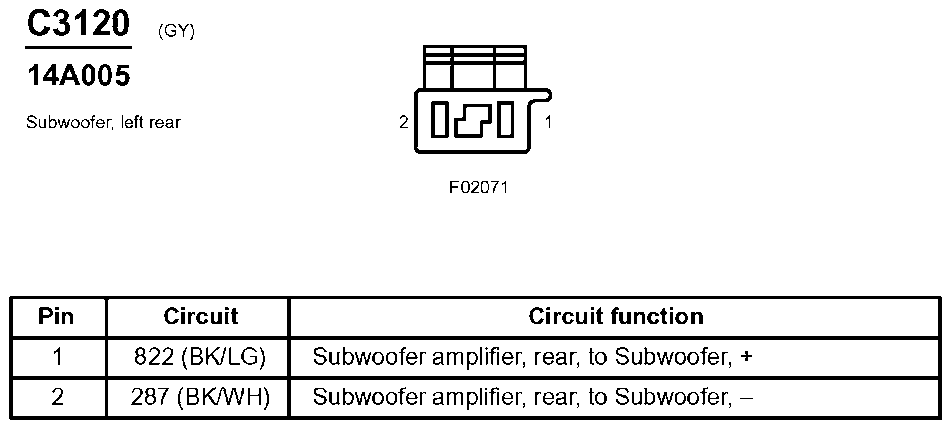

Fig 253: Subwoofer, Left Rear Connector End View (C3120)
Courtesy of FORD MOTOR CO.

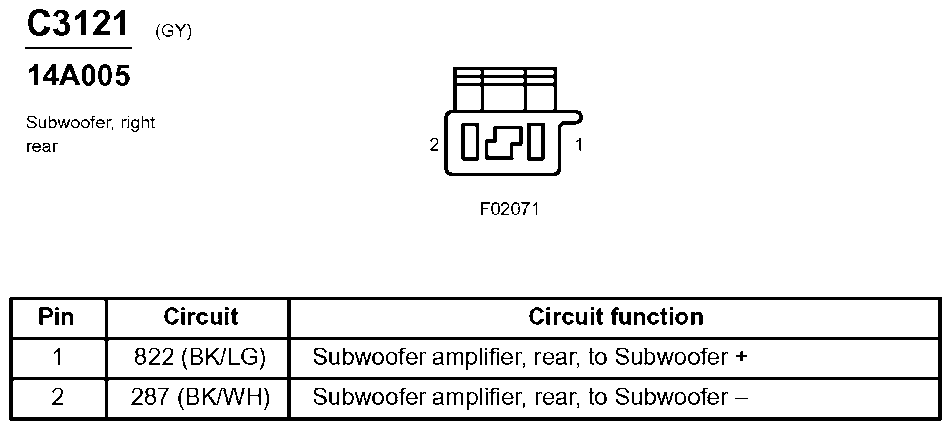

Fig 254: Subwoofer, Right Rear Connector End View (C3121)
Courtesy of FORD MOTOR CO.

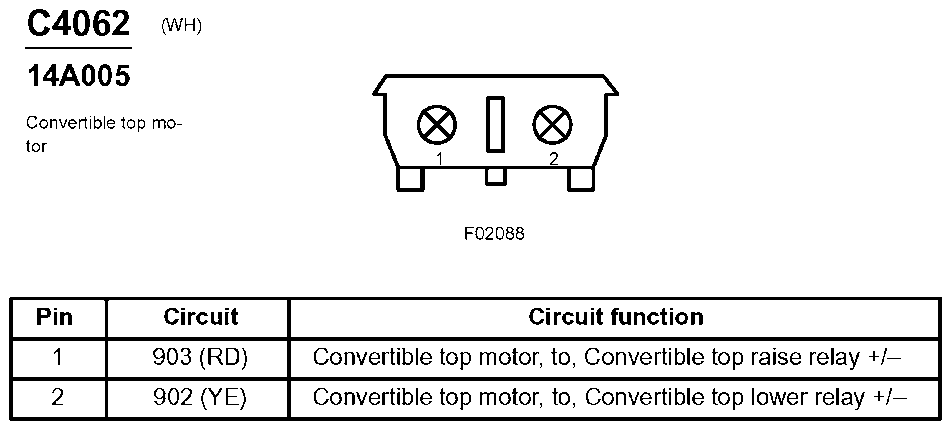

Fig 255: Convertible Top Motor Connector End View (C4062)
Courtesy of FORD MOTOR CO.

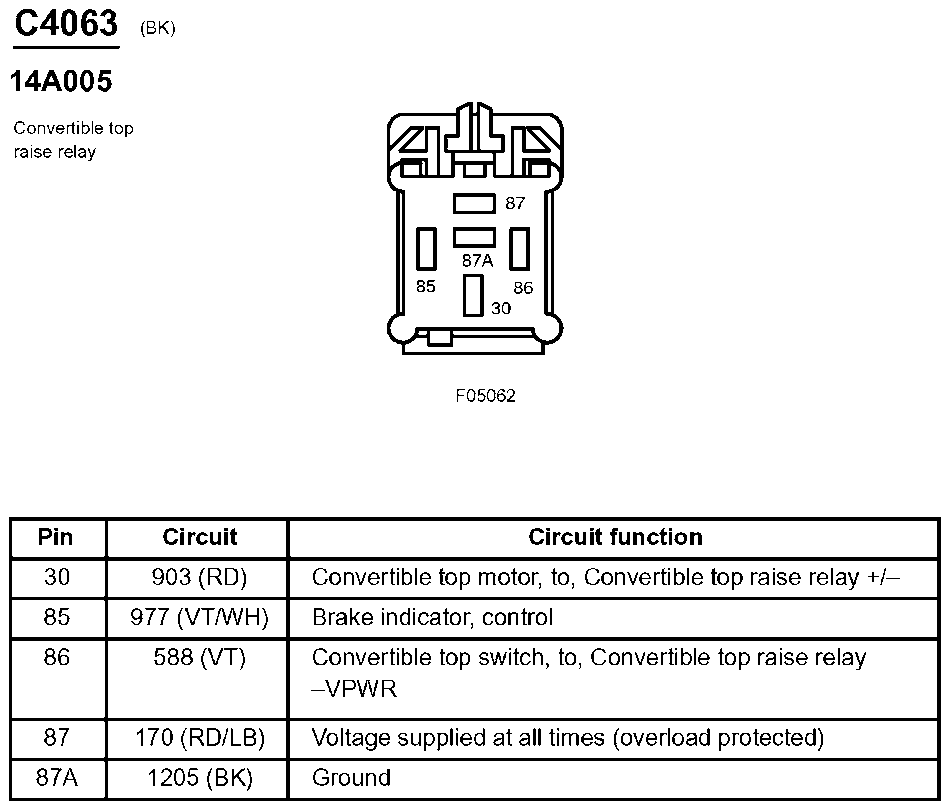

Fig 256: Convertible Top Raise Relay Connector End View (C4063)
Courtesy of FORD MOTOR CO.

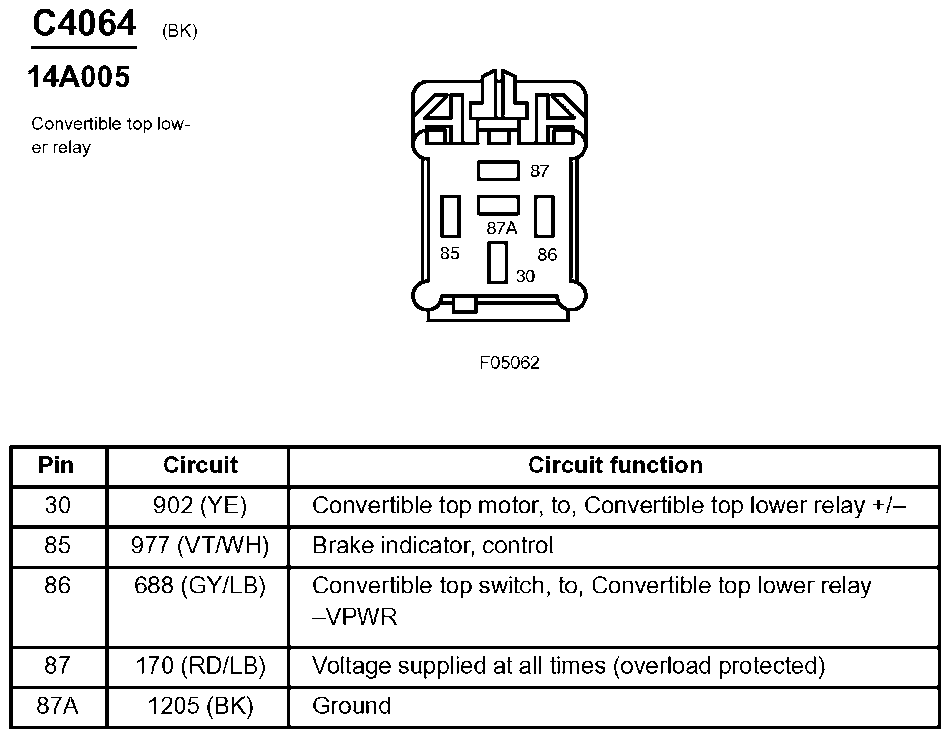

Fig 257: Convertible Top Lower Relay Connector End View (C4064)
Courtesy of FORD MOTOR CO.

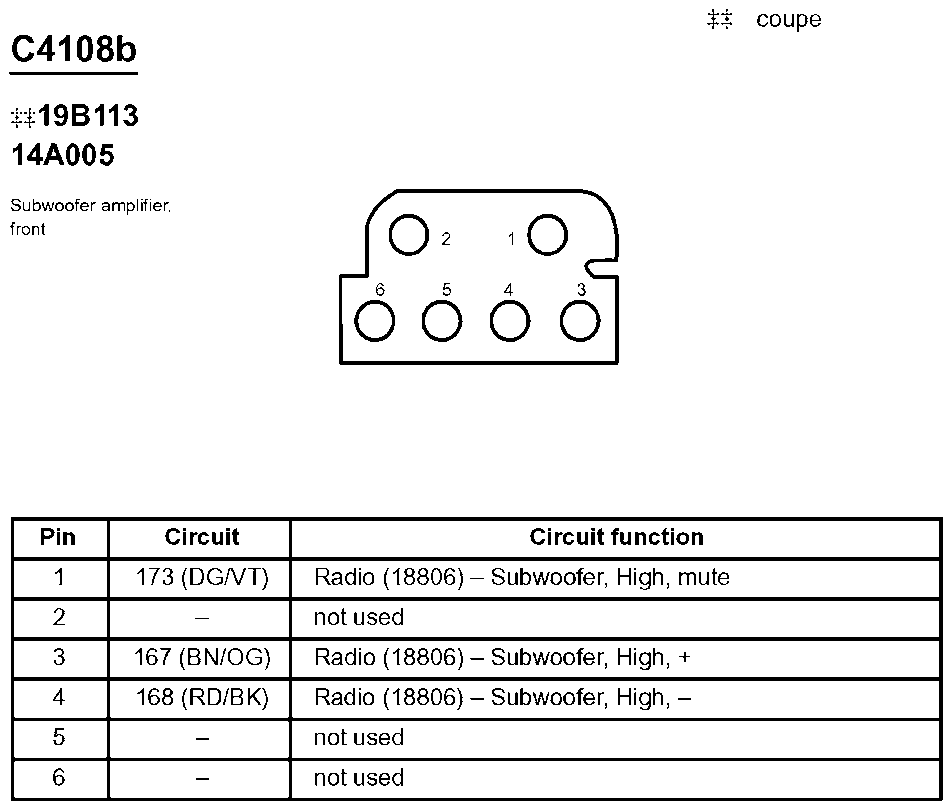

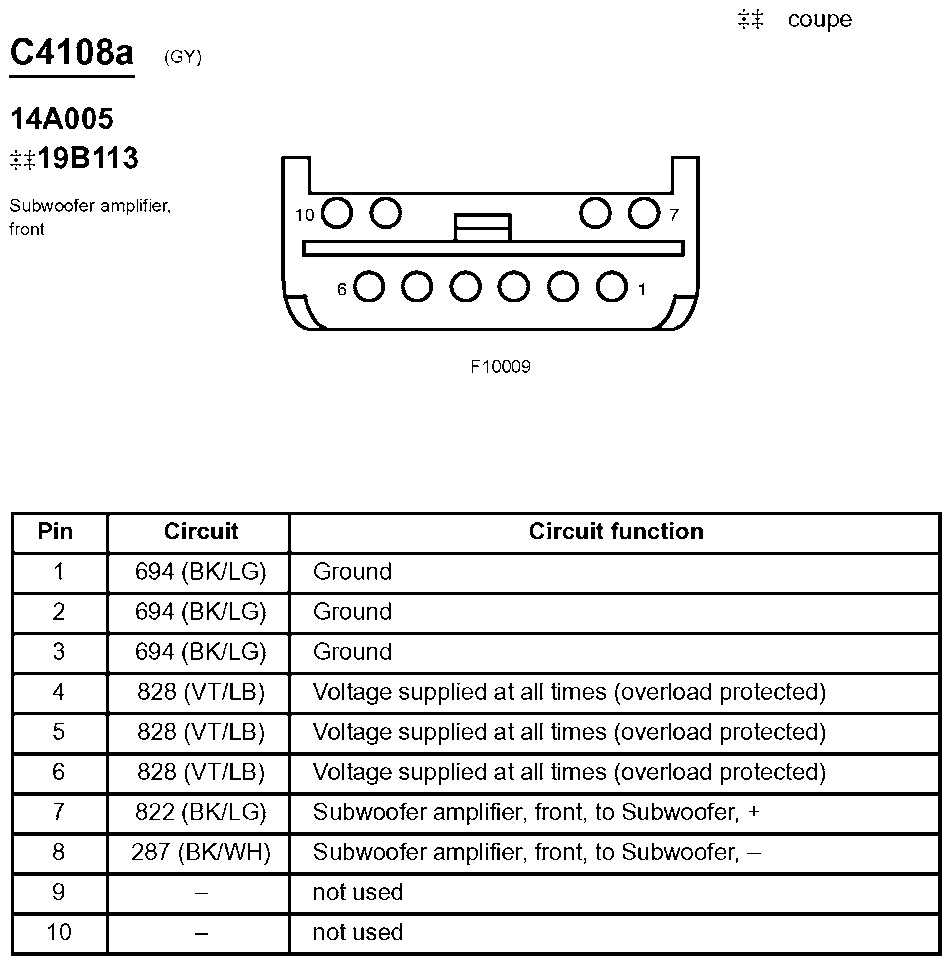

Fig 258: Subwoofer Amplifier, Front Connector End View (C4108a)
Courtesy of FORD MOTOR CO.
Fig 259: Subwoofer Amplifier, Front Connector End View (C4108b)
Courtesy of FORD MOTOR CO.

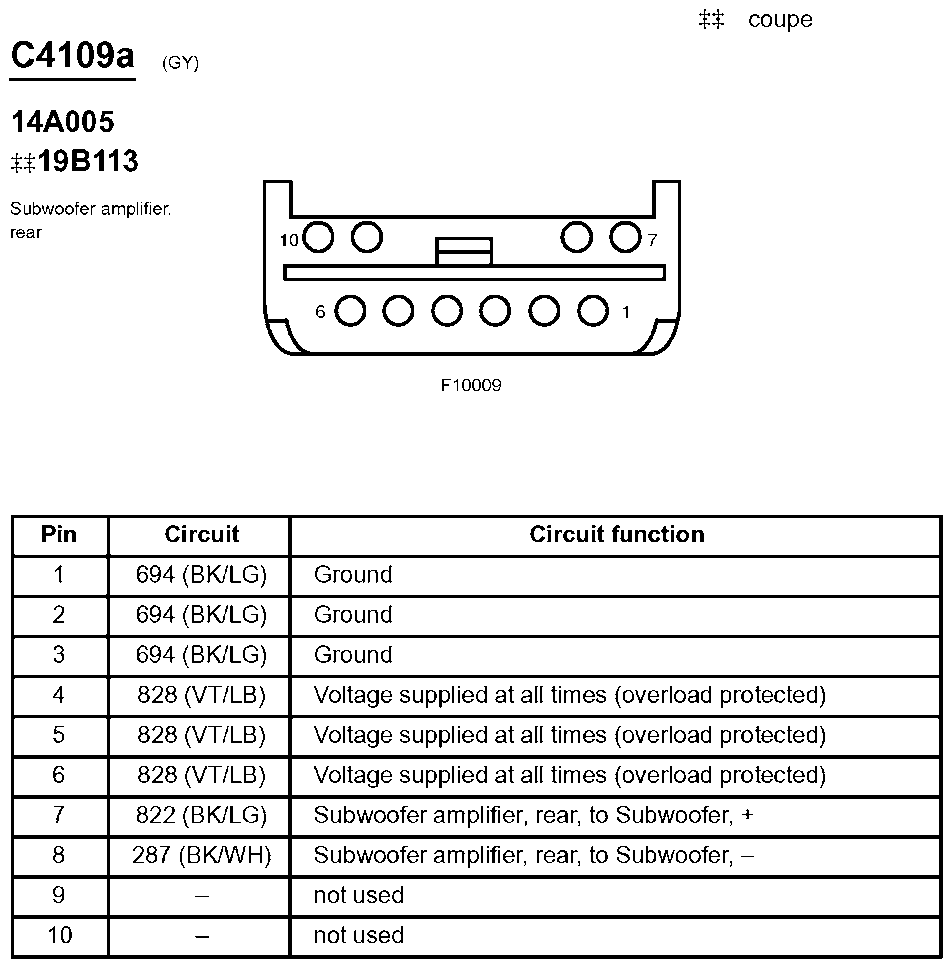

Fig 260: Subwoofer Amplifier, Rear Connector End View (C4109a)
Courtesy of FORD MOTOR CO.

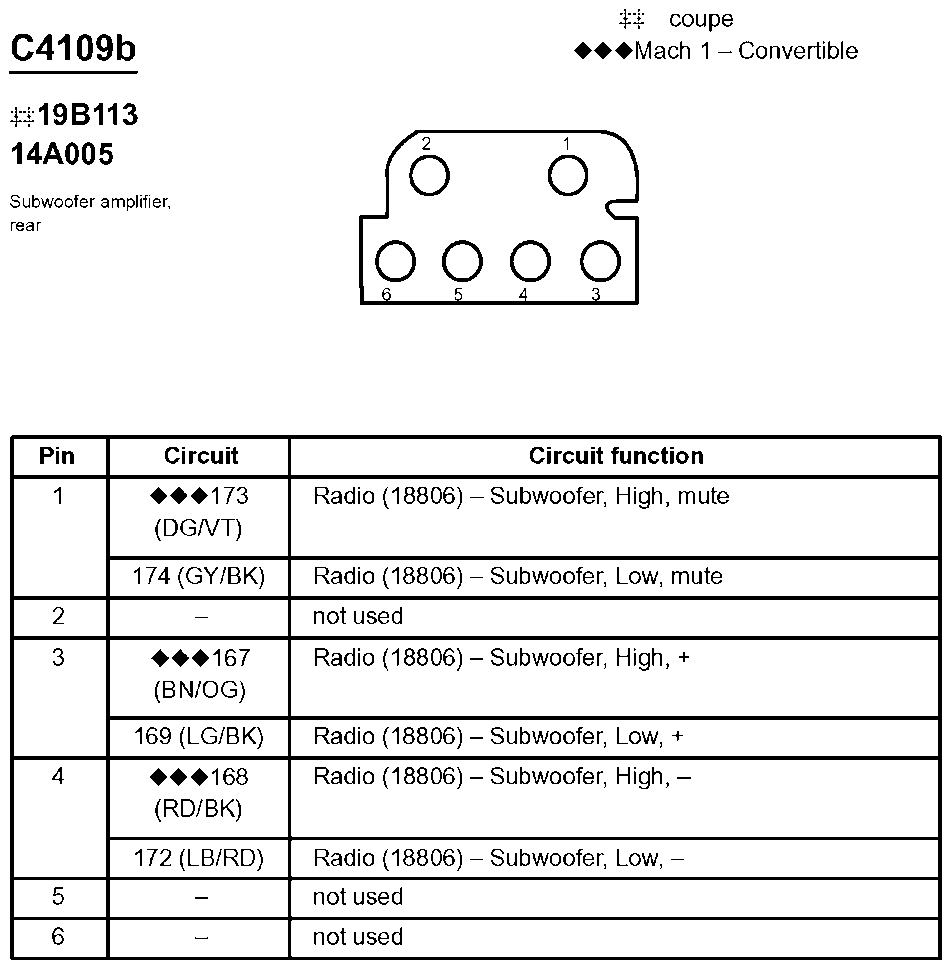

Fig 261: Subwoofer Amplifier, Rear Connector End View (C4109b)
Courtesy of FORD MOTOR CO.

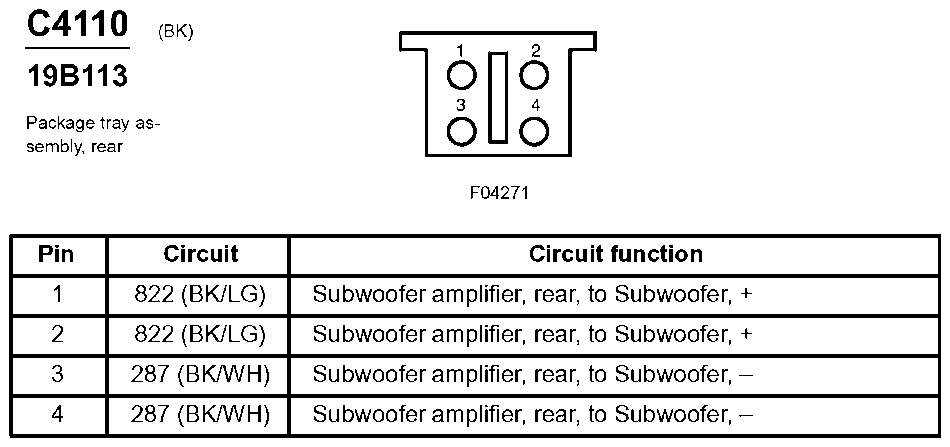

Fig 262: Package Tray Assembly, Rear Connector End View (C4110)
Courtesy of FORD MOTOR CO.

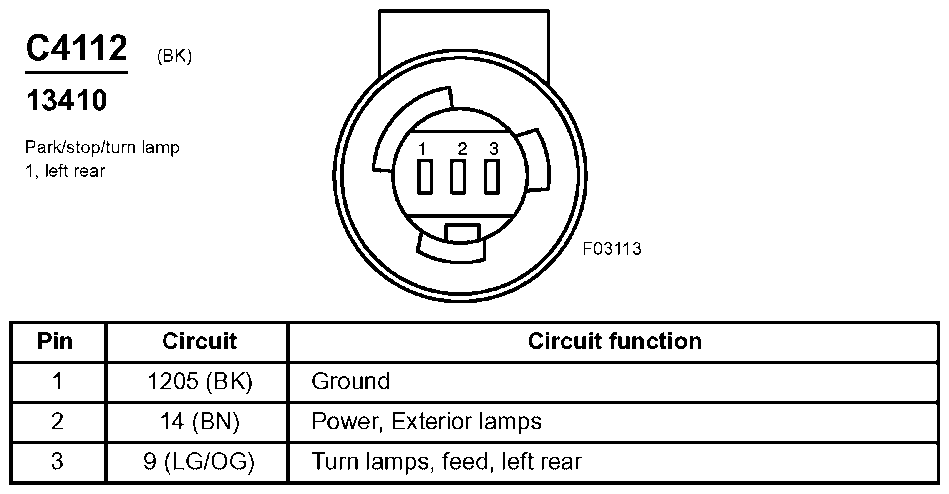

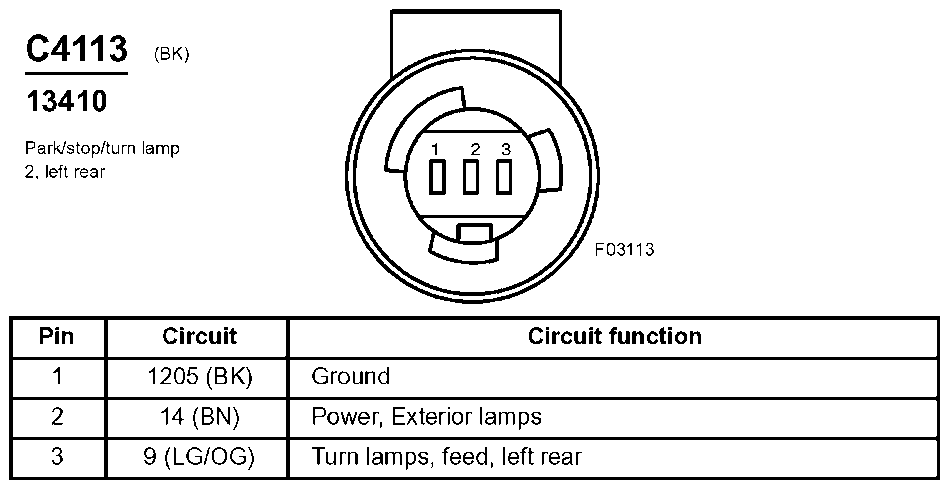

Fig 263: Park/Stop/Turn Lamp 1, Left Rear Connector End View (C4112)
Courtesy of FORD MOTOR CO.
Fig 264: Park/Stop/Turn Lamp 2, Left Rear Connector End View (C4113)
Courtesy of FORD MOTOR CO.

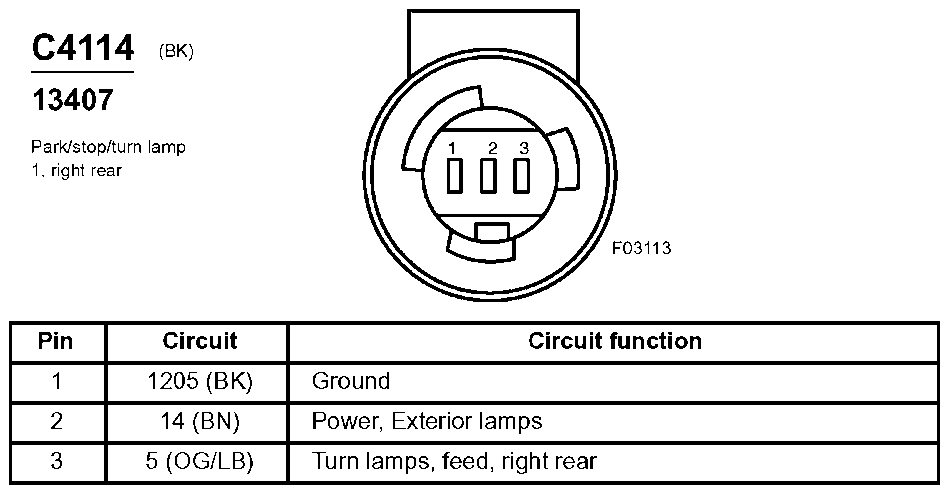

Fig 265: Park/Stop/Turn Lamp 1, Right Rear Connector End View (C4114)
Courtesy of FORD MOTOR CO.

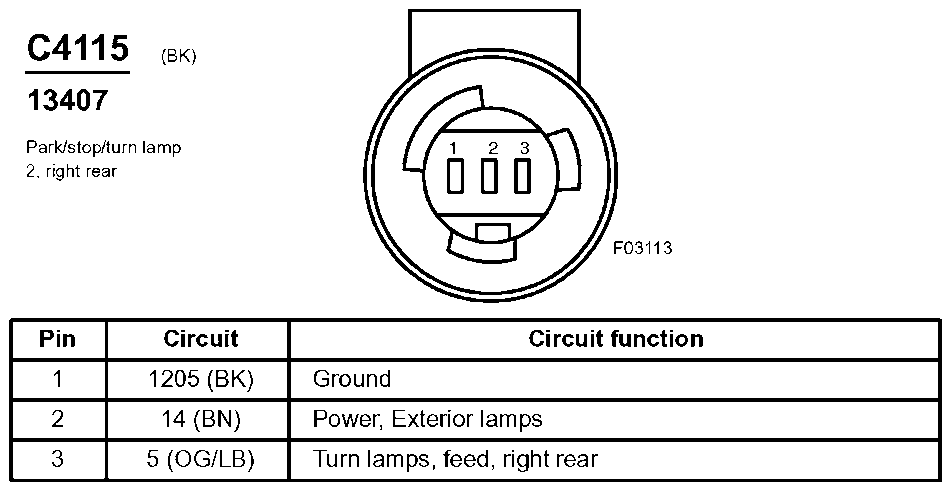

Fig 266: Park/Stop/Turn Lamp 2, Right Rear Connector End View (C4115)
Courtesy of FORD MOTOR CO.

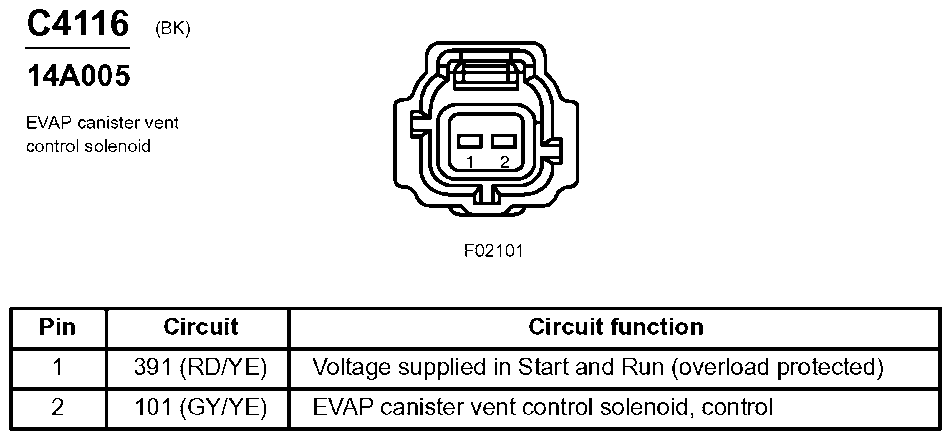

Fig 267: EVAP Canister Vent Control Solenoid Connector End View (C4116)
Courtesy of FORD MOTOR CO.

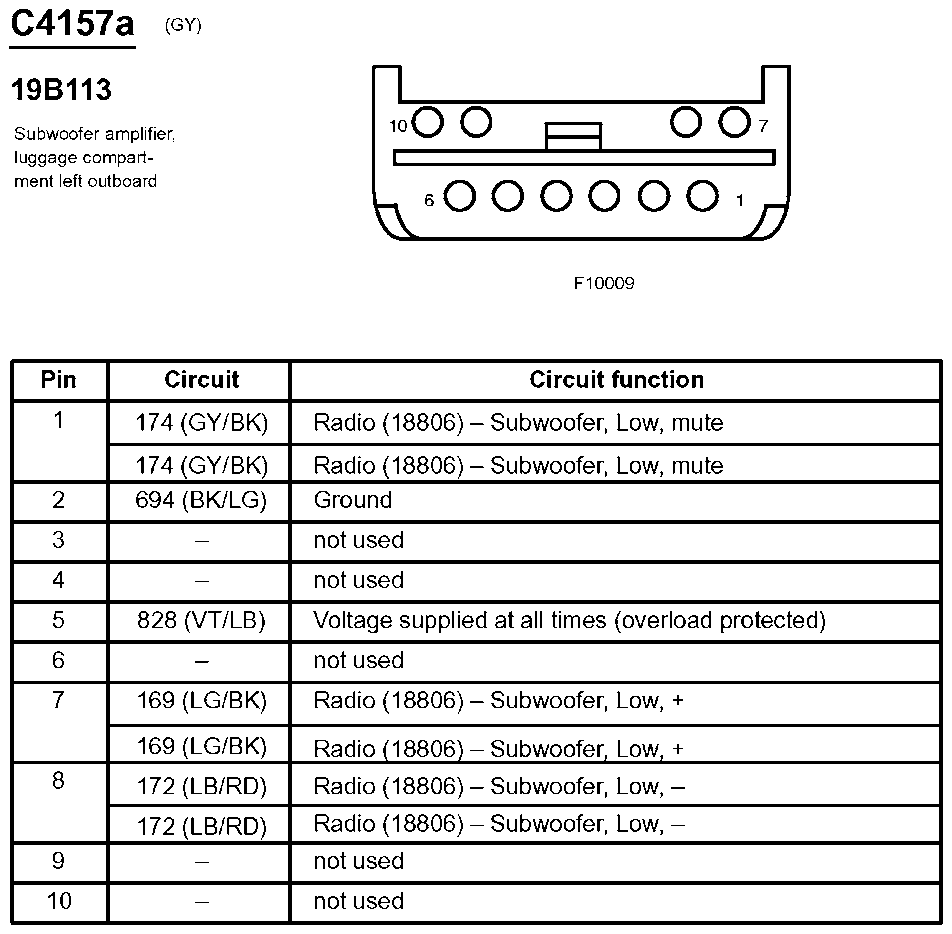

Fig 268: Subwoofer Amplifier, Luggage Compartment Left Outboard Connector End View (C4157a)
Courtesy of FORD MOTOR CO.

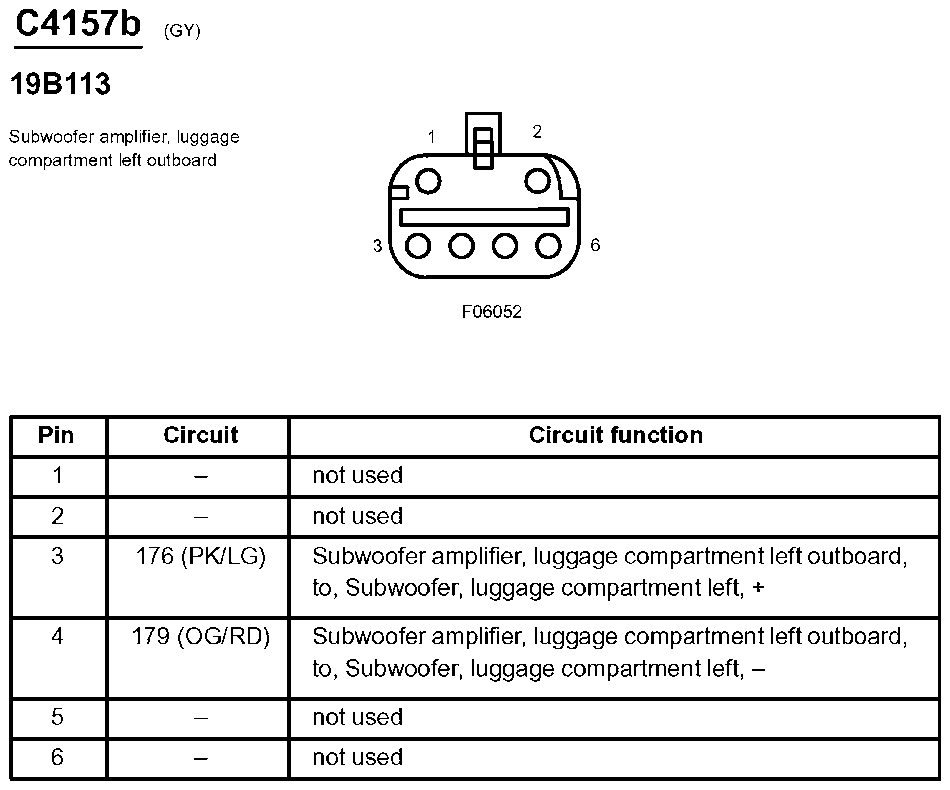

Fig 269: Subwoofer Amplifier, Luggage Compartment Left Outboard Connector End View (C4157b)
Courtesy of FORD MOTOR CO.

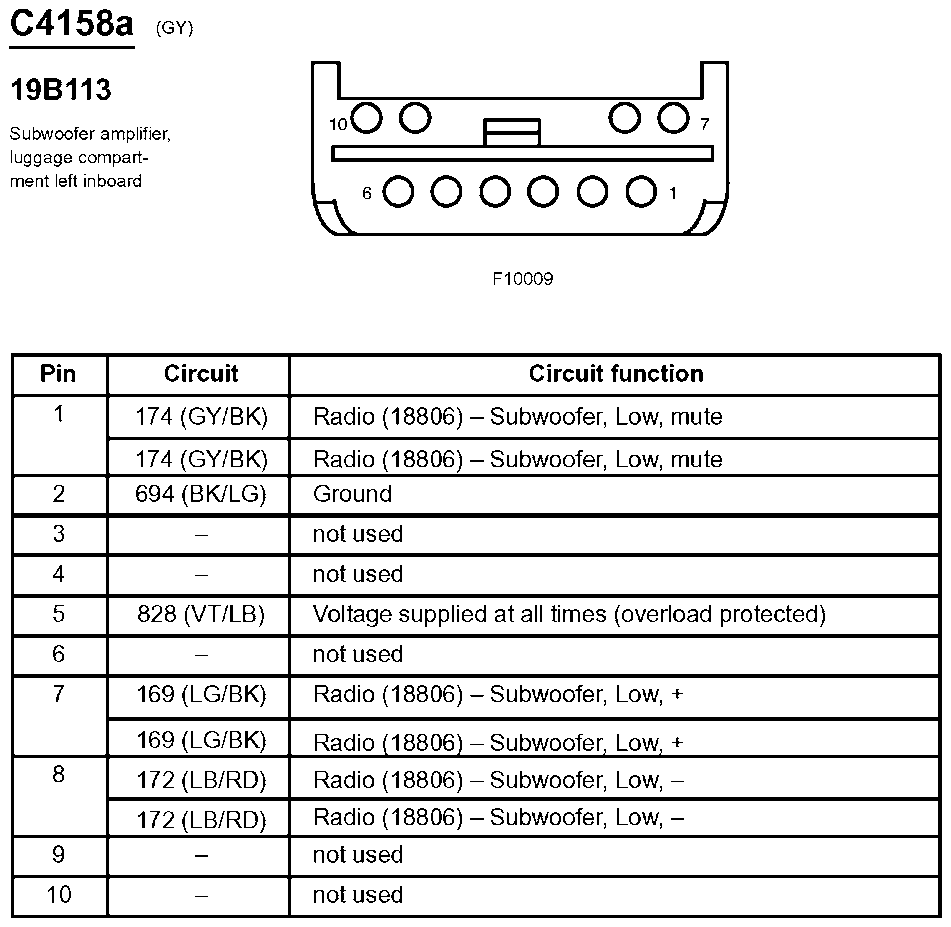

Fig 270: Subwoofer Amplifier, Luggage Compartment Left Inboard Connector End View (C4158a)
Courtesy of FORD MOTOR CO.

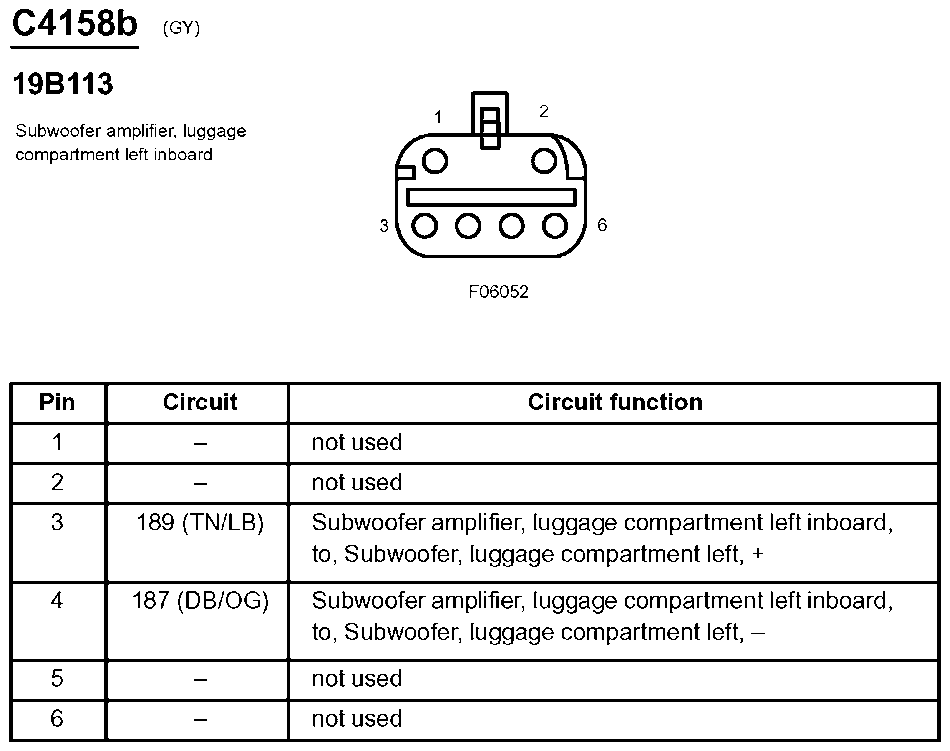

Fig 271: Subwoofer Amplifier, Luggage Compartment Left Inboard Connector End View (C4158b)
Courtesy of FORD MOTOR CO.

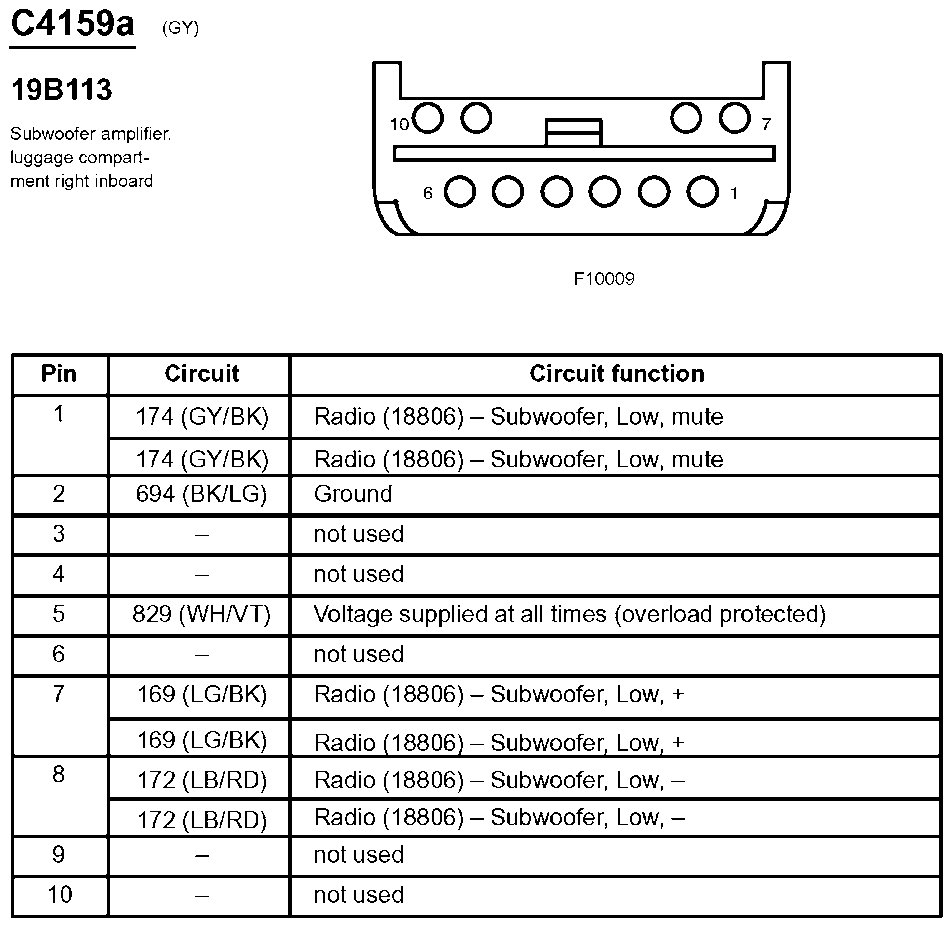

Fig 272: Subwoofer Amplifier, Luggage Compartment Right Inboard Connector End View (C4159a)
Courtesy of FORD MOTOR CO.

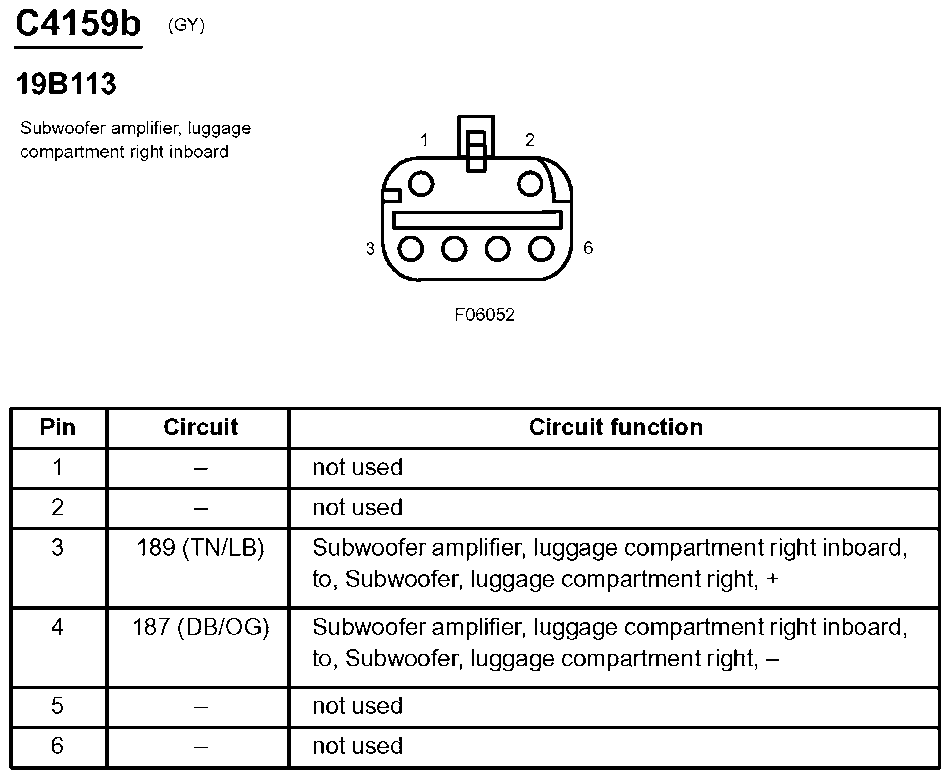

Fig 273: Subwoofer Amplifier, Luggage Compartment Right Inboard Connector End View (C4159b)
Courtesy of FORD MOTOR CO.

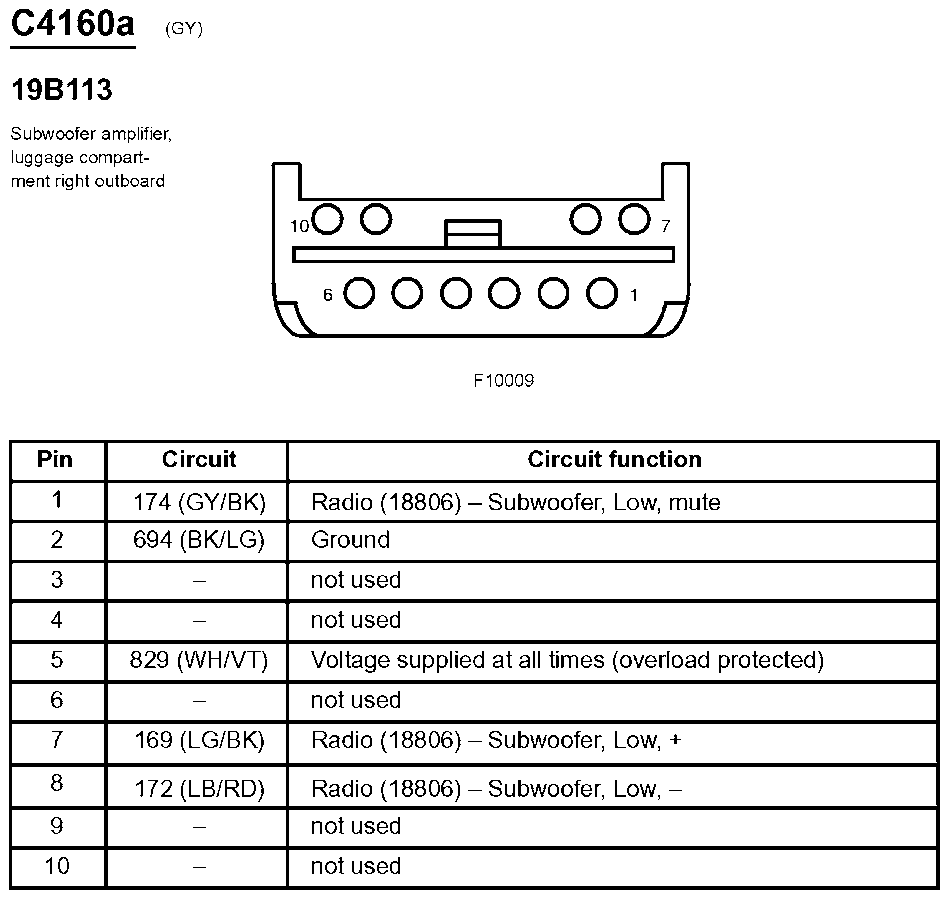

Fig 274: Subwoofer Amplifier, Luggage Compartment Right Outboard Connector End View (C4160a)
Courtesy of FORD MOTOR CO.

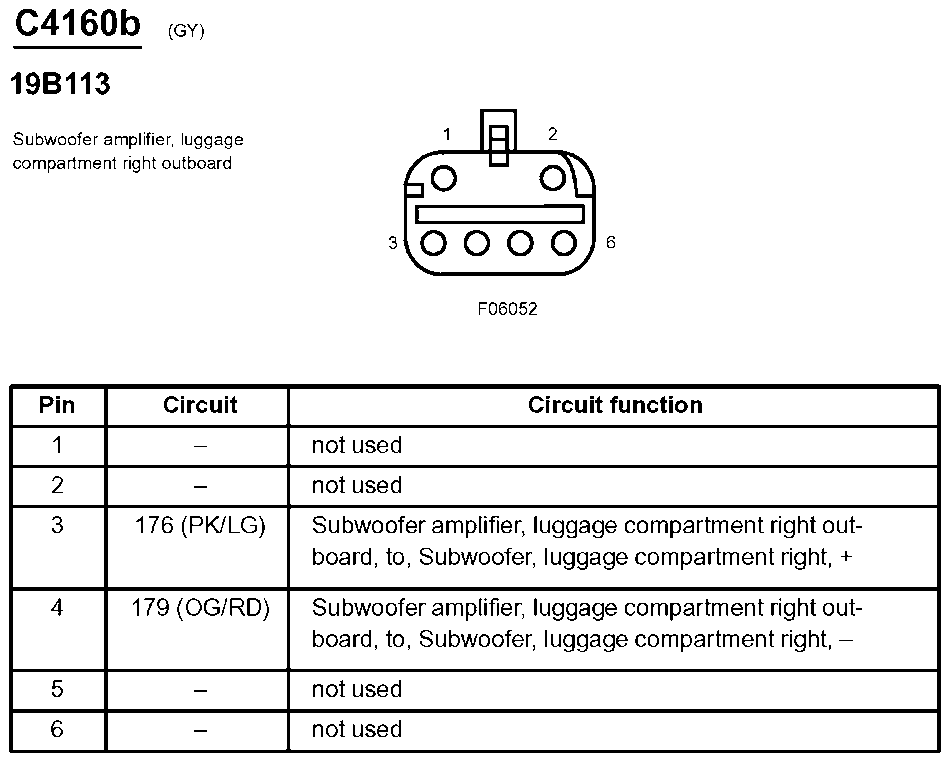

Fig 275: Subwoofer Amplifier, Luggage Compartment Right Outboard Connector End View (C4160b)
Courtesy of FORD MOTOR CO.

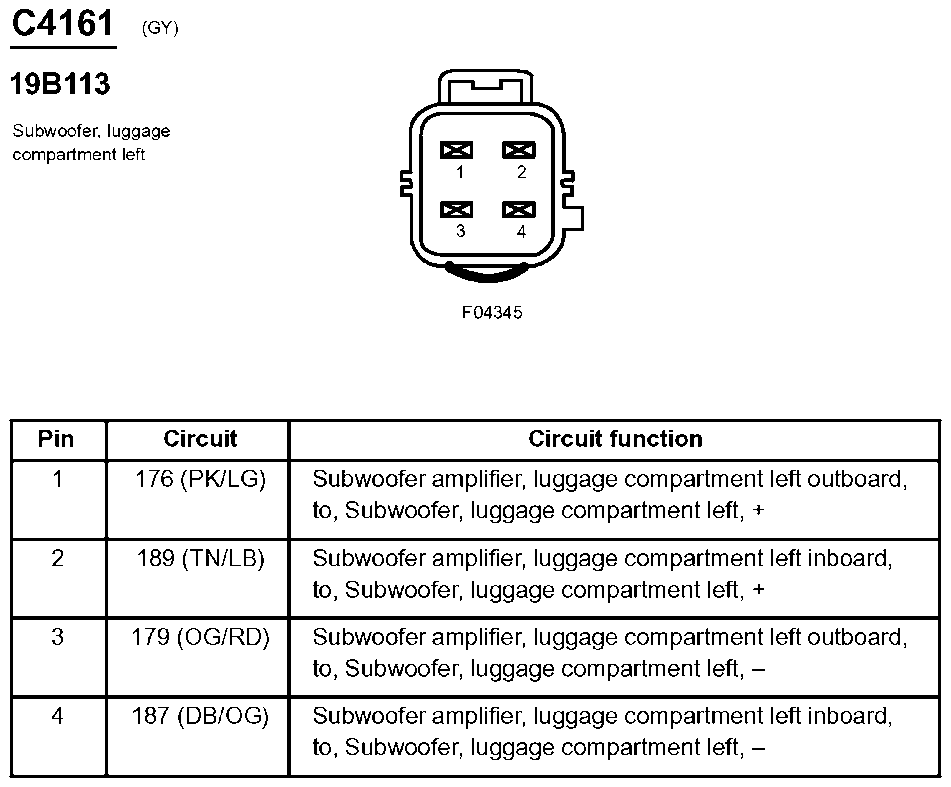

Fig 276: Subwoofer, Luggage Compartment Left Connector End View (C4161)
Courtesy of FORD MOTOR CO.

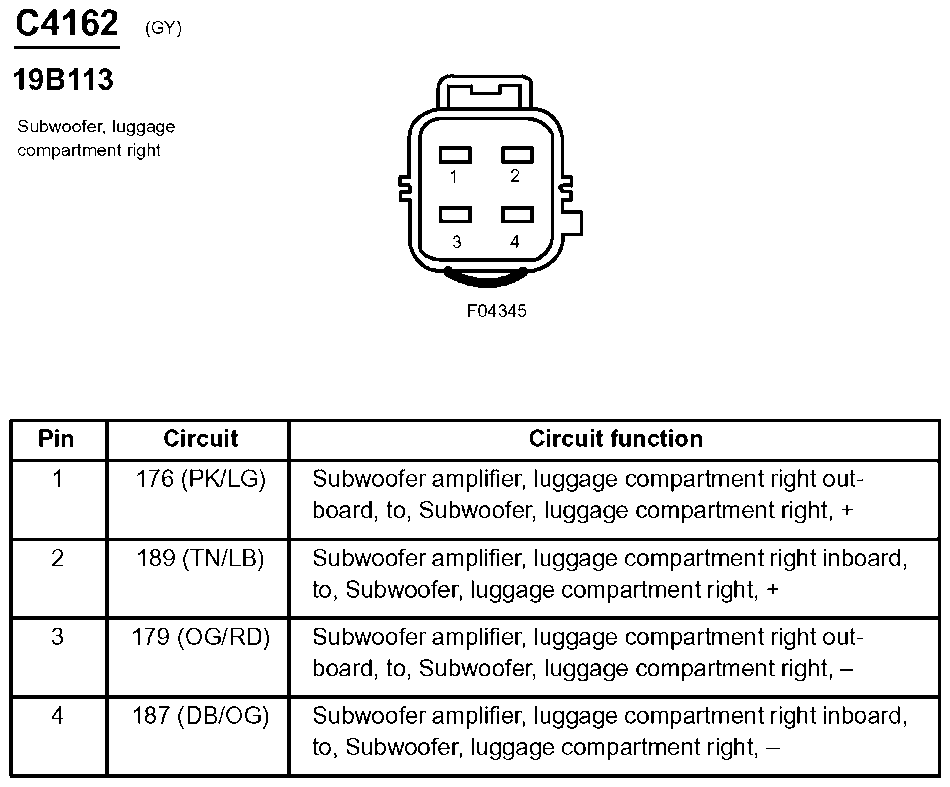

Fig 277: Subwoofer, Luggage Compartment Right Connector End View (C4162)
Courtesy of FORD MOTOR CO.

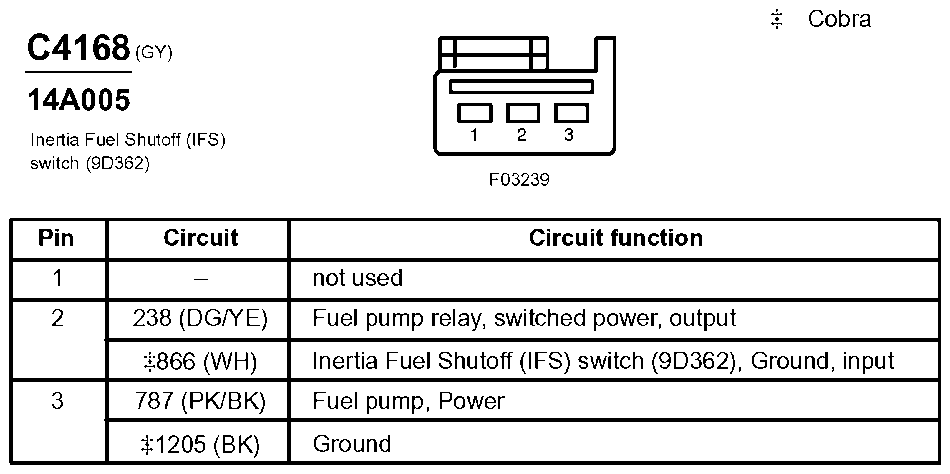

Fig 278: Inertia Fuel Shutoff (IFS) Switch Connector End View (C4168)
Courtesy of FORD MOTOR CO.

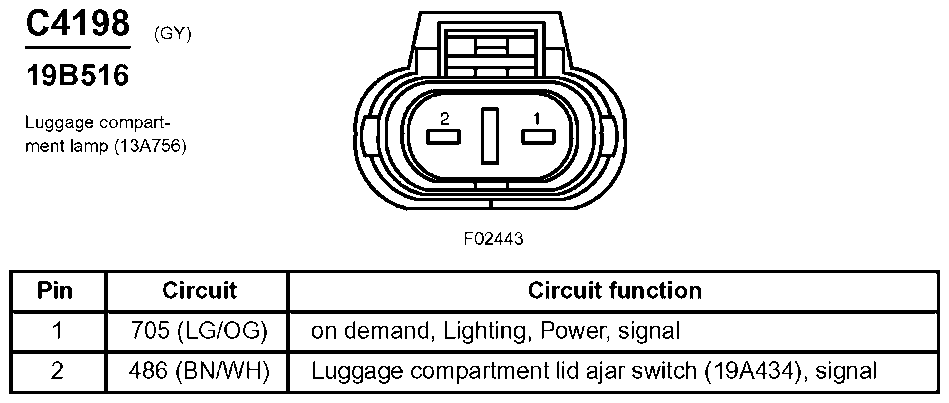

Fig 279: Luggage Compartment Lamp Connector End View (C4198)
Courtesy of FORD MOTOR CO.

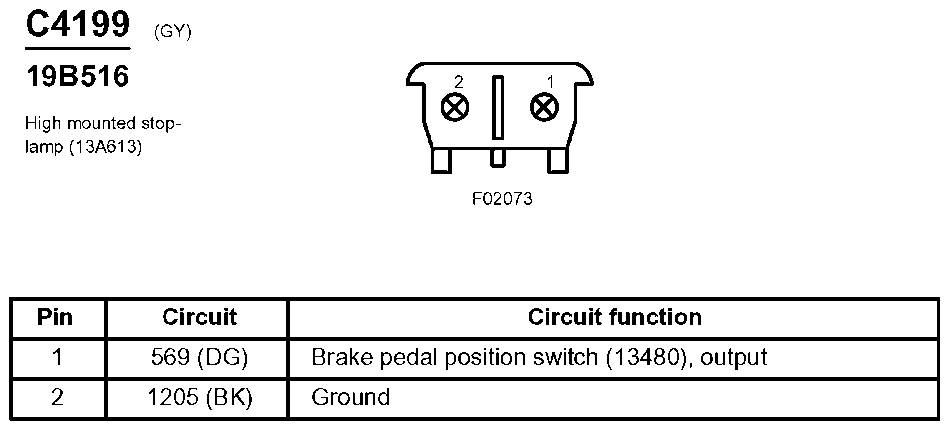

Fig 280: High Mounted Stoplamp Connector End View (C4199)
Courtesy of FORD MOTOR CO.
