Trouble Shooting

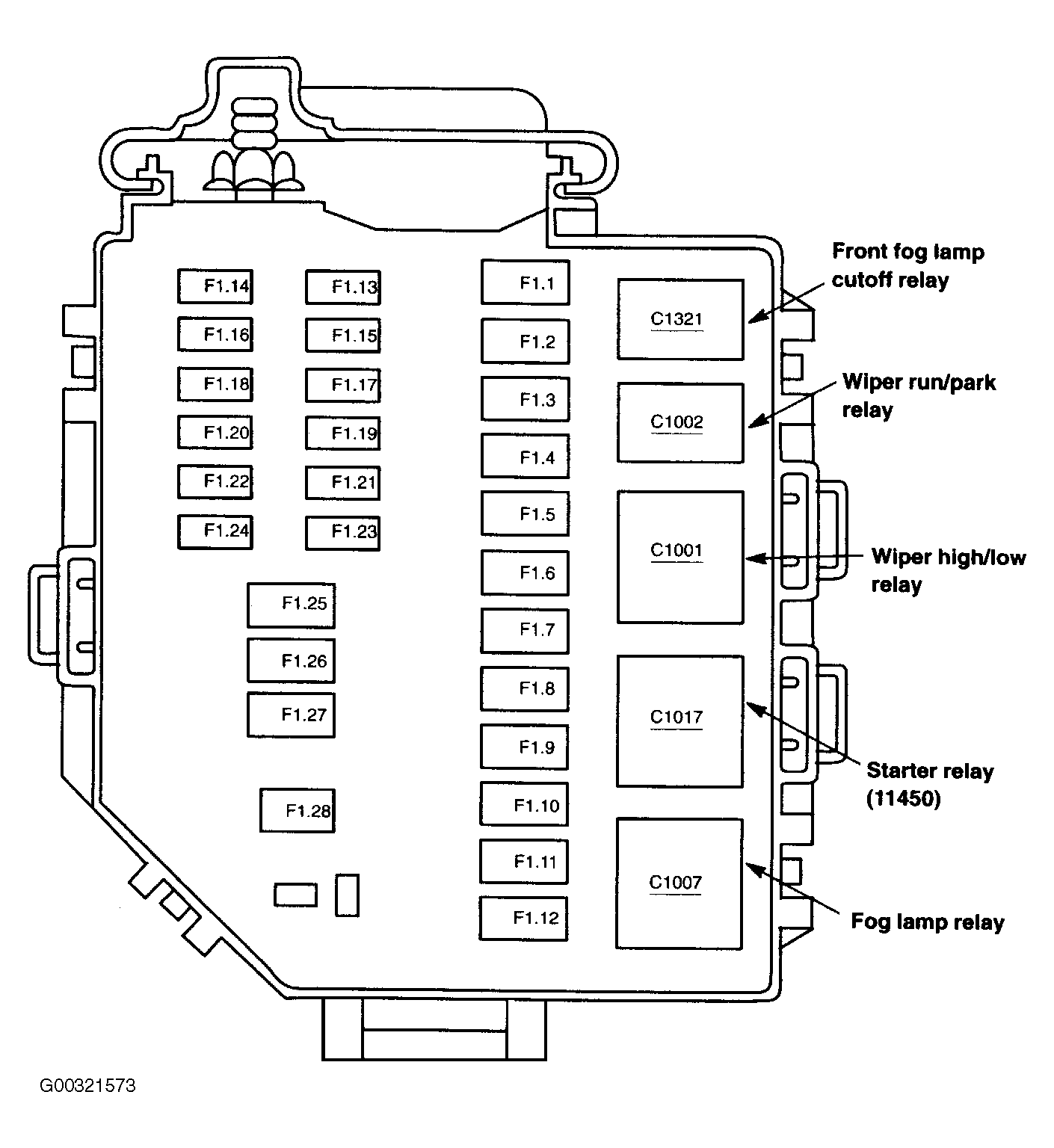

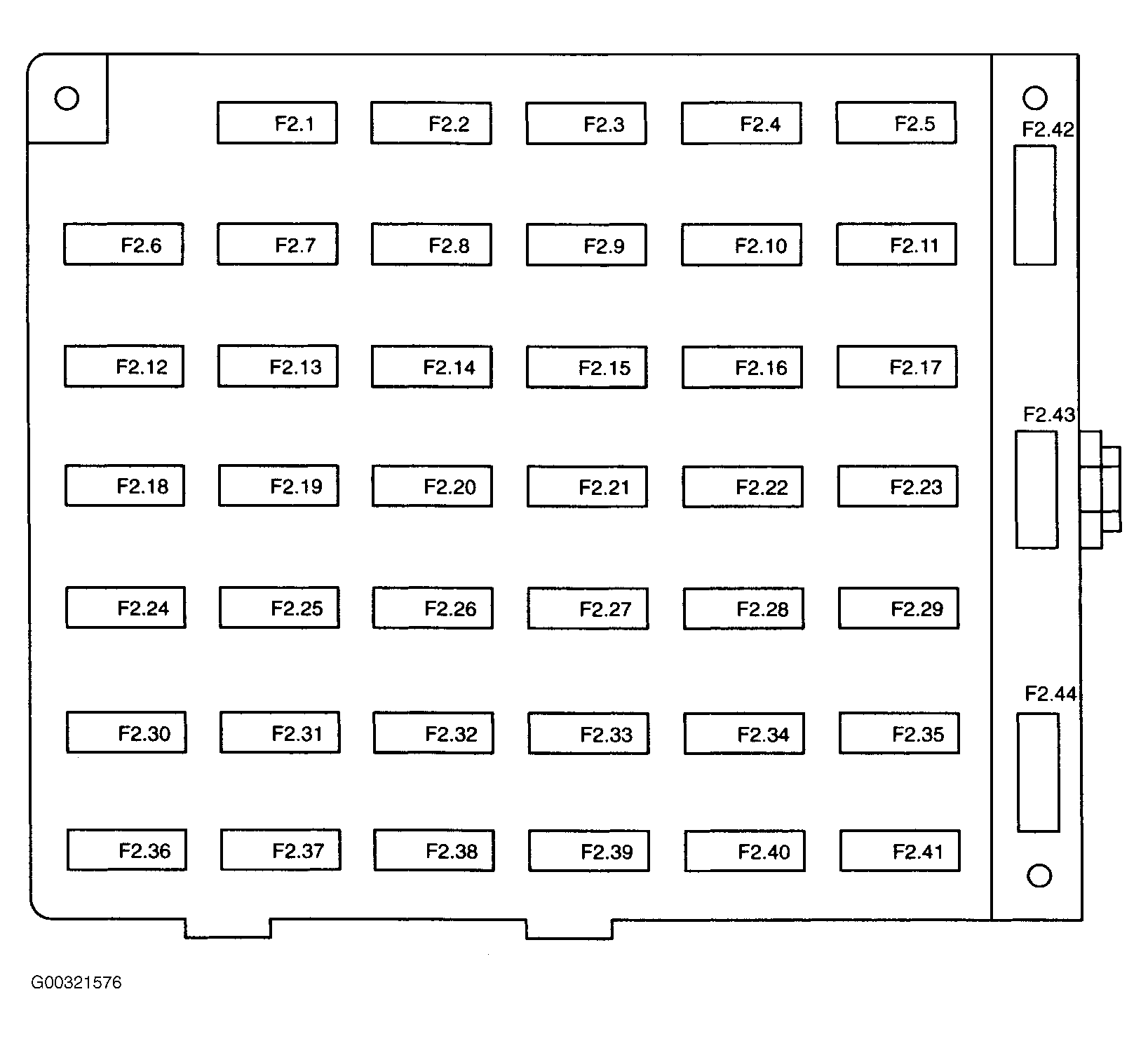

Check battery for state of charge. Check cable connections at battery and starter motor. Ensure transmission is fully engaged in Park or Neutral, or clutch pedal is fully depressed. Check fuse No. 3 (40-amp) in battery junction box. See Fig 1 . Check fuse No. 6 (20-amp) in central junction box. See Fig 2 . If problem is found, repair as necessary. If problem is not found, repair by symptom. See SYMPTOM INDEX table under SYSTEM TESTS.
