Spring Lock Coupling: Connect

  1. To connect, push both of the coupling ends together until the spring lock is in place.
    • Inspect and clean both coupling ends.
    • Lubricate the O-ring seals with engine oil.

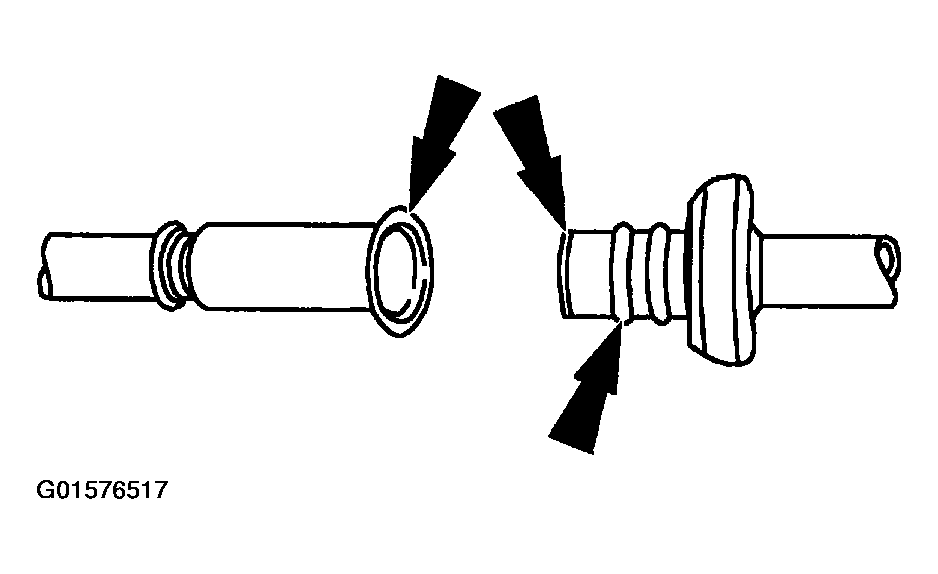

      Fig 1: Identifying O-Ring Seals Of Spring Lock Coupling
      G01576517Courtesy of FORD MOTOR CO.
