Selective Snap Rings
Selective Snap Rings

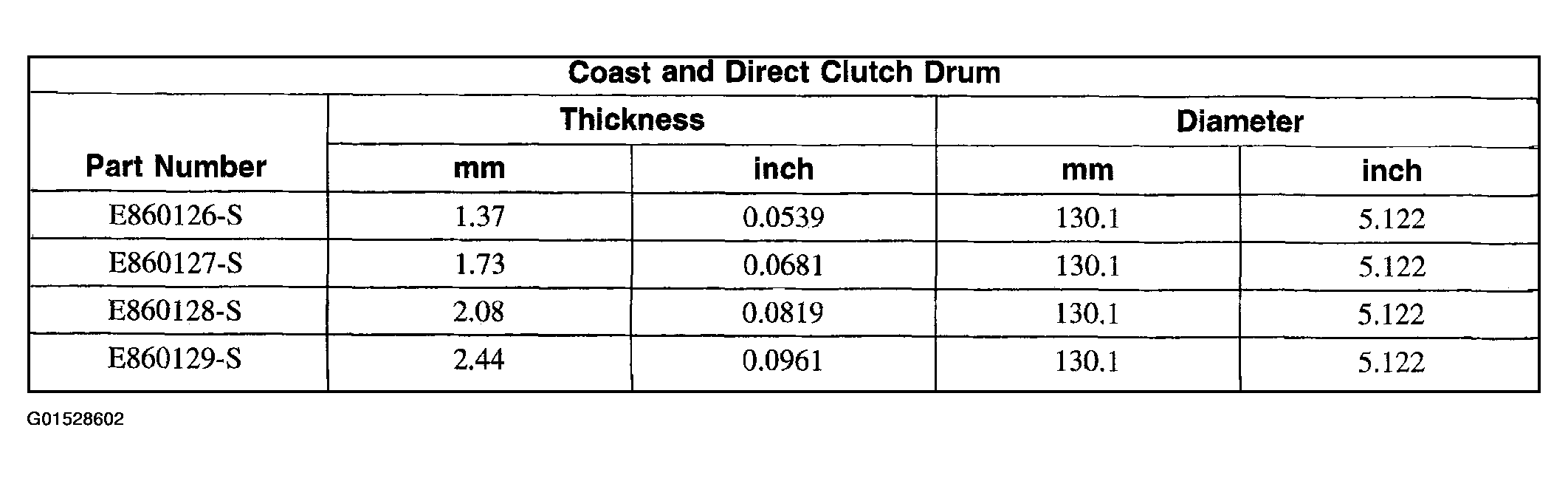

Fig 1: Selective Snap Rings (Coast and Direct Clutch Drum)
Courtesy of FORD MOTOR CO.

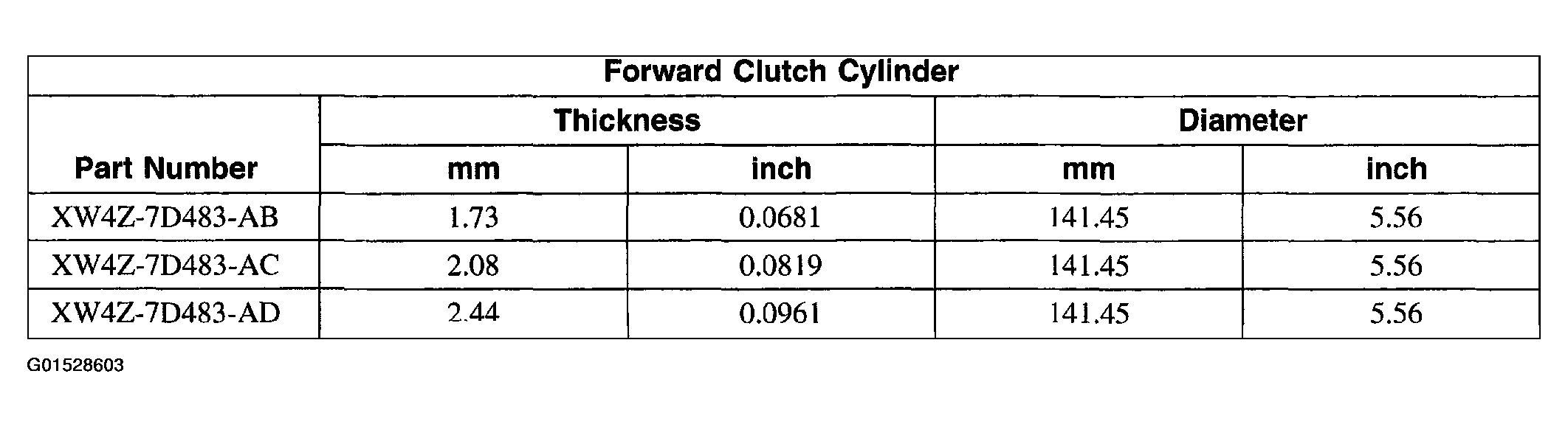

Fig 1: Selective Snap Rings (Forward Clutch Cylinder)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
