Windstar Base
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Connector End Views
>>
Connector Views
Connector Views

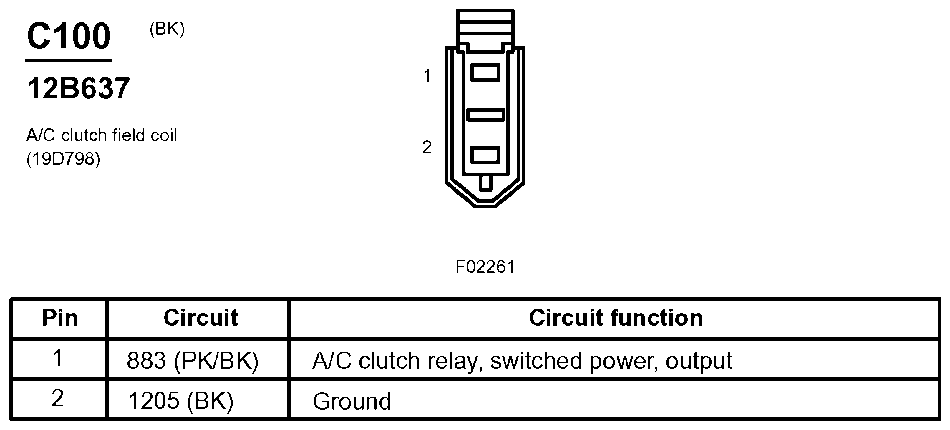

Fig 1: A/C Clutch Field Coil Connector End View (C100)
Courtesy of FORD MOTOR CO.

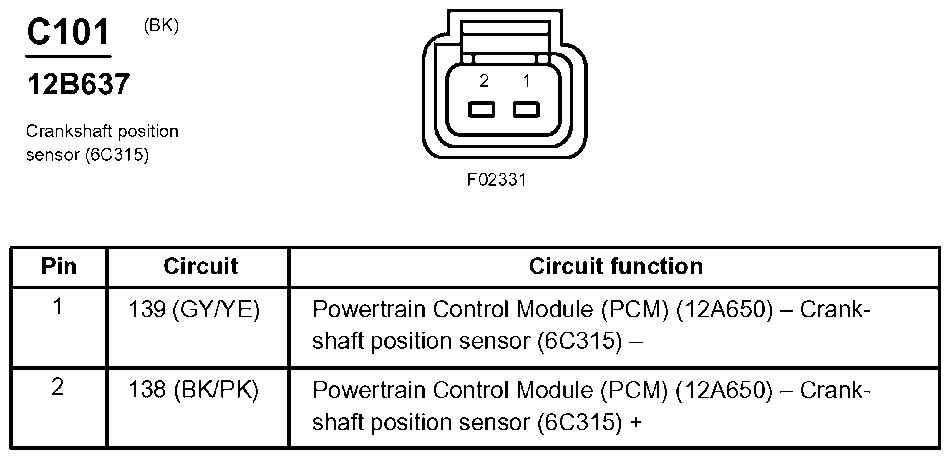

Fig 2: Crankshaft Position Sensor Connector End View (C101)
Courtesy of FORD MOTOR CO.

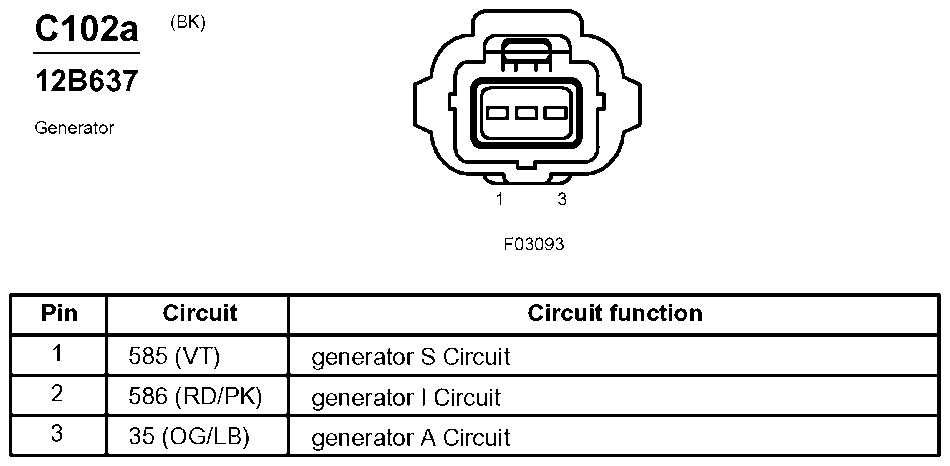

Fig 3: Generator Connector End View (C102a)
Courtesy of FORD MOTOR CO.

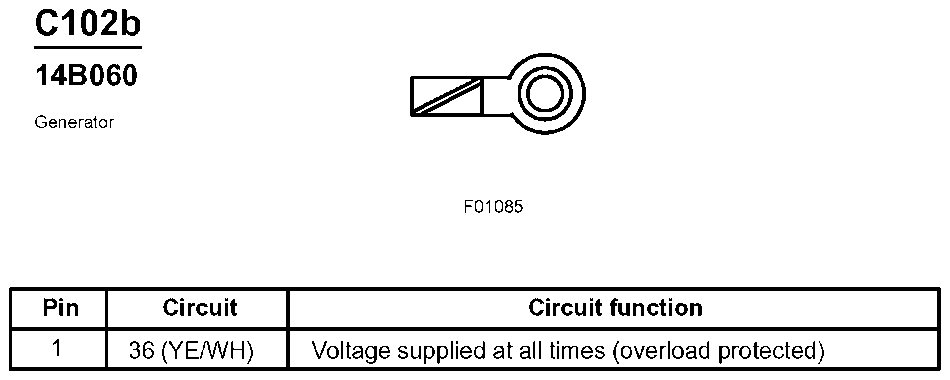

Fig 4: Generator Connector End View (C102b)
Courtesy of FORD MOTOR CO.

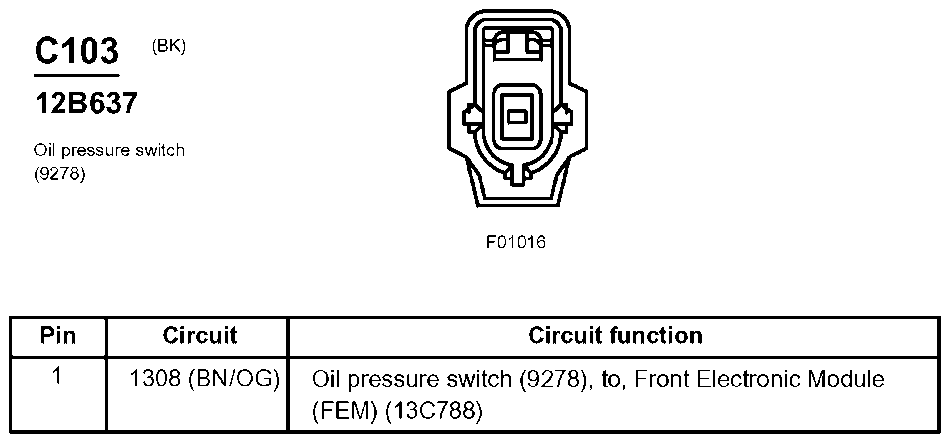

Fig 5: Oil Pressure Switch Connector End View (C103)
Courtesy of FORD MOTOR CO.

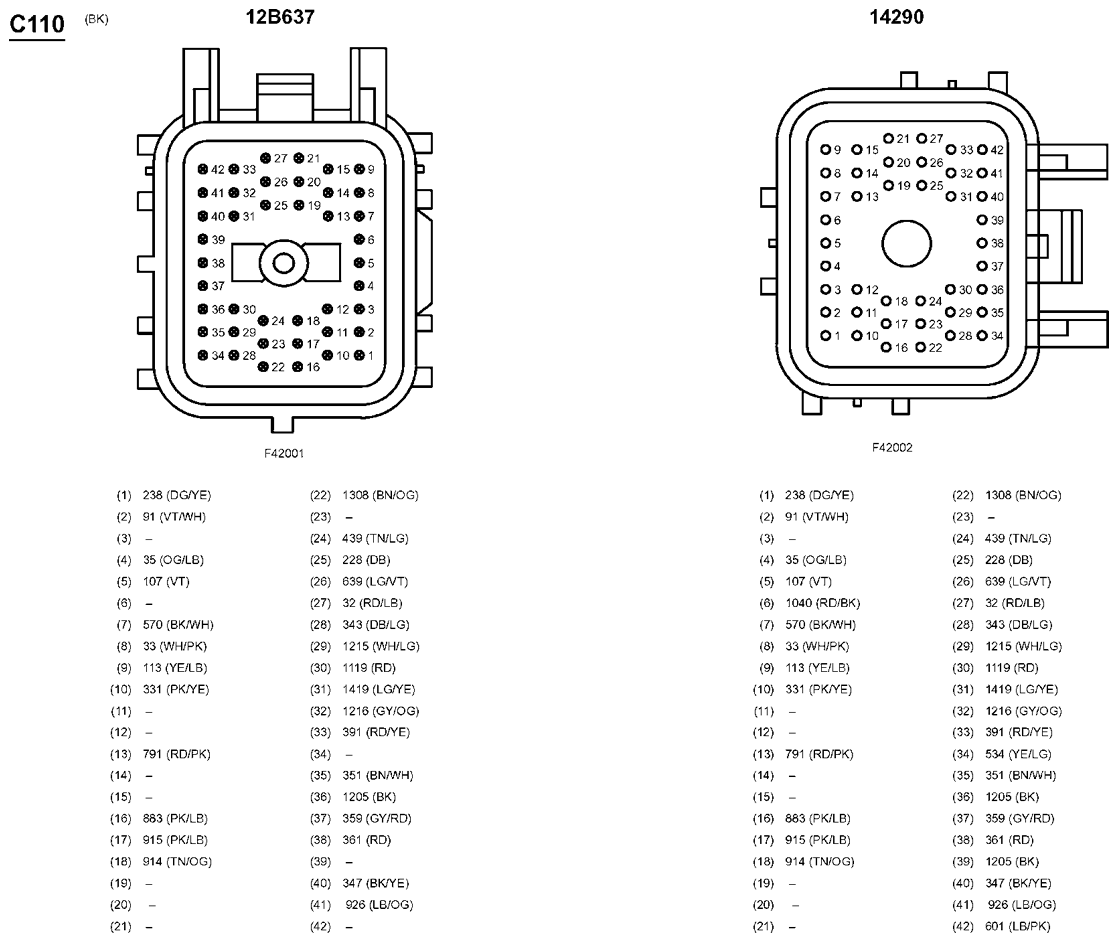

Fig 6: Inline Connector End View (C110)
Courtesy of FORD MOTOR CO.

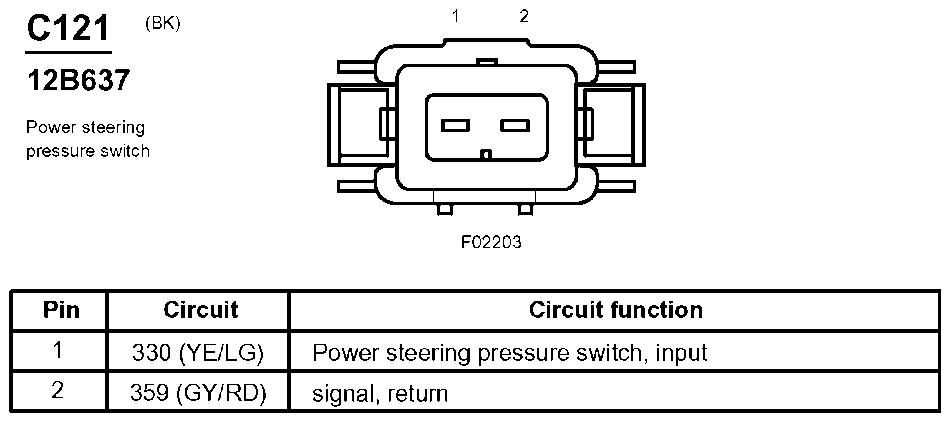

Fig 7: Power Steering Pressure Switch Connector End View (C121)
Courtesy of FORD MOTOR CO.

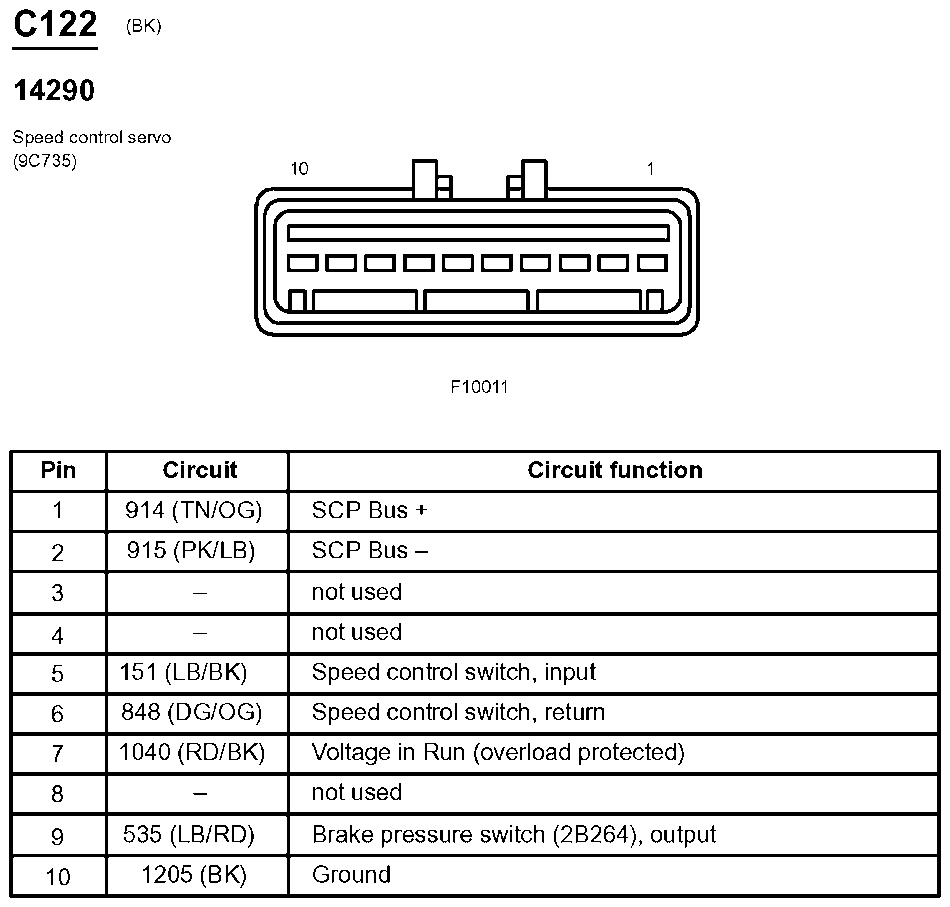

Fig 8: Speed Control Servo Connector End View (C122)
Courtesy of FORD MOTOR CO.

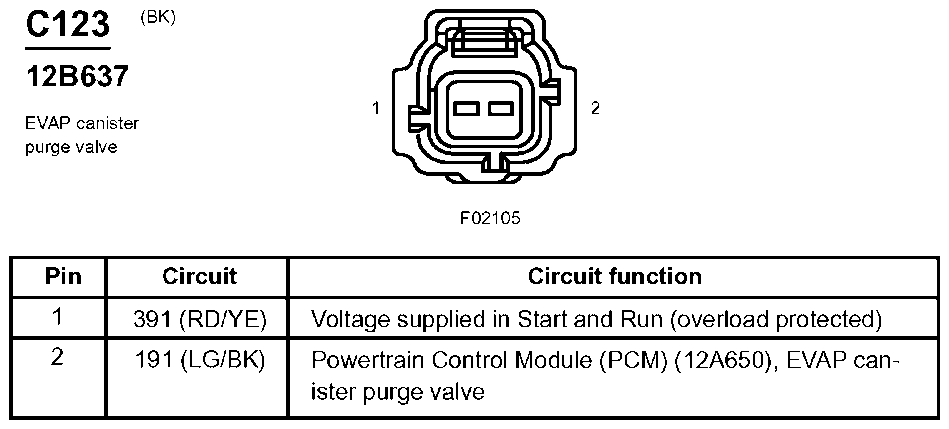

Fig 9: EVAP Canister Purge Valve Connector End View (C123)
Courtesy of FORD MOTOR CO.

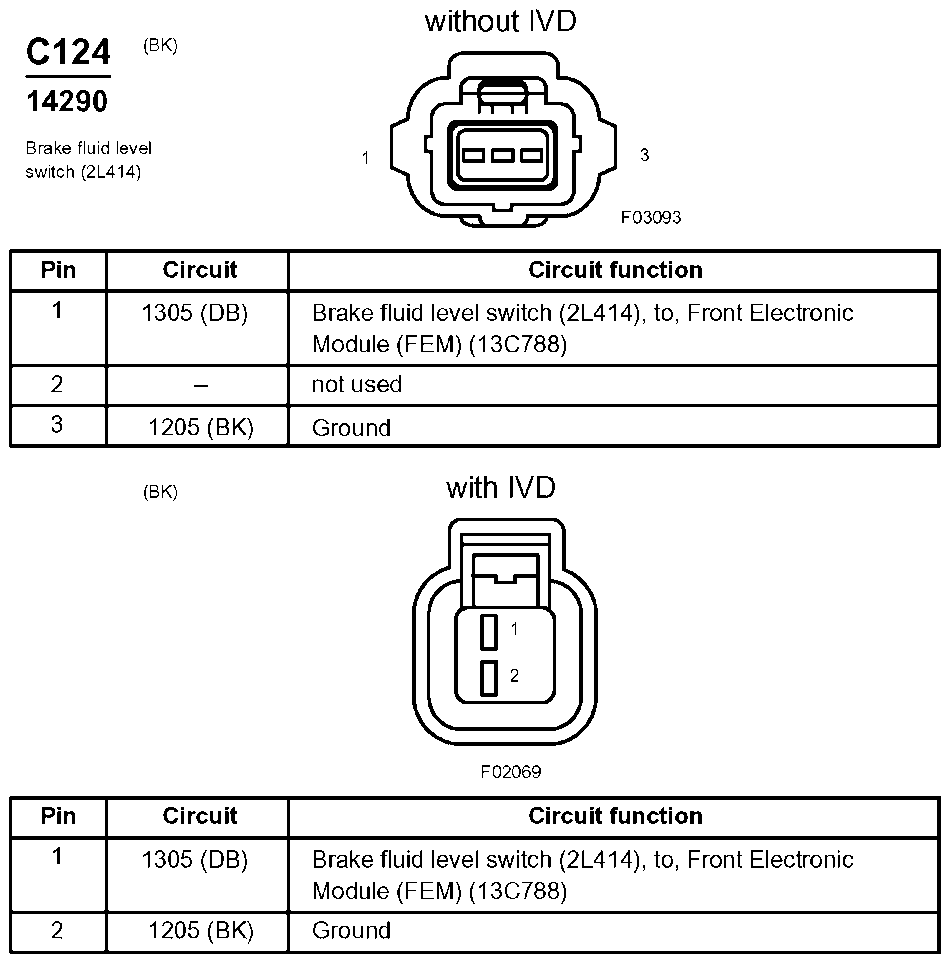

Fig 10: Brake Fluid Level Switch Connector End View (C124)
Courtesy of FORD MOTOR CO.

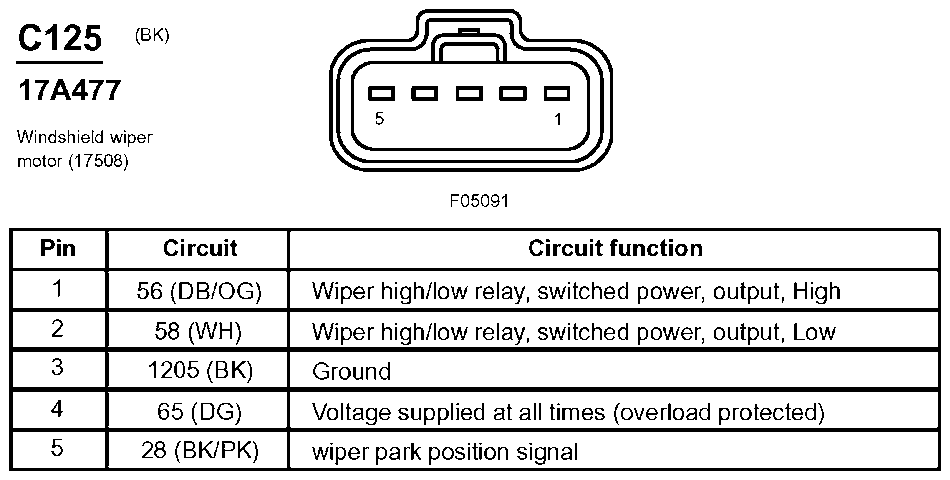

Fig 11: Windshield Wiper Motor Connector End View (C125)
Courtesy of FORD MOTOR CO.

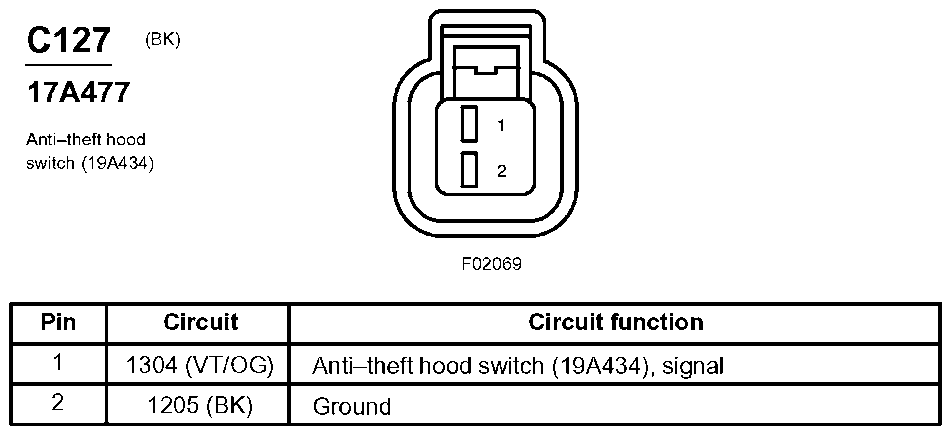

Fig 12: Anti-Theft Hood Switch Connector End View (C127)
Courtesy of FORD MOTOR CO.

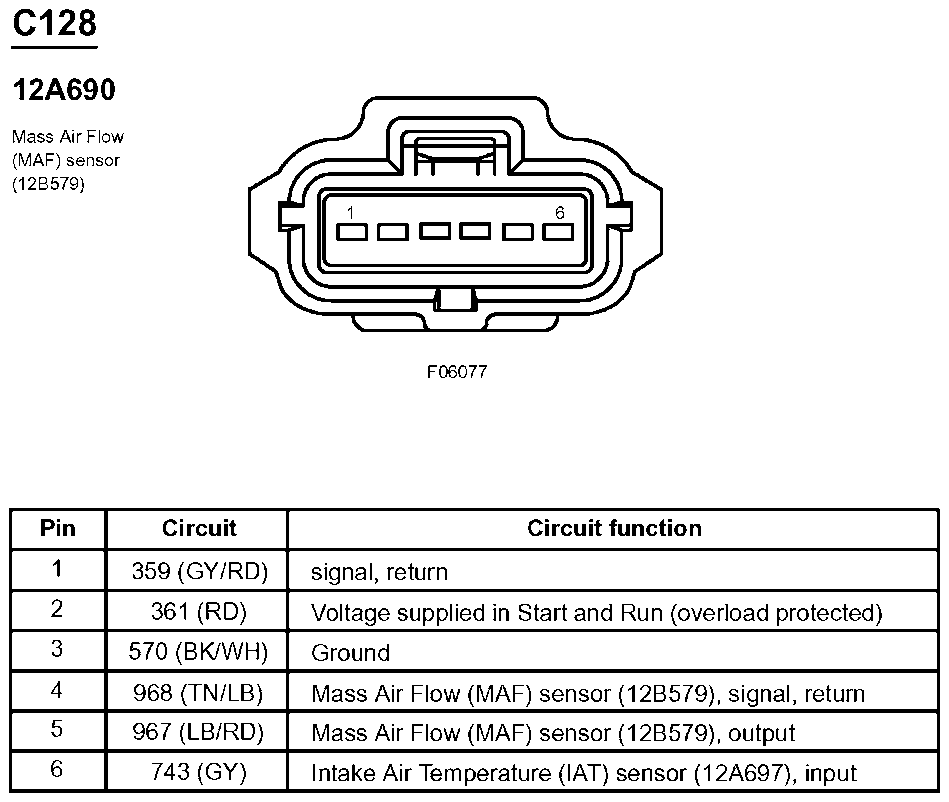

Fig 13: Mass Air Flow (MAF) Sensor Connector End View (C128)
Courtesy of FORD MOTOR CO.

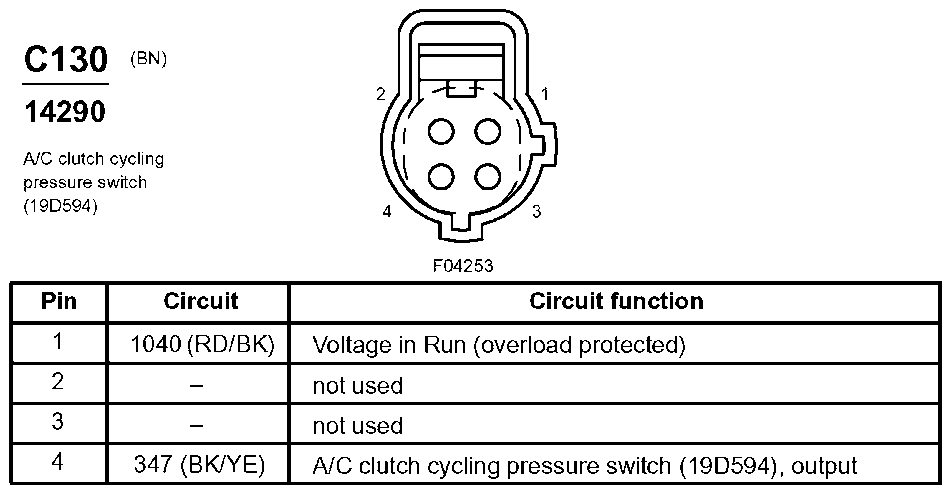

Fig 14: A/C Clutch Cycling Pressure Switch Connector End View (C130)
Courtesy of FORD MOTOR CO.

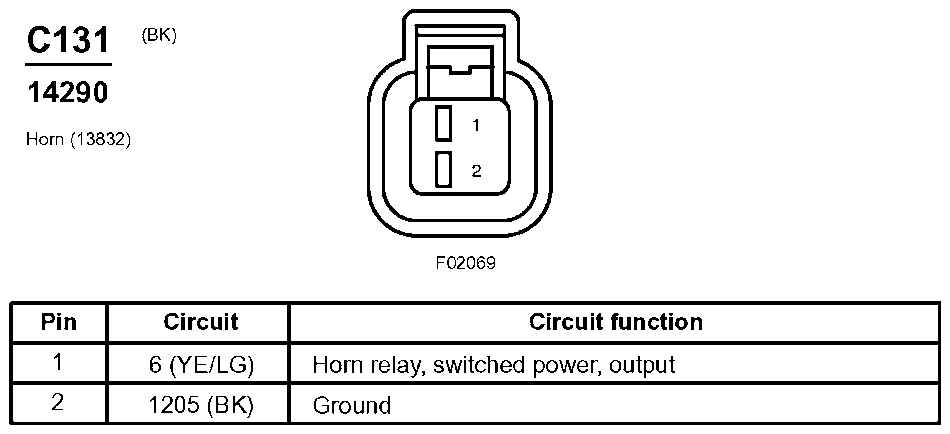

Fig 15: Horn Connector End View (C131)
Courtesy of FORD MOTOR CO.

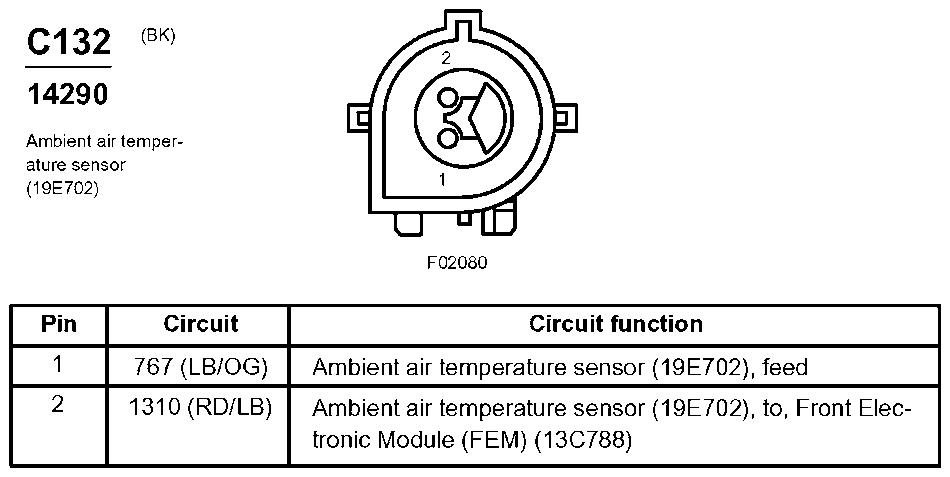

Fig 16: Ambient Air Temperature Sensor Connector End View (C132)
Courtesy of FORD MOTOR CO.

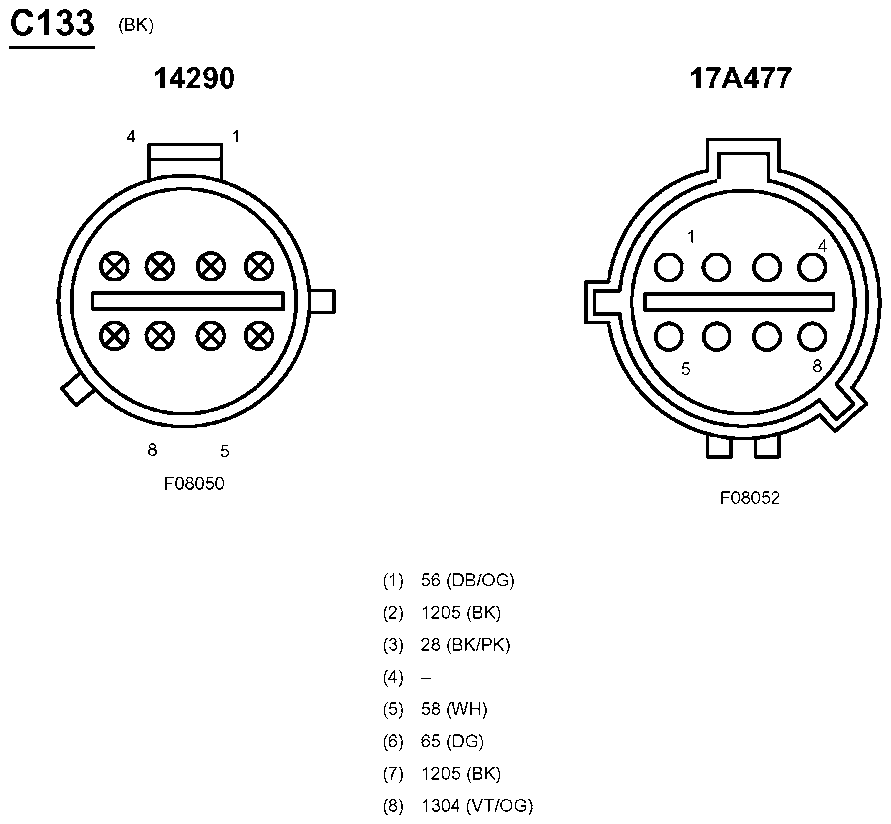

Fig 17: Inline Connector End View (C133)
Courtesy of FORD MOTOR CO.

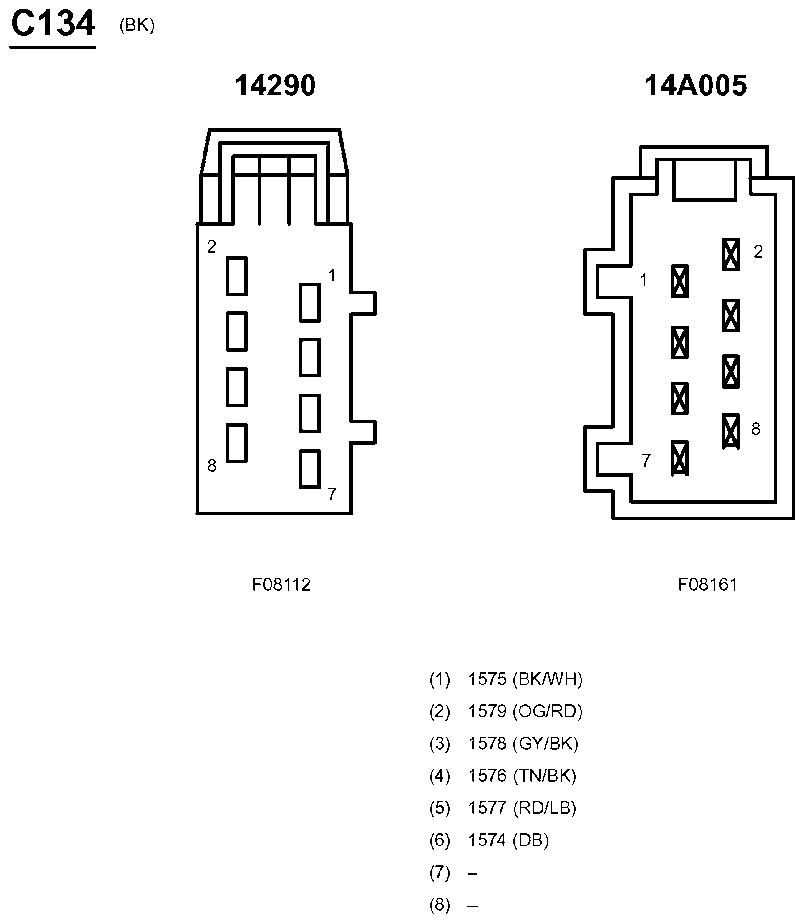

Fig 18: Inline Connector End View (C134)
Courtesy of FORD MOTOR CO.

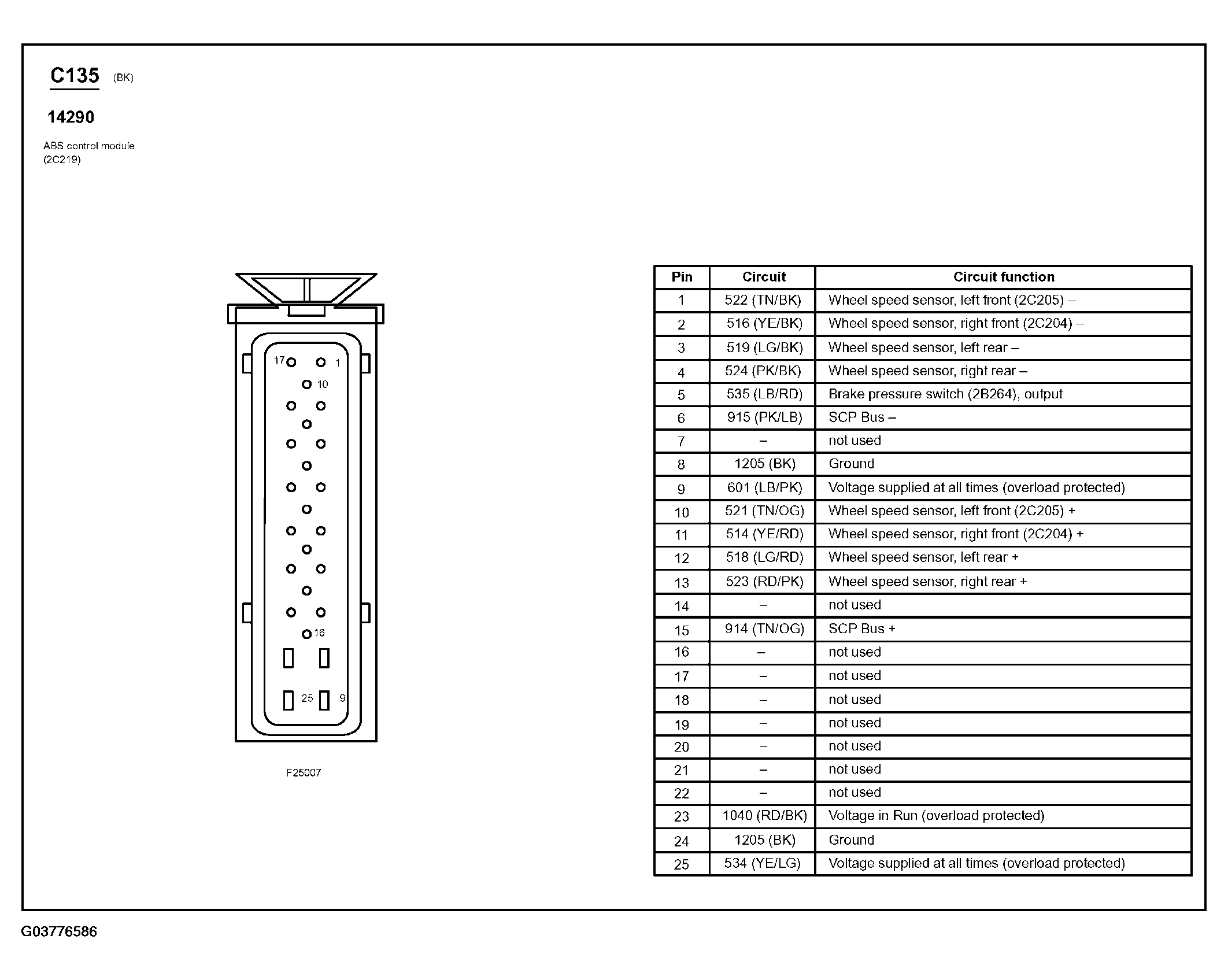

Fig 19: ABS Control Module Connector End View (C135)
Courtesy of FORD MOTOR CO.

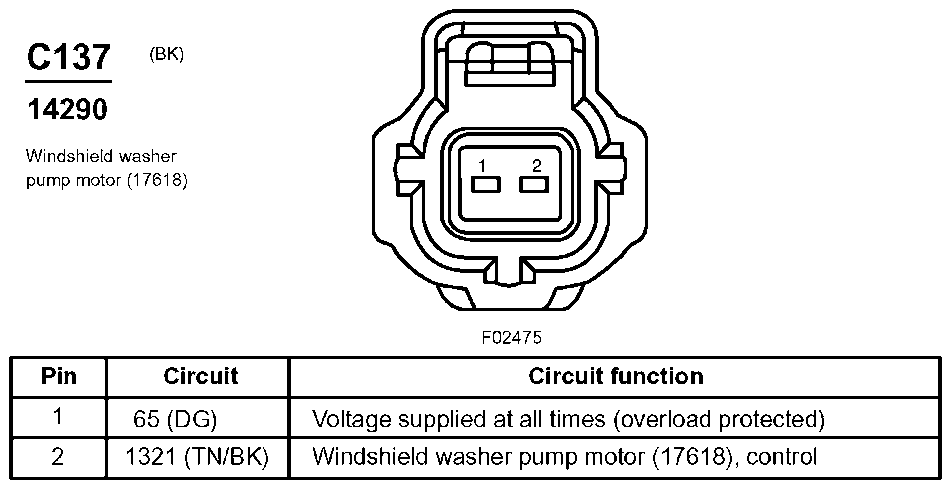

Fig 20: Windshield Washer Pump Motor Connector End View (C137)
Courtesy of FORD MOTOR CO.

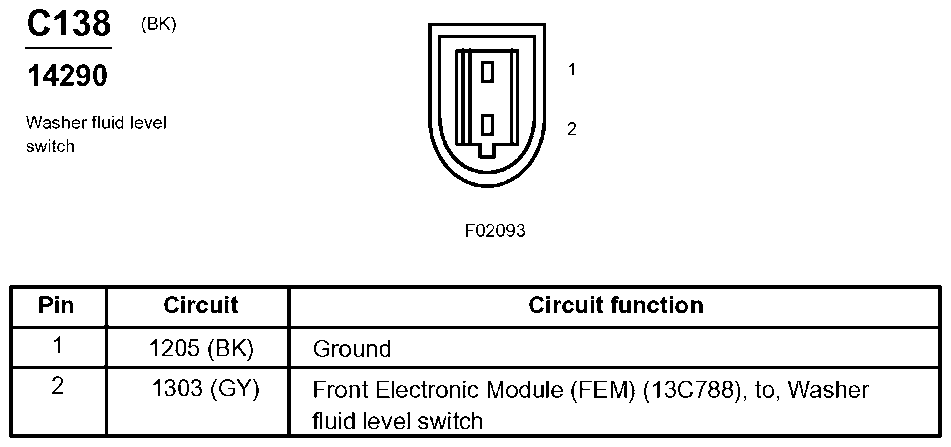

Fig 21: Washer Fluid Level Switch Connector End View (C138)
Courtesy of FORD MOTOR CO.

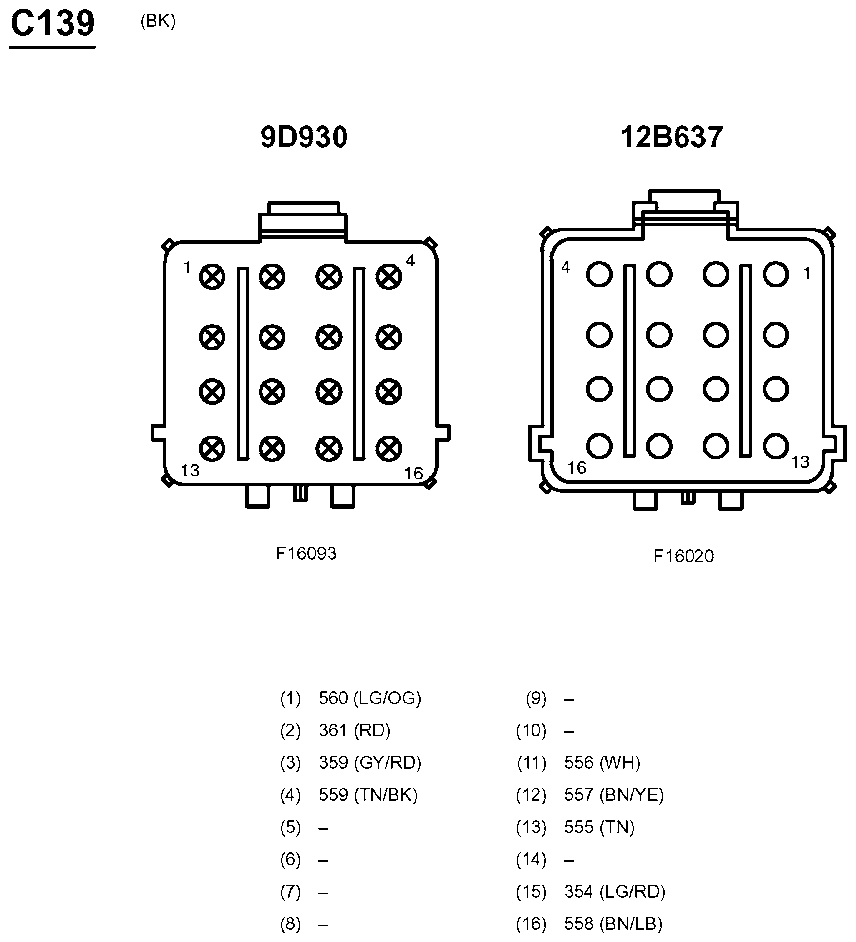

Fig 22: Inline Connector End View (C139)
Courtesy of FORD MOTOR CO.
Fig 23: Inline Connector End View (C140)
Courtesy of FORD MOTOR CO.

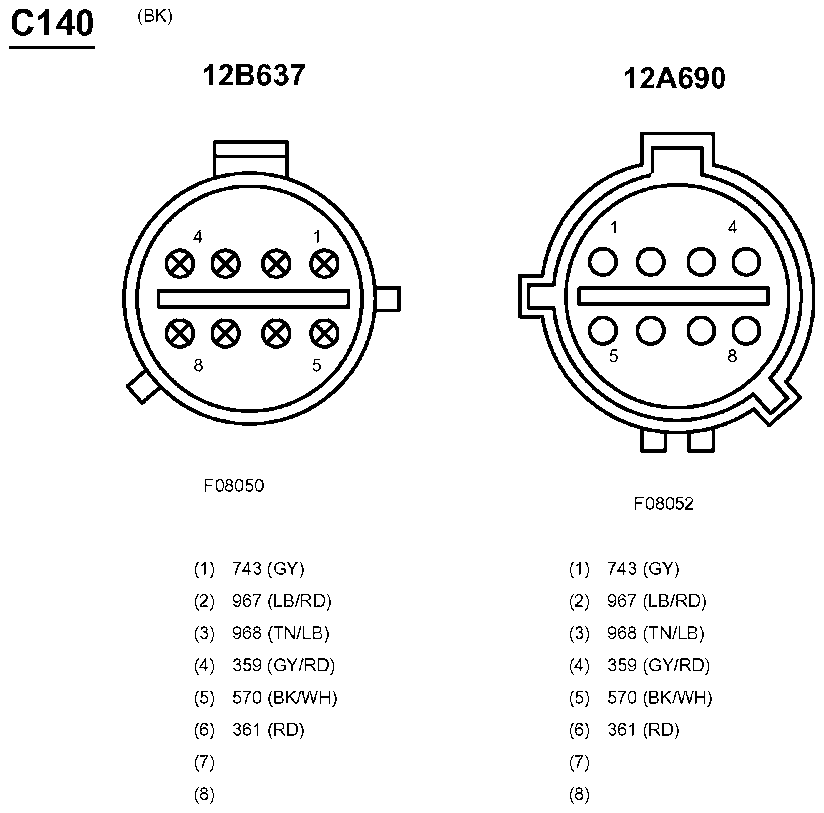

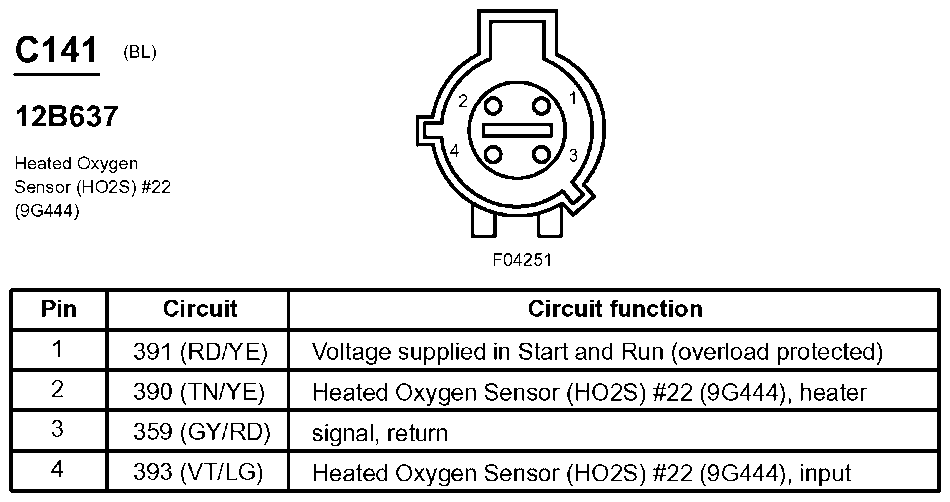

Fig 24: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)
Courtesy of FORD MOTOR CO.

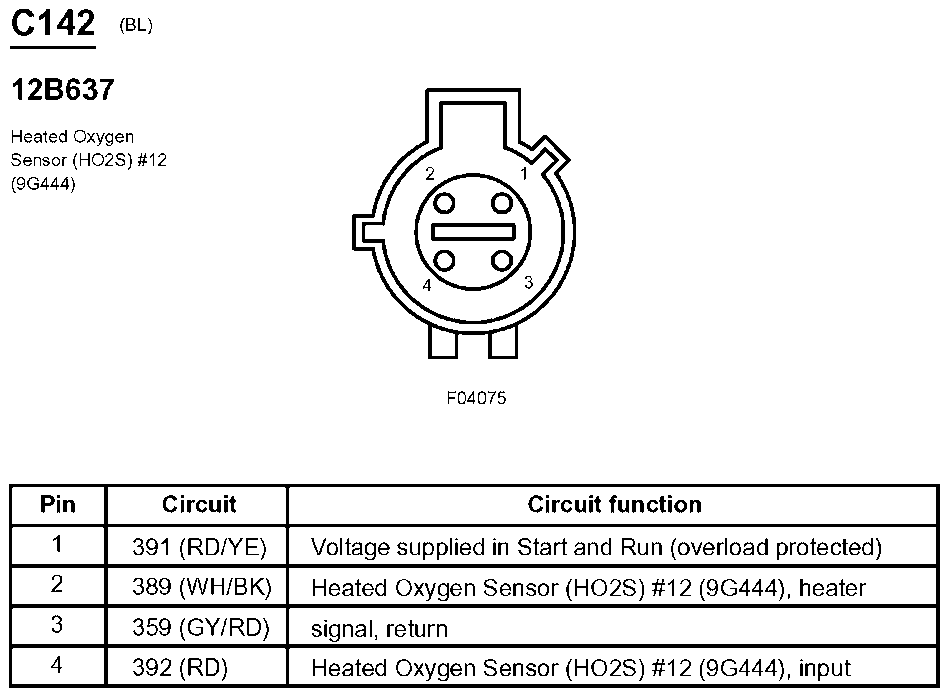

Fig 25: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)
Courtesy of FORD MOTOR CO.

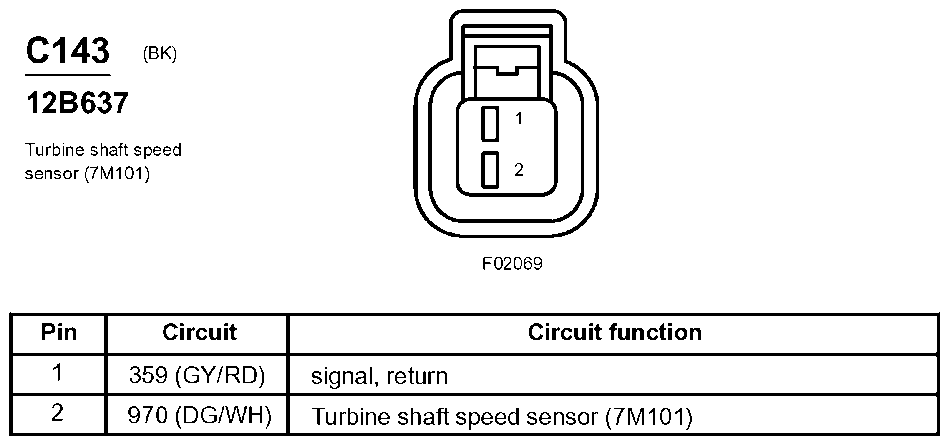

Fig 26: Turbine Shaft Speed Sensor Connector End View (C143)
Courtesy of FORD MOTOR CO.

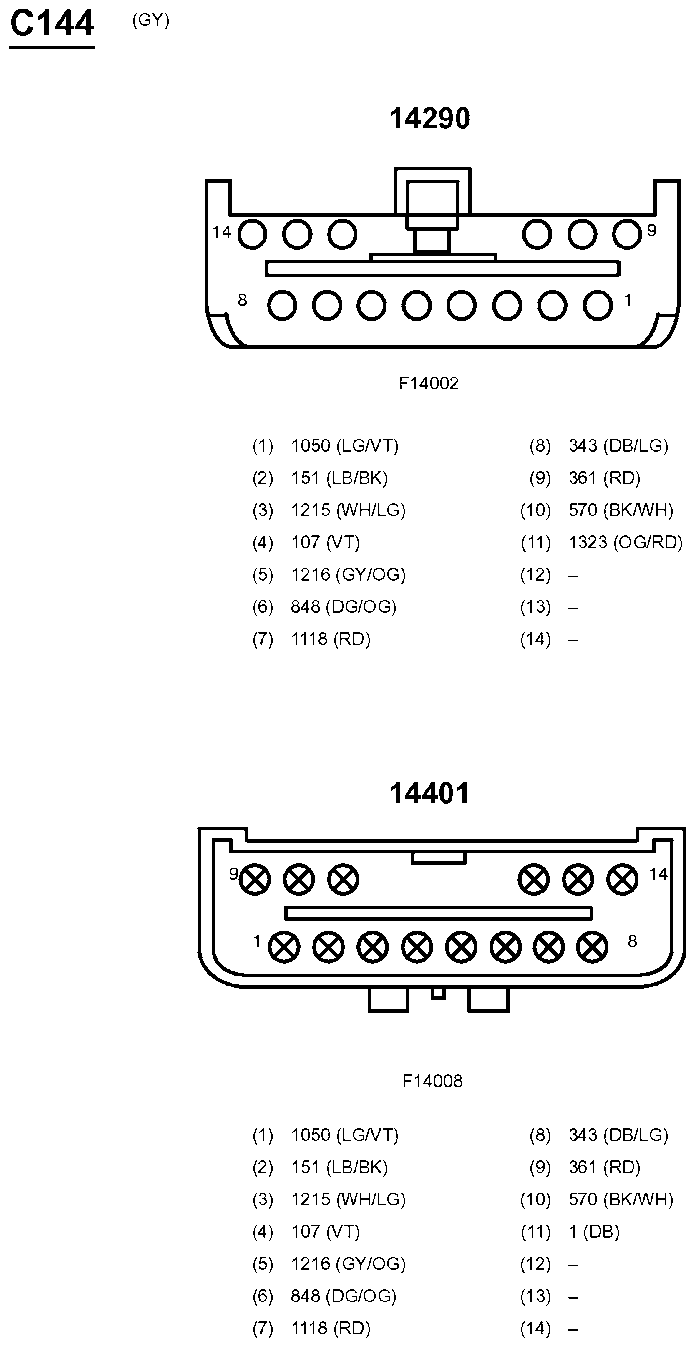

Fig 27: Inline Connector End View (C144)
Courtesy of FORD MOTOR CO.

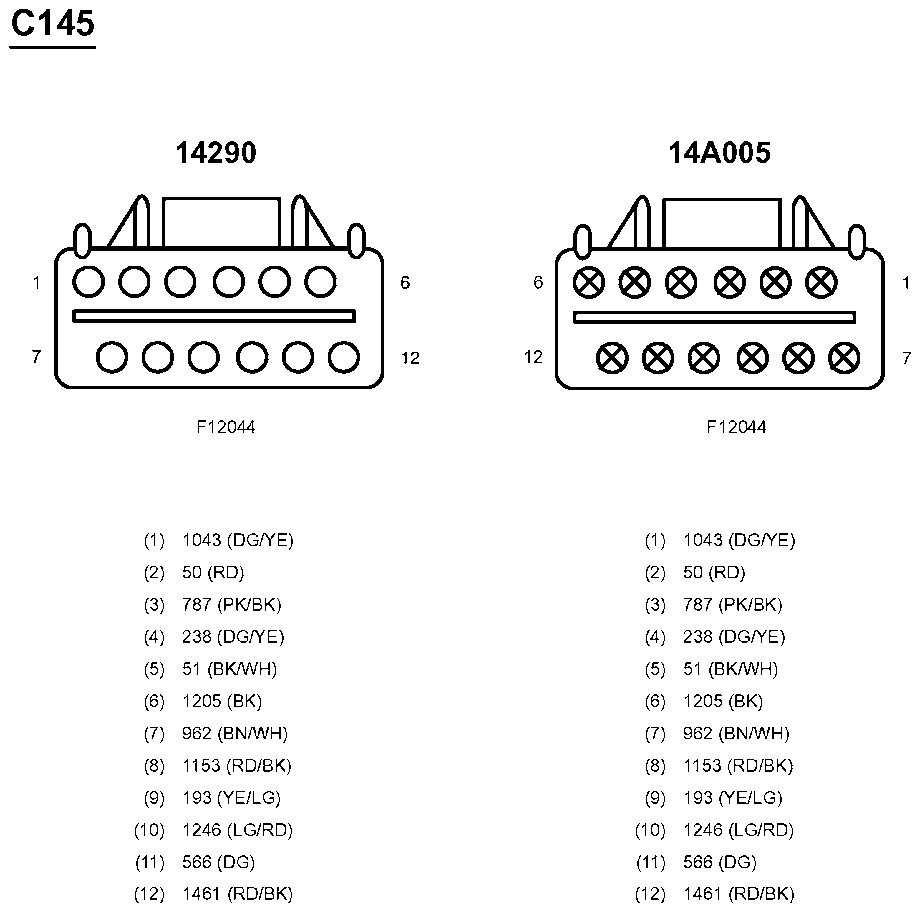

Fig 28: Inline Connector End View (C145)
Courtesy of FORD MOTOR CO.

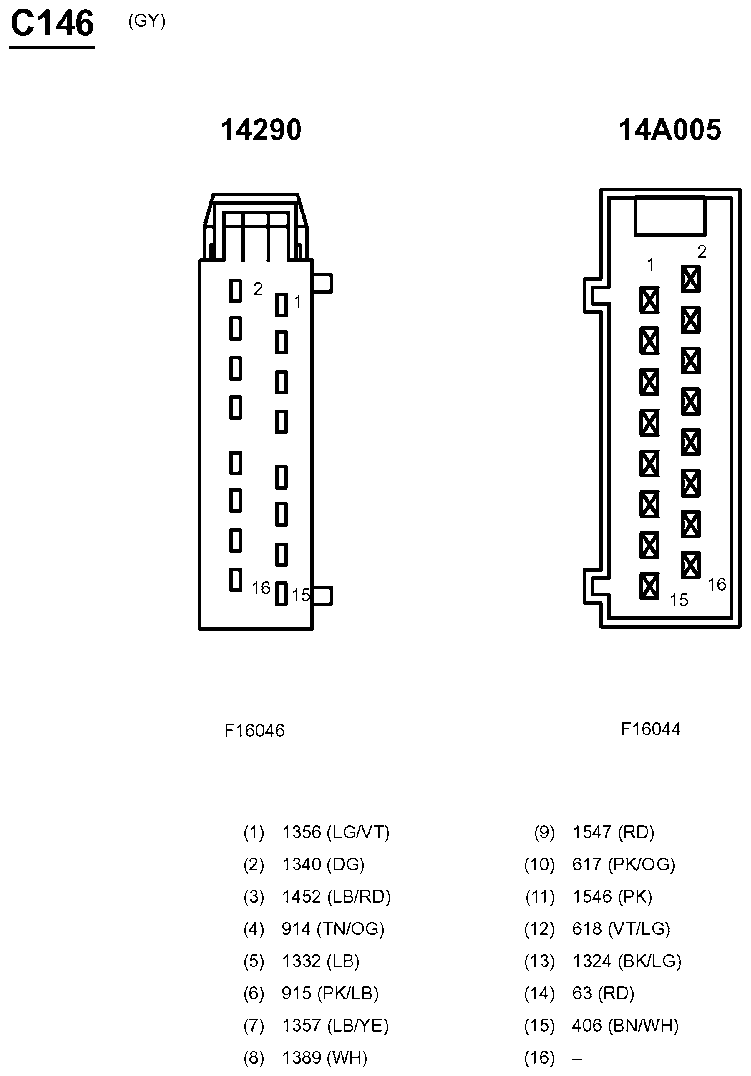

Fig 29: Inline Connector End View (C146)
Courtesy of FORD MOTOR CO.

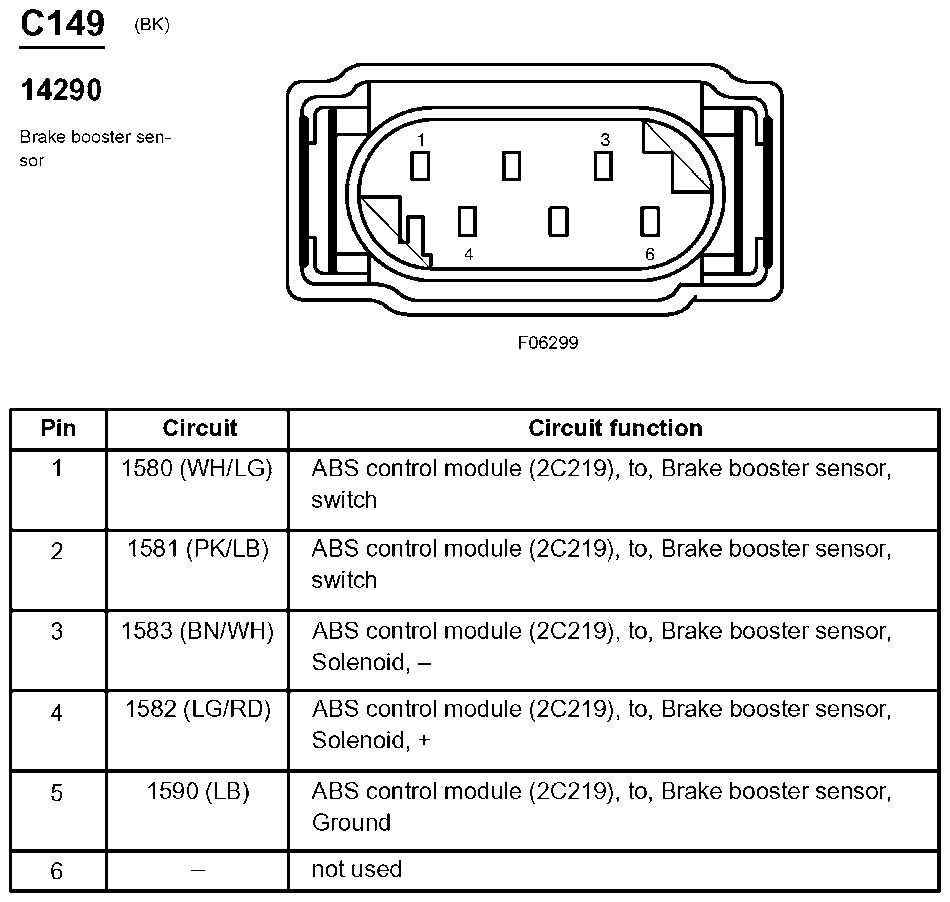

Fig 30: Brake Booster Sensor Connector End View (C149)
Courtesy of FORD MOTOR CO.

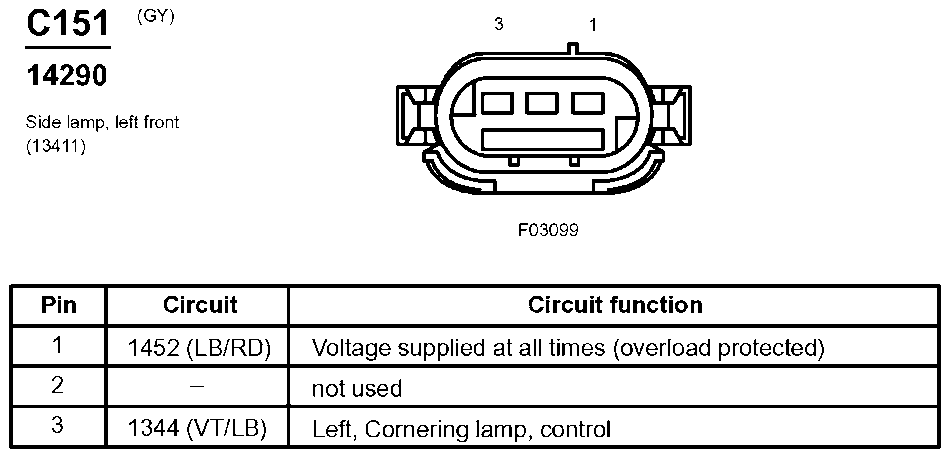

Fig 31: Side Lamp, Left Front Connector End View (C151)
Courtesy of FORD MOTOR CO.

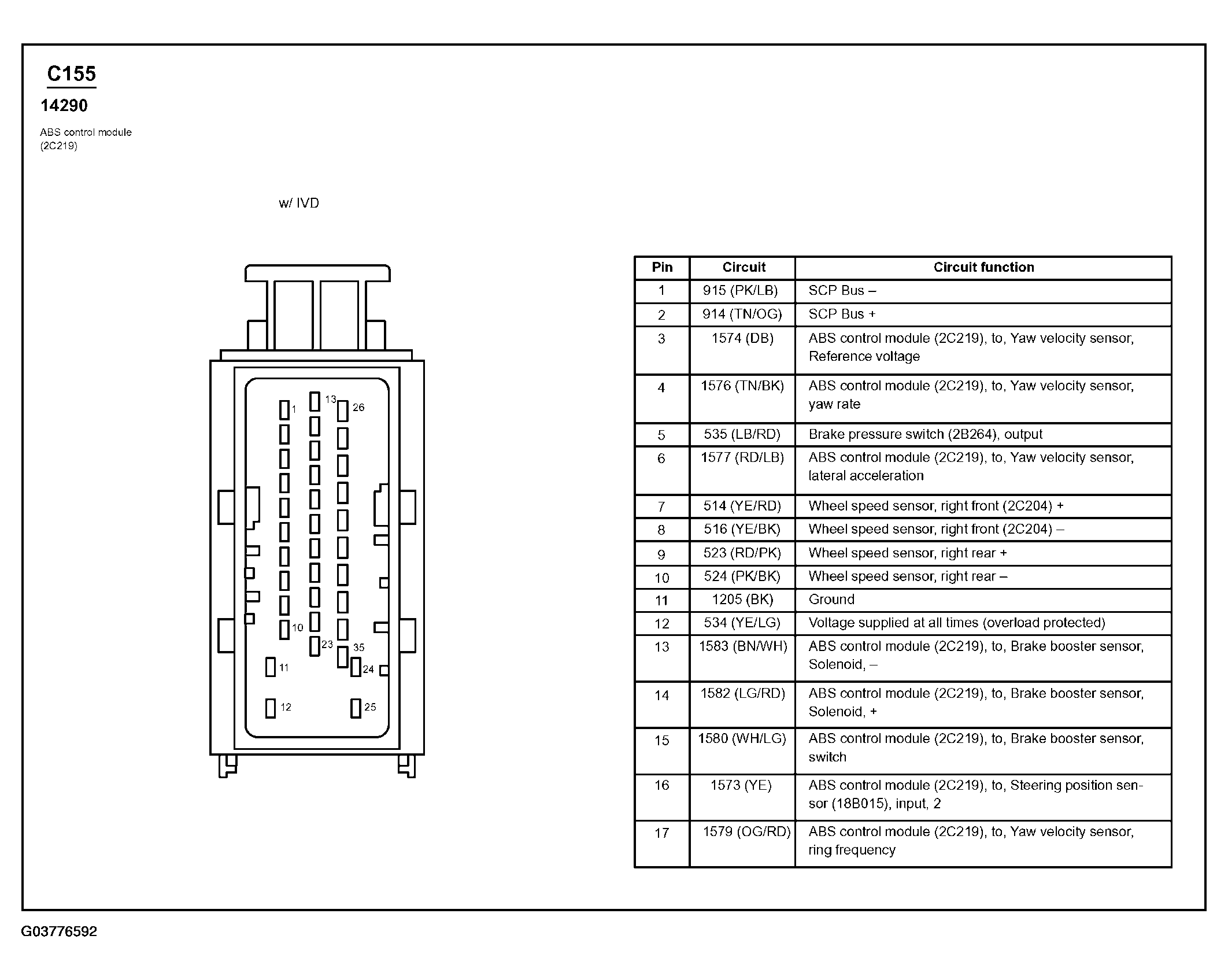

Fig 32: ABS Control Module Connector End View (C155) (1 Of 2)
Courtesy of FORD MOTOR CO.

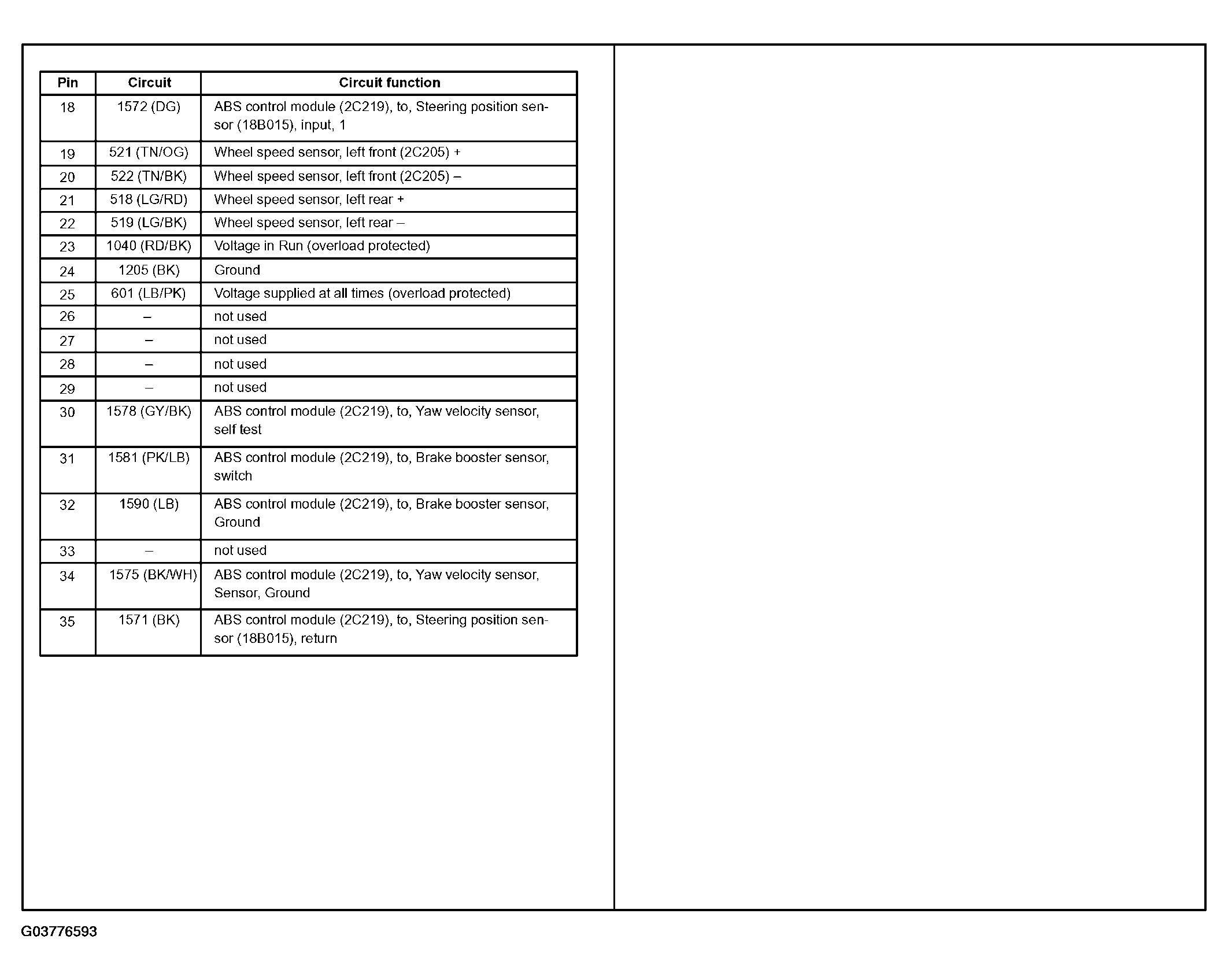

Fig 33: ABS Control Module Connector End View (C155) (2 Of 2)
Courtesy of FORD MOTOR CO.

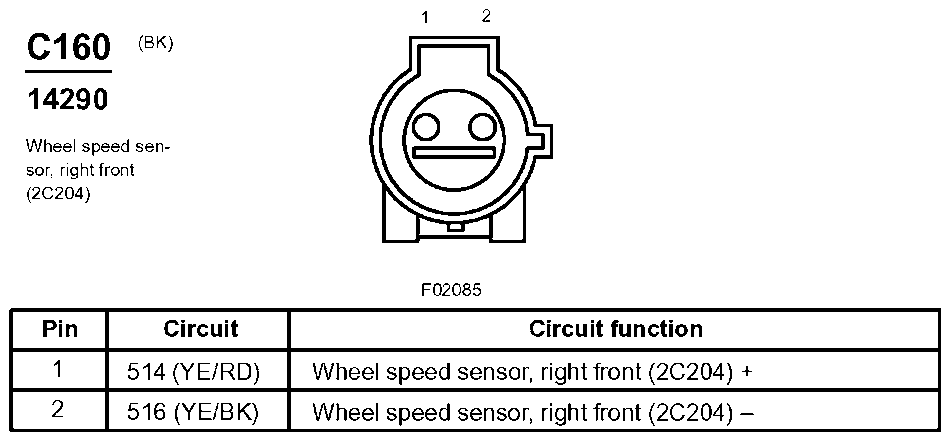

Fig 34: Wheel Speed Sensor, Right Front Connector End View (C160)
Courtesy of FORD MOTOR CO.

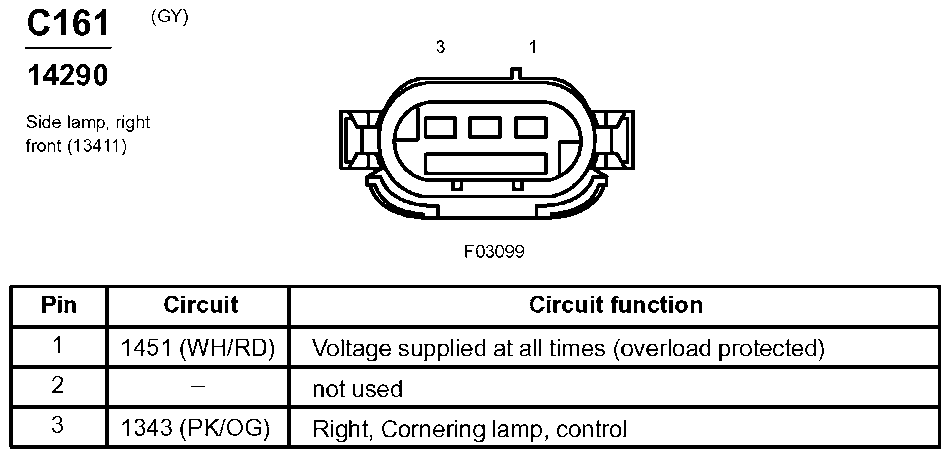

Fig 35: Side Lamp, Right Front Connector End View (C161)
Courtesy of FORD MOTOR CO.

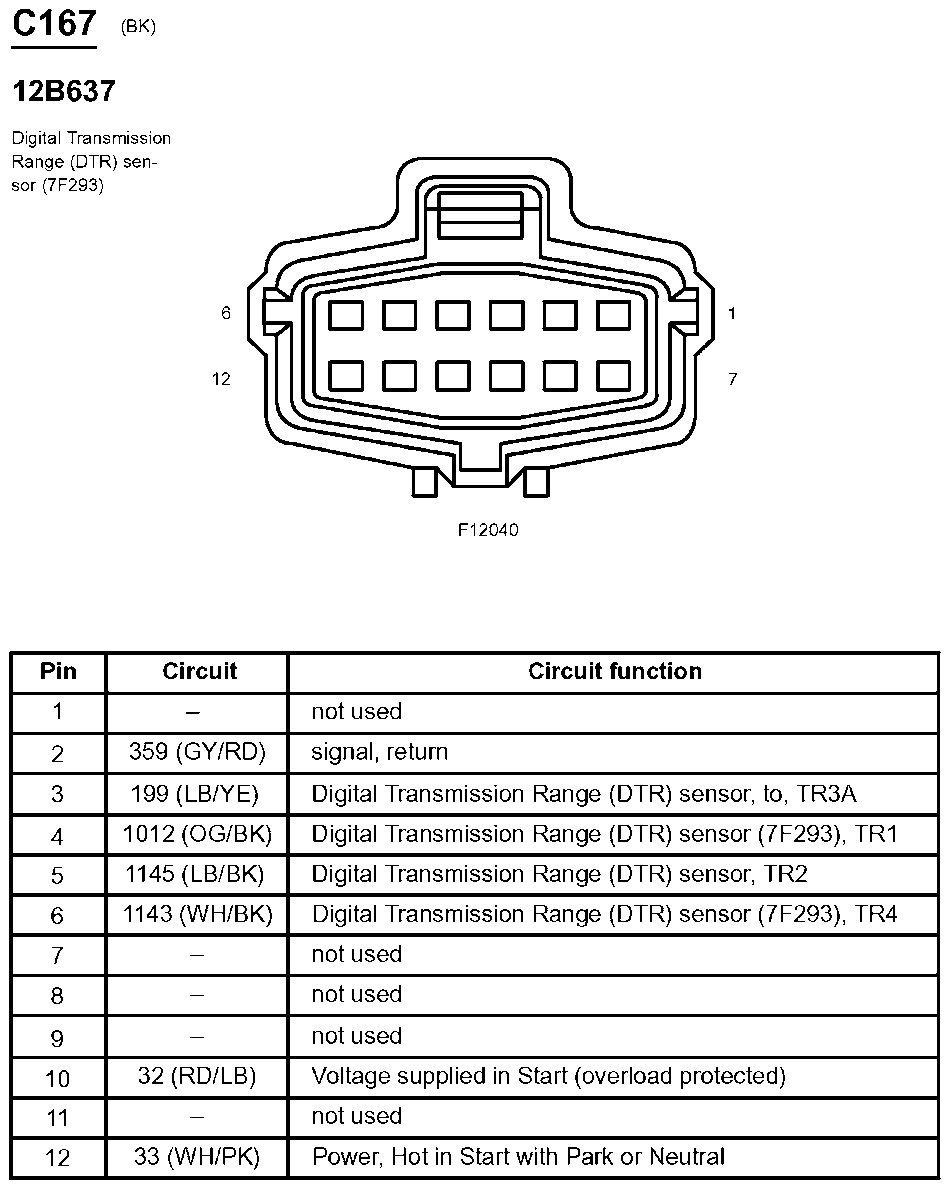

Fig 36: Digital Transmission Range (DTR) Sensor Connector End View (C167)
Courtesy of FORD MOTOR CO.

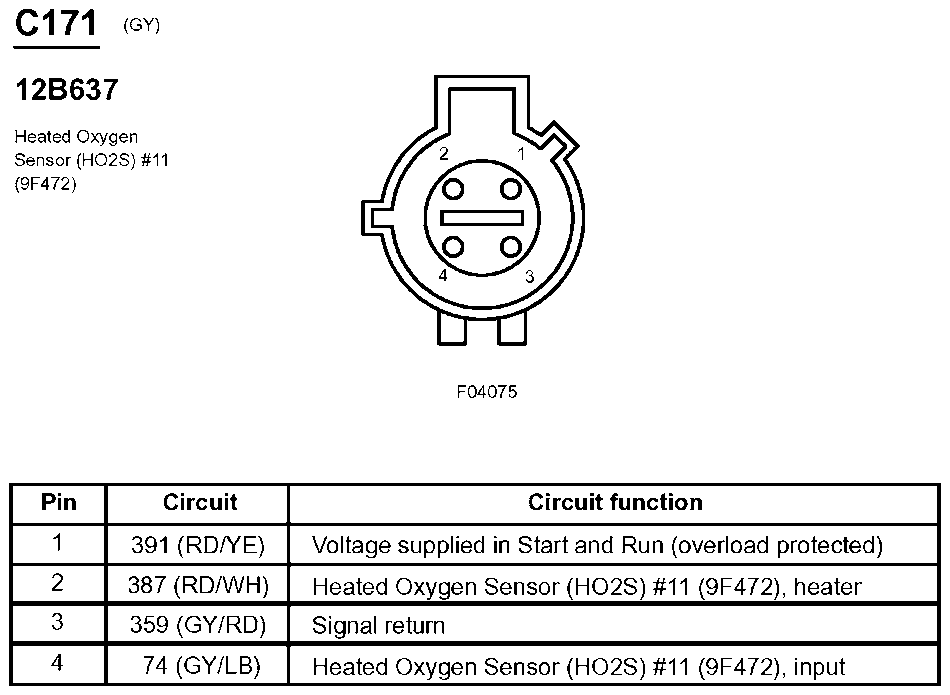

Fig 37: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)
Courtesy of FORD MOTOR CO.

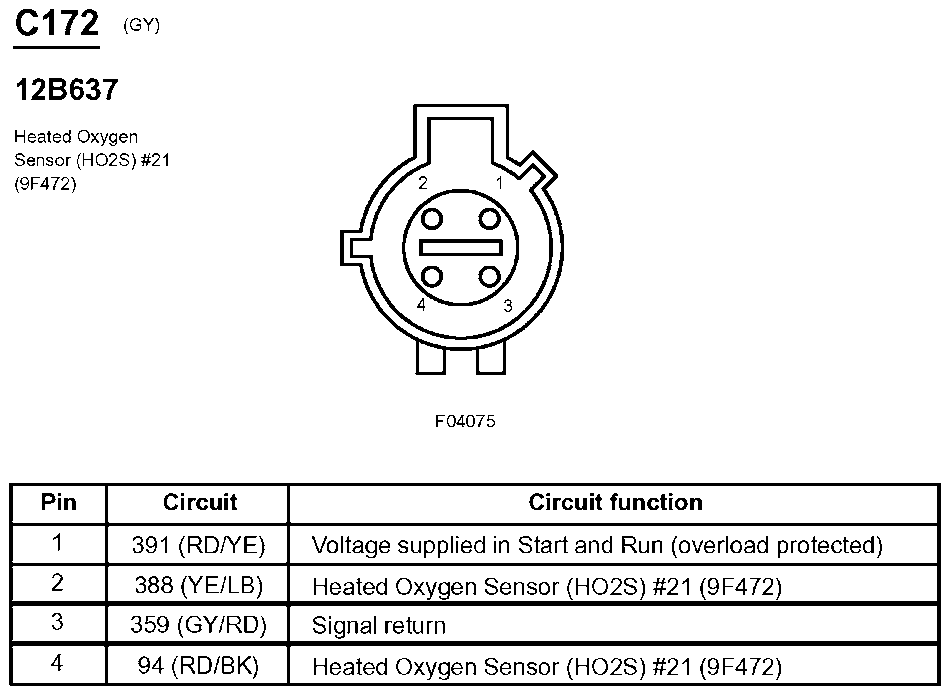

Fig 38: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)
Courtesy of FORD MOTOR CO.

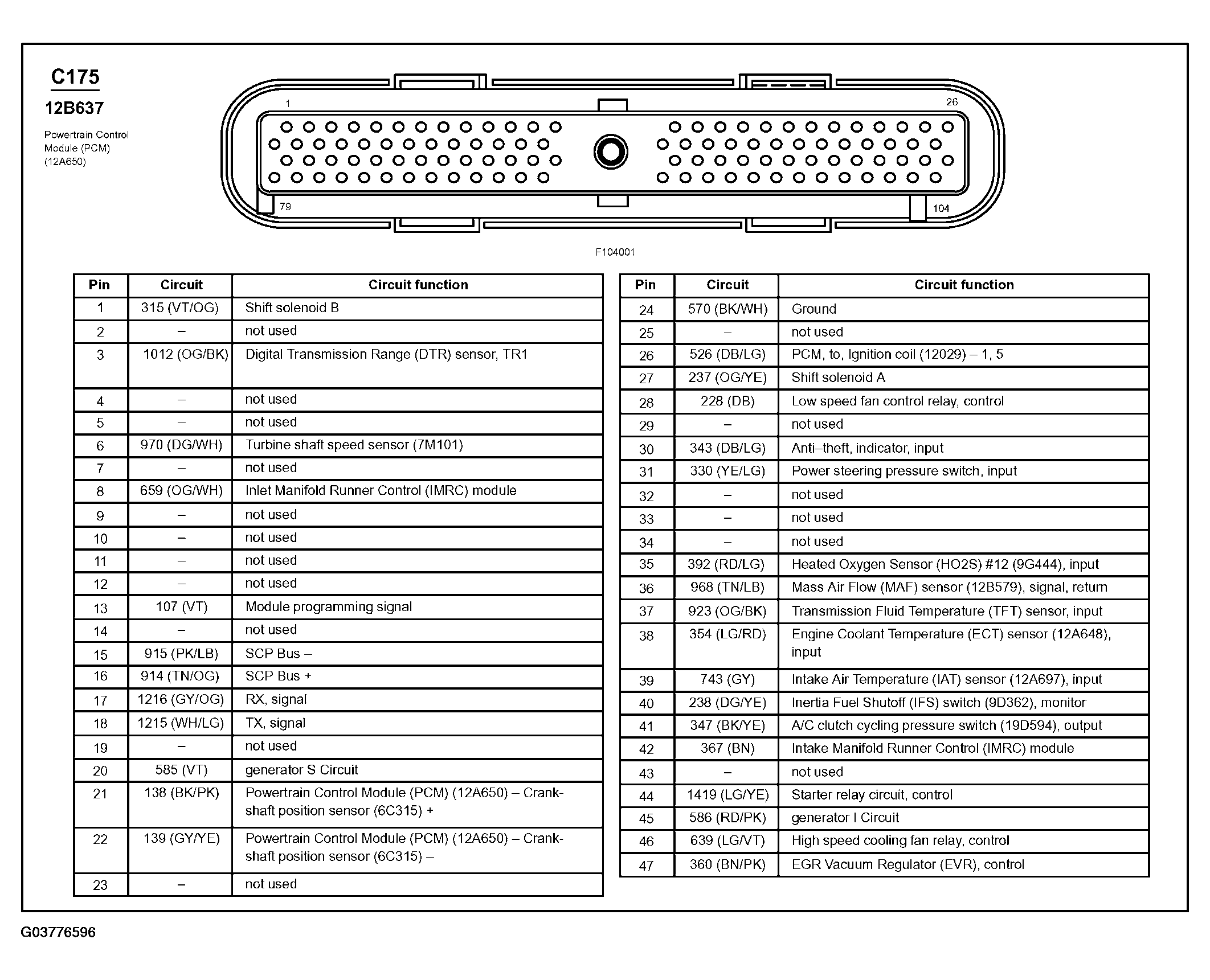

Fig 39: Powertrain Control Module (PCM) Connector End View (C175) (1 Of 2)
Courtesy of FORD MOTOR CO.

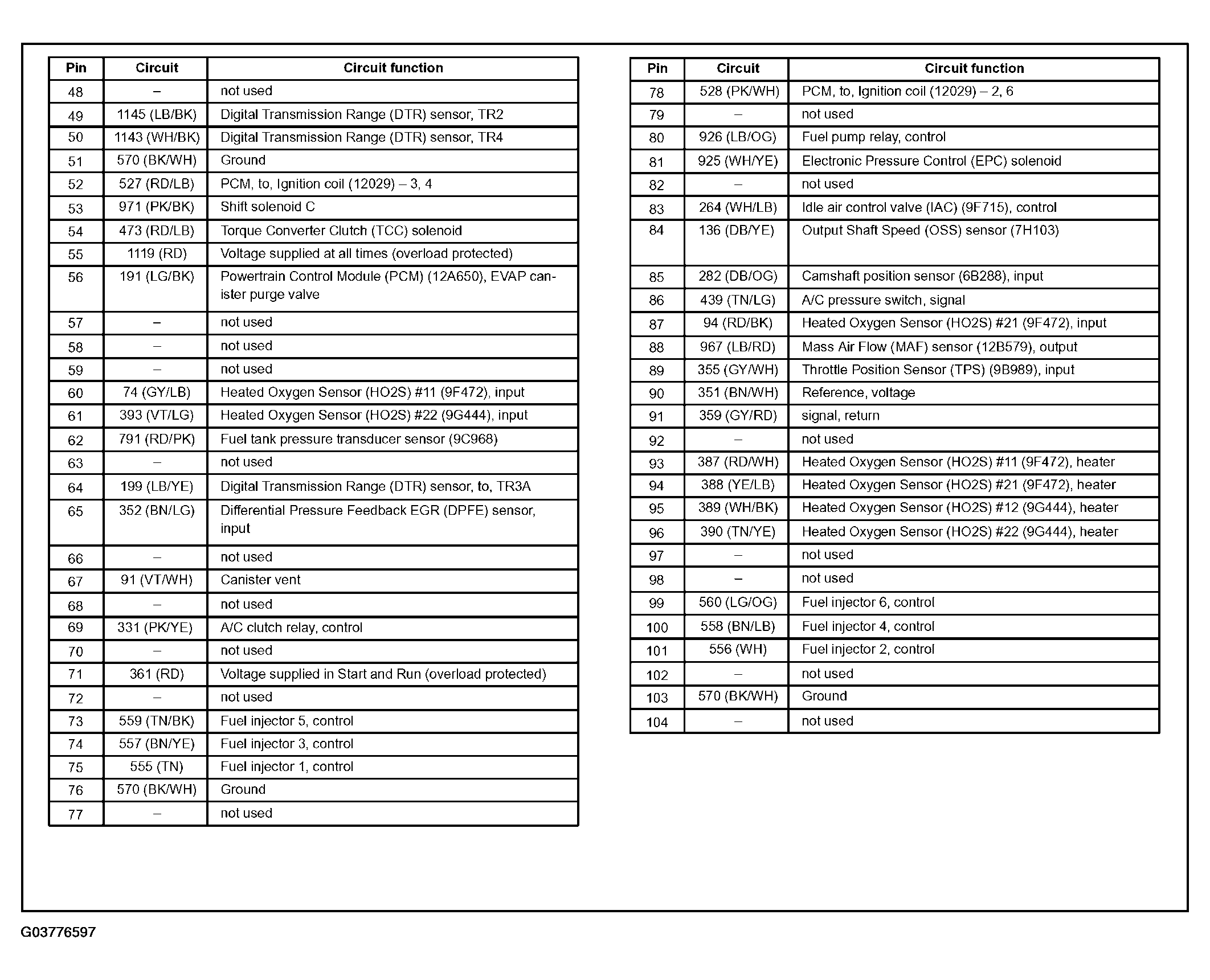

Fig 40: Powertrain Control Module (PCM) Connector End View (C175) (2 Of 2)
Courtesy of FORD MOTOR CO.

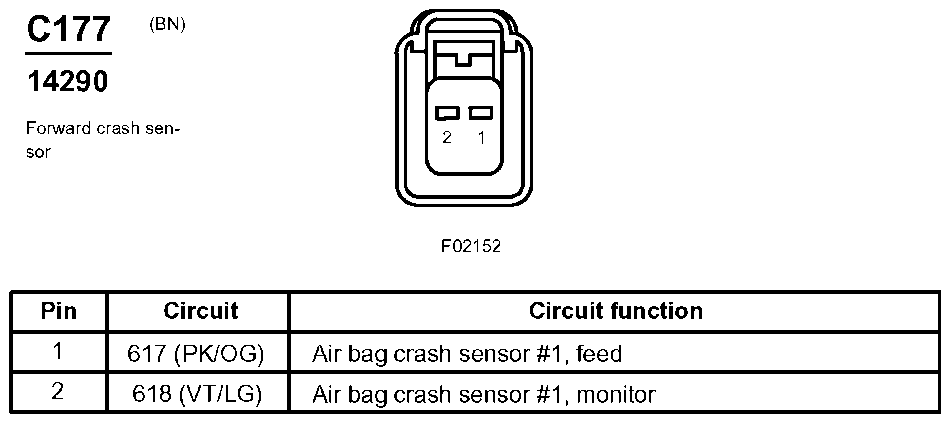

Fig 41: Forward Crash Sensor Connector End View (C177)
Courtesy of FORD MOTOR CO.

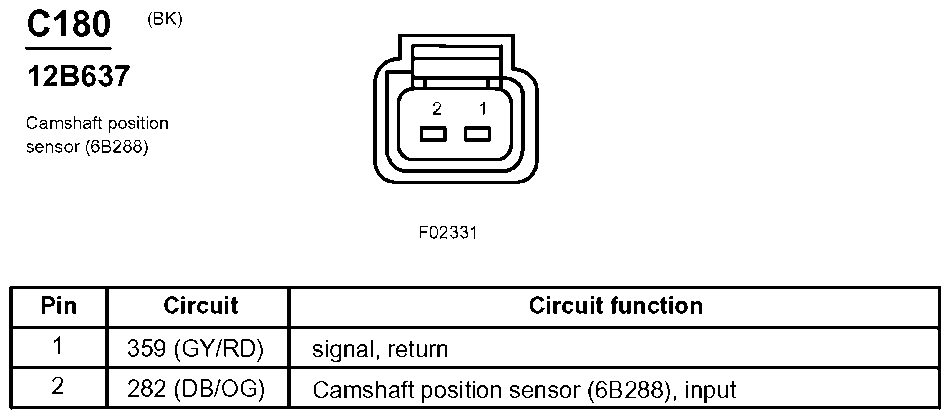

Fig 42: Camshaft Position Sensor Connector End View (C180)
Courtesy of FORD MOTOR CO.

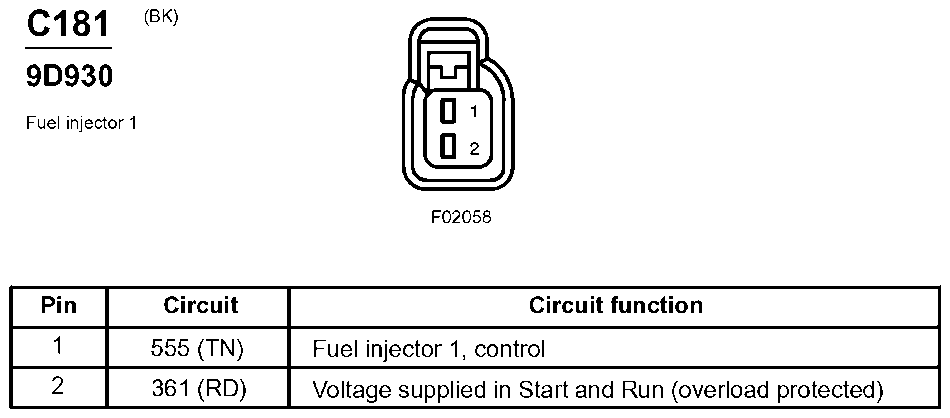

Fig 43: Fuel Injector 1 Connector End View (C181)
Courtesy of FORD MOTOR CO.

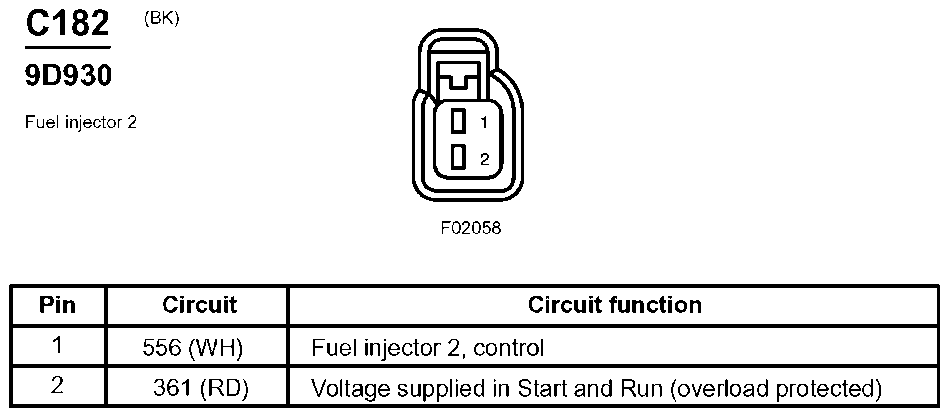

Fig 44: Fuel Injector 2 Connector End View (C182)
Courtesy of FORD MOTOR CO.

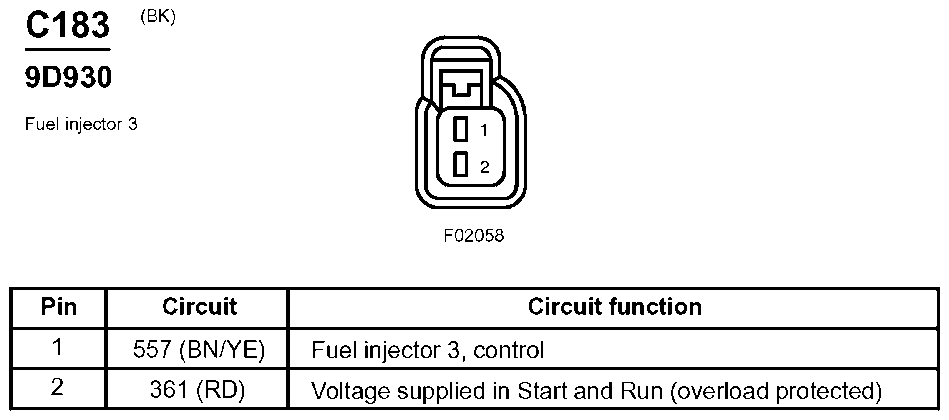

Fig 45: Fuel Injector 3 Connector End View (C183)
Courtesy of FORD MOTOR CO.
Fig 46: Fuel Injector 4 Connector End View (C184)
Courtesy of FORD MOTOR CO.

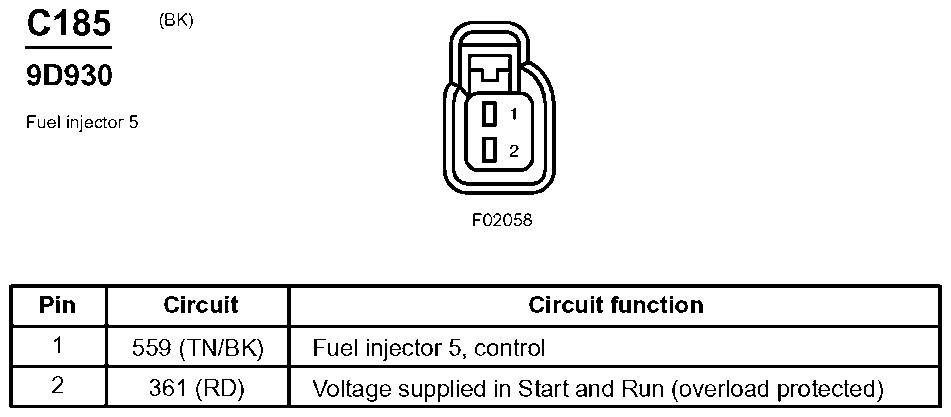

Fig 47: Fuel Injector 5 Connector End View (C185)
Courtesy of FORD MOTOR CO.

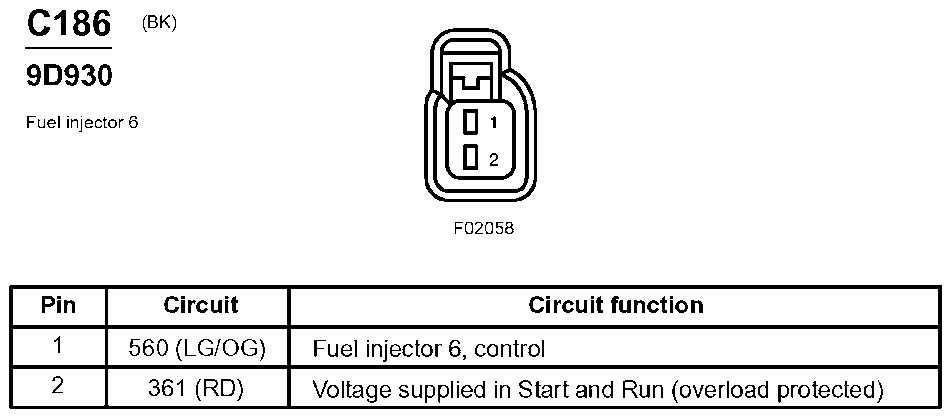

Fig 48: Fuel Injector 6 Connector End View (C186)
Courtesy of FORD MOTOR CO.

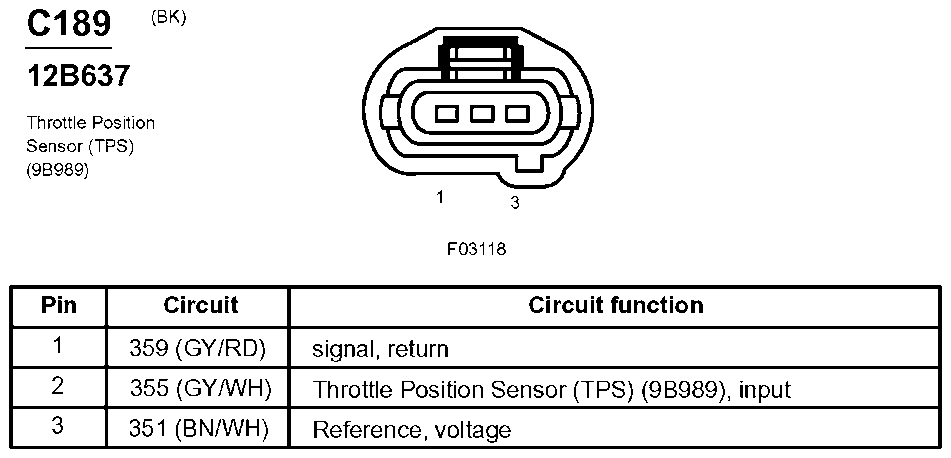

Fig 49: Throttle Position Sensor (TPS) Connector End View (C189)
Courtesy of FORD MOTOR CO.

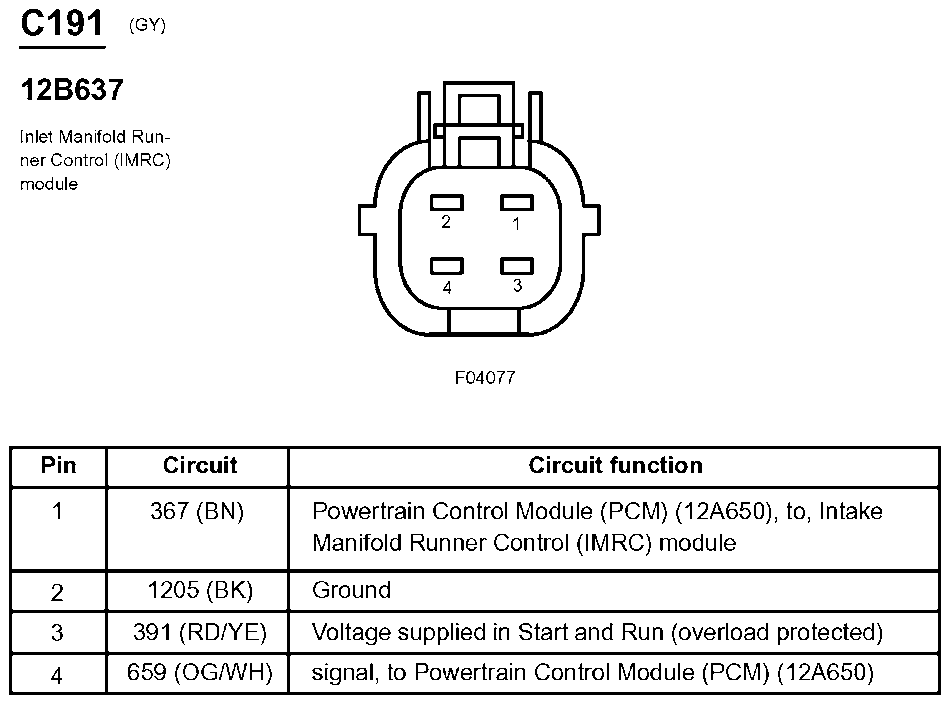

Fig 50: Inlet Manifold Runner Control (IMRC) Module Connector End View (C191)
Courtesy of FORD MOTOR CO.

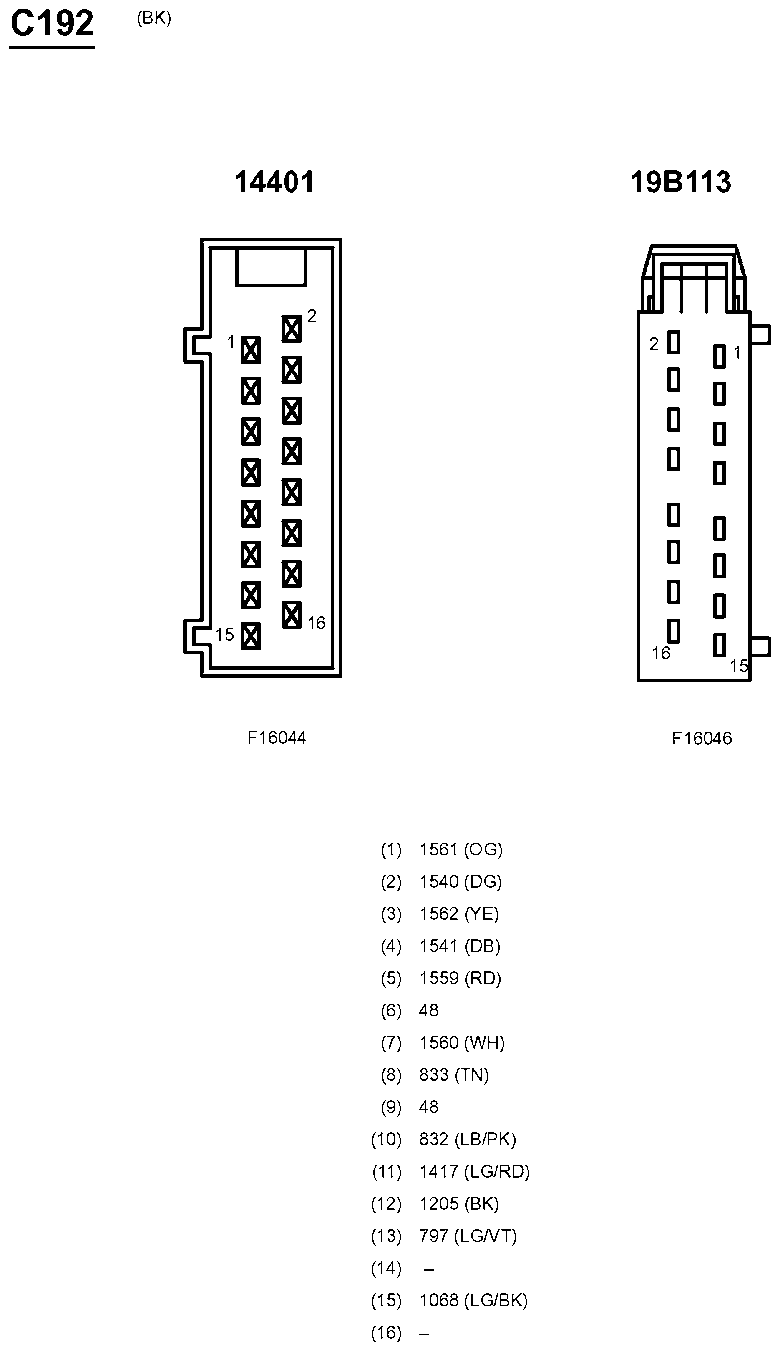

Fig 51: Inline Connector End View (C192)
Courtesy of FORD MOTOR CO.

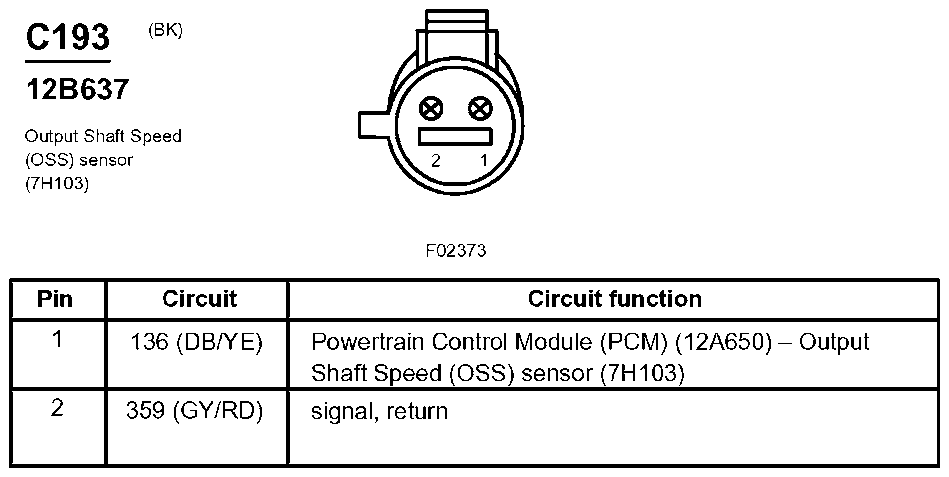

Fig 52: Output Shaft Speed (OSS) Sensor Connector End View (C193)
Courtesy of FORD MOTOR CO.

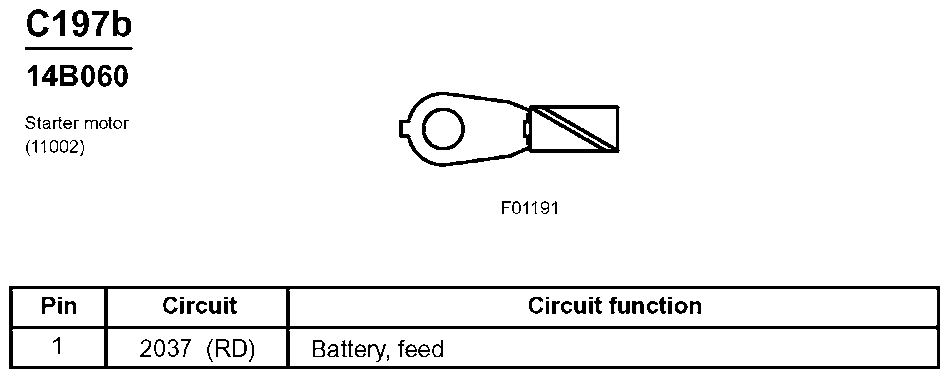

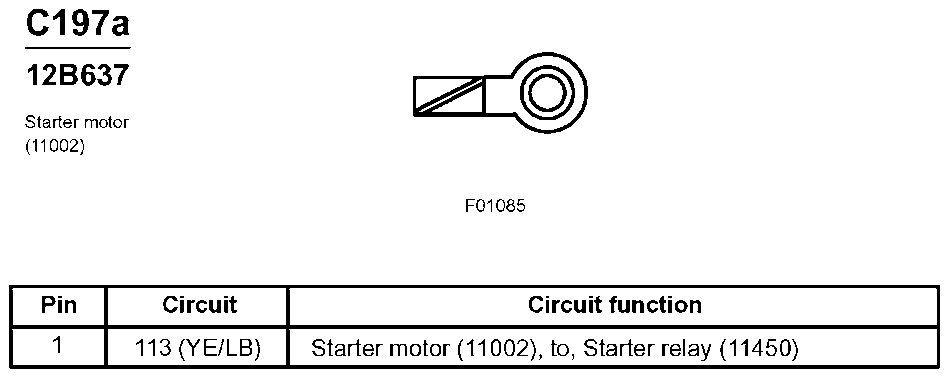

Fig 53: Starter Motor Connector End View (C197a)
Courtesy of FORD MOTOR CO.
Fig 54: Starter Motor Connector End View (C197b)
Courtesy of FORD MOTOR CO.

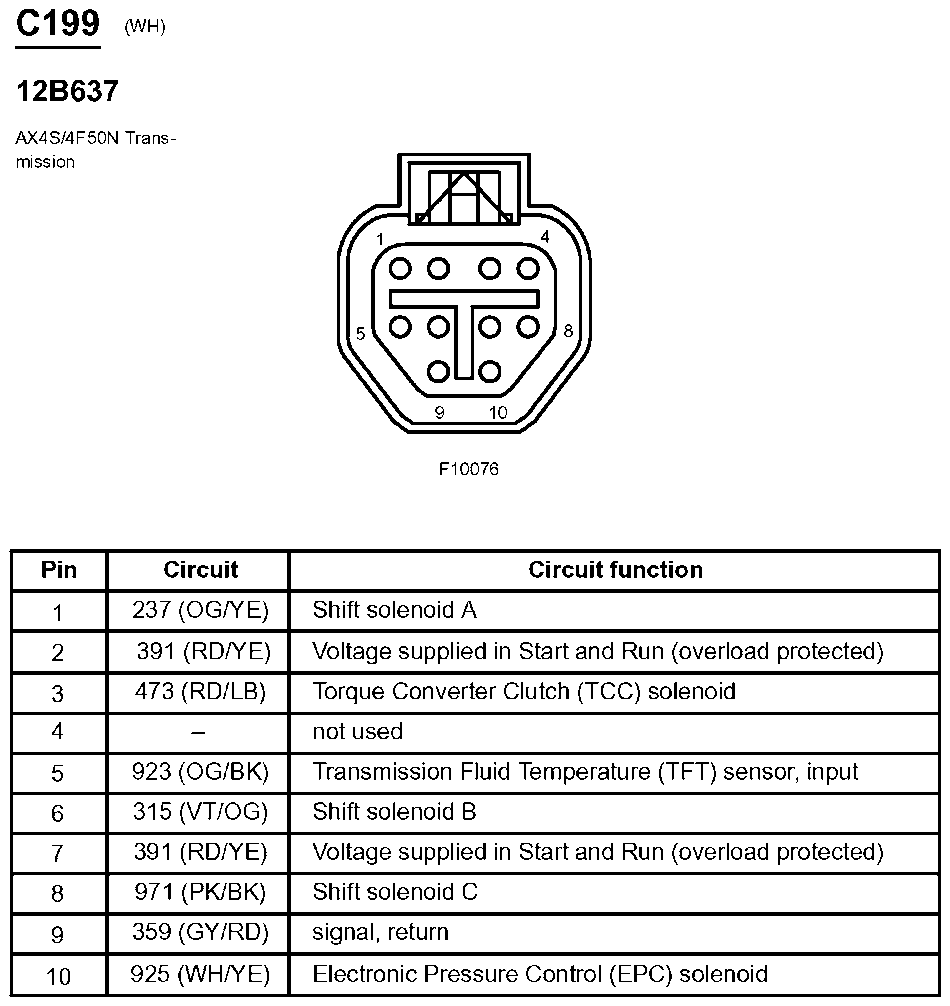

Fig 55: Transmission Hardware Unit Connector End View (C199)
Courtesy of FORD MOTOR CO.

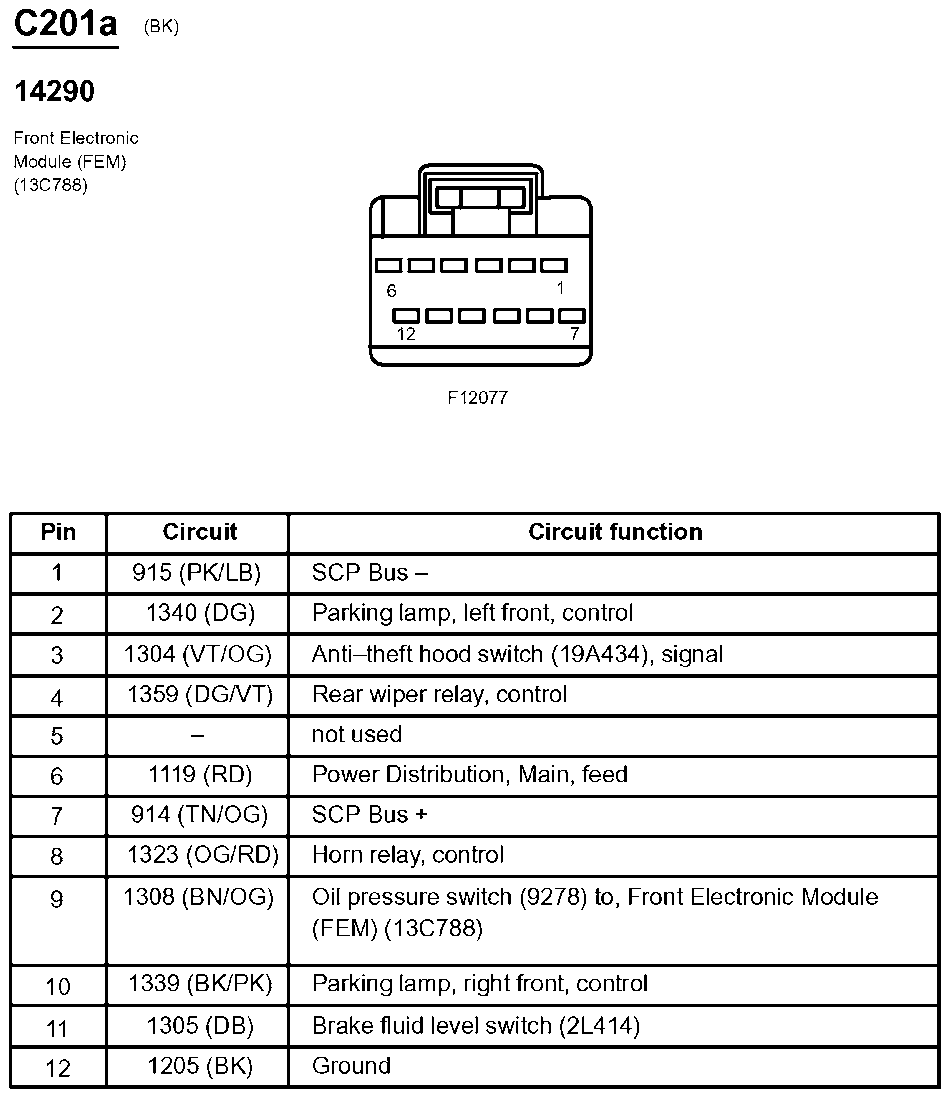

Fig 56: Front Electronic Module (FEM) Connector End View (C201a)
Courtesy of FORD MOTOR CO.

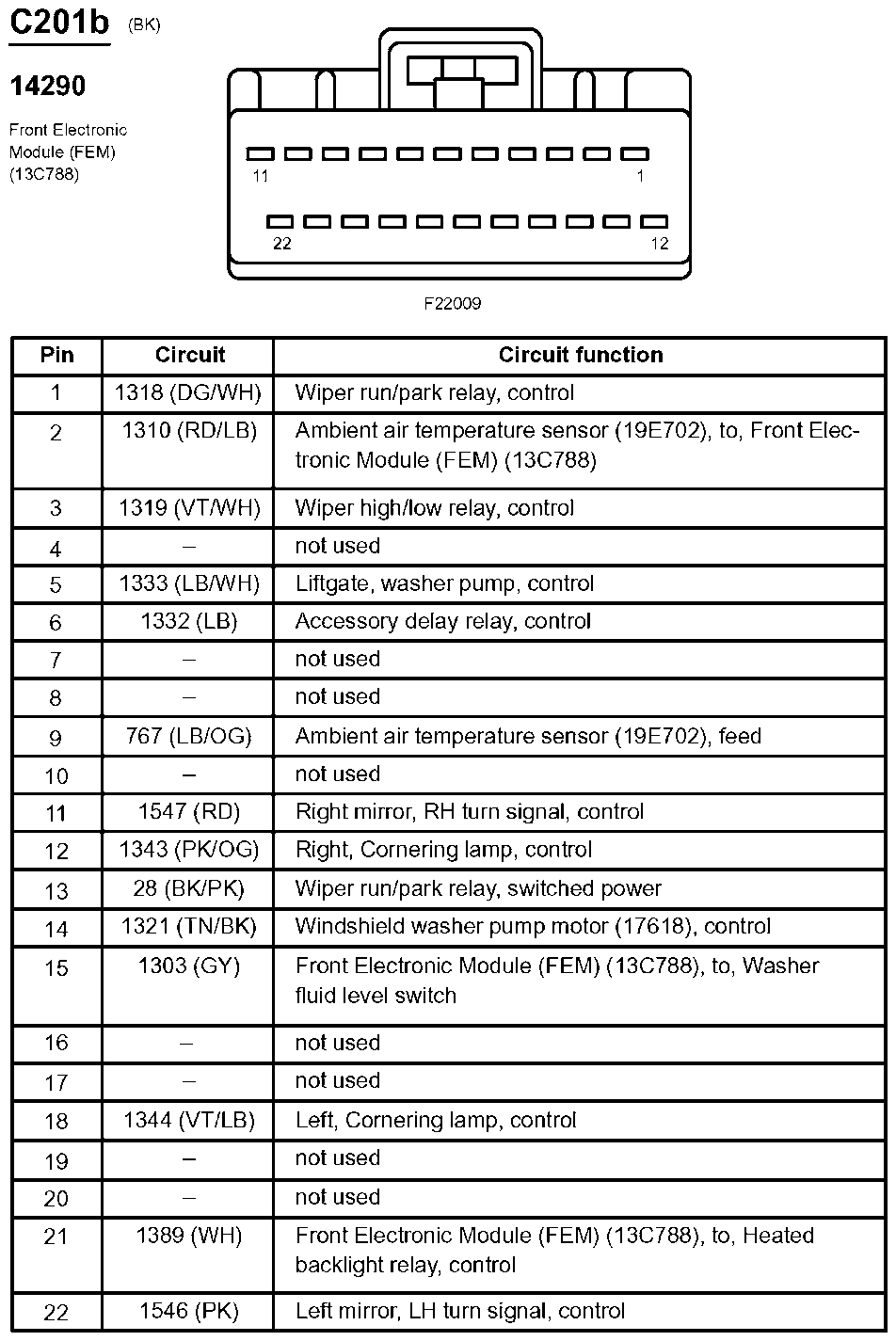

Fig 57: Front Electronic Module (FEM) Connector End View (C201b)
Courtesy of FORD MOTOR CO.

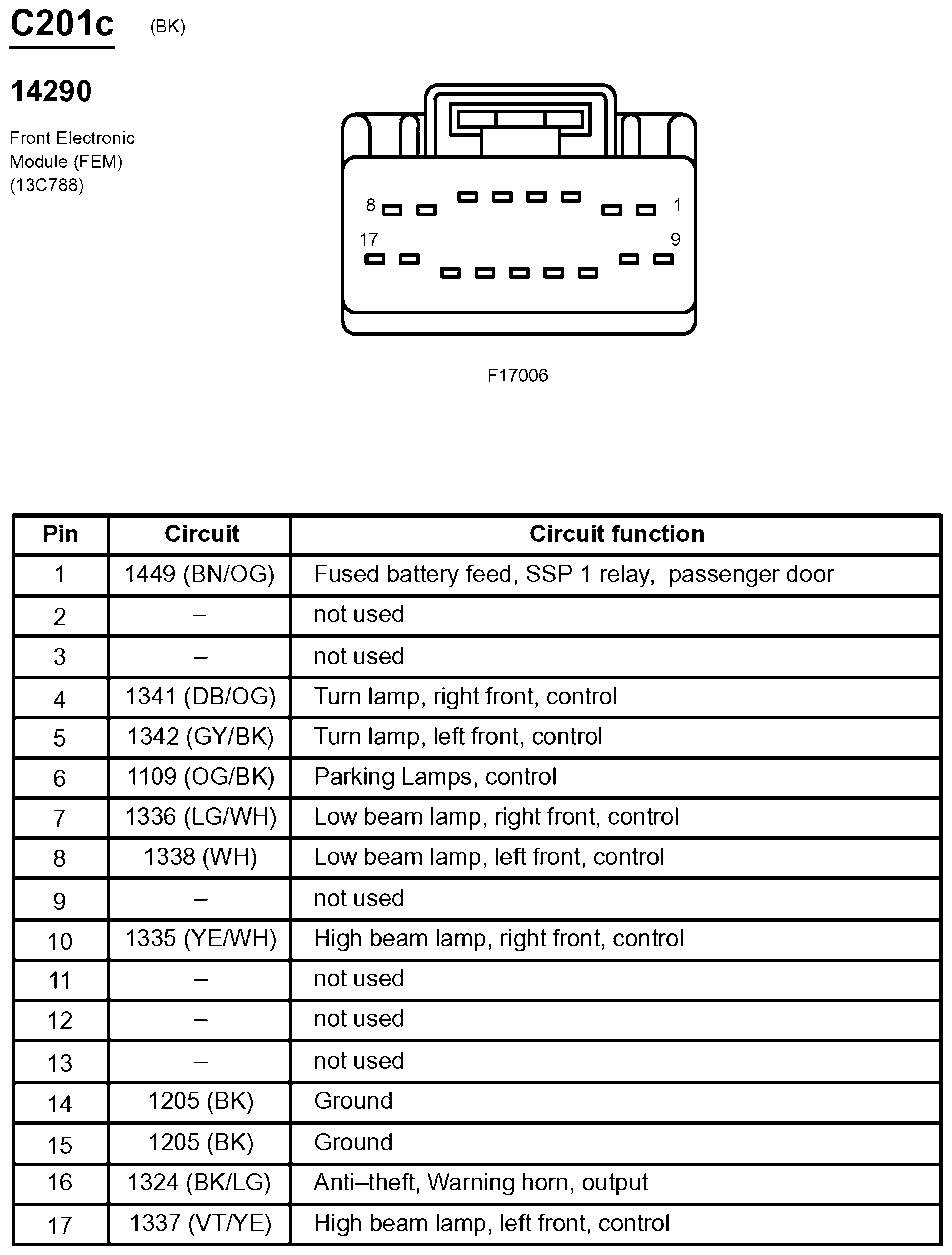

Fig 58: Front Electronic Module (FEM) Connector End View (C201c)
Courtesy of FORD MOTOR CO.

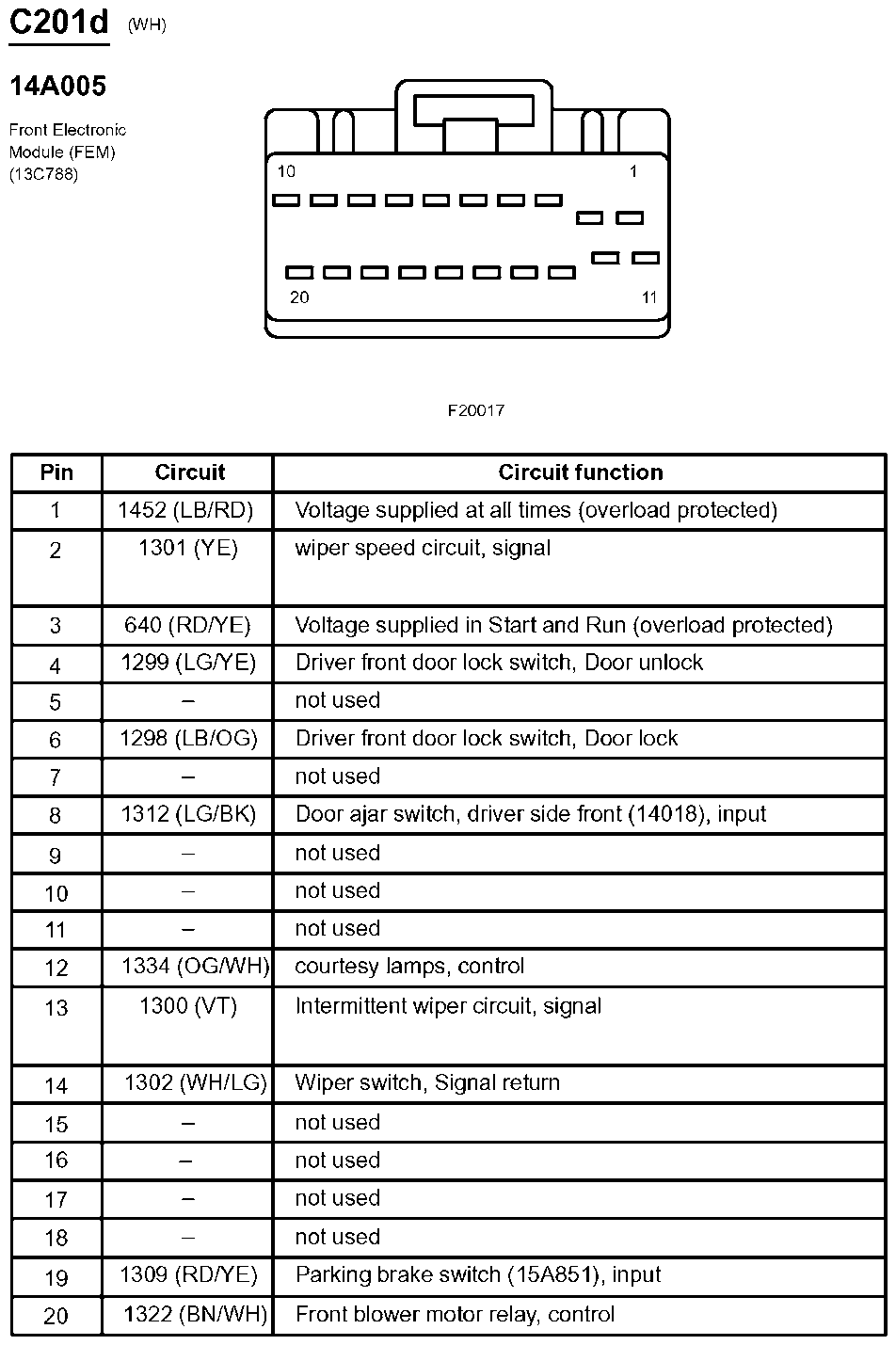

Fig 59: Front Electronic Module (FEM) Connector End View (C201d)
Courtesy of FORD MOTOR CO.

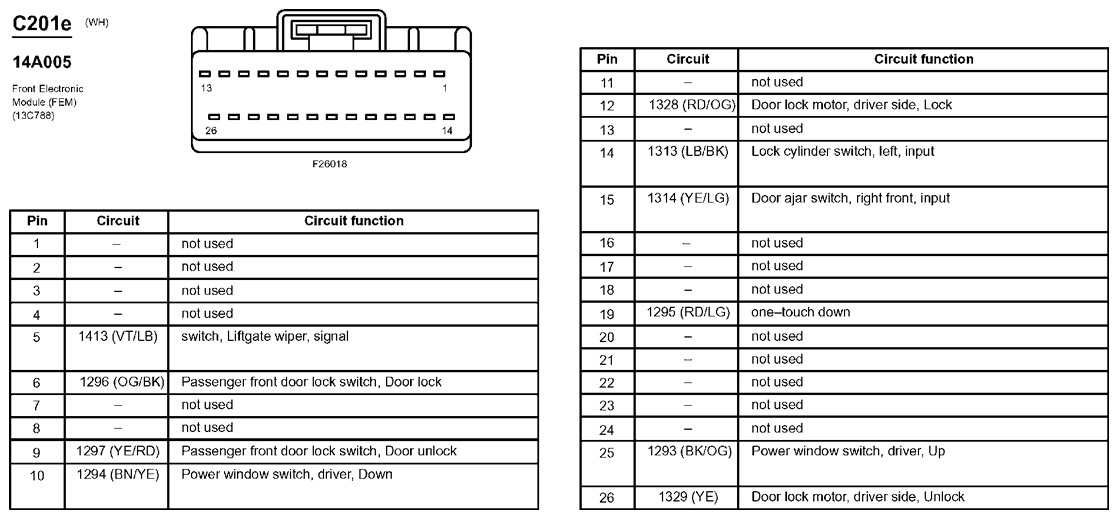

Fig 60: Front Electronic Module (FEM) Connector End View (C201e)
Courtesy of FORD MOTOR CO.

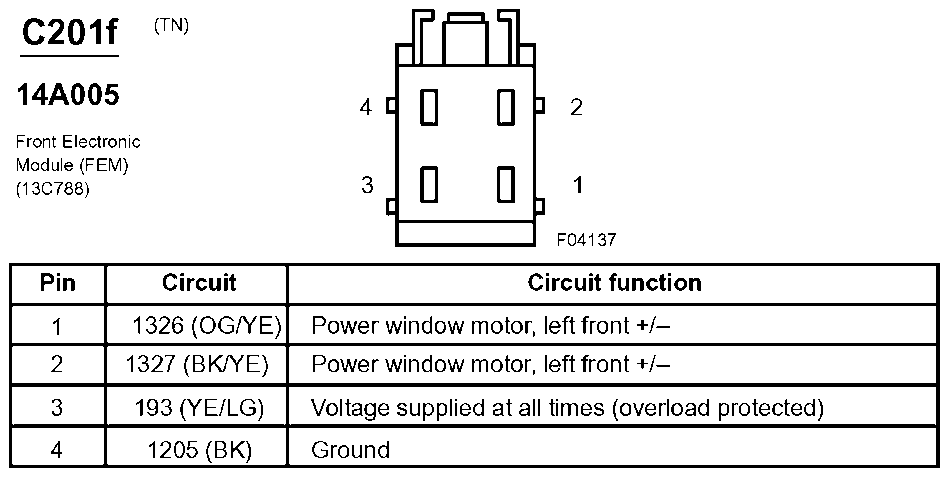

Fig 61: Front Electronic Module (FEM) Connector End View (C201f)
Courtesy of FORD MOTOR CO.

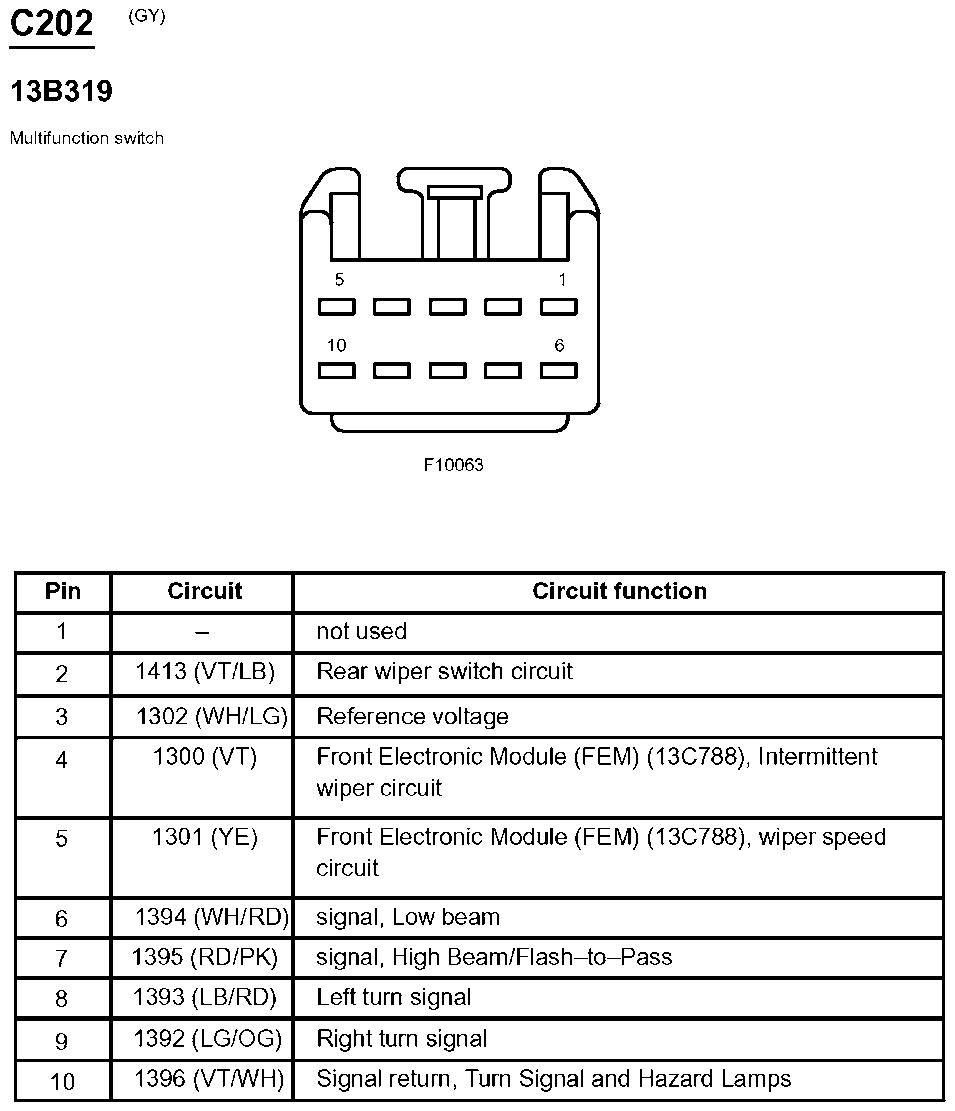

Fig 62: Multifunction Switch Connector End View (C202)
Courtesy of FORD MOTOR CO.

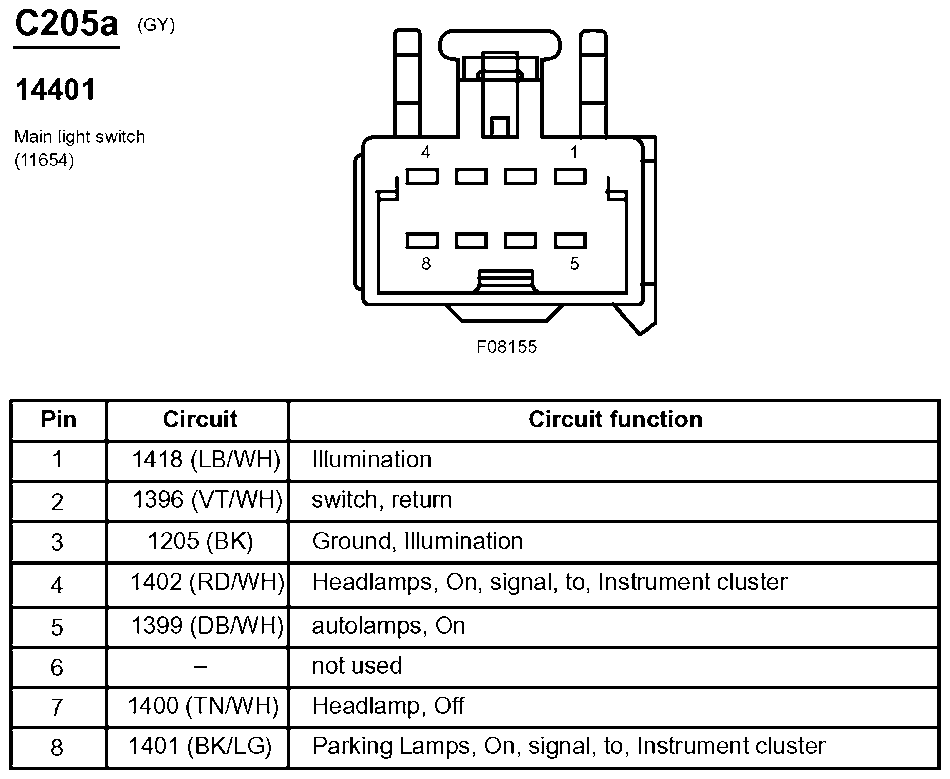

Fig 63: Main Light Switch Connector End View (C205a)
Courtesy of FORD MOTOR CO.

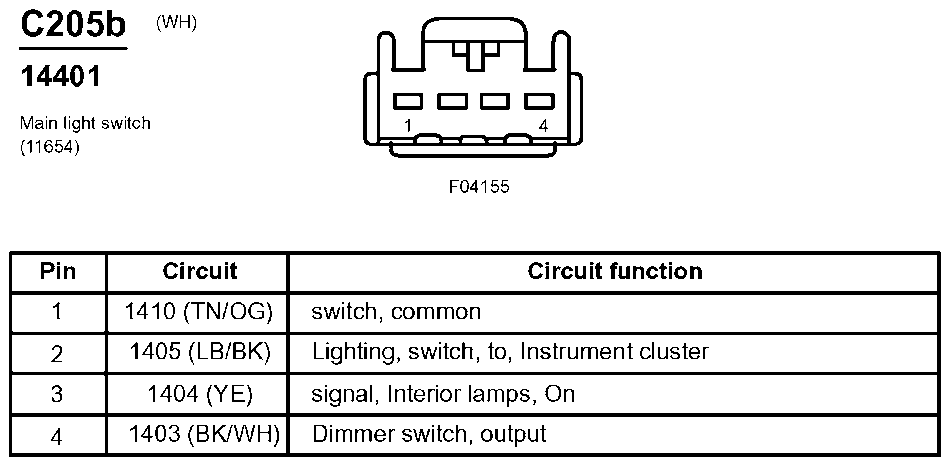

Fig 64: Main Light Switch Connector End View (C205b)
Courtesy of FORD MOTOR CO.

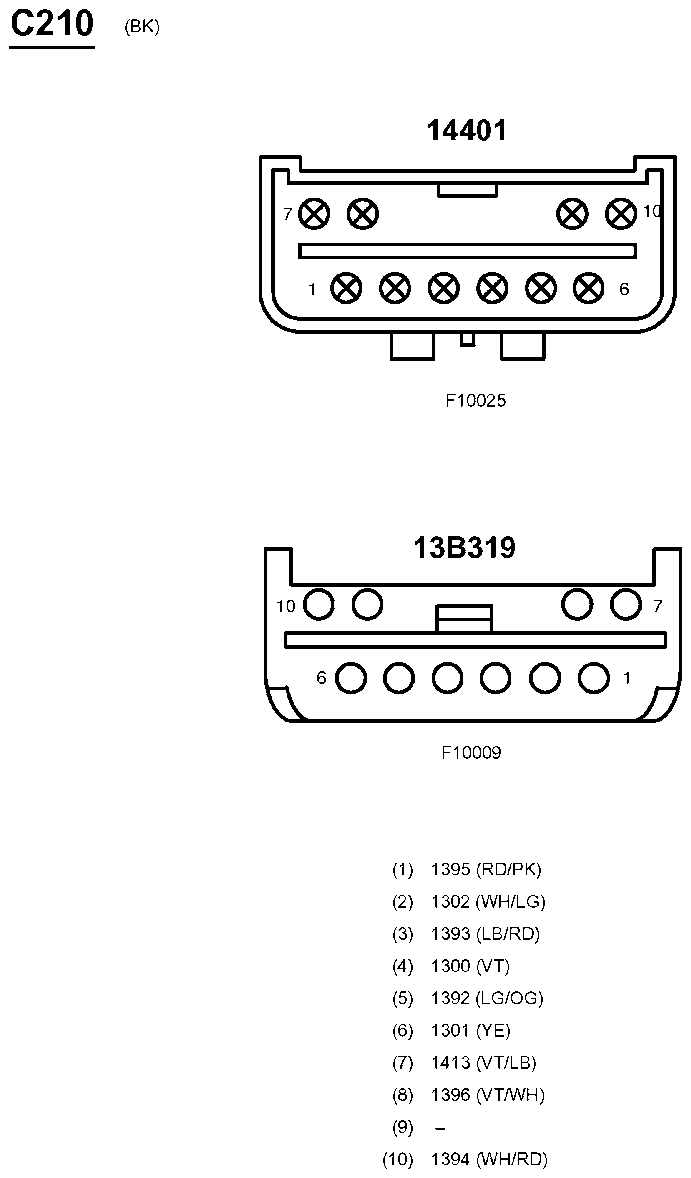

Fig 65: Inline Connector End View (C210)
Courtesy of FORD MOTOR CO.

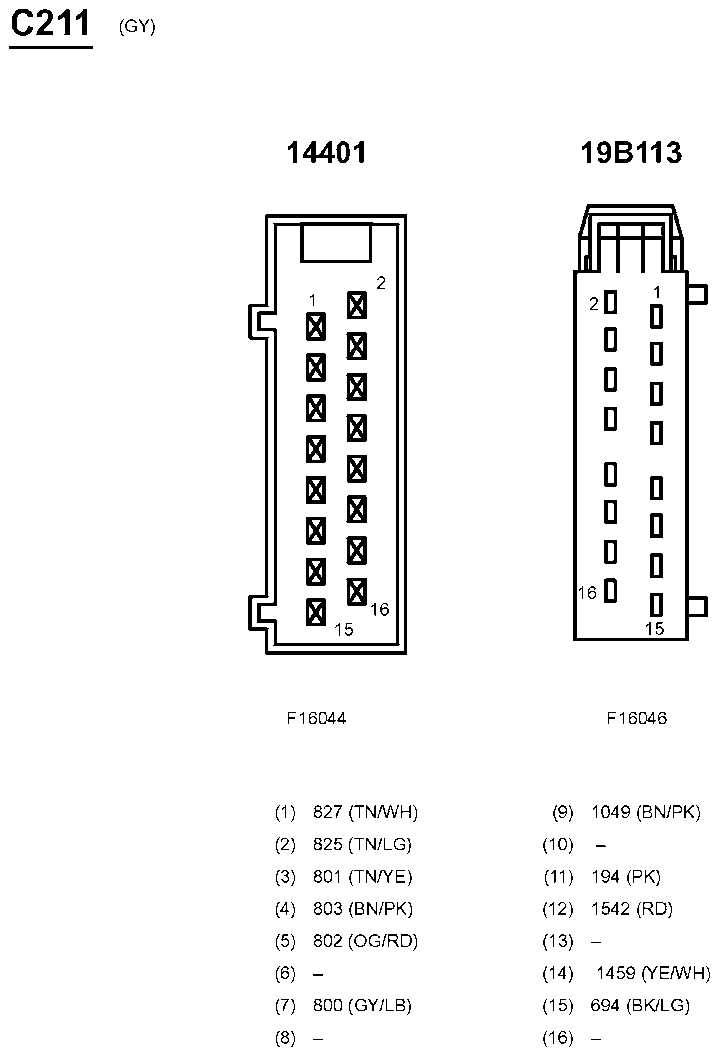

Fig 66: Inline Connector End View (C211)
Courtesy of FORD MOTOR CO.

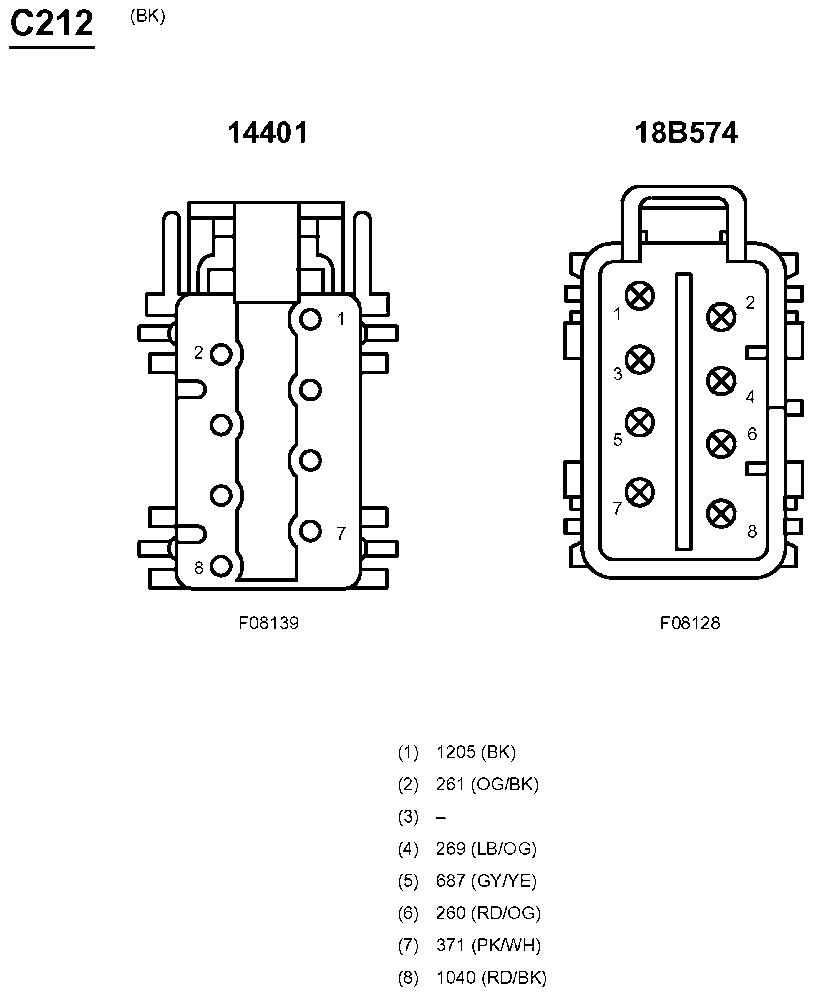

Fig 67: Inline Connector End View (C212)
Courtesy of FORD MOTOR CO.

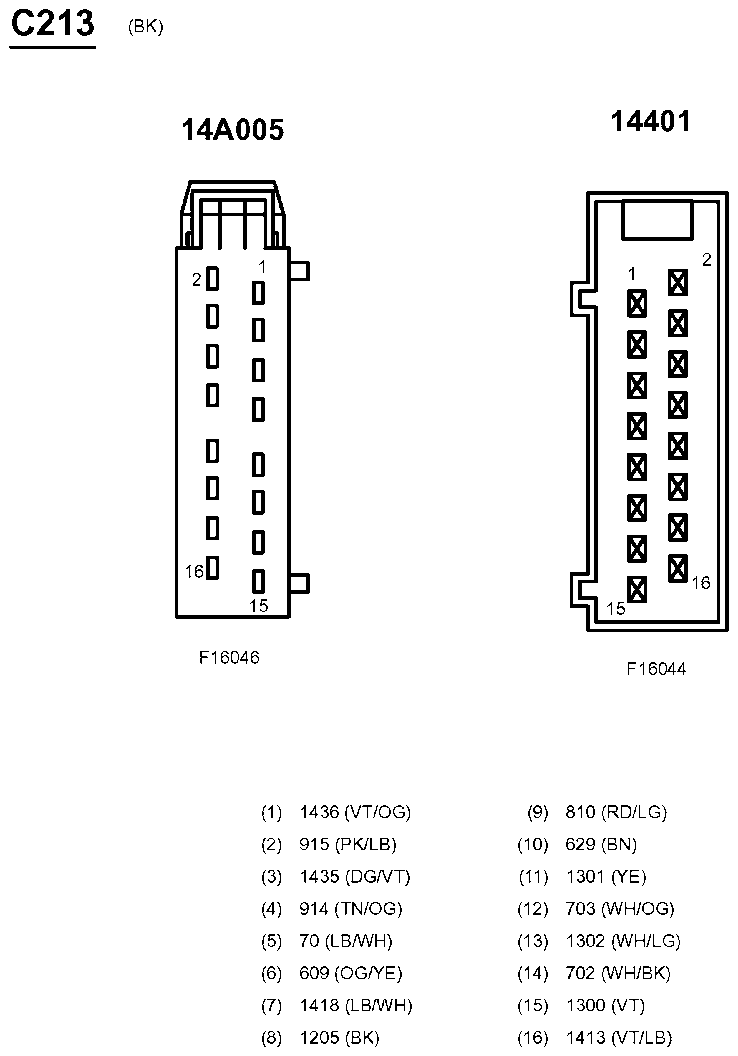

Fig 68: Inline Connector End View (C213)
Courtesy of FORD MOTOR CO.

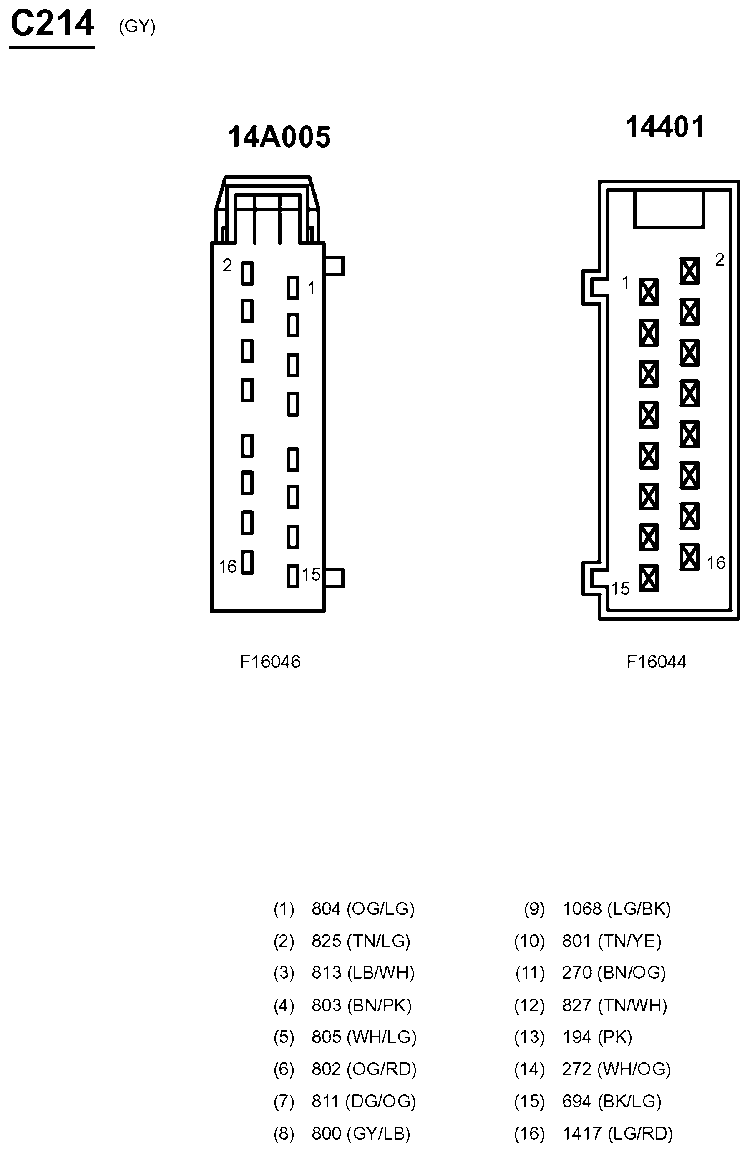

Fig 69: Inline Connector End View (C214)
Courtesy of FORD MOTOR CO.

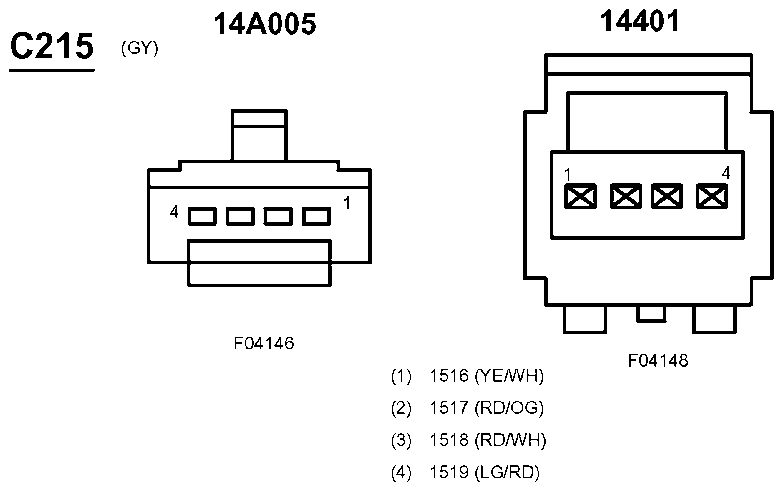

Fig 70: Inline Connector End View (C215)
Courtesy of FORD MOTOR CO.

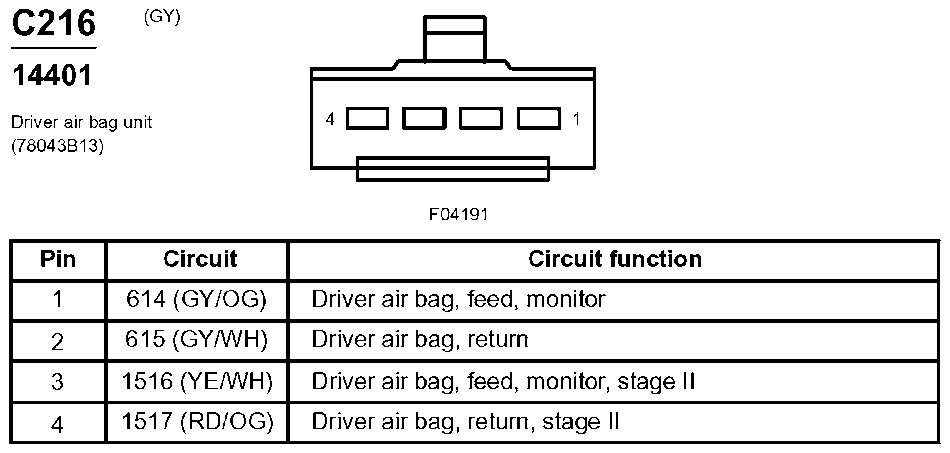

Fig 71: Driver Air Bag Unit Connector End View (C216)
Courtesy of FORD MOTOR CO.

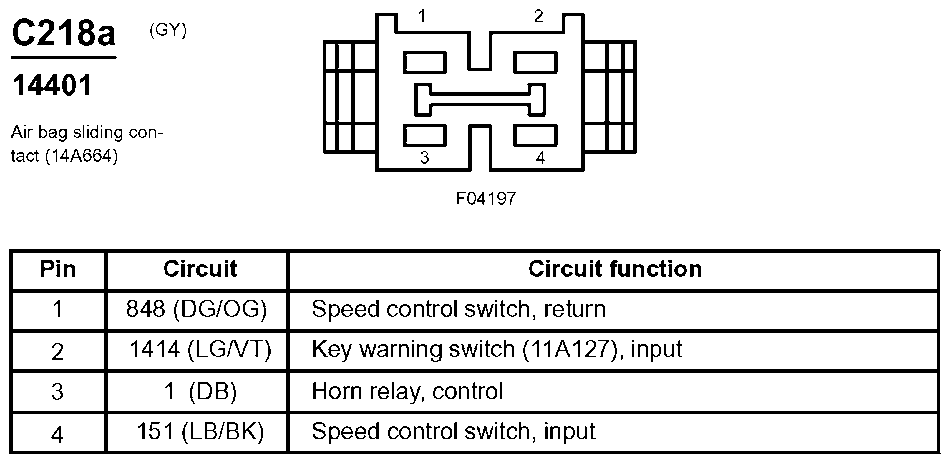

Fig 72: Air Bag Sliding Contact Connector End View (C218a)
Courtesy of FORD MOTOR CO.

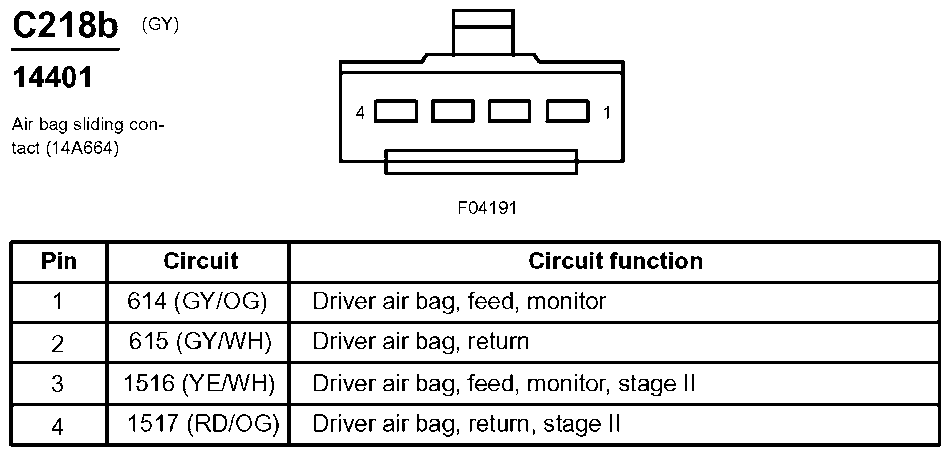

Fig 73: Air Bag Sliding Contact Connector End View (C218b)
Courtesy of FORD MOTOR CO.

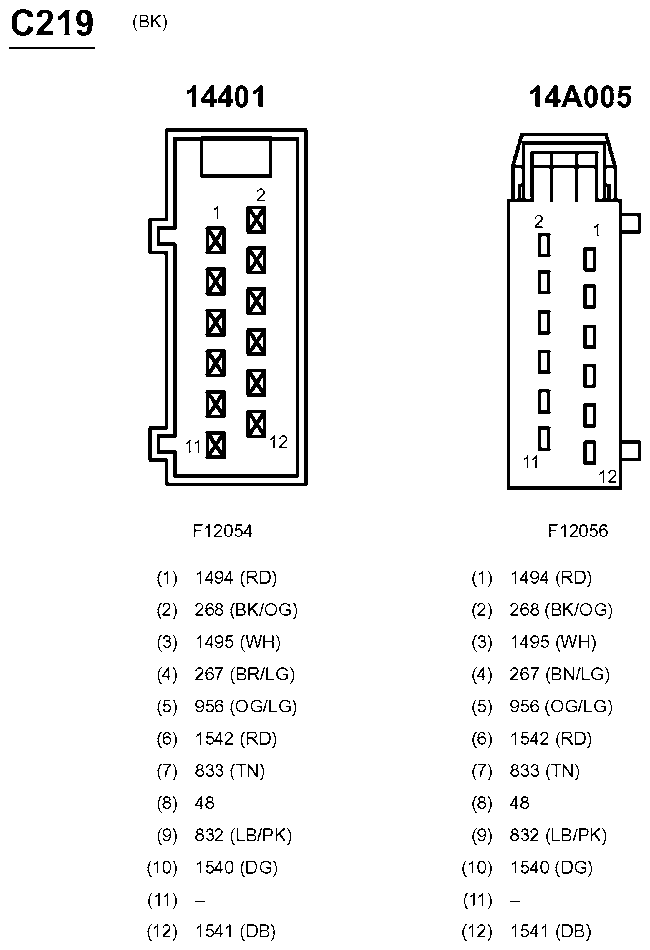

Fig 74: Inline Connector End View (C219)
Courtesy of FORD MOTOR CO.

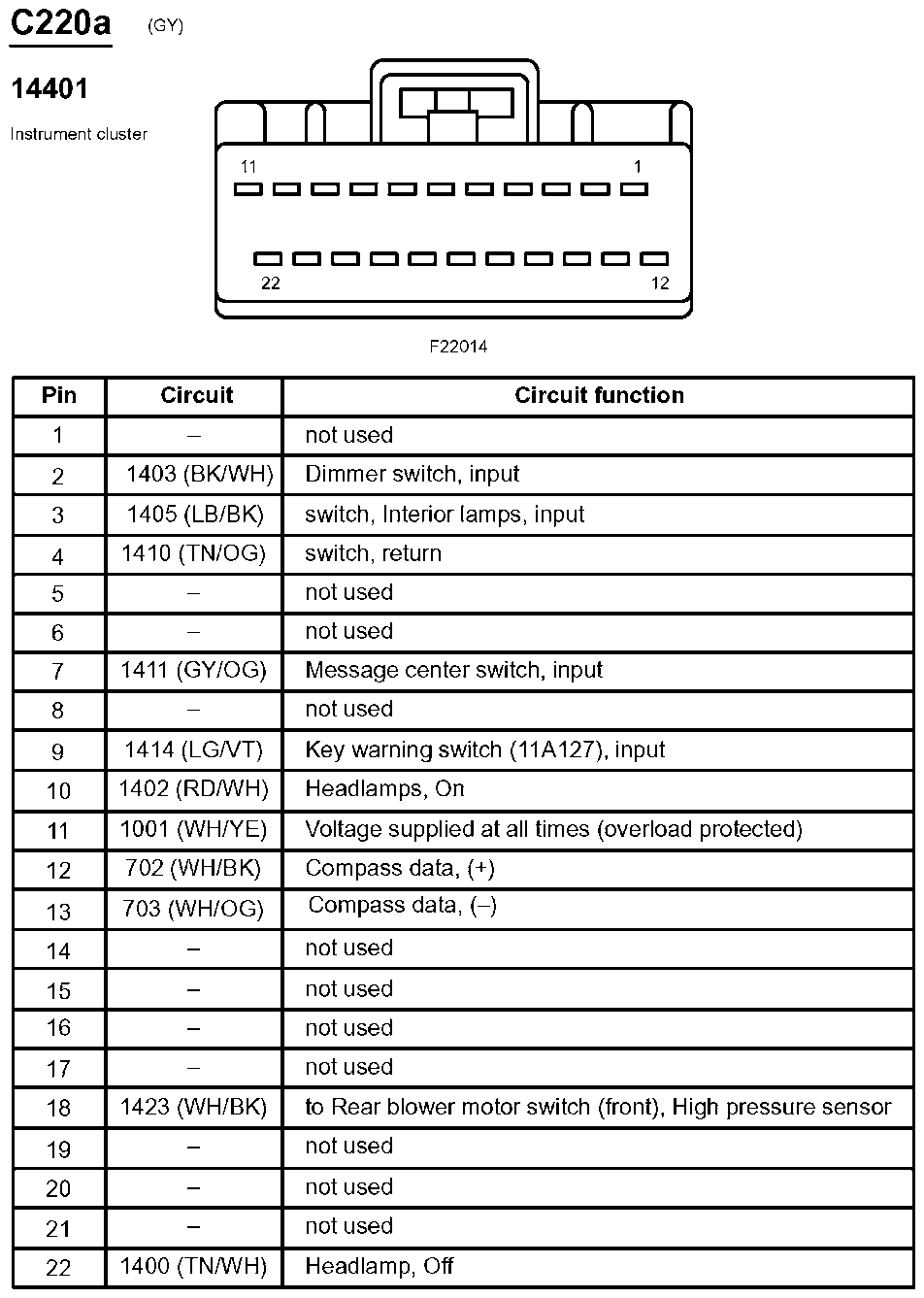

Fig 75: Instrument Cluster Connector End View (C220a)
Courtesy of FORD MOTOR CO.

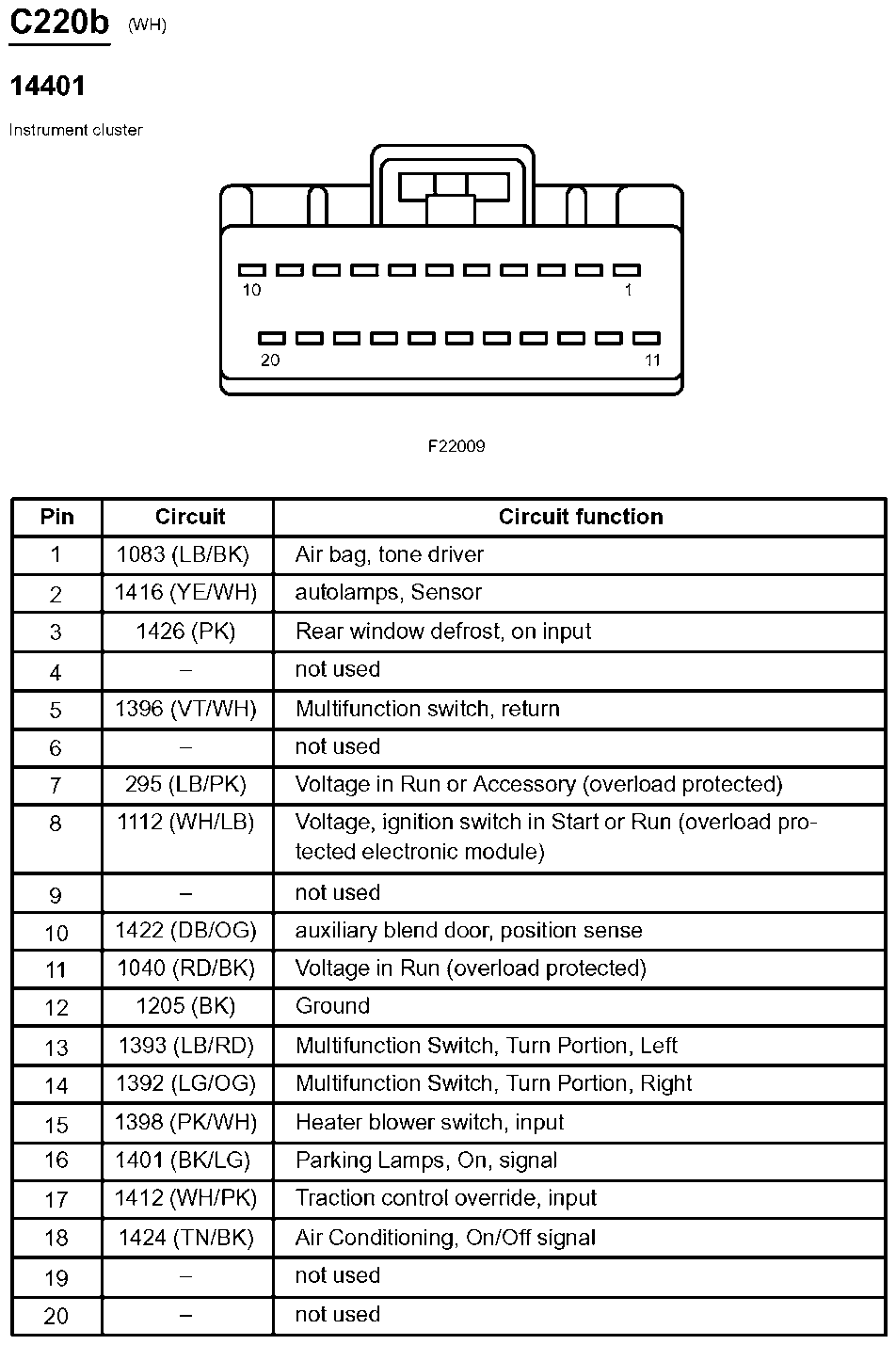

Fig 76: Instrument Cluster Connector End View (C220b)
Courtesy of FORD MOTOR CO.

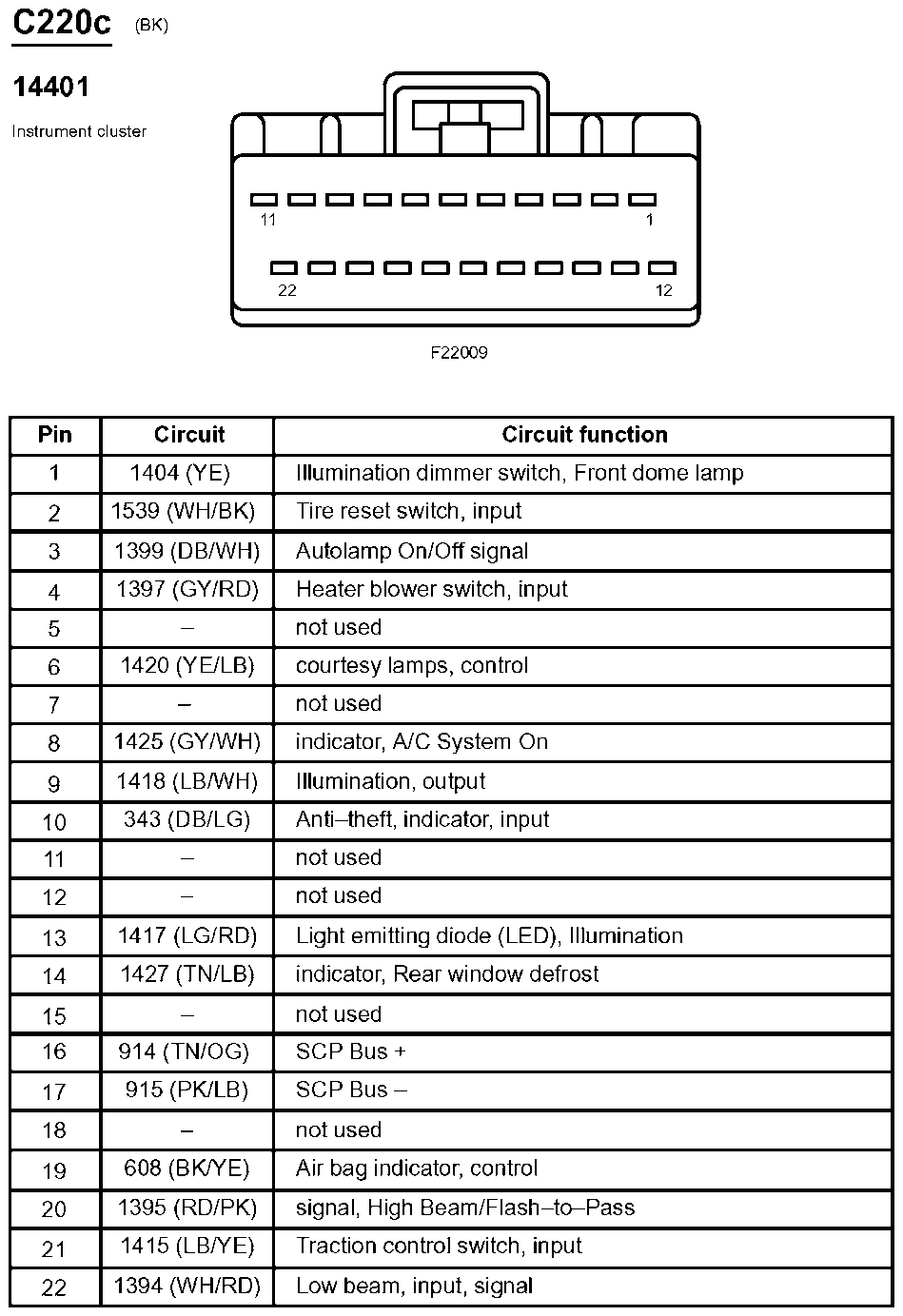

Fig 77: Instrument Cluster Connector End View (C220c)
Courtesy of FORD MOTOR CO.

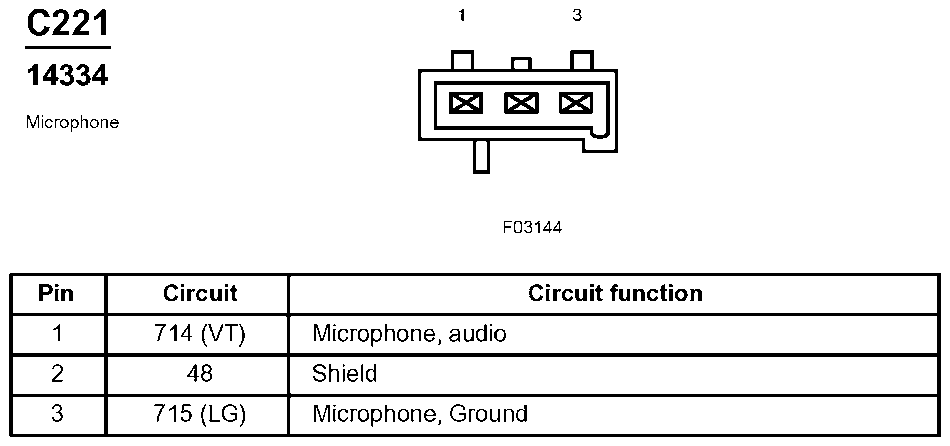

Fig 78: Microphone Connector End View (C221)
Courtesy of FORD MOTOR CO.

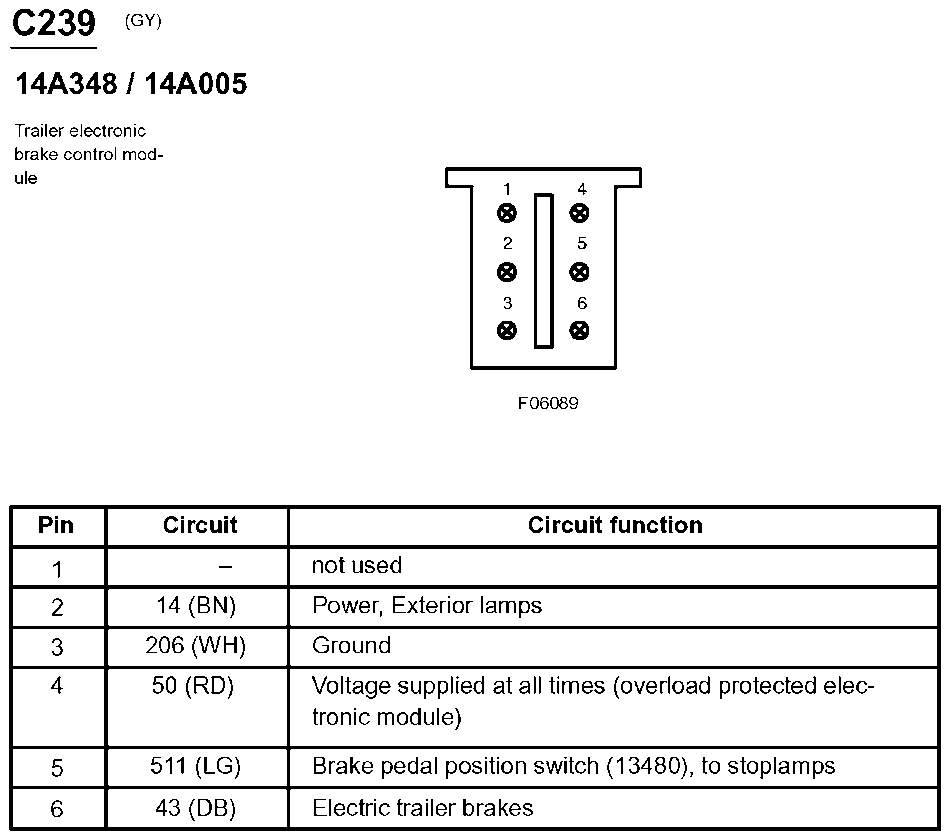

Fig 79: Trailer Electronic Brake Control Module Connector End View (C239)
Courtesy of FORD MOTOR CO.

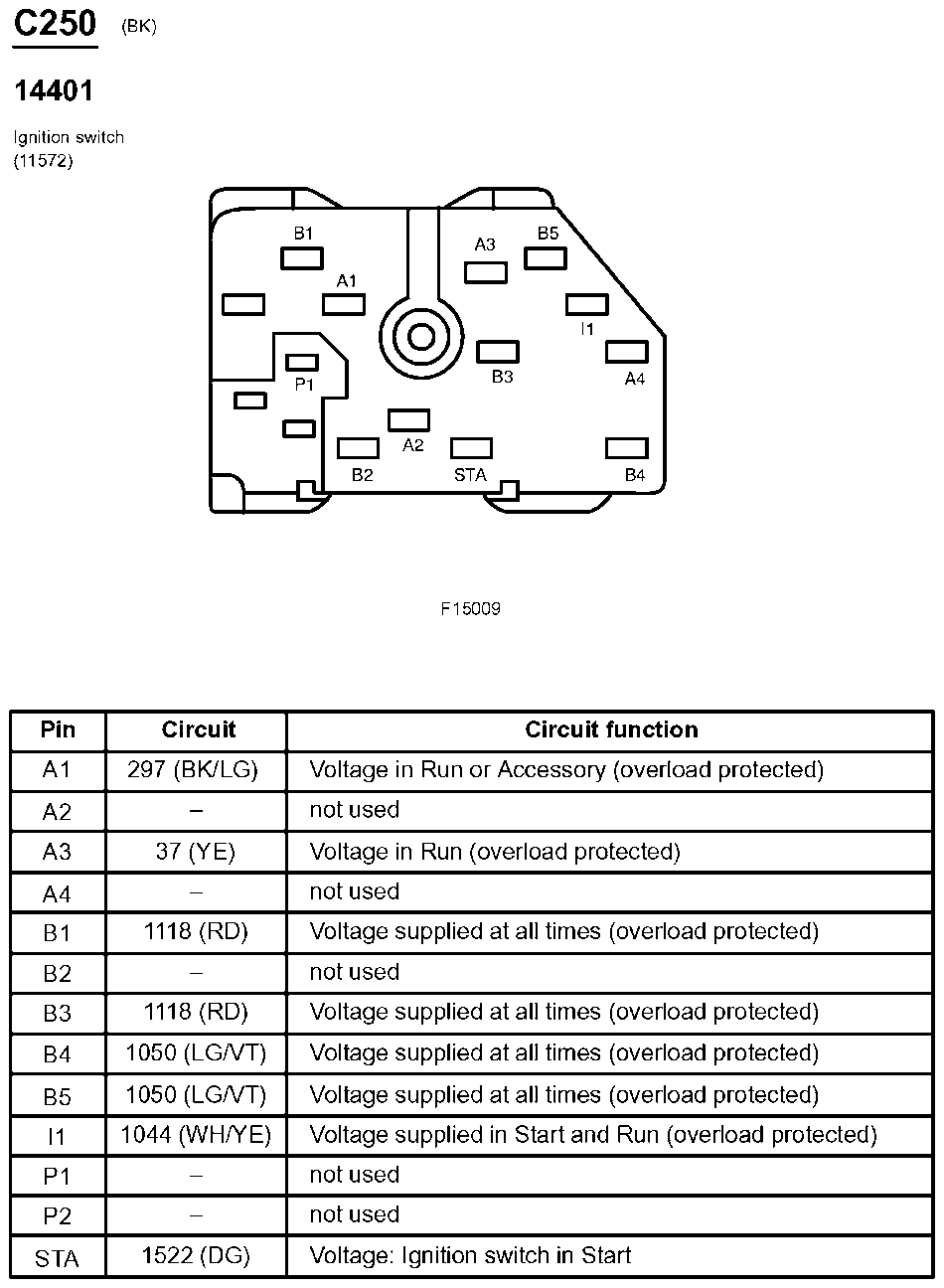

Fig 80: Ignition Switch Connector End View (C250)
Courtesy of FORD MOTOR CO.

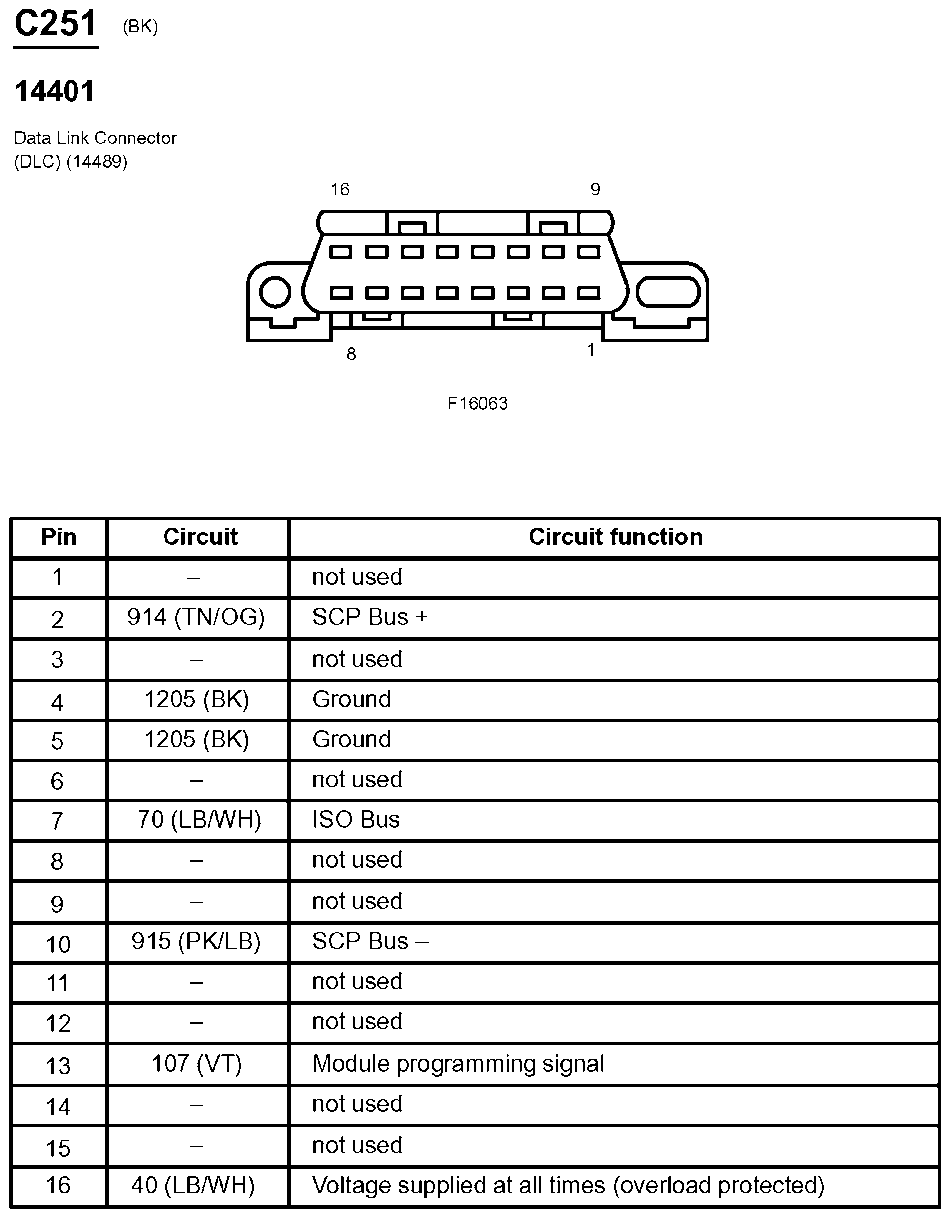

Fig 81: Data Link Connector (DLC) Connector End View (C251)
Courtesy of FORD MOTOR CO.

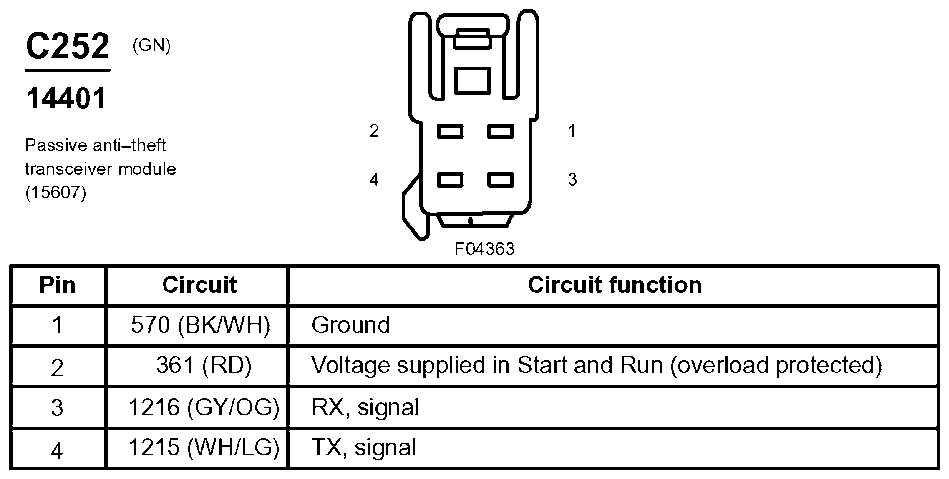

Fig 82: Passive Anti-Theft Transceiver Module Connector End View (C252)
Courtesy of FORD MOTOR CO.

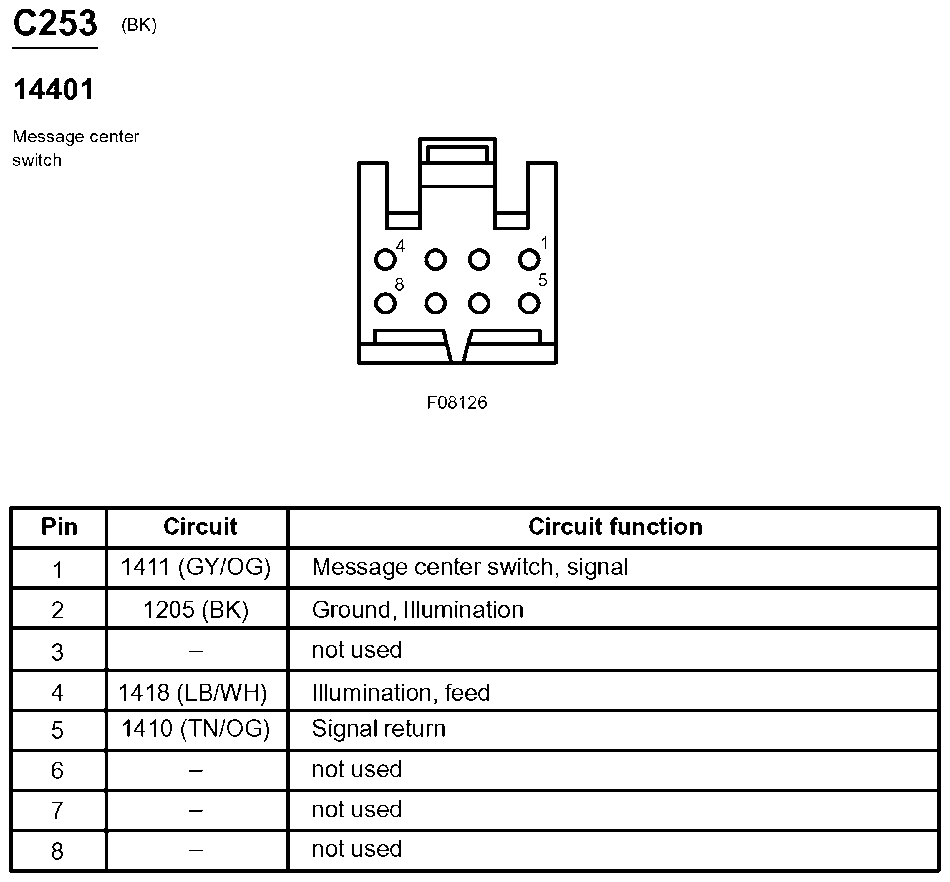

Fig 83: Message Center Switch Connector End View (C253)
Courtesy of FORD MOTOR CO.

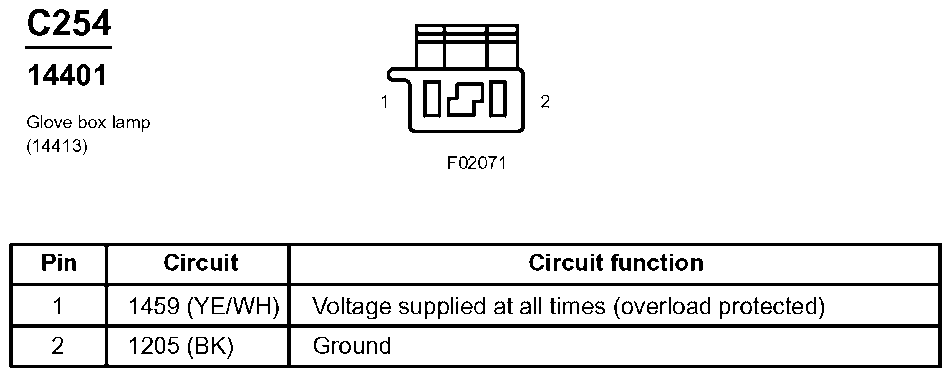

Fig 84: Glove Box Lamp Connector End View (C254)
Courtesy of FORD MOTOR CO.

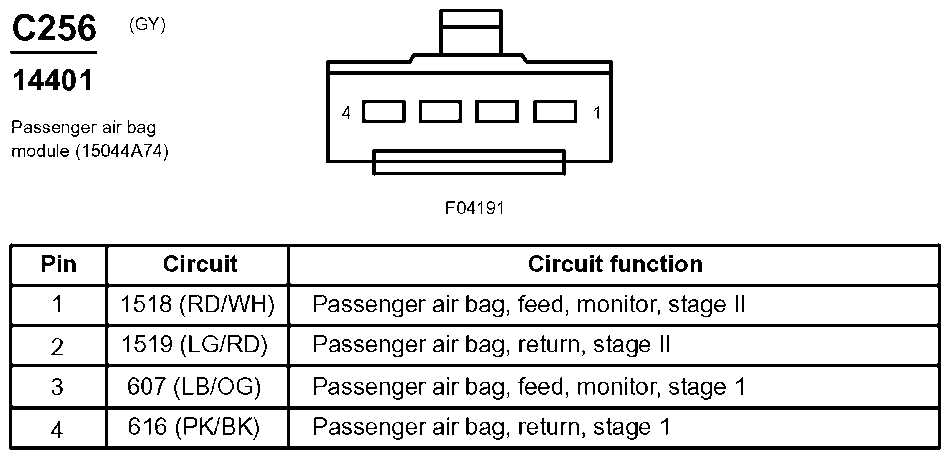

Fig 85: Passenger Air Bag Module Connector End View (C256)
Courtesy of FORD MOTOR CO.

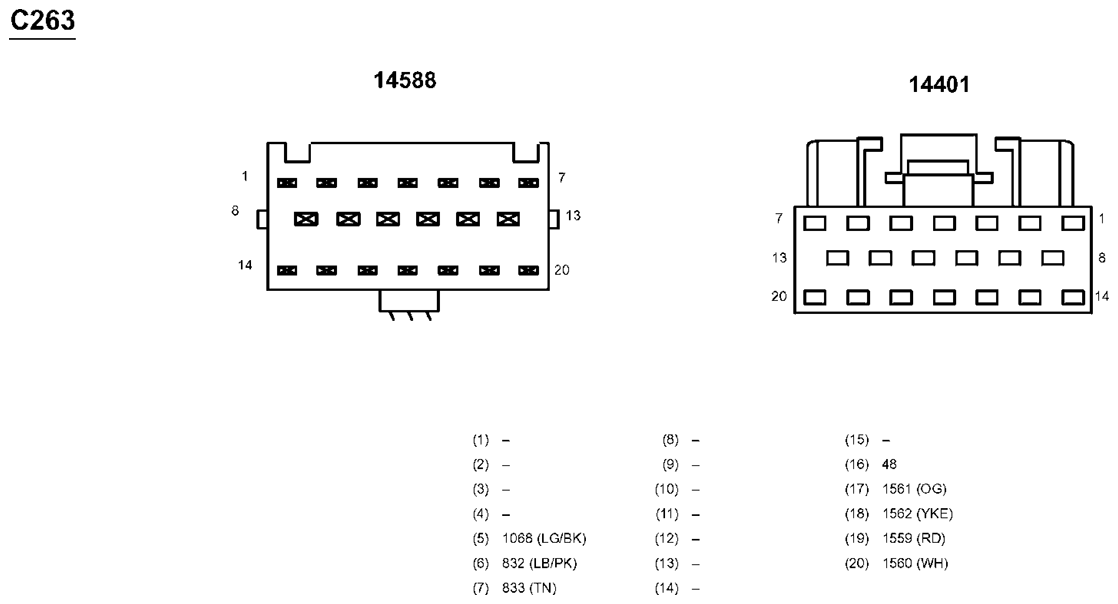

Fig 86: Inline Connector End View (C263)
Courtesy of FORD MOTOR CO.

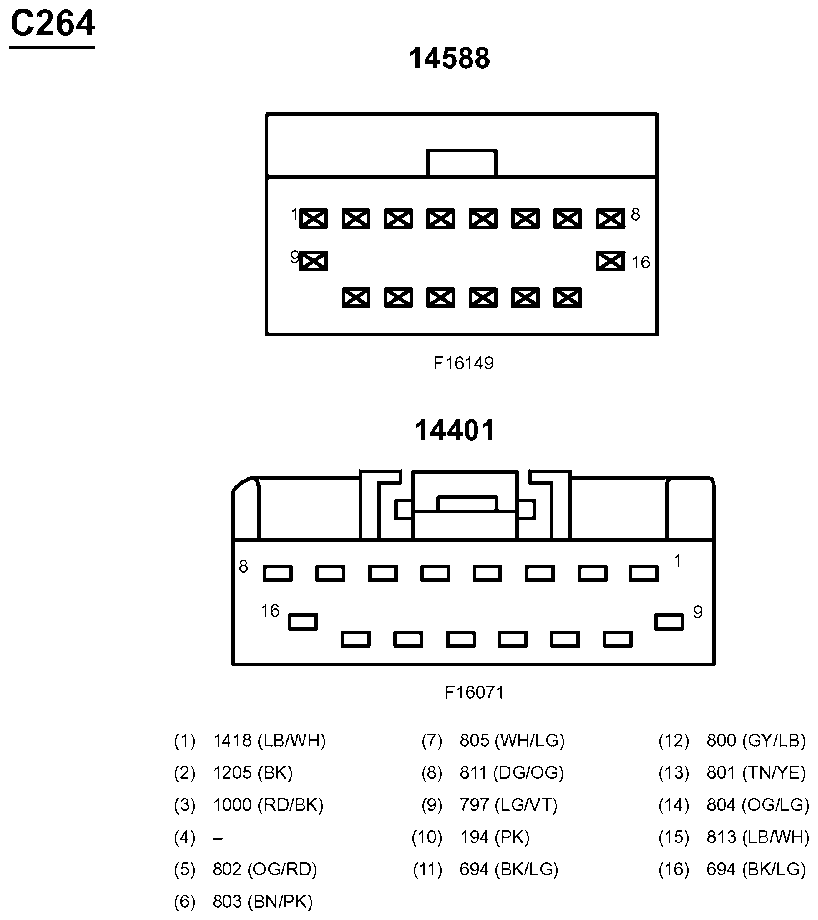

Fig 87: Inline Connector End View (C264)
Courtesy of FORD MOTOR CO.

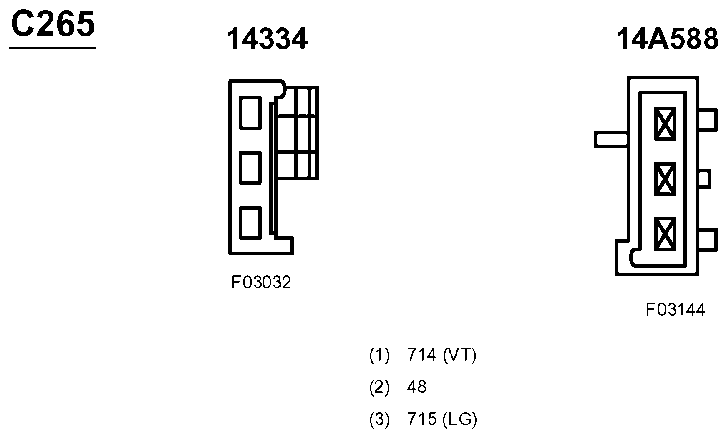

Fig 88: Inline Connector End View (C265)
Courtesy of FORD MOTOR CO.

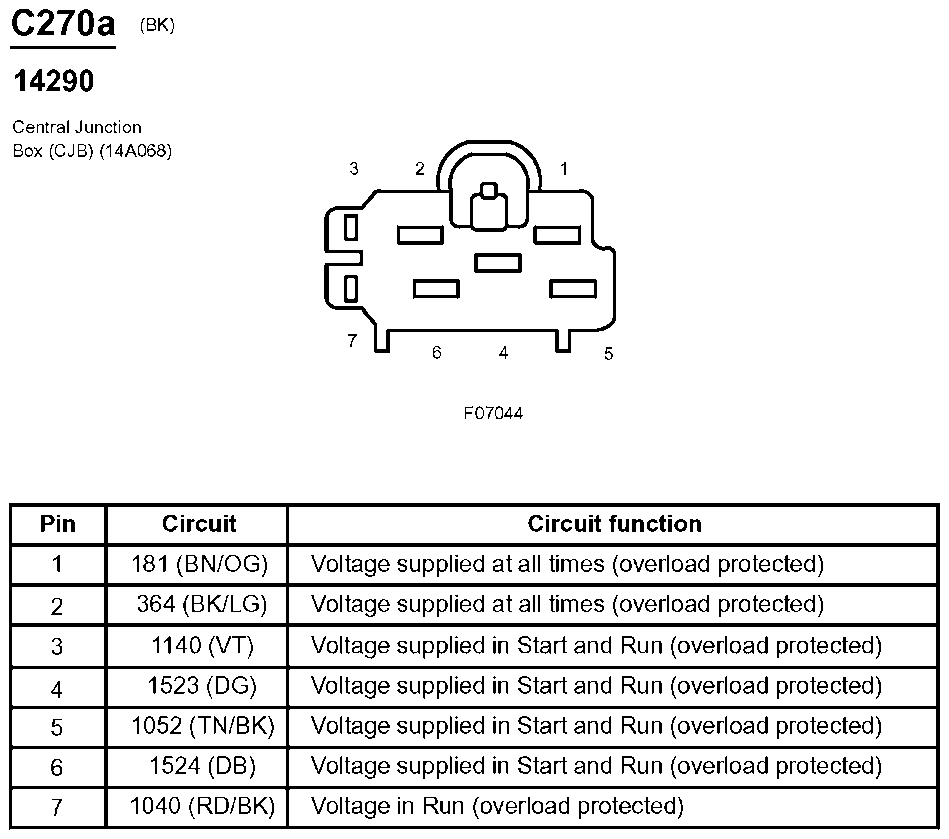

Fig 89: Central Junction Box (CJB) Connector End View (C270a)
Courtesy of FORD MOTOR CO.
Fig 90: Central Junction Box (CJB) Connector End View (C270b)
Courtesy of FORD MOTOR CO.

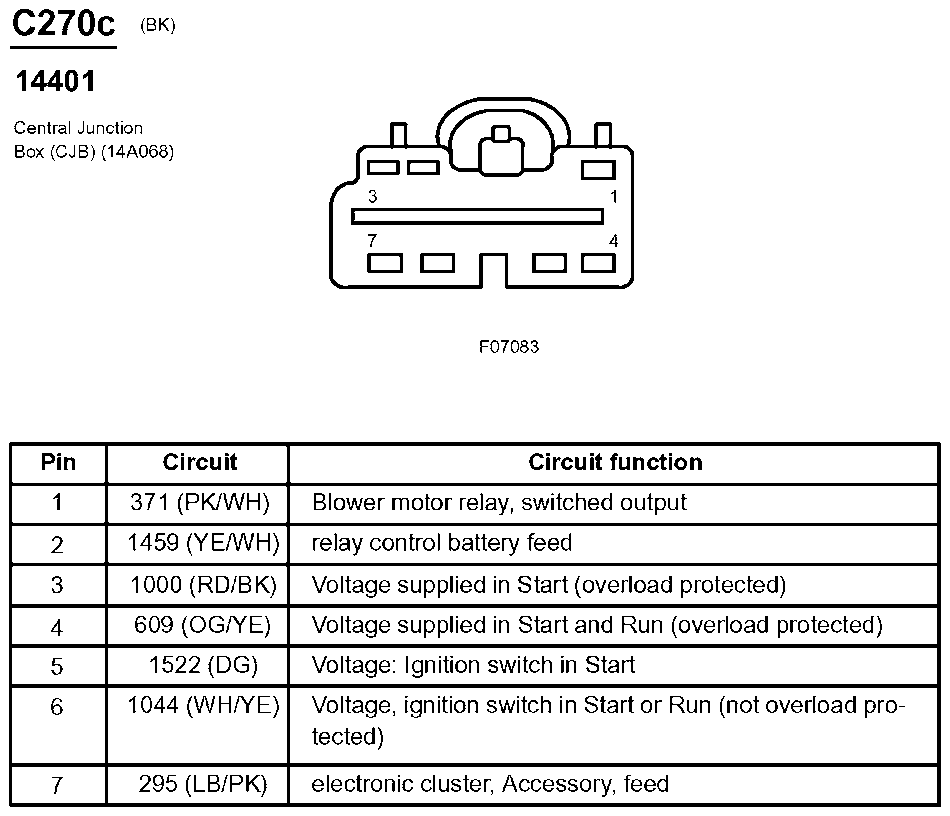

Fig 91: Central Junction Box (CJB) Connector End View (C270c)
Courtesy of FORD MOTOR CO.

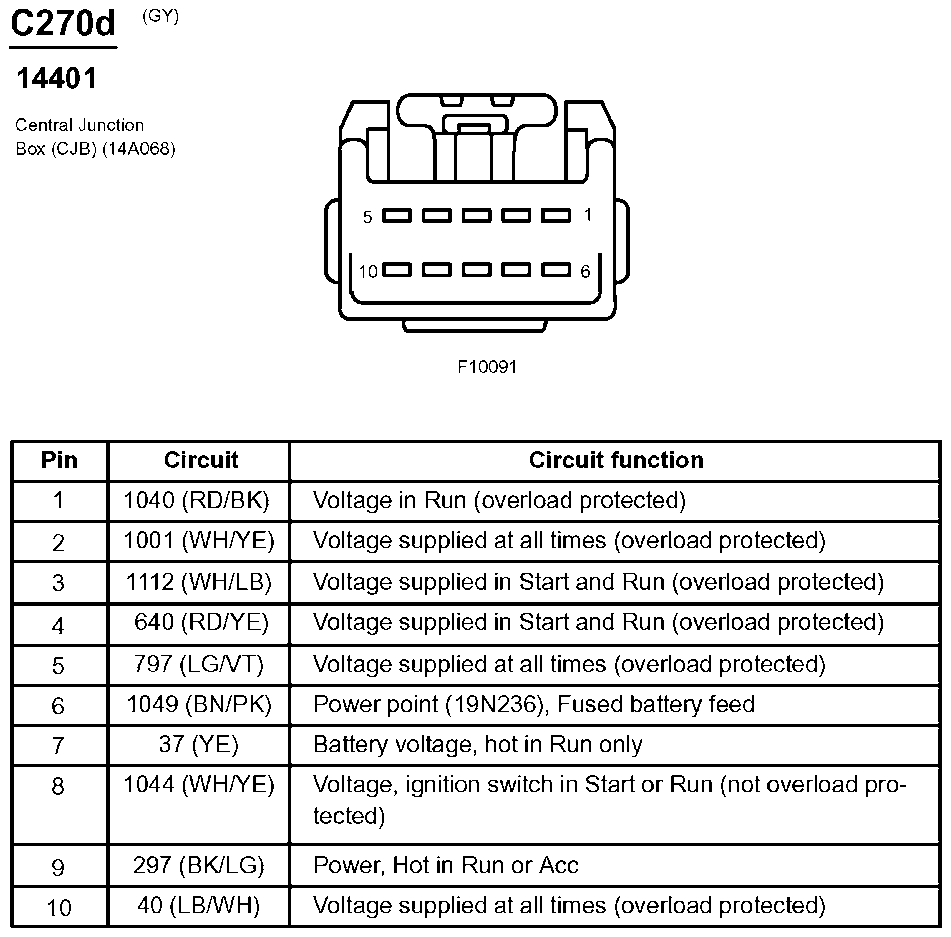

Fig 92: Central Junction Box (CJB) Connector End View (C270d)
Courtesy of FORD MOTOR CO.

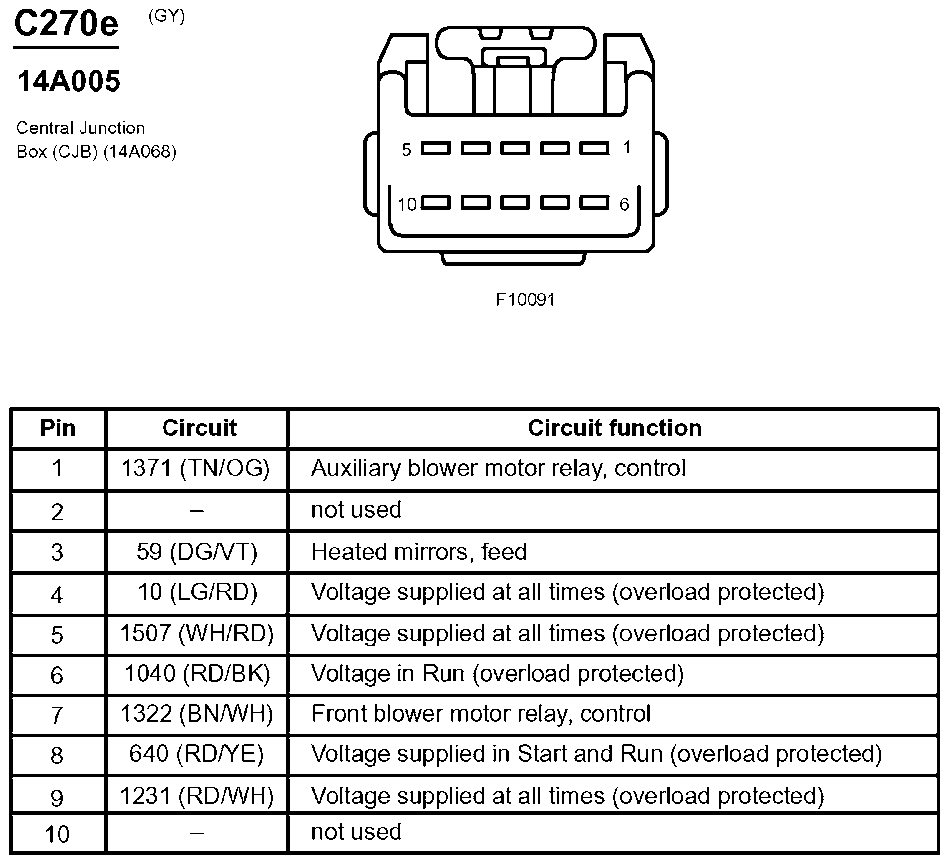

Fig 93: Central Junction Box (CJB) Connector End View (C270e)
Courtesy of FORD MOTOR CO.

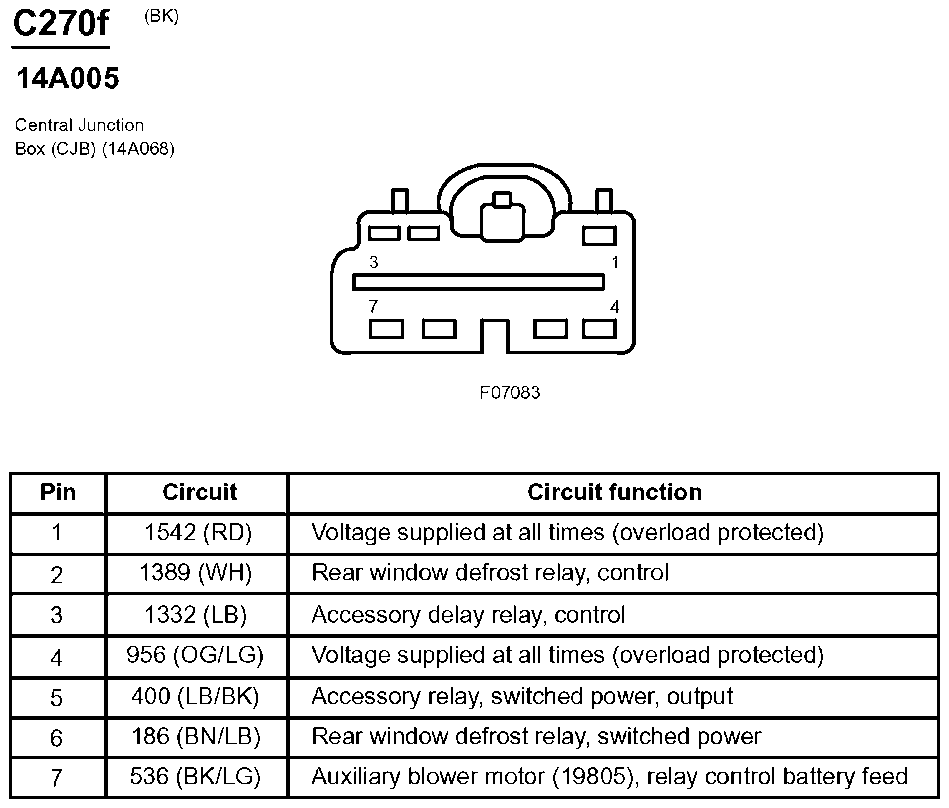

Fig 94: Central Junction Box (CJB) Connector End View (C270f)
Courtesy of FORD MOTOR CO.

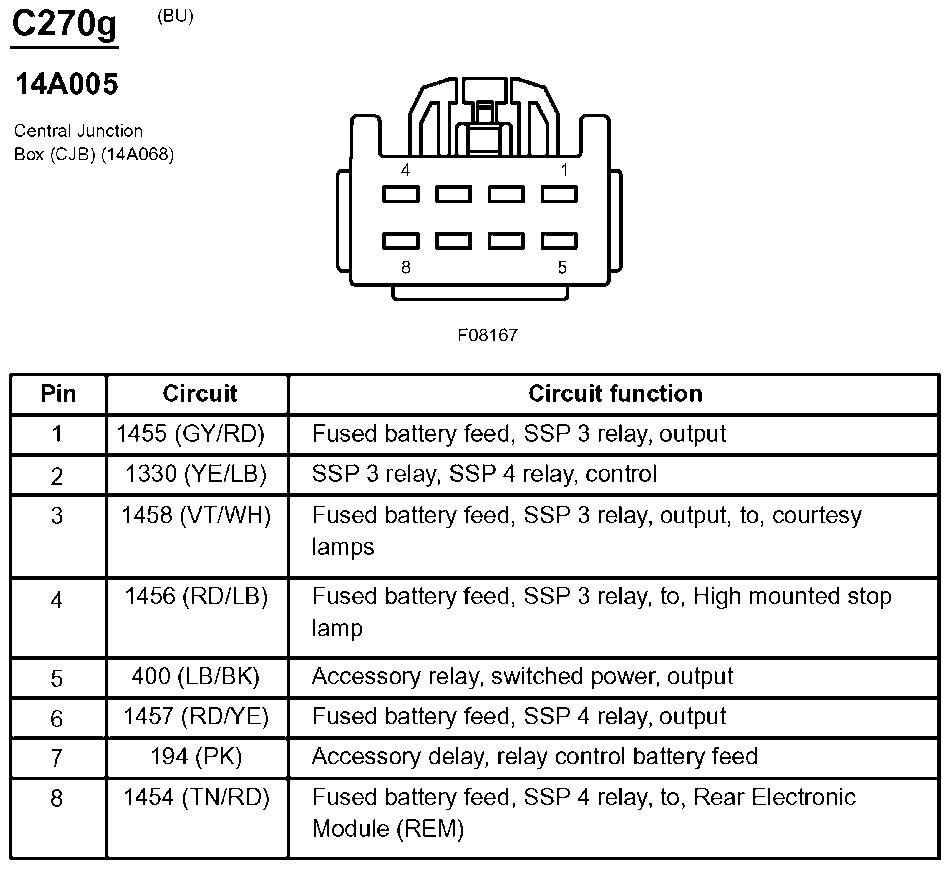

Fig 95: Central Junction Box (CJB) Connector End View (C270g)
Courtesy of FORD MOTOR CO.

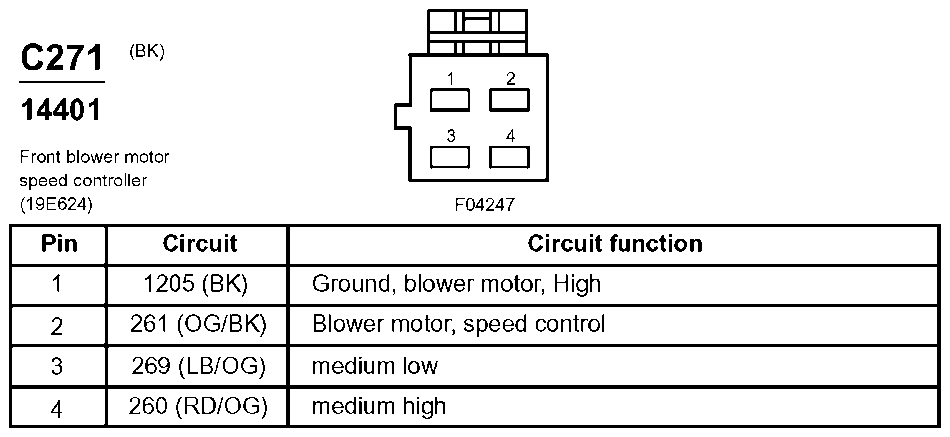

Fig 96: Front Blower Motor Speed Controller Connector End View (C271)
Courtesy of FORD MOTOR CO.

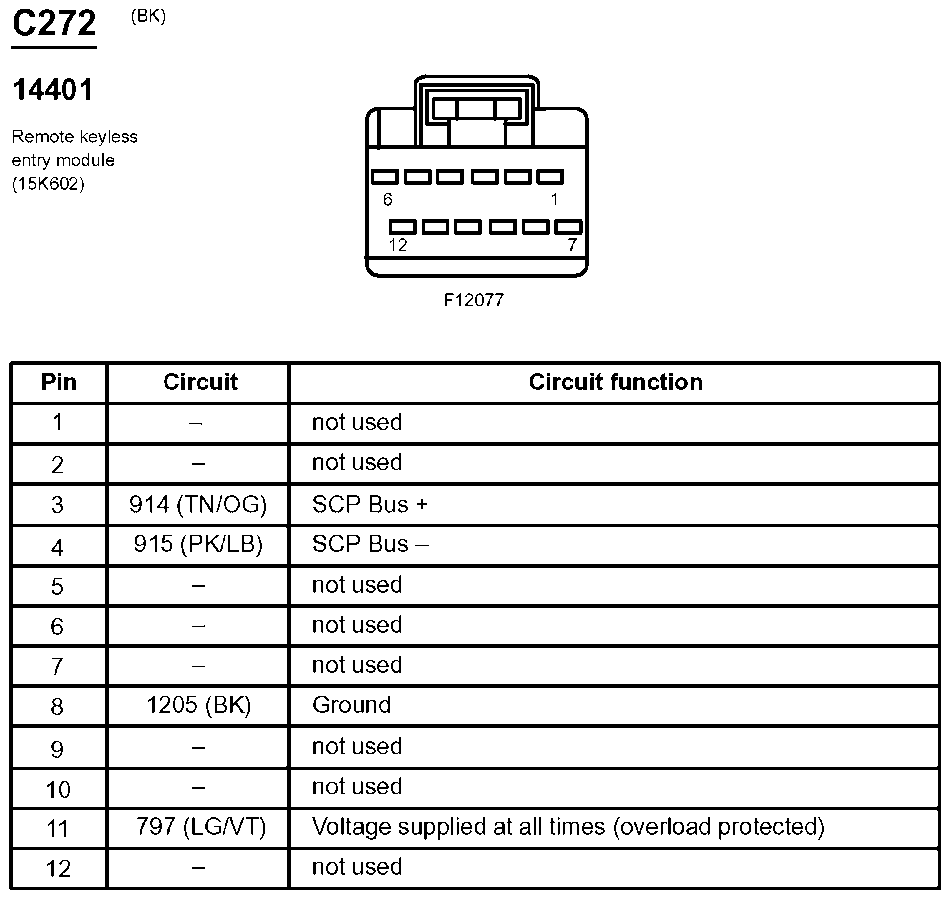

Fig 97: Remote Keyless Entry Module Connector End View (C272)
Courtesy of FORD MOTOR CO.

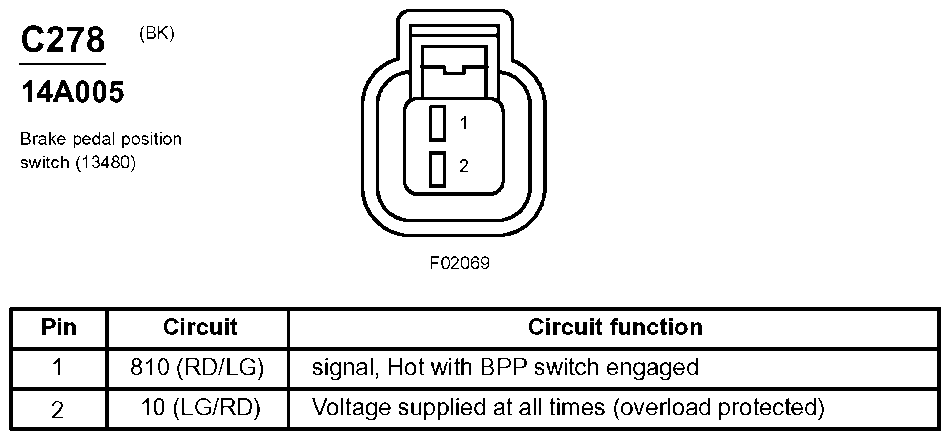

Fig 98: Brake Pedal Position Switch Connector End View (C278)
Courtesy of FORD MOTOR CO.

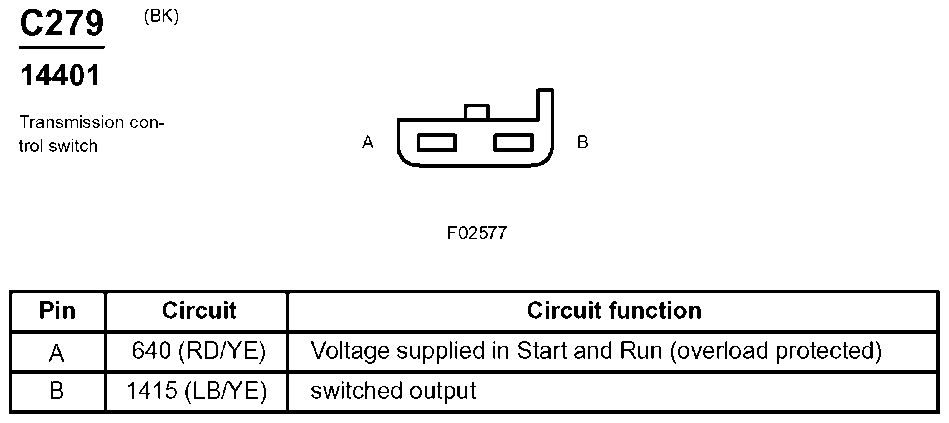

Fig 99: Transmission Control Switch Connector End View (C279)
Courtesy of FORD MOTOR CO.

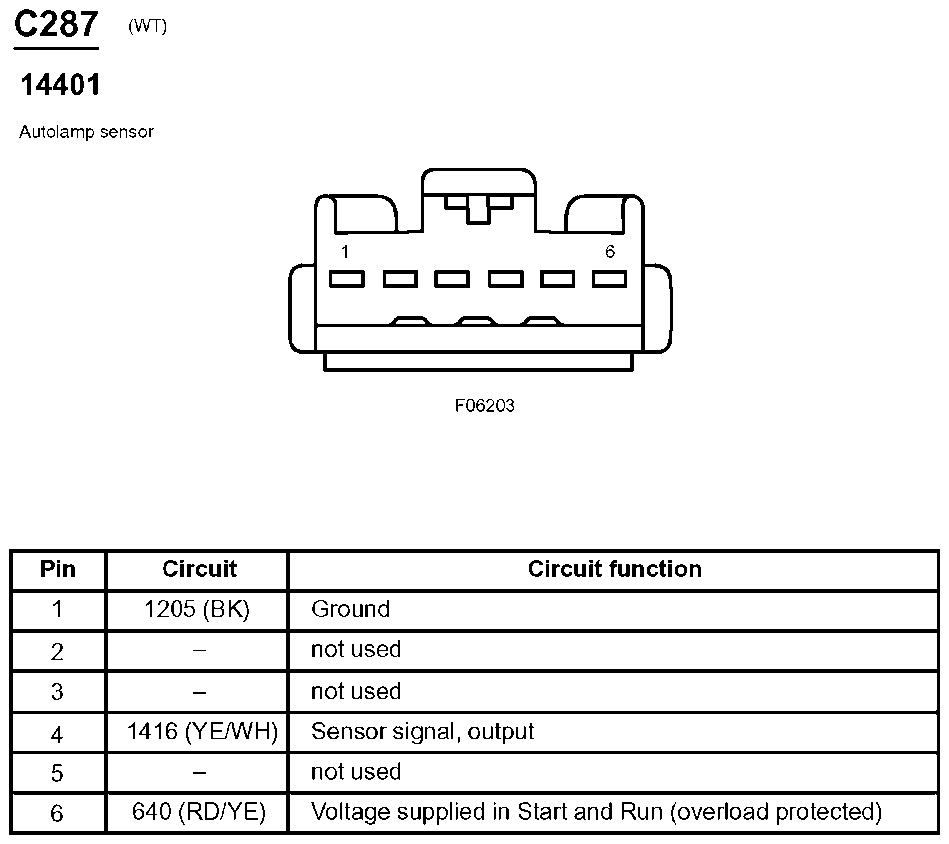

Fig 100: Autolamp Sensor Connector End View (C287)
Courtesy of FORD MOTOR CO.

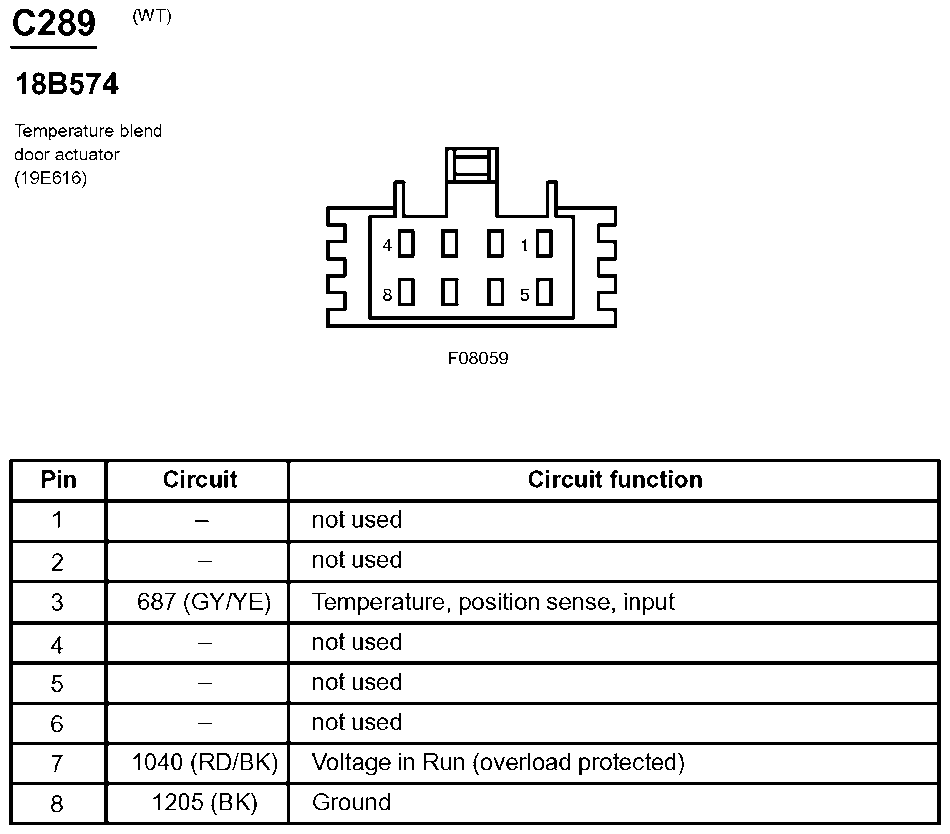

Fig 101: Temperature Blend Door Actuator Connector End View (C289)
Courtesy of FORD MOTOR CO.

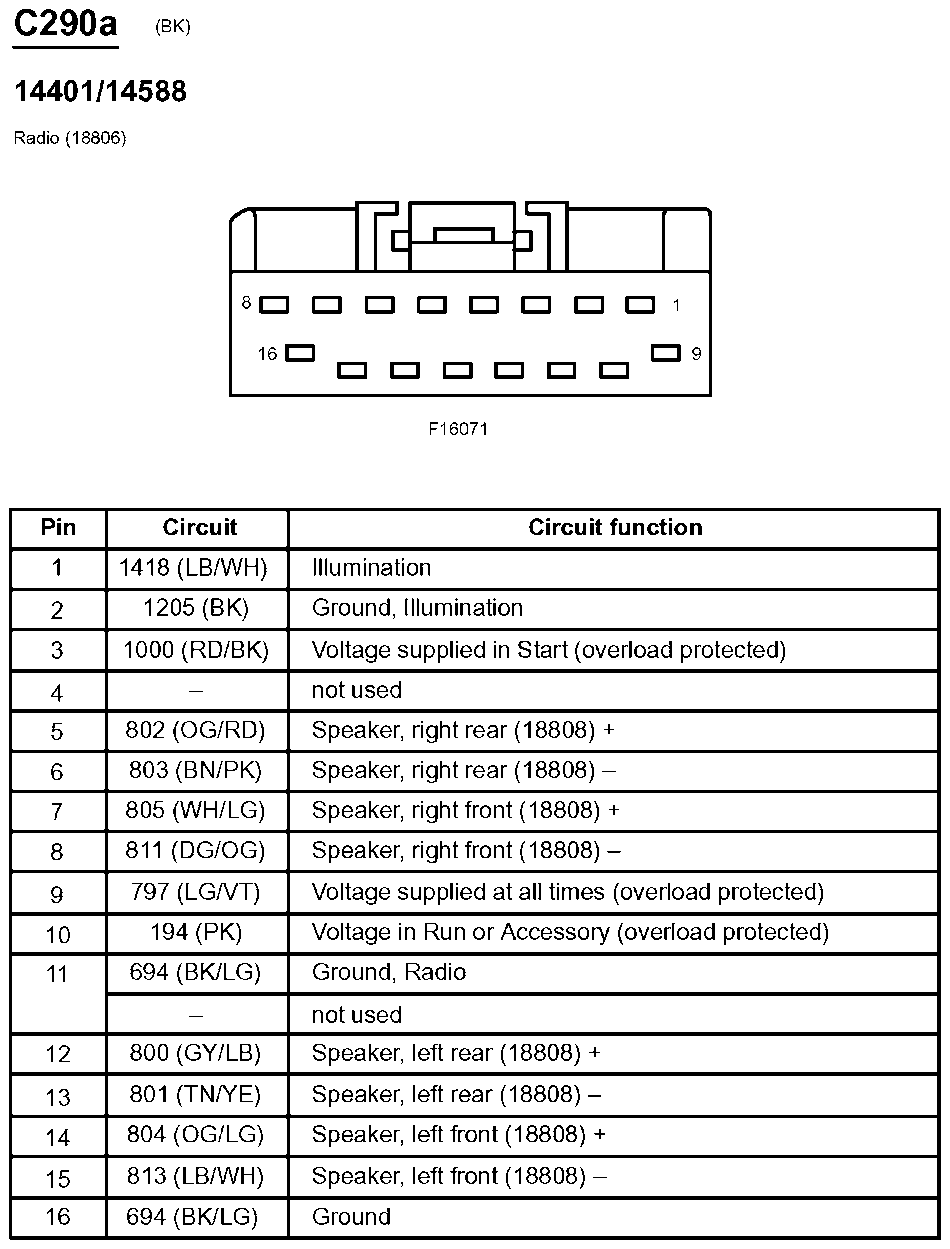

Fig 102: Radio Connector End View (C290a)
Courtesy of FORD MOTOR CO.

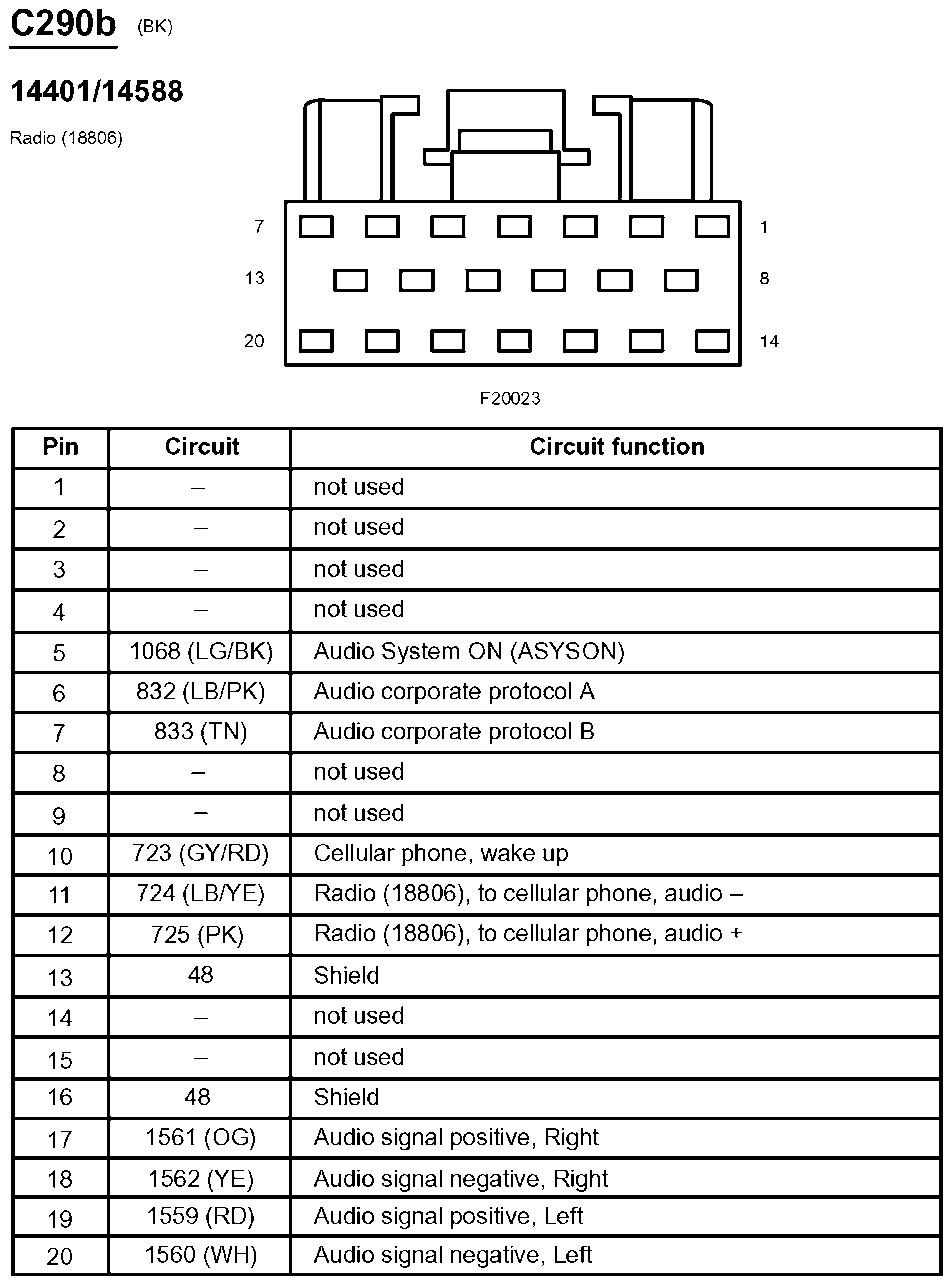

Fig 103: Radio Connector End View (C290b)
Courtesy of FORD MOTOR CO.

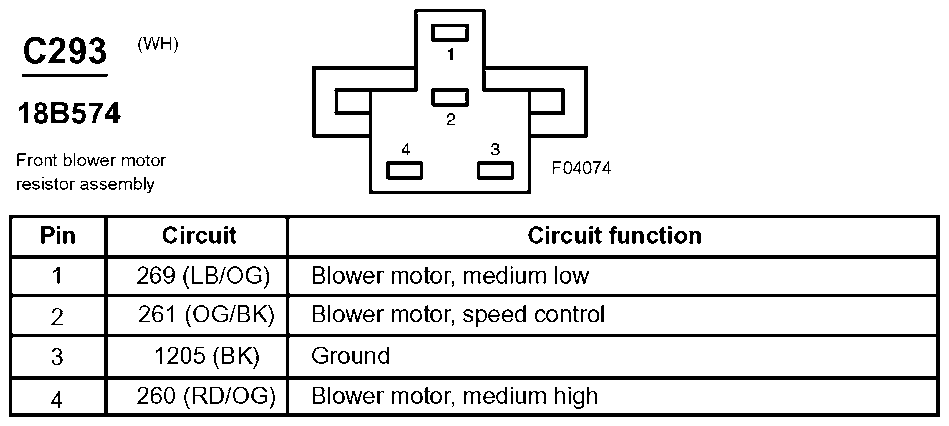

Fig 104: Front Blower Motor Resistor Assembly Connector End View (C293)
Courtesy of FORD MOTOR CO.

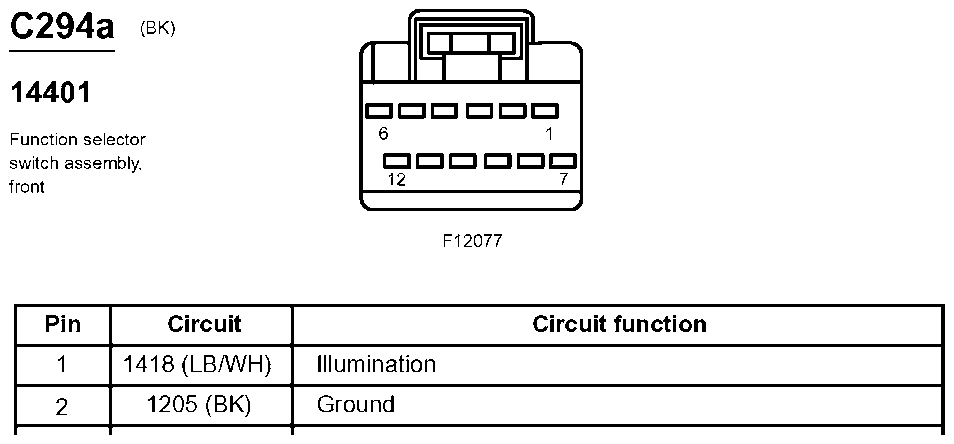

Fig 105: Function Selector Switch Assembly, Front Connector End View (C294a)
Courtesy of FORD MOTOR CO.

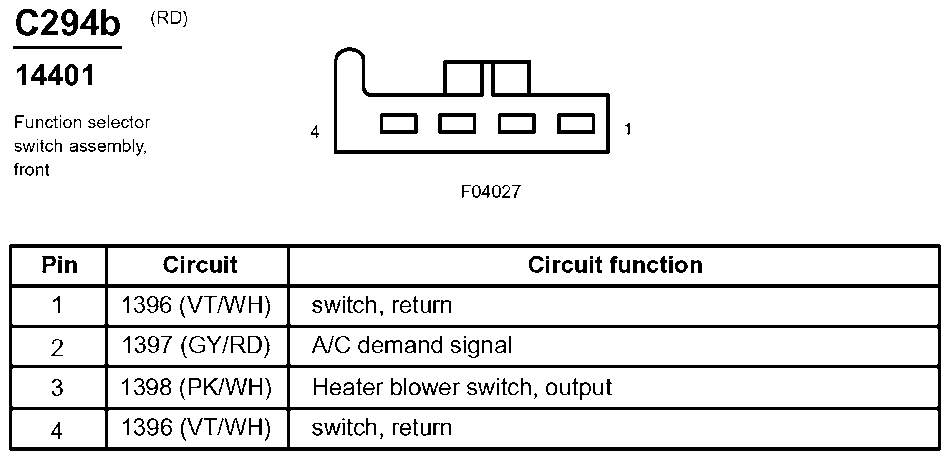

Fig 106: Function Selector Switch Assembly, Front Connector End View (C294b)
Courtesy of FORD MOTOR CO.

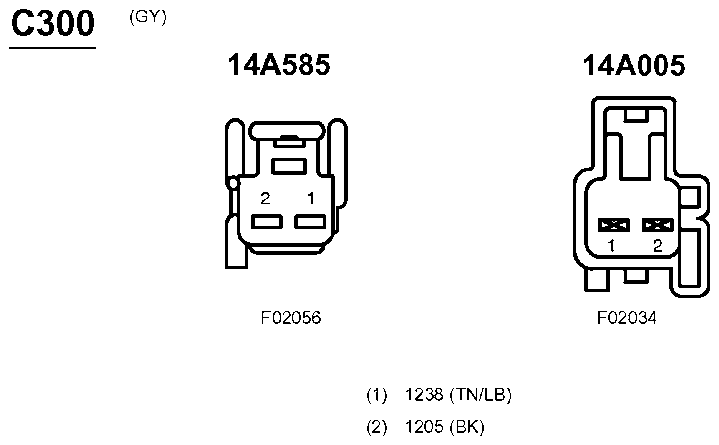

Fig 107: Inline Connector End View (C300)
Courtesy of FORD MOTOR CO.

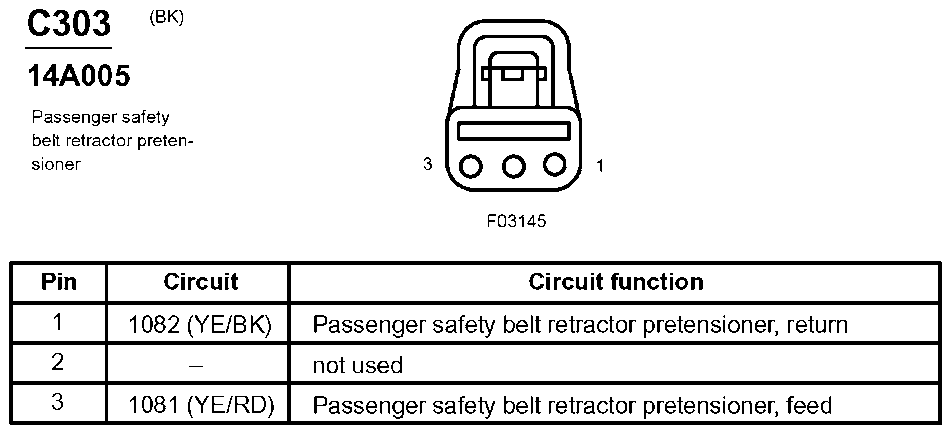

Fig 108: Passenger Safety Belt Retractor Pretensioner Connector End View (C303)
Courtesy of FORD MOTOR CO.

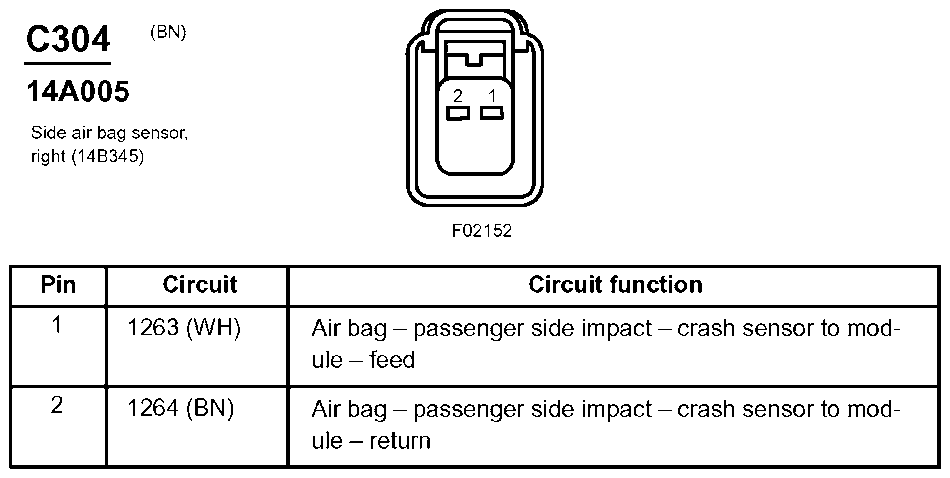

Fig 109: Side Air Bag Sensor, Right Connector End View (C304)
Courtesy of FORD MOTOR CO.

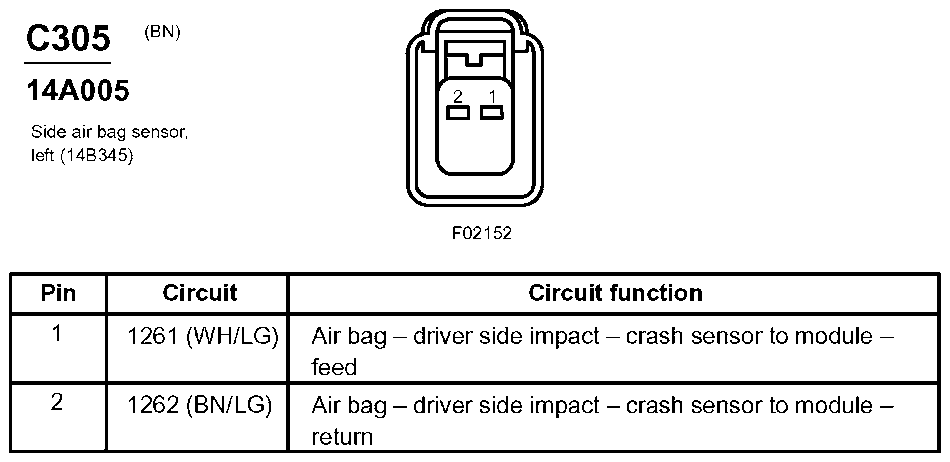

Fig 110: Side Air Bag Sensor, Left Connector End View (C305)
Courtesy of FORD MOTOR CO.

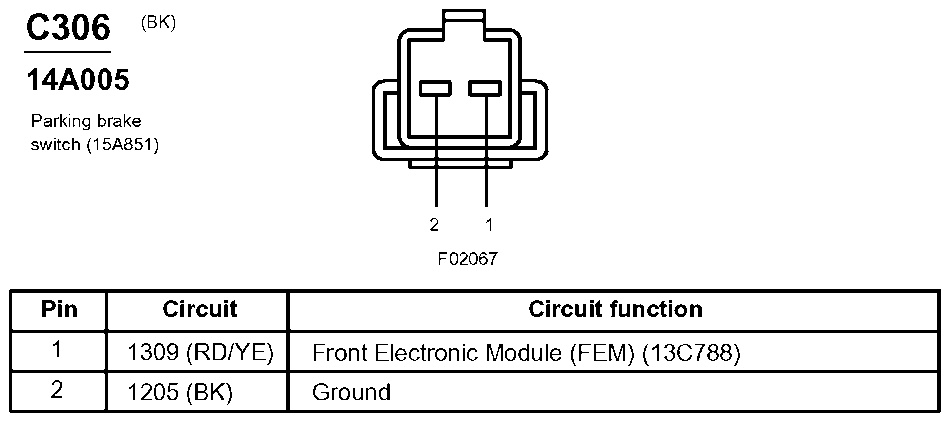

Fig 111: Parking Brake Switch Connector End View (C306)
Courtesy of FORD MOTOR CO.

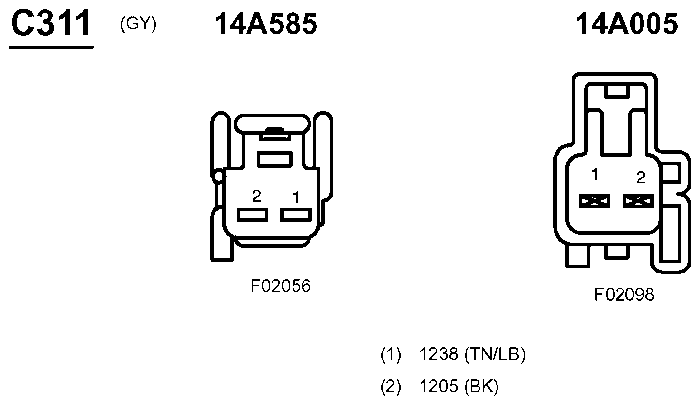

Fig 112: Inline Connector End View (C311)
Courtesy of FORD MOTOR CO.

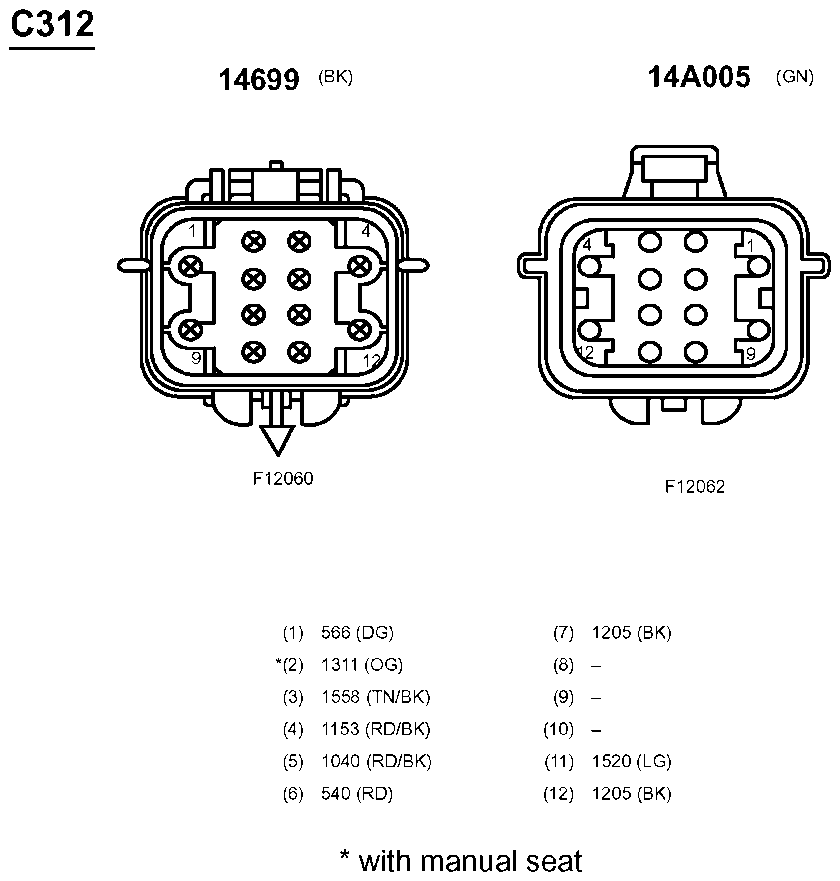

Fig 113: Inline Connector End View (C312)
Courtesy of FORD MOTOR CO.

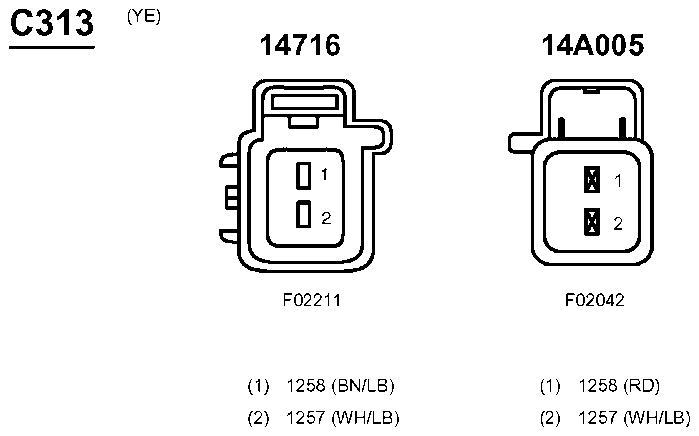

Fig 114: Inline Connector End View (C313)
Courtesy of FORD MOTOR CO.

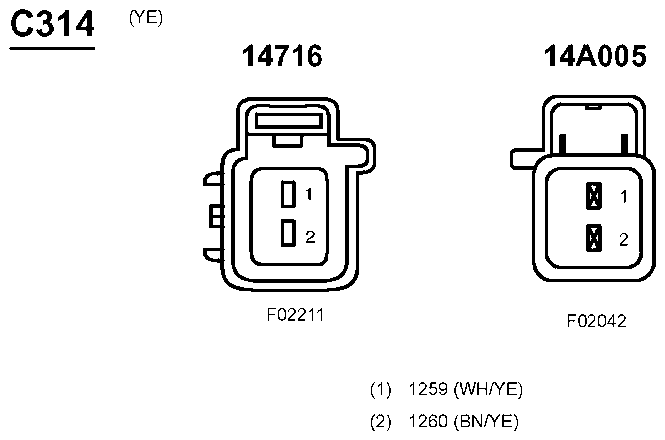

Fig 115: Inline Connector End View (C314)
Courtesy of FORD MOTOR CO.

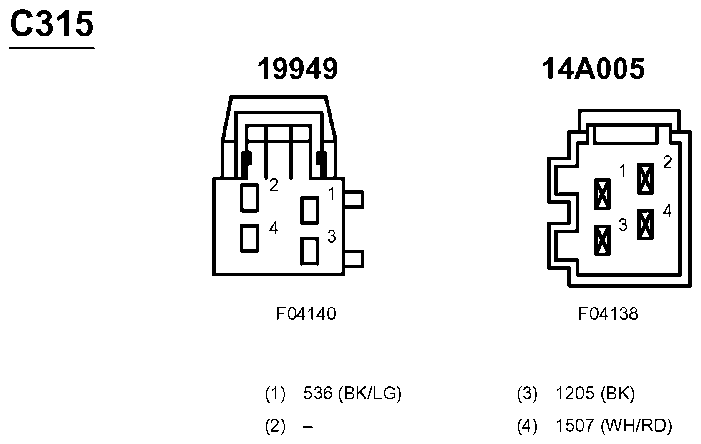

Fig 116: Inline Connector End View (C315)
Courtesy of FORD MOTOR CO.
Fig 117: Inline Connector End View (C311)
Courtesy of FORD MOTOR CO.
Fig 118: Inline Connector End View (C312)
Courtesy of FORD MOTOR CO.
Fig 119: Inline Connector End View (C313)
Courtesy of FORD MOTOR CO.
Fig 120: Inline Connector End View (C314)
Courtesy of FORD MOTOR CO.

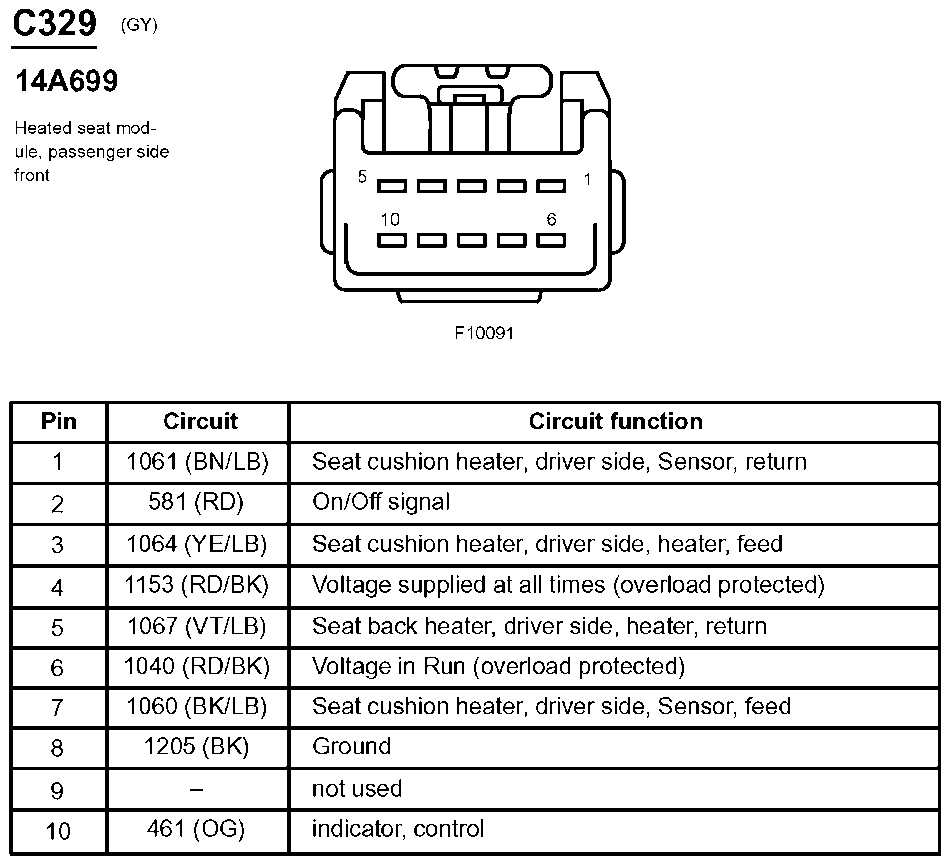

Fig 121: Heated Seat Module, Passenger Side Front Connector End View (C329)
Courtesy of FORD MOTOR CO.

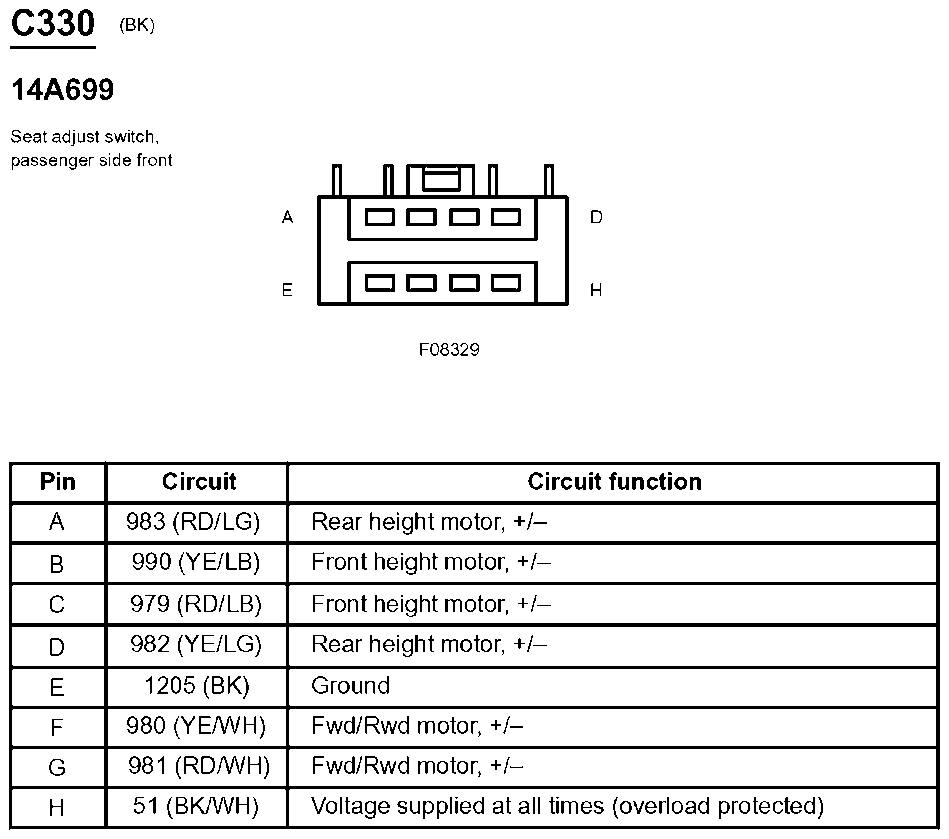

Fig 122: Seat Adjust Switch, Passenger Side Front Connector End View (C330)
Courtesy of FORD MOTOR CO.

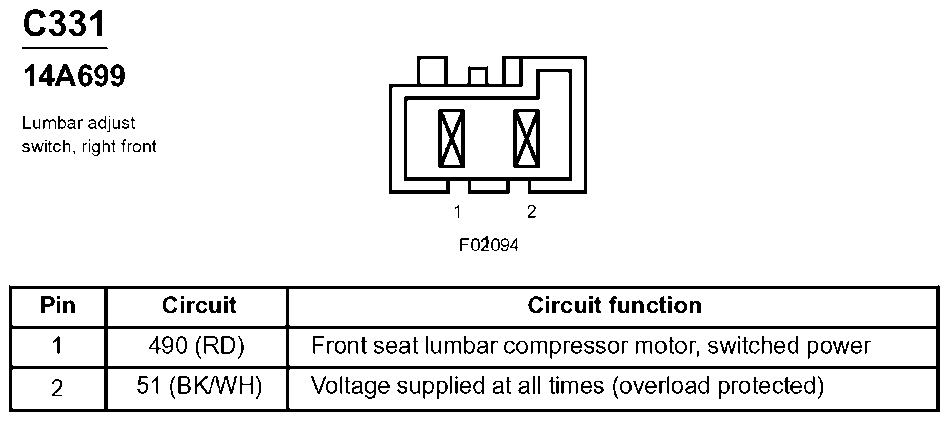

Fig 123: Lumbar Adjust Switch, Right Front Connector End View (C331)
Courtesy of FORD MOTOR CO.
Fig 124: Passenger Seat Horizontal Motor Connector End View (C332)
Courtesy of FORD MOTOR CO.

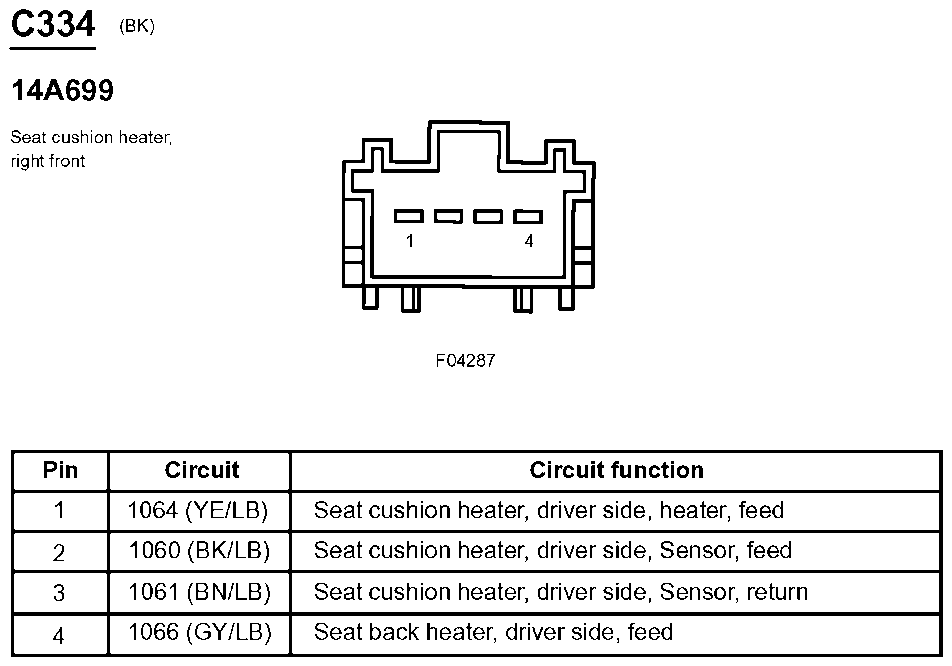

Fig 125: Seat Cushion Heater, Right Front Connector End View (C334)
Courtesy of FORD MOTOR CO.

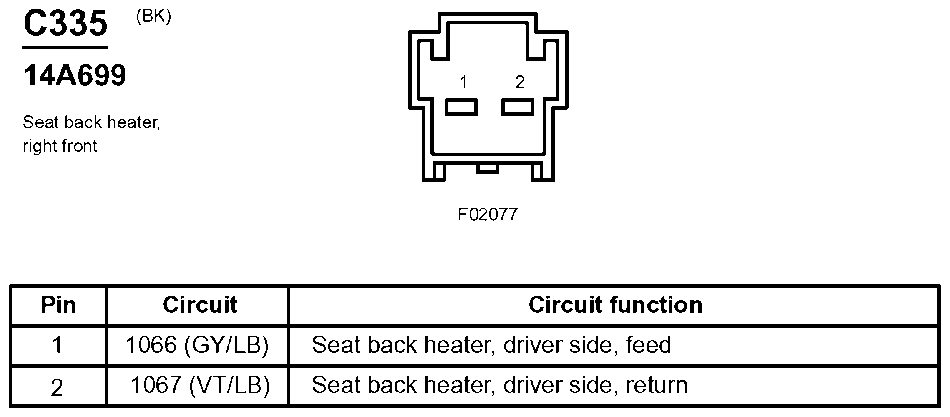

Fig 126: Seat Back Heater, Right Front Connector End View (C335)
Courtesy of FORD MOTOR CO.

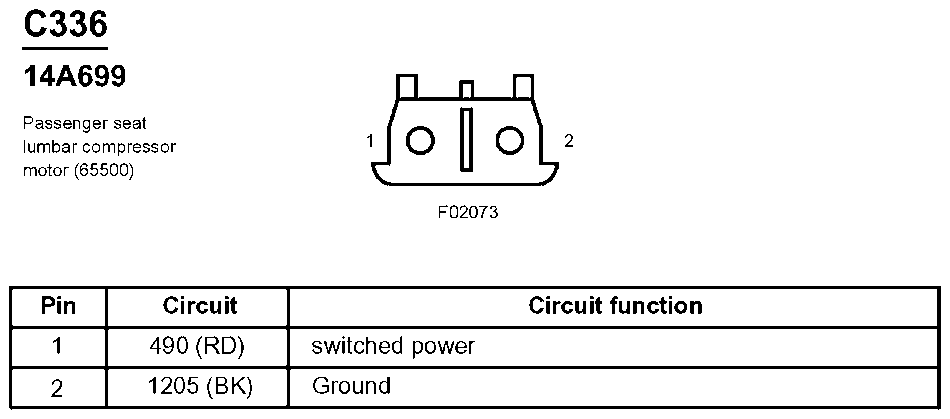

Fig 127: Passenger Seat Lumbar Compressor Motor Connector End View (C336)
Courtesy of FORD MOTOR CO.

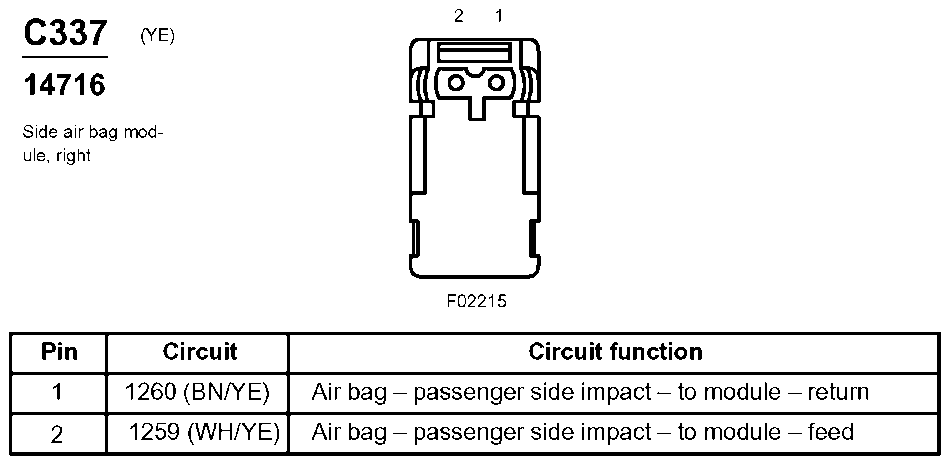

Fig 128: Side Air Bag Module, Right Connector End View (C337)
Courtesy of FORD MOTOR CO.

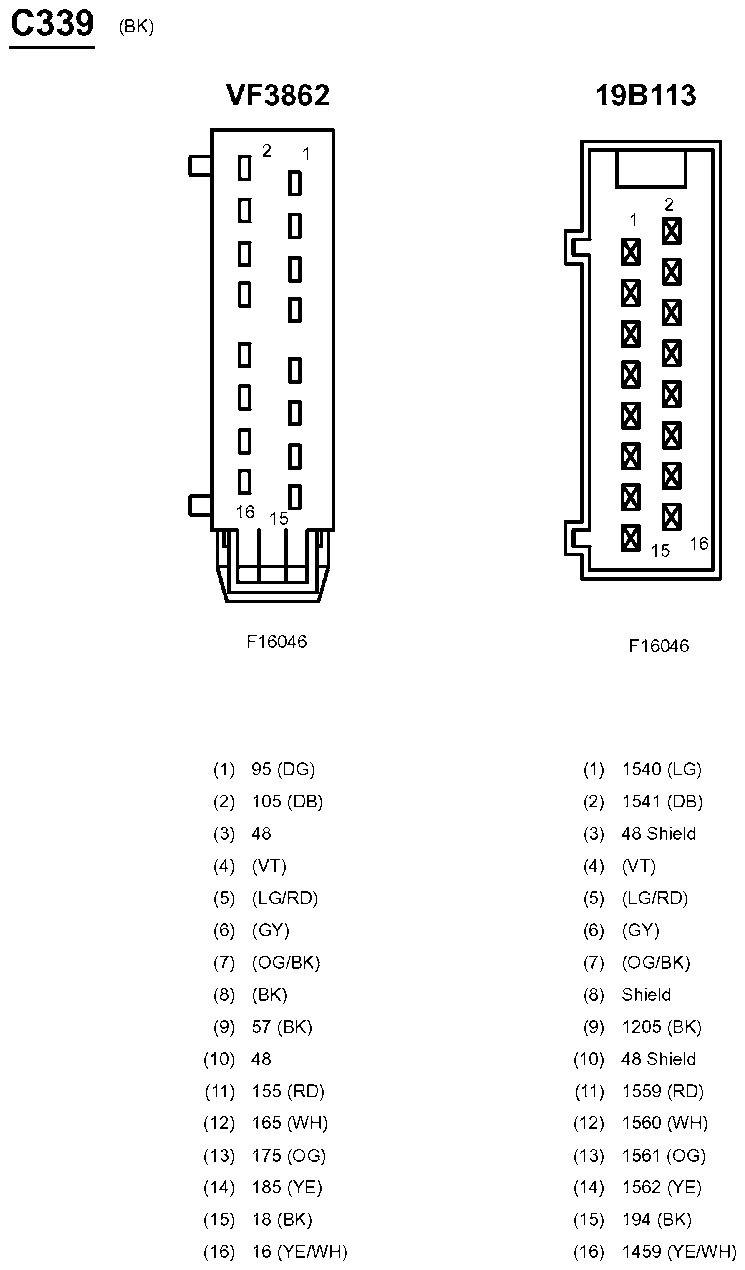

Fig 129: Inline Connector End View (C339)
Courtesy of FORD MOTOR CO.

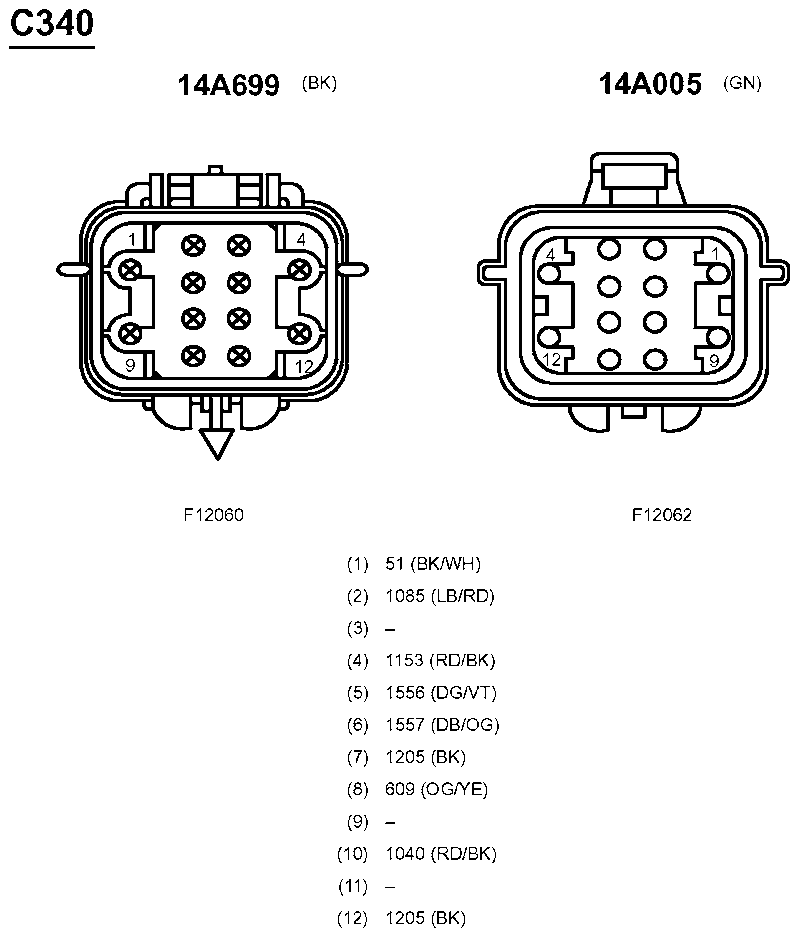

Fig 130: Inline Connector End View (C340)
Courtesy of FORD MOTOR CO.

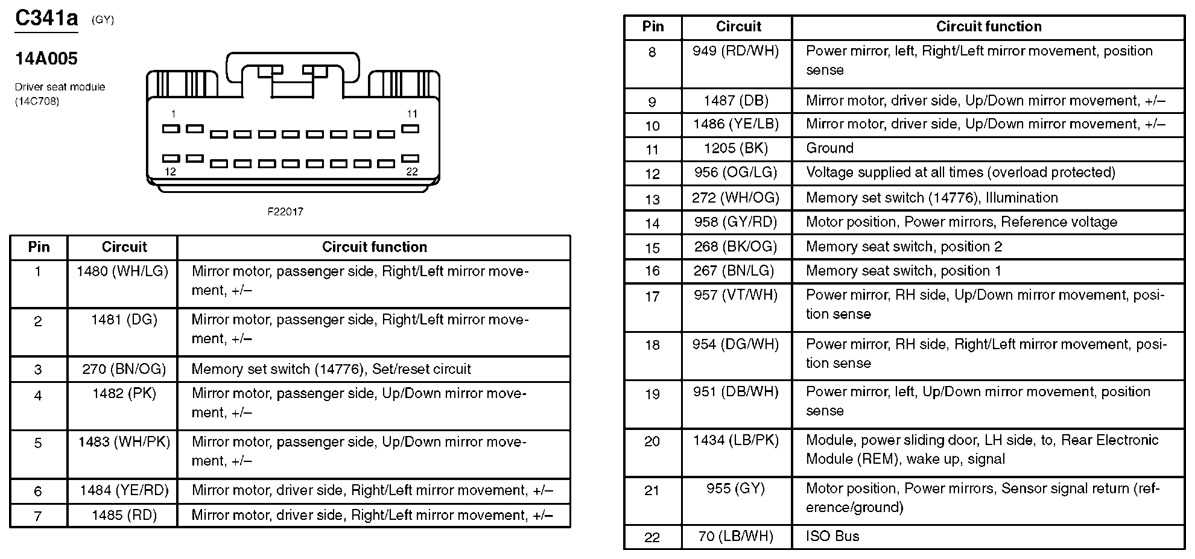

Fig 131: Driver Seat Module Connector End View (C341a)
Courtesy of FORD MOTOR CO.

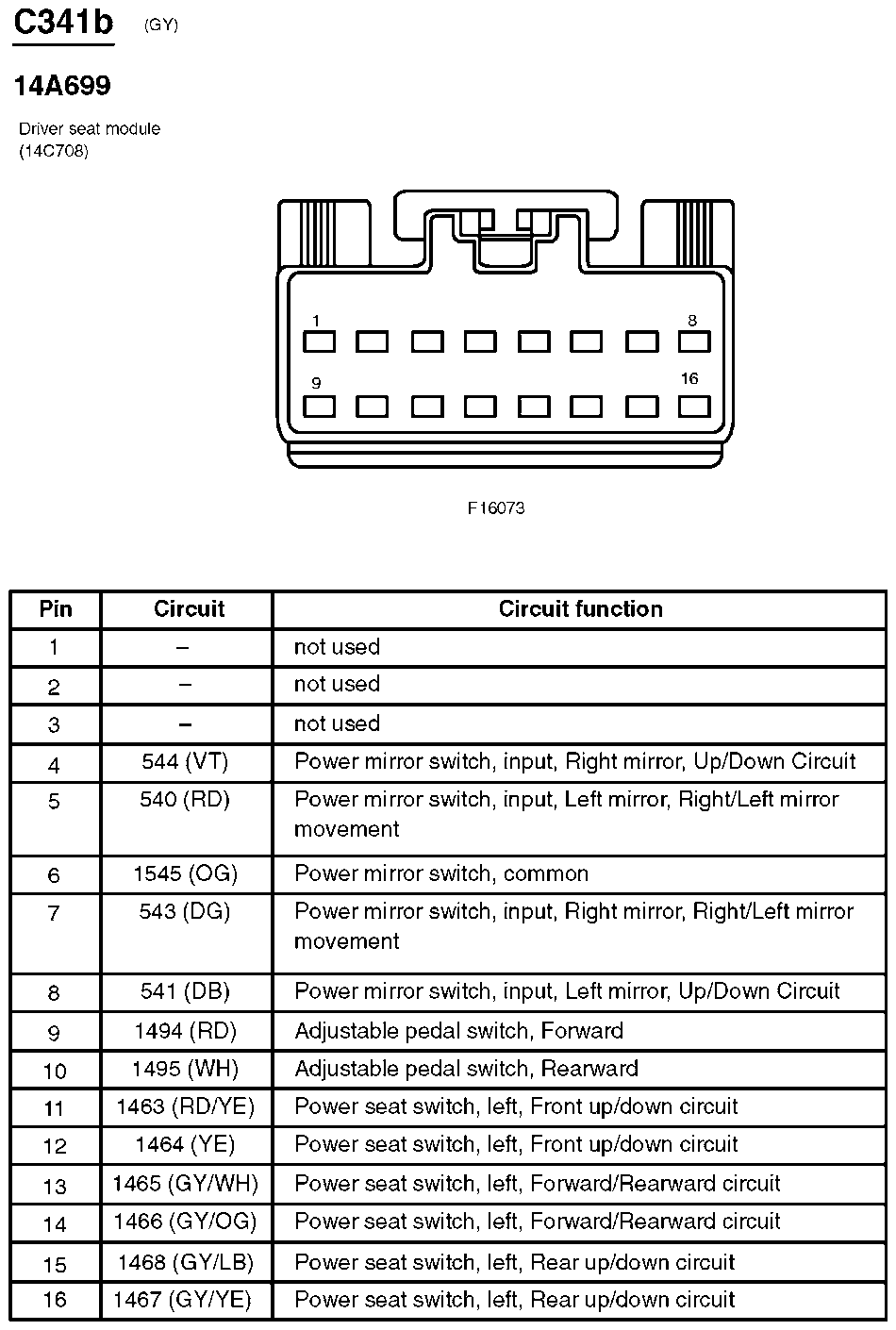

Fig 132: Driver Seat Module Connector End View (C341b)
Courtesy of FORD MOTOR CO.

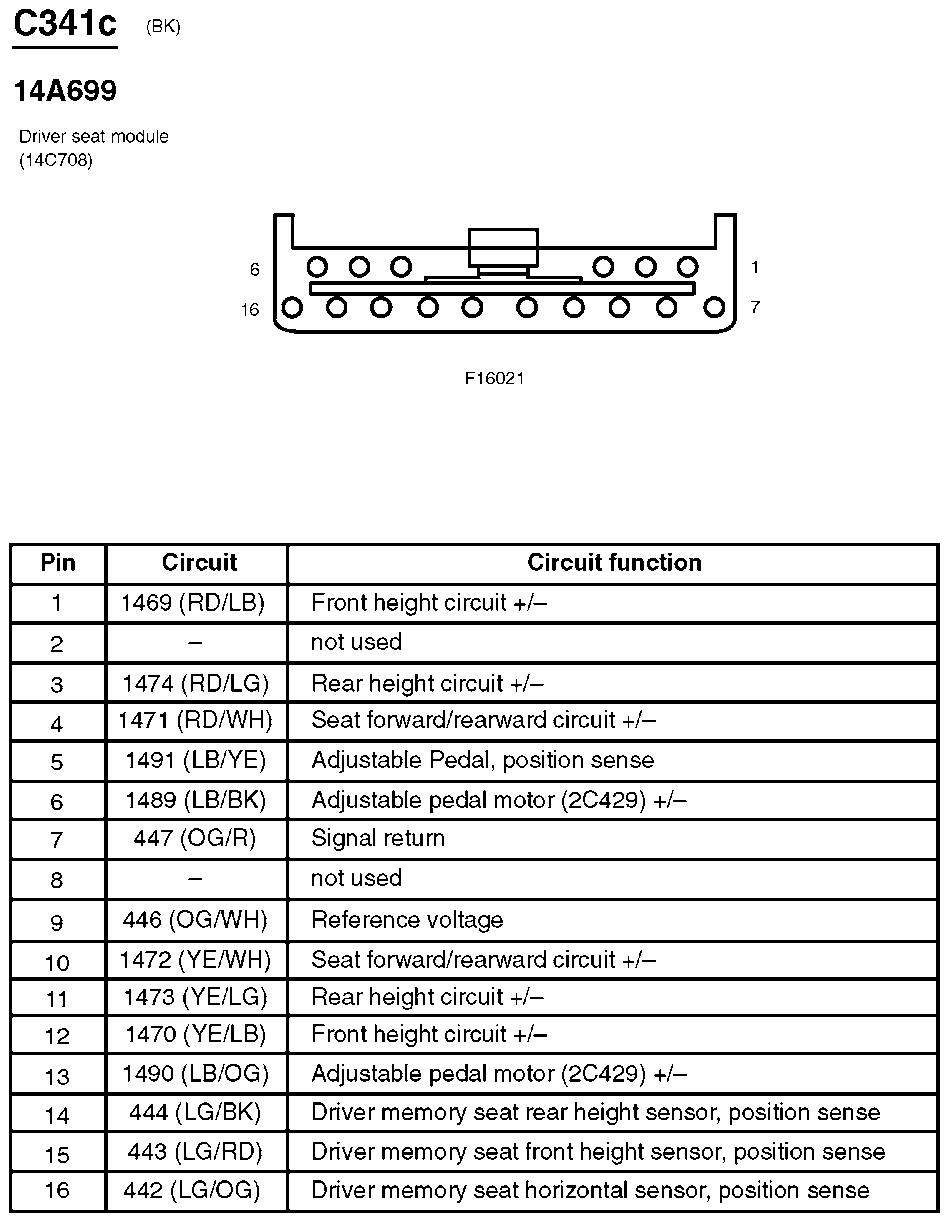

Fig 133: Driver Seat Module Connector End View (C341c)
Courtesy of FORD MOTOR CO.

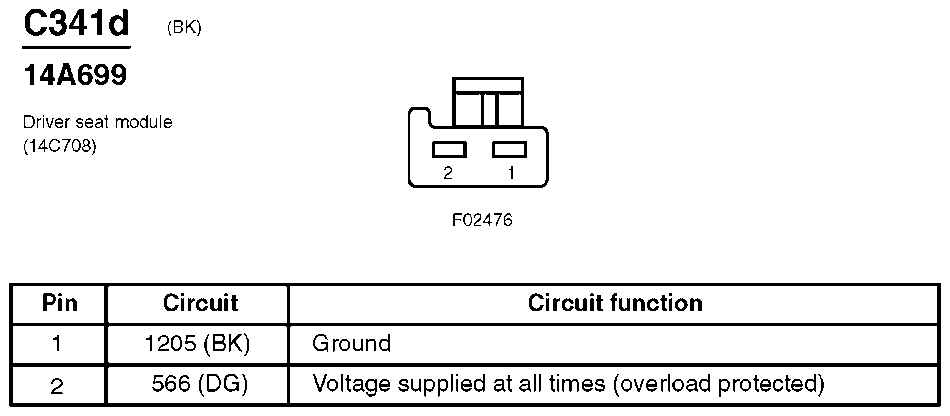

Fig 134: Driver Seat Module Connector End View (C341d)
Courtesy of FORD MOTOR CO.

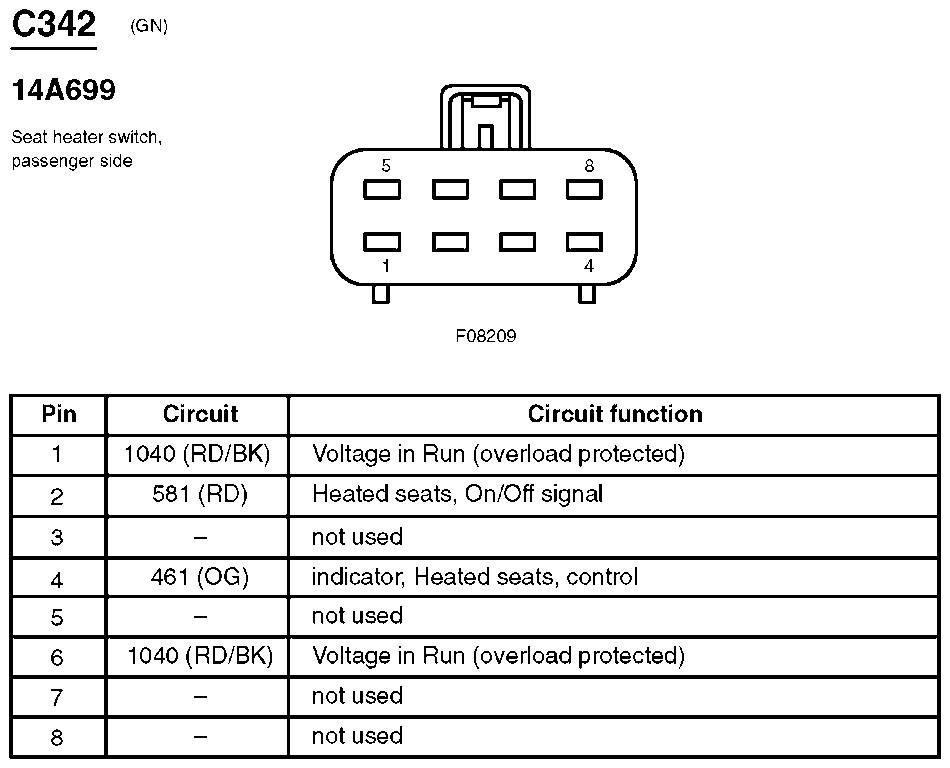

Fig 135: Seat Heater Switch, Passenger Side Connector End View (C342)
Courtesy of FORD MOTOR CO.

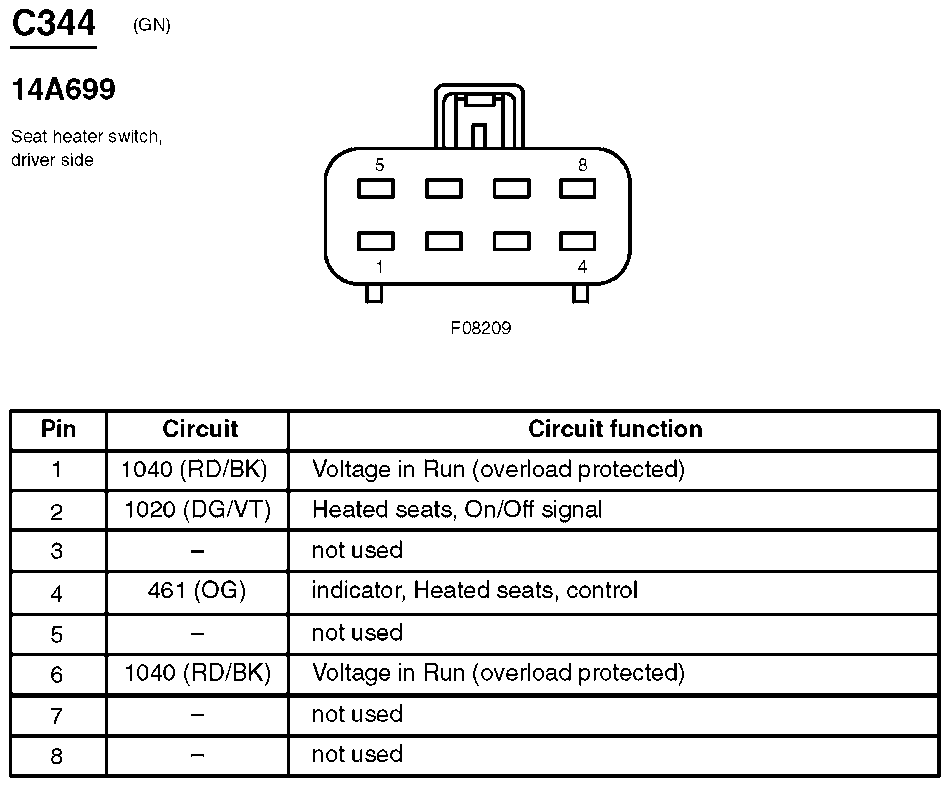

Fig 136: Seat Heater Switch, Driver Side Connector End View (C344)
Courtesy of FORD MOTOR CO.

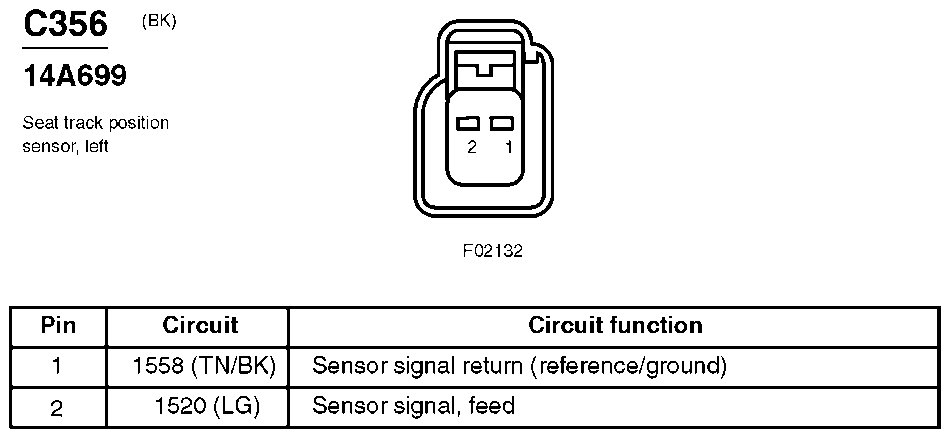

Fig 137: Seat Track Position Sensor, Left Connector End View (C356)
Courtesy of FORD MOTOR CO.

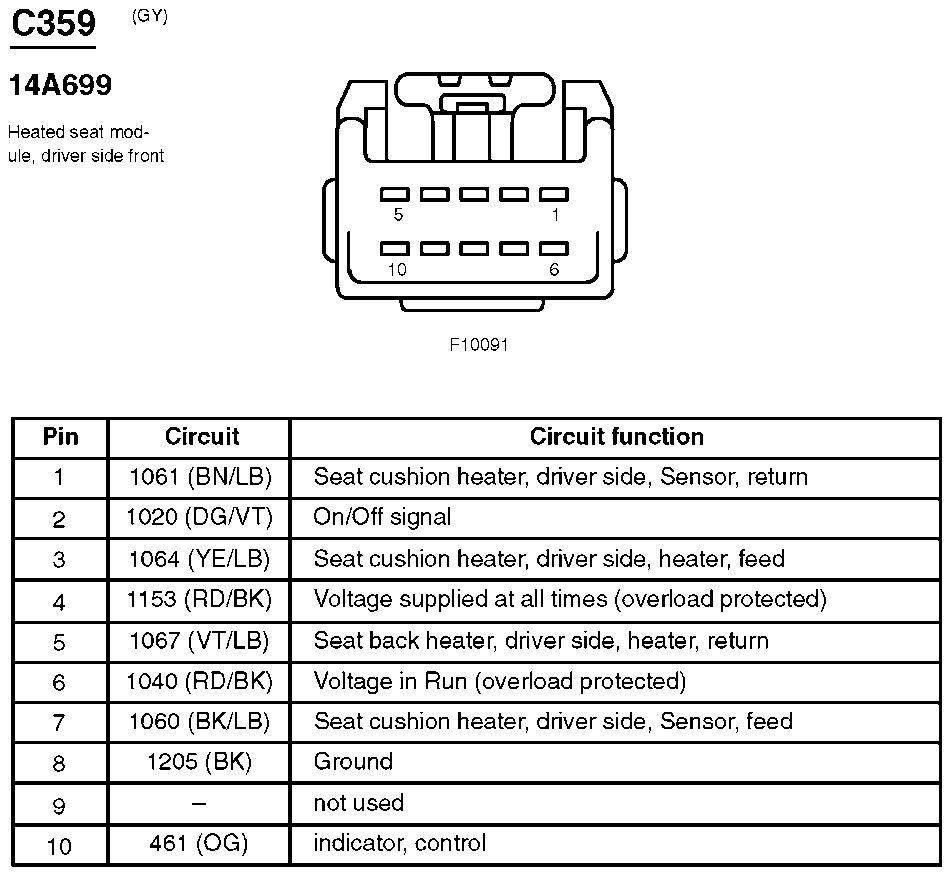

Fig 138: Heated Seat Module, Driver Side Front Connector End View (C359)
Courtesy of FORD MOTOR CO.
Fig 139: Seat Adjust Switch, Driver Side Front Connector End View (C360)
Courtesy of FORD MOTOR CO.

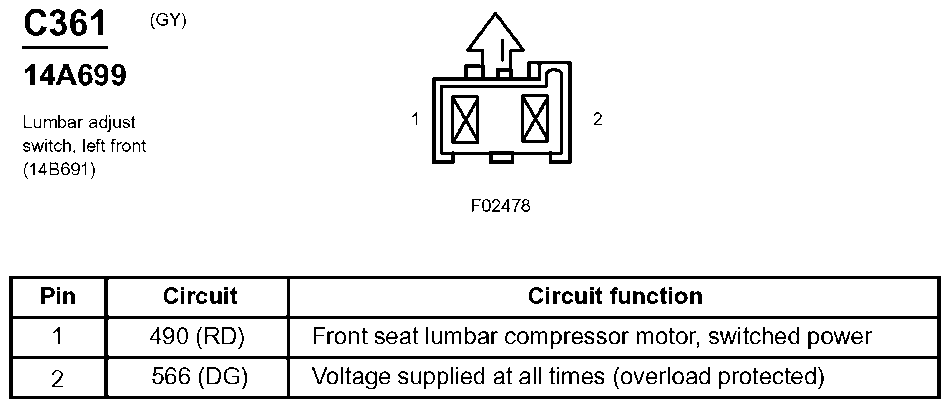

Fig 140: Lumbar Adjust Switch, Left Front Connector End View (C361)
Courtesy of FORD MOTOR CO.

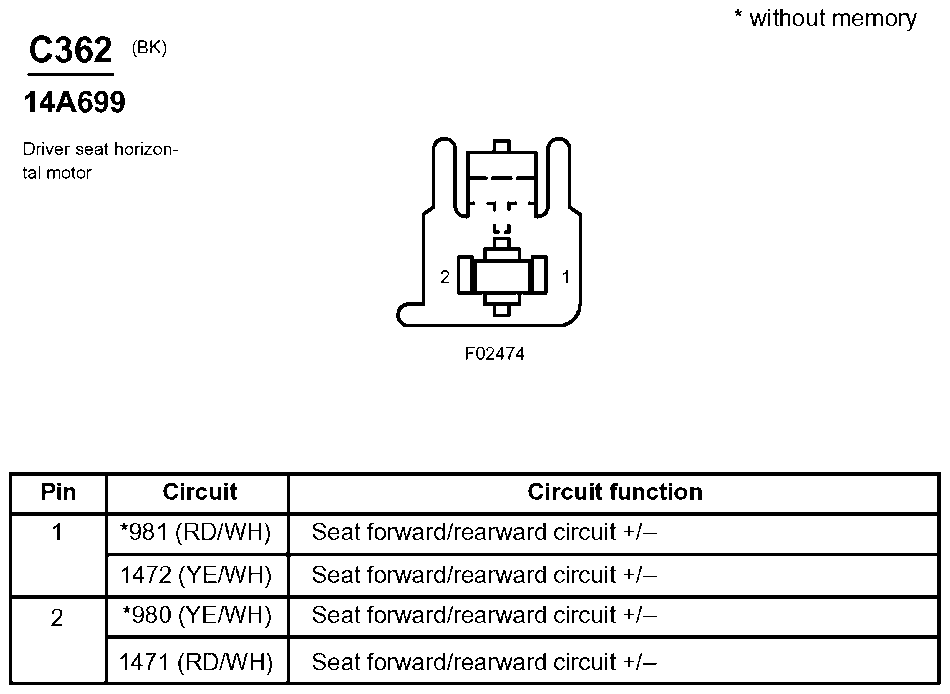

Fig 141: Driver Seat Horizontal Motor Connector End View (C362)
Courtesy of FORD MOTOR CO.

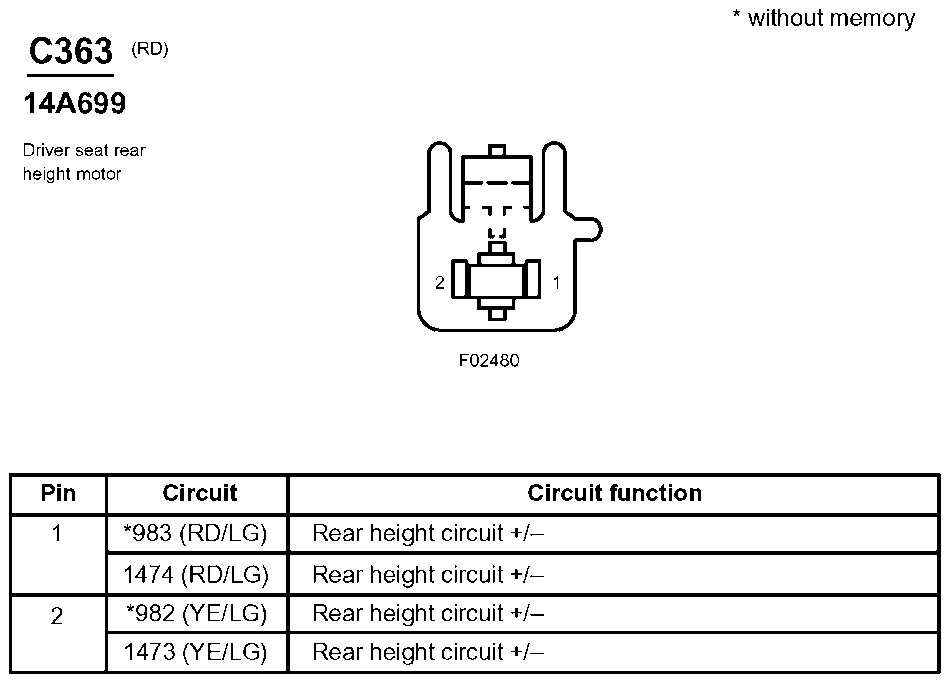

Fig 142: Driver Seat Rear Height Motor Connector End View (C363)
Courtesy of FORD MOTOR CO.

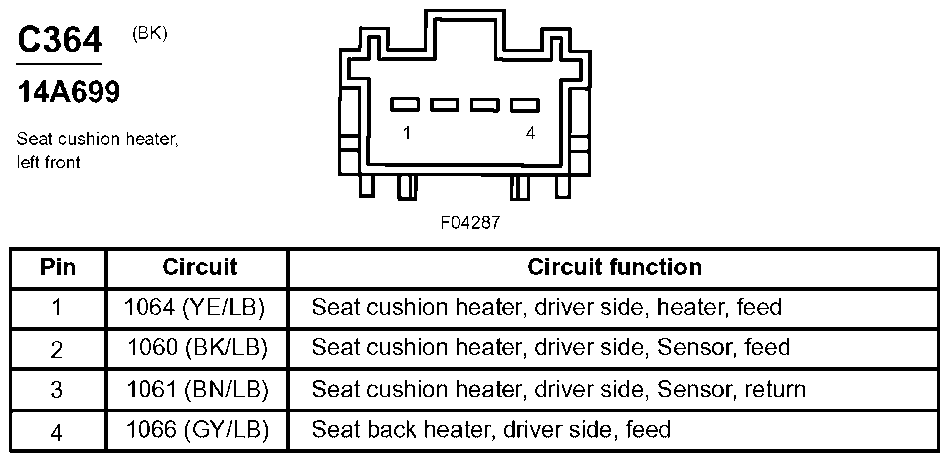

Fig 143: Seat Cushion Heater, Left Front Connector End View (C364)
Courtesy of FORD MOTOR CO.

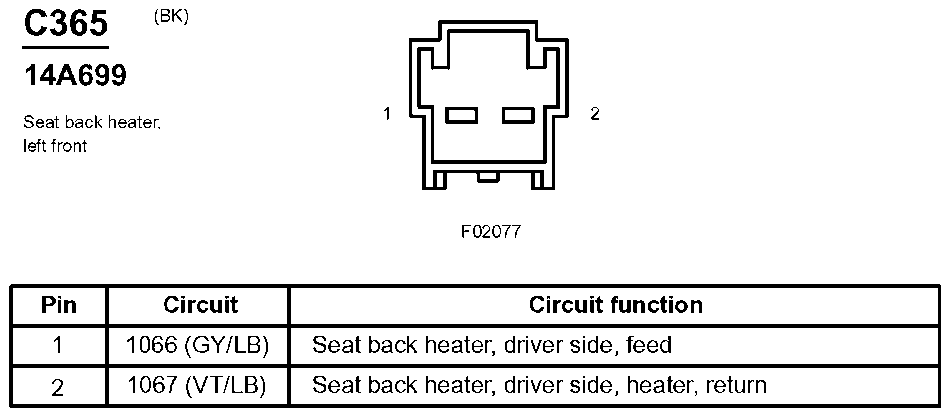

Fig 144: Seat Back Heater, Left Front Connector End View (C365)
Courtesy of FORD MOTOR CO.
Fig 145: Driver Seat Lumbar Compressor Motor Connector End View (C366)
Courtesy of FORD MOTOR CO.

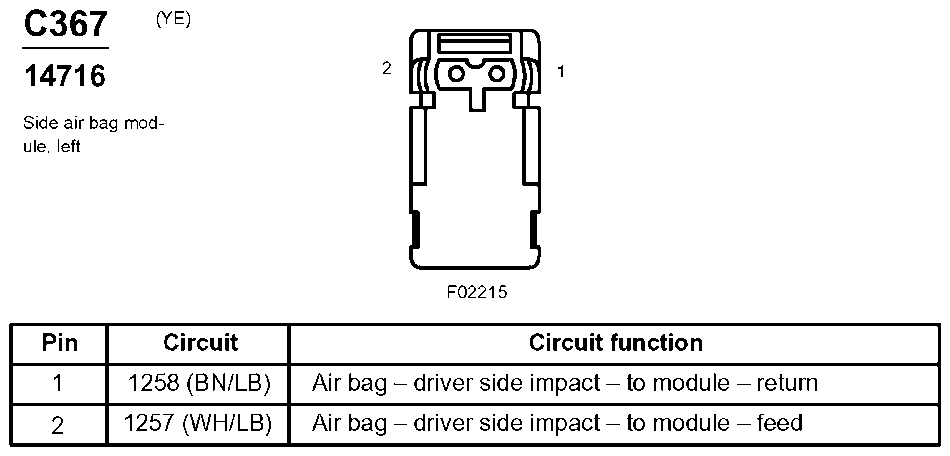

Fig 146: Side Air Bag Module, Left Connector End View (C367)
Courtesy of FORD MOTOR CO.

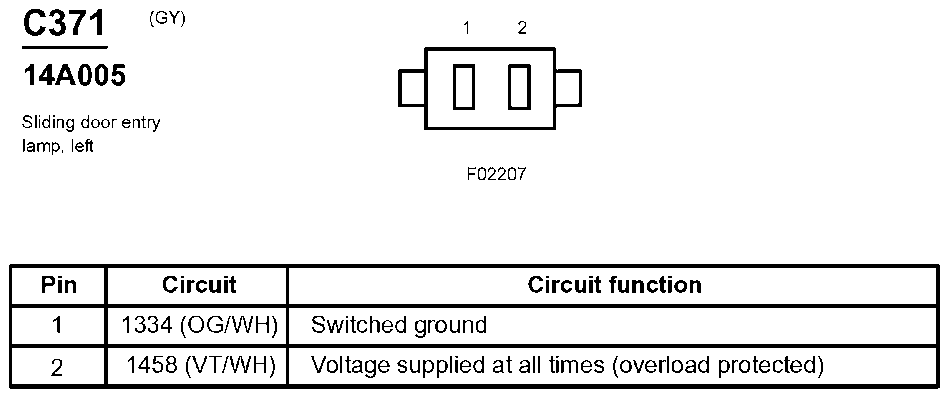

Fig 147: Sliding Door Entry Lamp, Left Connector End View (C371)
Courtesy of FORD MOTOR CO.

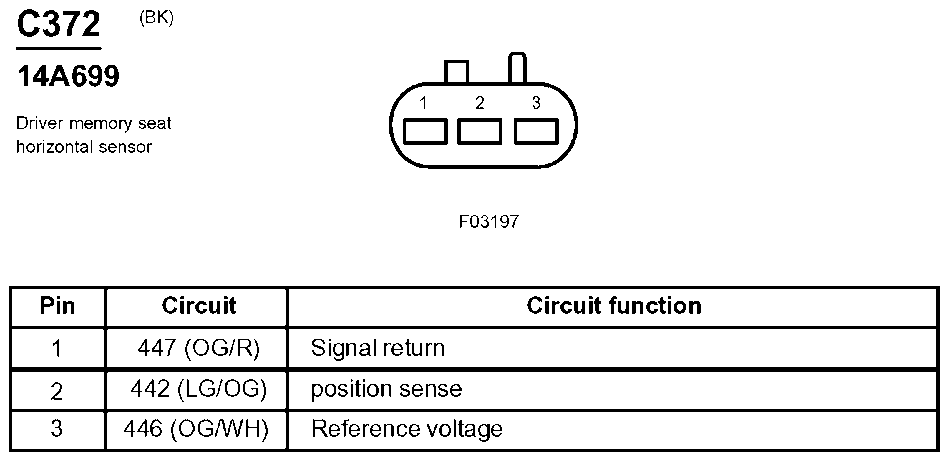

Fig 148: Driver Memory Seat Horizontal Sensor Connector End View (C372)
Courtesy of FORD MOTOR CO.

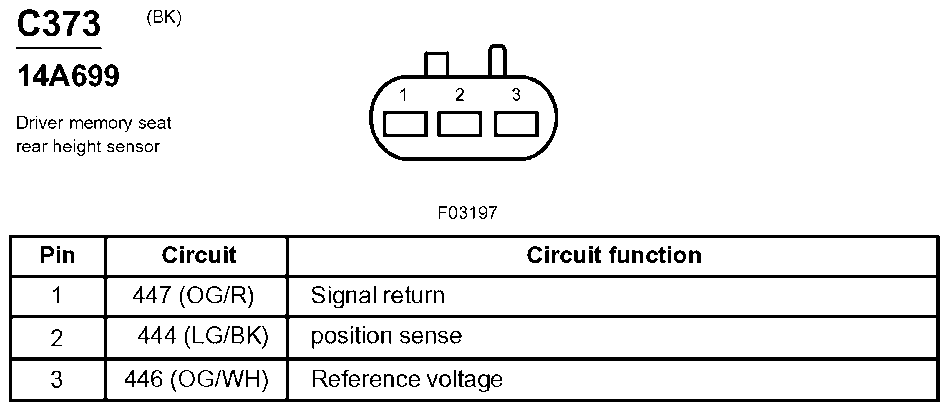

Fig 149: Driver Memory Seat Rear Height Sensor Connector End View (C373)
Courtesy of FORD MOTOR CO.

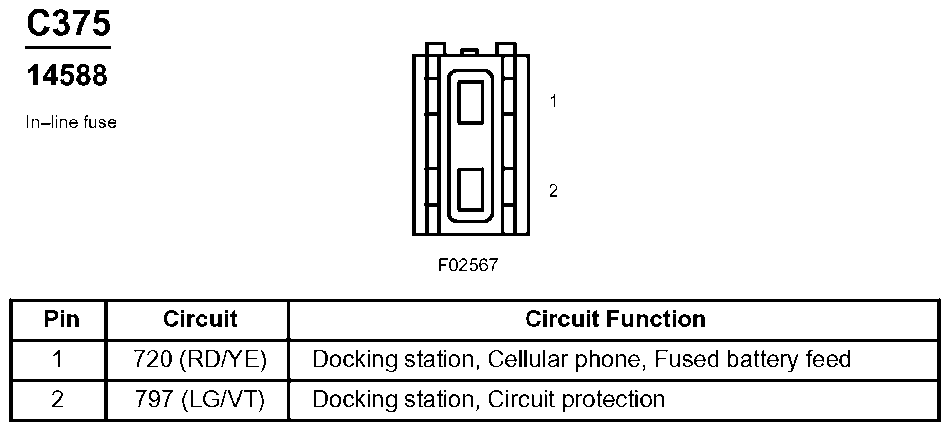

Fig 150: In-Line Fuse Connector End View (C375)
Courtesy of FORD MOTOR CO.

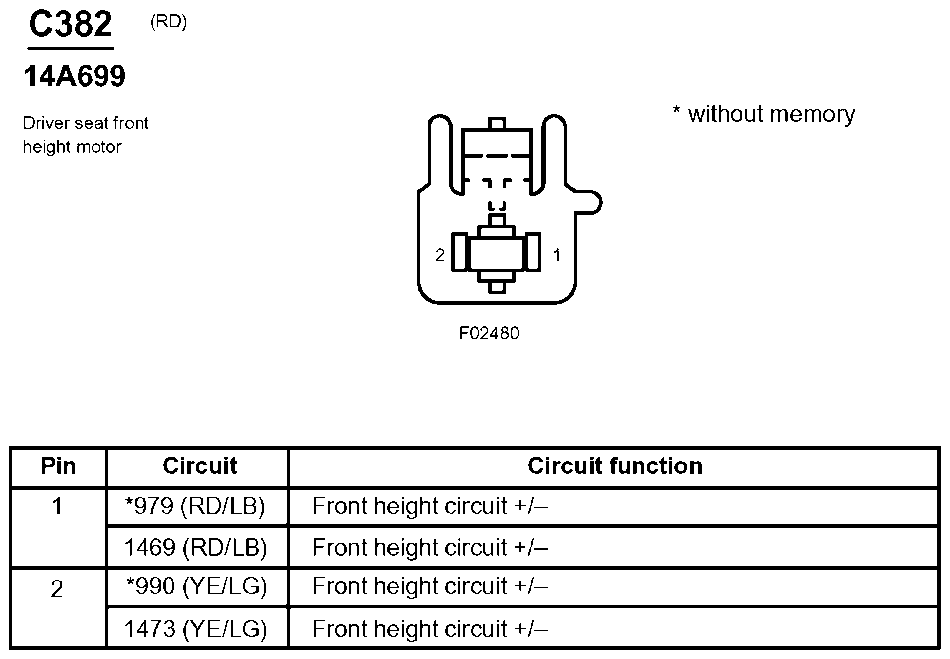

Fig 151: Driver Seat Front Height Motor Connector End View (C382)
Courtesy of FORD MOTOR CO.

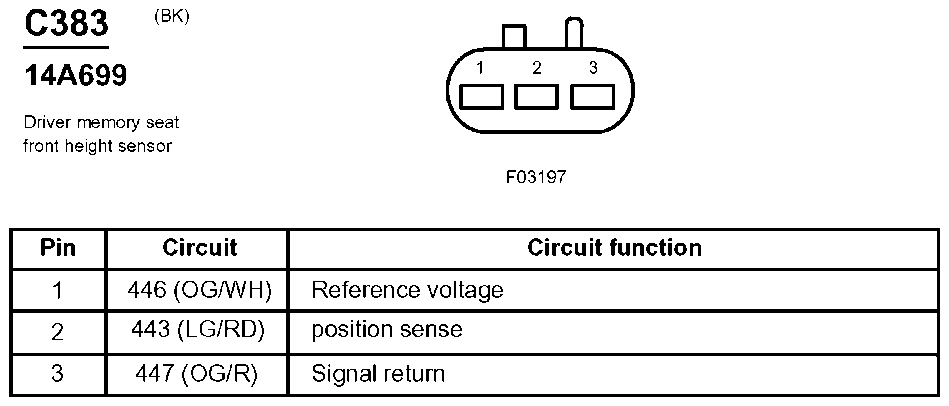

Fig 152: Driver Memory Seat Front Height Sensor Connector End View (C383)
Courtesy of FORD MOTOR CO.

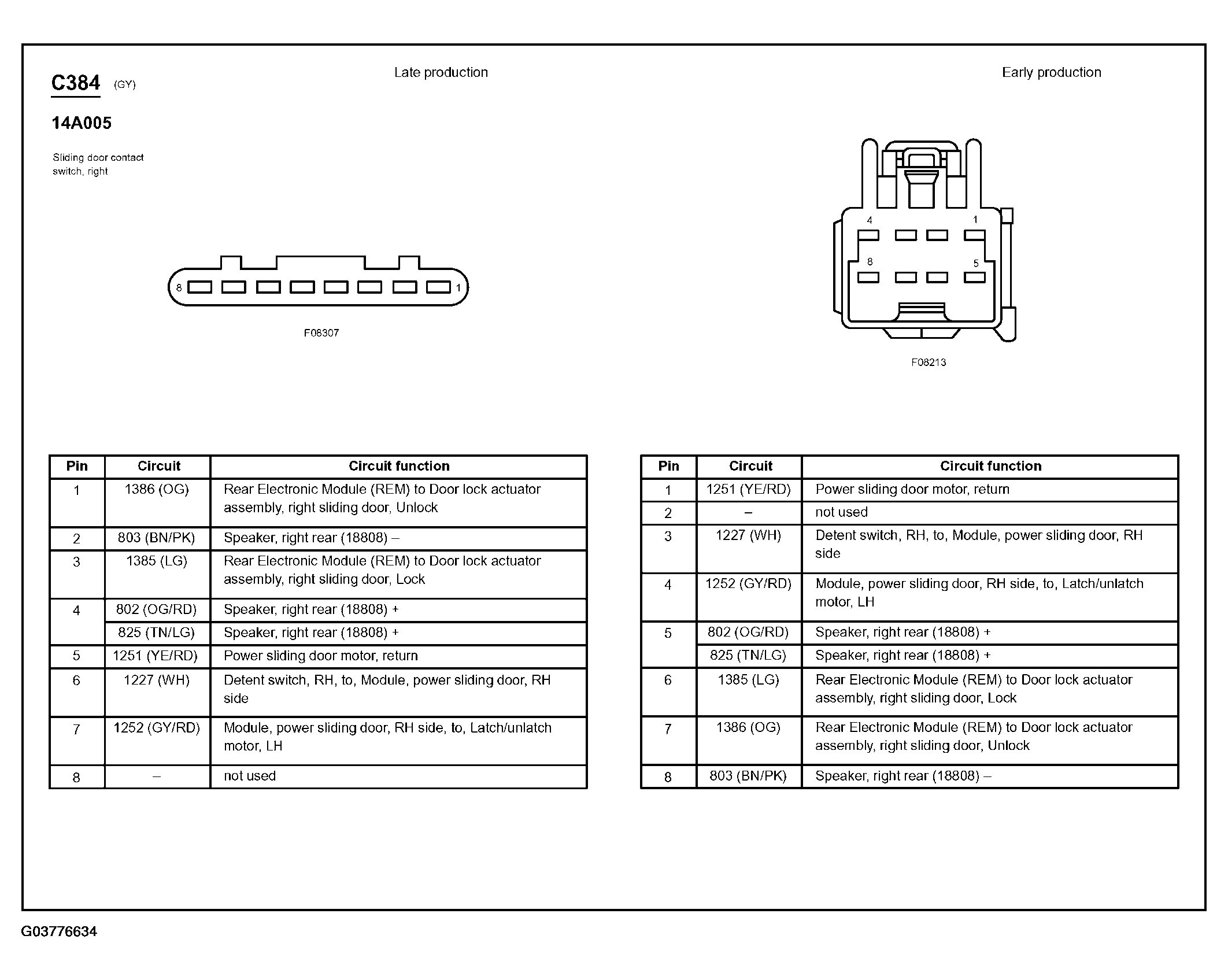

Fig 153: Sliding Door Contact Switch, Right Connector End View (C384)
Courtesy of FORD MOTOR CO.

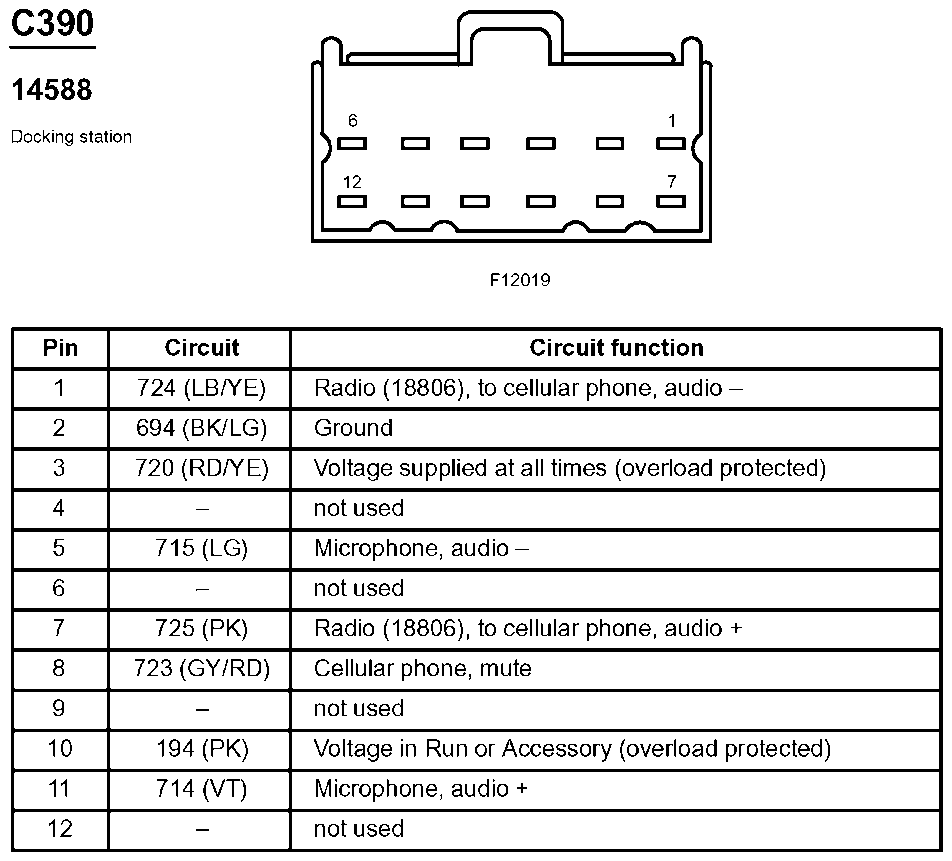

Fig 154: Docking Station Connector End View (C390)
Courtesy of FORD MOTOR CO.

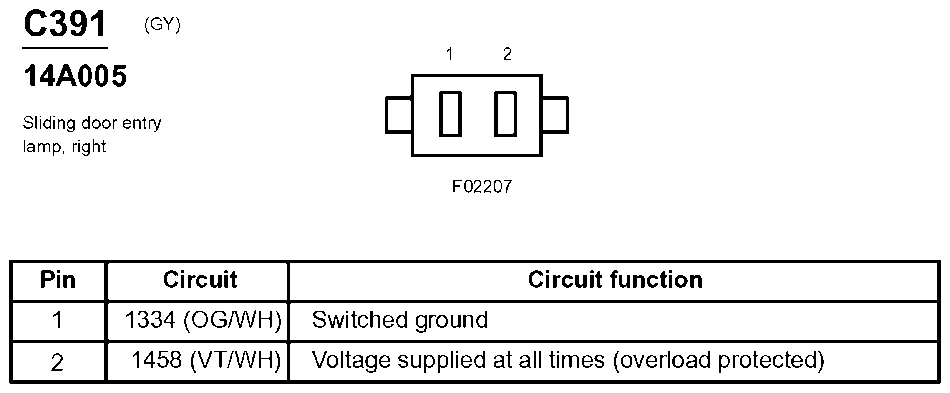

Fig 155: Sliding Door Entry Lamp, Right Connector End View (C391)
Courtesy of FORD MOTOR CO.

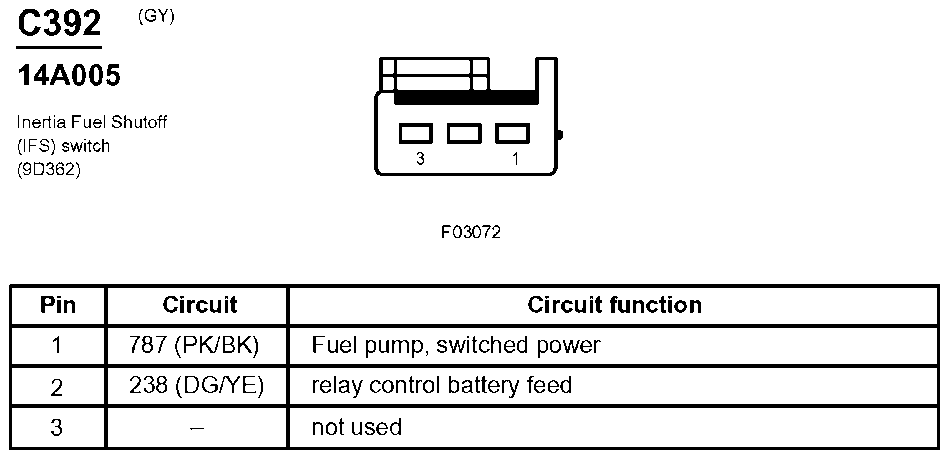

Fig 156: Inertia Fuel Shutoff (IFS) Switch Connector End View (C392)
Courtesy of FORD MOTOR CO.

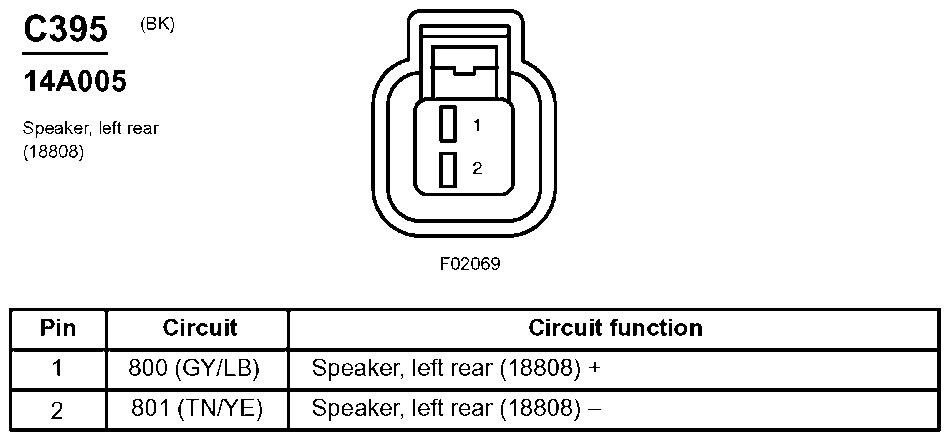

Fig 157: Speaker, Left Rear Connector End View (C395)
Courtesy of FORD MOTOR CO.

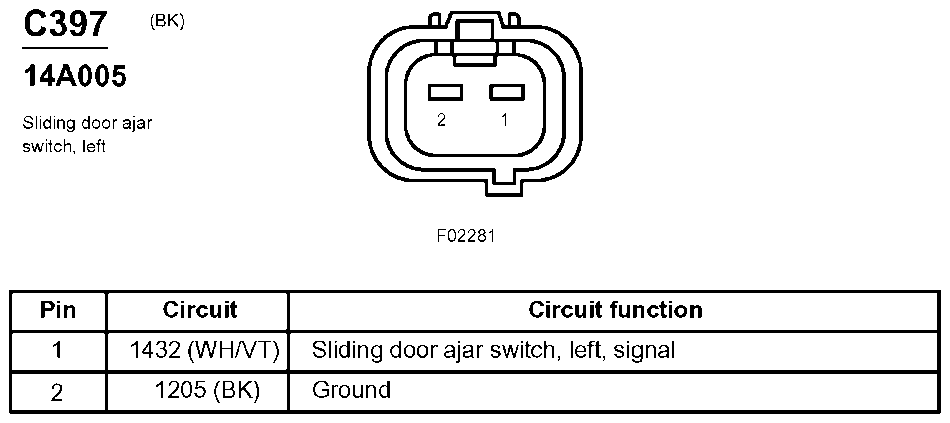

Fig 158: Sliding Door Ajar Switch, Left Connector End View (C397)
Courtesy of FORD MOTOR CO.

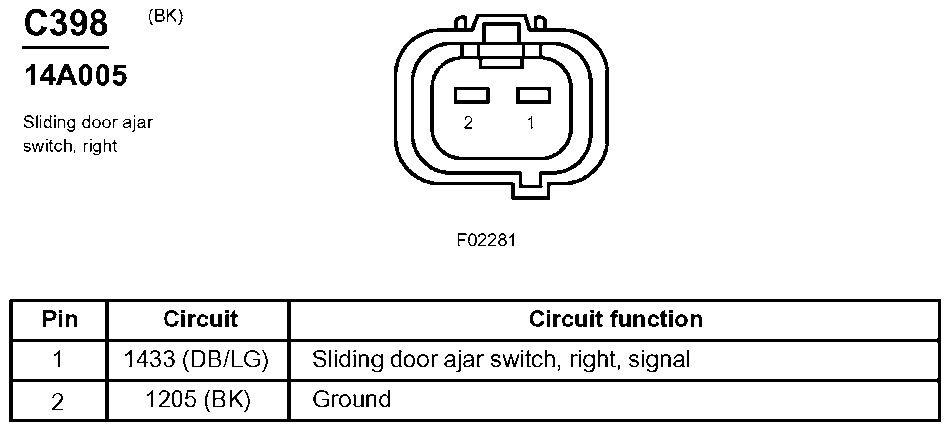

Fig 159: Sliding Door Ajar Switch, Right Connector End View (C398)
Courtesy of FORD MOTOR CO.

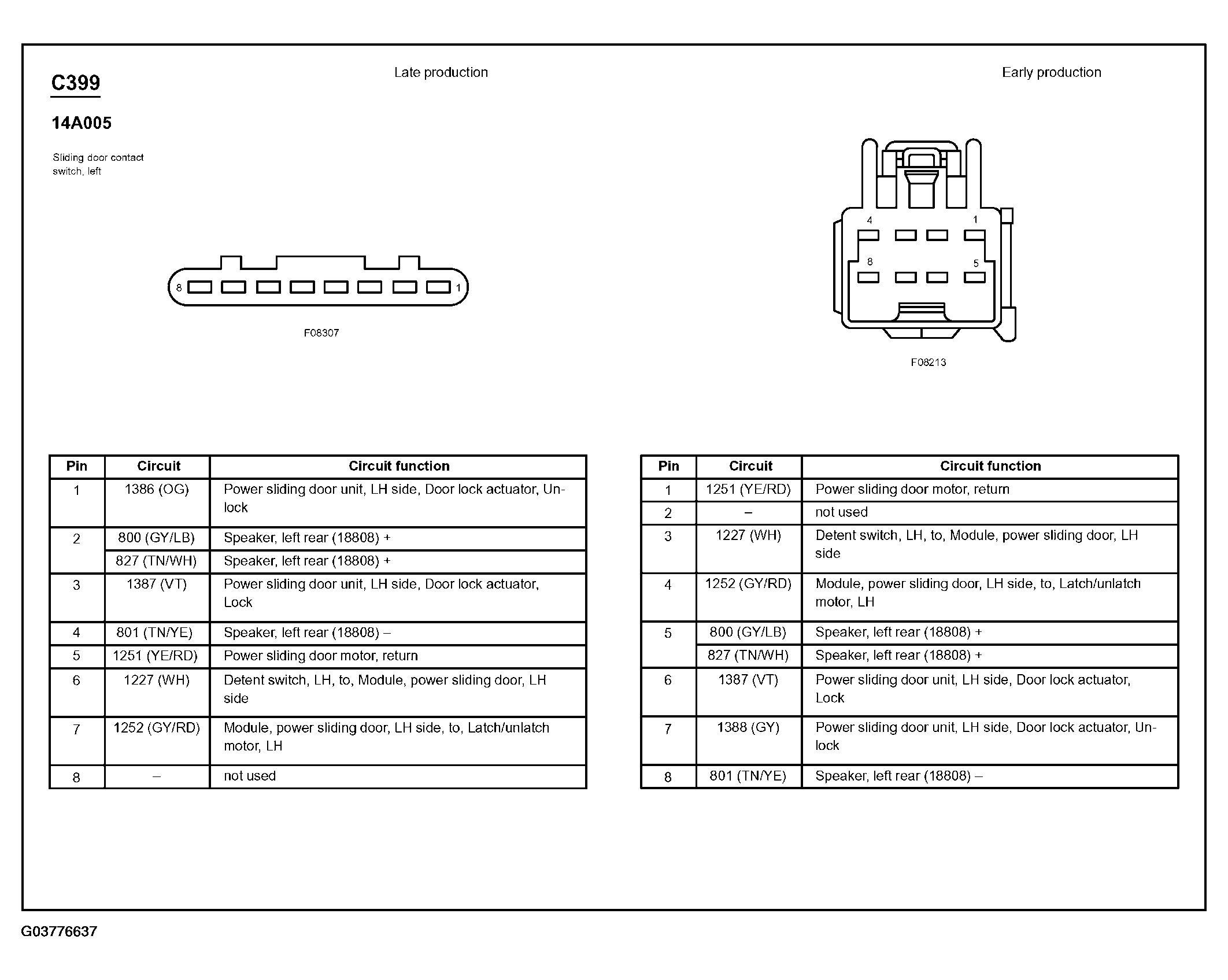

Fig 160: Sliding Door Contact Switch, Left Connector End View (C399)
Courtesy of FORD MOTOR CO.

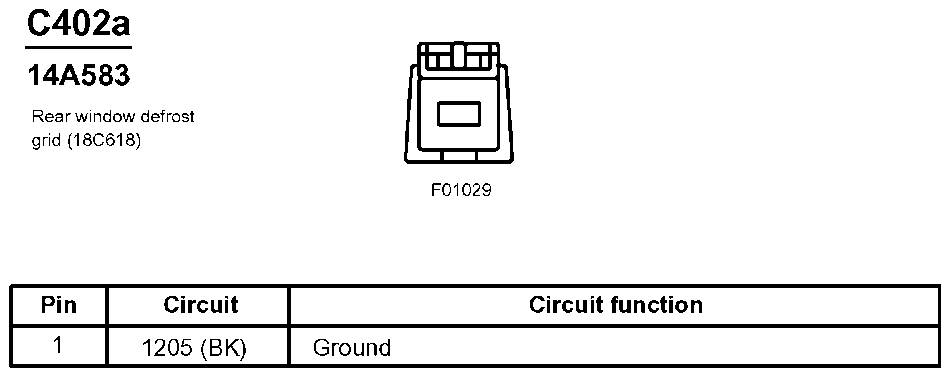

Fig 161: Rear Window Defrost Grid Connector End View (C402a)
Courtesy of FORD MOTOR CO.

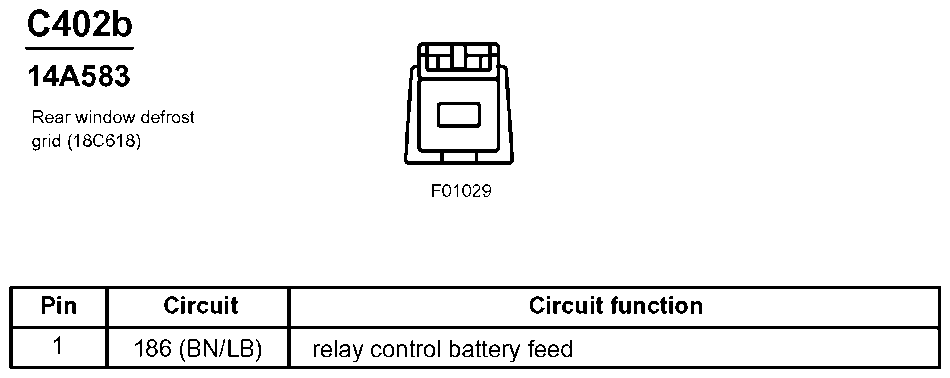

Fig 162: Rear Window Defrost Grid Connector End View (C402b)
Courtesy of FORD MOTOR CO.

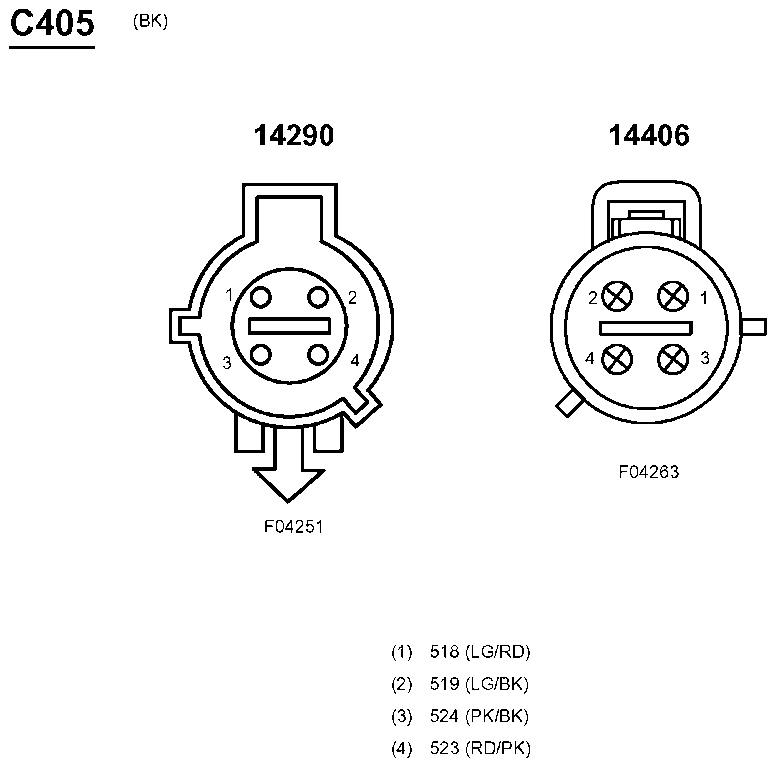

Fig 163: Inline Connector End View (C405)
Courtesy of FORD MOTOR CO.

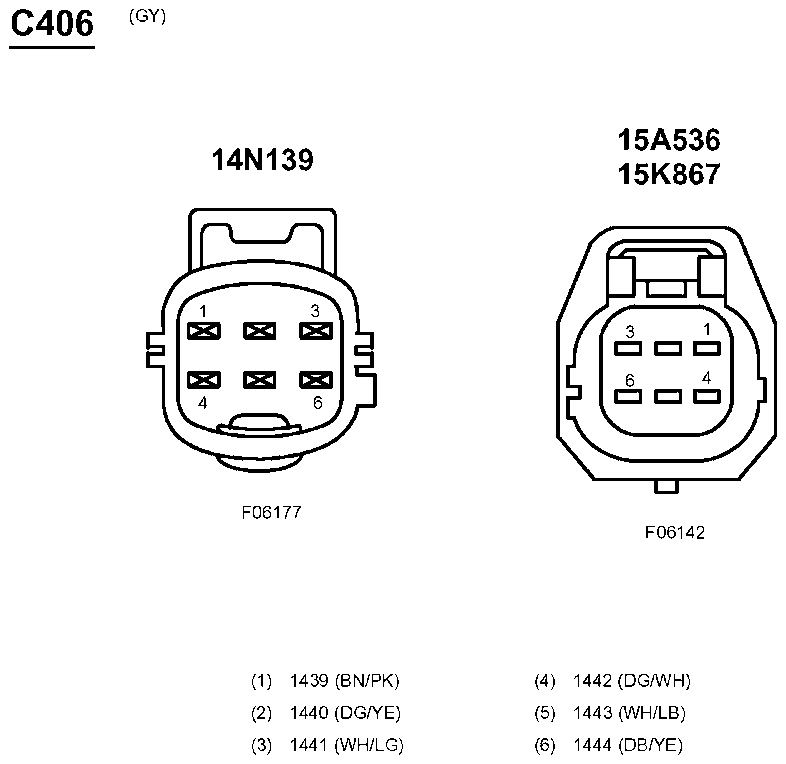

Fig 164: Inline Connector End View (C406)
Courtesy of FORD MOTOR CO.

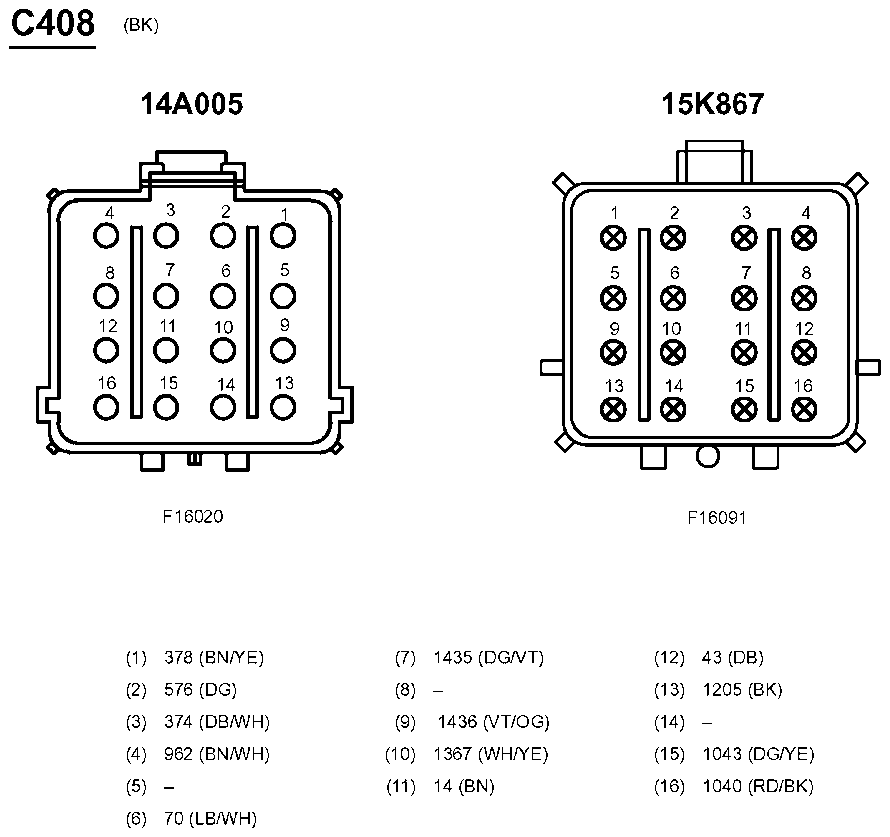

Fig 165: Inline Connector End View (C408)
Courtesy of FORD MOTOR CO.

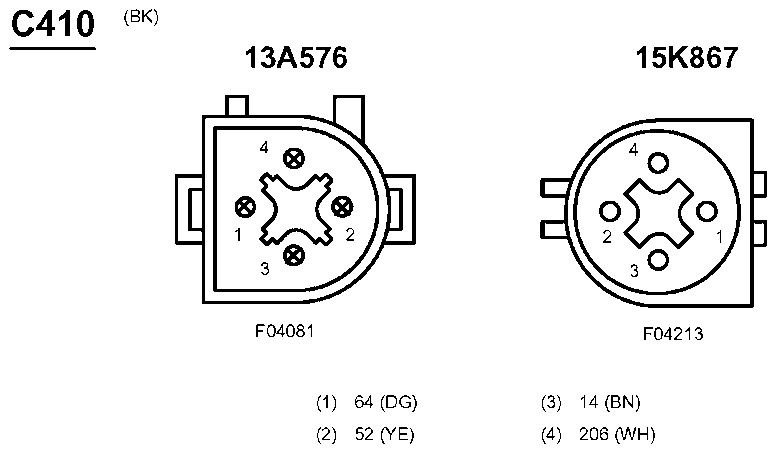

Fig 166: Inline Connector End View (C410)
Courtesy of FORD MOTOR CO.

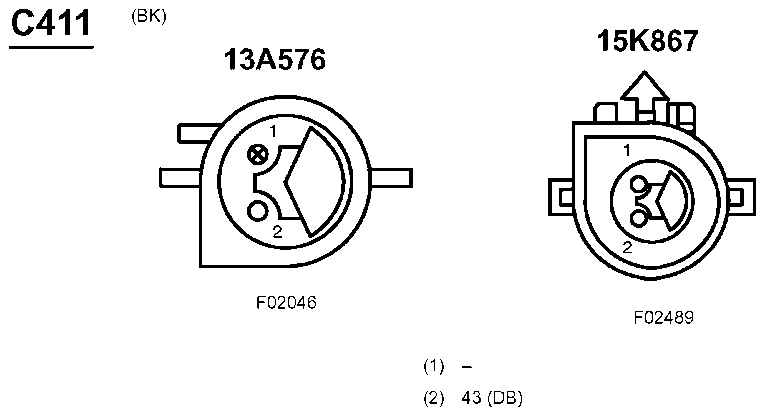

Fig 167: Inline Connector End View (C411)
Courtesy of FORD MOTOR CO.

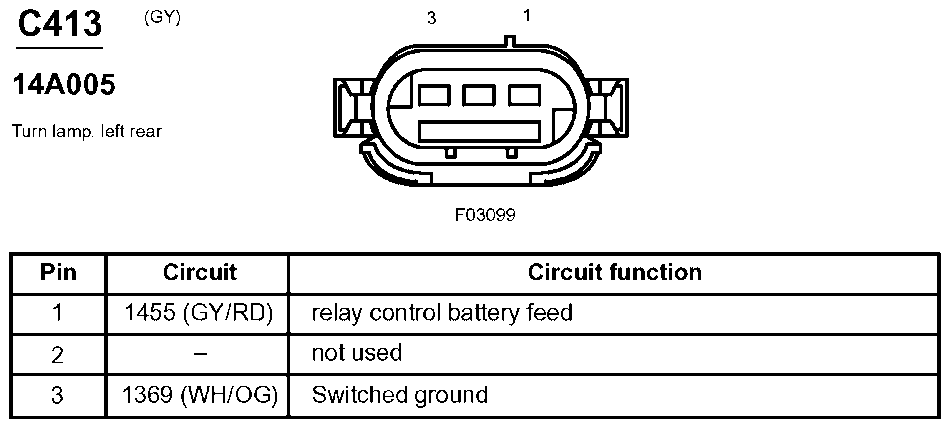

Fig 168: Turn Lamp, Left Rear Connector End View (C413)
Courtesy of FORD MOTOR CO.

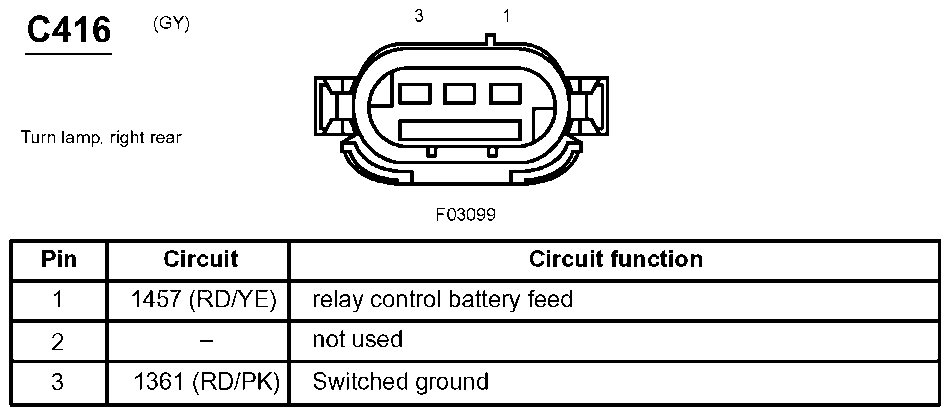

Fig 169: Turn Lamp, Right Rear Connector End View (C416)
Courtesy of FORD MOTOR CO.

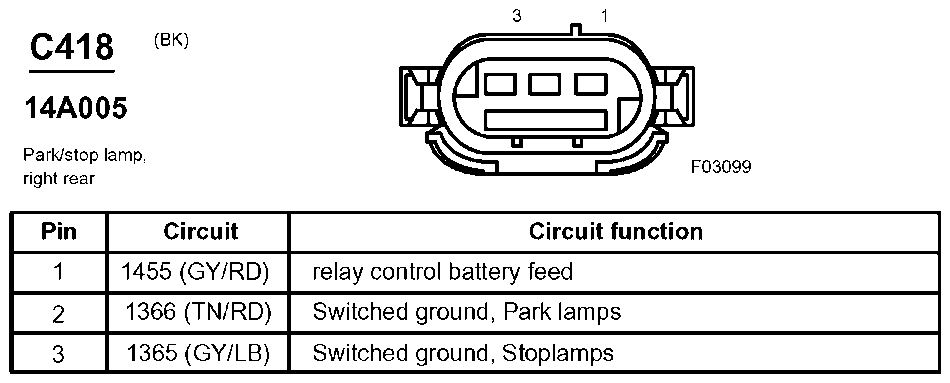

Fig 170: Park/Stop Lamp, Right Rear Connector End View (C418)
Courtesy of FORD MOTOR CO.

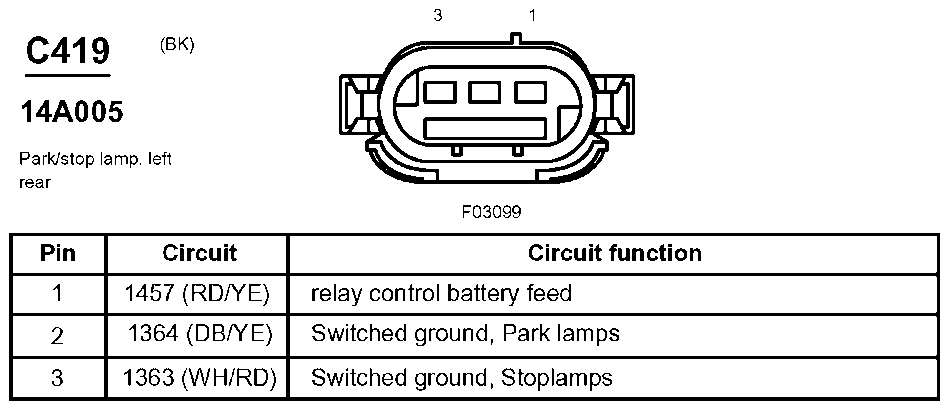

Fig 171: Park/Stop Lamp, Left Rear Connector End View (C419)
Courtesy of FORD MOTOR CO.

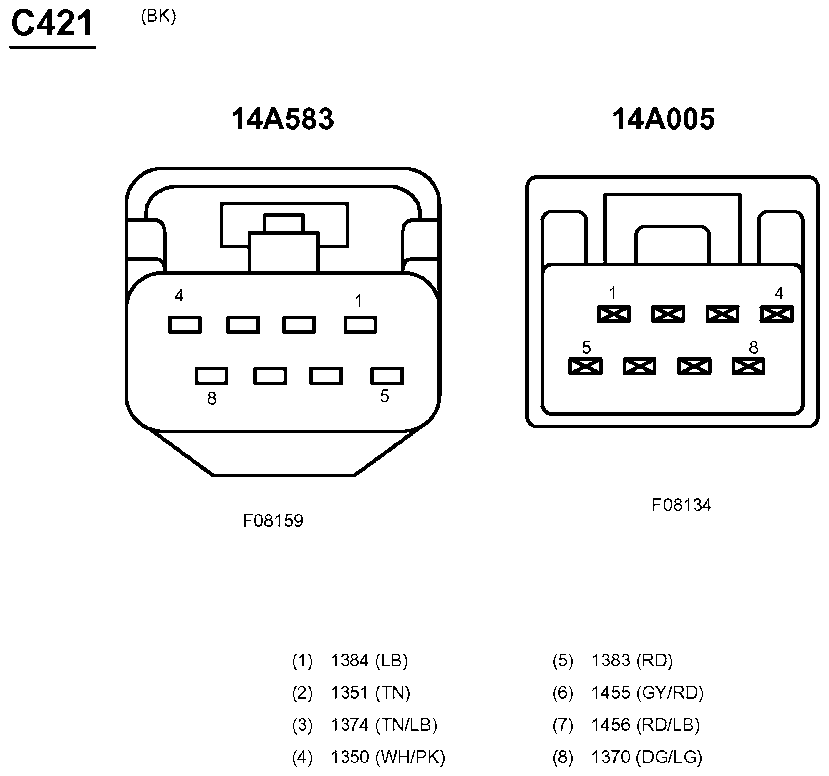

Fig 172: Inline Connector End View (C421)
Courtesy of FORD MOTOR CO.

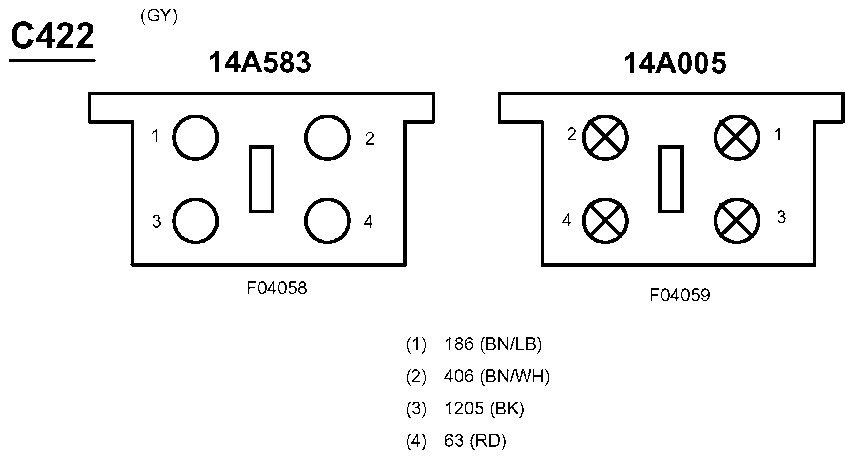

Fig 173: Inline Connector End View (C422)
Courtesy of FORD MOTOR CO.

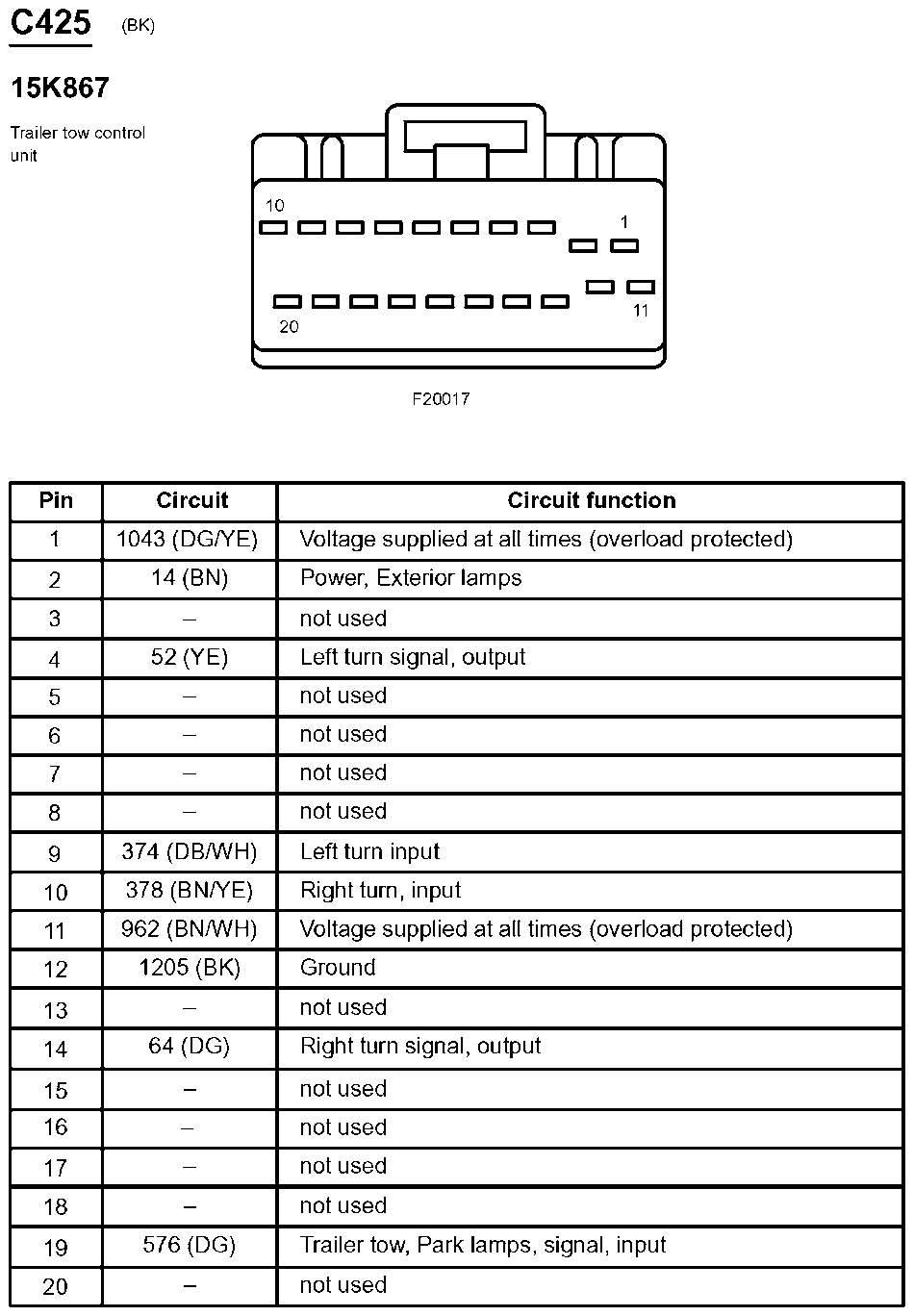

Fig 174: Trailer Tow Control Unit Connector End View (C425)
Courtesy of FORD MOTOR CO.

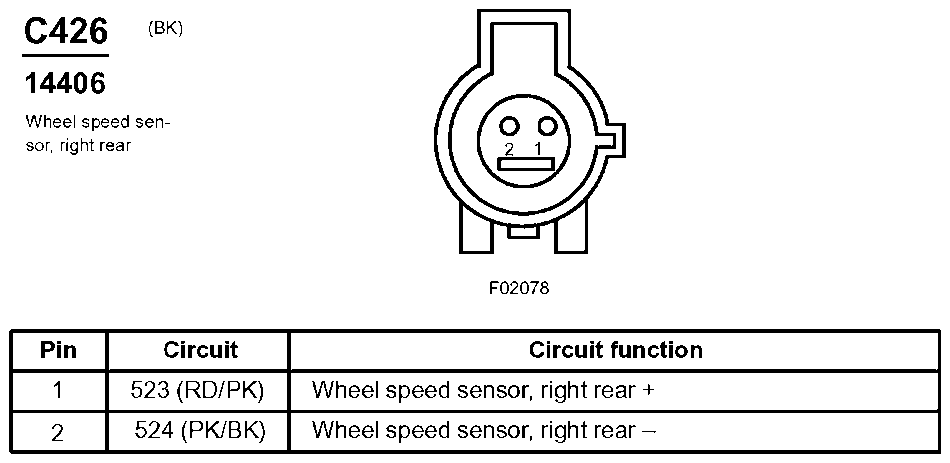

Fig 175: Wheel Speed Sensor, Right Rear Connector End View (C426)
Courtesy of FORD MOTOR CO.

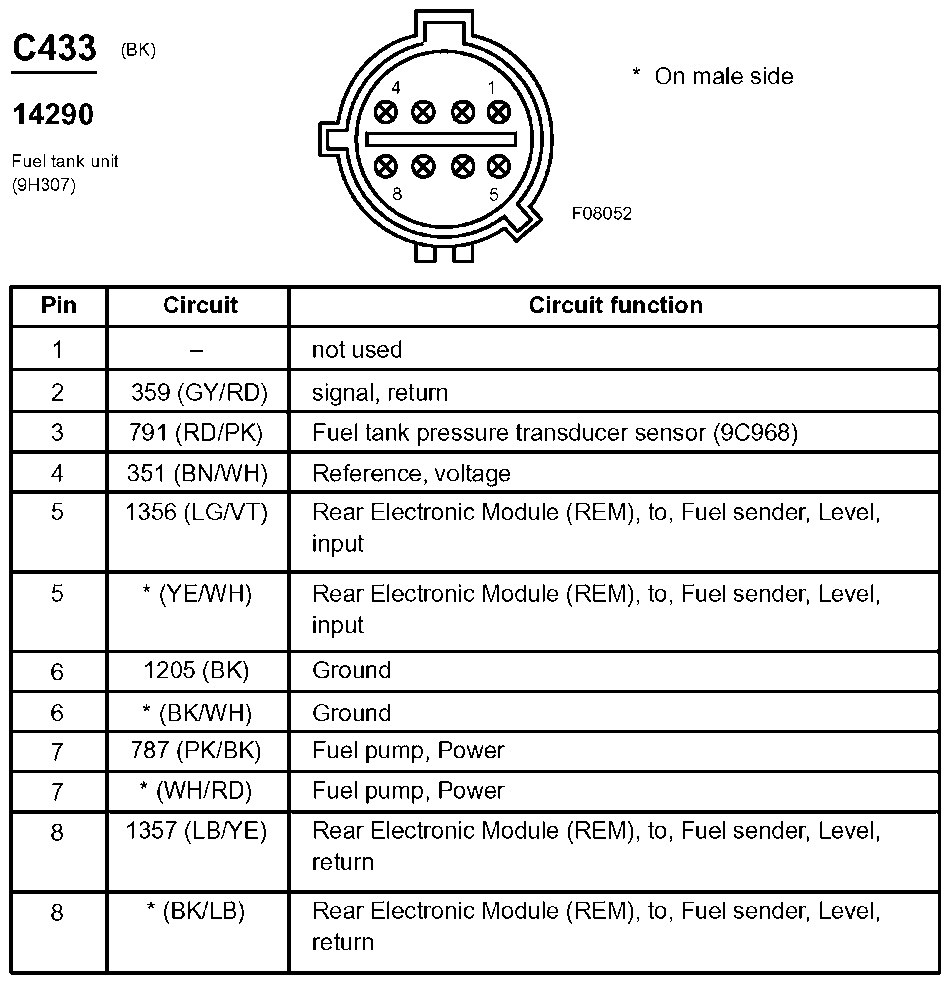

Fig 176: Fuel Tank Unit Connector End View (C433)
Courtesy of FORD MOTOR CO.

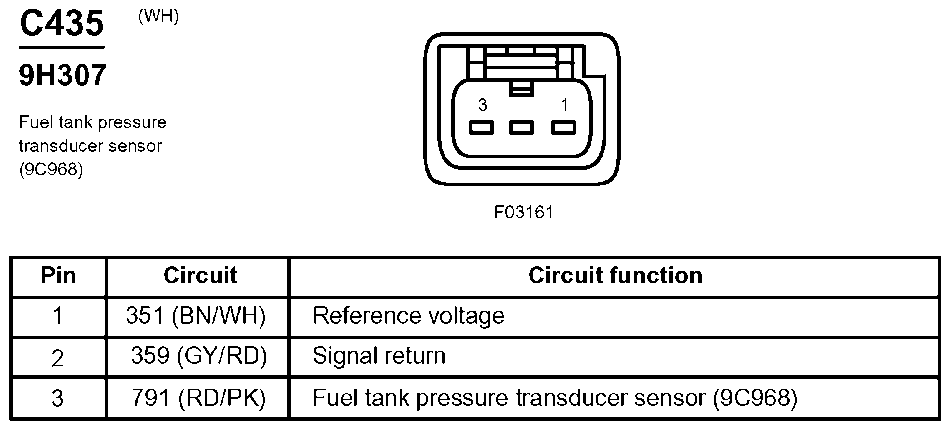

Fig 177: Fuel Tank Pressure Transducer Sensor Connector End View (C435)
Courtesy of FORD MOTOR CO.

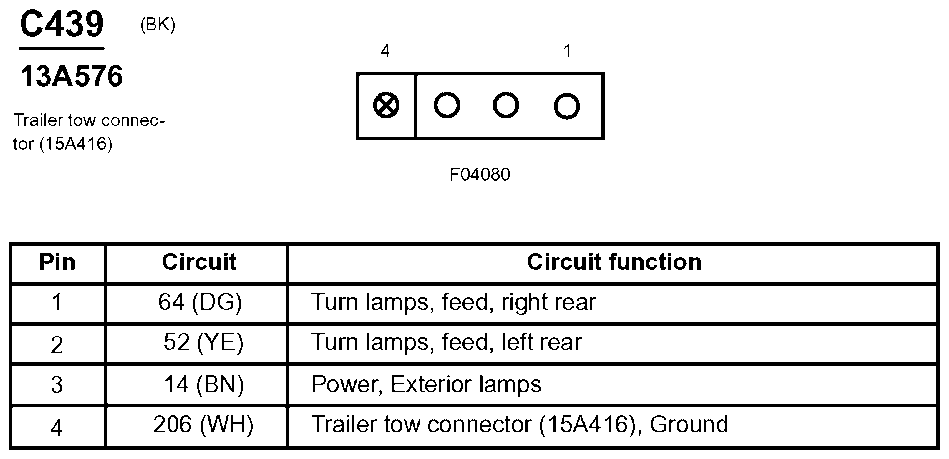

Fig 178: Trailer Tow Connector End View (C439)
Courtesy of FORD MOTOR CO.

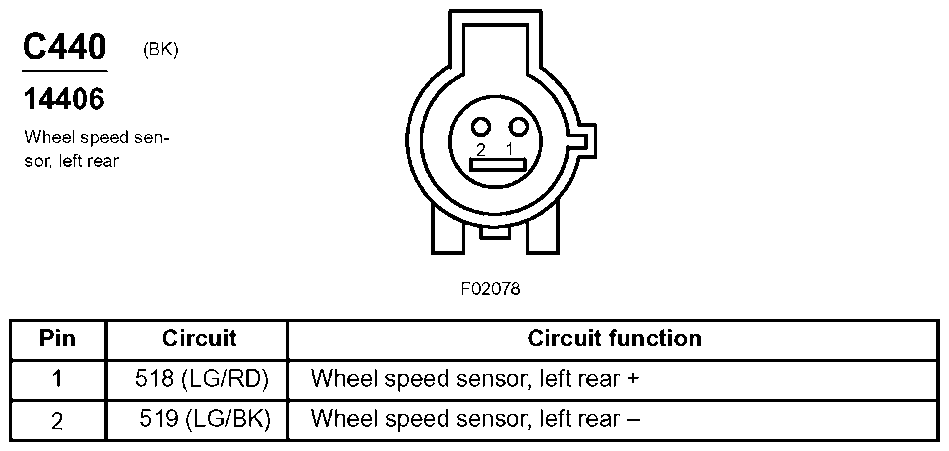

Fig 179: Wheel Speed Sensor, Left Rear Connector End View (C440)
Courtesy of FORD MOTOR CO.

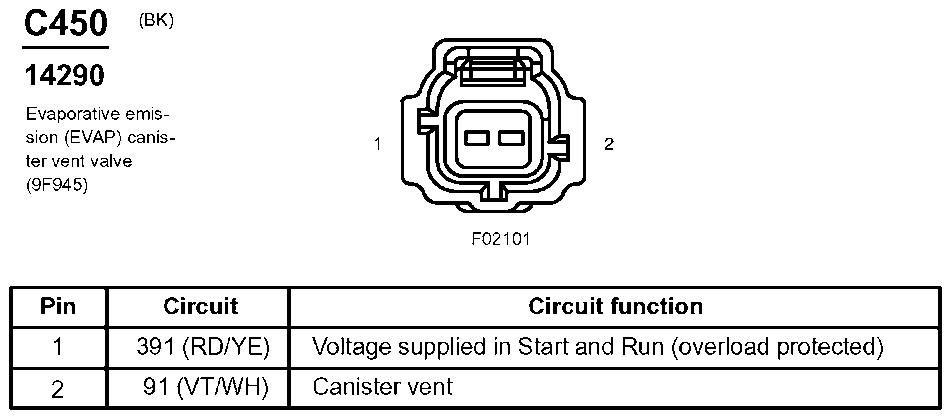

Fig 180: Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C450)
Courtesy of FORD MOTOR CO.

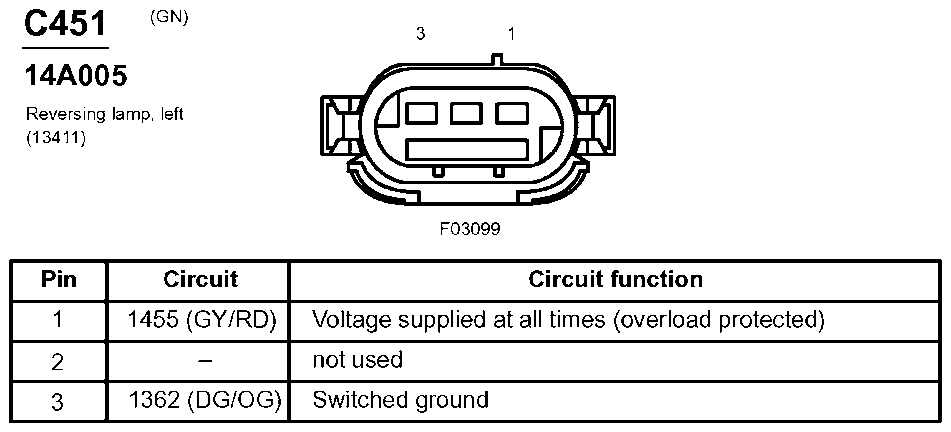

Fig 181: Reversing Lamp, Left Connector End View (C451)
Courtesy of FORD MOTOR CO.

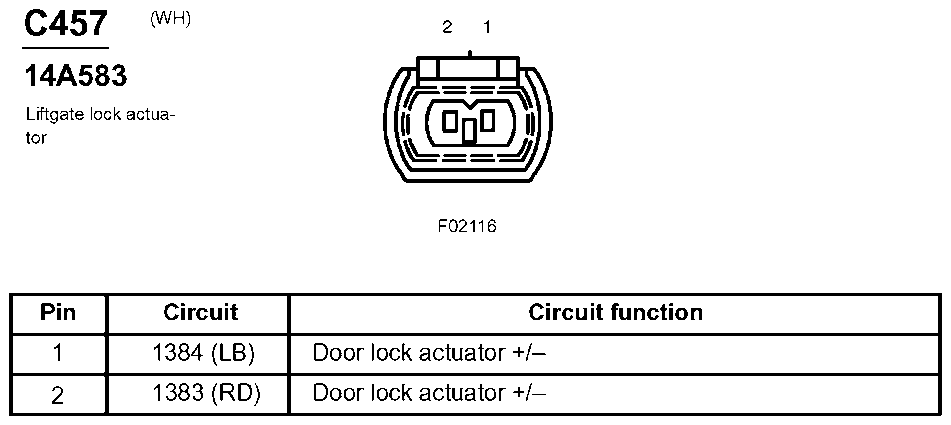

Fig 182: Liftgate Lock Actuator Connector End View (C457)
Courtesy of FORD MOTOR CO.

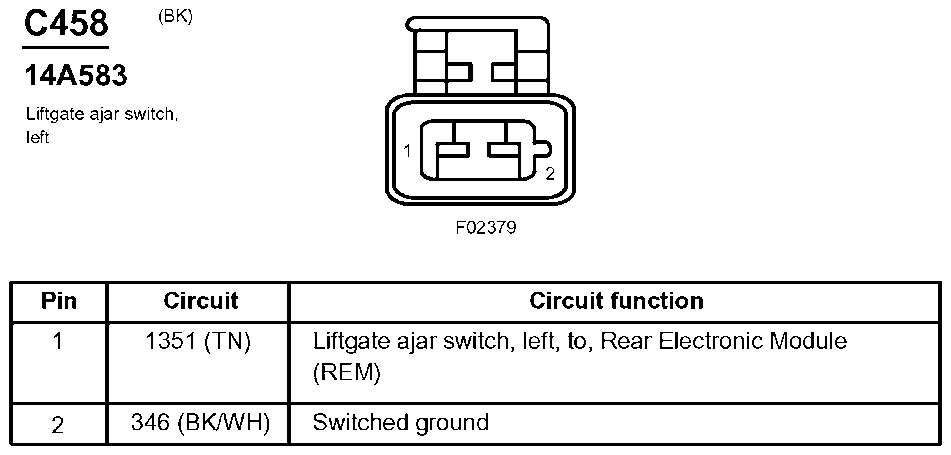

Fig 183: Liftgate Ajar Switch, Left Connector End View (C458)
Courtesy of FORD MOTOR CO.

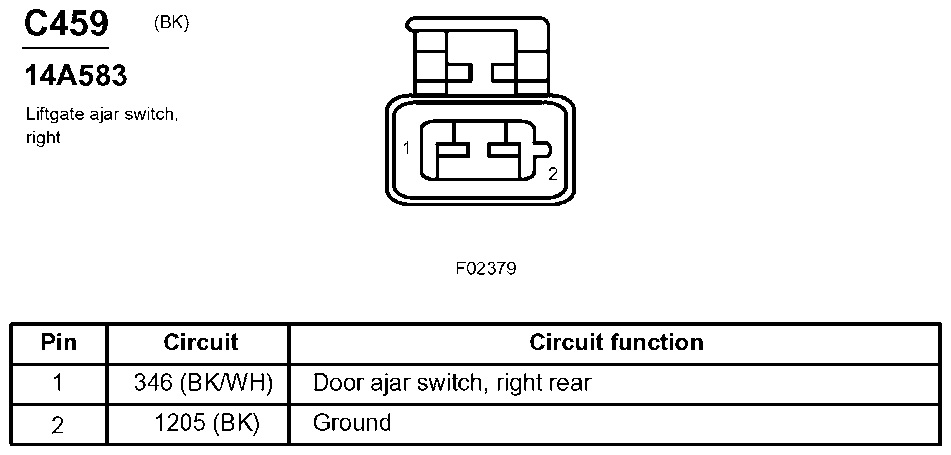

Fig 184: Liftgate Ajar Switch, Right Connector End View (C459)
Courtesy of FORD MOTOR CO.

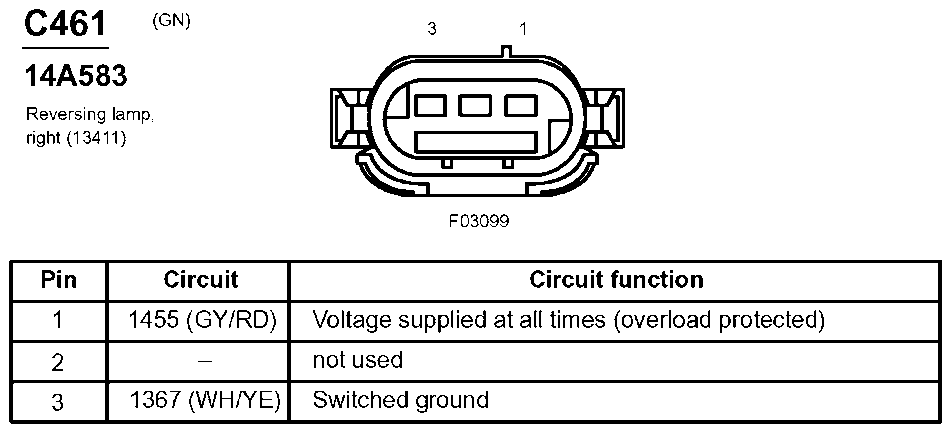

Fig 185: Reversing Lamp, Right Connector End View (C461)
Courtesy of FORD MOTOR CO.

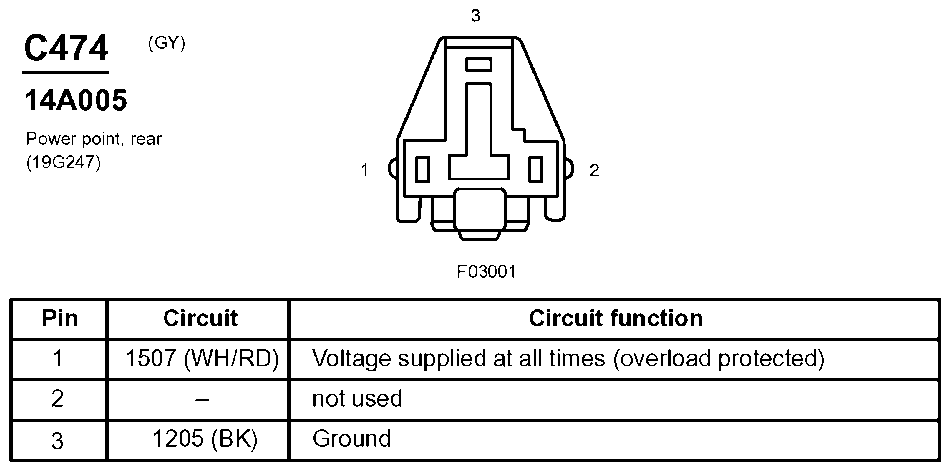

Fig 186: Power Point, Rear Connector End View (C474)
Courtesy of FORD MOTOR CO.

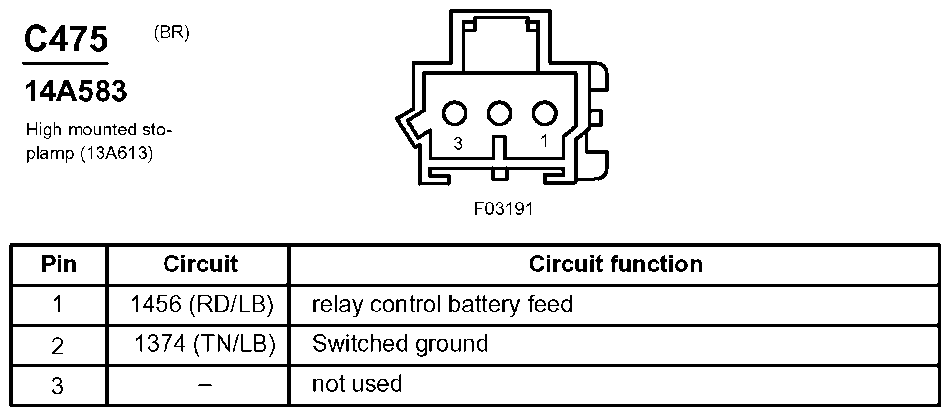

Fig 187: High Mounted Stoplamp Connector End View (C475)
Courtesy of FORD MOTOR CO.

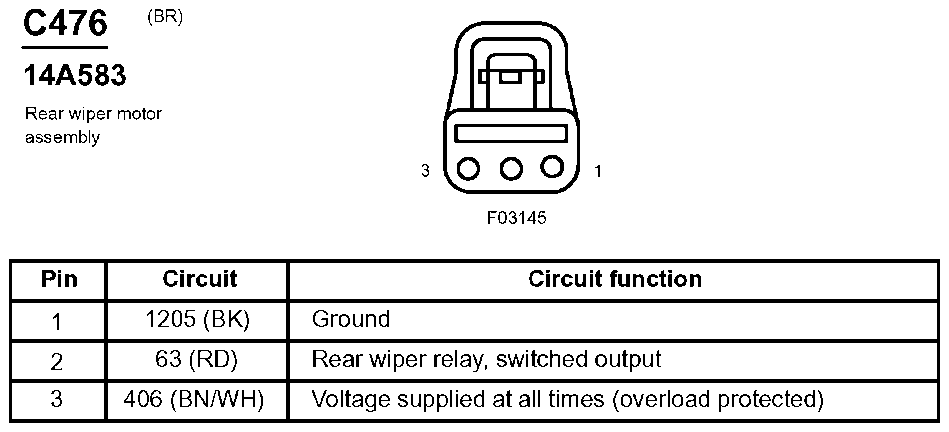

Fig 188: Rear Wiper Motor Assembly Connector End View (C476)
Courtesy of FORD MOTOR CO.

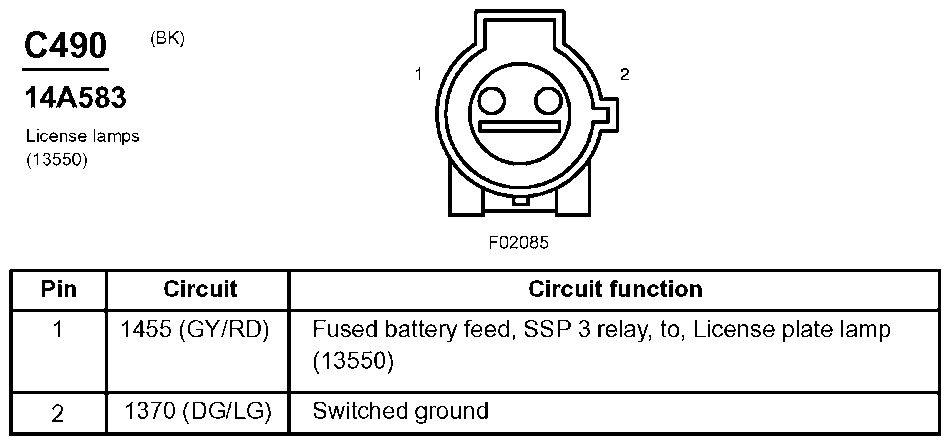

Fig 189: License Lamps Connector End View (C490)
Courtesy of FORD MOTOR CO.

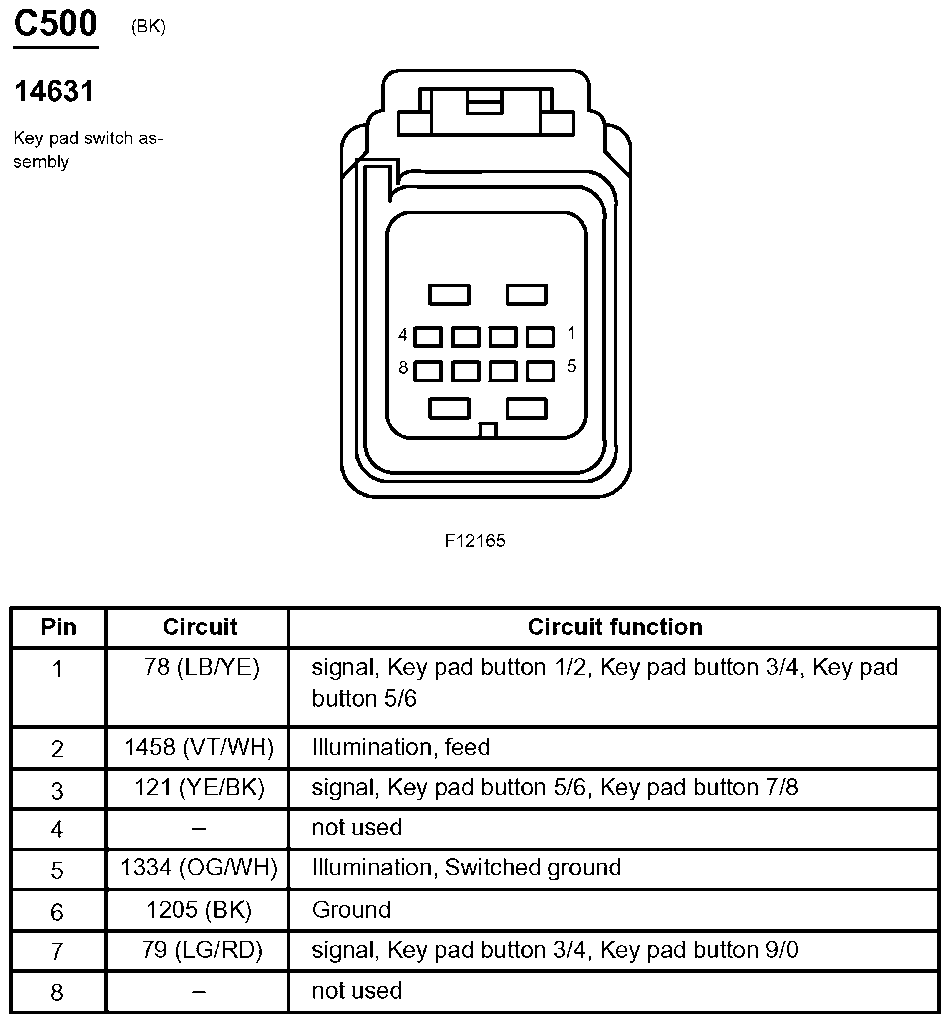

Fig 190: Key Pad Switch Assembly Connector End View (C500)
Courtesy of FORD MOTOR CO.

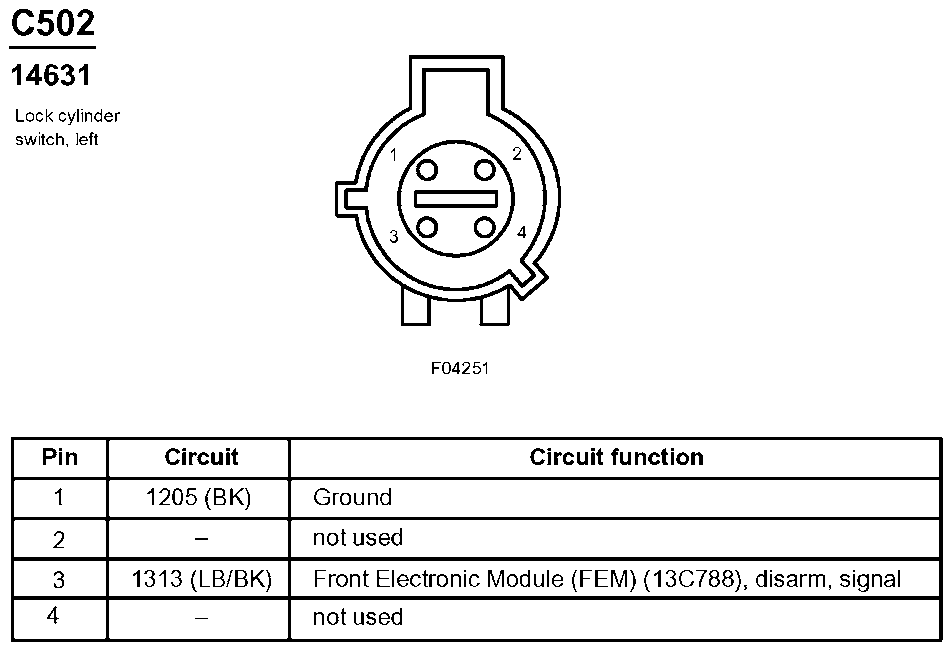

Fig 191: Lock Cylinder Switch, Left Connector End View (C502)
Courtesy of FORD MOTOR CO.

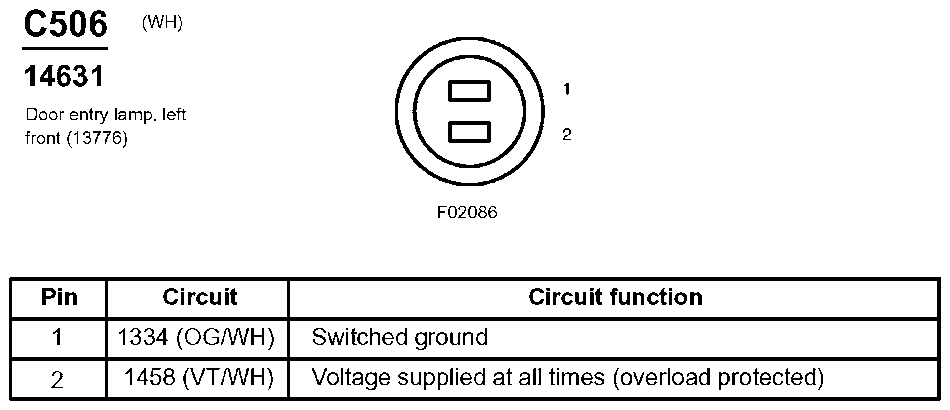

Fig 192: Door Entry Lamp, Left Front Connector End View (C506)
Courtesy of FORD MOTOR CO.

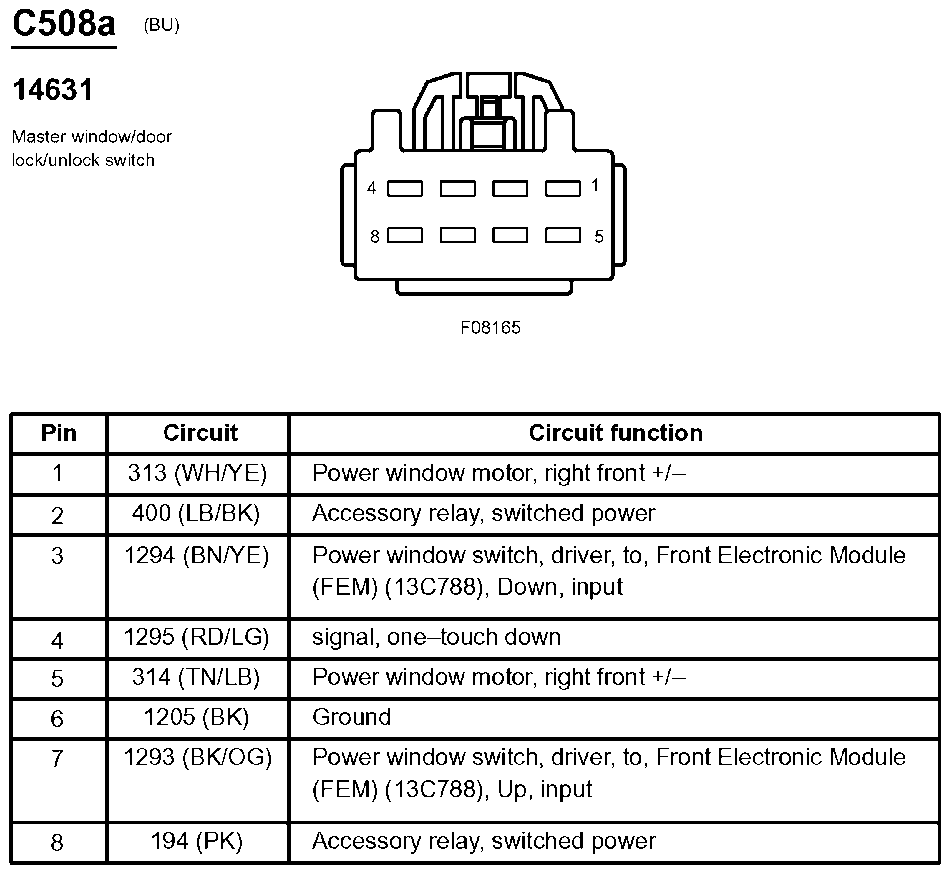

Fig 193: Master Window/Door Lock/Unlock Switch Connector End View (C508a)
Courtesy of FORD MOTOR CO.

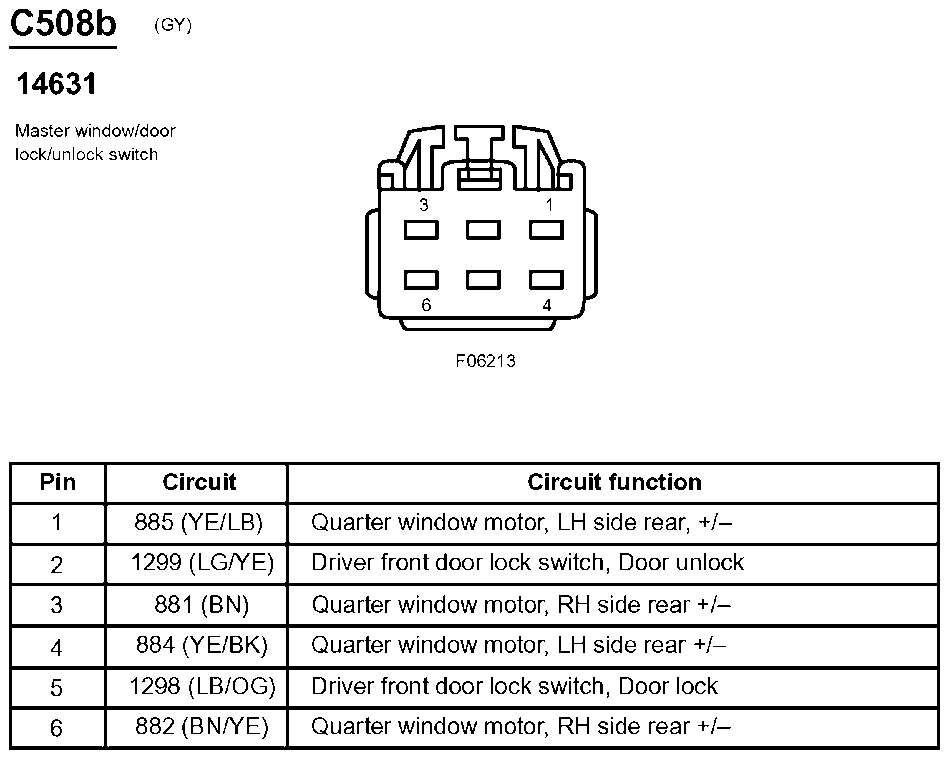

Fig 194: Master Window/Door Lock/Unlock Switch Connector End View (C508b)
Courtesy of FORD MOTOR CO.

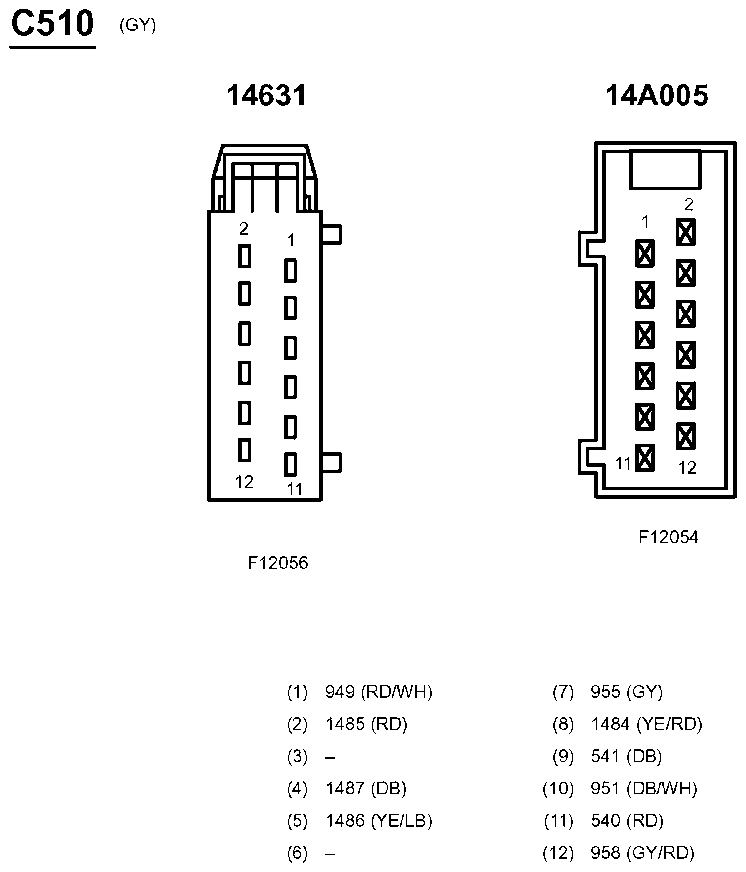

Fig 195: Inline Connector End View (C510)
Courtesy of FORD MOTOR CO.

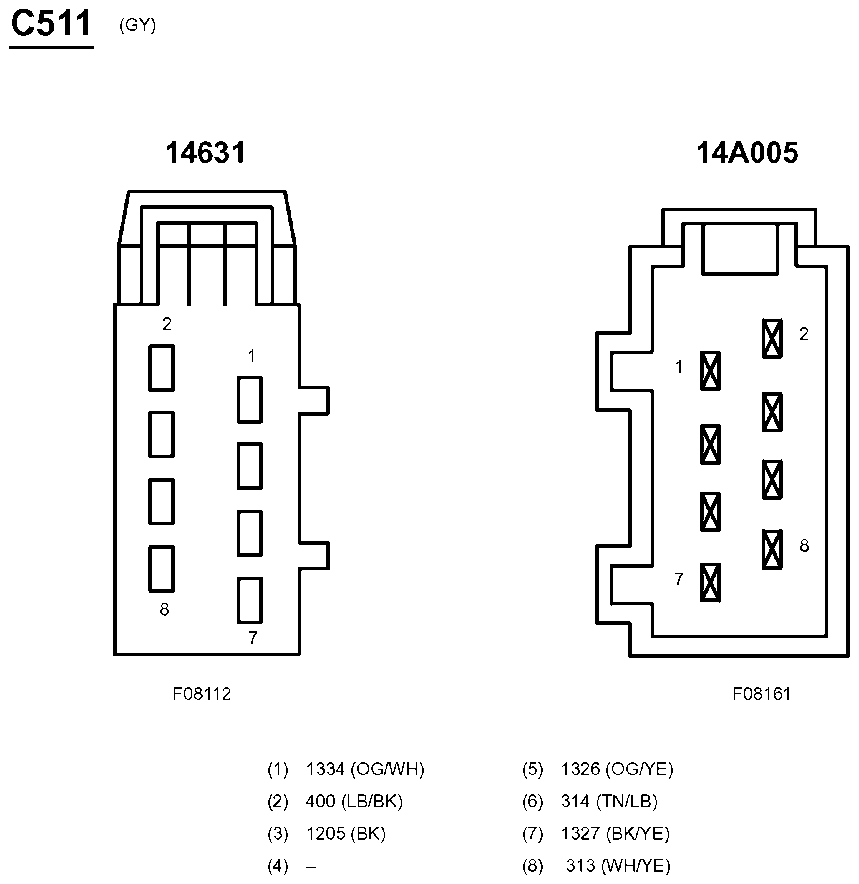

Fig 196: Inline Connector End View (C511)
Courtesy of FORD MOTOR CO.

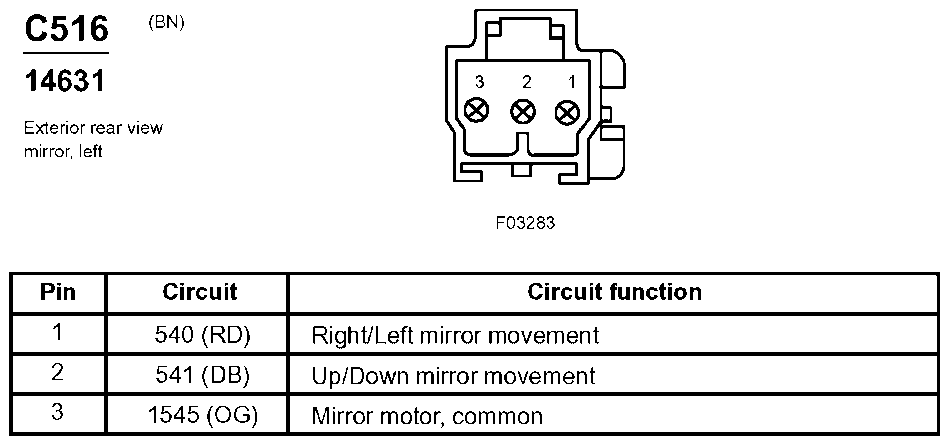

Fig 197: Exterior Rear View Mirror, Left Connector End View (C516)
Courtesy of FORD MOTOR CO.

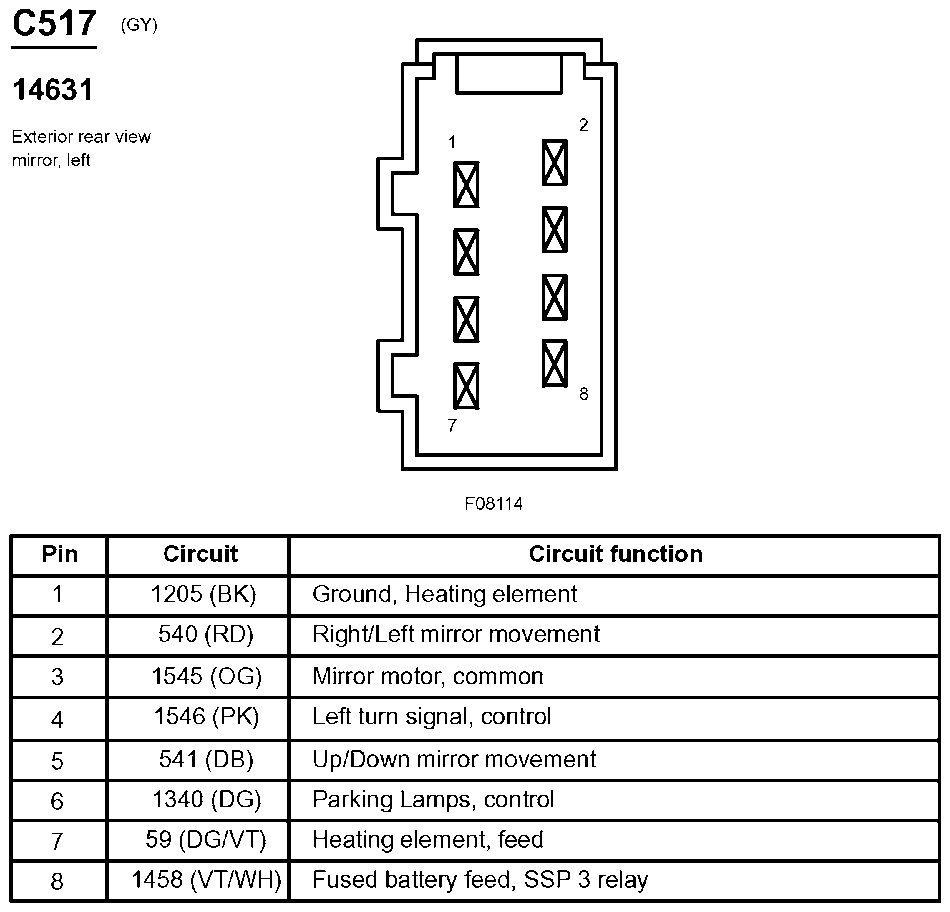

Fig 198: Exterior Rear View Mirror, Left Connector End View (C517)
Courtesy of FORD MOTOR CO.

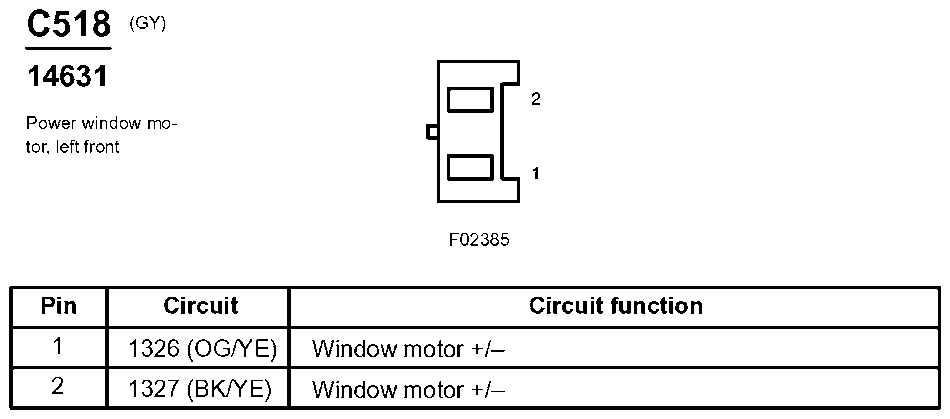

Fig 199: Power Window Motor, Left Front Connector End View (C518)
Courtesy of FORD MOTOR CO.

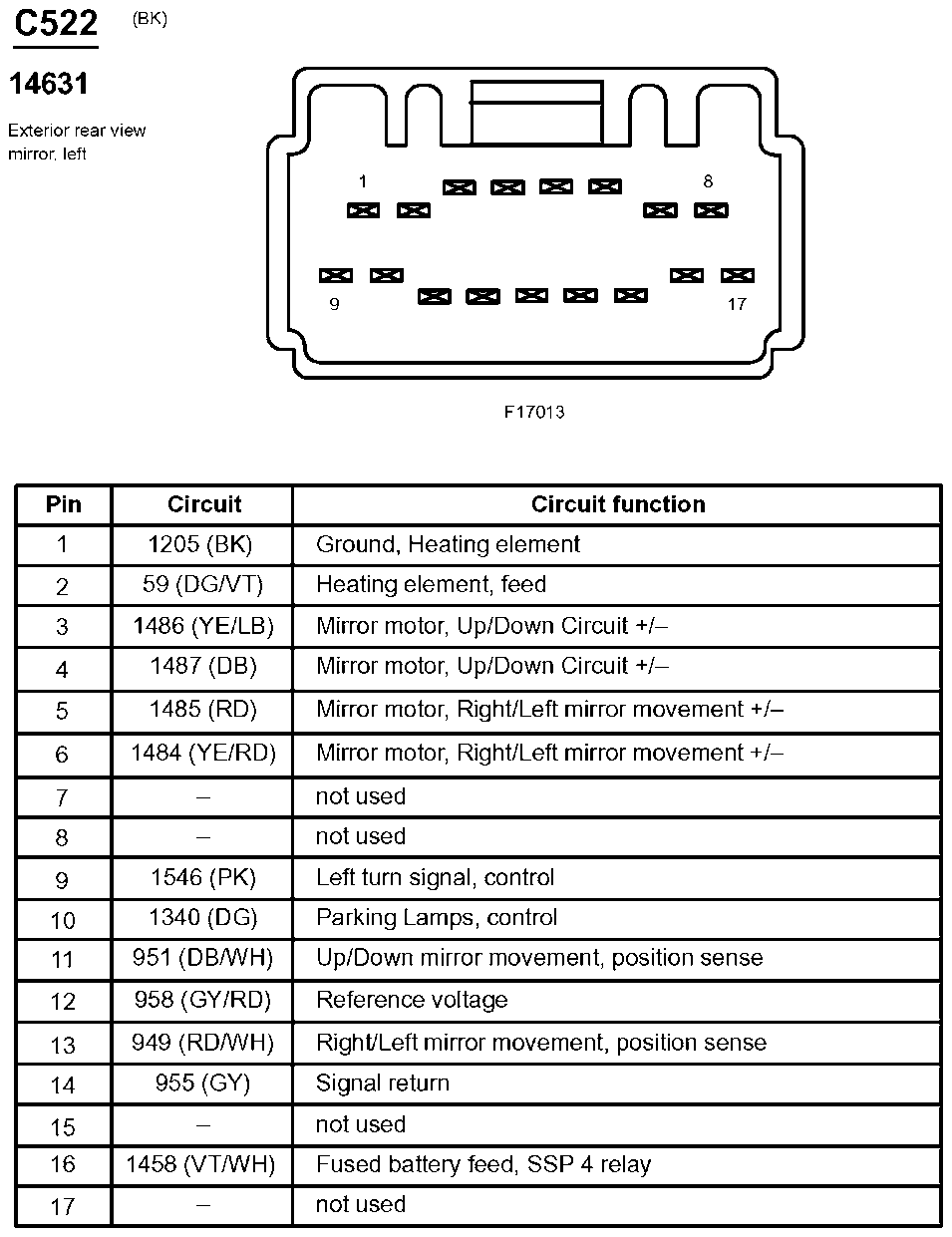

Fig 200: Exterior Rear View Mirror, Left Connector End View (C522)
Courtesy of FORD MOTOR CO.

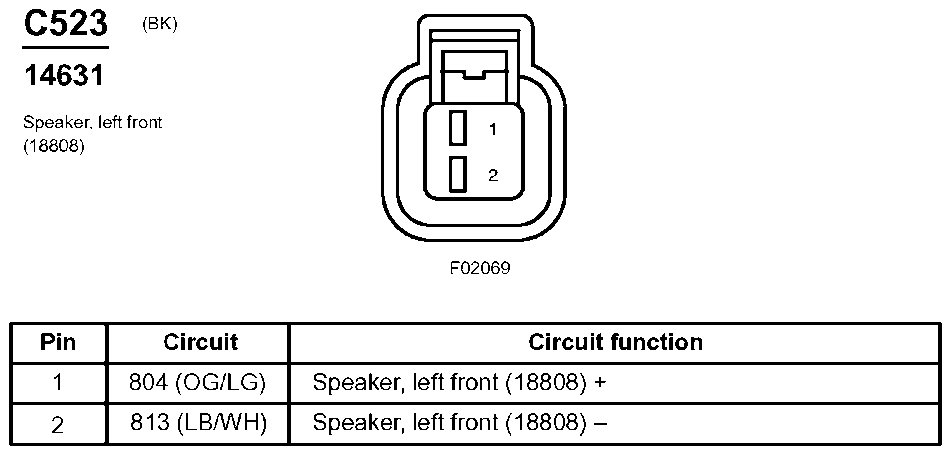

Fig 201: Speaker, Left Front Connector End View (C523)
Courtesy of FORD MOTOR CO.

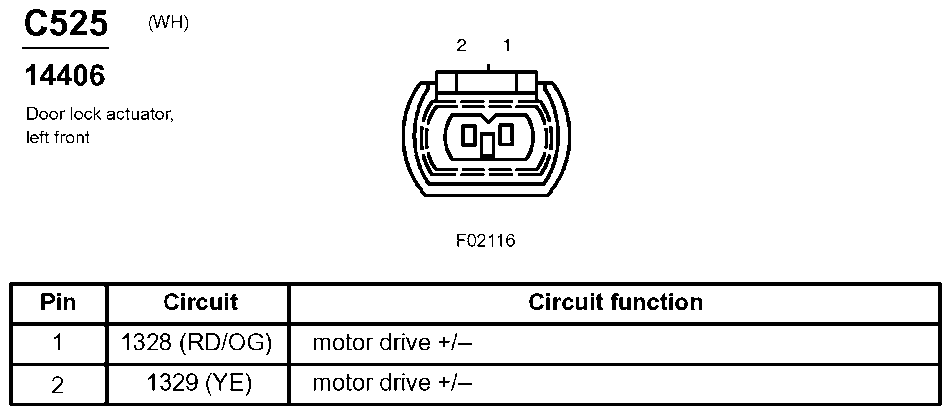

Fig 202: Door Lock Actuator, Left Front Connector End View (C525)
Courtesy of FORD MOTOR CO.

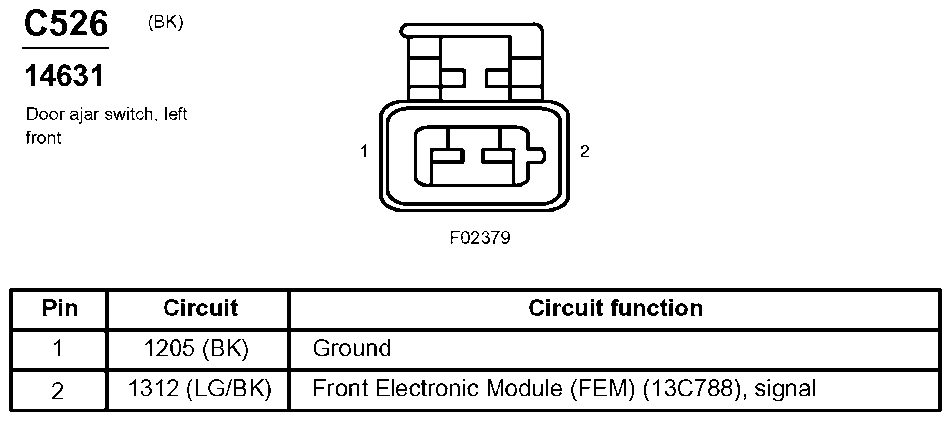

Fig 203: Door Ajar Switch, Left Front Connector End View (C526)
Courtesy of FORD MOTOR CO.

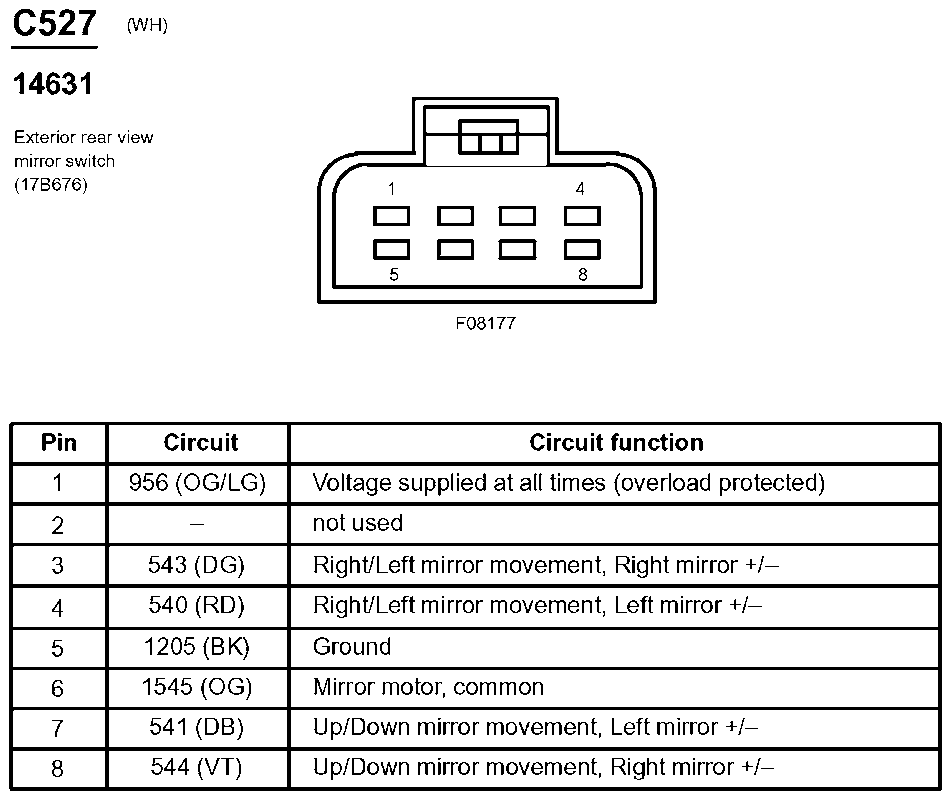

Fig 204: Exterior Rear View Mirror Switch Connector End View (C527)
Courtesy of FORD MOTOR CO.

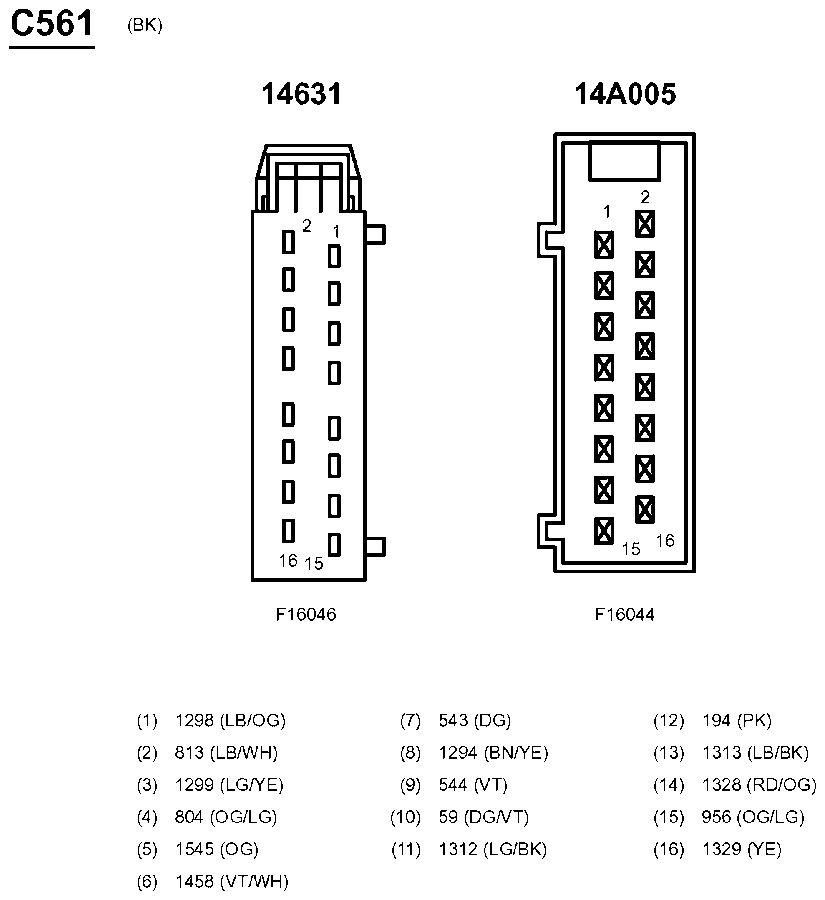

Fig 205: Inline Connector End View (C561)
Courtesy of FORD MOTOR CO.

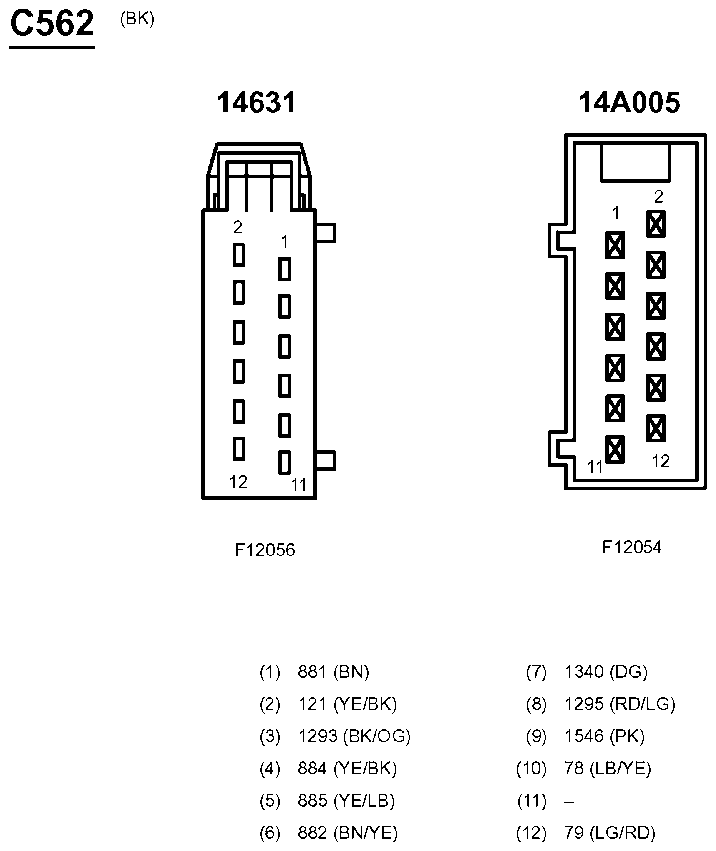

Fig 206: Inline Connector End View (C562)
Courtesy of FORD MOTOR CO.

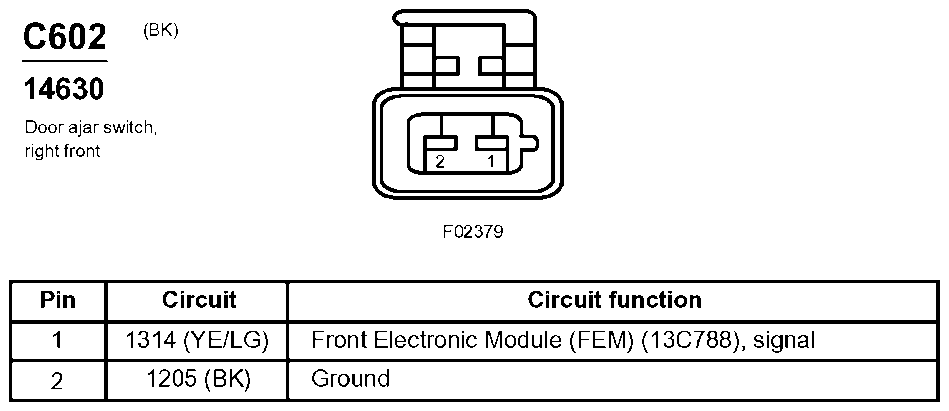

Fig 207: Door Ajar Switch, Right Front Connector End View (C602)
Courtesy of FORD MOTOR CO.

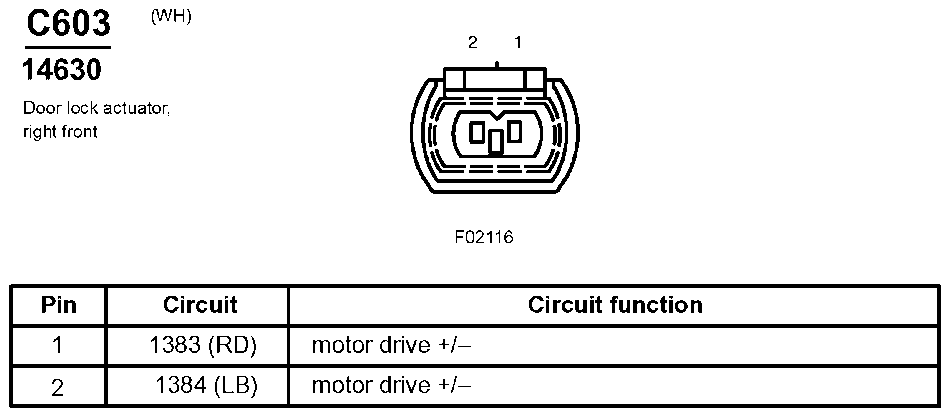

Fig 208: Door Lock Actuator, Right Front Connector End View (C603)
Courtesy of FORD MOTOR CO.

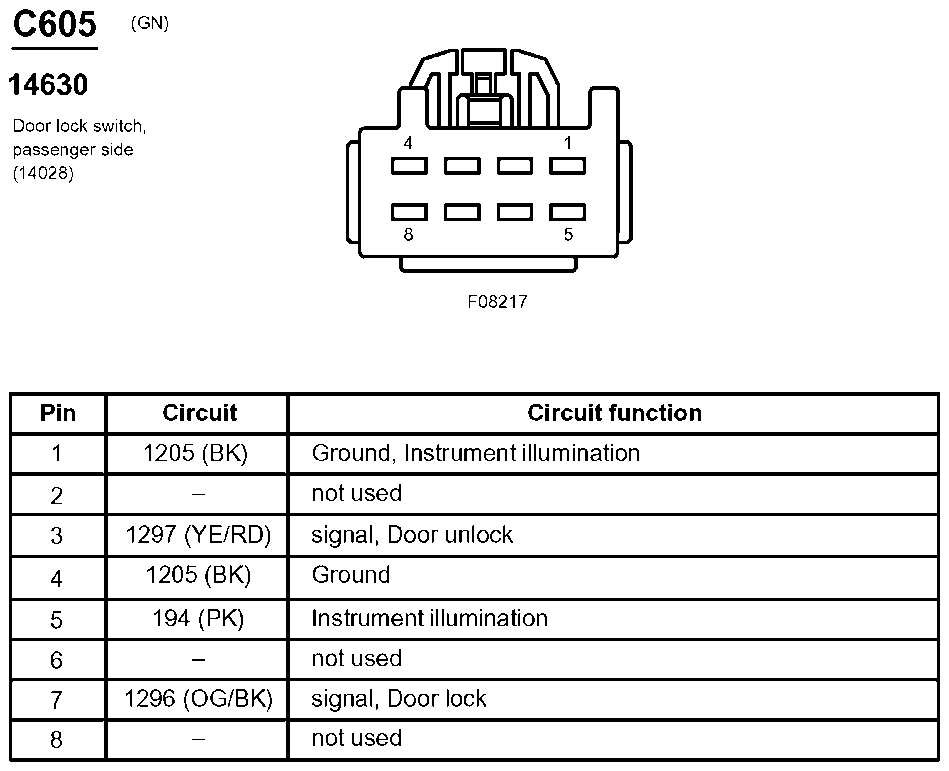

Fig 209: Door Lock Switch, Passenger Side Connector End View (C605)
Courtesy of FORD MOTOR CO.

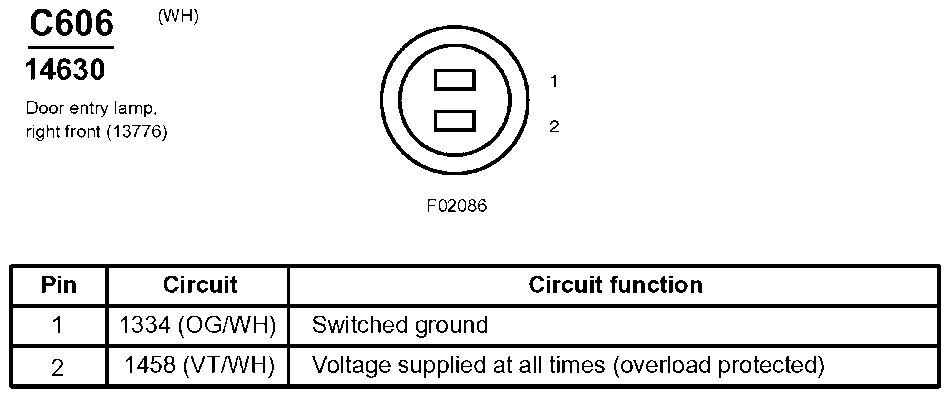

Fig 210: Door Entry Lamp, Right Front Connector End View (C606)
Courtesy of FORD MOTOR CO.

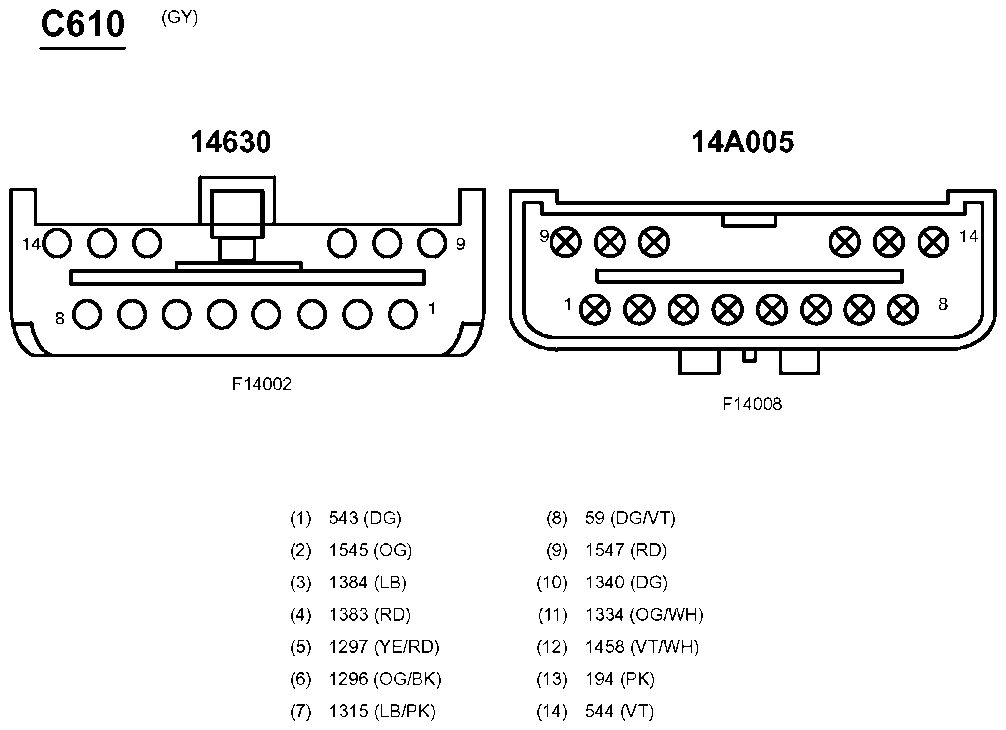

Fig 211: Inline Connector End View (C610)
Courtesy of FORD MOTOR CO.

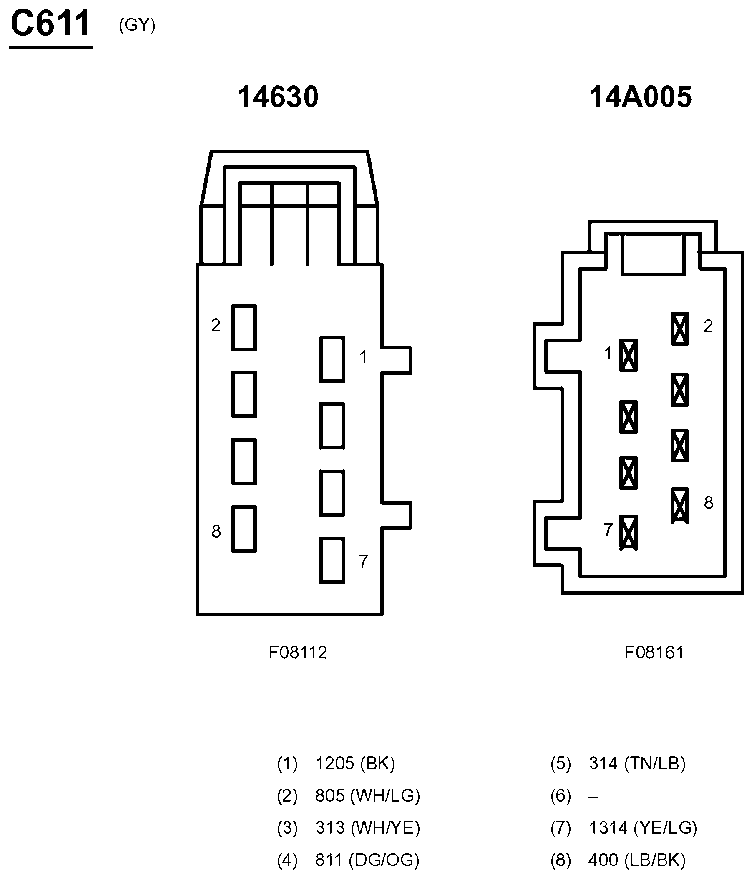

Fig 212: Inline Connector End View (C611)
Courtesy of FORD MOTOR CO.

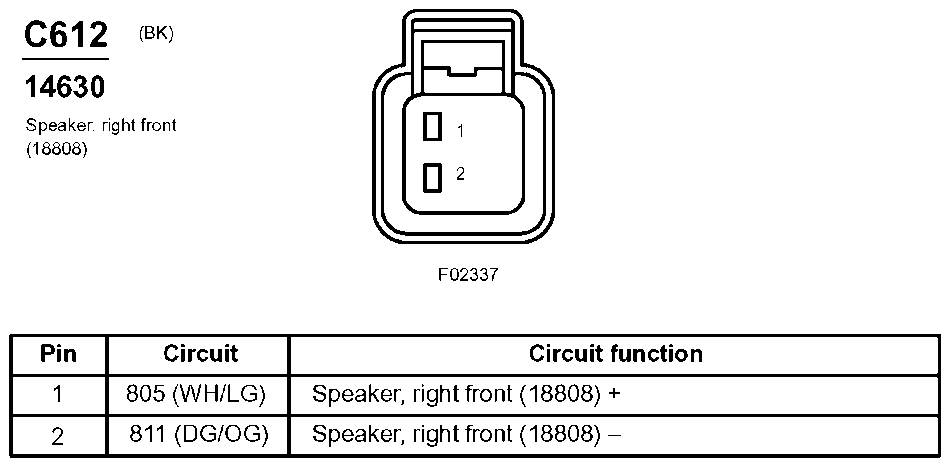

Fig 213: Speaker, Right Front Connector End View (C612)
Courtesy of FORD MOTOR CO.

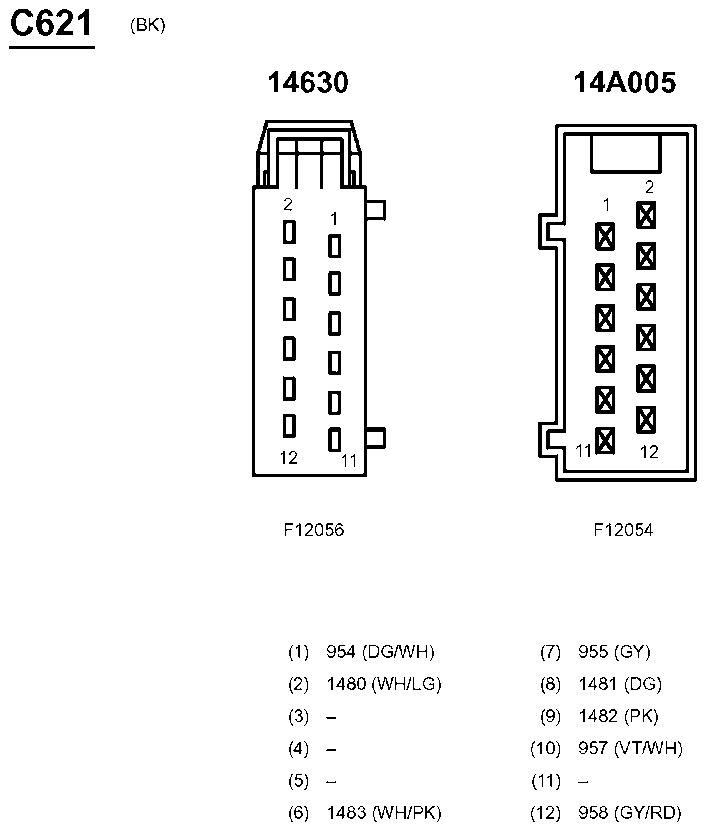

Fig 214: Inline Connector End View (C621)
Courtesy of FORD MOTOR CO.

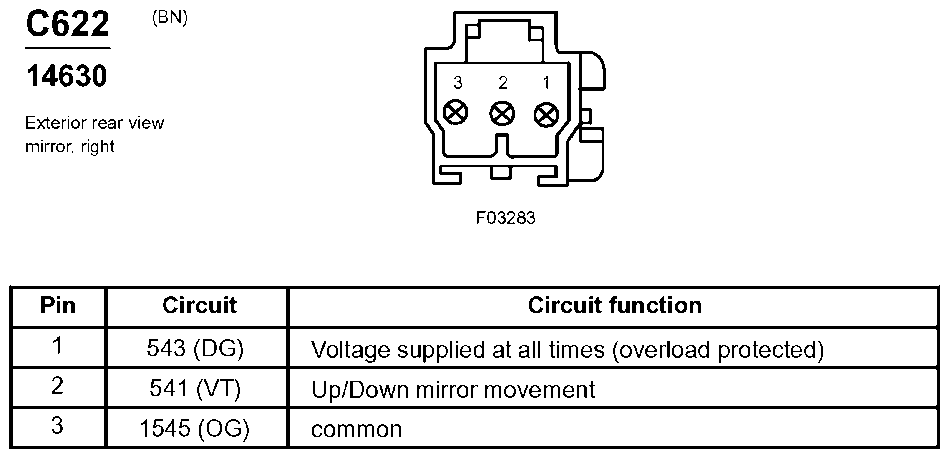

Fig 215: Exterior Rear View Mirror, Right Connector End View (C622)
Courtesy of FORD MOTOR CO.

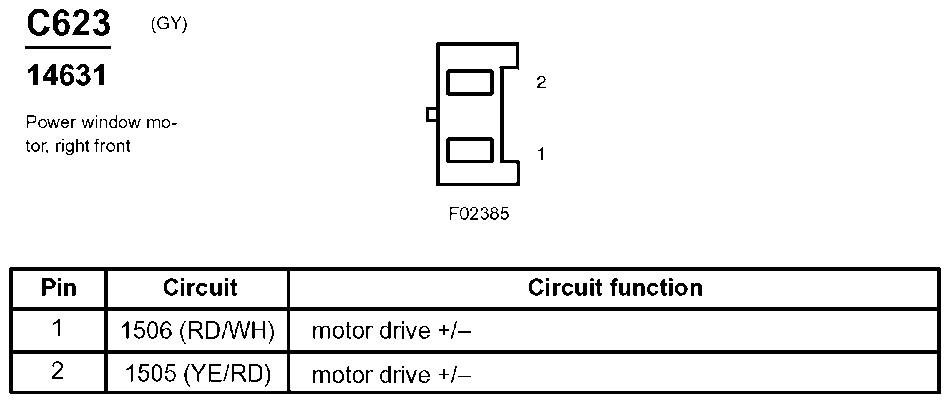

Fig 216: Power Window Motor, Right Front Connector End View (C623)
Courtesy of FORD MOTOR CO.

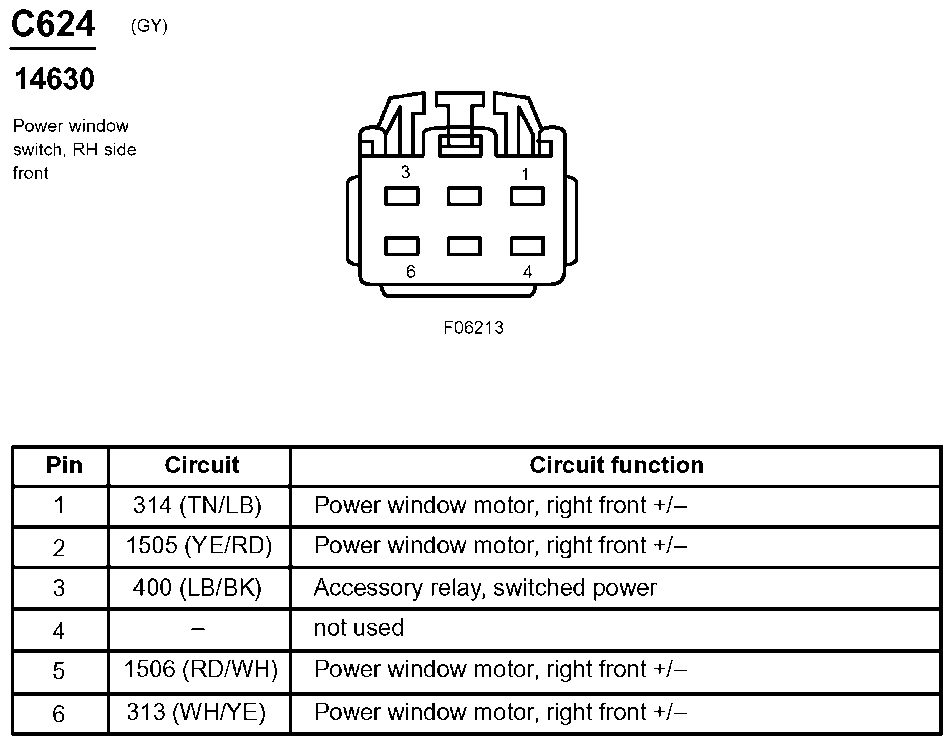

Fig 217: Power Window Switch, RH Side Front Connector End View (C624)
Courtesy of FORD MOTOR CO.

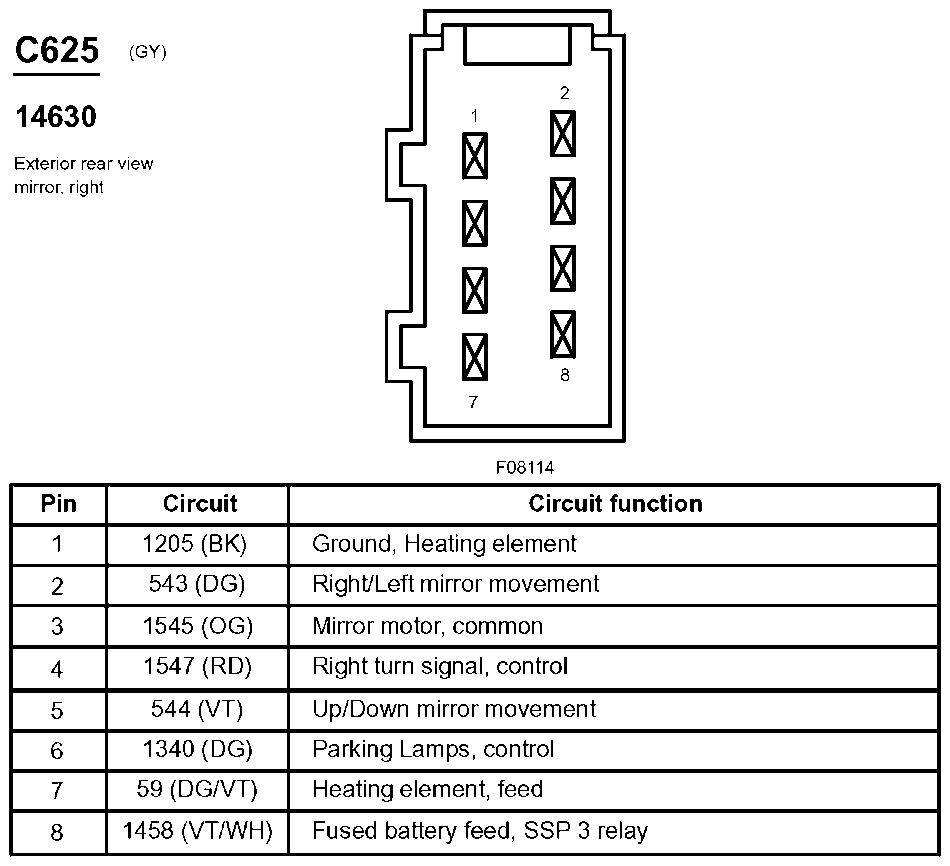

Fig 218: Exterior Rear View Mirror, Right Connector End View (C625)
Courtesy of FORD MOTOR CO.

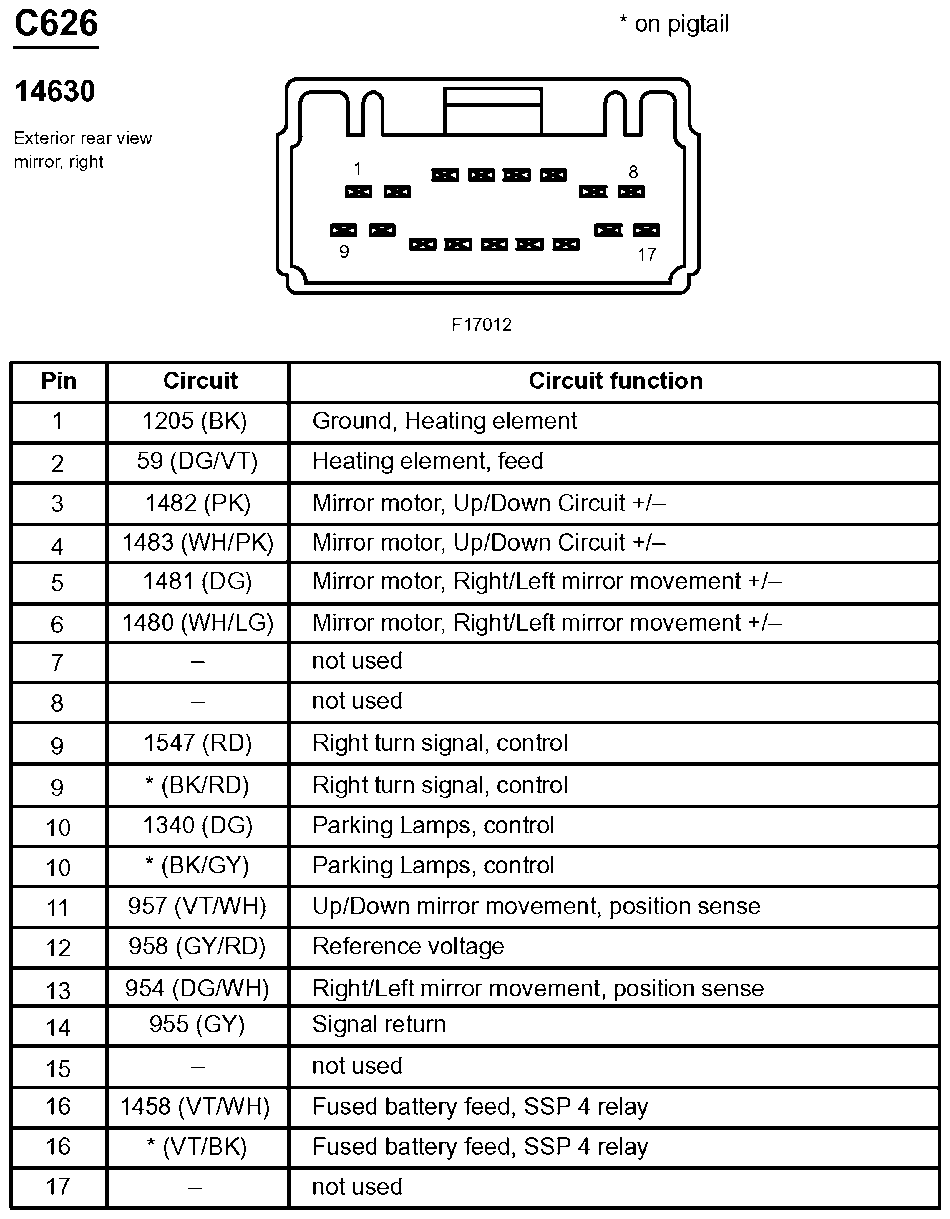

Fig 219: Exterior Rear View Mirror, Right Connector End View (C626)
Courtesy of FORD MOTOR CO.

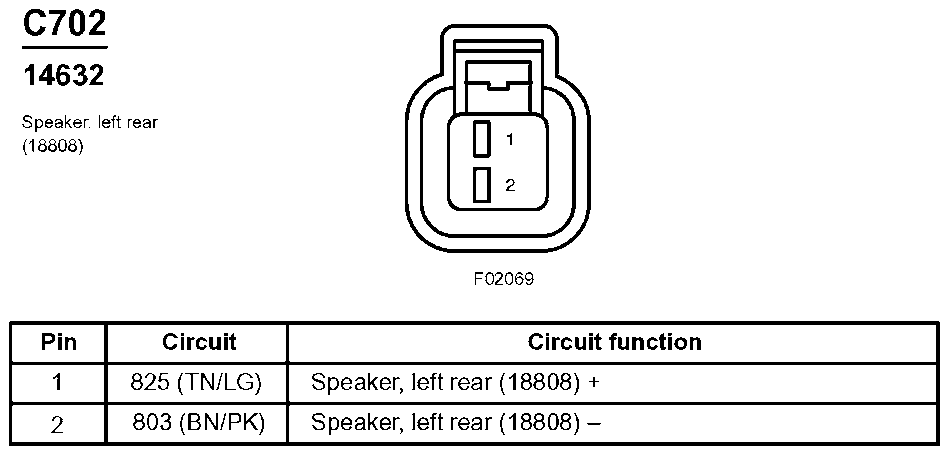

Fig 220: Speaker, Left Rear Connector End View (C702)
Courtesy of FORD MOTOR CO.

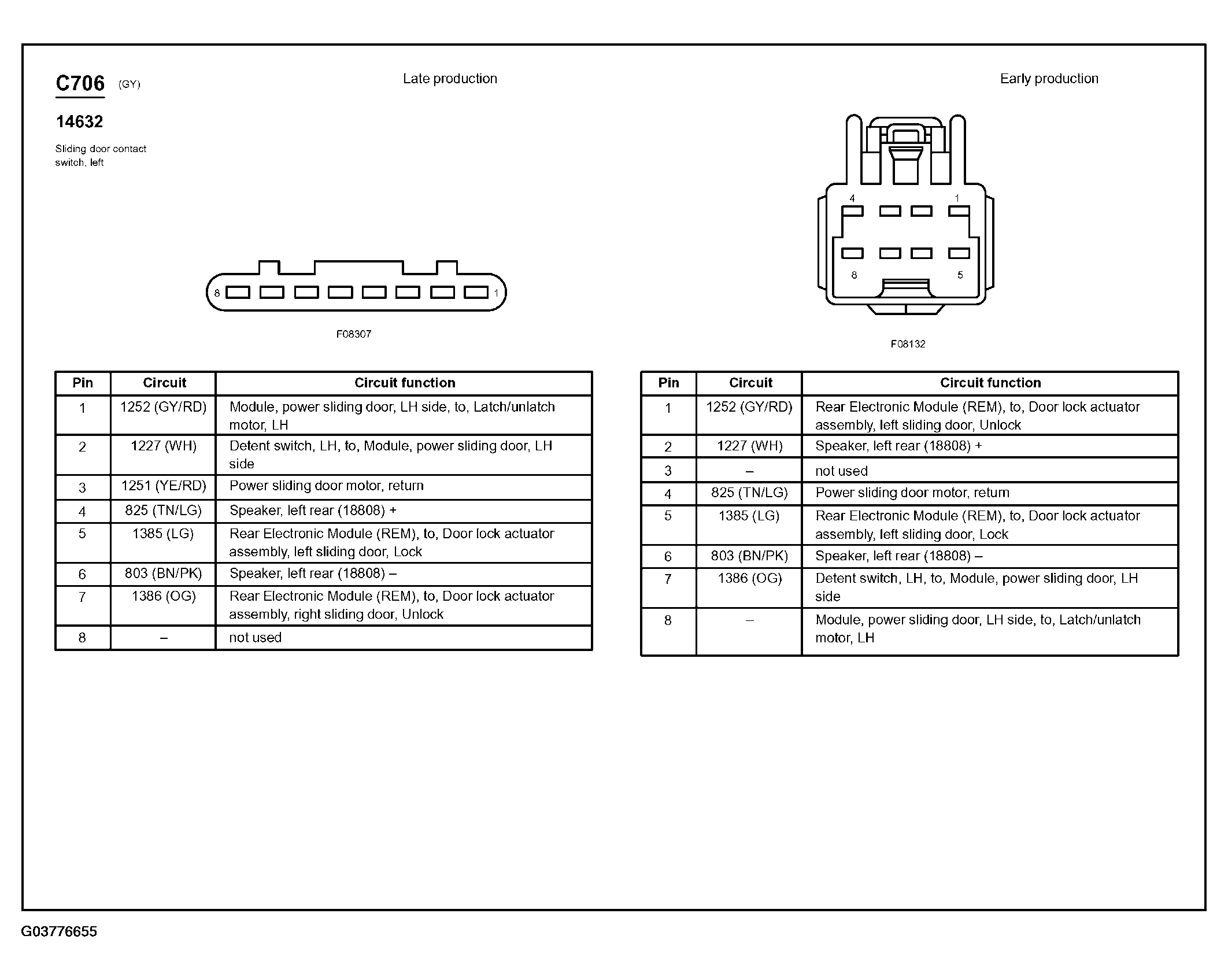

Fig 221: Sliding Door Contact Switch, Left Connector End View (C706)
Courtesy of FORD MOTOR CO.
Fig 222: Sliding Door Contact Switch, Left Connector End View (C707)
Courtesy of FORD MOTOR CO.

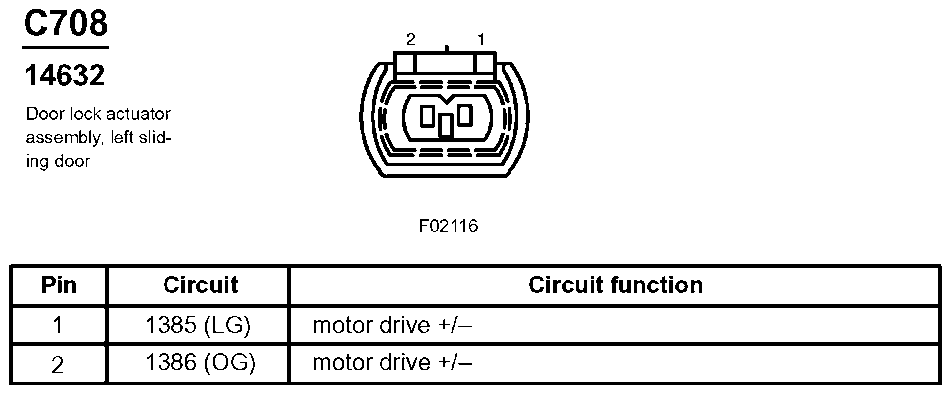

Fig 223: Door Lock Actuator Assembly, Left Sliding Door Connector End View (C708)
Courtesy of FORD MOTOR CO.

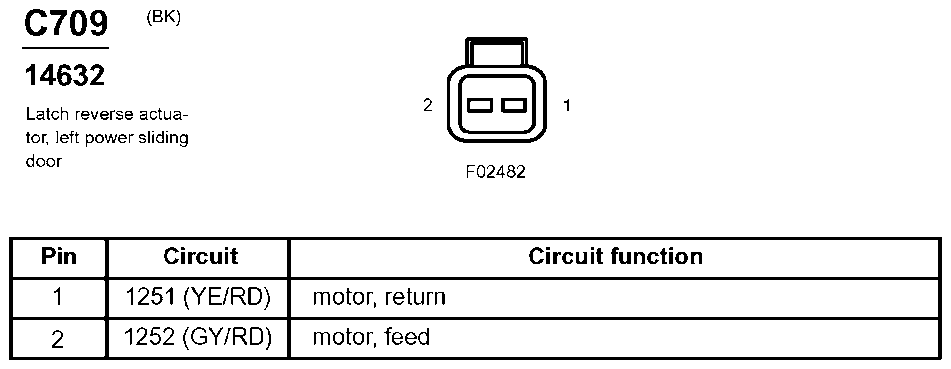

Fig 224: Latch Reverse Actuator, Left Power Sliding Door Connector End View (C709)
Courtesy of FORD MOTOR CO.

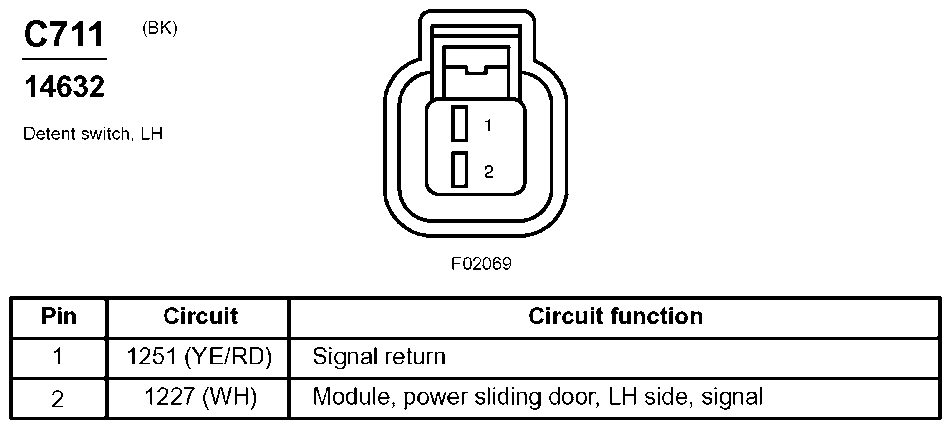

Fig 225: Detent Switch, LH Connector End View (C711)
Courtesy of FORD MOTOR CO.

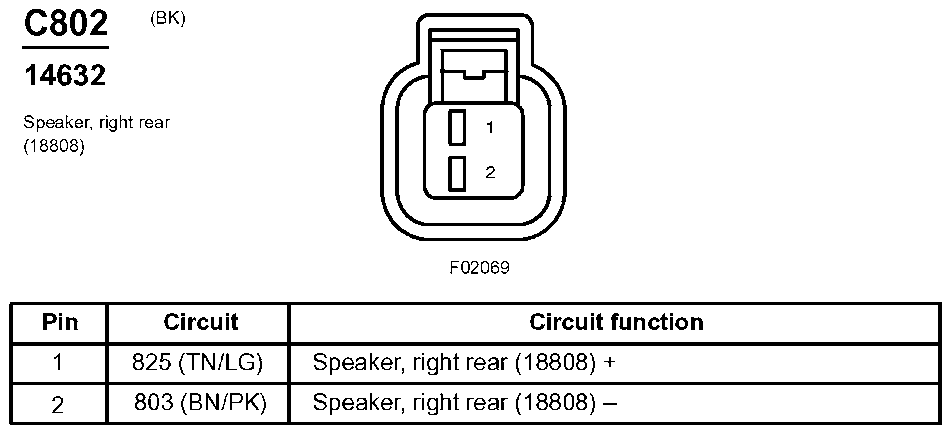

Fig 226: Speaker, Right Rear Connector End View (C802)
Courtesy of FORD MOTOR CO.

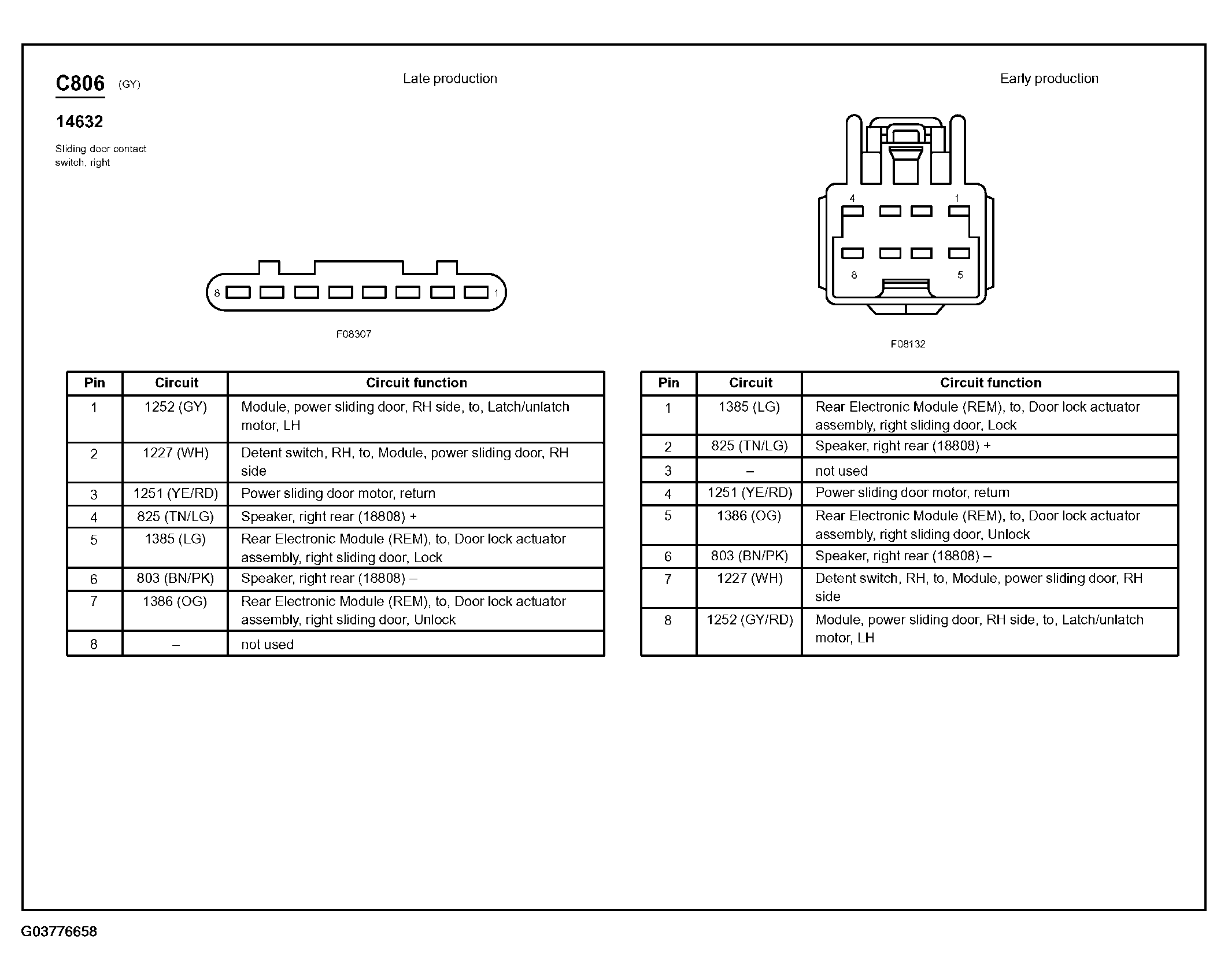

Fig 227: Sliding Door Contact Switch, Right Connector End View (C806)
Courtesy of FORD MOTOR CO.

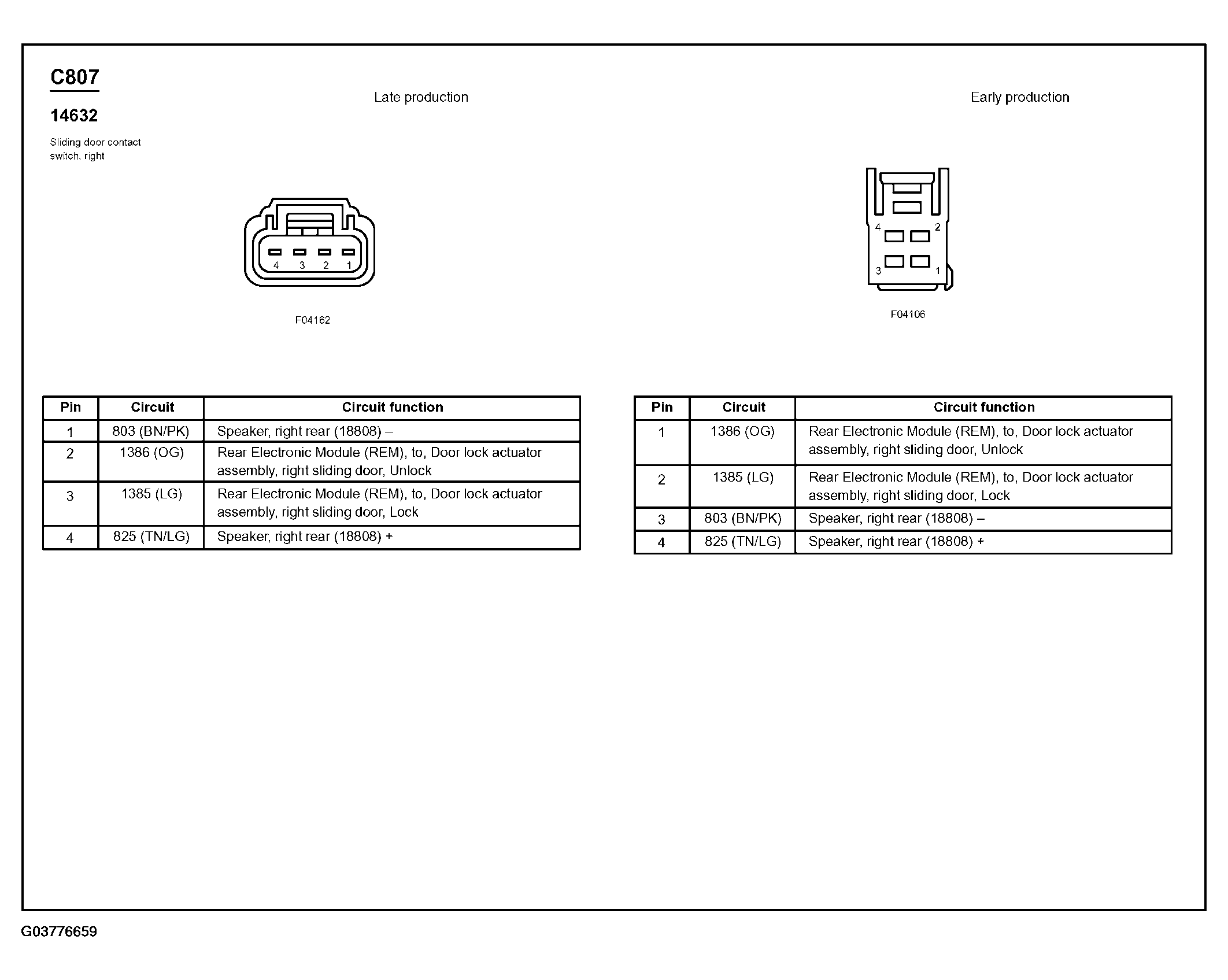

Fig 228: Sliding Door Contact Switch, Right Connector End View (C807)
Courtesy of FORD MOTOR CO.

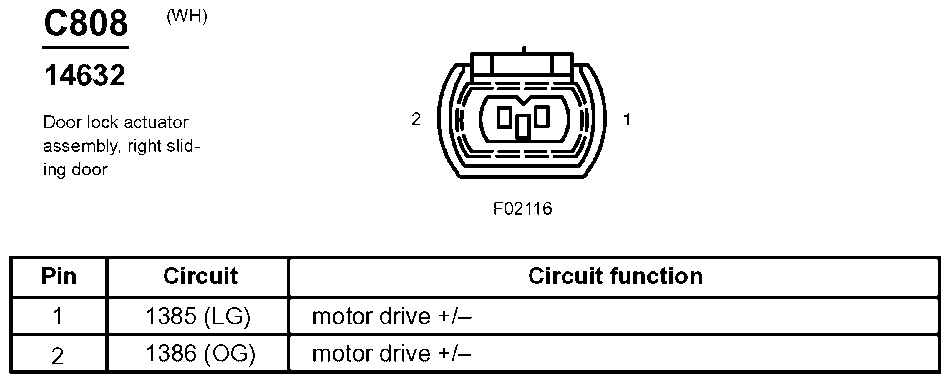

Fig 229: Door Lock Actuator Assembly, Right Sliding Door Connector End View (C808)
Courtesy of FORD MOTOR CO.

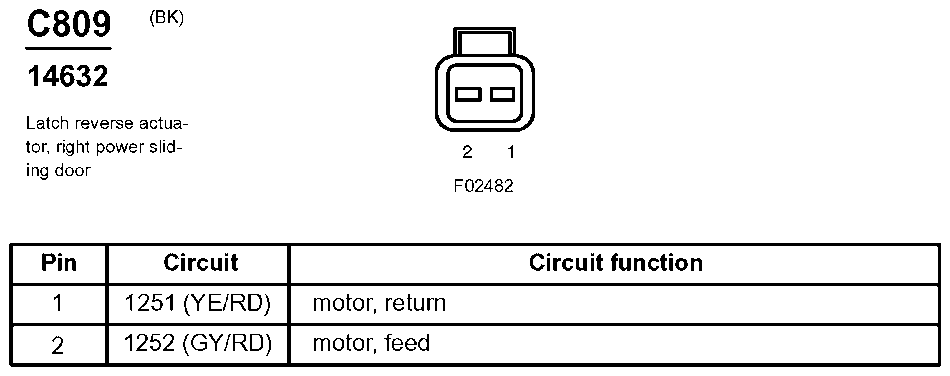

Fig 230: Latch Reverse Actuator, Right Power Sliding Door Connector End View (C809)
Courtesy of FORD MOTOR CO.

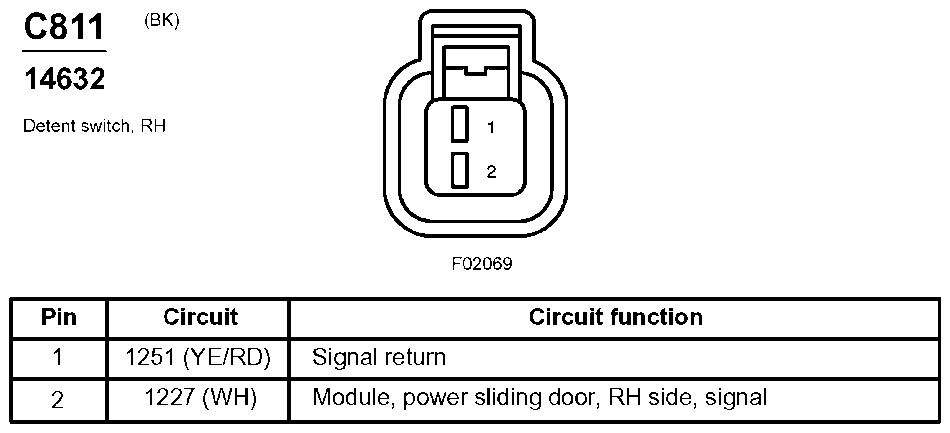

Fig 231: Detent Switch, RH Connector End View (C811)
Courtesy of FORD MOTOR CO.

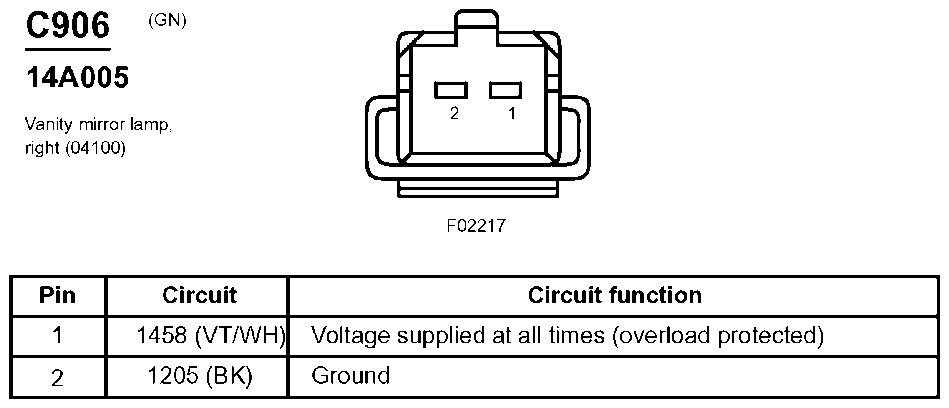

Fig 232: Vanity Mirror Lamp, Right Connector End View (C906)
Courtesy of FORD MOTOR CO.

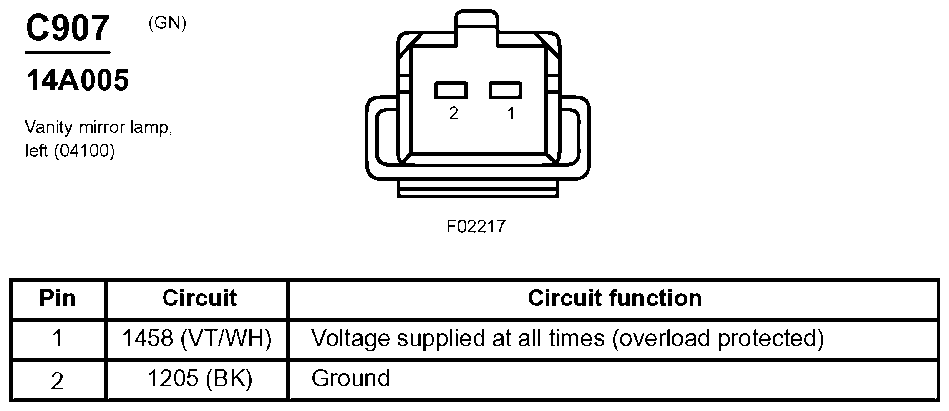

Fig 233: Vanity Mirror Lamp, Left Connector End View (C907)
Courtesy of FORD MOTOR CO.

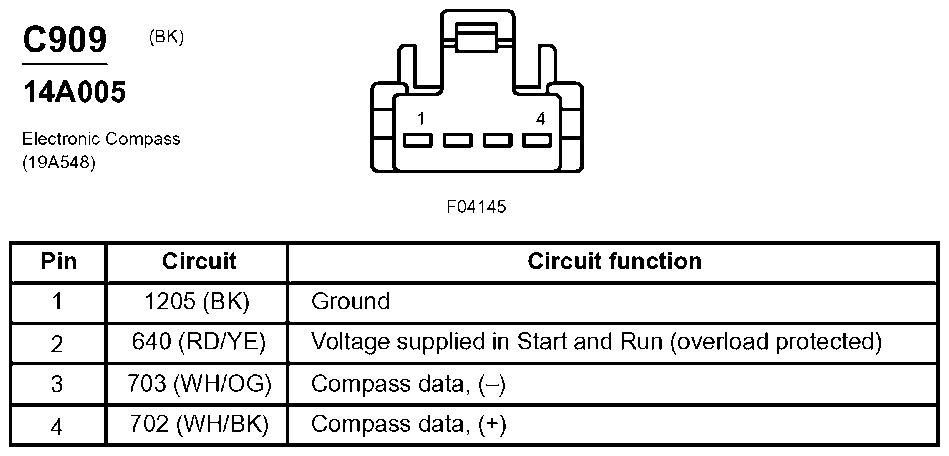

Fig 234: Electronic Compass Connector End View (C909)
Courtesy of FORD MOTOR CO.

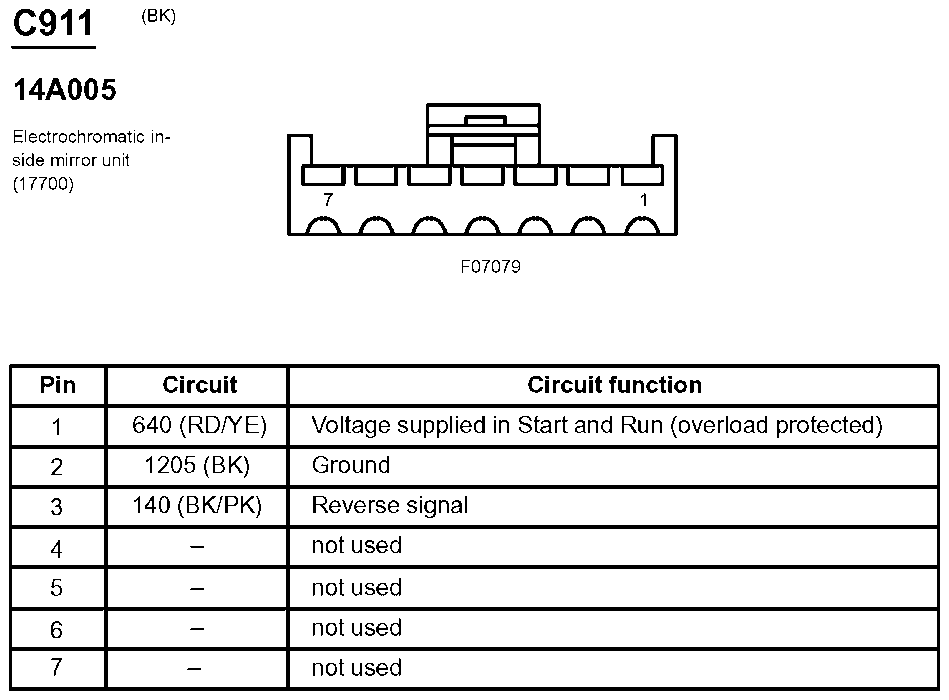

Fig 235: Electrochromatic Inside Mirror Unit Connector End View (C911)
Courtesy of FORD MOTOR CO.

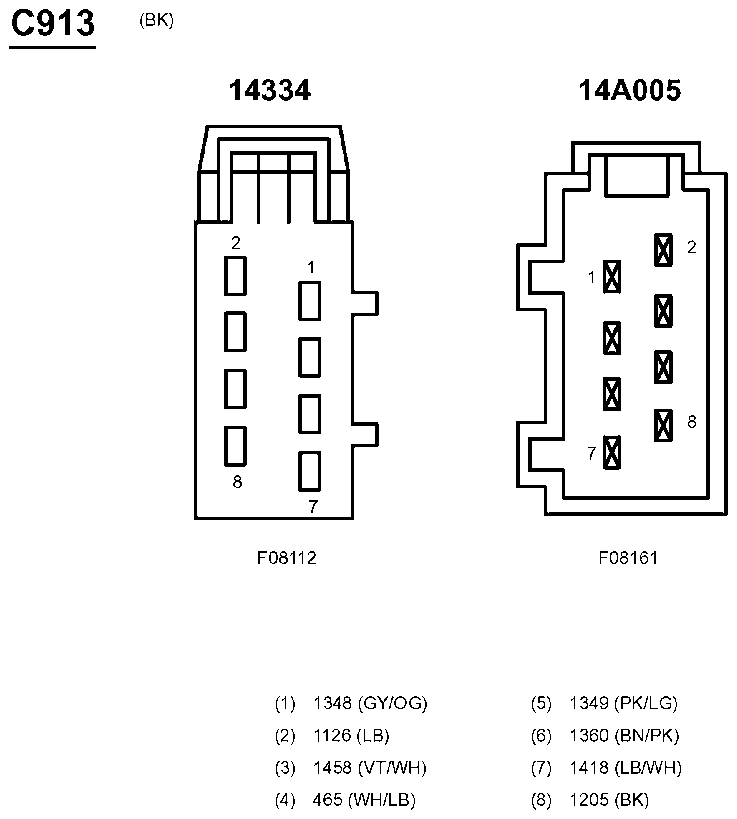

Fig 236: Inline Connector End View (C913)
Courtesy of FORD MOTOR CO.

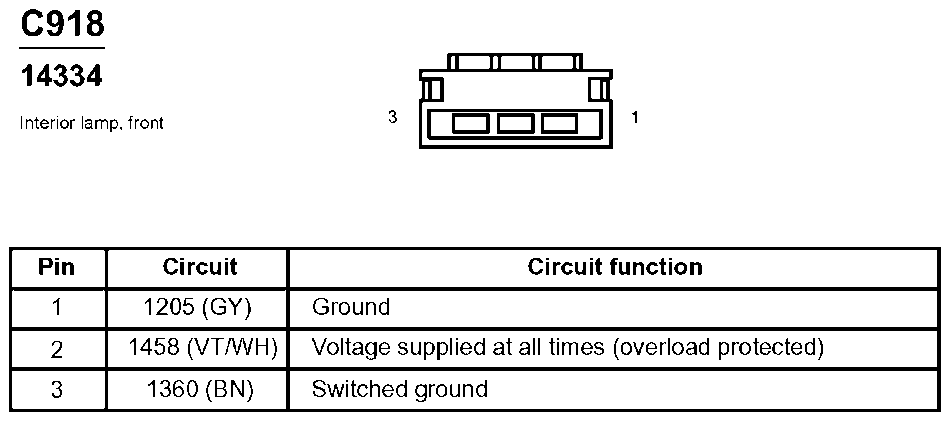

Fig 237: Interior Lamp, Front Connector End View (C918)
Courtesy of FORD MOTOR CO.

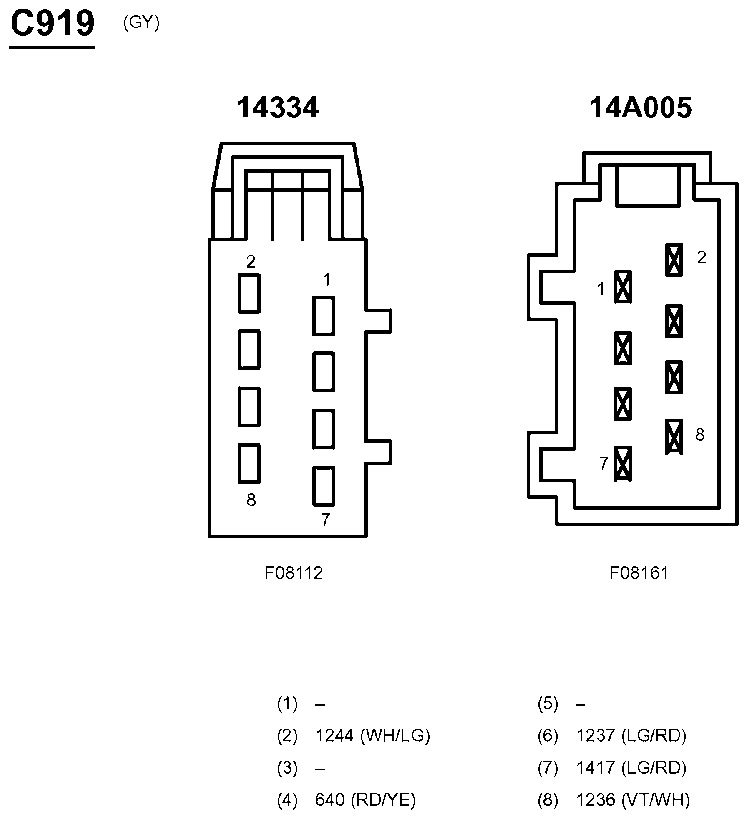

Fig 238: Inline Connector End View (C919)
Courtesy of FORD MOTOR CO.

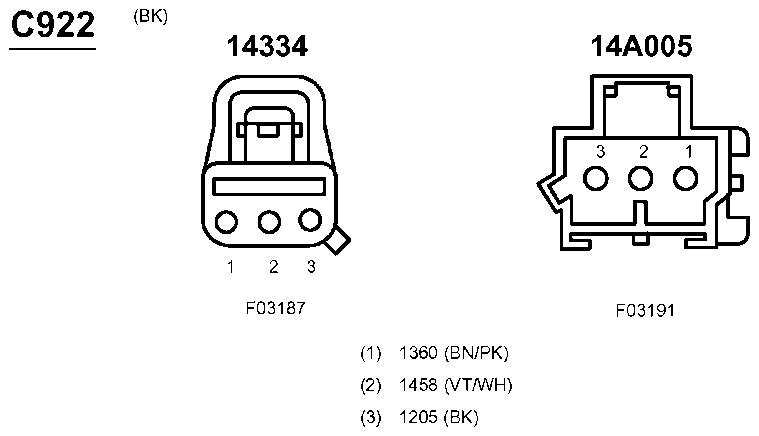

Fig 239: Inline Connector End View (C922)
Courtesy of FORD MOTOR CO.

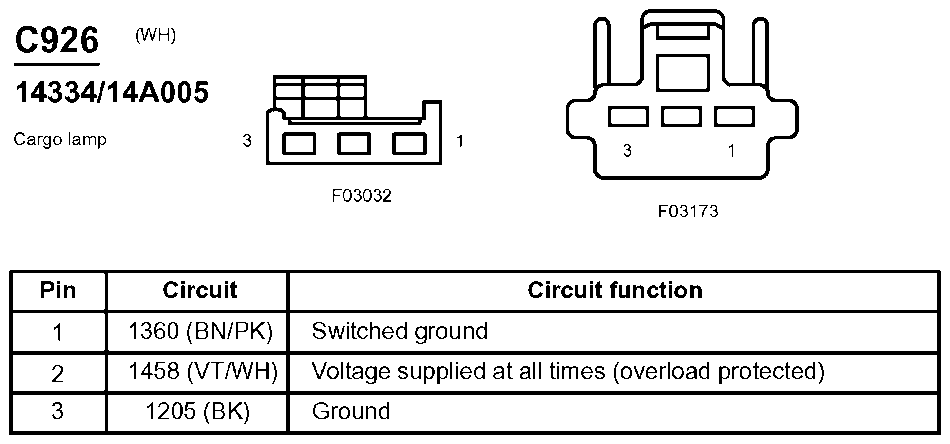

Fig 240: Cargo Lamp Connector End View (C926)
Courtesy of FORD MOTOR CO.

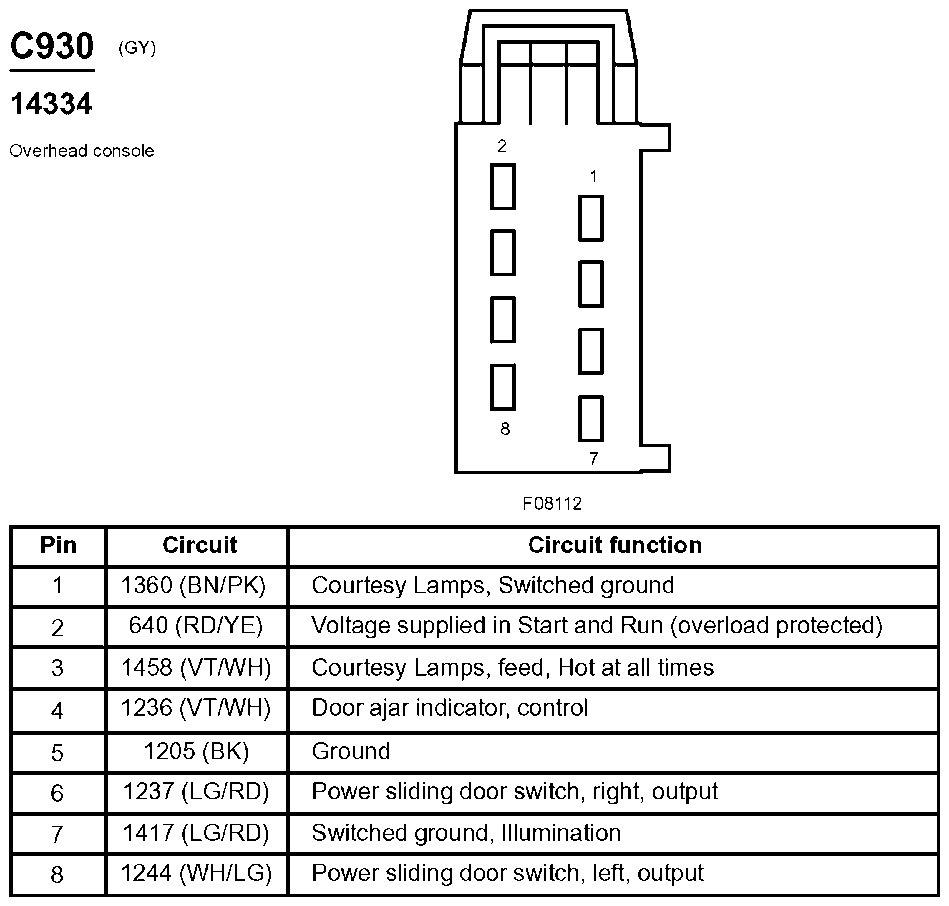

Fig 241: Overhead Console Connector End View (C930)
Courtesy of FORD MOTOR CO.

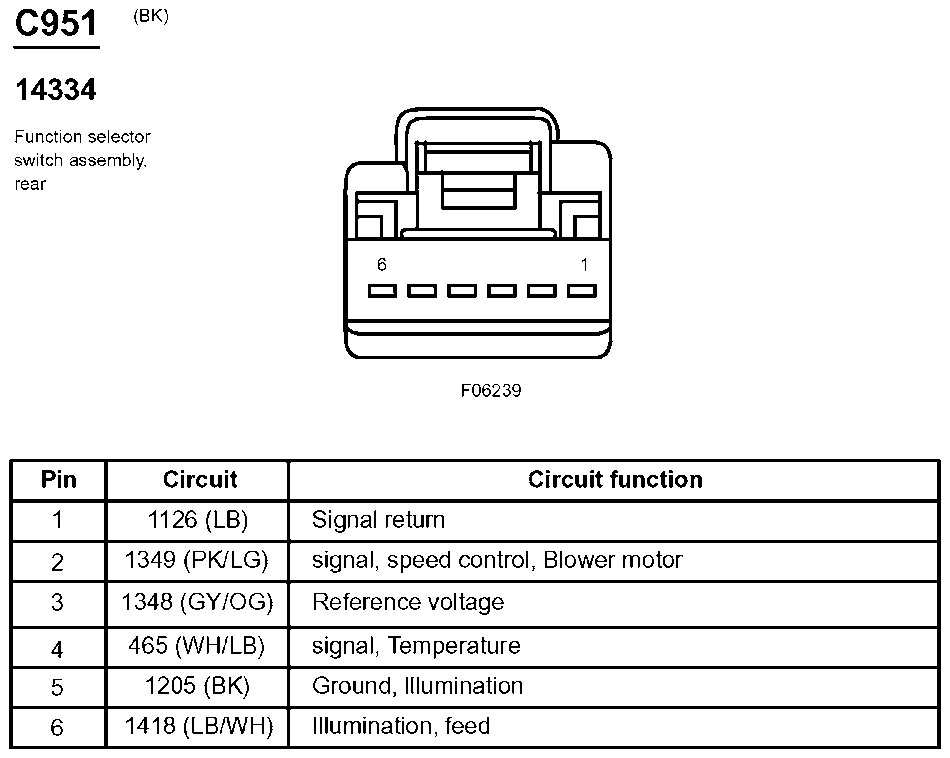

Fig 242: Function Selector Switch Assembly, Rear Connector End View (C951)
Courtesy of FORD MOTOR CO.

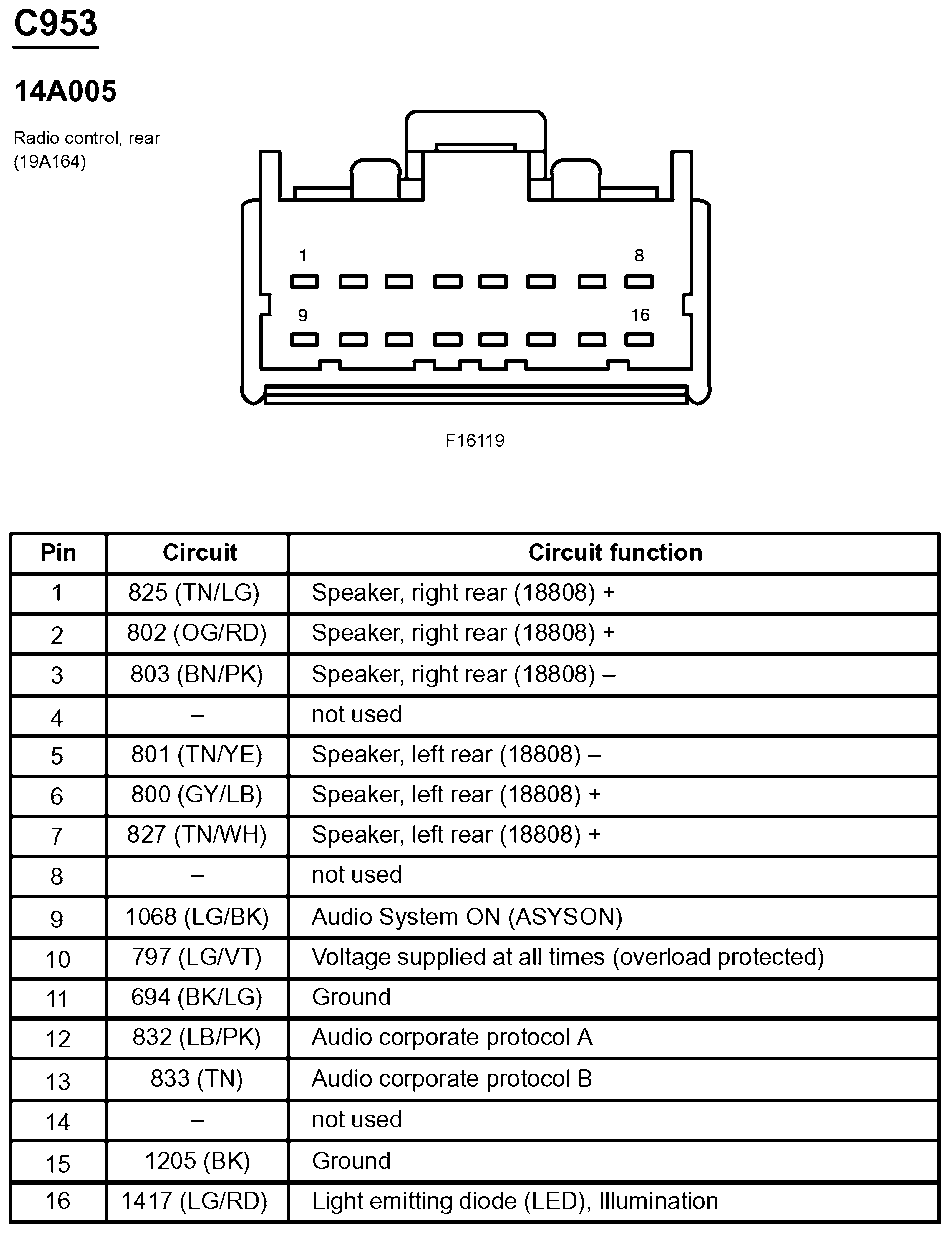

Fig 243: Radio Control, Rear Connector End View (C953)
Courtesy of FORD MOTOR CO.

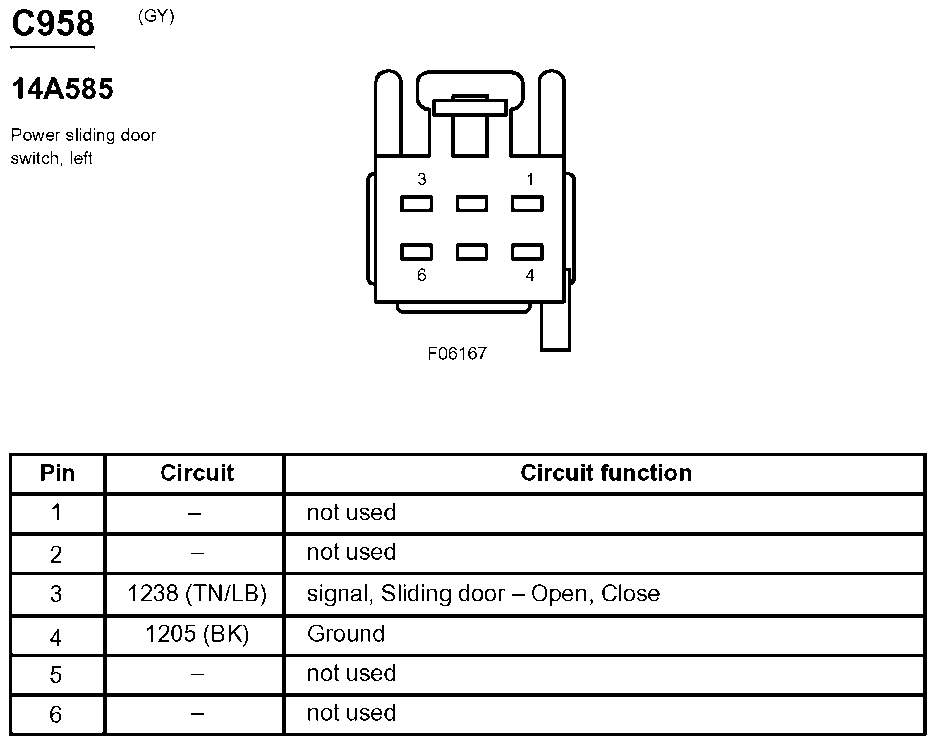

Fig 244: Power Sliding Door Switch, Left Connector End View (C958)
Courtesy of FORD MOTOR CO.

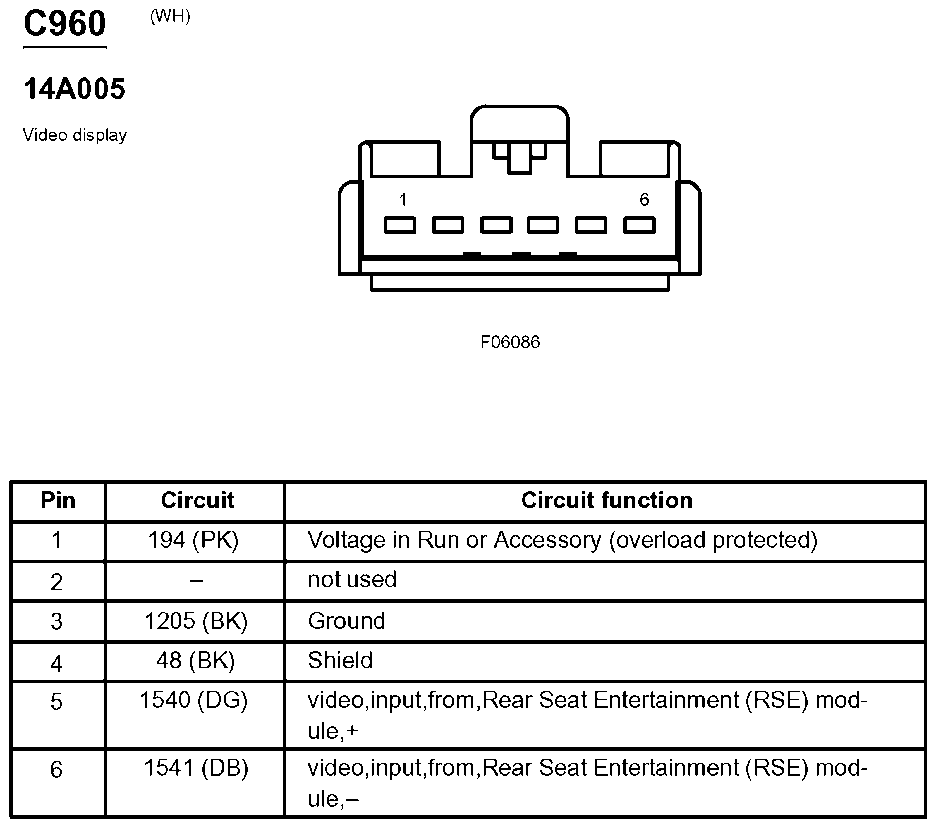

Fig 245: Video Display Connector End View (C960)
Courtesy of FORD MOTOR CO.

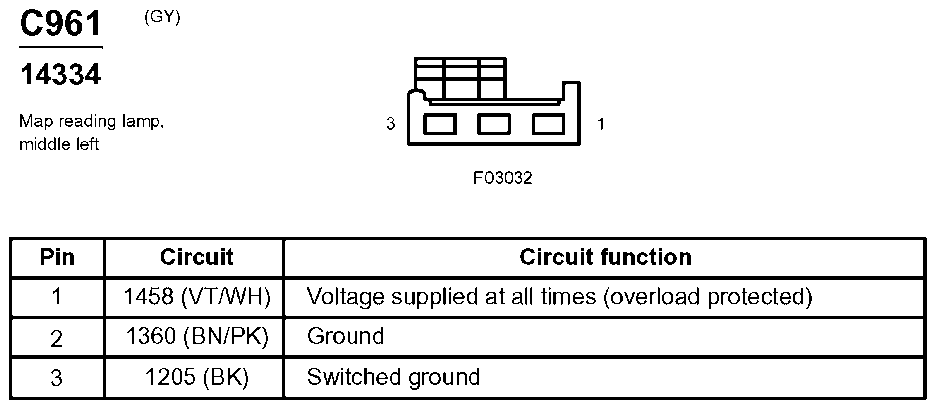

Fig 246: Map Reading Lamp, Middle Left Connector End View (C961)
Courtesy of FORD MOTOR CO.

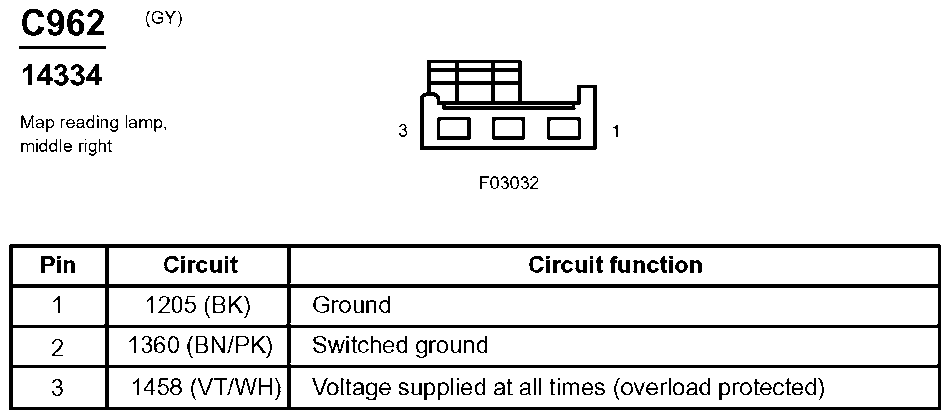

Fig 247: Map Reading Lamp, Middle Right Connector End View (C962)
Courtesy of FORD MOTOR CO.

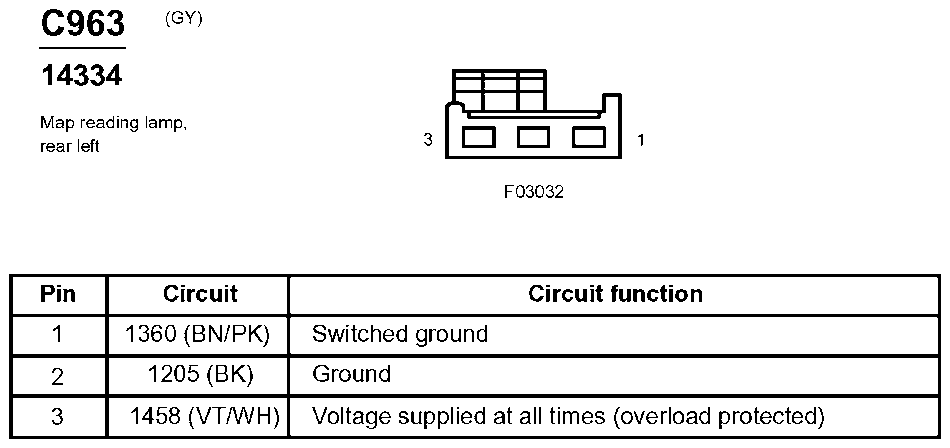

Fig 248: Map Reading Lamp, Rear Left Connector End View (C963)
Courtesy of FORD MOTOR CO.

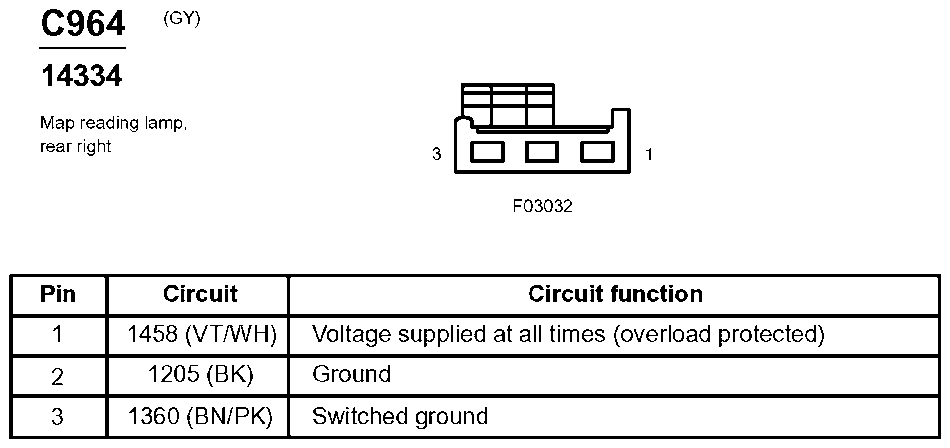

Fig 249: Map Reading Lamp, Rear Right Connector End View (C964)
Courtesy of FORD MOTOR CO.

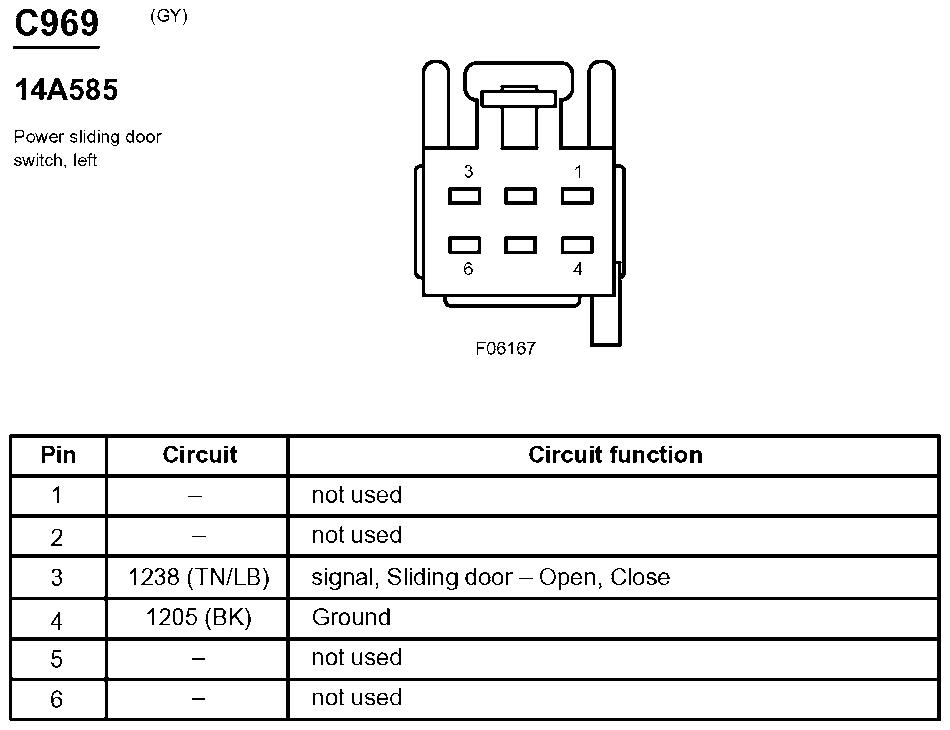

Fig 250: Power Sliding Door Switch, Left Connector End View (C969)
Courtesy of FORD MOTOR CO.

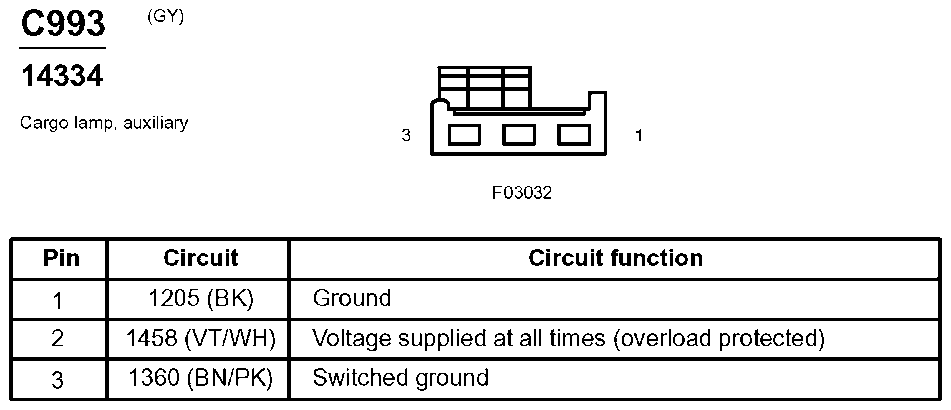

Fig 251: Cargo Lamp, Auxiliary Connector End View (C993)
Courtesy of FORD MOTOR CO.

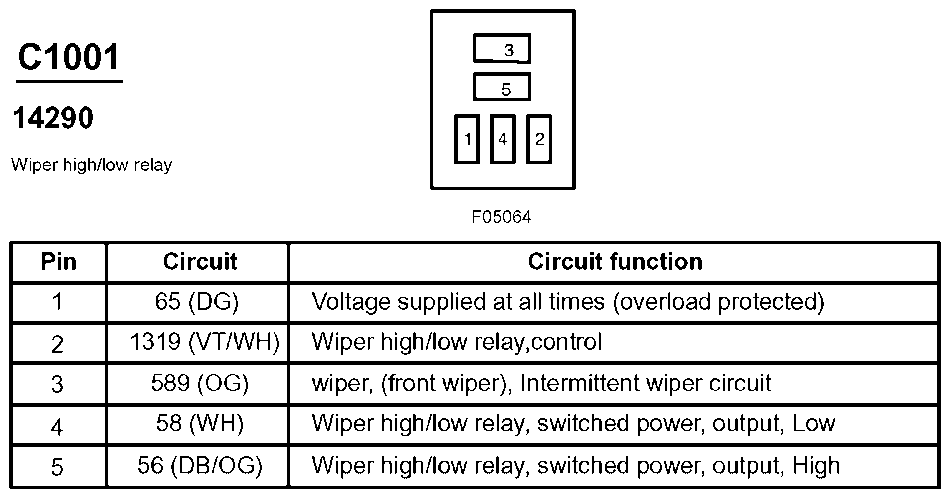

Fig 252: Wiper High/Low Relay Connector End View (C1001)
Courtesy of FORD MOTOR CO.

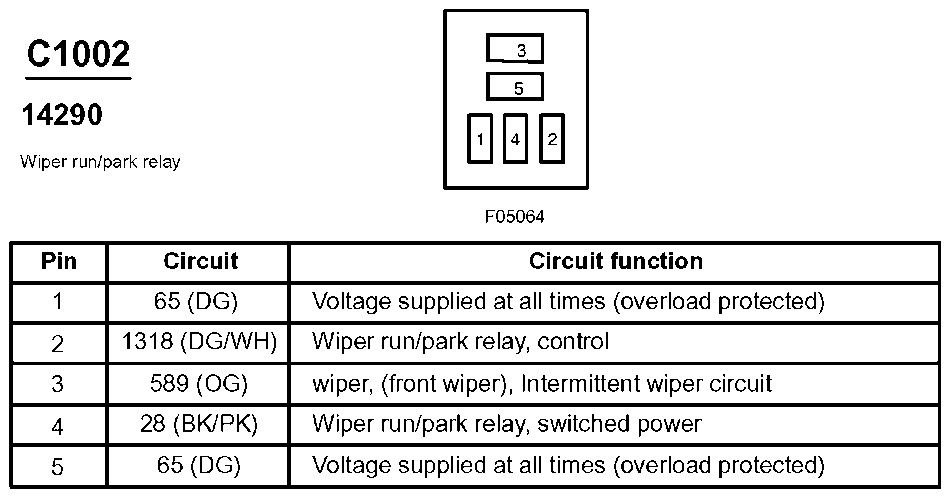

Fig 253: Wiper Run/Park Relay Connector End View (C1002)
Courtesy of FORD MOTOR CO.

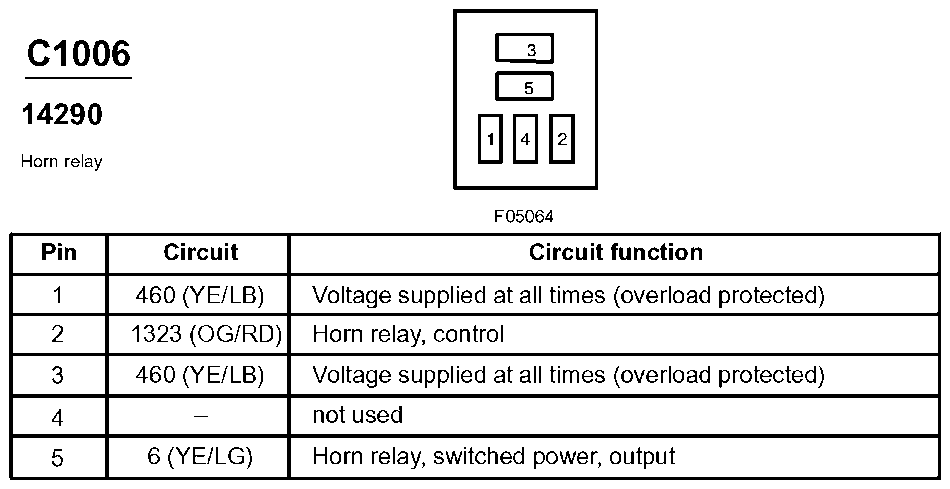

Fig 254: Horn Relay Connector End View (C1006)
Courtesy of FORD MOTOR CO.

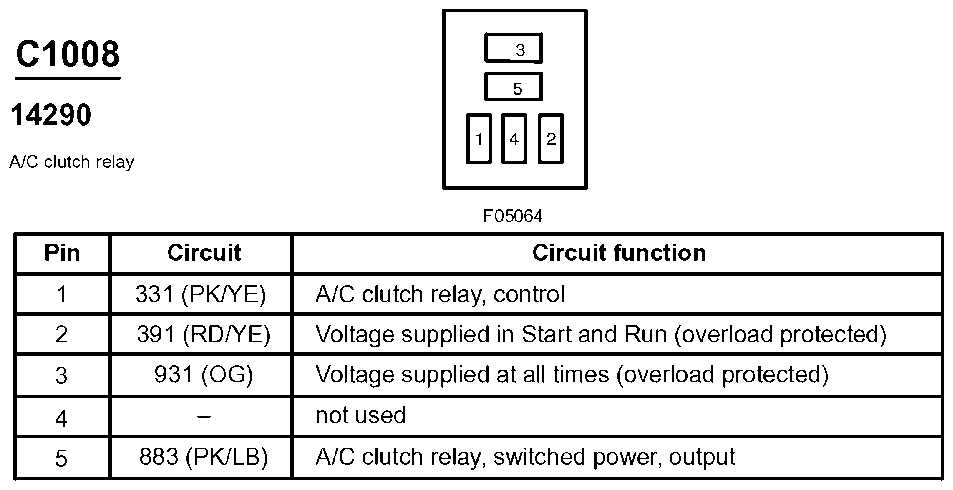

Fig 255: A/C Clutch Relay Connector End View (C1008)
Courtesy of FORD MOTOR CO.

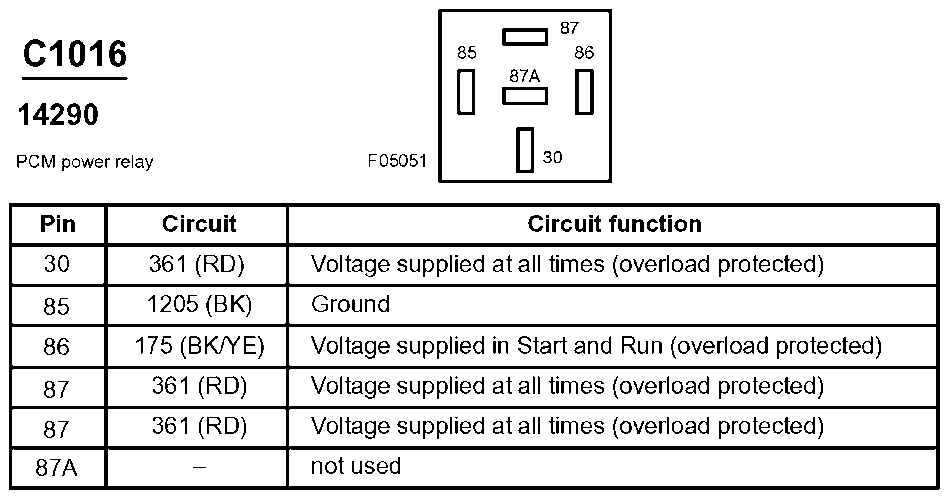

Fig 256: PCM Power Relay Connector End View (C1016)
Courtesy of FORD MOTOR CO.

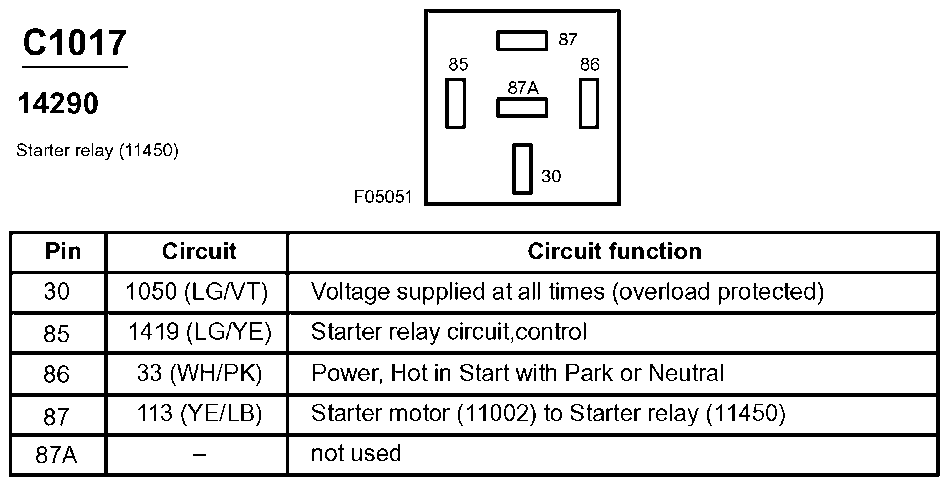

Fig 257: Starter Relay Connector End View (C1017)
Courtesy of FORD MOTOR CO.

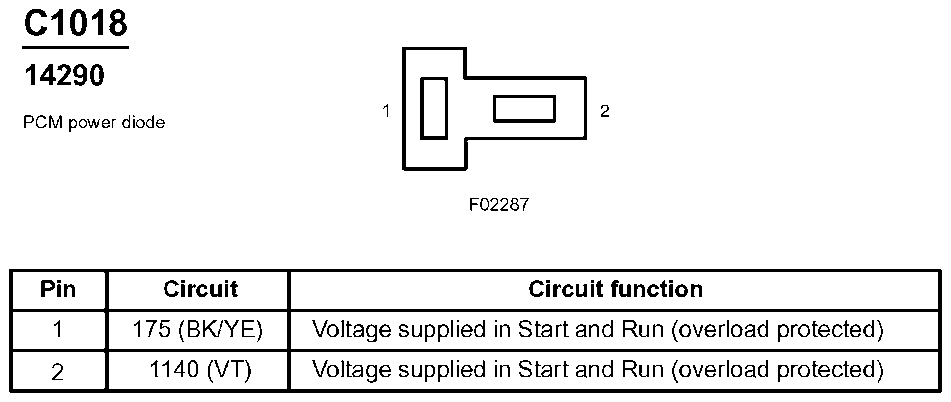

Fig 258: PCM Power Diode Connector End View (C1018)
Courtesy of FORD MOTOR CO.

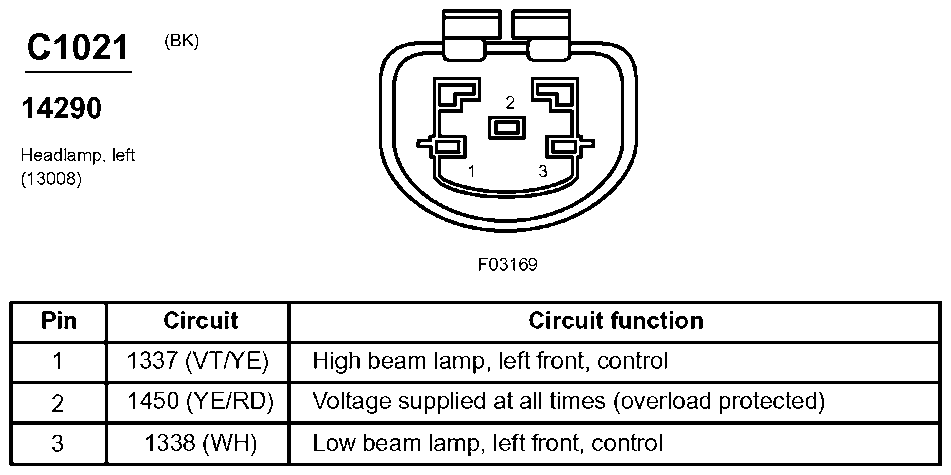

Fig 259: Headlamp, Left Connector End View (C1021)
Courtesy of FORD MOTOR CO.

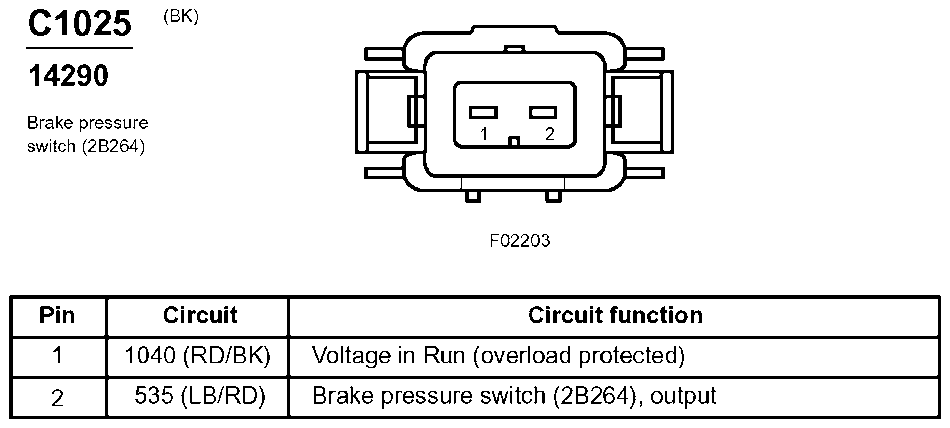

Fig 260: Brake Pressure Switch Connector End View (C1025)
Courtesy of FORD MOTOR CO.

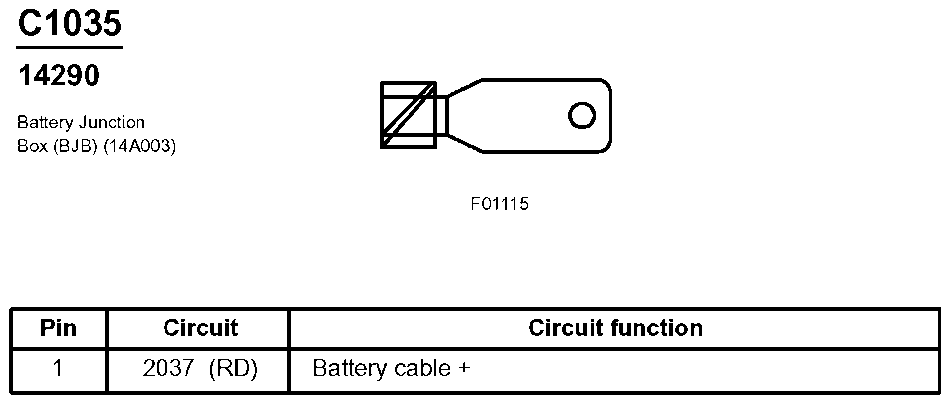

Fig 261: Battery Junction Box (BJB) Connector End View (C1035)
Courtesy of FORD MOTOR CO.

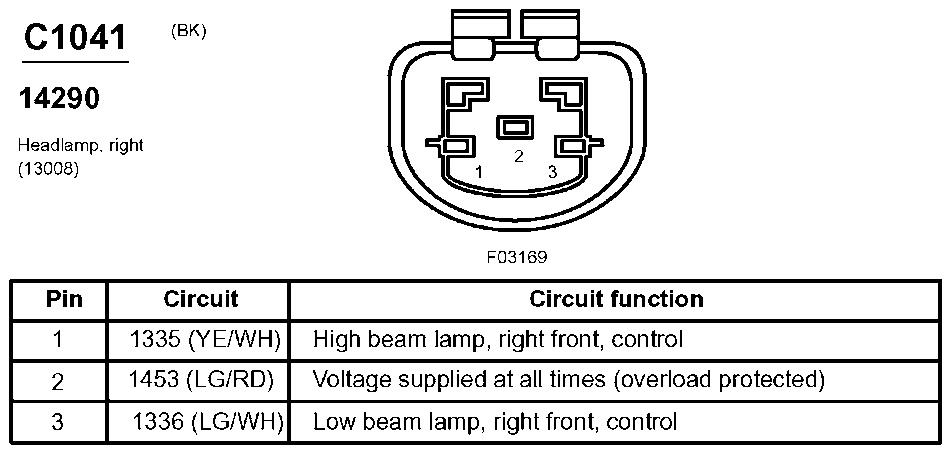

Fig 262: Headlamp, Right Connector End View (C1041)
Courtesy of FORD MOTOR CO.

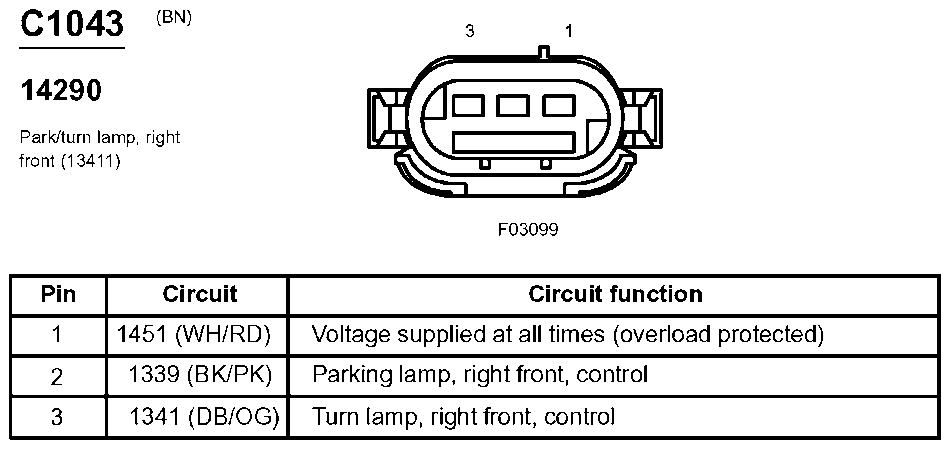

Fig 263: Park/Turn Lamp, Right Front Connector End View (C1043)
Courtesy of FORD MOTOR CO.

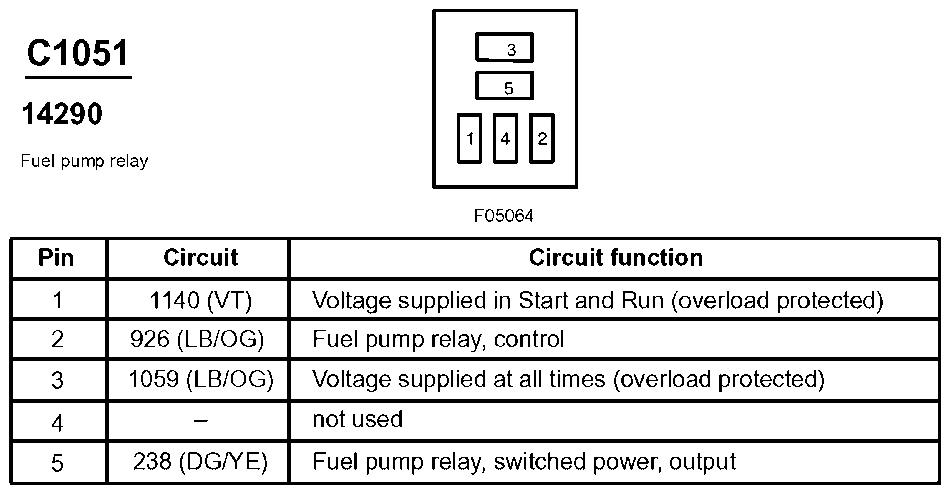

Fig 264: Fuel Pump Relay Connector End View (C1051)
Courtesy of FORD MOTOR CO.

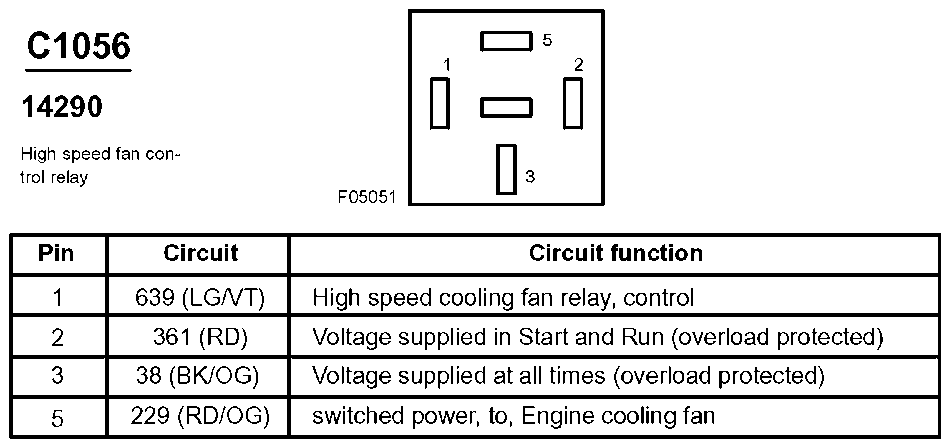

Fig 265: High Speed Fan Control Relay Connector End View (C1056)
Courtesy of FORD MOTOR CO.

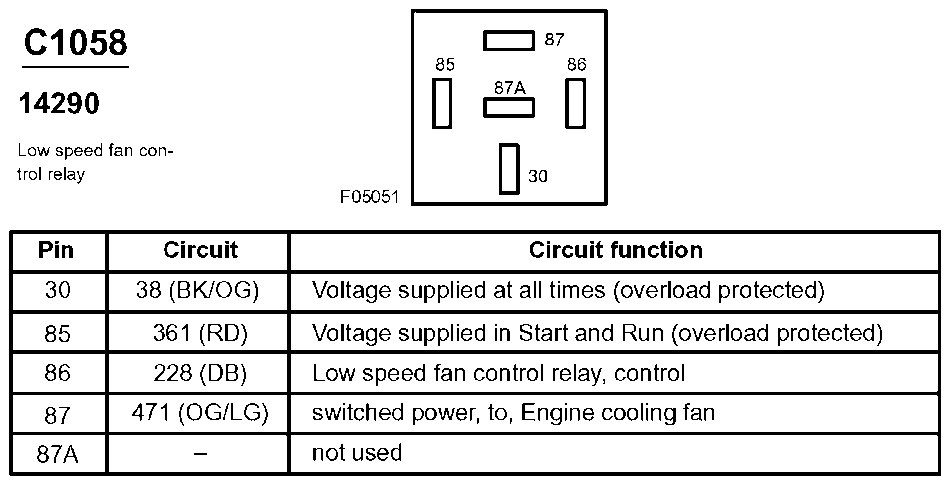

Fig 266: Low Speed Fan Control Relay Connector End View (C1058)
Courtesy of FORD MOTOR CO.

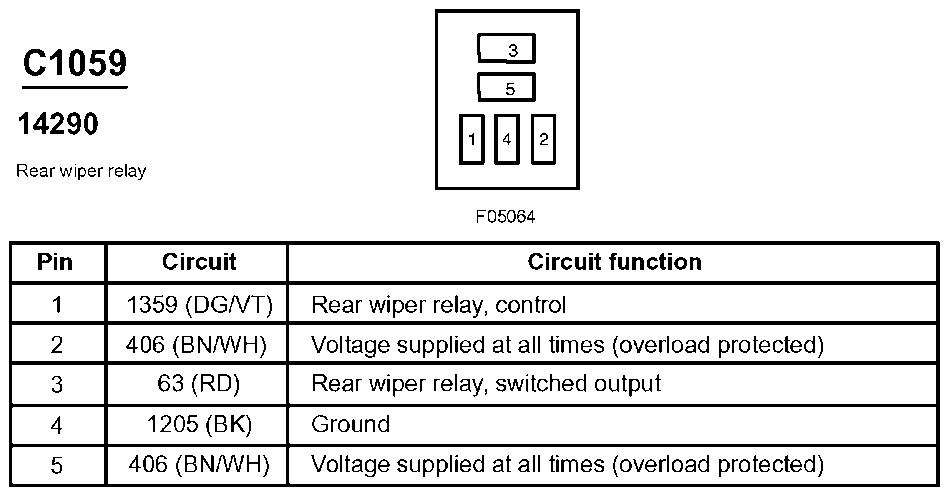

Fig 267: Rear Wiper Relay Connector End View (C1059)
Courtesy of FORD MOTOR CO.

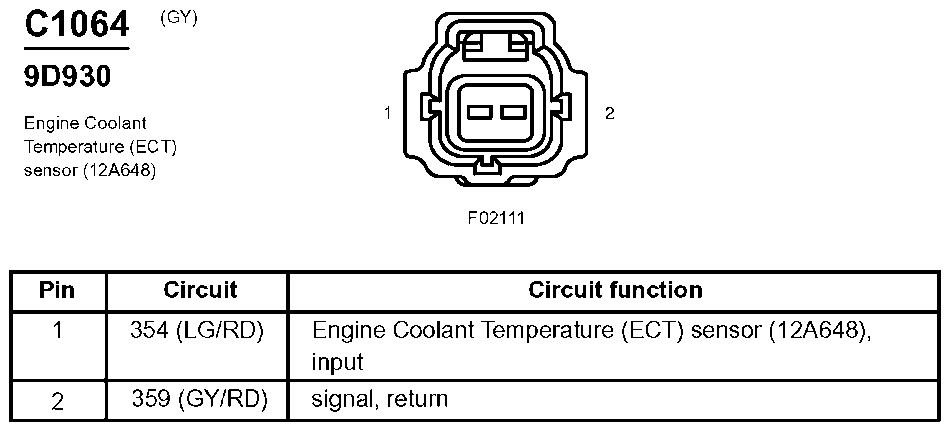

Fig 268: Engine Coolant Temperature (ECT) Sensor Connector End View (C1064)
Courtesy of FORD MOTOR CO.

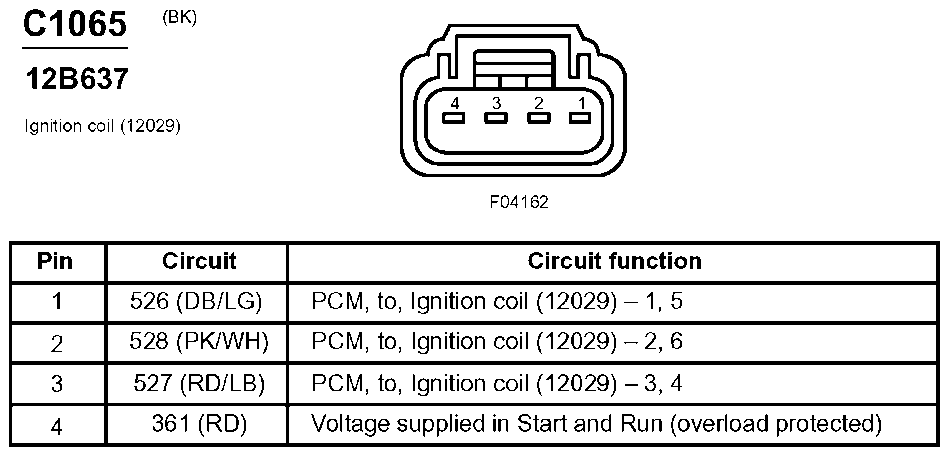

Fig 269: Ignition Coil Connector End View (C1065)
Courtesy of FORD MOTOR CO.

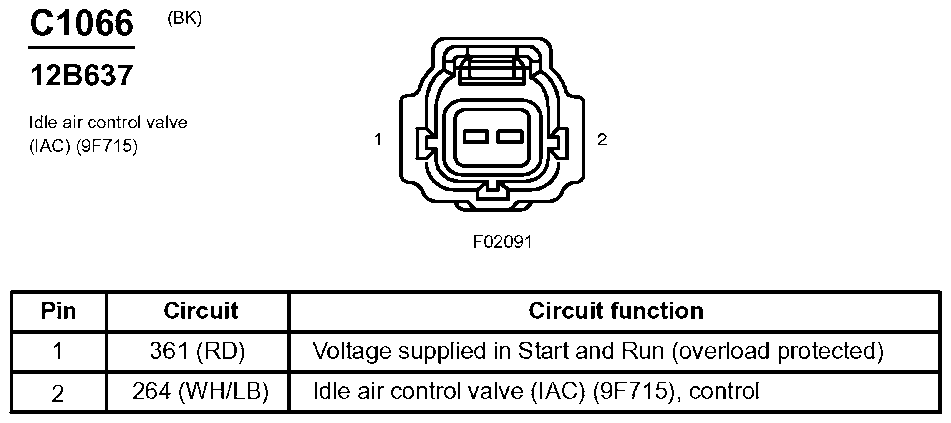

Fig 270: Idle Air Control Valve (IAC) Connector End View (C1066)
Courtesy of FORD MOTOR CO.

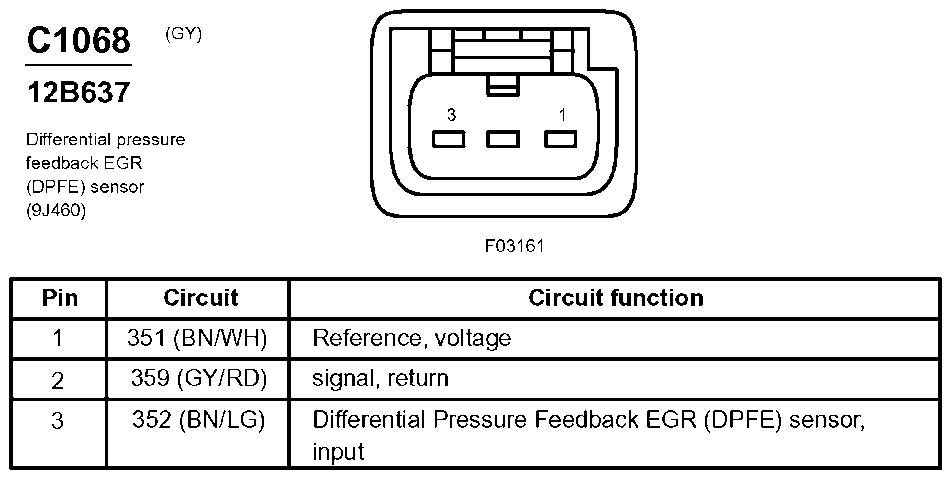

Fig 271: Differential Pressure Feedback EGR (DPFE) Sensor Connector End View (C1068)
Courtesy of FORD MOTOR CO.

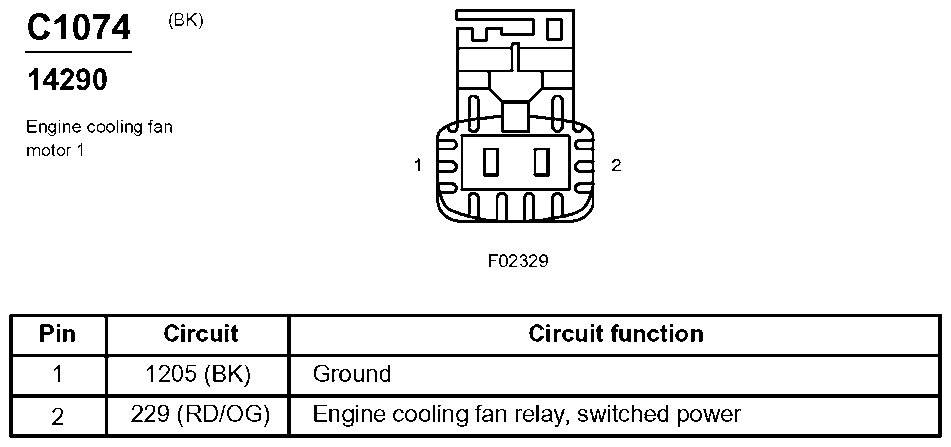

Fig 272: Engine Cooling Fan Motor 1 Connector End View (C1074)
Courtesy of FORD MOTOR CO.

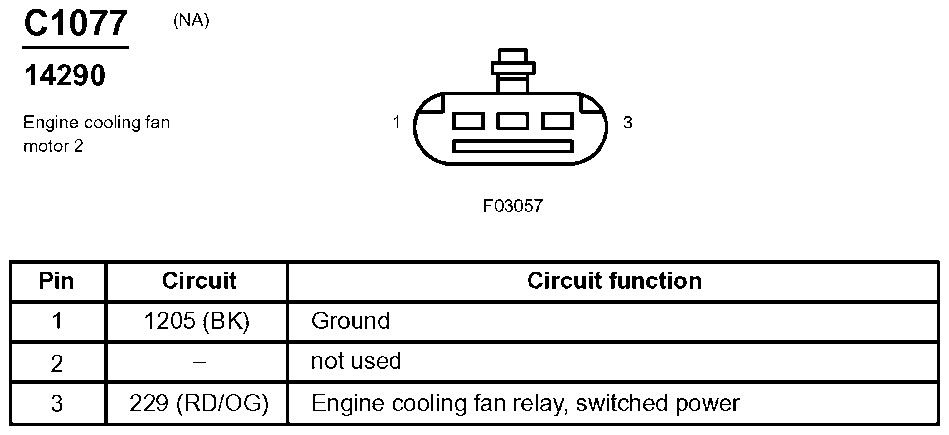

Fig 273: Engine Cooling Fan Motor 2 Connector End View (C1077)
Courtesy of FORD MOTOR CO.

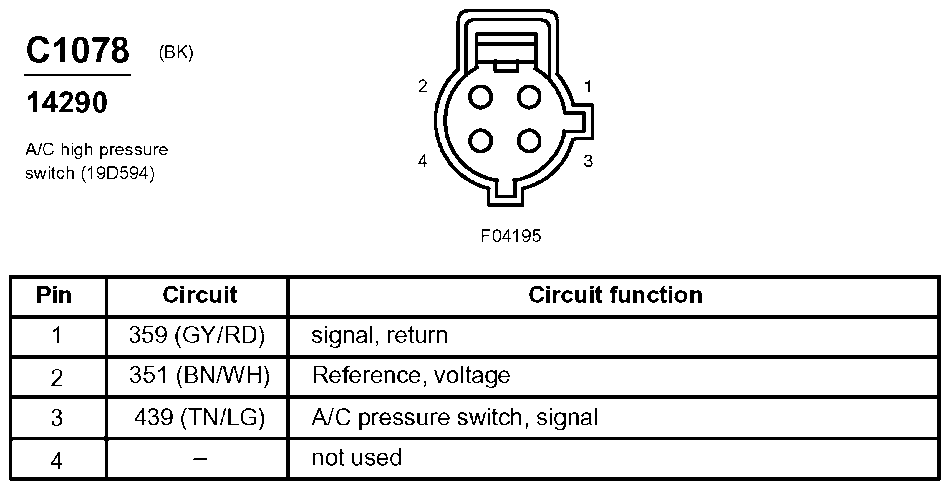

Fig 274: A/C High Pressure Switch Connector End View (C1078)
Courtesy of FORD MOTOR CO.

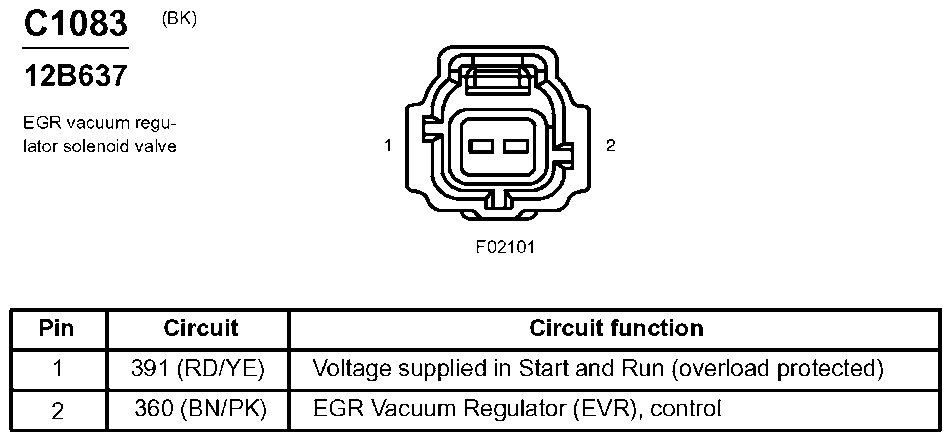

Fig 275: EGR Vacuum Regulator Solenoid Valve Connector End View (C1083)
Courtesy of FORD MOTOR CO.

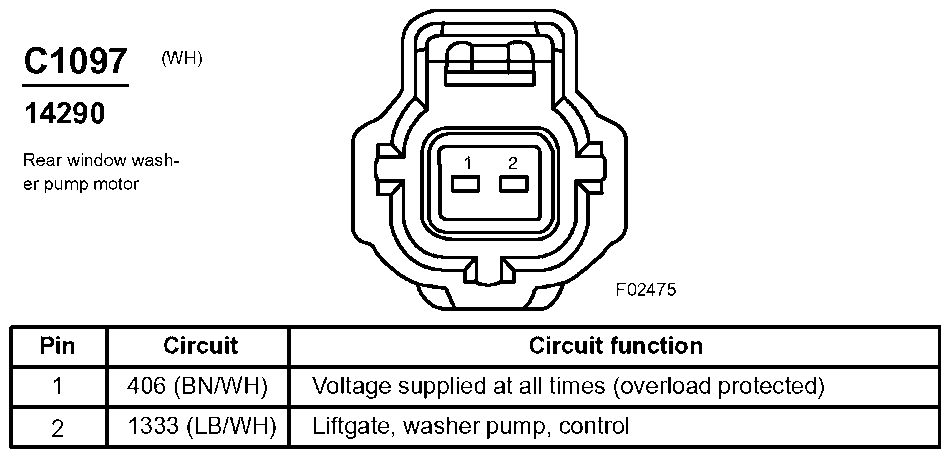

Fig 276: Rear Window Washer Pump Motor Connector End View (C1097)
Courtesy of FORD MOTOR CO.

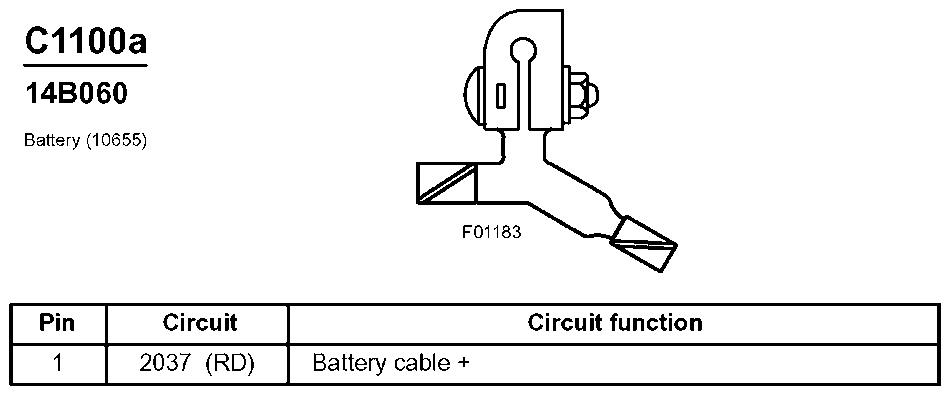

Fig 277: Battery Connector End View (C1100a)
Courtesy of FORD MOTOR CO.

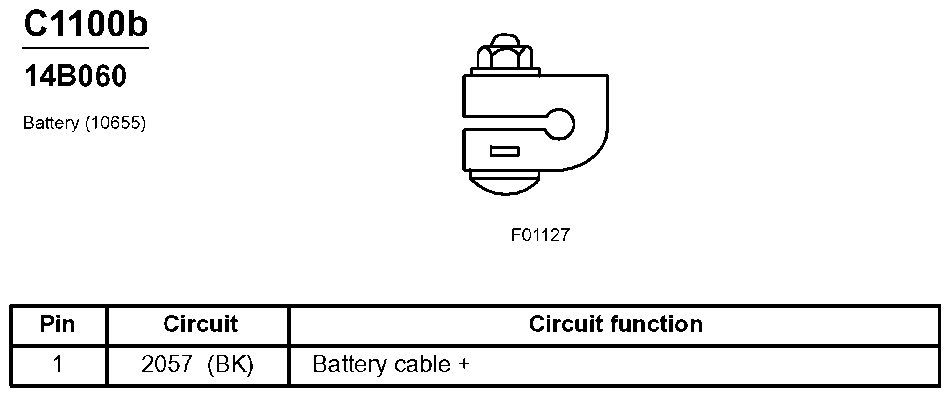

Fig 278: Battery Connector End View (C1100b)
Courtesy of FORD MOTOR CO.

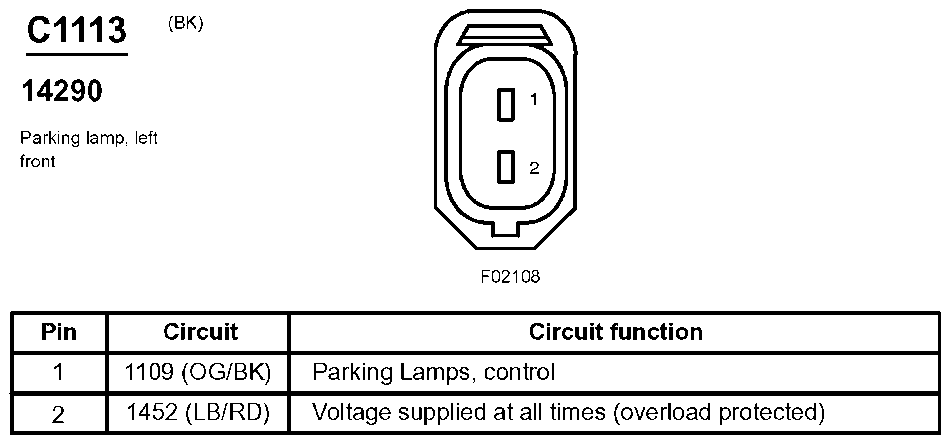

Fig 279: Parking Lamp, Left Front Connector End View (C1113)
Courtesy of FORD MOTOR CO.

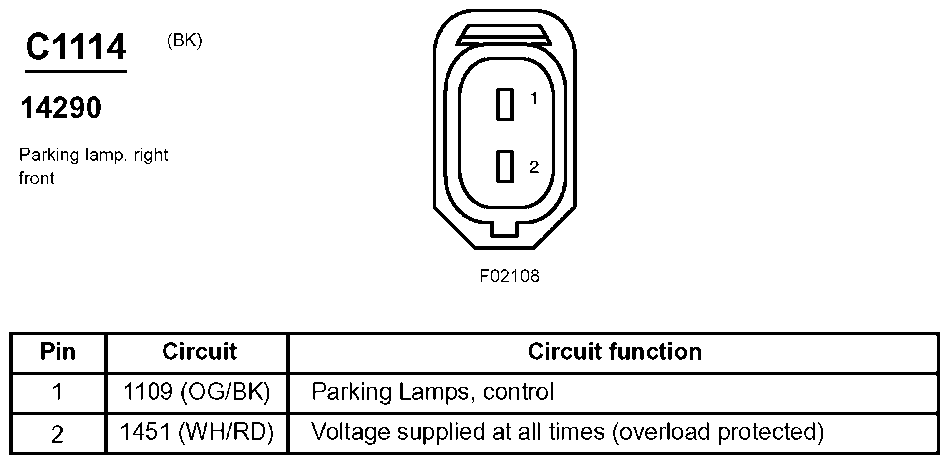

Fig 280: Parking Lamp, Right Front Connector End View (C1114)
Courtesy of FORD MOTOR CO.

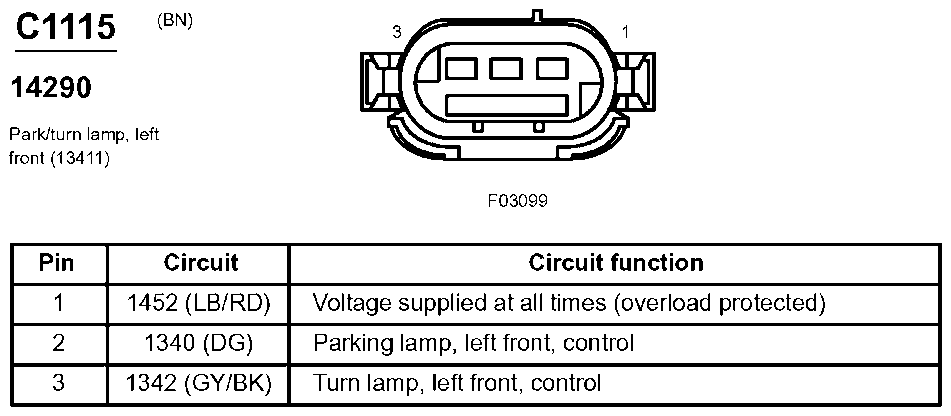

Fig 281: Park/Turn Lamp, Left Front Connector End View (C1115)
Courtesy of FORD MOTOR CO.

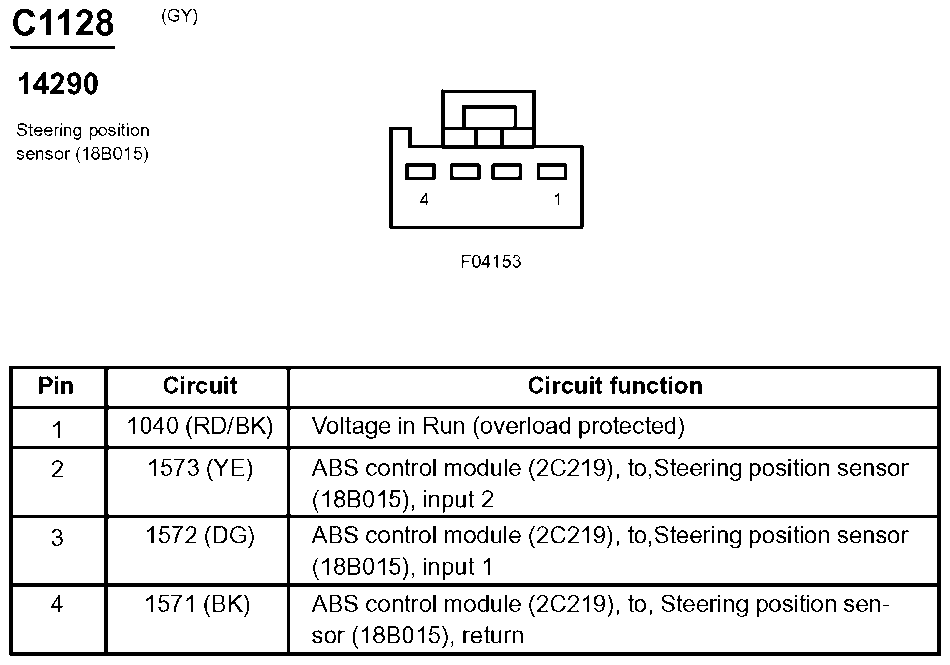

Fig 282: Steering Position Sensor Connector End View (C1128)
Courtesy of FORD MOTOR CO.

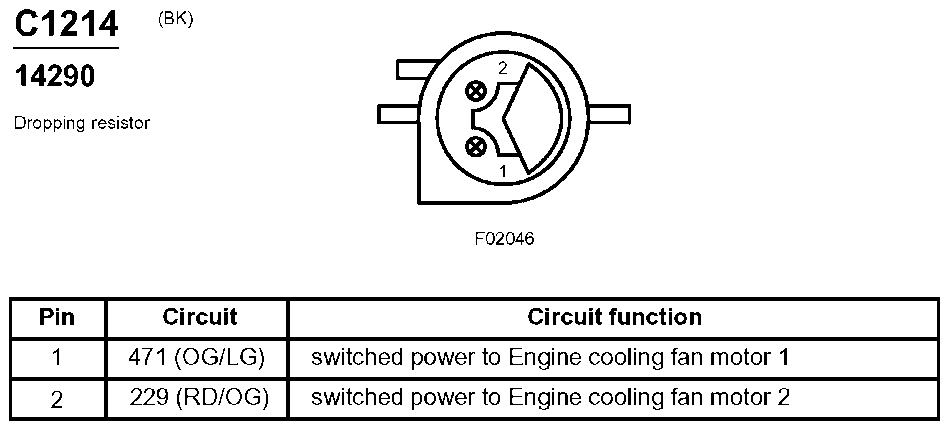

Fig 283: Dropping Resistor Connector End View (C1214)
Courtesy of FORD MOTOR CO.

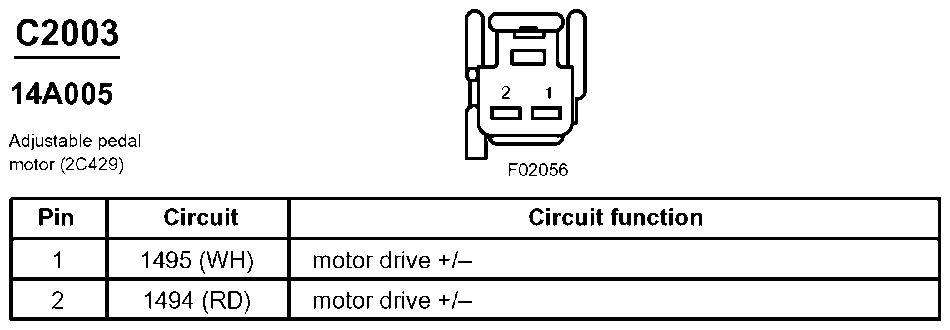

Fig 284: Adjustable Pedal Motor Connector End View (C2003)
Courtesy of FORD MOTOR CO.

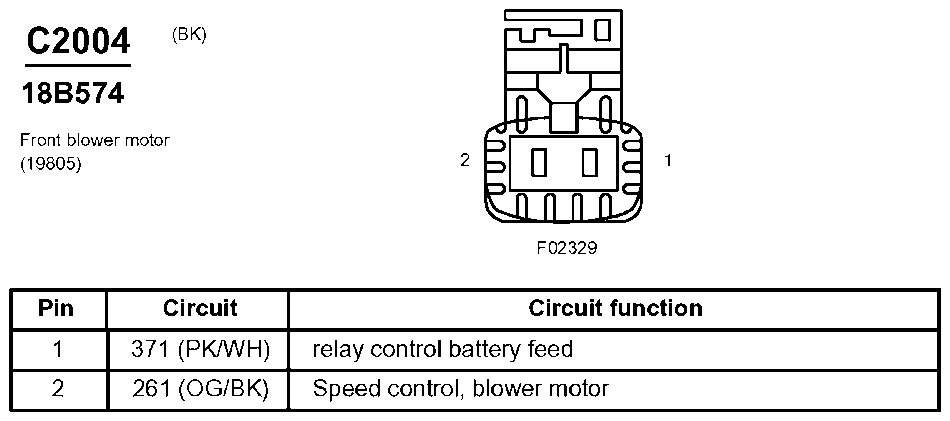

Fig 285: Front Blower Motor Connector End View (C2004)
Courtesy of FORD MOTOR CO.

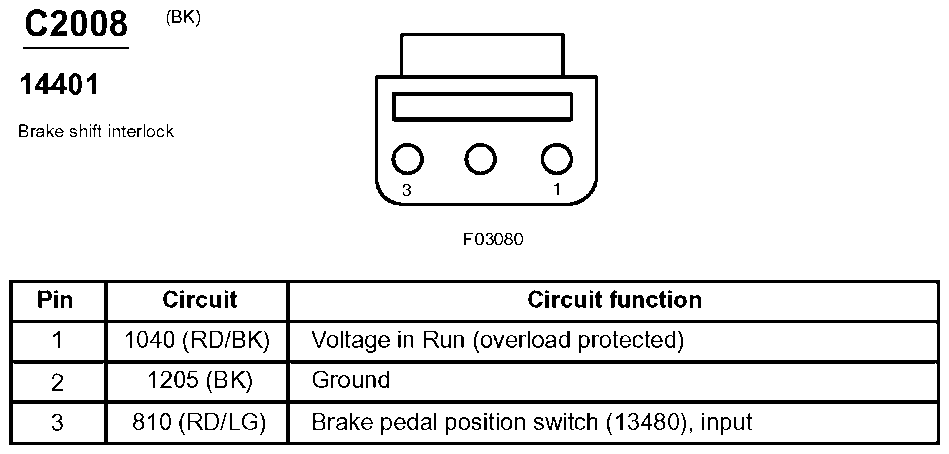

Fig 286: Brake Shift Interlock Connector End View (C2008)
Courtesy of FORD MOTOR CO.

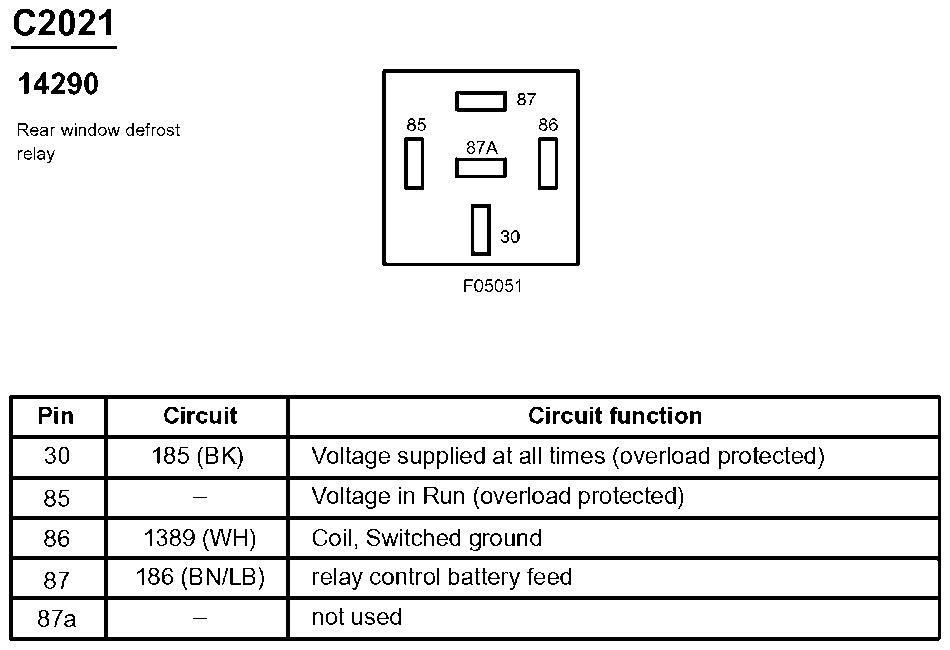

Fig 287: Rear Window Defrost Relay Connector End View (C2021)
Courtesy of FORD MOTOR CO.

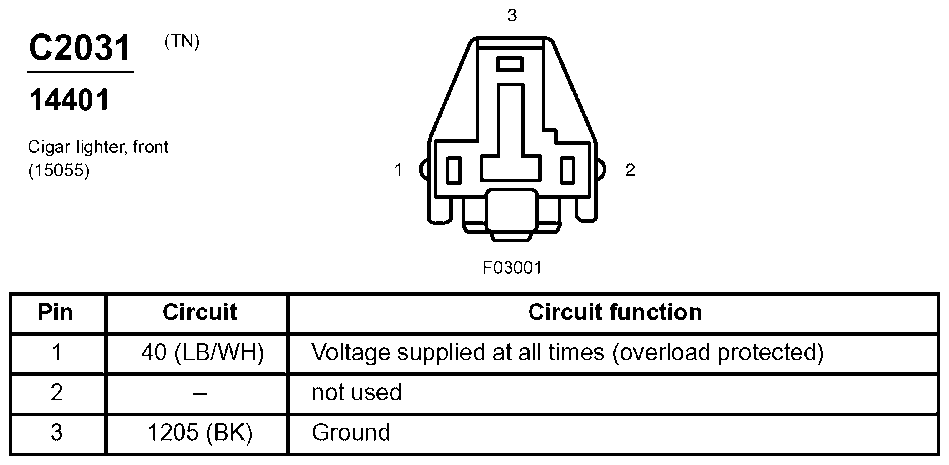

Fig 288: Cigar Lighter, Front Connector End View (C2031)
Courtesy of FORD MOTOR CO.

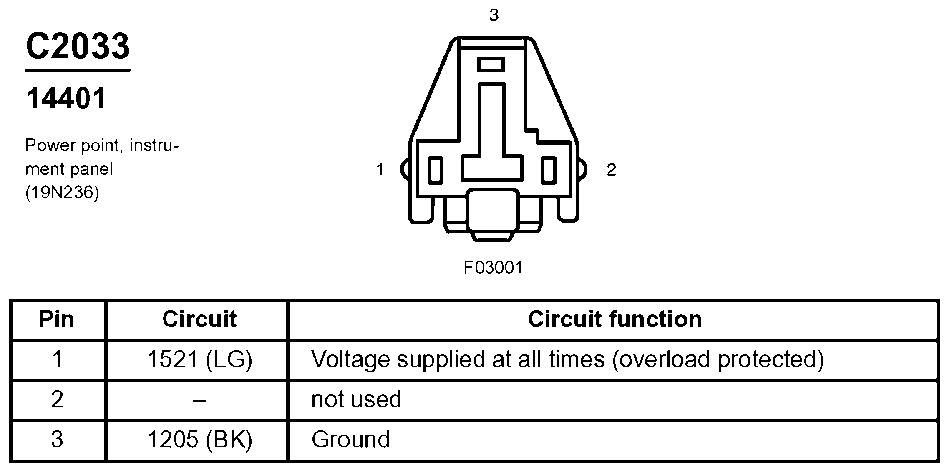

Fig 289: Power Point, Instrument Panel Connector End View (C2033)
Courtesy of FORD MOTOR CO.

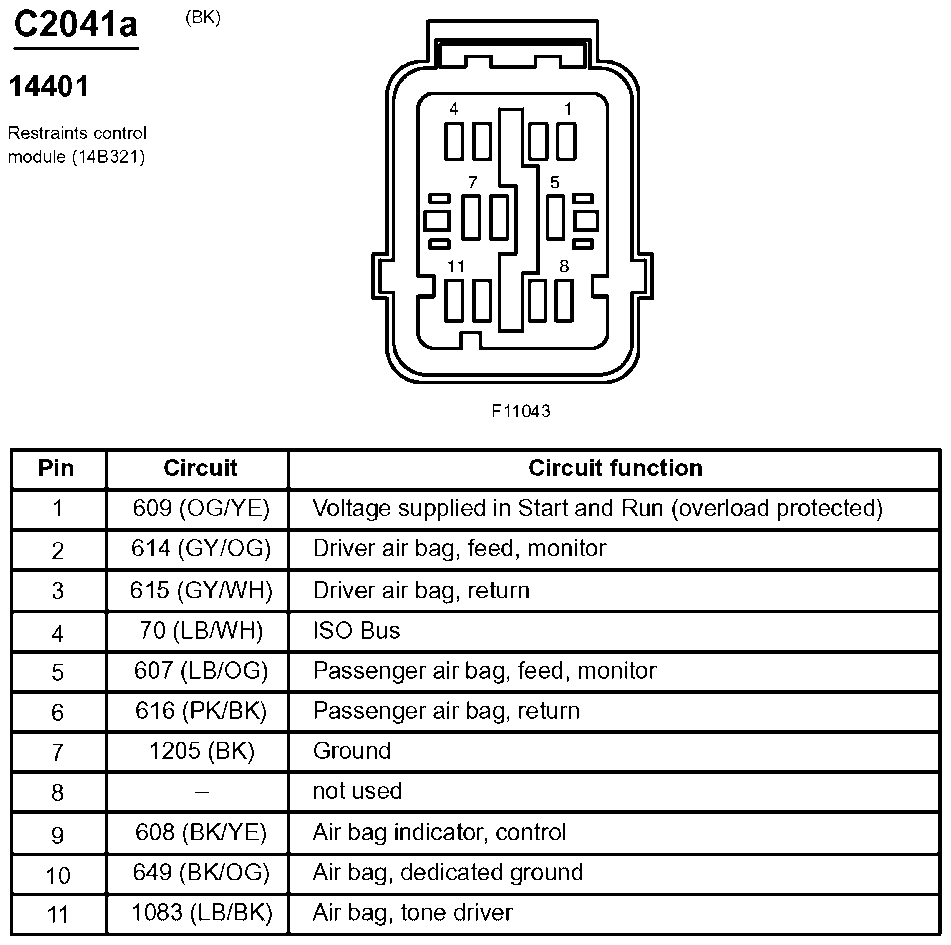

Fig 290: Restraints Control Module Connector End View (C2041a)
Courtesy of FORD MOTOR CO.

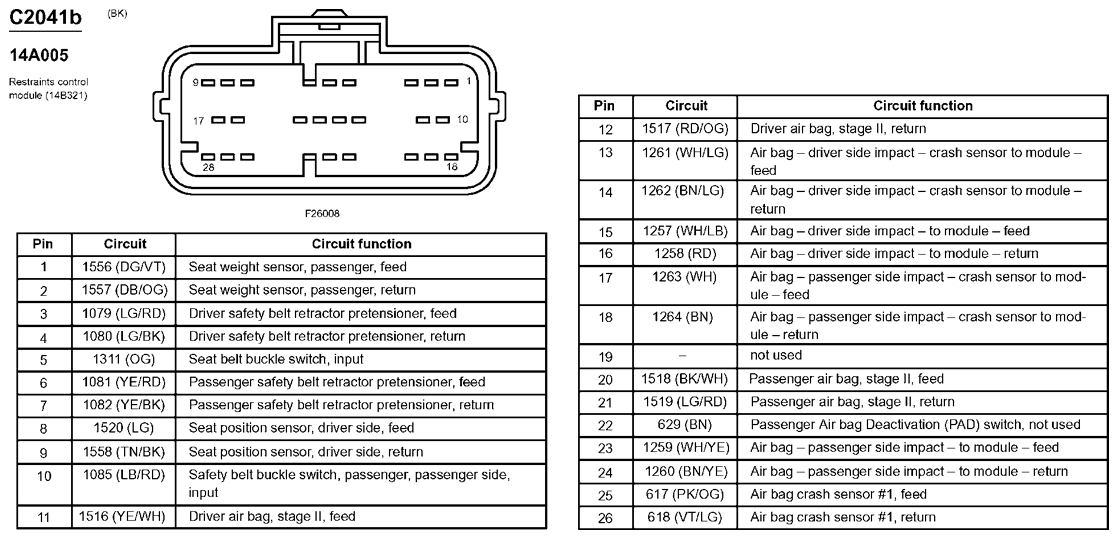

Fig 291: Restraints Control Module Connector End View (C2041b)
Courtesy of FORD MOTOR CO.

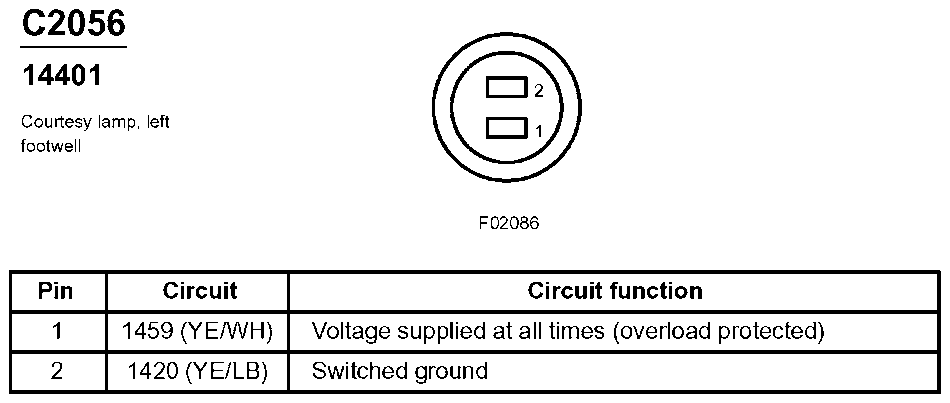

Fig 292: Courtesy Lamp, Left Footwell Connector End View (C2056)
Courtesy of FORD MOTOR CO.

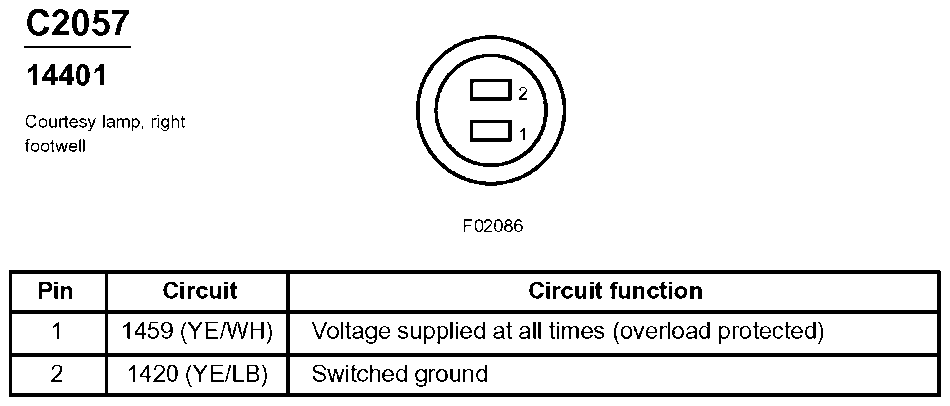

Fig 293: Courtesy Lamp, Right Footwell Connector End View (C2057)
Courtesy of FORD MOTOR CO.

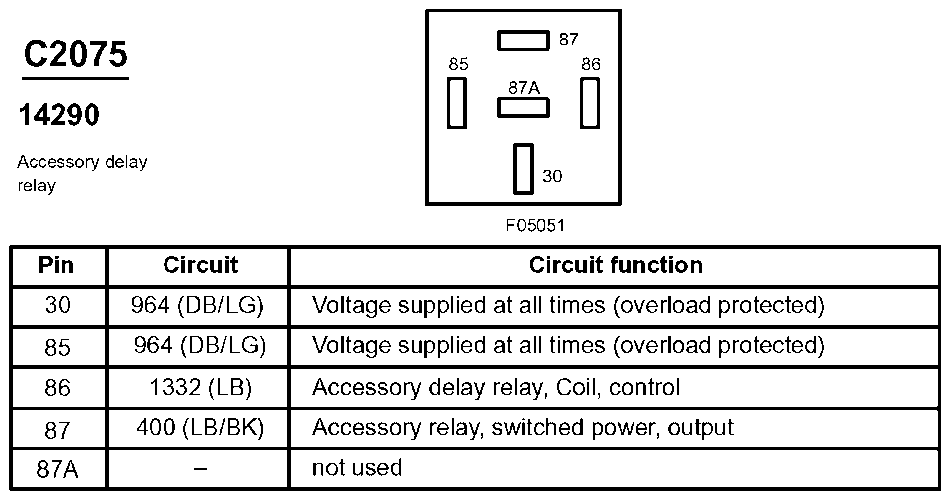

Fig 294: Accessory Delay Relay Connector End View (C2075)
Courtesy of FORD MOTOR CO.

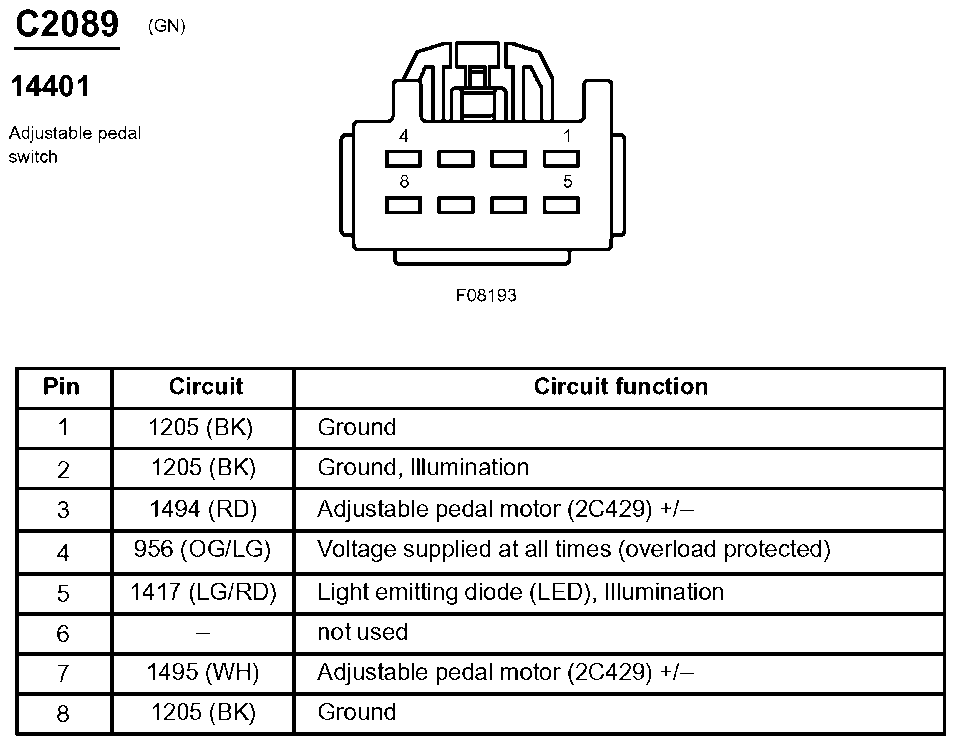

Fig 295: Adjustable Pedal Switch Connector End View (C2089)
Courtesy of FORD MOTOR CO.

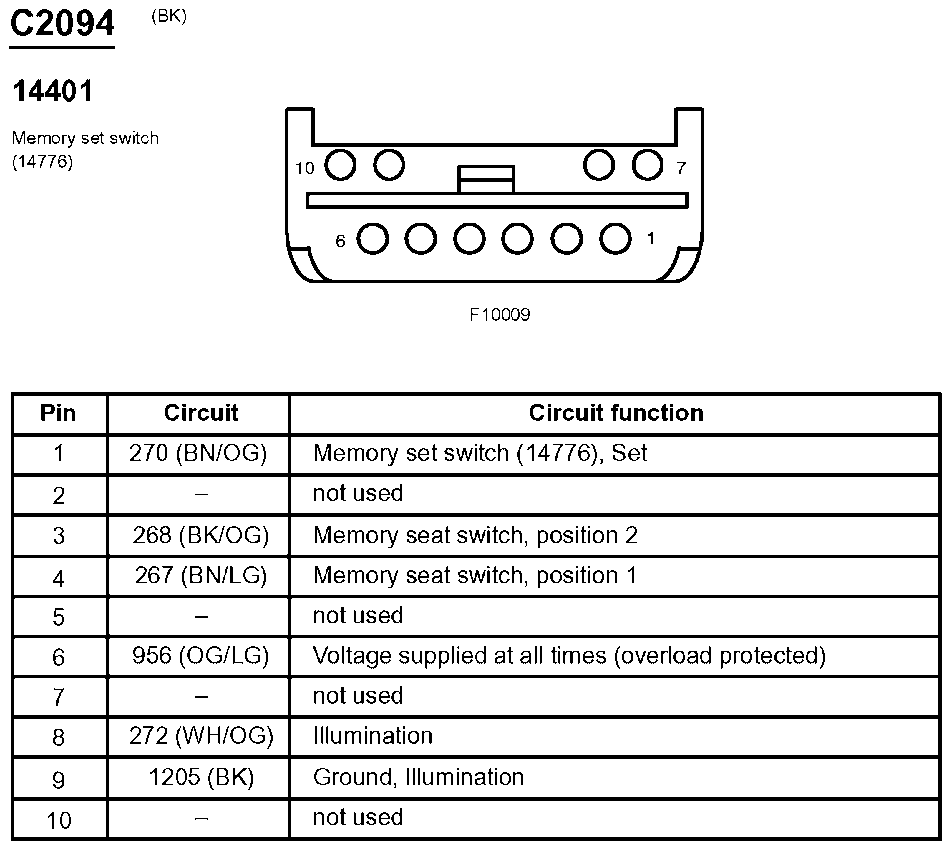

Fig 296: Memory Set Switch Connector End View (C2094)
Courtesy of FORD MOTOR CO.

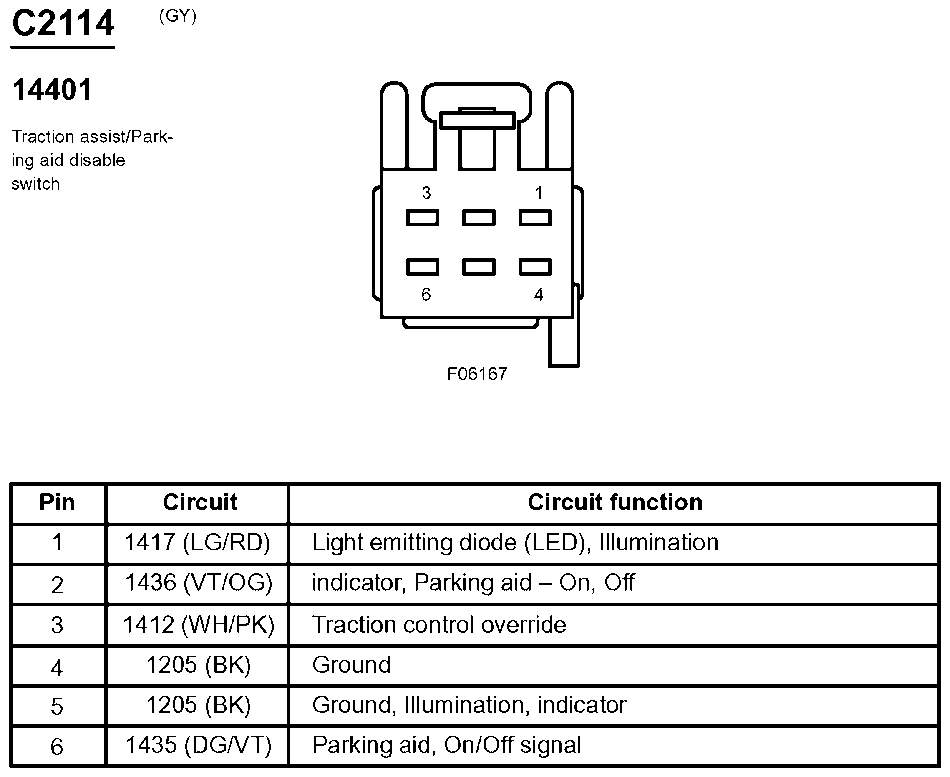

Fig 297: Traction Assist/Parking Aid Disable Switch Connector End View (C2114)
Courtesy of FORD MOTOR CO.

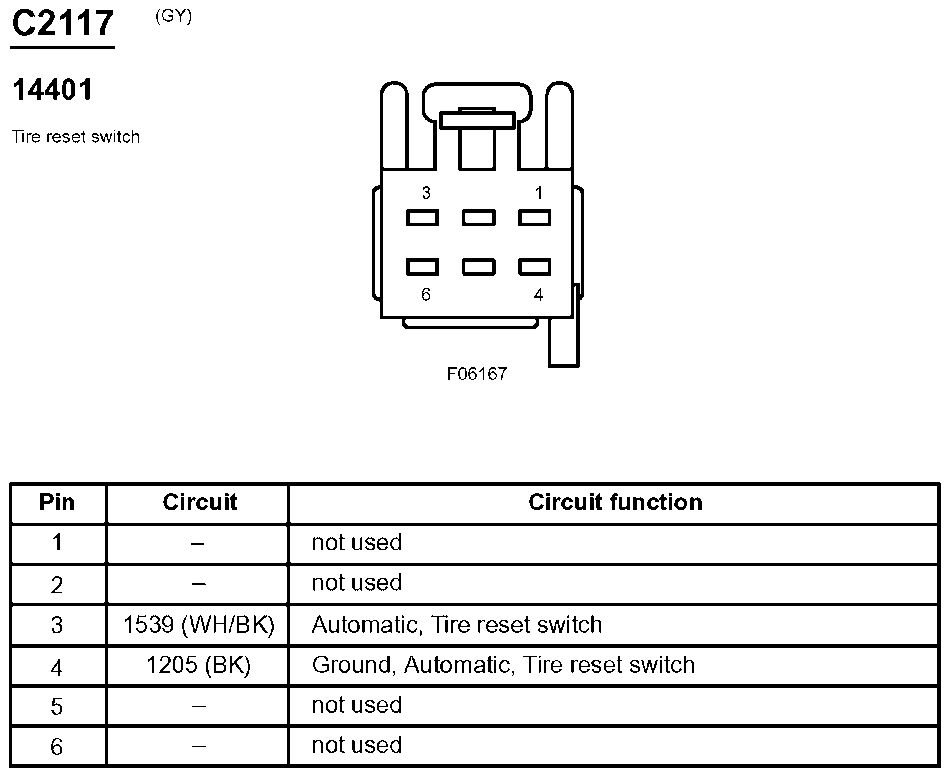

Fig 298: Tire Reset Switch Connector End View (C2117)
Courtesy of FORD MOTOR CO.

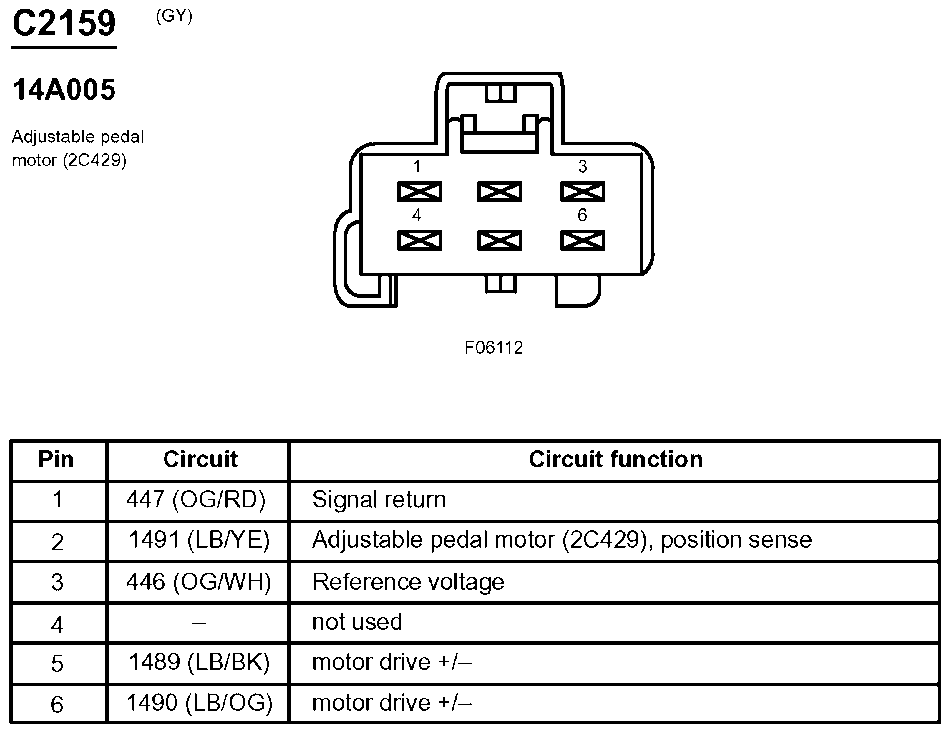

Fig 299: Adjustable Pedal Motor Connector End View (C2159)
Courtesy of FORD MOTOR CO.

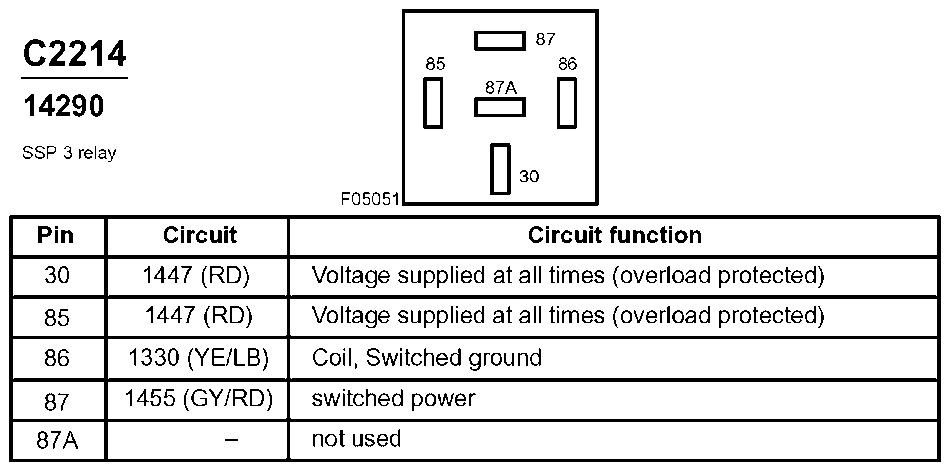

Fig 300: SSP 3 Relay Connector End View (C2214)
Courtesy of FORD MOTOR CO.

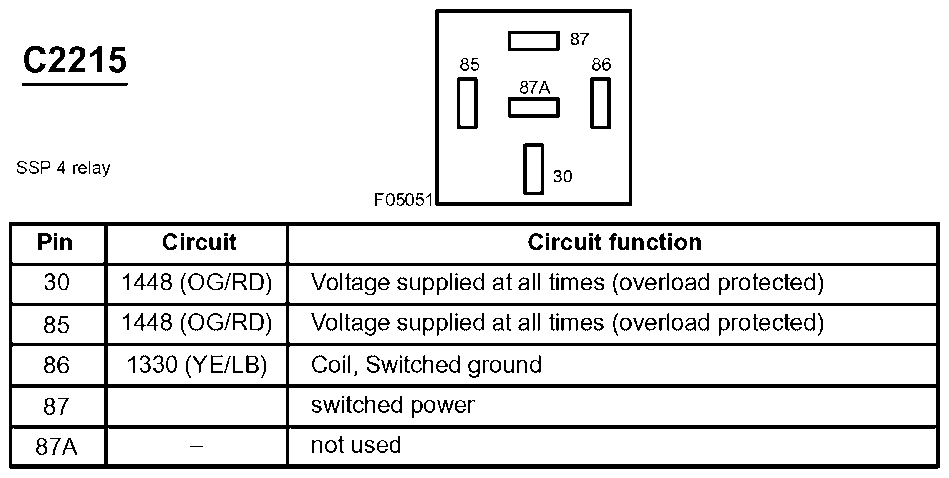

Fig 301: SSP 4 Relay Connector End View (C2215)
Courtesy of FORD MOTOR CO.

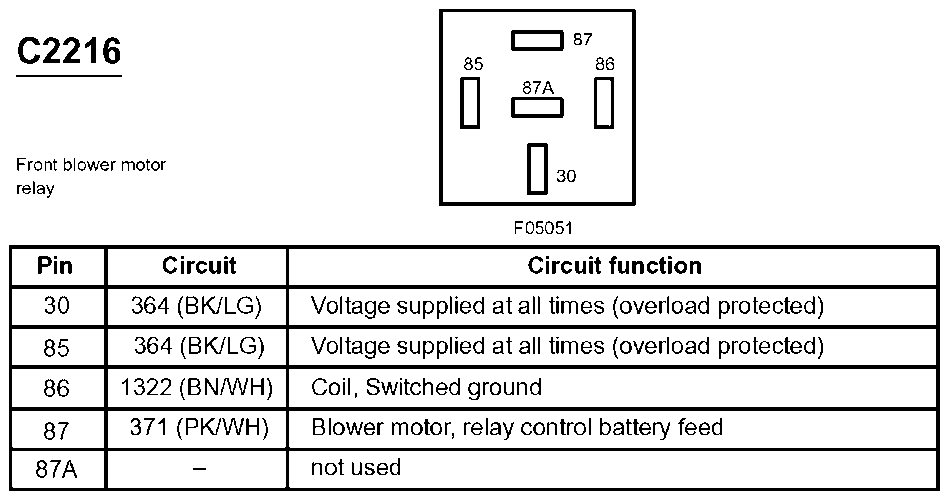

Fig 302: Front Blower Motor Relay Connector End View (C2216)
Courtesy of FORD MOTOR CO.

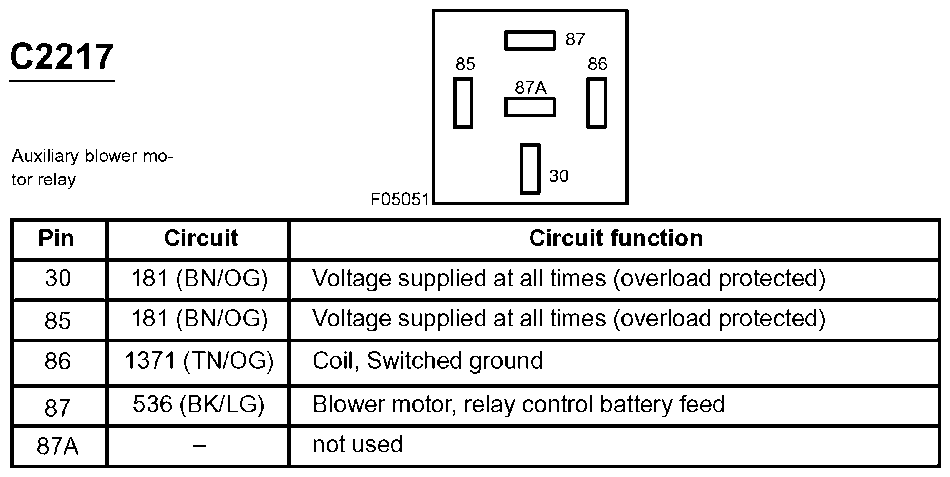

Fig 303: Auxiliary Blower Motor Relay Connector End View (C2217)
Courtesy of FORD MOTOR CO.

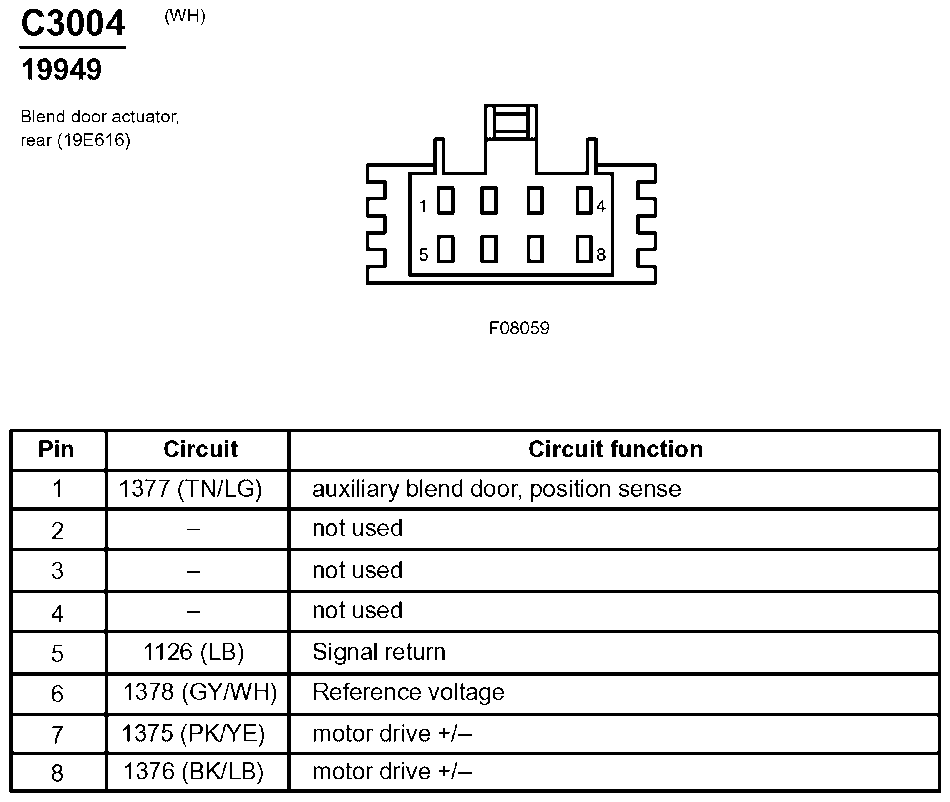

Fig 304: Blend Door Actuator, Rear Connector End View (C3004)
Courtesy of FORD MOTOR CO.

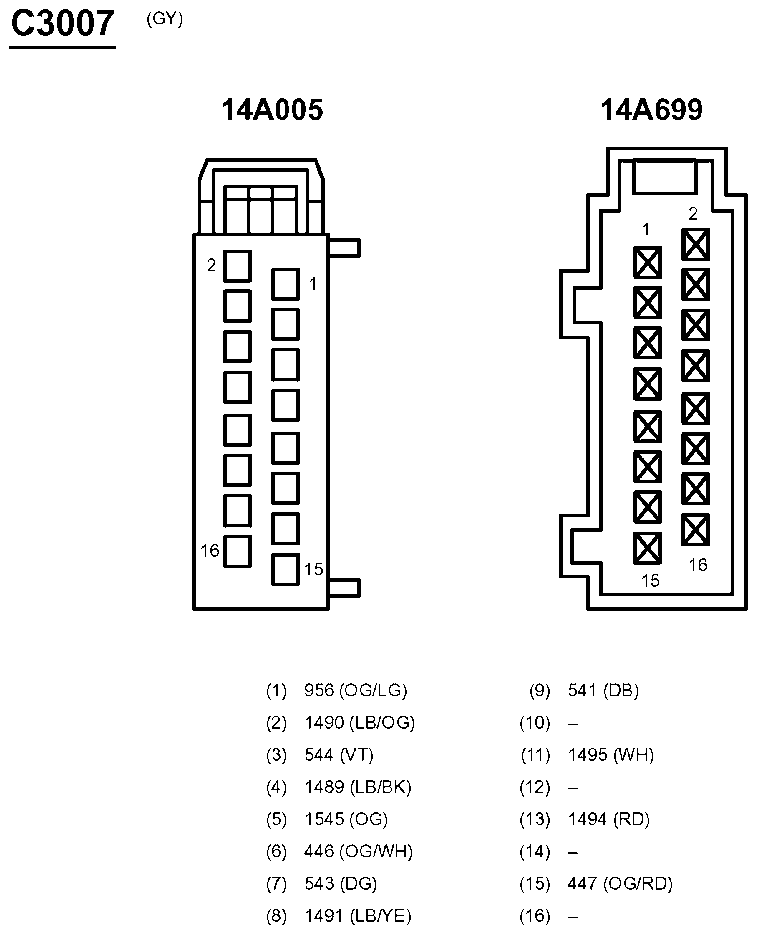

Fig 305: Inline Connector End View (C3007)
Courtesy of FORD MOTOR CO.

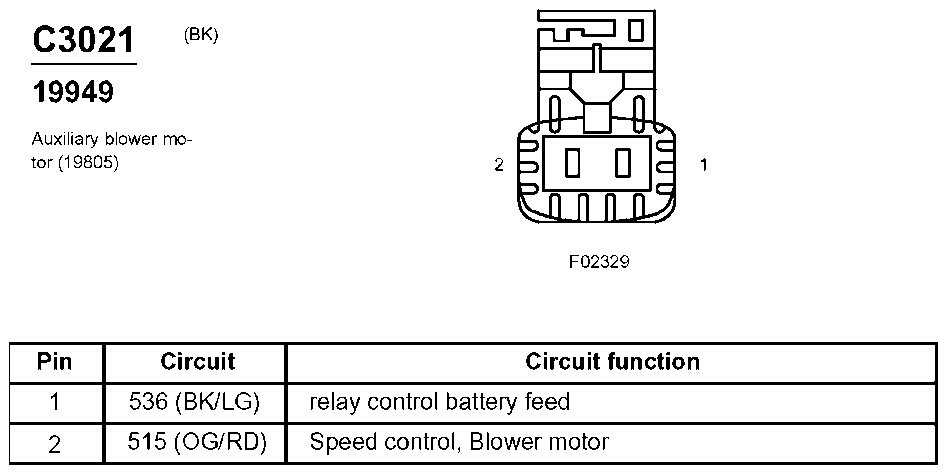

Fig 306: Auxiliary Blower Motor Connector End View (C3021)
Courtesy of FORD MOTOR CO.

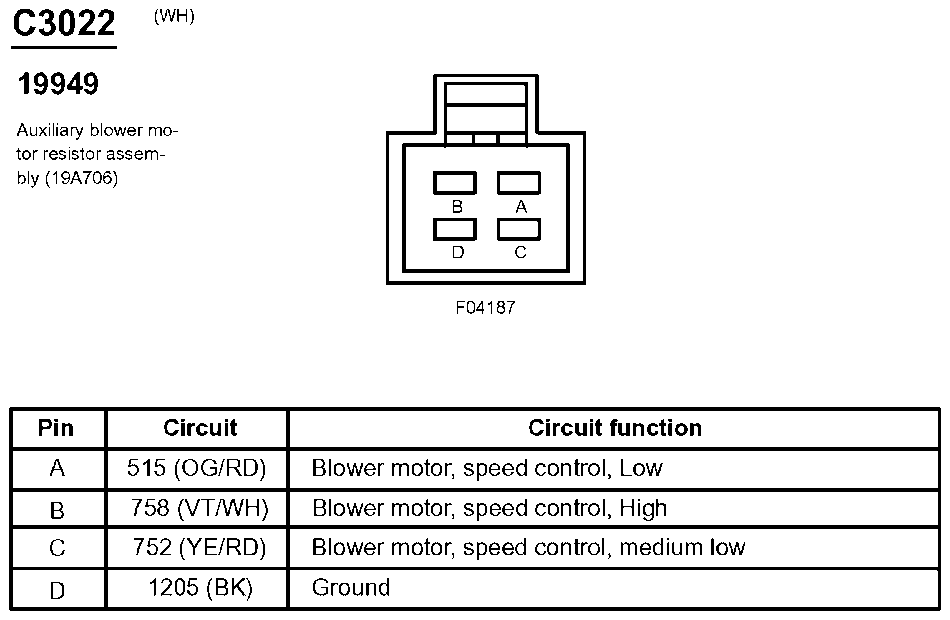

Fig 307: Auxiliary Blower Motor Resistor Assembly Connector End View (C3022)
Courtesy of FORD MOTOR CO.

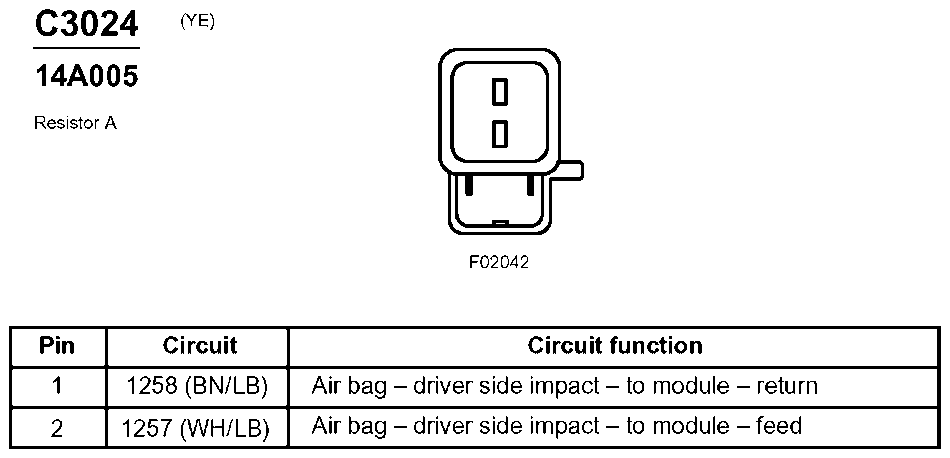

Fig 308: Resistor A Connector End View (C3024)
Courtesy of FORD MOTOR CO.

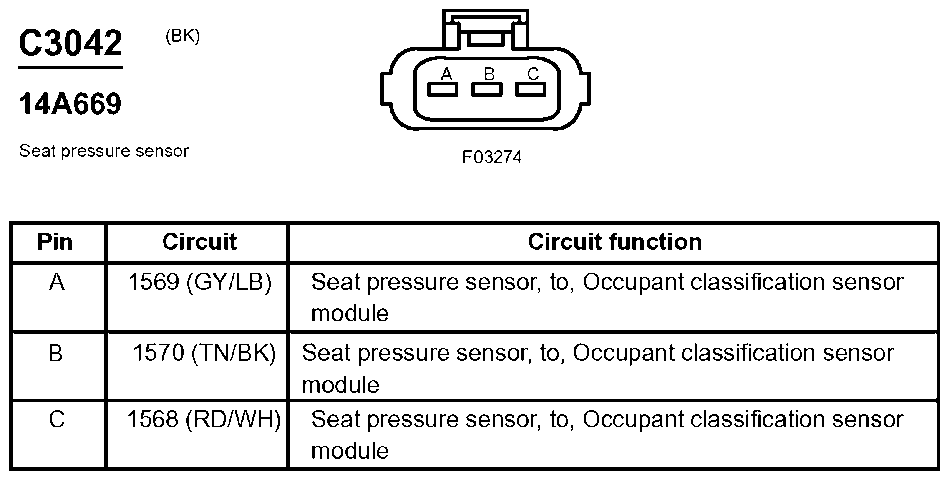

Fig 309: Seat Pressure Sensor Connector End View (C3042)
Courtesy of FORD MOTOR CO.

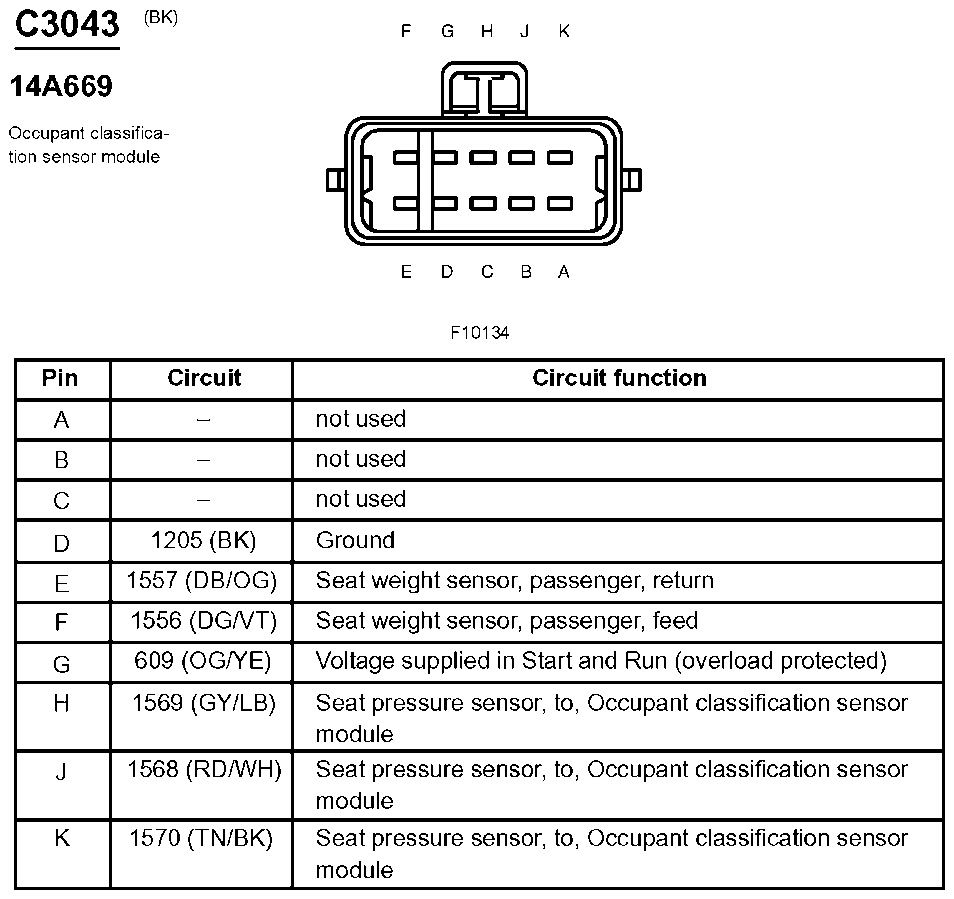

Fig 310: Occupant Classification Sensor Module Connector End View (C3043)
Courtesy of FORD MOTOR CO.

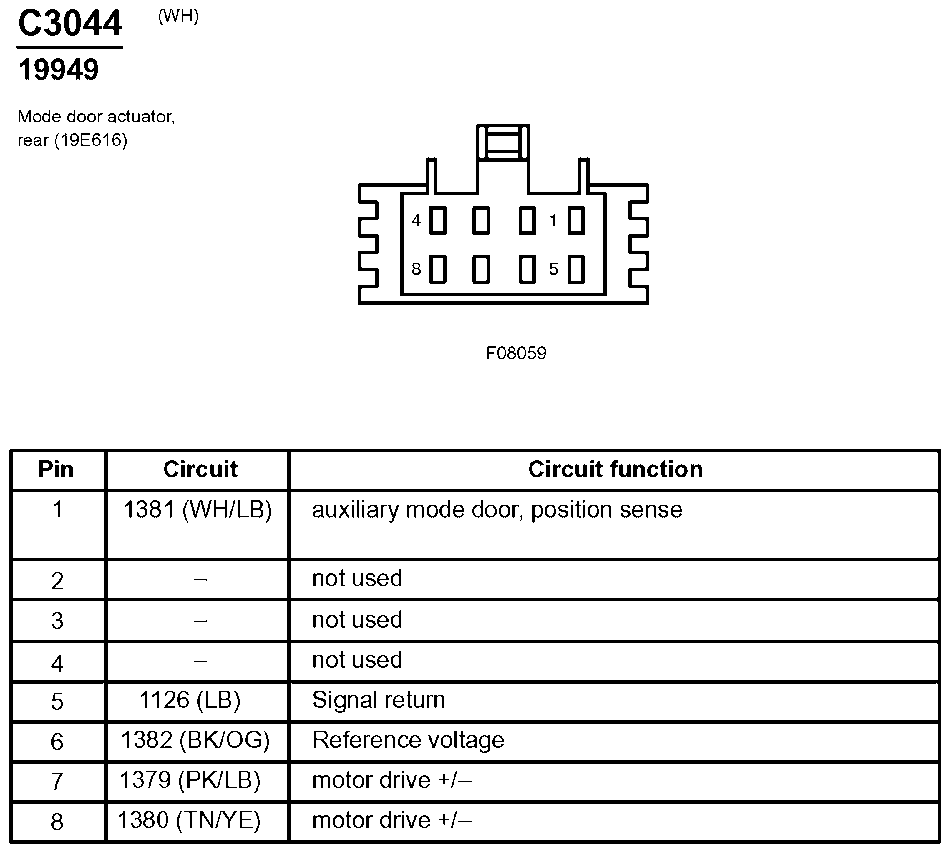

Fig 311: Mode Door Actuator, Rear Connector End View (C3044)
Courtesy of FORD MOTOR CO.

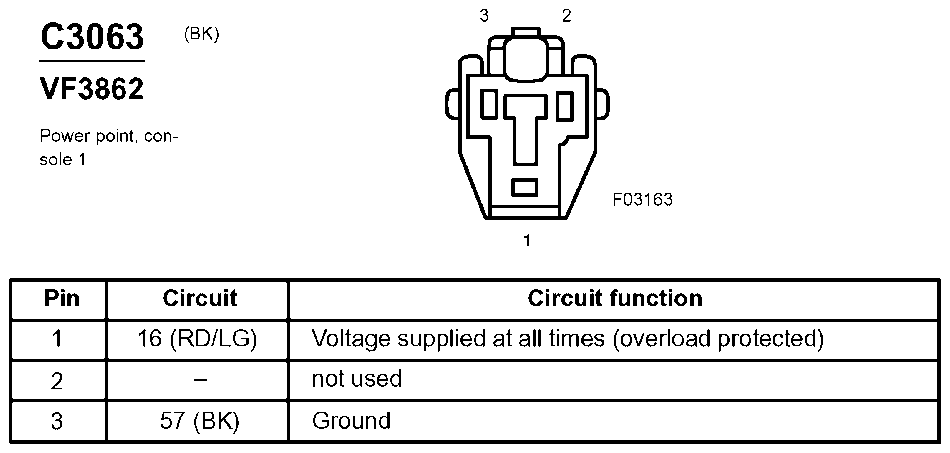

Fig 312: Power Point, Console 1 Connector End View (C3063)
Courtesy of FORD MOTOR CO.

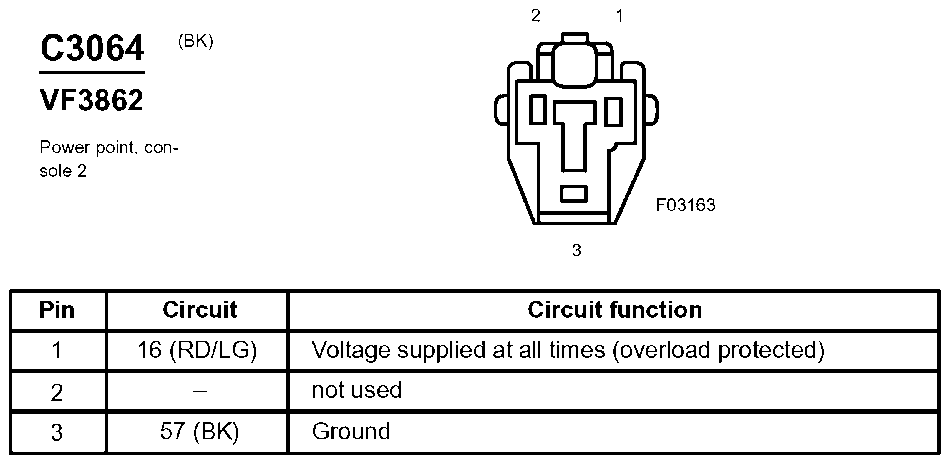

Fig 313: Power Point, Console 2 Connector End View (C3064)
Courtesy of FORD MOTOR CO.

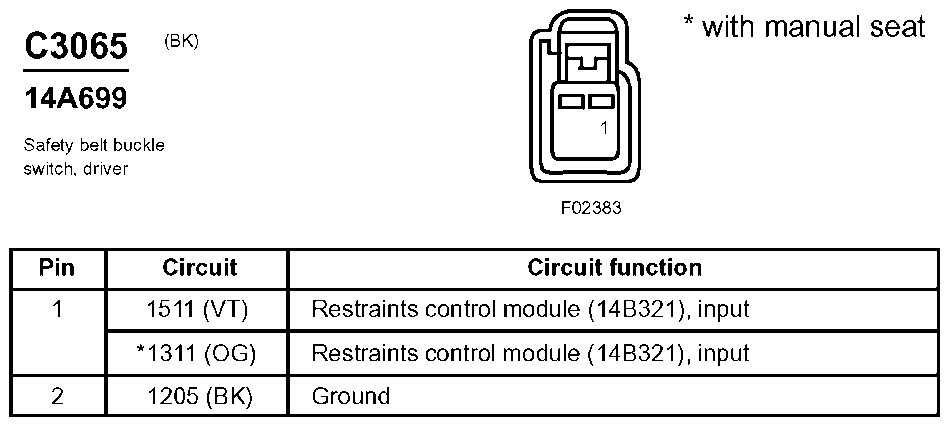

Fig 314: Safety Belt Buckle Switch, Driver Connector End View (C3065)
Courtesy of FORD MOTOR CO.

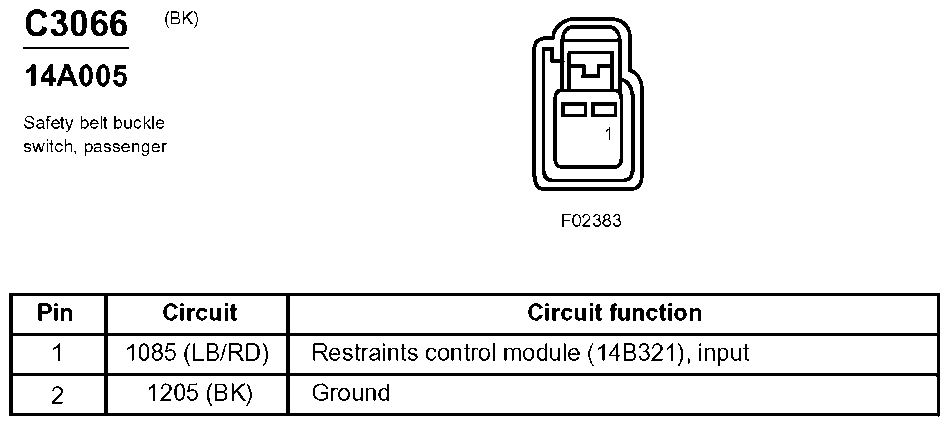

Fig 315: Safety Belt Buckle Switch, Passenger Connector End View (C3066)
Courtesy of FORD MOTOR CO.

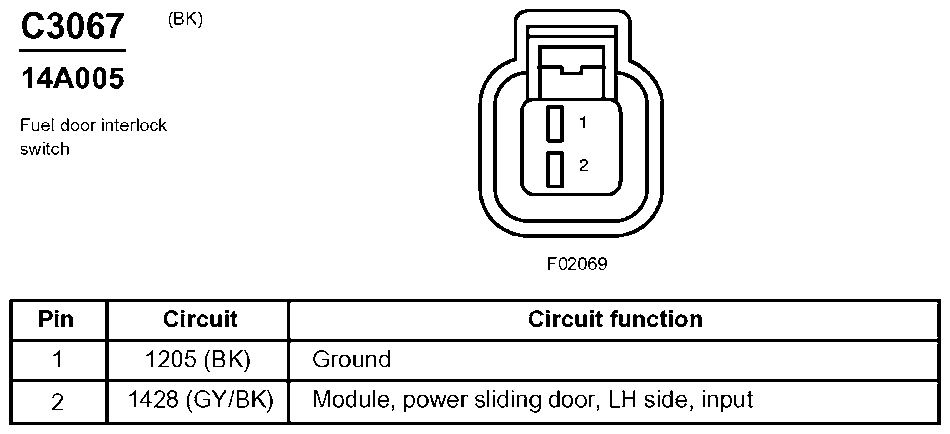

Fig 316: Fuel Door Interlock Switch Connector End View (C3067)
Courtesy of FORD MOTOR CO.

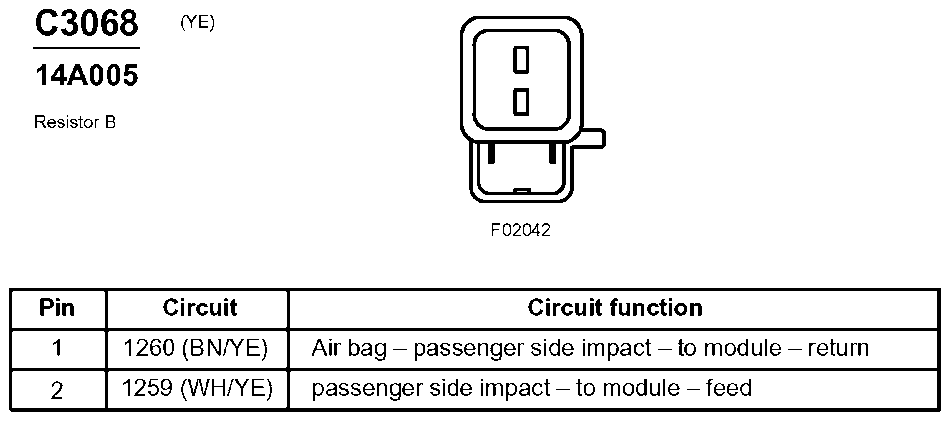

Fig 317: Resistor B Connector End View (C3068)
Courtesy of FORD MOTOR CO.

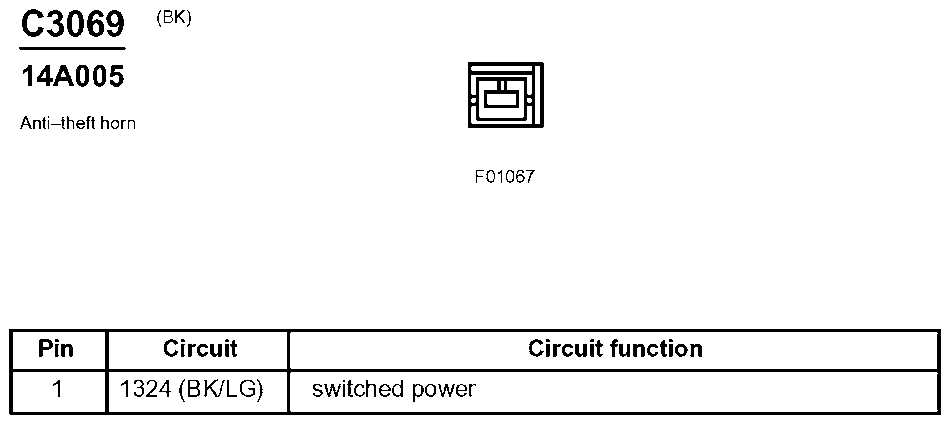

Fig 318: Anti-Theft Horn Connector End View (C3069)
Courtesy of FORD MOTOR CO.

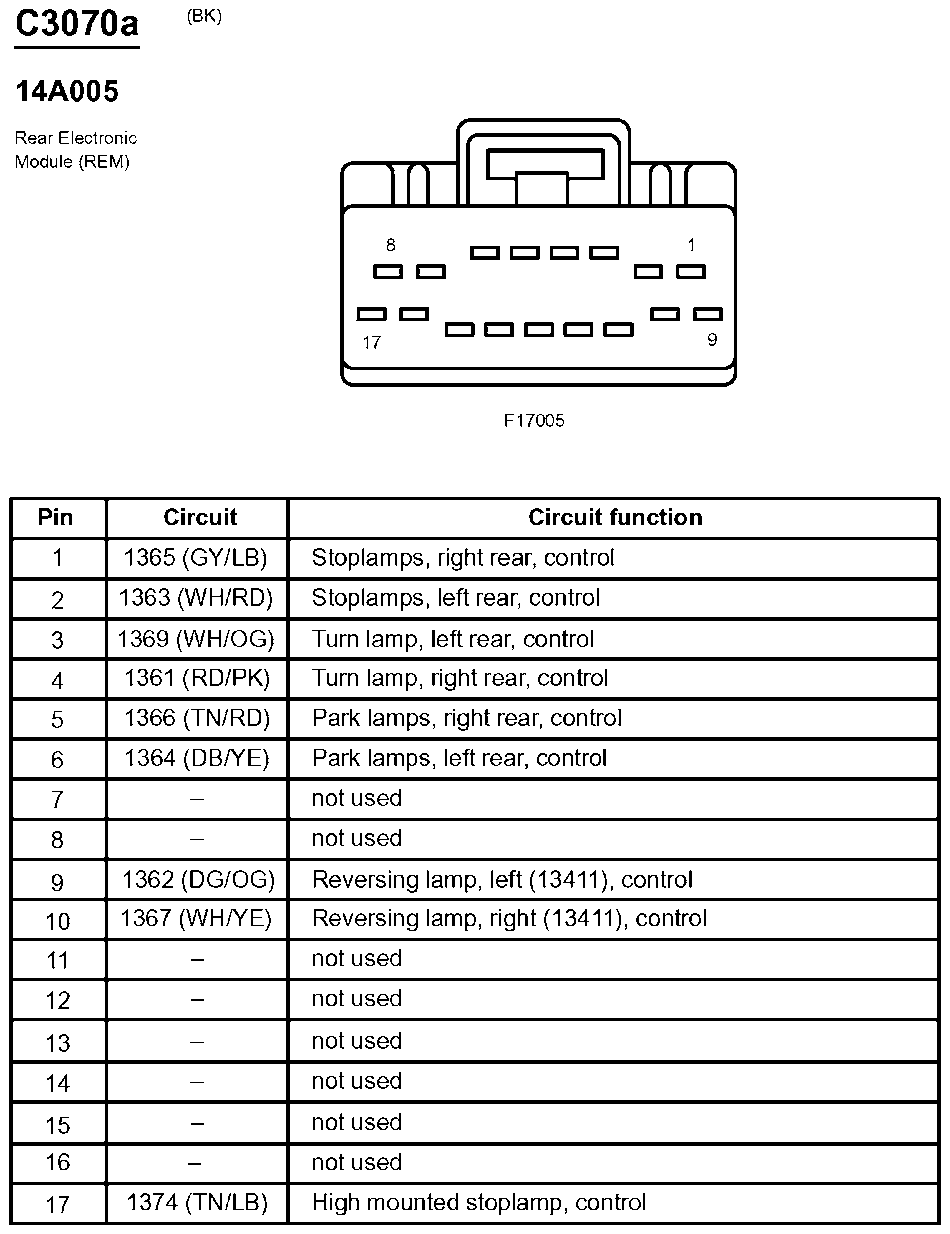

Fig 319: Rear Electronic Module (REM) Connector End View (C3070a)
Courtesy of FORD MOTOR CO.
Fig 320: Rear Electronic Module (REM) Connector End View (C3070b)
Courtesy of FORD MOTOR CO.

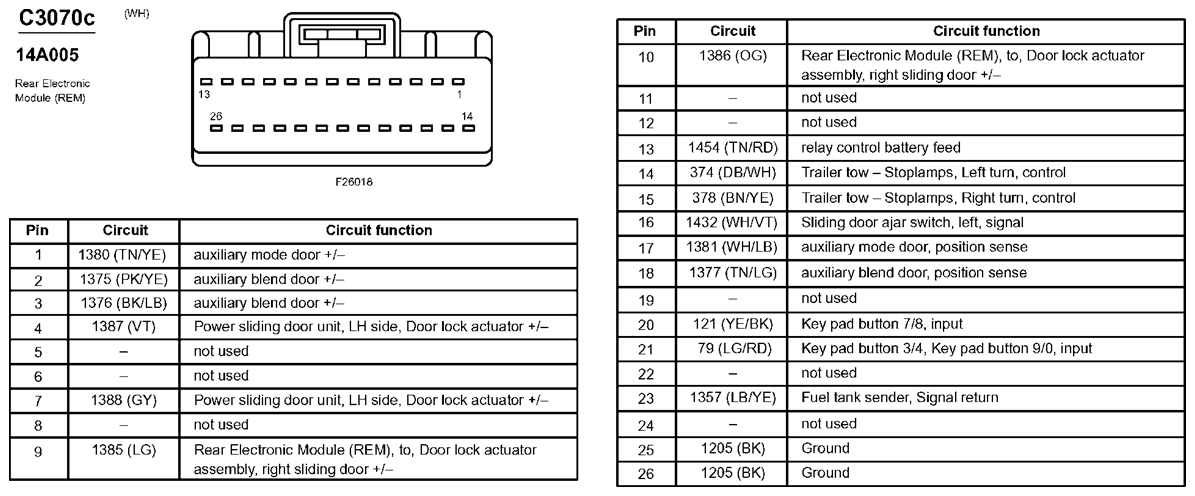

Fig 321: Rear Electronic Module (REM) Connector End View (C3070c)
Courtesy of FORD MOTOR CO.

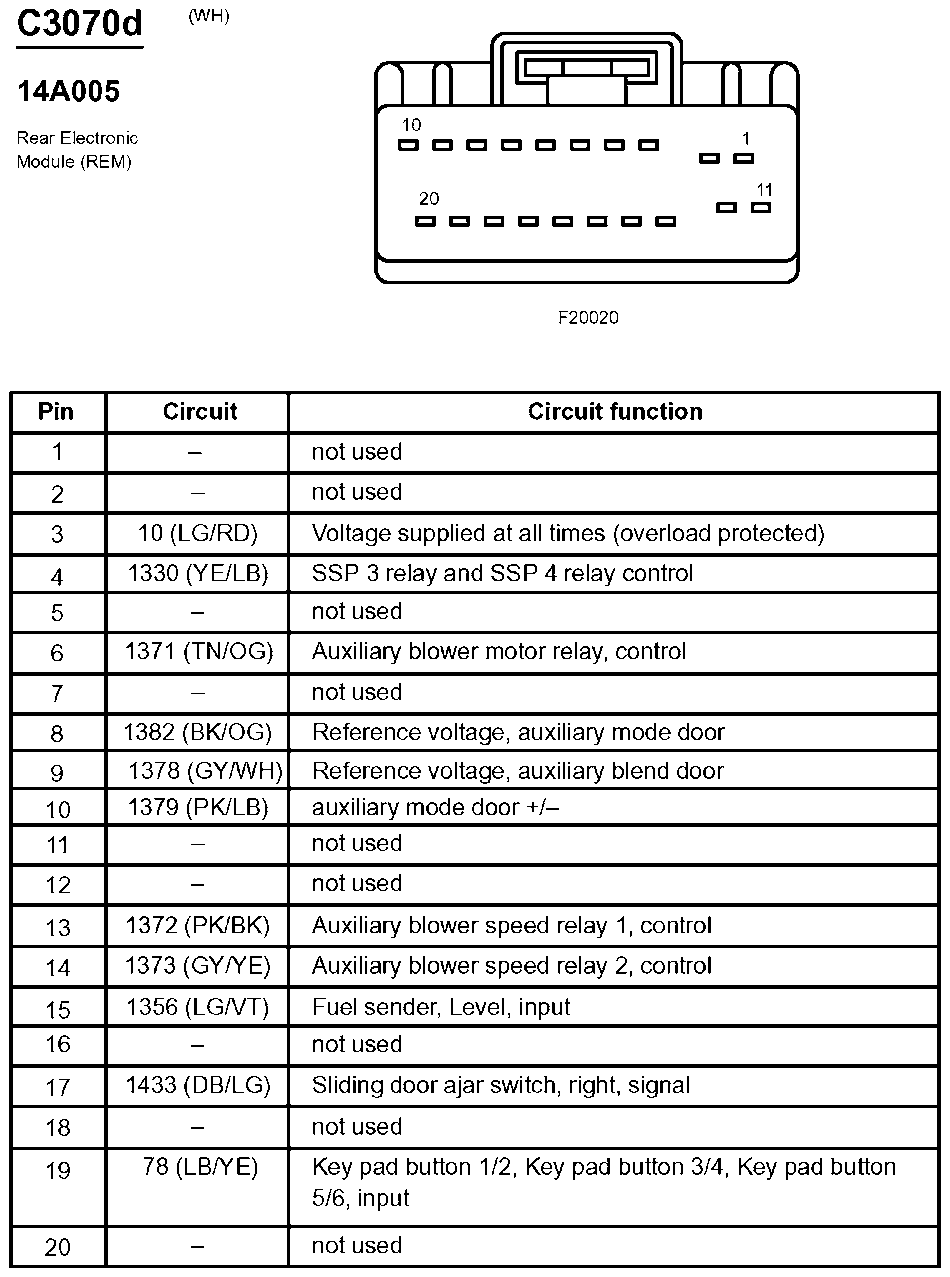

Fig 322: Rear Electronic Module (REM) Connector End View (C3070d)
Courtesy of FORD MOTOR CO.

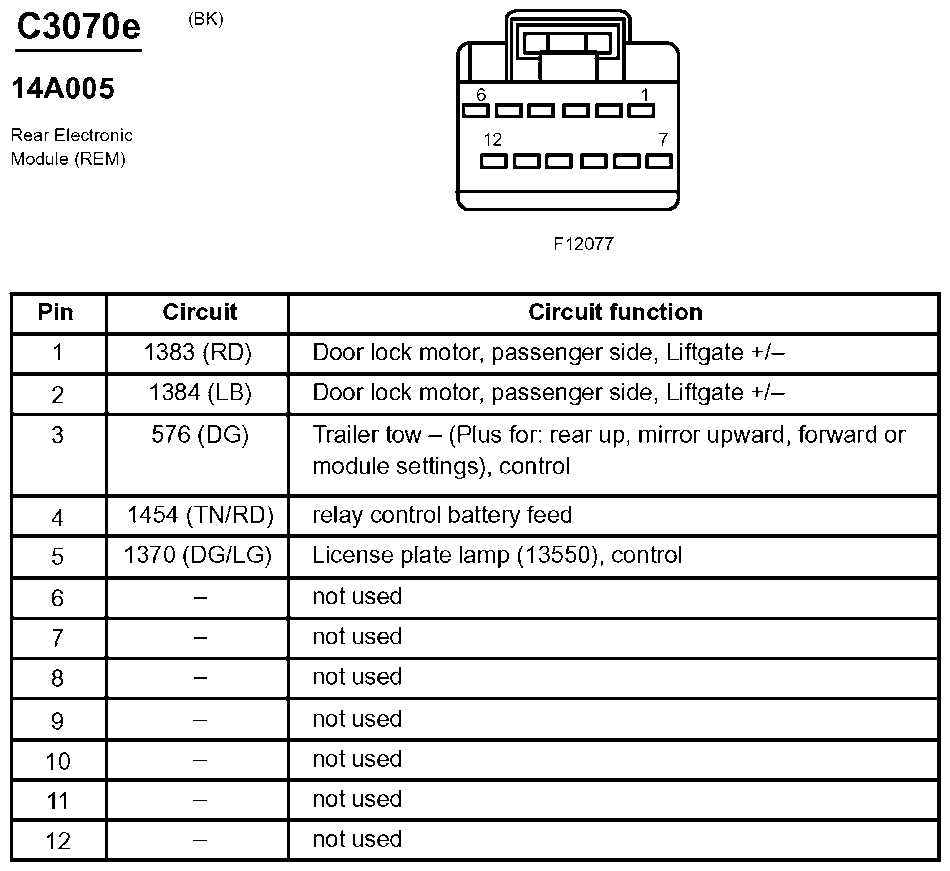

Fig 323: Rear Electronic Module (REM) Connector End View (C3070e)
Courtesy of FORD MOTOR CO.

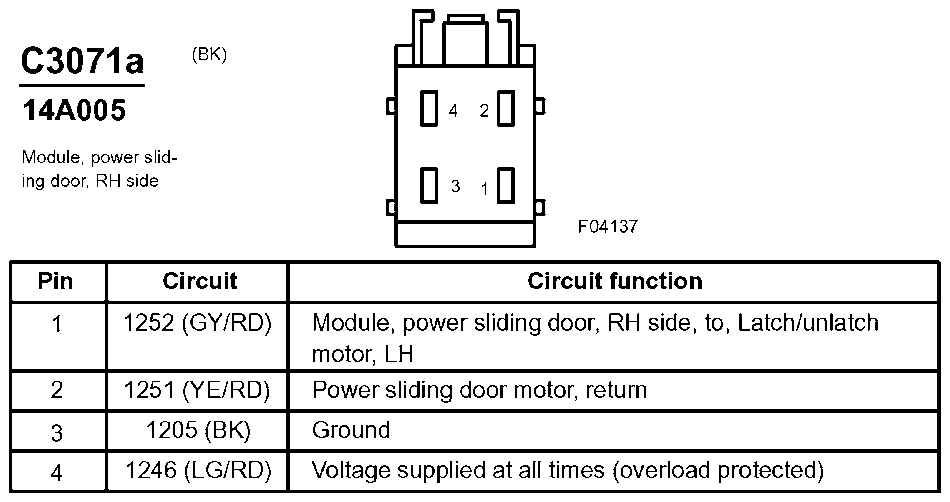

Fig 324: Module, Power Sliding Door, RH Side Connector End View (C3071a)
Courtesy of FORD MOTOR CO.

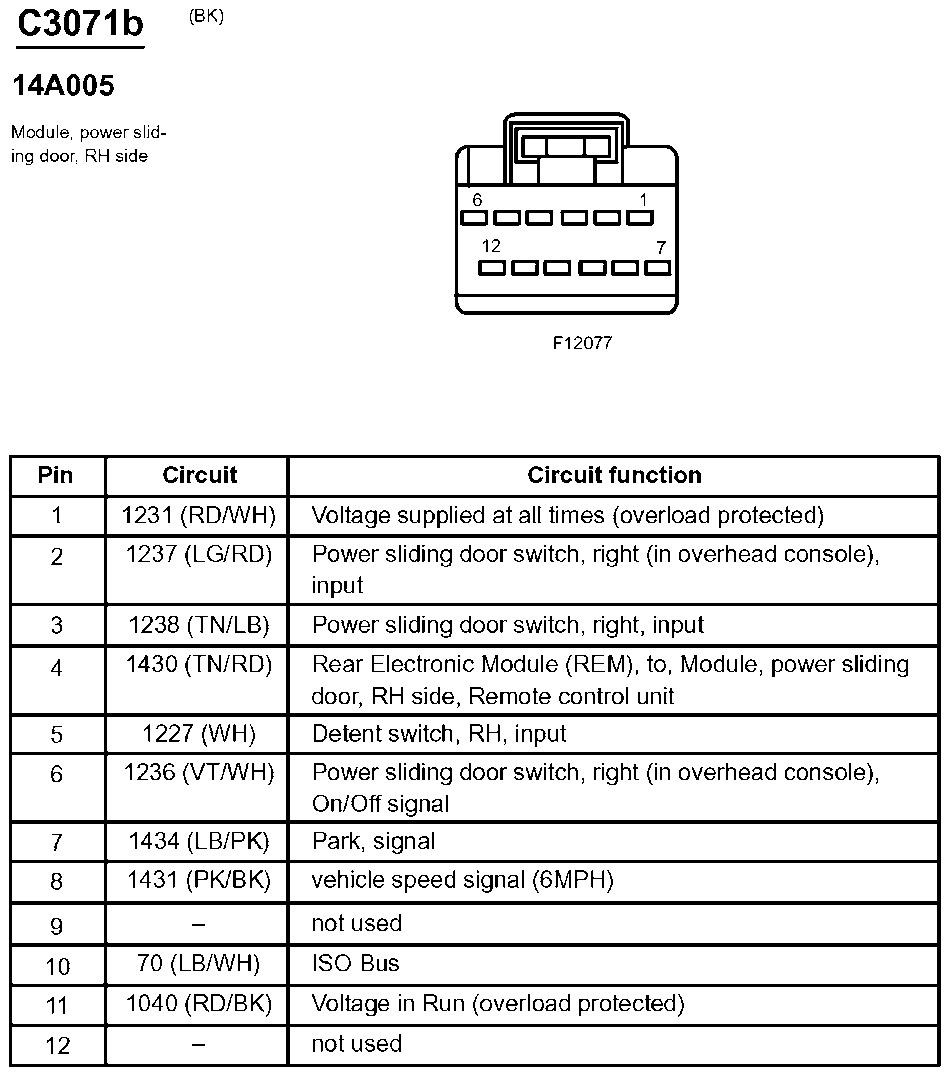

Fig 325: Module, Power Sliding Door, RH Side Connector End View (C3071b)
Courtesy of FORD MOTOR CO.

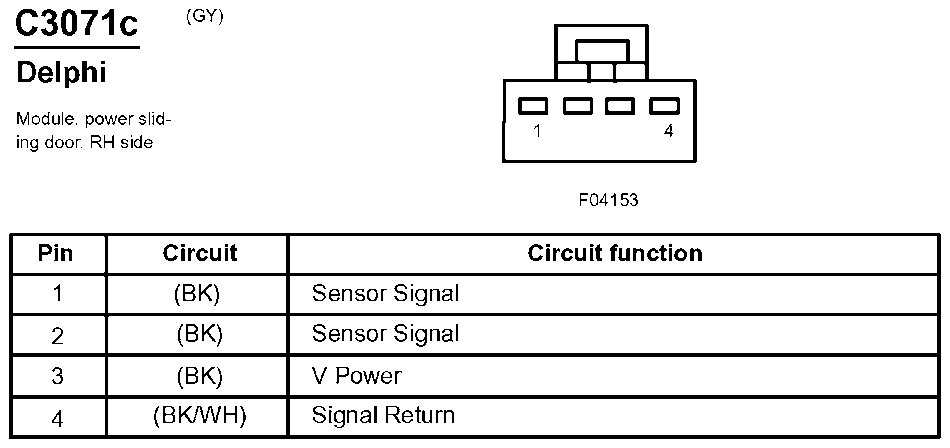

Fig 326: Module, Power Sliding Door, RH Side Connector End View (C3071c)
Courtesy of FORD MOTOR CO.

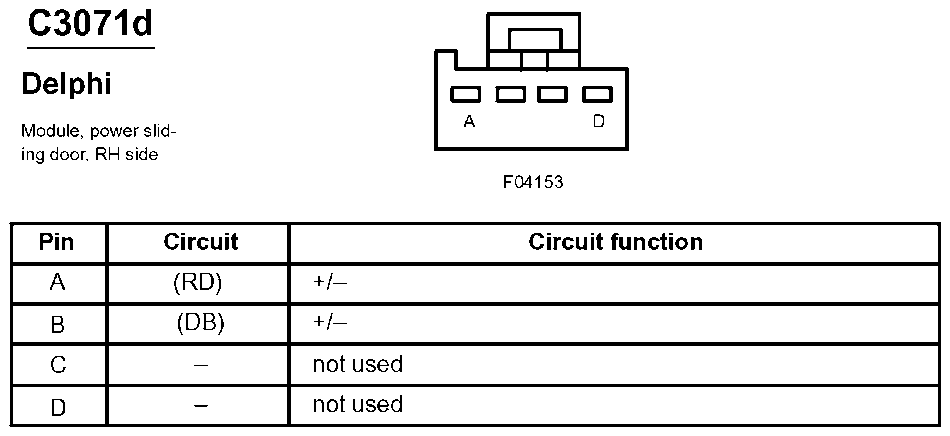

Fig 327: Module, Power Sliding Door, RH Side Connector End View (C3071d)
Courtesy of FORD MOTOR CO.

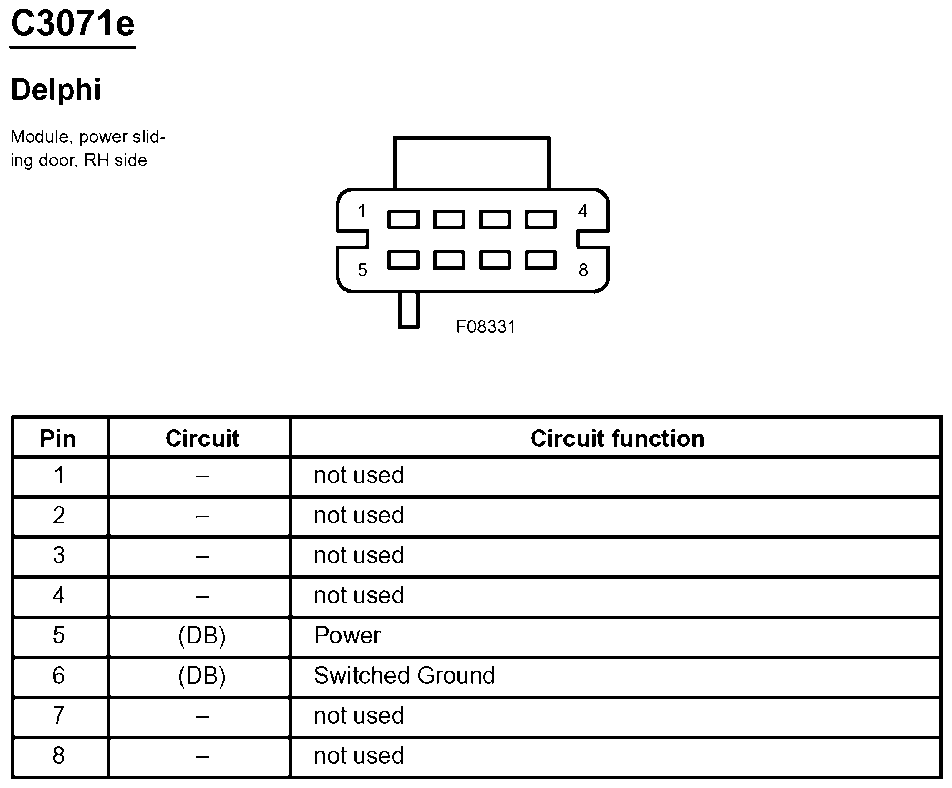

Fig 328: Module, Power Sliding Door, RH Side Connector End View (C3071e)
Courtesy of FORD MOTOR CO.

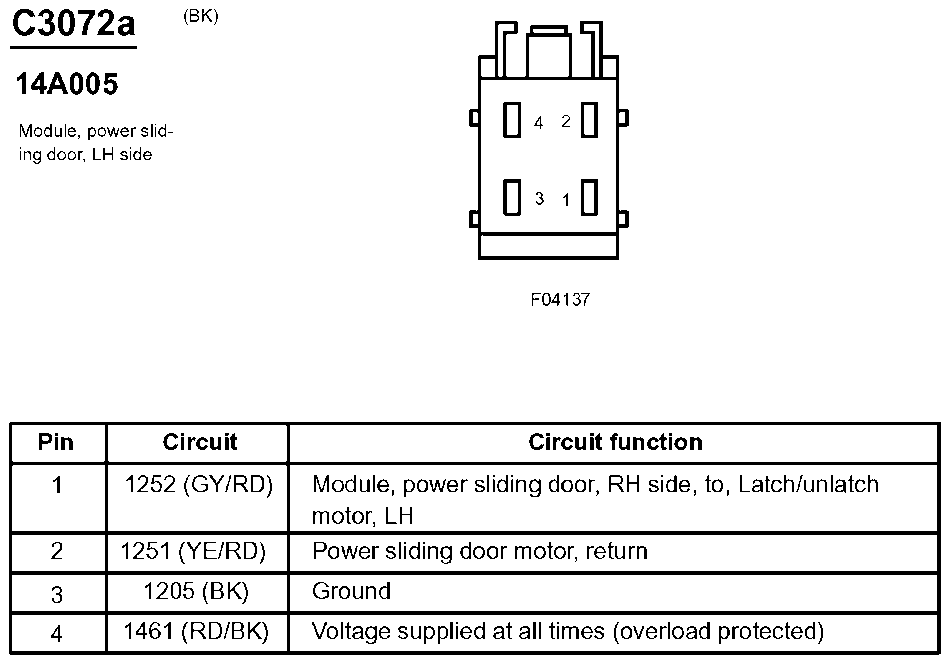

Fig 329: Module, Power Sliding Door, LH Side Connector End View (C3072a)
Courtesy of FORD MOTOR CO.

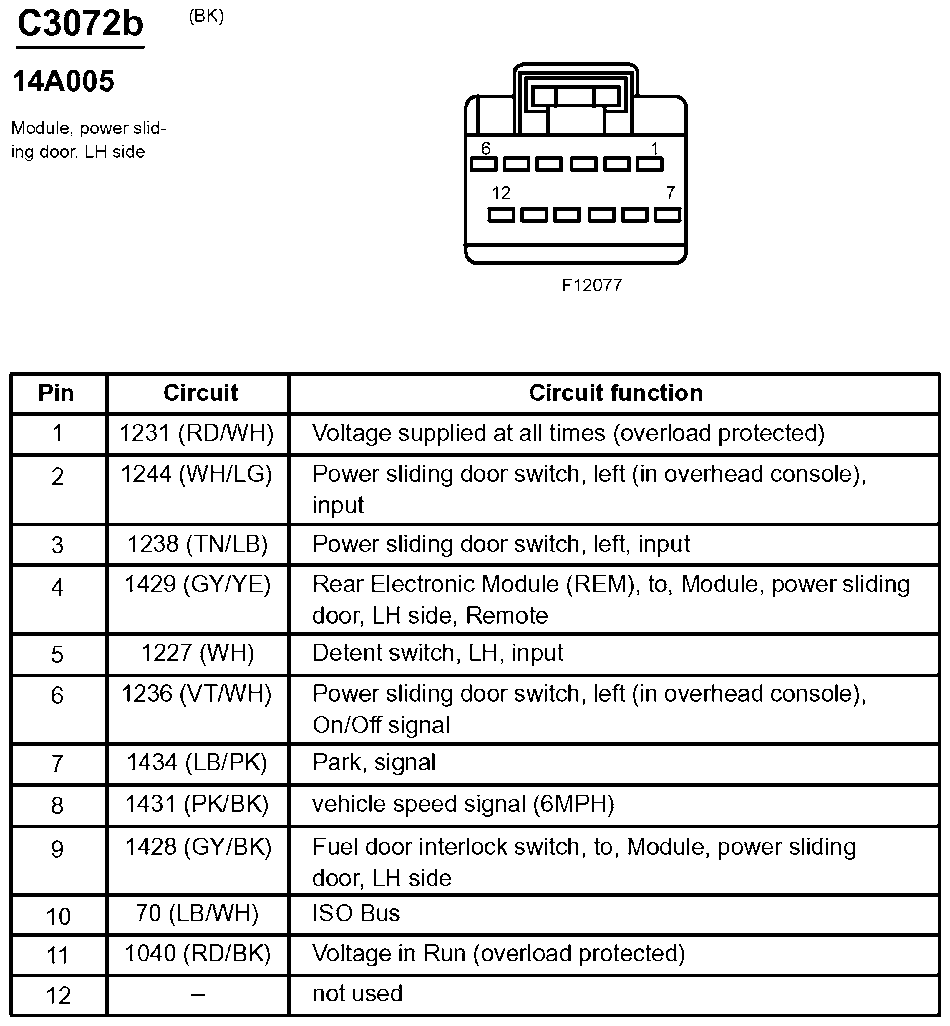

Fig 330: Module, Power Sliding Door, LH Side Connector End View (C3072b)
Courtesy of FORD MOTOR CO.

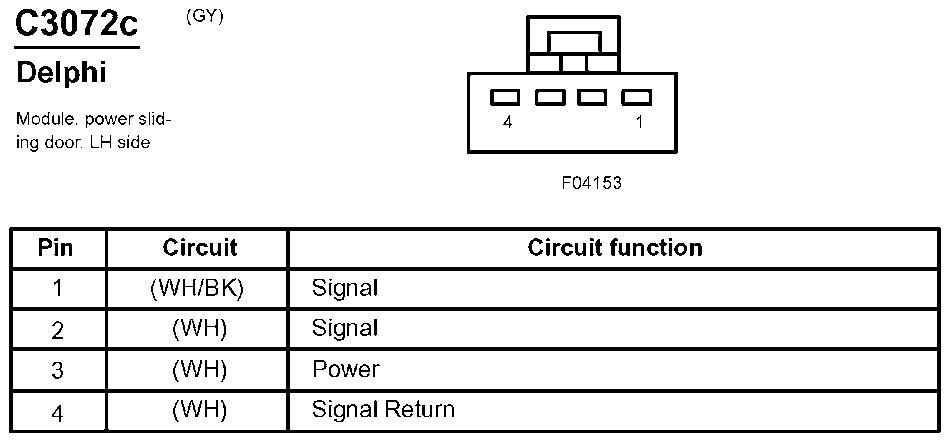

Fig 331: Module, Power Sliding Door, LH Side Connector End View (C3072c)
Courtesy of FORD MOTOR CO.

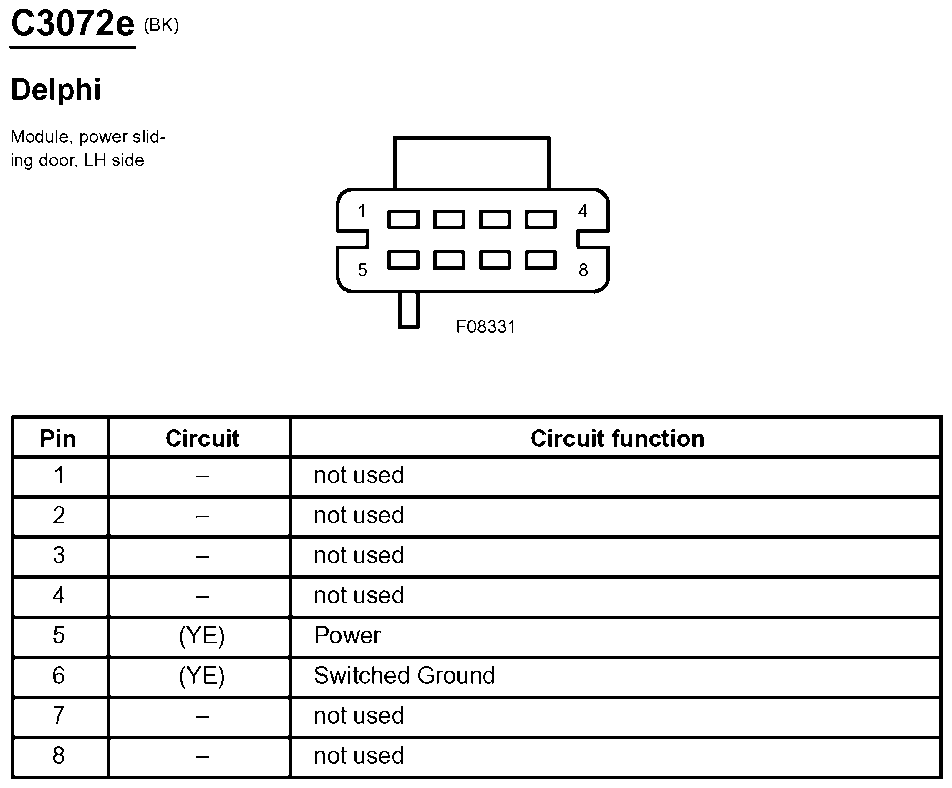

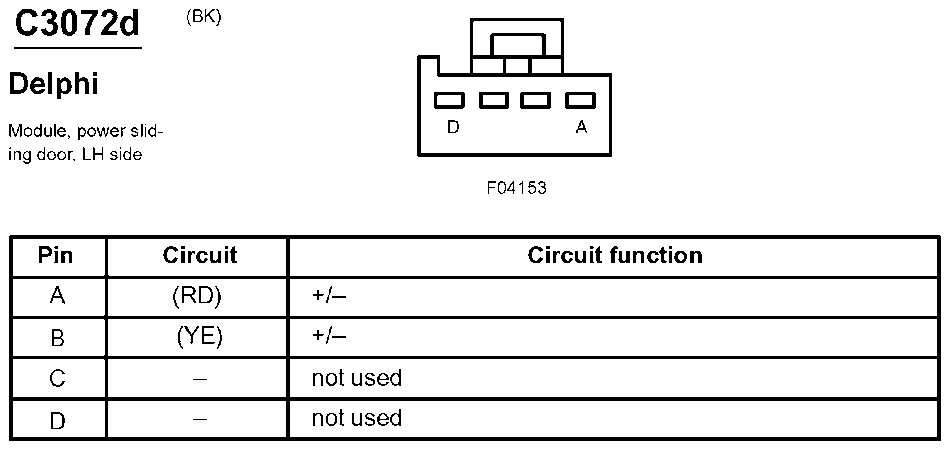

Fig 332: Module, Power Sliding Door, LH Side Connector End View (C3072d)
Courtesy of FORD MOTOR CO.
Fig 333: Module, Power Sliding Door, LH Side Connector End View (C3072e)
Courtesy of FORD MOTOR CO.

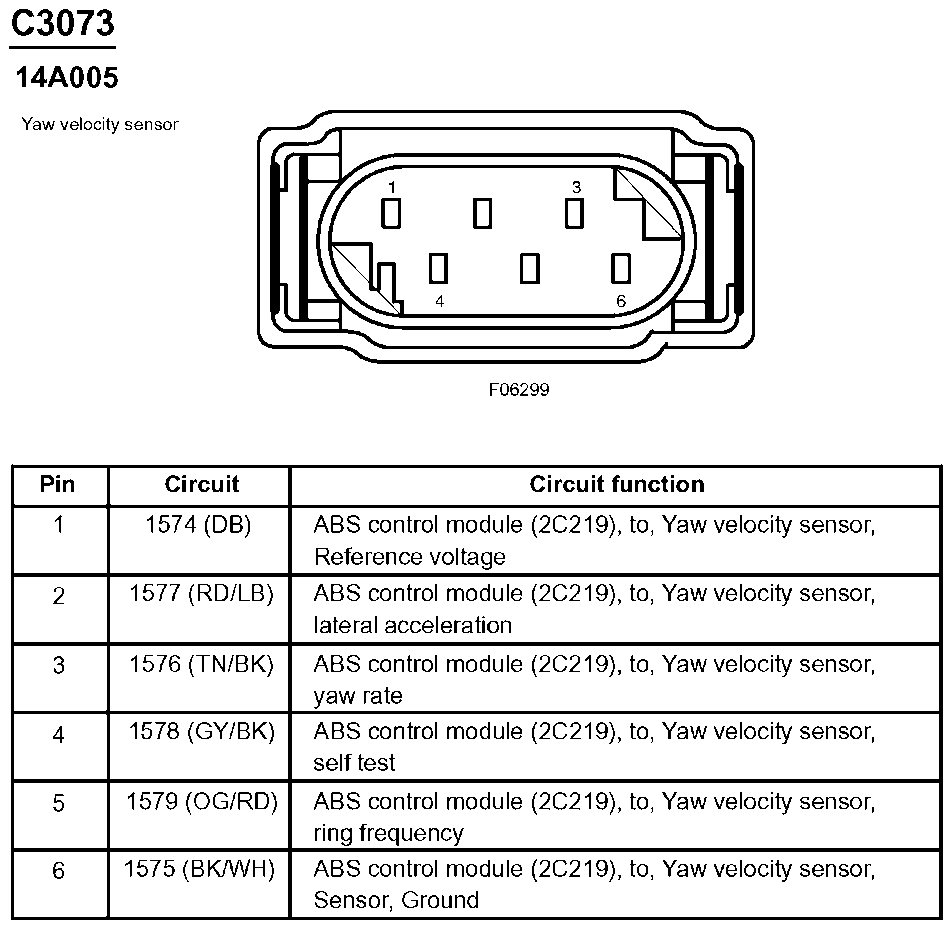

Fig 334: Yaw Velocity Sensor Connector End View (C3073)
Courtesy of FORD MOTOR CO.

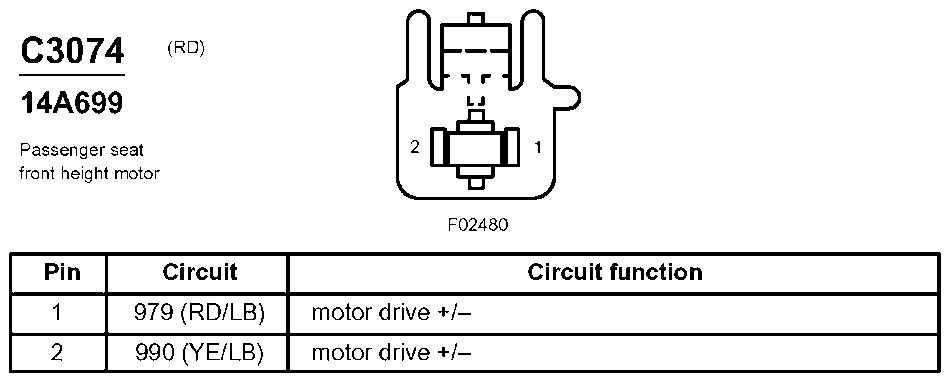

Fig 335: Passenger Seat Front Height Motor Connector End View (C3074)
Courtesy of FORD MOTOR CO.

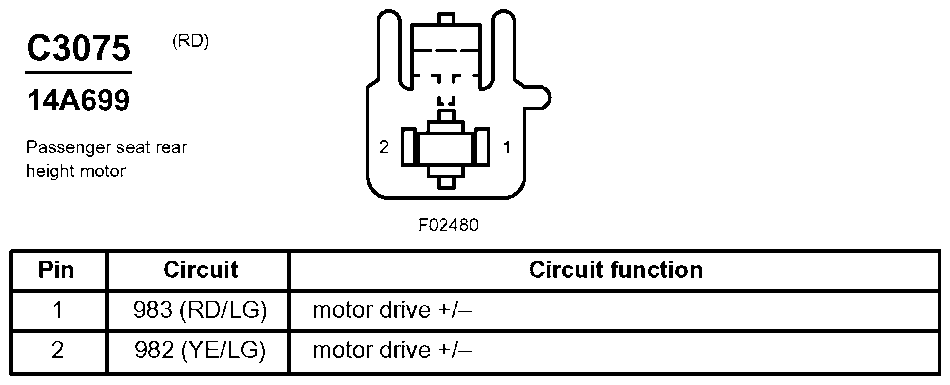

Fig 336: Passenger Seat Rear Height Motor Connector End View (C3075)
Courtesy of FORD MOTOR CO.

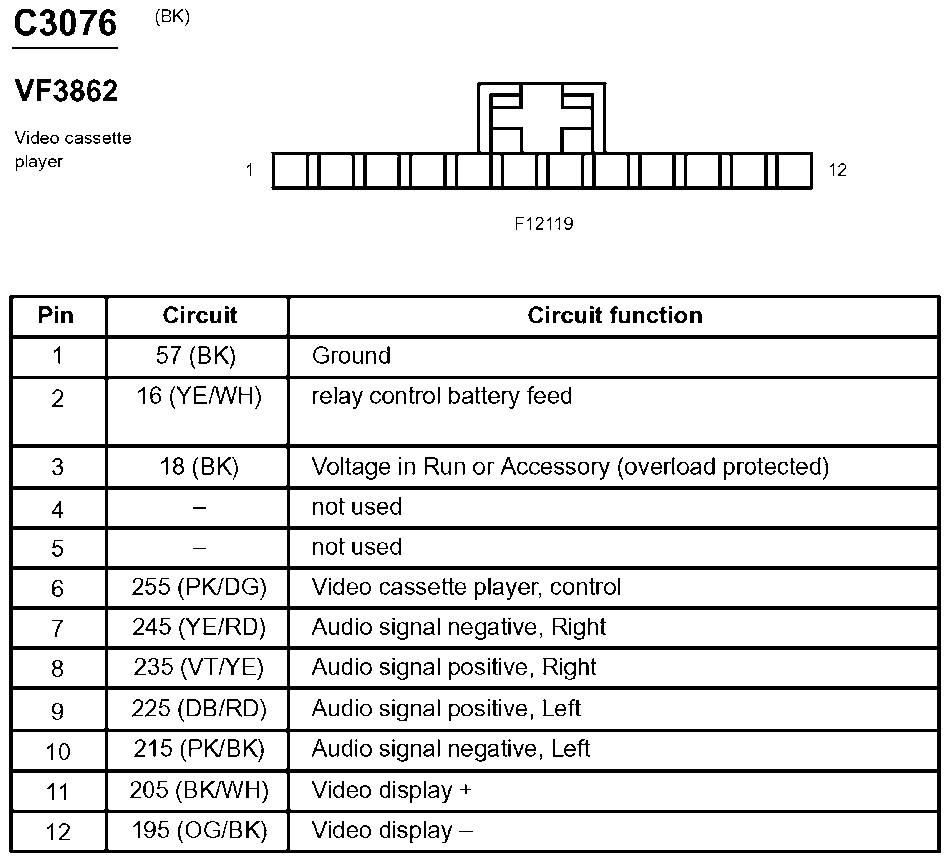

Fig 337: Video Cassette Player Connector End View (C3076)
Courtesy of FORD MOTOR CO.

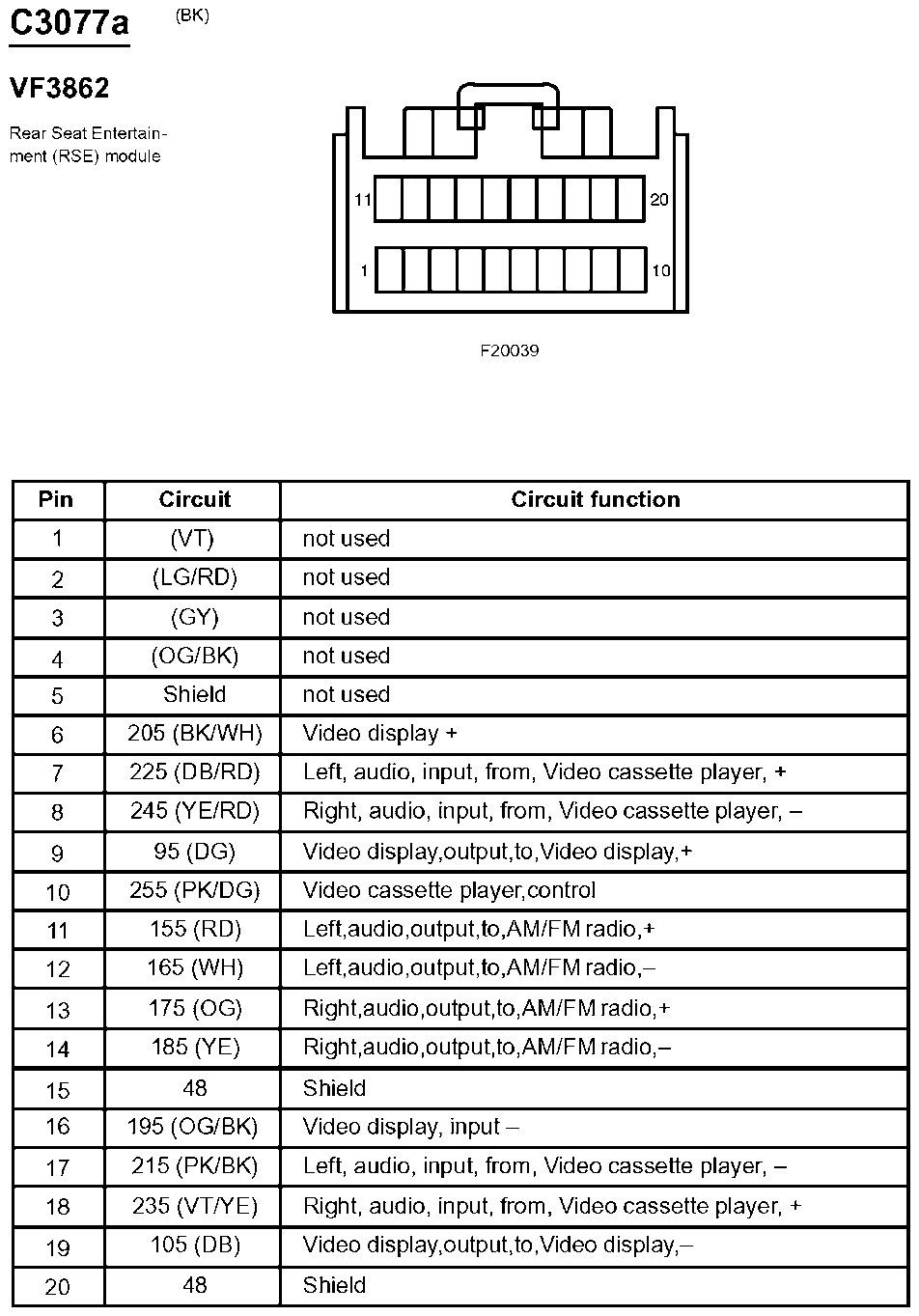

Fig 338: Rear Seat Entertainment (RSE) Module Connector End View (C3077a)
Courtesy of FORD MOTOR CO.

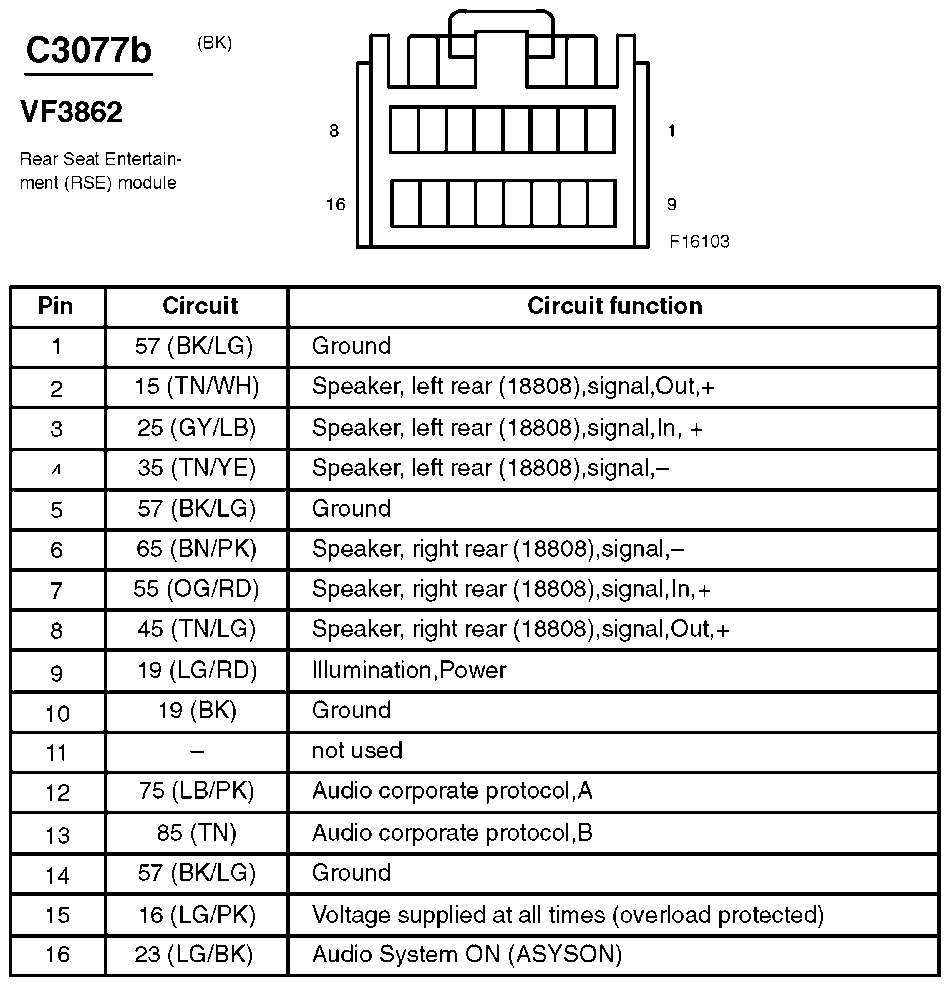

Fig 339: Rear Seat Entertainment (RSE) Module Connector End View (C3077b)
Courtesy of FORD MOTOR CO.

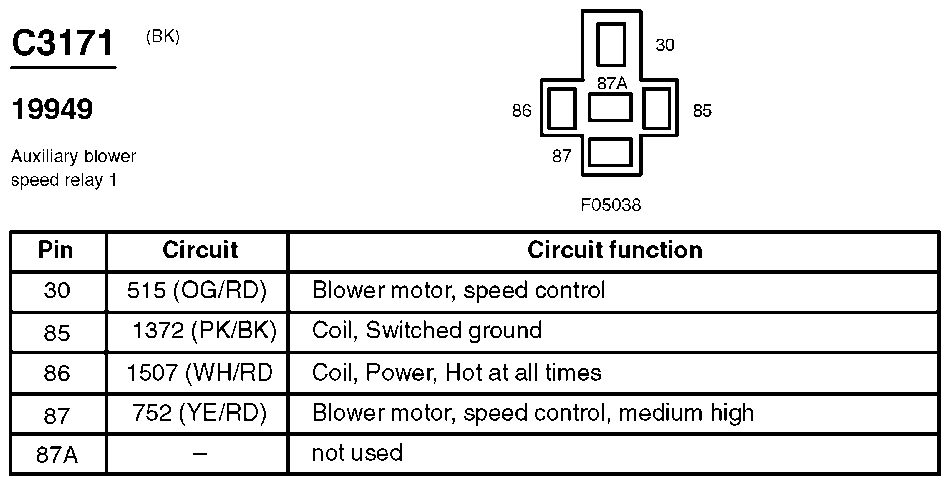

Fig 340: Auxiliary Blower Speed Relay 1 Connector End View (C3171)
Courtesy of FORD MOTOR CO.

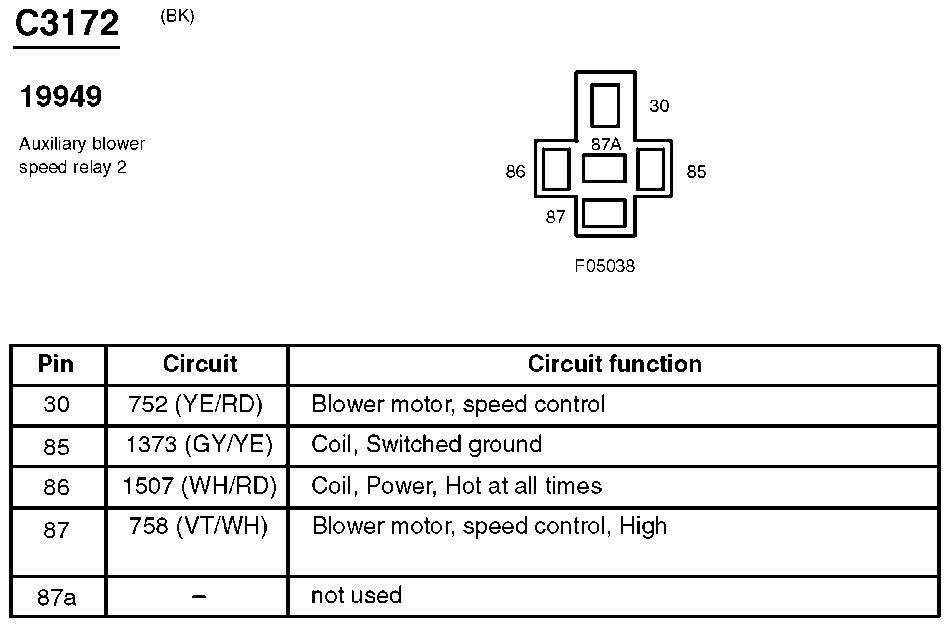

Fig 341: Auxiliary Blower Speed Relay 2 Connector End View (C3172)
Courtesy of FORD MOTOR CO.

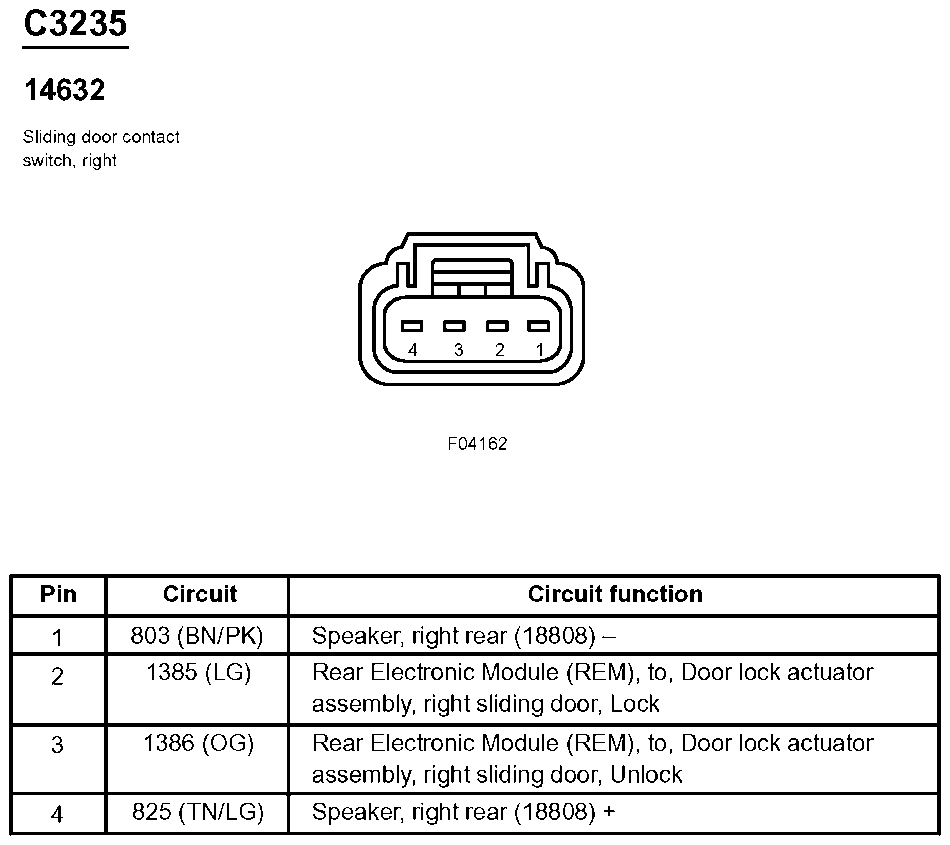

Fig 342: Sliding Door Contact Switch, Right Connector End View (C3235)
Courtesy of FORD MOTOR CO.

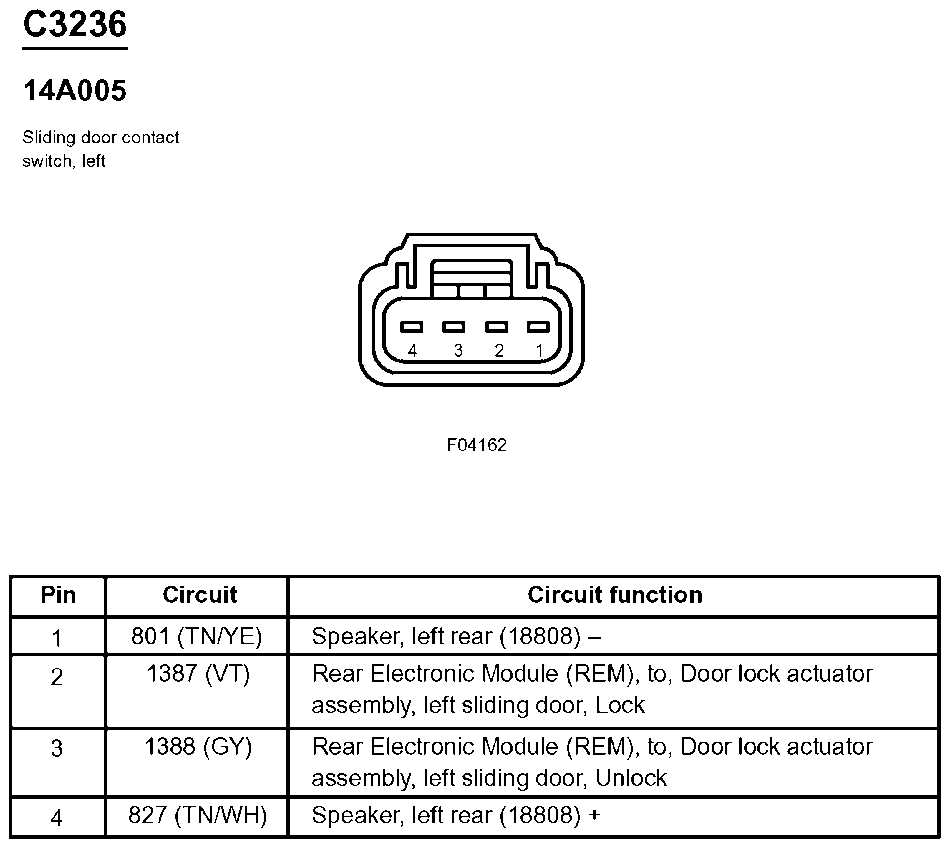

Fig 343: Sliding Door Contact Switch, Left Connector End View (C3236)
Courtesy of FORD MOTOR CO.

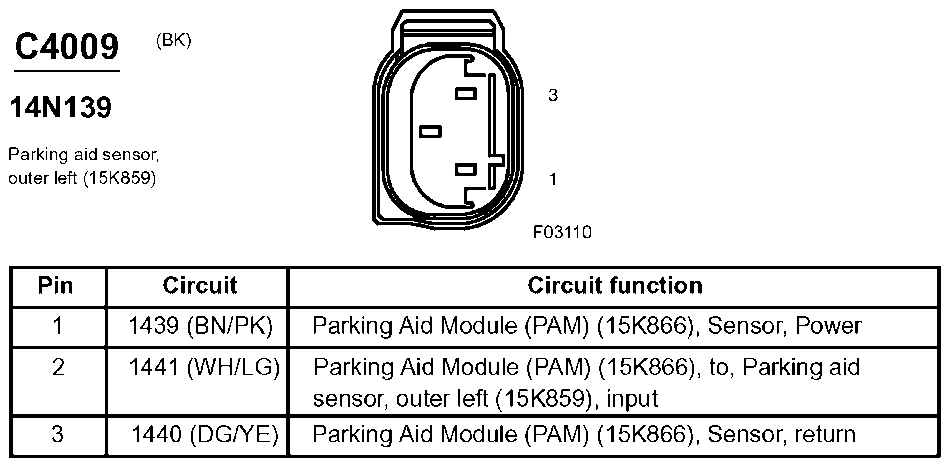

Fig 344: Parking Aid Sensor, Outer Left Connector End View (C4009)
Courtesy of FORD MOTOR CO.

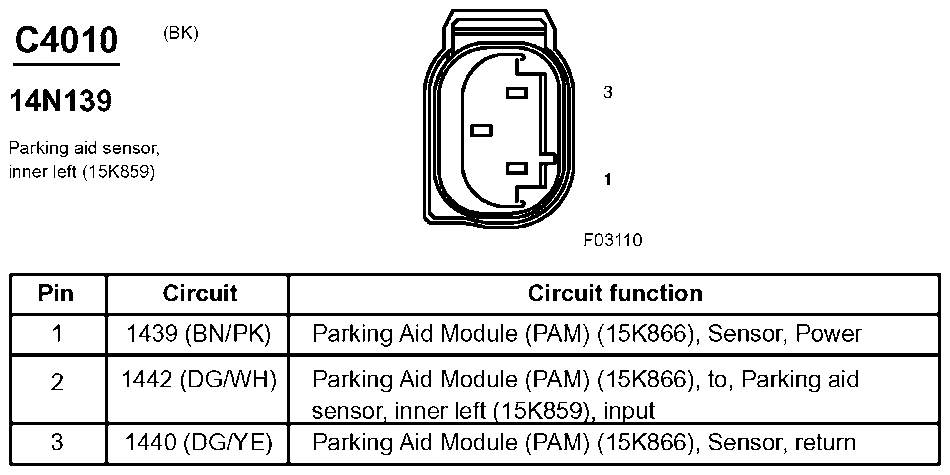

Fig 345: Parking Aid Sensor, Inner Left Connector End View (C4010)
Courtesy of FORD MOTOR CO.

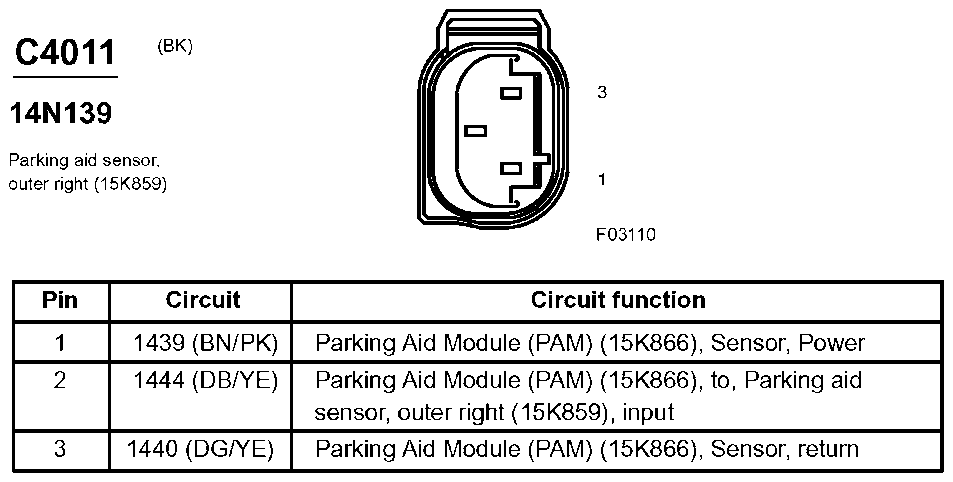

Fig 346: Parking Aid Sensor, Outer Right Connector End View (C4011)
Courtesy of FORD MOTOR CO.

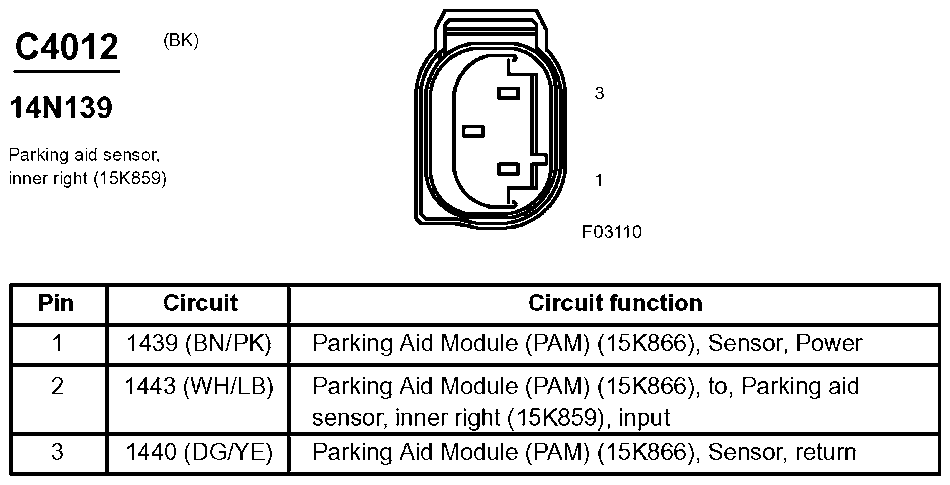

Fig 347: Parking Aid Sensor, Inner Right Connector End View (C4012)
Courtesy of FORD MOTOR CO.

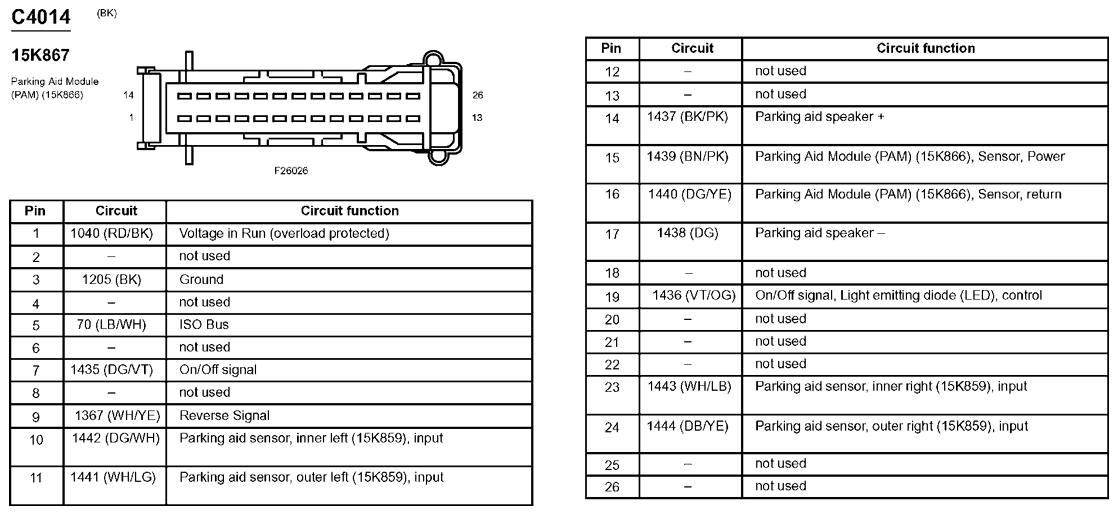

Fig 348: Parking Aid Module (PAM) Connector End View (C4014)
Courtesy of FORD MOTOR CO.

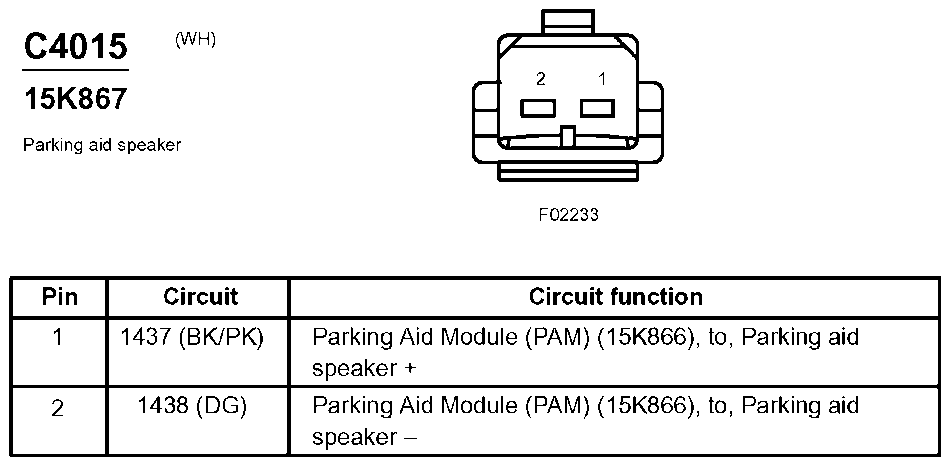

Fig 349: Parking Aid Speaker Connector End View (C4015)
Courtesy of FORD MOTOR CO.

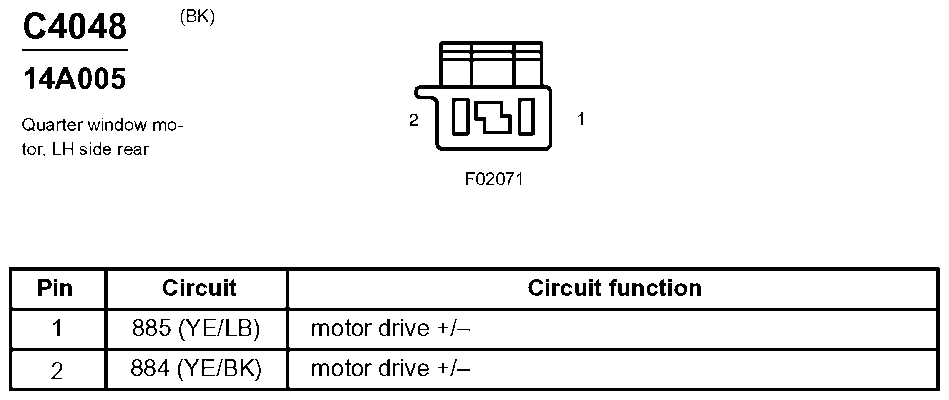

Fig 350: Quarter Window Motor, LH Side Rear Connector End View (C4048)
Courtesy of FORD MOTOR CO.

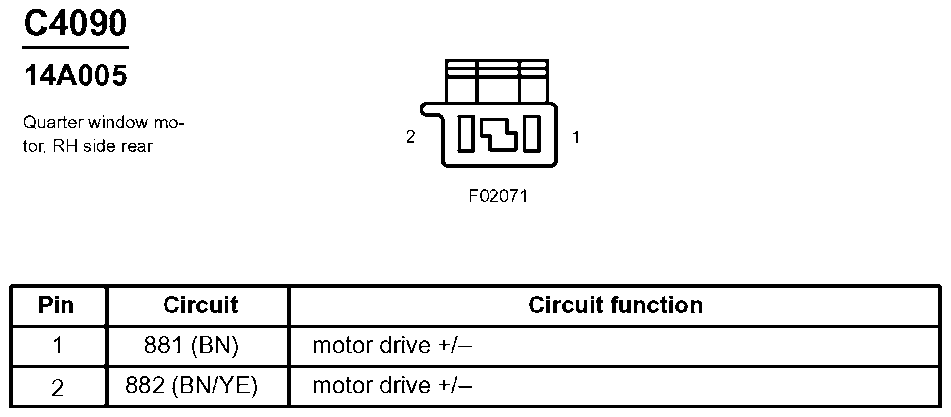

Fig 351: Quarter Window Motor, RH Side Rear Connector End View (C4090)
Courtesy of FORD MOTOR CO.

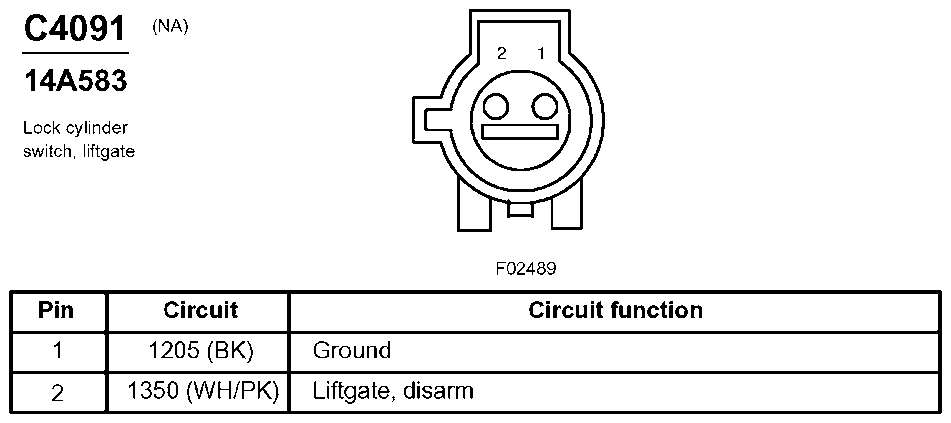

Fig 352: Lock Cylinder Switch, Liftgate Connector End View (C4091)
Courtesy of FORD MOTOR CO.
