Home >> Ford >> 2003 >> Windstar Base >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine >> In-Vehicle Repair >> Flexplate >> Removal

In-Vehicle Repair: Flexplate: Removal

  1. Remove the transaxle. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION .
  2. Remove the bolts and the flexplate.

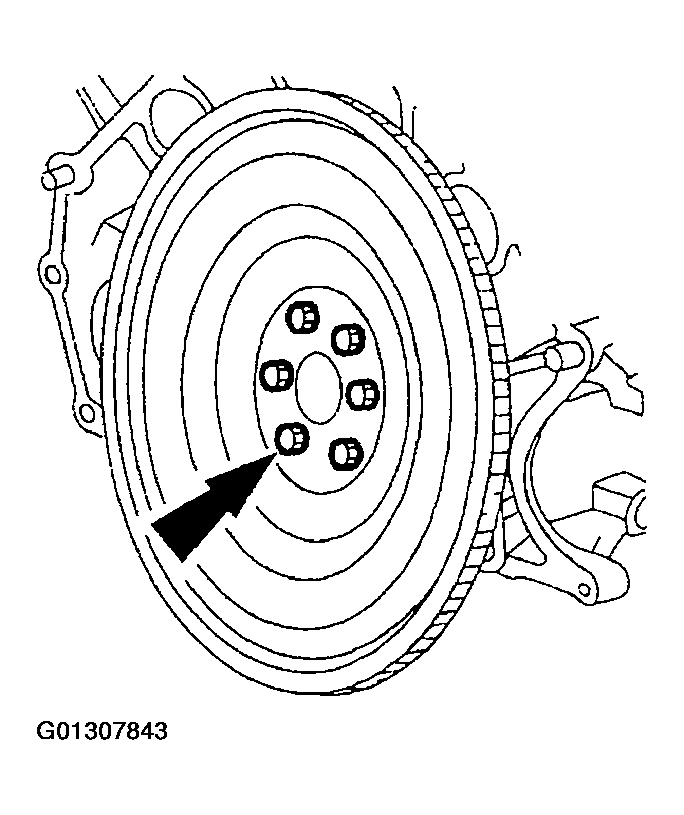

    Fig 1: Identifying Flexplate Bolts
    G01307843Courtesy of FORD MOTOR CO.
