lemon-mirror
:
Home
>>
Ford
>>
2003
>>
Windstar Base
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel System-General Information
>>
Specifications
>>
General Specifications
General Specifications

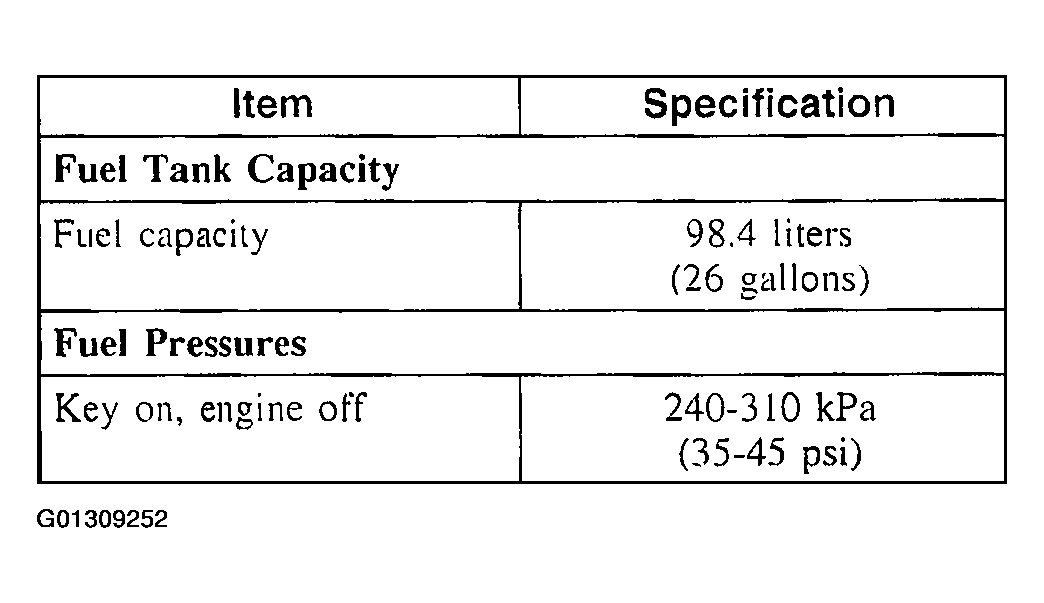

Fig 1: Fuel System - General Information (1 Of 2)
Courtesy of FORD MOTOR CO.

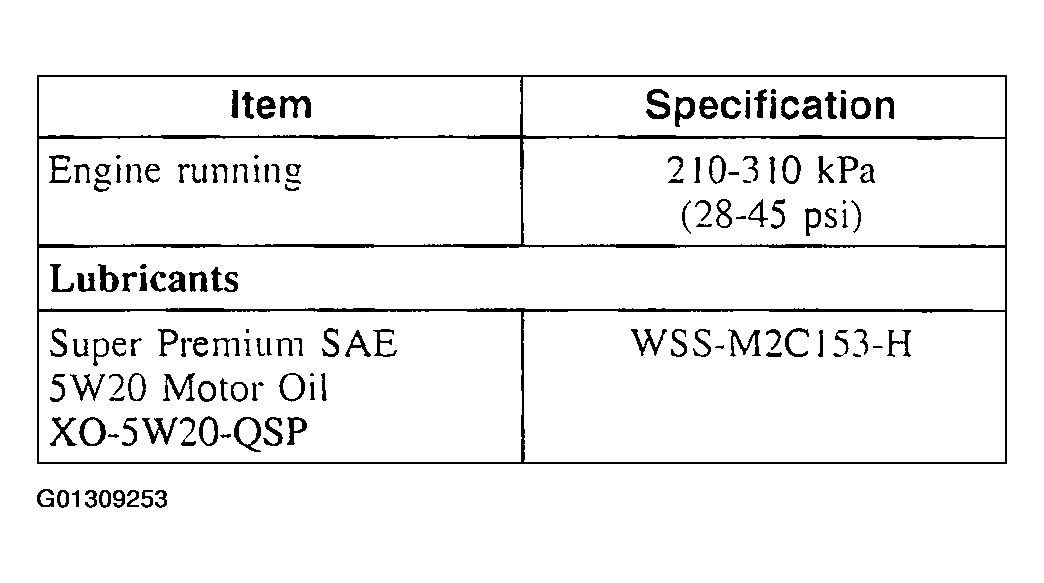

Fig 2: Fuel System - General Information (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
