Module Location-Universal Asynchronous Recieve-Transmit (UART) Based Protocol UBP Network

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

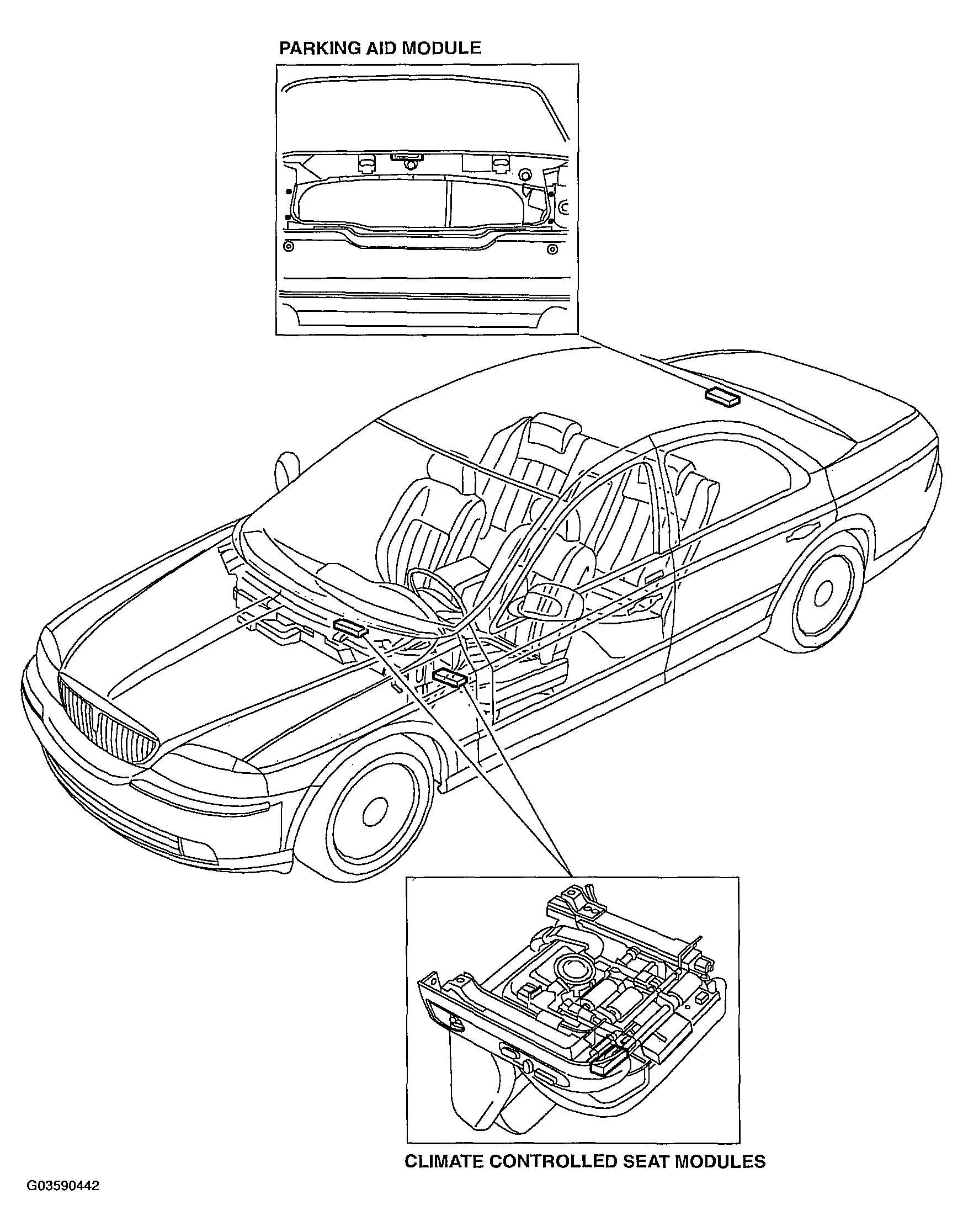

Fig 1: Identifying Module Location - Universal Asynchronous Recieve-Transmit (UART) Based Protocol UBP Network
G03590442Courtesy of FORD MOTOR CO.
