Main Control Valves

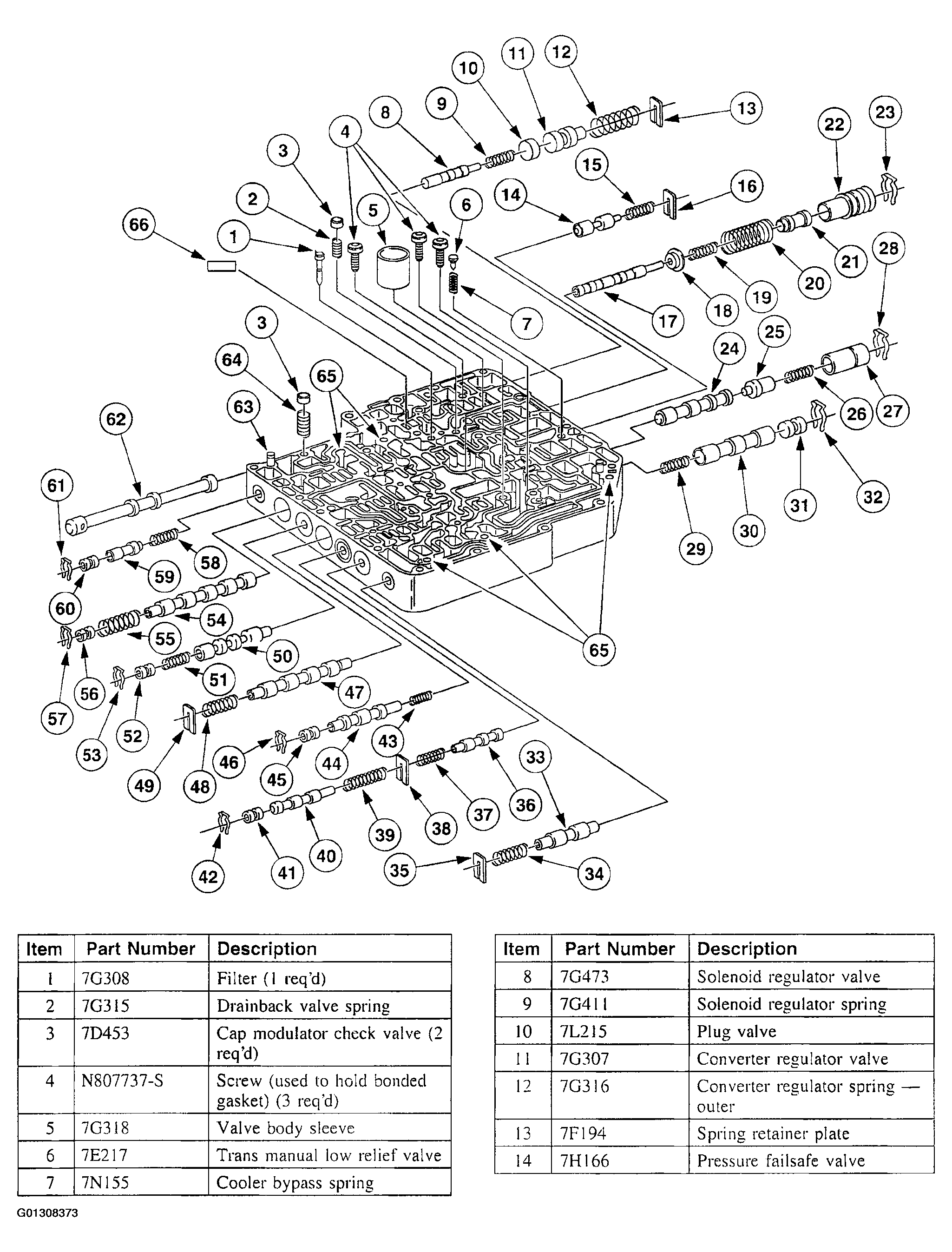

Fig 1: Locating Main Control Valves Components (1 Of 2)
Courtesy of FORD MOTOR CO.

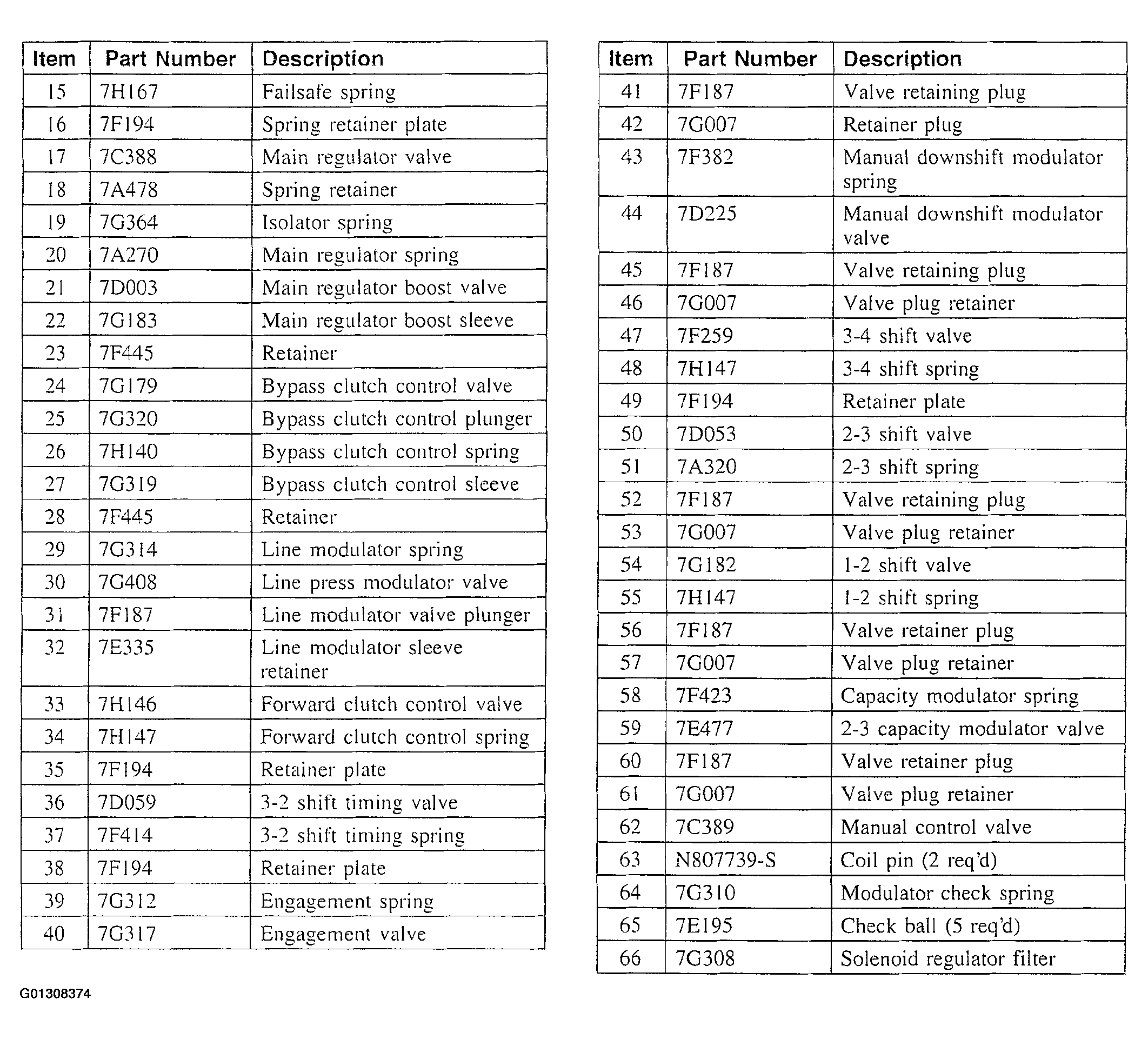

Fig 2: Locating Main Control Valves Components (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
