Automatic Transmission
>>
Description And Operation
>>
Main Components and Functions
Main Components and Functions

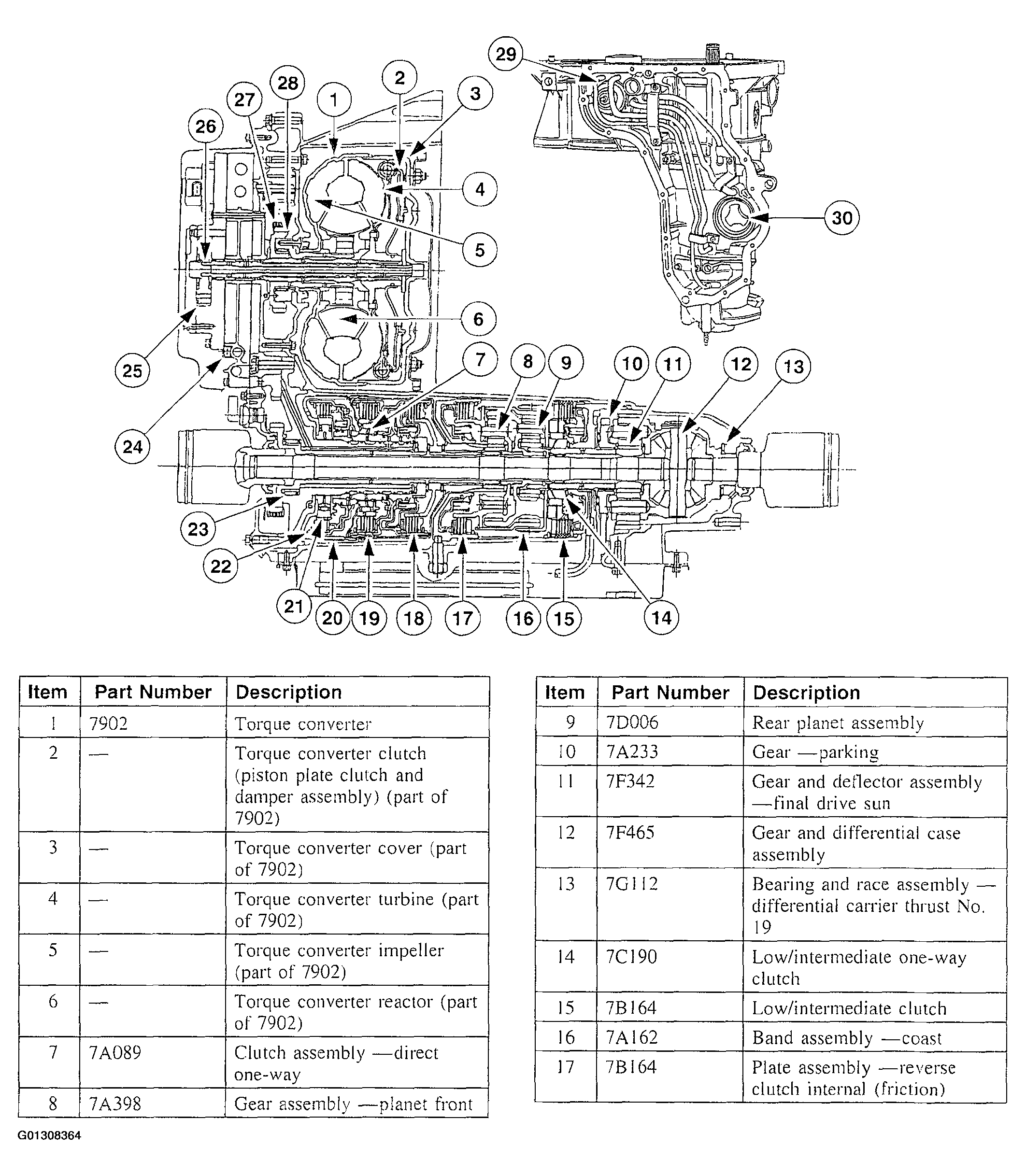

Fig 1: Locating Transaxle Main Components
Courtesy of FORD MOTOR CO.

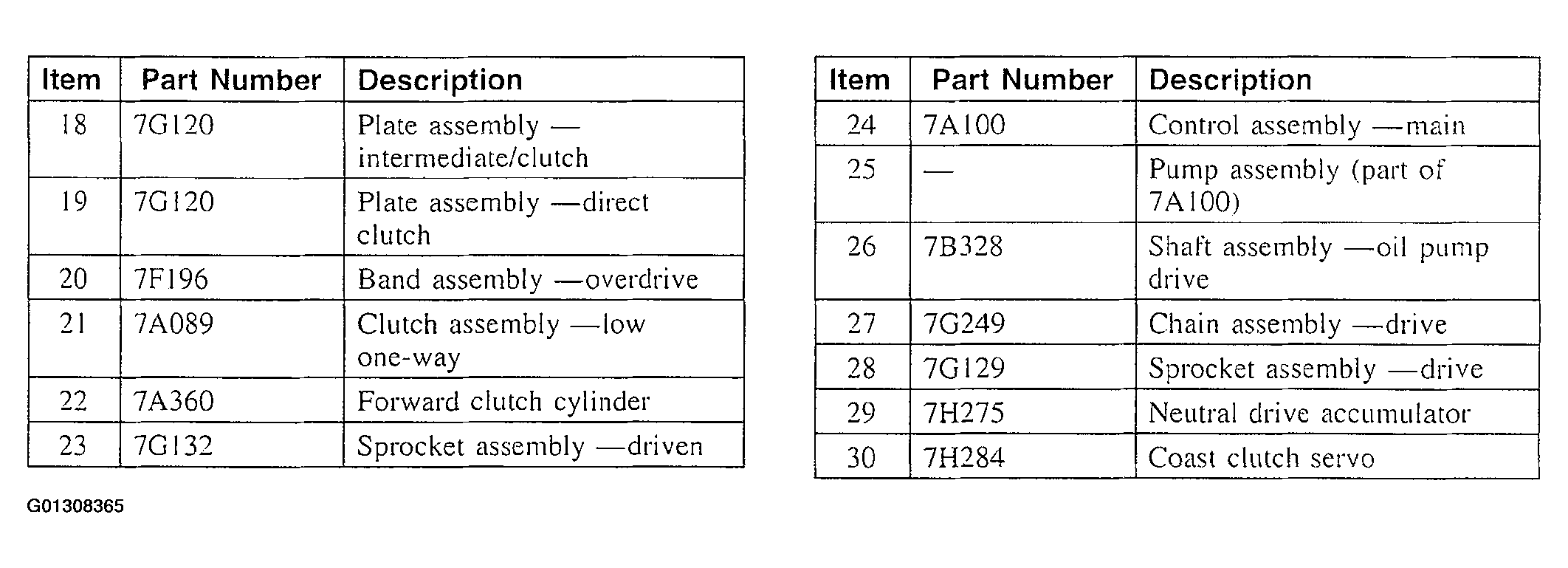

Fig 2: Transaxle Main Components Description
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
