Low-Intermediate One-Way Clutch: Disassembly

  1. Remove the low-intermediate one-way clutch assembly.

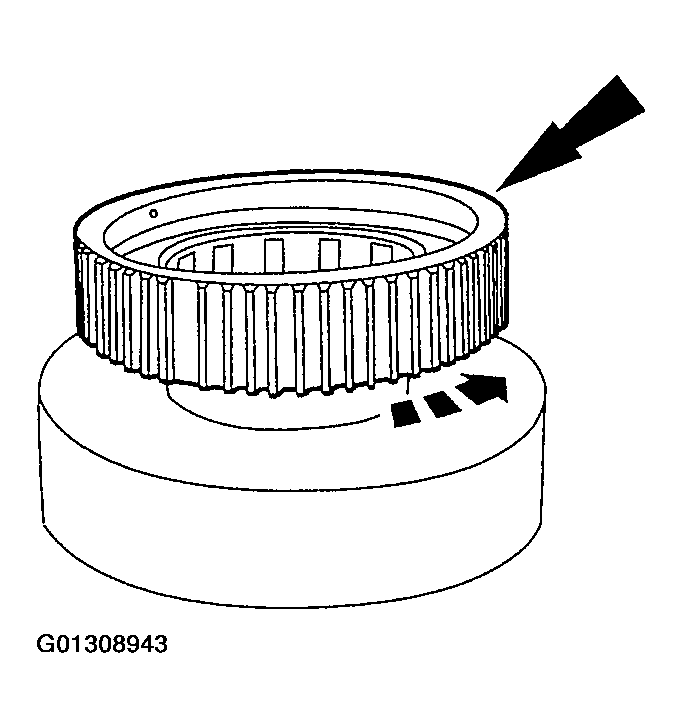

    Fig 1: Removing Low-Intermediate One-Way Clutch Assembly
    G01308943Courtesy of FORD MOTOR CO.
  2. Remove the low-intermediate one-way clutch roller and cage. Rotate clockwise to unlock.

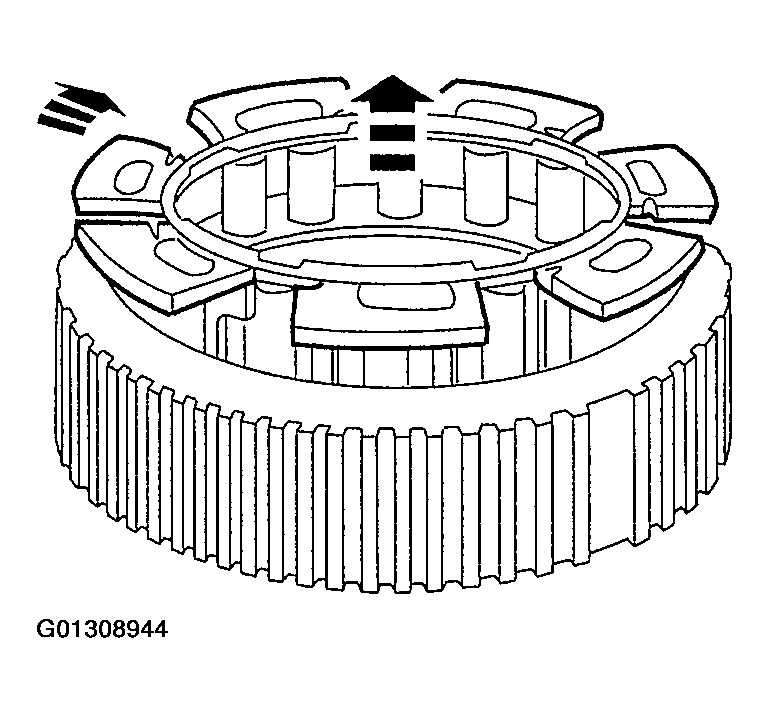

    Fig 2: Removing Low-Intermediate One-Way Clutch Roller And Cage
    G01308944Courtesy of FORD MOTOR CO.
