Home >> Ford >> 2003 >> Windstar Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Disassembly And Assembly Of Subassemblies >> Overdrive Servo >> Notes

Overdrive Servo: Notes

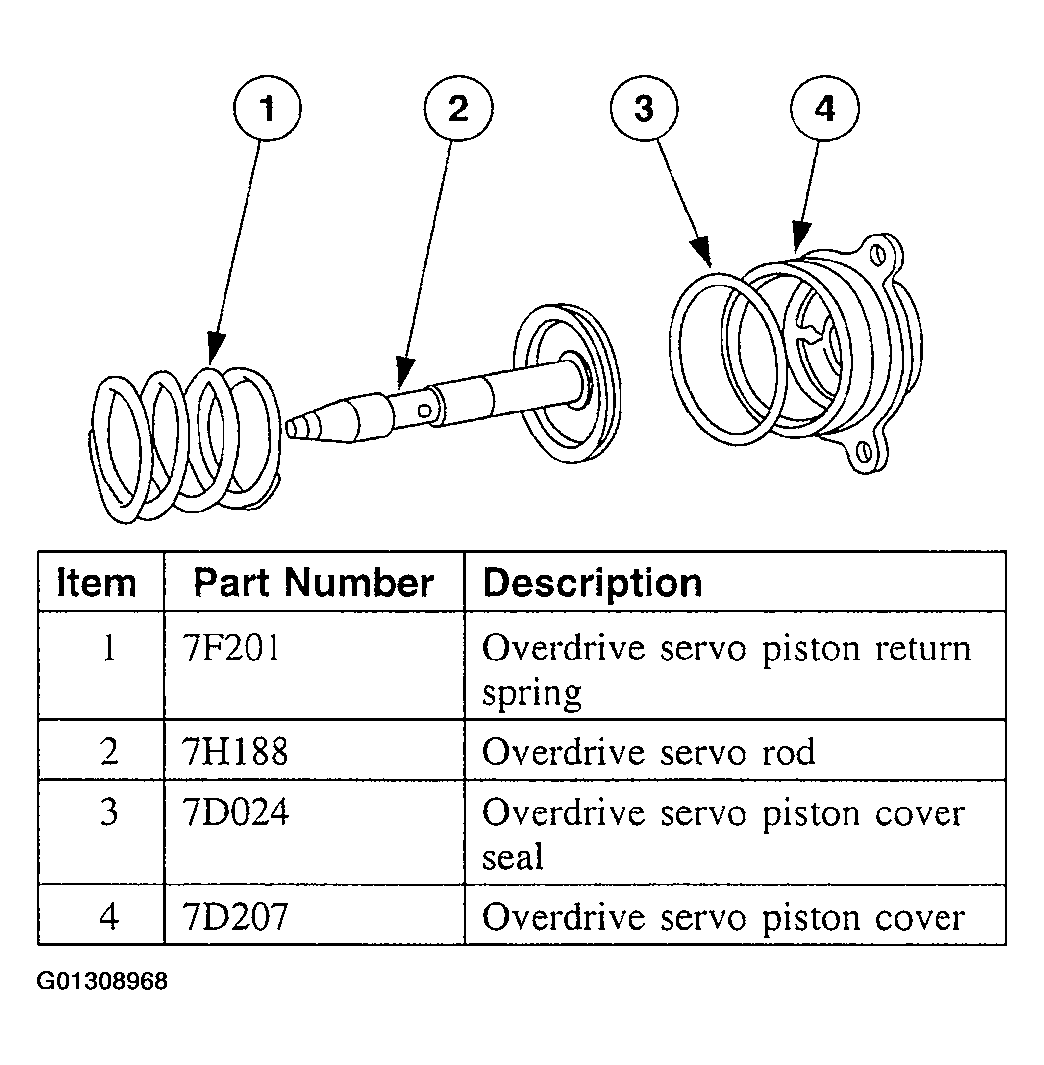

Fig 1: Exploded View Of Overdrive Servo

G01308968

Courtesy of FORD MOTOR CO.
