Transaxle Support Insulator: Removal

  1. Raise the vehicle. For additional information, refer to JACKING & LIFTING .
  2. Remove the LH wheel and tire. For additional information, refer to WHEELS & TIRES .
  3. Place the high lift transmission jack under the transaxle.

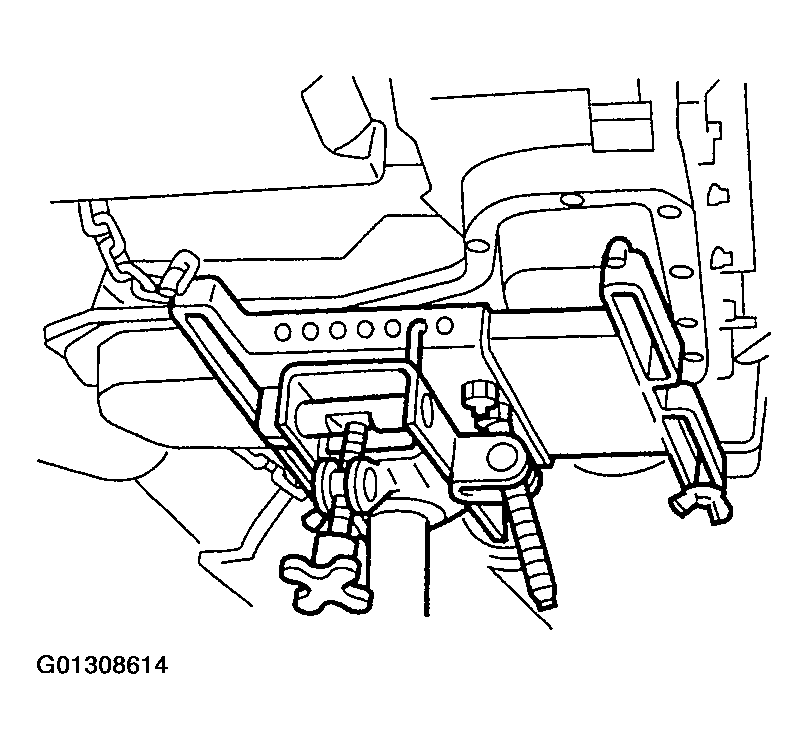

    Fig 1: Placing High Lift Transmission Jack Under Transaxle
    G01308614Courtesy of FORD MOTOR CO.
  4. Remove the engine and transaxle upper support insulator nut.

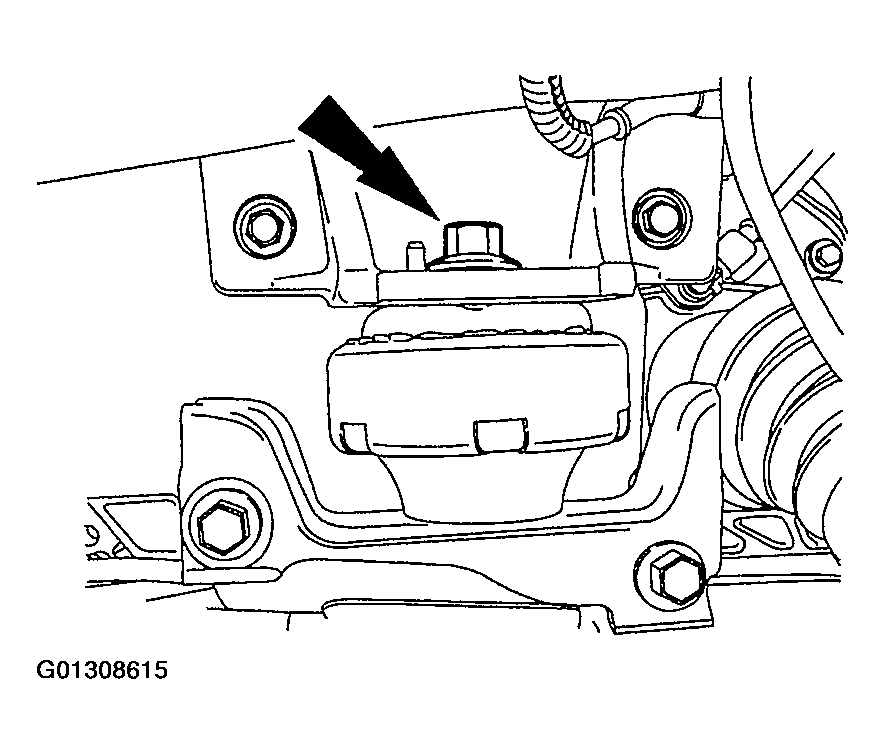

    Fig 2: Removing Engine And Transaxle Upper Support Insulator Nut
    G01308615Courtesy of FORD MOTOR CO.
  5. Remove the engine and transaxle upper support bracket bolts and bracket.

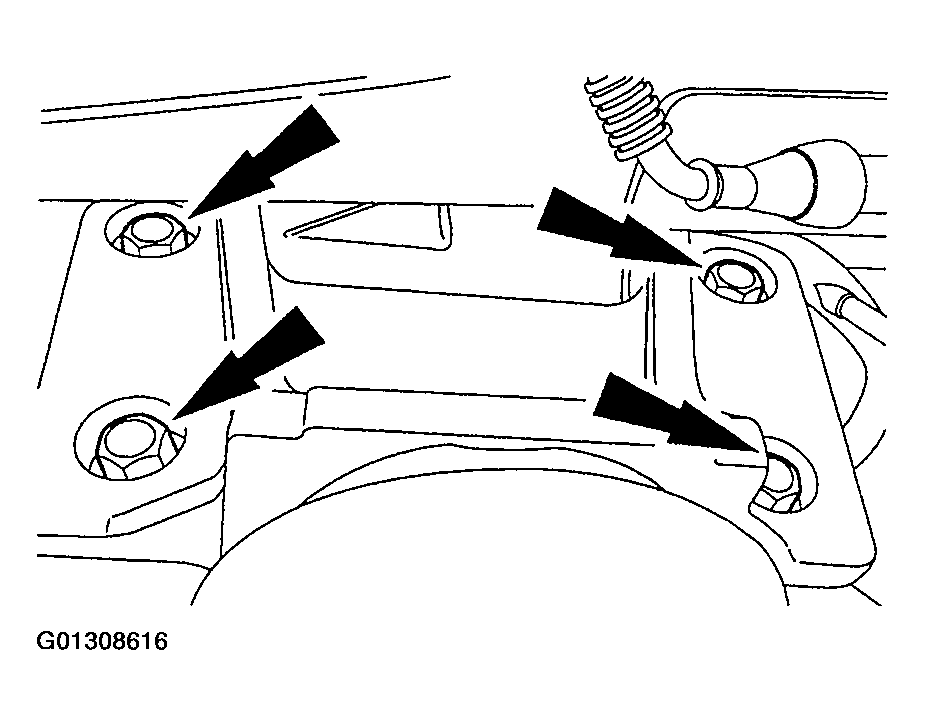

    Fig 3: Removing Engine And Transaxle Upper Support Bracket Bolts And Bracket
    G01308616Courtesy of FORD MOTOR CO.
  6. Remove the engine and transaxle upper support insulator bolts and insulator.

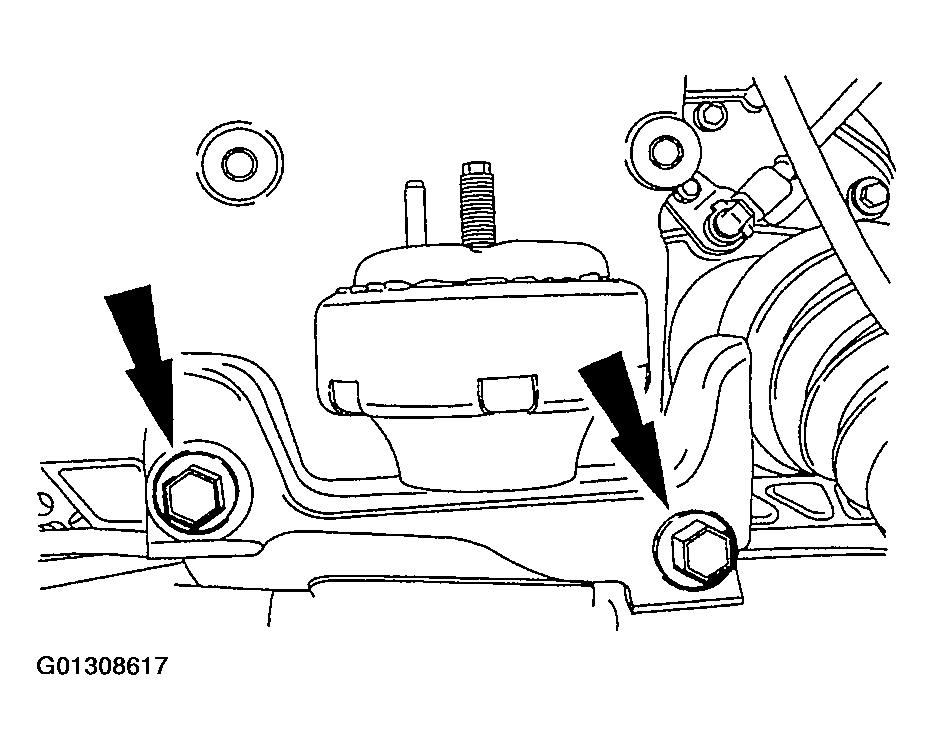

    Fig 4: Removing Engine And Transaxle Upper Support Insulator Bolts And Insulator
    G01308617Courtesy of FORD MOTOR CO.
