MULTIFUNCTION Switch

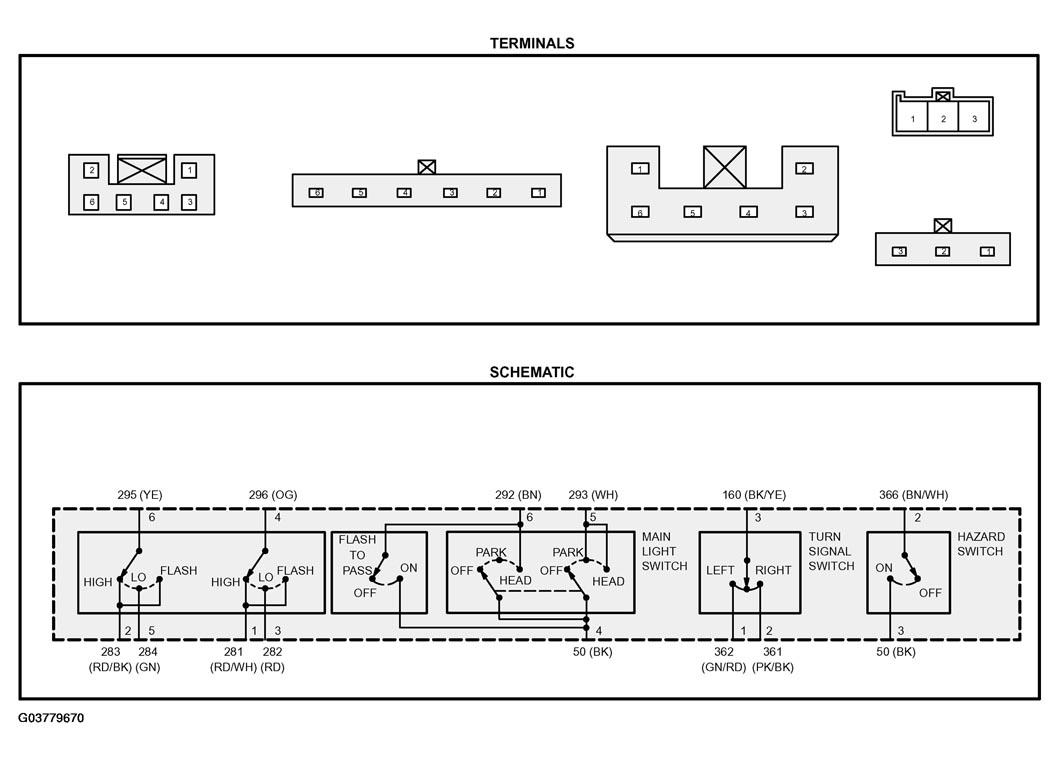

Fig 1: Multifunction Switch - Component Testing (1 Of 3)
G03779670Courtesy of FORD MOTOR CO.

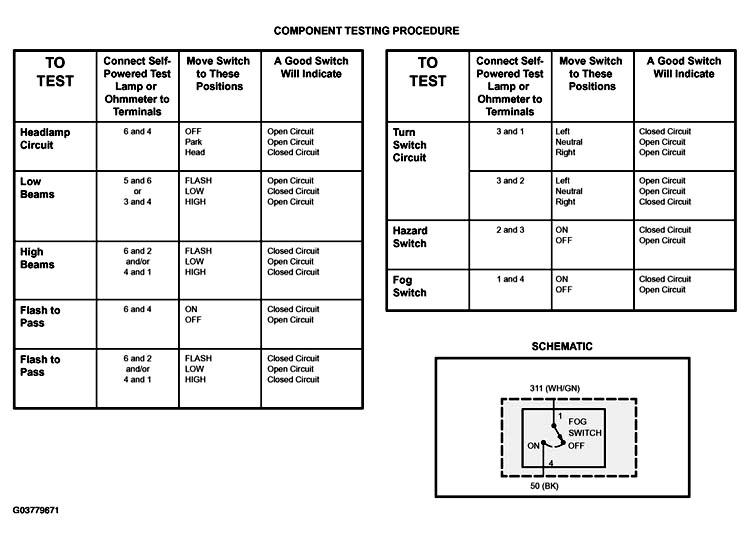

Fig 2: Multifunction Switch - Component Testing (2 Of 3)
G03779671Courtesy of FORD MOTOR CO.

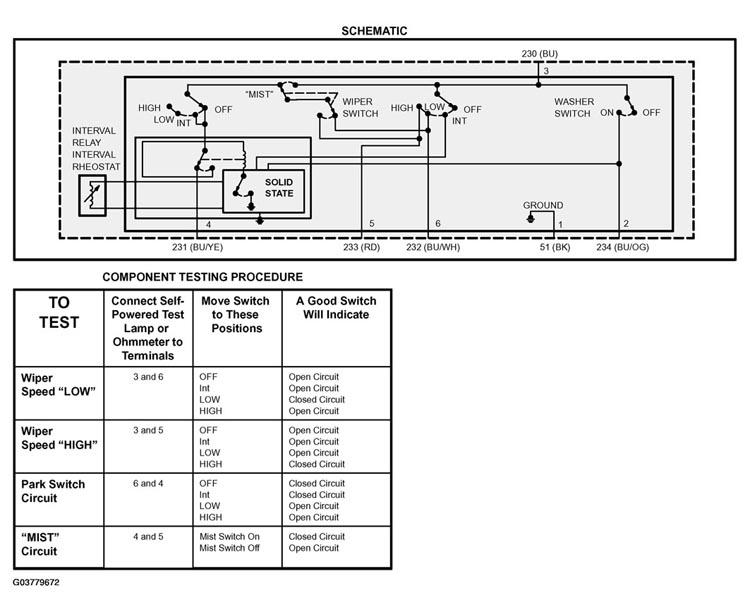

Fig 3: Multifunction Switch - Component Testing (3 Of 3)
G03779672Courtesy of FORD MOTOR CO.
