Cylinder Head Distortion

Fig 1: Identifying Special Tool(s)
G01370896Courtesy of FORD MOTOR CO.
  1. Use a straight edge and a feeler gauge to inspect the cylinder head for flatness. If the cylinder head is distorted, install a new cylinder head.

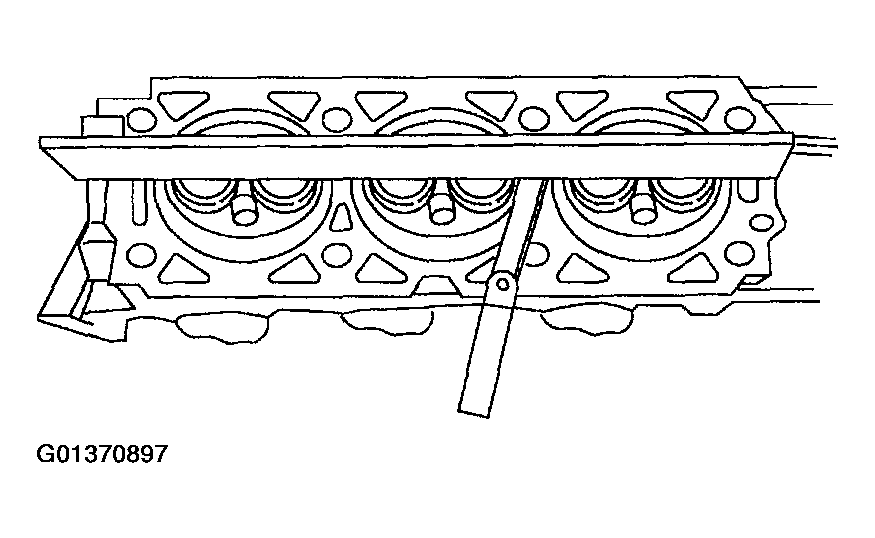

    Fig 2: Measuring Cylinder Head Distortion
    G01370897Courtesy of FORD MOTOR CO.
