Valve Spring Installed Length
Valve Spring Installed Length
Measure the installed length of each valve spring.
Refer to
GENERAL SPECIFICATIONS
.
If out of specification, install new components. Refer to
ENGINE
for the procedure.

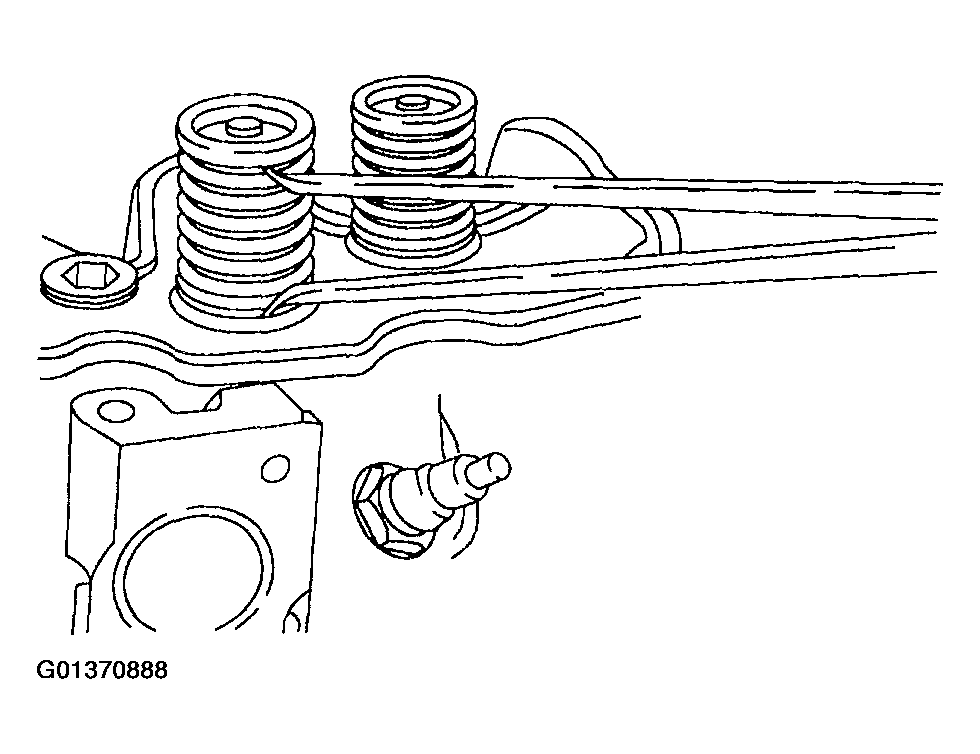

Fig 1: Measuring Valve Spring Installed Height
Courtesy of FORD MOTOR CO.
