Powertrain Control Module (PCM) C175a

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

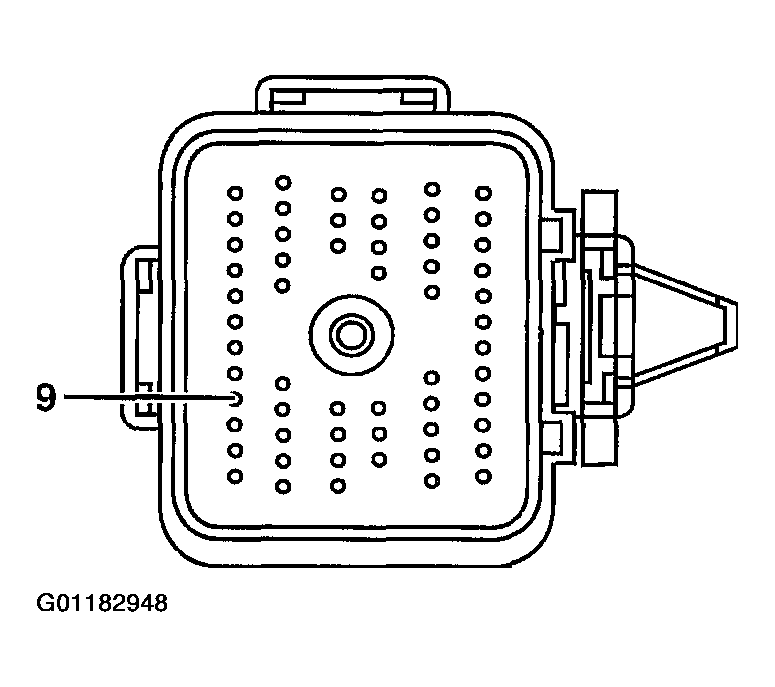

Fig 1: Identifying Powertrain Control Module (PCM) C175a
G01182948Courtesy of FORD MOTOR CO.

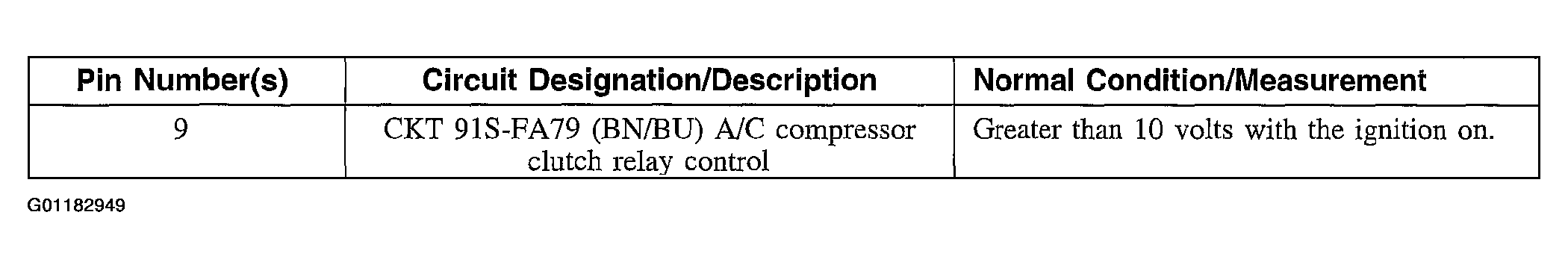

Fig 2: Powertrain Control Module (PCM) C175a Pin Specifications Chart (9)
G01182949Courtesy of FORD MOTOR CO.
