Home >> Ford >> 2003 >> ZX2 Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle/Transmission >> Description And Operation >> Disassembled Views - Apply Components

Disassembled Views - Apply Components

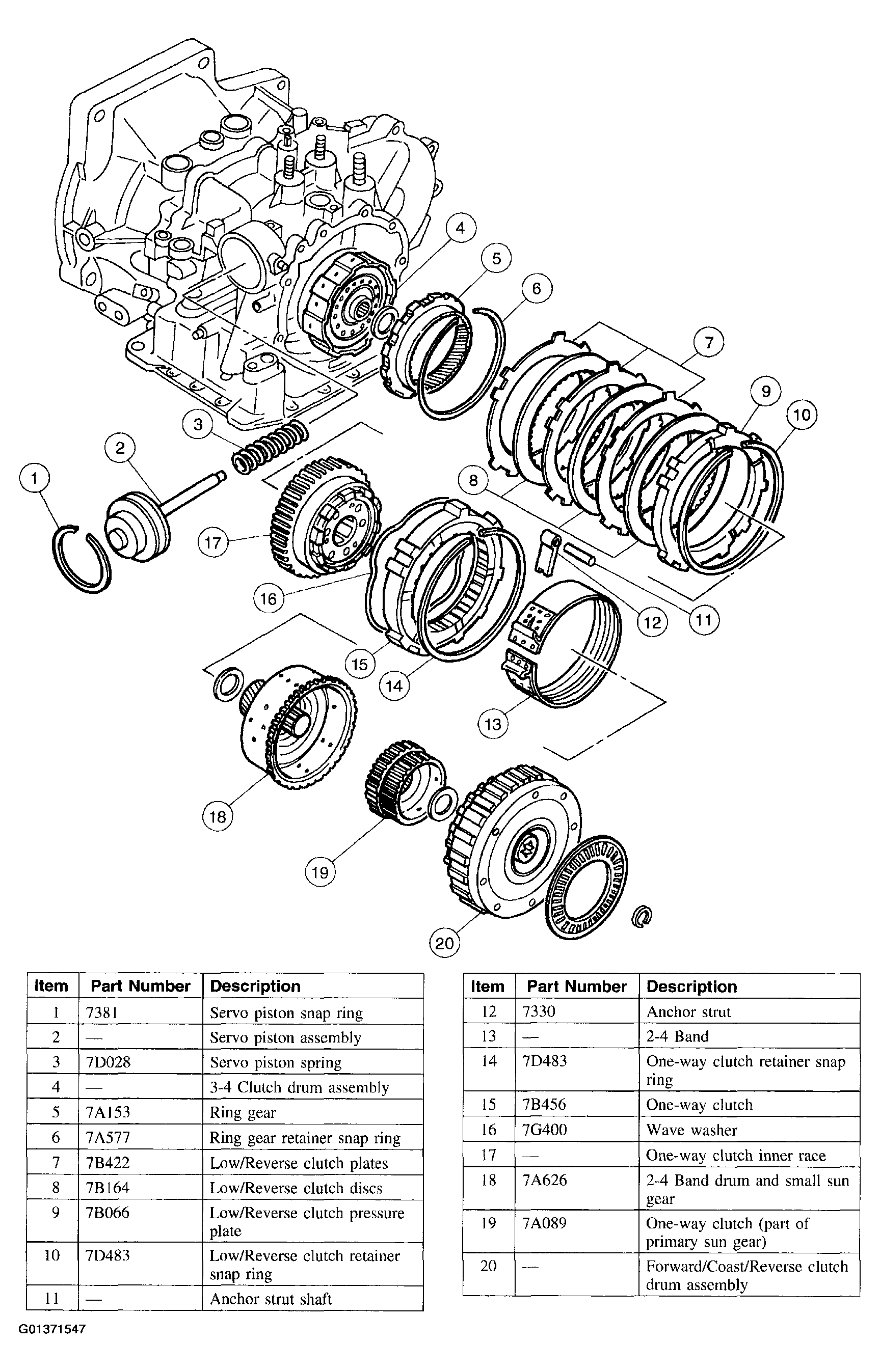

Fig 1: Exploded View Of Automatic Transmission - Apply Components

G01371547

Courtesy of FORD MOTOR CO.
