Disassembled Views - External Components

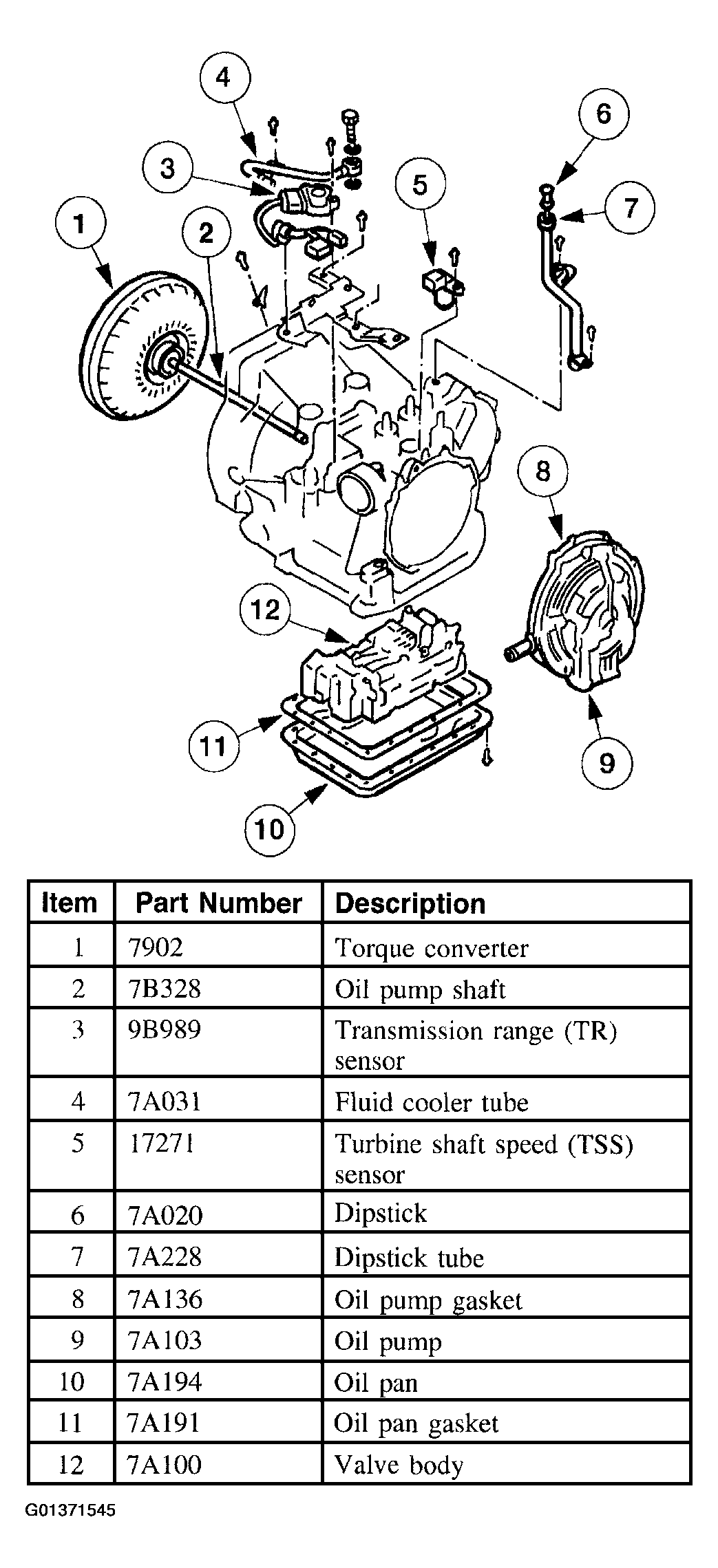

Fig 1: Identifying Automatic Transmission Disassembled Views - External Components

G01371545

Courtesy of FORD MOTOR CO.
