Home >> Ford >> 2003 >> ZX2 Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle/Transmission >> Disassembly And Assembly Of Subassemblies >> Accumulators >> Notes

Disassembly And Assembly Of Subassemblies: Accumulators: Notes

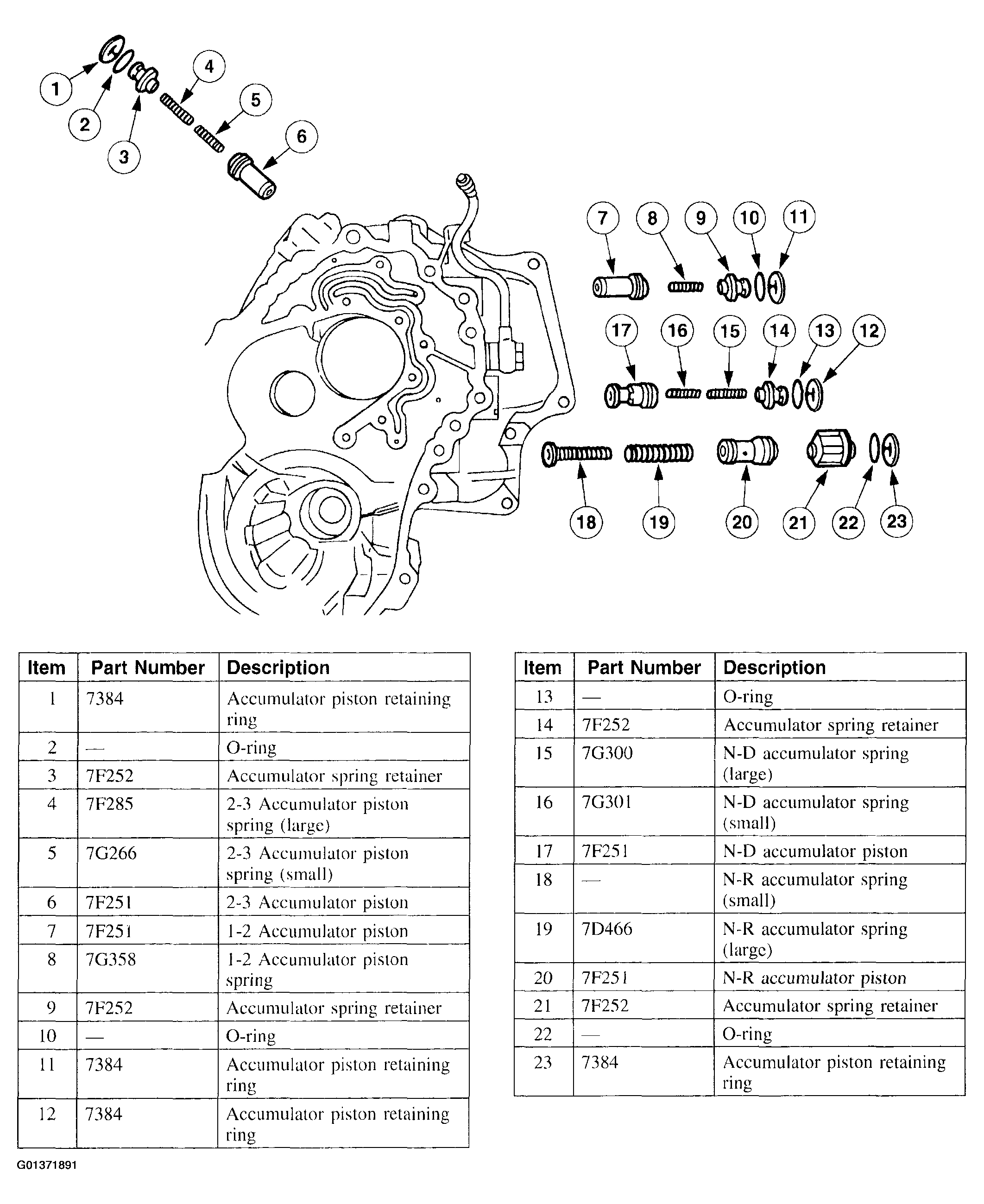

Fig 1: Disassembled View Of Accumulators

G01371891

Courtesy of FORD MOTOR CO.
