Removal And Installation: Tubes: Installation

    NOTE: After installation check fluid level; refer to AUTOMATIC TRANSAXLE/TRANSMISSION .

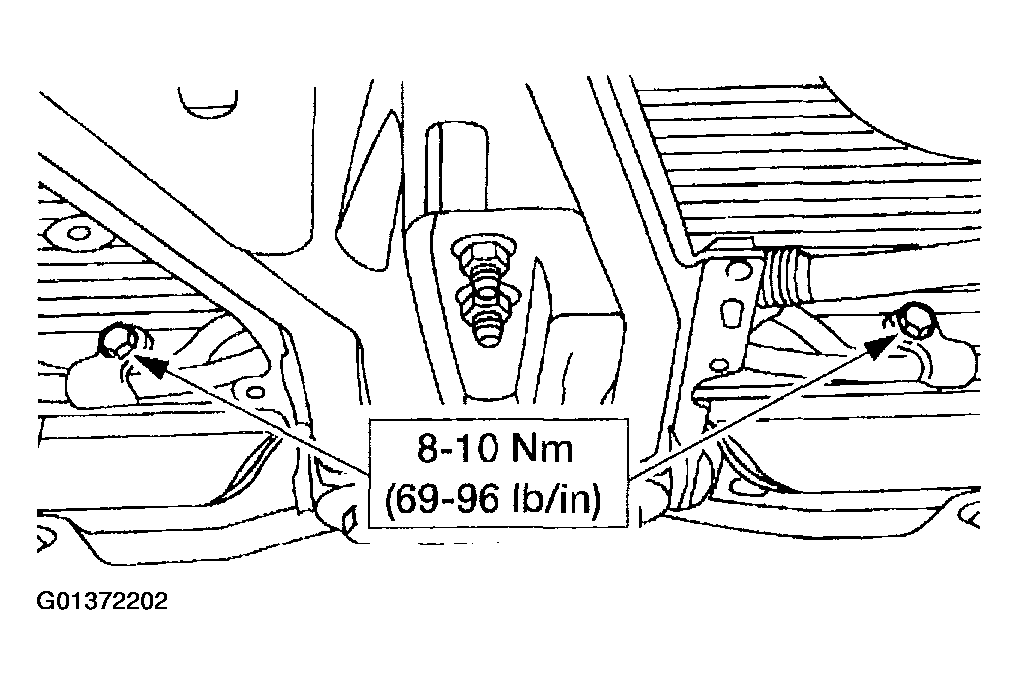

    Fig 1: Installing Fluid Cooler Tube Bracket Bolts
    G01372202Courtesy of FORD MOTOR CO.
    Fig 2: Installing Fluid Cooler Tube Bracket Bolts
    G01372203Courtesy of FORD MOTOR CO.

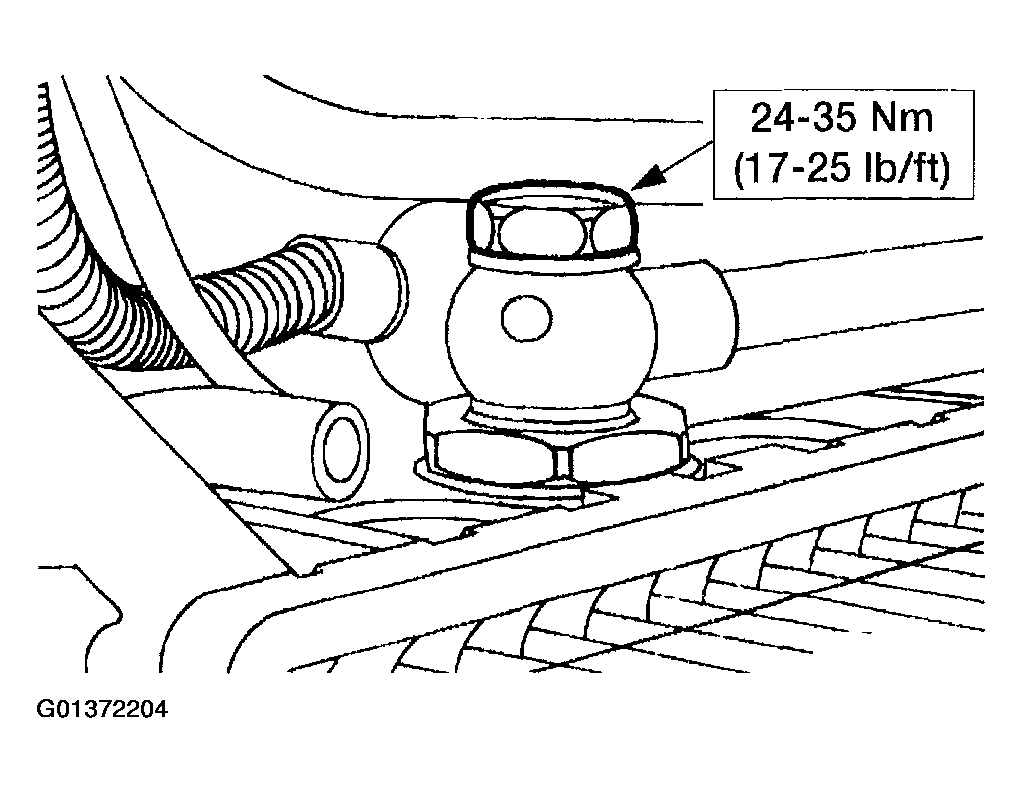

    Fig 3: Connecting Lower Fluid Cooler Tube Banjo Bolt
    G01372204Courtesy of FORD MOTOR CO.
  1. To install, reverse the removal procedure.
