Cable Adjustment - Shift

  1. With the gearshift lever (7210) in the PARK position, loosen the transmission range switch cable nut.

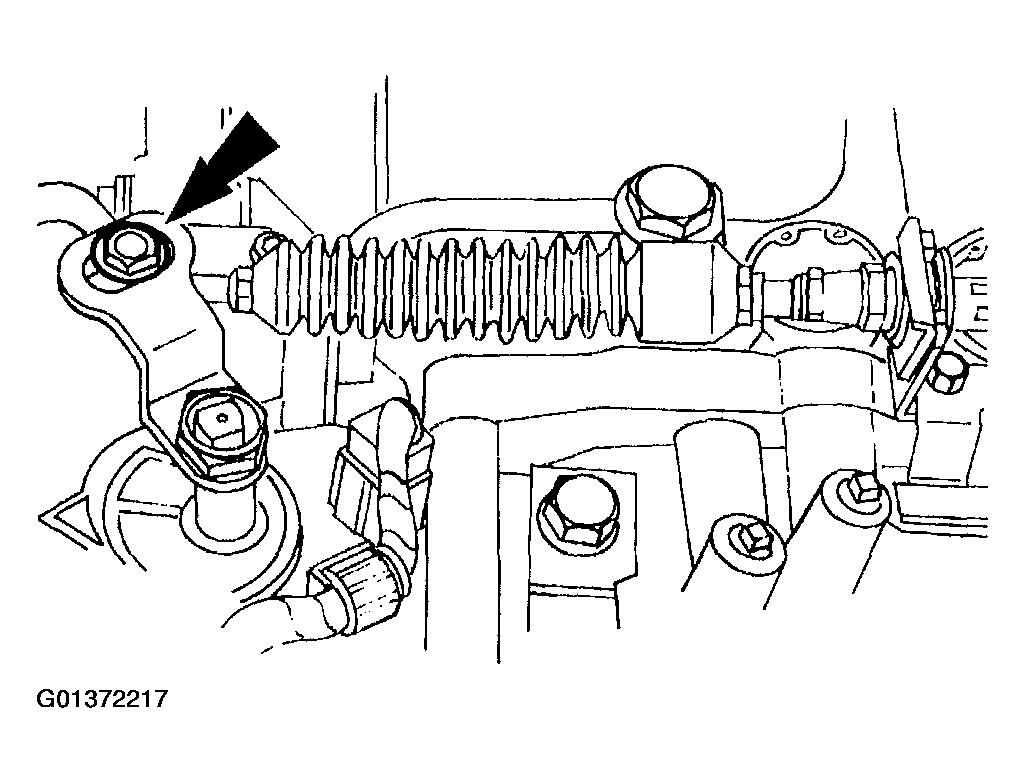

    Fig 1: Loosening Transmission Range Switch Cable Nut
    G01372217Courtesy of FORD MOTOR CO.
  2. Manually move the shift cable rearward as far as possible.

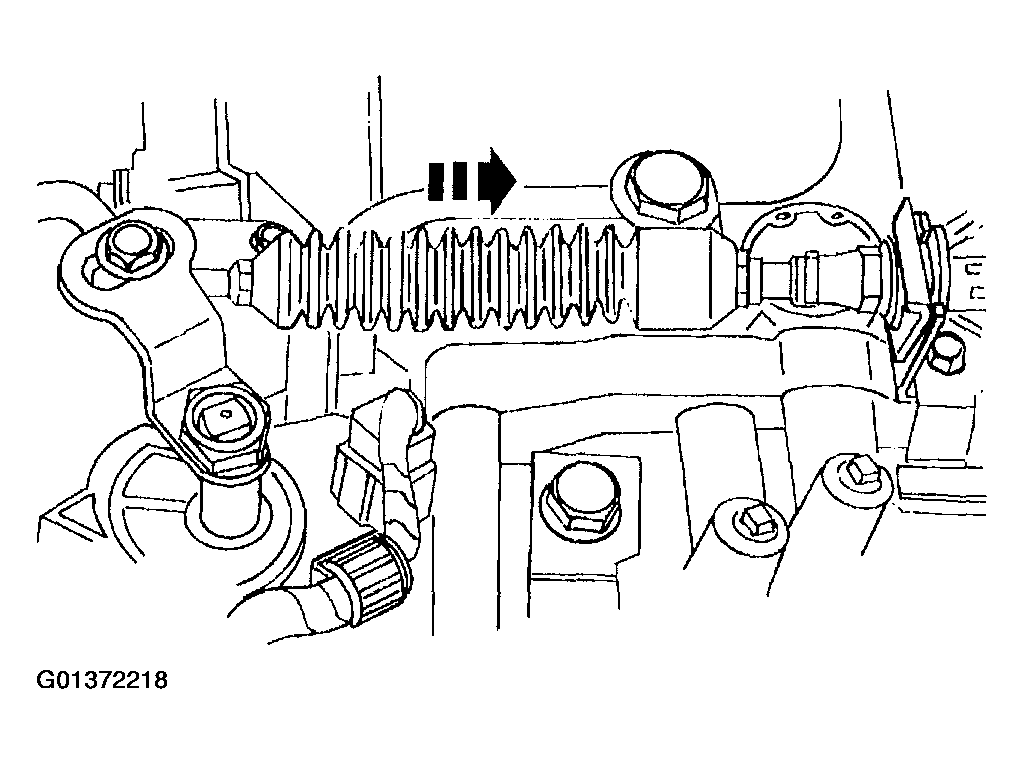

    Fig 2: Moving Shift Cable Rearward
    G01372218Courtesy of FORD MOTOR CO.
  3. Check the cable for any tension or restriction of movement and then tighten the transmission range switch cable nut to specification.

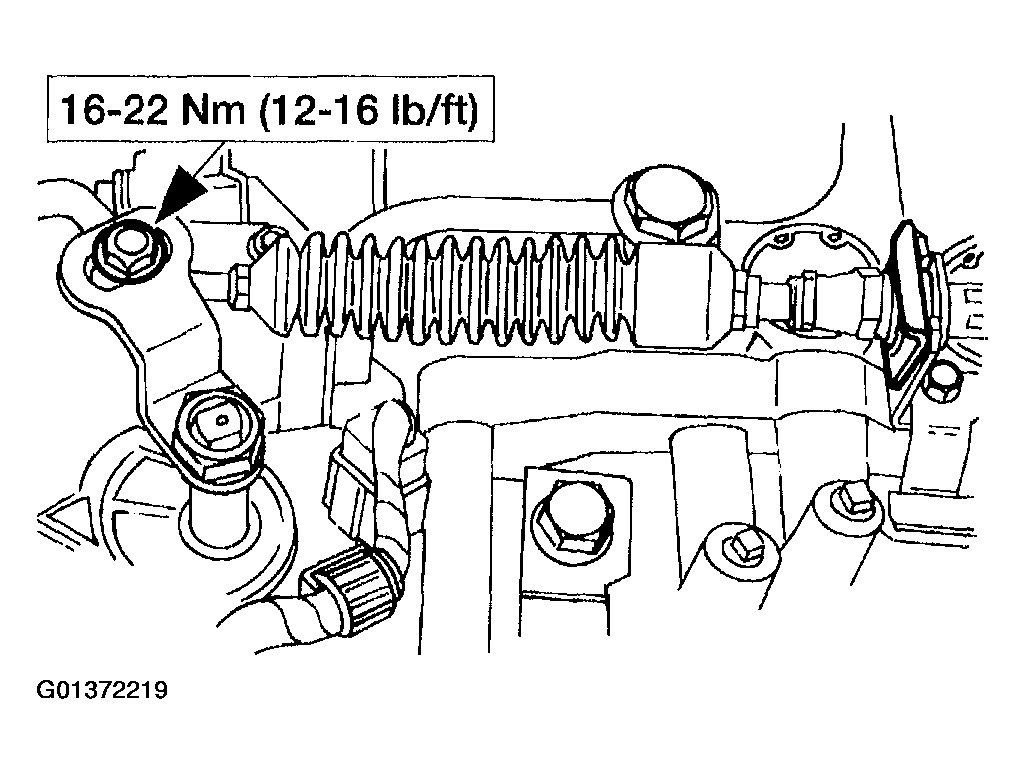

Fig 3: Tightening Transmission Range Switch Cable Nut
G01372219Courtesy of FORD MOTOR CO.
