External Controls

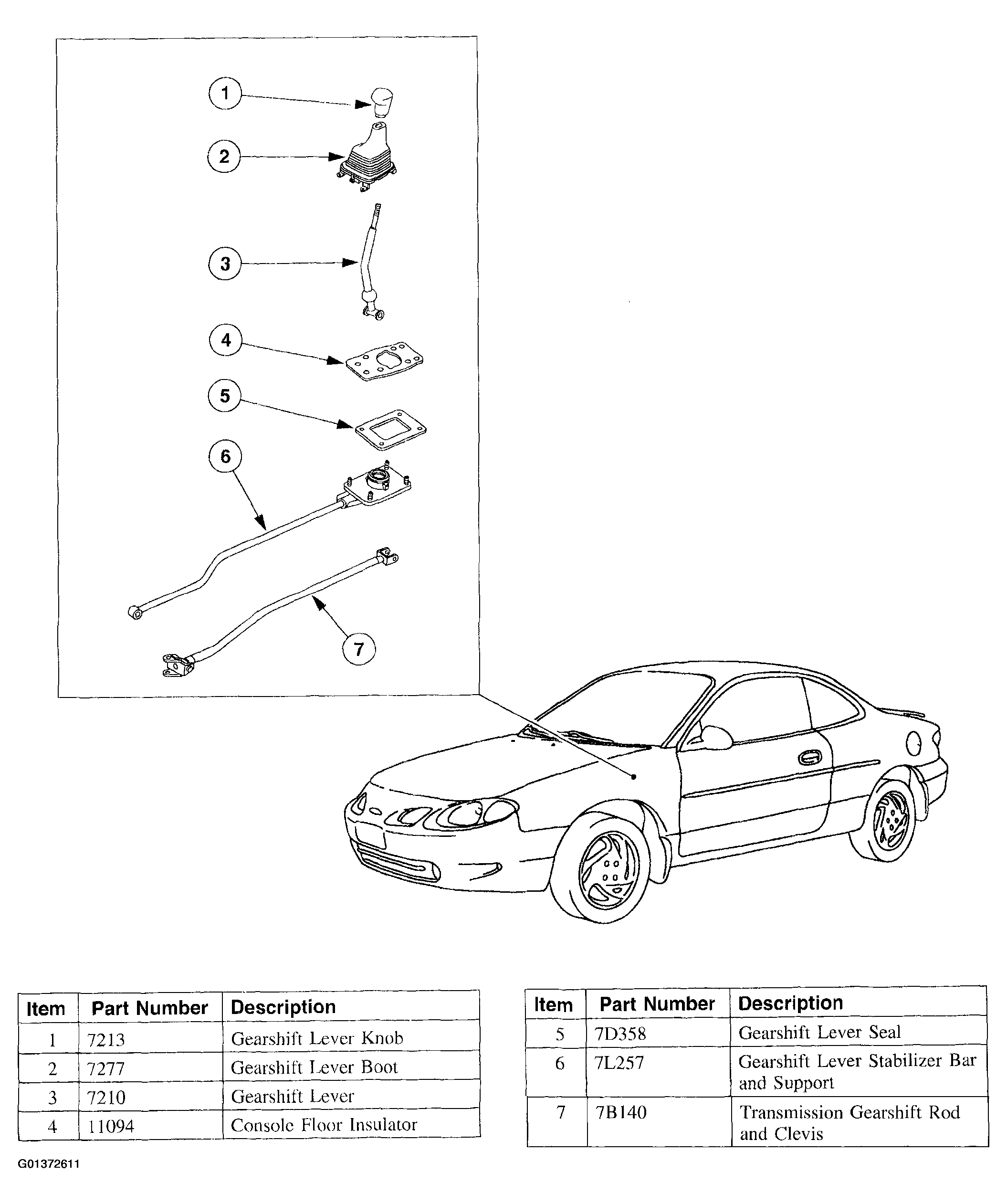

Fig 1: Exploded View Of External Controls Components
G01372611Courtesy of FORD MOTOR CO.

The manual transaxle is controlled by a floor mounted gearshift lever (7210) located in the floor console.
