Disassembly And Assembly Of Subassemblies: Synchronizers: Assembly

    NOTE: Align the index marks during assembly. Assemble the synchronizer.

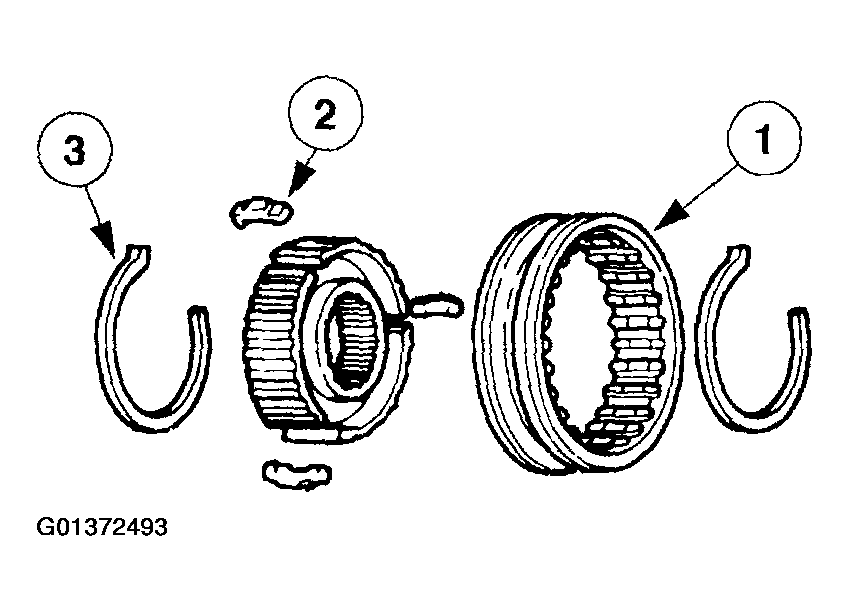

    Fig 1: Assembling Synchronizer Assembly
    G01372493Courtesy of FORD MOTOR CO.
    1. Position the synchronizer hub and sleeve together.
    2. Install the synchronizer hub inserts.
    3. Install the synchronizer blocking springs.
