Master window/door lock/unlock switch

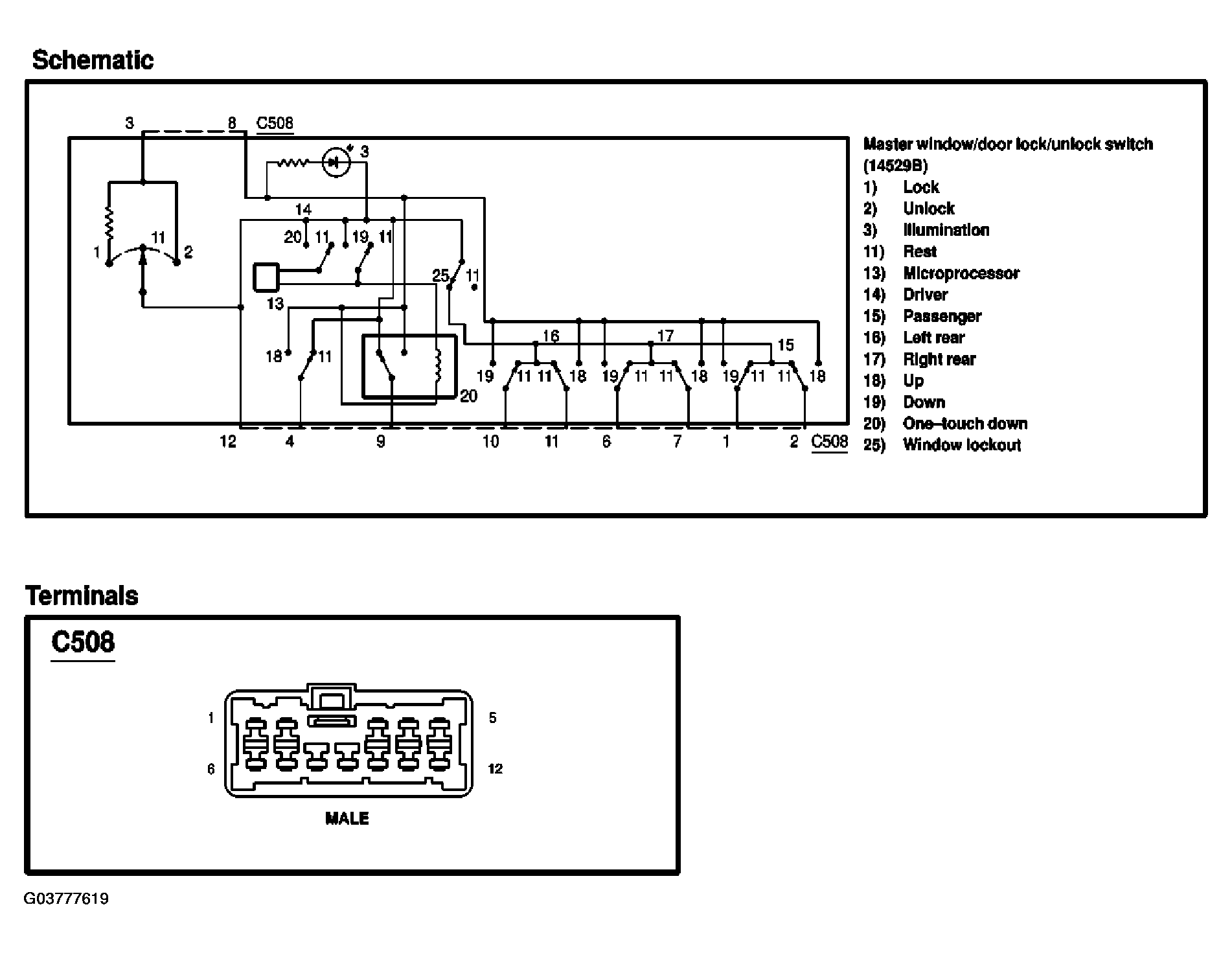

Fig 1: Testing Master Window/Door Lock/Unlock Switch (1 Of 2)
G03777619Courtesy of FORD MOTOR CO.

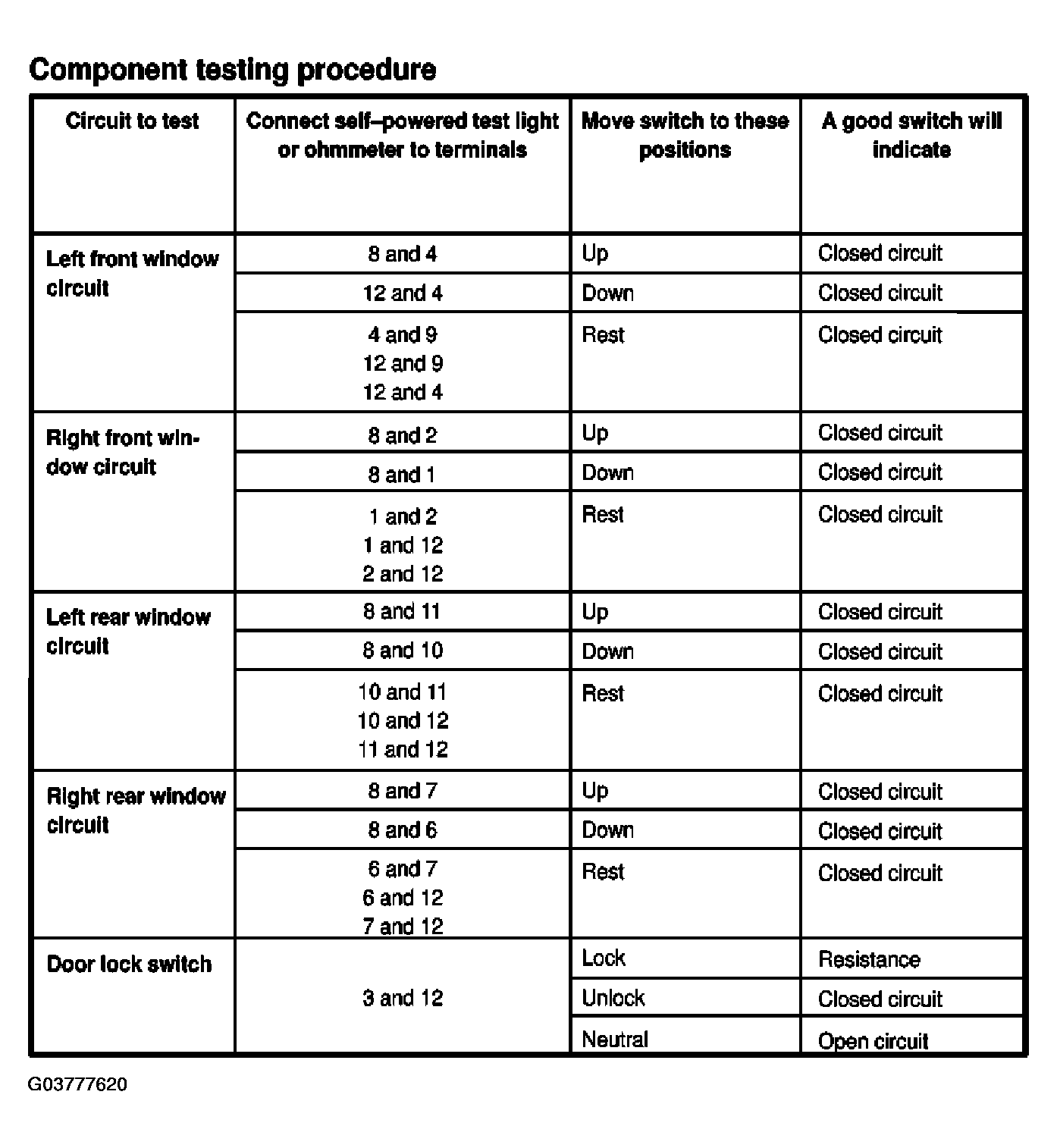

Fig 2: Testing Master Window/Door Lock/Unlock Switch (2 Of 2)
G03777620Courtesy of FORD MOTOR CO.
