Main Control Valve Body: Notes

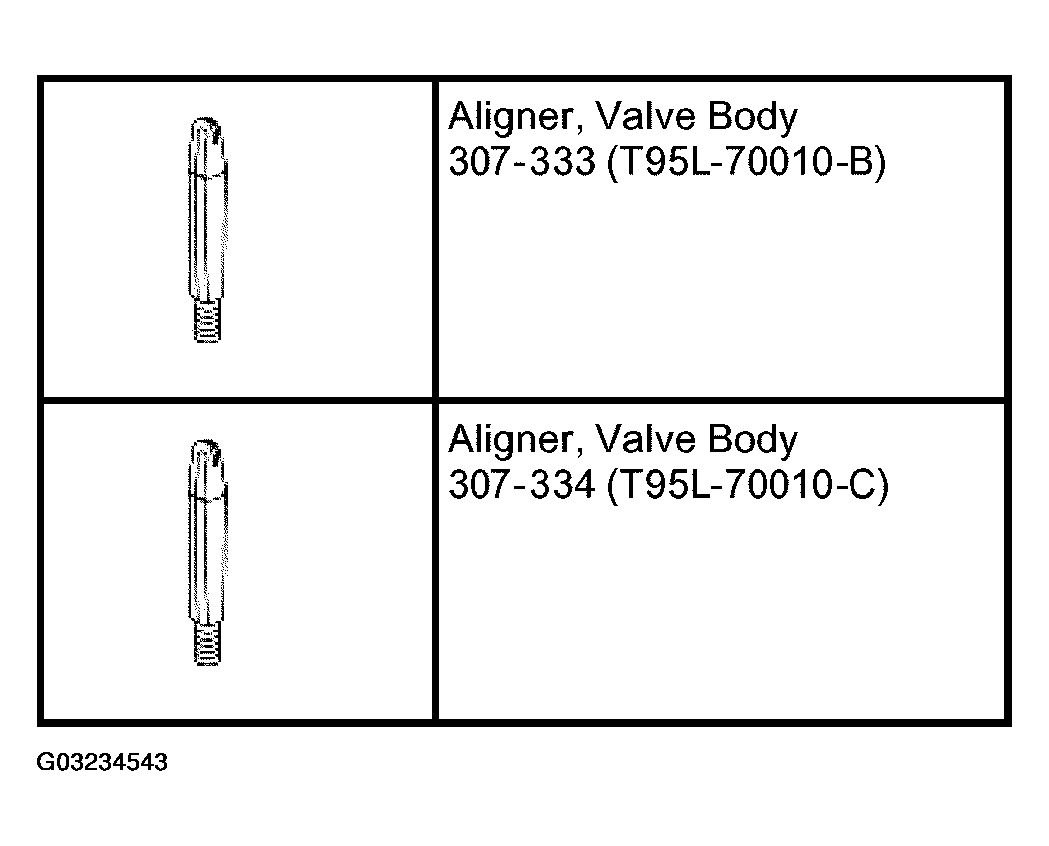

Fig 1: Identifying Special Tools
G03234543Courtesy of FORD MOTOR CO.

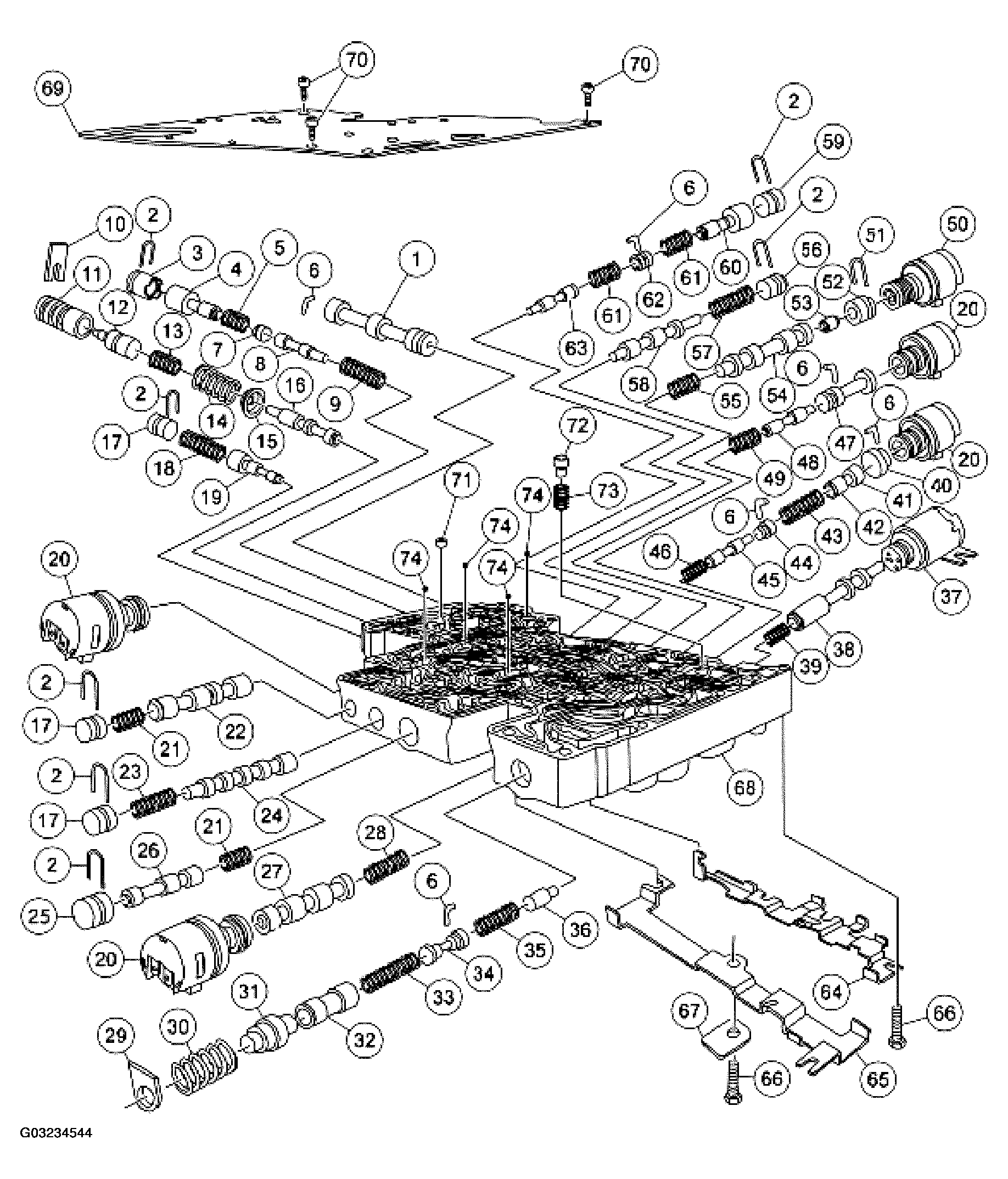

Fig 2: Exploded View Of Main Control Valve Body
G03234544Courtesy of FORD MOTOR CO.

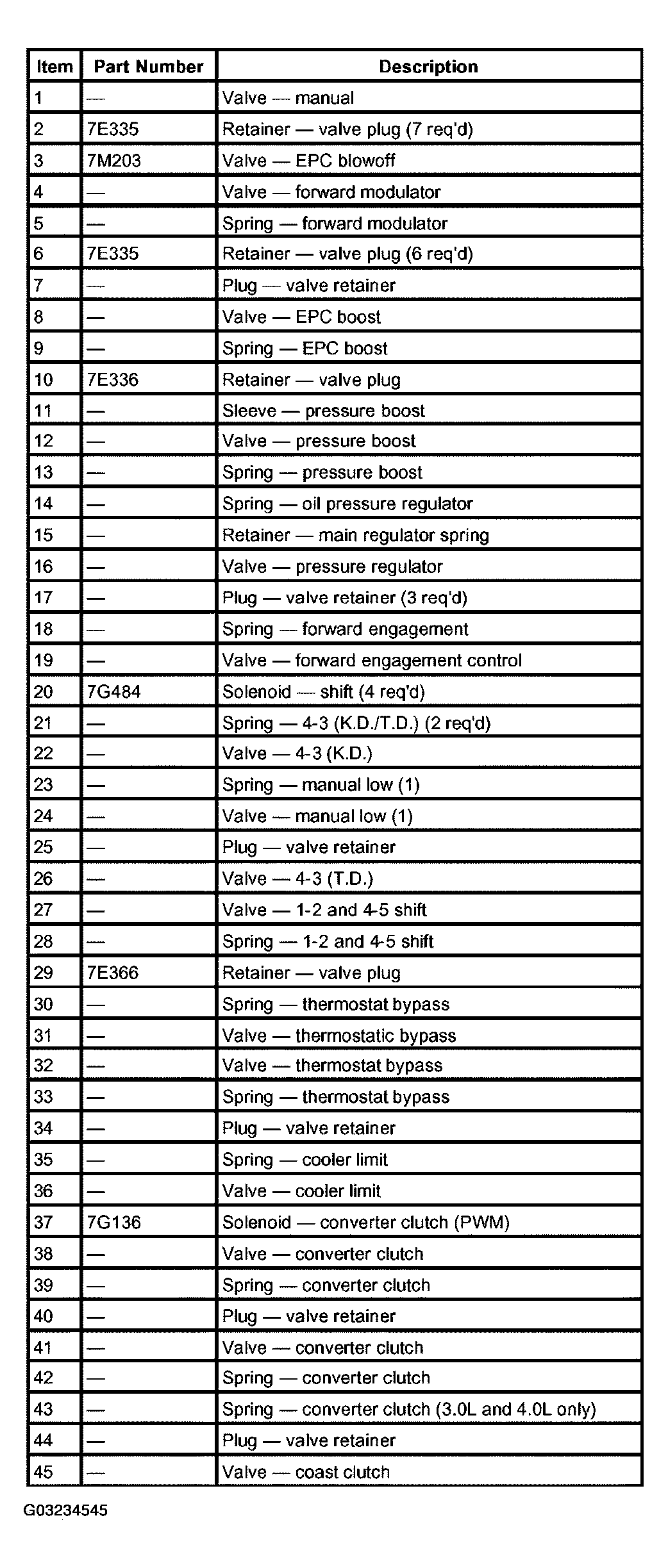

Fig 3: Item Description Of Main Control Valve Body (Items 1-45)
G03234545Courtesy of FORD MOTOR CO.

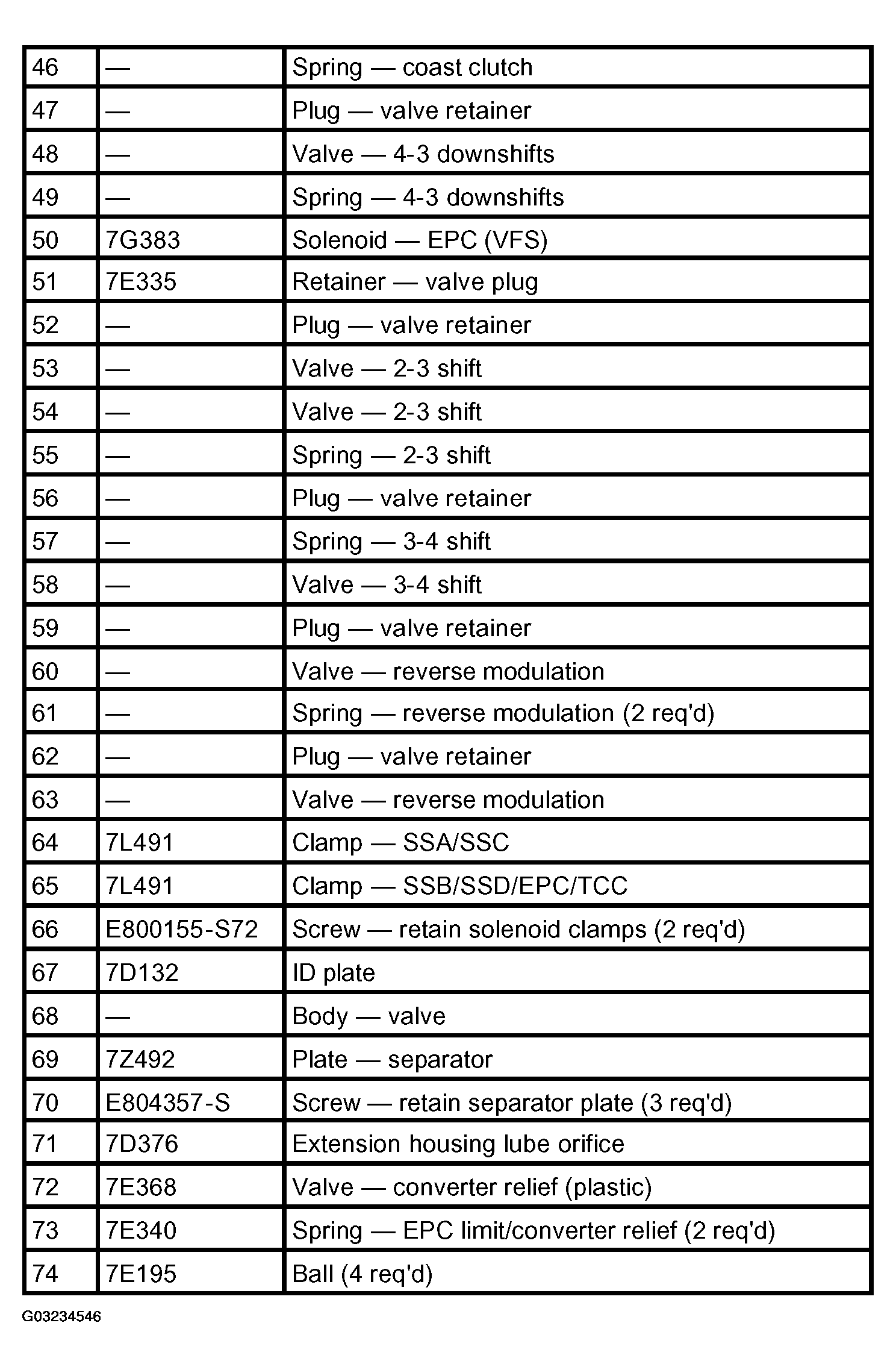

Fig 4: Item Description Of Main Control Valve Body (Items 46-74)
G03234546Courtesy of FORD MOTOR CO.
