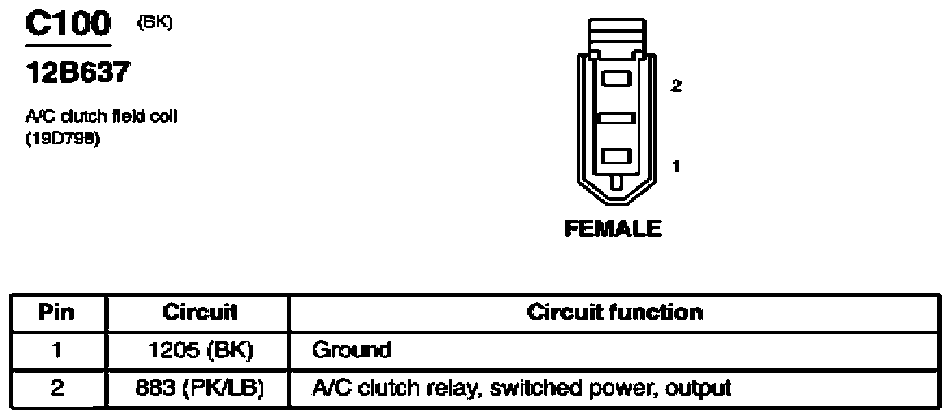

Fig 1: A/C Clutch Field Coil Connector End View (C100)
Courtesy of FORD MOTOR CO.

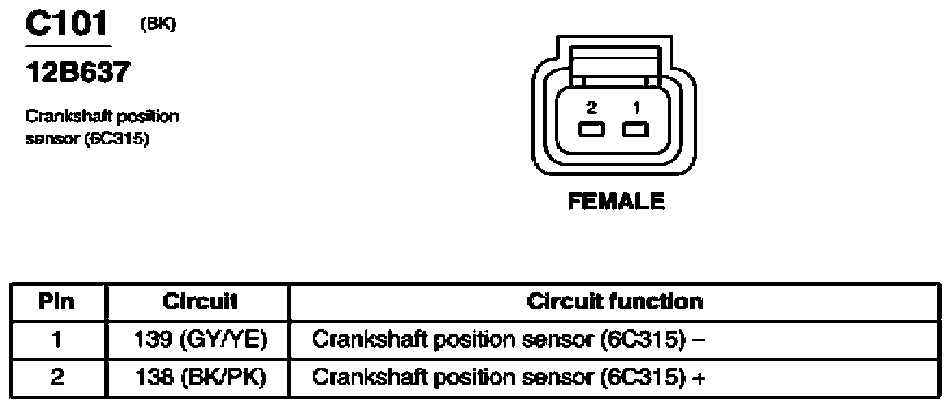

Fig 2: Crankshaft Position Sensor Connector End View (C101)
Courtesy of FORD MOTOR CO.

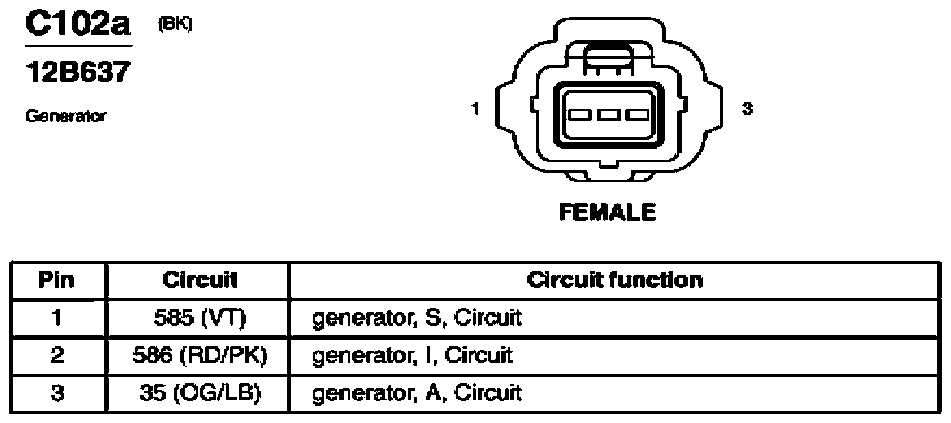

Fig 3: Generator Connector End View (C102a)
Courtesy of FORD MOTOR CO.

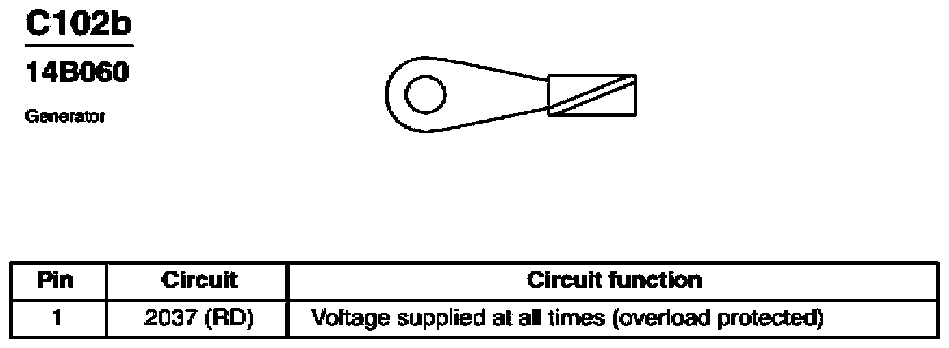

Fig 4: Generator Connector End View (C102b)
Courtesy of FORD MOTOR CO.
Fig 5: Oil Pressure Switch Connector End View (C103)
Courtesy of FORD MOTOR CO.

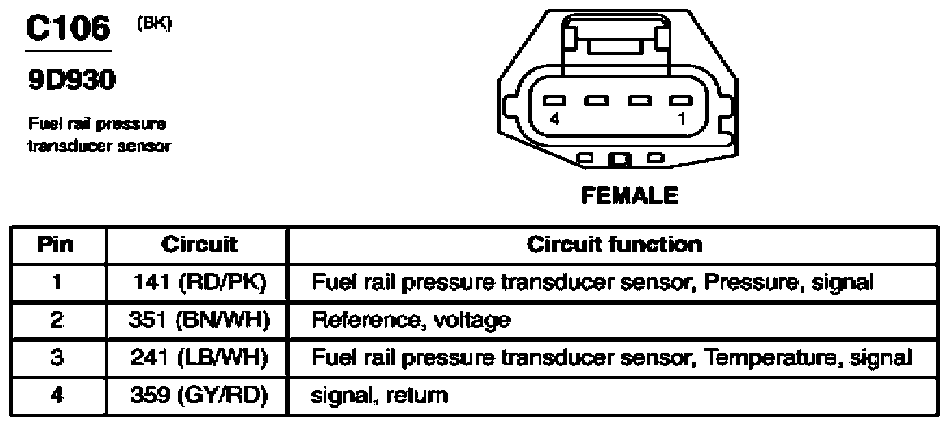

Fig 6: Fuel Rail Pressure Transducer Sensor Connector End View (C106)
Courtesy of FORD MOTOR CO.

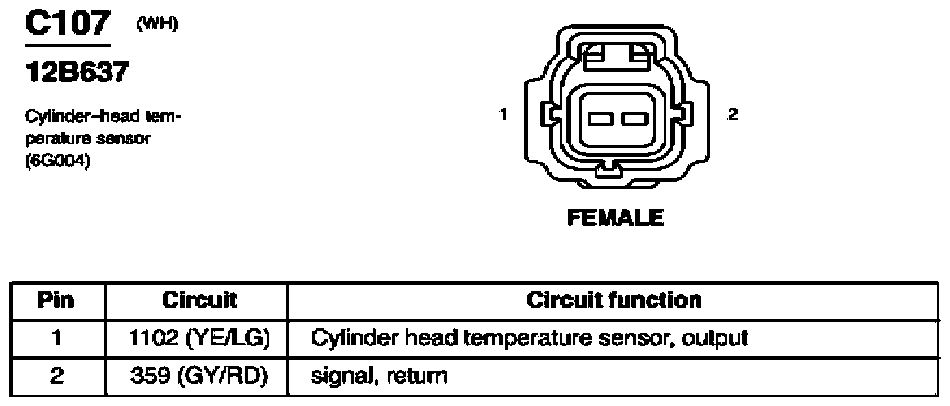

Fig 7: Cylinder-Head Temperature Sensor Connector End View (C107)
Courtesy of FORD MOTOR CO.

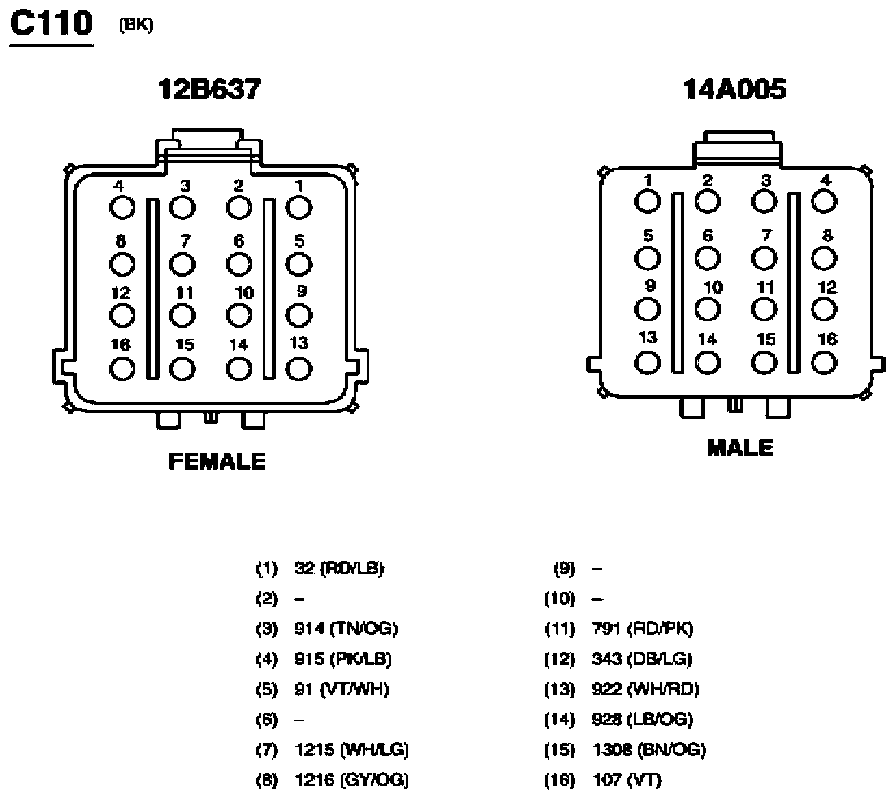

Fig 8: Inline Connector End View (C110)
Courtesy of FORD MOTOR CO.

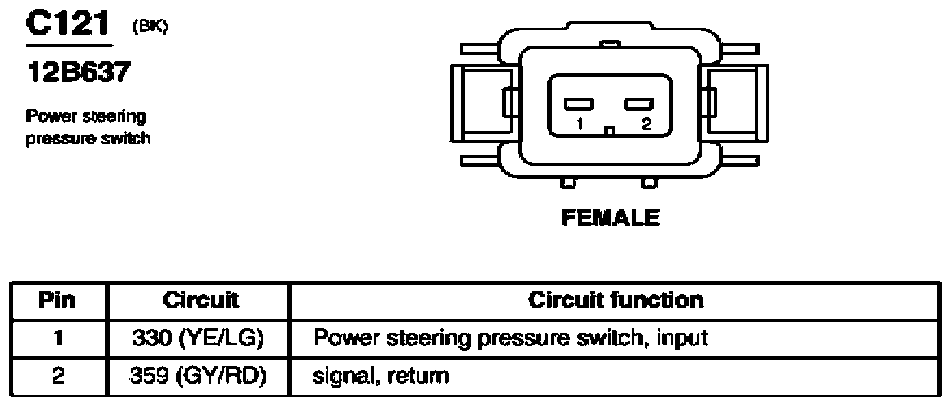

Fig 9: Power Steering Pressure Switch Connector End View (C121)
Courtesy of FORD MOTOR CO.

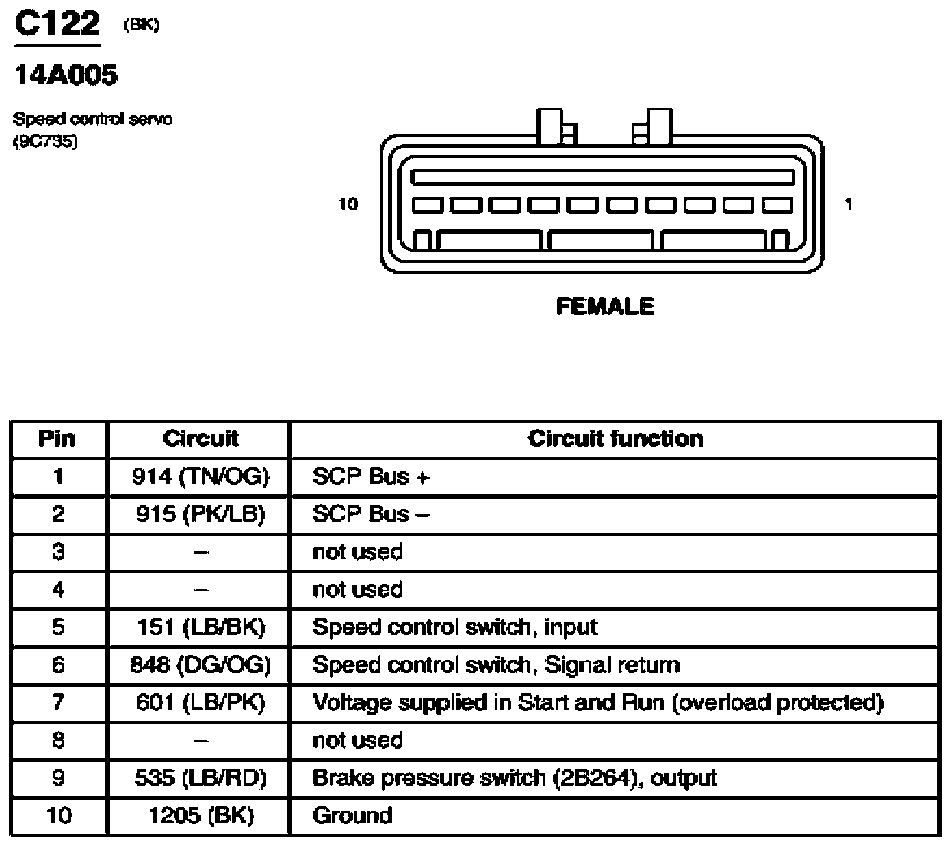

Fig 10: Speed Control Servo Connector End View (C122)
Courtesy of FORD MOTOR CO.

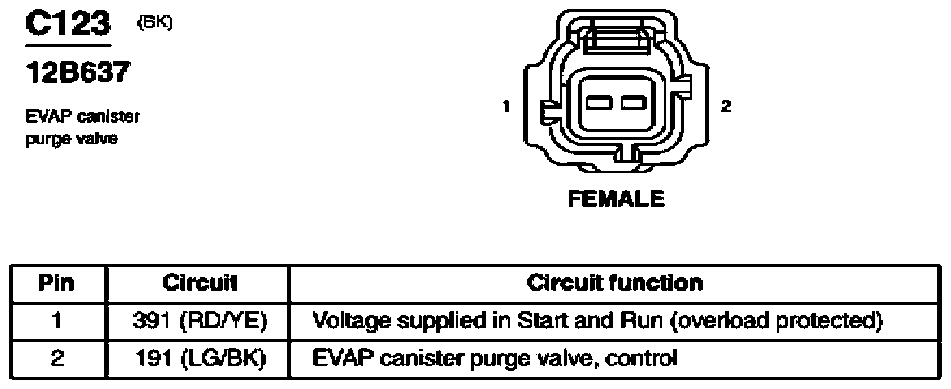

Fig 11: EVAP Canister Purge Valve Connector End View (C123)
Courtesy of FORD MOTOR CO.

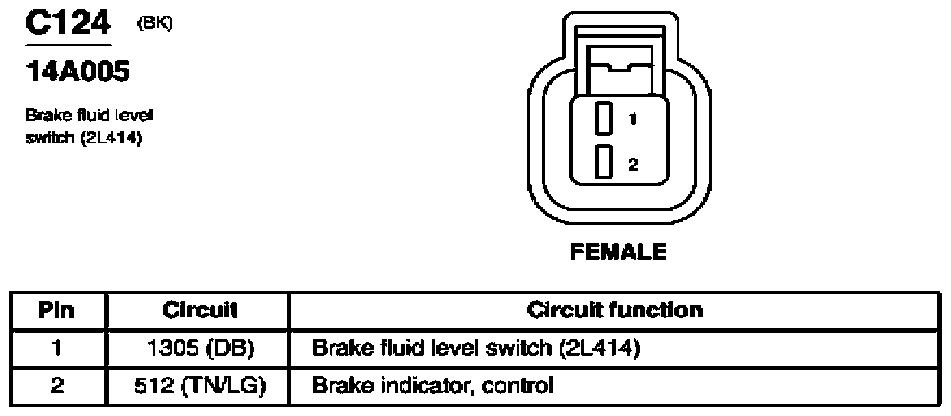

Fig 12: Brake Fluid Level Switch Connector End View (C124)
Courtesy of FORD MOTOR CO.

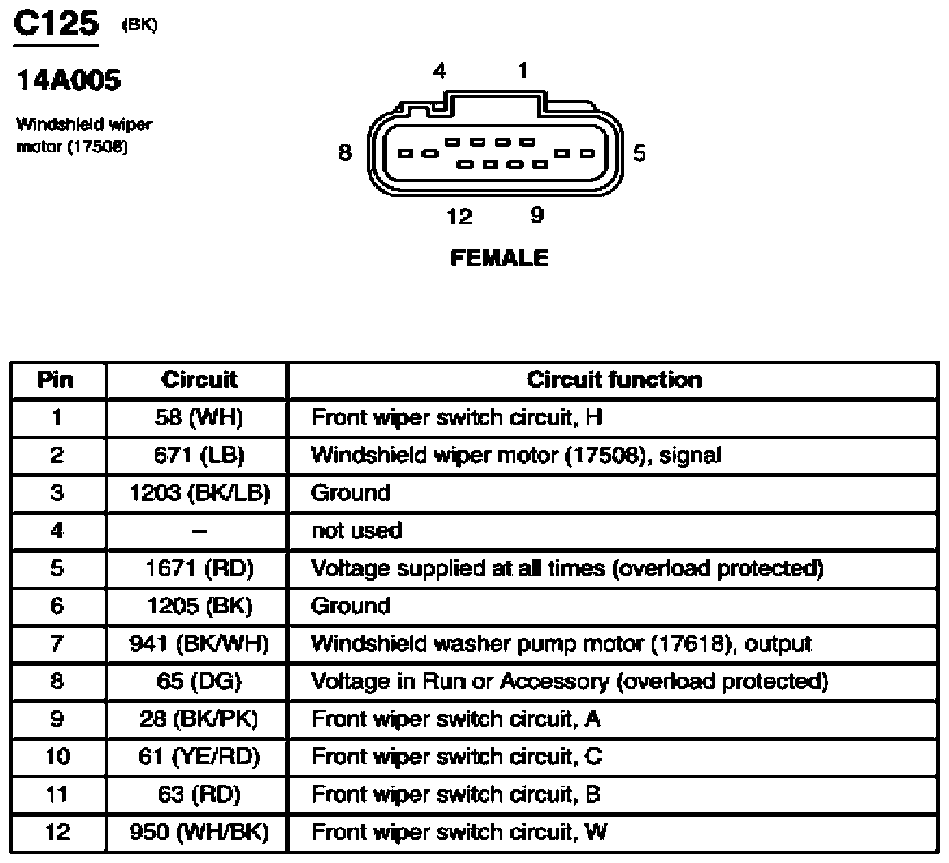

Fig 13: Windshield Wiper Motor Connector End View (C125)
Courtesy of FORD MOTOR CO.

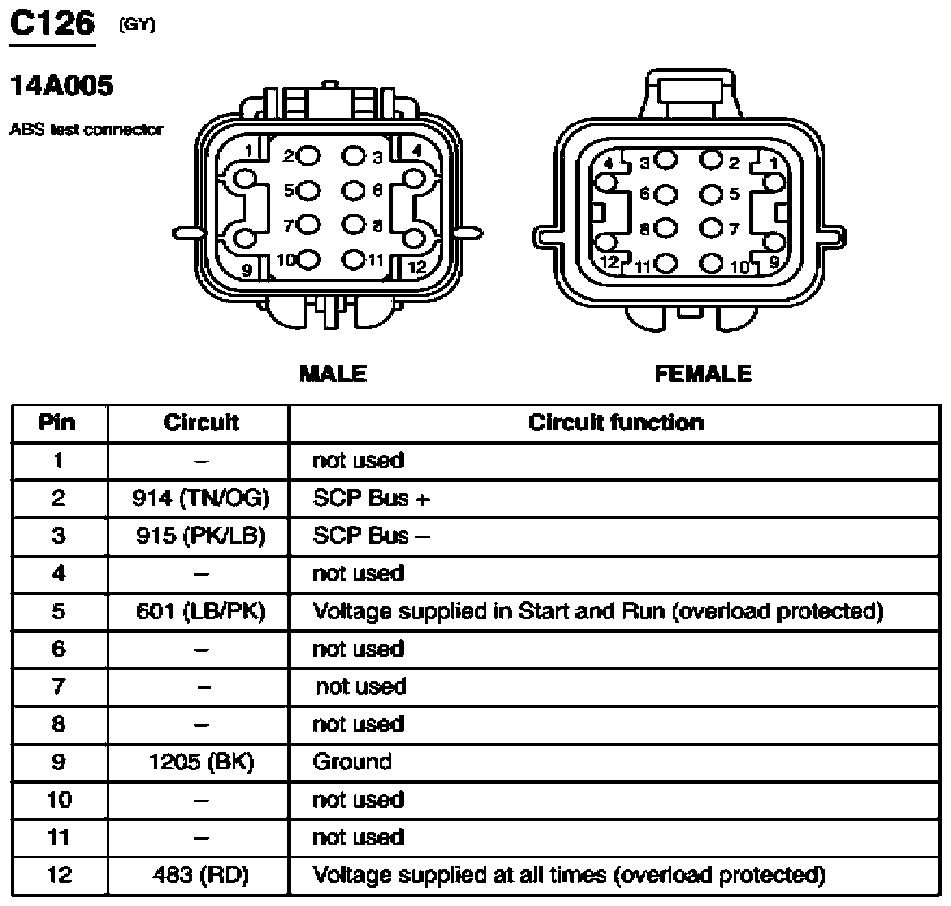

Fig 14: ABS Test Connector End View (C126)
Courtesy of FORD MOTOR CO.

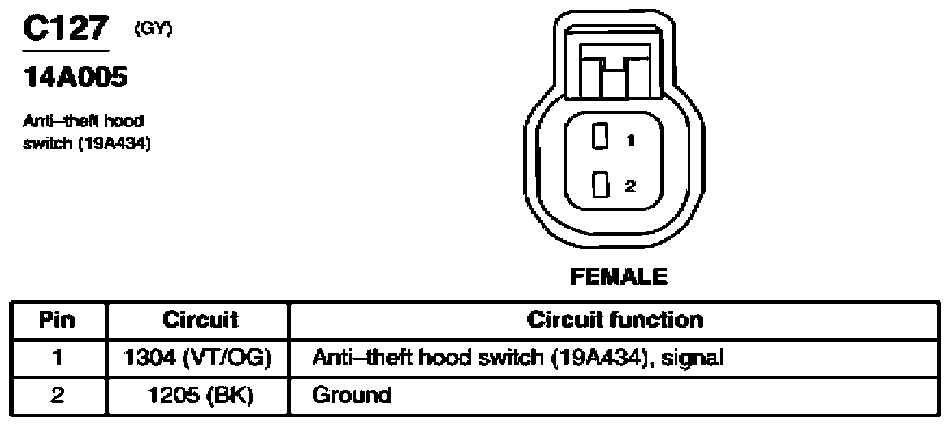

Fig 15: Anti-Theft Hood Switch Connector End View (C127)
Courtesy of FORD MOTOR CO.

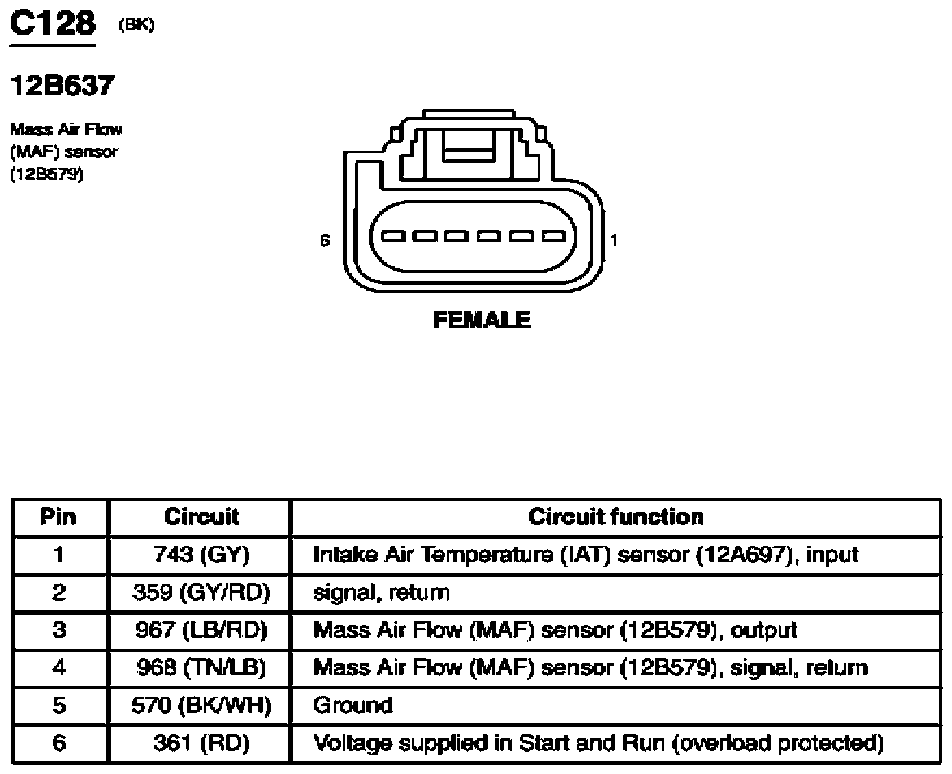

Fig 16: Mass Air Flow (MAF) Sensor Connector End View (C128)
Courtesy of FORD MOTOR CO.

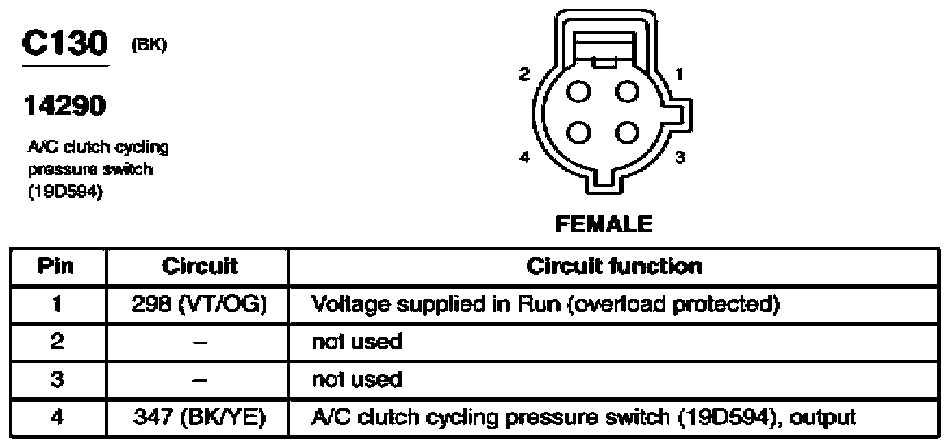

Fig 17: A/C Clutch Cycling Pressure Switch Connector End View (C130)
Courtesy of FORD MOTOR CO.

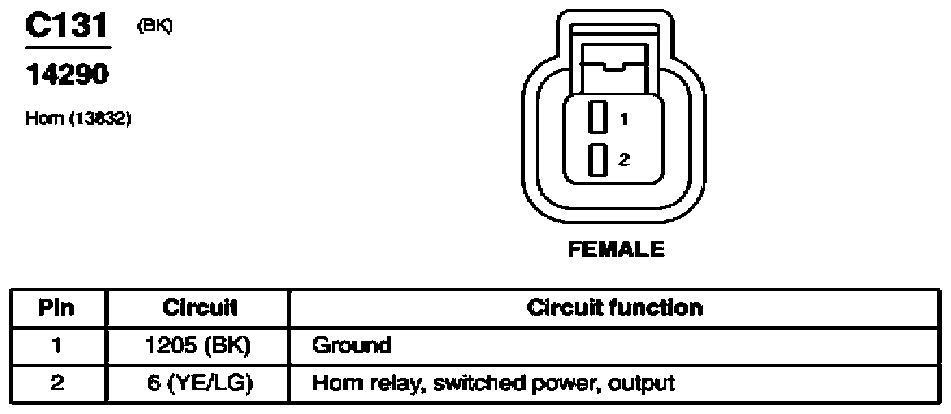

Fig 18: Horn Connector End View (C131)
Courtesy of FORD MOTOR CO.

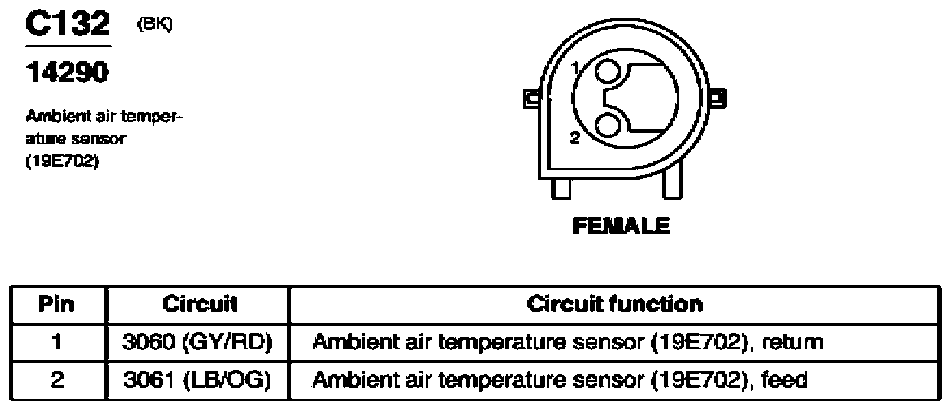

Fig 19: Ambient Air Temperature Sensor Connector End View (C132)
Courtesy of FORD MOTOR CO.

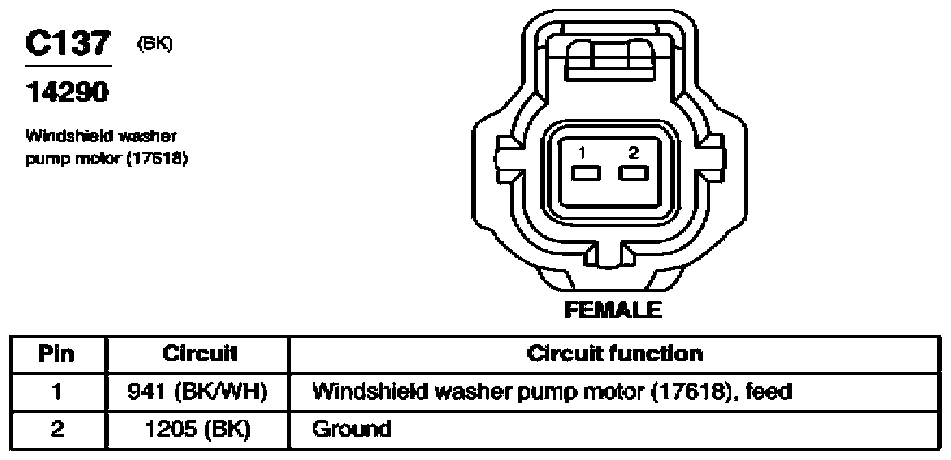

Fig 20: Windshield Washer Pump Motor Connector End View (C137)
Courtesy of FORD MOTOR CO.

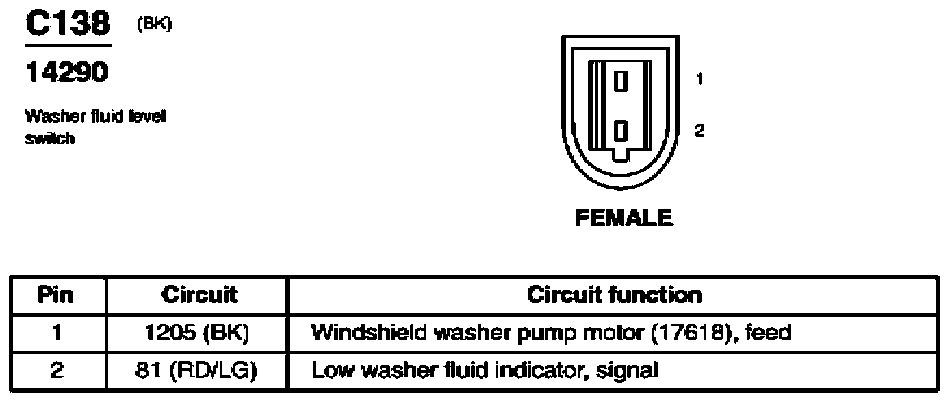

Fig 21: Washer Fluid Level Switch Connector End View (C138)
Courtesy of FORD MOTOR CO.

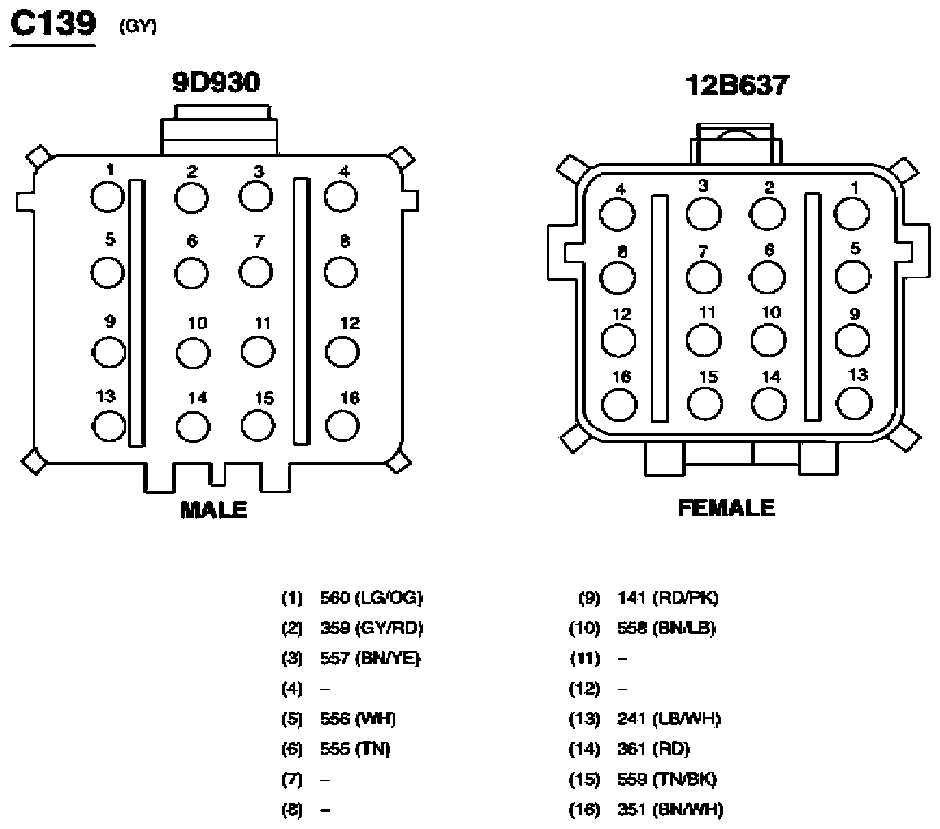

Fig 22: Inline Connector End View (C139)
Courtesy of FORD MOTOR CO.

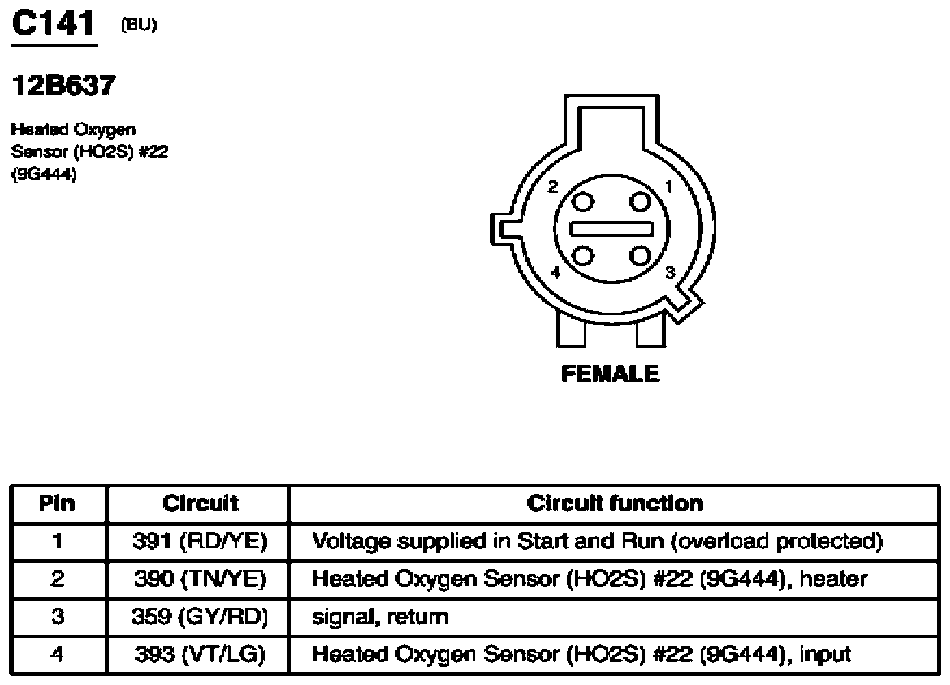

Fig 23: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)
Courtesy of FORD MOTOR CO.

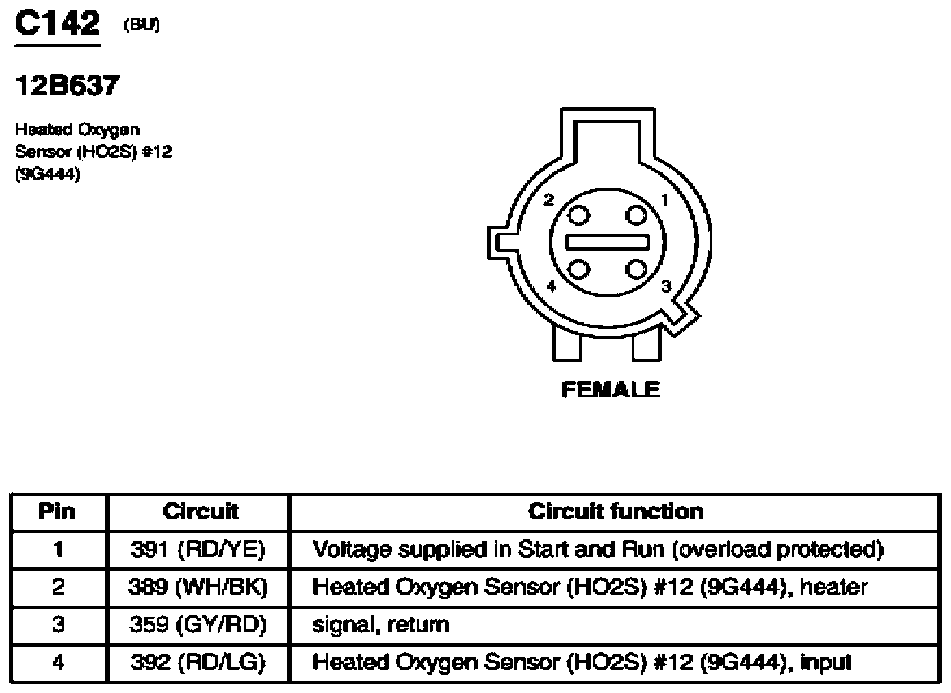

Fig 24: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)
Courtesy of FORD MOTOR CO.

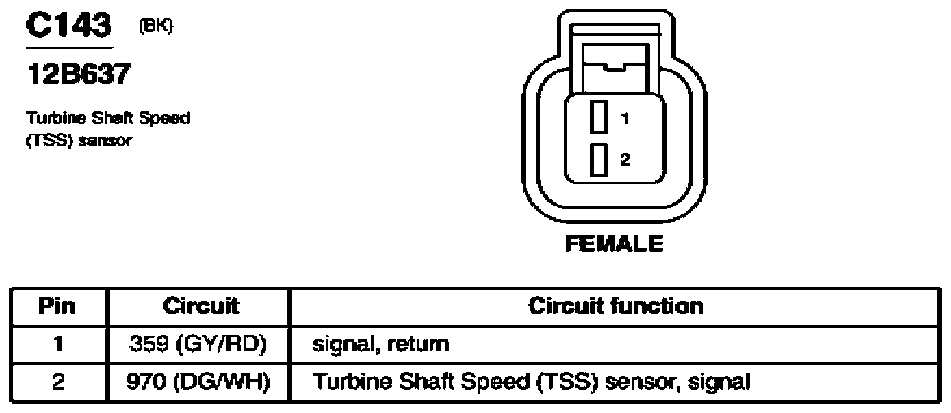

Fig 25: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)
Courtesy of FORD MOTOR CO.

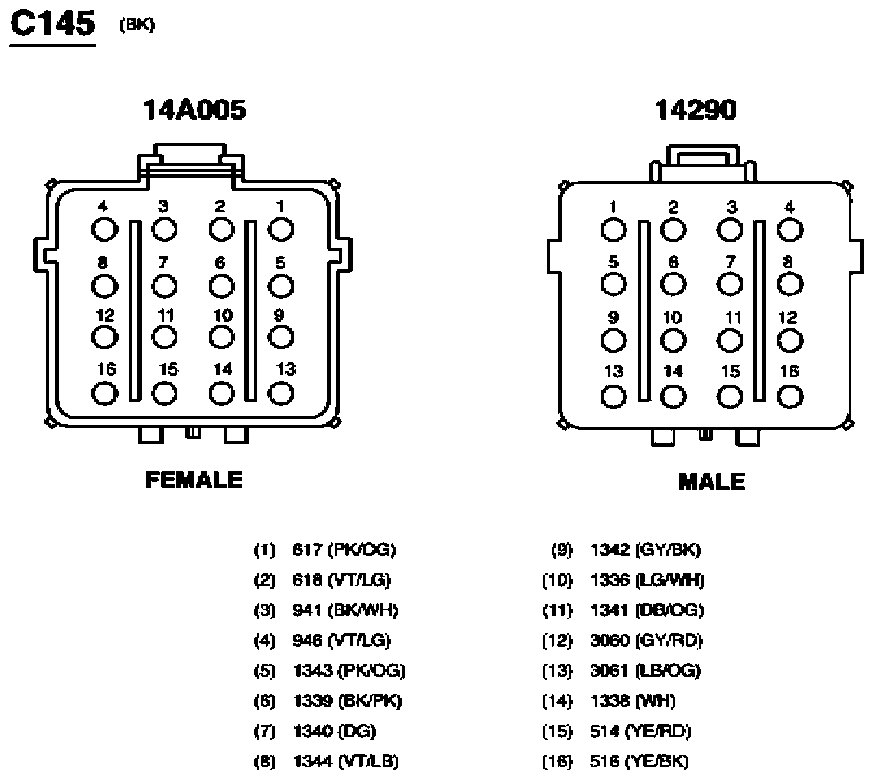

Fig 26: Inline Connector End View (C145)
Courtesy of FORD MOTOR CO.

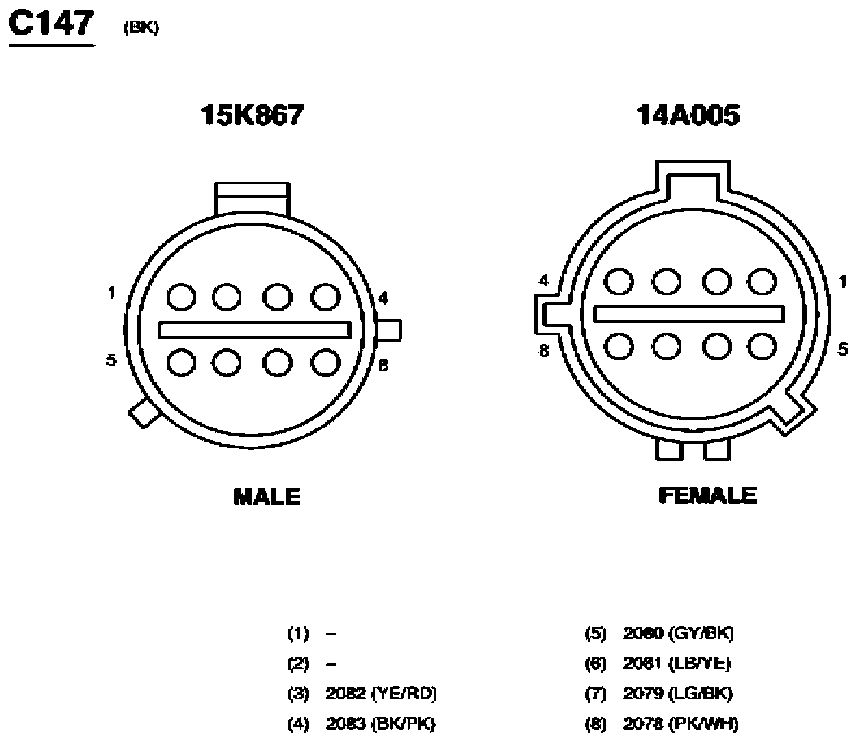

Fig 27: Inline Connector End View (C1147)
Courtesy of FORD MOTOR CO.

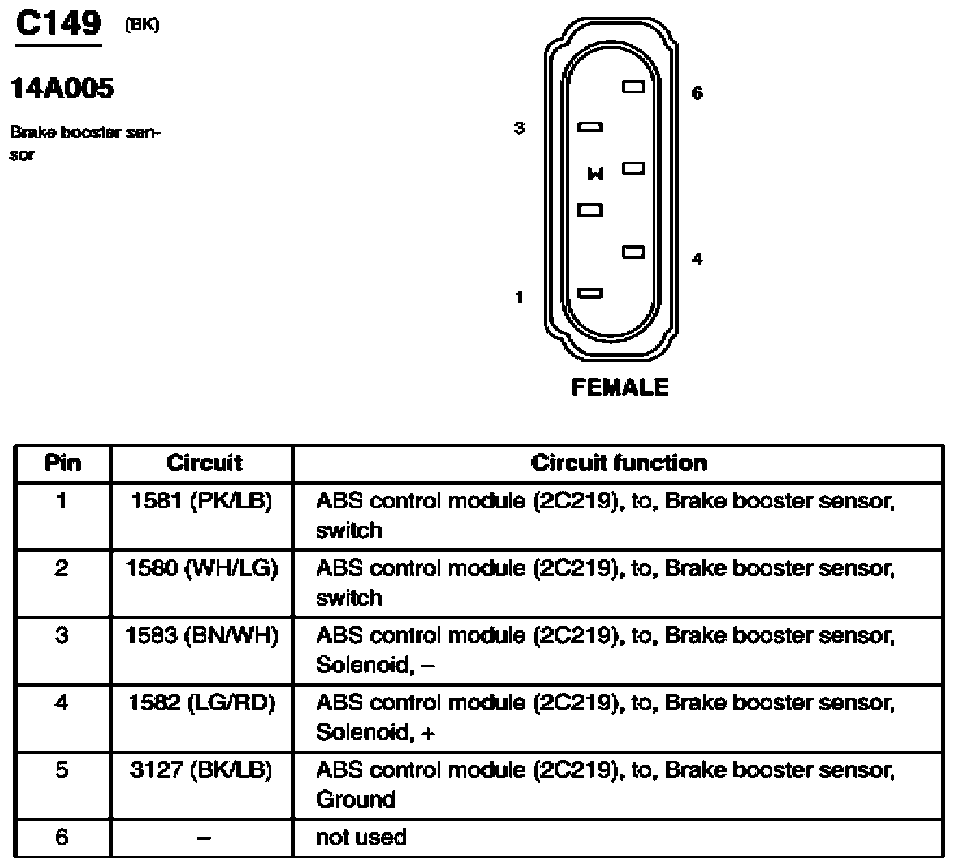

Fig 28: Brake Booster Sensor Connector End View (C149)
Courtesy of FORD MOTOR CO.

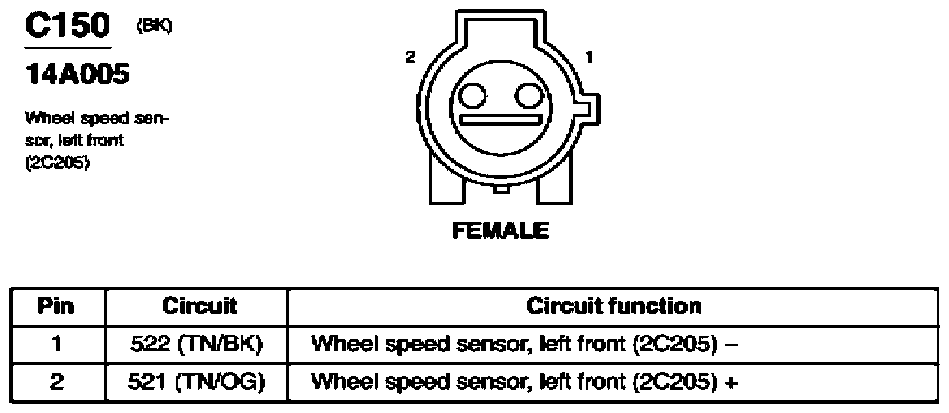

Fig 29: Wheel Speed Sensor, Left Front Connector End View (C150)
Courtesy of FORD MOTOR CO.

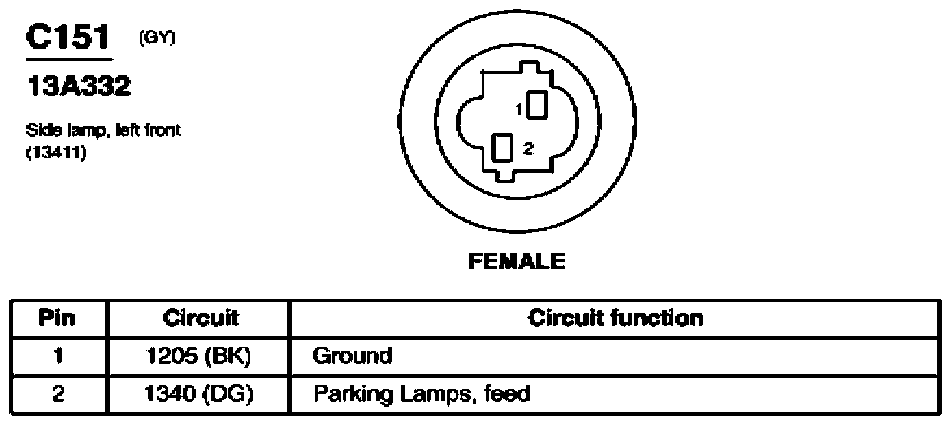

Fig 30: Side Lamp, Left Front Connector End View (C151)
Courtesy of FORD MOTOR CO.

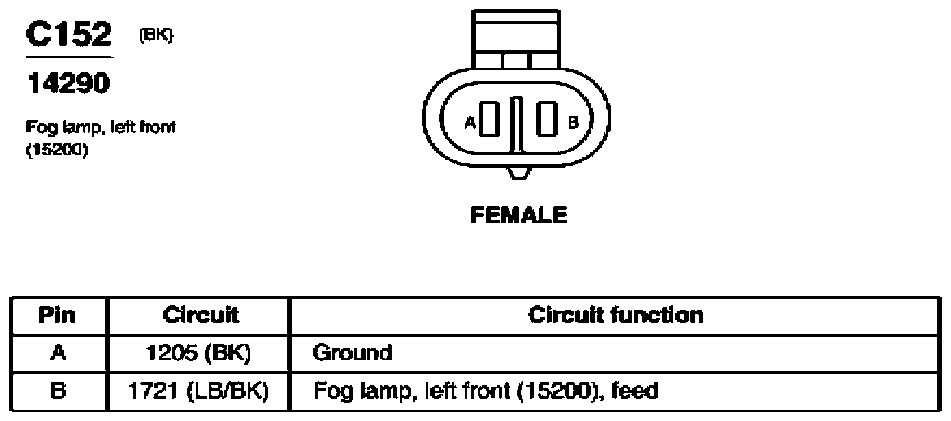

Fig 31: Fog Lamp, Left Front Connector End View (C152)
Courtesy of FORD MOTOR CO.

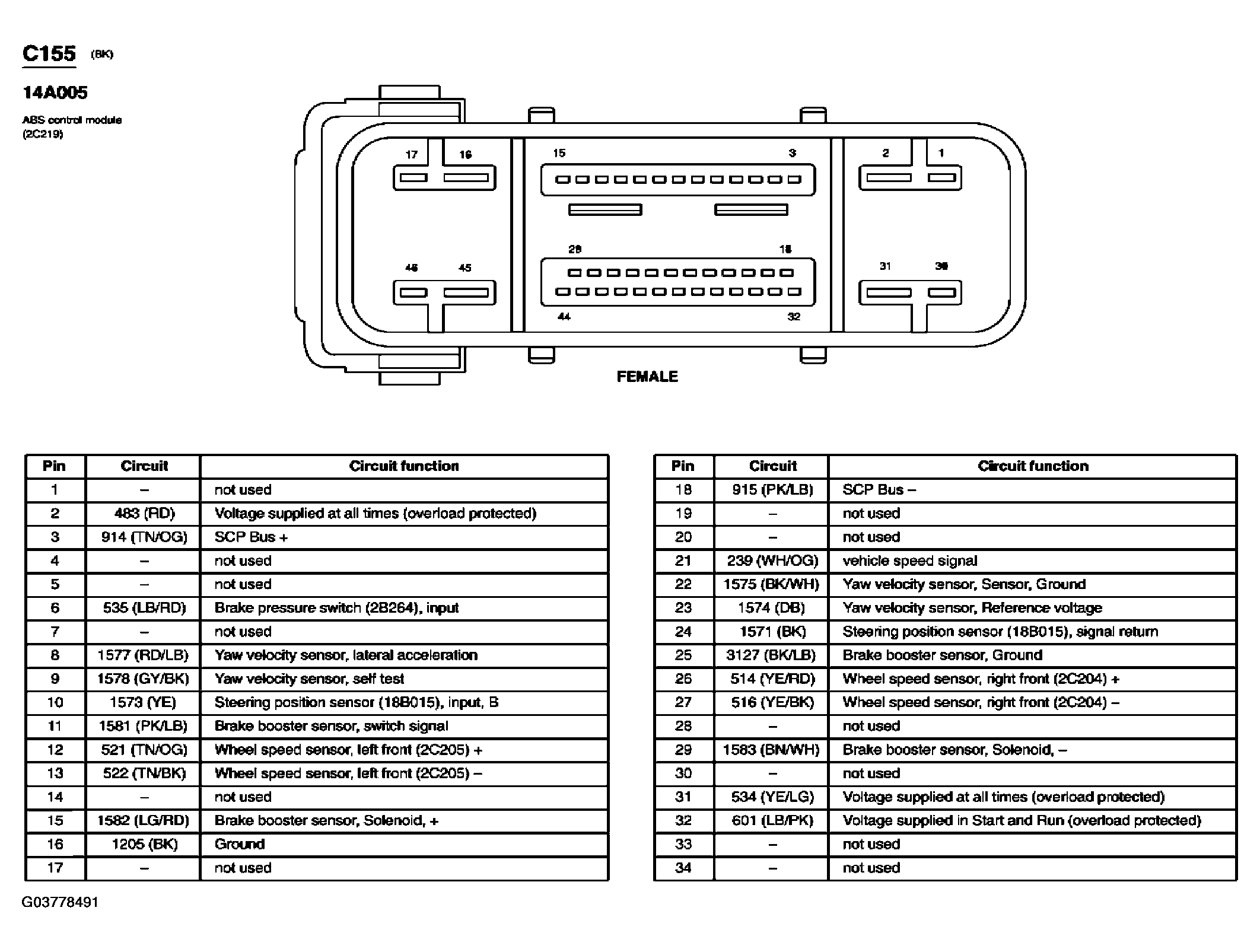

Fig 32: ABS Control Module Connector End View (C155) (1 Of 2)
Courtesy of FORD MOTOR CO.

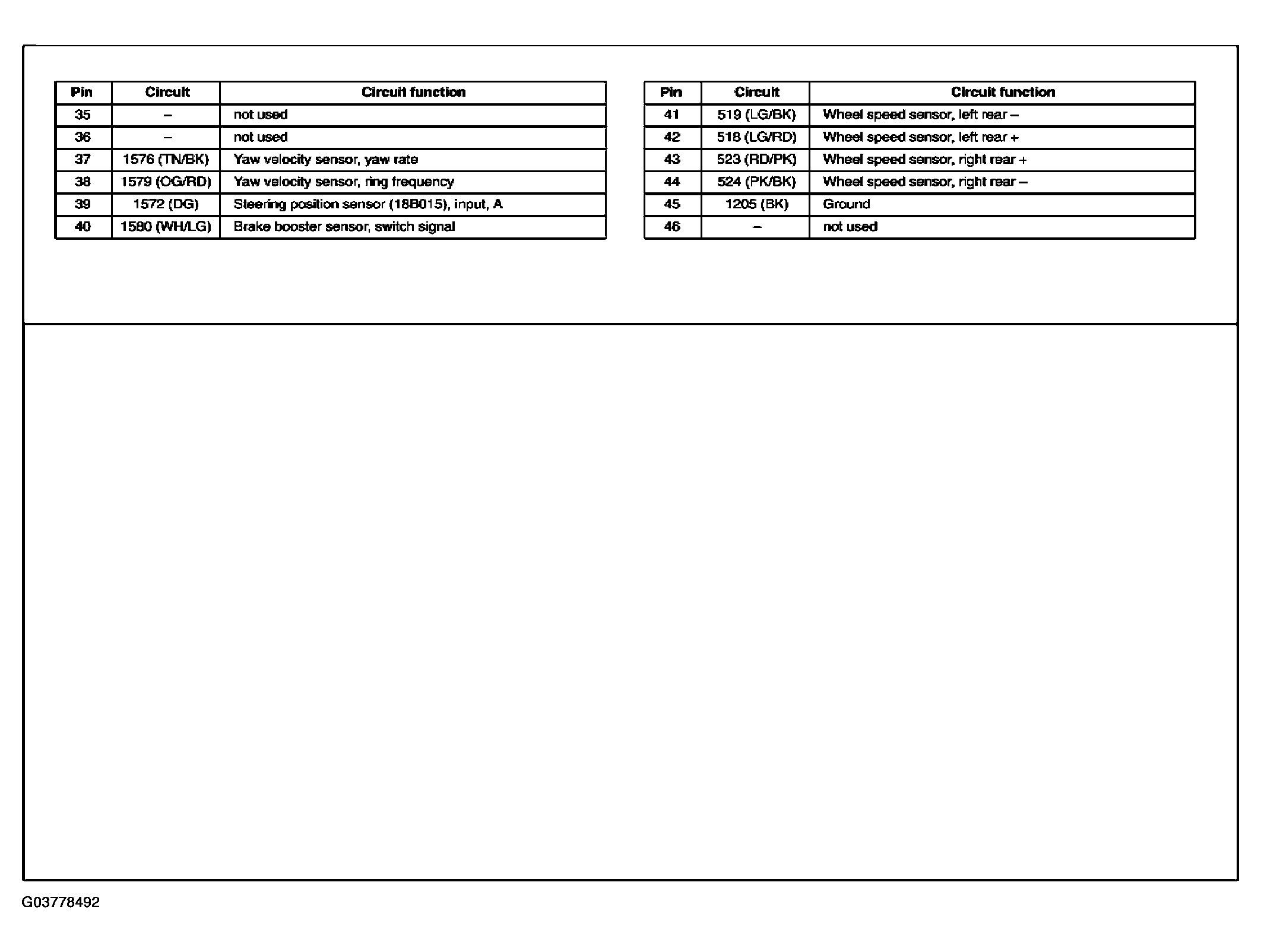

Fig 33: ABS Control Module Connector End View (C155) (2 Of 2)
Courtesy of FORD MOTOR CO.

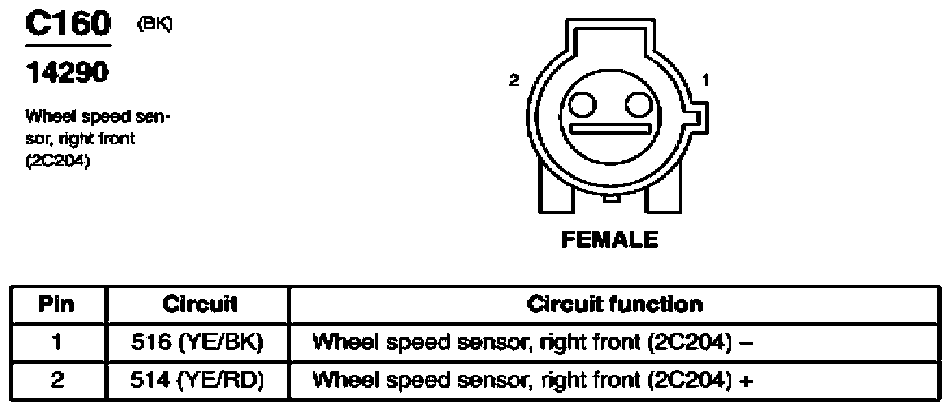

Fig 34: Wheel Speed Sensor, Right Front Connector End View (C160)
Courtesy of FORD MOTOR CO.

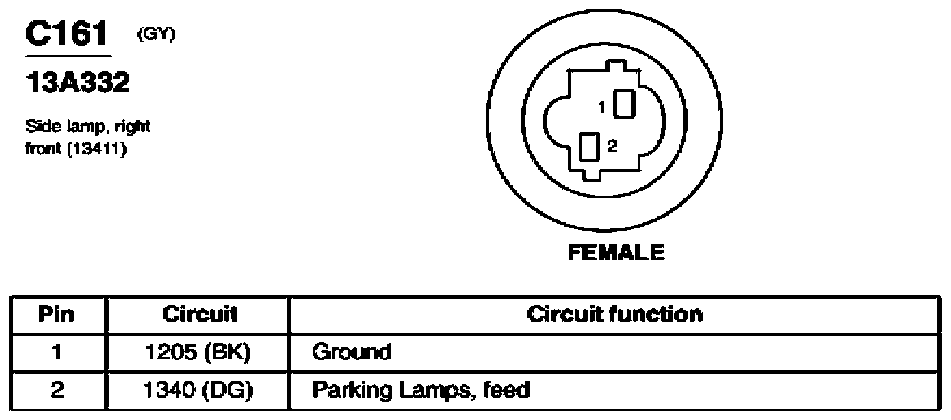

Fig 35: Side Lamp, Right Front Connector End View (C161)
Courtesy of FORD MOTOR CO.

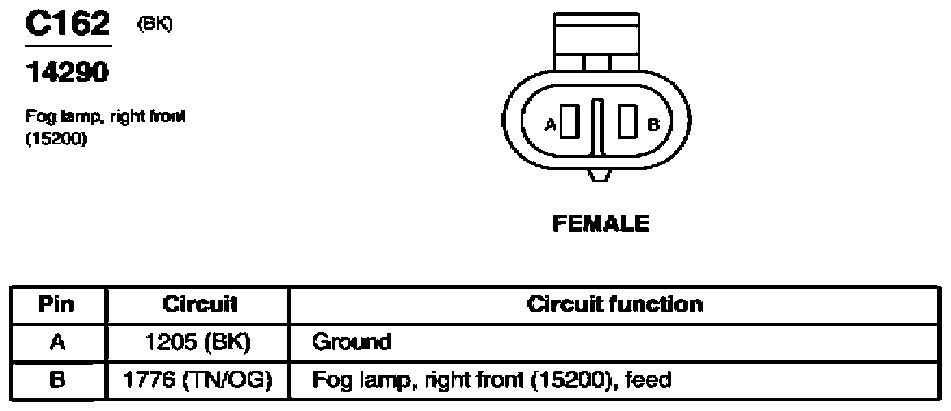

Fig 36: Fog Lamp, Right Front Connector End View (C162)
Courtesy of FORD MOTOR CO.

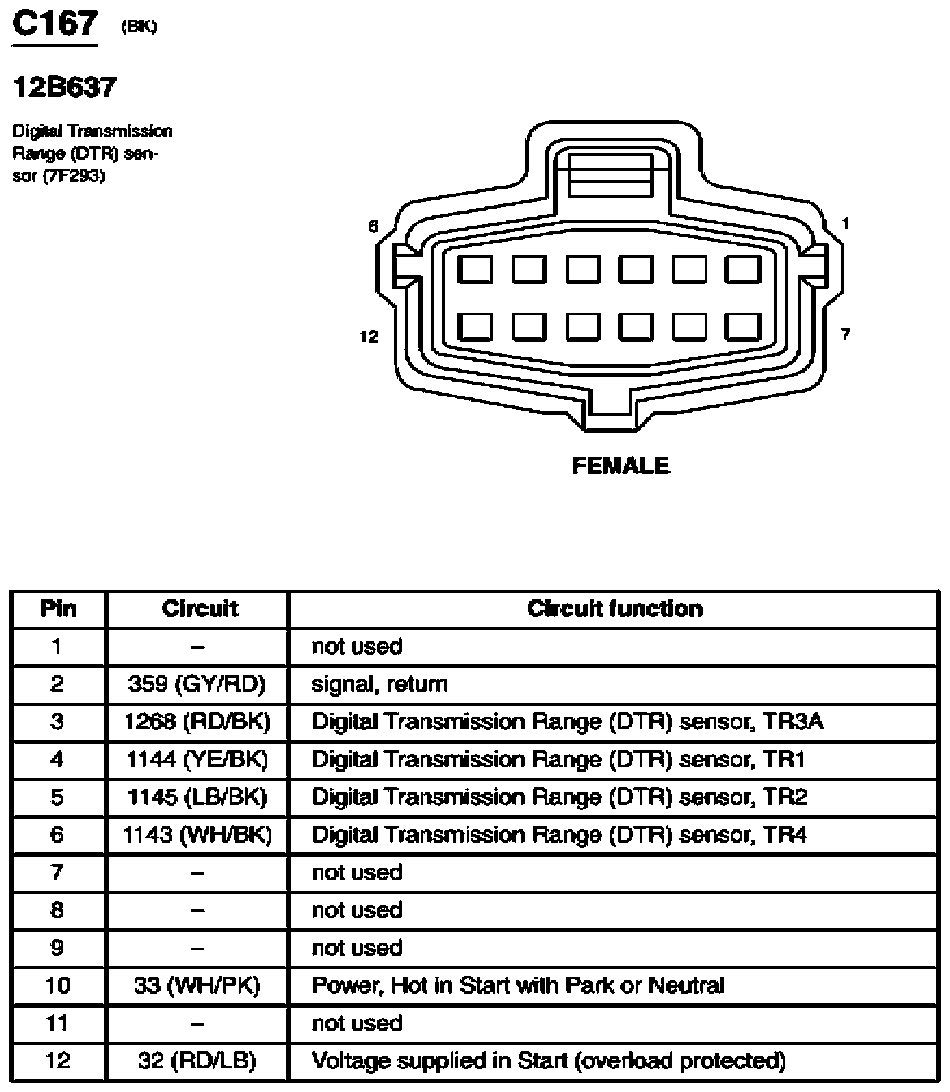

Fig 37: Digital Transmission Range (DTR) Sensor Connector End View (C167)
Courtesy of FORD MOTOR CO.

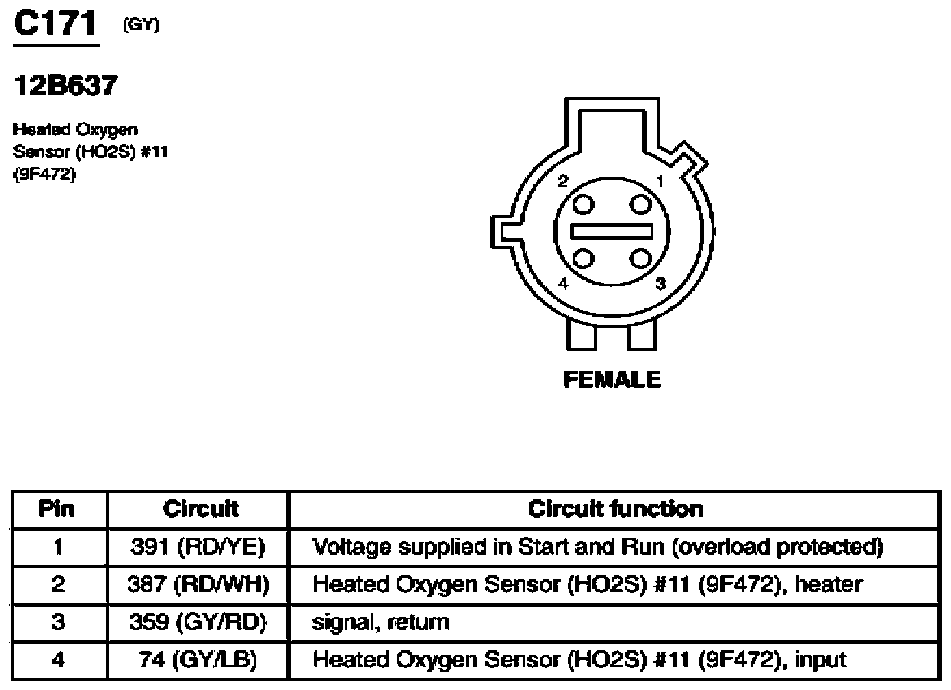

Fig 38: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)
Courtesy of FORD MOTOR CO.

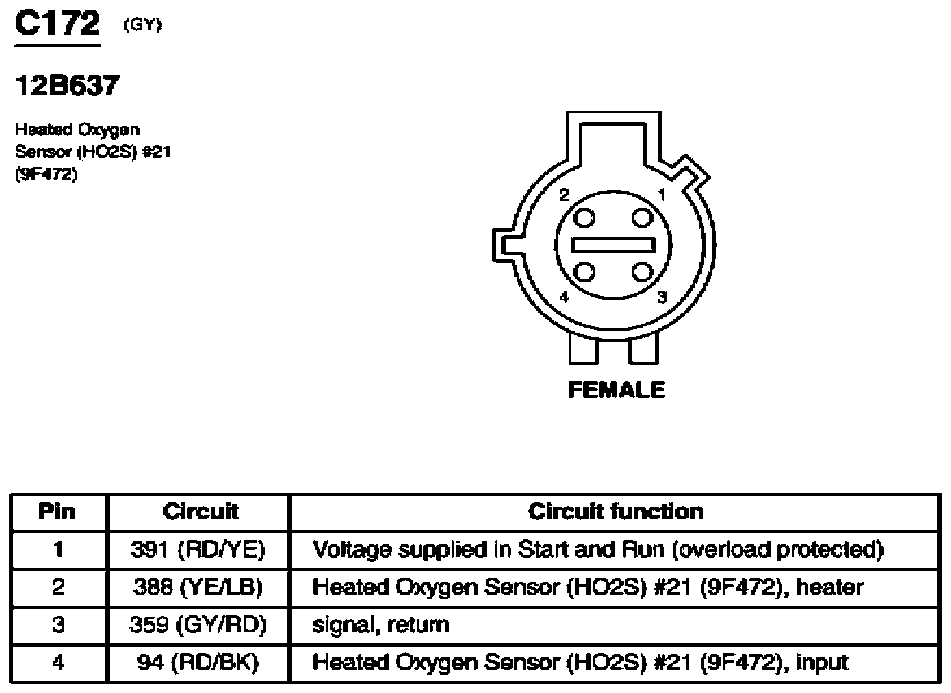

Fig 39: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)
Courtesy of FORD MOTOR CO.

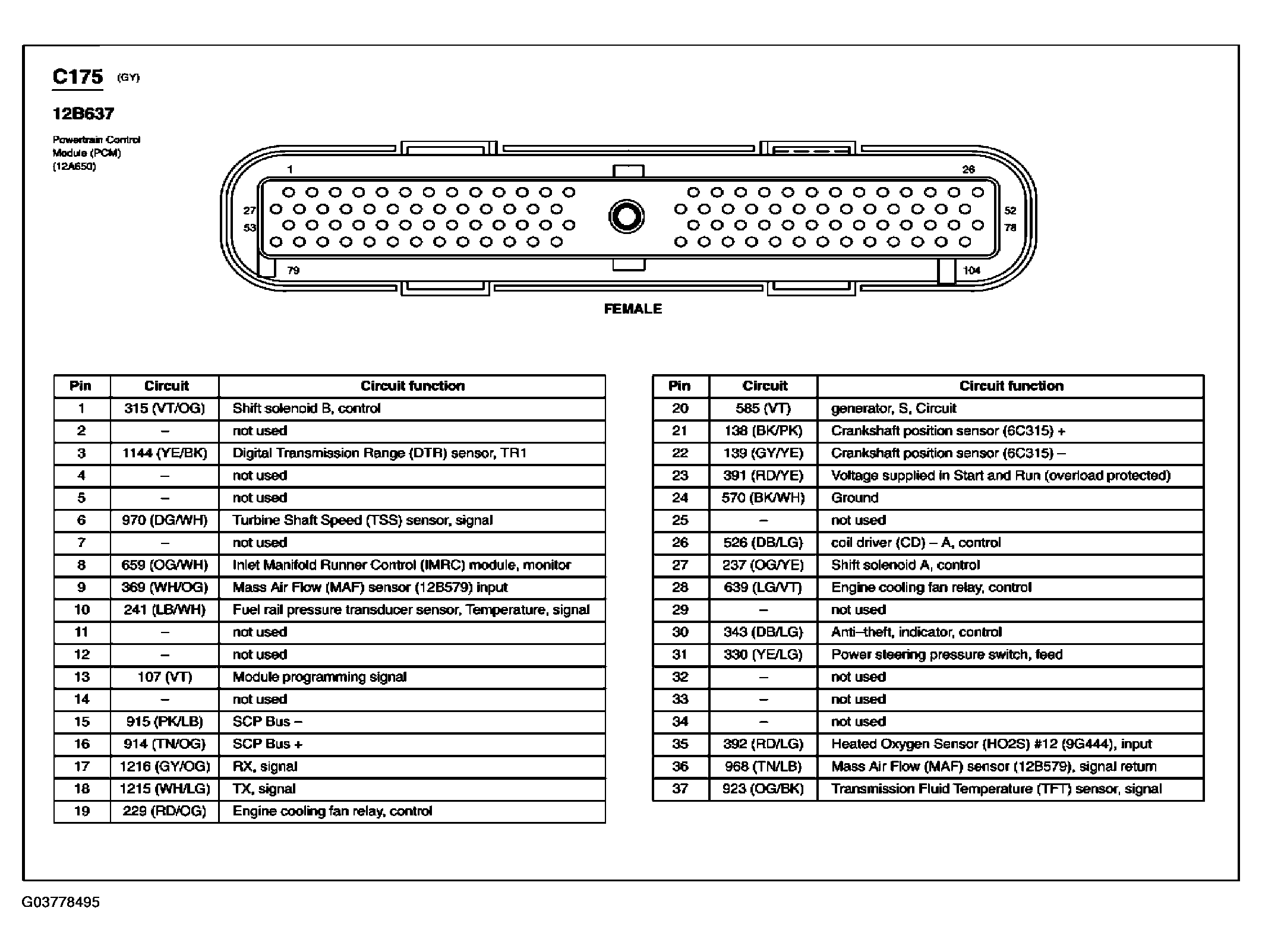

Fig 40: Powertrain Control Module (PCM) Connector End View (C175) (1 Of 2)
Courtesy of FORD MOTOR CO.

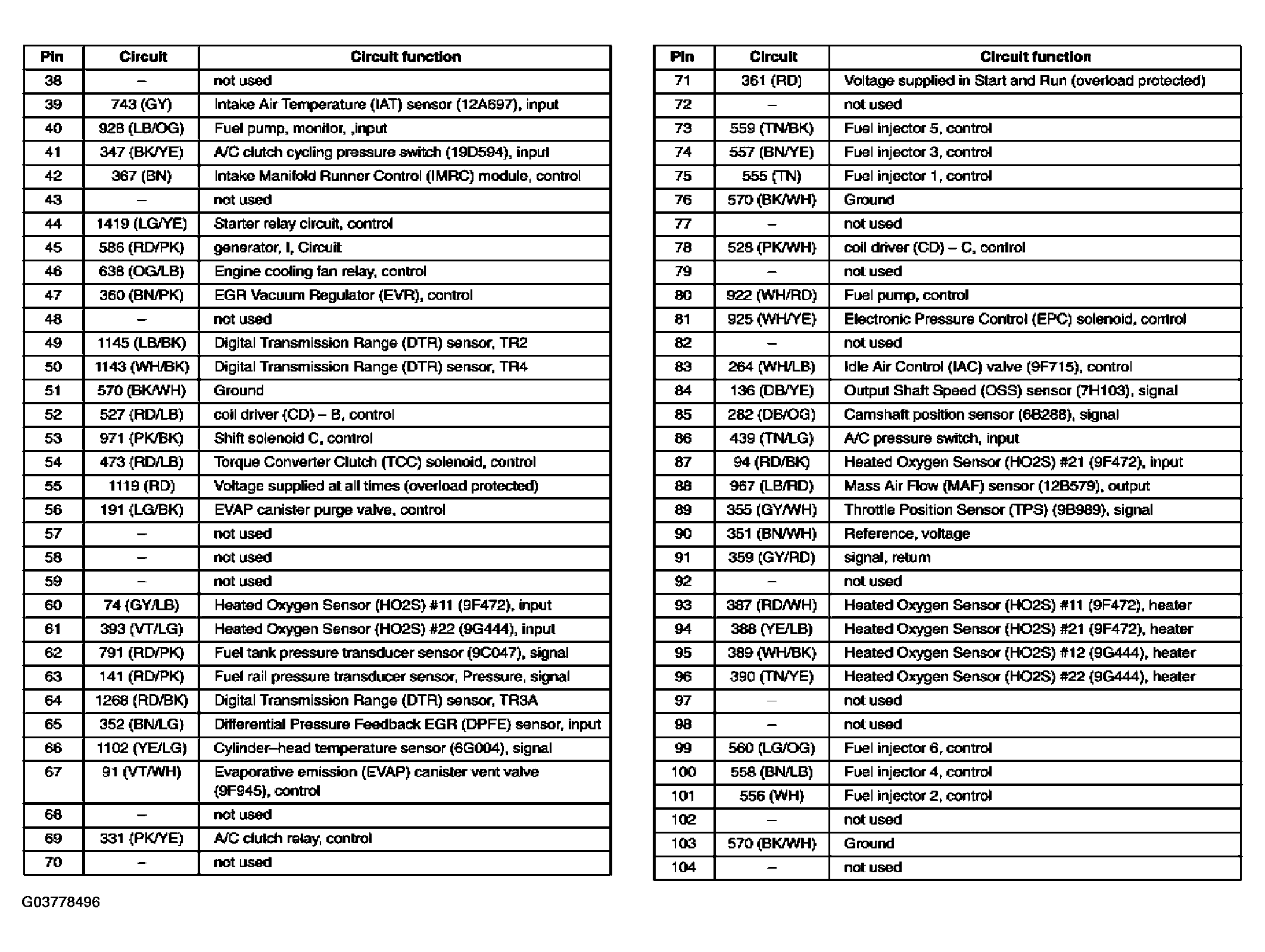

Fig 41: Powertrain Control Module (PCM) Connector End View (C175) (2 Of 2)
Courtesy of FORD MOTOR CO.

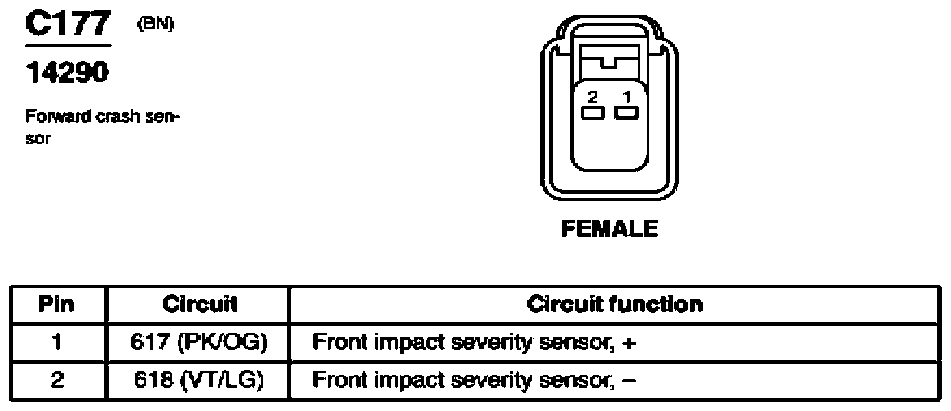

Fig 42: Forward Crash Sensor Connector End View (C177)
Courtesy of FORD MOTOR CO.

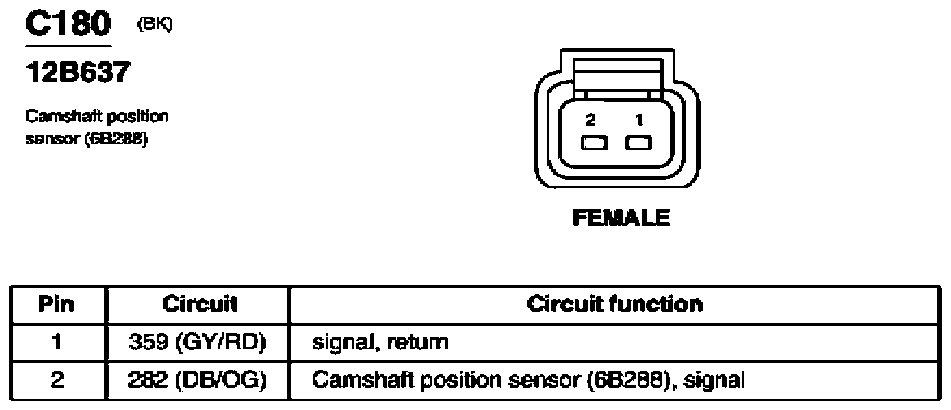

Fig 43: Camshaft Position Sensor Connector End View (C180)
Courtesy of FORD MOTOR CO.

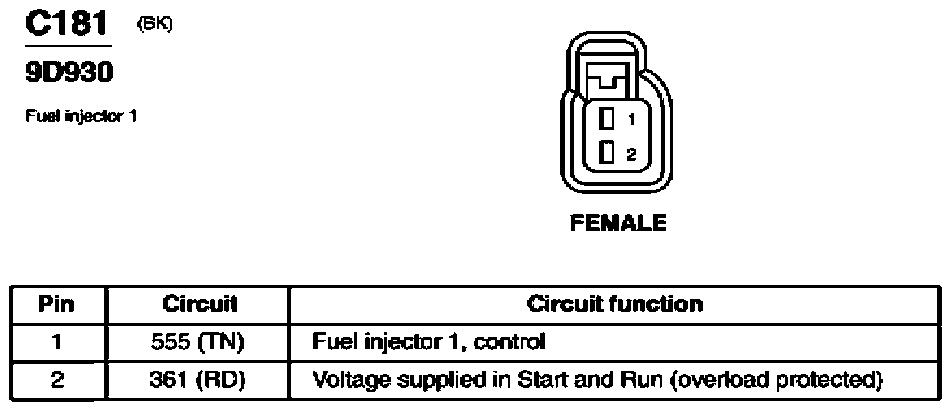

Fig 44: Fuel Injector 1 Connector End View (C181)
Courtesy of FORD MOTOR CO.
Fig 45: Fuel Injector 2 Connector End View (C182)
Courtesy of FORD MOTOR CO.

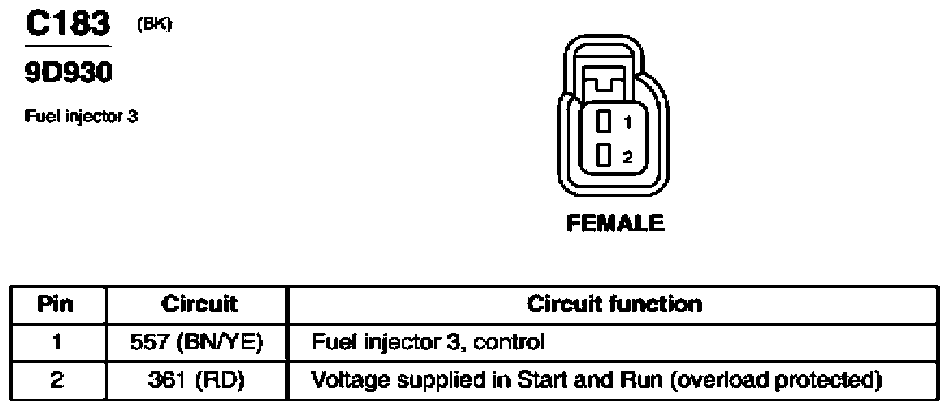

Fig 46: Fuel Injector 3 Connector End View (C183)
Courtesy of FORD MOTOR CO.

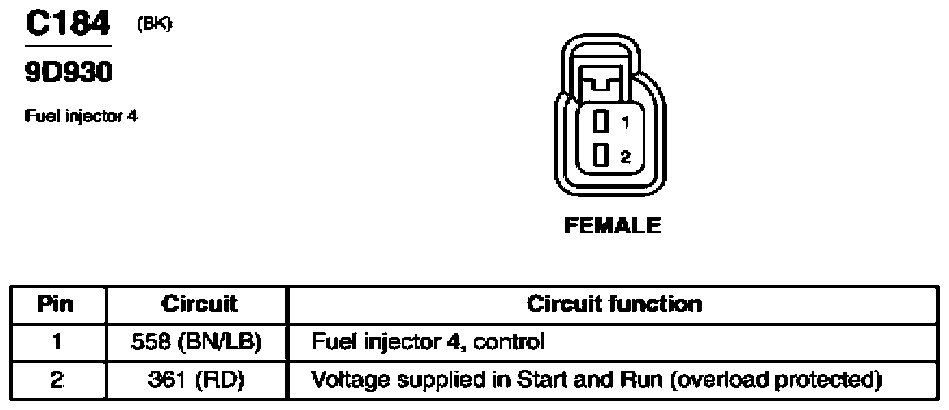

Fig 47: Fuel Injector 4 Connector End View (C184)
Courtesy of FORD MOTOR CO.

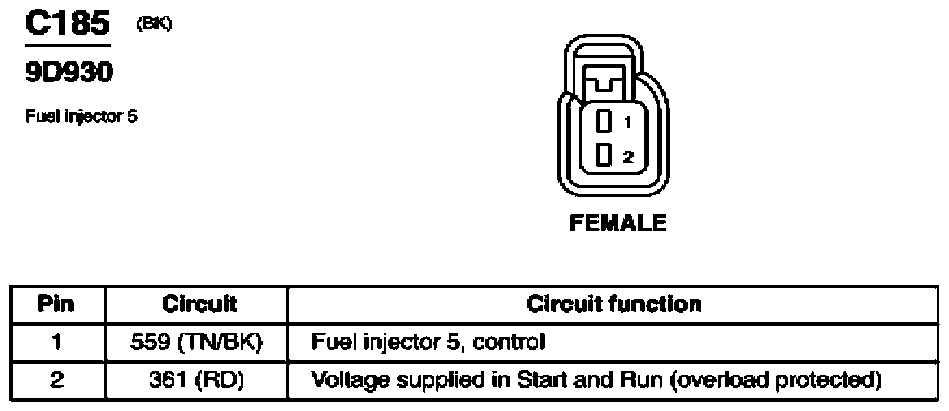

Fig 48: Fuel Injector 5 Connector End View (C185)
Courtesy of FORD MOTOR CO.

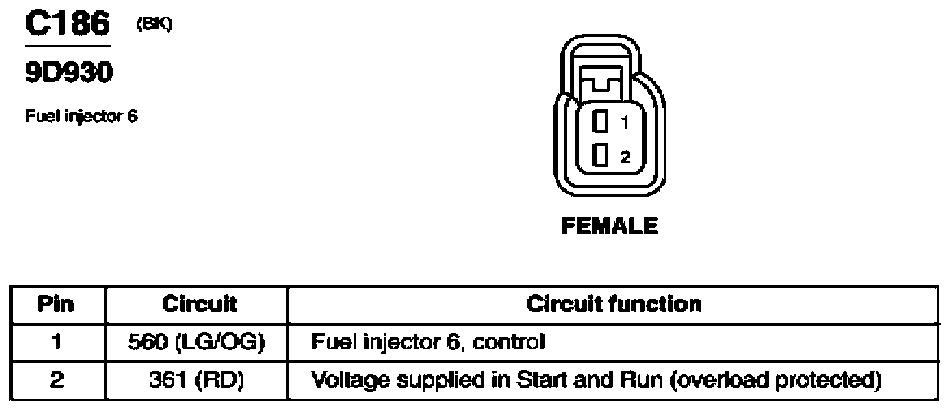

Fig 49: Fuel Injector 6 Connector End View (C186)
Courtesy of FORD MOTOR CO.

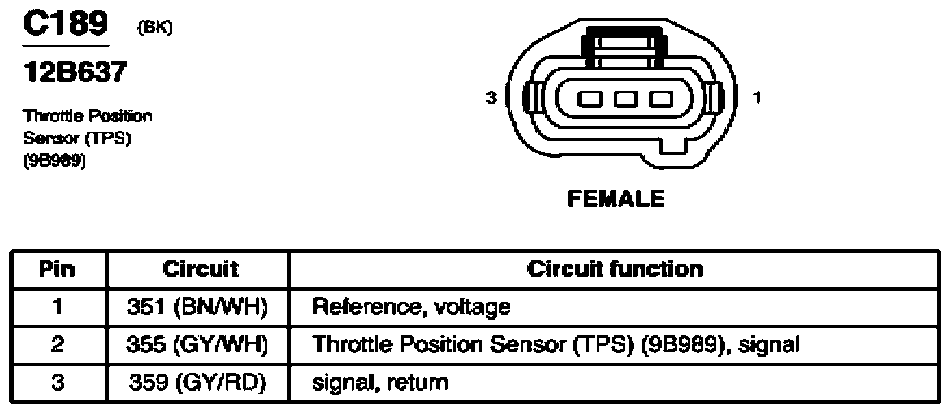

Fig 50: Throttle Position Sensor (TPS) Connector End View (C189)
Courtesy of FORD MOTOR CO.

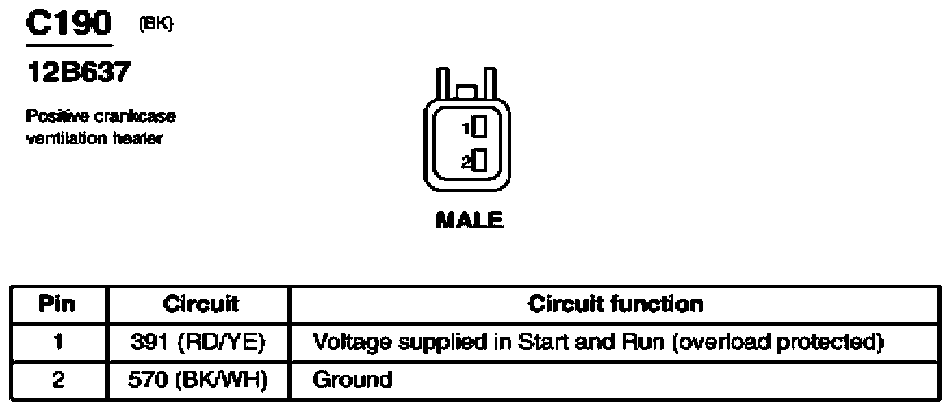

Fig 51: Positive Crankcase Ventilation Heater Connector End View (C190)
Courtesy of FORD MOTOR CO.

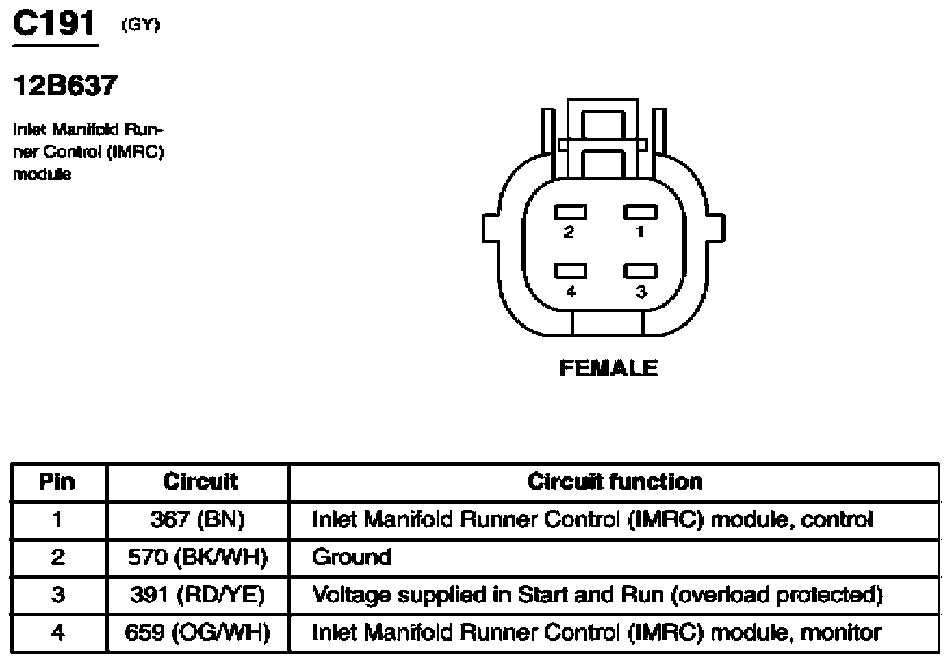

Fig 52: Inlet Manifold Runner Control (IMRC) Module Connector End View (C191)
Courtesy of FORD MOTOR CO.

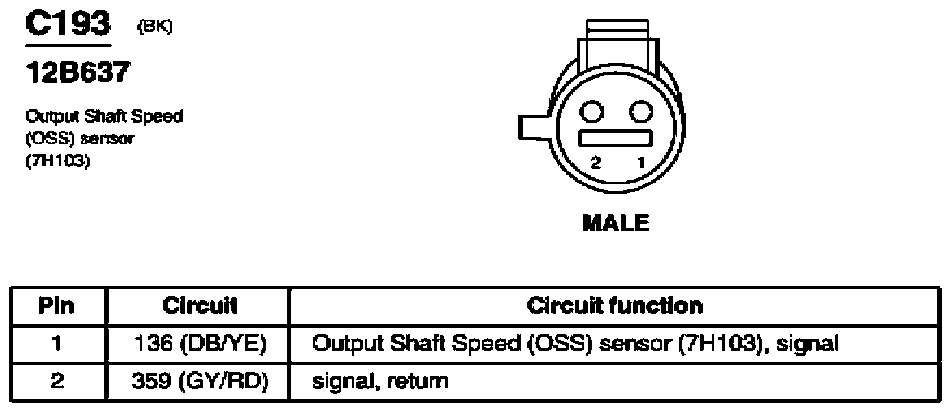

Fig 53: Output Shaft Speed (OSS) Sensor Connector End View (C193)
Courtesy of FORD MOTOR CO.

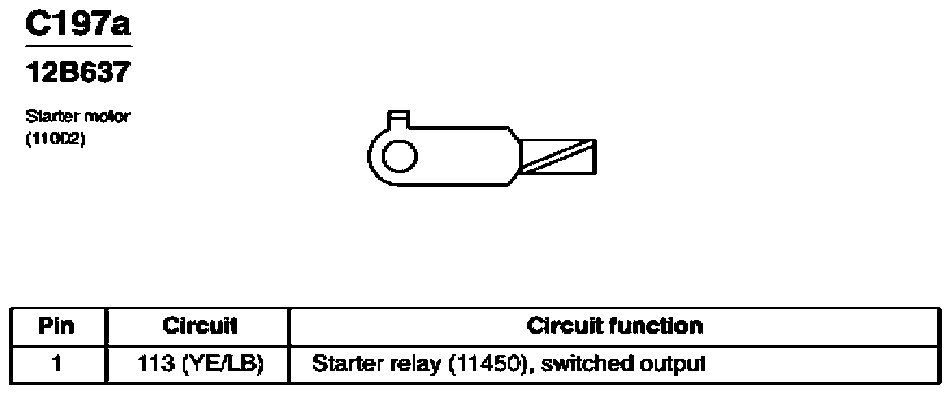

Fig 54: Starter Motor Connector End View (C197a)
Courtesy of FORD MOTOR CO.

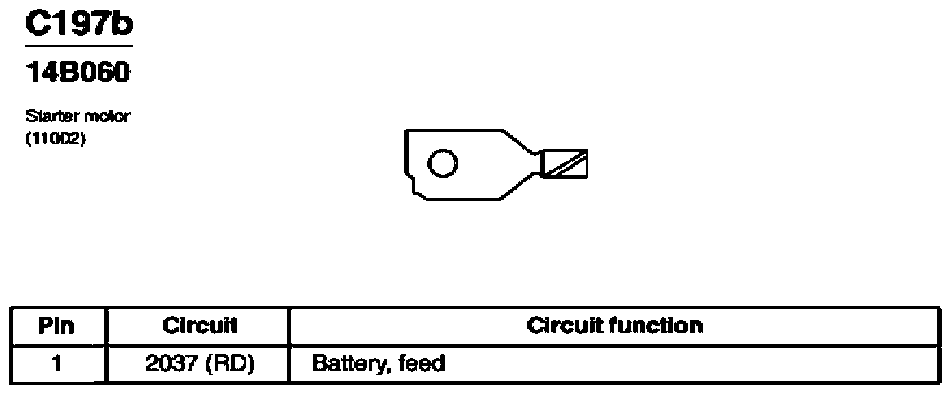

Fig 55: Starter Motor Connector End View (C197b)
Courtesy of FORD MOTOR CO.

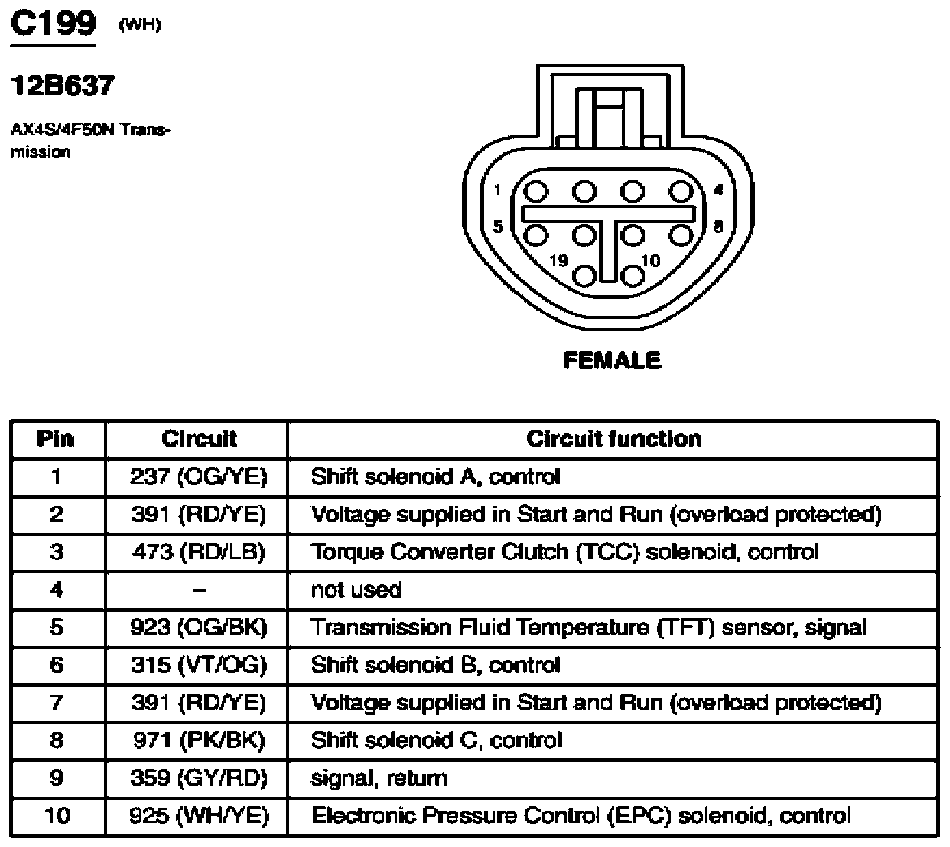

Fig 56: AX4S/4F50N Transmission Connector End View (C199)
Courtesy of FORD MOTOR CO.

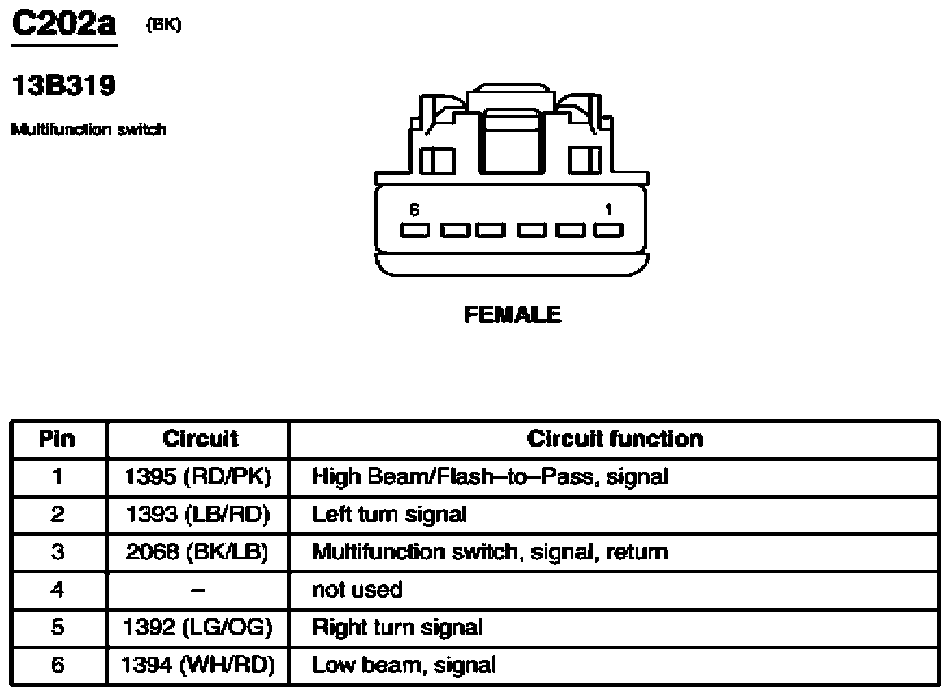

Fig 57: Multifunction Switch Connector End View (C202a)
Courtesy of FORD MOTOR CO.

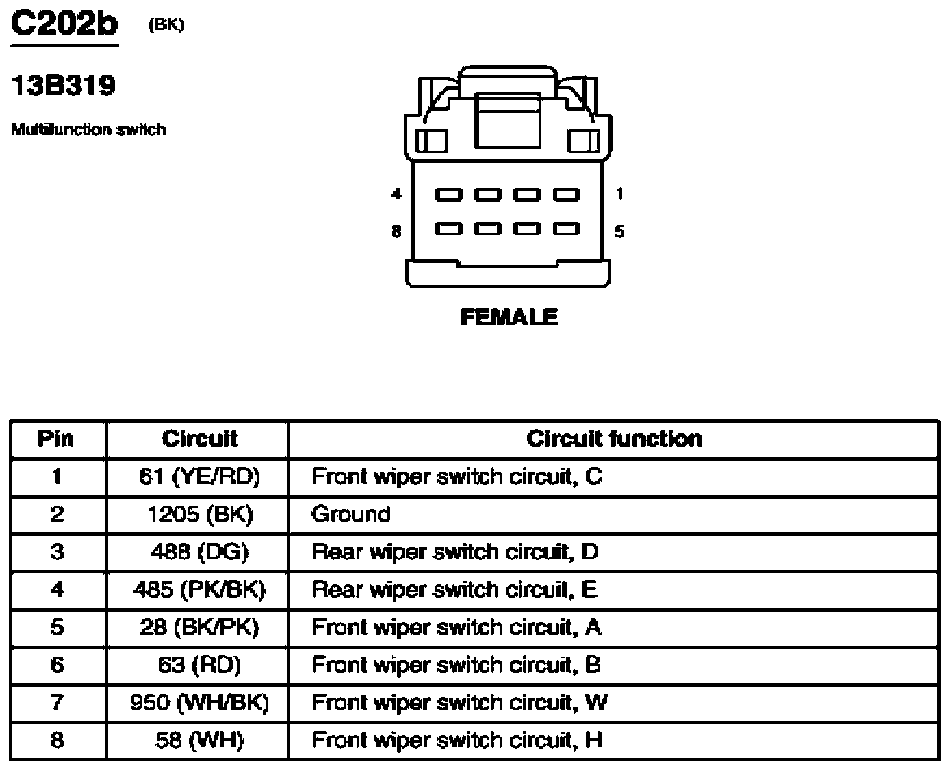

Fig 58: Multifunction Switch Connector End View (C202b)
Courtesy of FORD MOTOR CO.

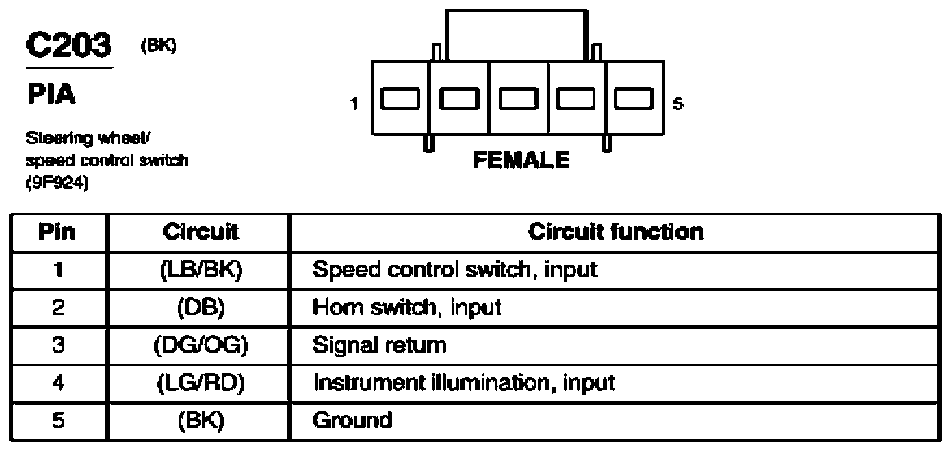

Fig 59: Steering Wheel/Speed Control Switch Connector End View (C203)
Courtesy of FORD MOTOR CO.

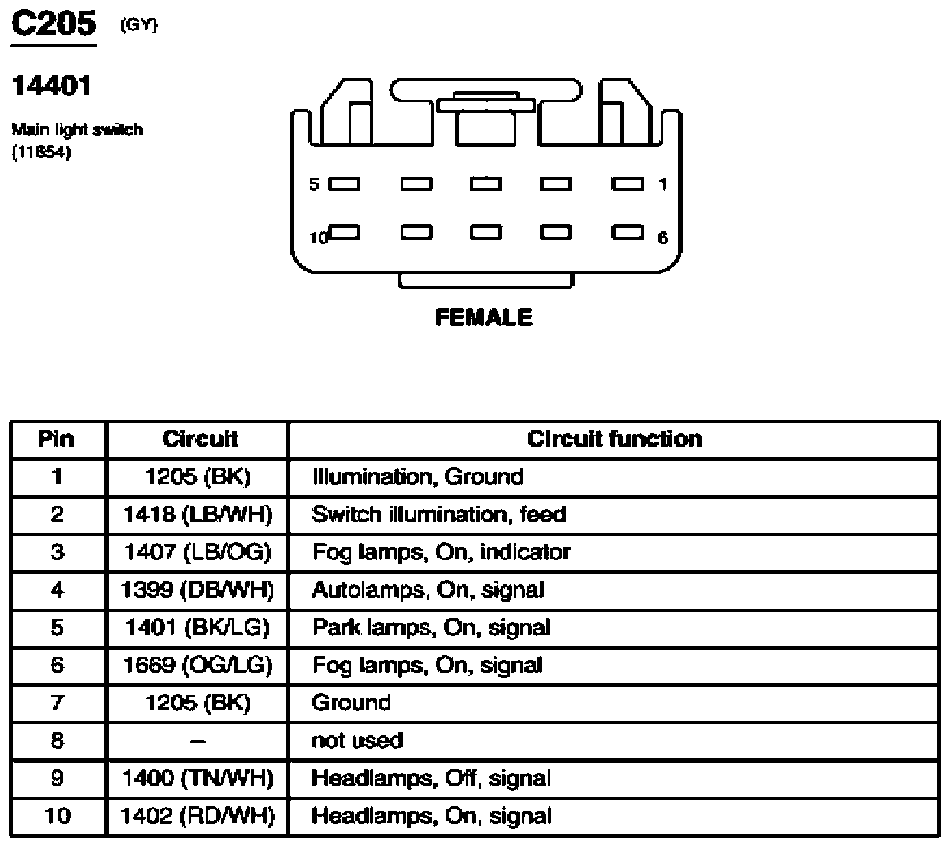

Fig 60: Main Light Switch Connector End View (C205)
Courtesy of FORD MOTOR CO.

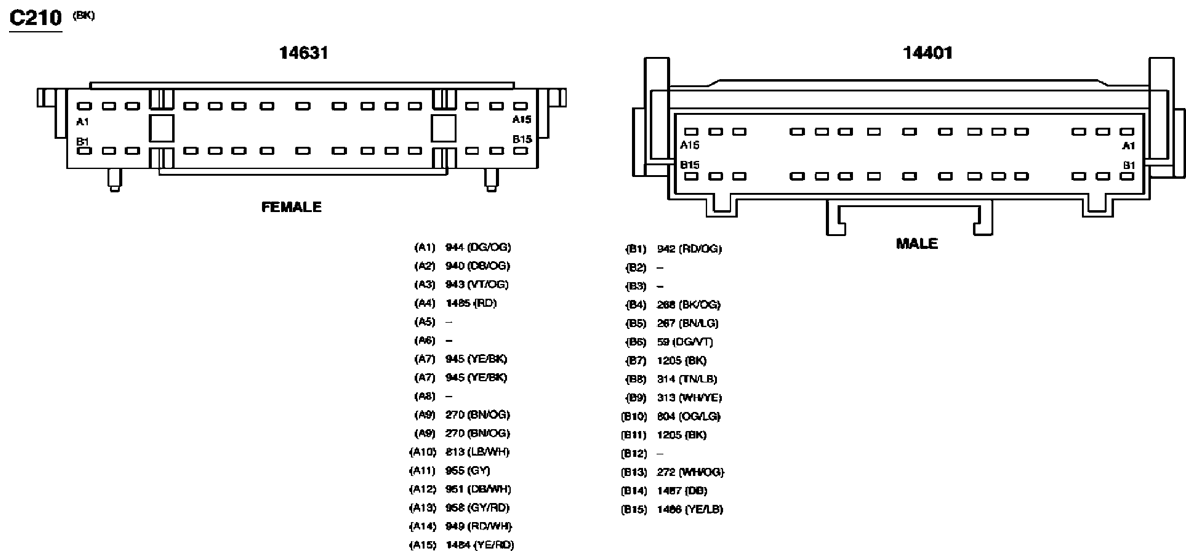

Fig 61: Inline Connector End View (C210)
Courtesy of FORD MOTOR CO.

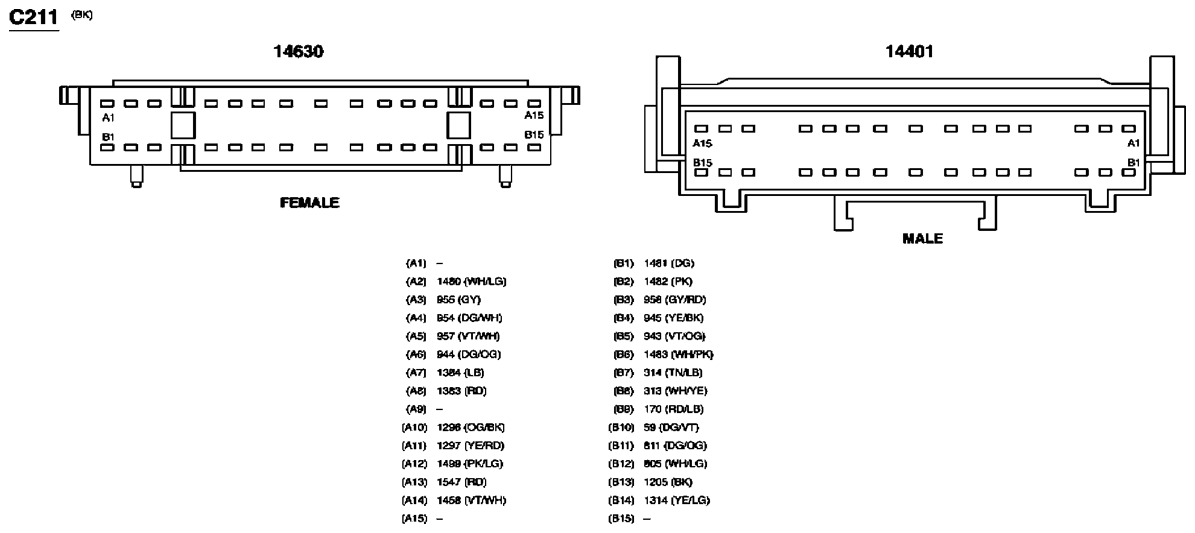

Fig 62: Inline Connector End View (C211)
Courtesy of FORD MOTOR CO.

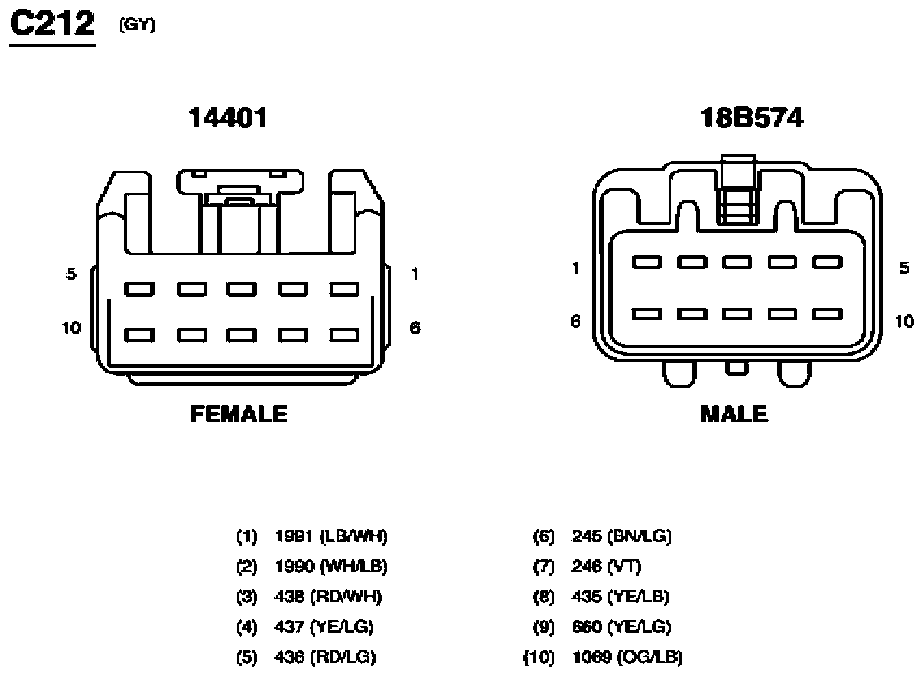

Fig 63: Inline Connector End View (C212)
Courtesy of FORD MOTOR CO.

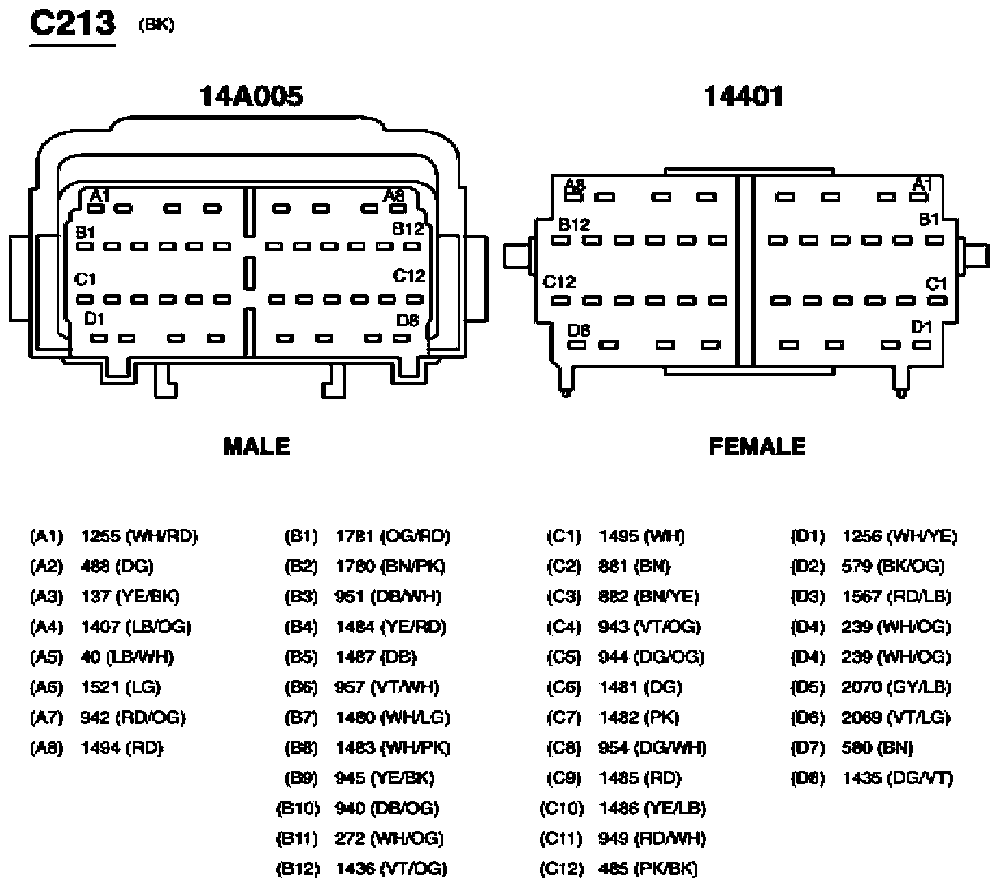

Fig 64: Inline Connector End View (C213)
Courtesy of FORD MOTOR CO.

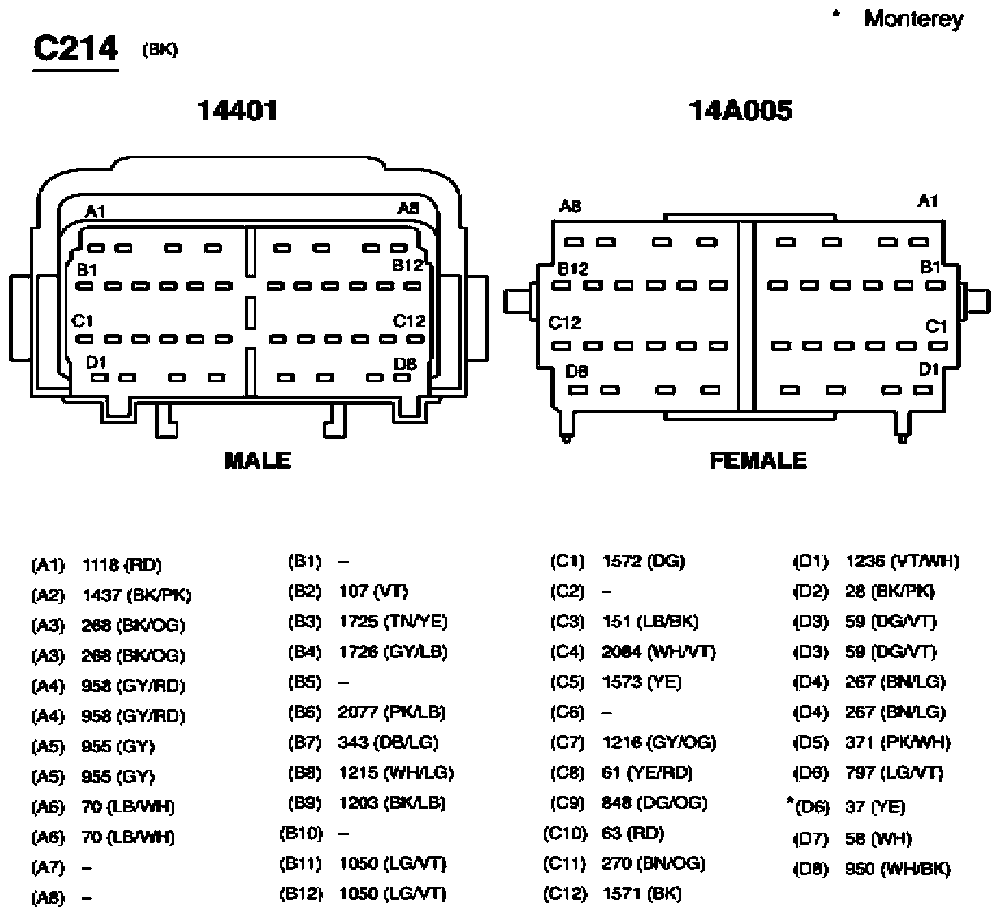

Fig 65: Inline Connector End View (C214)
Courtesy of FORD MOTOR CO.

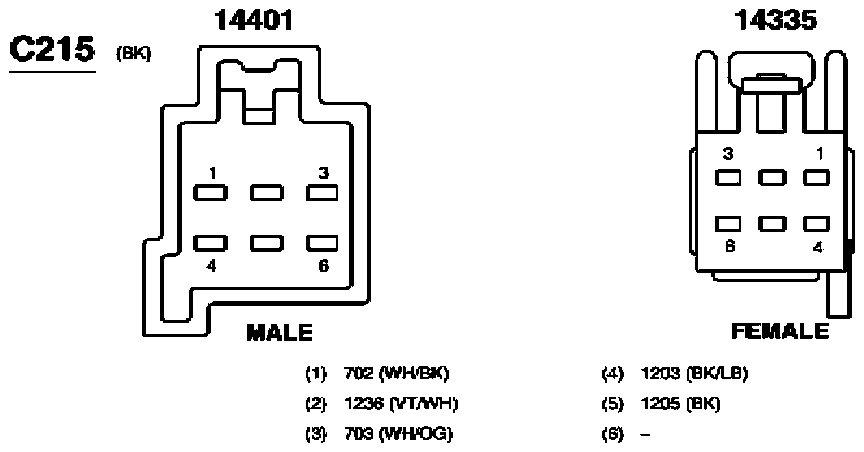

Fig 66: Inline Connector End View (C215)
Courtesy of FORD MOTOR CO.

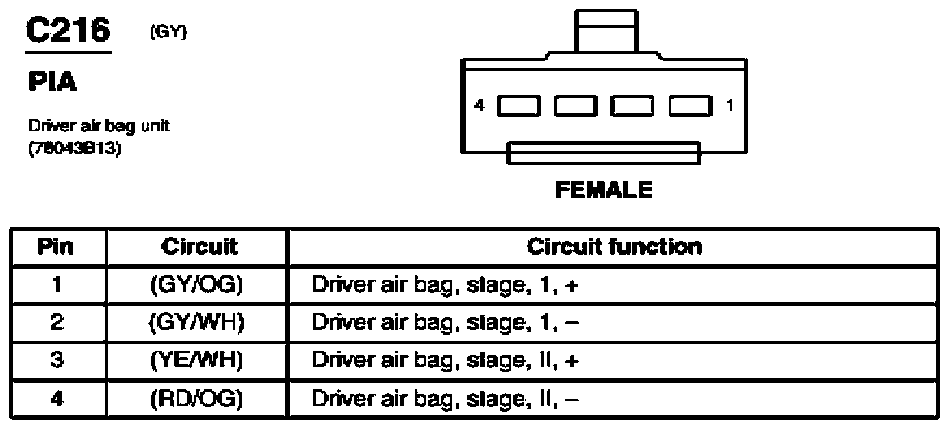

Fig 67: Driver Air Bag Unit Connector End View (C216)
Courtesy of FORD MOTOR CO.

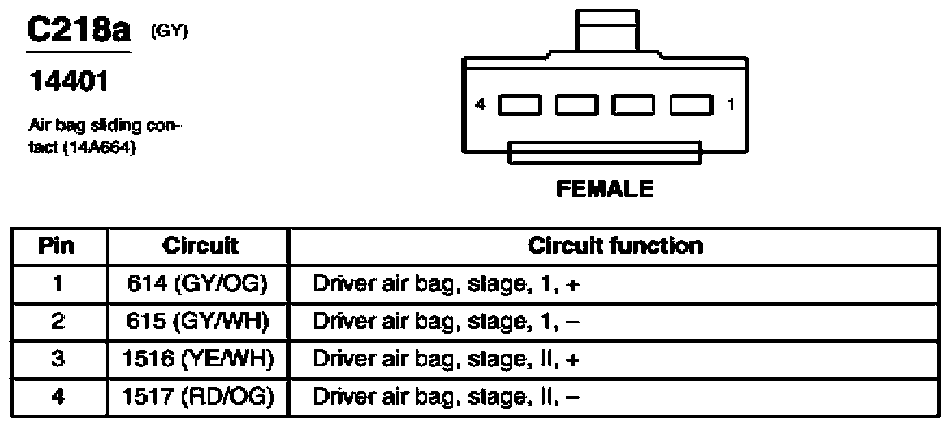

Fig 68: Air Bag Sliding Contact Connector End View (C218a)
Courtesy of FORD MOTOR CO.

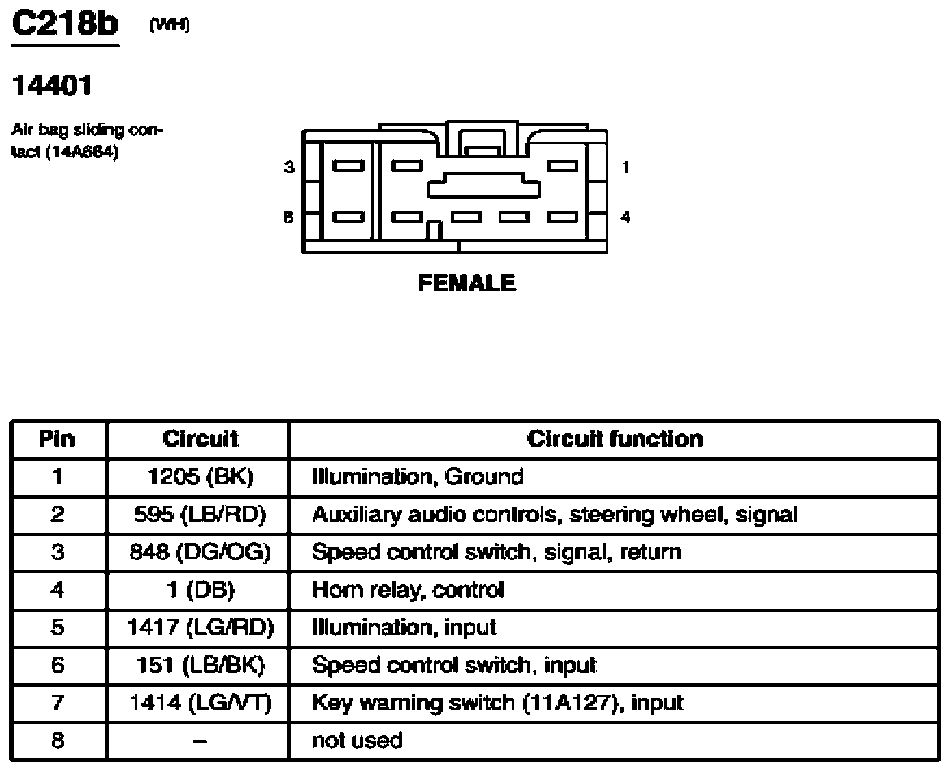

Fig 69: Air Bag Sliding Contact Connector End View (C218b)
Courtesy of FORD MOTOR CO.

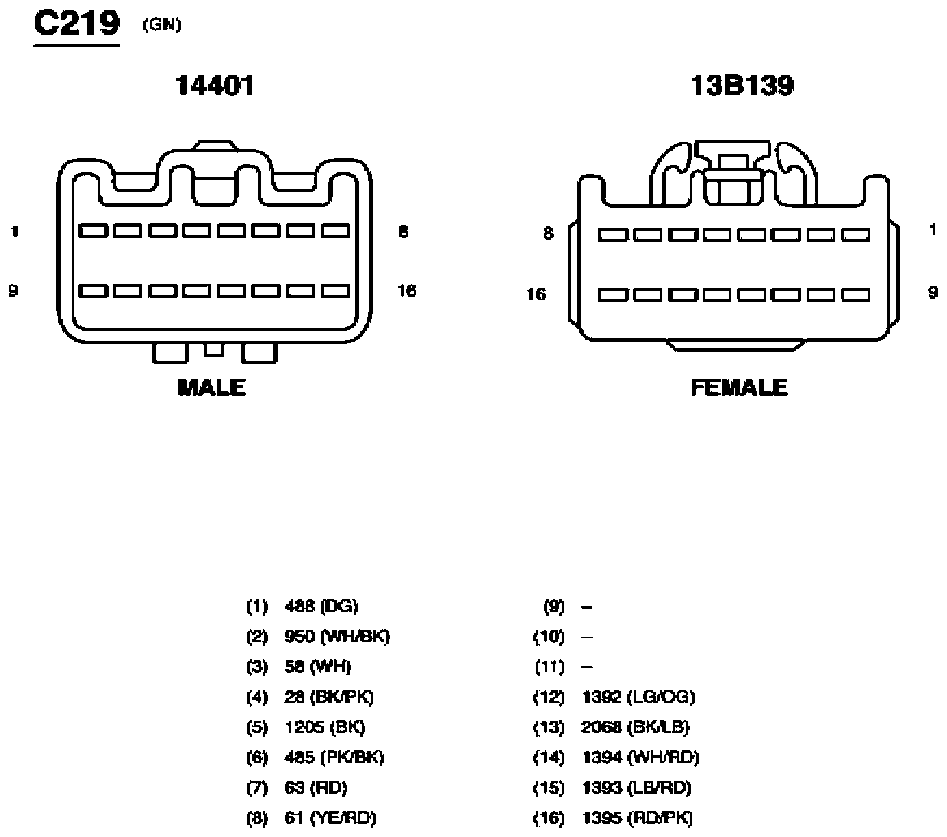

Fig 70: Inline Connector End View (C219)
Courtesy of FORD MOTOR CO.

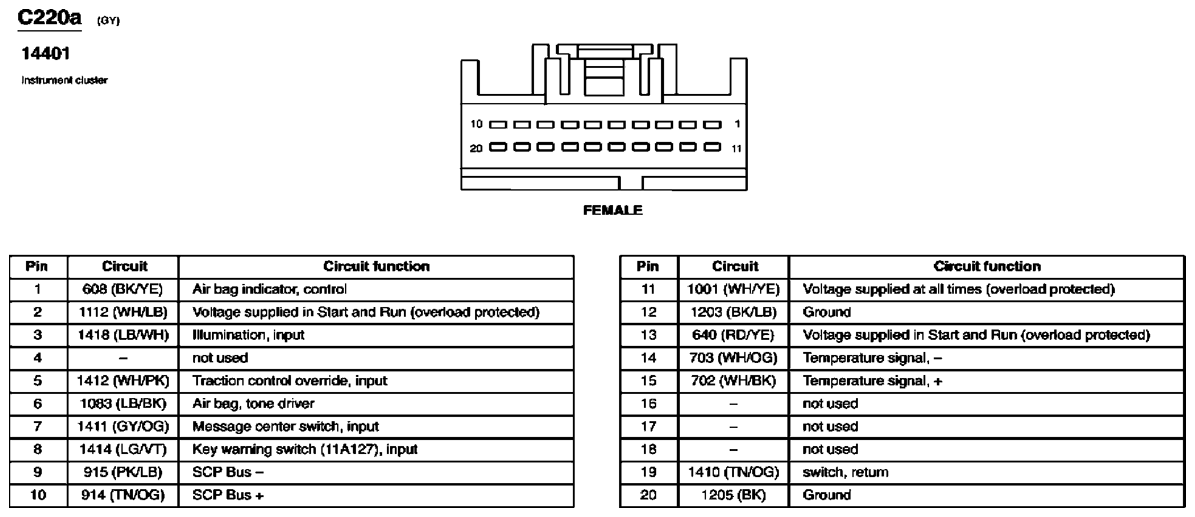

Fig 71: Instrument Cluster Connector End View (C220a)
Courtesy of FORD MOTOR CO.

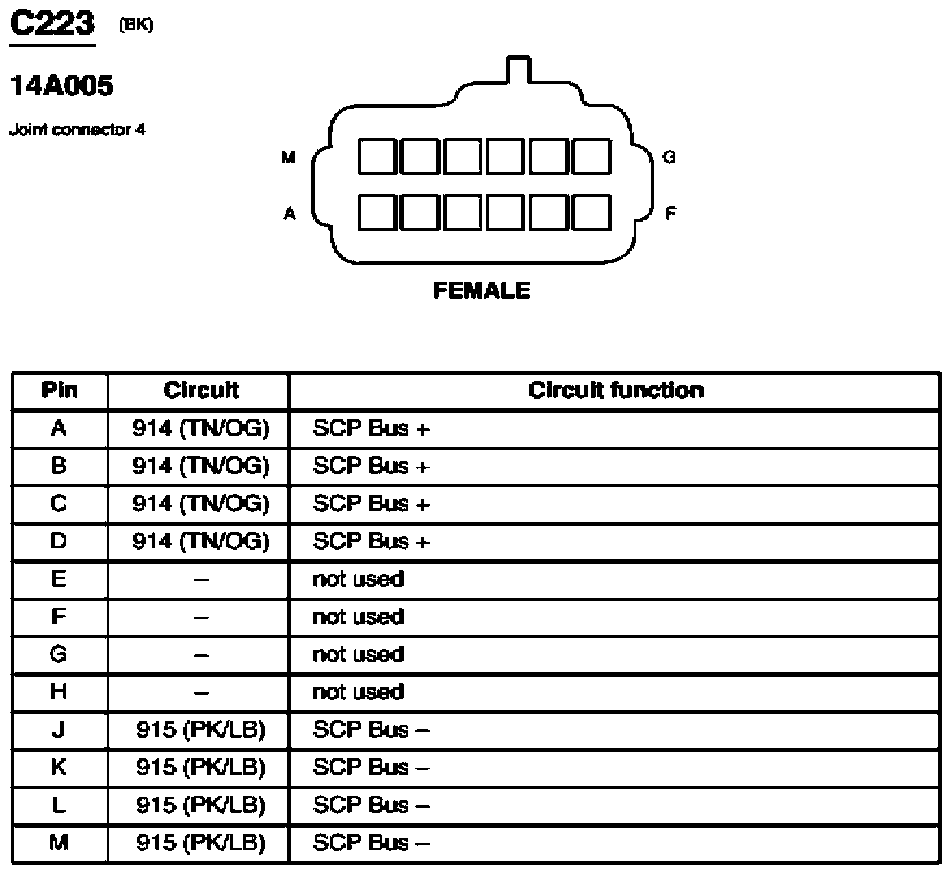

Fig 72: Joint Connector 4 Connector End View (C223)
Courtesy of FORD MOTOR CO.

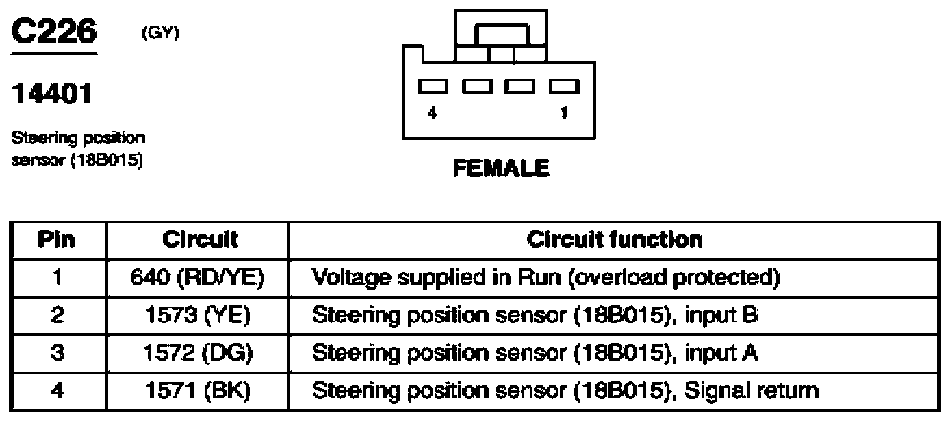

Fig 73: Steering Position Sensor Connector End View (C226)
Courtesy of FORD MOTOR CO.

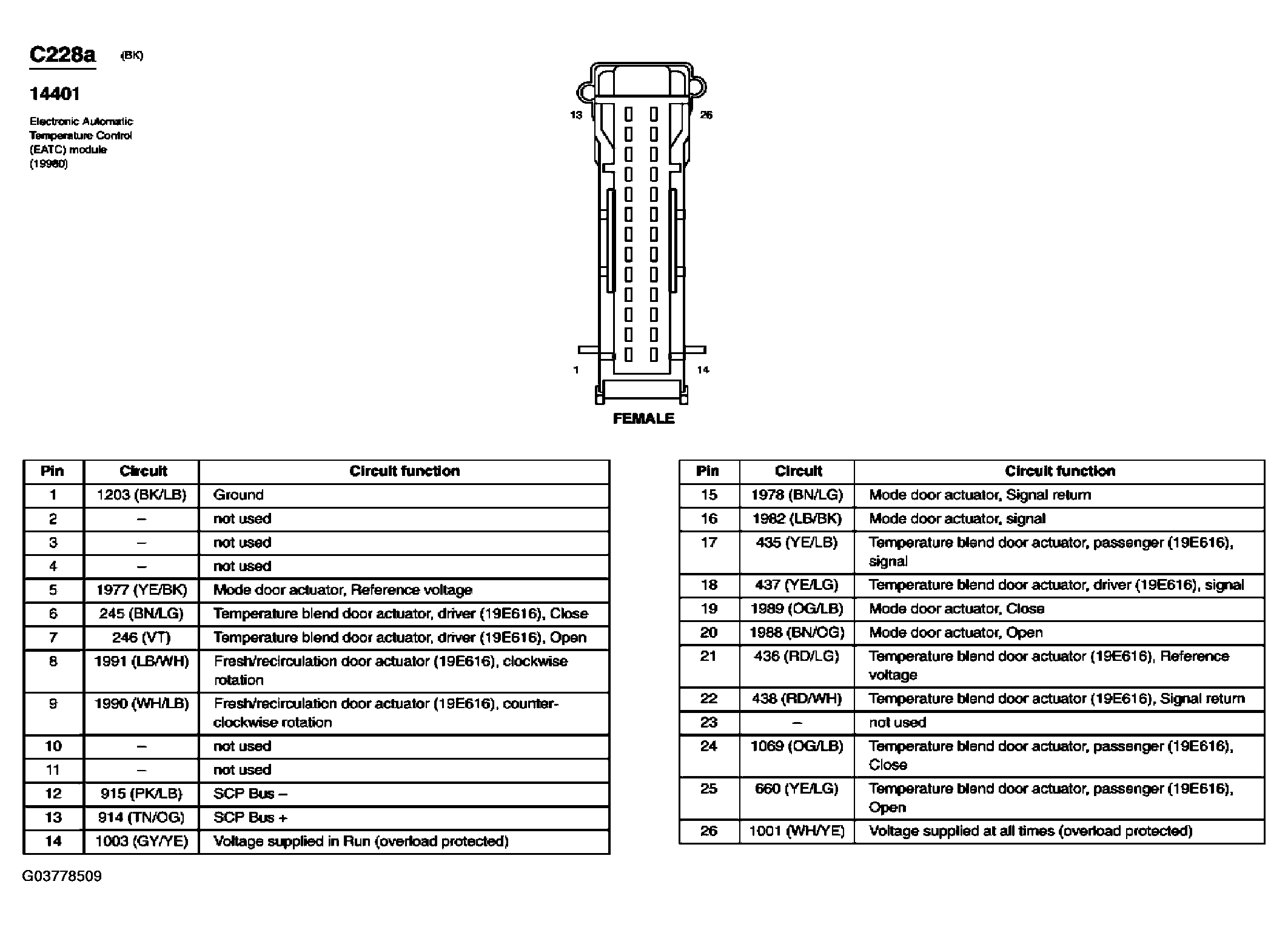

Fig 74: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228a)
Courtesy of FORD MOTOR CO.

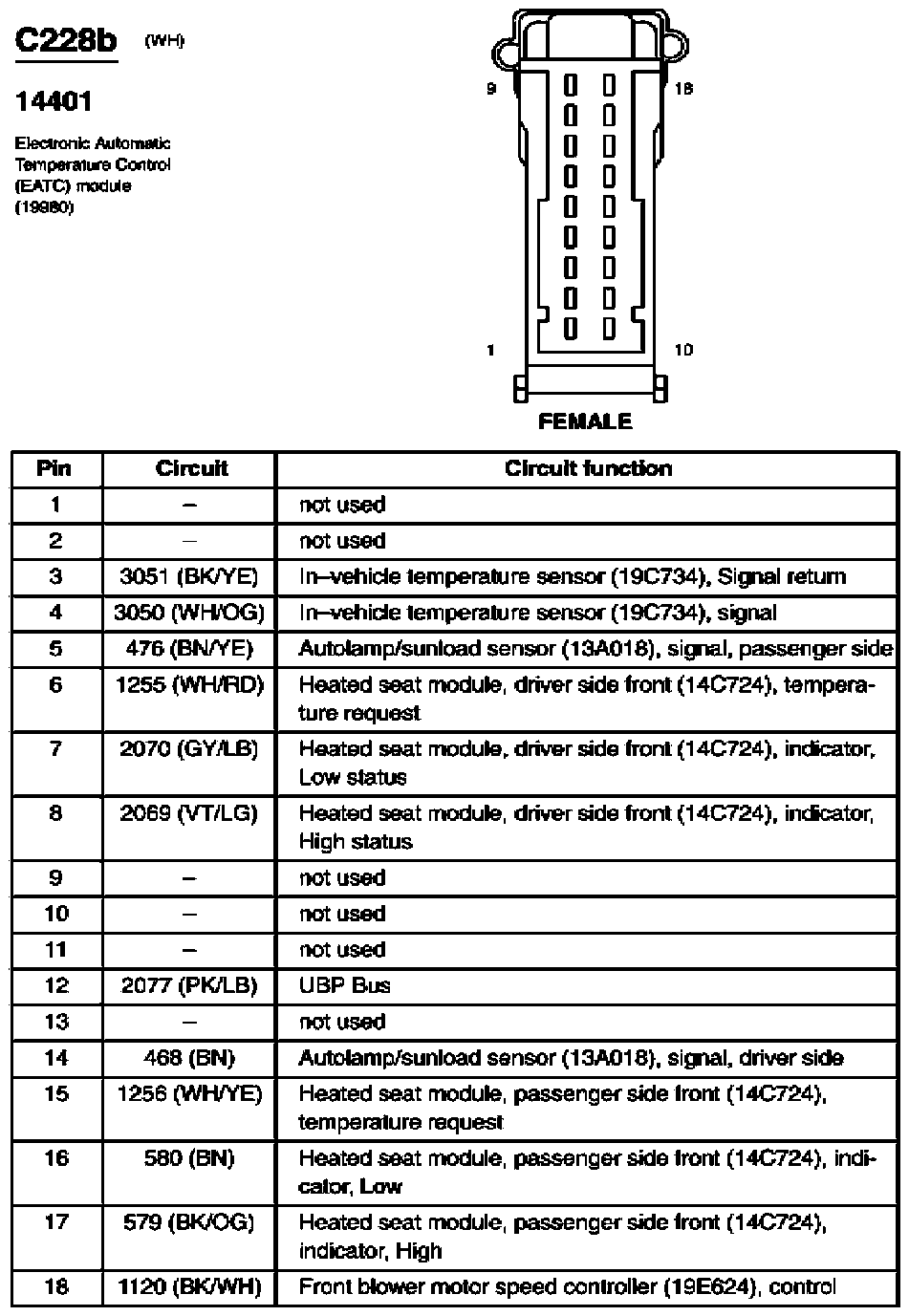

Fig 75: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228b)
Courtesy of FORD MOTOR CO.

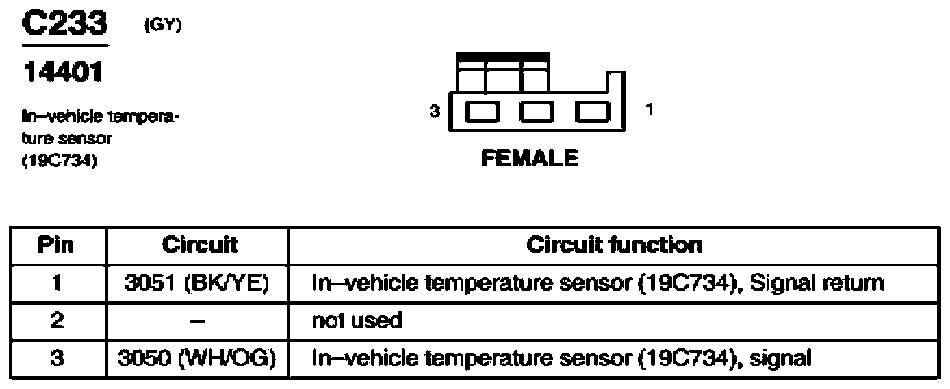

Fig 76: In-Vehicle Temperature Sensor Connector End View (C233)
Courtesy of FORD MOTOR CO.

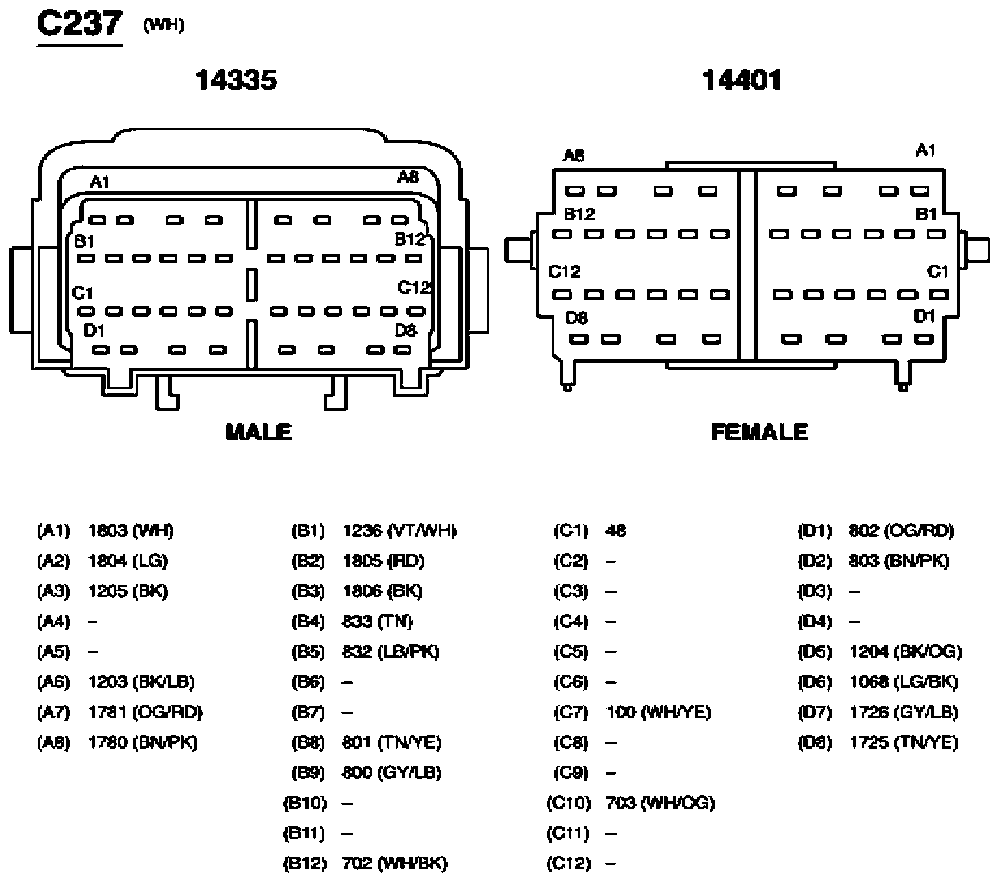

Fig 77: Inline Connector End View (C237)
Courtesy of FORD MOTOR CO.

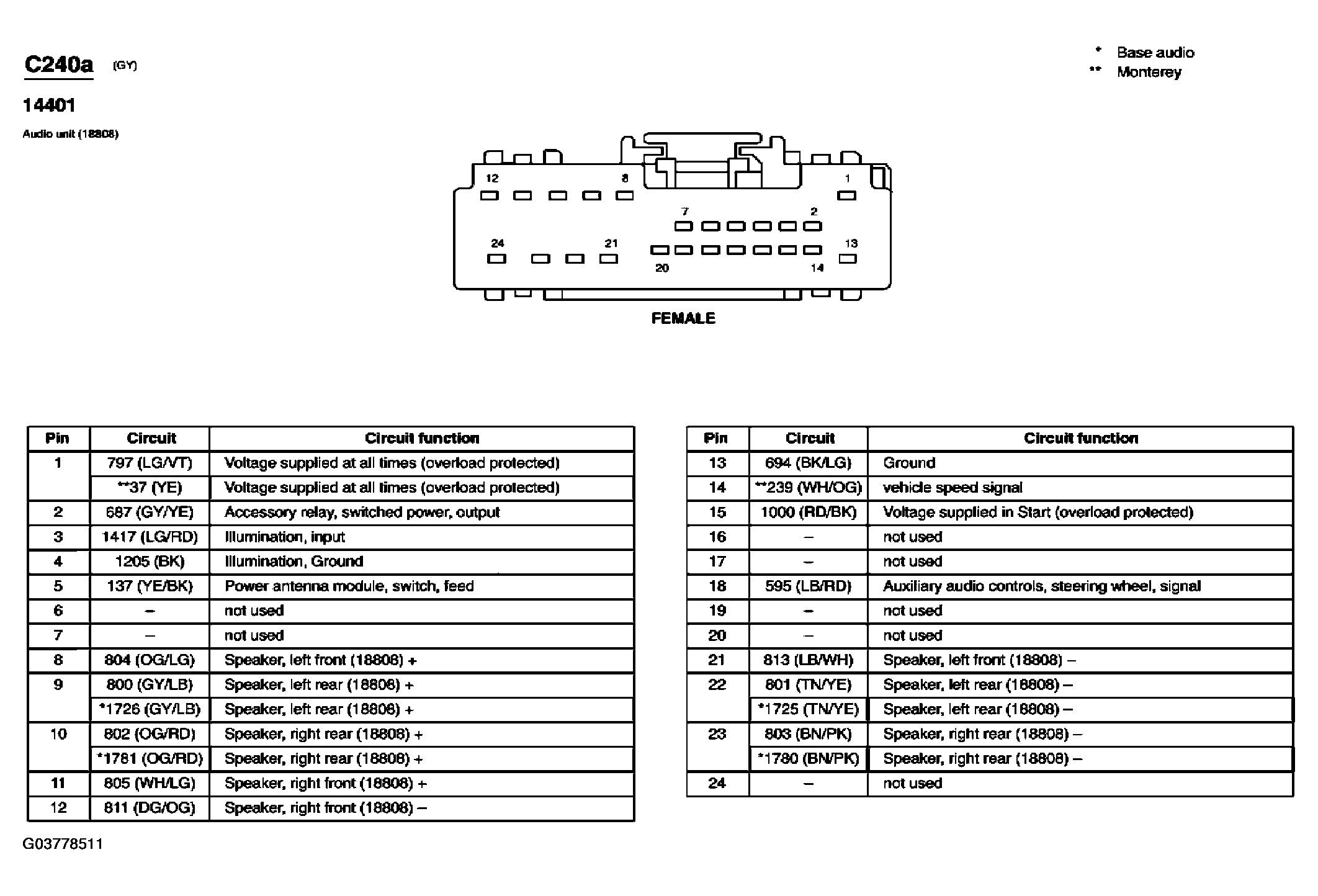

Fig 78: Audio Unit Connector End View (C240a)
Courtesy of FORD MOTOR CO.

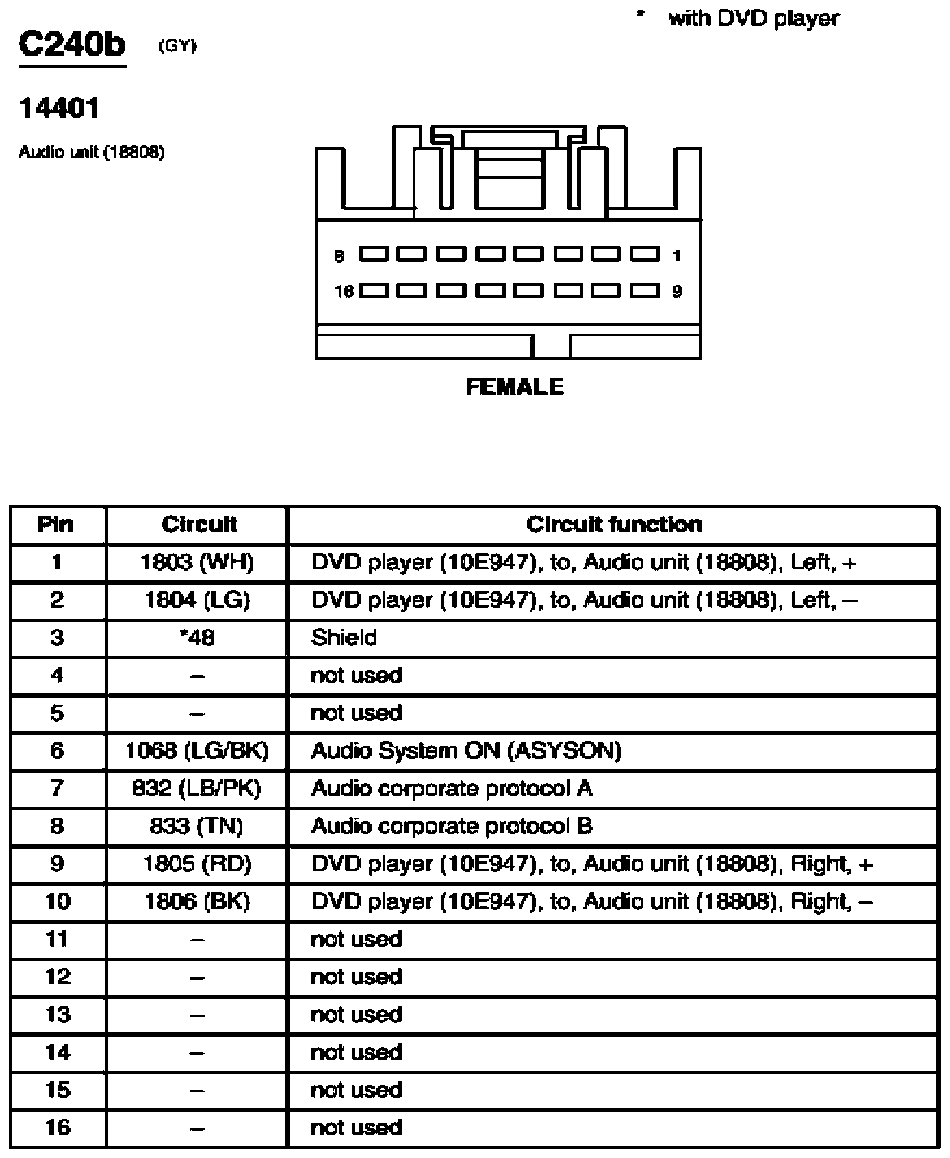

Fig 79: Audio Unit Connector End View (C240b)
Courtesy of FORD MOTOR CO.

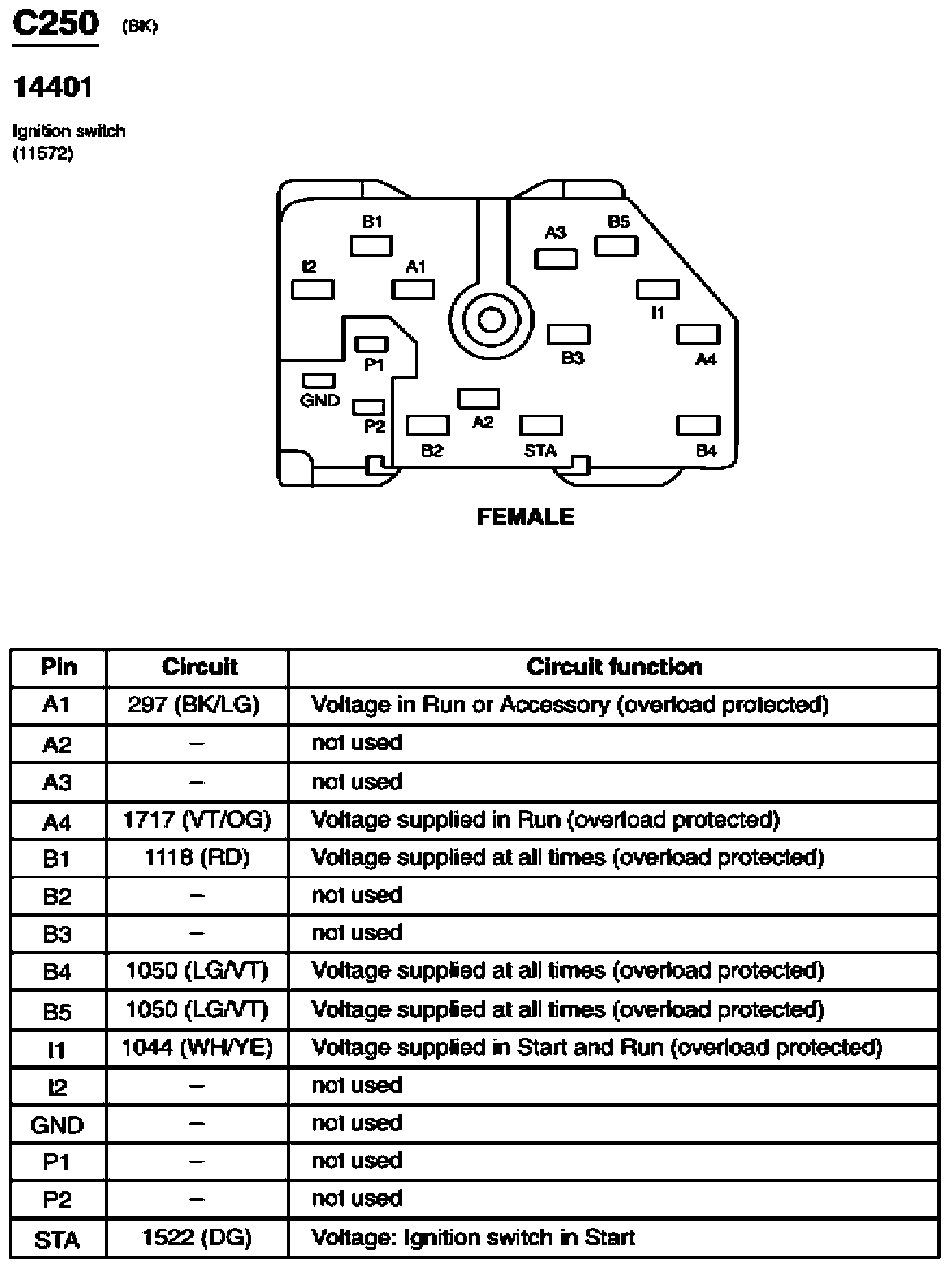

Fig 80: Ignition Switch Connector End View (C250)
Courtesy of FORD MOTOR CO.

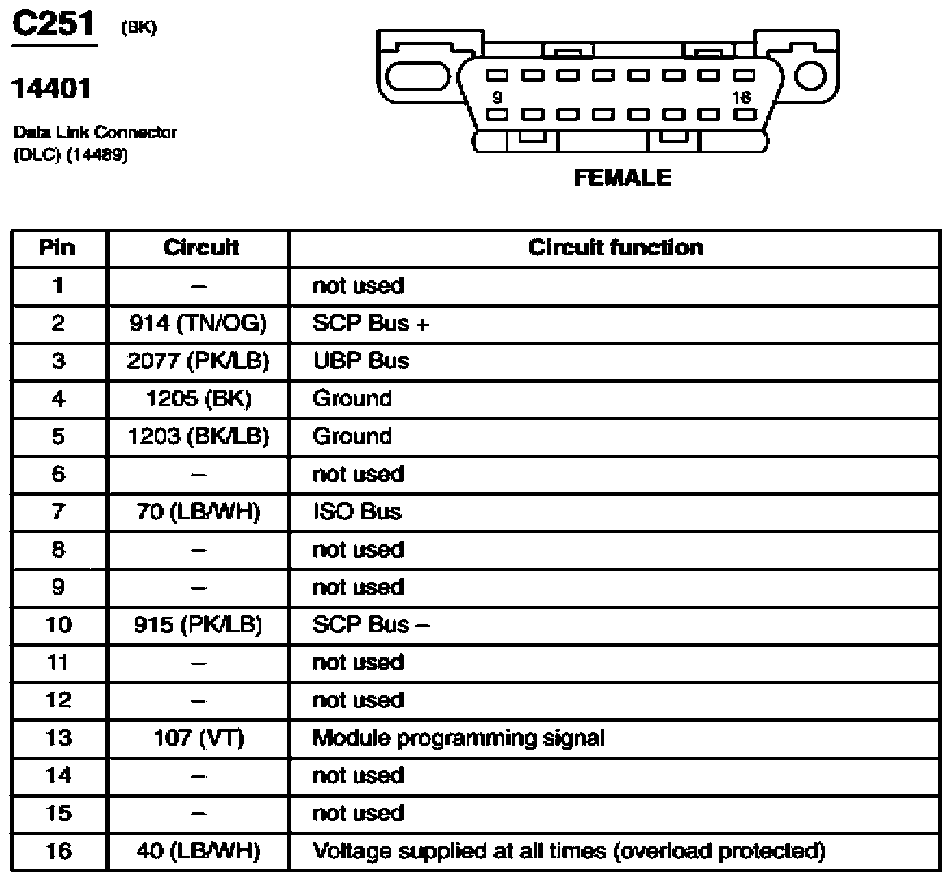

Fig 81: Data Link Connector (DLC) Connector End View (C251)
Courtesy of FORD MOTOR CO.

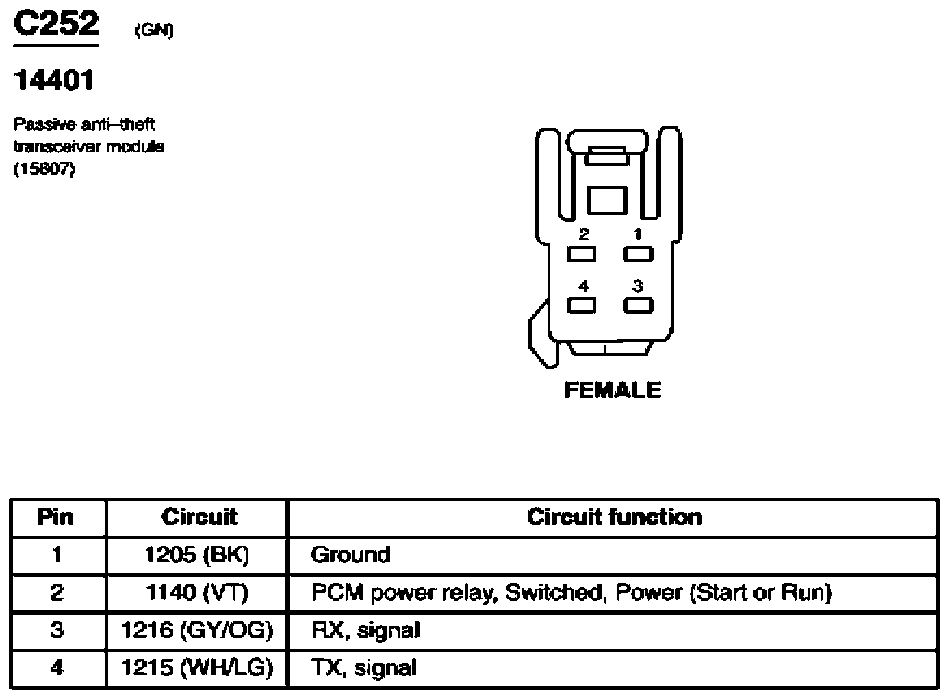

Fig 82: Passive Anti-Theft Transceiver Module Connector End View (C252)
Courtesy of FORD MOTOR CO.

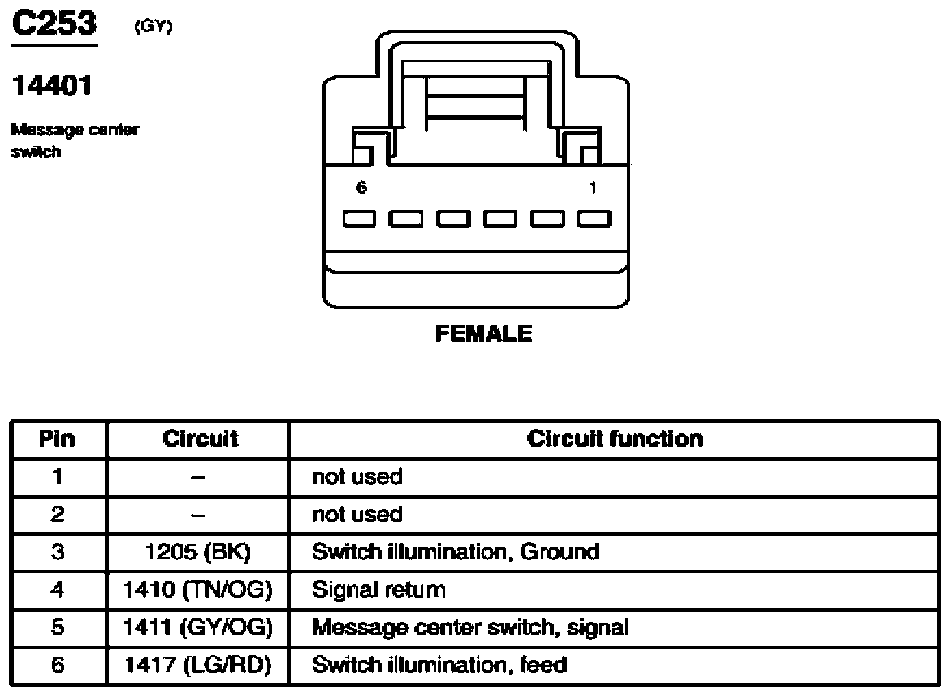

Fig 83: Message Center Switch Connector End View (C253)
Courtesy of FORD MOTOR CO.

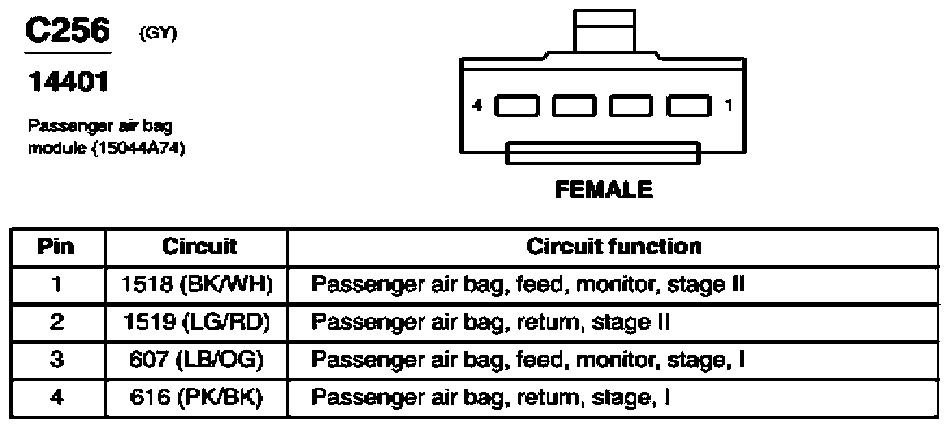

Fig 84: Passenger Air Bag Module Connector End View (C256)
Courtesy of FORD MOTOR CO.

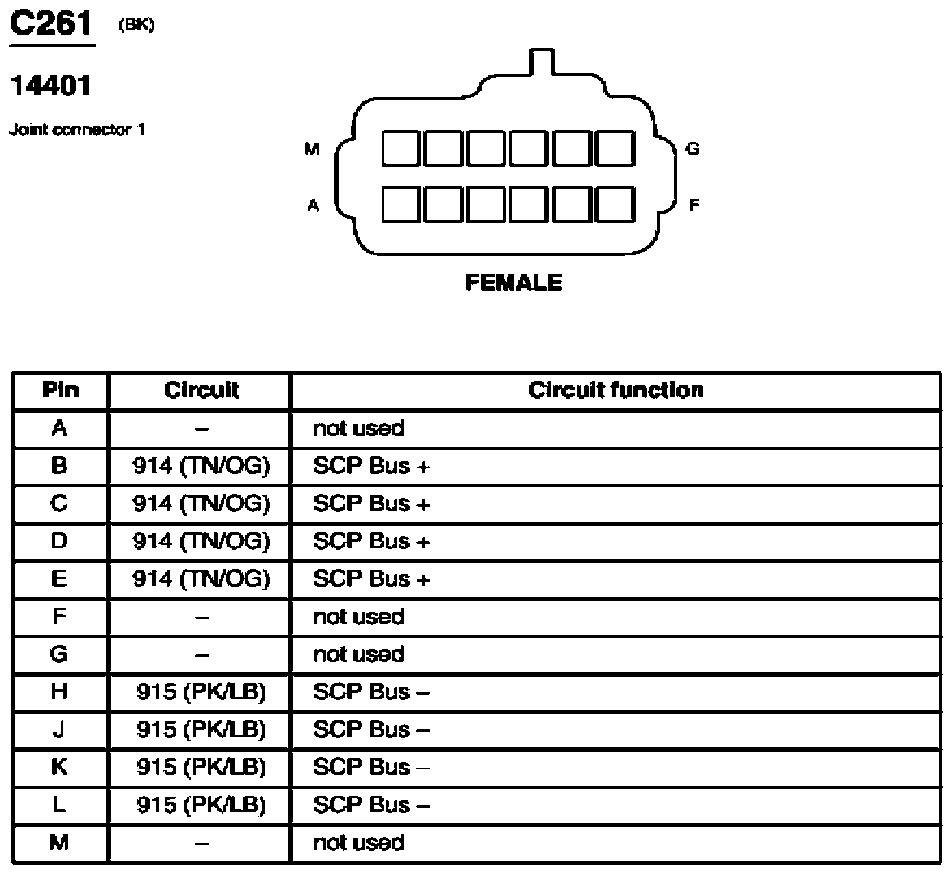

Fig 85: Joint Connector 1 Connector End View (C261)
Courtesy of FORD MOTOR CO.

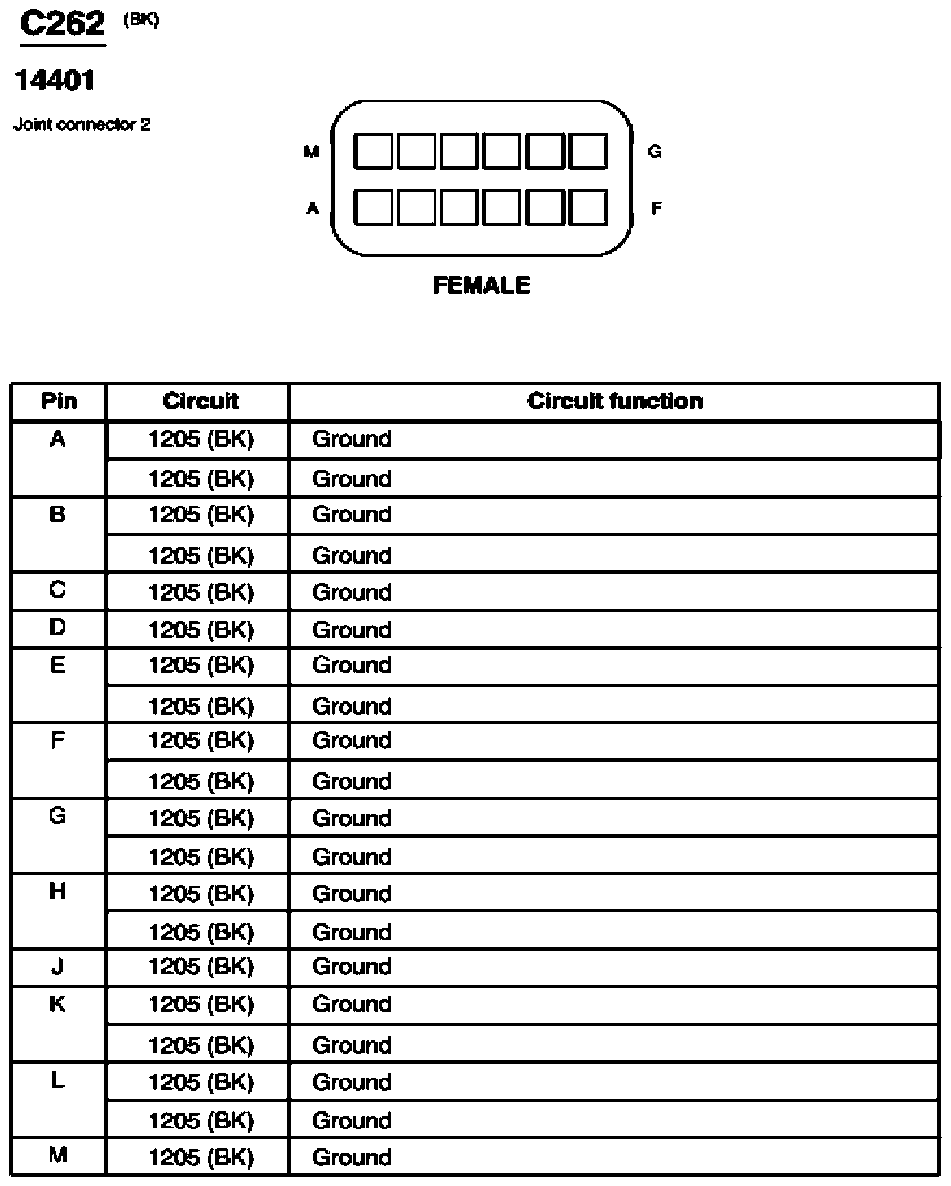

Fig 86: Joint Connector 2 Connector End View (C262)
Courtesy of FORD MOTOR CO.

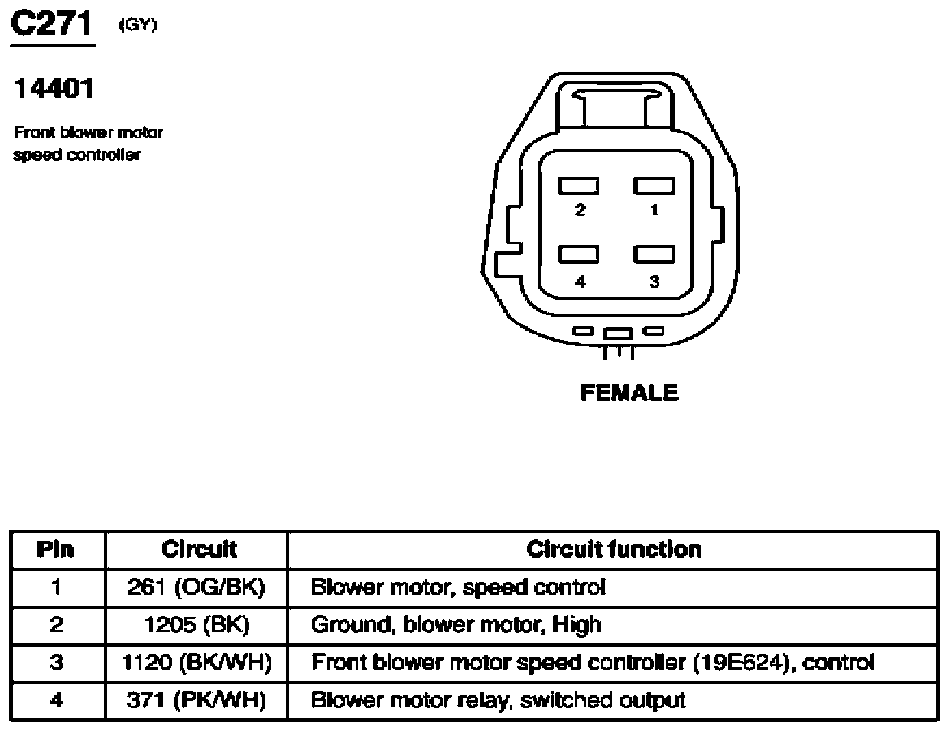

Fig 87: Front Blower Motor Speed Controller Connector End View (C271)
Courtesy of FORD MOTOR CO.

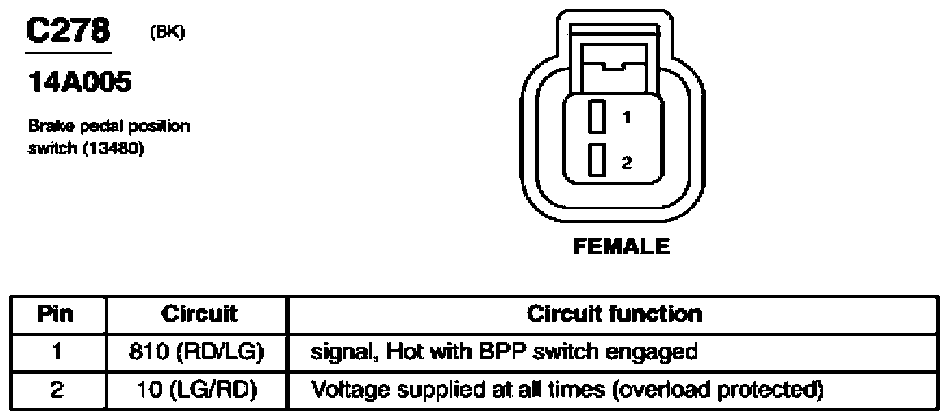

Fig 88: Brake Pedal Position Switch Connector End View (C278)
Courtesy of FORD MOTOR CO.

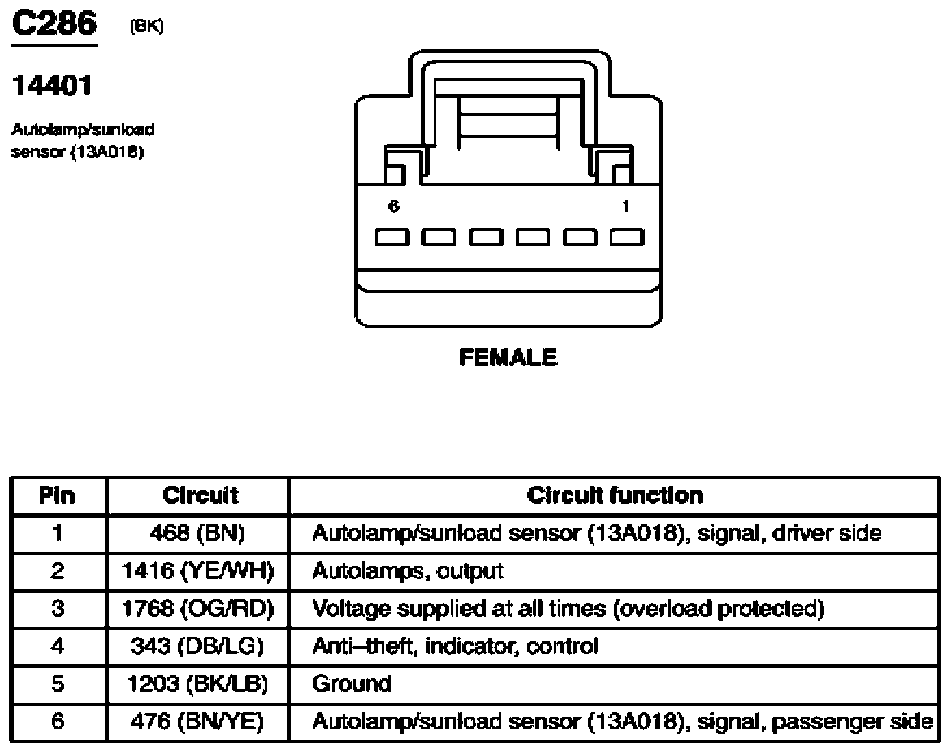

Fig 89: Autolamp/Sunload Sensor Connector End View (C286)
Courtesy of FORD MOTOR CO.

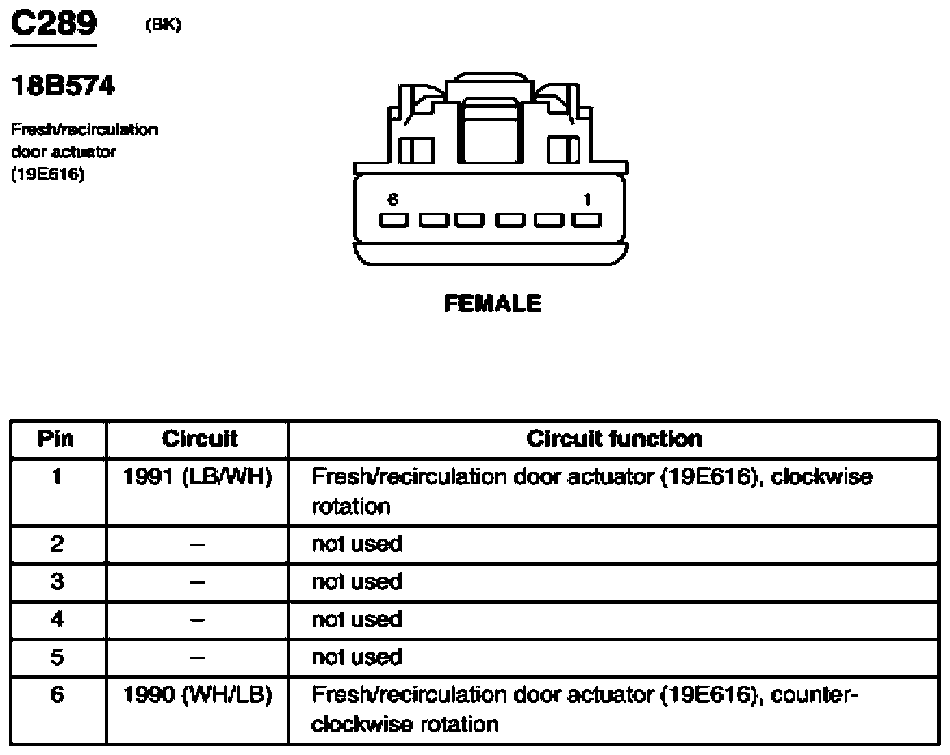

Fig 90: Fresh/Recirculation Door Actuator Connector End View (C289)
Courtesy of FORD MOTOR CO.

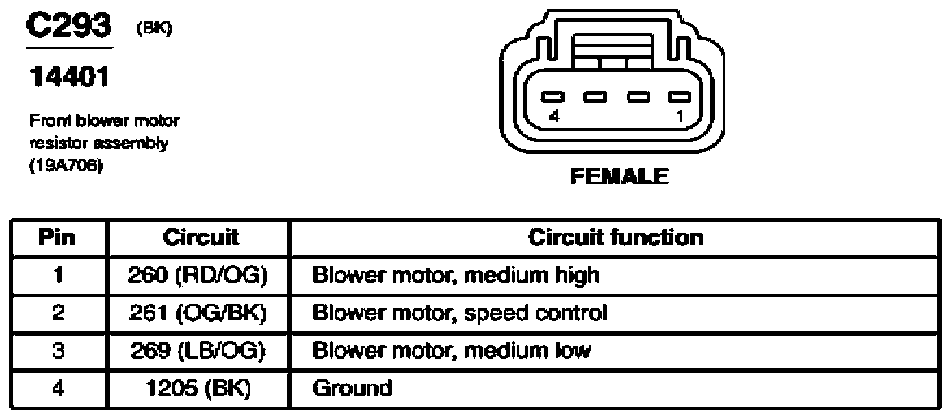

Fig 91: Front Blower Motor Resistor Assembly Connector End View (C293)
Courtesy of FORD MOTOR CO.
Fig 92: Electronic Automatic Temperature Control (EATC) Module Connector End View (C294a)
Courtesy of FORD MOTOR CO.

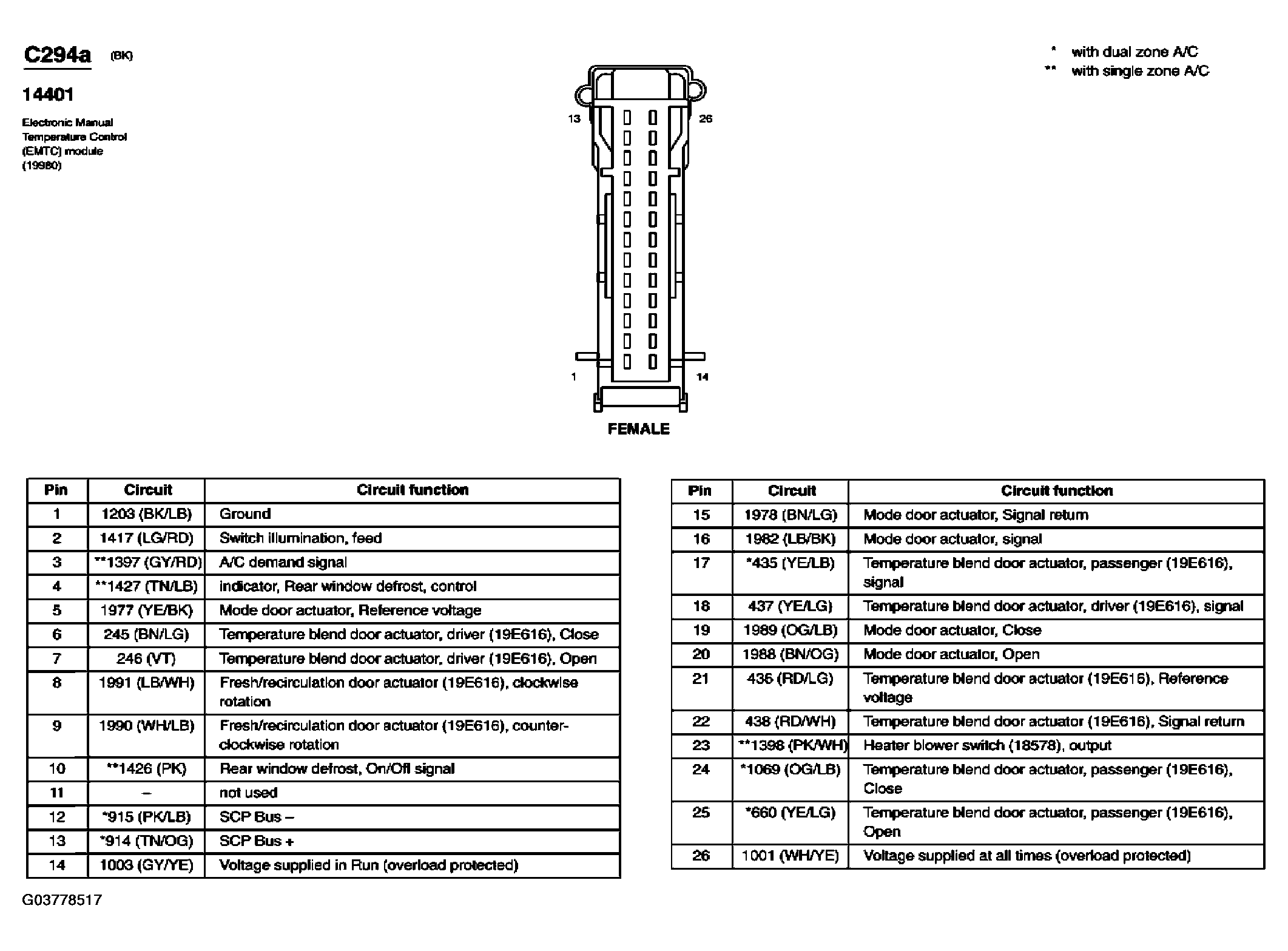

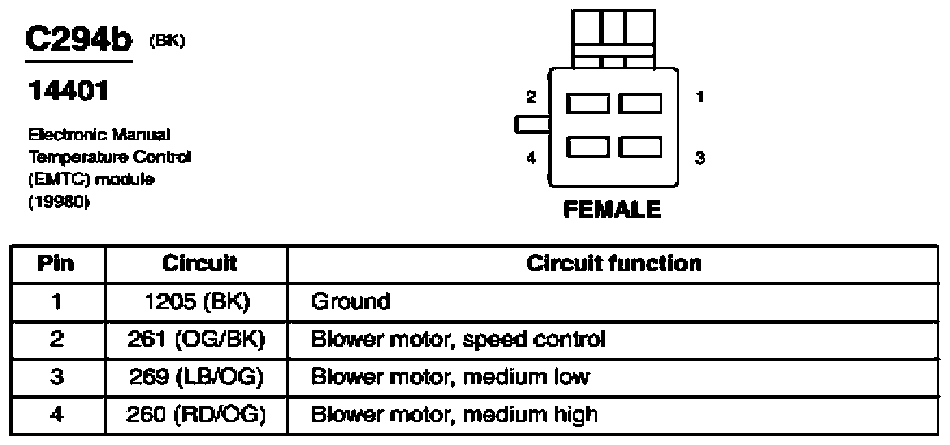

Fig 93: Electronic Manual Temperature Control (EMTC) Module Connector End View (C294b)
Courtesy of FORD MOTOR CO.

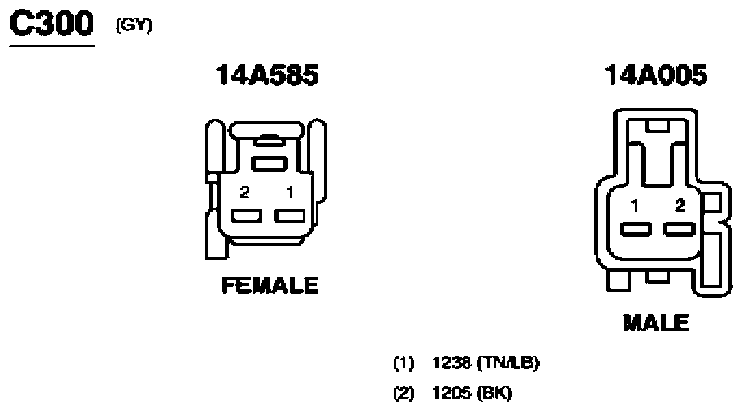

Fig 94: Inline Connector End View (C300)
Courtesy of FORD MOTOR CO.

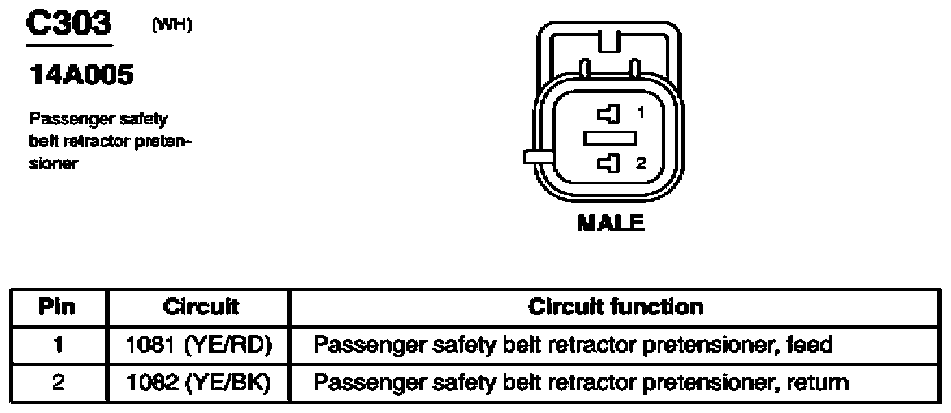

Fig 95: Passenger Safety Belt Retractor Pretensioner Connector End View (C303)
Courtesy of FORD MOTOR CO.

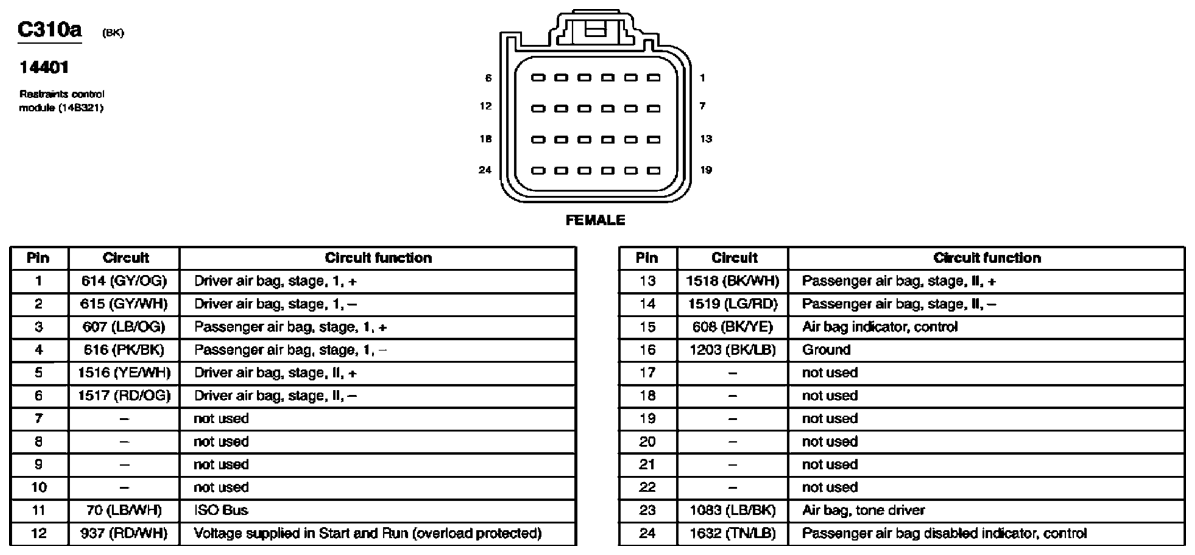

Fig 96: Restraints Control Module Connector End View (C310a)
Courtesy of FORD MOTOR CO.

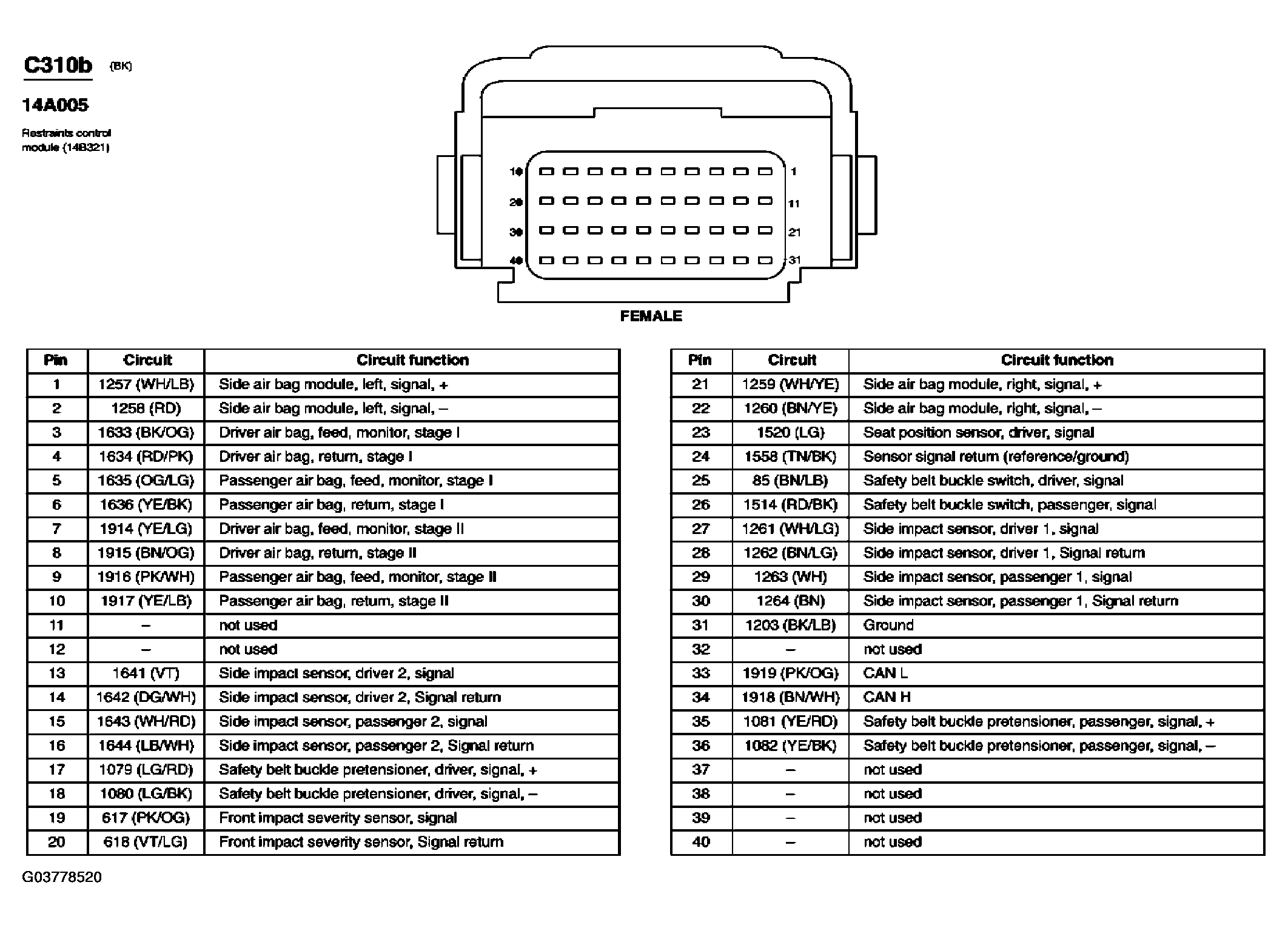

Fig 97: Restraints Control Module Connector End View (C310b) (1 Of 3)
Courtesy of FORD MOTOR CO.

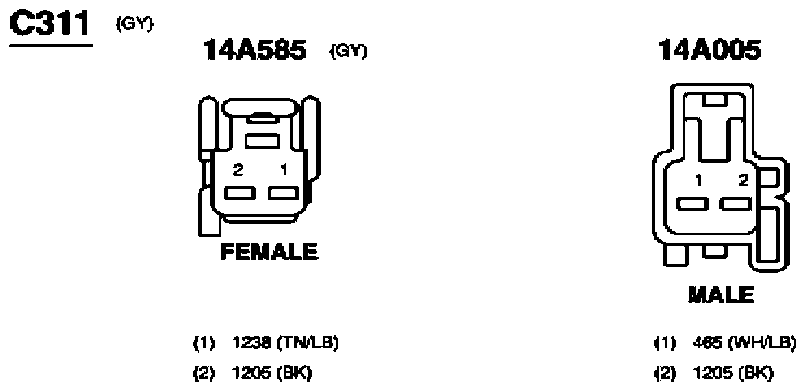

Fig 98: Inline Connector End View (C311)
Courtesy of FORD MOTOR CO.

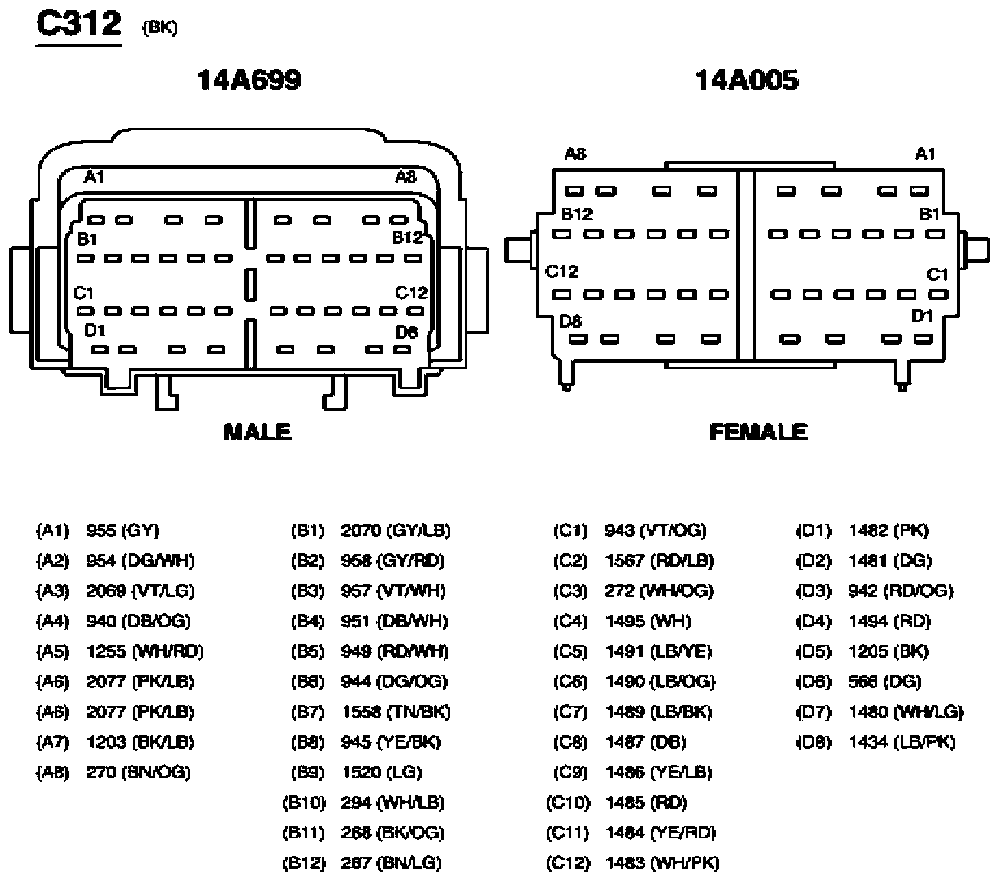

Fig 99: Inline Connector End View (C312)
Courtesy of FORD MOTOR CO.

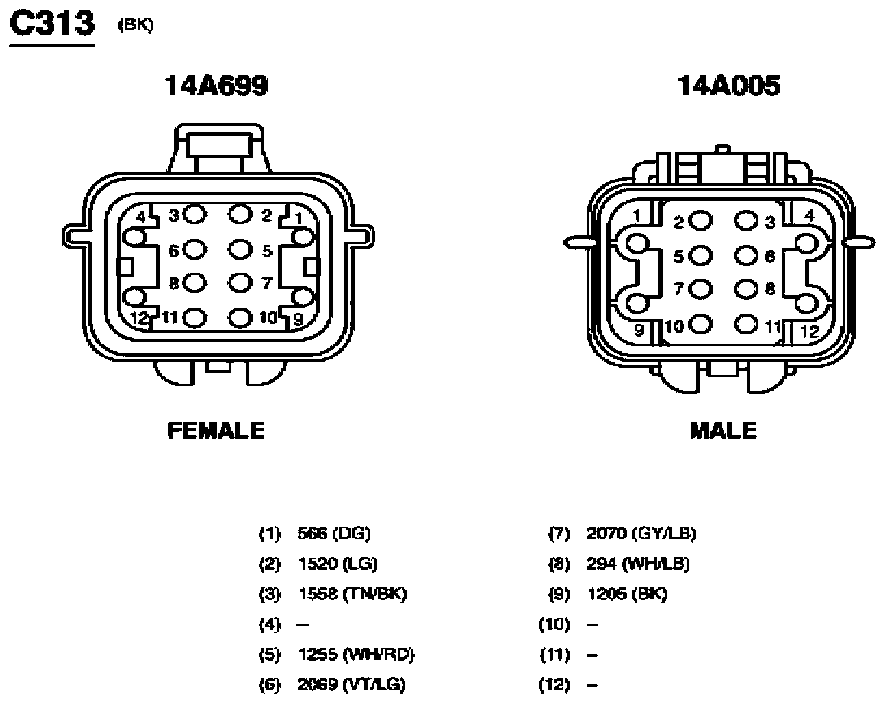

Fig 100: Inline Connector End View (C313)
Courtesy of FORD MOTOR CO.

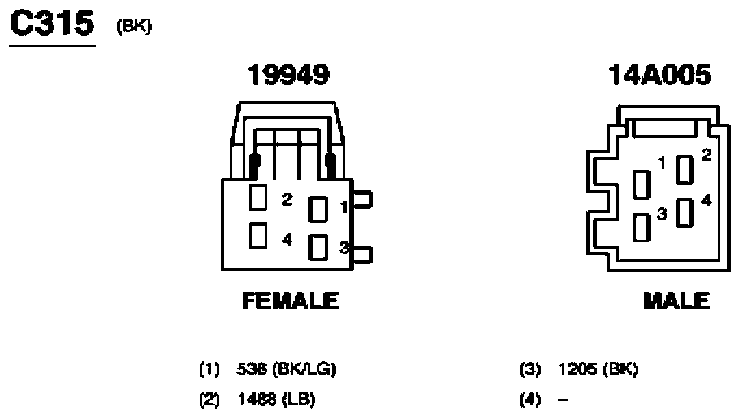

Fig 101: Inline Connector End View (C315)
Courtesy of FORD MOTOR CO.

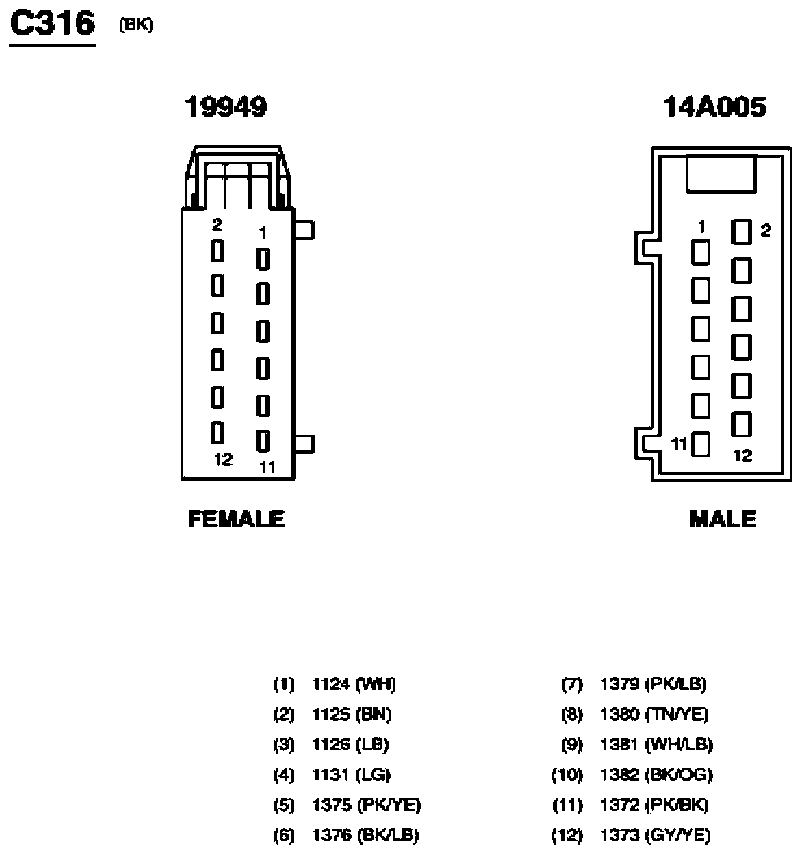

Fig 102: Inline Connector End View (C316)
Courtesy of FORD MOTOR CO.

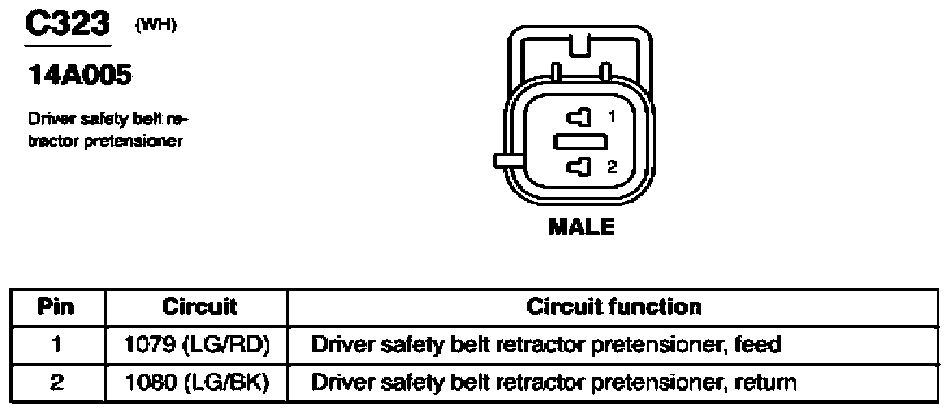

Fig 103: Driver Safety Belt Retractor Pretensioner Connector End View (C323)
Courtesy of FORD MOTOR CO.

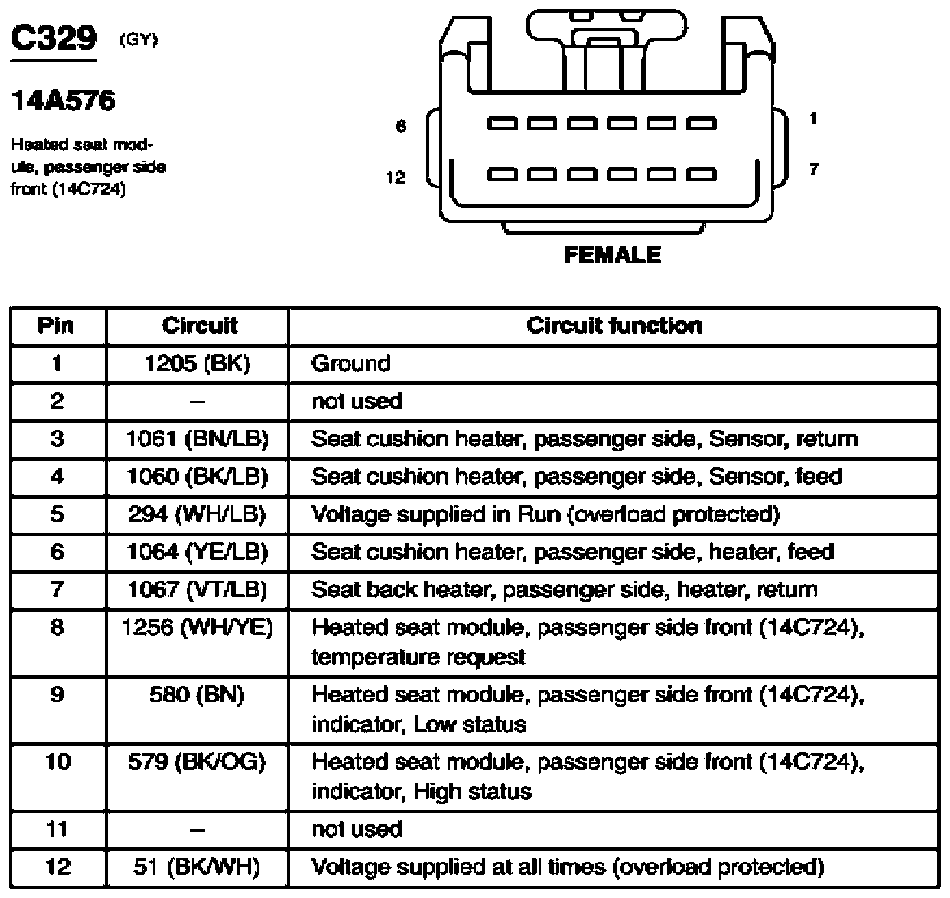

Fig 104: Heated Seat Module, Passenger Side Front Connector End View (C329)
Courtesy of FORD MOTOR CO.

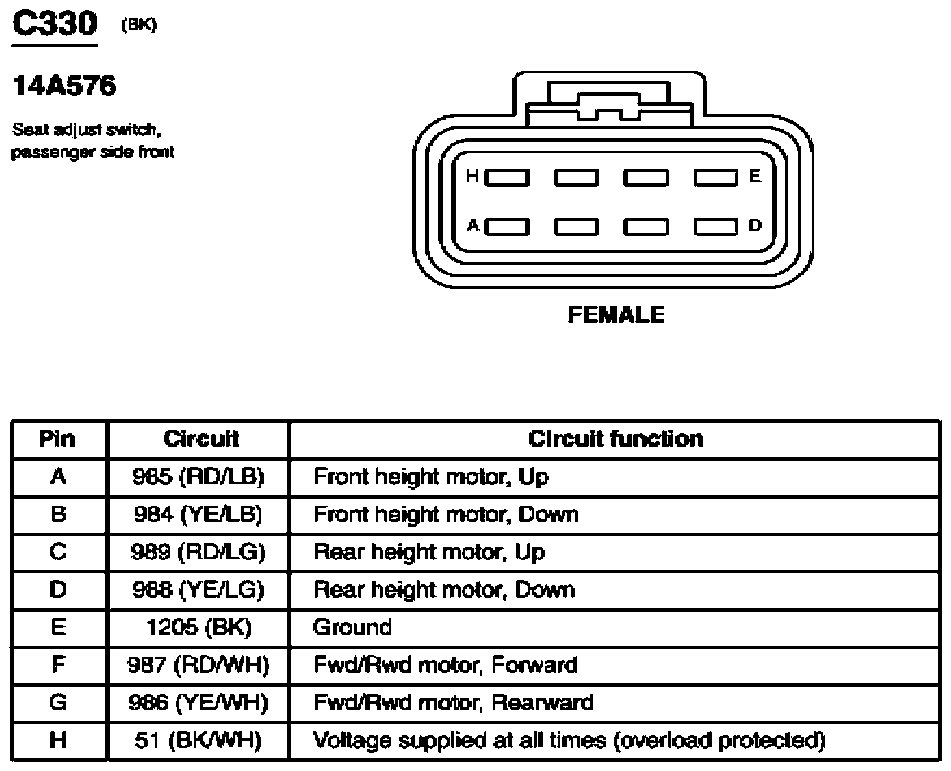

Fig 105: Seat Adjust Switch, Passenger Side Front Connector End View (C330)
Courtesy of FORD MOTOR CO.

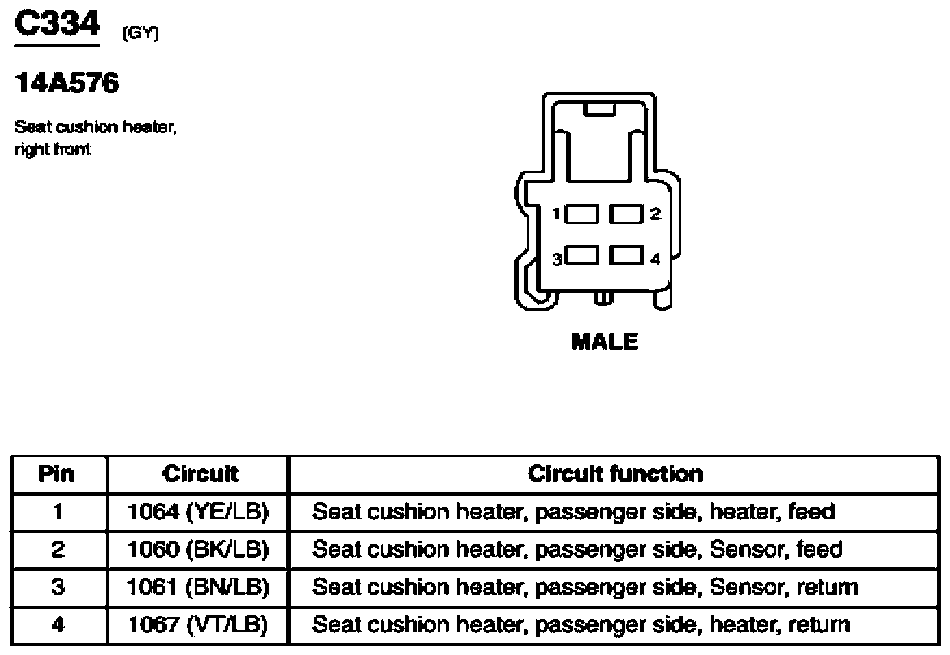

Fig 106: Seat Cushion Heater, Right Front Connector End View (C334)
Courtesy of FORD MOTOR CO.

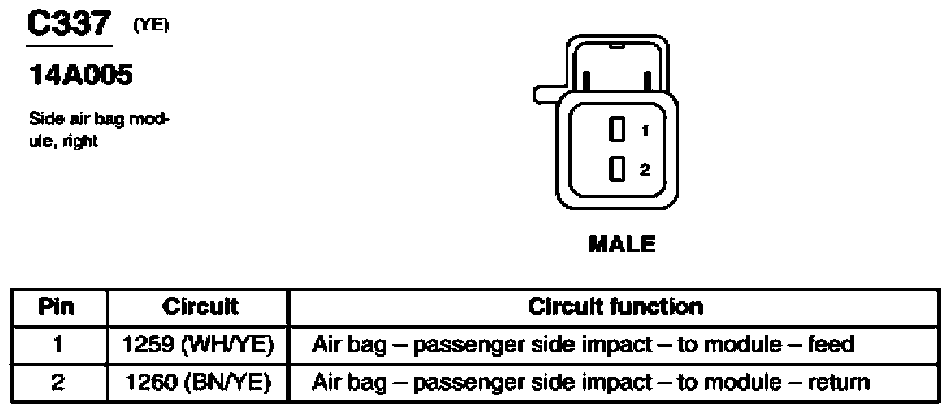

Fig 107: Side Air Bag Module, Right Connector End View (C337)
Courtesy of FORD MOTOR CO.

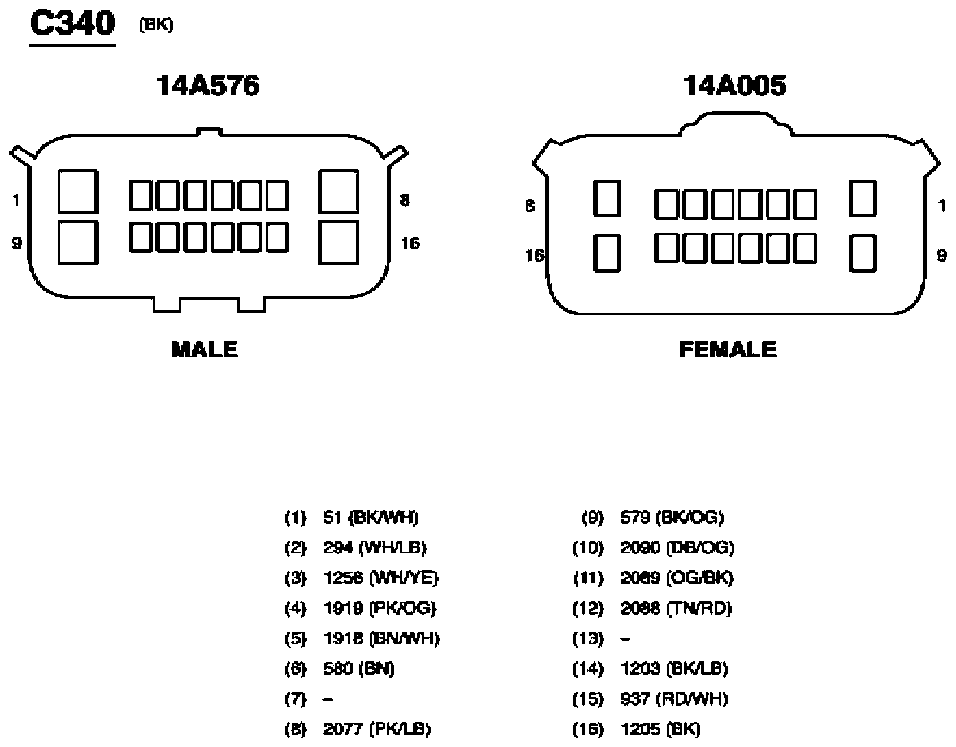

Fig 108: Inline Connector End View (C340)
Courtesy of FORD MOTOR CO.

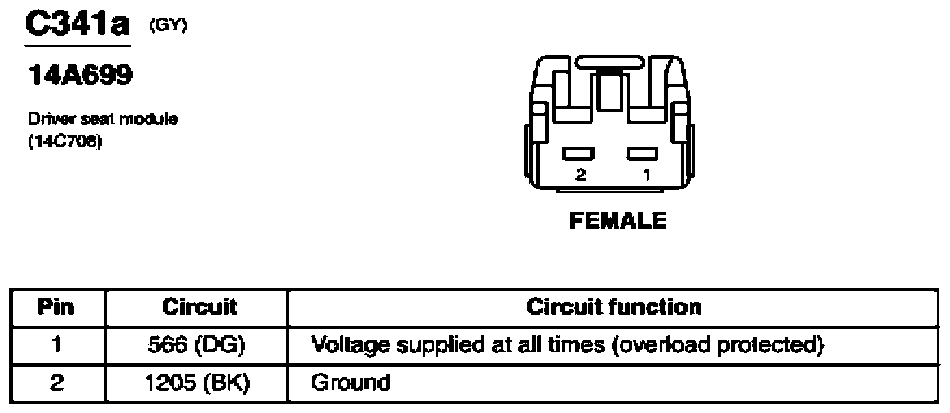

Fig 109: Driver Seat Module Connector End View (C341a)
Courtesy of FORD MOTOR CO.

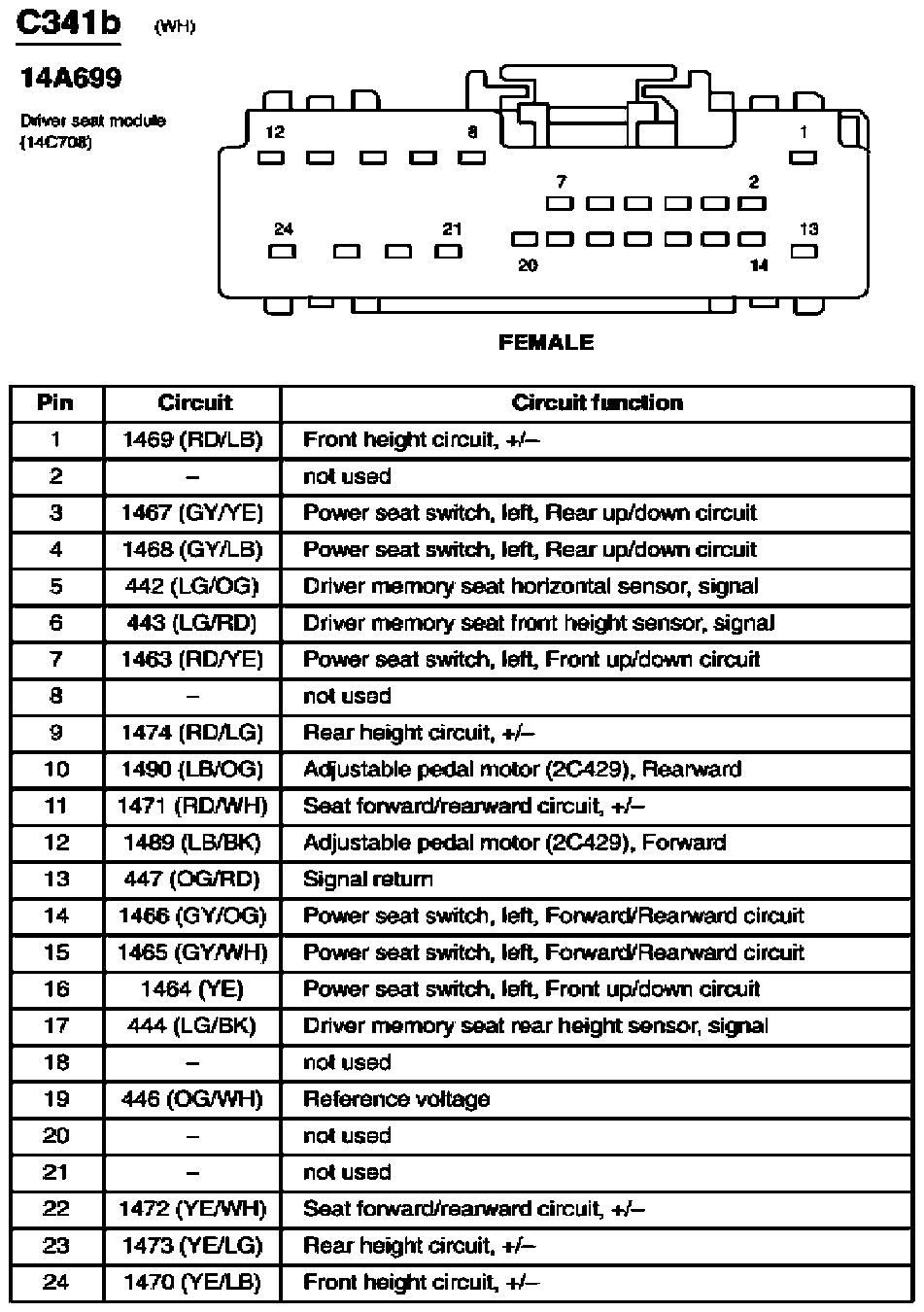

Fig 110: Driver Seat Module Connector End View (C341b)
Courtesy of FORD MOTOR CO.

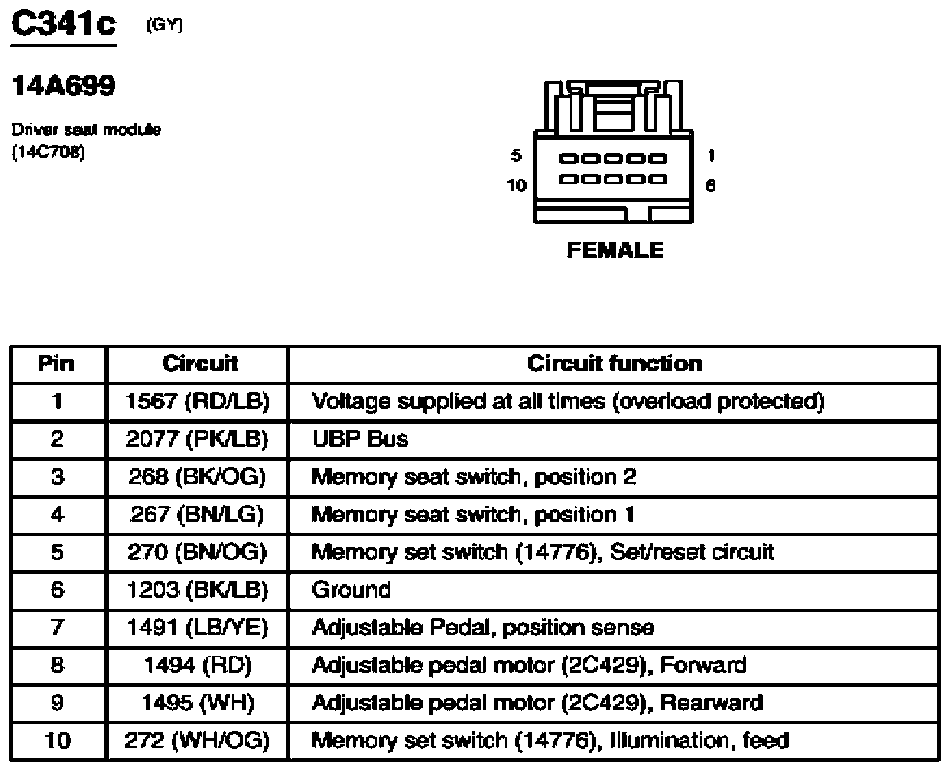

Fig 111: Driver Seat Module Connector End View (C341c)
Courtesy of FORD MOTOR CO.

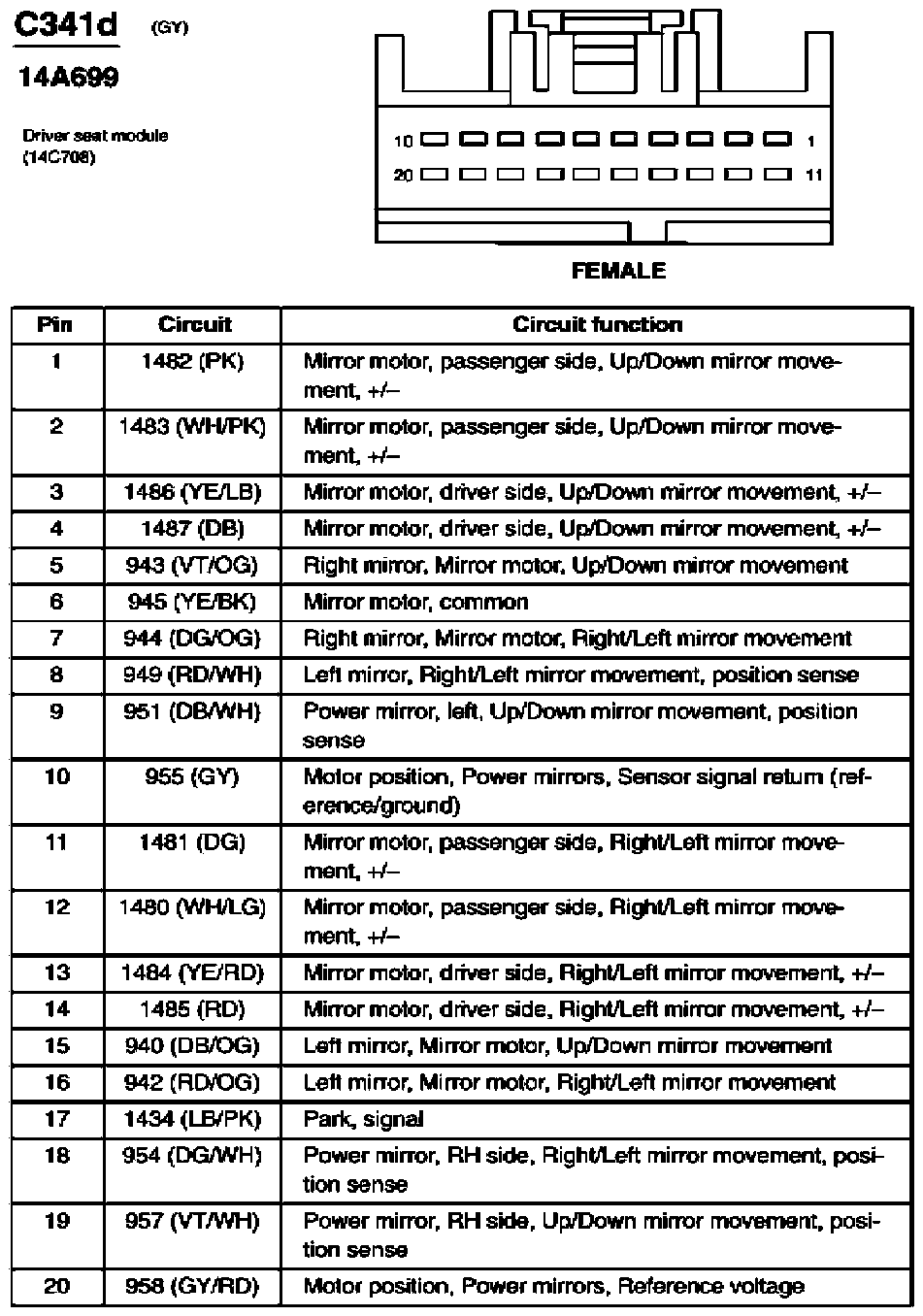

Fig 112: Driver Seat Module Connector End View (C341d)
Courtesy of FORD MOTOR CO.

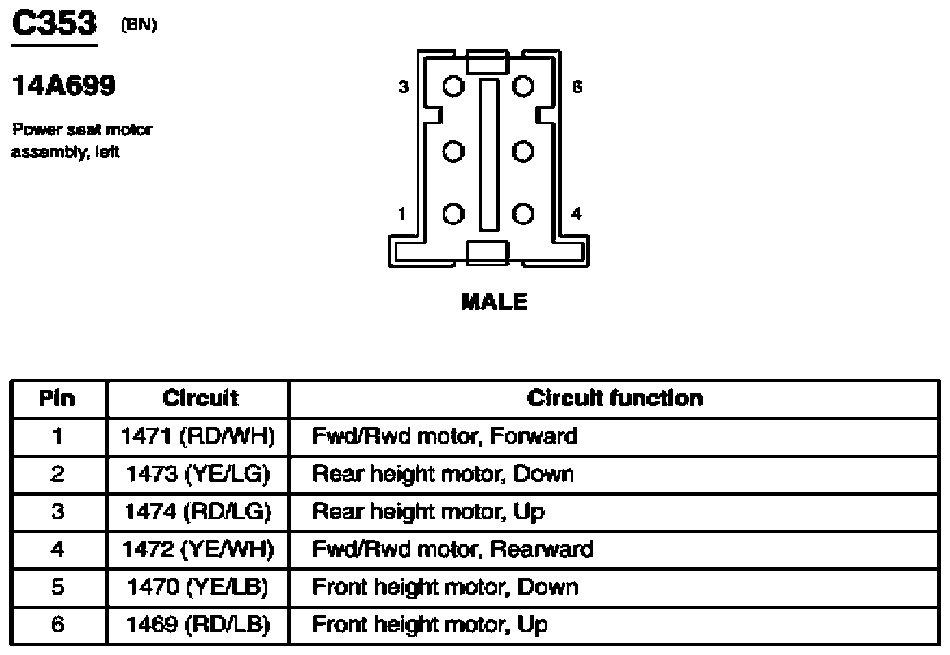

Fig 113: Power Seat Motor Assembly, Left Connector End View (C353)
Courtesy of FORD MOTOR CO.

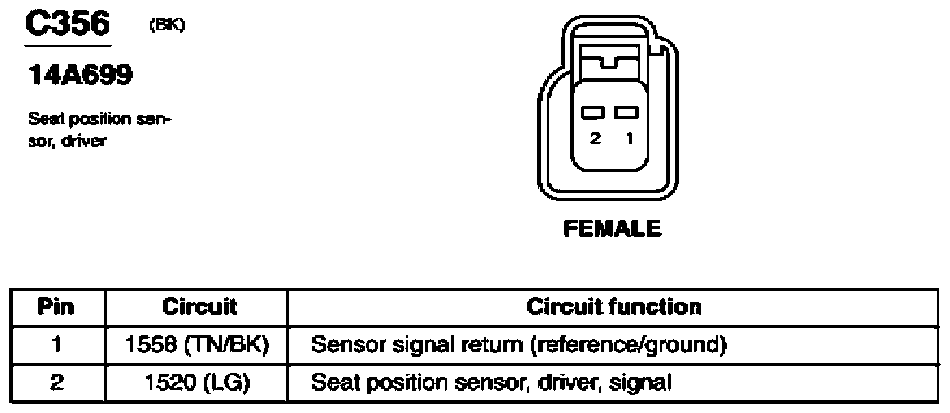

Fig 114: Seat Position Sensor, Driver Connector End View (C356)
Courtesy of FORD MOTOR CO.

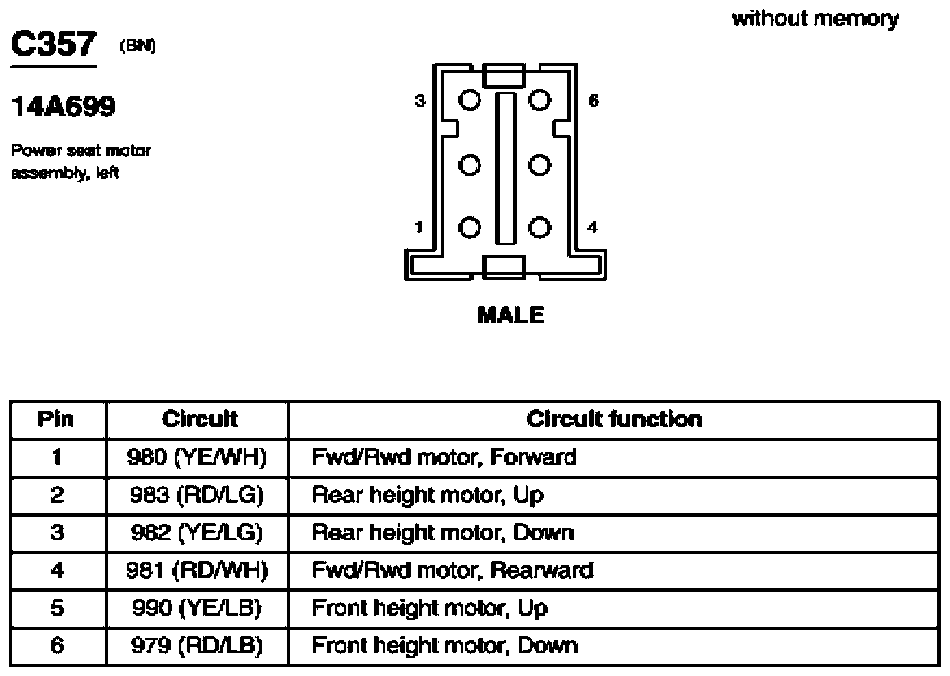

Fig 115: Power Seat Motor Assembly, Left Connector End View (C357)
Courtesy of FORD MOTOR CO.

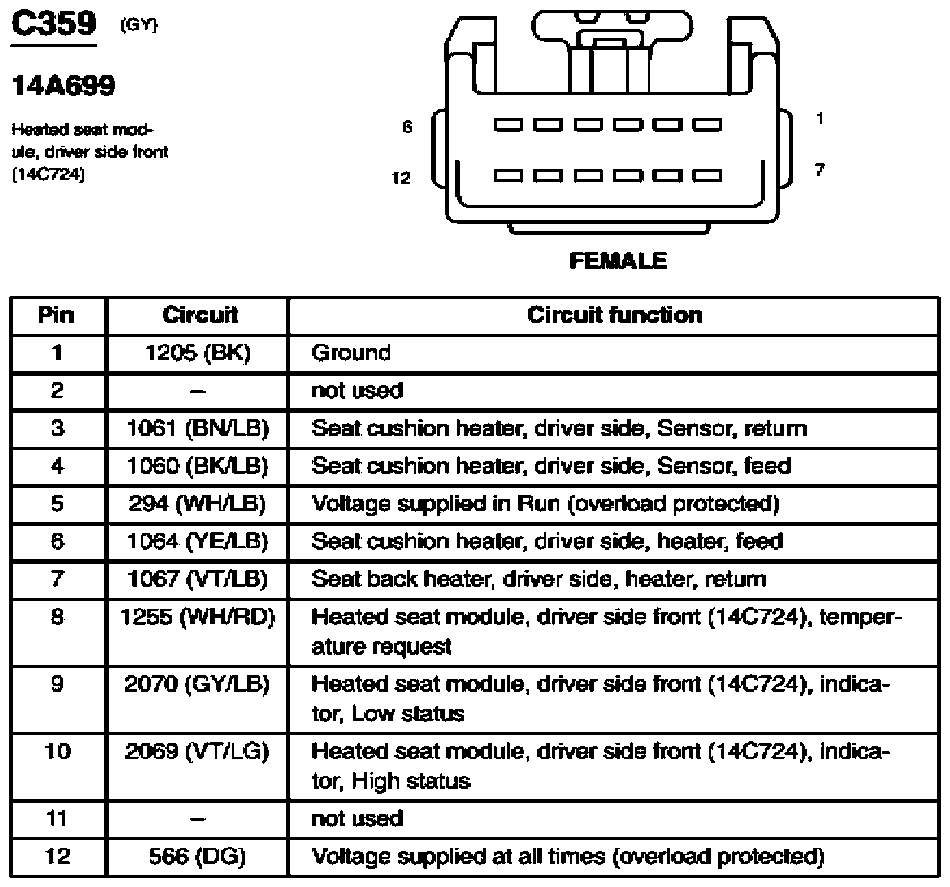

Fig 116: Heated Seat Module, Driver Side Front Connector End View (C359)
Courtesy of FORD MOTOR CO.

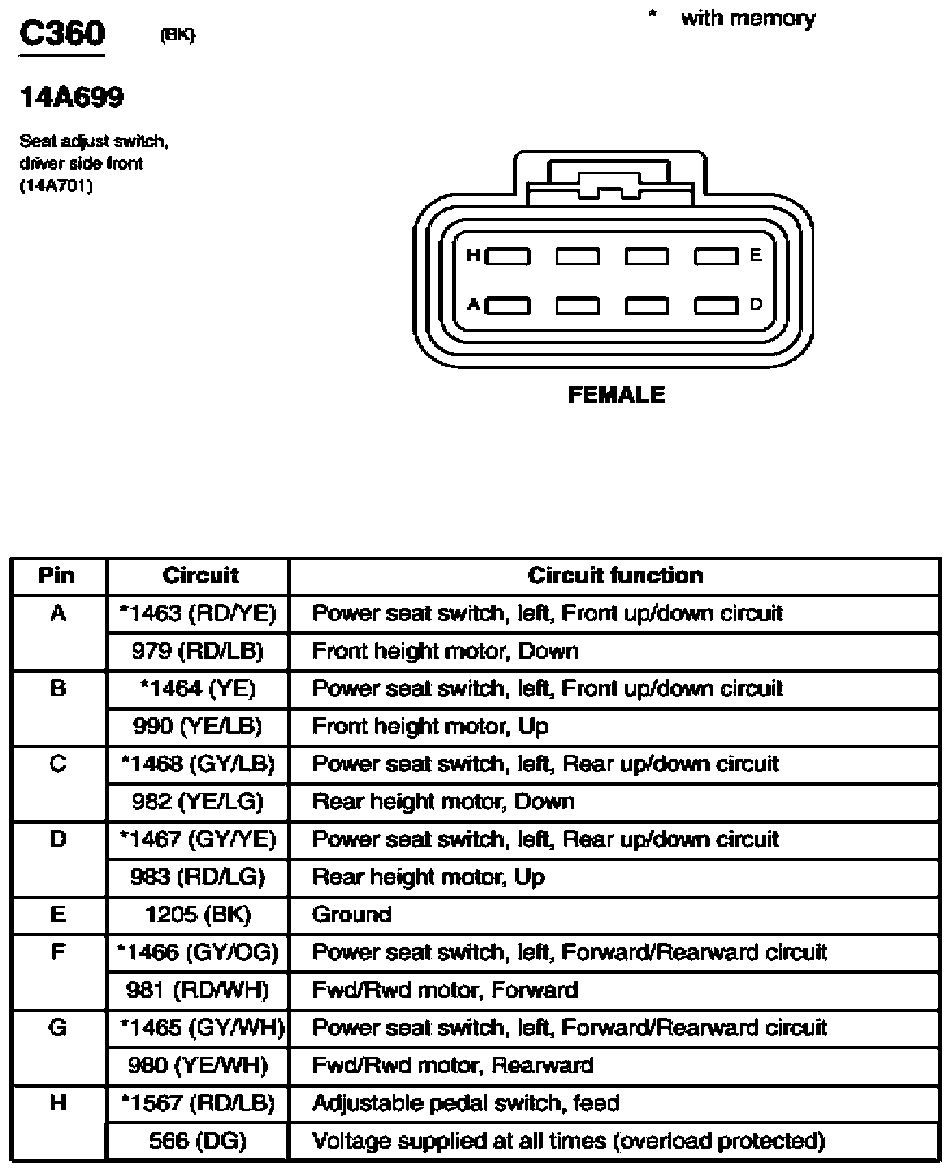

Fig 117: Seat Adjust Switch, Driver Side Front Connector End View (C360)
Courtesy of FORD MOTOR CO.

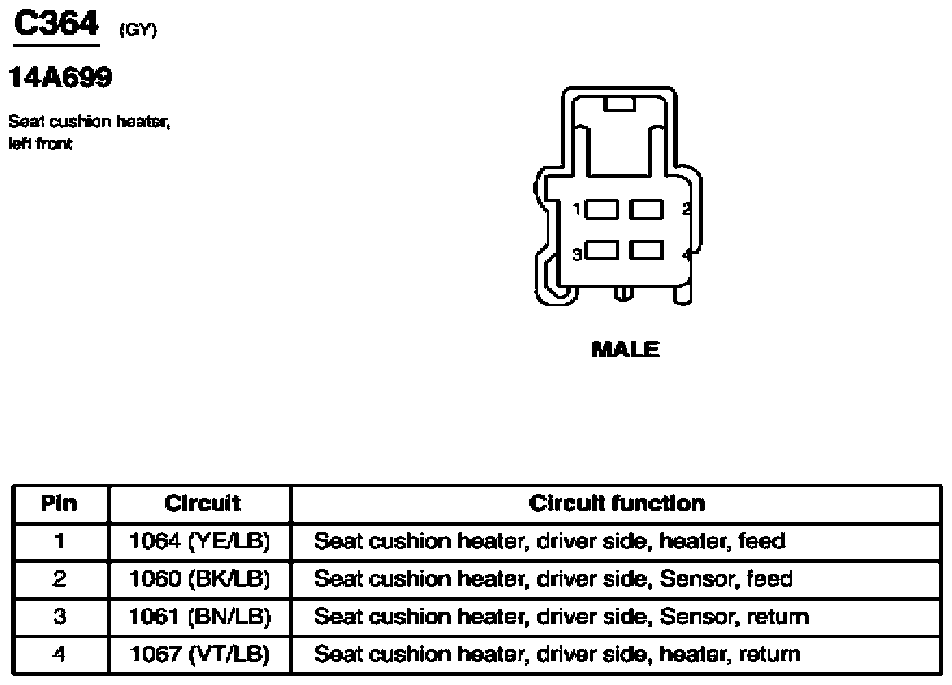

Fig 118: Seat Cushion Heater, Left Front Connector End View (C364)
Courtesy of FORD MOTOR CO.

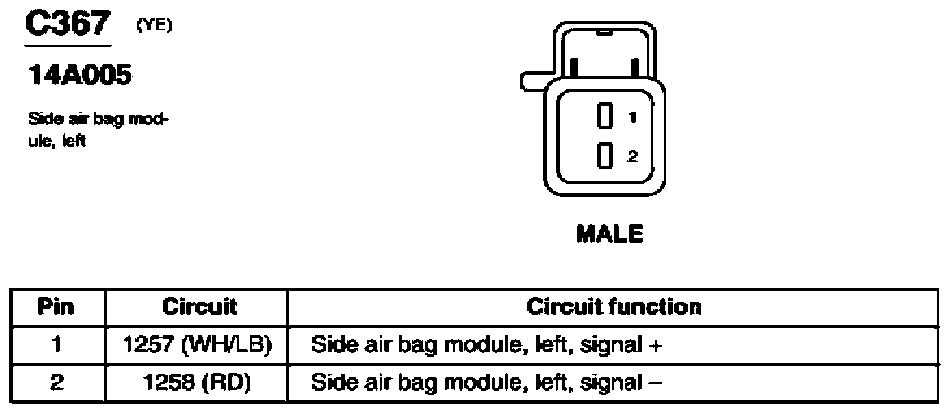

Fig 119: Side Air Bag Module, Left Connector End View (C367)
Courtesy of FORD MOTOR CO.

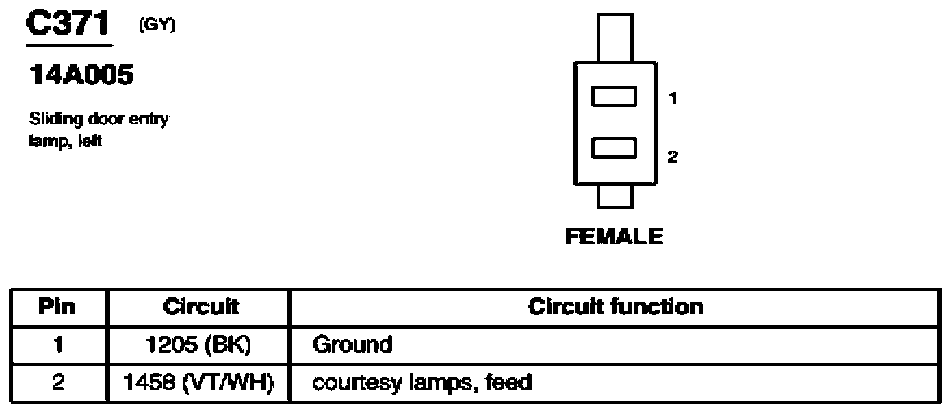

Fig 120: Sliding Door Entry Lamp, Left Connector End View (C371)
Courtesy of FORD MOTOR CO.

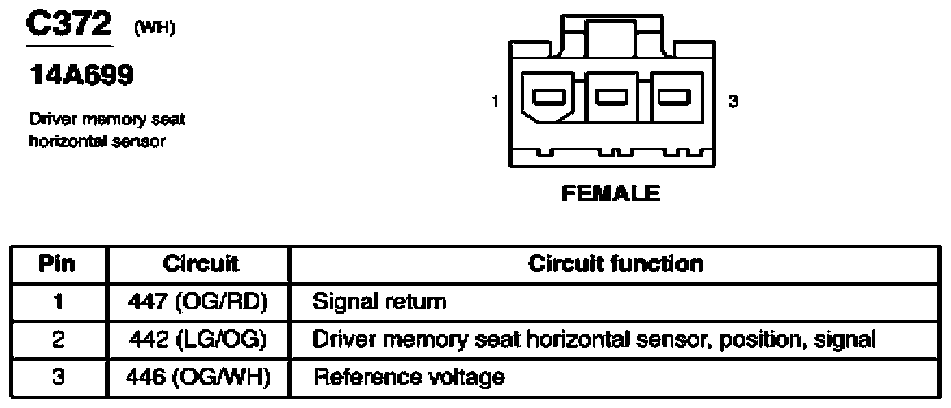

Fig 121: Driver Memory Seat Horizontal Sensor Connector End View (C372)
Courtesy of FORD MOTOR CO.

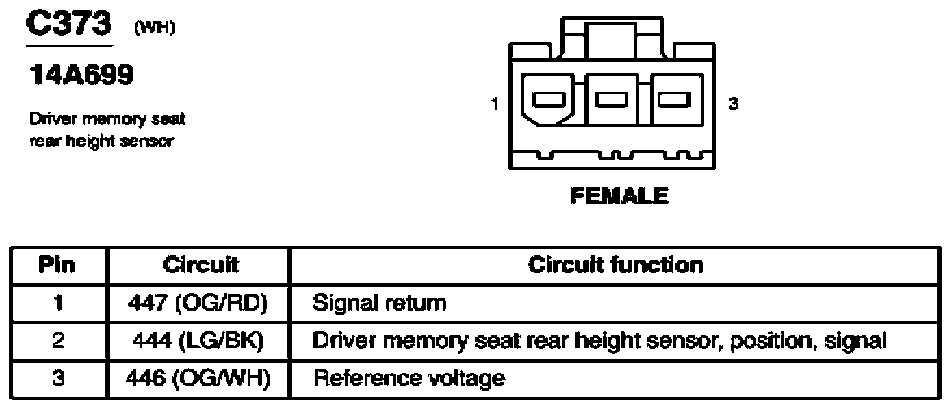

Fig 122: Driver Memory Seat Rear Height Sensor Connector End View (C373)
Courtesy of FORD MOTOR CO.

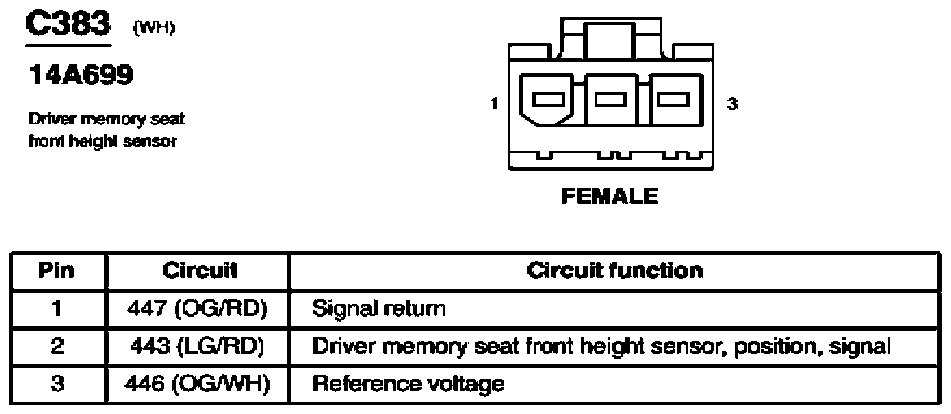

Fig 123: Driver Memory Seat Front Height Sensor Connector End View (C383)
Courtesy of FORD MOTOR CO.

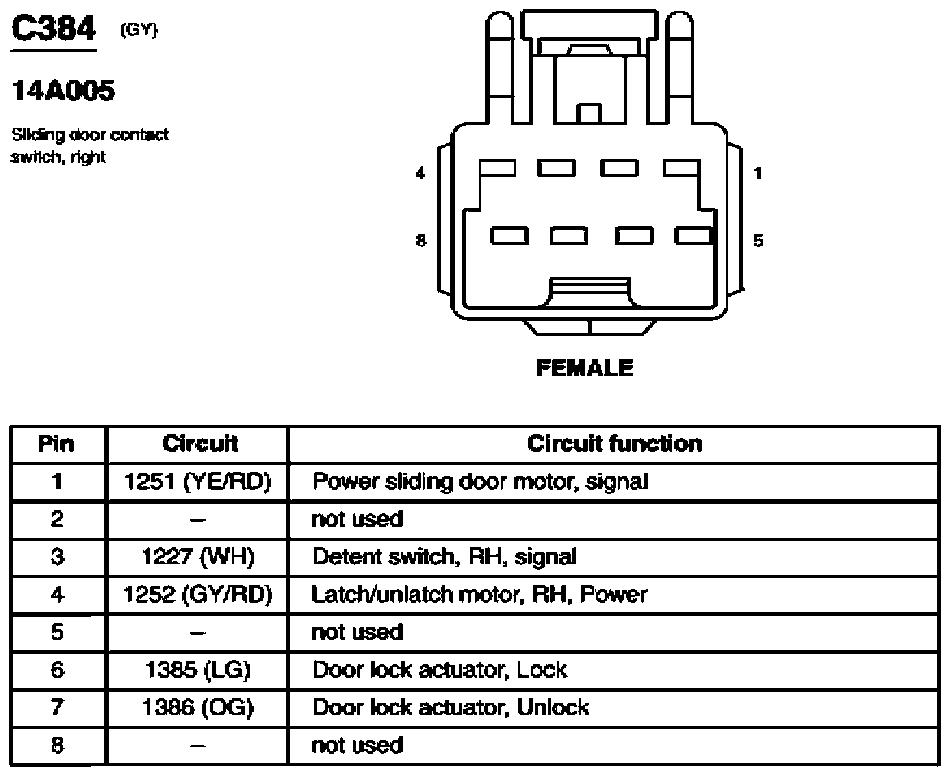

Fig 124: Sliding Door Contact Switch, Right Connector End View (C384)
Courtesy of FORD MOTOR CO.

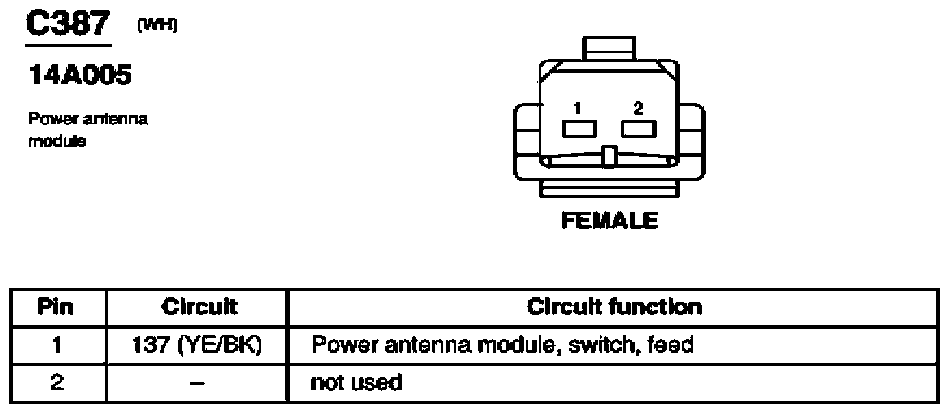

Fig 125: Power Antenna Module Connector End View (C387)
Courtesy of FORD MOTOR CO.

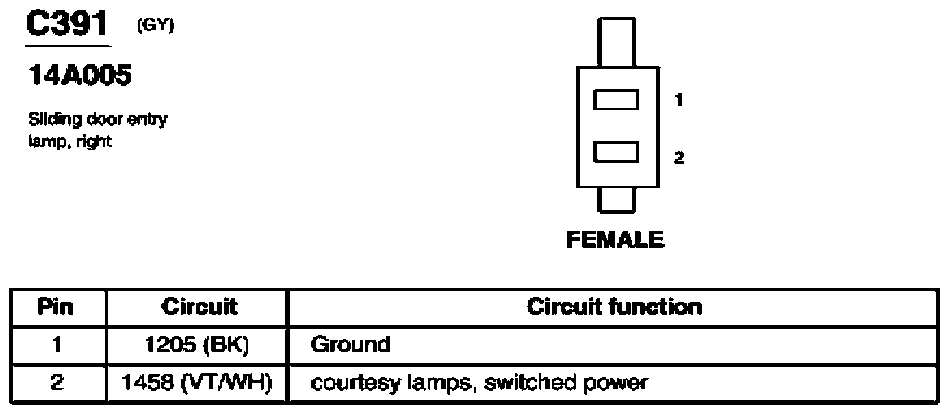

Fig 126: Sliding Door Entry Lamp, Right Connector End View (C391)
Courtesy of FORD MOTOR CO.

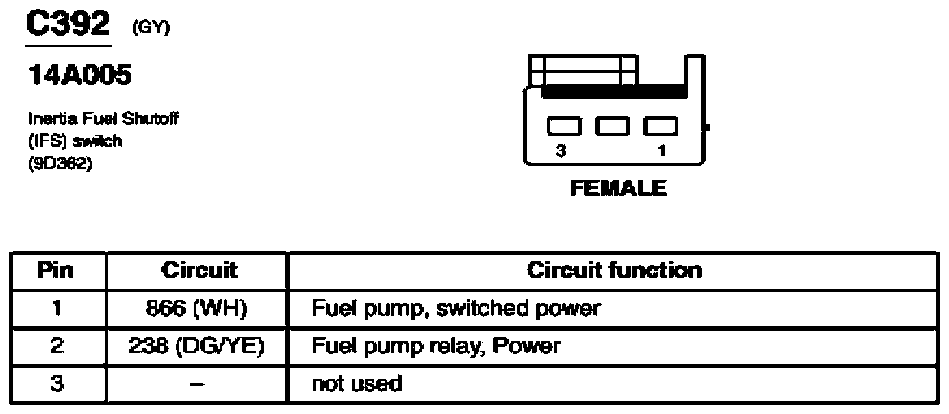

Fig 127: Inertia Fuel Shutoff (IFS) Switch Connector End View (C392)
Courtesy of FORD MOTOR CO.

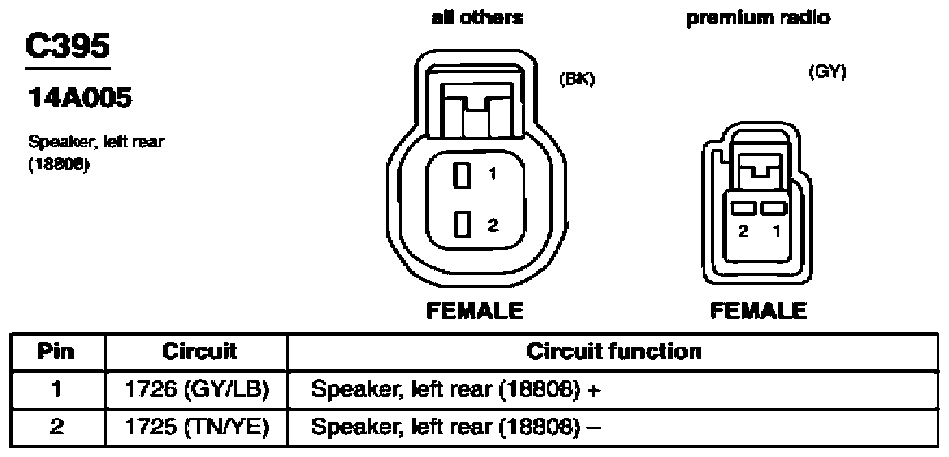

Fig 128: Speaker, Left Rear Connector End View (C395)
Courtesy of FORD MOTOR CO.

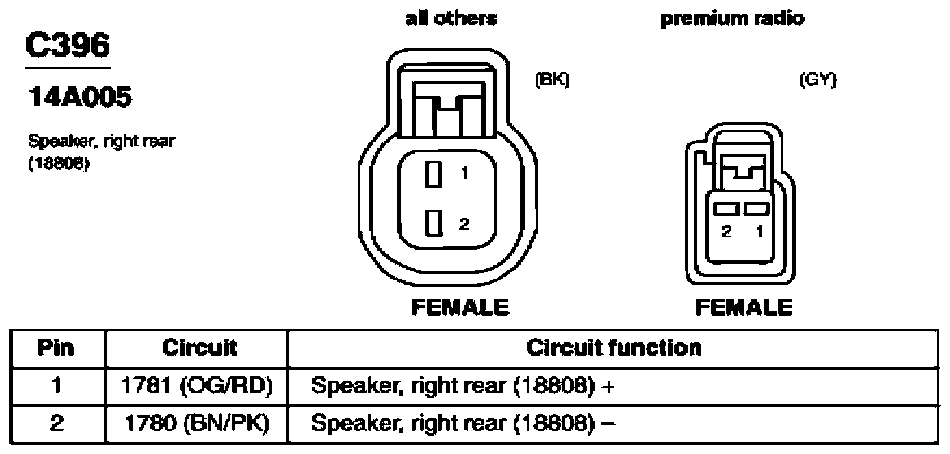

Fig 129: Speaker, Right Rear Connector End View (C396)
Courtesy of FORD MOTOR CO.

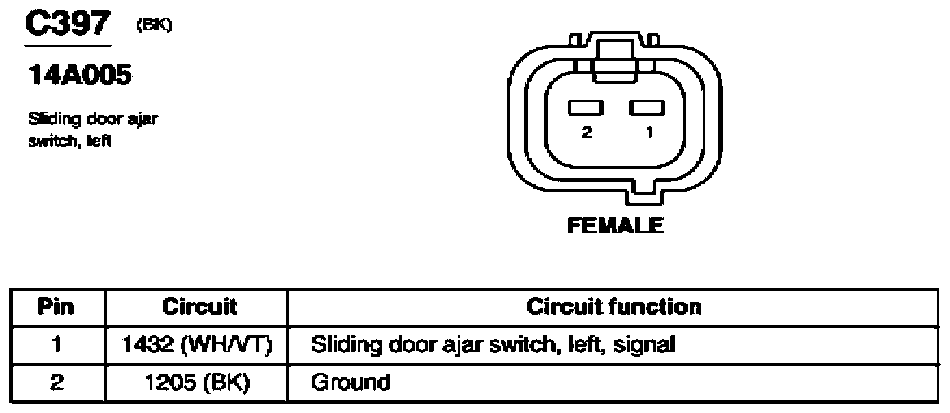

Fig 130: Sliding Door Ajar Switch, Left Connector End View (C397)
Courtesy of FORD MOTOR CO.

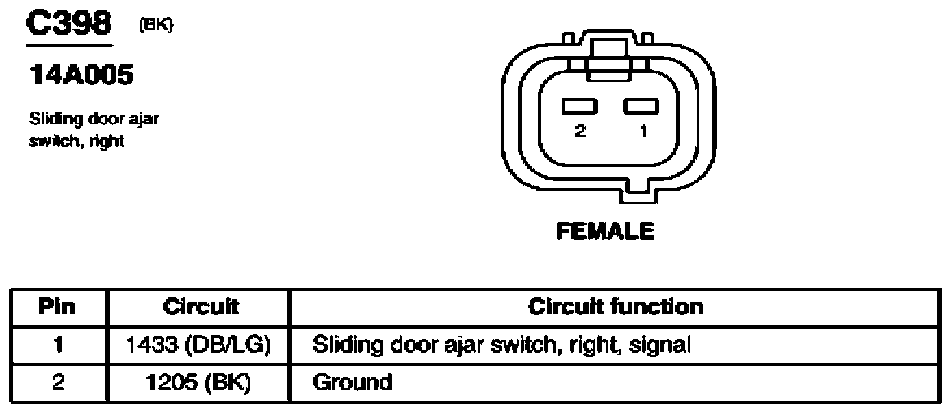

Fig 131: Sliding Door Ajar Switch, Right Connector End View (C398)
Courtesy of FORD MOTOR CO.

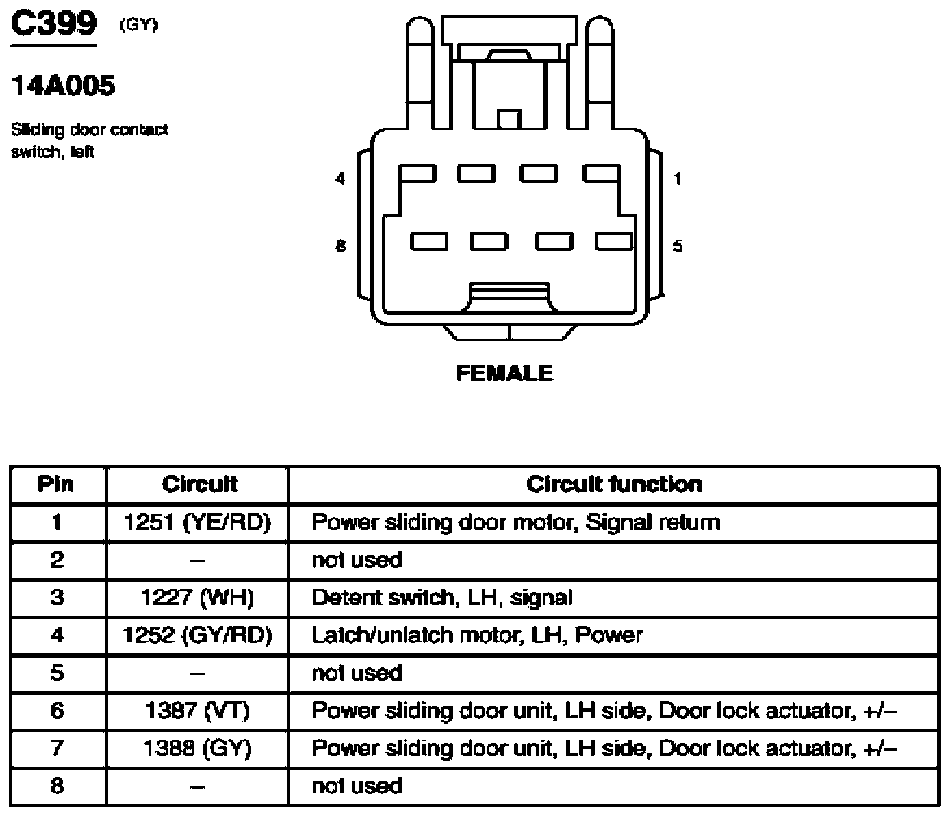

Fig 132: Sliding Door Contact Switch, Left Connector End View (C399)
Courtesy of FORD MOTOR CO.

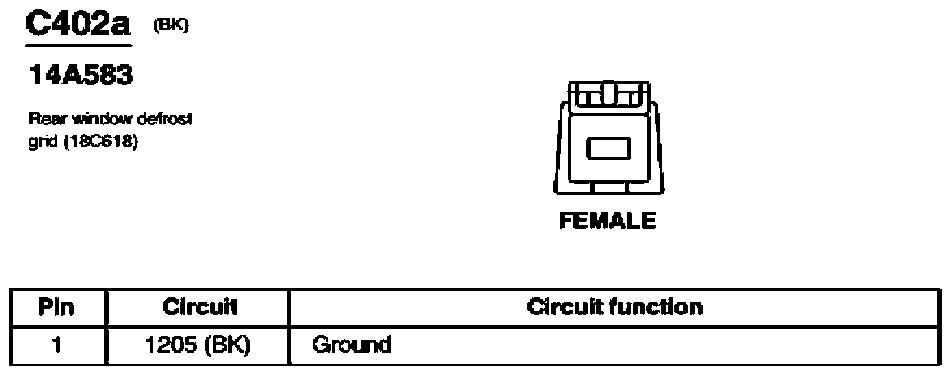

Fig 133: Rear Window Defrost Grid Connector End View (C402a)
Courtesy of FORD MOTOR CO.

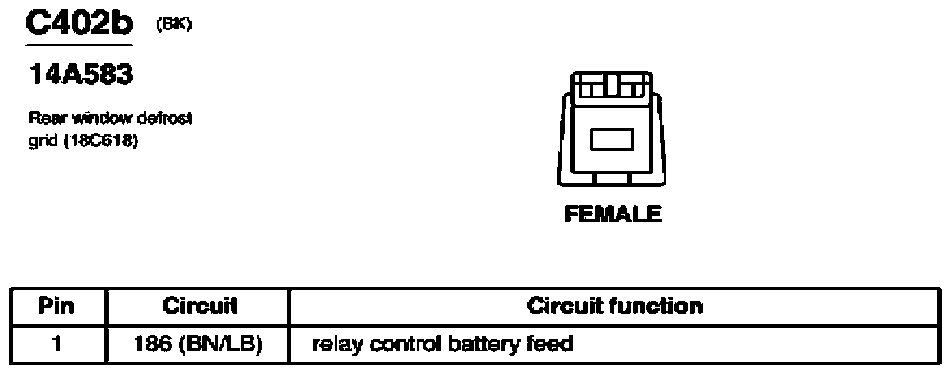

Fig 134: Rear Window Defrost Grid Connector End View (C402b)
Courtesy of FORD MOTOR CO.

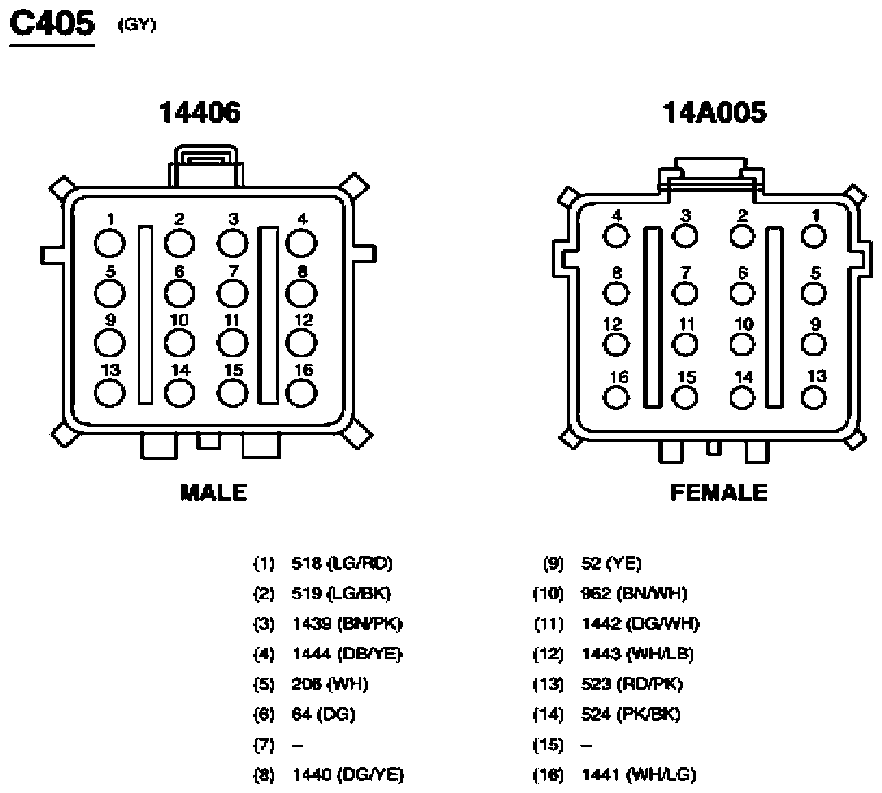

Fig 135: Inline Connector End View (C405)
Courtesy of FORD MOTOR CO.

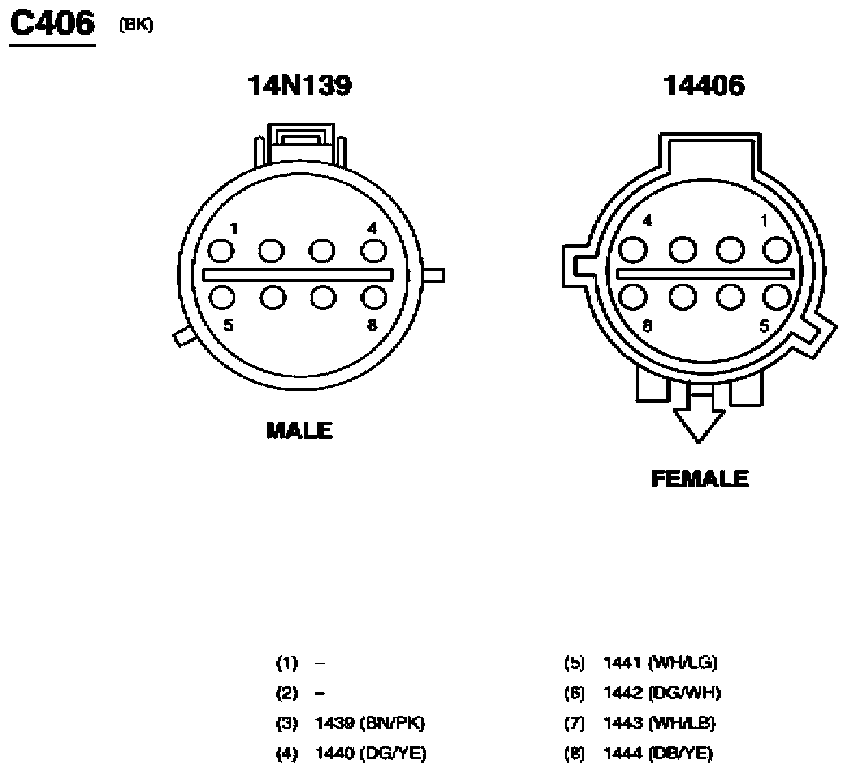

Fig 136: Inline Connector End View (C406)
Courtesy of FORD MOTOR CO.

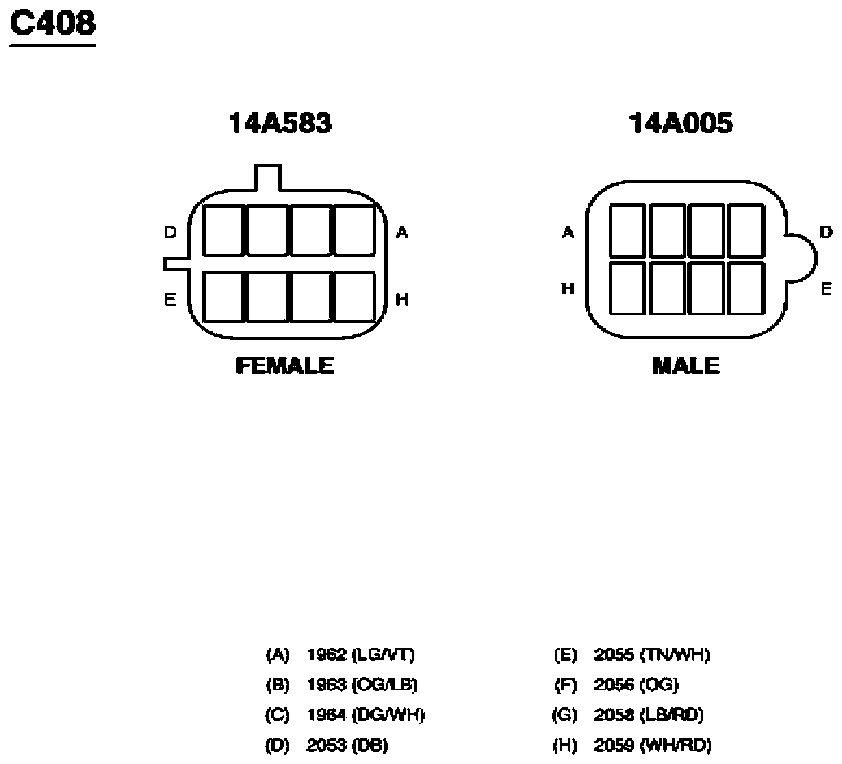

Fig 137: Inline Connector End View (C408)
Courtesy of FORD MOTOR CO.

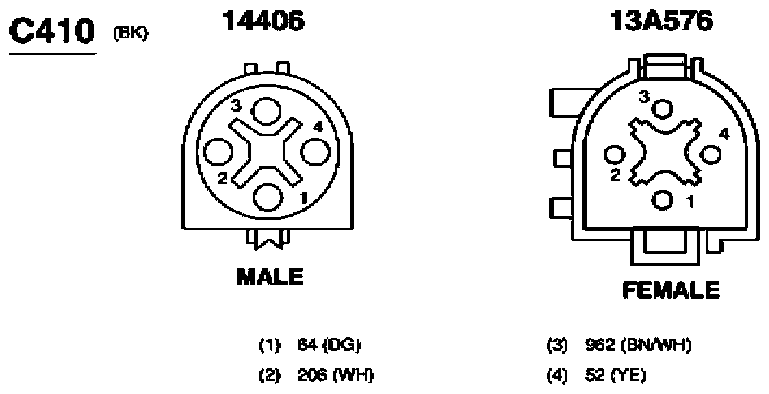

Fig 138: Inline Connector End View (C410)
Courtesy of FORD MOTOR CO.

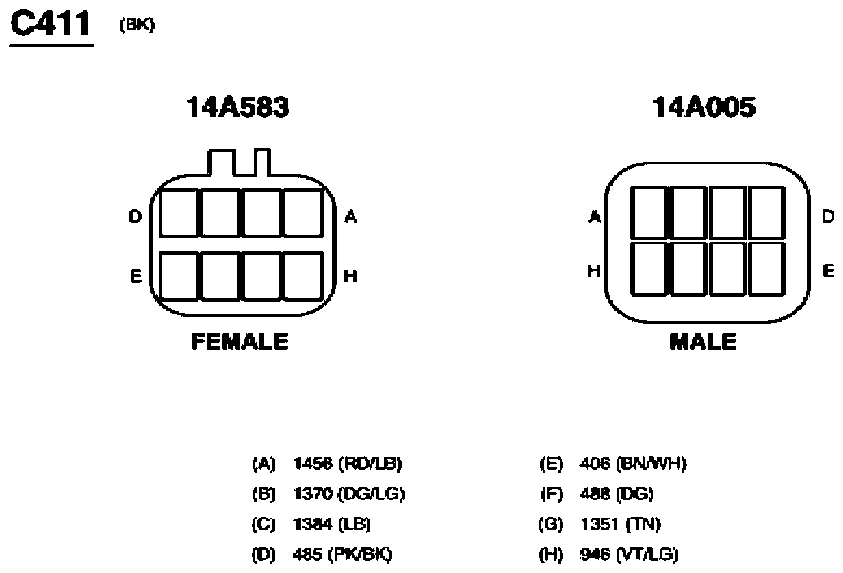

Fig 139: Inline Connector End View (C411)
Courtesy of FORD MOTOR CO.

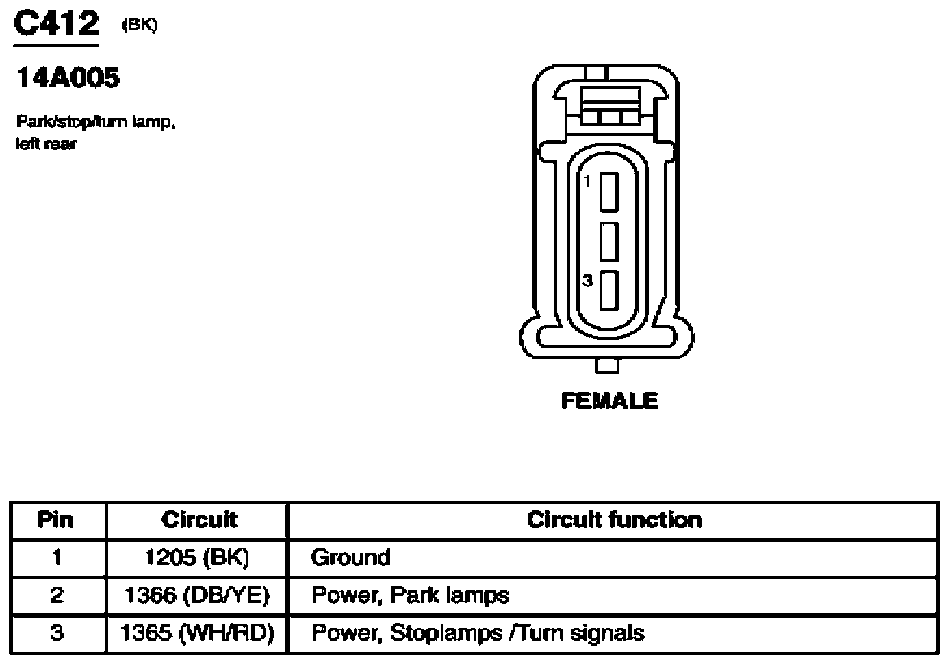

Fig 140: Park/Stop/Turn Lamp, Left Rear Connector End View (C412)
Courtesy of FORD MOTOR CO.

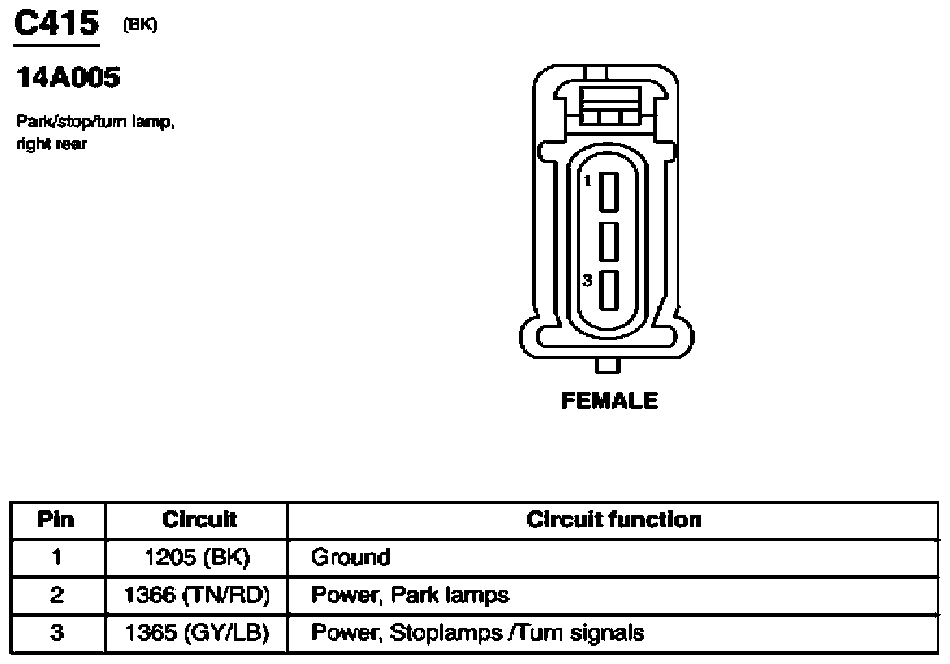

Fig 141: Park/Stop/Turn Lamp, Right Rear Connector End View (C415)
Courtesy of FORD MOTOR CO.

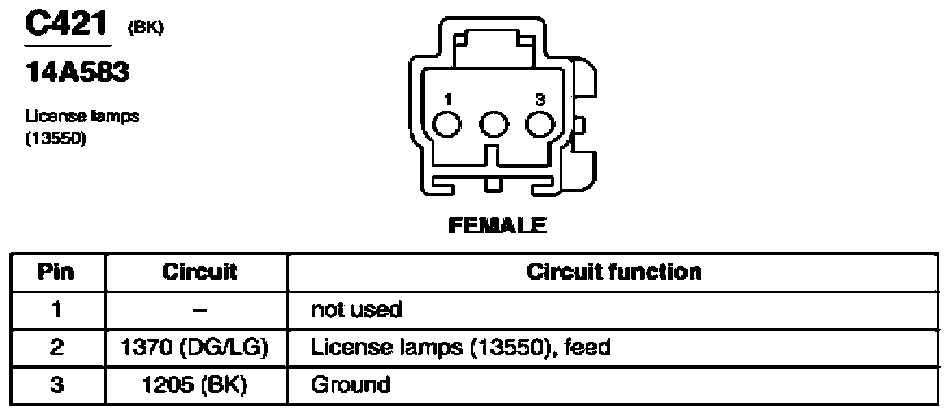

Fig 142: License Lamps Connector End View (C421)
Courtesy of FORD MOTOR CO.

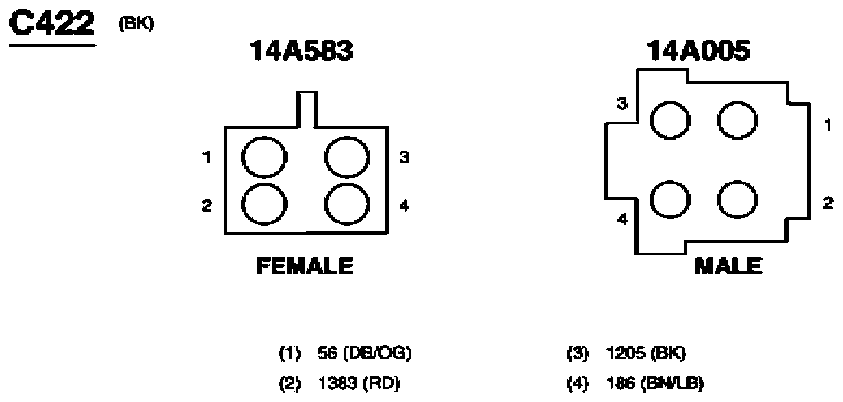

Fig 143: Inline Connector End View (C422)
Courtesy of FORD MOTOR CO.

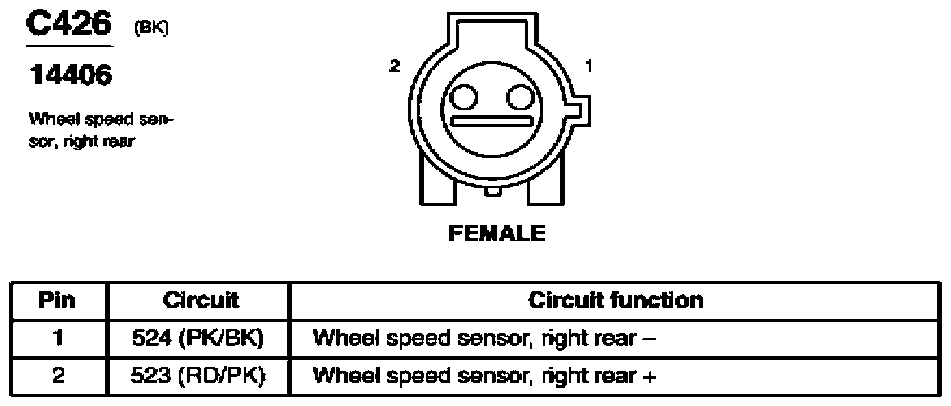

Fig 144: Wheel Speed Sensor, Right Rear Connector End View (C426)
Courtesy of FORD MOTOR CO.

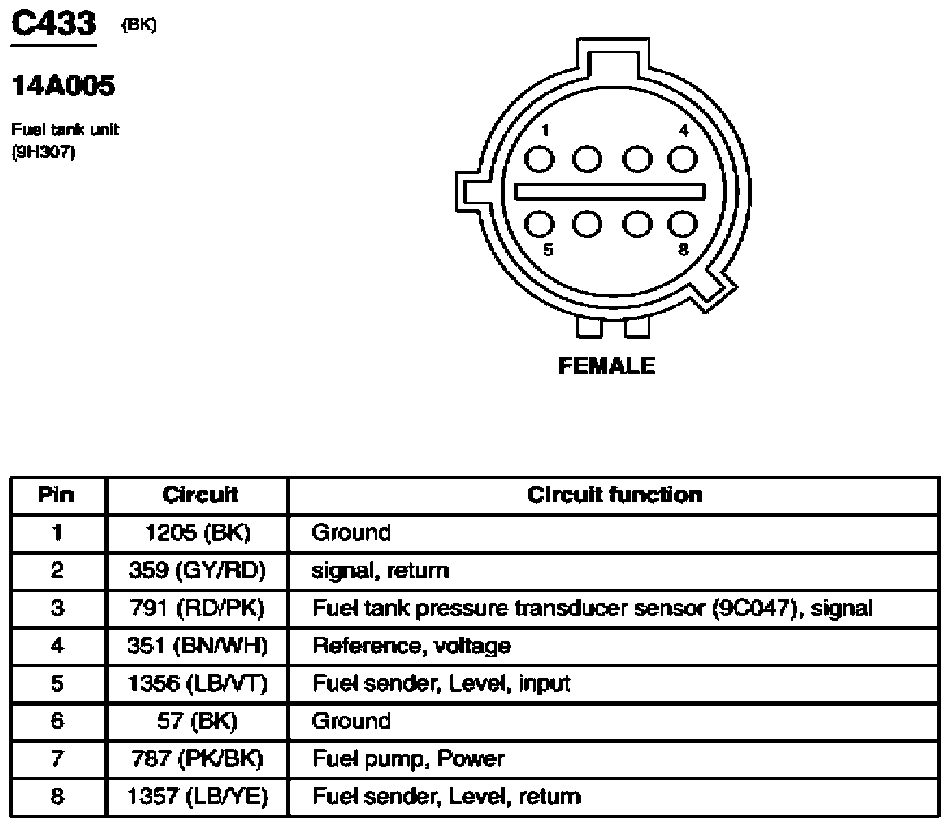

Fig 145: Fuel Tank Unit Connector End View (C433)
Courtesy of FORD MOTOR CO.

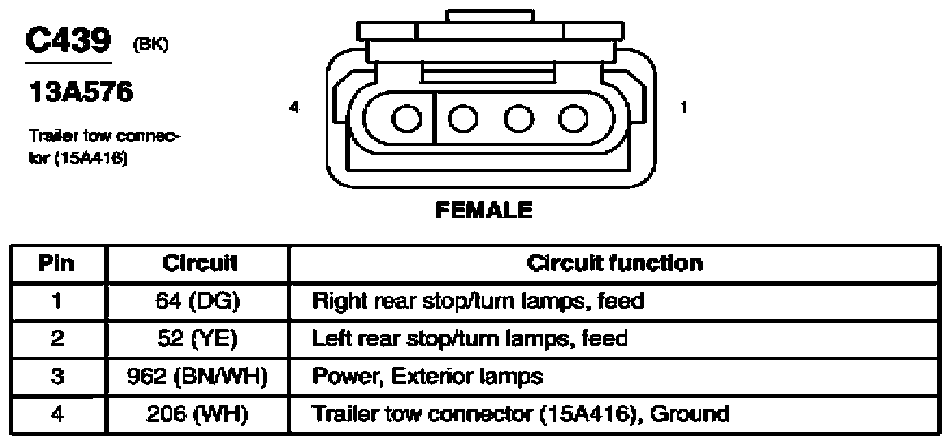

Fig 146: Trailer Tow Connector End View (C439)
Courtesy of FORD MOTOR CO.

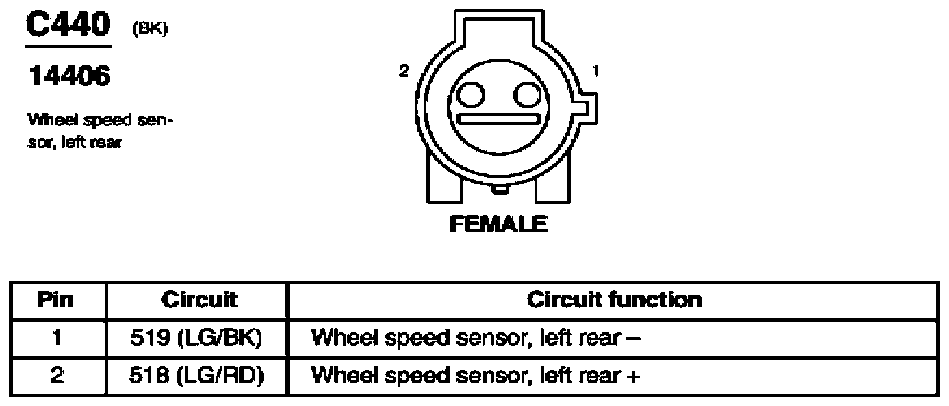

Fig 147: Wheel Speed Sensor, Left Rear Connector End View (C440)
Courtesy of FORD MOTOR CO.

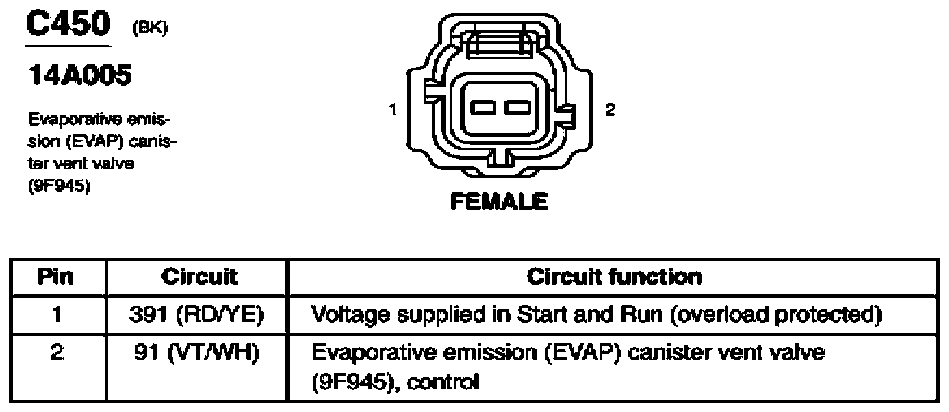

Fig 148: Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C450)
Courtesy of FORD MOTOR CO.
Fig 149: Reversing Lamp, Left Connector End View (C451)
Courtesy of FORD MOTOR CO.

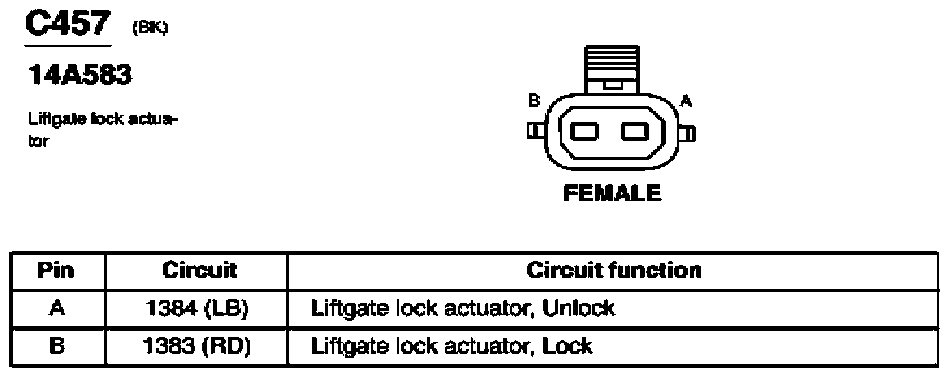

Fig 150: Liftgate Lock Actuator Connector End View (C457)
Courtesy of FORD MOTOR CO.

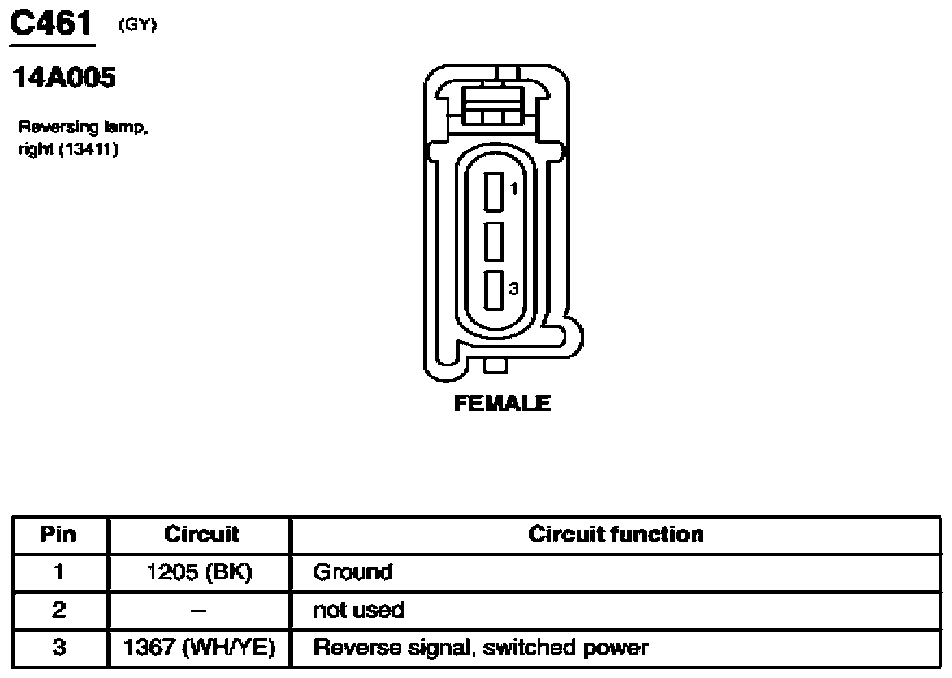

Fig 151: Reversing Lamp, Right Connector End View (C461)
Courtesy of FORD MOTOR CO.

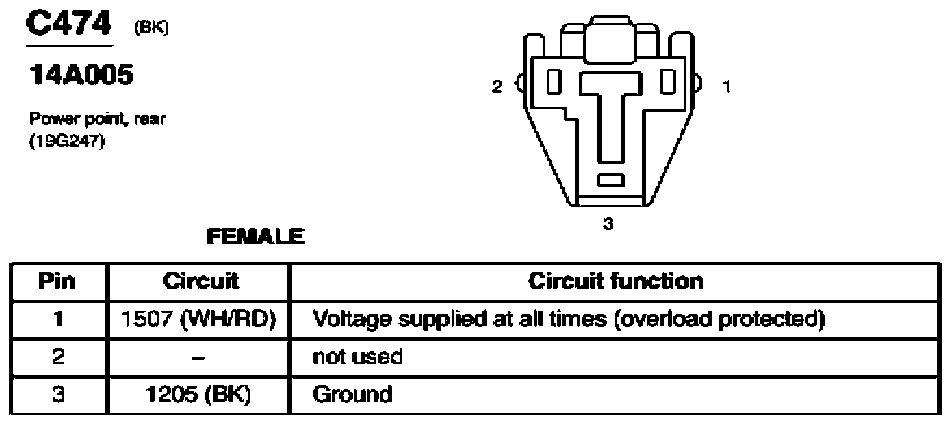

Fig 152: Power Point, Rear Connector End View (C474)
Courtesy of FORD MOTOR CO.

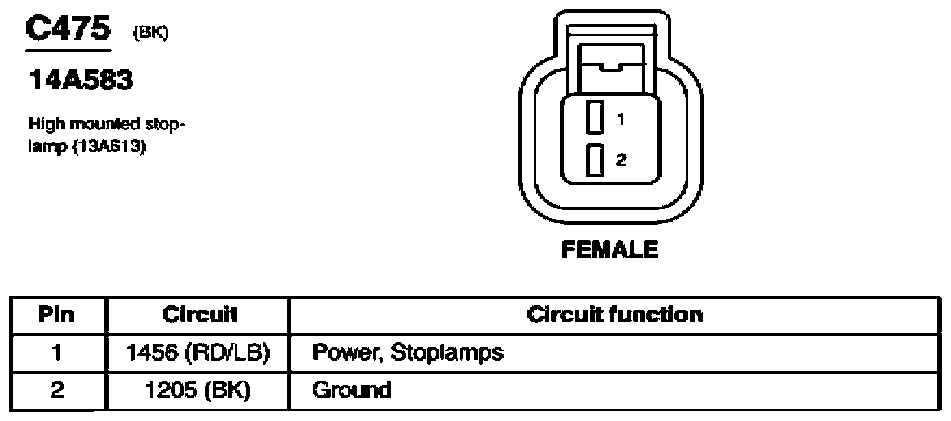

Fig 153: High Mounted Stoplamp Connector End View (C475)
Courtesy of FORD MOTOR CO.

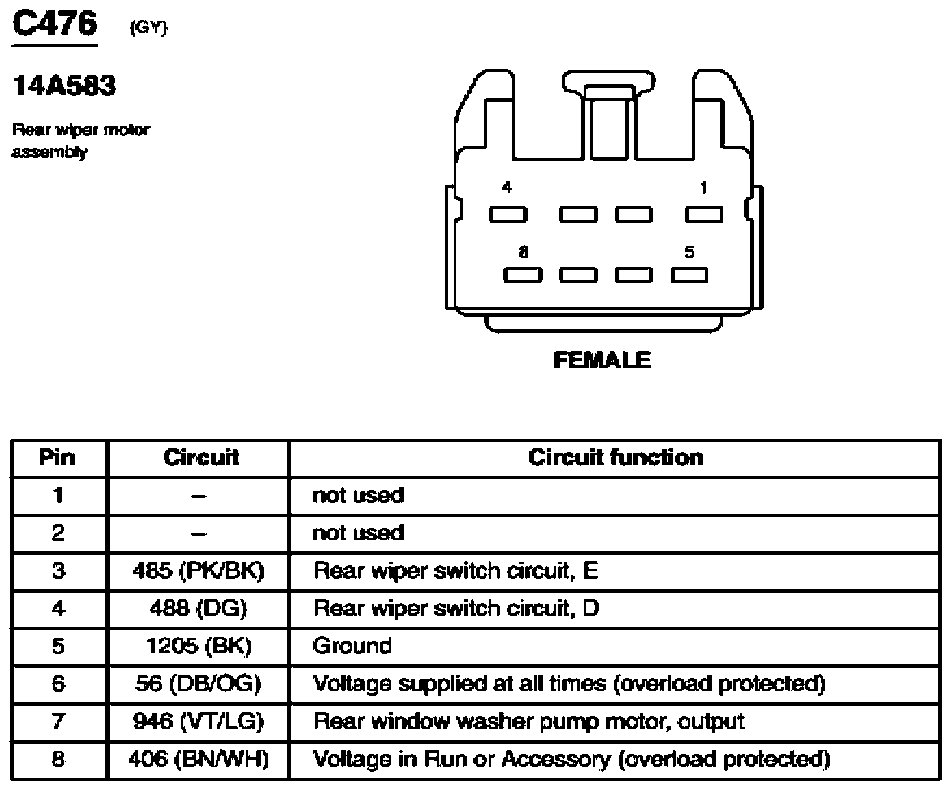

Fig 154: Rear Wiper Motor Assembly Connector End View (C476)
Courtesy of FORD MOTOR CO.

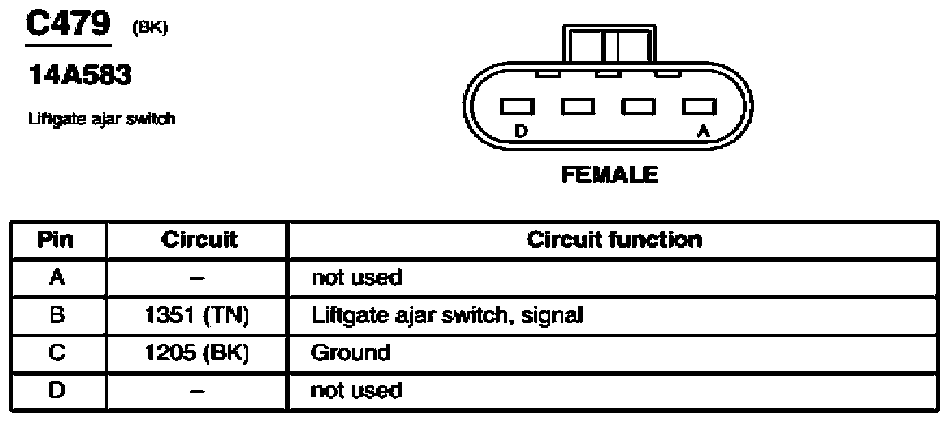

Fig 155: Liftgate Ajar Switch Connector End View (C479)
Courtesy of FORD MOTOR CO.

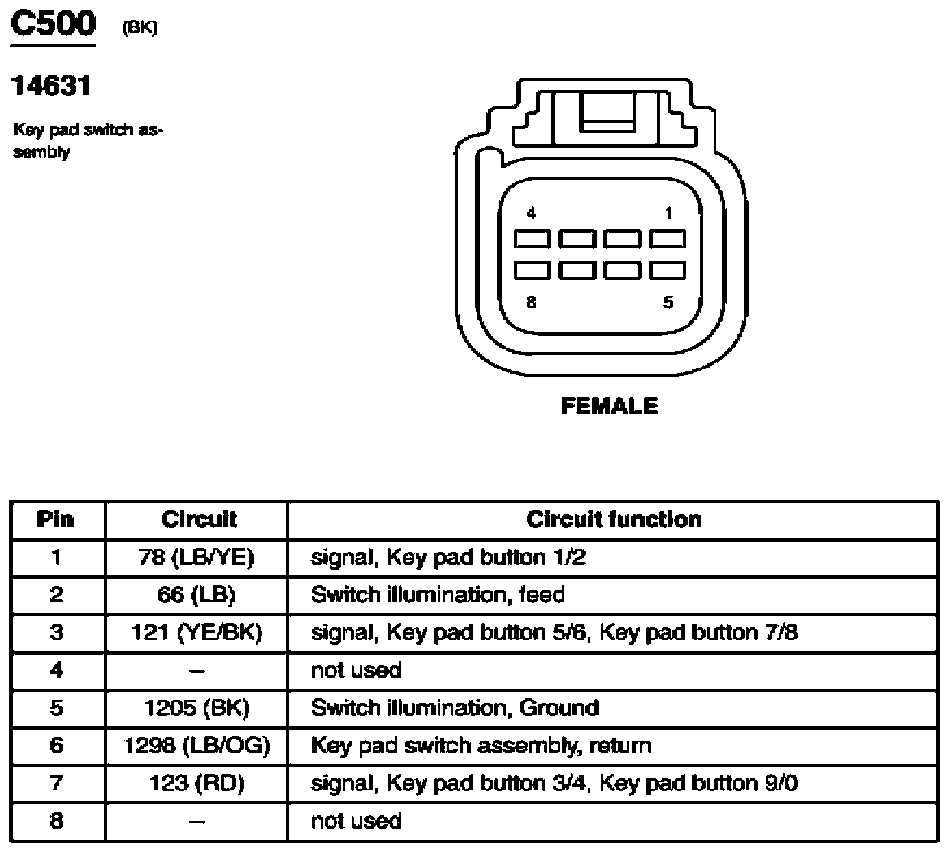

Fig 156: Key Pad Switch Assembly Connector End View (C500)
Courtesy of FORD MOTOR CO.

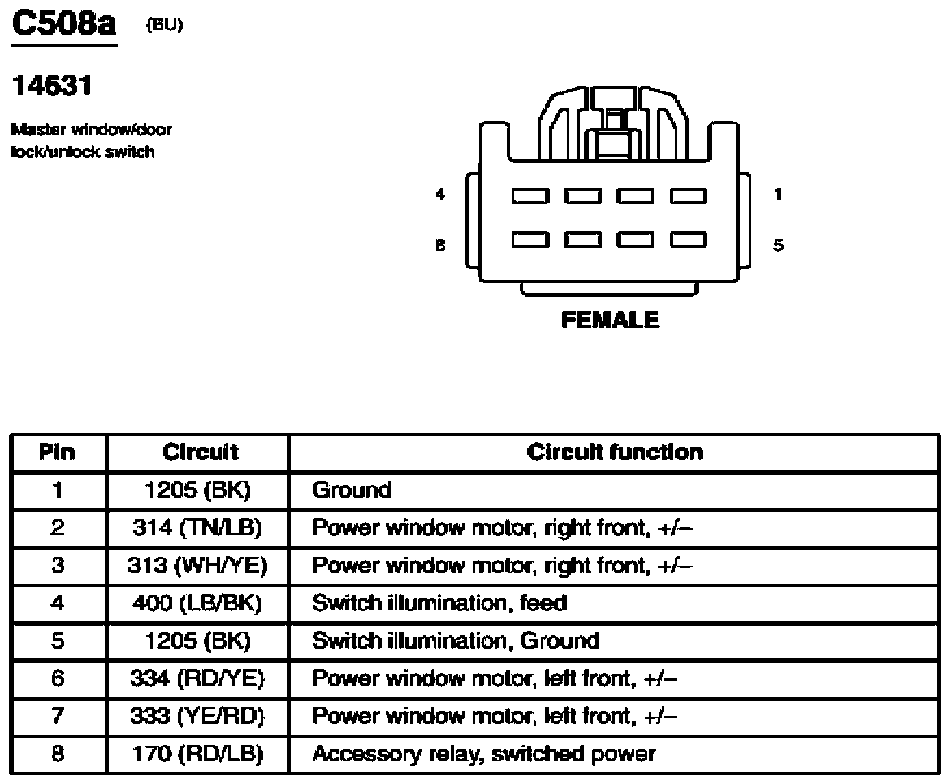

Fig 157: Master Window/Door Lock/Unlock Switch Connector End View (C508a)
Courtesy of FORD MOTOR CO.

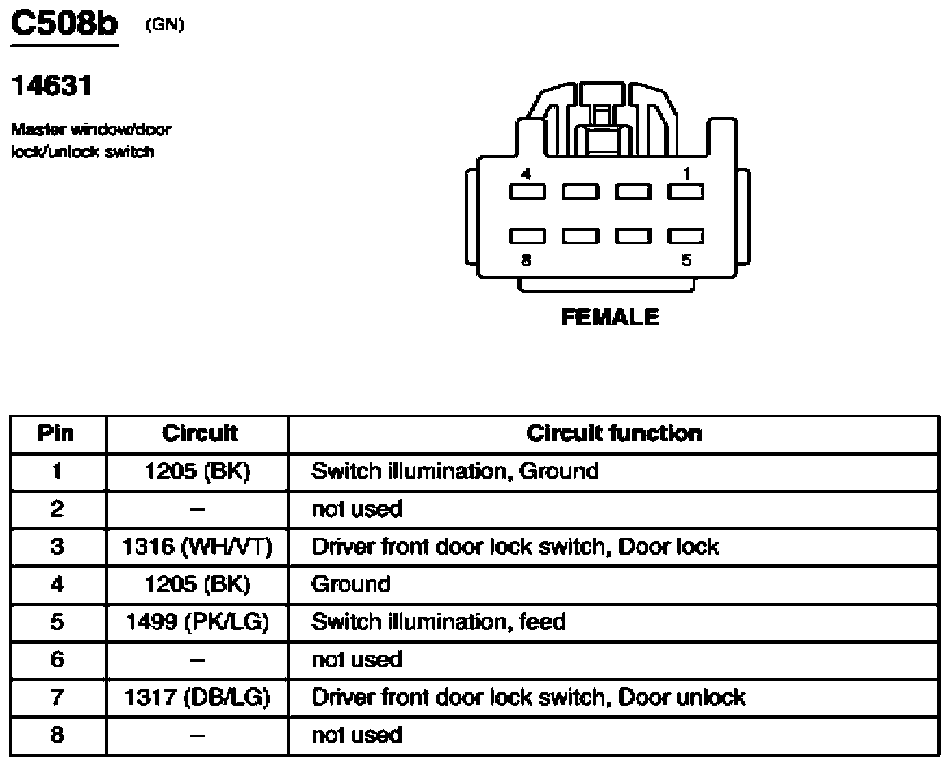

Fig 158: Master Window/Door Lock/Unlock Switch Connector End View (C508b)
Courtesy of FORD MOTOR CO.

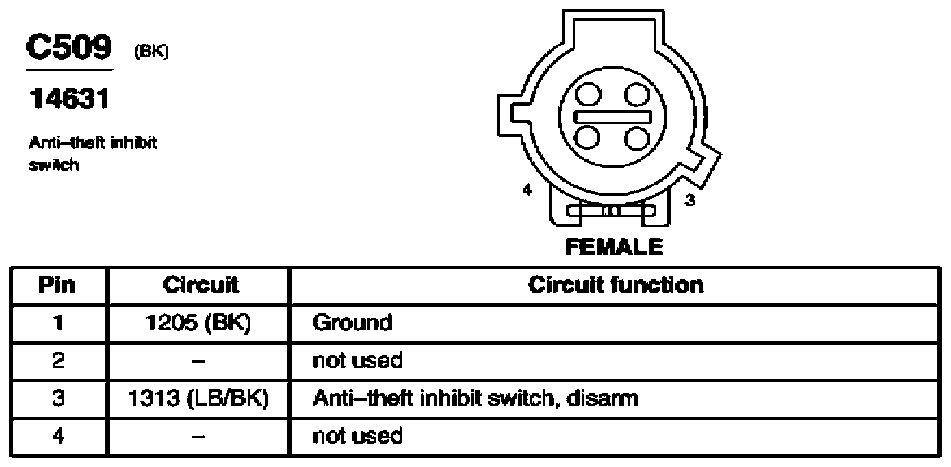

Fig 159: Anti-Theft Inhibit Switch Connector End View (C509)
Courtesy of FORD MOTOR CO.

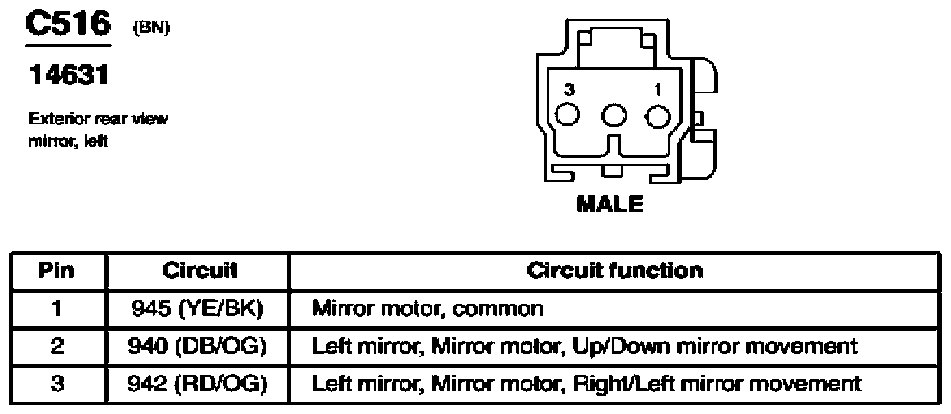

Fig 160: Exterior Rear View Mirror, Left Connector End View (C516)
Courtesy of FORD MOTOR CO.

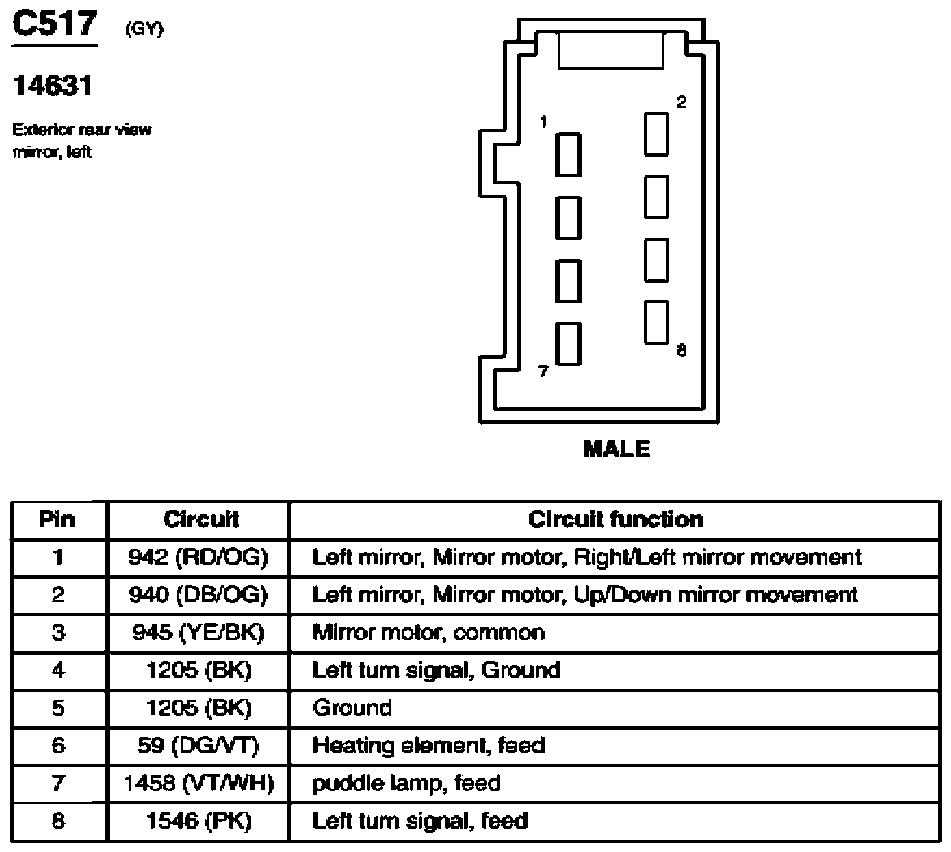

Fig 161: Exterior Rear View Mirror, Left Connector End View (C517)
Courtesy of FORD MOTOR CO.

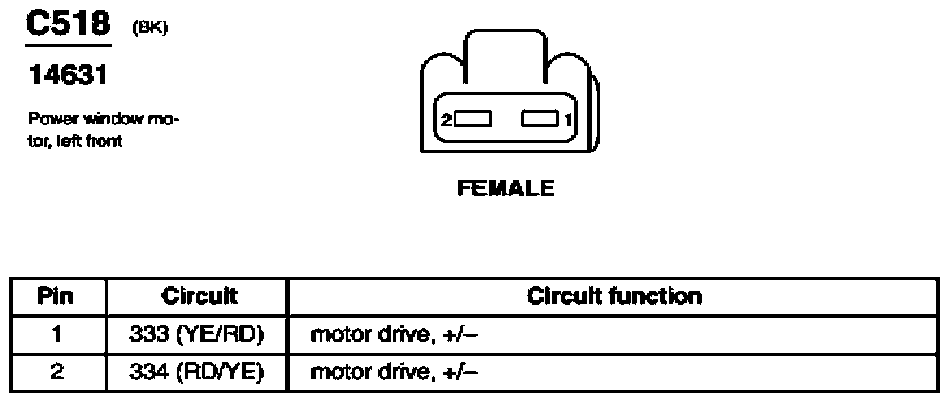

Fig 162: Power Window Motor, Left Front Connector End View (C518)
Courtesy of FORD MOTOR CO.

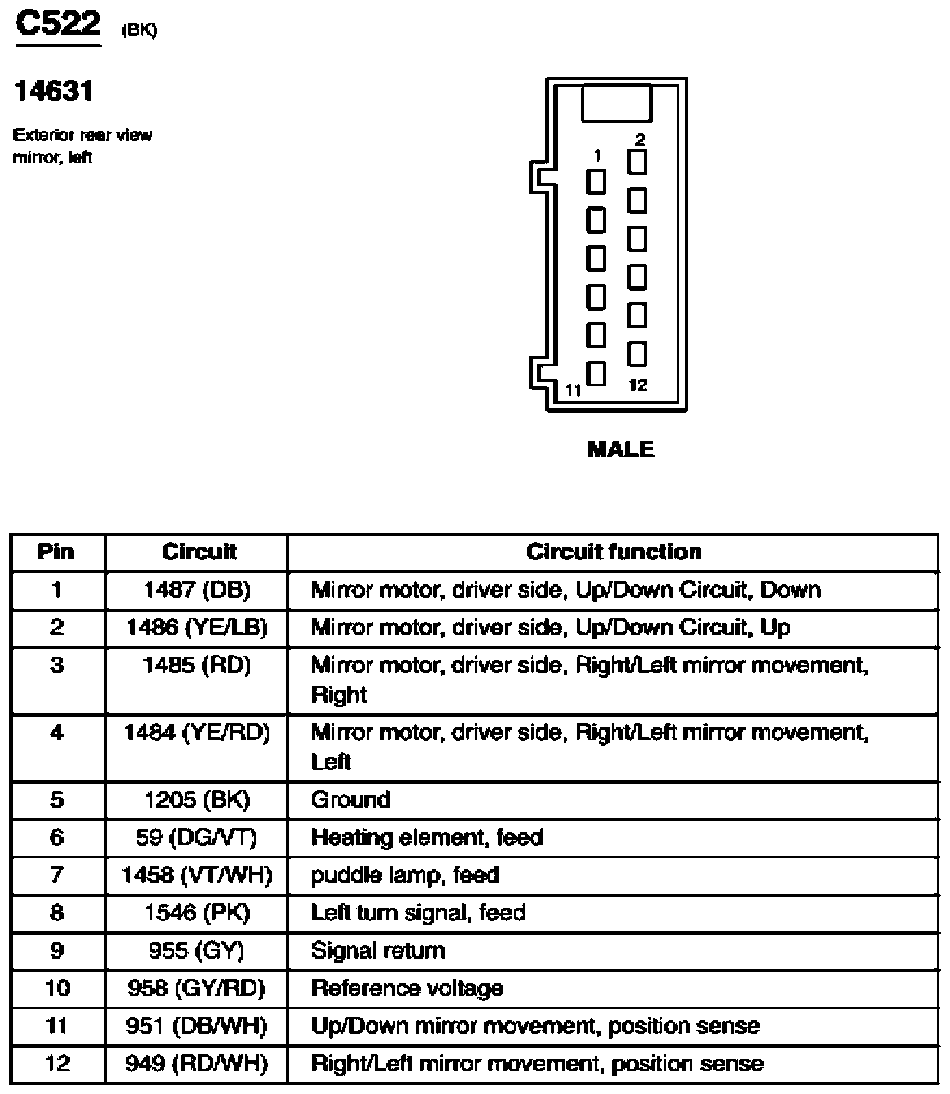

Fig 163: Exterior Rear View Mirror, Left Connector End View (C522)
Courtesy of FORD MOTOR CO.

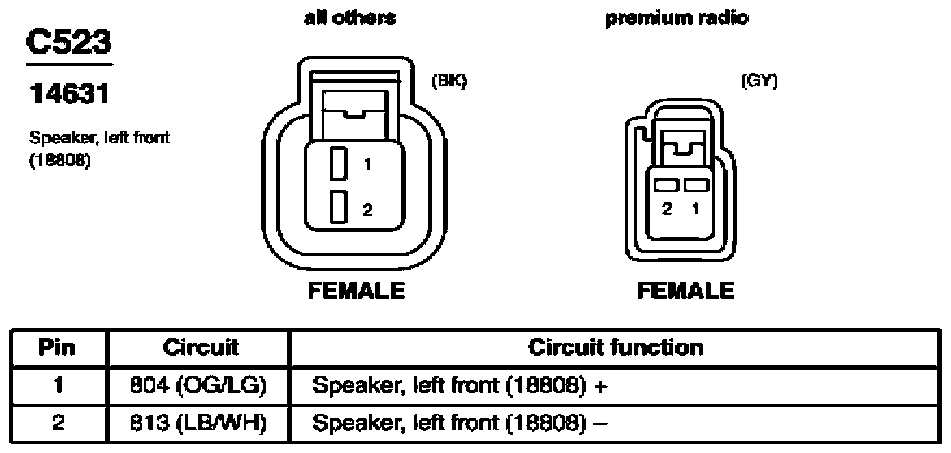

Fig 164: Speaker, Left Front Connector End View (C523)
Courtesy of FORD MOTOR CO.

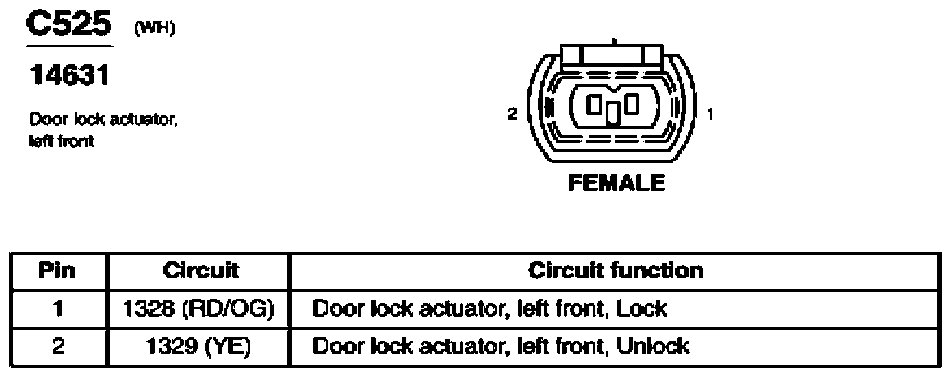

Fig 165: Door Lock Actuator, Left Front Connector End View (C525)
Courtesy of FORD MOTOR CO.

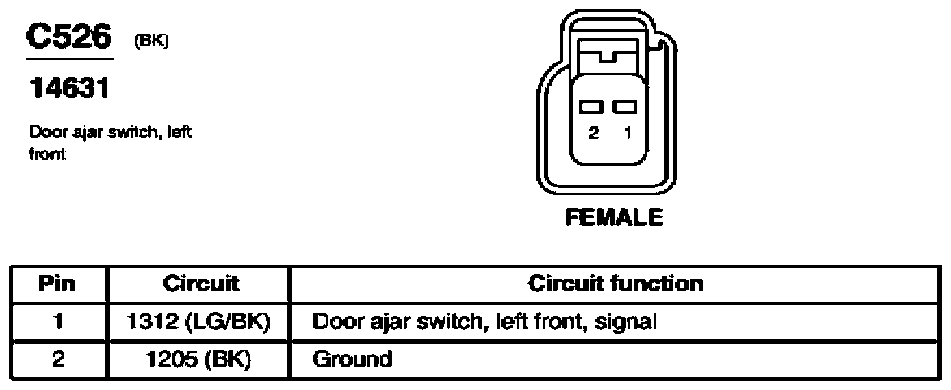

Fig 166: Door Ajar Switch, Left Front Connector End View (C526)
Courtesy of FORD MOTOR CO.

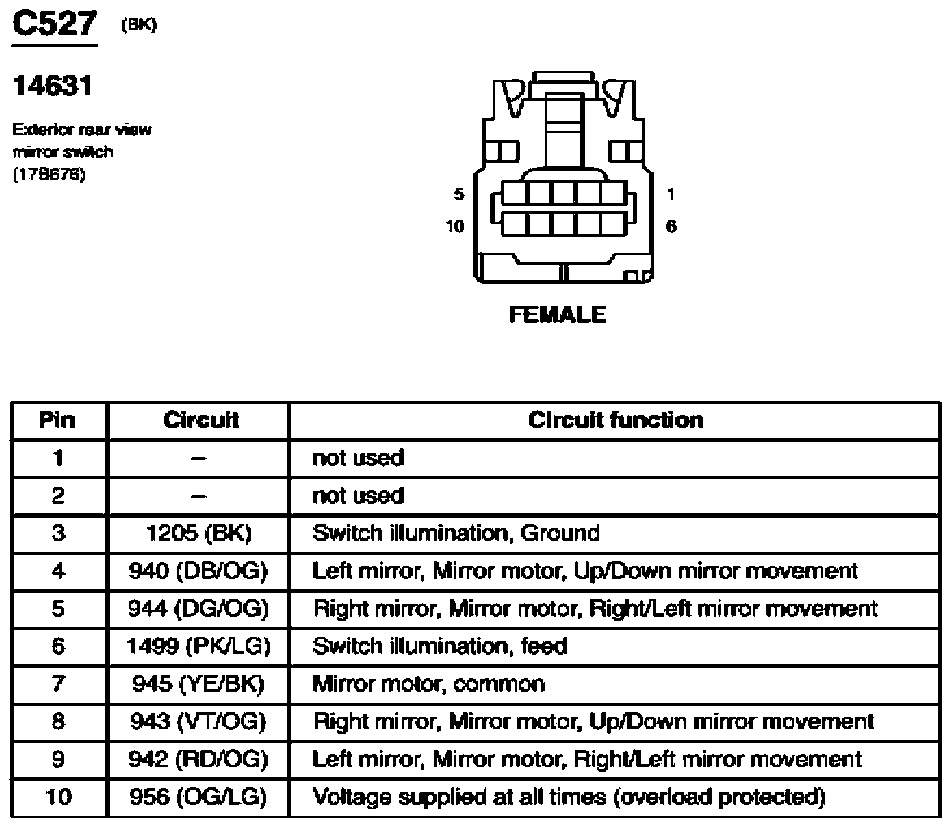

Fig 167: Exterior Rear View Mirror Switch Connector End View (C527)
Courtesy of FORD MOTOR CO.

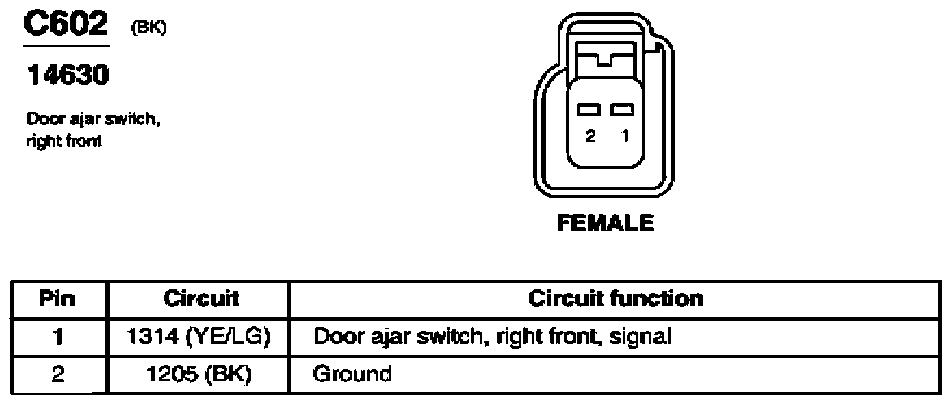

Fig 168: Door Ajar Switch, Right Front Connector End View (C602)
Courtesy of FORD MOTOR CO.

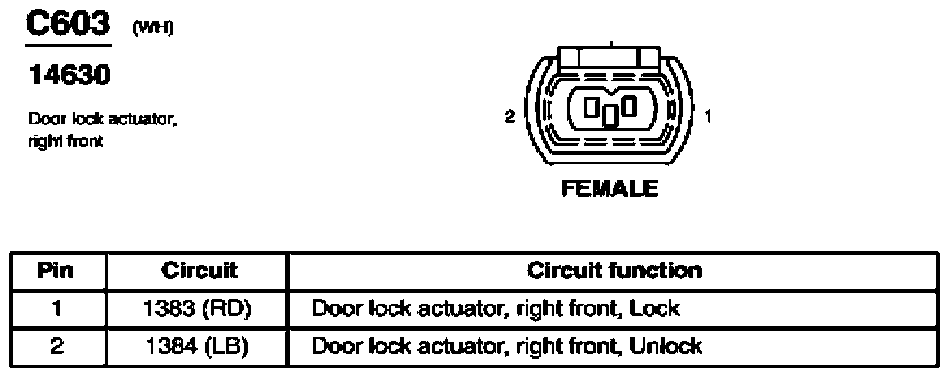

Fig 169: Door Lock Actuator, Right Front Connector End View (C603)
Courtesy of FORD MOTOR CO.

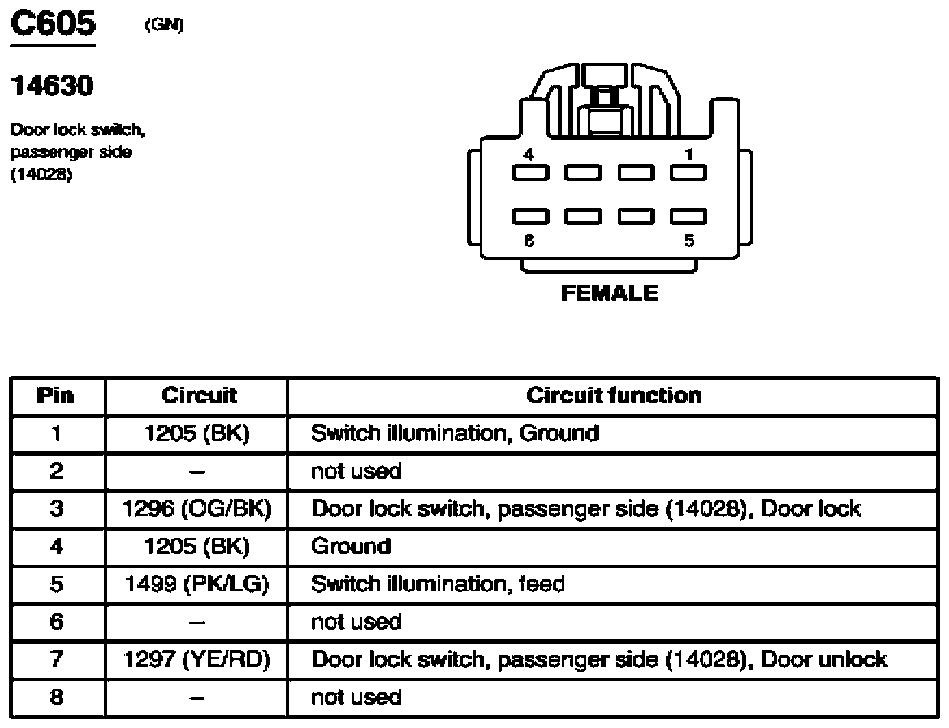

Fig 170: Door Lock Switch, Passenger Side Connector End View (C605)
Courtesy of FORD MOTOR CO.

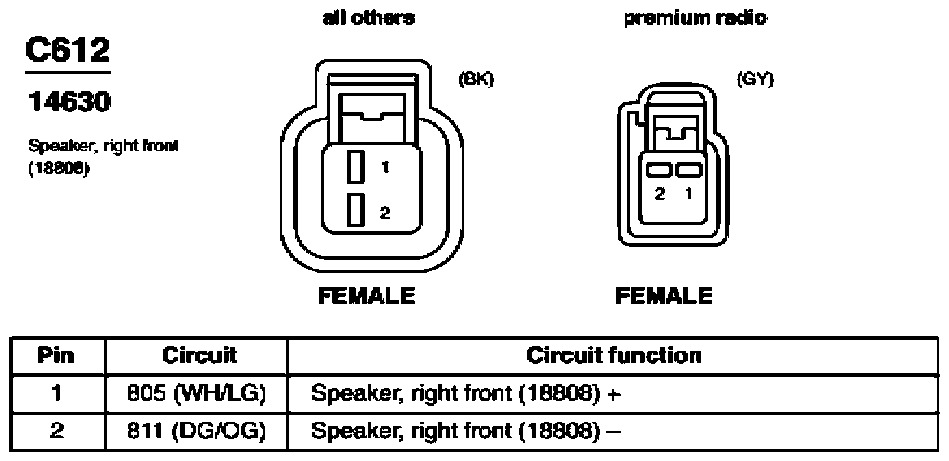

Fig 171: Speaker, Right Front Connector End View (C612)
Courtesy of FORD MOTOR CO.

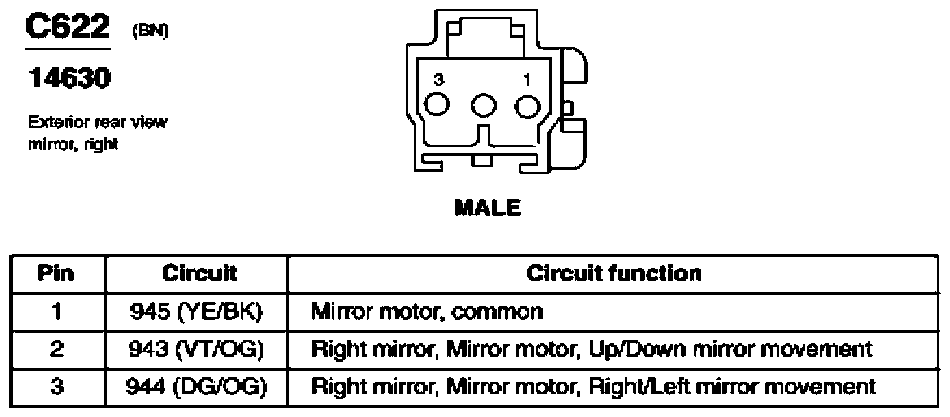

Fig 172: Exterior Rear View Mirror, Right Connector End View (C622)
Courtesy of FORD MOTOR CO.

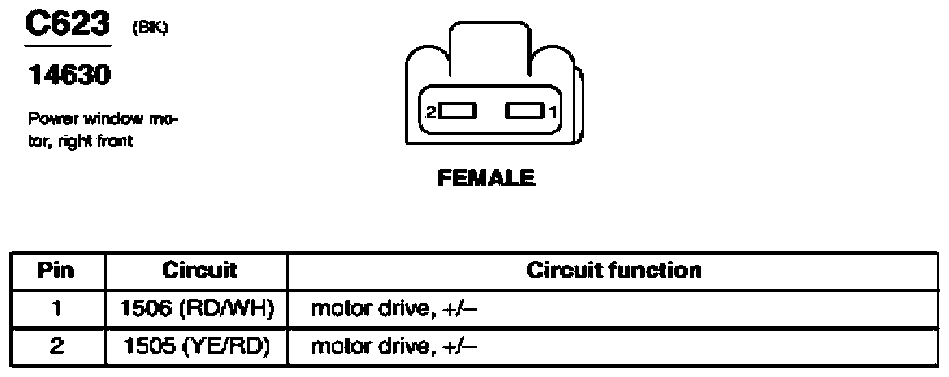

Fig 173: Power Window Motor, Right Front Connector End View (C623)
Courtesy of FORD MOTOR CO.

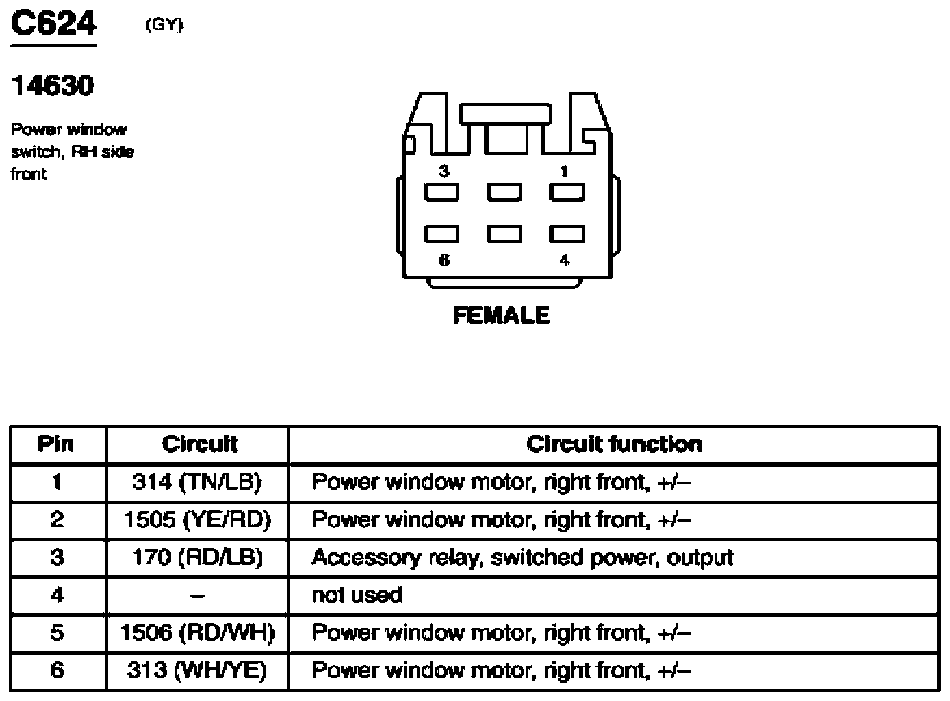

Fig 174: Power Window Switch, RH Side Front Connector End View (C624)
Courtesy of FORD MOTOR CO.

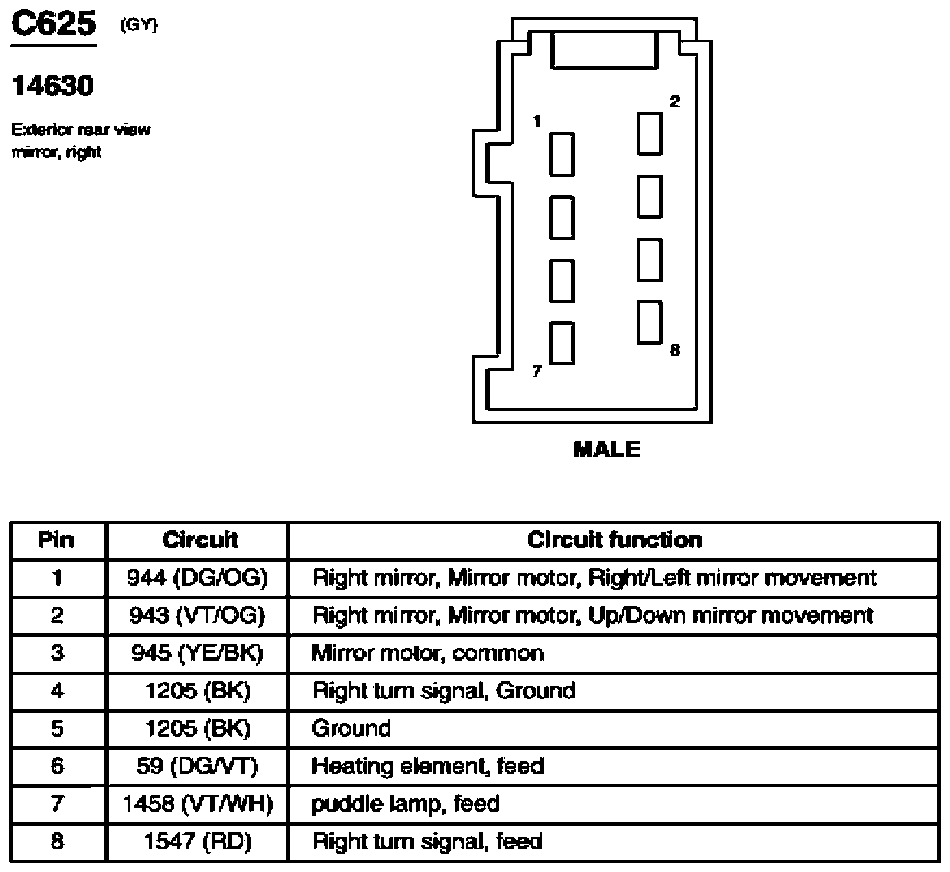

Fig 175: Exterior Rear View Mirror, Right Connector End View (C625)
Courtesy of FORD MOTOR CO.

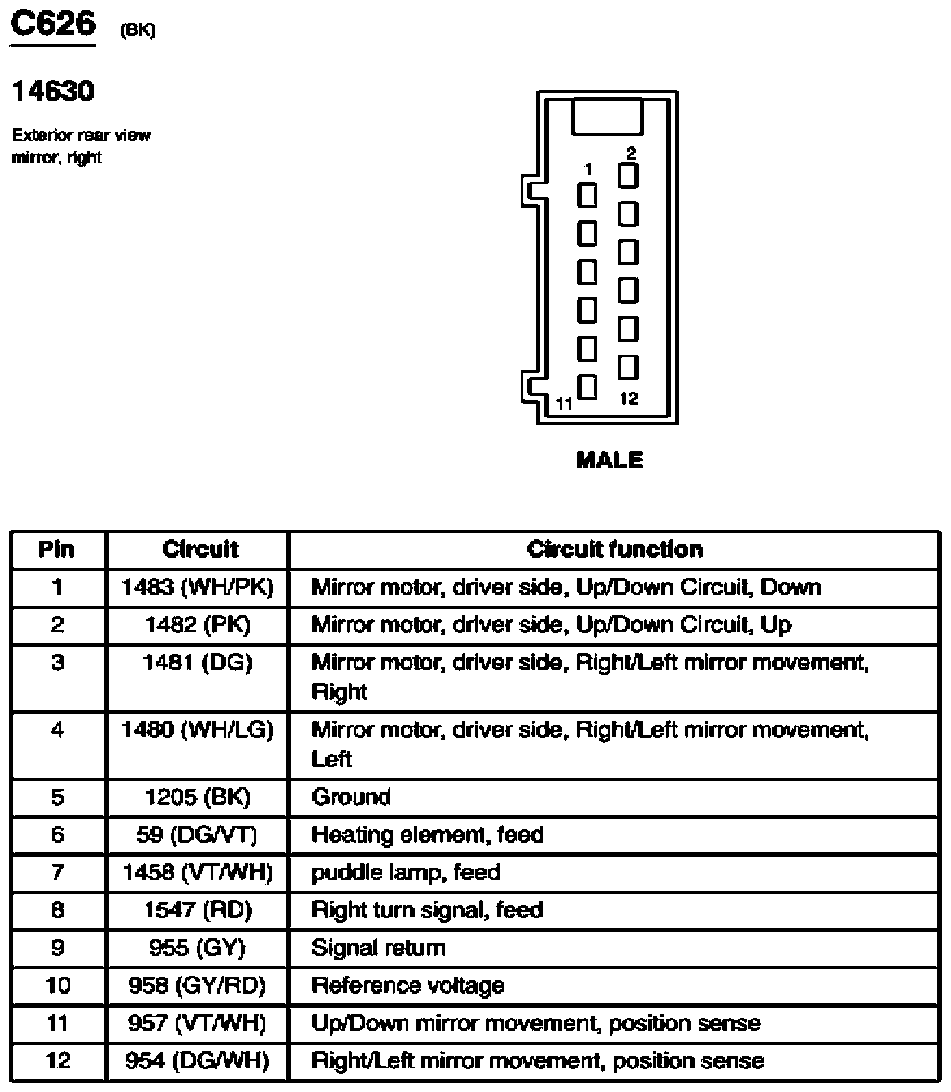

Fig 176: Exterior Rear View Mirror, Right Connector End View (C626)
Courtesy of FORD MOTOR CO.

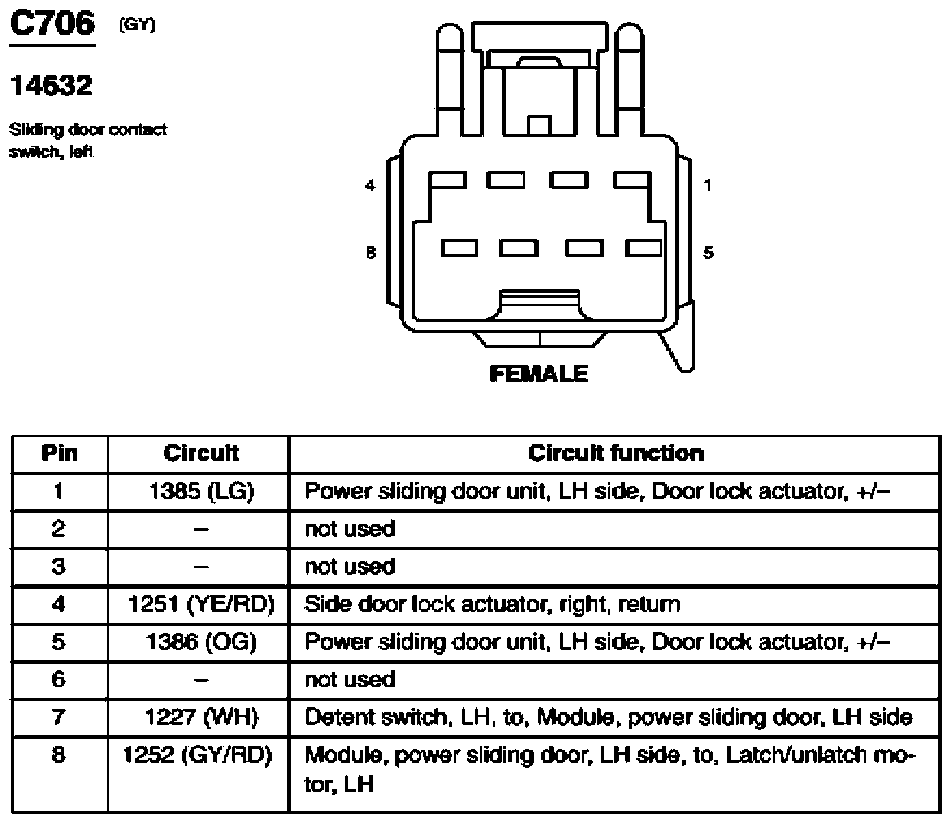

Fig 177: Sliding Door Contact Switch, Left Connector End View (C706)
Courtesy of FORD MOTOR CO.

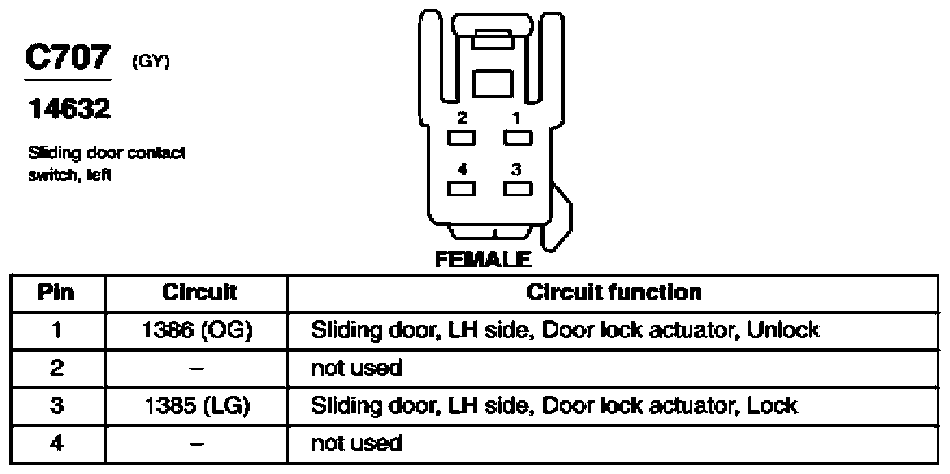

Fig 178: Sliding Door Contact Switch, Left Connector End View (C707)
Courtesy of FORD MOTOR CO.

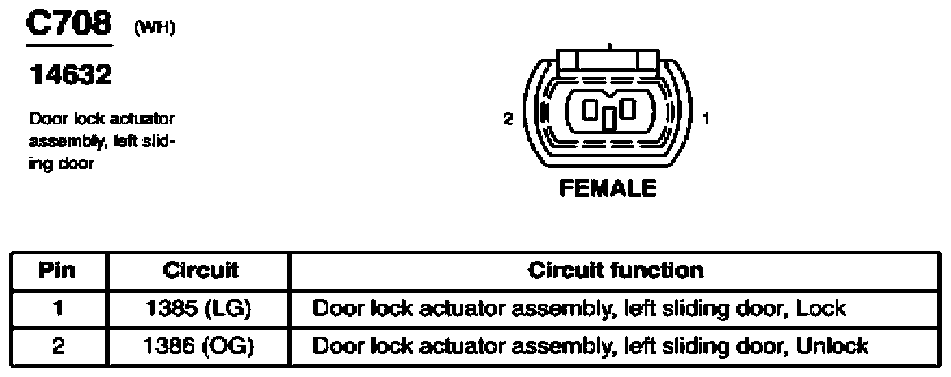

Fig 179: Door Lock Actuator Assembly, Left Sliding Door Connector End View (C708)
Courtesy of FORD MOTOR CO.

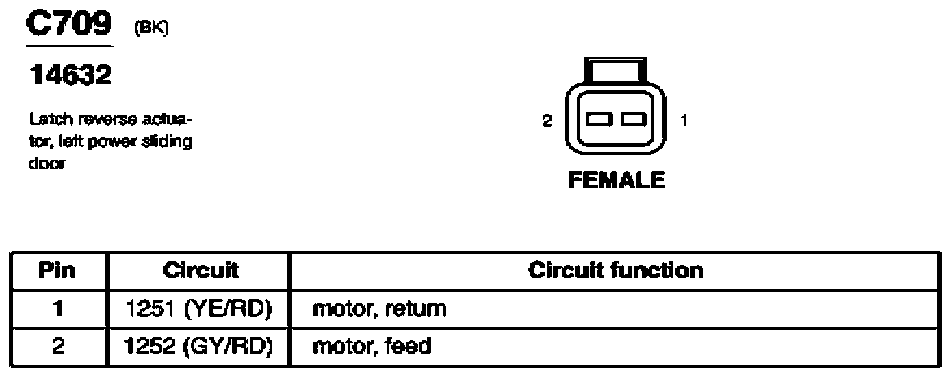

Fig 180: Latch Reverse Actuator, Left Power Sliding Door Connector End View (C709)
Courtesy of FORD MOTOR CO.

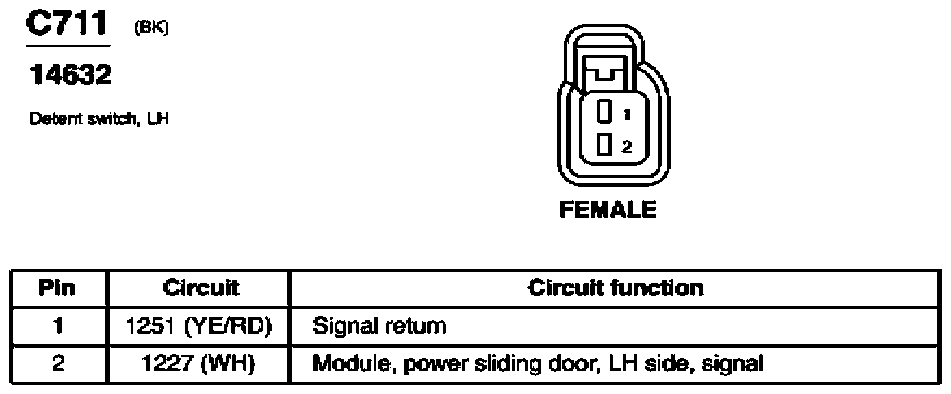

Fig 181: Detent Switch, LH Connector End View (C711)
Courtesy of FORD MOTOR CO.

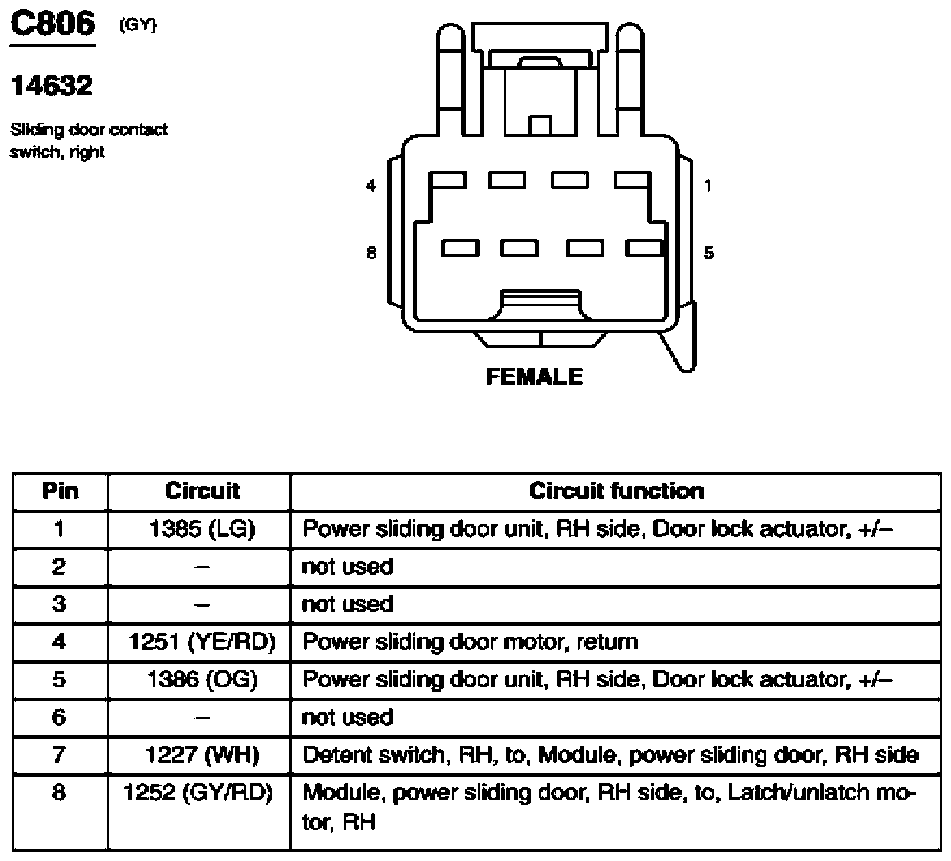

Fig 182: Sliding Door Contact Switch, Right Connector End View (C806)
Courtesy of FORD MOTOR CO.

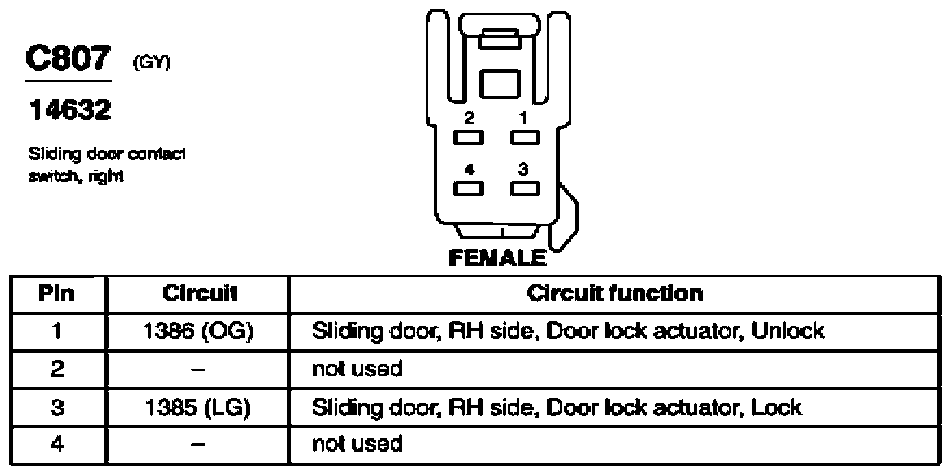

Fig 183: Sliding Door Contact Switch, Right Connector End View (C807)
Courtesy of FORD MOTOR CO.

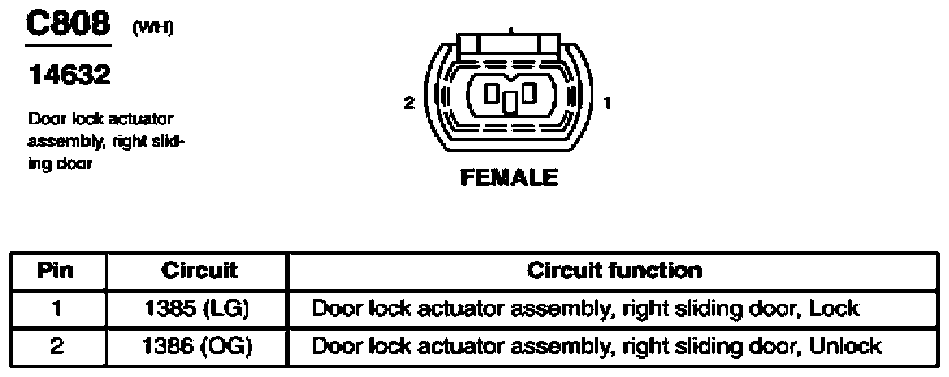

Fig 184: Door Lock Actuator Assembly, Right Sliding Door Connector End View (C808)
Courtesy of FORD MOTOR CO.

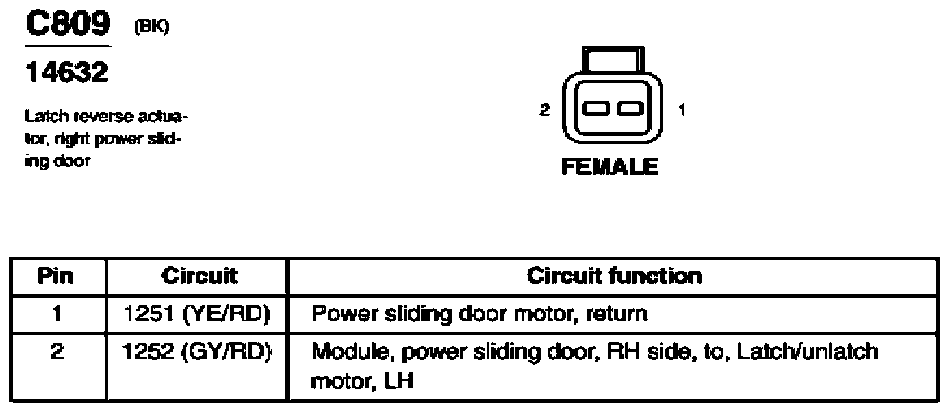

Fig 185: Latch Reverse Actuator, Right Power Sliding Door Connector End View (C809)
Courtesy of FORD MOTOR CO.

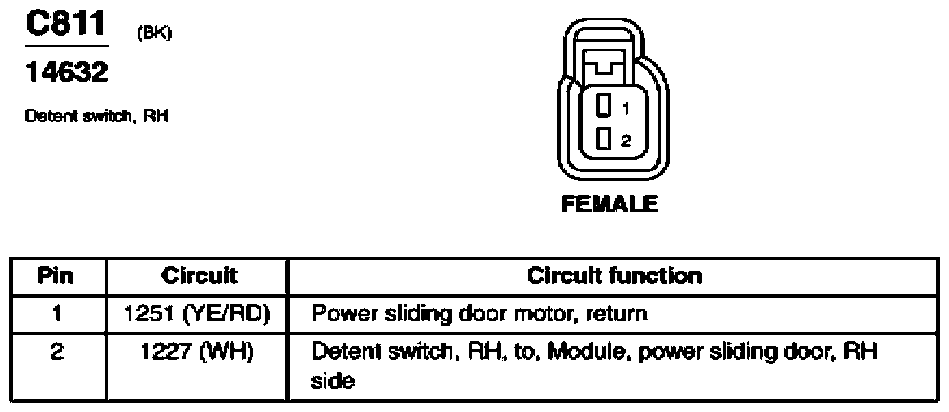

Fig 186: Detent Switch, RH Connector End View (C811)
Courtesy of FORD MOTOR CO.

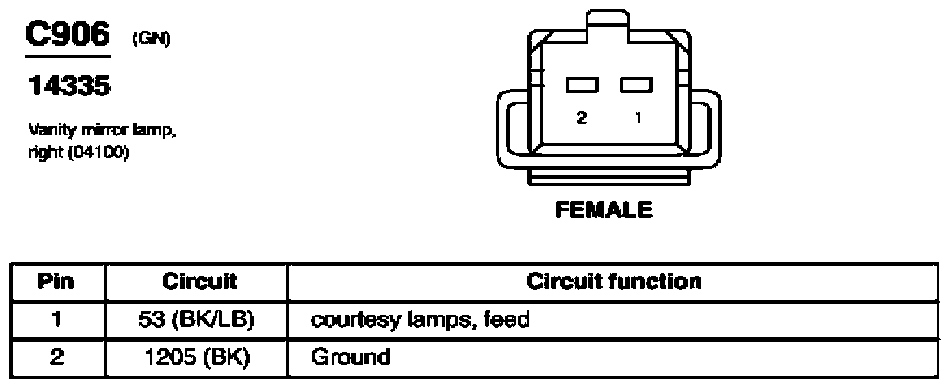

Fig 187: Vanity Mirror Lamp, Right Connector End View (C906)
Courtesy of FORD MOTOR CO.

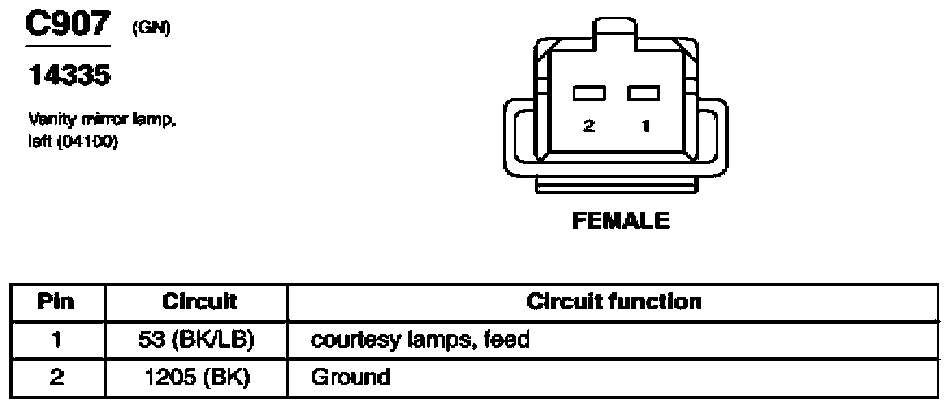

Fig 188: Vanity Mirror Lamp, Left Connector End View (C907)
Courtesy of FORD MOTOR CO.

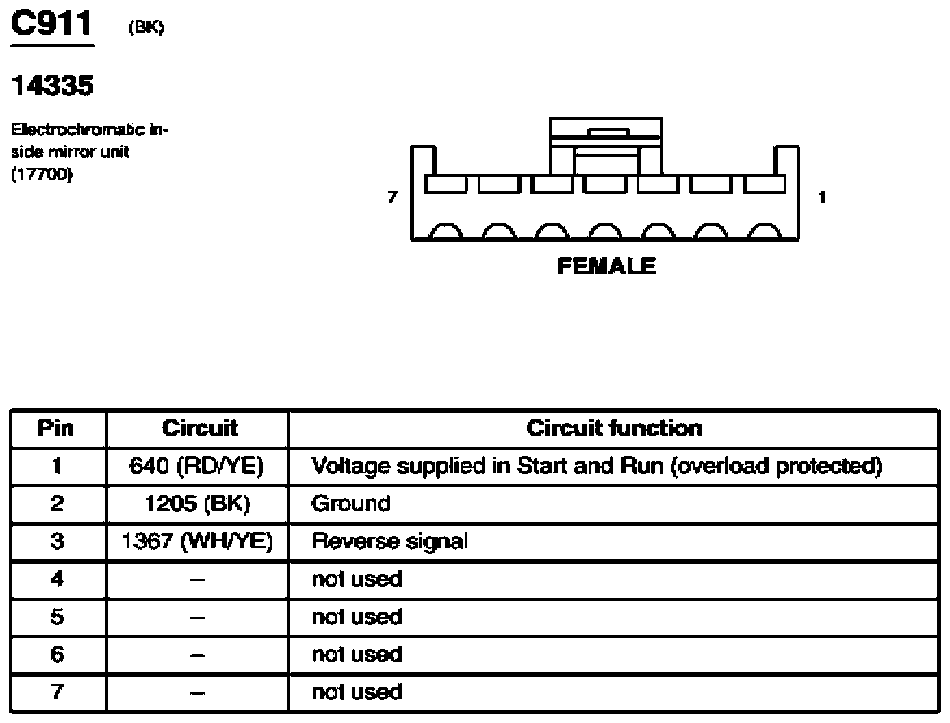

Fig 189: Electrochromatic Inside Mirror Unit Connector End View (C911)
Courtesy of FORD MOTOR CO.

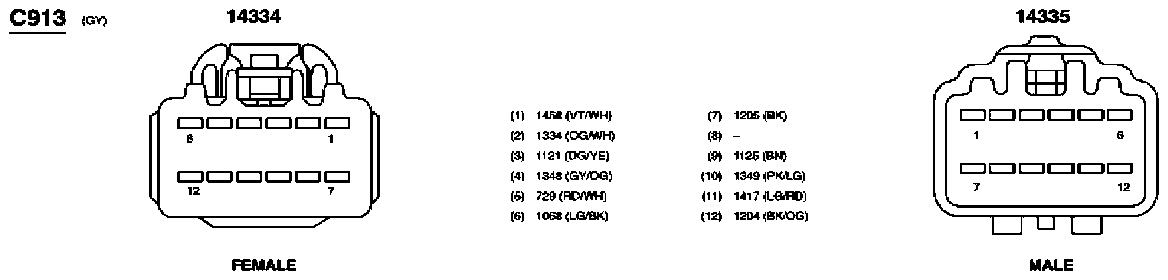

Fig 190: Inline Connector End View (C913)
Courtesy of FORD MOTOR CO.

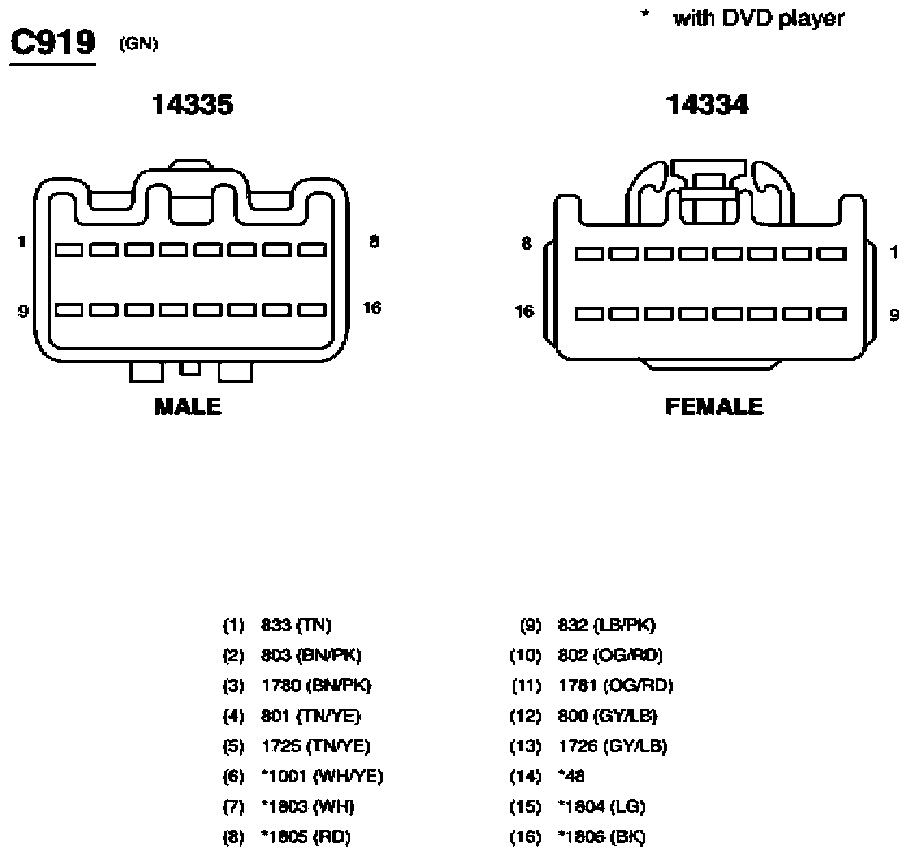

Fig 191: Inline Connector End View (C919)
Courtesy of FORD MOTOR CO.

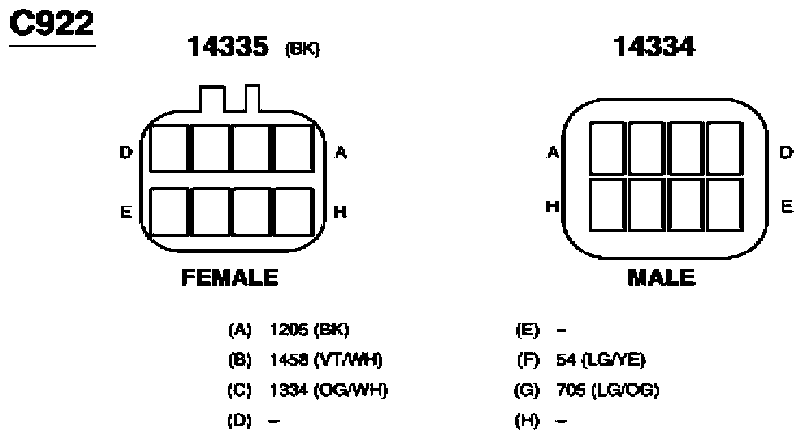

Fig 192: Inline Connector End View (C922)
Courtesy of FORD MOTOR CO.

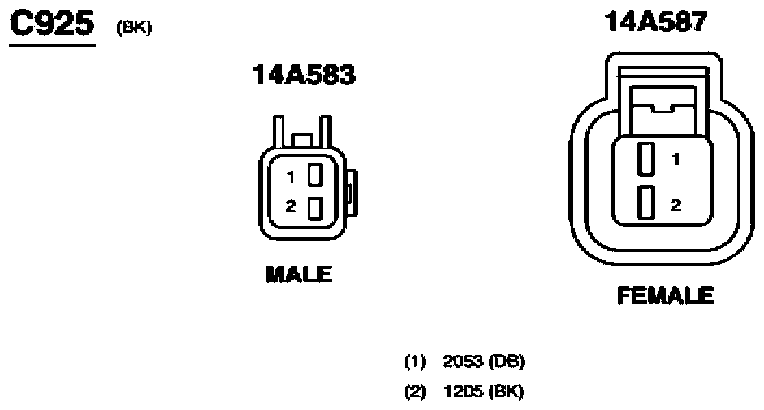

Fig 193: Inline Connector End View (C925)
Courtesy of FORD MOTOR CO.

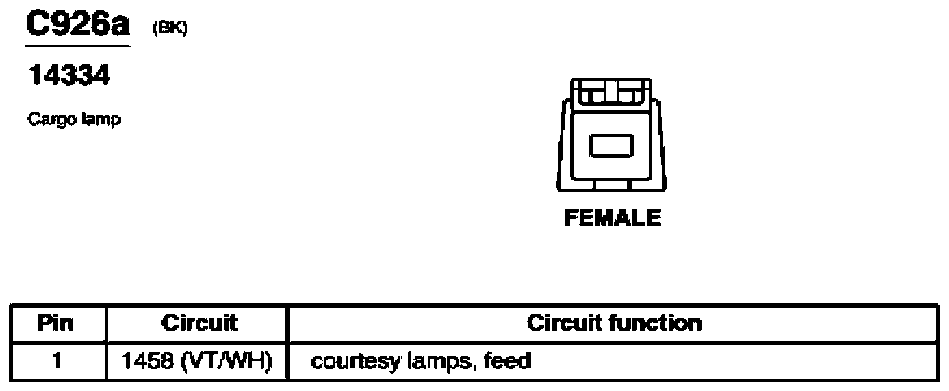

Fig 194: Cargo Lamp Connector End View (C926a)
Courtesy of FORD MOTOR CO.

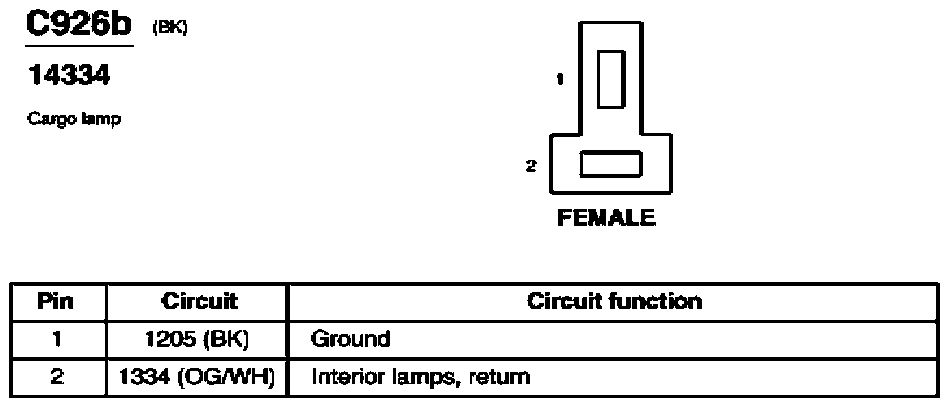

Fig 195: Cargo Lamp Connector End View (C926b)
Courtesy of FORD MOTOR CO.

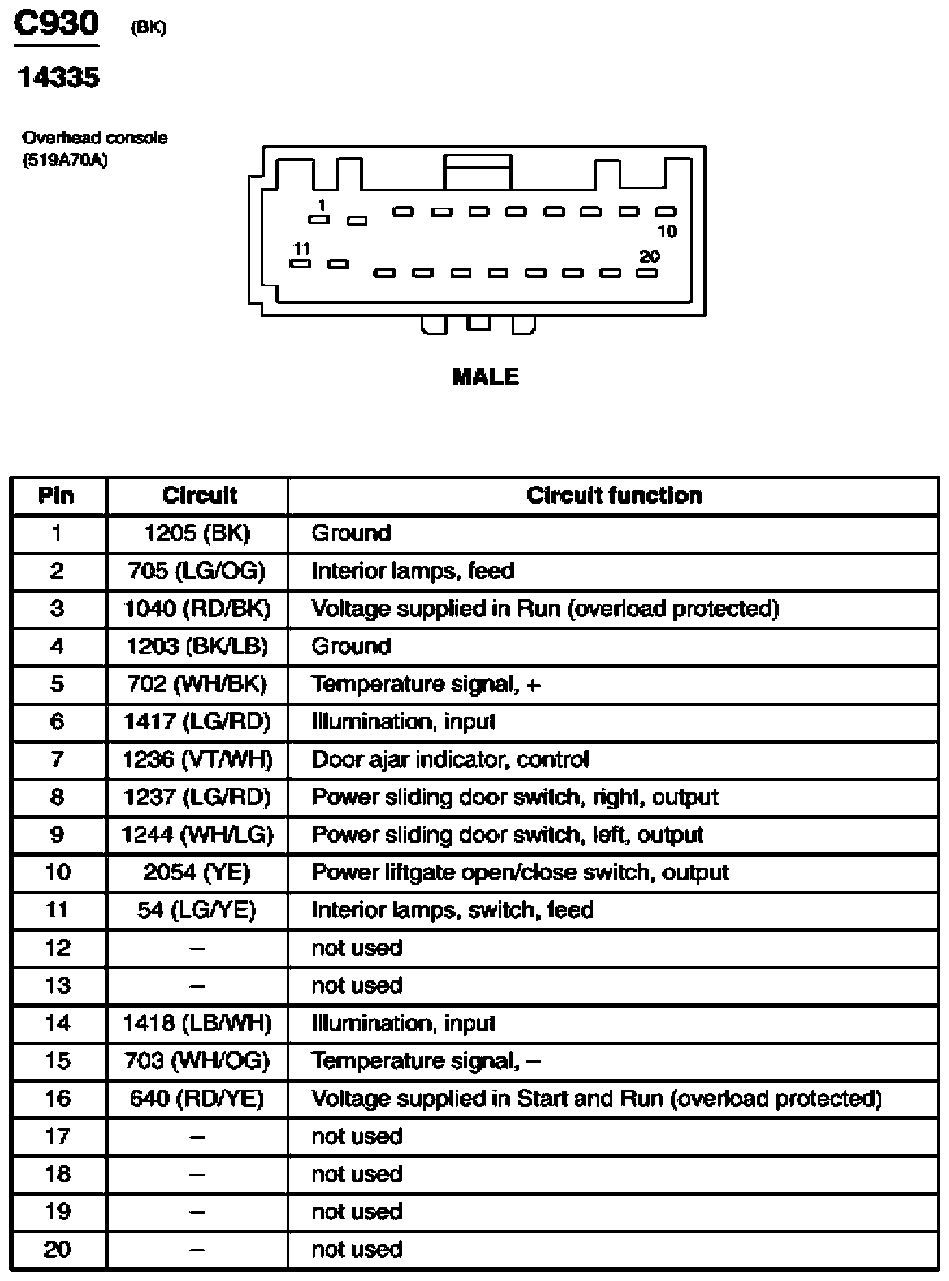

Fig 196: Overhead Console Connector End View (C930)
Courtesy of FORD MOTOR CO.

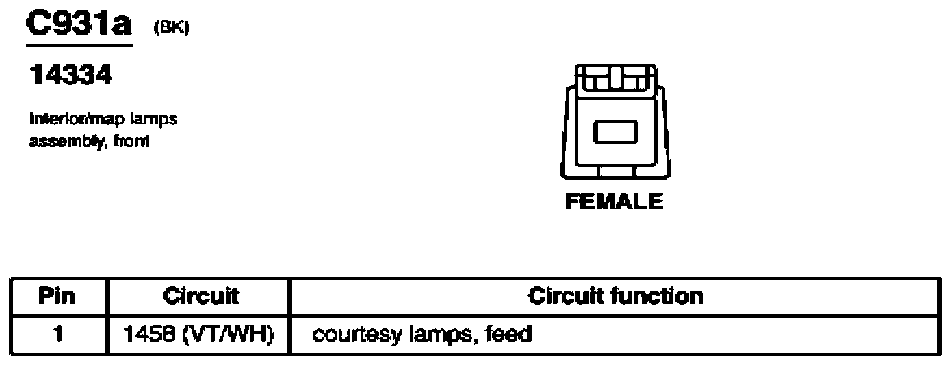

Fig 197: Interior/Map Lamps Assembly, Front Connector End View (C931a)
Courtesy of FORD MOTOR CO.

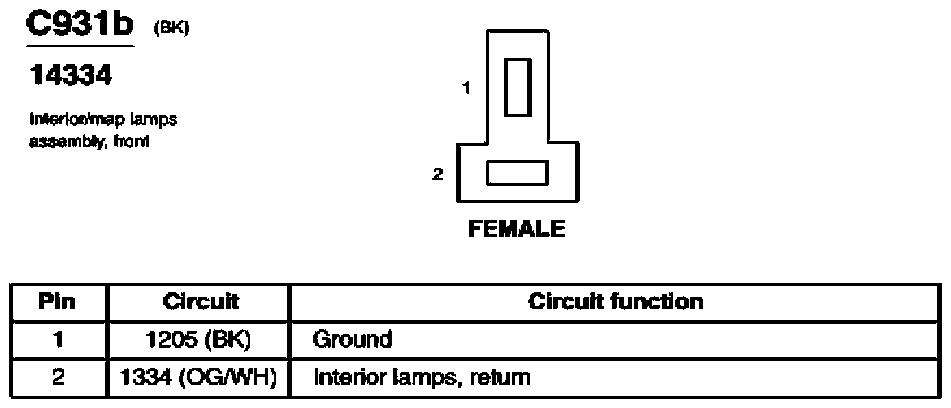

Fig 198: Interior/Map Lamps Assembly, Front Connector End View (C931b)
Courtesy of FORD MOTOR CO.

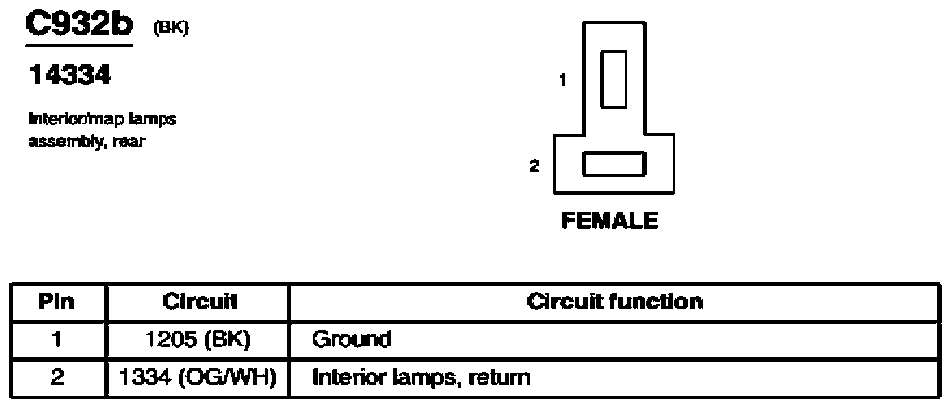

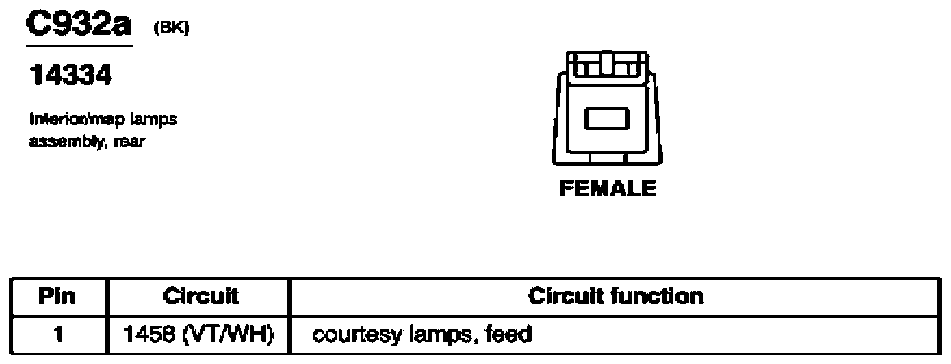

Fig 199: Interior/Map Lamps Assembly, Rear Connector End View (C932a)
Courtesy of FORD MOTOR CO.
Fig 200: Interior/Map Lamps Assembly, Rear Connector End View (C932b)
Courtesy of FORD MOTOR CO.

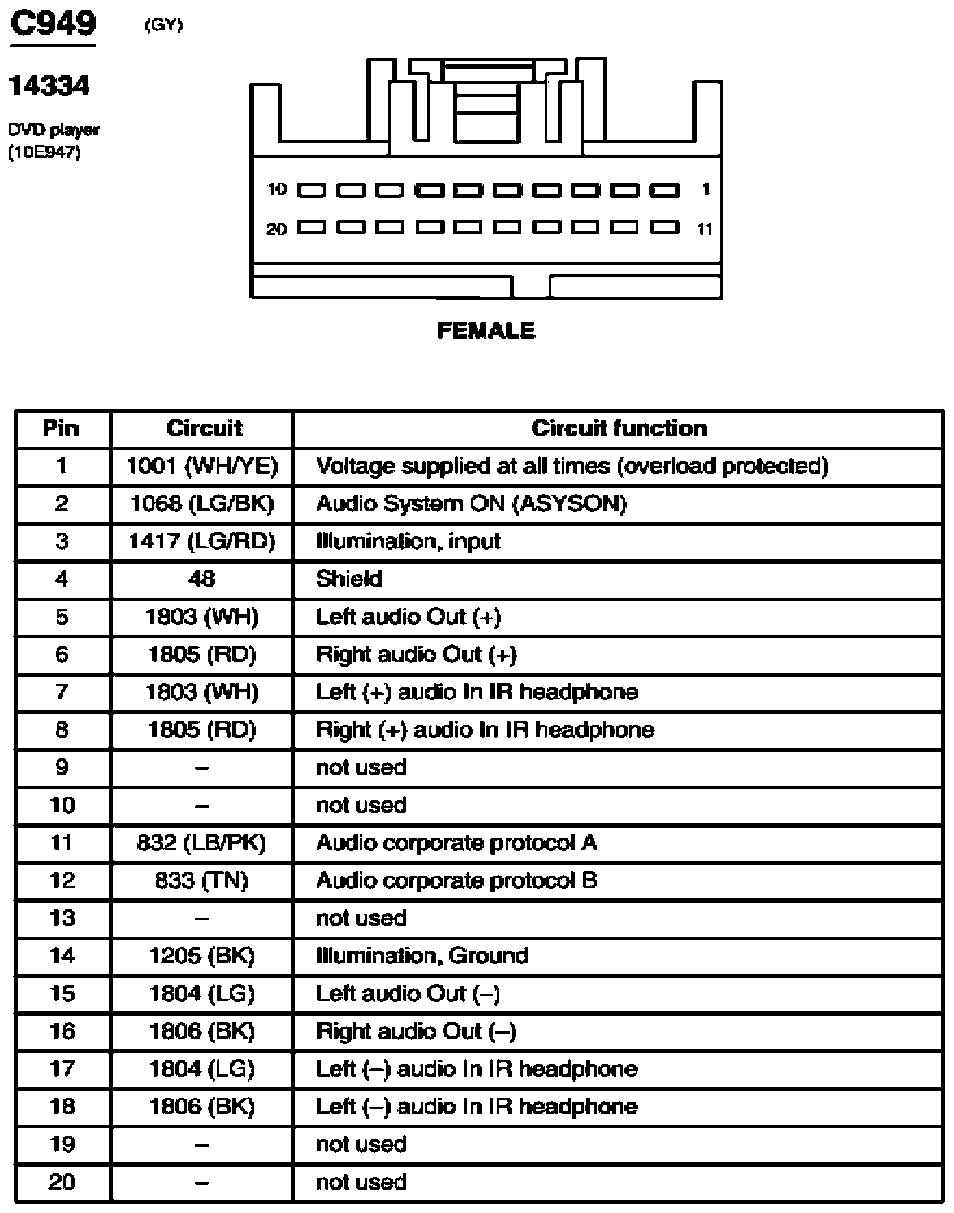

Fig 201: DVD Player Connector End View (C949)
Courtesy of FORD MOTOR CO.

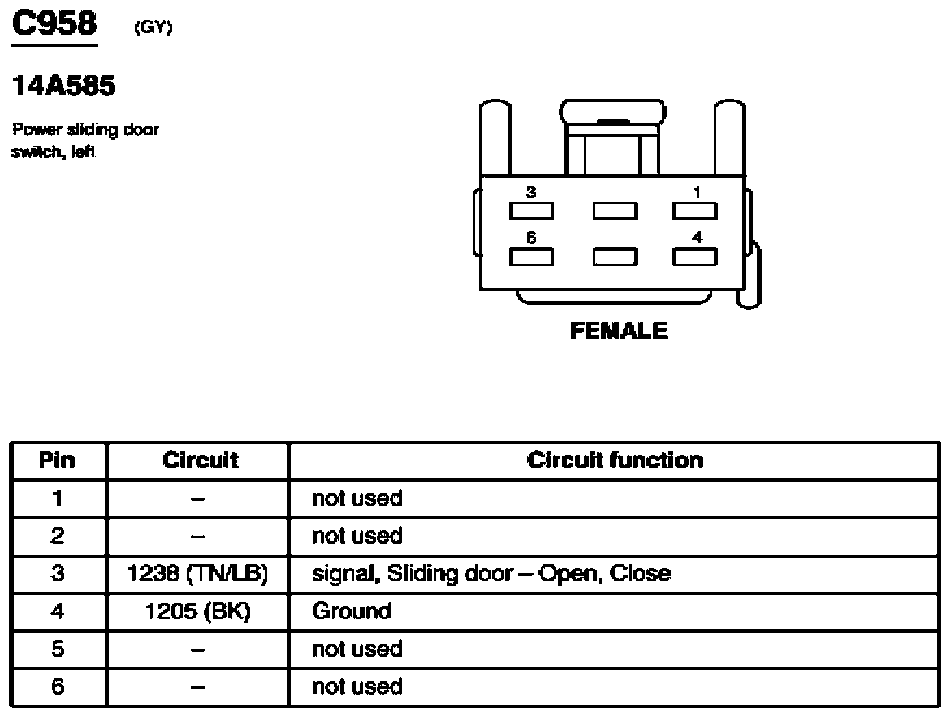

Fig 202: Power Sliding Door Switch, Left Connector End View (C958)
Courtesy of FORD MOTOR CO.

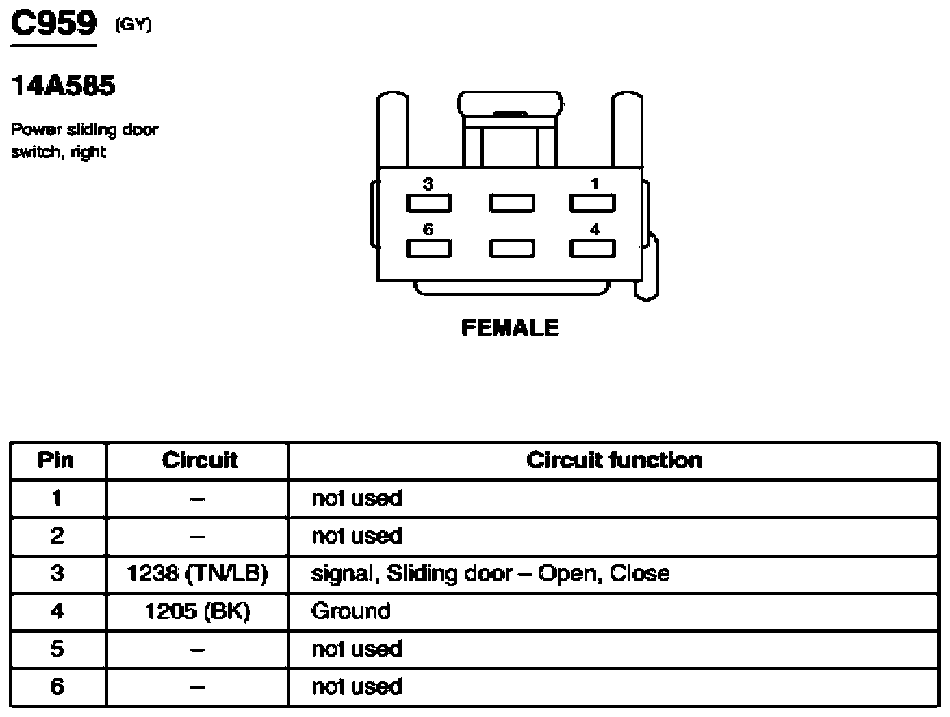

Fig 203: Power Sliding Door Switch, Right Connector End View (C959)
Courtesy of FORD MOTOR CO.

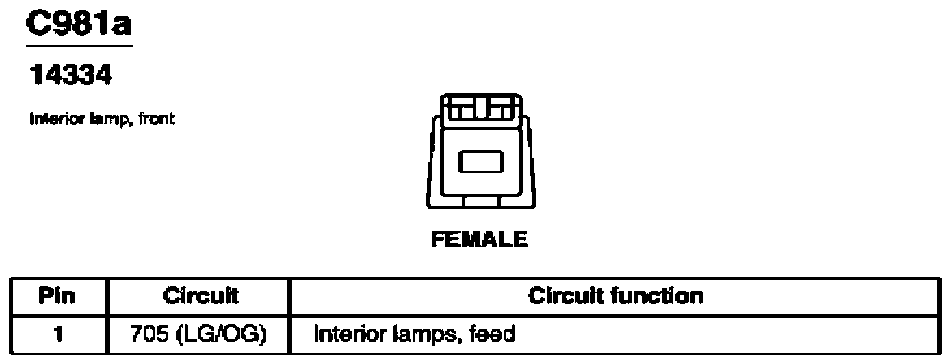

Fig 204: Interior Lamp, Front Connector End View (C981a)
Courtesy of FORD MOTOR CO.

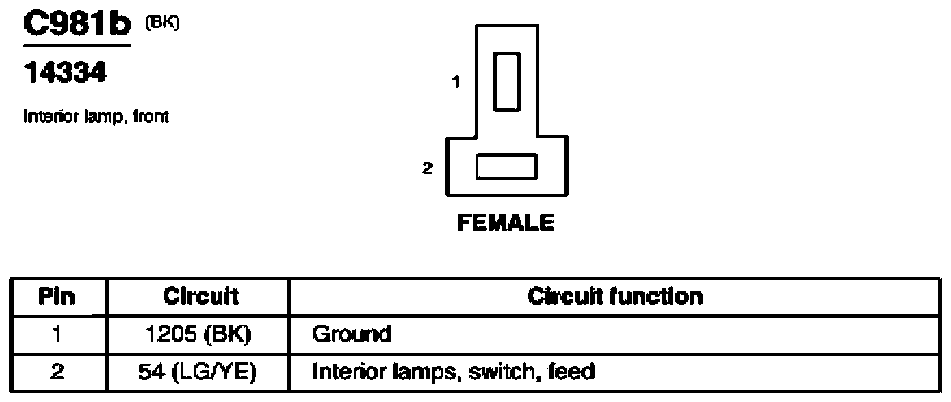

Fig 205: Interior Lamp, Front Connector End View (C981b)
Courtesy of FORD MOTOR CO.

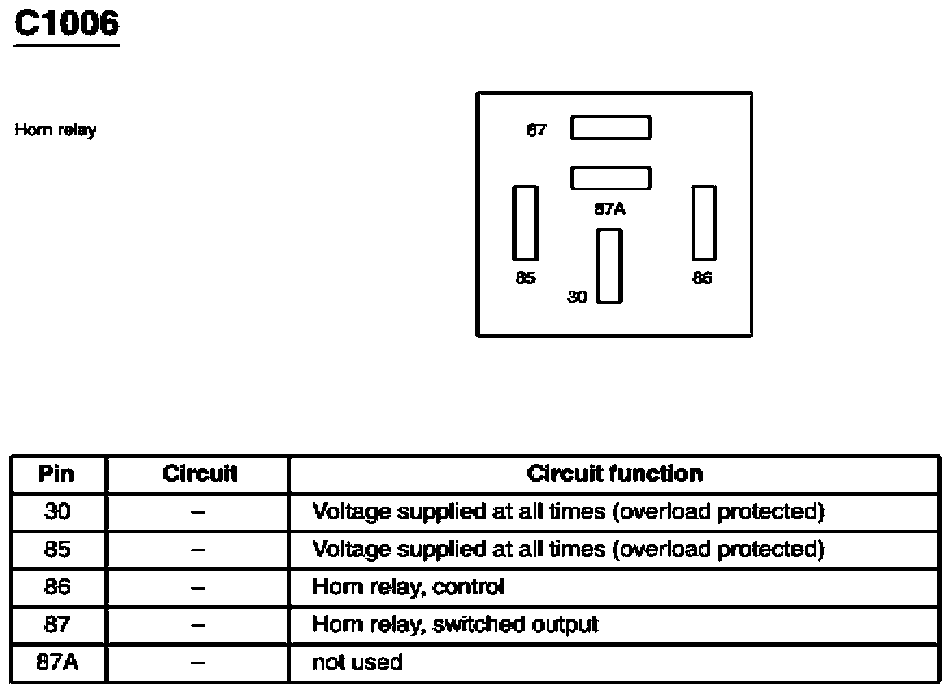

Fig 206: Horn Relay Connector End View (C1006)
Courtesy of FORD MOTOR CO.

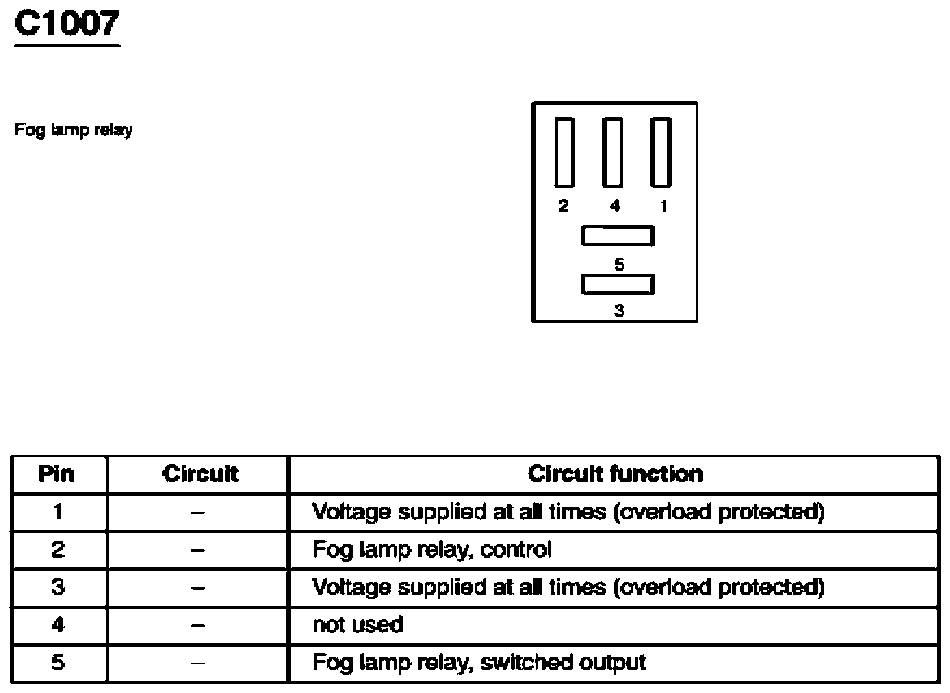

Fig 207: Fog Lamp Relay Connector End View (C1007)
Courtesy of FORD MOTOR CO.

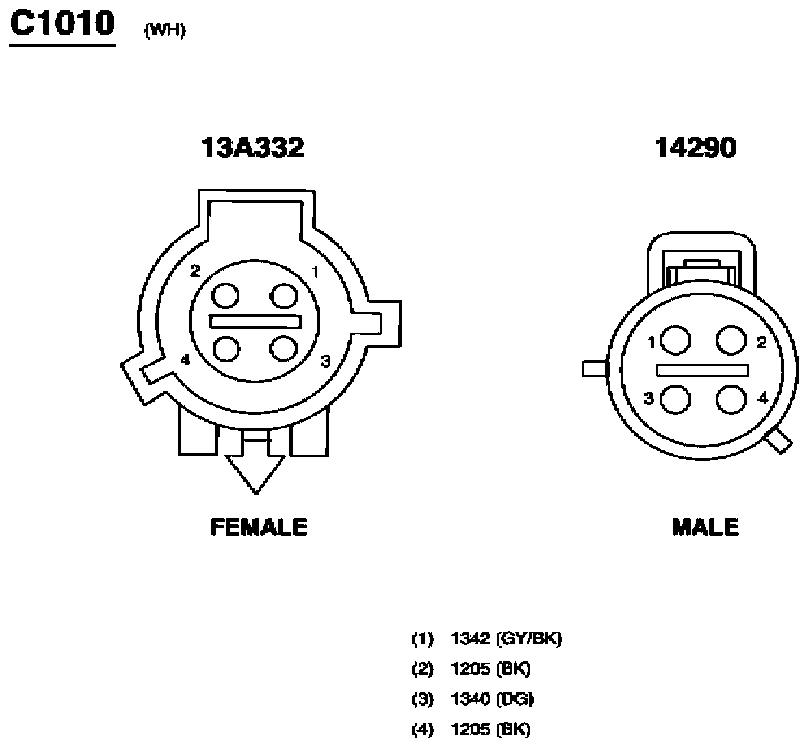

Fig 208: Inline Connector End View (C1010)
Courtesy of FORD MOTOR CO.

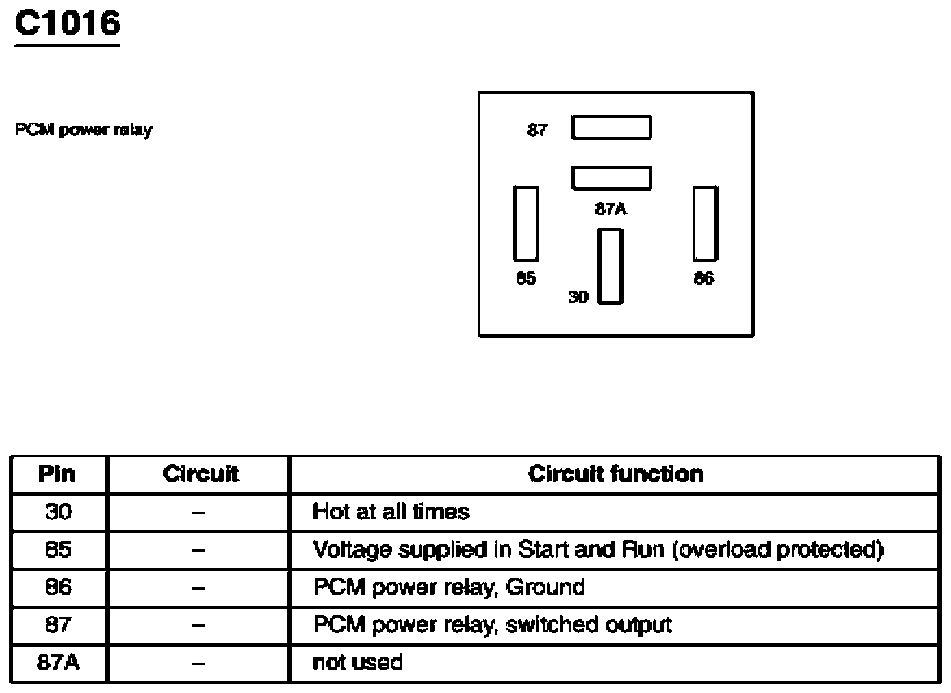

Fig 209: PCM Power Relay Connector End View (C1016)
Courtesy of FORD MOTOR CO.

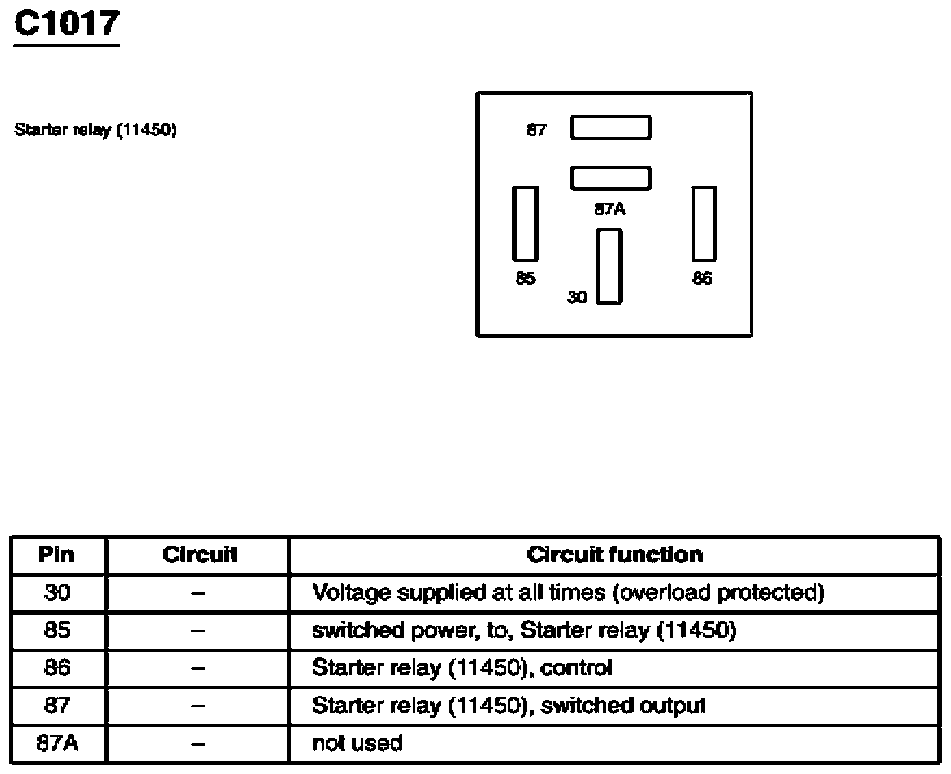

Fig 210: Starter Relay Connector End View (C1017)
Courtesy of FORD MOTOR CO.

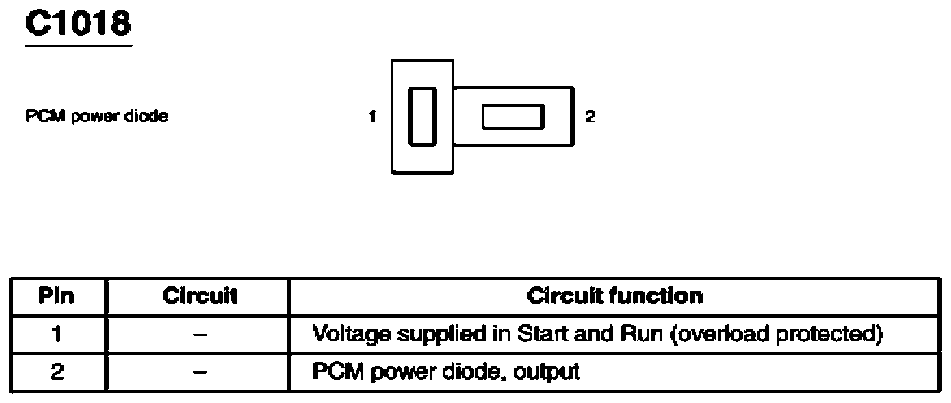

Fig 211: PCM Power Diode Connector End View (C1018)
Courtesy of FORD MOTOR CO.

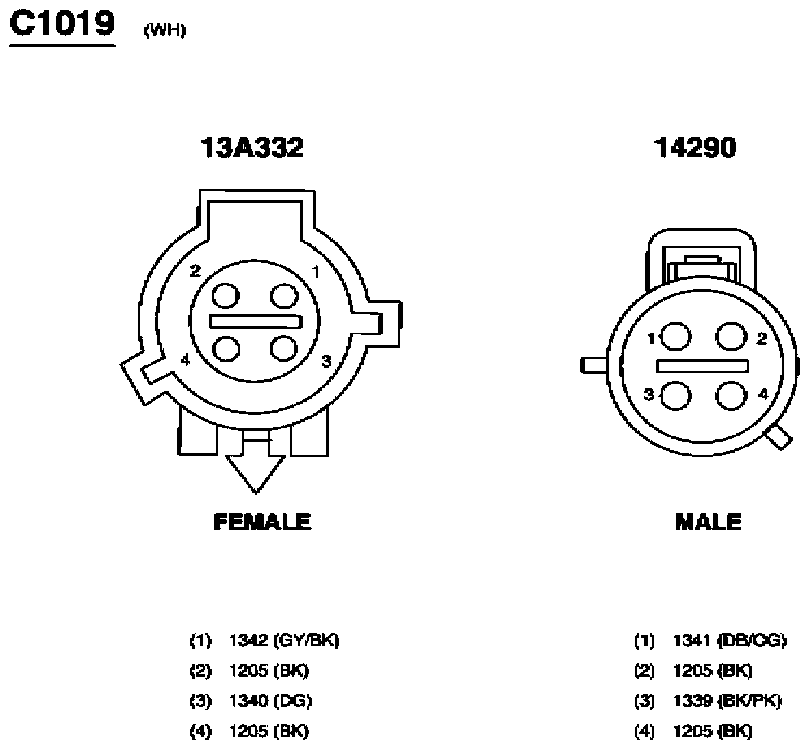

Fig 212: Inline Connector End View (C1019)
Courtesy of FORD MOTOR CO.

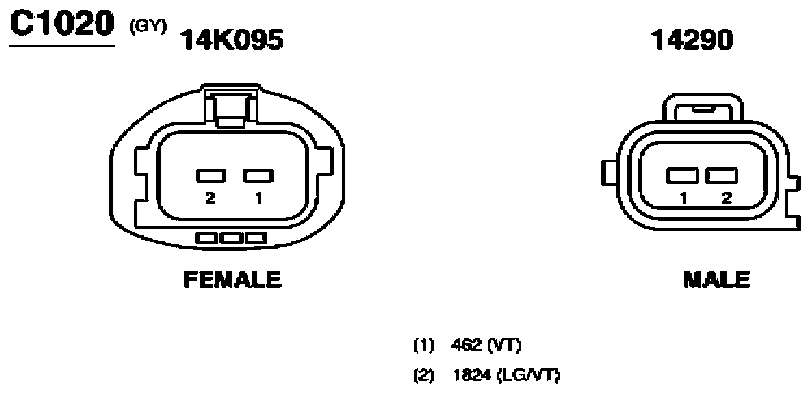

Fig 213: Inline Connector End View (C1020)
Courtesy of FORD MOTOR CO.

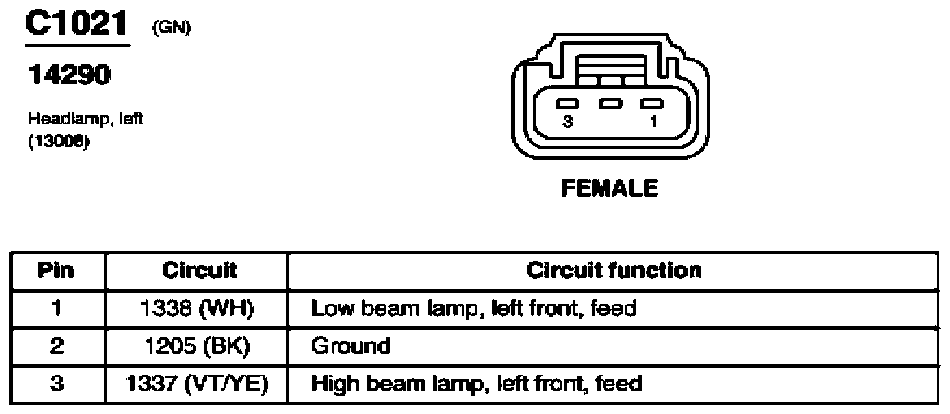

Fig 214: Headlamp, Left Connector End View (C1021)
Courtesy of FORD MOTOR CO.

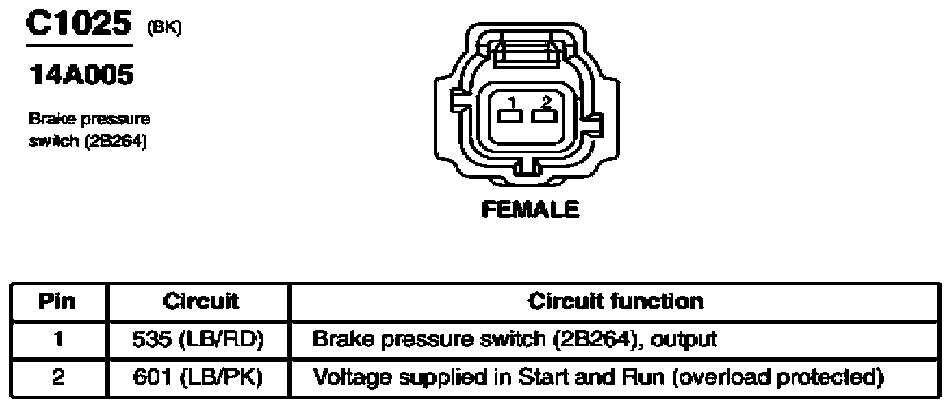

Fig 215: Brake Pressure Switch Connector End View (C1025)
Courtesy of FORD MOTOR CO.
Fig 216: Restraints Control Module Connector End View (C310b) (2 Of 3)
Courtesy of FORD MOTOR CO.
Fig 217: Restraints Control Module Connector End View (C310b) (3 Of 3)
Courtesy of FORD MOTOR CO.

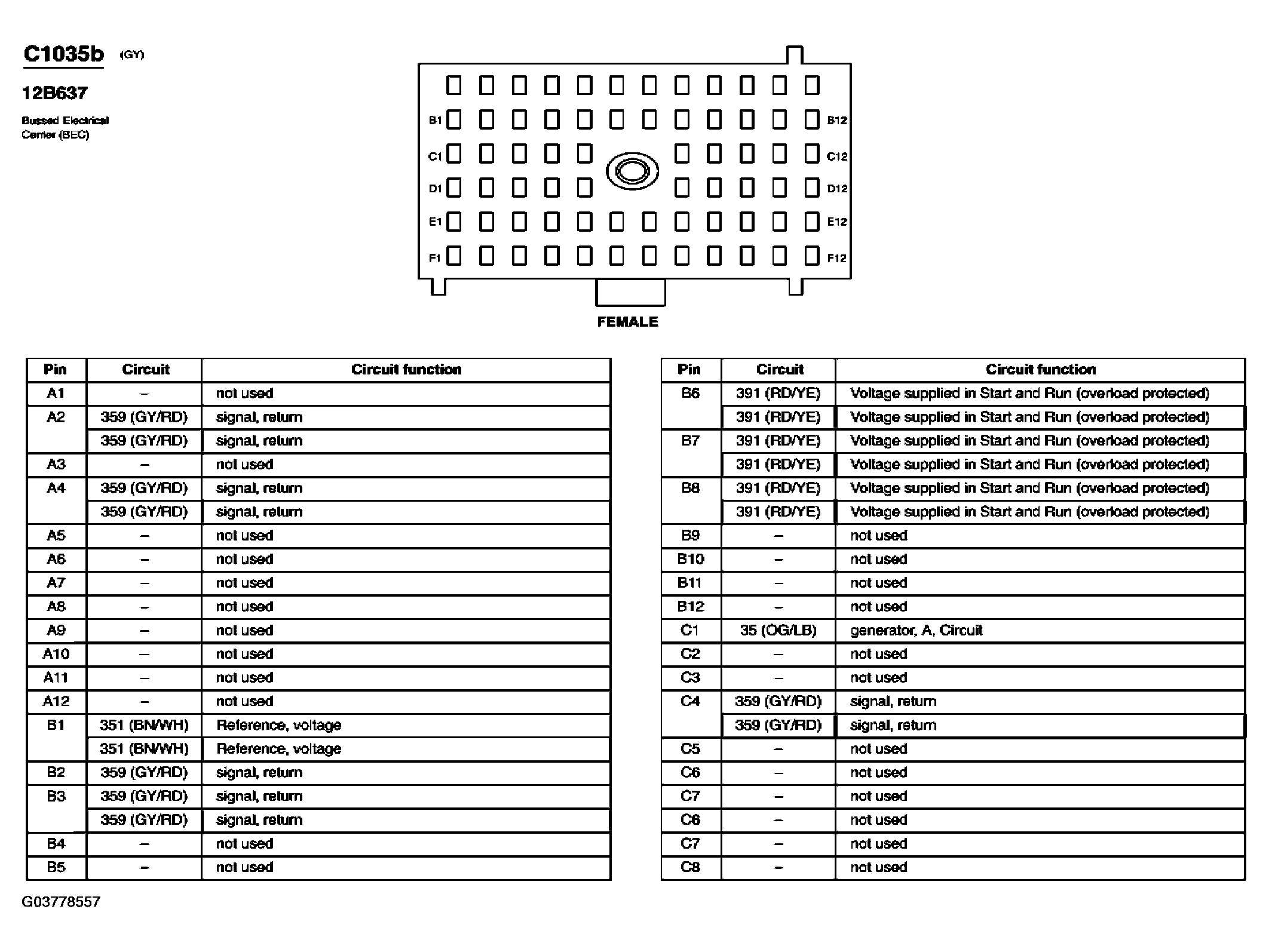

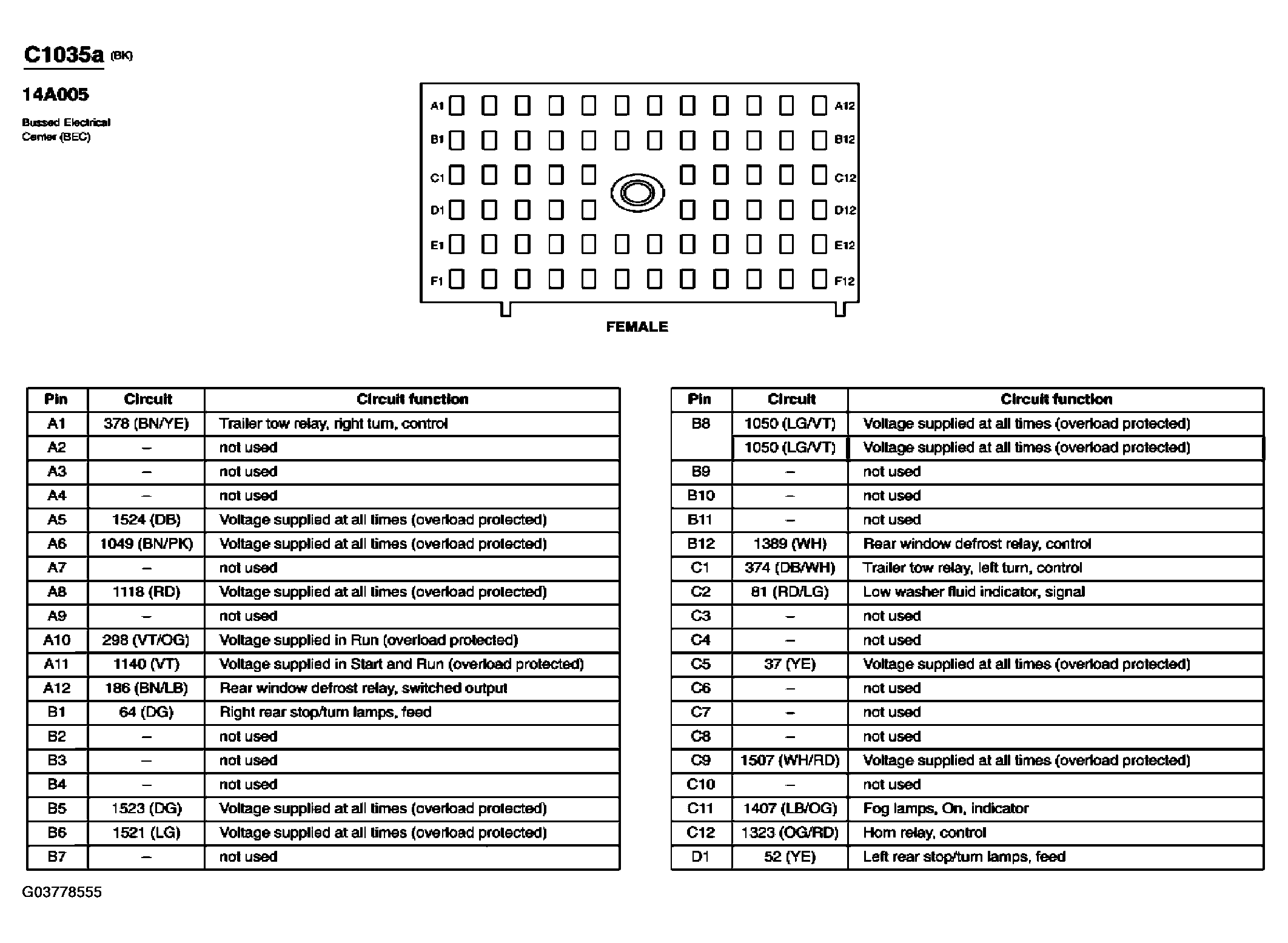

Fig 218: Bussed Electrical Center (BEC) Connector End View (C1035b) (1 Of 2)
Courtesy of FORD MOTOR CO.

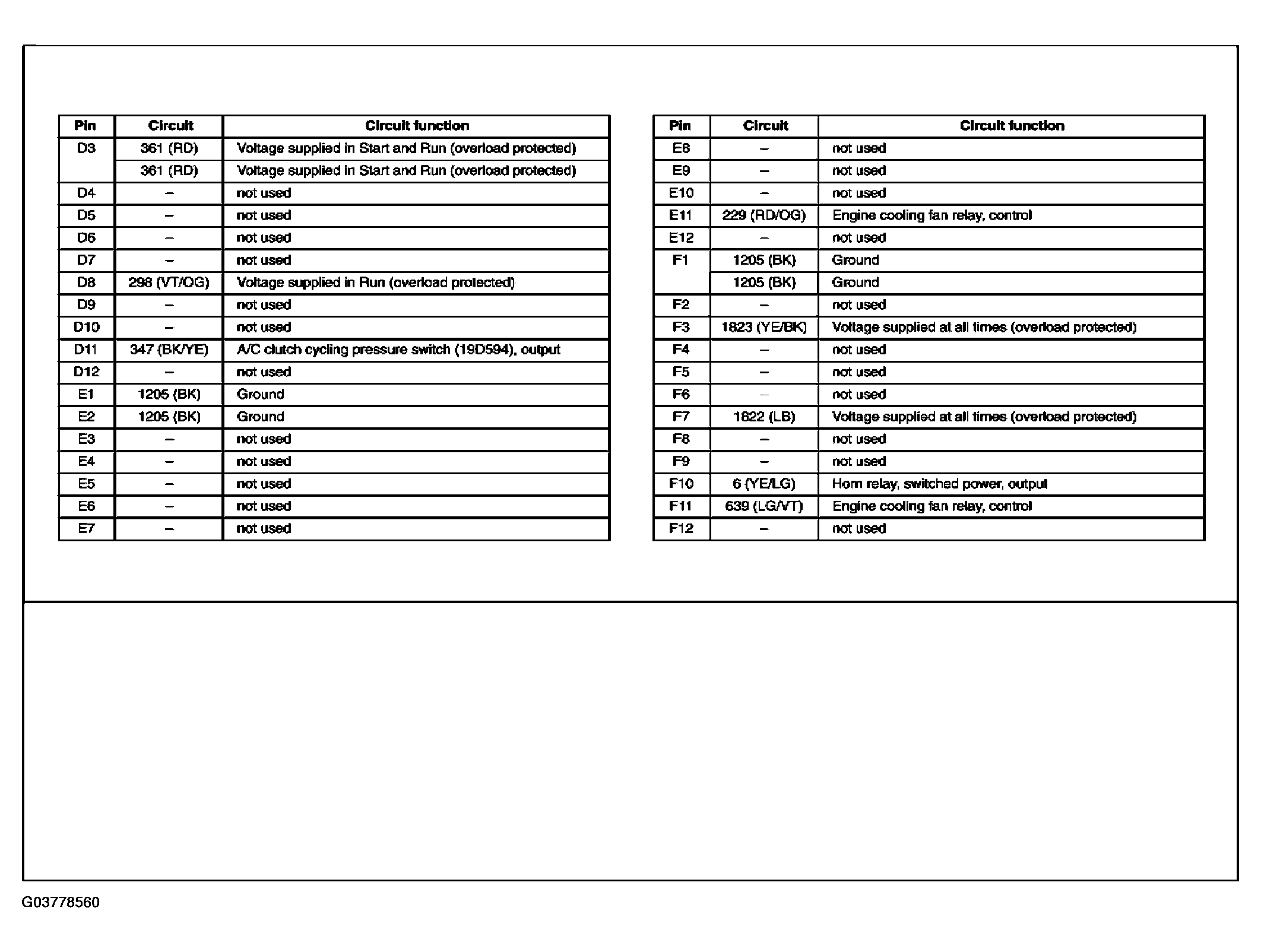

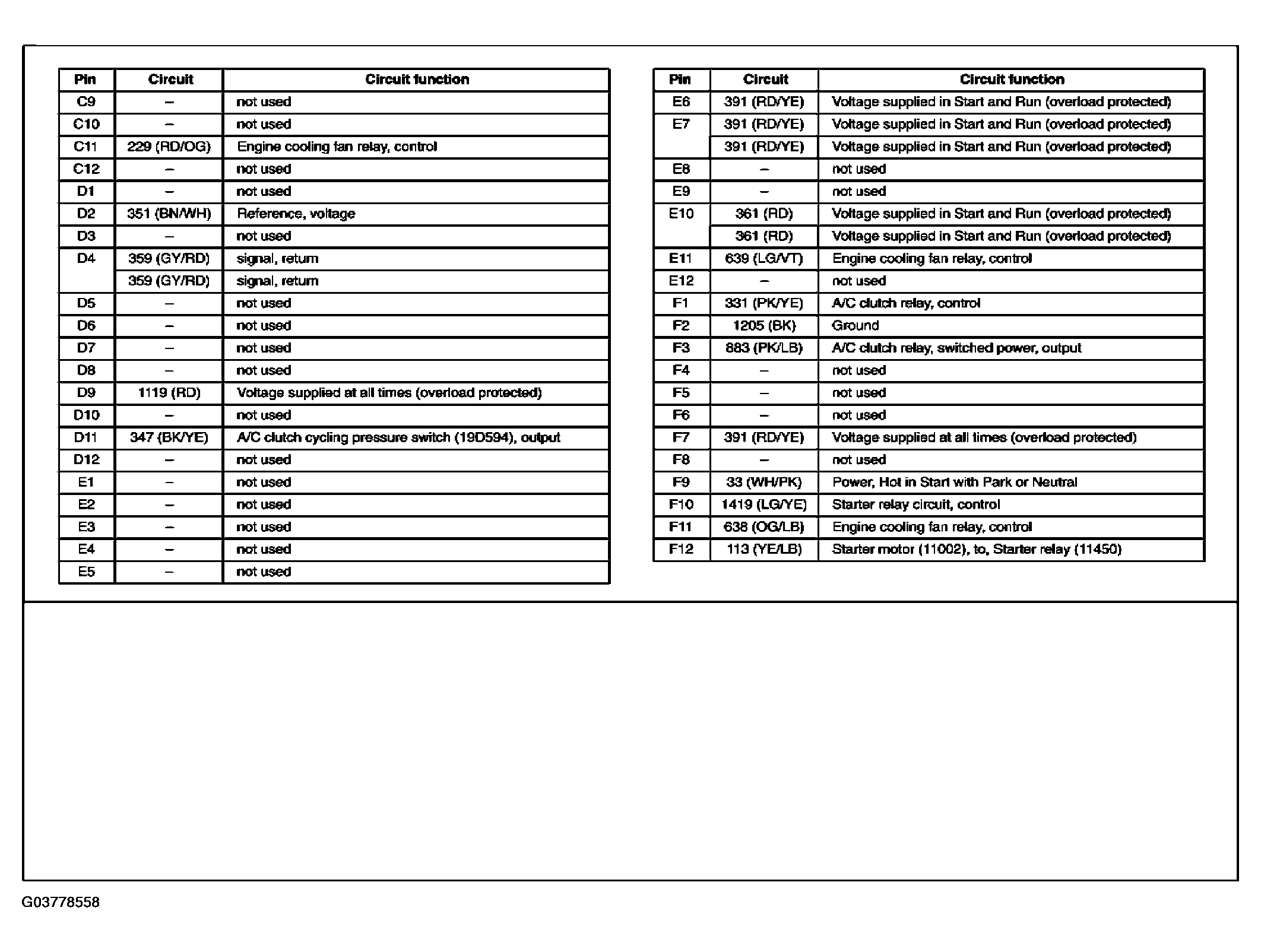

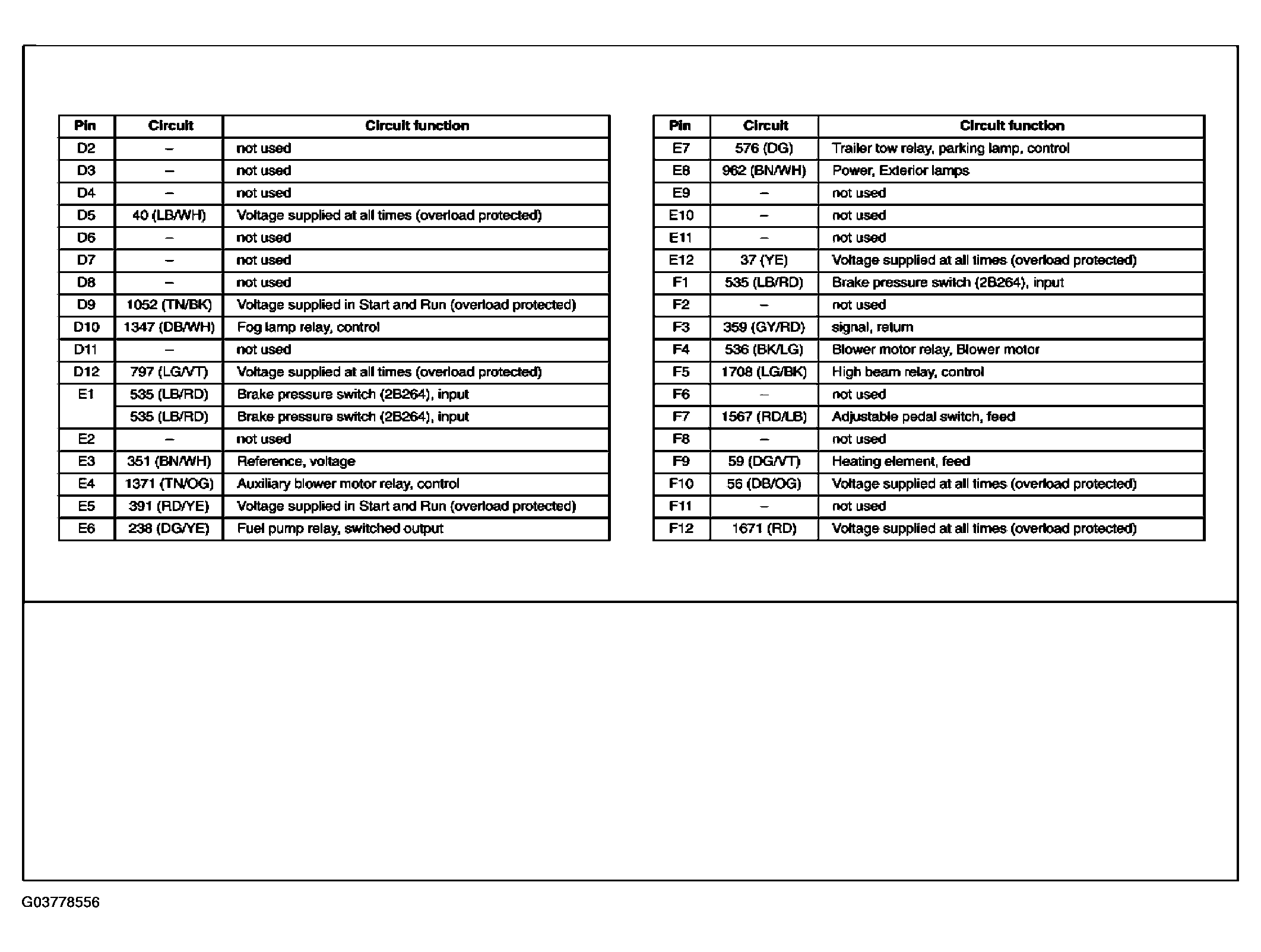

Fig 219: Bussed Electrical Center (BEC) Connector End View (C1035b) (2 Of 2)
Courtesy of FORD MOTOR CO.

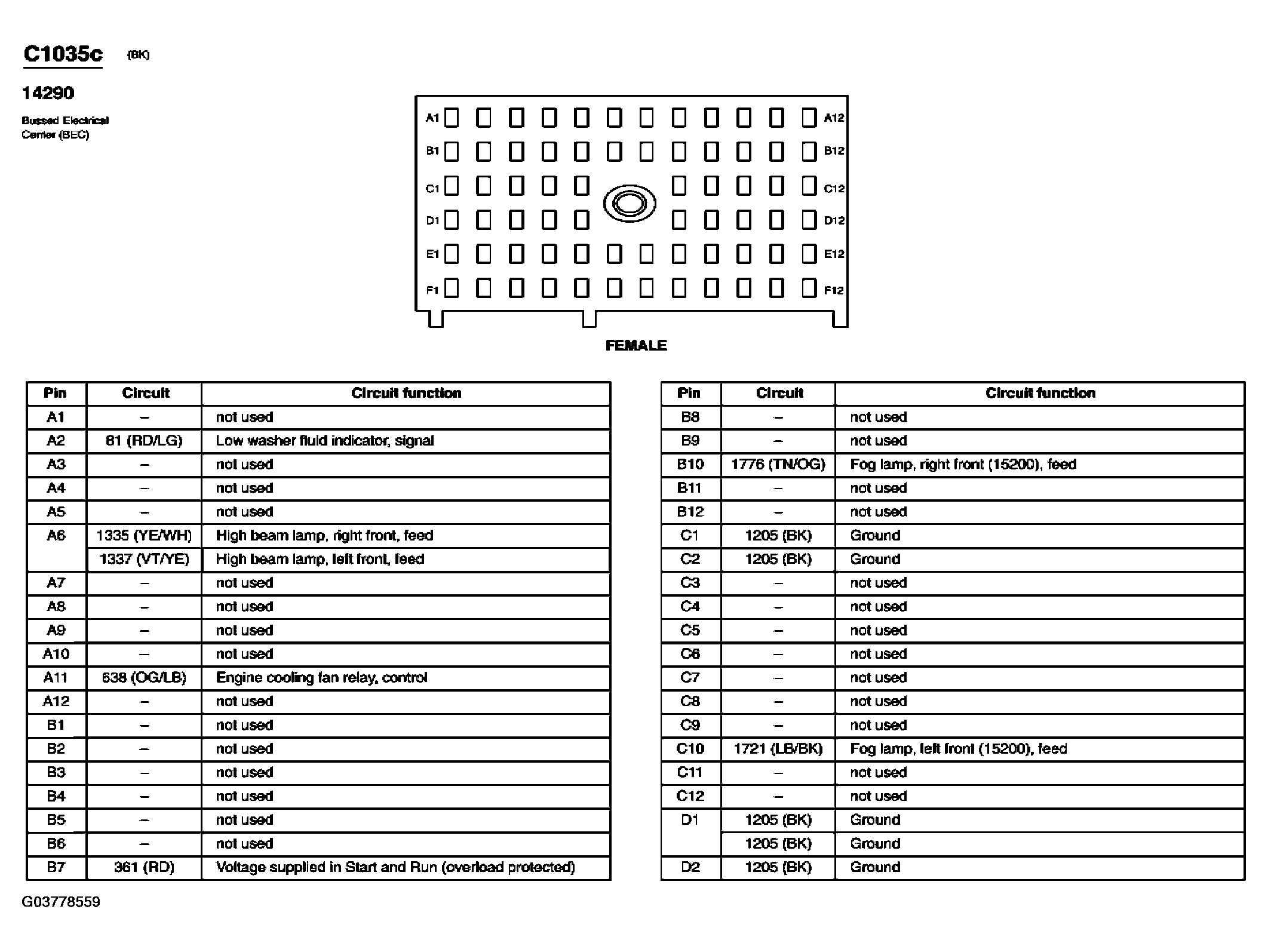

Fig 220: Bussed Electrical Center (BEC) Connector End View (C1035c) (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 221: Bussed Electrical Center (BEC) Connector End View (C1035c) (2 Of 2)
Courtesy of FORD MOTOR CO.

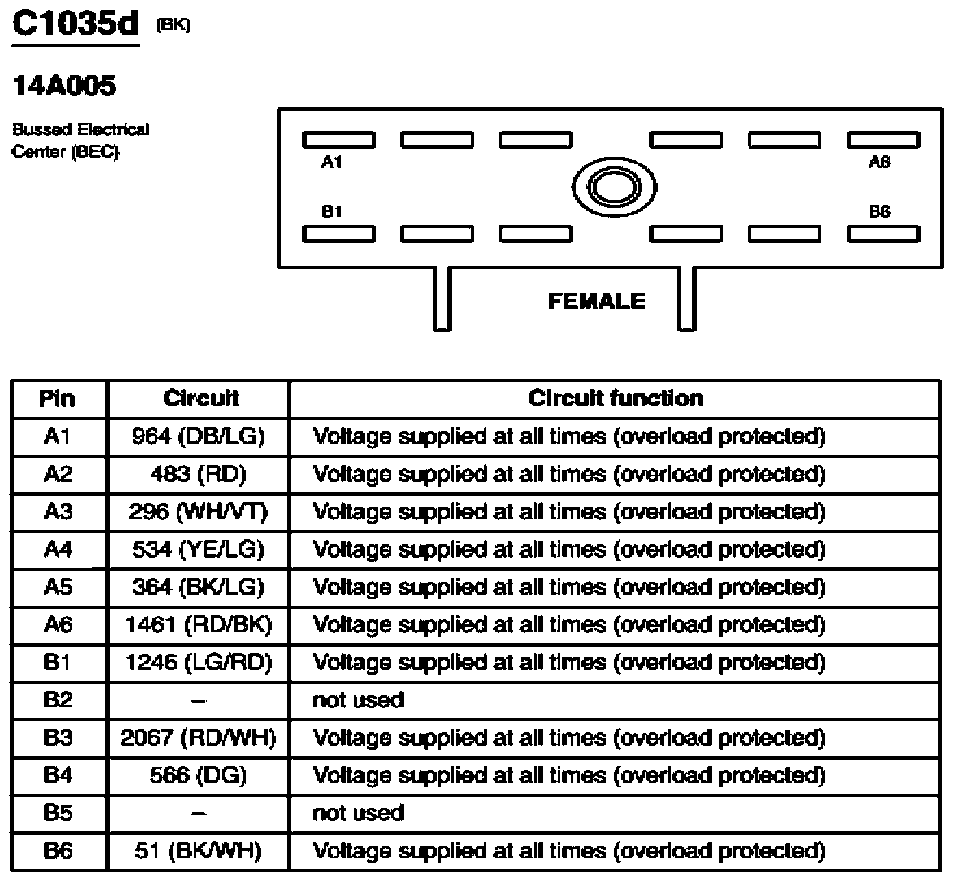

Fig 222: Bussed Electrical Center (BEC) Connector End View (C1035d)
Courtesy of FORD MOTOR CO.

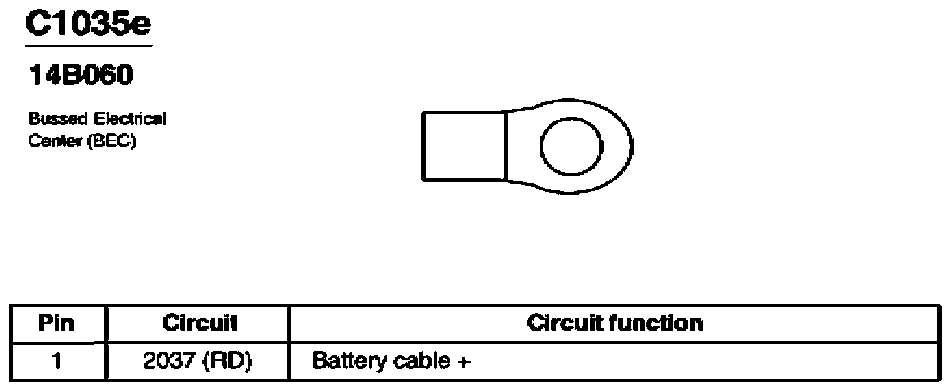

Fig 223: Bussed Electrical Center (BEC) Connector End View (C1035e)
Courtesy of FORD MOTOR CO.

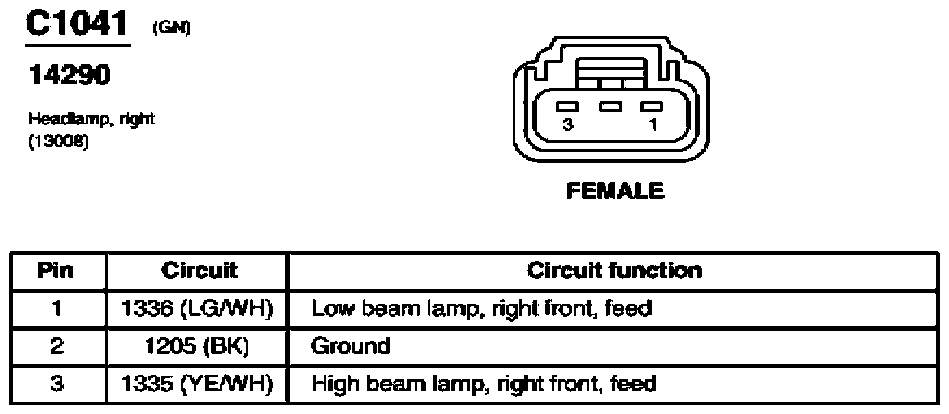

Fig 224: Headlamp, Right Connector End View (C1041)
Courtesy of FORD MOTOR CO.

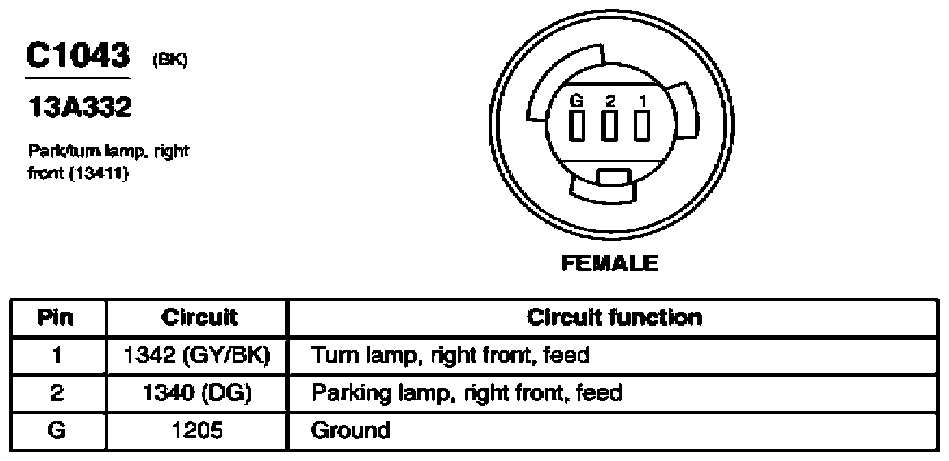

Fig 225: Park/Turn Lamp, Right Front Connector End View (C1043)
Courtesy of FORD MOTOR CO.

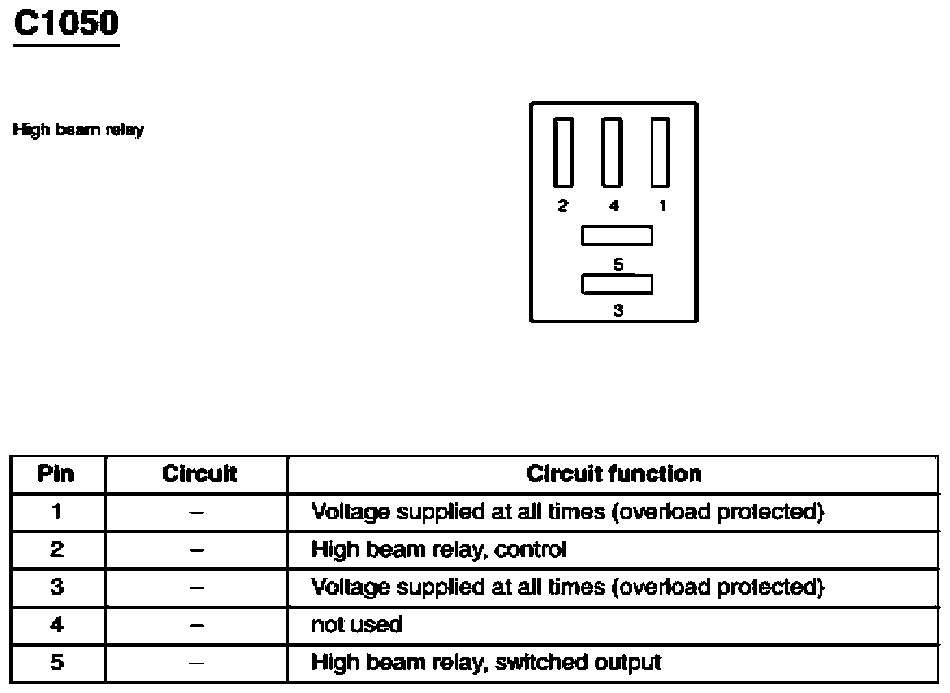

Fig 226: High Beam Relay Connector End View (C1050)
Courtesy of FORD MOTOR CO.

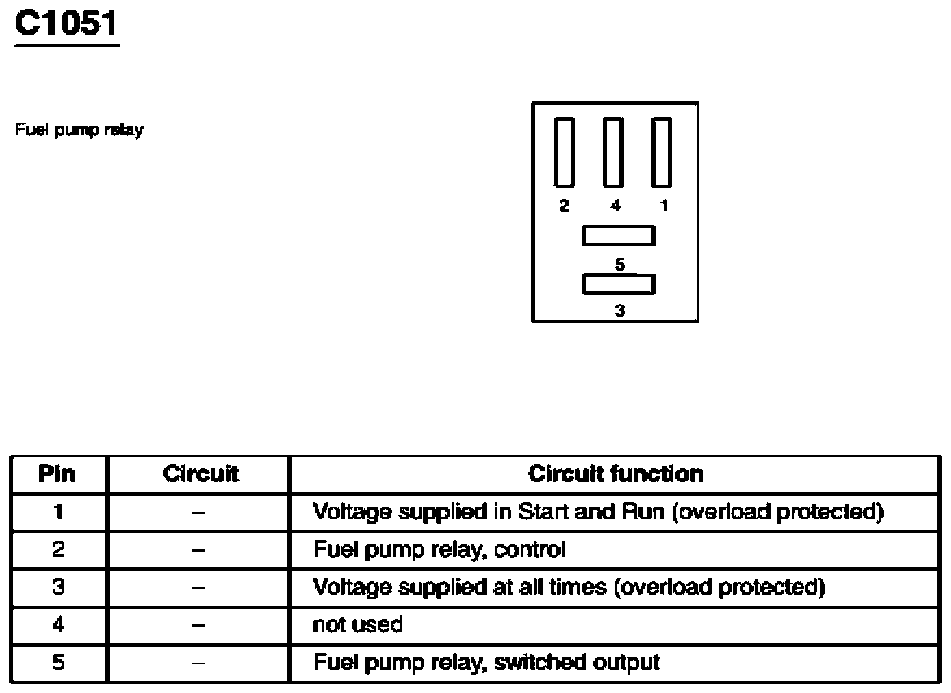

Fig 227: Fuel Pump Relay Connector End View (C1051)
Courtesy of FORD MOTOR CO.

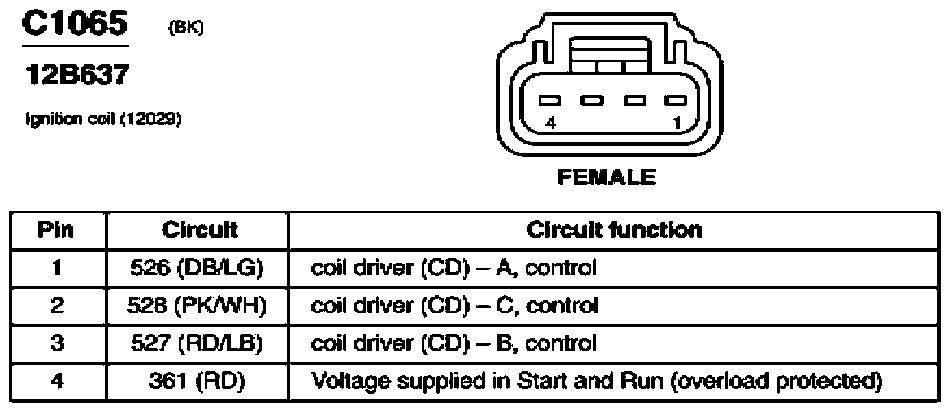

Fig 228: Ignition Coil Connector End View (C1065)
Courtesy of FORD MOTOR CO.

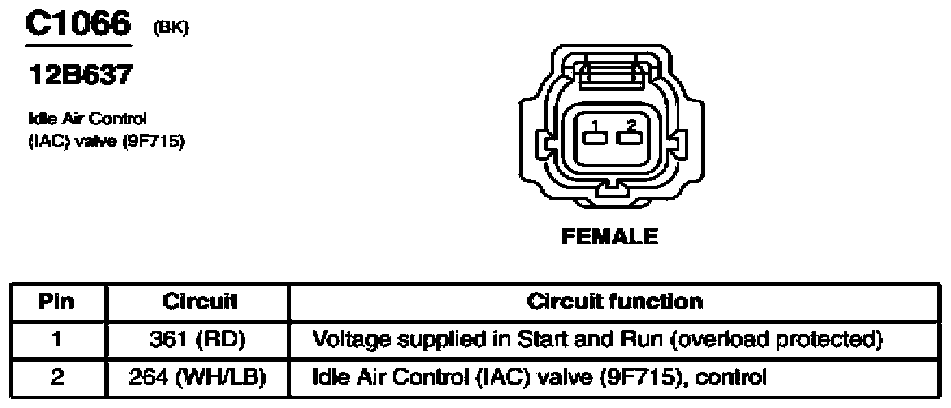

Fig 229: Idle Air Control (IAC) Valve Connector End View (C1066)
Courtesy of FORD MOTOR CO.

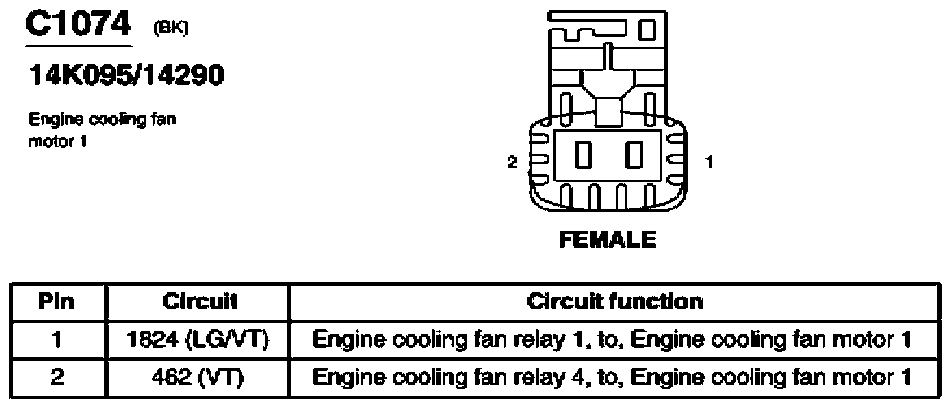

Fig 230: Engine Cooling Fan Motor 1 Connector End View (C1074)
Courtesy of FORD MOTOR CO.

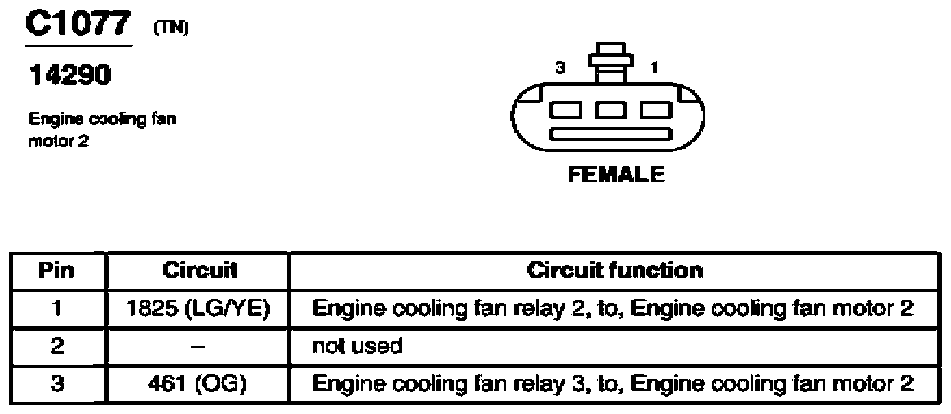

Fig 231: Engine Cooling Fan Motor 2 Connector End View (C1077)
Courtesy of FORD MOTOR CO.

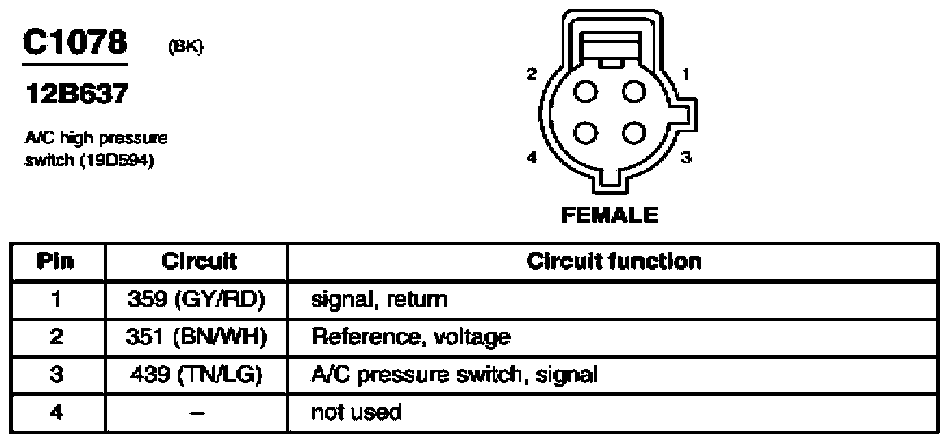

Fig 232: A/C High Pressure Switch Connector End View (C1078)
Courtesy of FORD MOTOR CO.

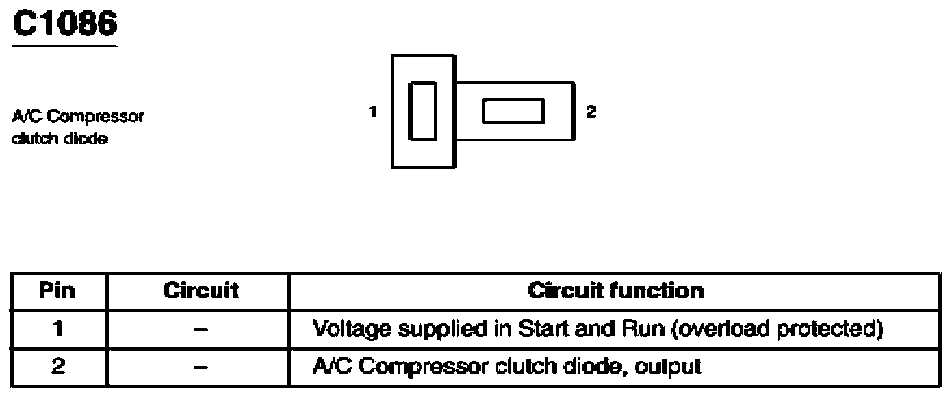

Fig 233: A/C Compressor Clutch Diode Connector End View (C1086)
Courtesy of FORD MOTOR CO.

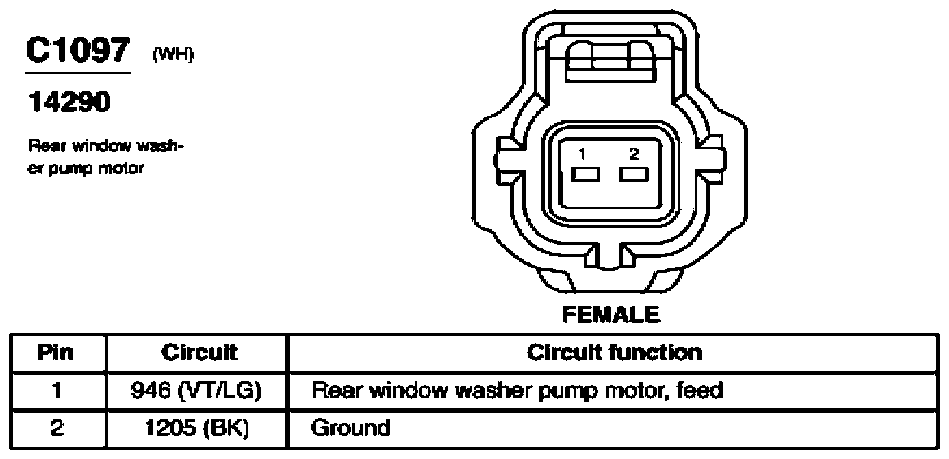

Fig 234: Rear Window Washer Pump Motor Connector End View (C1097)
Courtesy of FORD MOTOR CO.

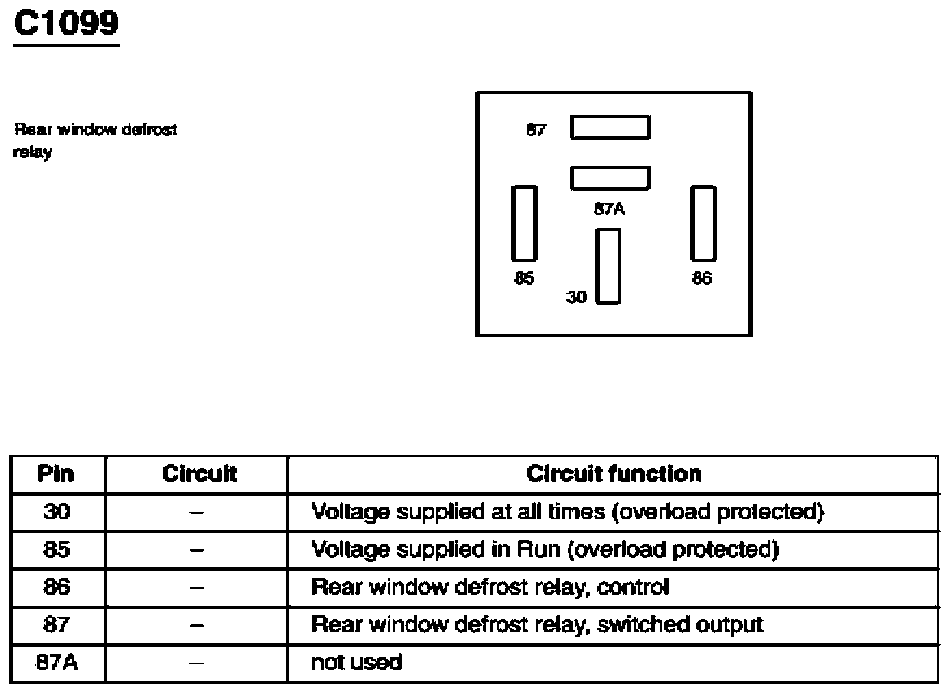

Fig 235: Rear Window Defrost Relay Connector End View (C1099)
Courtesy of FORD MOTOR CO.

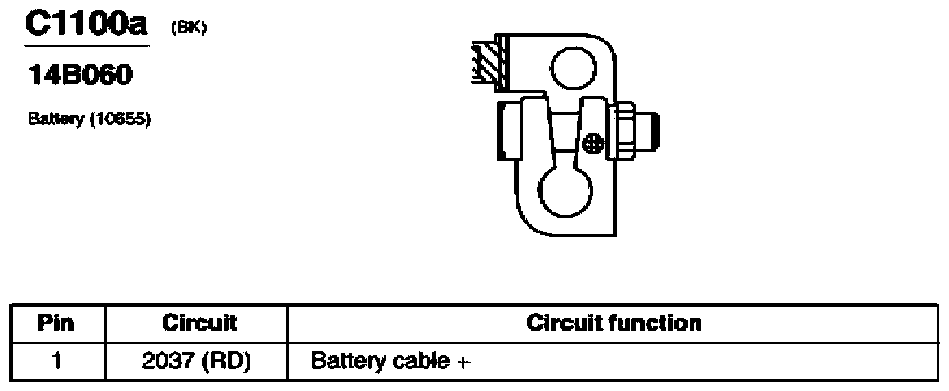

Fig 236: Battery Connector End View (C1100a)
Courtesy of FORD MOTOR CO.

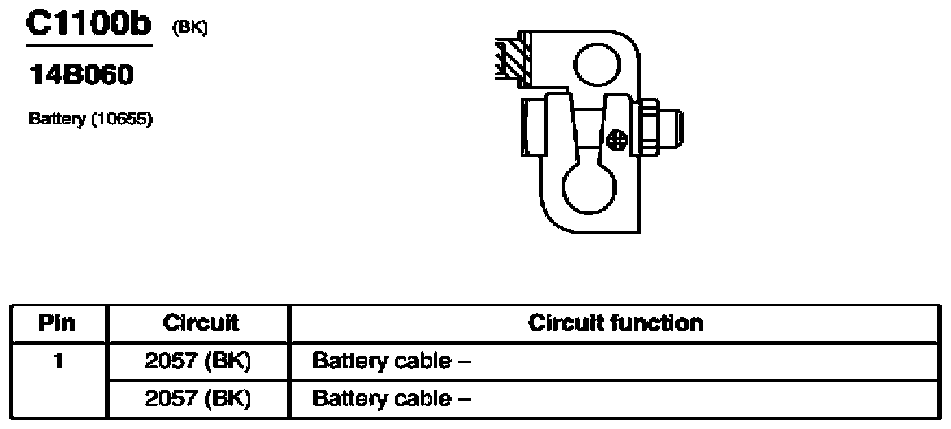

Fig 237: Battery Connector End View (C1100b)
Courtesy of FORD MOTOR CO.

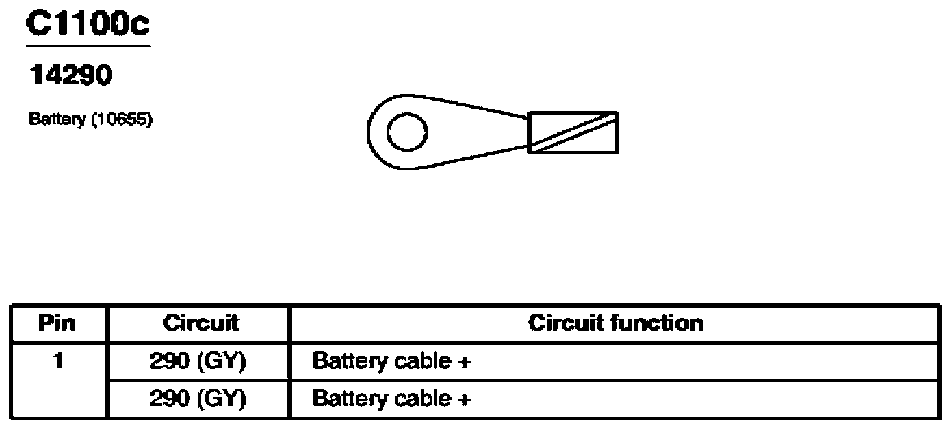

Fig 238: Battery Connector End View (C1100c)
Courtesy of FORD MOTOR CO.

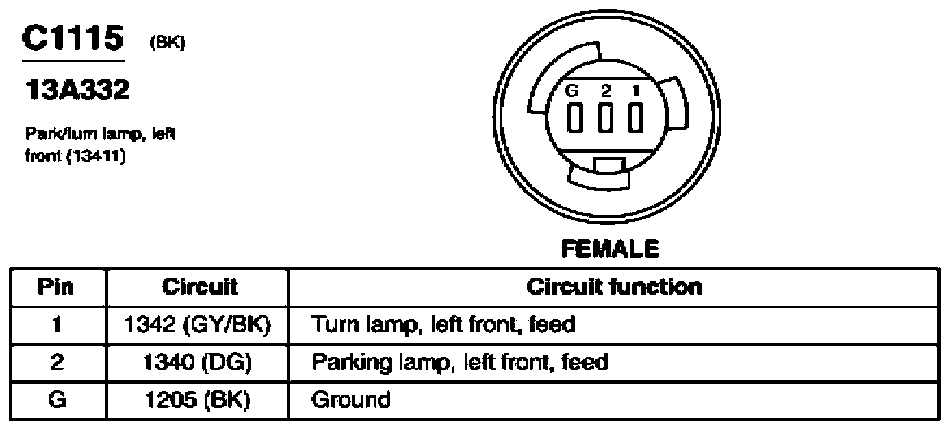

Fig 239: Park/Turn Lamp, Left Front Connector End View (C1115)
Courtesy of FORD MOTOR CO.

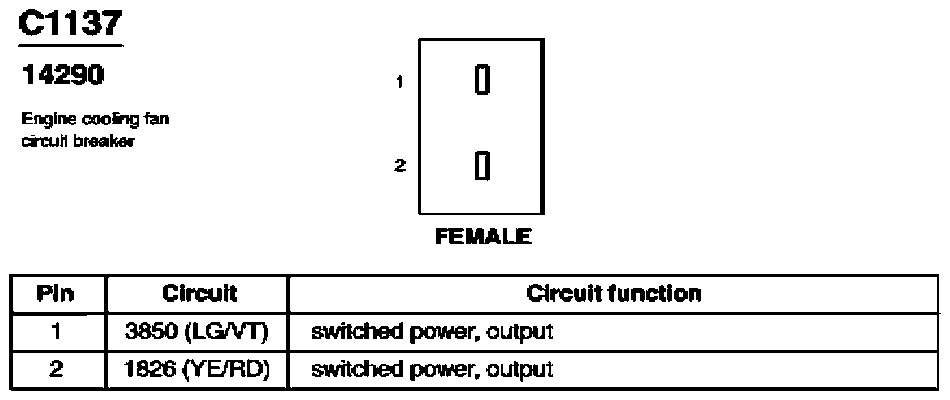

Fig 240: Engine Cooling Fan Circuit Breaker Connector End View (C1137)
Courtesy of FORD MOTOR CO.

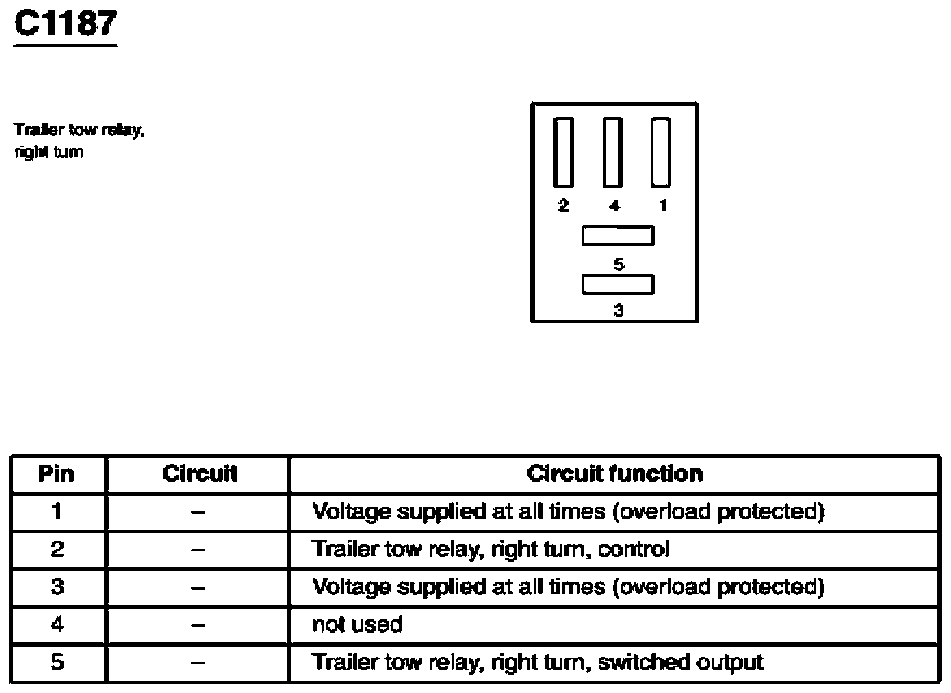

Fig 241: Trailer Tow Relay, Right Turn Connector End View (C1187)
Courtesy of FORD MOTOR CO.

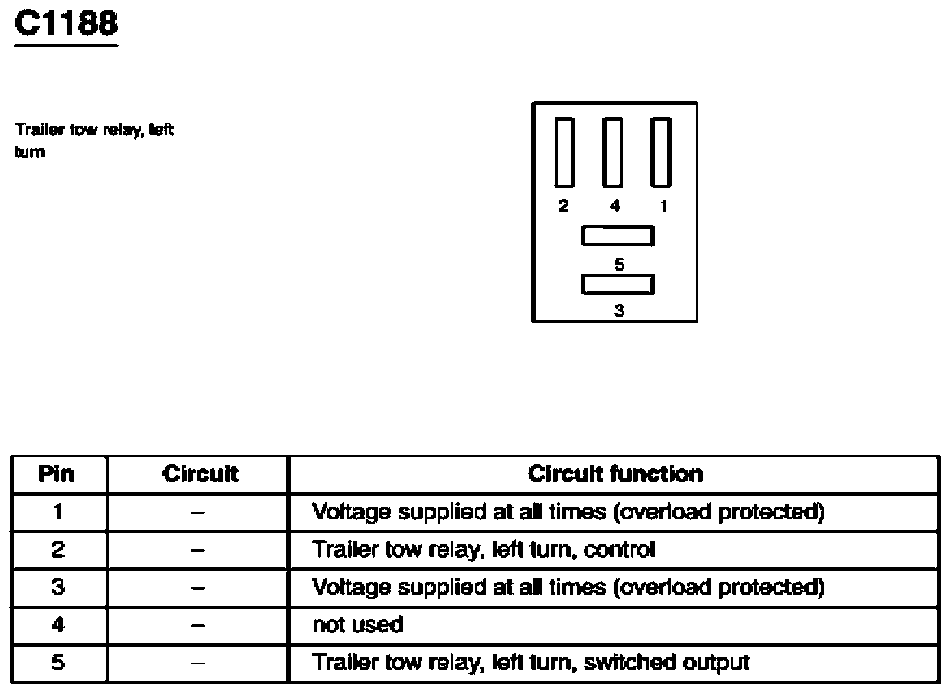

Fig 242: Trailer Tow Relay, Left Turn Connector End View (C1188)
Courtesy of FORD MOTOR CO.

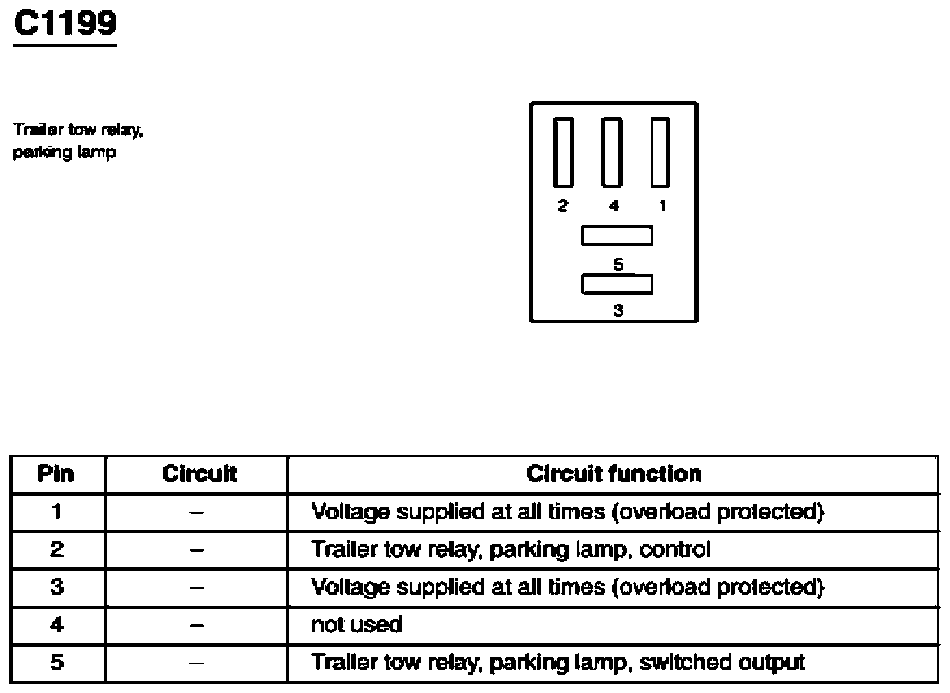

Fig 243: Trailer Tow Relay, Parking Lamp Connector End View (C1199)
Courtesy of FORD MOTOR CO.

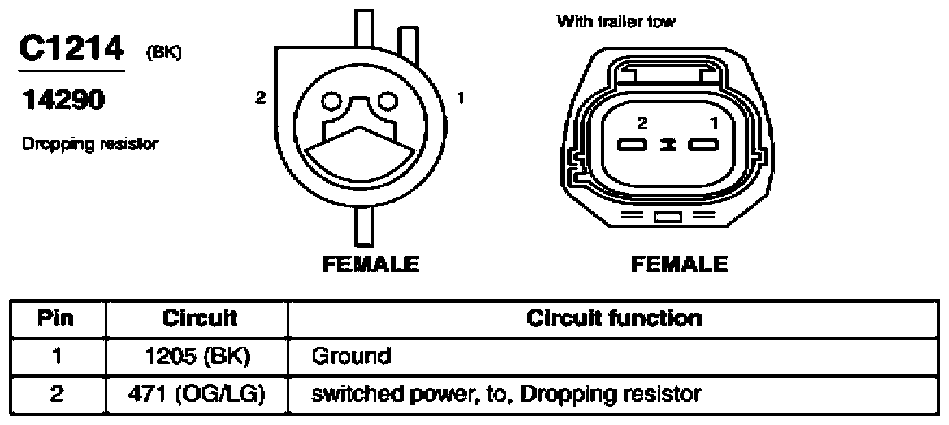

Fig 244: Dropping Resistor Connector End View (C1214)
Courtesy of FORD MOTOR CO.

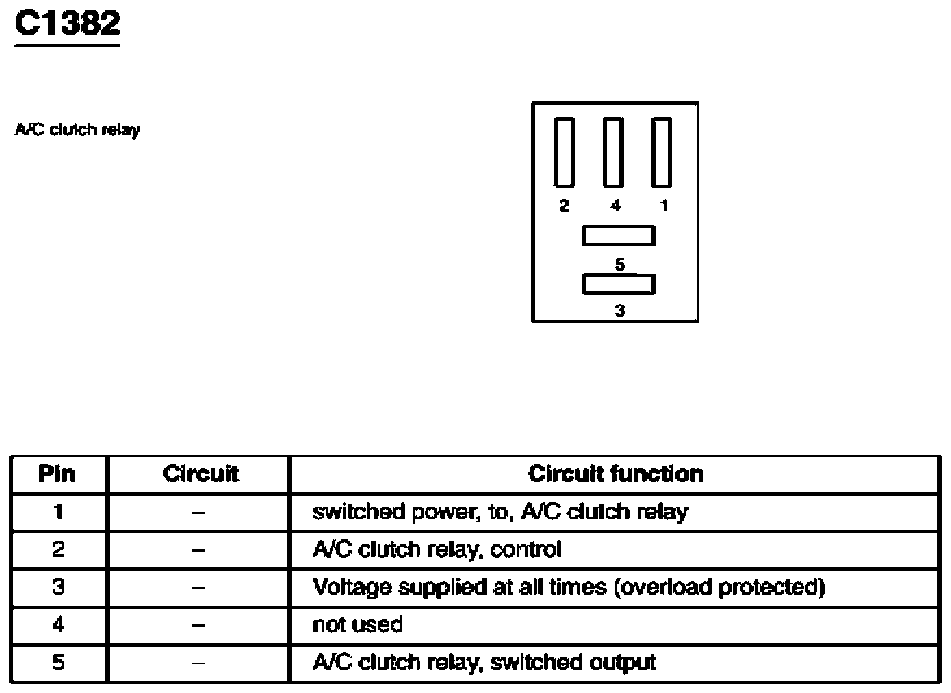

Fig 245: A/C Clutch Relay Connector End View (C1382)
Courtesy of FORD MOTOR CO.

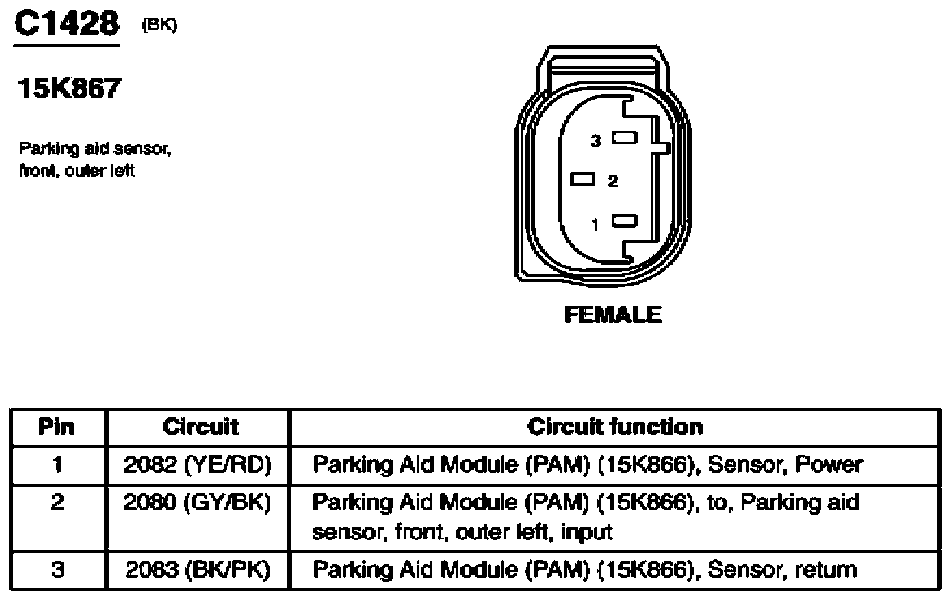

Fig 246: Parking Aid Sensor, Front Outer Left Connector End View (C1428)
Courtesy of FORD MOTOR CO.

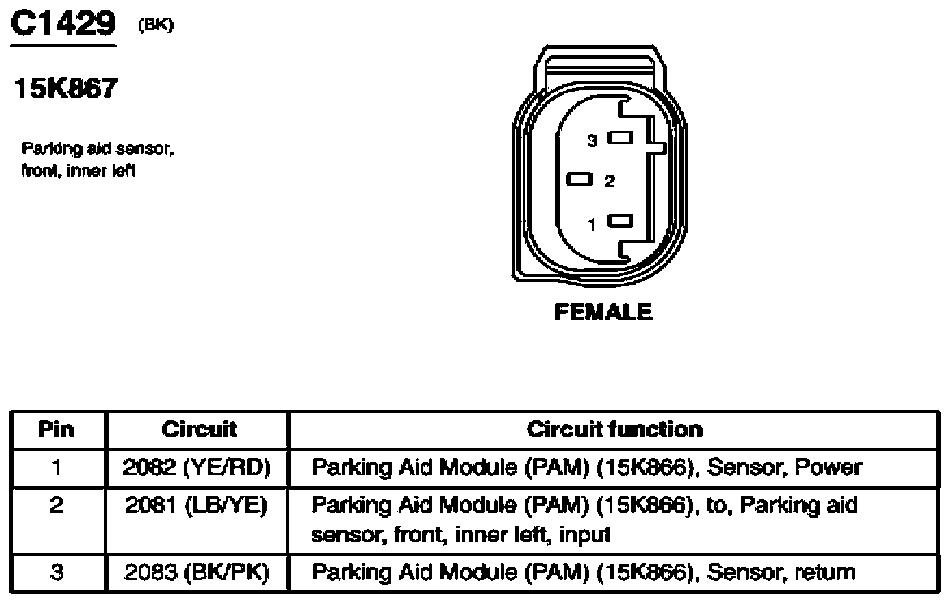

Fig 247: Parking Aid Sensor, Front, Inner Left Connector End View (C1429)
Courtesy of FORD MOTOR CO.

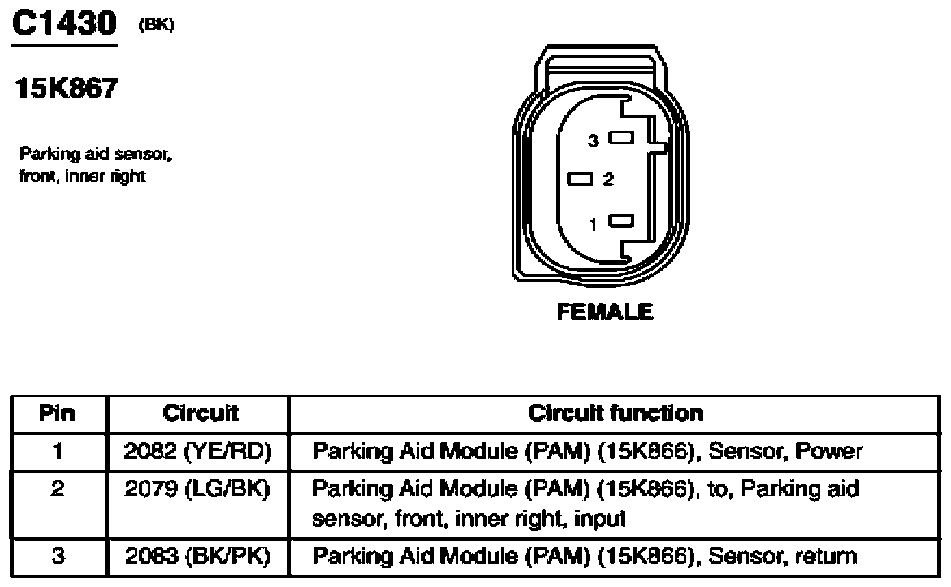

Fig 248: Parking Aid Sensor, Front Inner Right Connector End View (C1430)
Courtesy of FORD MOTOR CO.

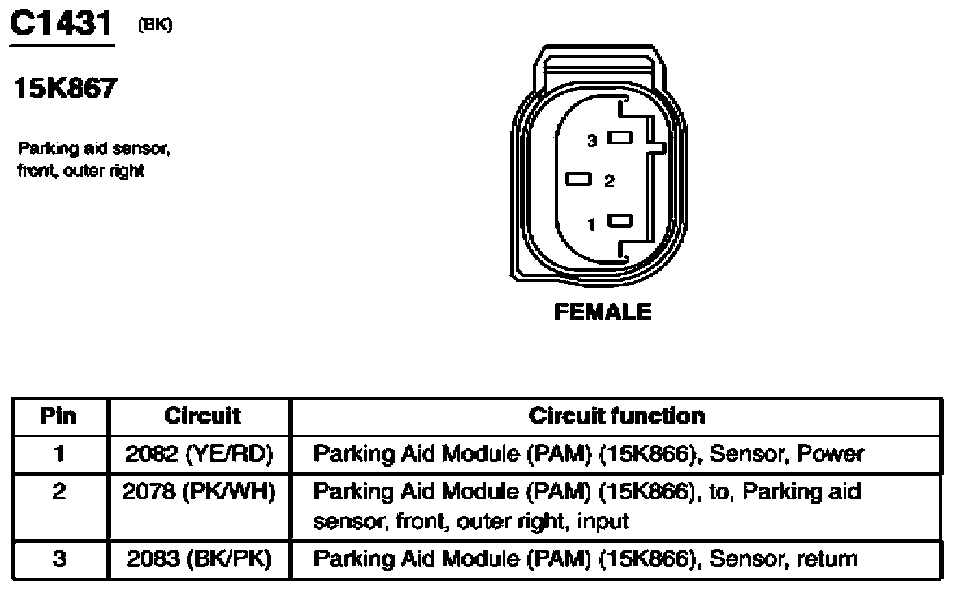

Fig 249: Parking Aid Sensor, Front, Outer Right Connector End View (C1431)
Courtesy of FORD MOTOR CO.

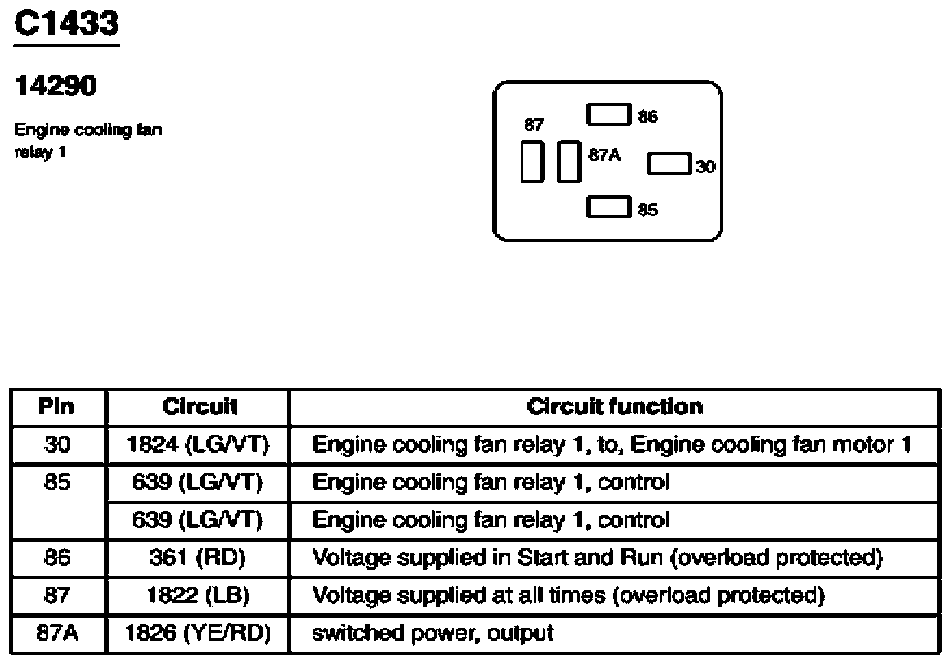

Fig 250: Engine Cooling Fan Relay 1 Connector End View (C1433)
Courtesy of FORD MOTOR CO.

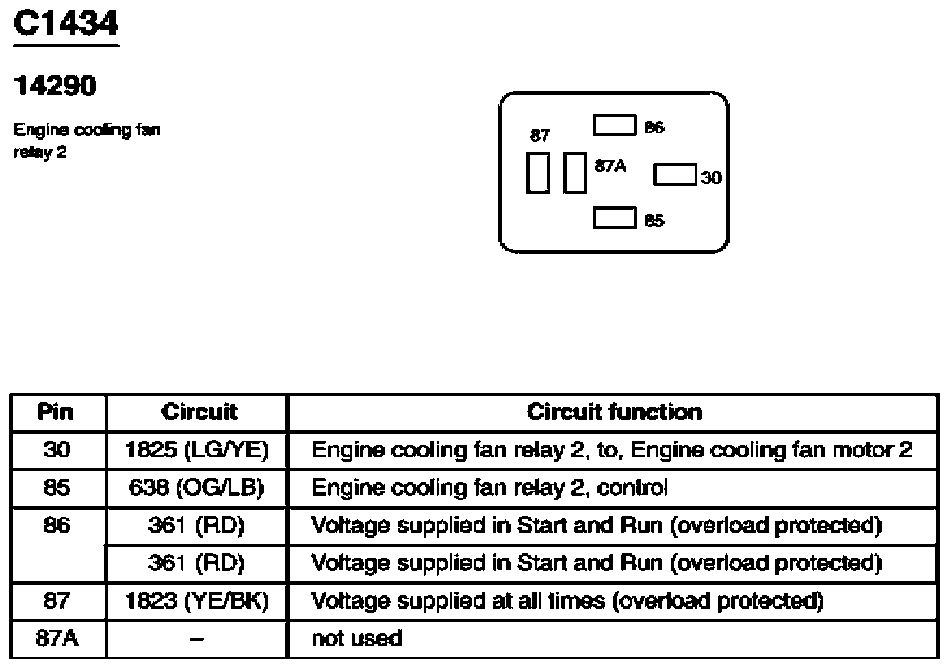

Fig 251: Engine Cooling Fan Relay 2 Connector End View (C1434)
Courtesy of FORD MOTOR CO.

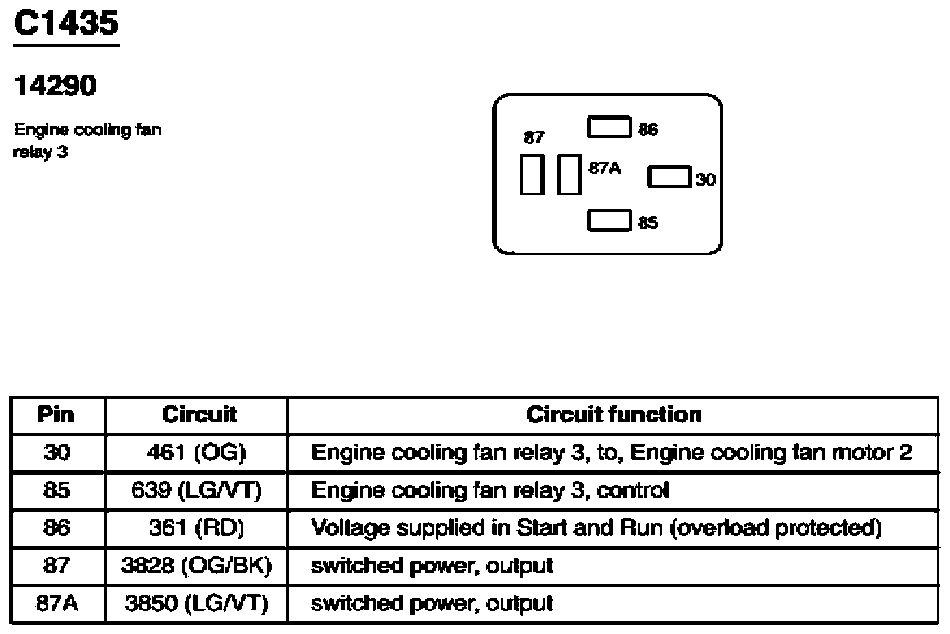

Fig 252: Engine Cooling Fan Relay 3 Connector End View (C1435)
Courtesy of FORD MOTOR CO.

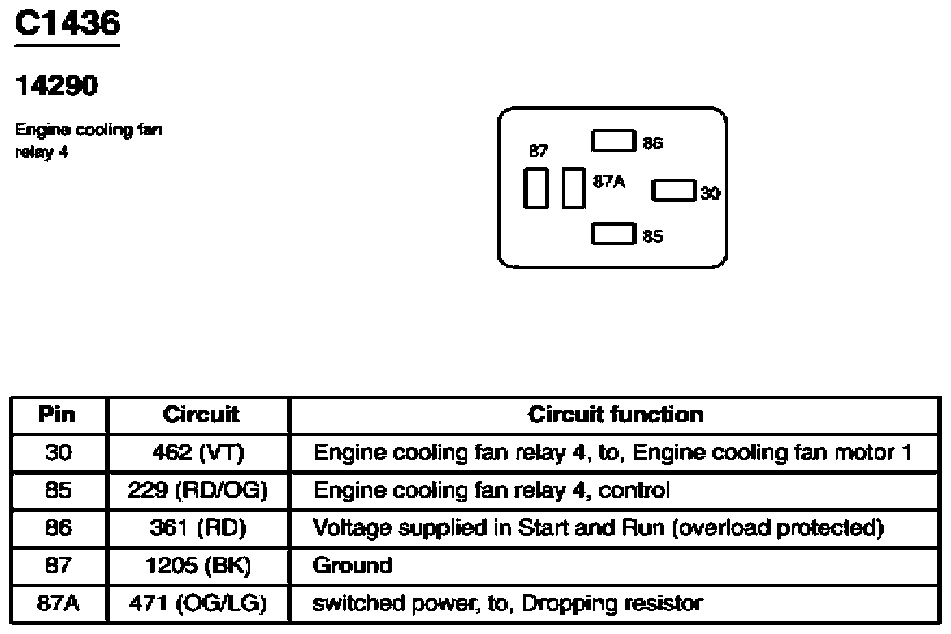

Fig 253: Engine Cooling Fan Relay 4 Connector End View (C1436)
Courtesy of FORD MOTOR CO.

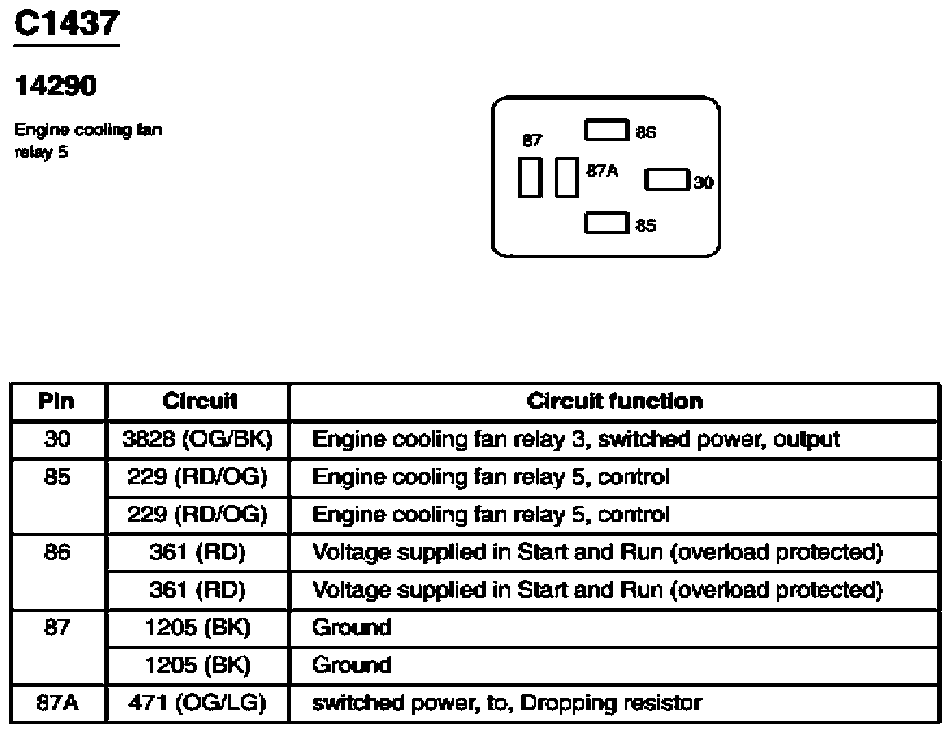

Fig 254: Engine Cooling Fan Relay 5 Connector End View (C1435)
Courtesy of FORD MOTOR CO.

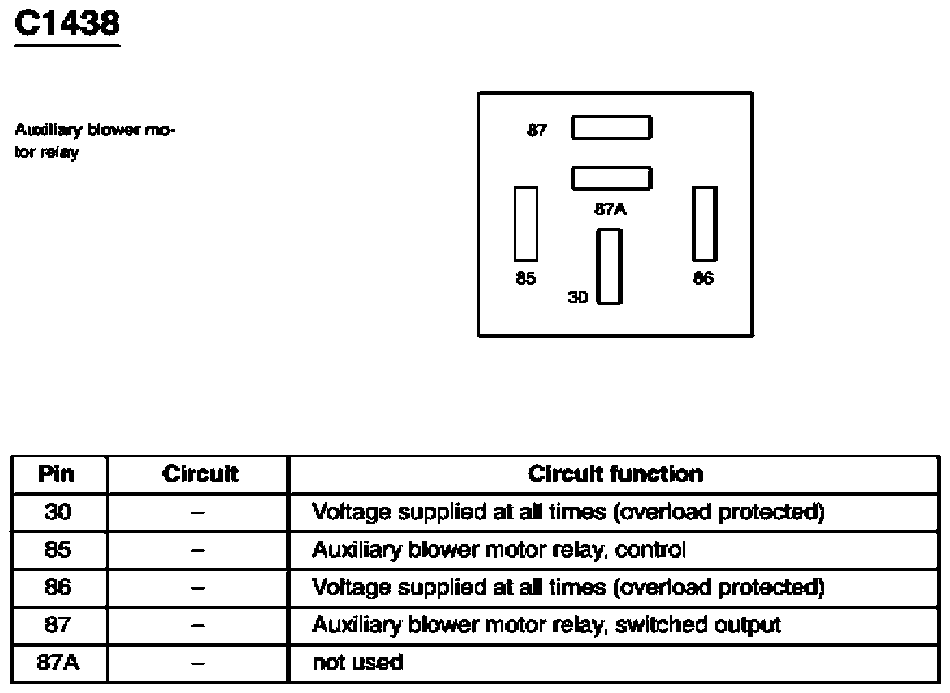

Fig 255: Auxiliary Blower Motor Relay Connector End View (C1438)
Courtesy of FORD MOTOR CO.

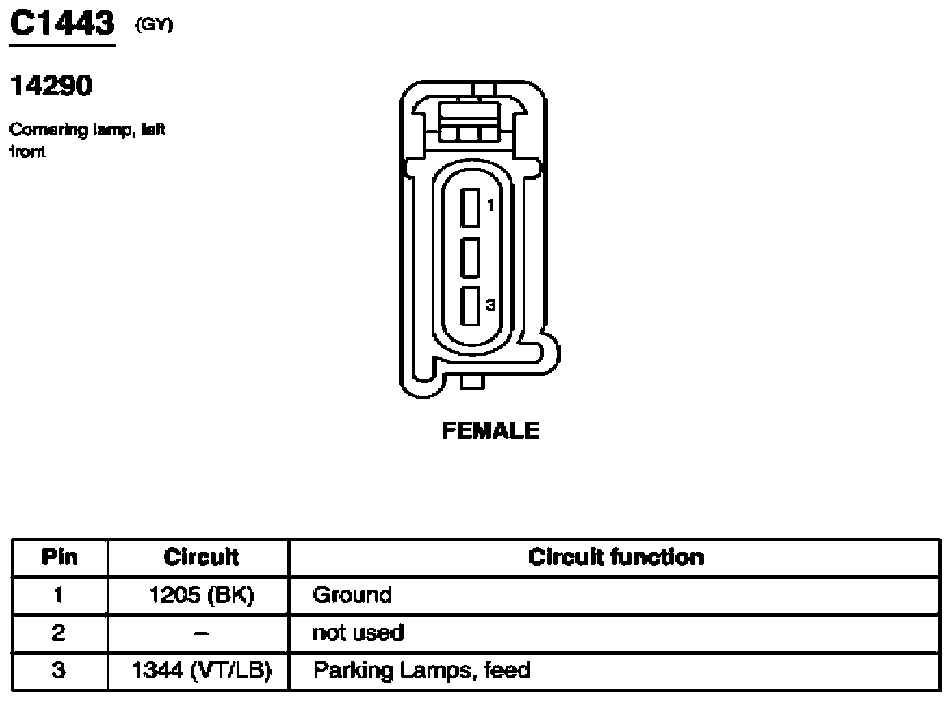

Fig 256: Cornering Lamp, Left Front Connector End View (C1443)
Courtesy of FORD MOTOR CO.

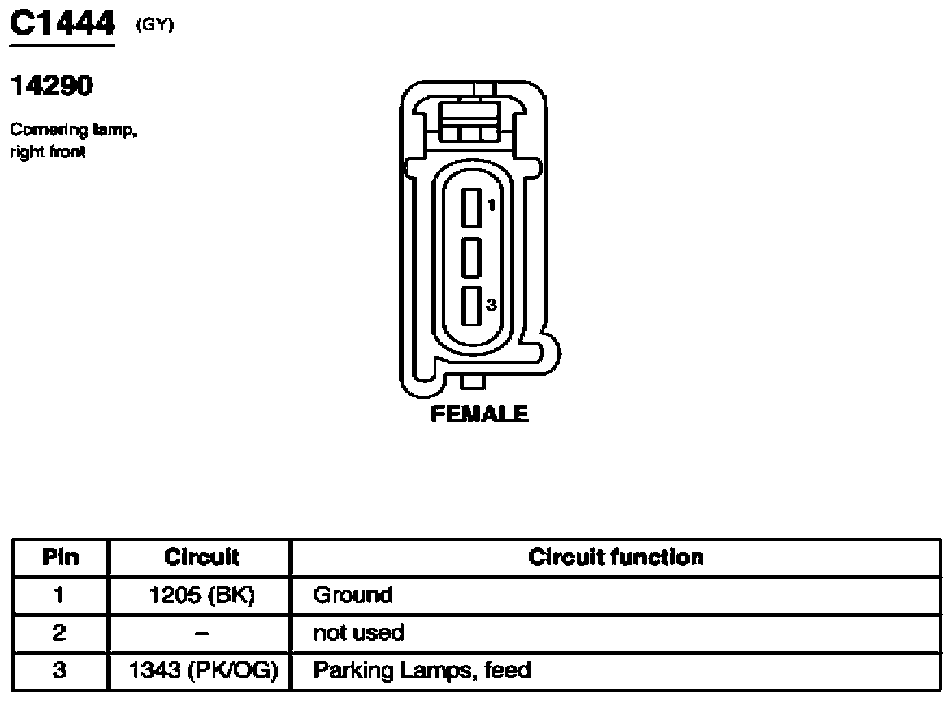

Fig 257: Cornering Lamp, Right Front Connector End View (C1444)
Courtesy of FORD MOTOR CO.

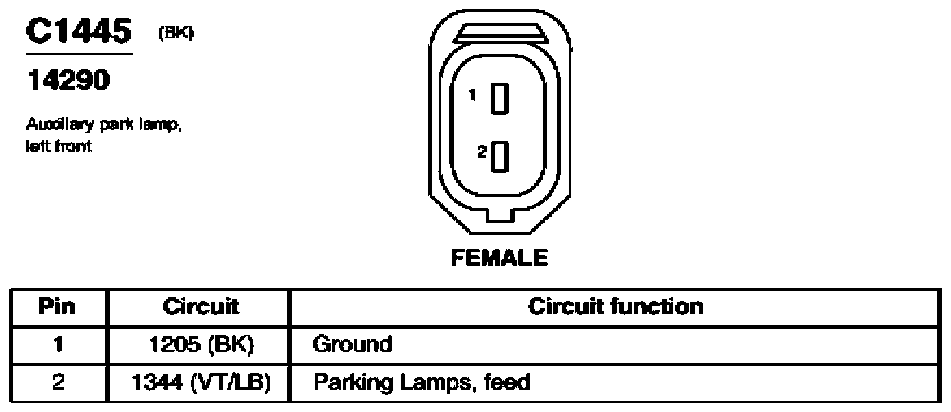

Fig 258: Auxiliary Park Lamp, Left Front Connector End View (C1445)
Courtesy of FORD MOTOR CO.

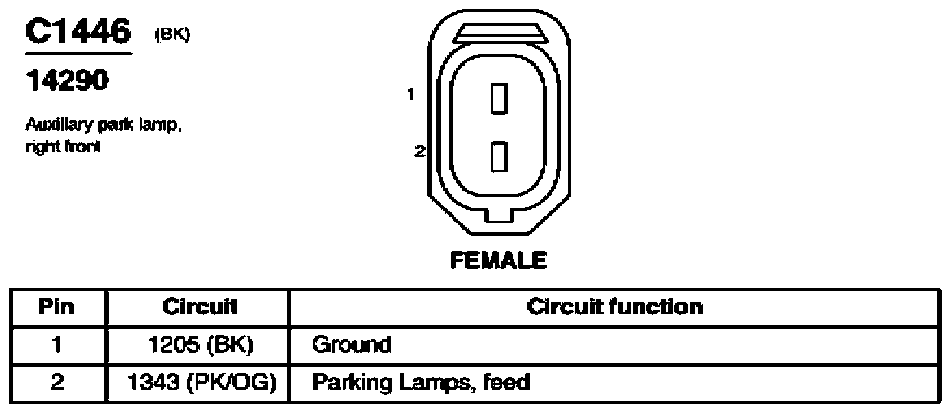

Fig 259: Auxiliary Park Lamp, Right Front Connector End View (C1446)
Courtesy of FORD MOTOR CO.

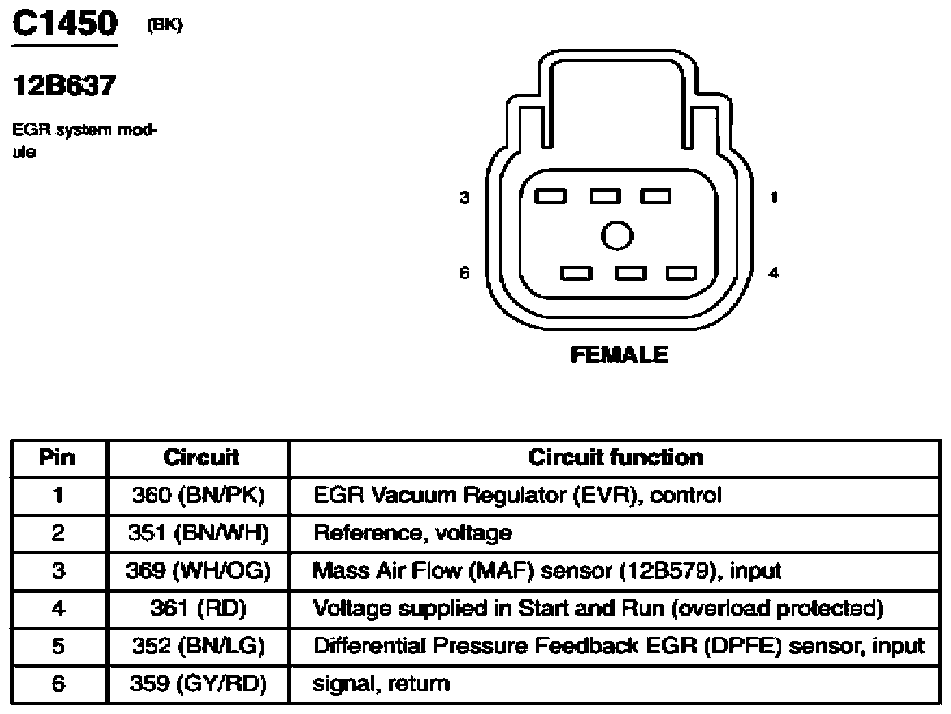

Fig 260: EGR System Module Connector End View (C1450)
Courtesy of FORD MOTOR CO.

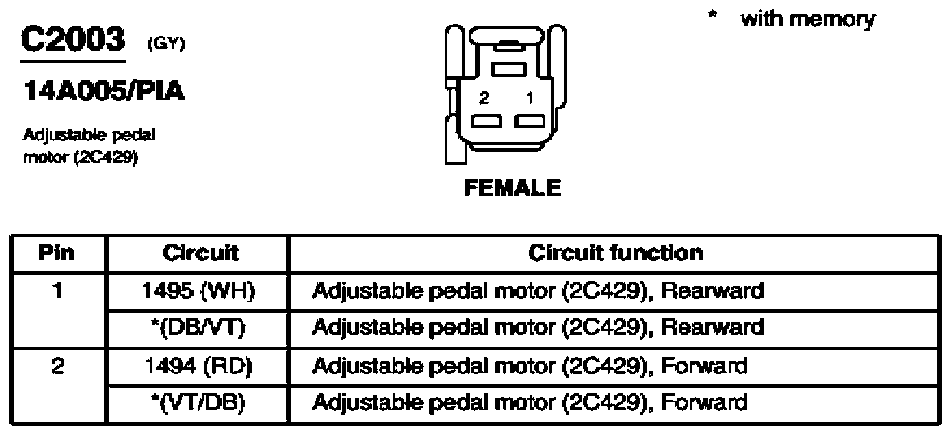

Fig 261: Adjustable Pedal Motor Connector End View (C2003)
Courtesy of FORD MOTOR CO.

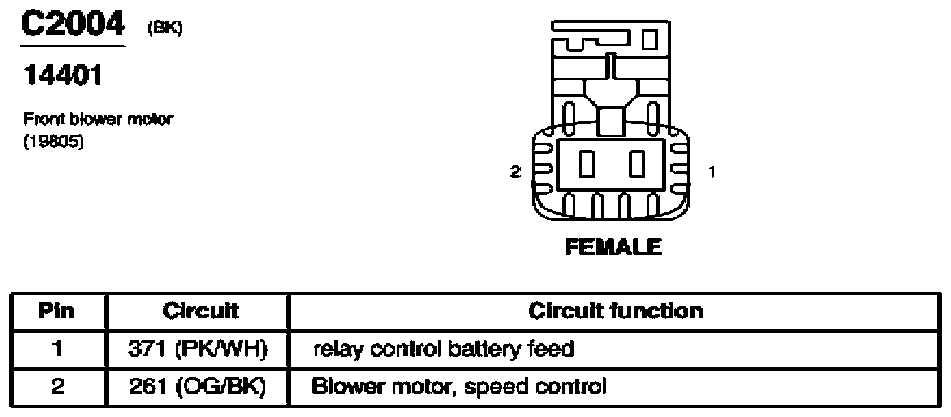

Fig 262: Front Blower Motor Connector End View (C2004)
Courtesy of FORD MOTOR CO.

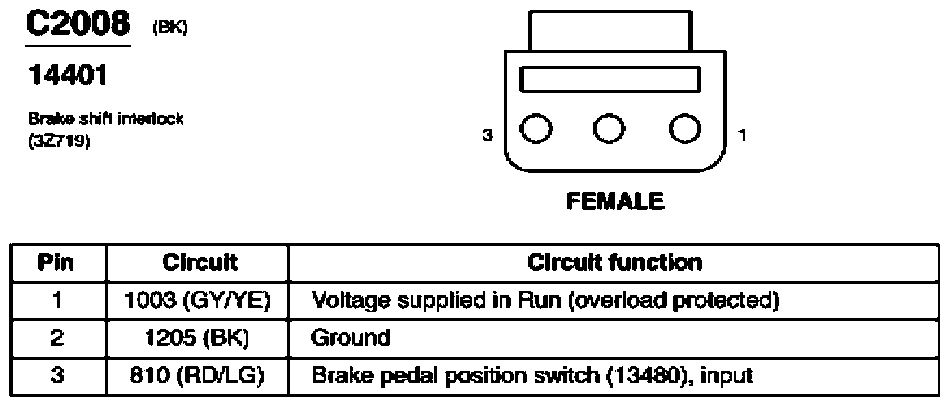

Fig 263: Brake Shift Interlock Connector End View (C2008)
Courtesy of FORD MOTOR CO.

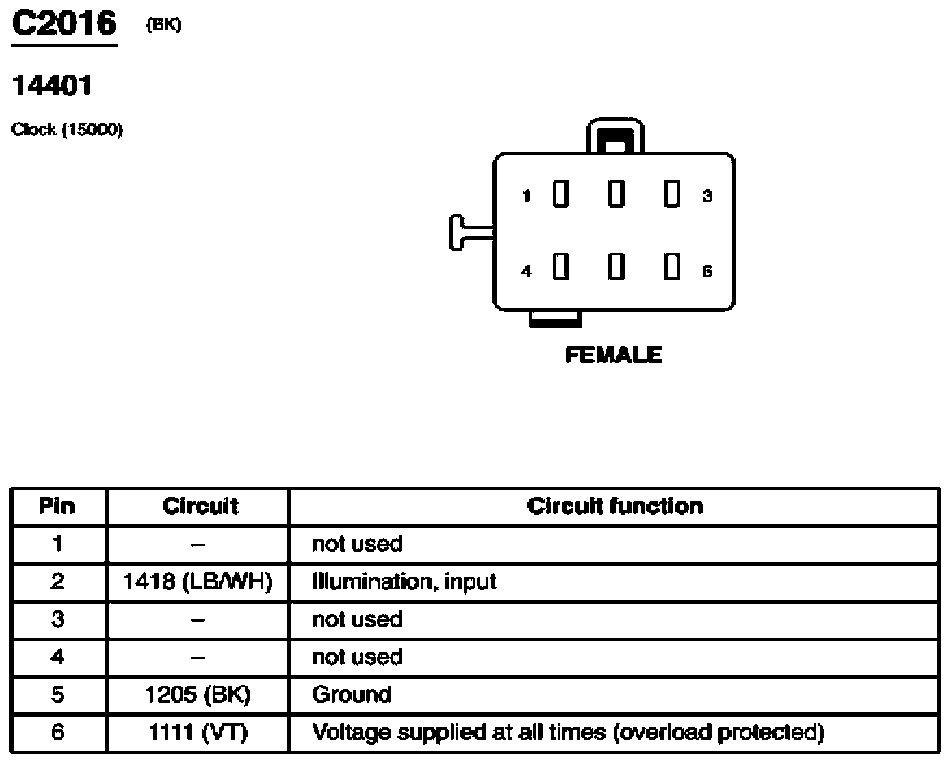

Fig 264: Clock Connector End View (C2016)
Courtesy of FORD MOTOR CO.

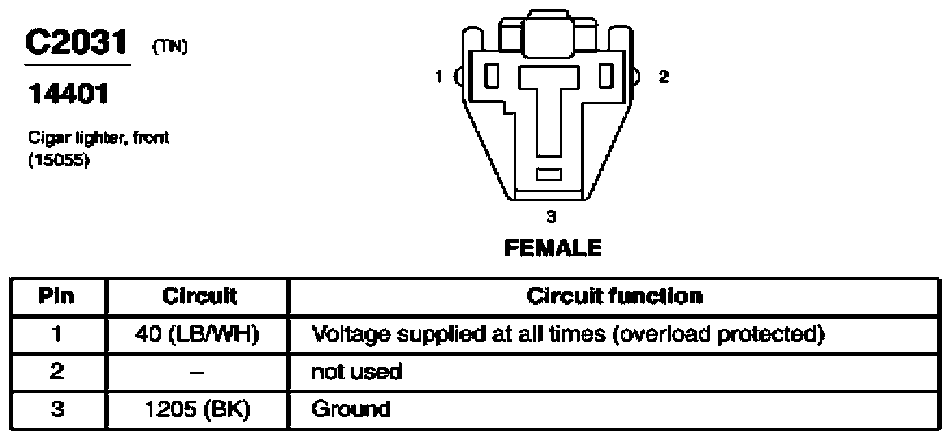

Fig 265: Cigar Lighter, Front Connector End View (C2031)
Courtesy of FORD MOTOR CO.

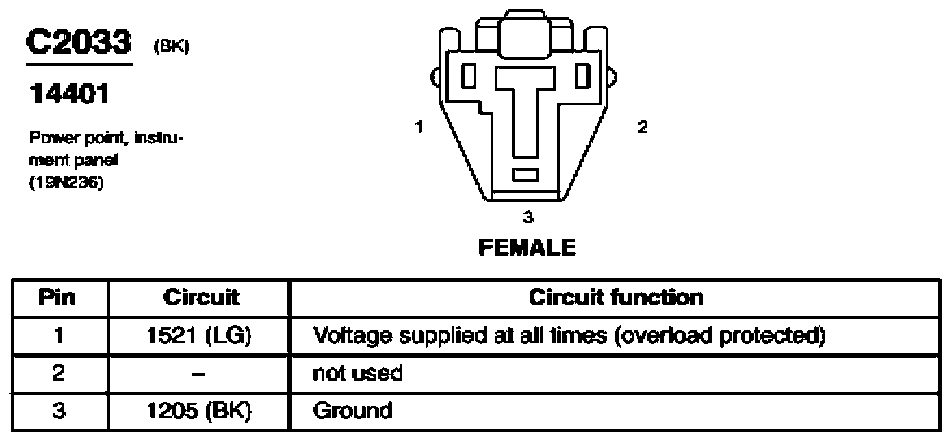

Fig 266: Power Point, Instrument Panel Connector End View (C2033)
Courtesy of FORD MOTOR CO.

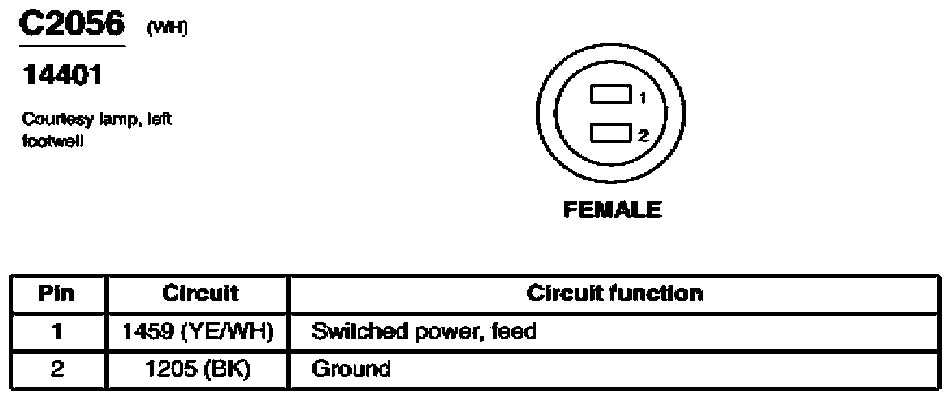

Fig 267: Courtesy Lamp, Left Footwell Connector End View (C2056)
Courtesy of FORD MOTOR CO.

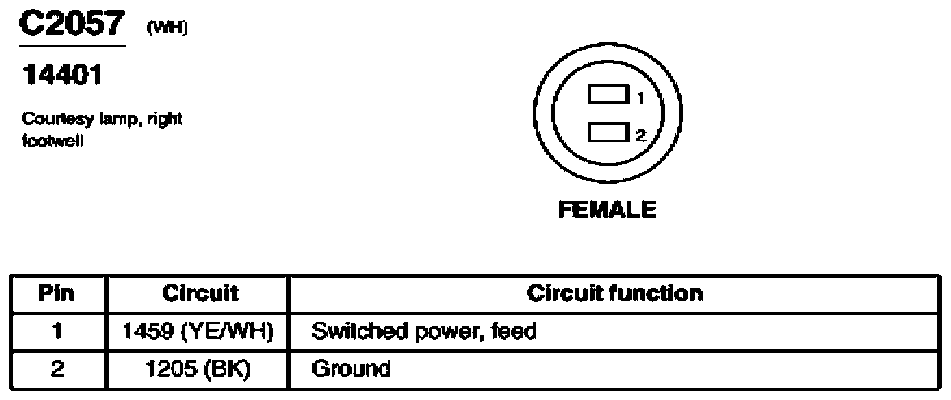

Fig 268: Courtesy Lamp, Right Footwell Connector End View (C2057)
Courtesy of FORD MOTOR CO.

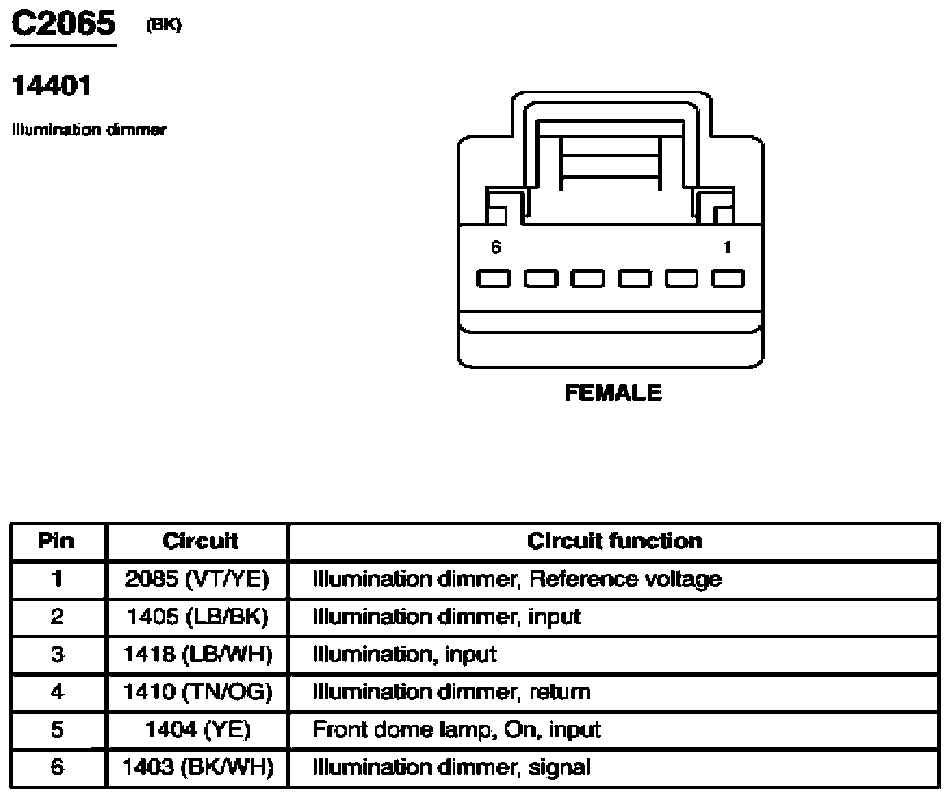

Fig 269: Illumination Dimmer Connector End View (C2065)
Courtesy of FORD MOTOR CO.

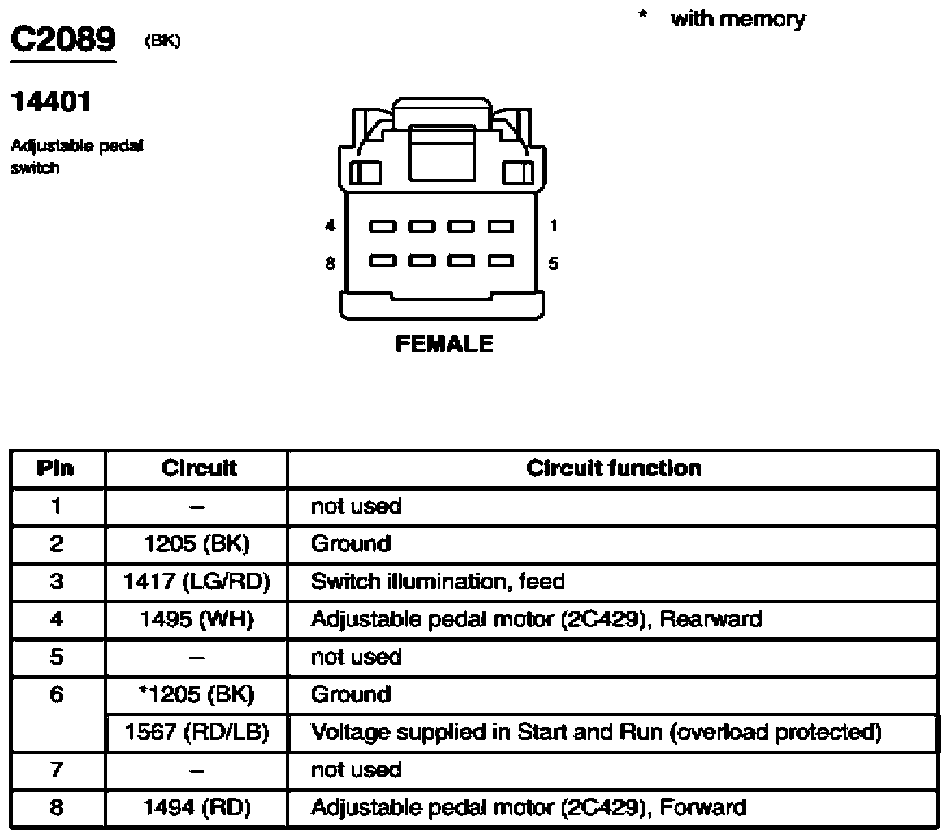

Fig 270: Adjustable Pedal Switch Connector End View (C2089)
Courtesy of FORD MOTOR CO.

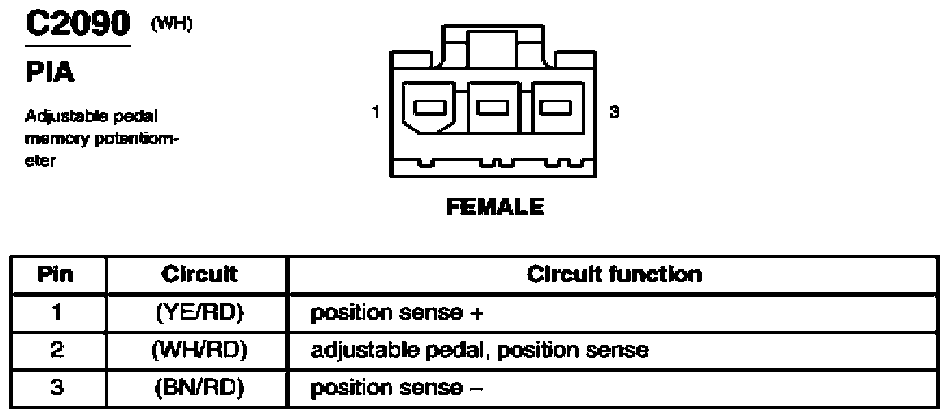

Fig 271: Adjustable Pedal Memory Potentiometer Connector End View (C2090)
Courtesy of FORD MOTOR CO.

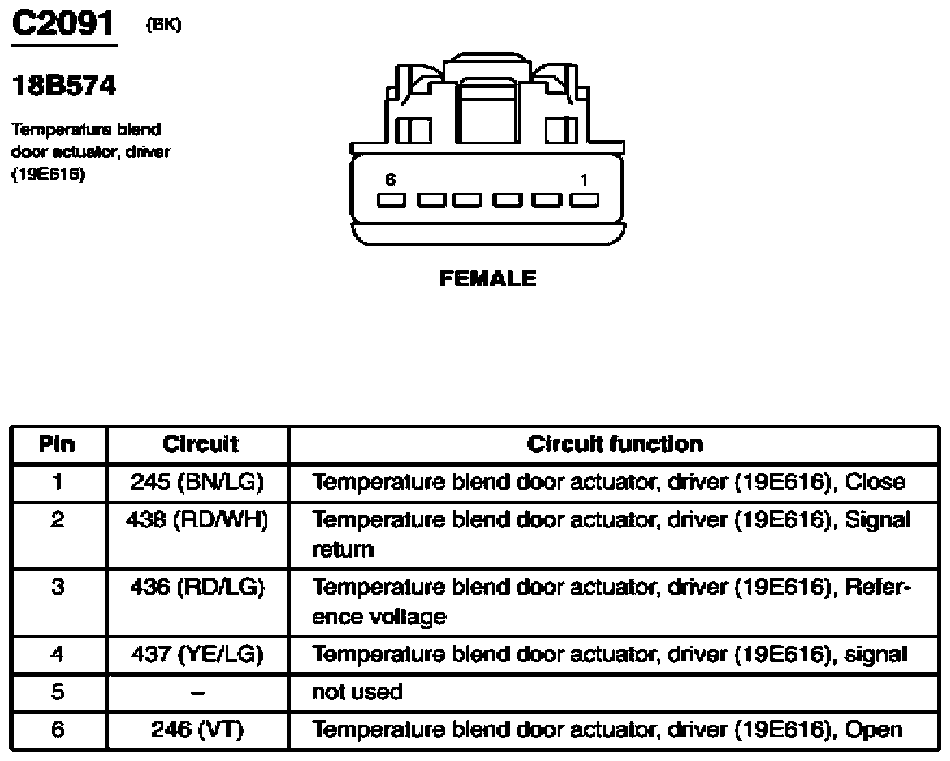

Fig 272: Temperature Blend Door Actuator, Driver Connector End View (C2091)
Courtesy of FORD MOTOR CO.

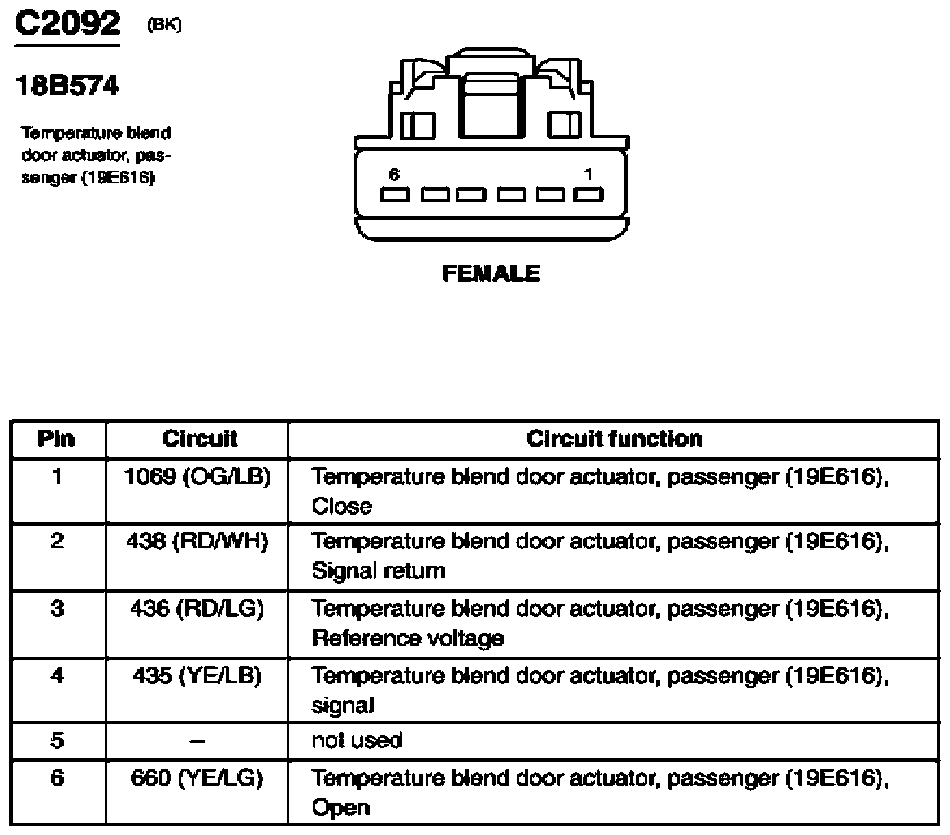

Fig 273: Temperature Blend Door Actuator, Passenger Connector End View (C2092)
Courtesy of FORD MOTOR CO.

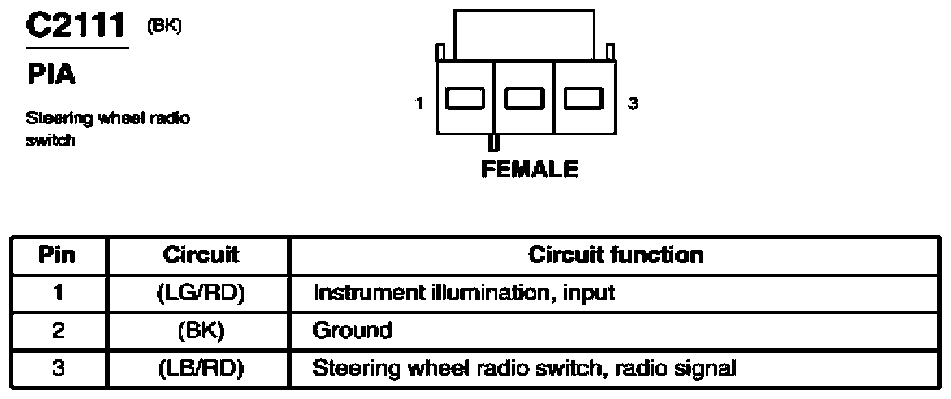

Fig 274: Steering Wheel Radio Switch Connector End View (C2111)
Courtesy of FORD MOTOR CO.

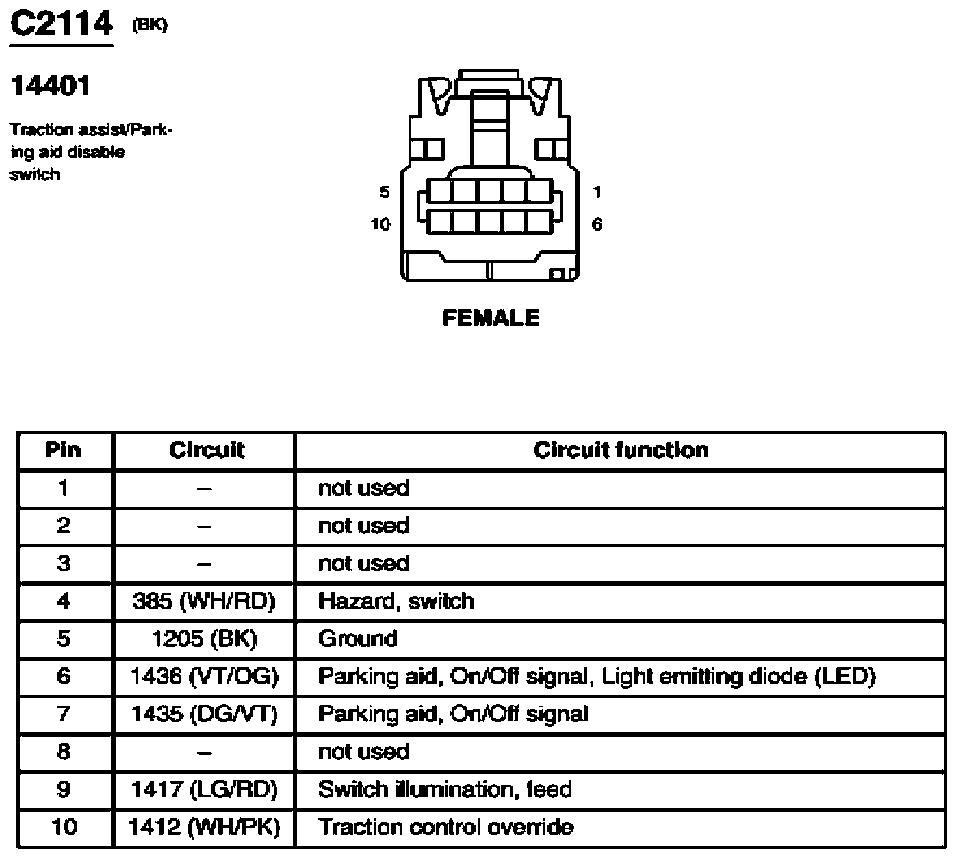

Fig 275: Traction Assist/Parking Aid Disable Switch Connector End View (C2114)
Courtesy of FORD MOTOR CO.

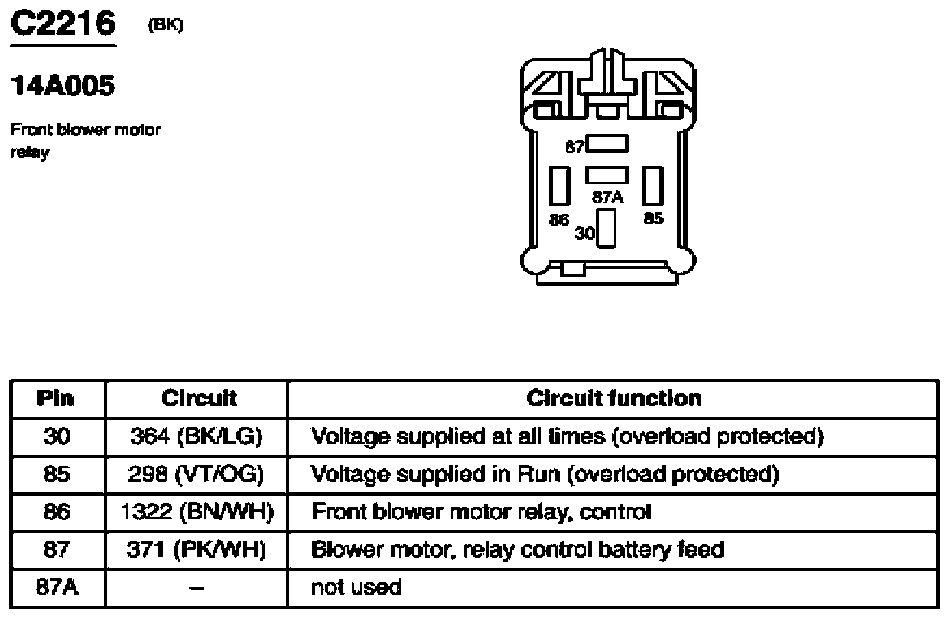

Fig 276: Front Blower Motor Relay Connector End View (C2216)
Courtesy of FORD MOTOR CO.

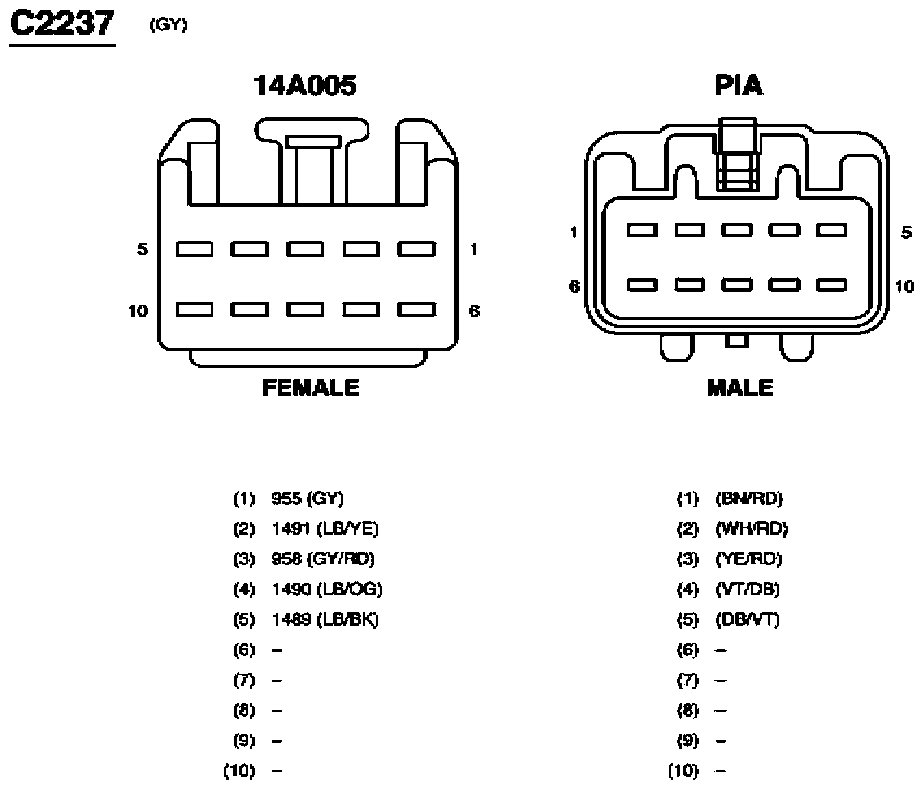

Fig 277: Inline Connector End View (C2237)
Courtesy of FORD MOTOR CO.

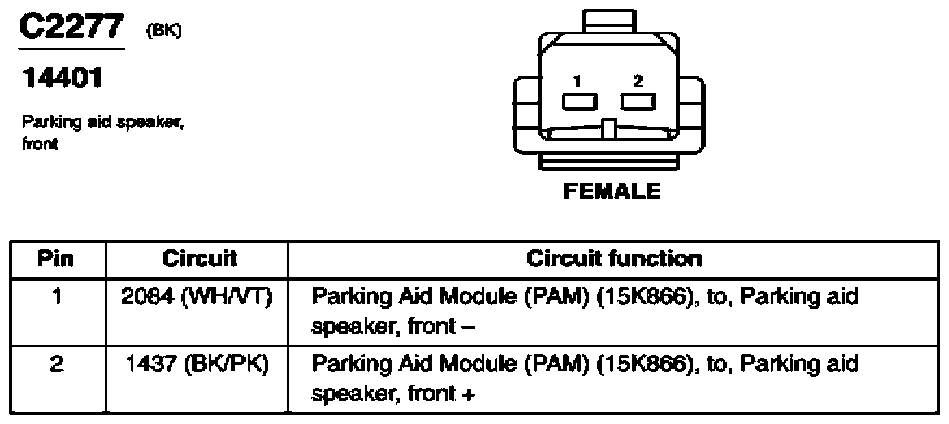

Fig 278: Parking Aid Speaker, Front Connector End View (C2277)
Courtesy of FORD MOTOR CO.

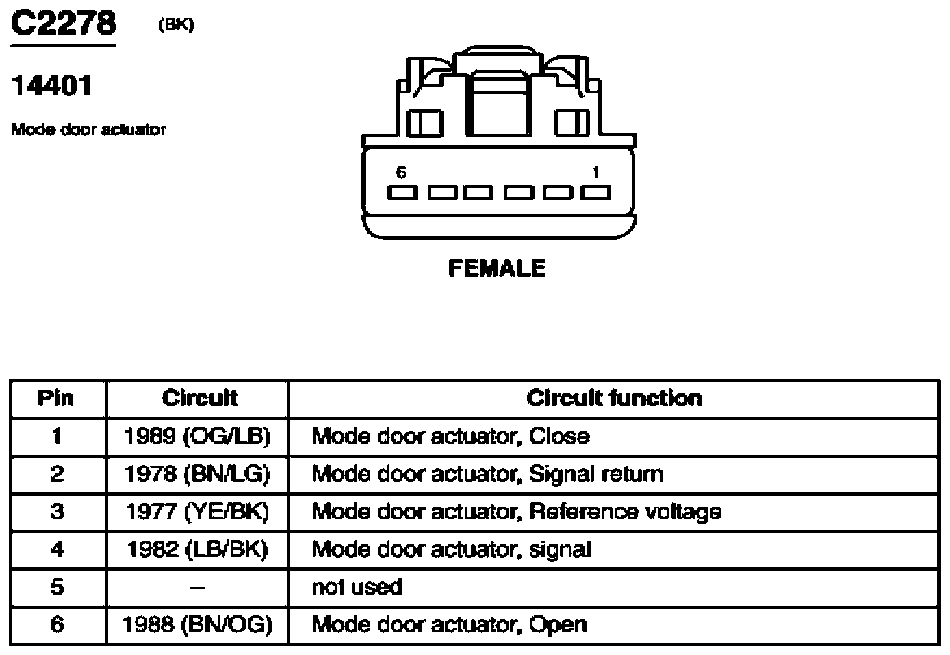

Fig 279: Mode Door Actuator Connector End View (C2278)
Courtesy of FORD MOTOR CO.

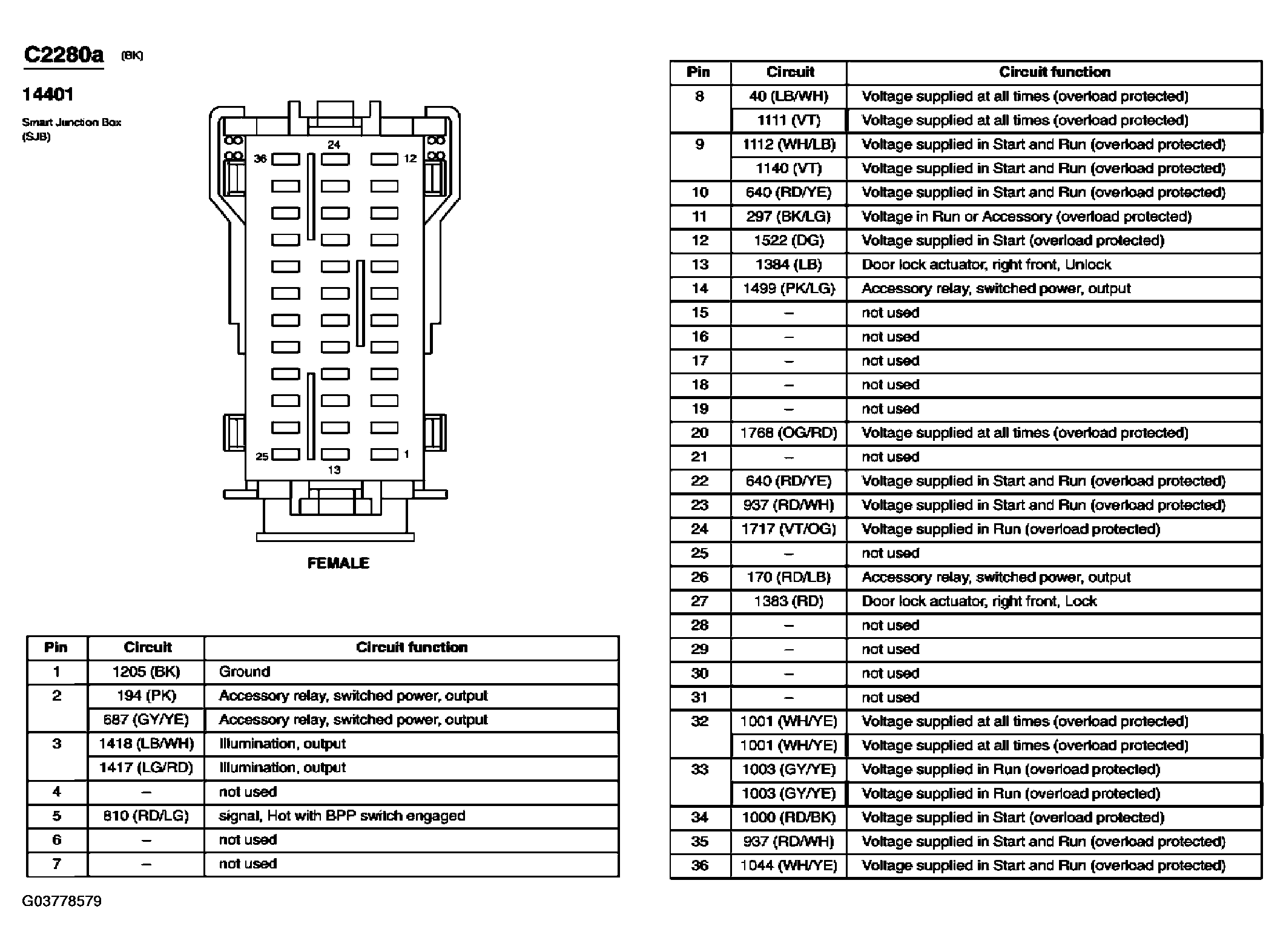

Fig 280: Smart Junction Box (SJB) Connector End View (C2280a)
Courtesy of FORD MOTOR CO.

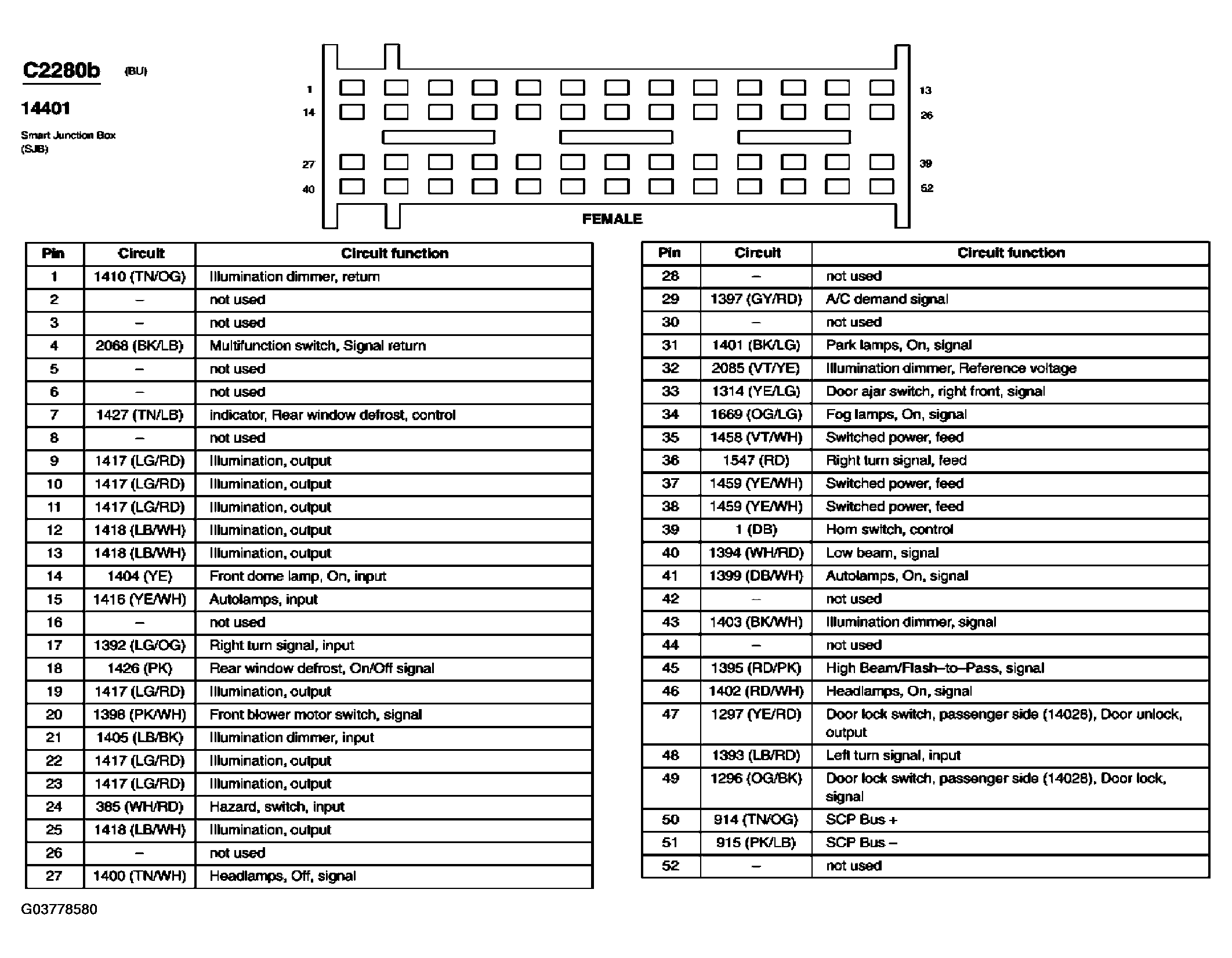

Fig 281: Smart Junction Box (SJB) Connector End View (C2280b)
Courtesy of FORD MOTOR CO.

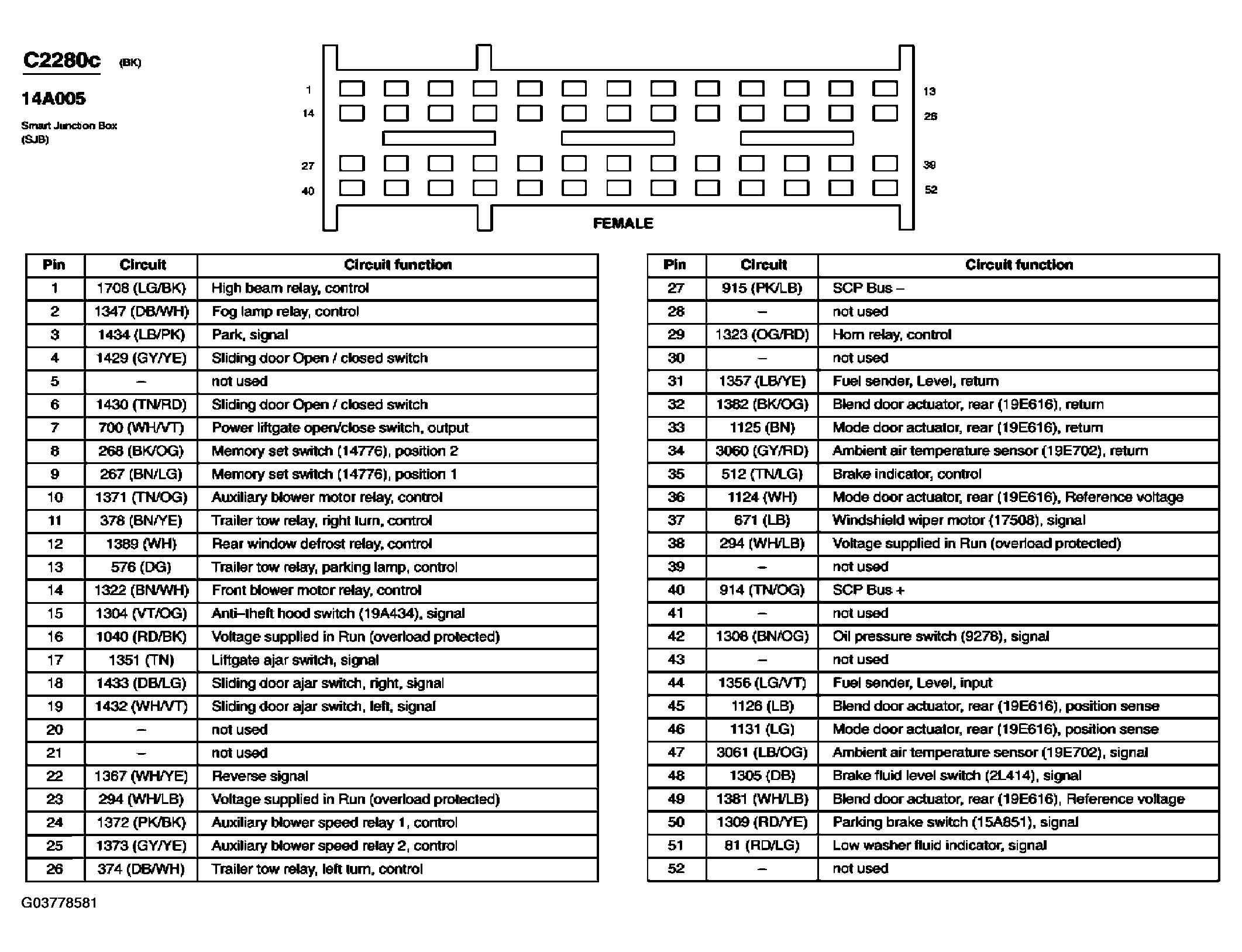

Fig 282: Smart Junction Box (SJB) Connector End View (C2280c)
Courtesy of FORD MOTOR CO.

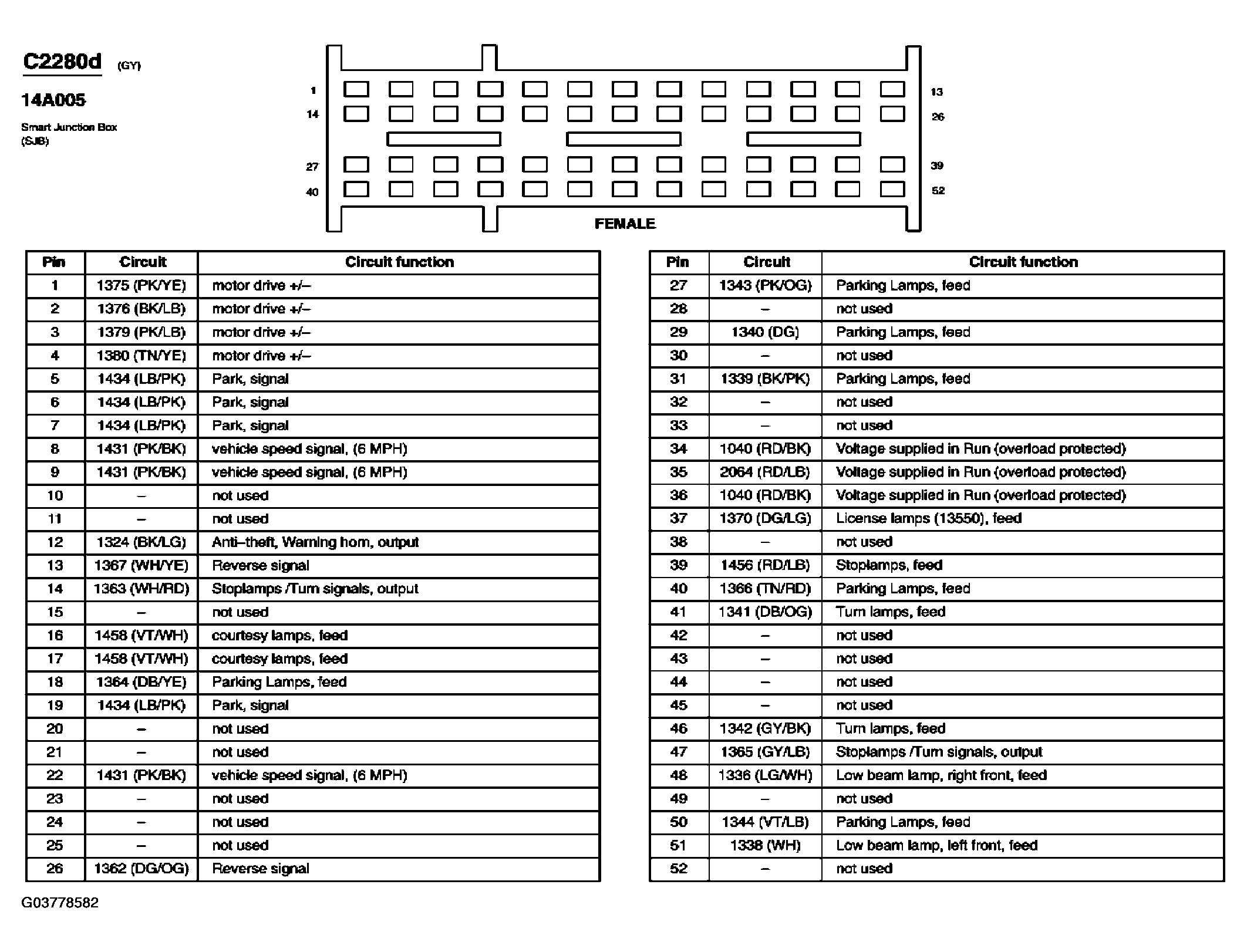

Fig 283: Smart Junction Box (SJB) Connector End View (C2280d)
Courtesy of FORD MOTOR CO.

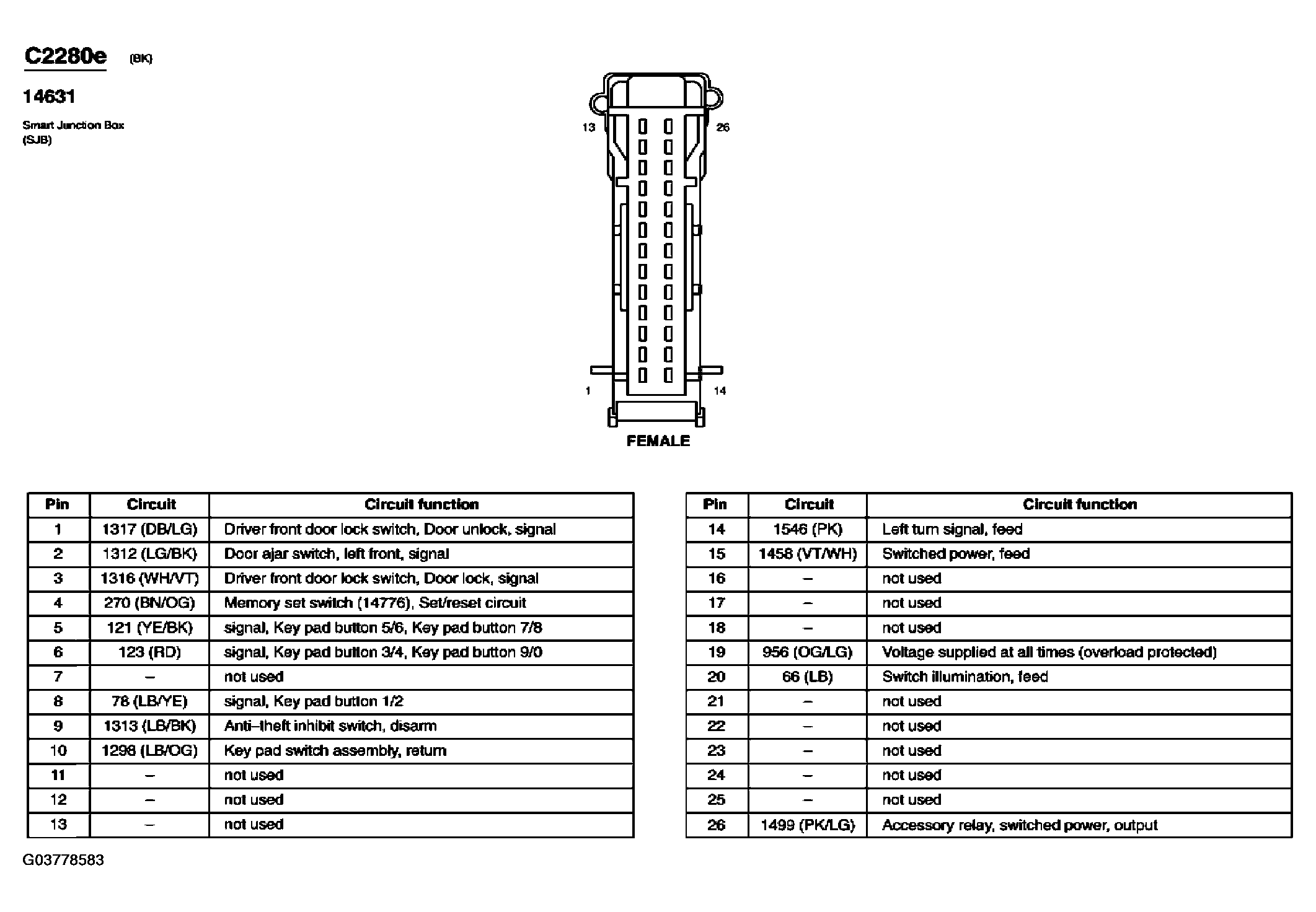

Fig 284: Smart Junction Box (SJB) Connector End View (C2280e)
Courtesy of FORD MOTOR CO.

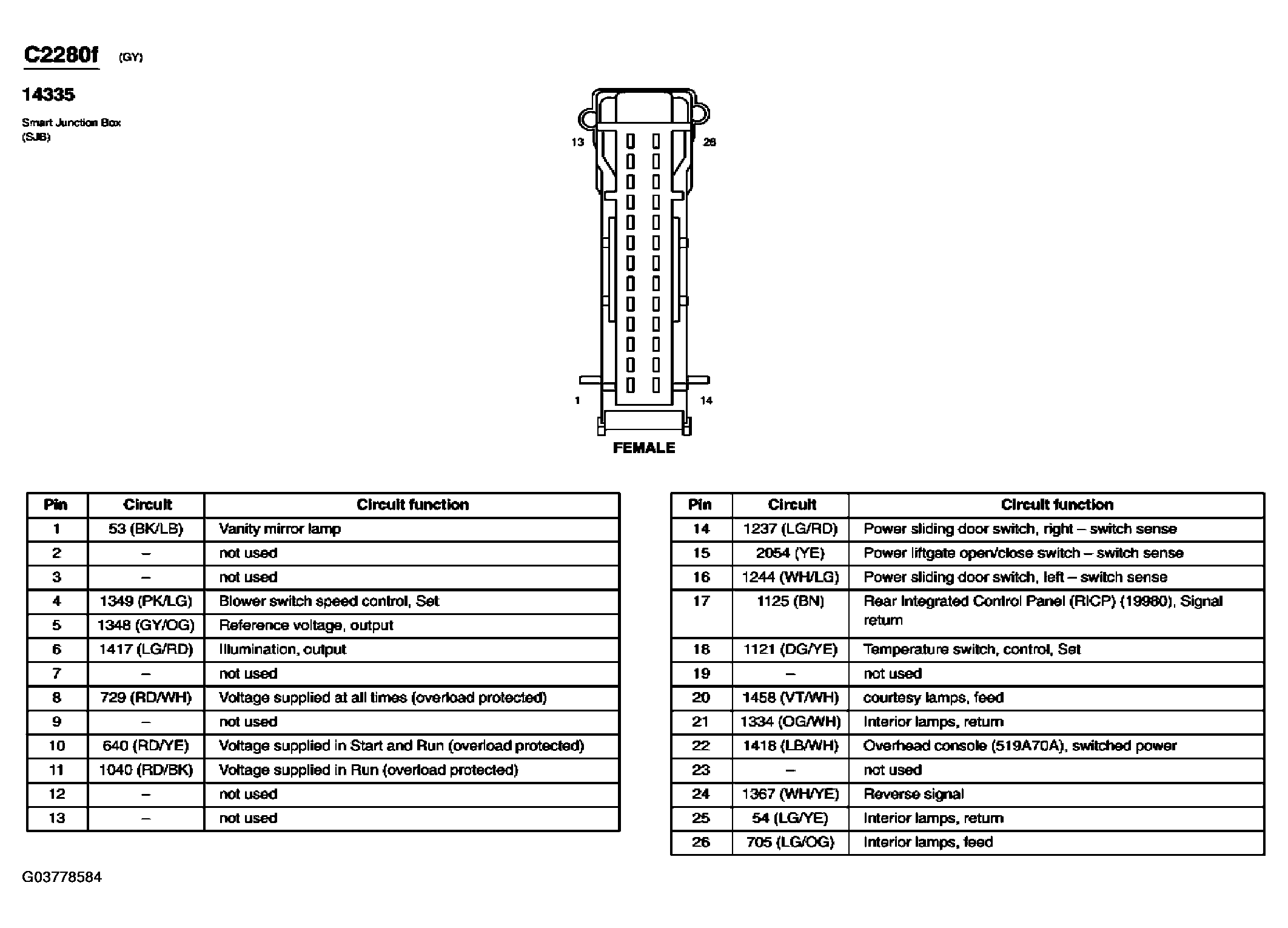

Fig 285: Smart Junction Box (SJB) Connector End View (C2280f)
Courtesy of FORD MOTOR CO.

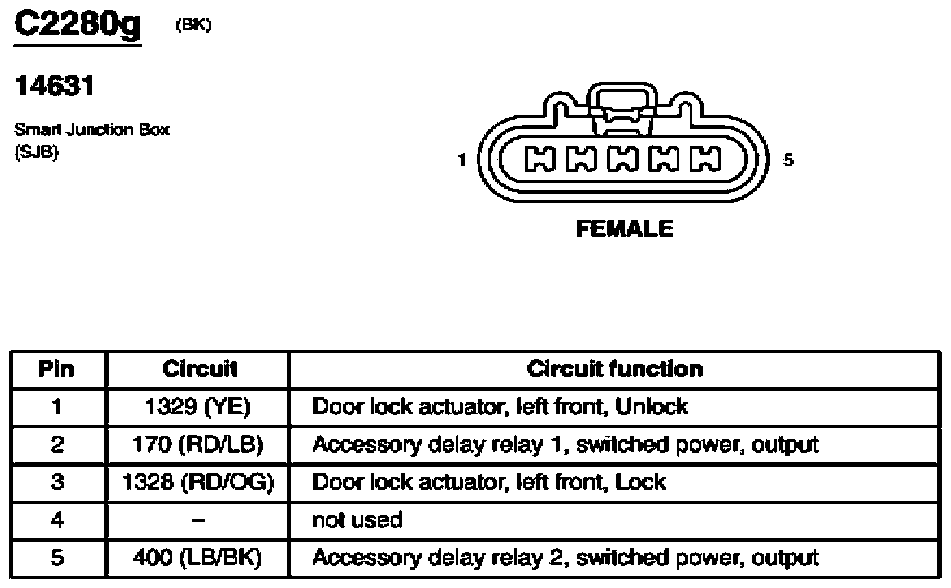

Fig 286: Smart Junction Box (SJB) Connector End View (C2280g)
Courtesy of FORD MOTOR CO.

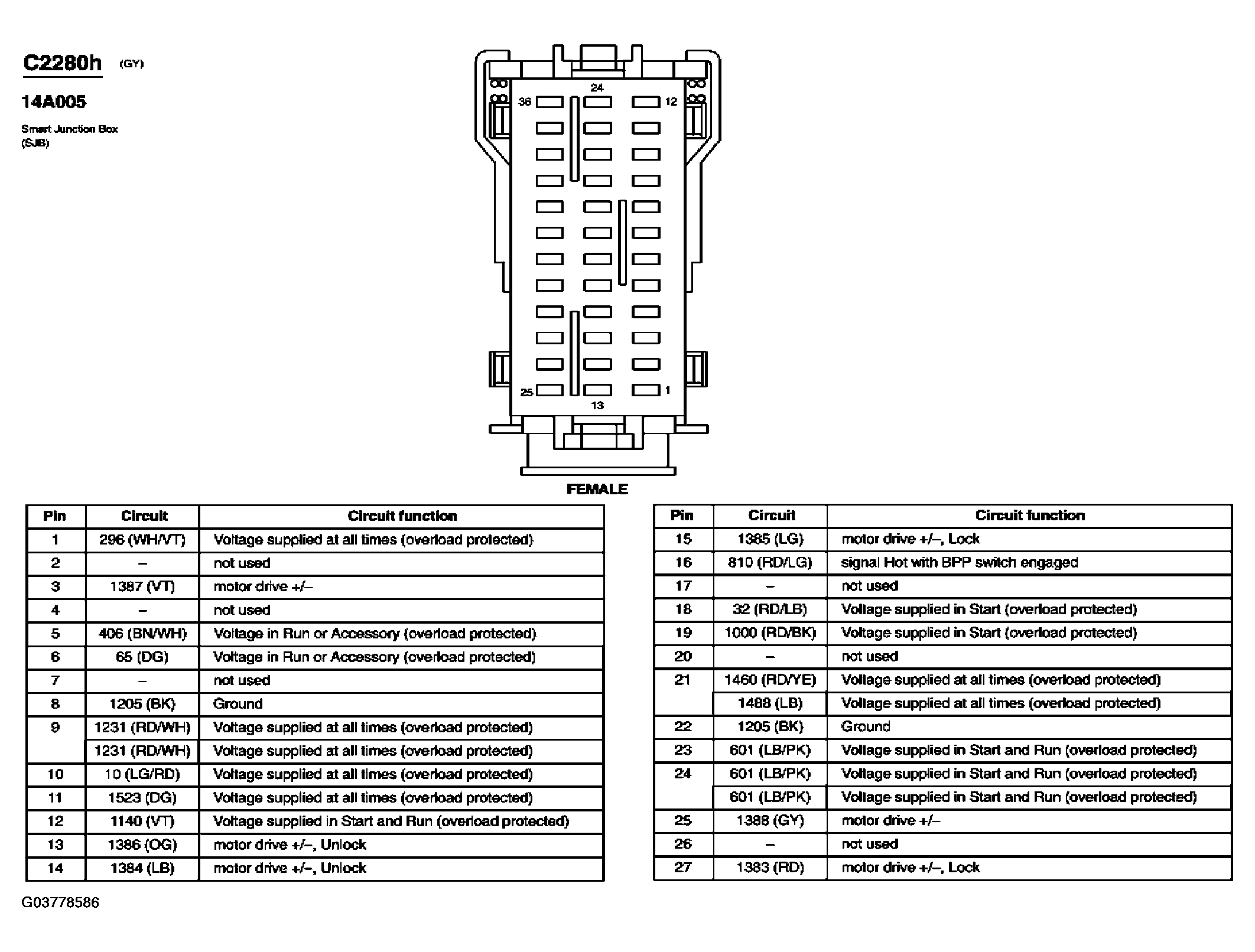

Fig 287: Smart Junction Box (SJB) Connector End View (C2280h) (1 Of 2)
Courtesy of FORD MOTOR CO.

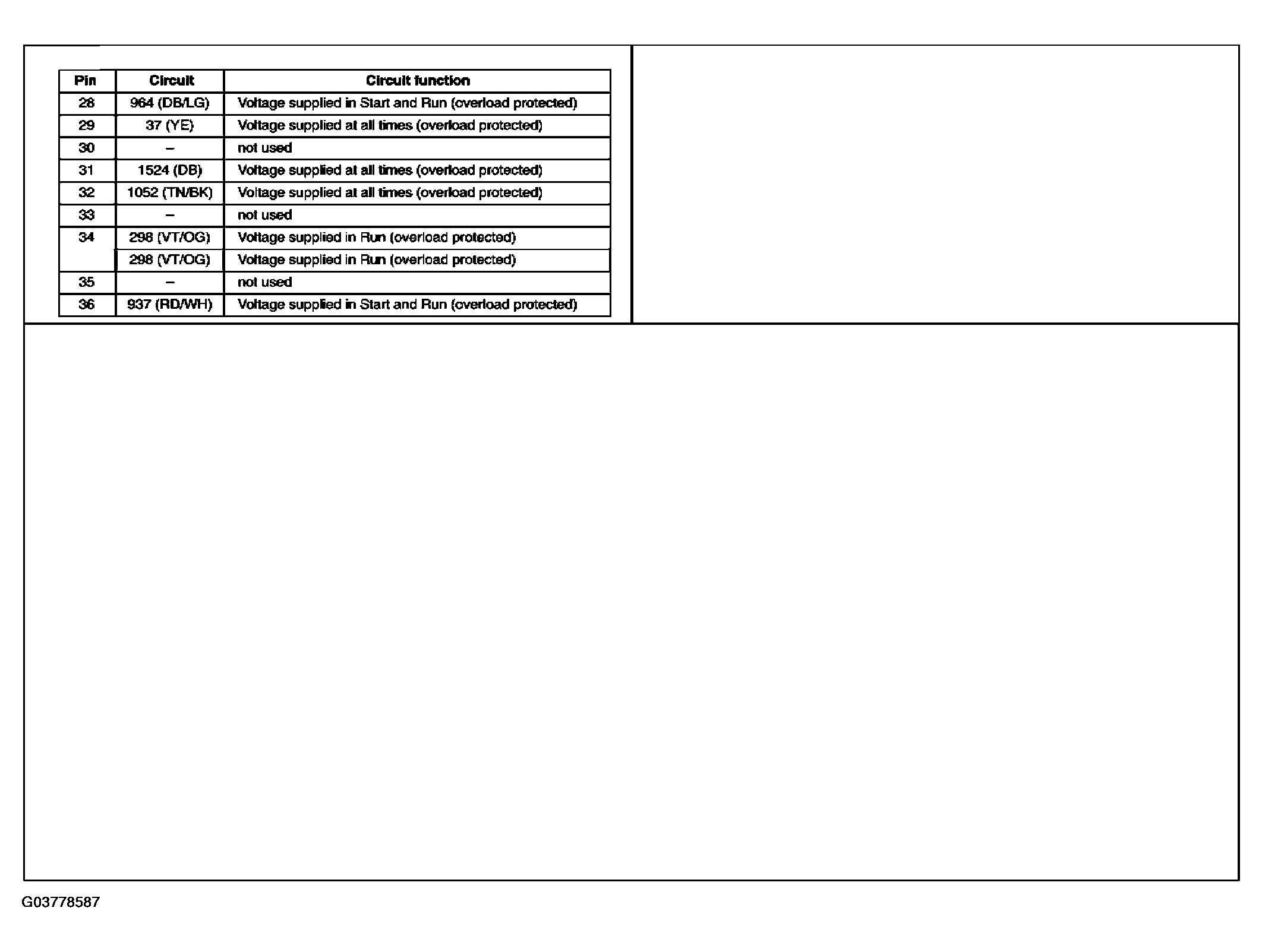

Fig 288: Smart Junction Box (SJB) Connector End View (C2280h) (2 Of 2)
Courtesy of FORD MOTOR CO.

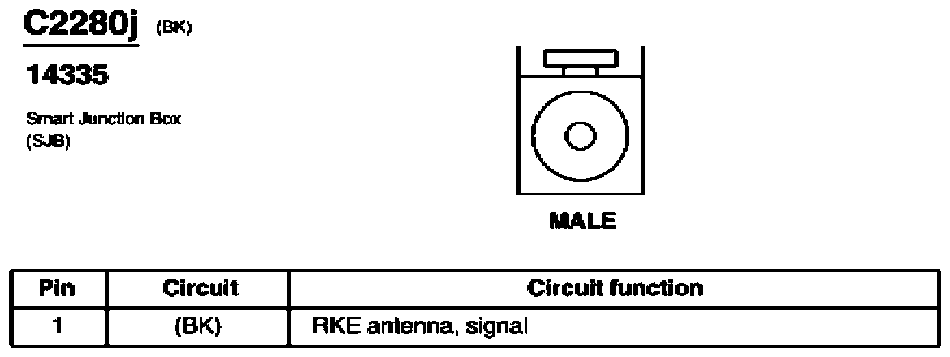

Fig 289: Smart Junction Box Connector End View (C2280j)
Courtesy of FORD MOTOR CO.

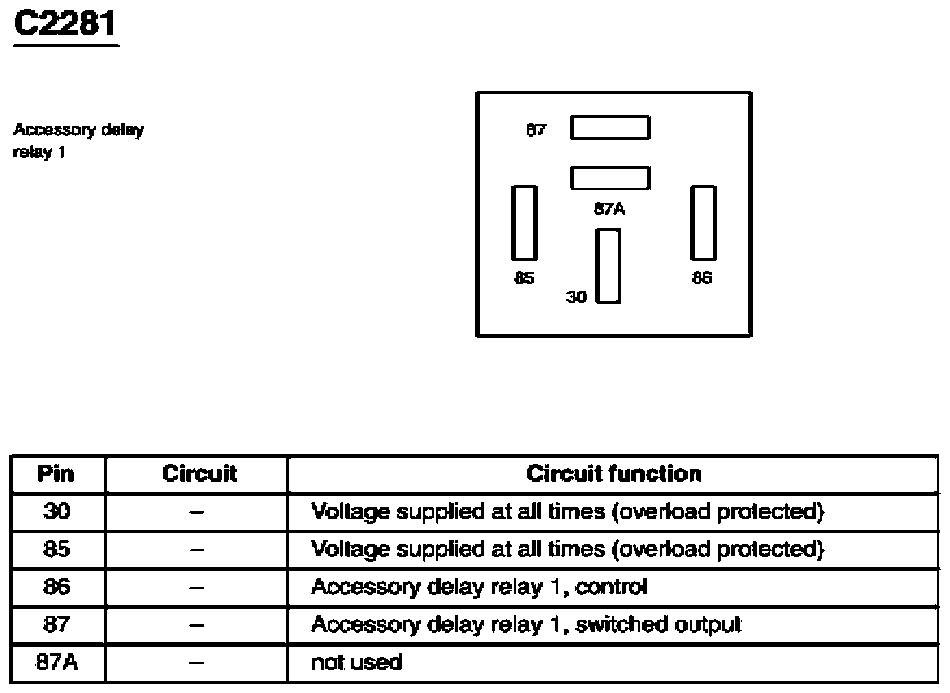

Fig 290: Accessory Delay Relay 1 Connector End View (C2281)
Courtesy of FORD MOTOR CO.

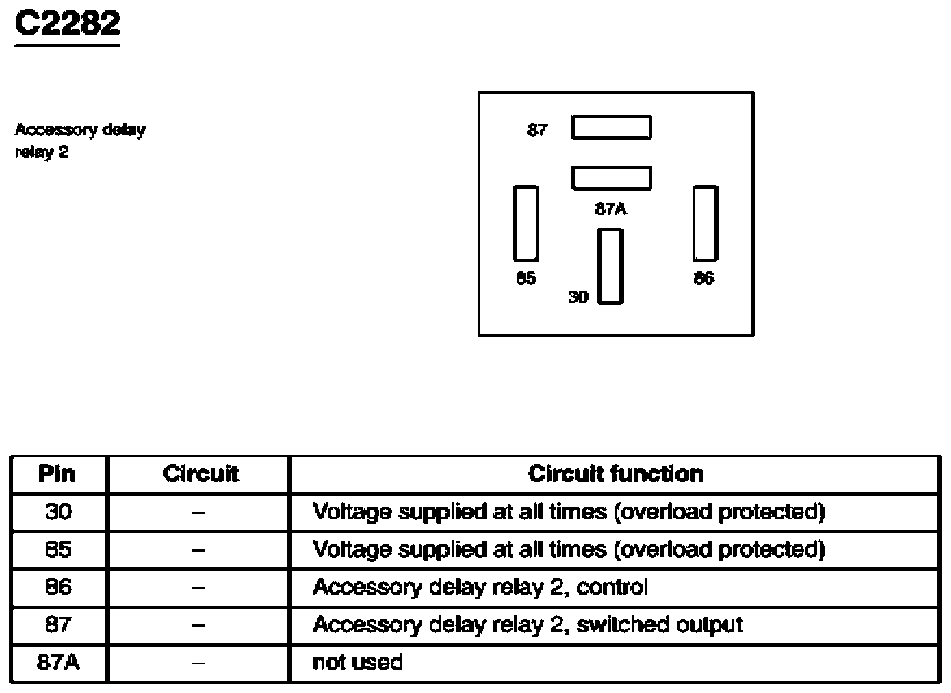

Fig 291: Accessory Delay Relay 2 Connector End View (C2282)
Courtesy of FORD MOTOR CO.

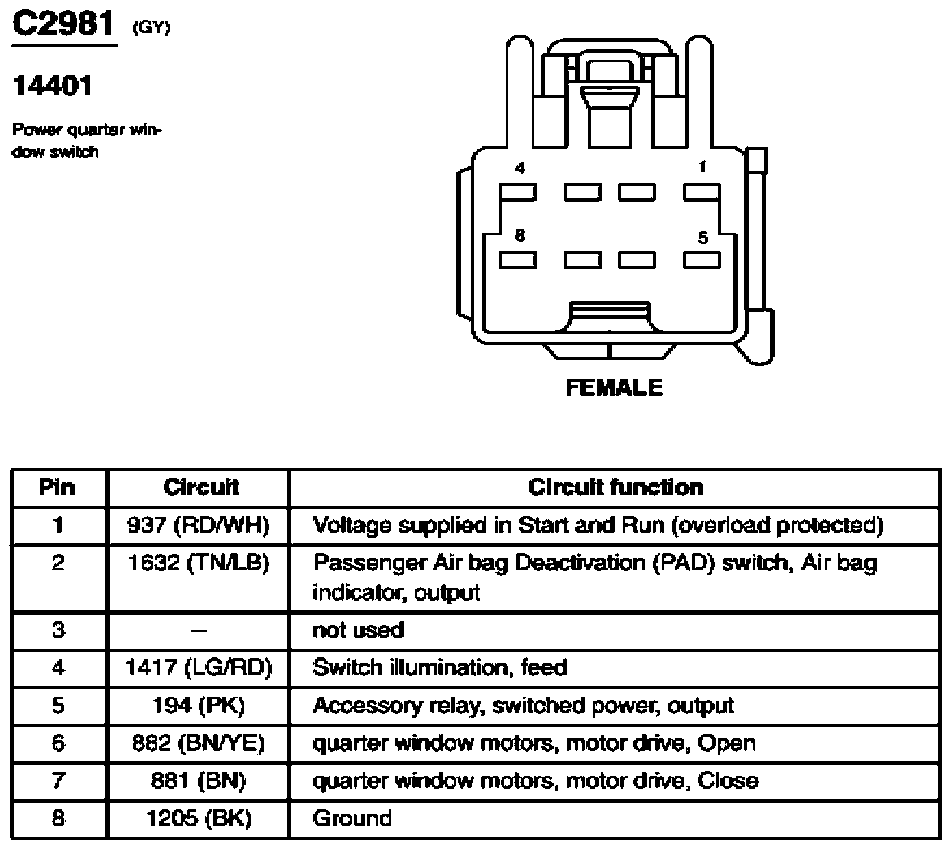

Fig 292: Power Quarter Window Switch Connector End View (C2981)
Courtesy of FORD MOTOR CO.

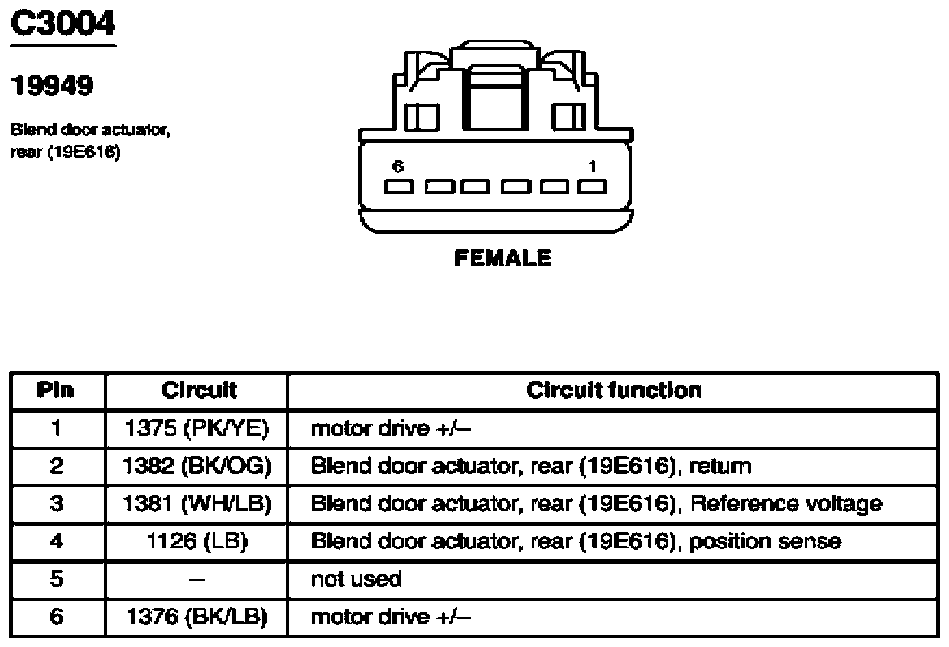

Fig 293: Blend Door Actuator, Rear Connector End View (C3004)
Courtesy of FORD MOTOR CO.

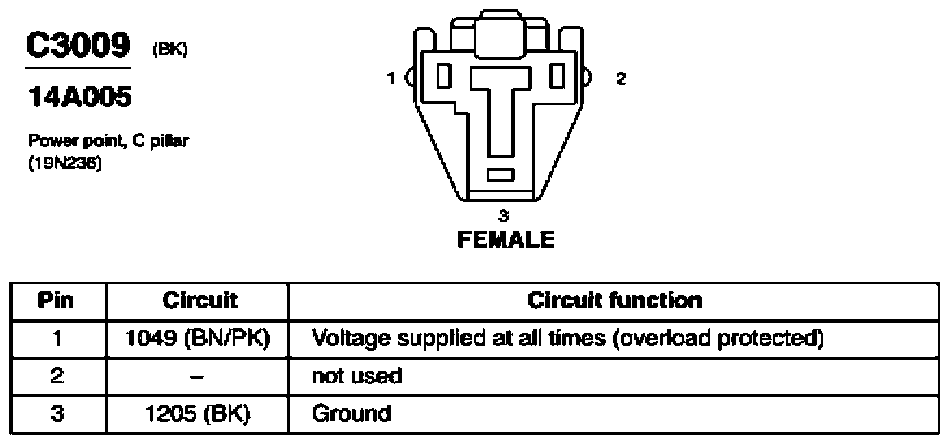

Fig 294: Power Point, C Pillar Connector End View (C3009)
Courtesy of FORD MOTOR CO.

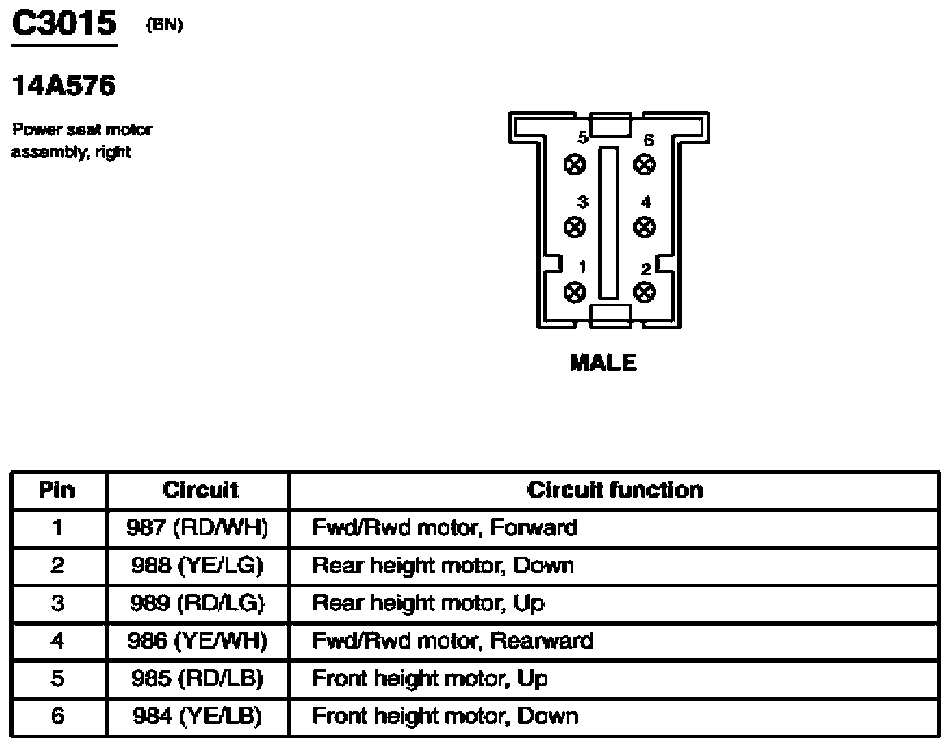

Fig 295: Power Seat Motor Assembly, Right Connector End View (C3015)
Courtesy of FORD MOTOR CO.

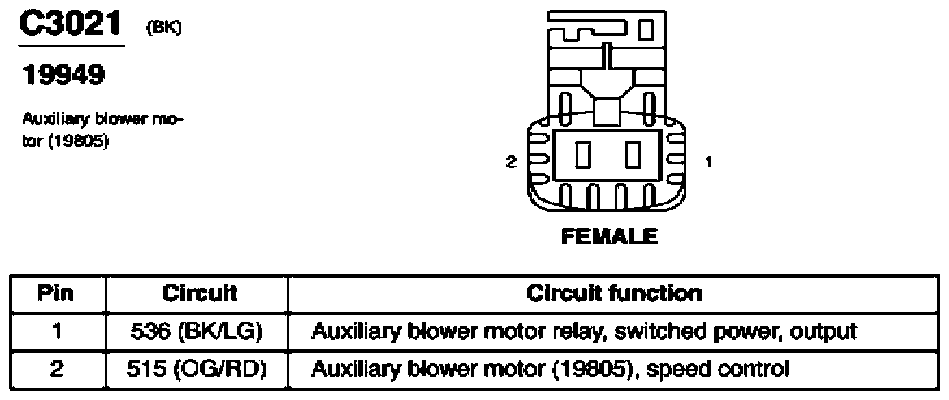

Fig 296: Auxiliary Blower Motor Connector End View (C3021)
Courtesy of FORD MOTOR CO.

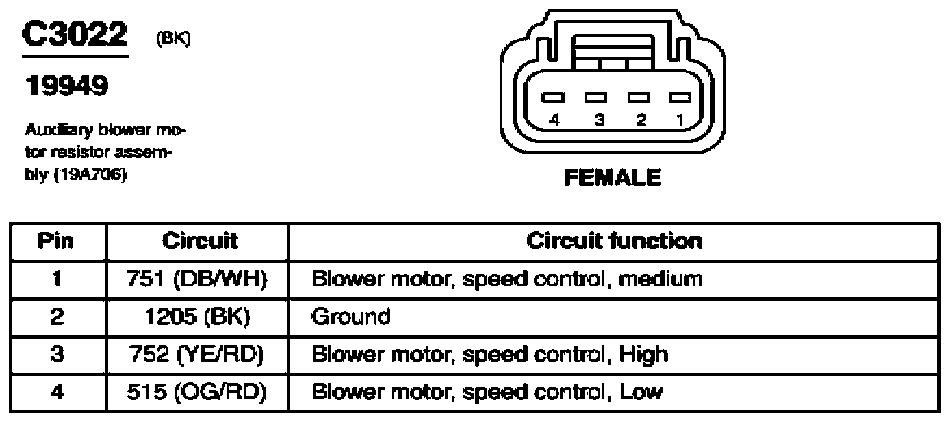

Fig 297: Auxiliary Blower Motor Resistor Assembly Connector End View (C3022)
Courtesy of FORD MOTOR CO.

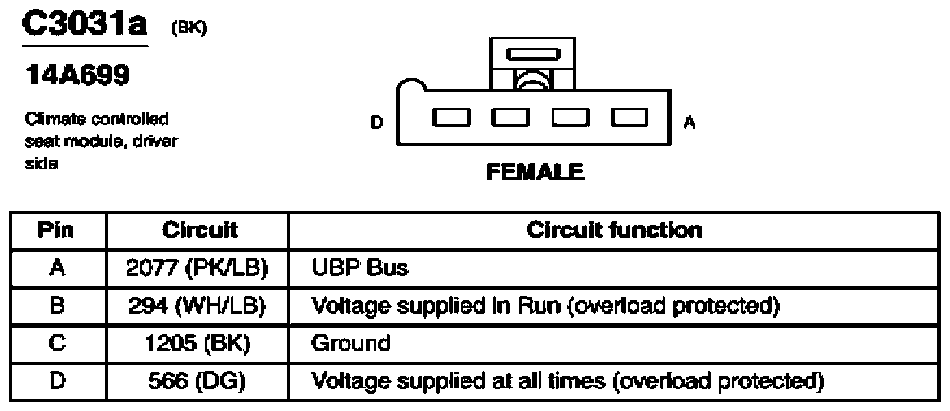

Fig 298: Climate Controlled Seat Module, Driver Side Connector End View (C3031a)
Courtesy of FORD MOTOR CO.

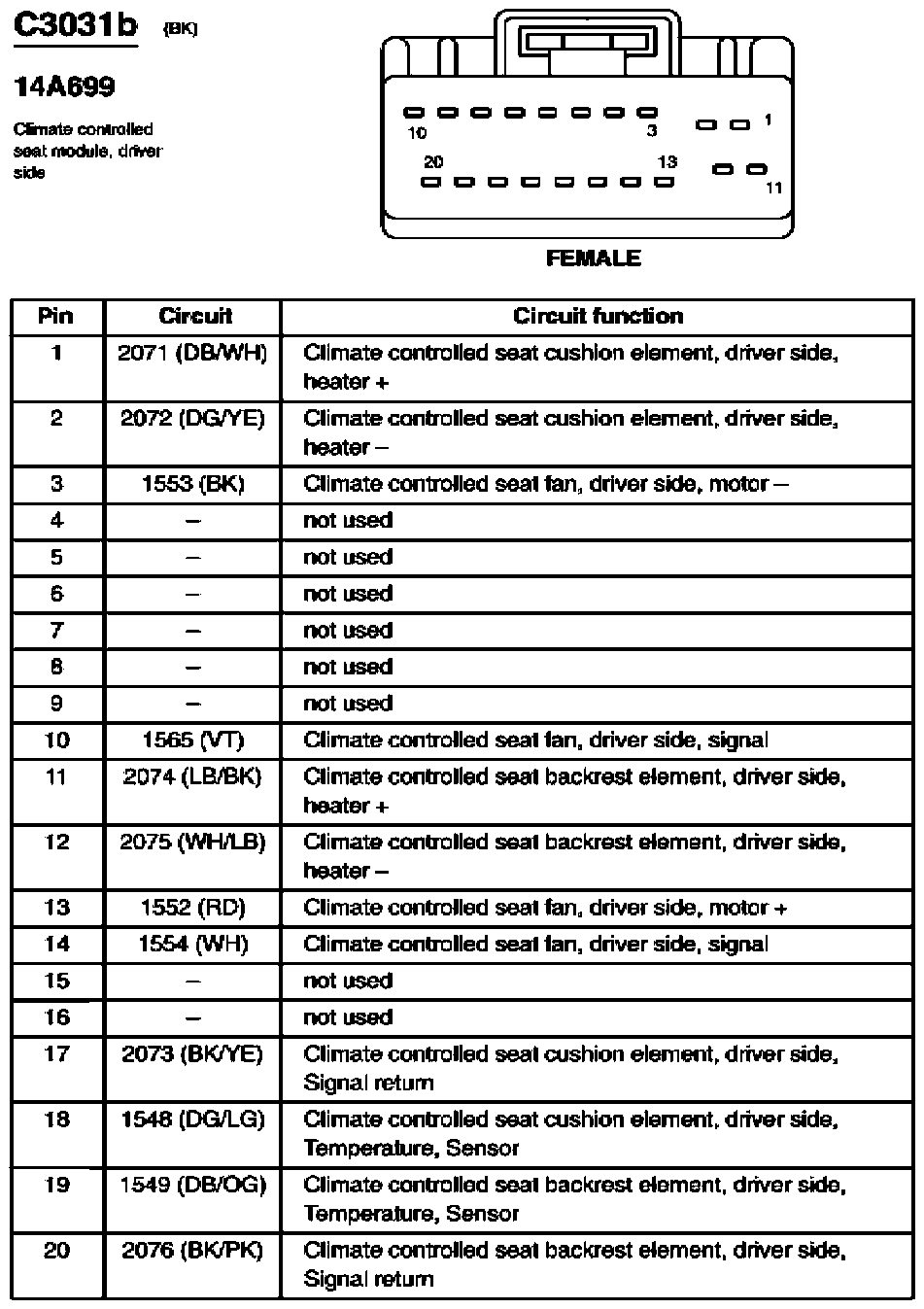

Fig 299: Climate Controlled Seat Module, Driver Side Connector End View (C3031b)
Courtesy of FORD MOTOR CO.

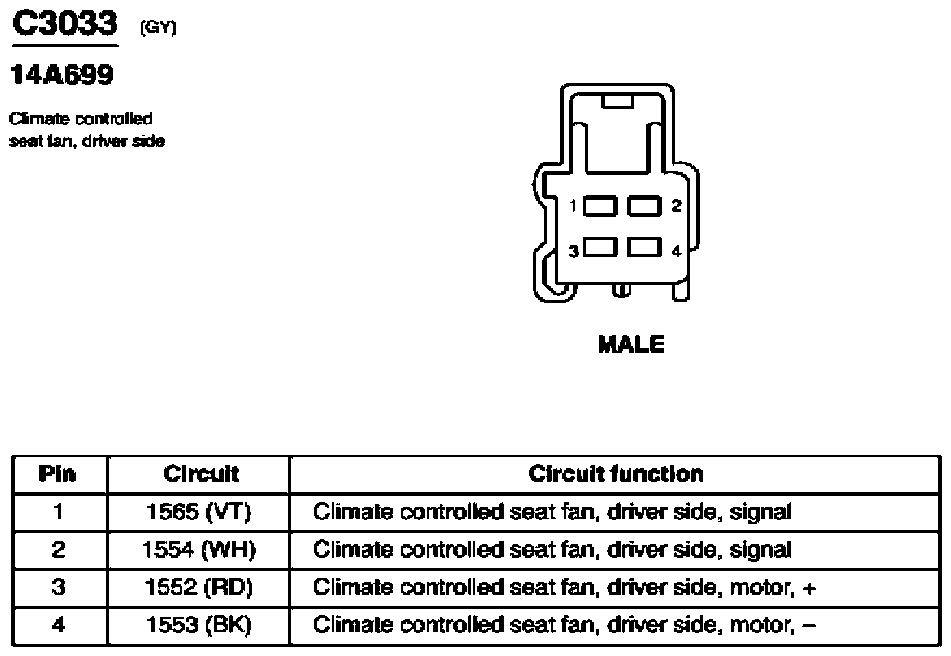

Fig 300: Climate Controlled Seat Fan, Driver Side Connector End View (C3033)
Courtesy of FORD MOTOR CO.

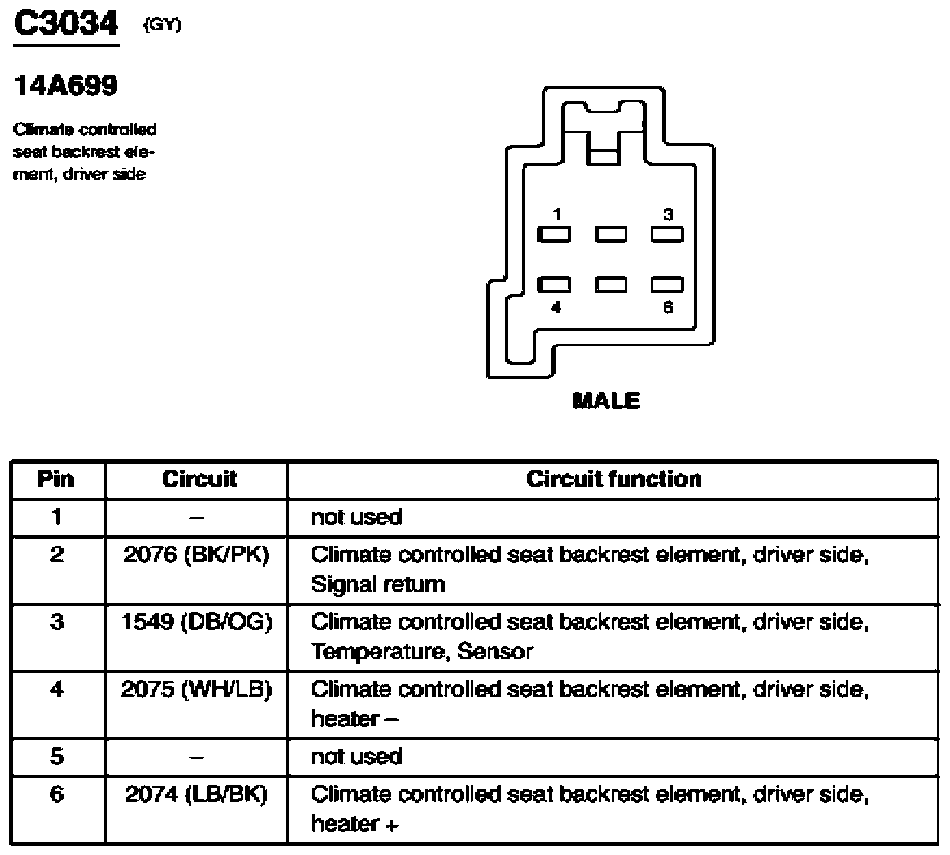

Fig 301: Climate Controlled Seat Backrest Element, Driver Side Connector End View (C3034)
Courtesy of FORD MOTOR CO.

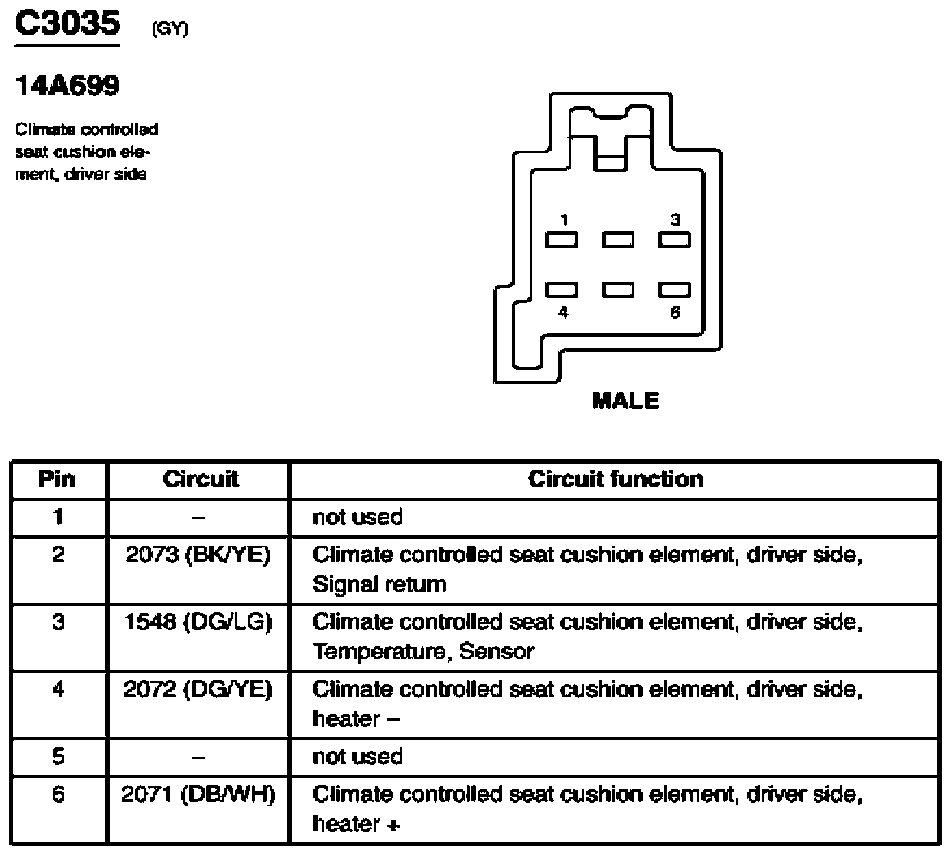

Fig 302: Climate Controlled Seat Cushion Element, Driver Side Connector End View (C3035)
Courtesy of FORD MOTOR CO.

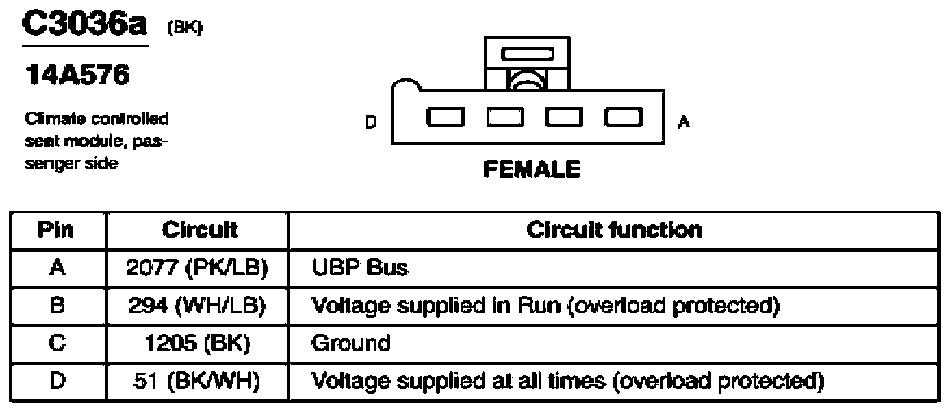

Fig 303: Climate Controlled Seat Module, Passenger Side Connector End View (C3036a)
Courtesy of FORD MOTOR CO.

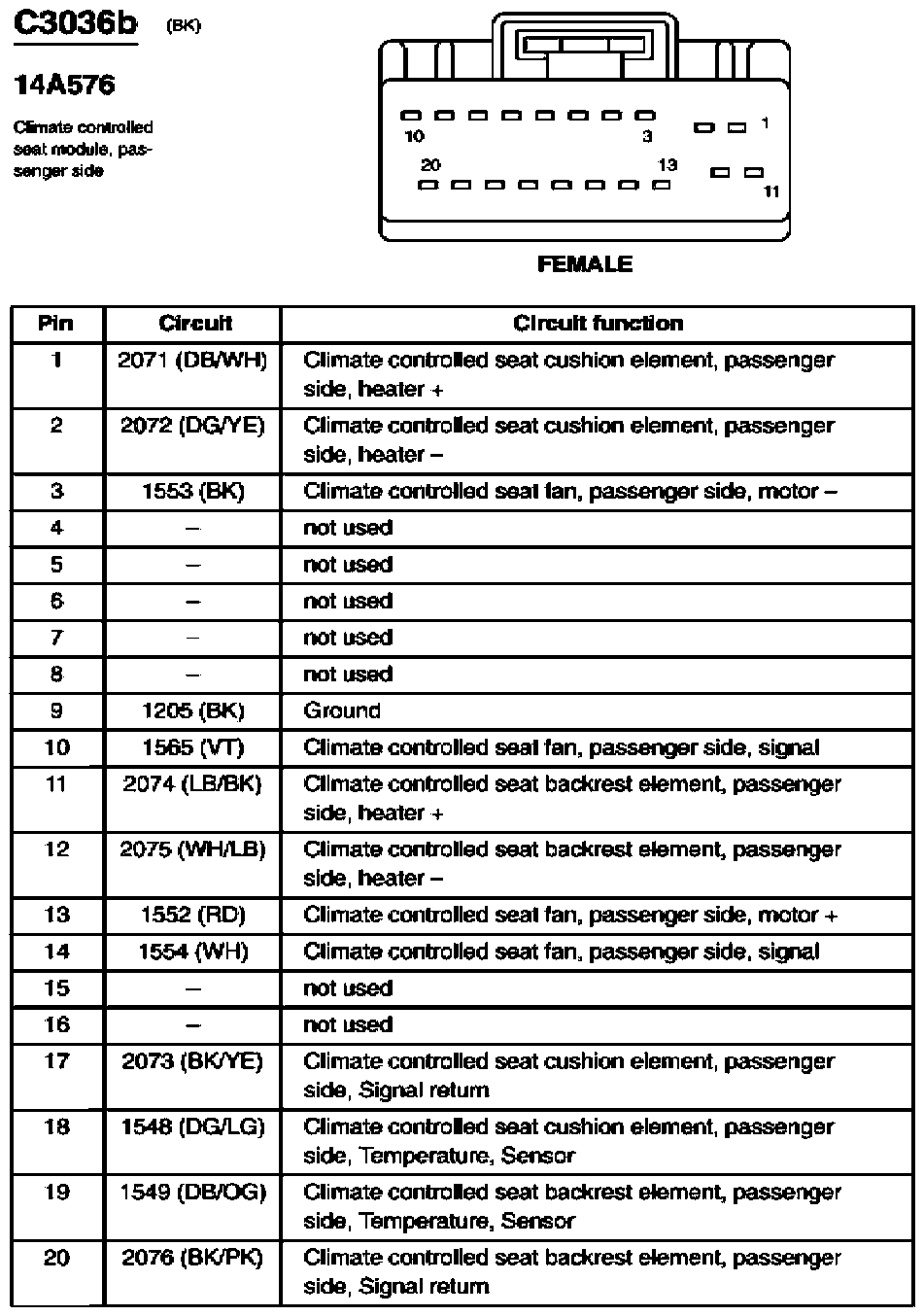

Fig 304: Climate Controlled Seat Module, Passenger Side Connector End View (C3036b)
Courtesy of FORD MOTOR CO.

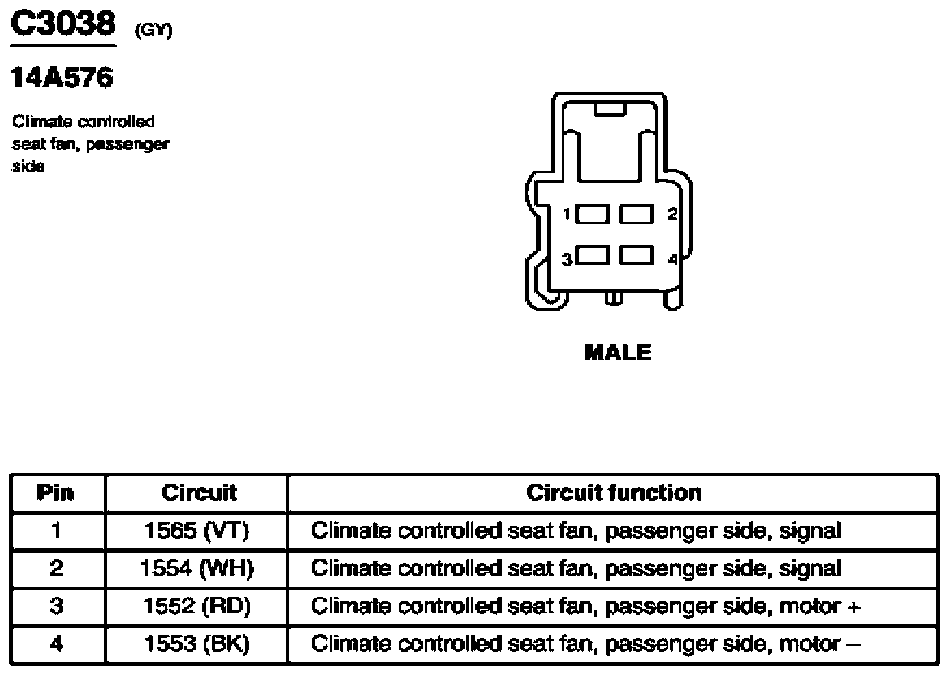

Fig 305: Climate Controlled Seat Fan, Passenger Side Connector End View (C3038)
Courtesy of FORD MOTOR CO.

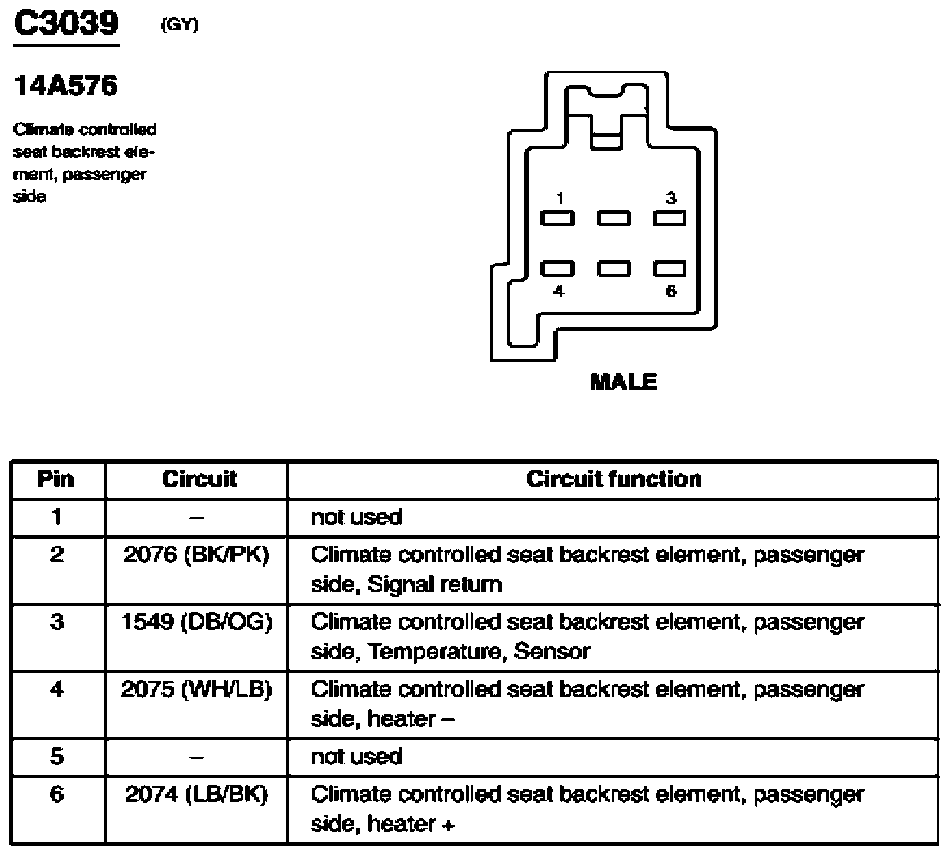

Fig 306: Climate Controlled Seat Backrest Element, Passenger Side Connector End View (C3039)
Courtesy of FORD MOTOR CO.

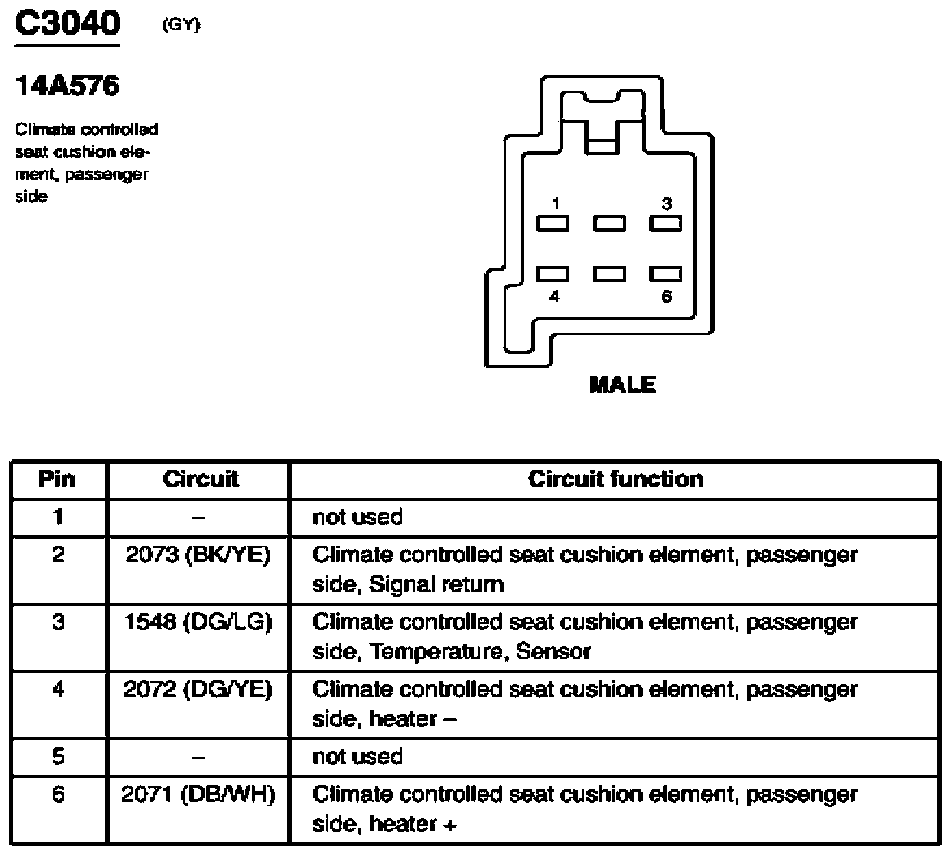

Fig 307: Climate Controlled Seat Cushion Element, Passenger Side Connector End View (C3040)
Courtesy of FORD MOTOR CO.

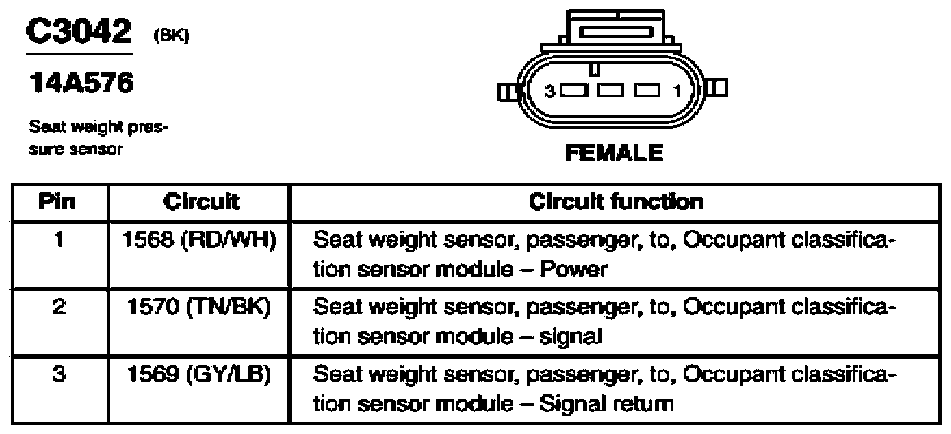

Fig 308: Seat Weight Pressure Sensor Connector End View (C3042)
Courtesy of FORD MOTOR CO.

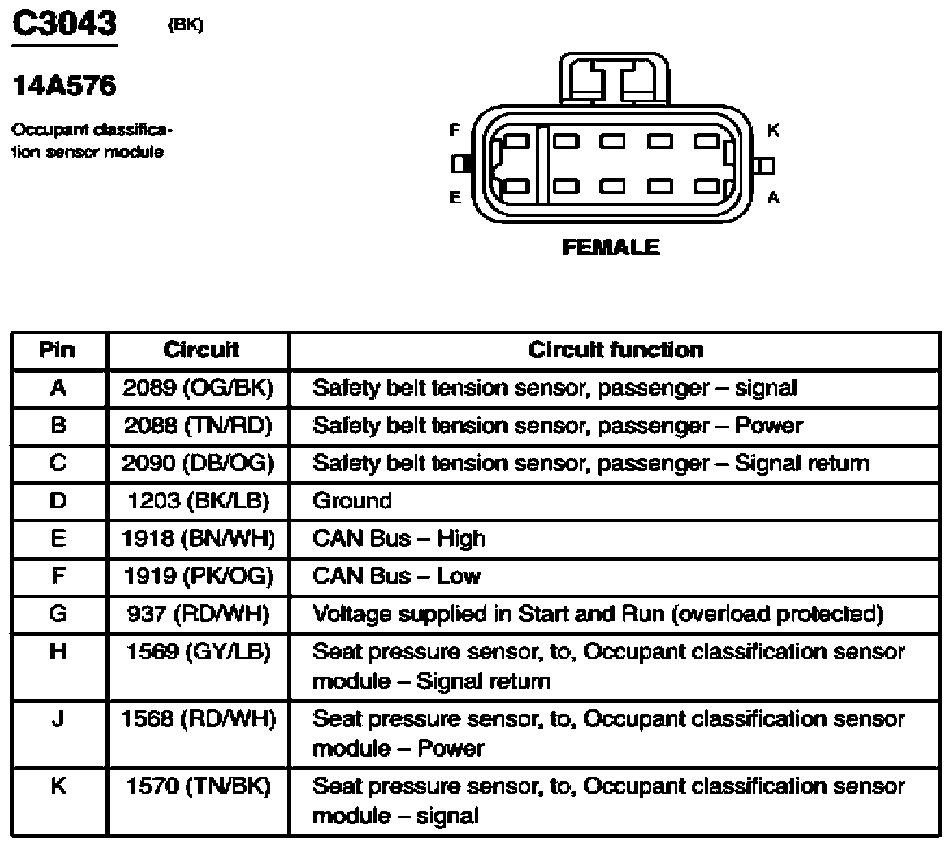

Fig 309: Occupant Classification Sensor Module Connector End View (C3043)
Courtesy of FORD MOTOR CO.

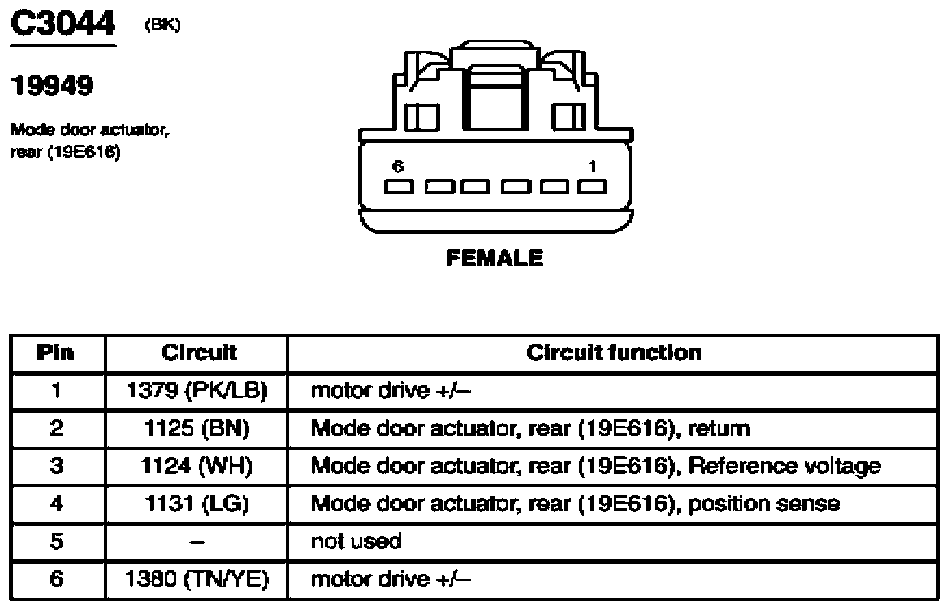

Fig 310: Mode Door Actuator, Rear Connector End View (C3044)
Courtesy of FORD MOTOR CO.

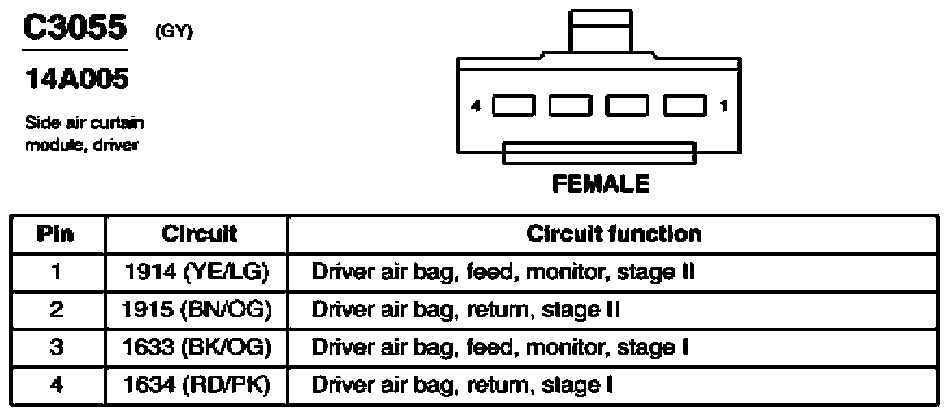

Fig 311: Side Air Curtain Module, Driver Connector End View (C3055)
Courtesy of FORD MOTOR CO.

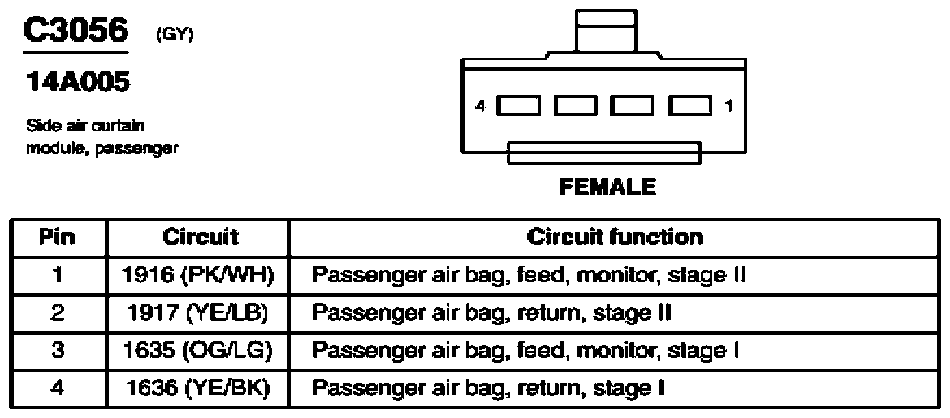

Fig 312: Side Air Curtain Module, Passenger Connector End View (C3056)
Courtesy of FORD MOTOR CO.

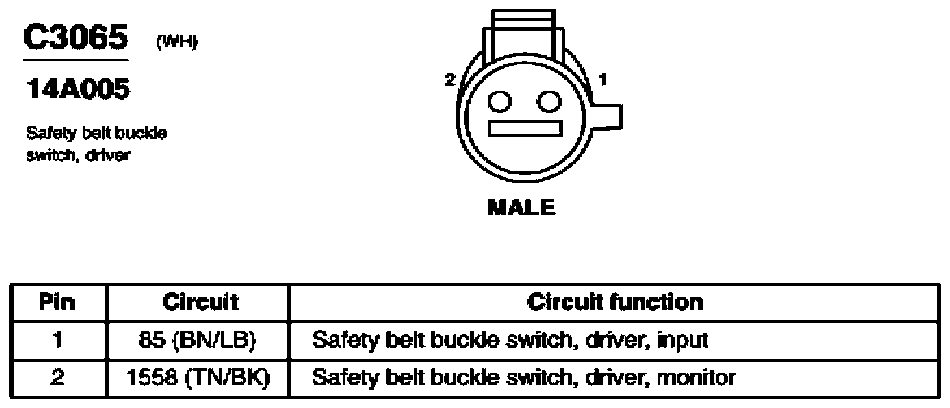

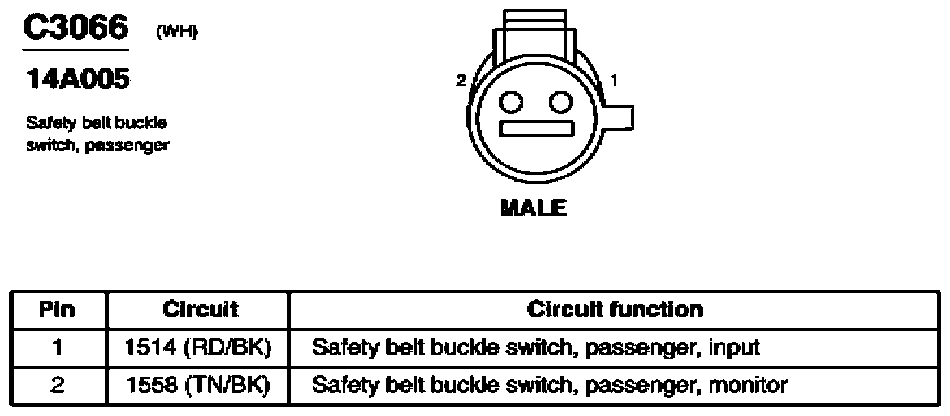

Fig 313: Safety Belt Buckle Switch, Driver Connector End View (C3065)
Courtesy of FORD MOTOR CO.
Fig 314: Safety Belt Buckle Switch, Passenger Connector End View (C3066)
Courtesy of FORD MOTOR CO.

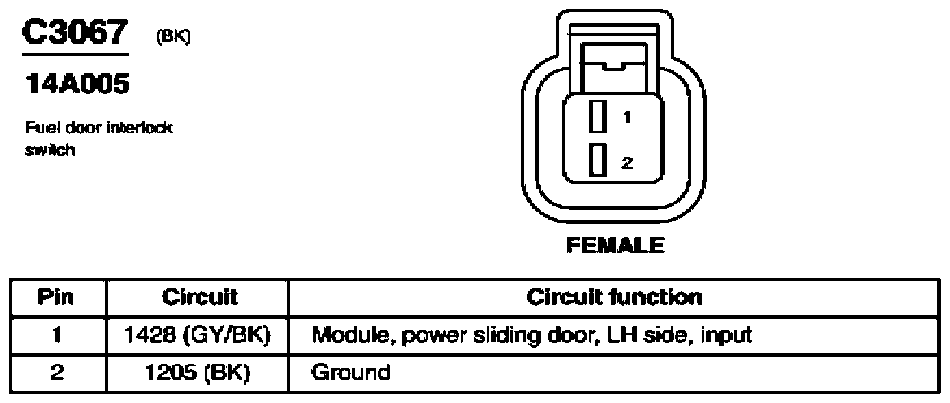

Fig 315: Fuel Door Interlock Switch Connector End View (C3067)
Courtesy of FORD MOTOR CO.

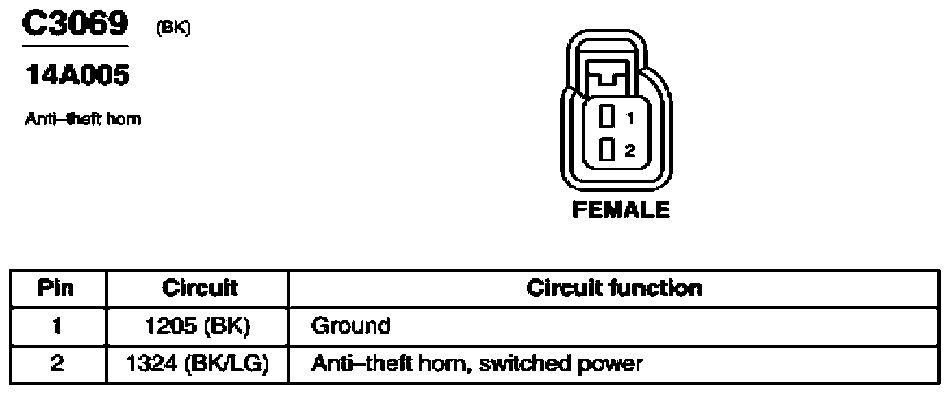

Fig 316: Anti-Theft Horn Connector End View (C3069)
Courtesy of FORD MOTOR CO.

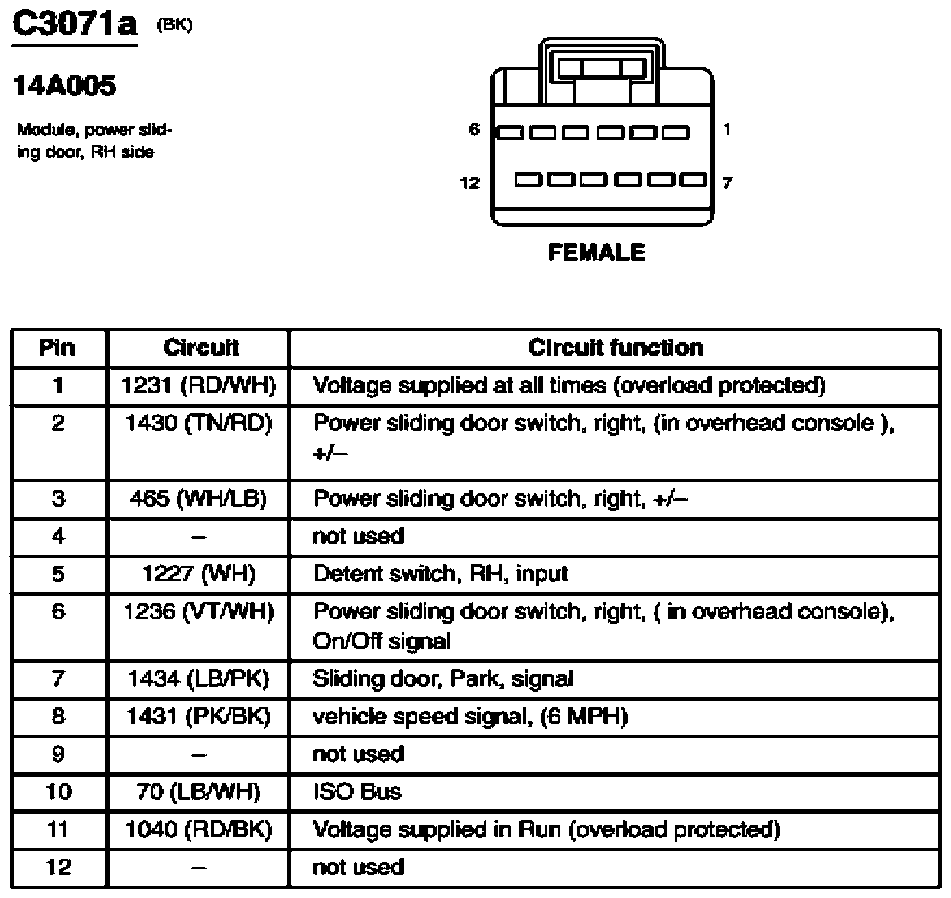

Fig 317: Module, Power Sliding Door, RH Side Connector End View (C3071a)
Courtesy of FORD MOTOR CO.

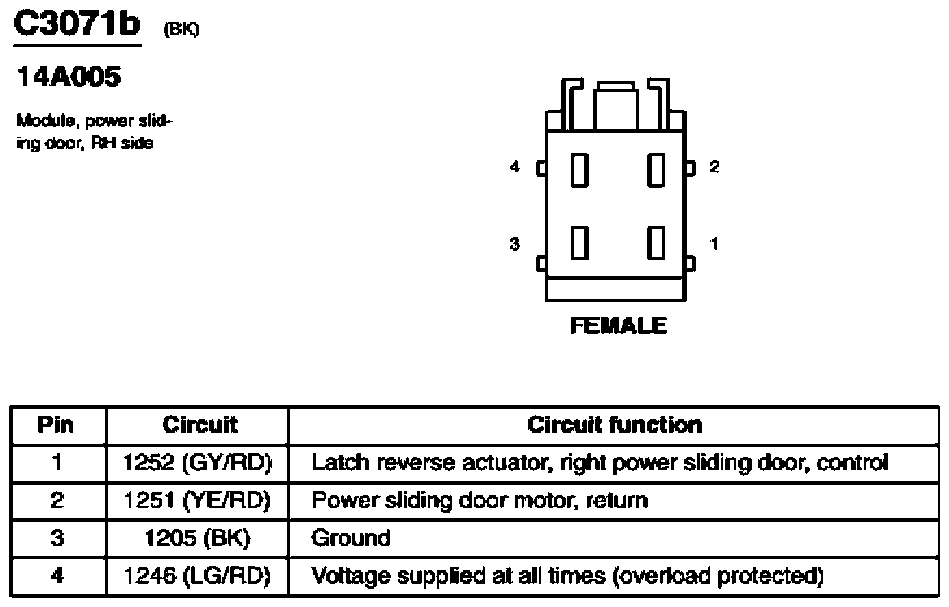

Fig 318: Module, Power Sliding Door, RH Side Connector End View (C3071b)
Courtesy of FORD MOTOR CO.

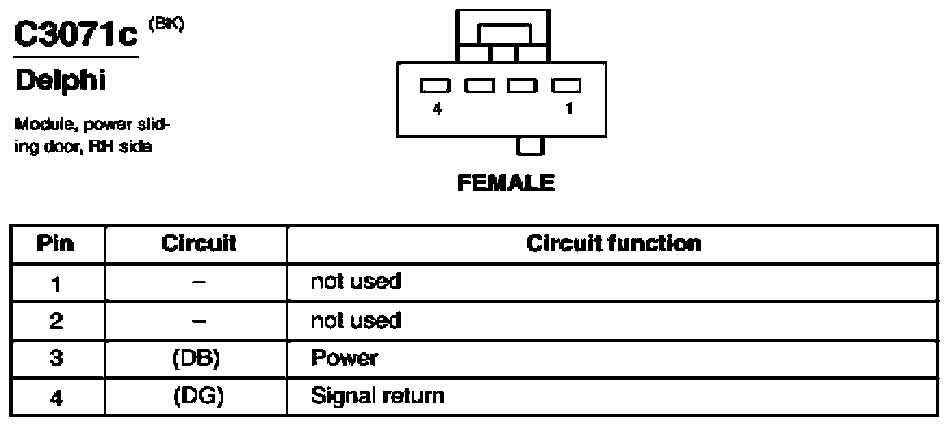

Fig 319: Module, Power Sliding Door, RH Side Connector End View (C3071c)
Courtesy of FORD MOTOR CO.
Fig 320: Module, Power Sliding Door, RH Side Connector End View (C3071d)
Courtesy of FORD MOTOR CO.

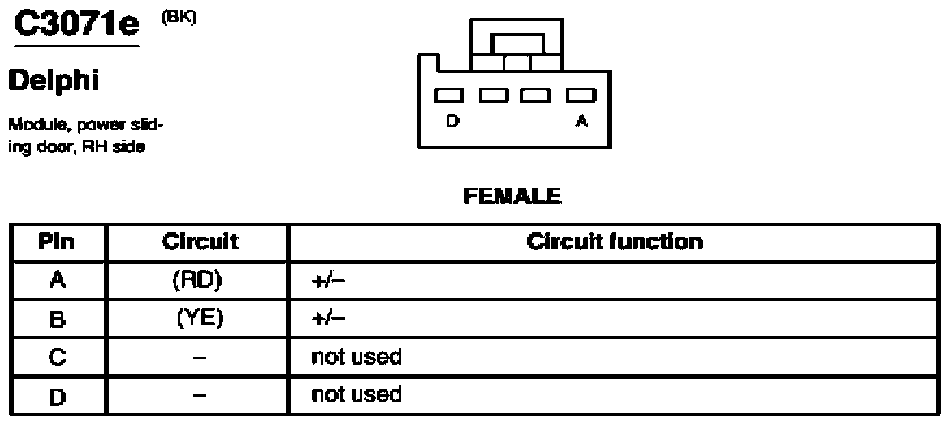

Fig 321: Module, Power Sliding Door, RH Side Connector End View (C3071e)
Courtesy of FORD MOTOR CO.

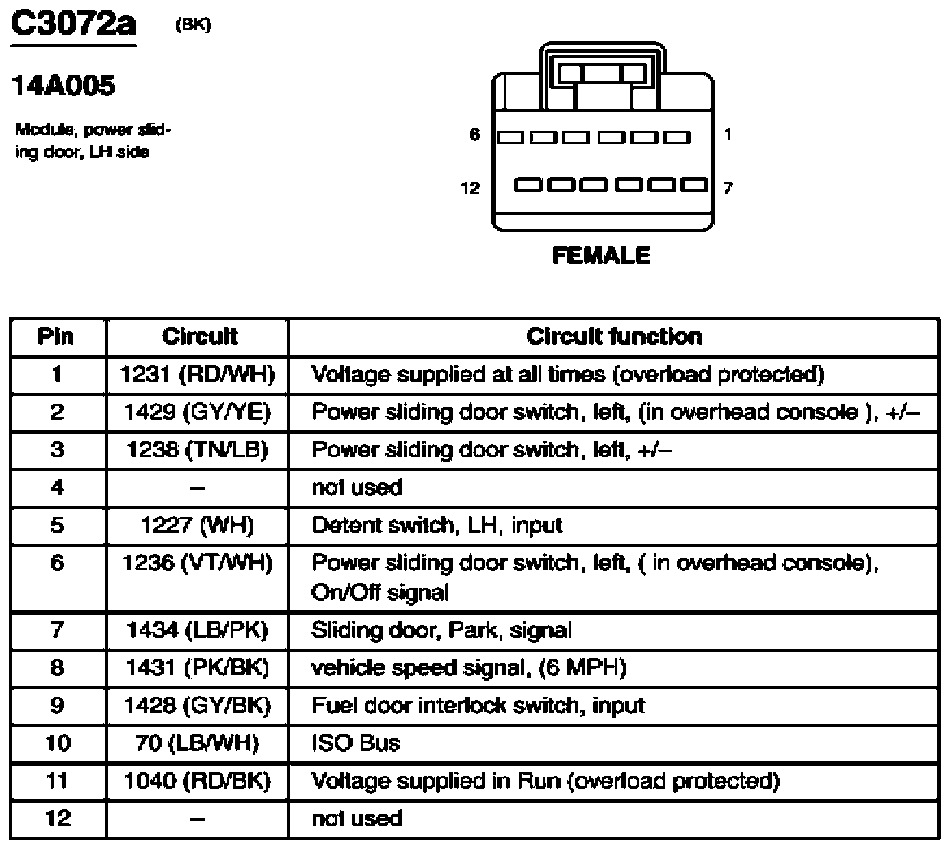

Fig 322: Module, Power Sliding Door, LH Side Connector End View (C3072a)
Courtesy of FORD MOTOR CO.

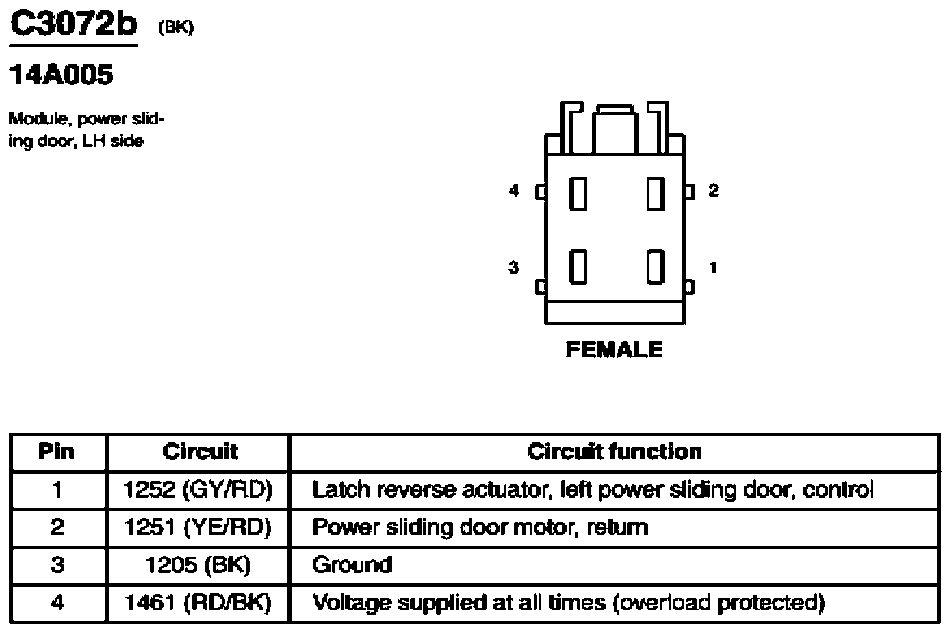

Fig 323: Module, Power Sliding Door, LH Side Connector End View (C3072b)
Courtesy of FORD MOTOR CO.

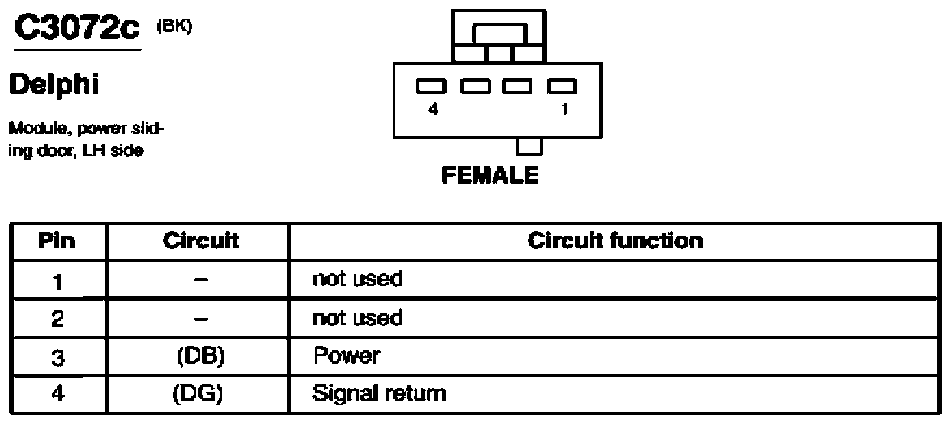

Fig 324: Module, Power Sliding Door, LH Side Connector End View (C3072c)
Courtesy of FORD MOTOR CO.

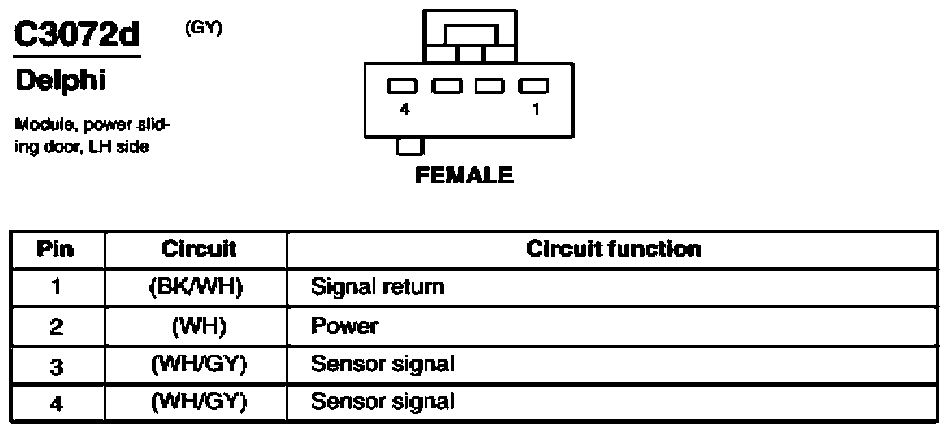

Fig 325: Module, Power Sliding Door, LH Side Connector End View (C3072d)
Courtesy of FORD MOTOR CO.

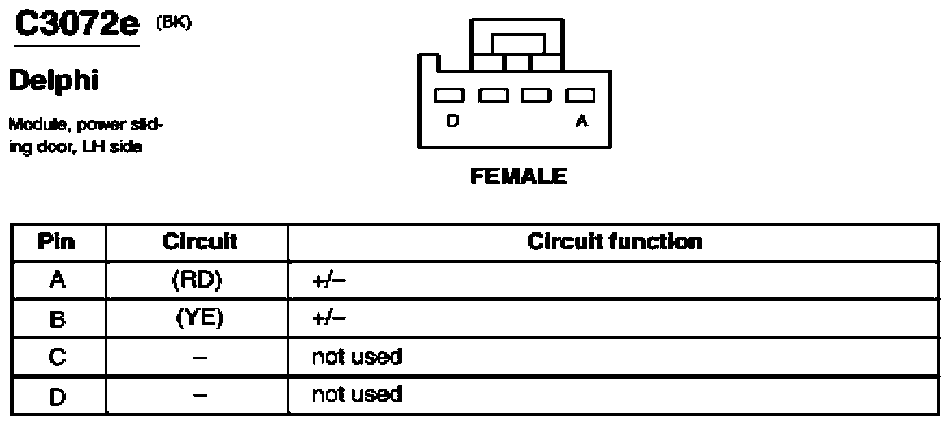

Fig 326: Module, Power Sliding Door, LH Side Connector End View (C3072e)
Courtesy of FORD MOTOR CO.

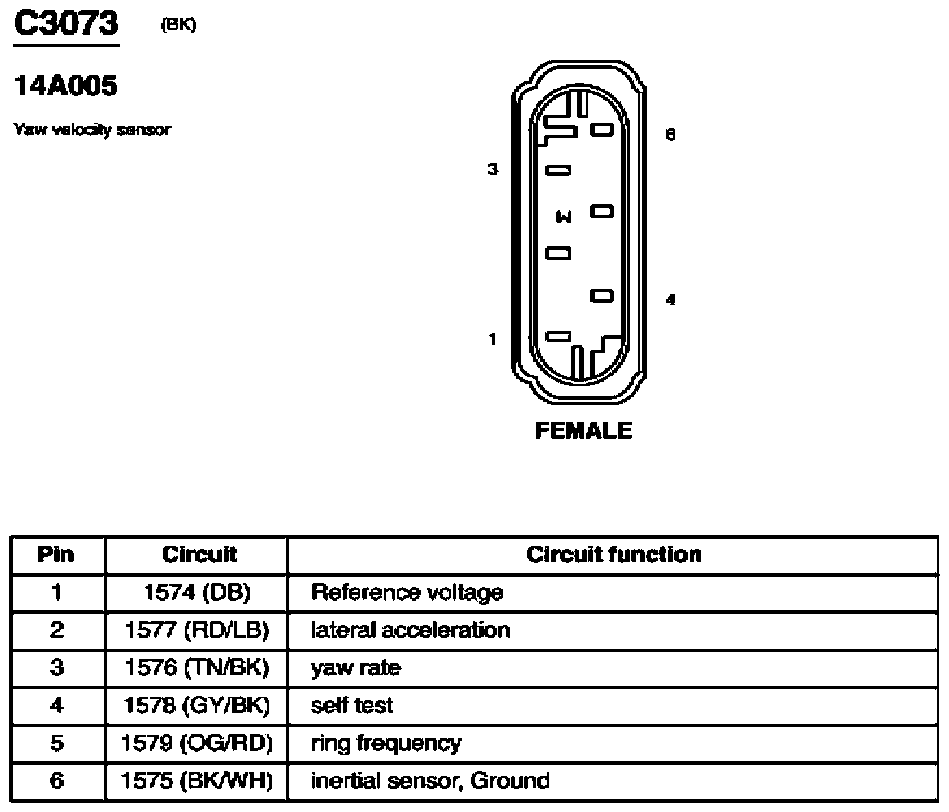

Fig 327: Yaw Velocity Sensor Connector End View (C3073)
Courtesy of FORD MOTOR CO.

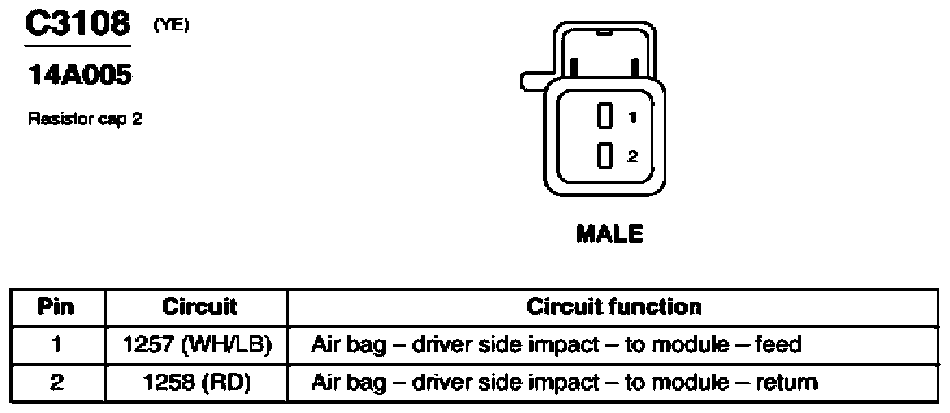

Fig 328: Resistor Cap 2 Connector End View (C3108)
Courtesy of FORD MOTOR CO.

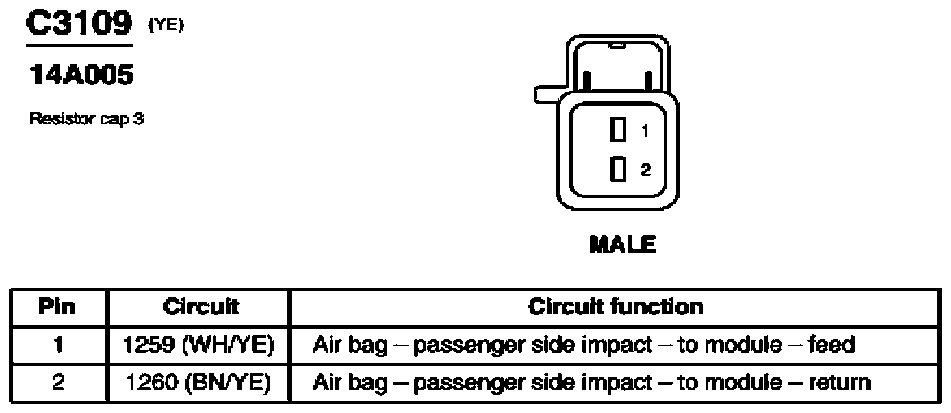

Fig 329: Resistor Cap 3 Connector End View (C3109)
Courtesy of FORD MOTOR CO.

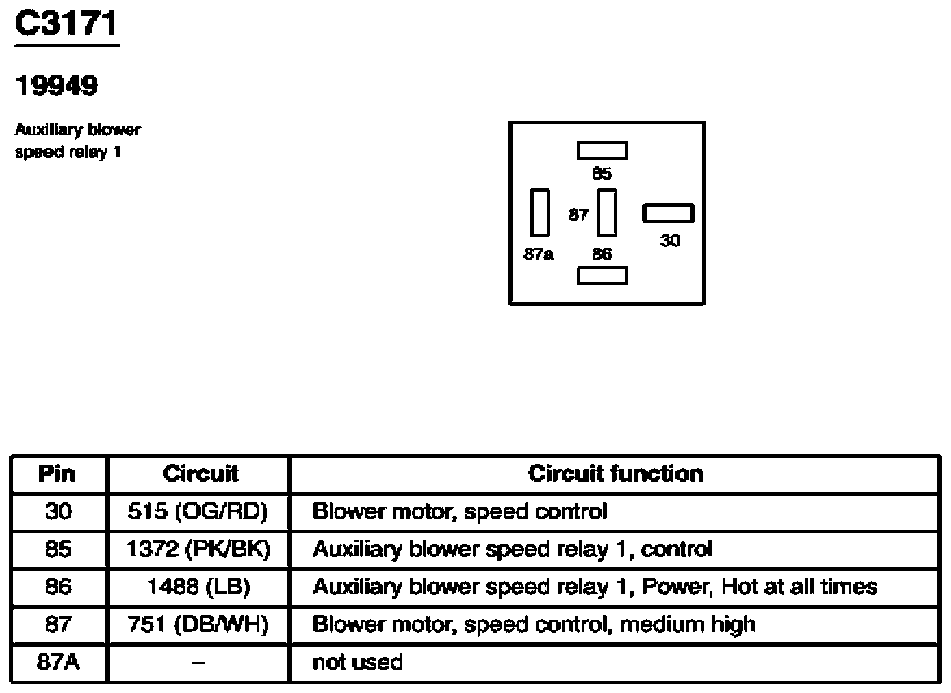

Fig 330: Auxiliary Blower Speed Relay 1 Connector End View (C3171)
Courtesy of FORD MOTOR CO.

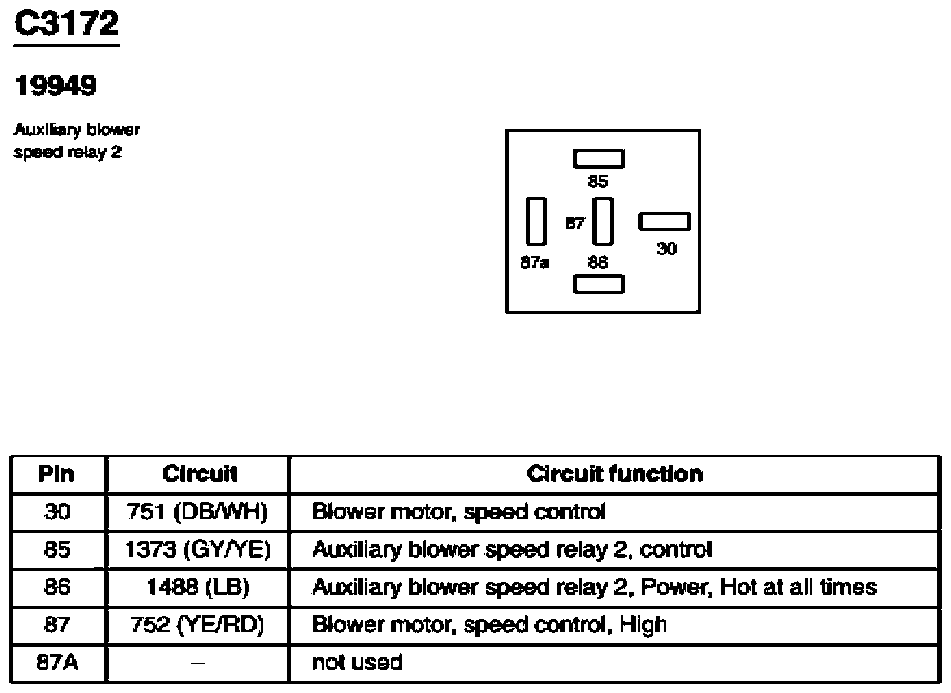

Fig 331: Auxiliary Blower Speed Relay 2 Connector End View (C3172)
Courtesy of FORD MOTOR CO.

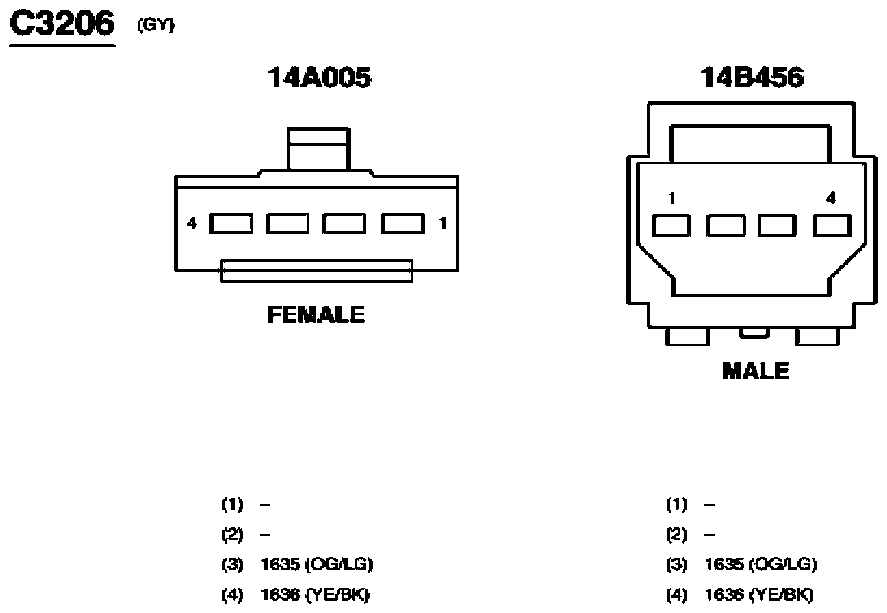

Fig 332: Inline Connector End View (C3206)
Courtesy of FORD MOTOR CO.

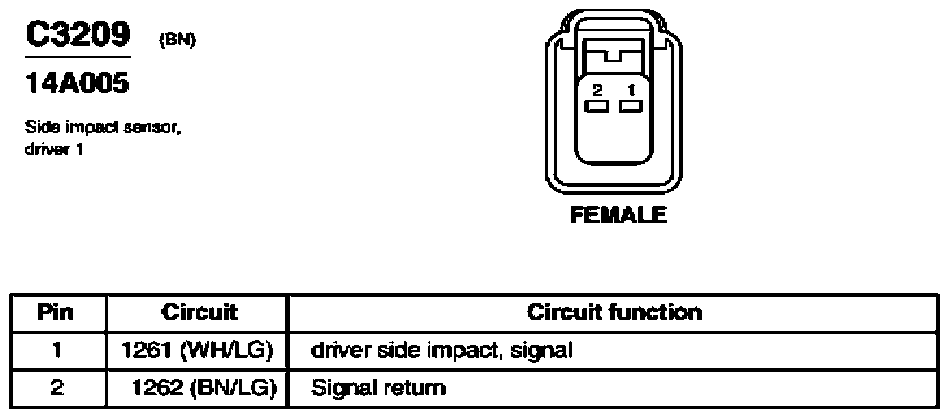

Fig 333: Side Impact Sensor, Driver 1 Connector End View (C3209)
Courtesy of FORD MOTOR CO.

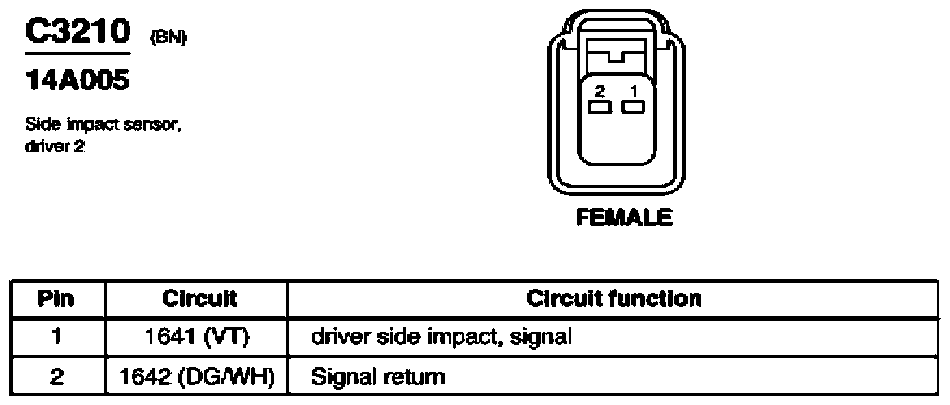

Fig 334: Side Impact Sensor, Driver 2 Connector End View (C3210)
Courtesy of FORD MOTOR CO.

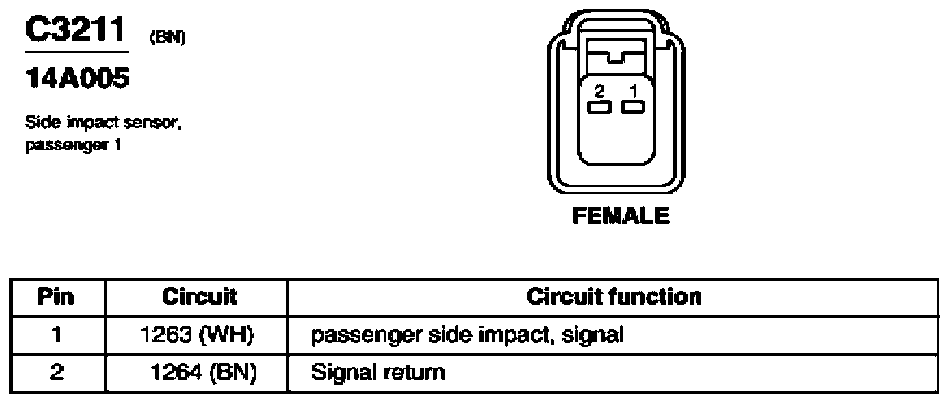

Fig 335: Side Impact Sensor, Passenger 1 Connector End View (C3211)
Courtesy of FORD MOTOR CO.

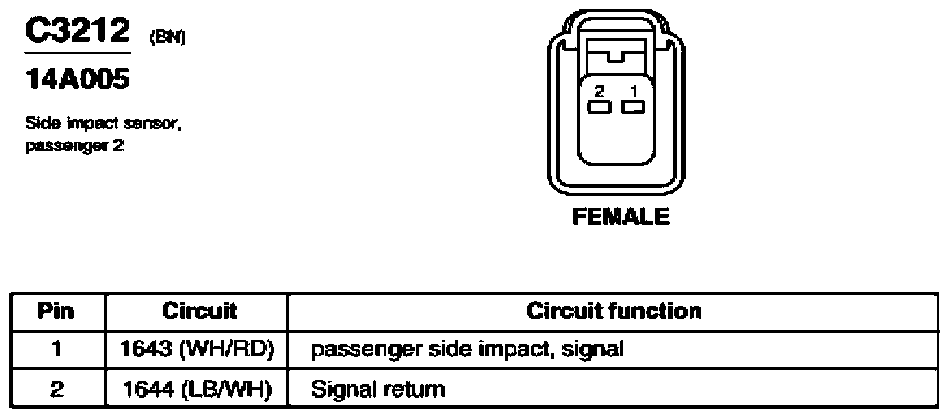

Fig 336: Side Impact Sensor, Passenger 2 Connector End View (C3212)
Courtesy of FORD MOTOR CO.

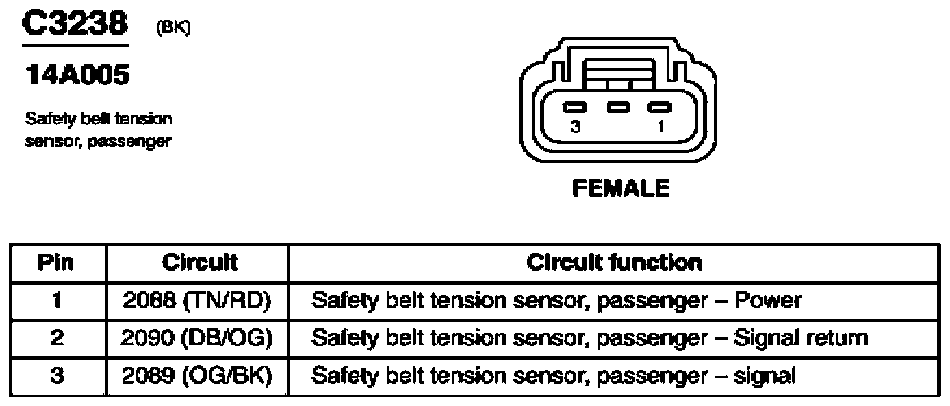

Fig 337: Safety Belt Tension Sensor, Passenger Connector End View (C3238)
Courtesy of FORD MOTOR CO.

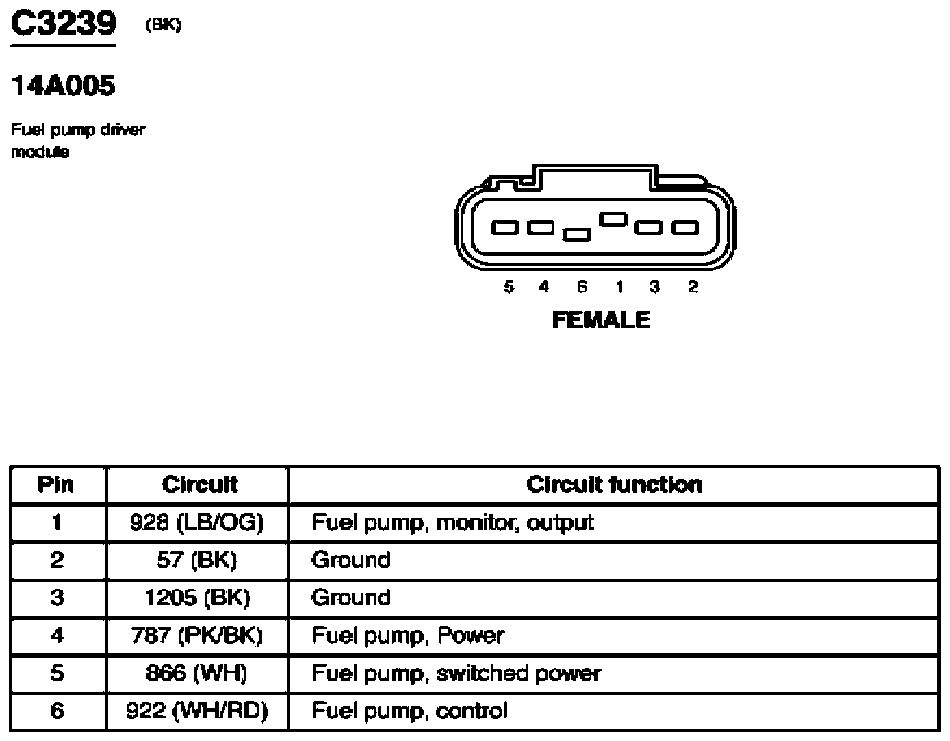

Fig 338: Fuel Pump Driver Module Connector End View (C3239)
Courtesy of FORD MOTOR CO.

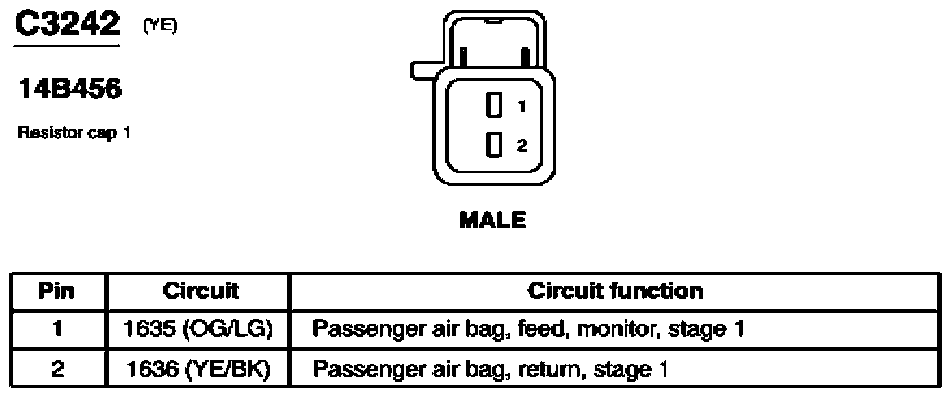

Fig 339: Resistor Cap 1 Connector End View (C3242)
Courtesy of FORD MOTOR CO.

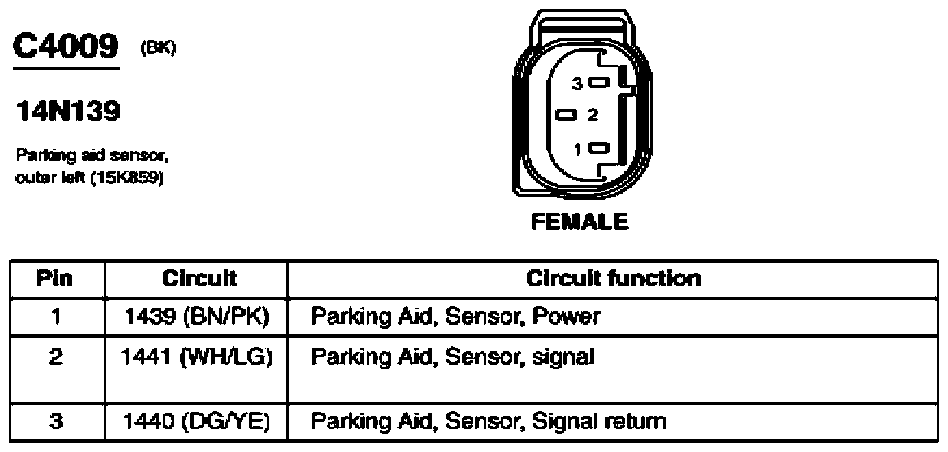

Fig 340: Parking Aid Sensor, Outer Left Connector End View (C4009)
Courtesy of FORD MOTOR CO.

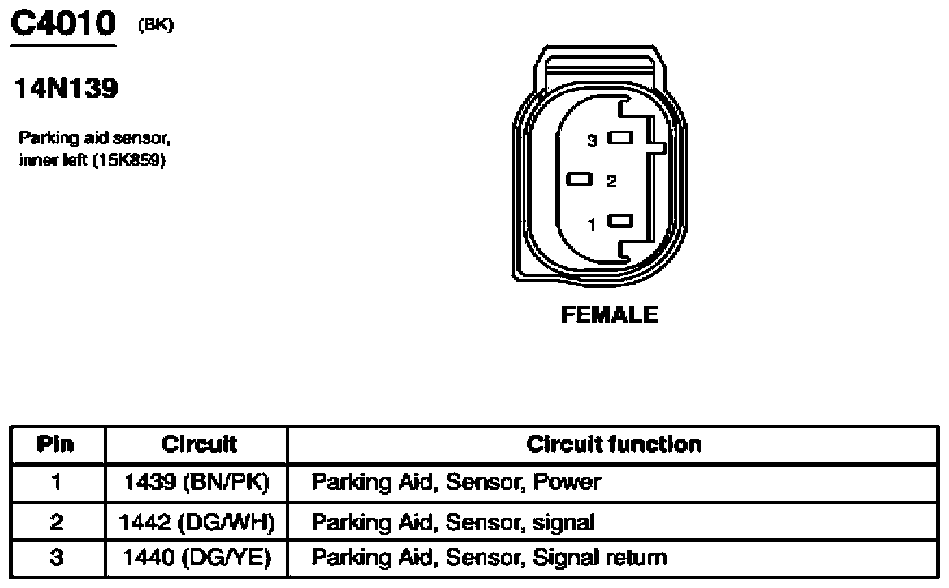

Fig 341: Parking Aid Sensor, Inner Left Connector End View (C4010)
Courtesy of FORD MOTOR CO.

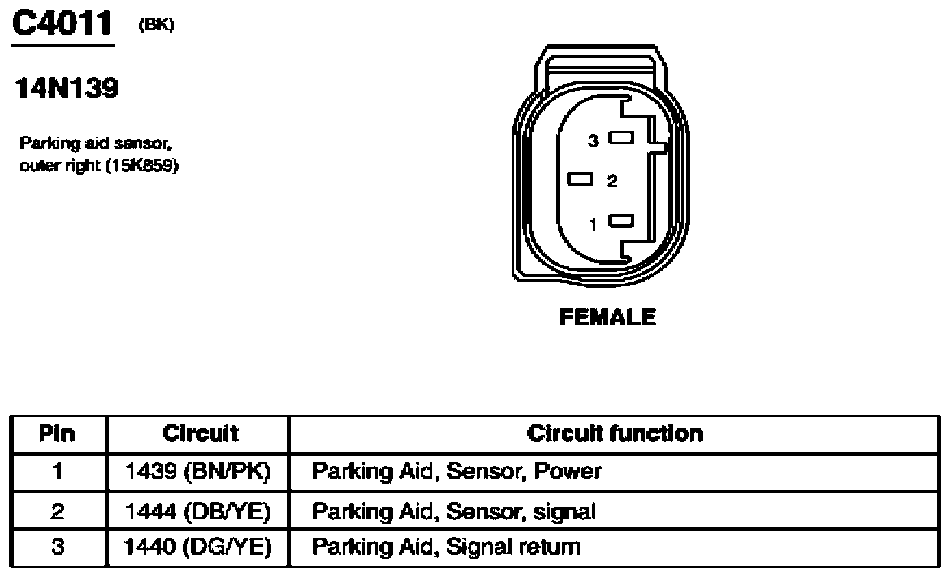

Fig 342: Parking Aid Sensor, Outer Right Connector End View (C4011)
Courtesy of FORD MOTOR CO.

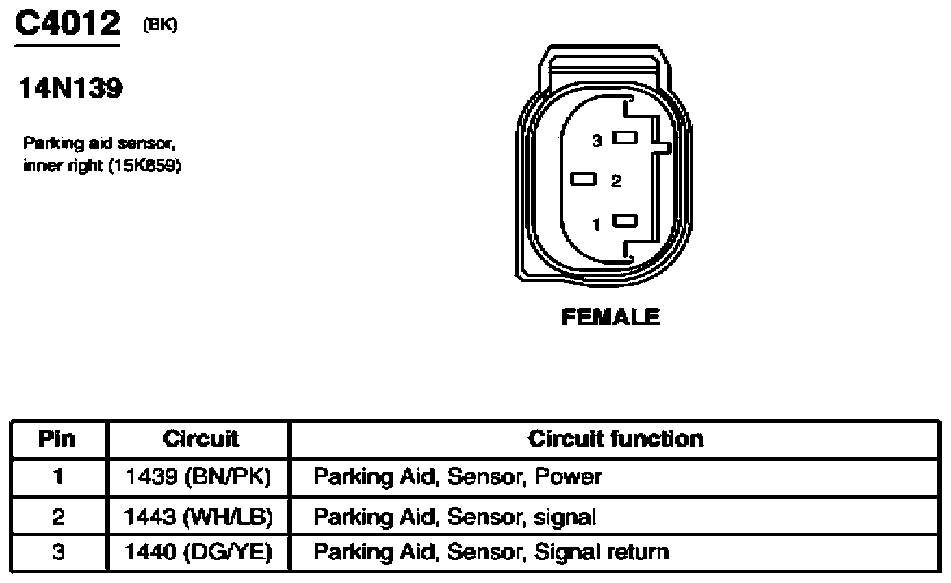

Fig 343: Parking Aid Sensor, Inner Right Connector End View (C4012)
Courtesy of FORD MOTOR CO.

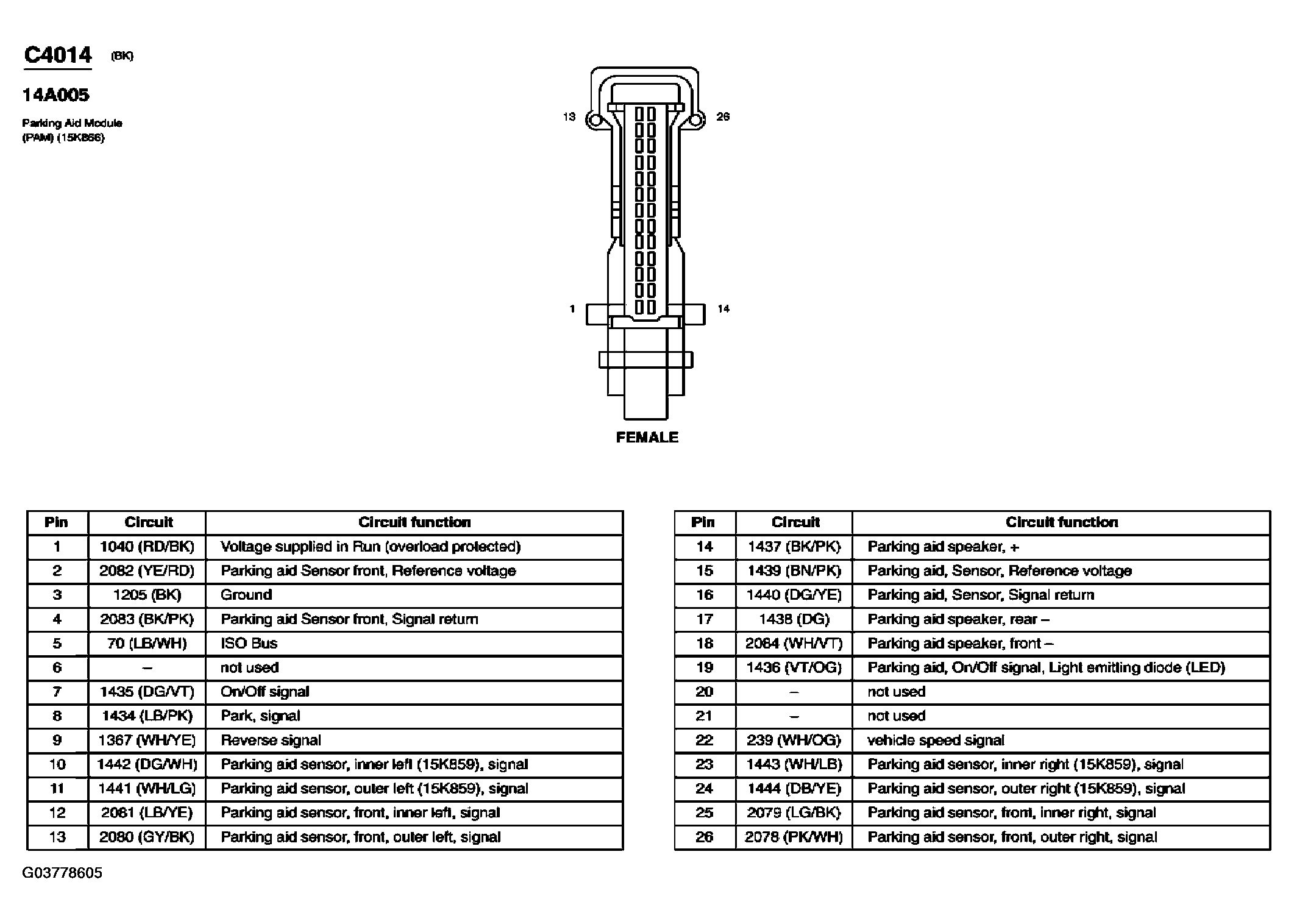

Fig 344: Parking Aid Module (PAM) Connector End View (C4014)
Courtesy of FORD MOTOR CO.

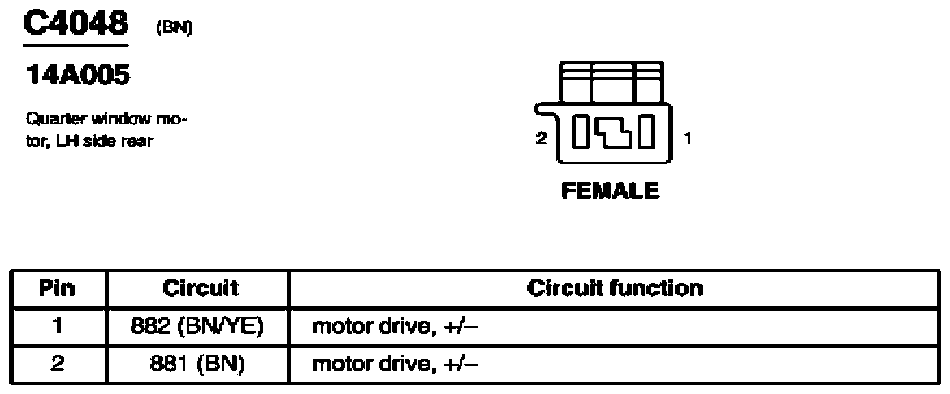

Fig 345: Quarter Window Motor, LH Side Rear Connector End View (C4048)
Courtesy of FORD MOTOR CO.

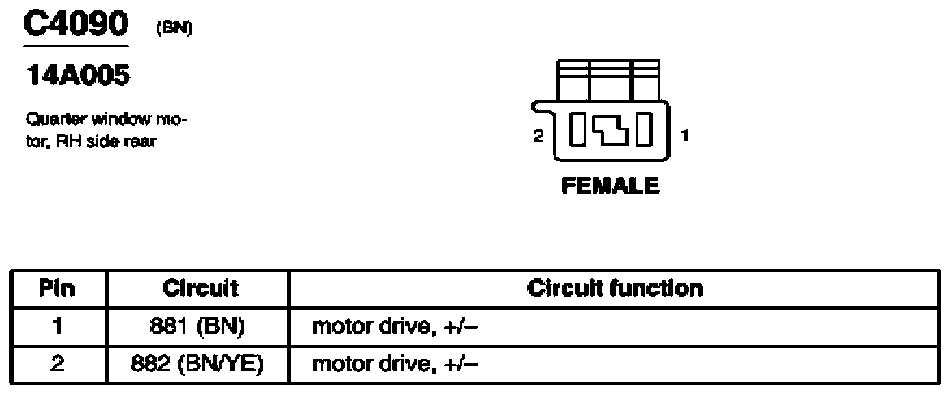

Fig 346: Quarter Window Motor, RH Side Rear Connector End View (C4090)
Courtesy of FORD MOTOR CO.

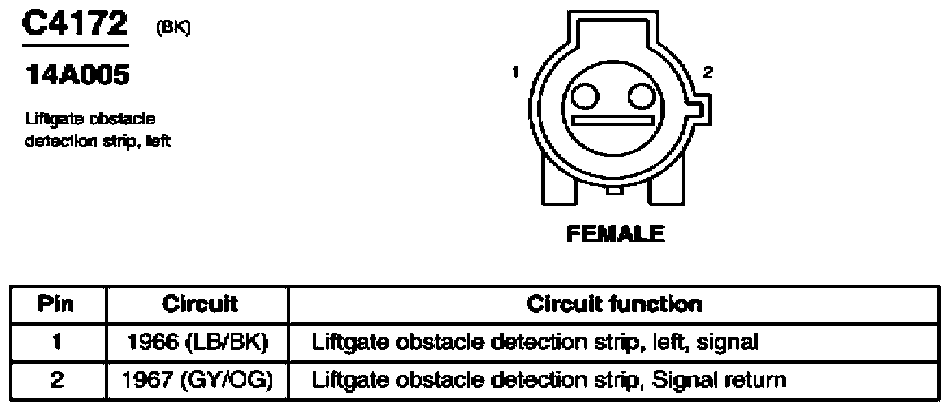

Fig 347: Liftgate Obstacle Detection Strip, Left Connector End View (C4172)
Courtesy of FORD MOTOR CO.

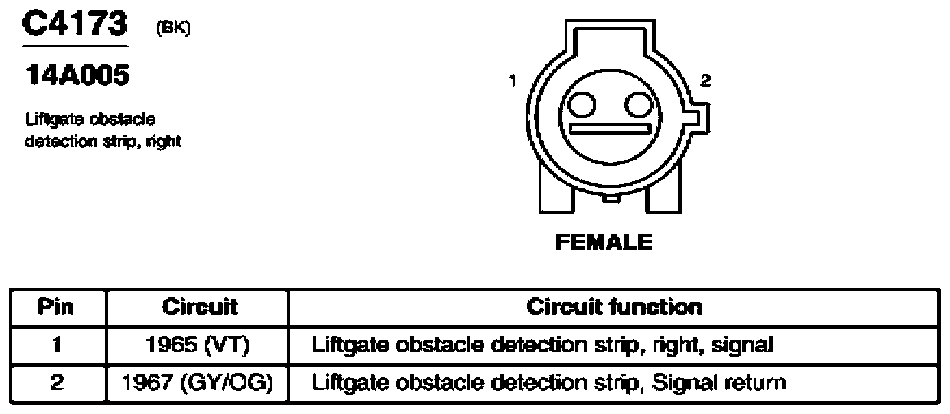

Fig 348: Liftgate Obstacle Detection Strip, Right Connector End View (C4173)
Courtesy of FORD MOTOR CO.

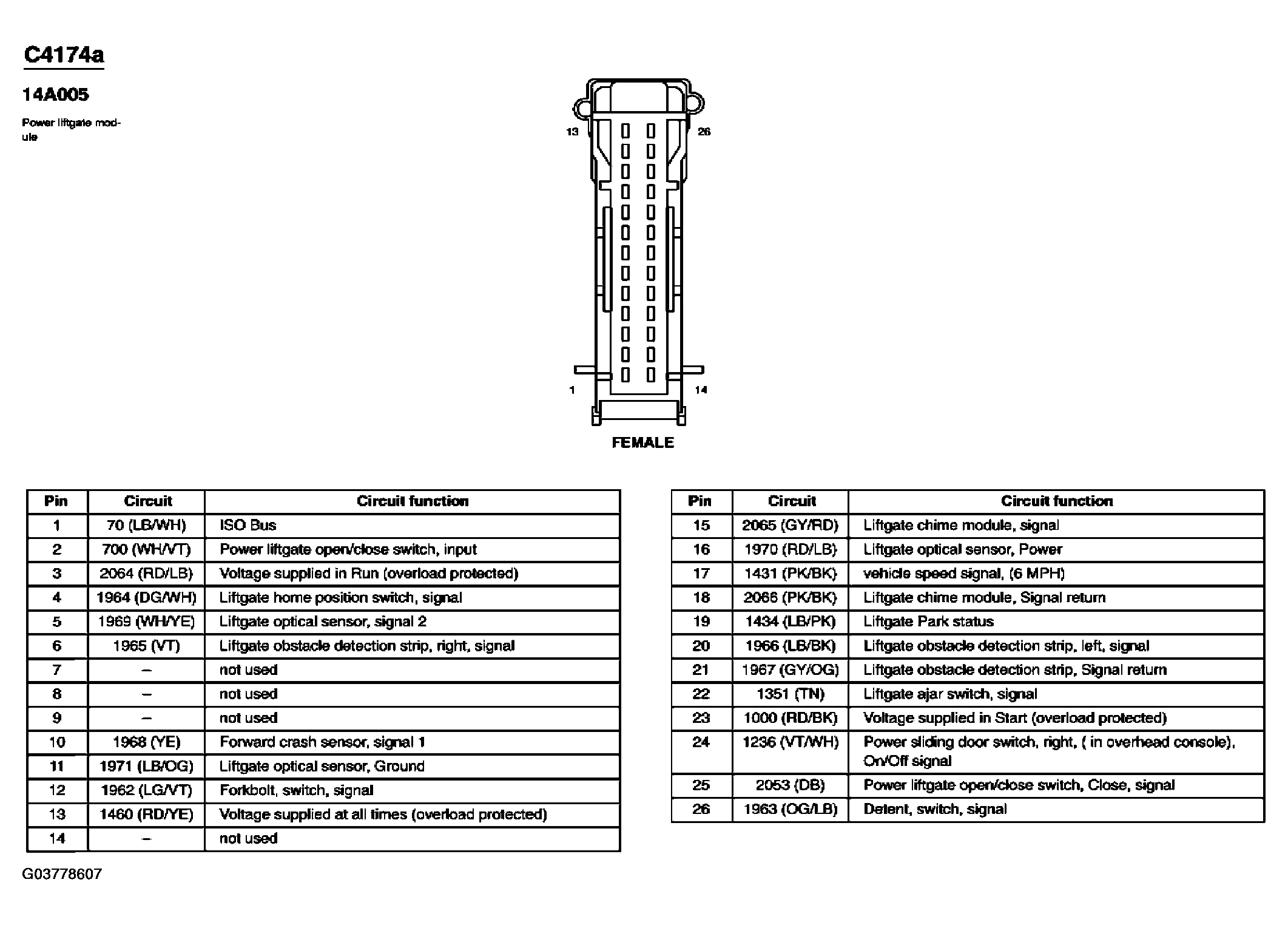

Fig 349: Power Liftgate Module Connector End View (C4174a)
Courtesy of FORD MOTOR CO.

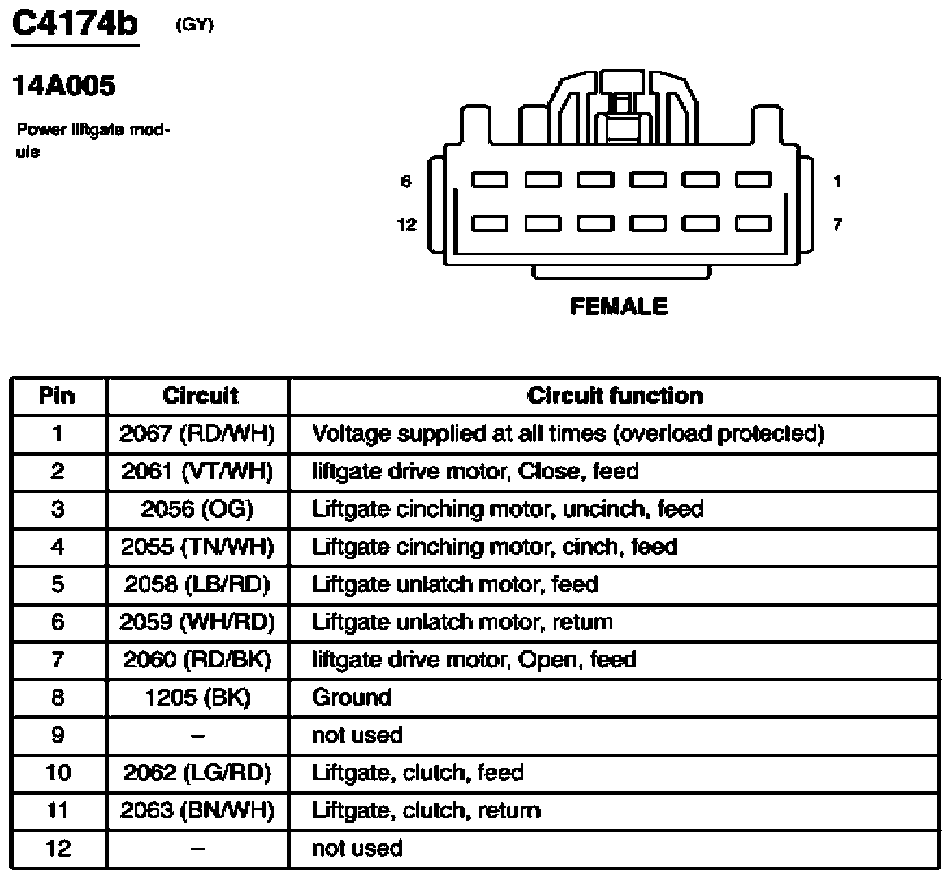

Fig 350: Power Liftgate Module Connector End View (C4174b)
Courtesy of FORD MOTOR CO.

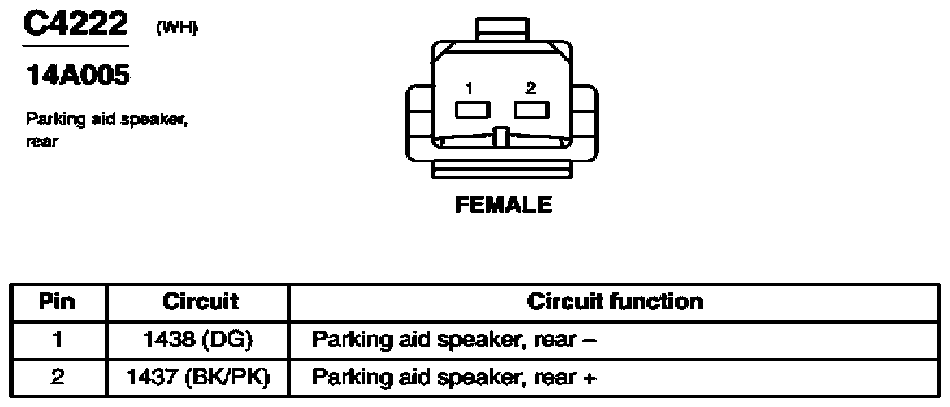

Fig 351: Parking Aid Speaker, Rear Connector End View (C4222)
Courtesy of FORD MOTOR CO.

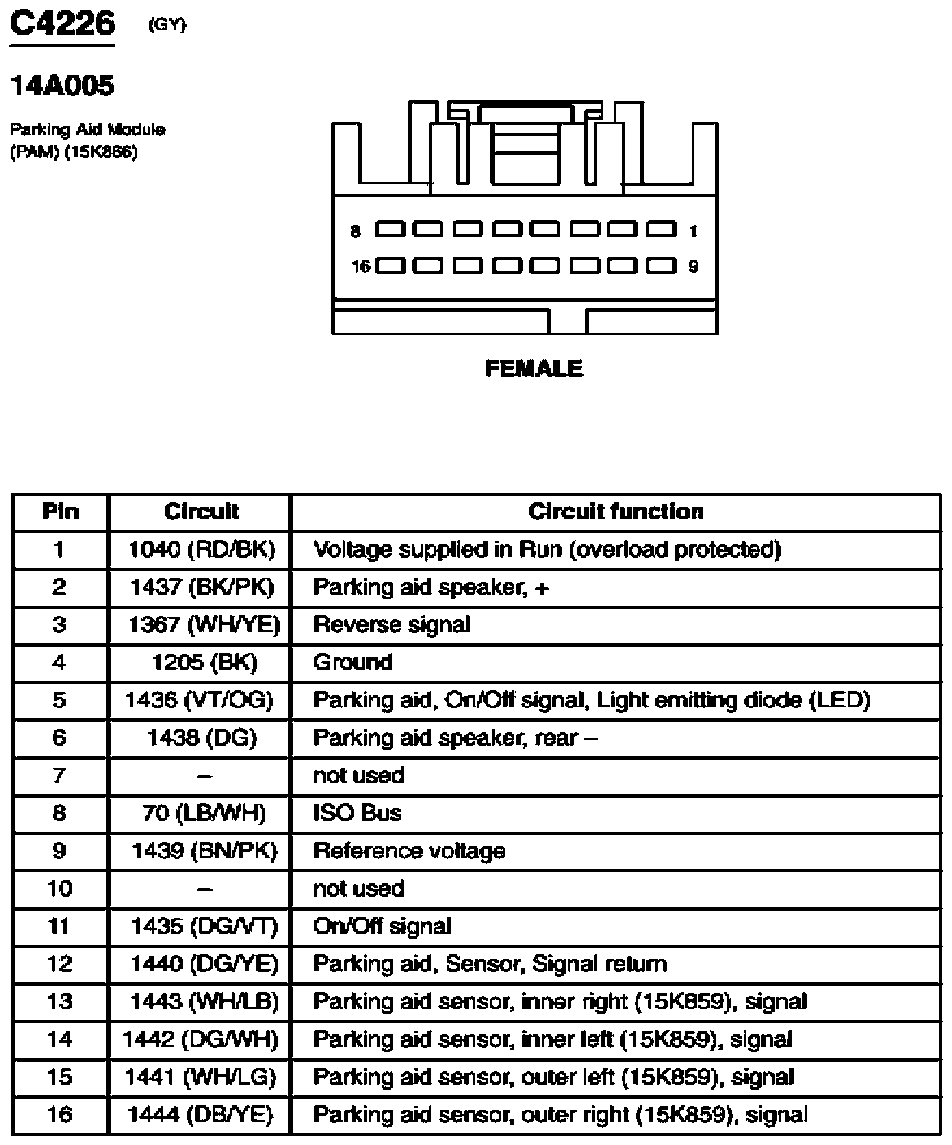

Fig 352: Parking Aid Module (PAM) Connector End View (C4226)
Courtesy of FORD MOTOR CO.

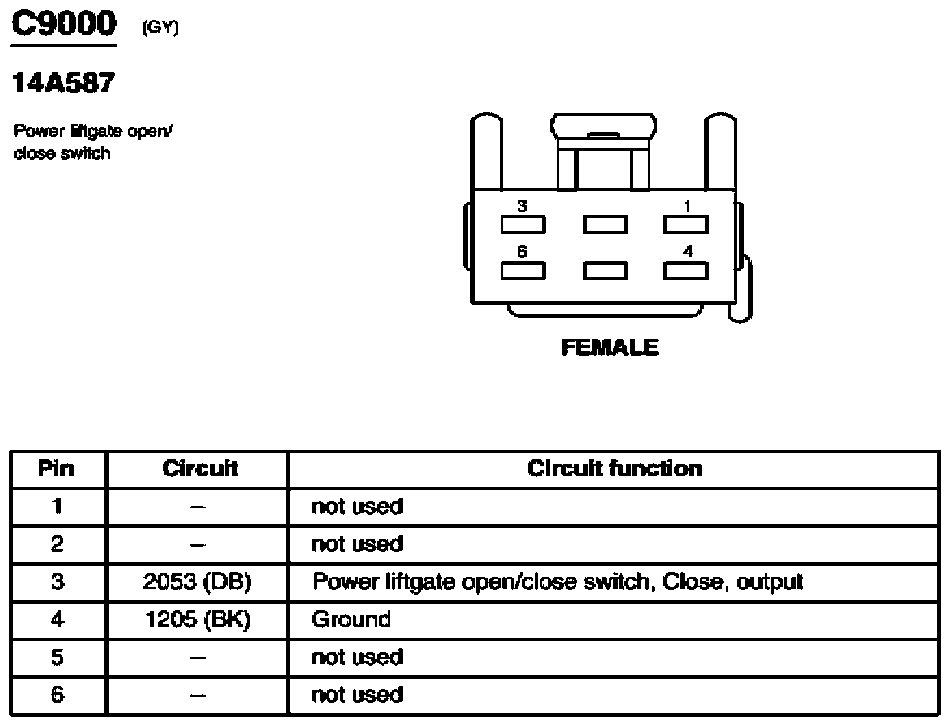

Fig 353: Power Liftgate Open/Close Switch Connector End View (C9000)
Courtesy of FORD MOTOR CO.

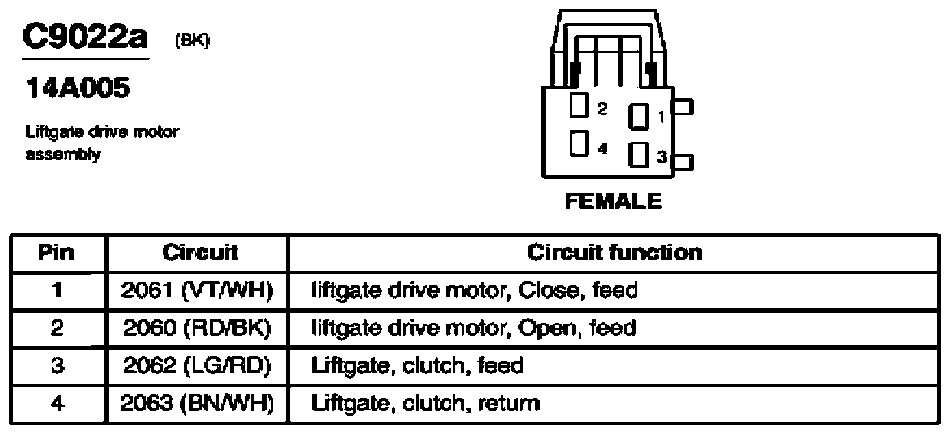

Fig 354: Liftgate Drive Motor Assembly Connector End View (C9022a)
Courtesy of FORD MOTOR CO.

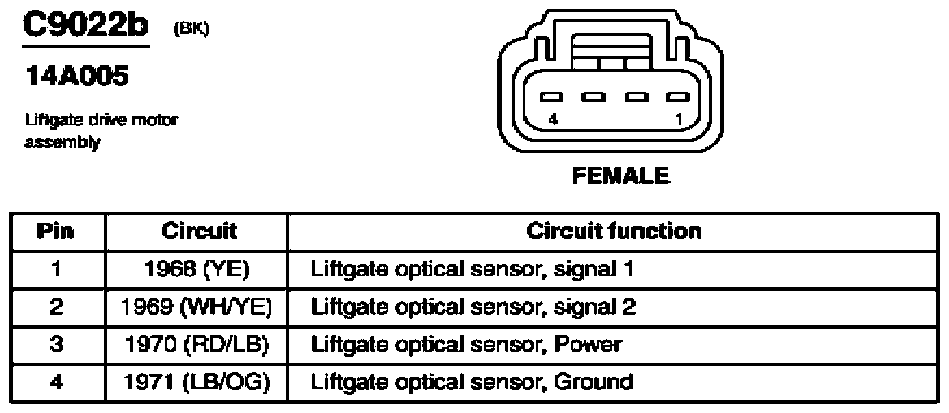

Fig 355: Liftgate Drive Motor Assembly Connector End View (C9022b)
Courtesy of FORD MOTOR CO.

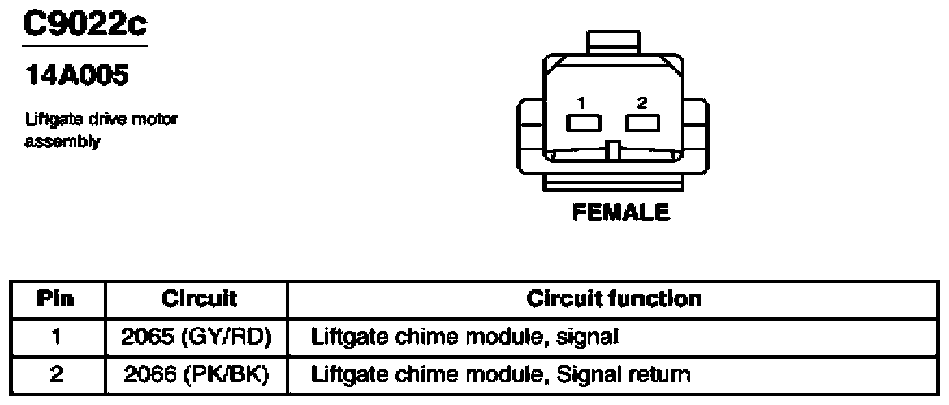

Fig 356: Liftgate Drive Motor Assembly Connector End View (C9022c)
Courtesy of FORD MOTOR CO.

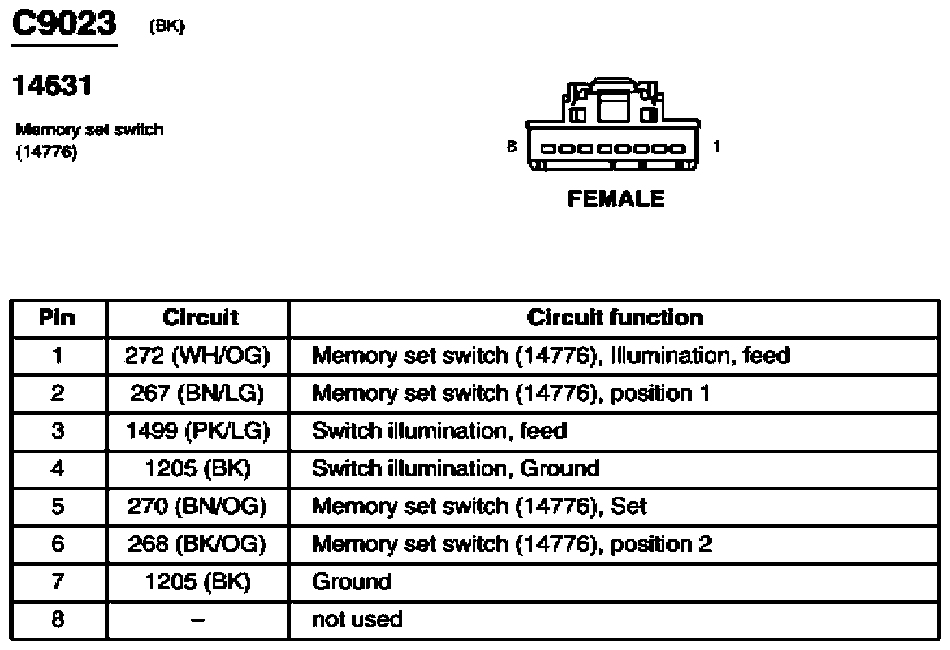

Fig 357: Memory Set Switch Connector End View (C9023)
Courtesy of FORD MOTOR CO.

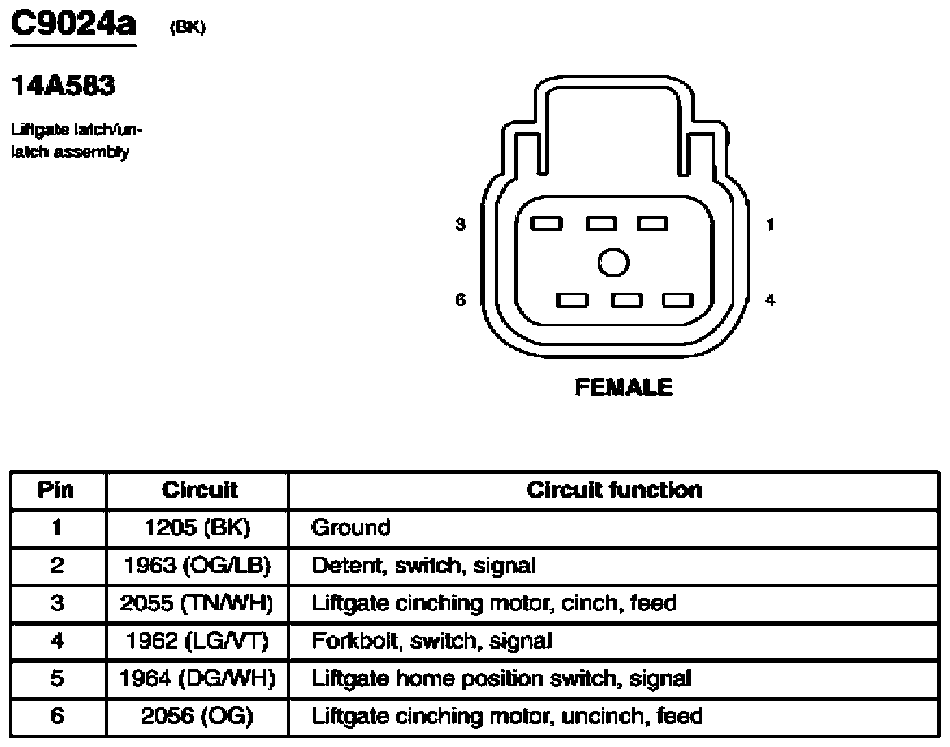

Fig 358: Liftgate Latch/Unlatch Assembly Connector End View (C9024a)
Courtesy of FORD MOTOR CO.

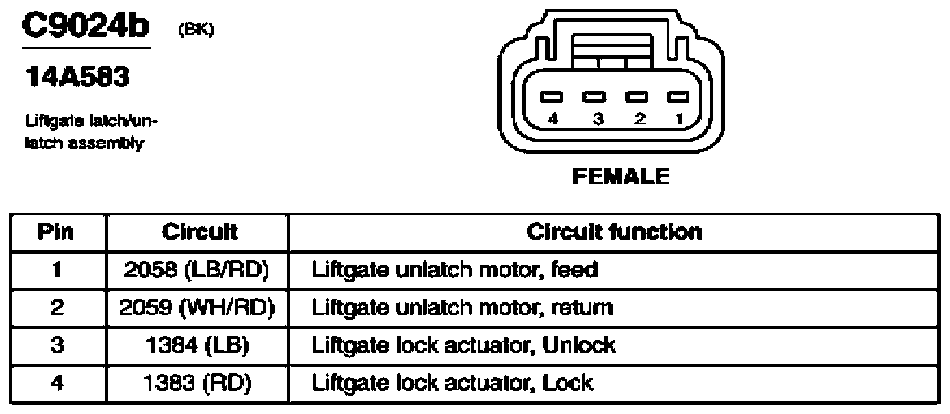

Fig 359: Liftgate Latch/Unlatch Assembly Connector End View (C9024b)
Courtesy of FORD MOTOR CO.

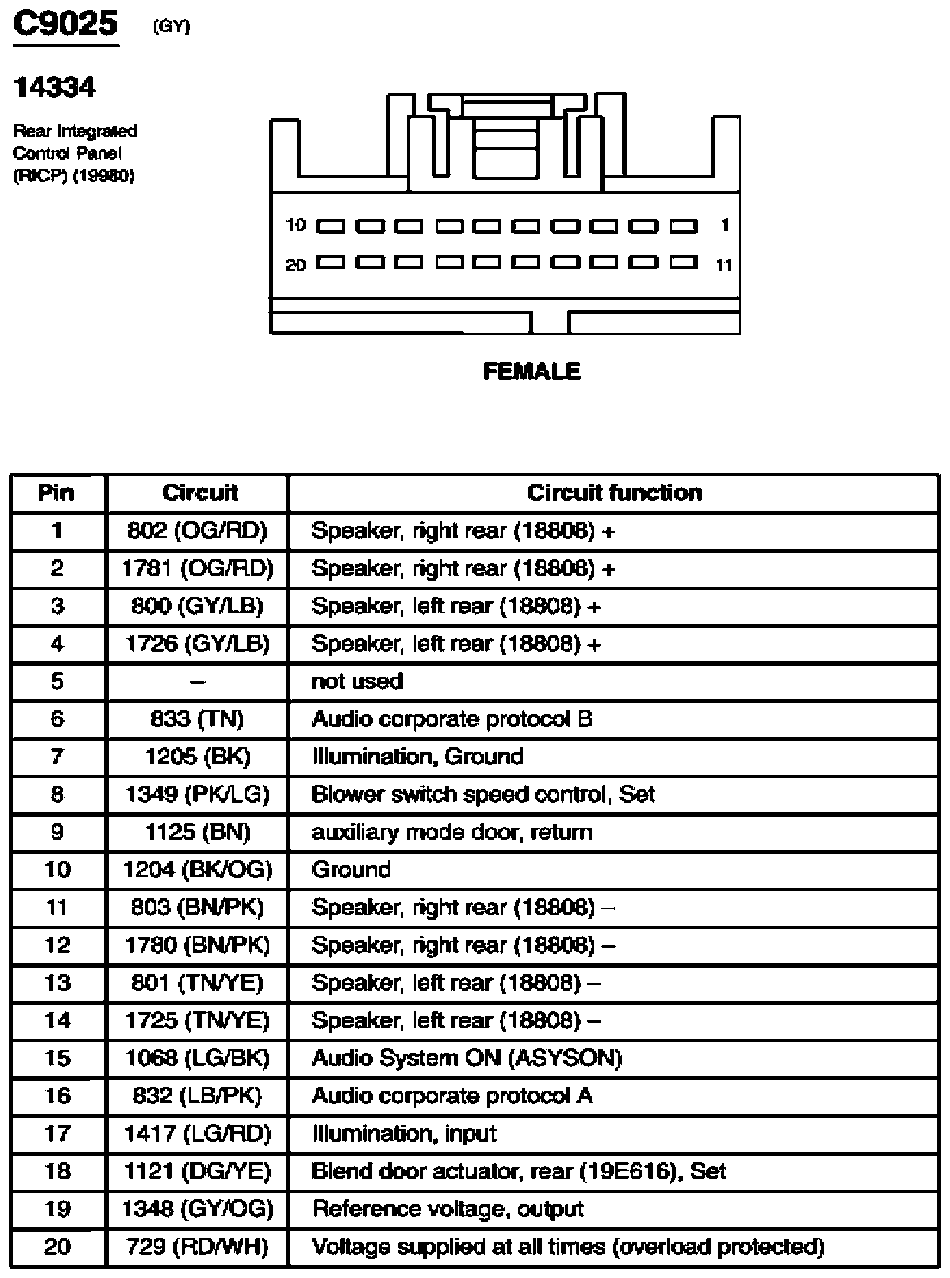

Fig 360: Rear Integrated Control Panel (RICP) Connector End View (C9025)
Courtesy of FORD MOTOR CO.

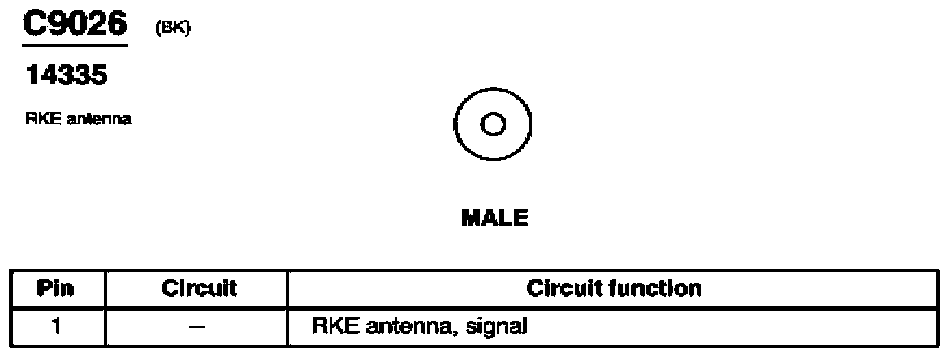

Fig 361: RKE Antenna Connector End View (C9026)
Courtesy of FORD MOTOR CO.
