Removal And Installation: Generator: Notes
NOTE:
The 3.9L engine is shown, the 4.2L engine is similar.
- Disconnect the battery. For additional information refer to BATTERY DISCONNECT .
- Release the accessory drive belt tension and position the belt aside.

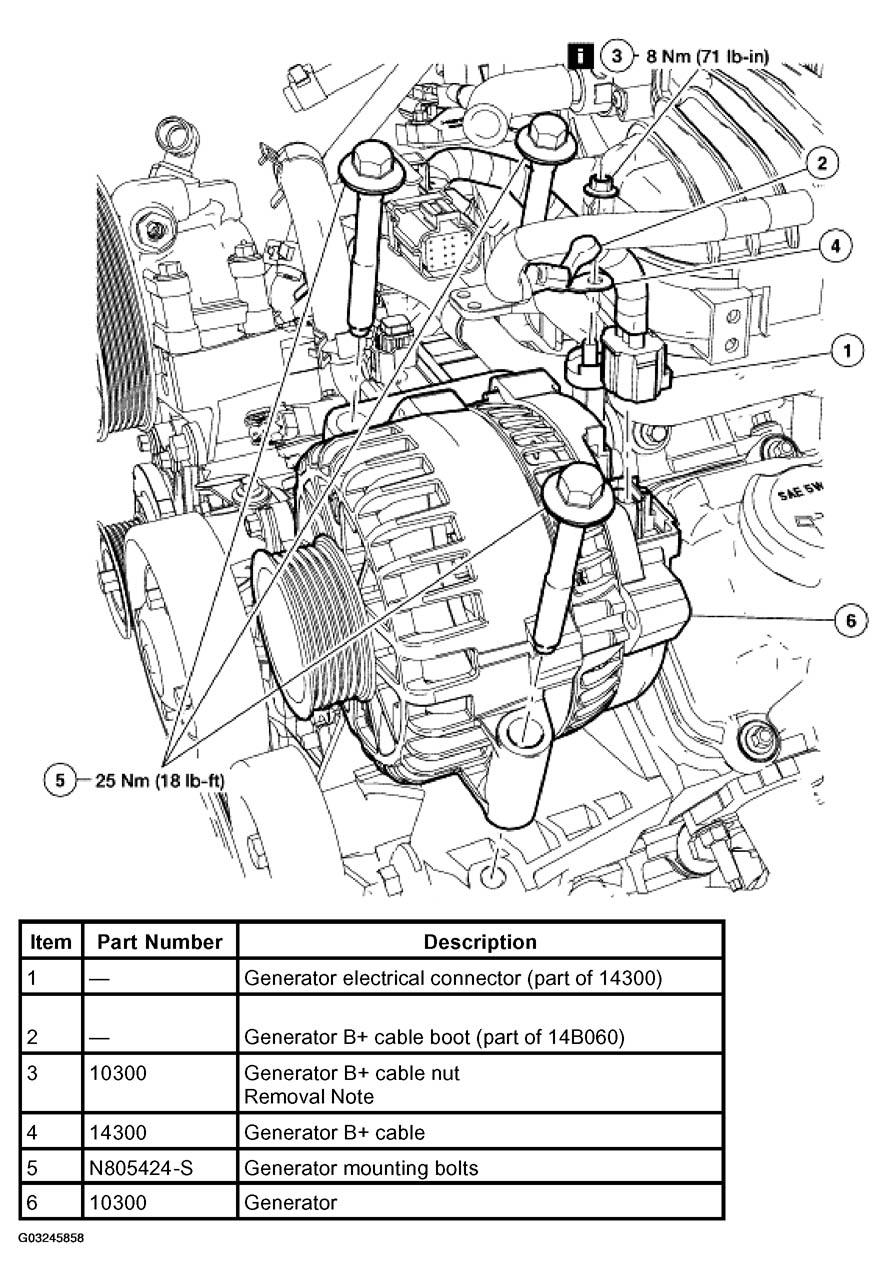

- Remove the parts in the order indicated in the following illustration.
- To install, reverse the removal procedure.
