Valve - Spring Installed Length
Measure the installed length of each valve spring.
Refer to
ENGINE - 3.9L & 4.2L
for the procedure.
If out of specification, install new components. Refer to
ENGINE - 3.9L & 4.2L
for the procedure.

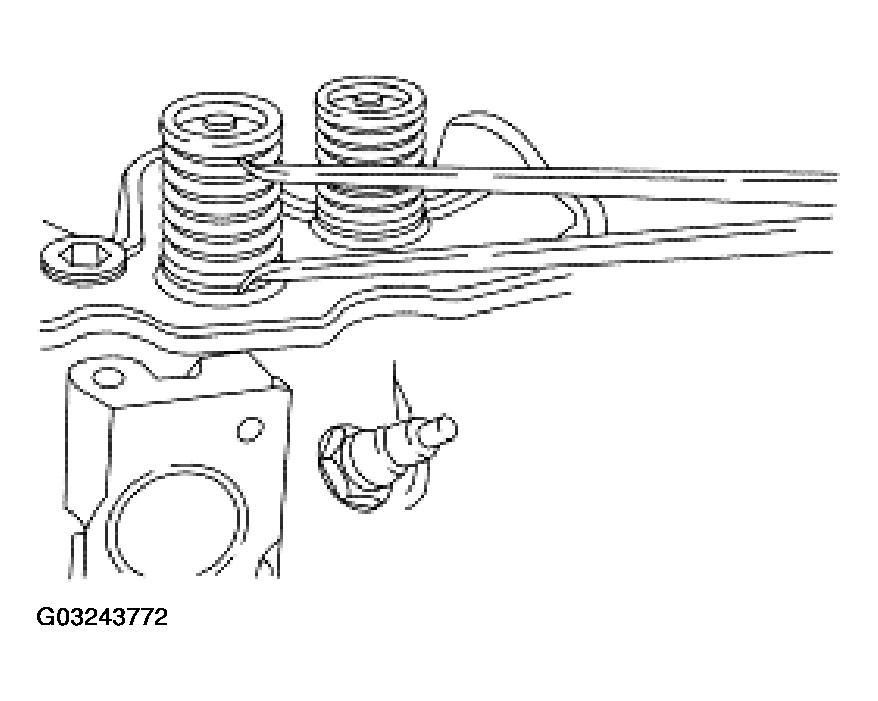

Fig 1: Measuring Installed Length Of Valve Spring
Courtesy of FORD MOTOR CO.
