Disassembled Views

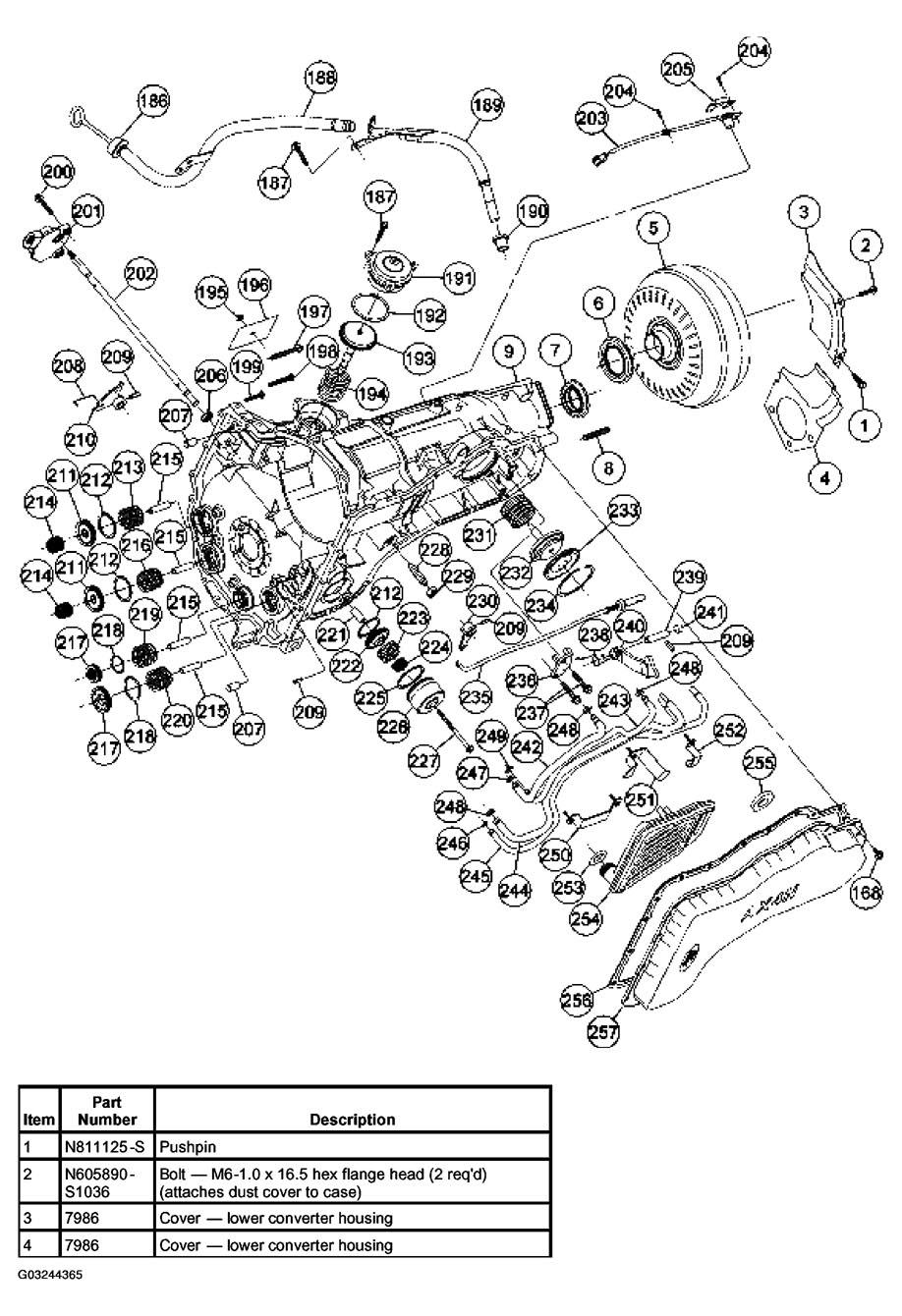

Fig 1: Disassembled View Of Automatic Transmission

Courtesy of FORD MOTOR CO.

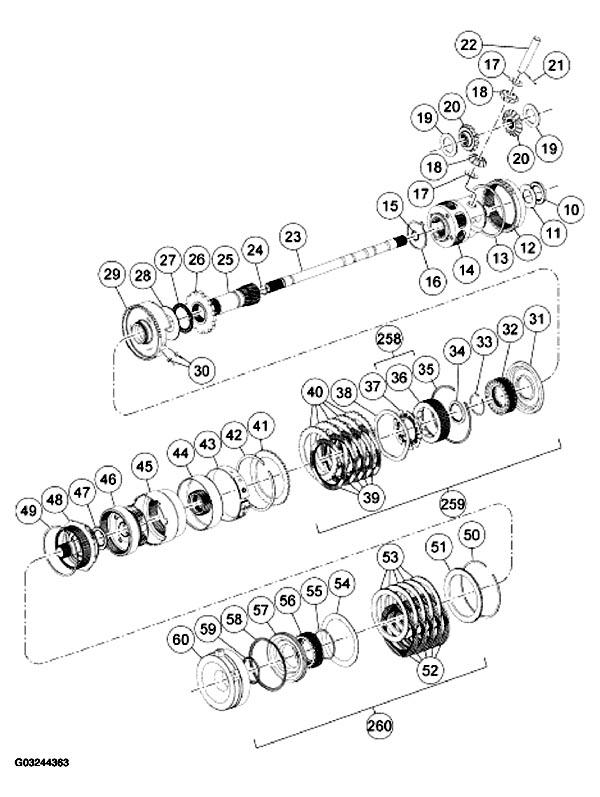

Fig 2: Disassembled View Of Automatic Transmission (Cont.)

Courtesy of FORD MOTOR CO.

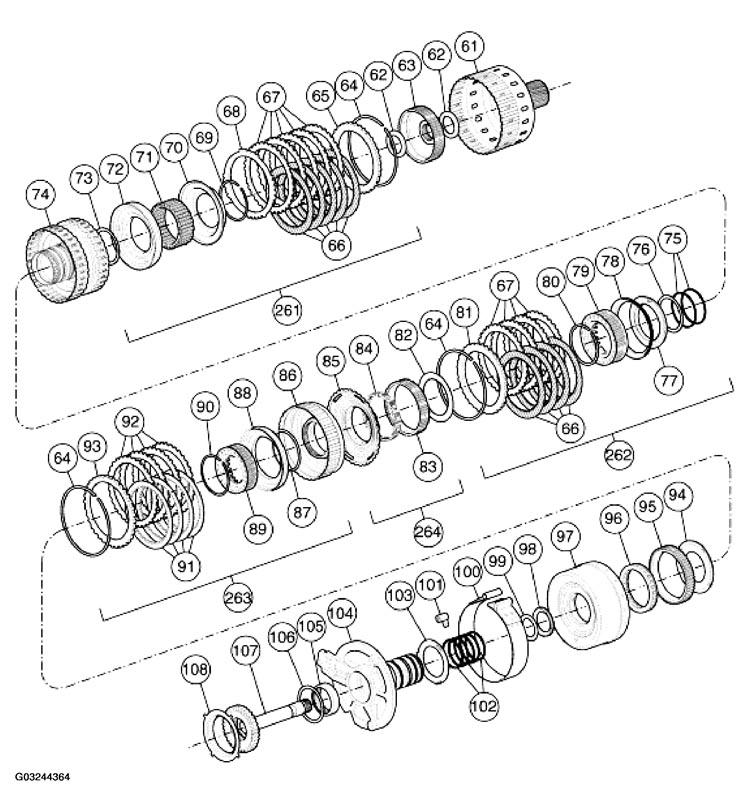

Fig 3: Disassembled View Of Automatic Transmission (Cont.)

Courtesy of FORD MOTOR CO.

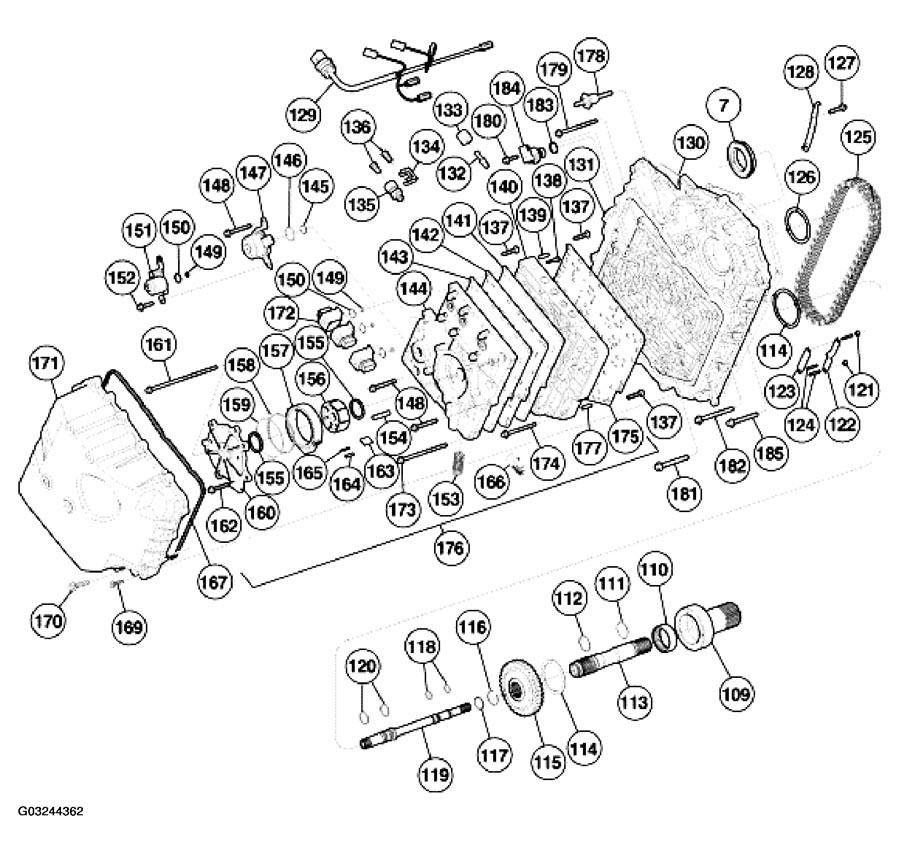

Fig 4: Disassembled View Of Automatic Transmission (Cont. & Items 1-4)

Courtesy of FORD MOTOR CO.

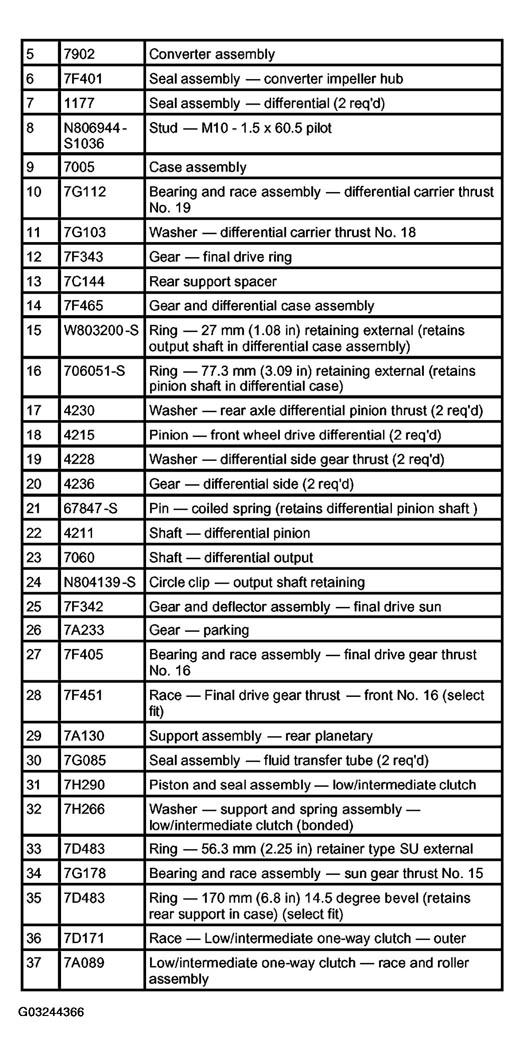

Fig 5: Disassembled View Of Automatic Transmission (Items 5-37)

Courtesy of FORD MOTOR CO.

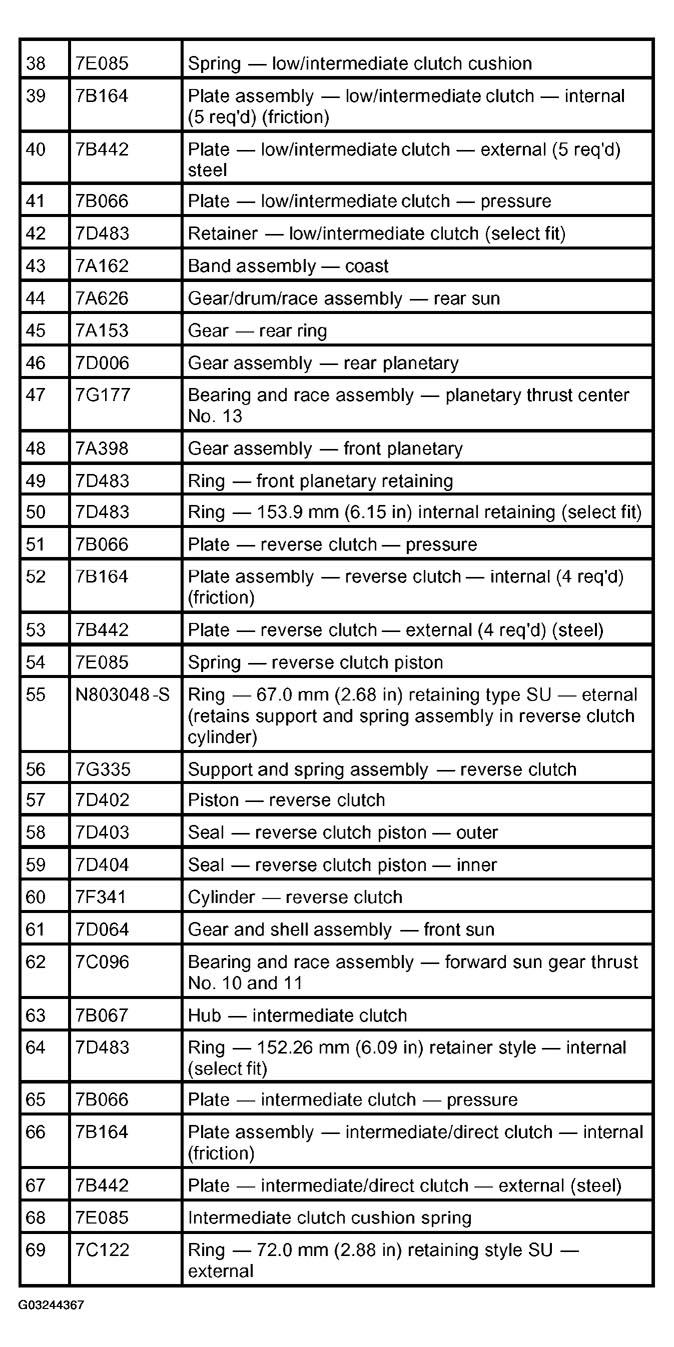

Fig 6: Disassembled View Of Automatic Transmission (Items 38-69)

Courtesy of FORD MOTOR CO.

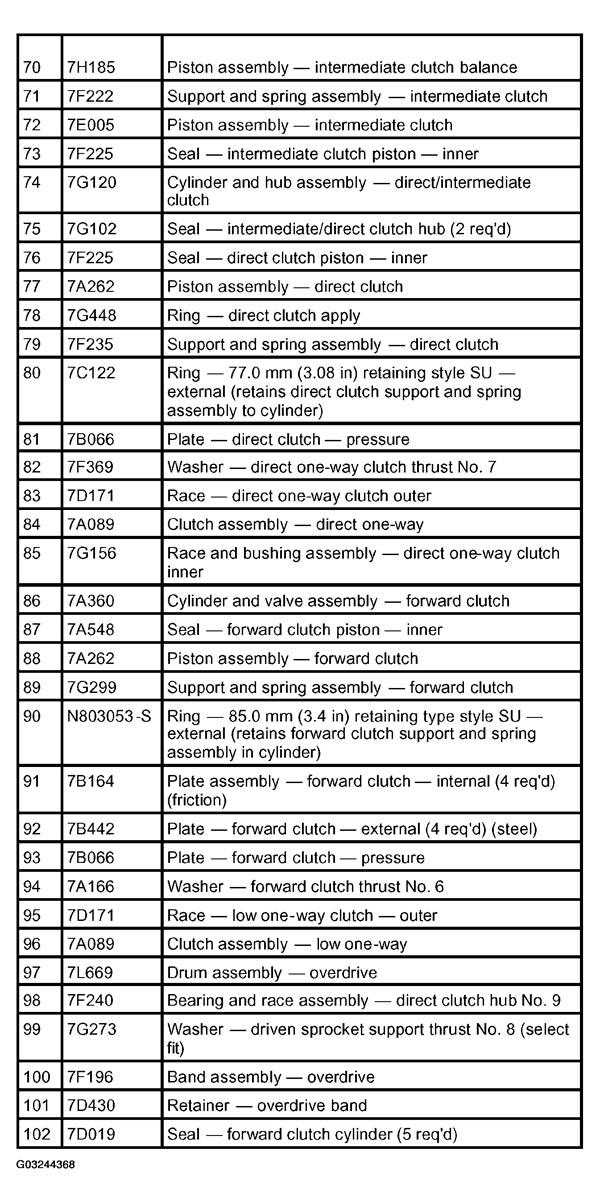

Fig 7: Disassembled View Of Automatic Transmission (Items 70-102)

Courtesy of FORD MOTOR CO.

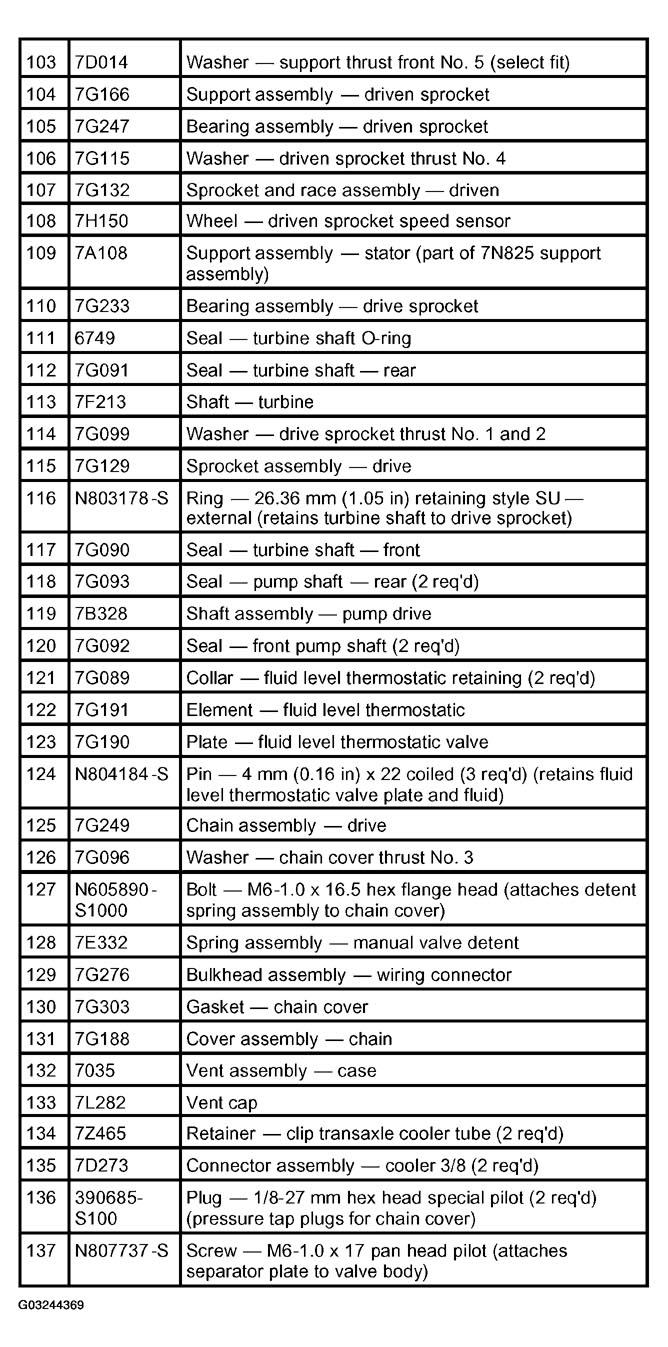

Fig 8: Disassembled View Of Automatic Transmission (Items 103-137)

Courtesy of FORD MOTOR CO.

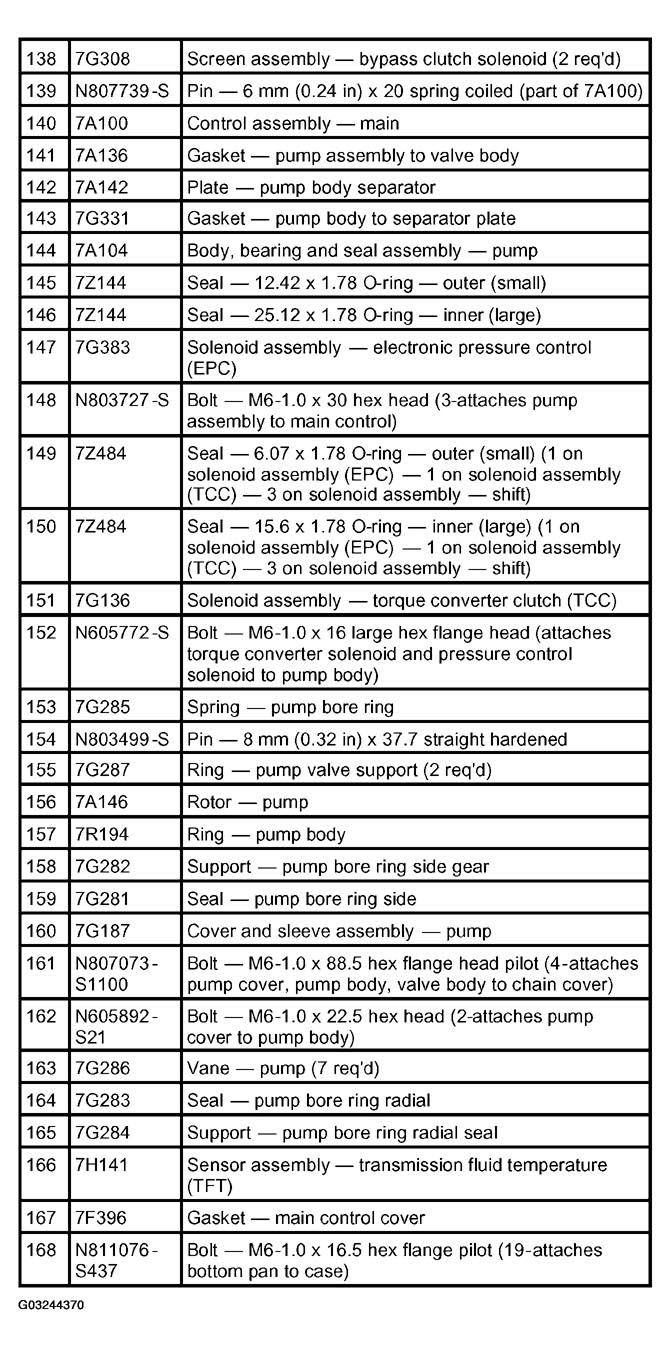

Fig 9: Disassembled View Of Automatic Transmission (Items 138-168)

Courtesy of FORD MOTOR CO.

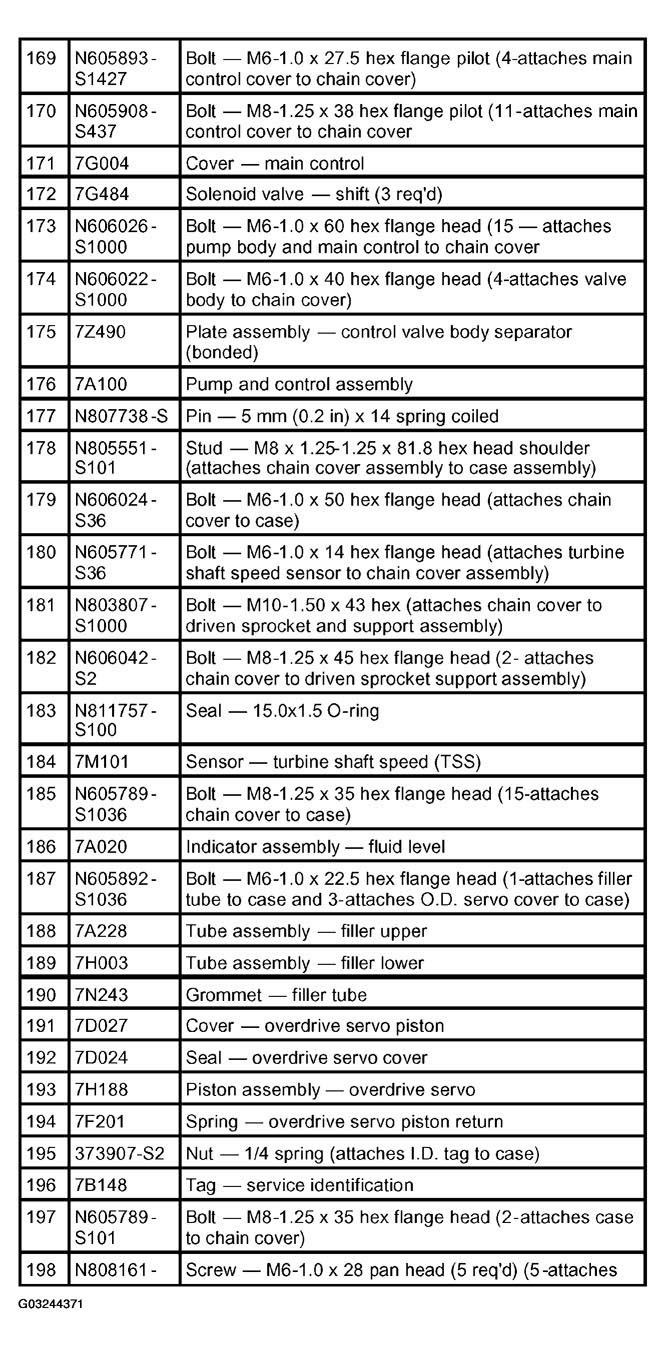

Fig 10: Disassembled View Of Automatic Transmission (Items 169-198)

Courtesy of FORD MOTOR CO.

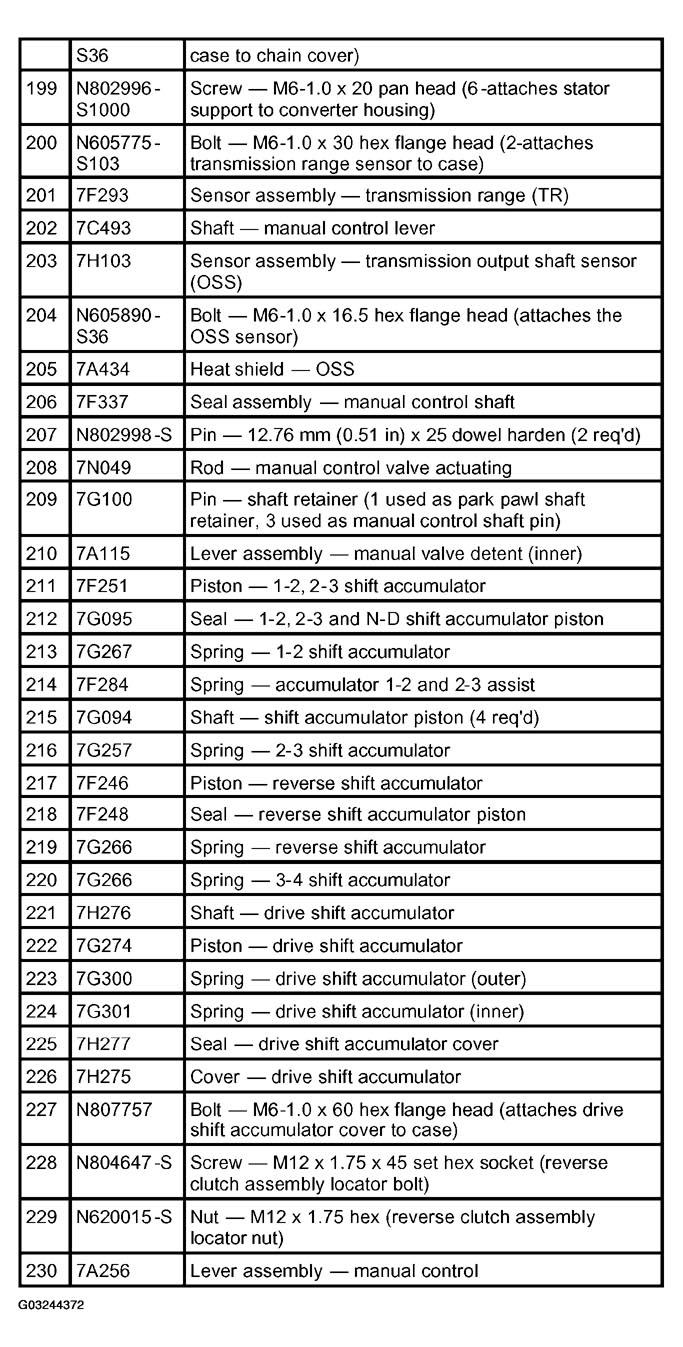

Fig 11: Disassembled View Of Automatic Transmission (Items 199-230)

Courtesy of FORD MOTOR CO.

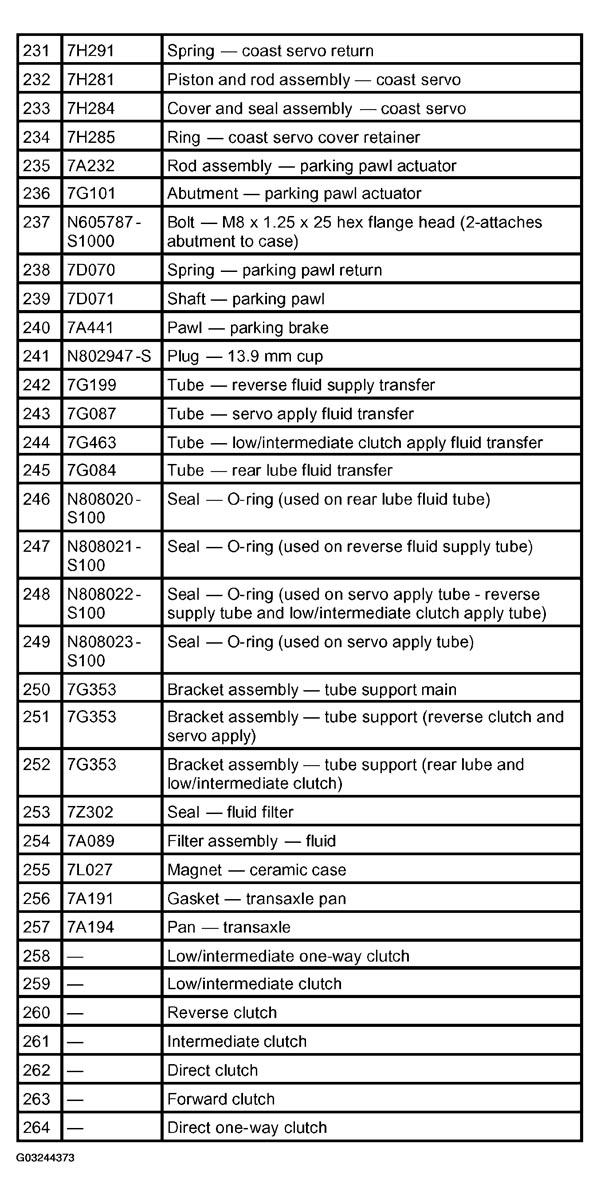

Fig 12: Disassembled View Of Automatic Transmission (Items 231-264)

Courtesy of FORD MOTOR CO.
