Main Control Components

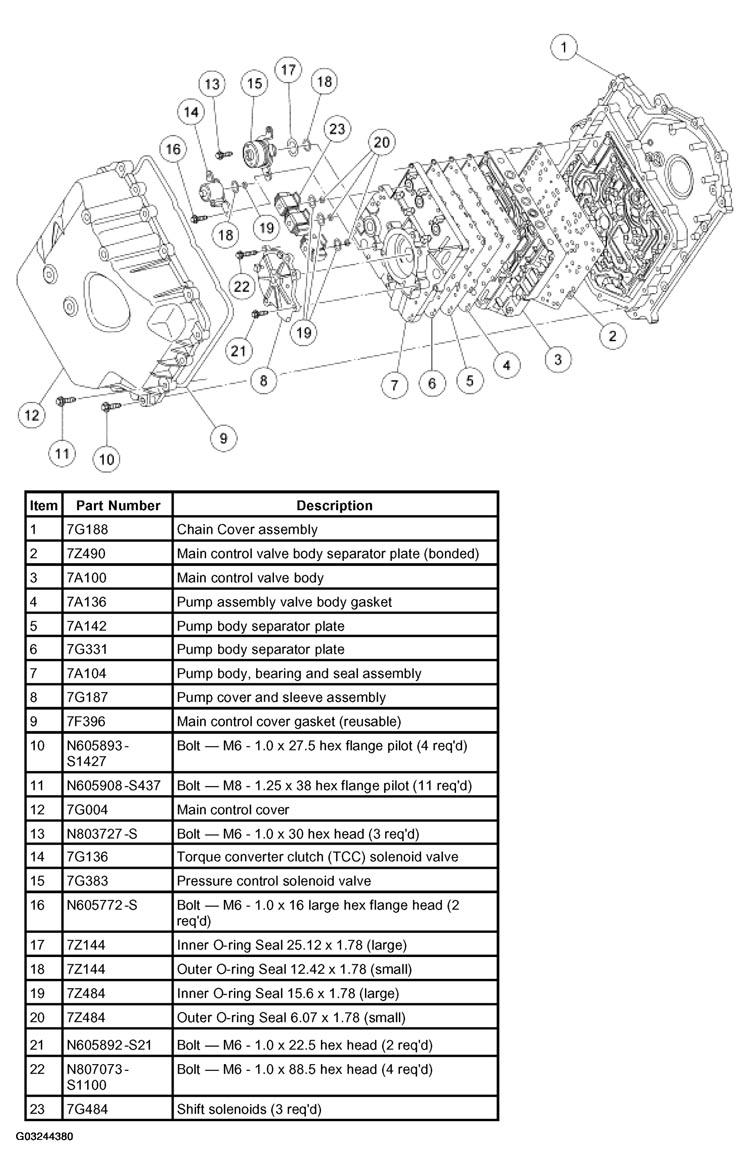

Fig 1: Identifying Main Control Components
G03244380Courtesy of FORD MOTOR CO.
