Neutral Drive Accumulator
Neutral Drive Accumulator

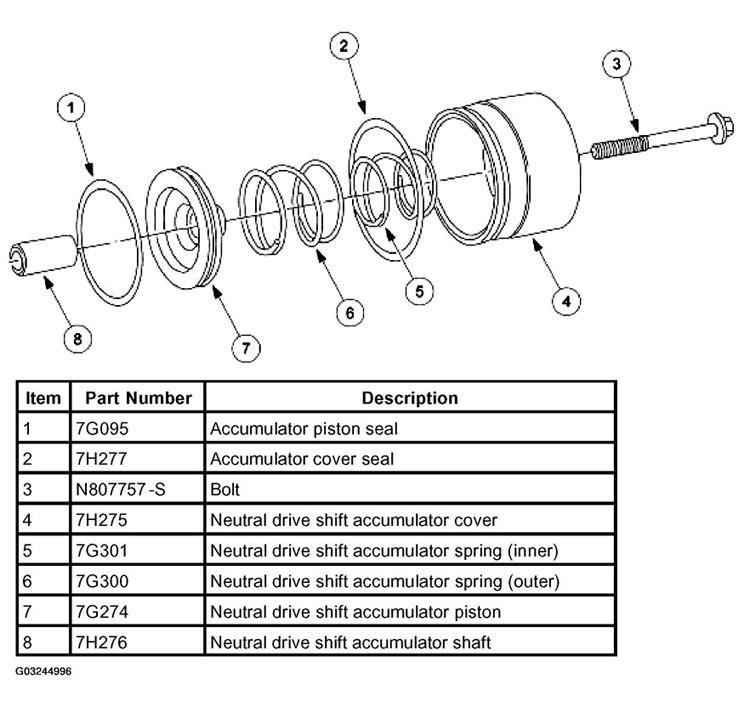

Fig 1: Identifying Neutral Drive Accumulator Components
Courtesy of FORD MOTOR CO.
Lightly coat the seals with petroleum jelly prior to installation.
Remove and install a new neutral drive accumulator piston seal.
Remove and install a new neutral drive accumulator cover seal.

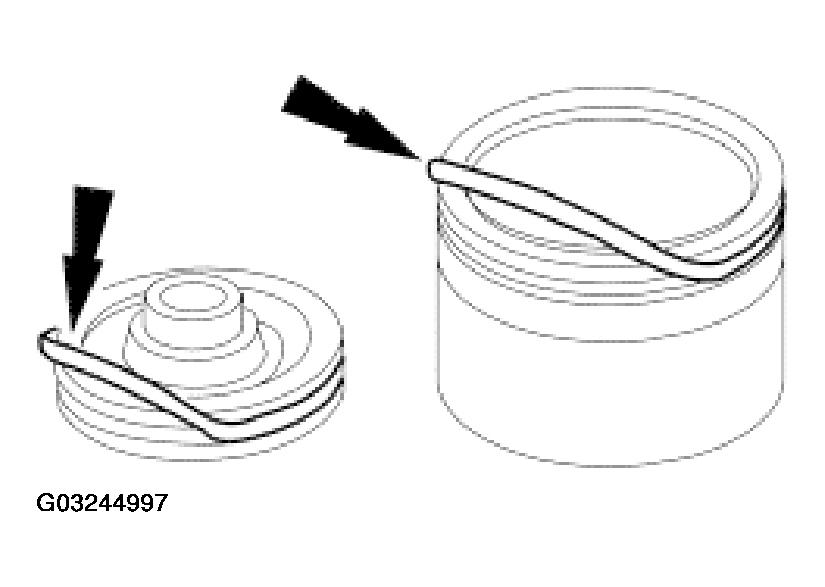

Fig 2: Identifying Neutral Drive Accumulator Cover Seal And Piston Seal
Courtesy of FORD MOTOR CO.
