Transmission Selector Cable: Notes

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the parts in the order indicated in the following illustration.

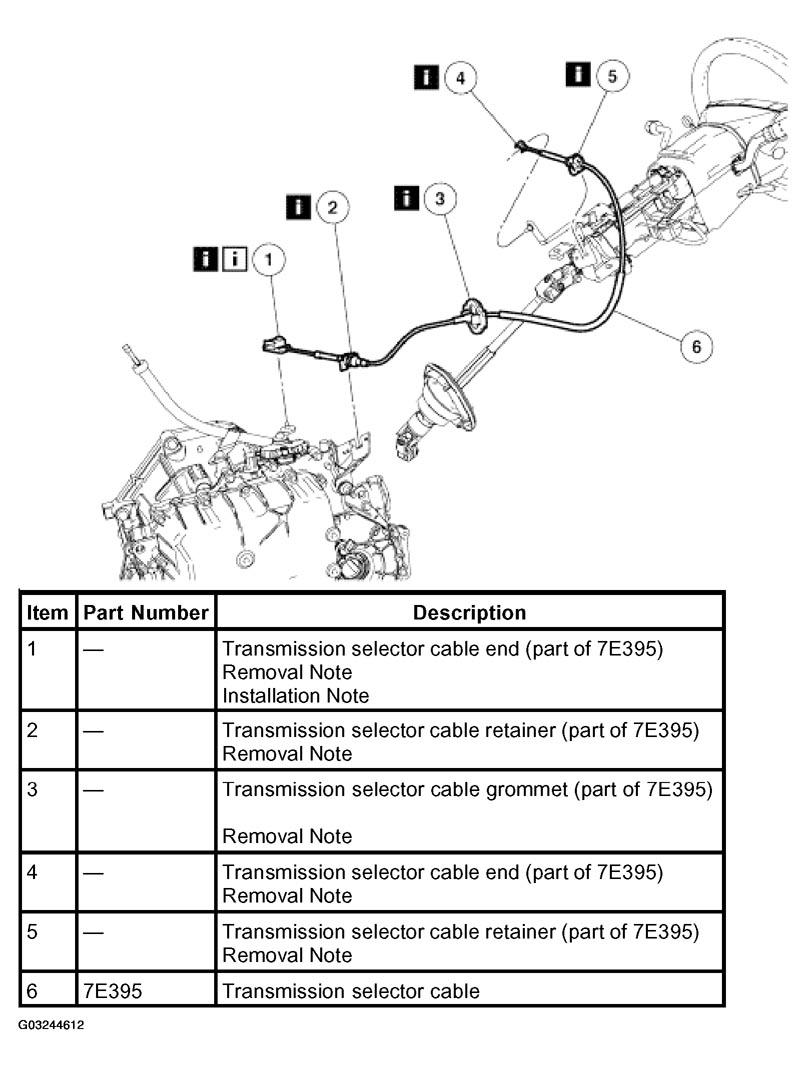

    Fig 1: Transmission Selector Cable Removal Sequence
    G03244612Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
