Main Control Components

Fig 1: Identifying Thermostatic Fluid Control Valve (Items 1-18)
G01361327Courtesy of FORD MOTOR CO.

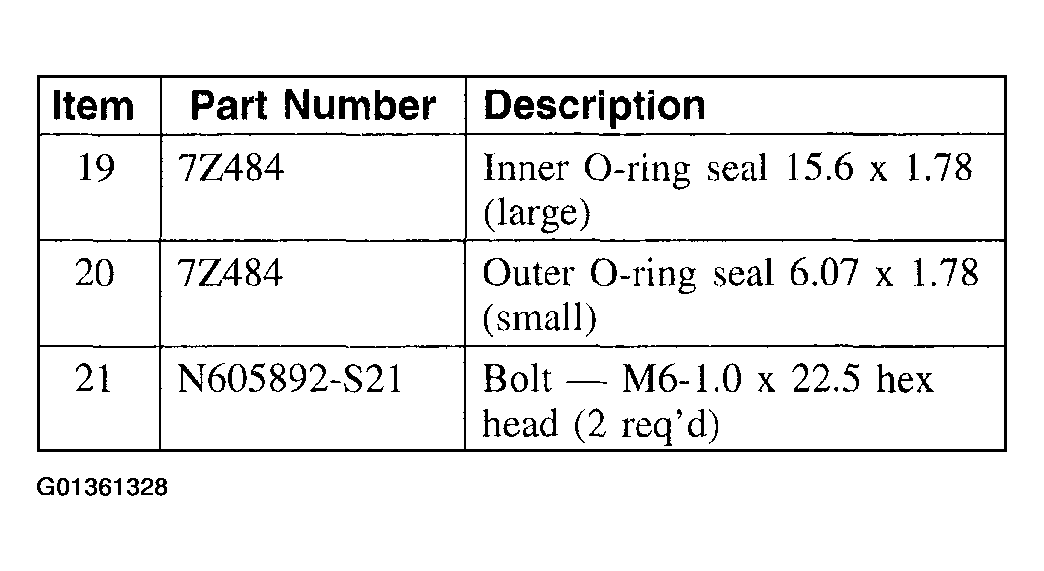

Fig 2: Identifying Thermostatic Fluid Control Valve (Items 19-21)
G01361328Courtesy of FORD MOTOR CO.

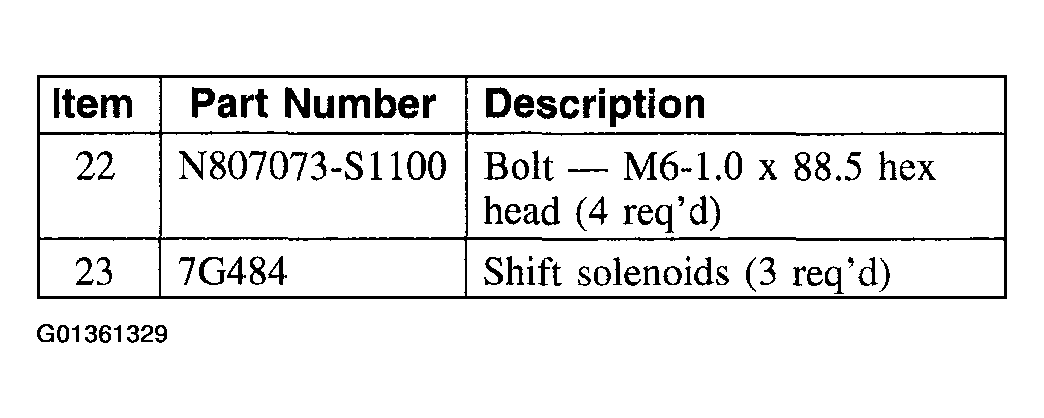

Fig 3: Identifying Thermostatic Fluid Control Valve (Items 22-23)
G01361329Courtesy of FORD MOTOR CO.
