Final Drive: Notes

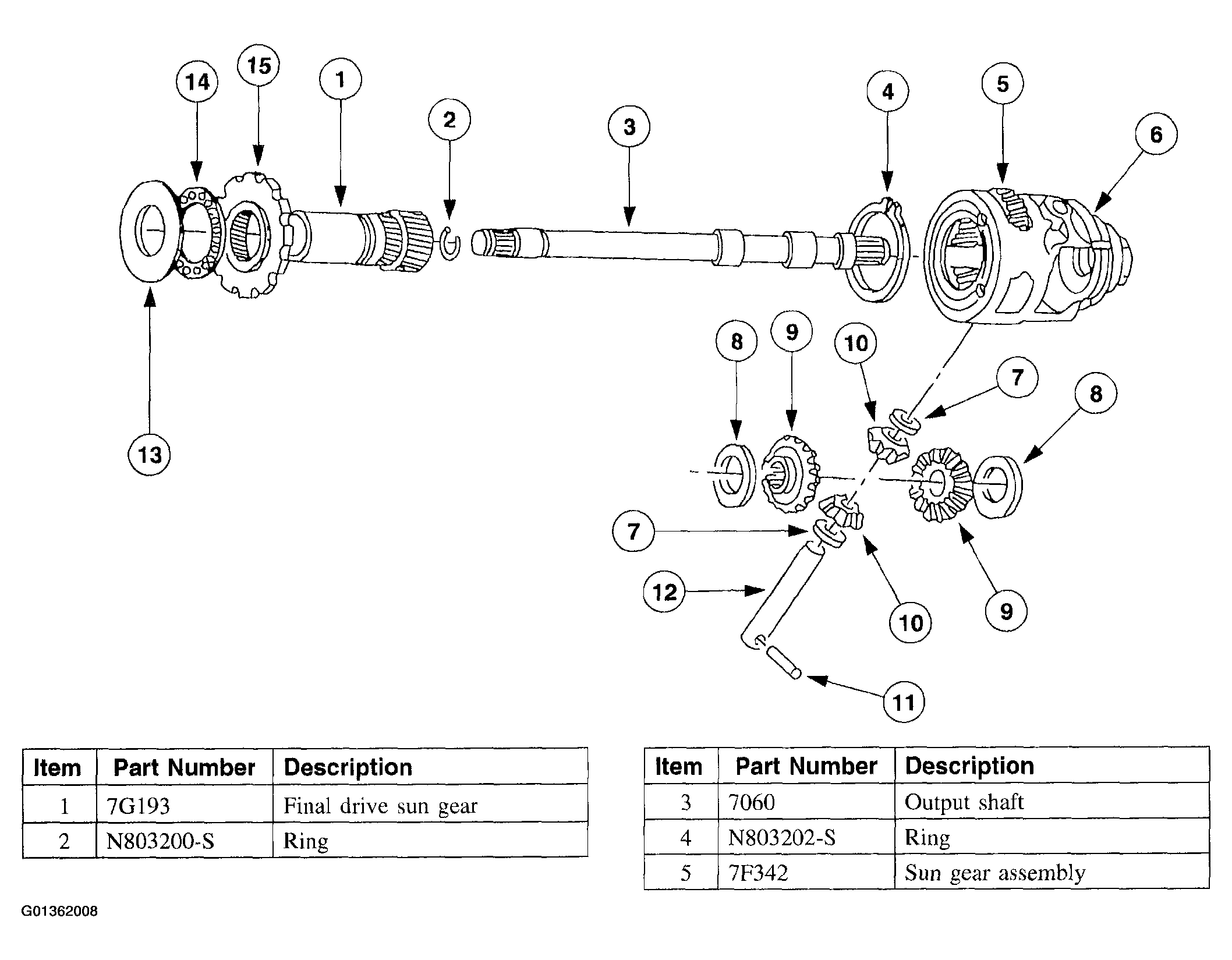

Fig 1: Identifying Final Drive Components (Items 1-5)
G01362008Courtesy of FORD MOTOR CO.

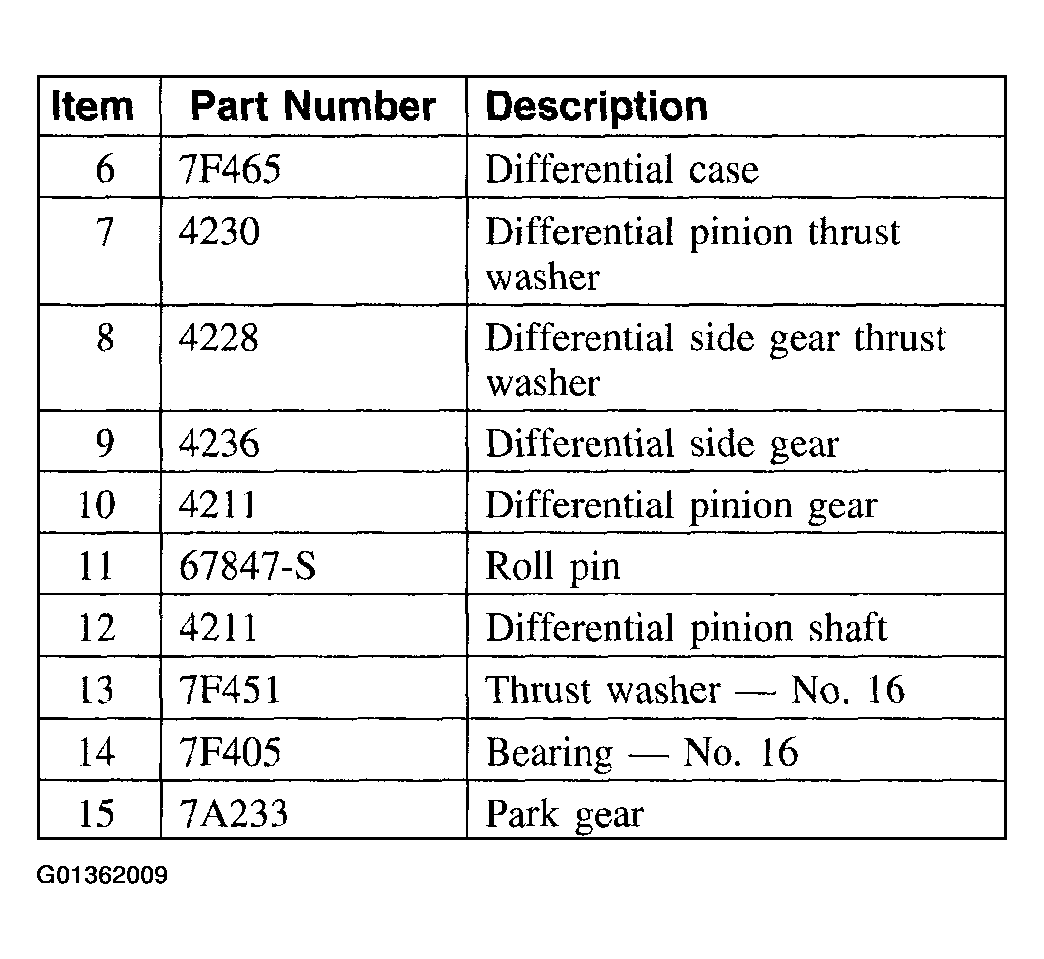

Fig 2: Parts Description Chart (Items 6-15)
G01362009Courtesy of FORD MOTOR CO.
