Engine Mechanical: Mechanical: Engine: Installation: Engine

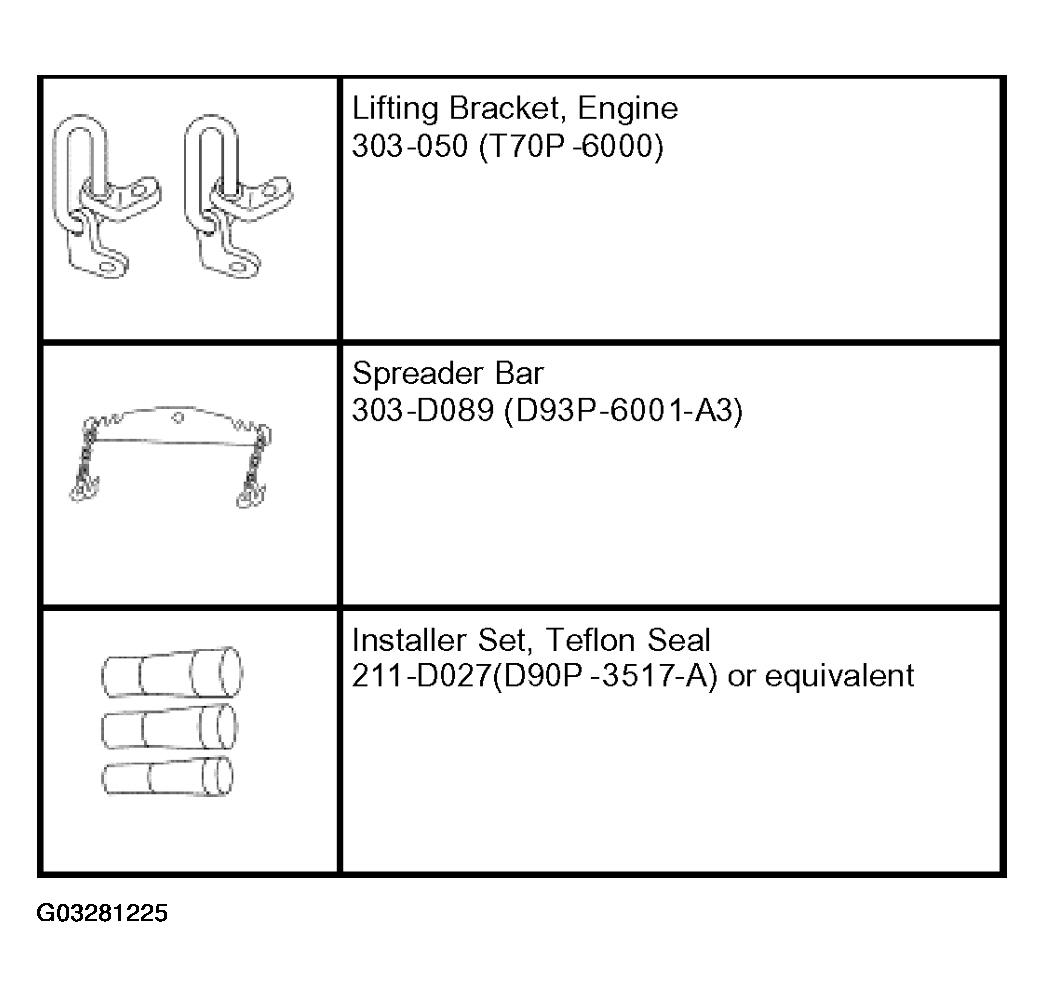

Item	Specification
Super Premium SAE 5W-20 XO-5W20-QSP or equivalent	WSS-M2C153-H

1. Install the parts in the order indicated in the following illustrations and tables.

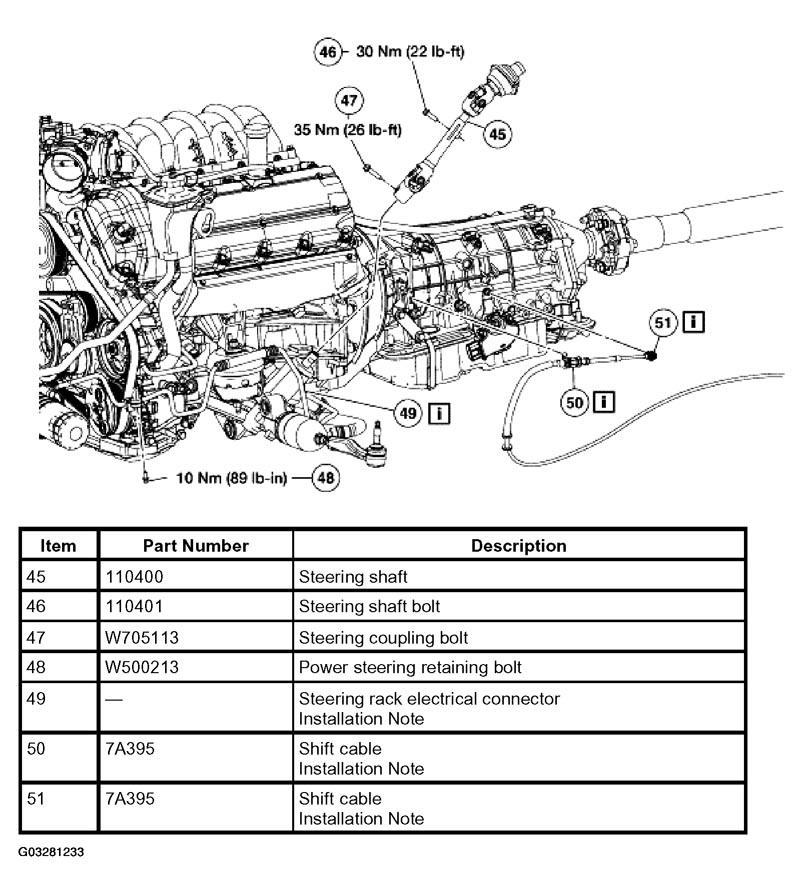

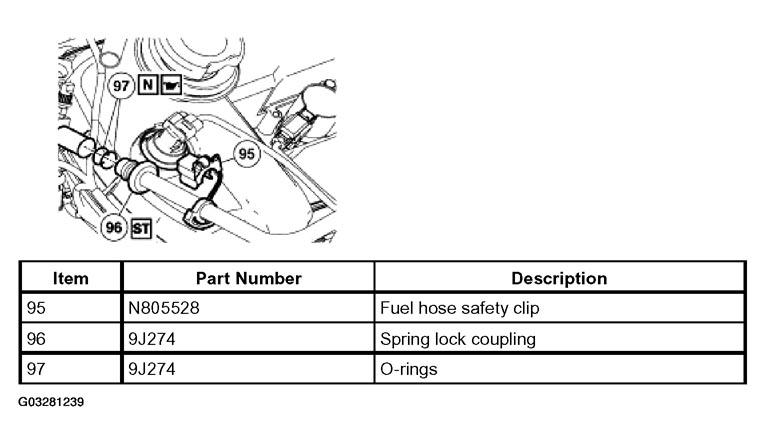

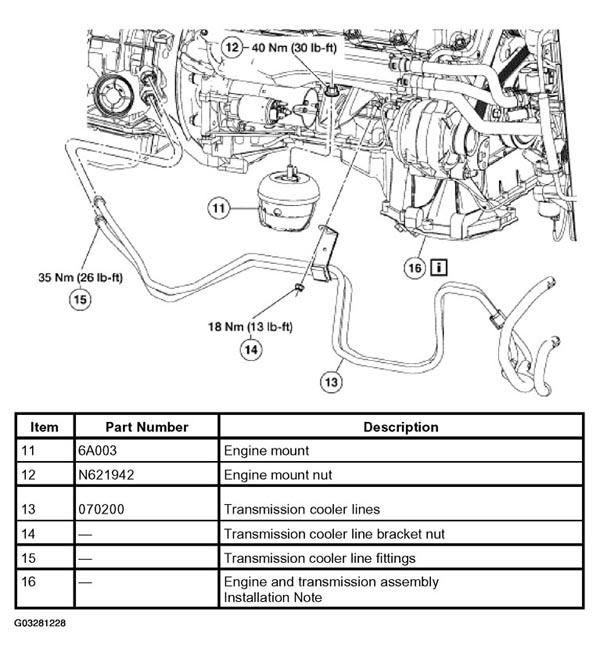

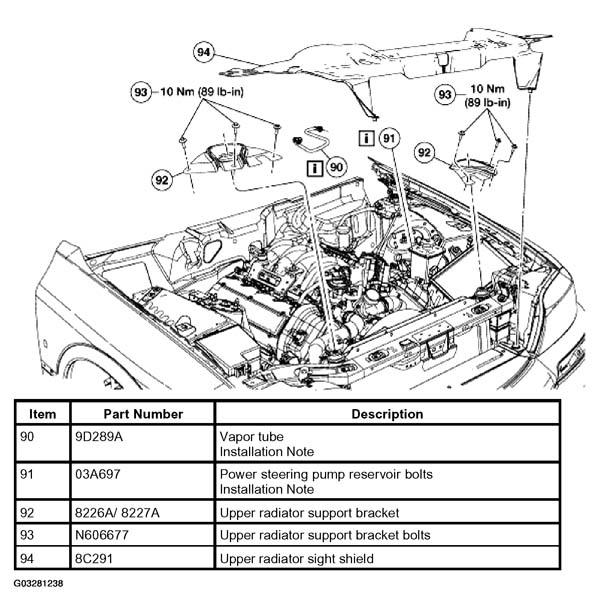

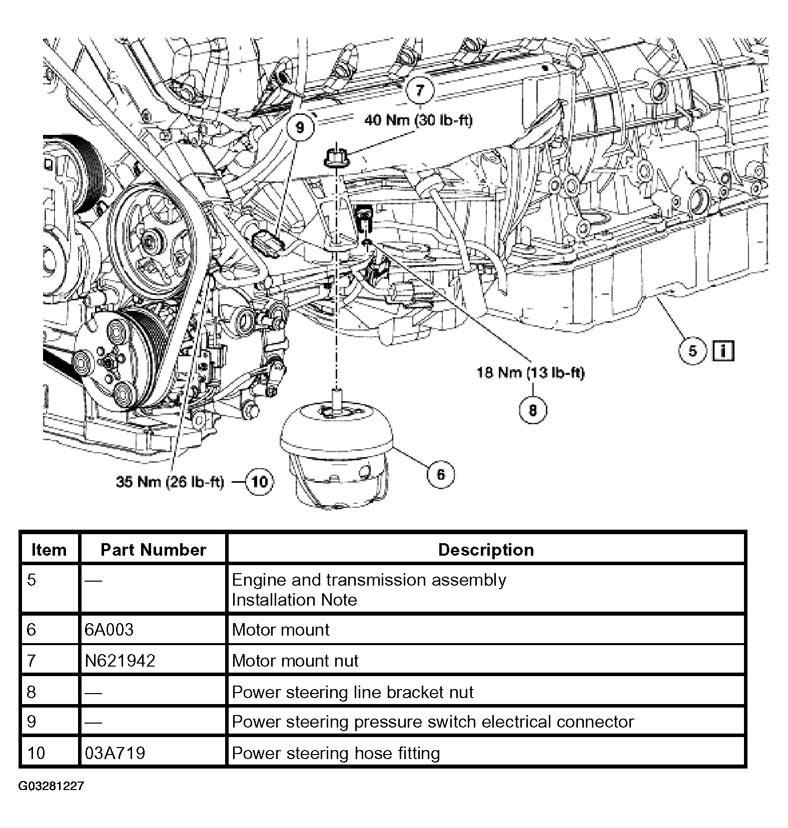

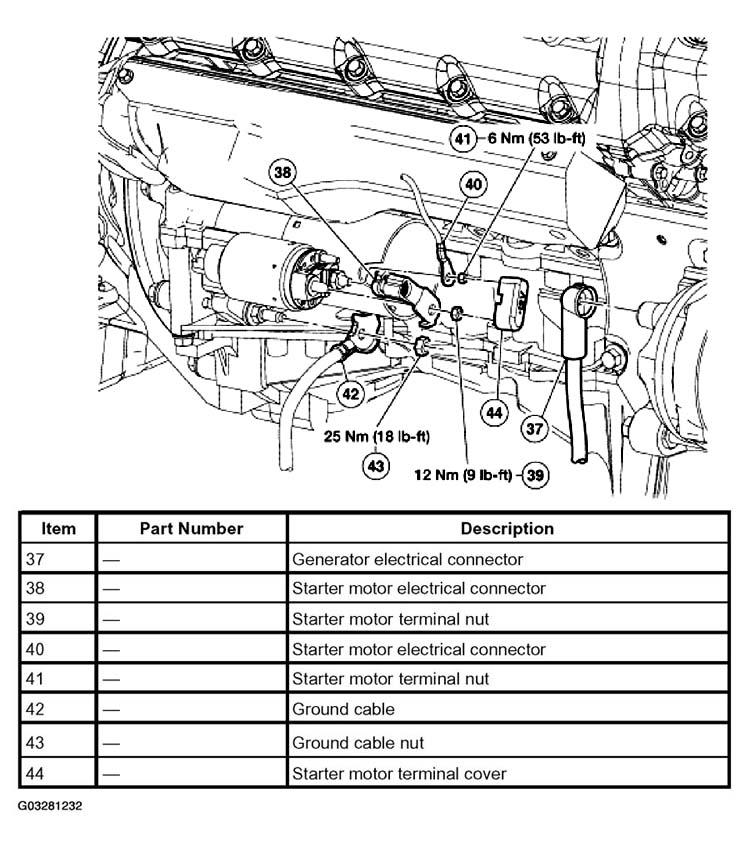

   Fig 2: Installing Components (1 Of 14)

   Courtesy of FORD MOTOR CO.
   Fig 3: Installing Components (2 Of 14)

   Courtesy of FORD MOTOR CO.
   Fig 4: Installing Components (3Of 14)

   Courtesy of FORD MOTOR CO.
   Fig 5: Installing Components (4 Of 14)

   Courtesy of FORD MOTOR CO.
   Fig 6: Installing Components (5 Of 14)

   Courtesy of FORD MOTOR CO.
   Fig 7: Installing Components (6 Of 14)

   Courtesy of FORD MOTOR CO.
   Fig 8: Installing Components (7 Of 14)

   Courtesy of FORD MOTOR CO.
   Fig 9: Installing Components (8 Of 14)

   Courtesy of FORD MOTOR CO.
   Fig 10: Installing Components (9 Of 14)

   Courtesy of FORD MOTOR CO.
   Fig 11: Installing Components (10 Of 14)

   Courtesy of FORD MOTOR CO.
   Fig 12: Installing Components (11 Of 14)

   Courtesy of FORD MOTOR CO.
   Fig 13: Installing Components (12 Of 14)

   Courtesy of FORD MOTOR CO.

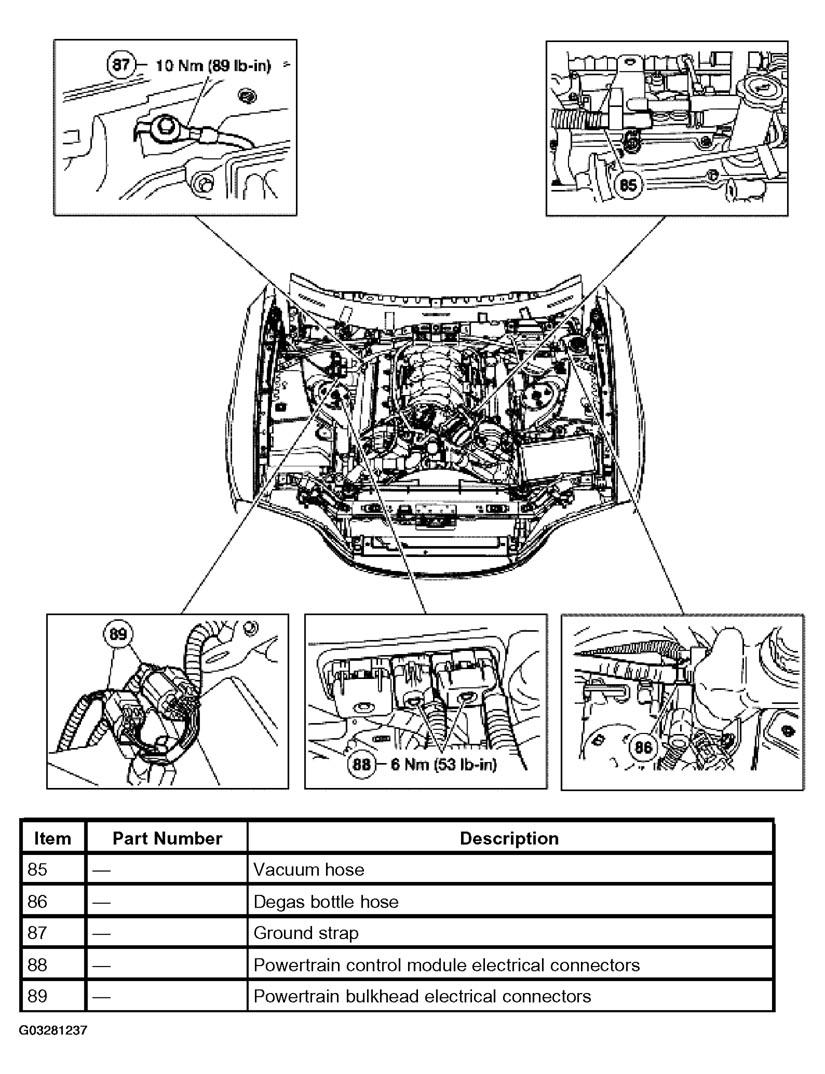

   Fig 14: Installing Components (13 Of 14)

   Courtesy of FORD MOTOR CO.
   Fig 15: Installing Components (14 Of 14)

   Courtesy of FORD MOTOR CO.
2. Install the driveshaft. For additional information, refer to DRIVELINE SYSTEM .
3. Install the three-way catalytic converter (TWC). For additional information, refer to EXHAUST SYSTEM .
4. Install the front wheels and tires.
5. Install the fresh air filter panel. For additional information, refer to CLIMATE CONTROL SYSTEM .
6. Install the air cleaner assembly and outlet pipe. For additional information, refer to INTAKE AIR, FUEL CHARGING, STARTING & ENGINE ELECTRONICS .
7. Connect the battery ground cable.
8. Fill the engine with clean engine oil.
CAUTION: The coolant fill procedure must be followed exactly or damage to the engine can occur.
9. Fill the engine coolant. For additional information, refer to ENGINE COOLING .
10. Fill the power steering system. For additional information, refer to STEERING SYSTEM .
11. Charge the A/C system. For additional information, refer to CLIMATE CONTROL SYSTEM .

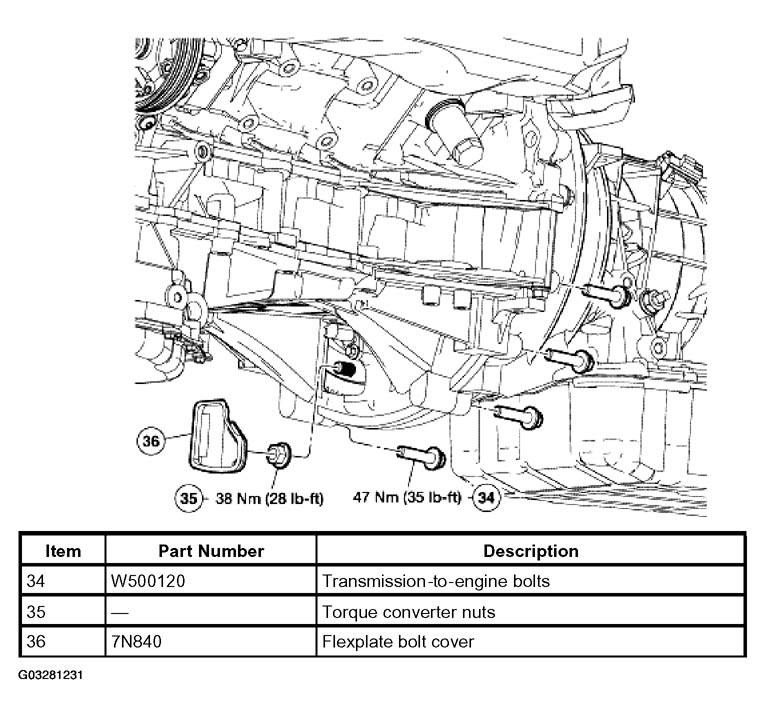

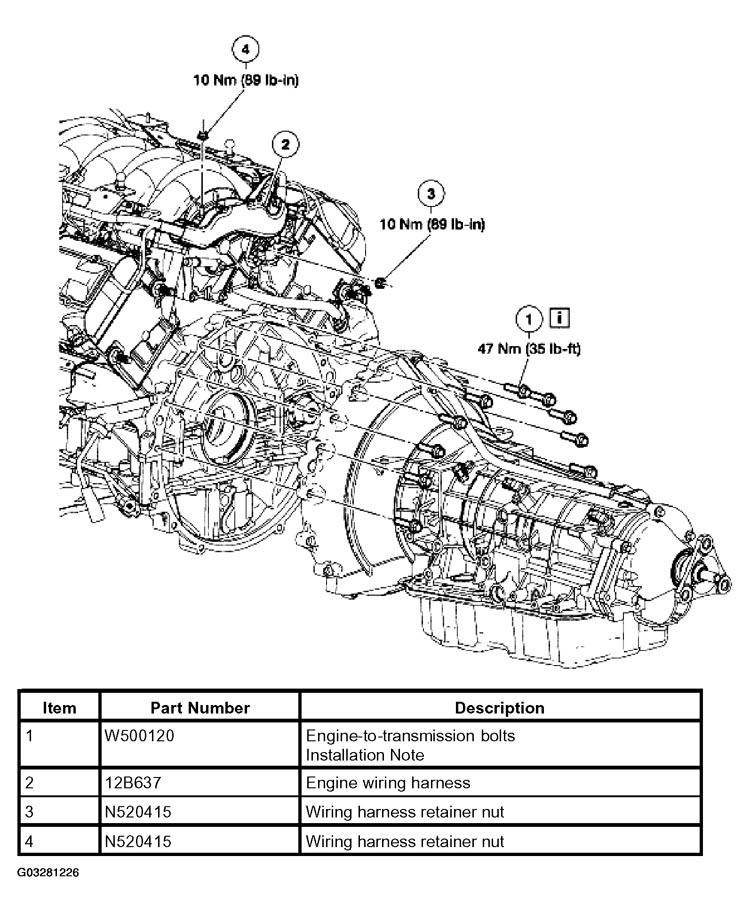

ITEM 1: ENGINE -TO-TRANSMISSION BOLTS INSTALLATION NOTE

NOTE: Align the flexplate to converter marks made during engine removal.
1. Install the engine to the transmission and install the bolts.

ITEM 5: ENGINE AND TRANSMISSION ASSEMBLY INSTALLATION NOTE

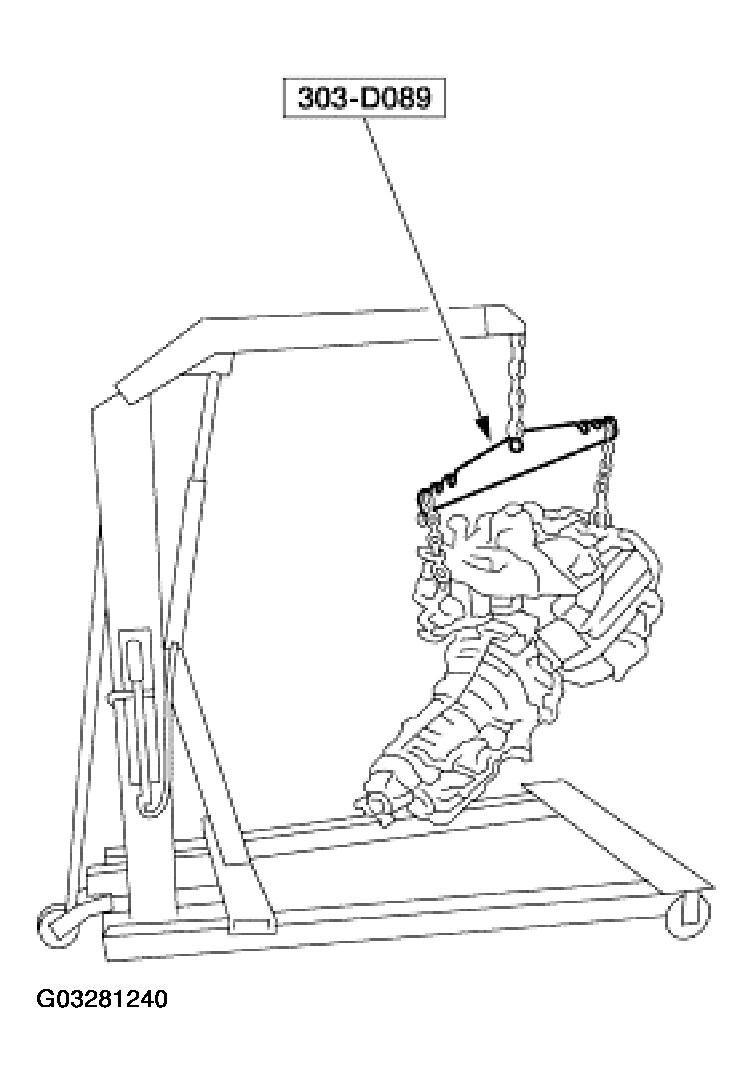

1. Using a floor crane and the special tool, install the engine onto the subframe.

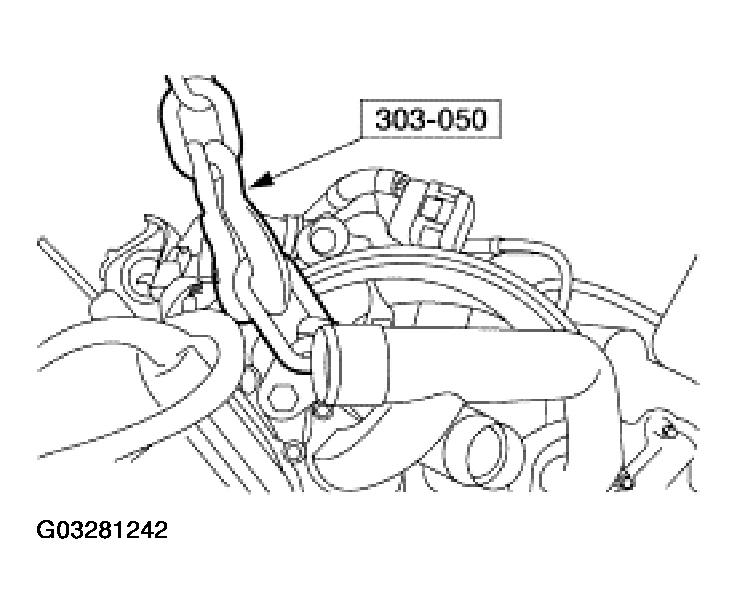

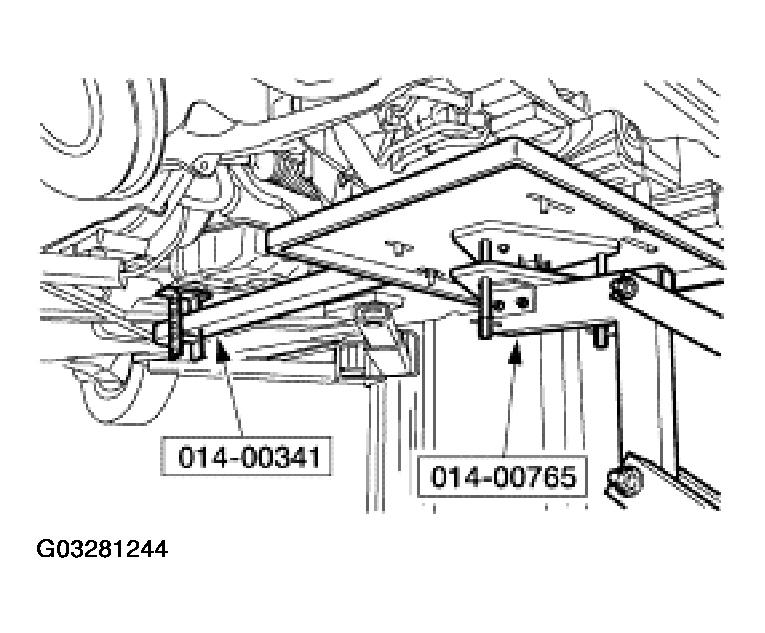

   Fig 16: Installing Engine Onto Subframe

   Courtesy of FORD MOTOR CO.

ITEM 16: ENGINE AND TRANSMISSION ASSEMBLY INSTALLATION NOTE

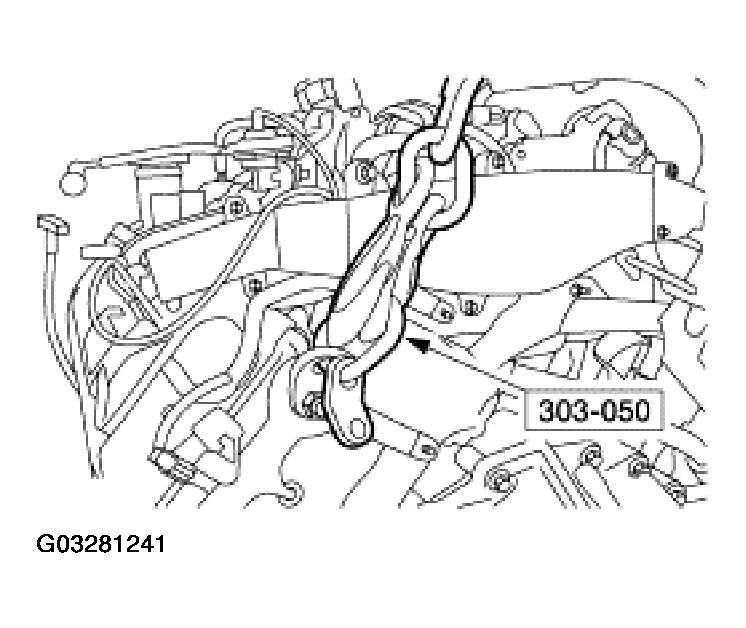

1. Remove the special tool.
   Fig 17: Removing Special Tool (1 Of 2)

   Courtesy of FORD MOTOR CO.
2. Remove the special tool.
   Fig 18: Removing Special Tool (2 Of 2)

   Courtesy of FORD MOTOR CO.

ITEM 26: BLOCK HEATER ELECTRICAL CONNECTOR INSTALLATION NOTE

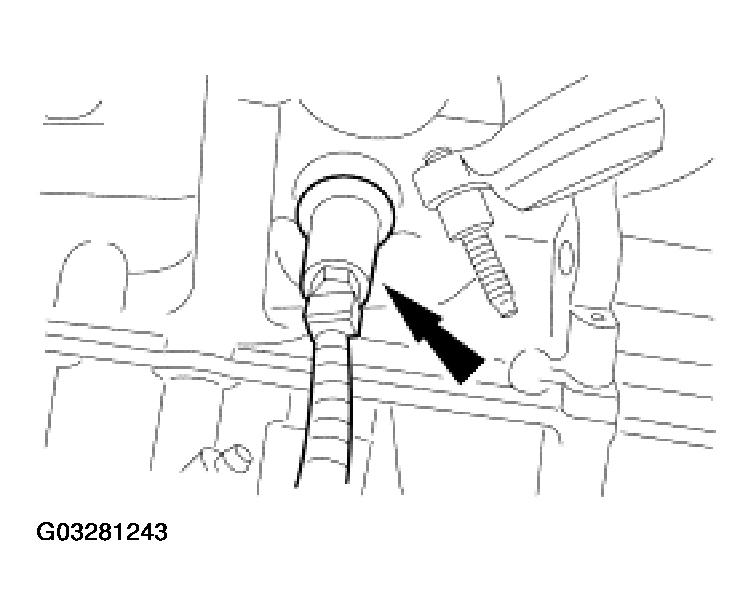

1. Connect the engine block heater electrical connector.
   Fig 19: Connecting Engine Block Heater Electrical Connector

   Courtesy of FORD MOTOR CO.

ITEM 28: ENGINE AND TRANSMISSION ASSEMBLY INSTALLATION NOTE

1. Using the powertrain lift and the transmission support bracket, carefully raise the entire assembly into the vehicle.

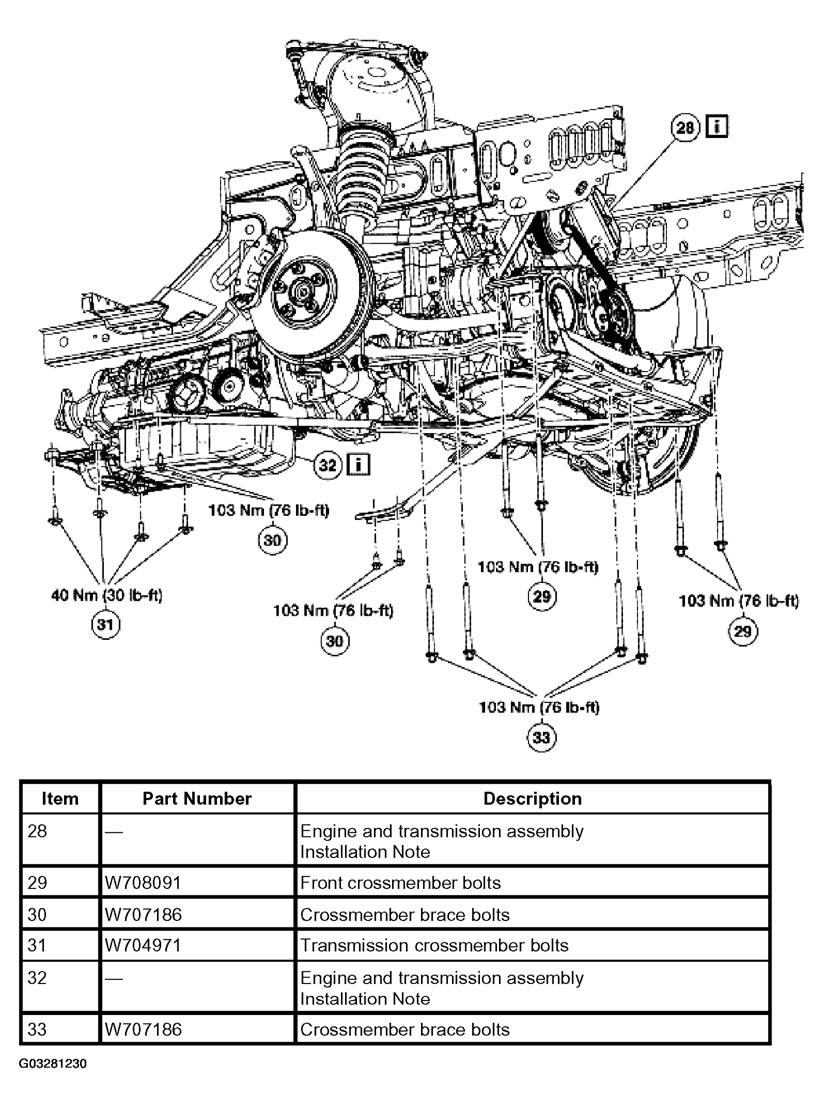

   Fig 20: Lifting Entire Assembly Into The Vehicle

   Courtesy of FORD MOTOR CO.
2. Install the lower air deflector.

ITEM 32: ENGINE AND TRANSMISSION ASSEMBLY INSTALLATION NOTE

1. Remove the safety stands from the rear of the vehicle.

ITEM 49: STEERING RACK ELECTRICAL CONNECTOR INSTALLATION NOTE

1. Connect the power steering rack electrical connectors.

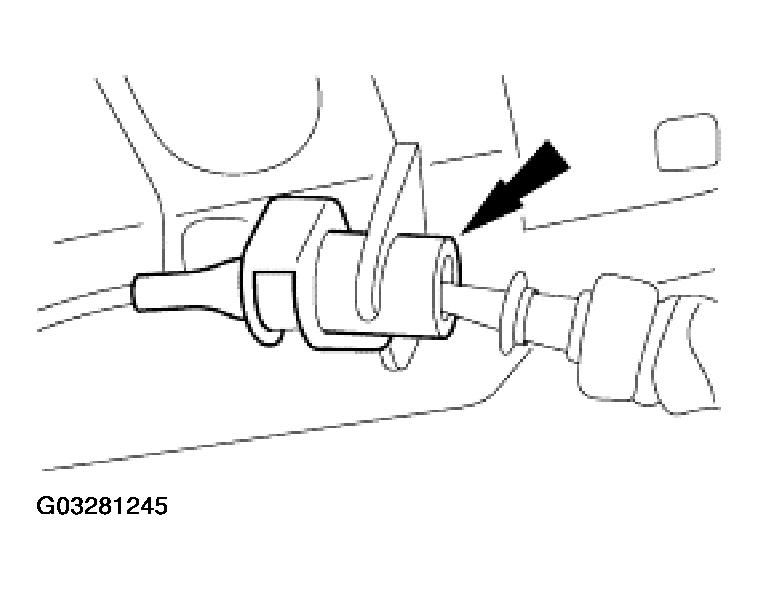

ITEM 50: SHIFT CABLE INSTALLATION NOTE

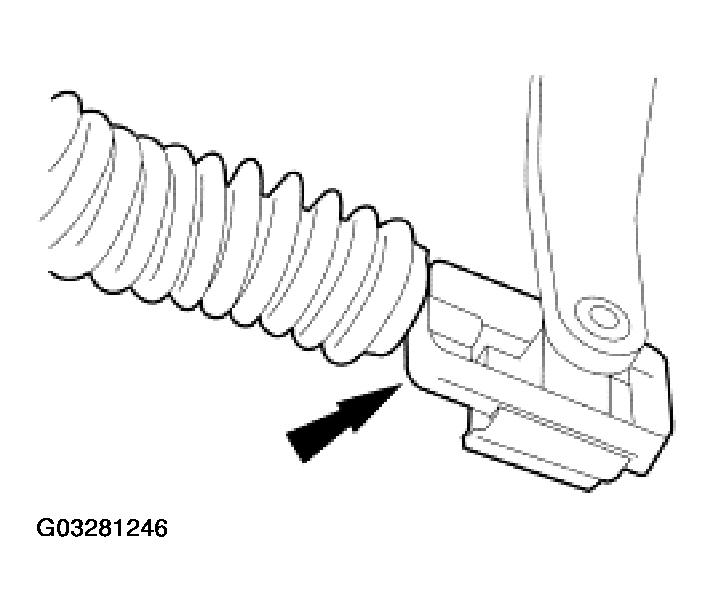

1. Clip the shift cable to the bracket.

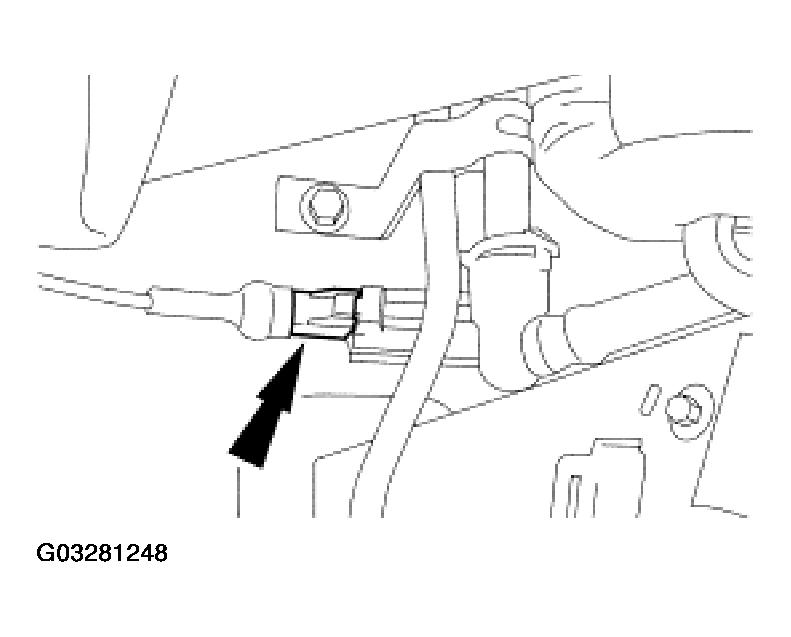

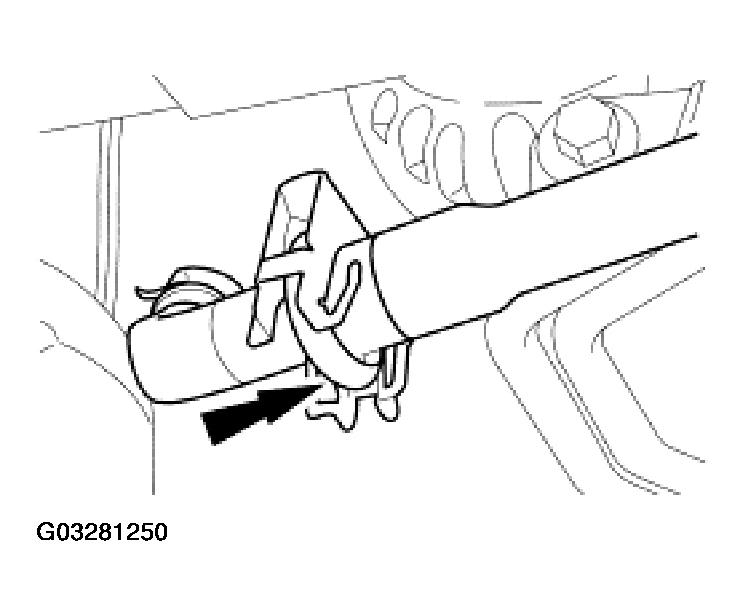

   Fig 21: Clipping Shift Cable To Bracket

   Courtesy of FORD MOTOR CO.

ITEM 51: SHIFT CABLE INSTALLATION NOTE

1. Connect the shift cable to the shifter.
   Fig 22: Connecting Shift Cable To Shifter

   Courtesy of FORD MOTOR CO.

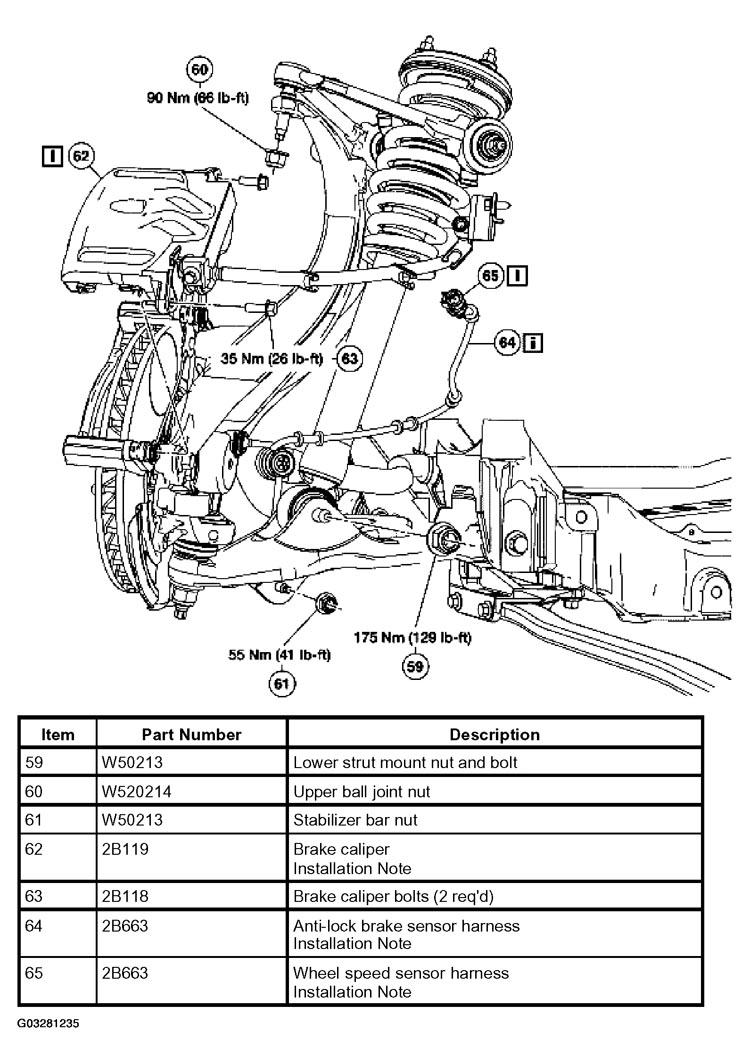

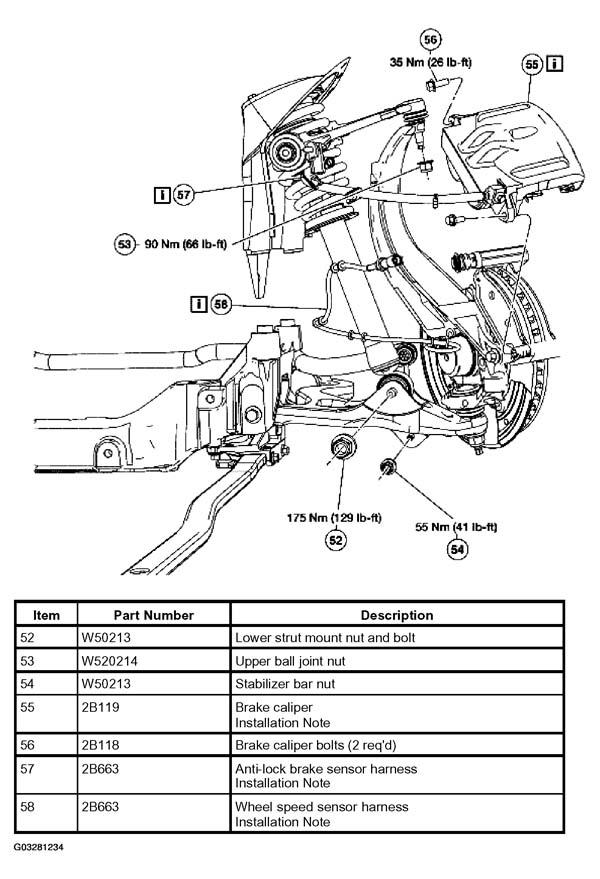

ITEMS 55 AND 62: BRAKE CALIPER INSTALLATION NOTE

1. Install the brake caliper.

ITEMS 57 AND 64: ANTI-LOCK BRAKE SENSOR HARNESS INSTALLATION NOTE

1. Position the anti-lock brake sensor harness and clip to the brake hose.

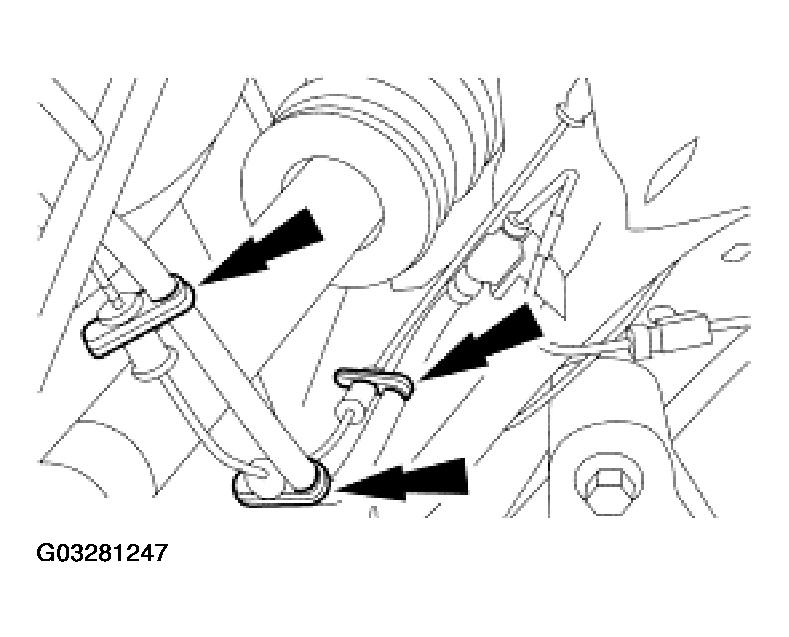

   Fig 23: Positioning Anti-Lock Brake Sensor Harness & Clip To Brake Hose

   Courtesy of FORD MOTOR CO.

ITEMS 58 AND 65: WHEEL SPEED SENSOR HARNESS INSTALLATION NOTE

1. Connect the wheel speed sensor electrical connector.
   Fig 24: Connecting Wheel Speed Sensor Electrical Connector

   Courtesy of FORD MOTOR CO.

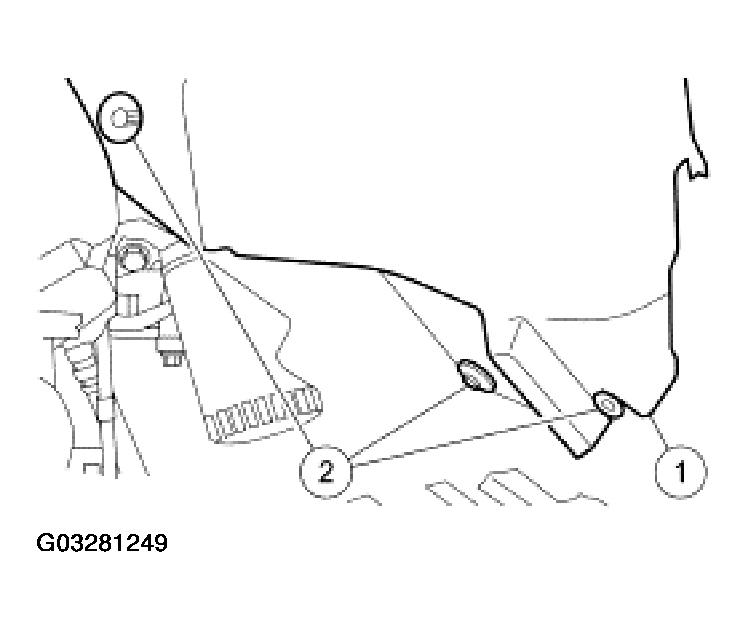

2. Position the inner splash shield aside.
   1. Install the pin-type retainers.
   2. Position the inner splash shield.
      Fig 25: Positioning Inner Splash Shield

      Courtesy of FORD MOTOR CO.

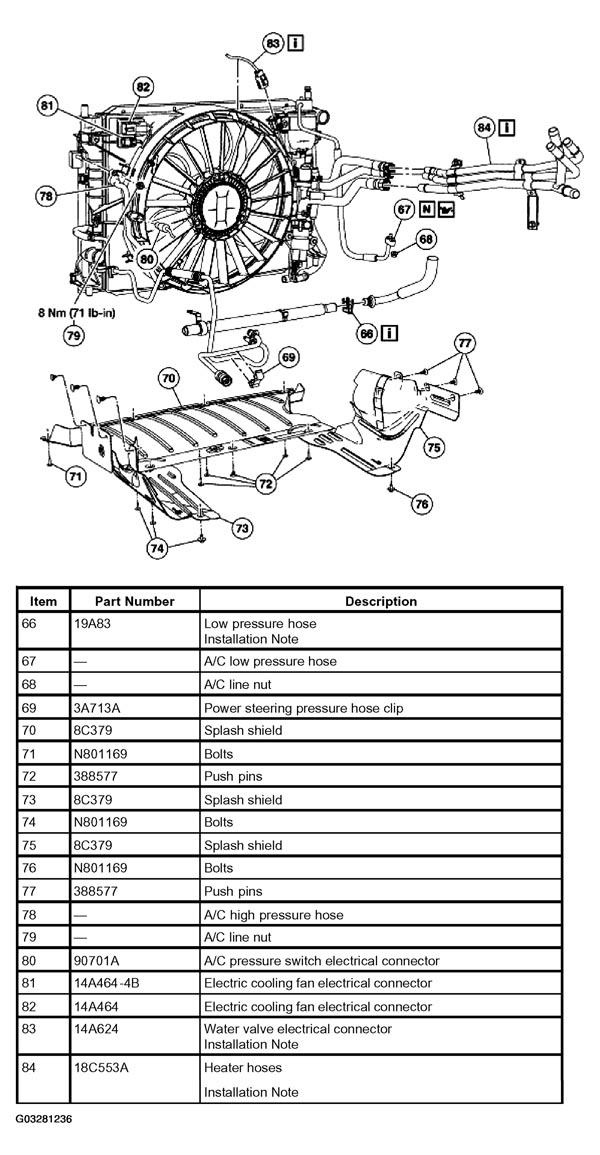

ITEM 66: LOW PRESSURE HOSE INSTALLATION NOTE

1. Connect the A/C low pressure hose.
   Fig 26: Connecting A/C Low Pressure Hose

   Courtesy of FORD MOTOR CO.

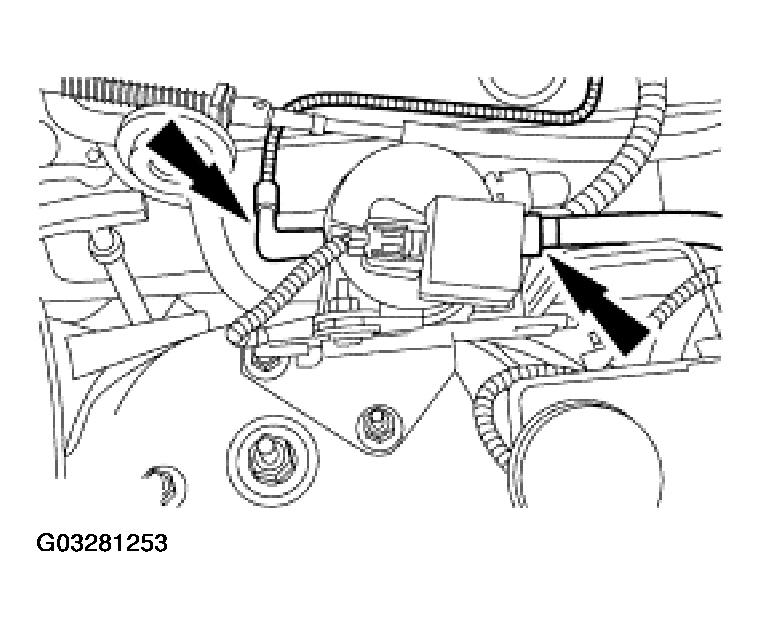

ITEM 83: WATER VALVE ELECTRICAL CONNECTOR INSTALLATION NOTE

1. Clip the harness to the radiator support and connect the water valve electrical connector.

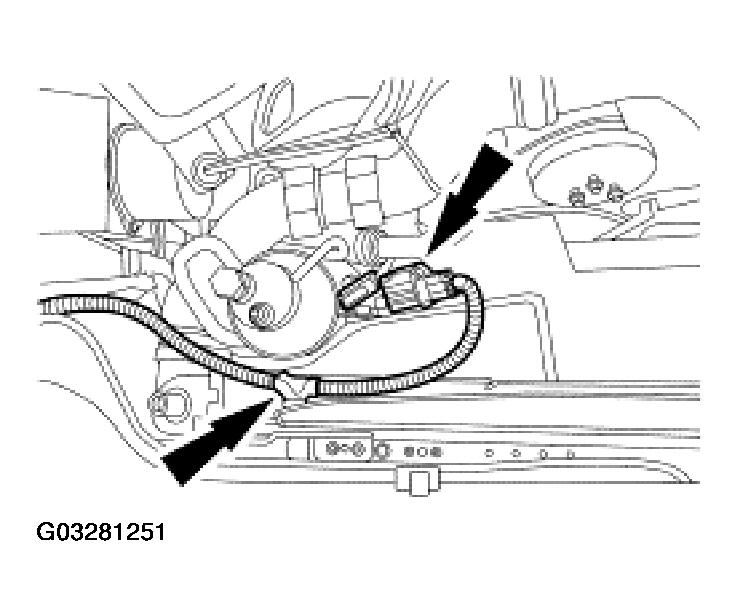

   Fig 27: Clipping Harness To Radiator Support & Connecting Water Valve Electrical Connector

   Courtesy of FORD MOTOR CO.

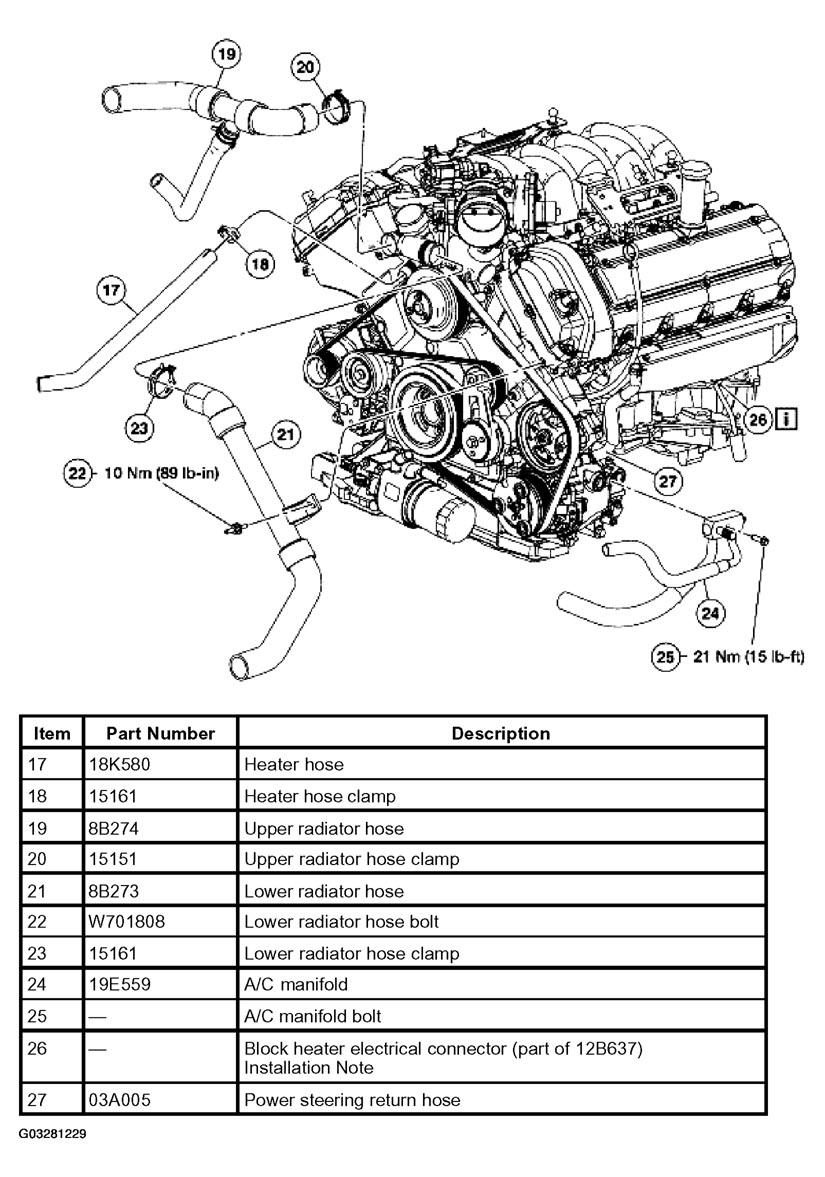

ITEM 84: HEATER HOSE INSTALLATION NOTE

NOTE: Install the hoses to the marks made during the removal process.

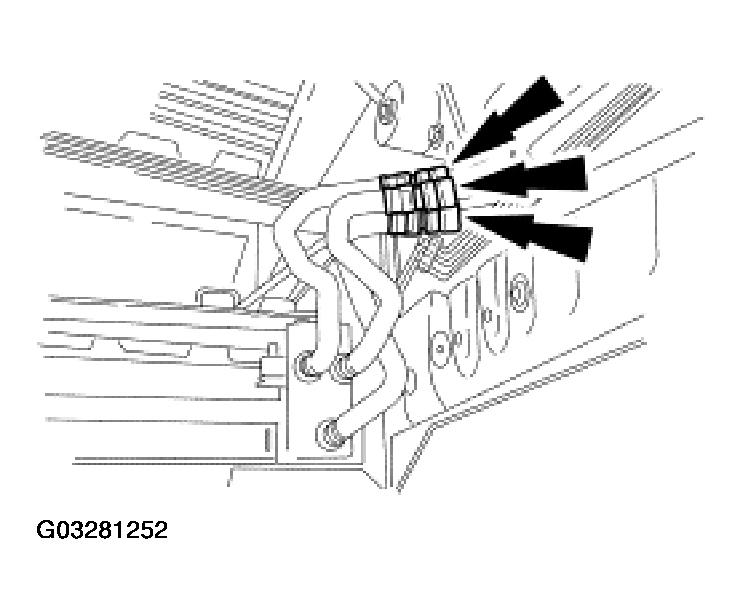

Fig 28: Connecting Three Quick-Disconnect Couplings From Coolant Control Valve Hoses-To-Heater Tube Assembly
Courtesy of FORD MOTOR CO.
1. Connect the three quick-disconnect couplings from the coolant control valve hoses to the heater tube assembly. For additional information, refer to CLIMATE CONTROL SYSTEM .

ITEM 90: VAPOR TUBE INSTALLATION NOTE

1. Connect the vapor tube to the vapor management valve (VMV).
   Fig 29: Connecting Vapor Tube-To-Vapor Management Valve (VMV)

   Courtesy of FORD MOTOR CO.

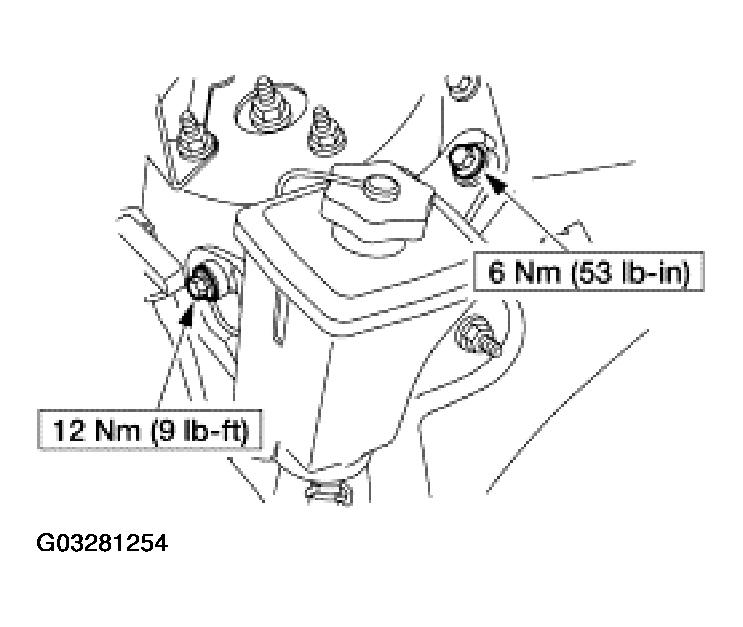

ITEM 91: POWER STEERING PUMP RESERVOIR BOLTS INSTALLATION NOTE

1. Position back the power steering pump reservoir and install the bolts.
   Fig 30: Positioning Back Power Steering Pump Reservoir

   Courtesy of FORD MOTOR CO.
