Multifunction Switch, Wiper/Washer Portion: Schematic

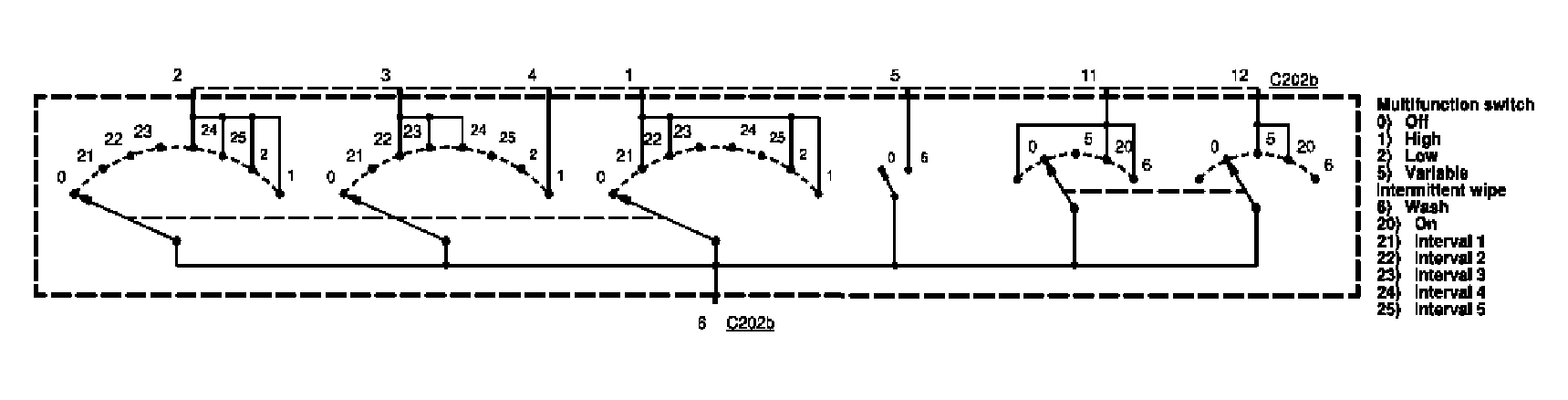

Fig 1: Multifunction Switch Schematic (Wiper/Washer Portion)

G03987510

Courtesy of FORD MOTOR CO.
