Home >> Ford >> 2005 >> Expedition RWD >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Removal And Installation >> Starter Motor >> Notes

Starter Motor: Notes

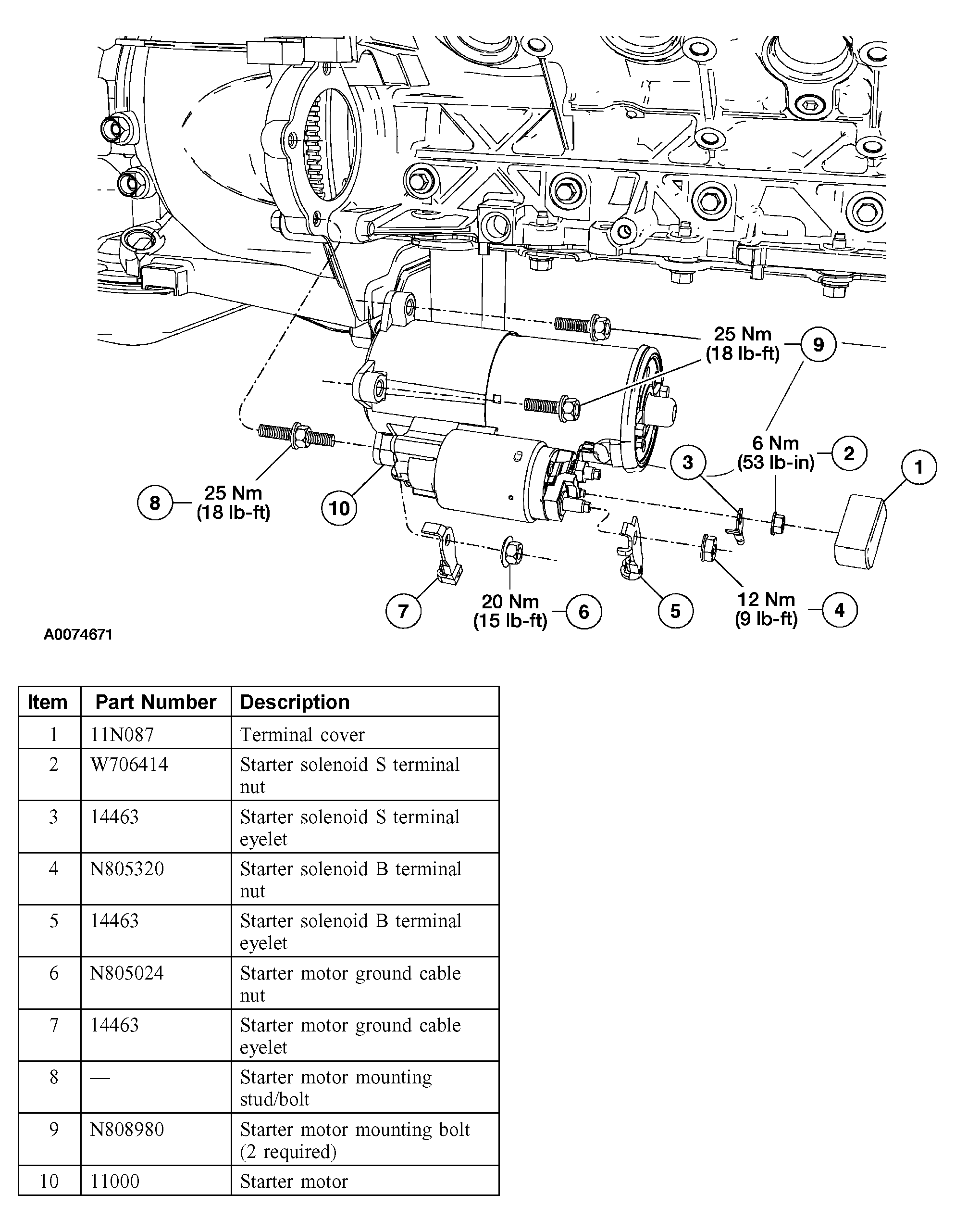

Fig 1: Exploded View Of Starter Motor

G03929064

Courtesy of FORD MOTOR CO.
