Home >> Ford >> 2005 >> Expedition RWD >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine >> In-Vehicle Repair >> Intake Manifold >> Material

Intake Manifold: Material

MATERIAL SPECIFICATIONS

Item Specification
Metal Surface Prep ZC-31 -
Silicone Gasket Remover ZC-30 -

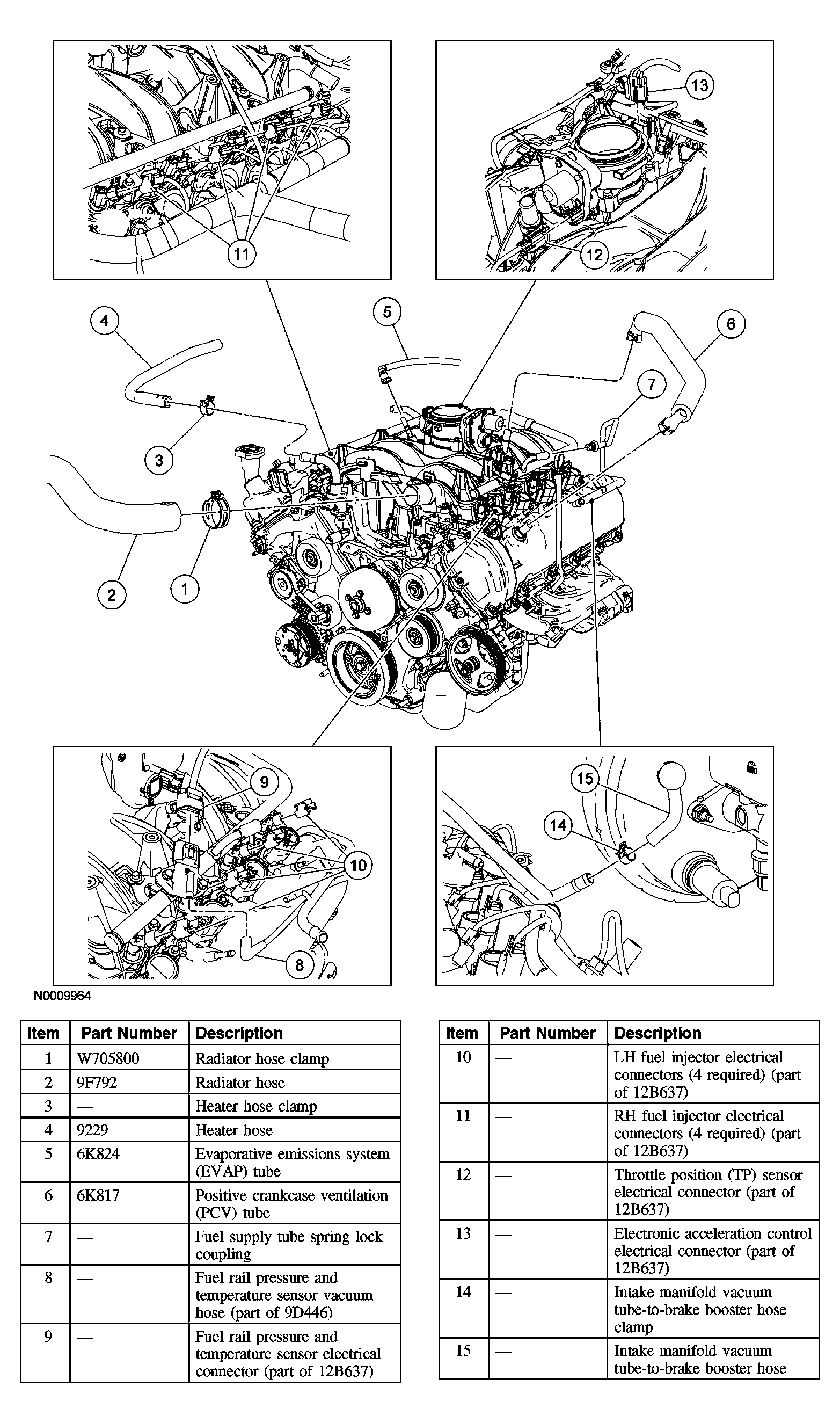

Fig 1: Exploded View Of Intake Manifold (Items 1-15)
G03933344Courtesy of FORD MOTOR CO.

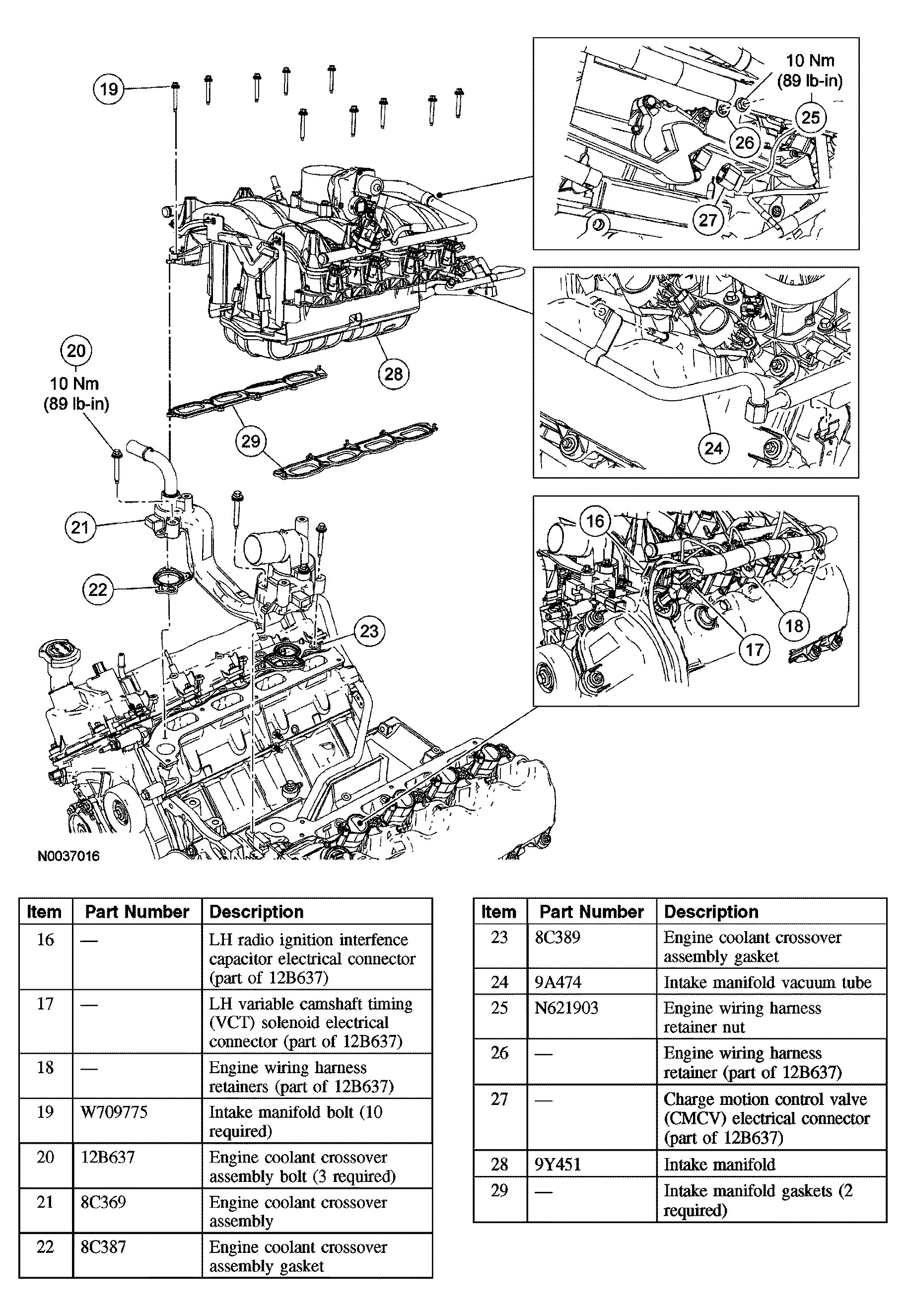

Fig 2: Exploded View Of Intake Manifold (Items 16-29)
G03933345Courtesy of FORD MOTOR CO.
