Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component	Location

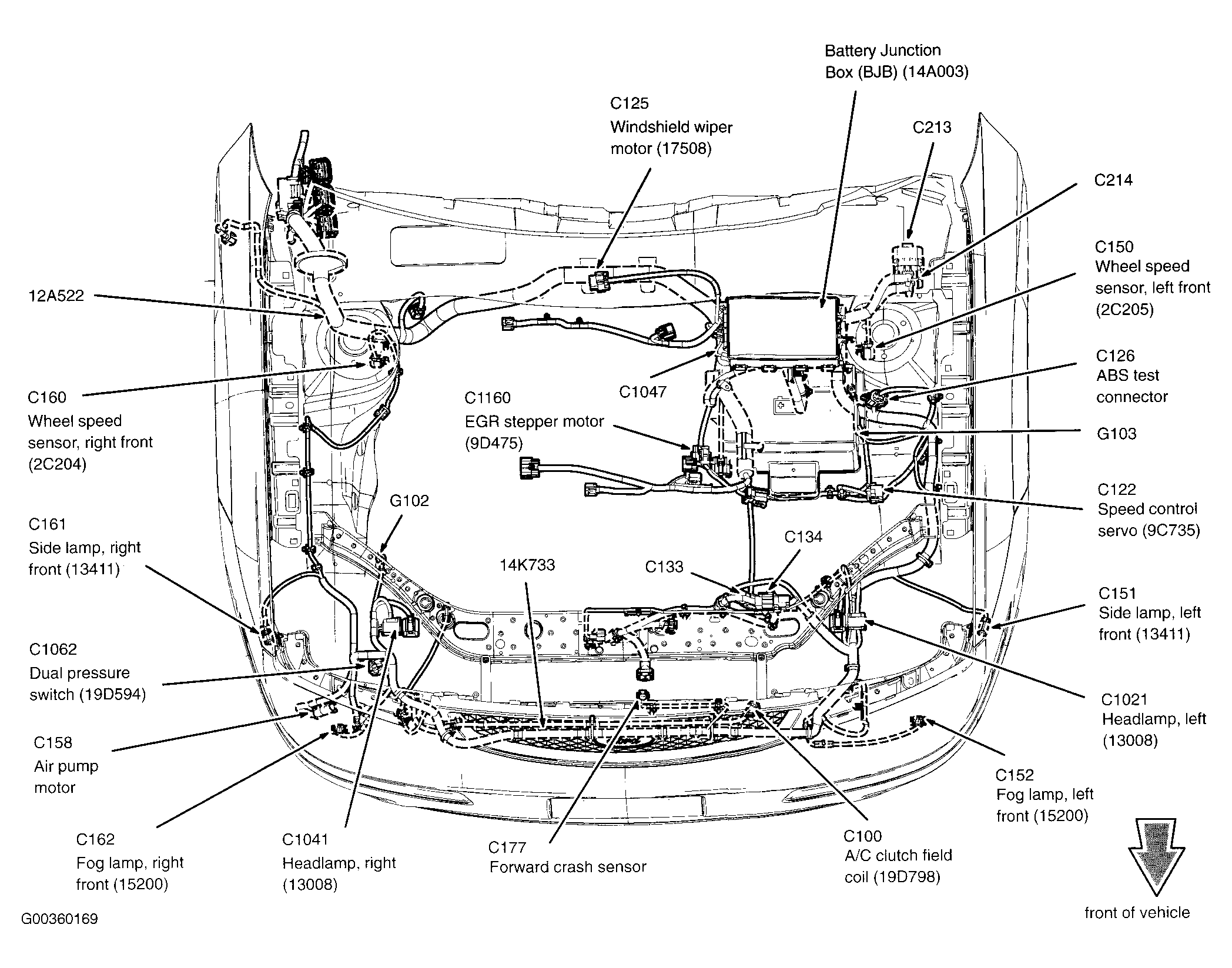

Battery Junction Box (BJB)	In left rear corner of engine compartment. See Figure .

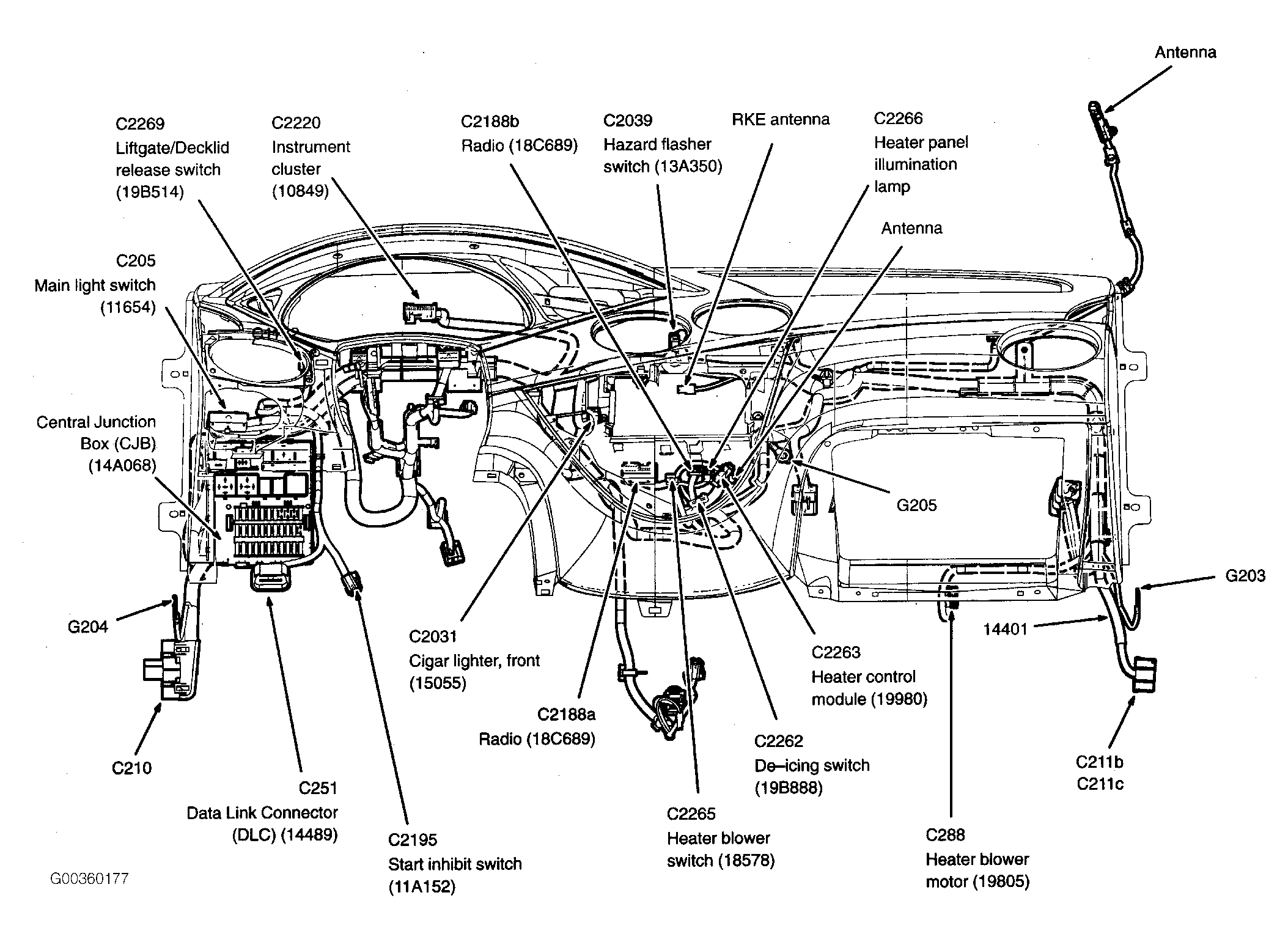

Central Junction Box (CJB)	Behind left side of dash. See Figure .
